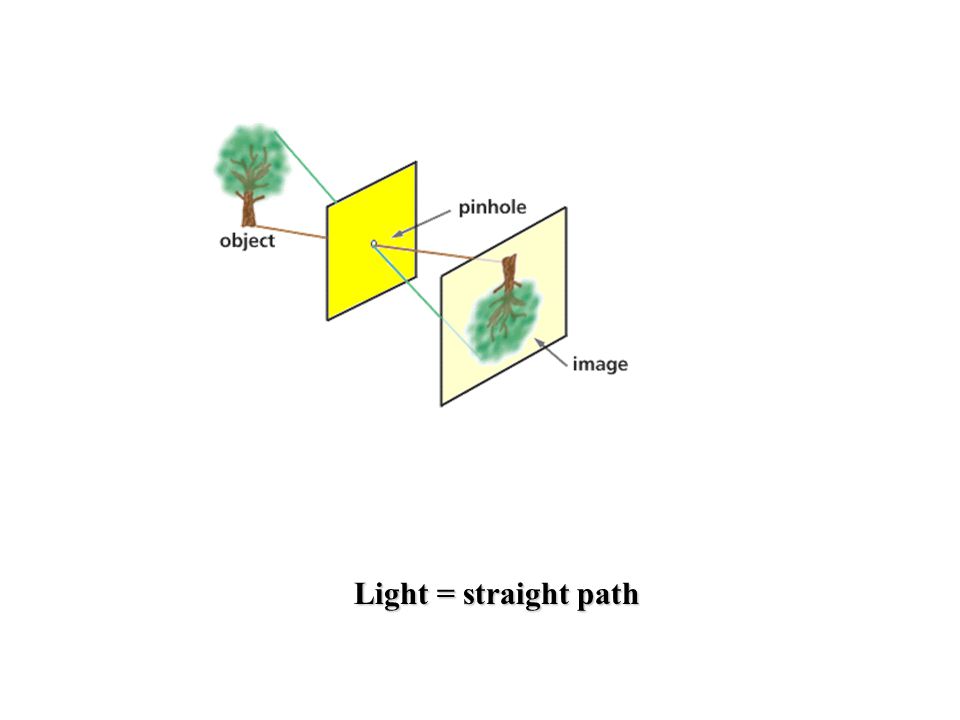

Light = straight path

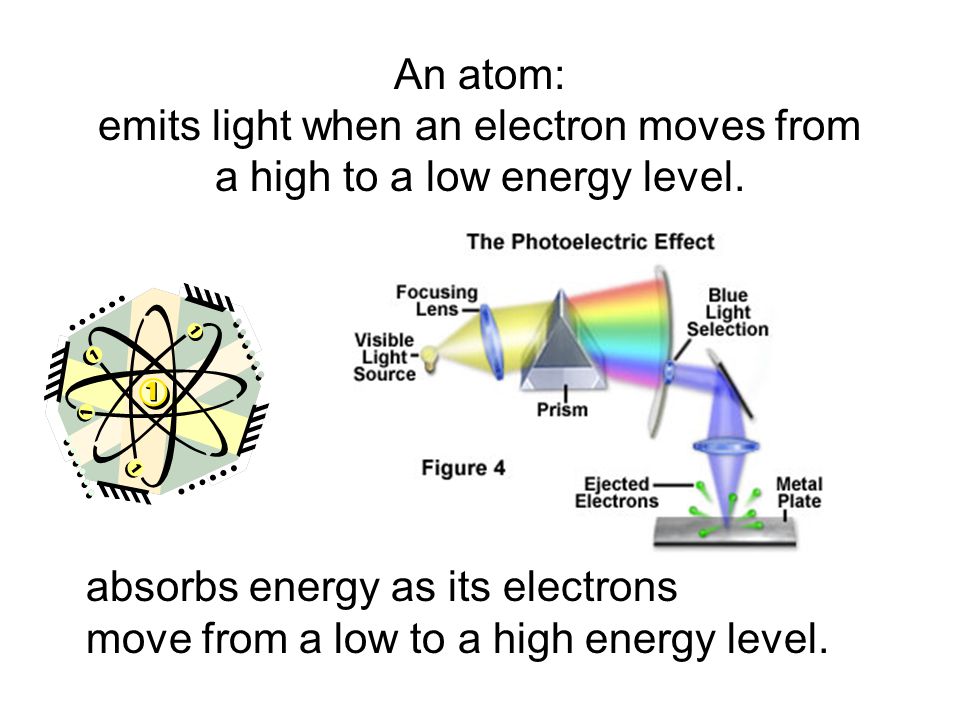

An atom: emits light when an electron moves from a high to a low energy level. absorbs energy as its electrons move from a low to a high energy level.
The three primary colors of light are red, green, and blue.
The three primary pigment colors are: magenta, cyan, and yellow.

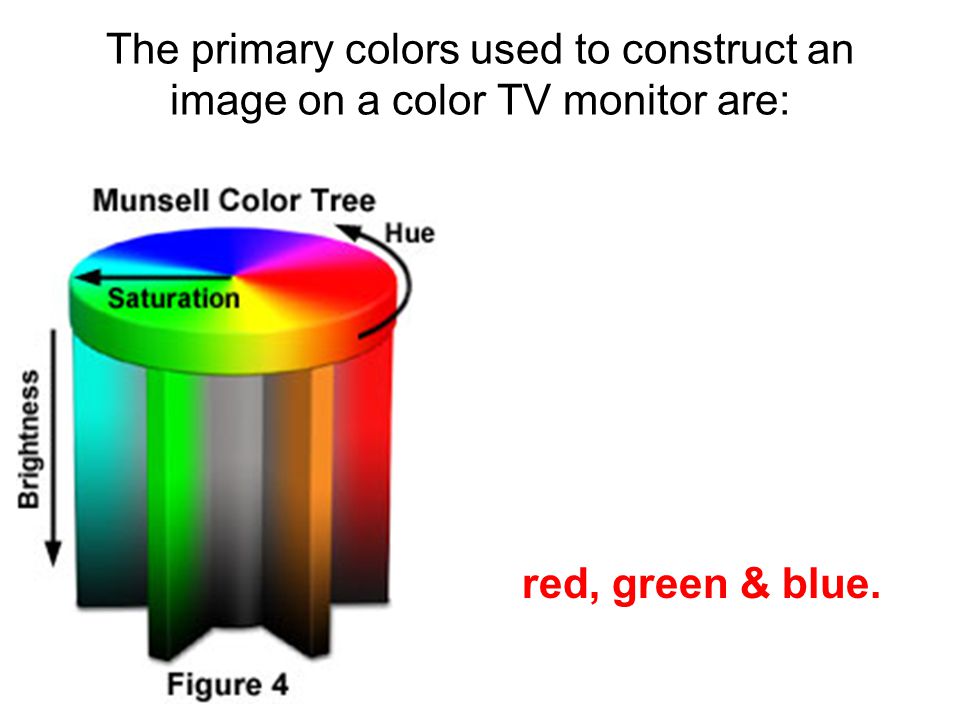

The primary colors used to construct an image on a color TV monitor are: red, green & blue.
Light can have different colors because it can have different: frequencies, wavelengths and energies

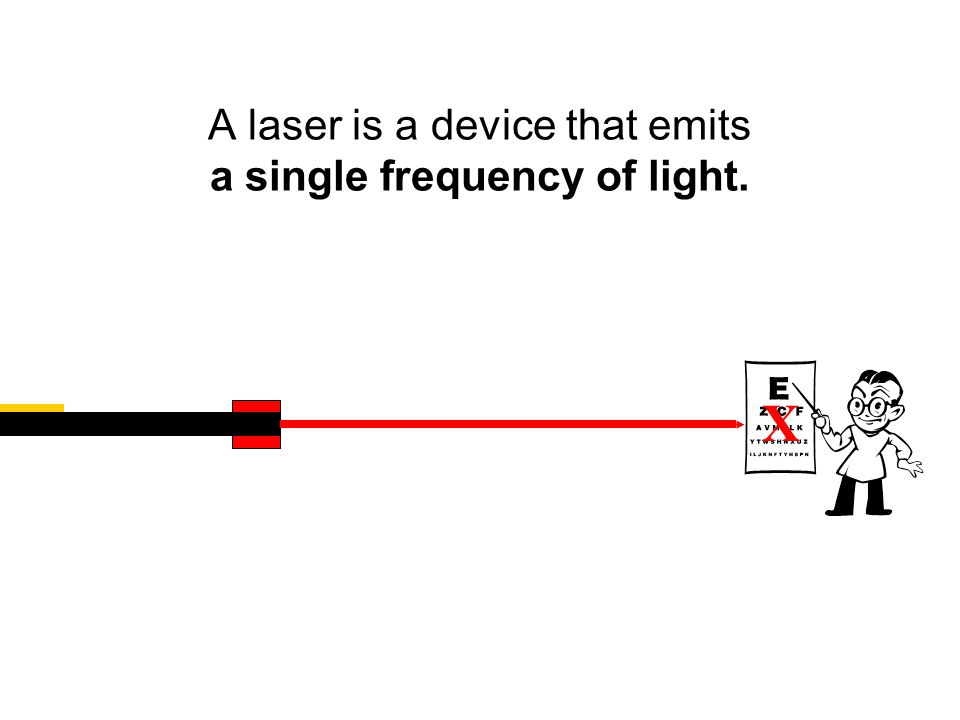

A laser is a device that emits a single frequency of light. X

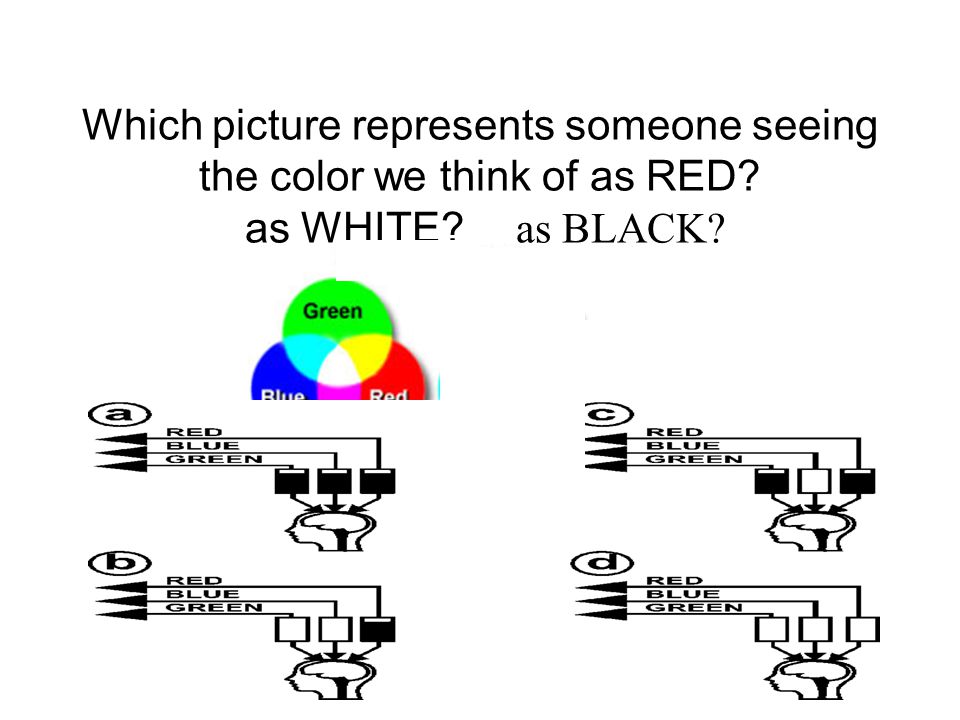

The pictures represent the strength of signals reaching the brain from the color receptors in the eye. Filled boxes indicate a strong signal. Empty boxes represent no signal. NEXT
Which picture represents someone seeing the color we think of as RED? as WHITE? as BLACK?
B = red A = white D = Black

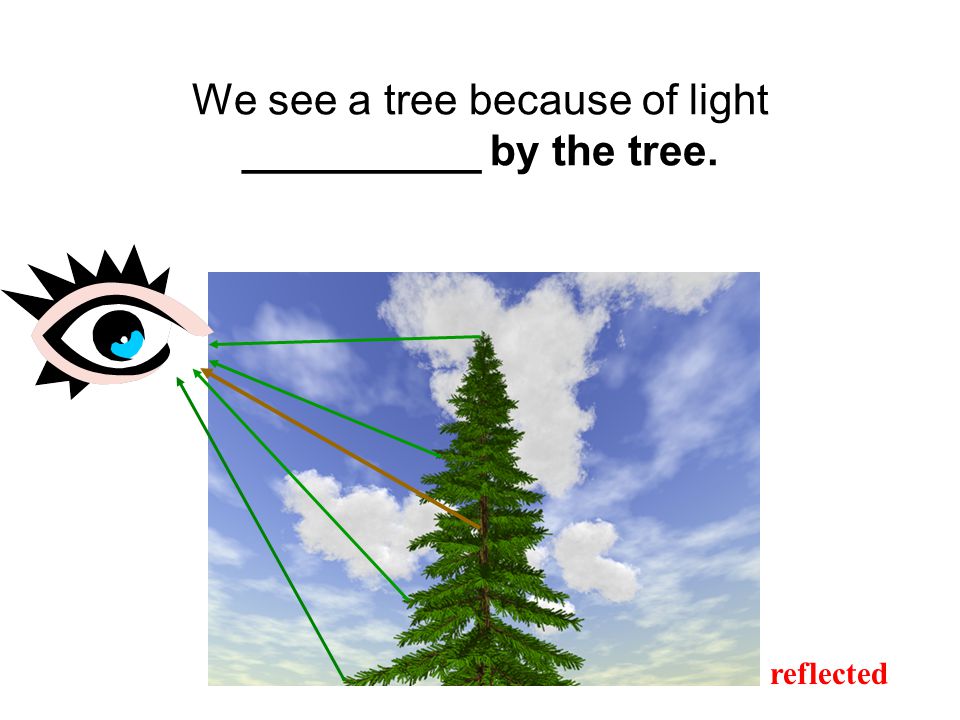

We see a tree because of light __________ by the tree. reflected
Why is this cloth blue? The cloth absorbs all colors except blue; reflects only blue light to our eyes.
Filters absorb some colors & transmit others as light passes If white light through a red filter the filter allows the passage of Absorbs all the colors except red….red passes through
If a laser printer mixes yellow & magenta pigment on the paper, it produces: red

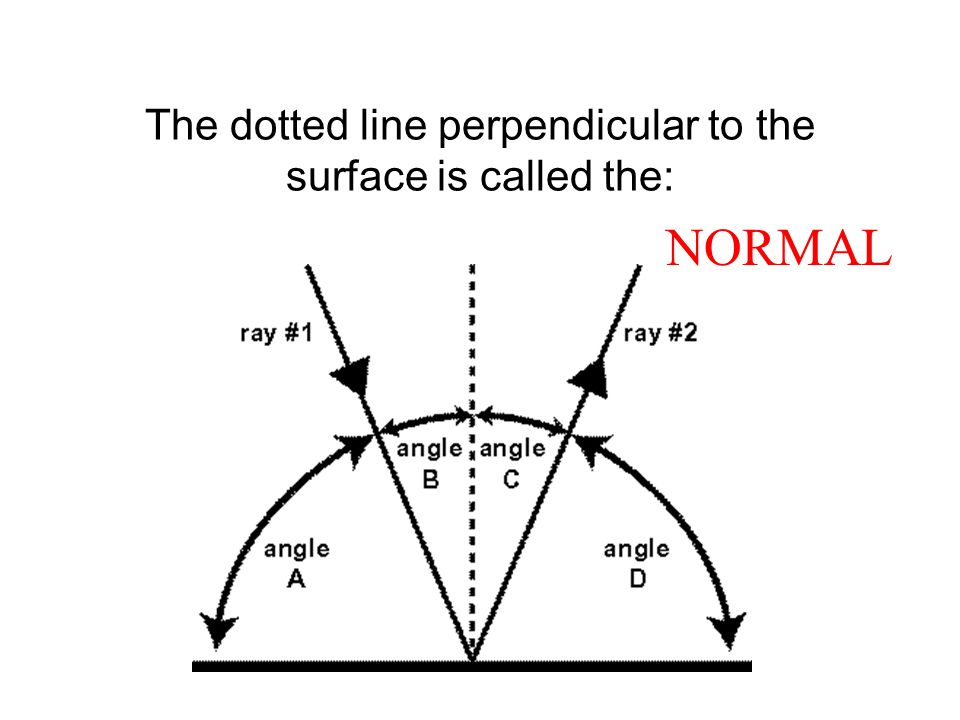

The dotted line perpendicular to the surface is called the: NORMAL
The angle of incidence is identified as: B

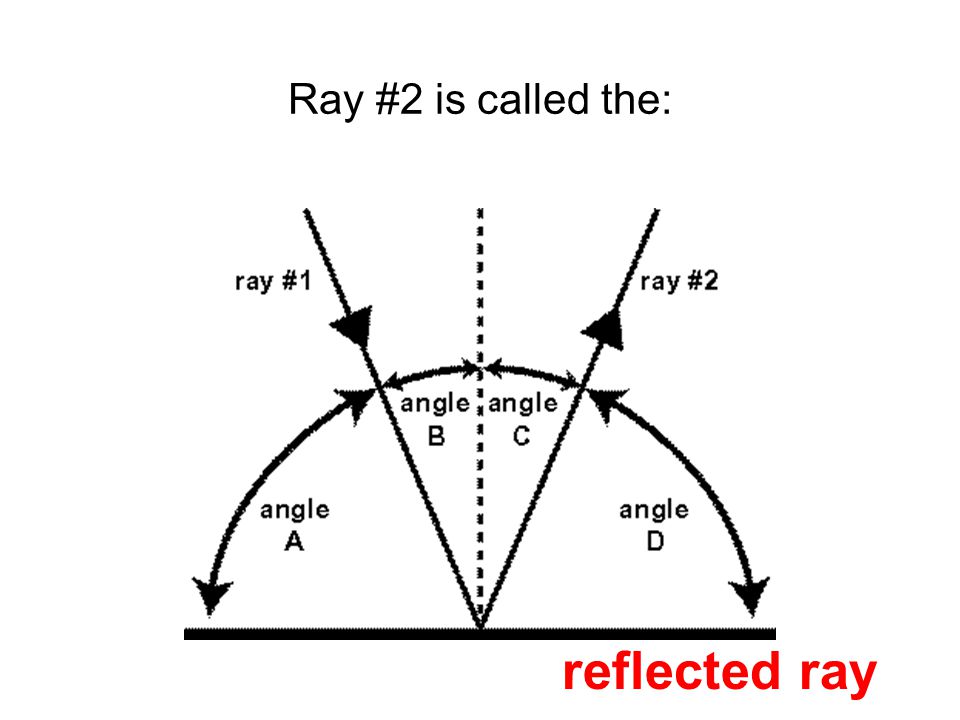

Ray #2 is called the: reflected ray
A converging lens changes the direction of light through the process of: refraction

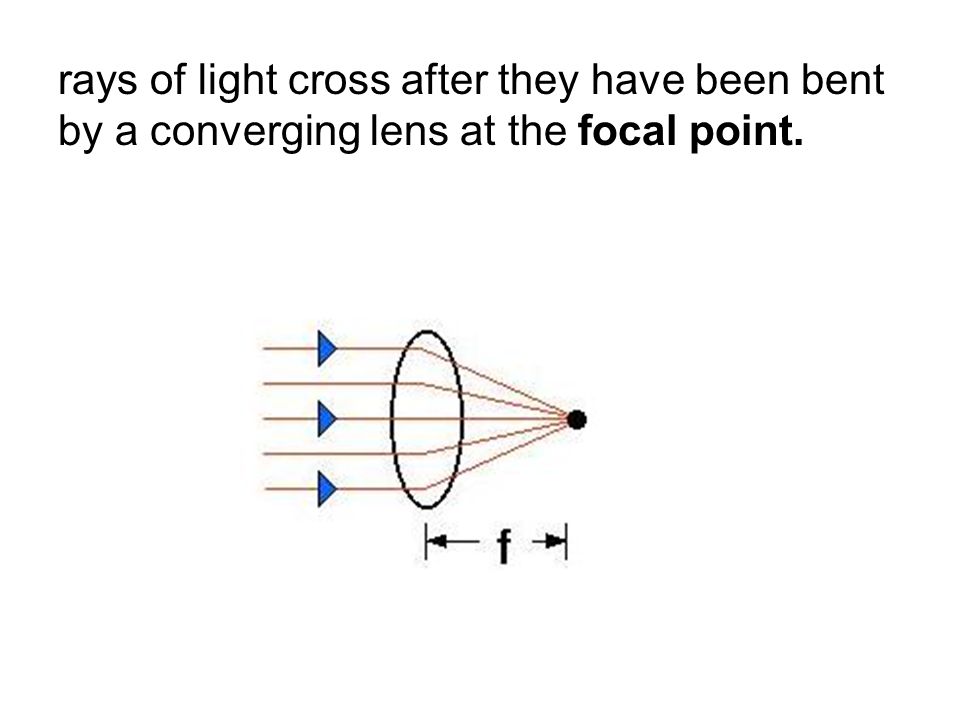

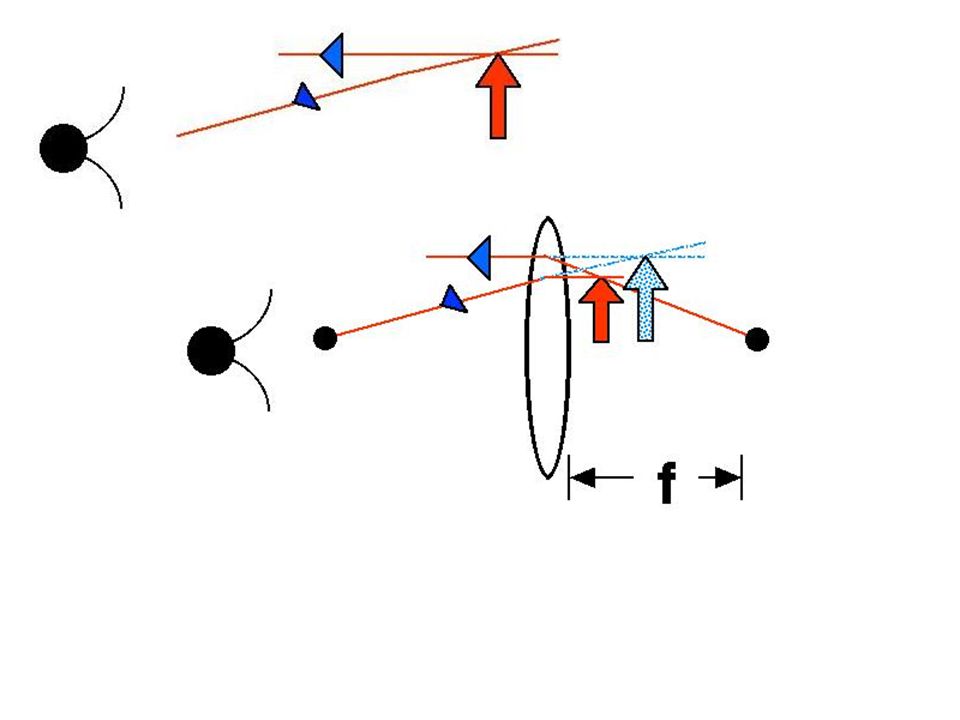

rays of light cross after they have been bent by a converging lens at the focal point.
In the picture below, the person sees the fish image in a different location than the actual fish because: The light rays reflected from the fish bend at the surface of the water.

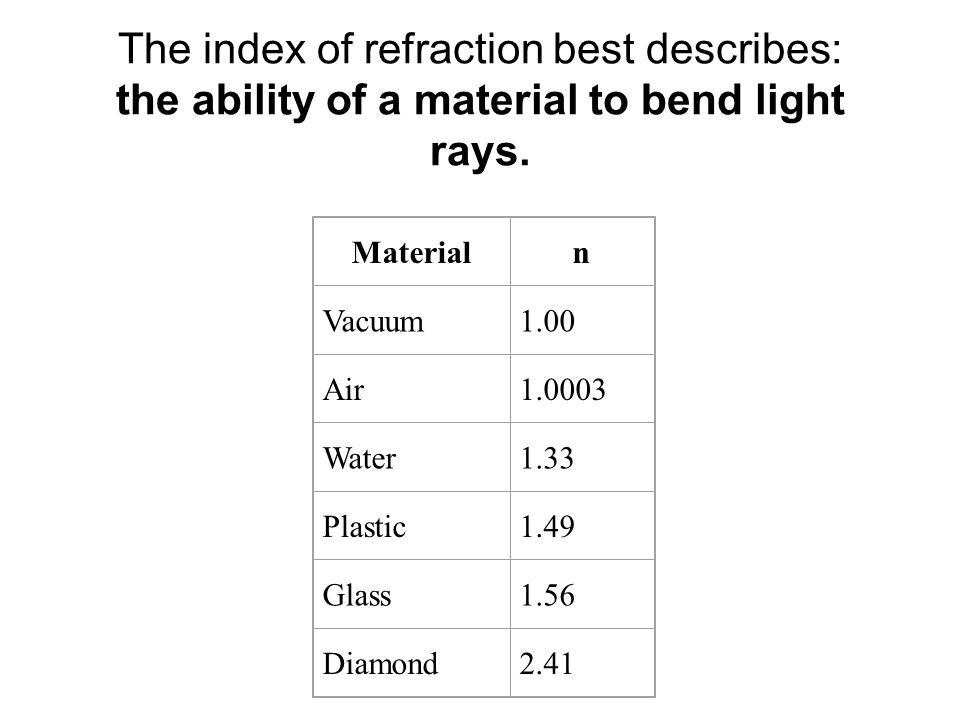

The index of refraction best describes: the ability of a material to bend light rays. Materialn Vacuum1.00 Air1.0003 Water1.33 Plastic1.49 Glass1.56 Diamond2.41
A light ray strikes a lens parallel to the axis of the lens. Which of the following rays best represents the path of the light ray as it leaves the lens? Ray a
The human focuses on objects that are near & far away because: the lens changes shape

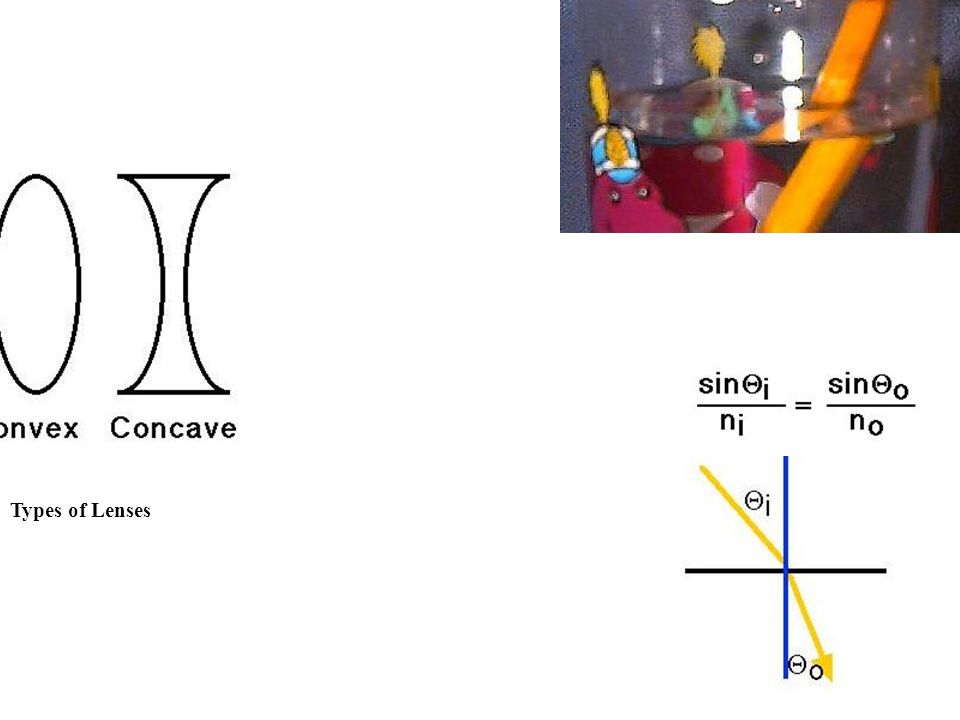

Types of Lenses
A fiber optic, (or light pipe) traps and transmits light inside its core as pictured in the diagram. The light is trapped because of total internal reflection.
