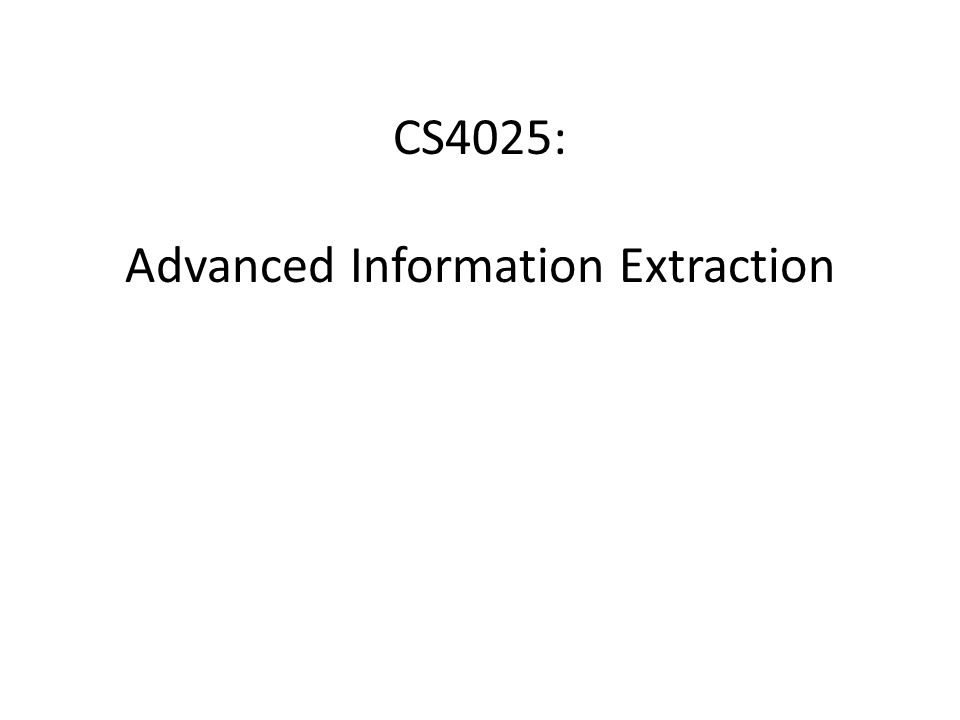

1. CS4025: Advanced Information Extraction

2. Overview CS4025, Department of Computing Science, University of Aberdeen 2 Overview of aspects of IE and General Architecture for Text Engineering (GATE) Examples

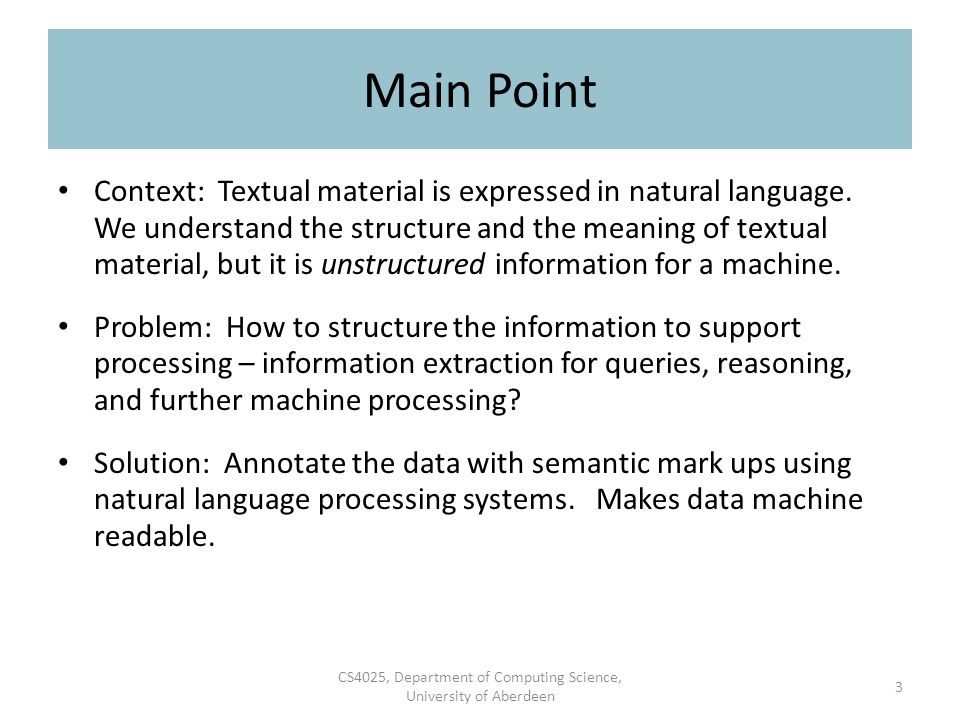

3. Main Point CS4025, Department of Computing Science, University of Aberdeen 3 Context: Textual material is expressed in natural language. We understand the structure and the meaning of textual material, but it is unstructured information for a machine. Problem: How to structure the information to support processing – information extraction for queries, reasoning, and further machine processing? Solution: Annotate the data with semantic mark ups using natural language processing systems. Makes data machine readable.

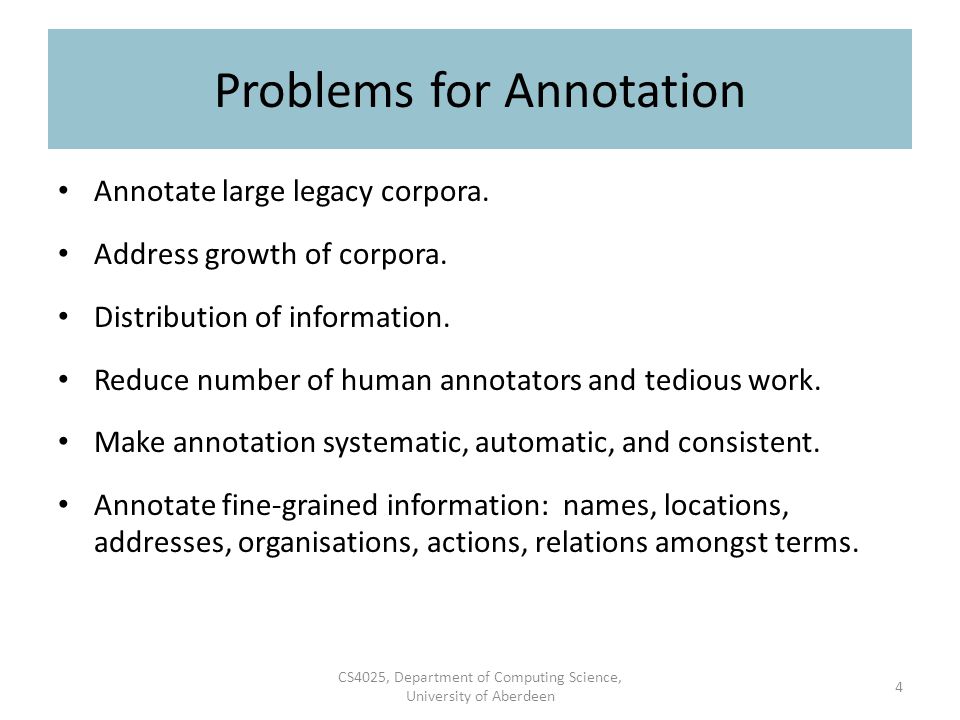

4. Problems for Annotation Annotate large legacy corpora. Address growth of corpora. Distribution of information. Reduce number of human annotators and tedious work. Make annotation systematic, automatic, and consistent. Annotate fine-grained information: names, locations, addresses, organisations, actions, relations amongst terms. CS4025, Department of Computing Science, University of Aberdeen 4

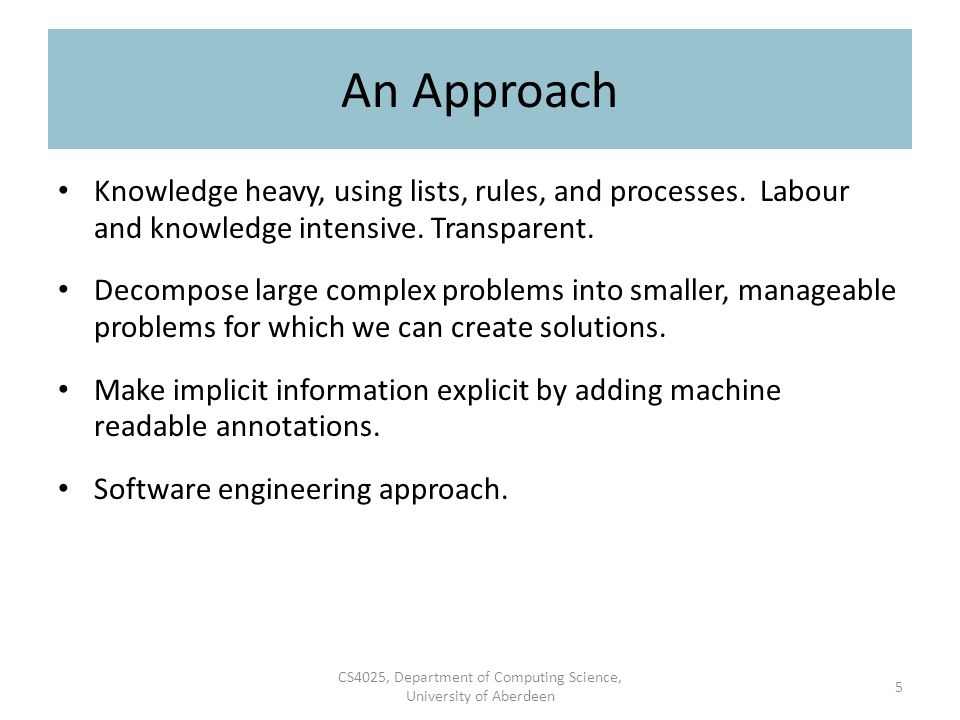

5. An Approach Knowledge heavy, using lists, rules, and processes. Labour and knowledge intensive. Transparent. Decompose large complex problems into smaller, manageable problems for which we can create solutions. Make implicit information explicit by adding machine readable annotations. Software engineering approach. CS4025, Department of Computing Science, University of Aberdeen 5

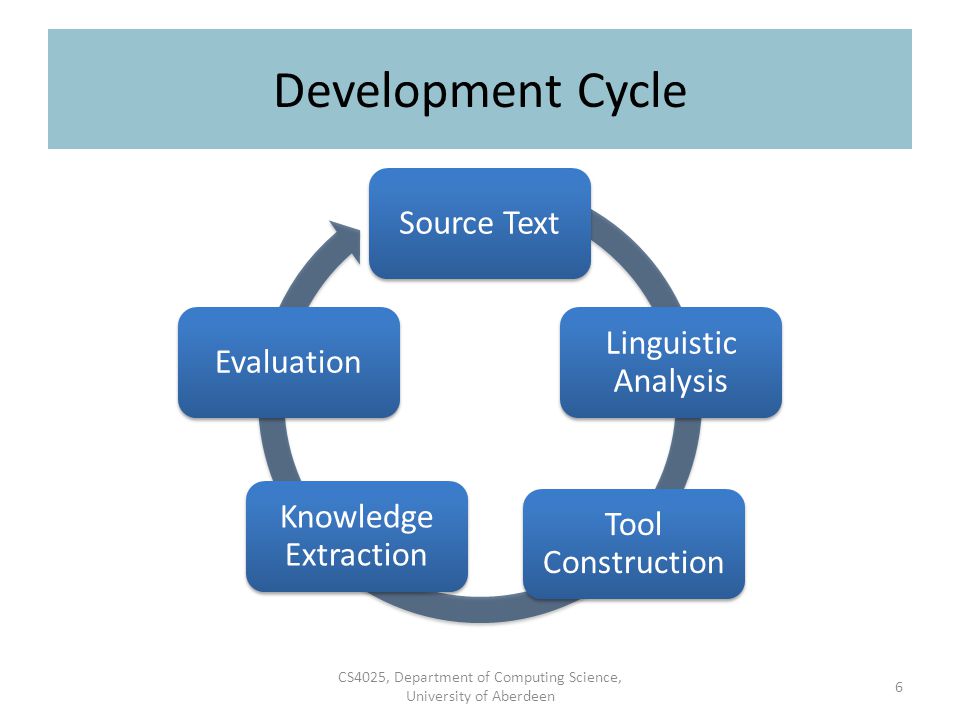

6. Development Cycle Source Text Linguistic Analysis Tool Construction Knowledge Extraction Evaluation CS4025, Department of Computing Science, University of Aberdeen 6

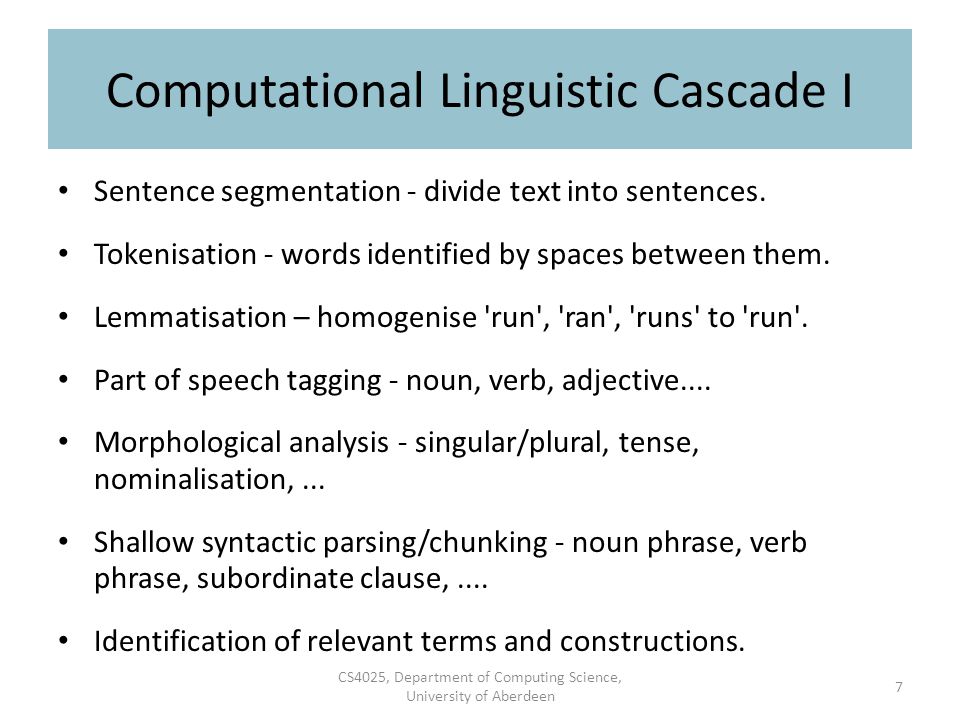

7. Computational Linguistic Cascade I Sentence segmentation - divide text into sentences. Tokenisation - words identified by spaces between them. Lemmatisation – homogenise 'run', 'ran', 'runs' to 'run'. Part of speech tagging - noun, verb, adjective.... Morphological analysis - singular/plural, tense, nominalisation,... Shallow syntactic parsing/chunking - noun phrase, verb phrase, subordinate clause,.... Identification of relevant terms and constructions. CS4025, Department of Computing Science, University of Aberdeen 7

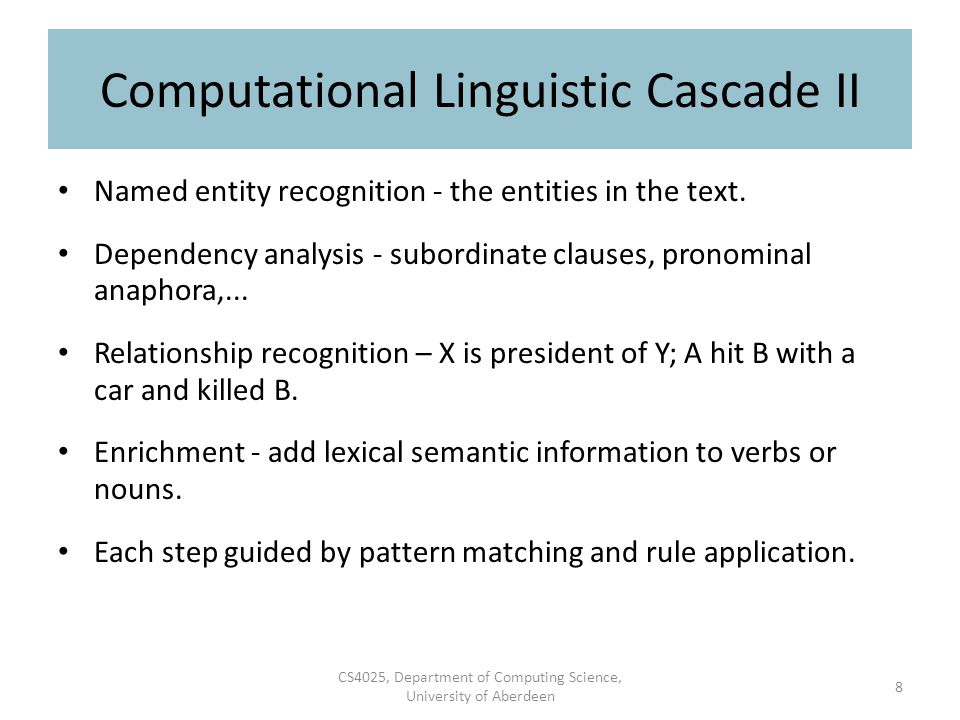

8. Computational Linguistic Cascade II Named entity recognition - the entities in the text. Dependency analysis - subordinate clauses, pronominal anaphora,... Relationship recognition – X is president of Y; A hit B with a car and killed B. Enrichment - add lexical semantic information to verbs or nouns. Each step guided by pattern matching and rule application. CS4025, Department of Computing Science, University of Aberdeen 8

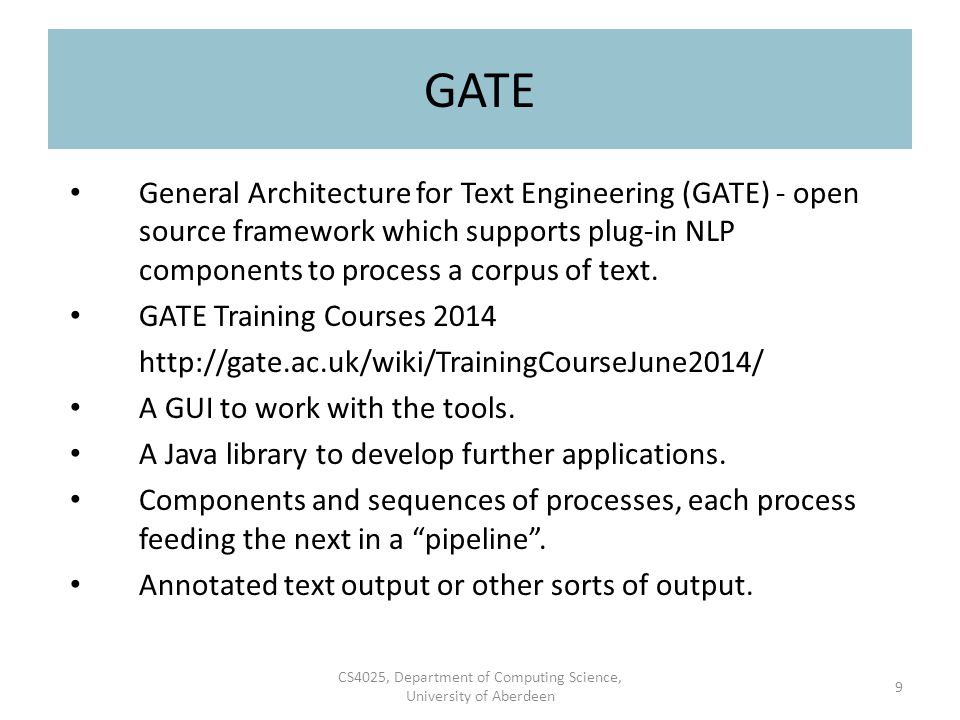

9. GATE General Architecture for Text Engineering (GATE) - open source framework which supports plug-in NLP components to process a corpus of text. GATE Training Courses 2014 http://gate.ac.uk/wiki/TrainingCourseJune2014/ A GUI to work with the tools. A Java library to develop further applications. Components and sequences of processes, each process feeding the next in a “pipeline”. Annotated text output or other sorts of output. CS4025, Department of Computing Science, University of Aberdeen 9

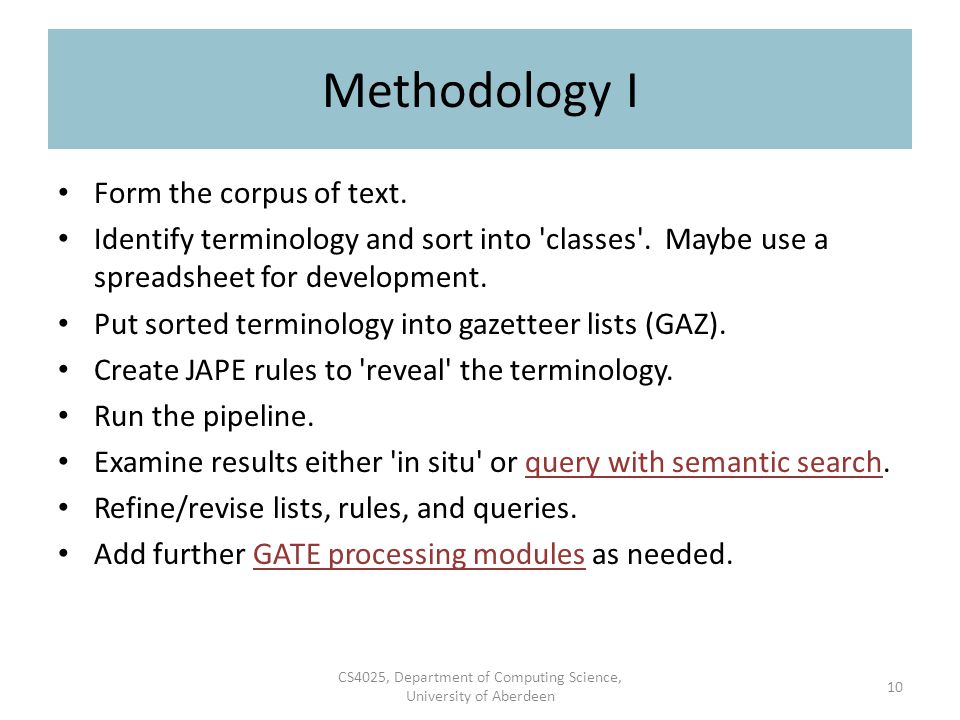

10. Methodology I Form the corpus of text. Identify terminology and sort into 'classes'. Maybe use a spreadsheet for development. Put sorted terminology into gazetteer lists (GAZ). Create JAPE rules to 'reveal' the terminology. Run the pipeline. Examine results either 'in situ' or query with semantic search. Refine/revise lists, rules, and queries. Add further GATE processing modules as needed. CS4025, Department of Computing Science, University of Aberdeen 10

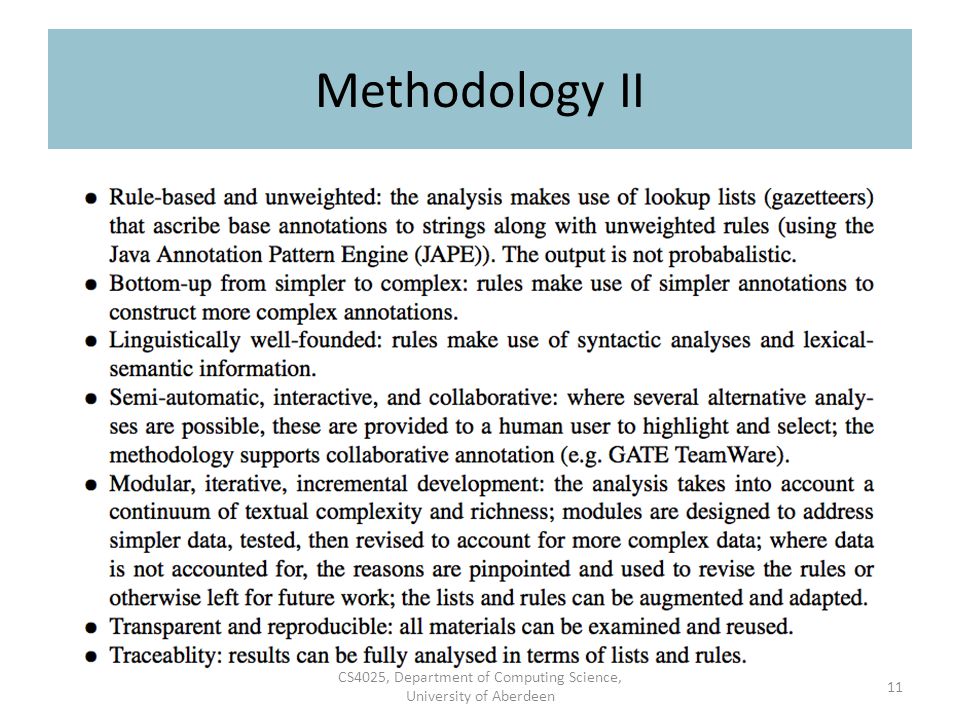

11. Methodology II CS4025, Department of Computing Science, University of Aberdeen 11

12. Basic Process Flow CS4025, Department of Computing Science, University of Aberdeen 12

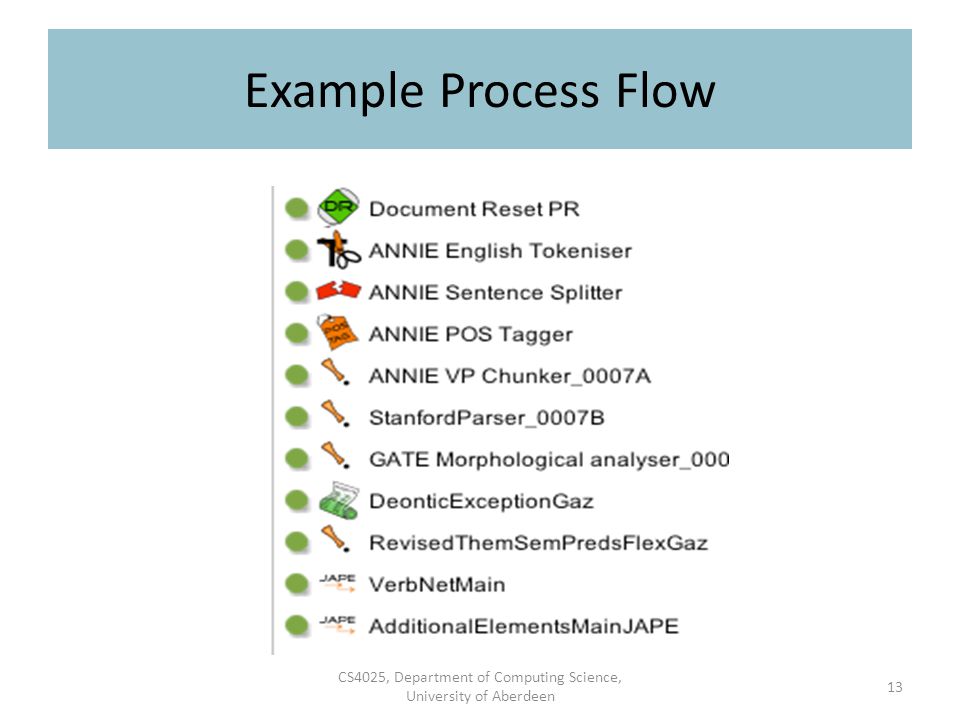

13. Example Process Flow CS4025, Department of Computing Science, University of Aberdeen 13

14. Gazetteers Gazetteers are lookup lists that add features - when a string in the text is located in a lookup list, annotate the string in the text with the feature. Conceptual covers. Feature: list of items... Obligation: ought, must, obliged, obligation.... Exception: unless, except, but, apart from.... Verbs according to thematic roles: lists of verbs and their associated roles, e.g. run has an agent (Bill ran), rise has a theme (The wind blew). Easy to change. CS4025, Department of Computing Science, University of Aberdeen 14

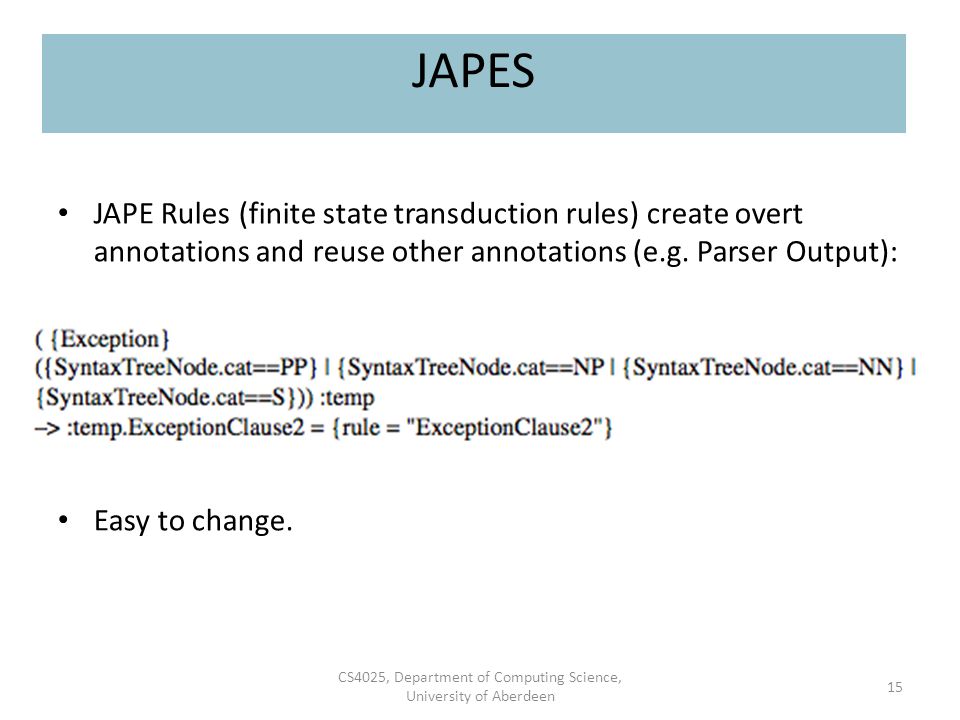

15. JAPES JAPE Rules (finite state transduction rules) create overt annotations and reuse other annotations (e.g. Parser Output): Easy to change. CS4025, Department of Computing Science, University of Aberdeen 15

16. CS4025, Department of Computing Science, University of Aberdeen 16 Example 1 Psychology

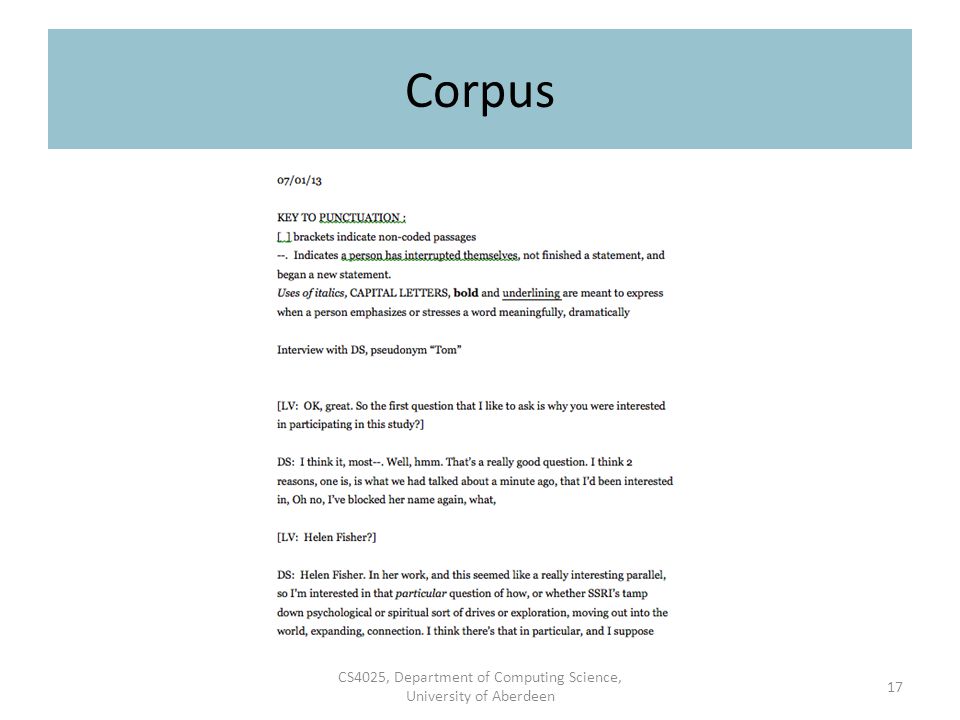

17. Corpus CS4025, Department of Computing Science, University of Aberdeen 17

18. Terminology CS4025, Department of Computing Science, University of Aberdeen 18

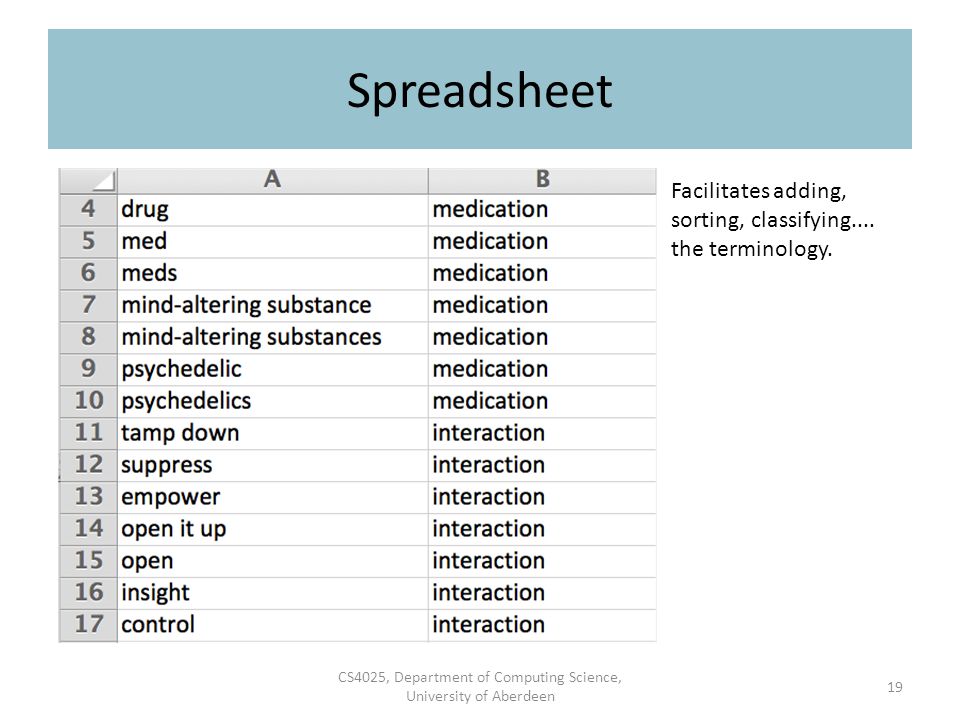

19. Spreadsheet CS4025, Department of Computing Science, University of Aberdeen 19 Facilitates adding, sorting, classifying.... the terminology.

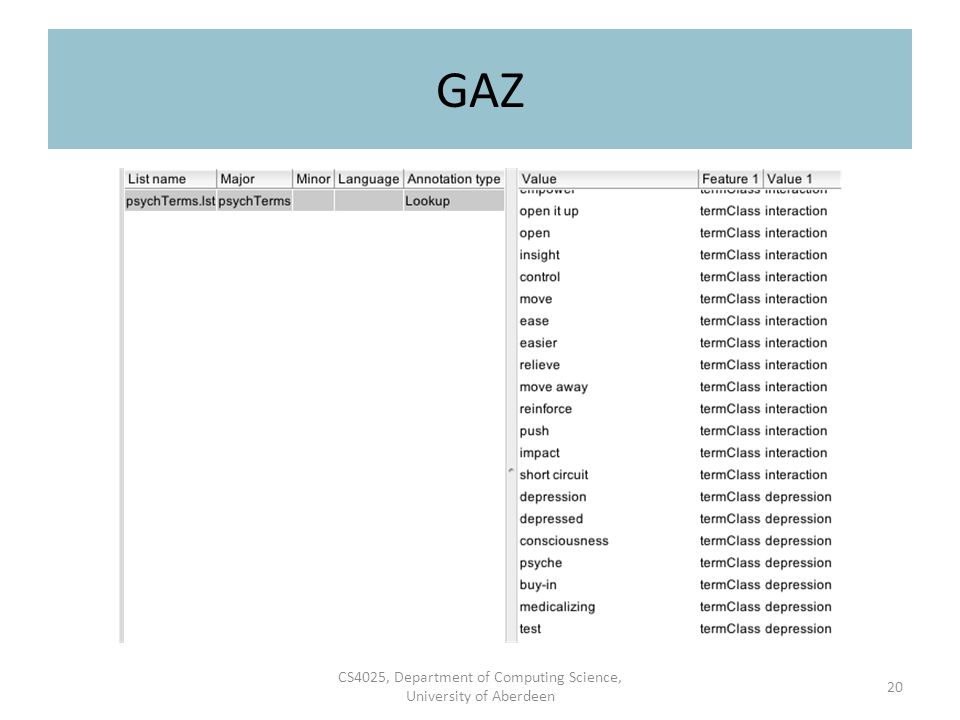

20. GAZ CS4025, Department of Computing Science, University of Aberdeen 20

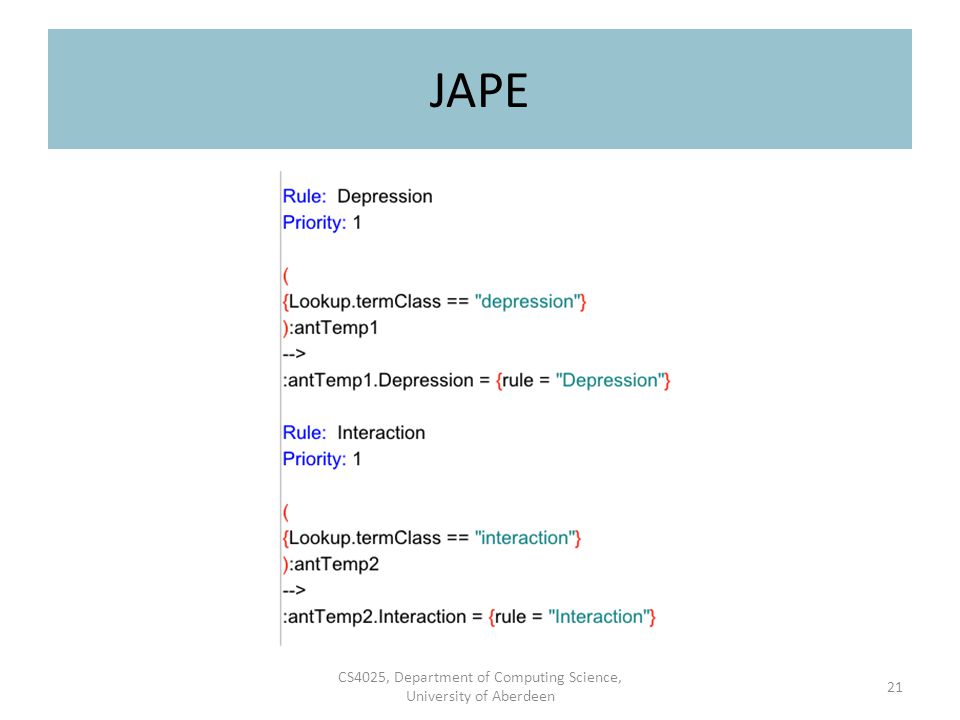

21. JAPE CS4025, Department of Computing Science, University of Aberdeen 21

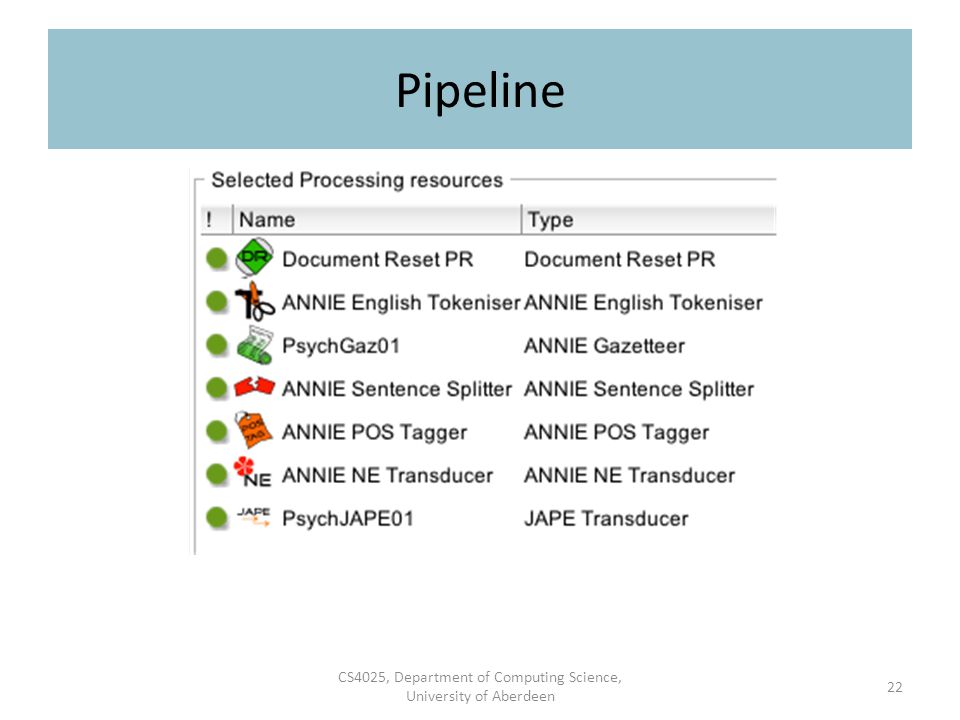

22. Pipeline CS4025, Department of Computing Science, University of Aberdeen 22

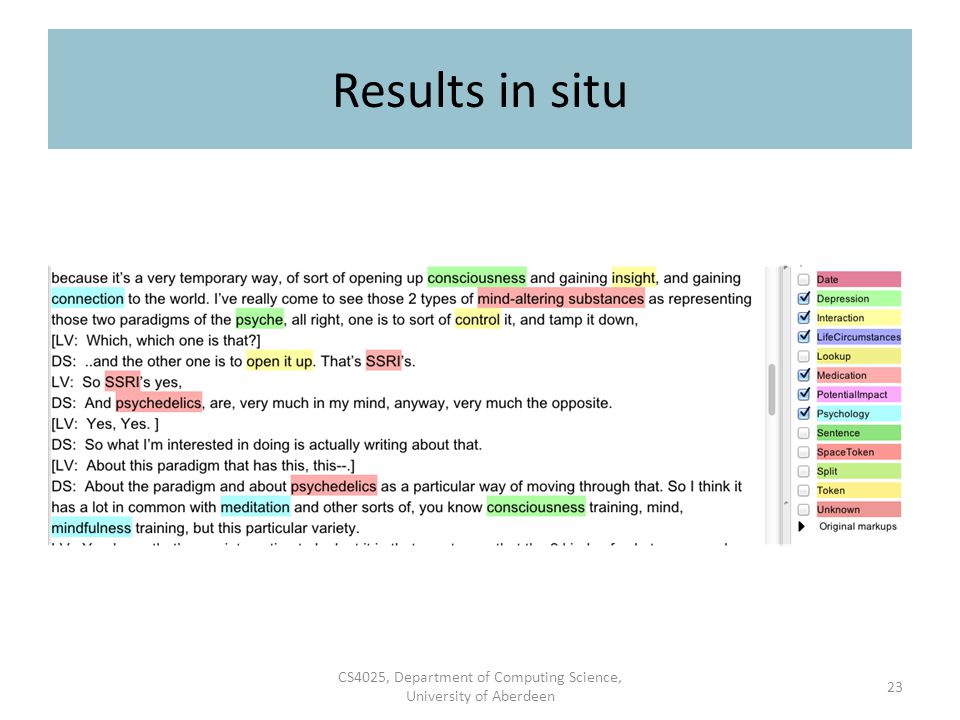

23. Results in situ CS4025, Department of Computing Science, University of Aberdeen 23

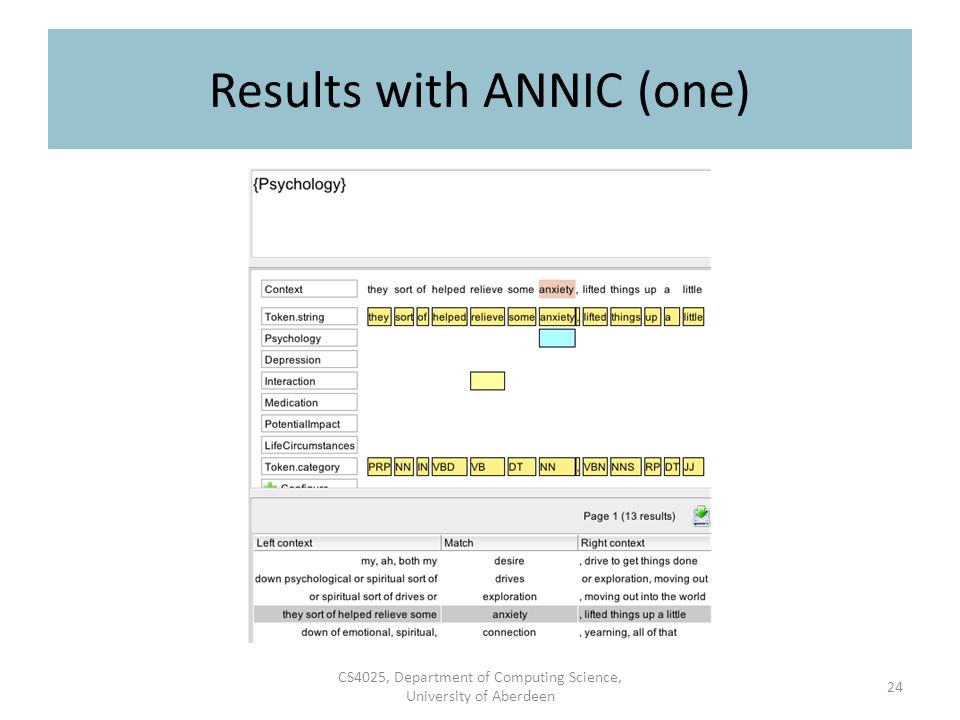

24. Results with ANNIC (one) CS4025, Department of Computing Science, University of Aberdeen 24

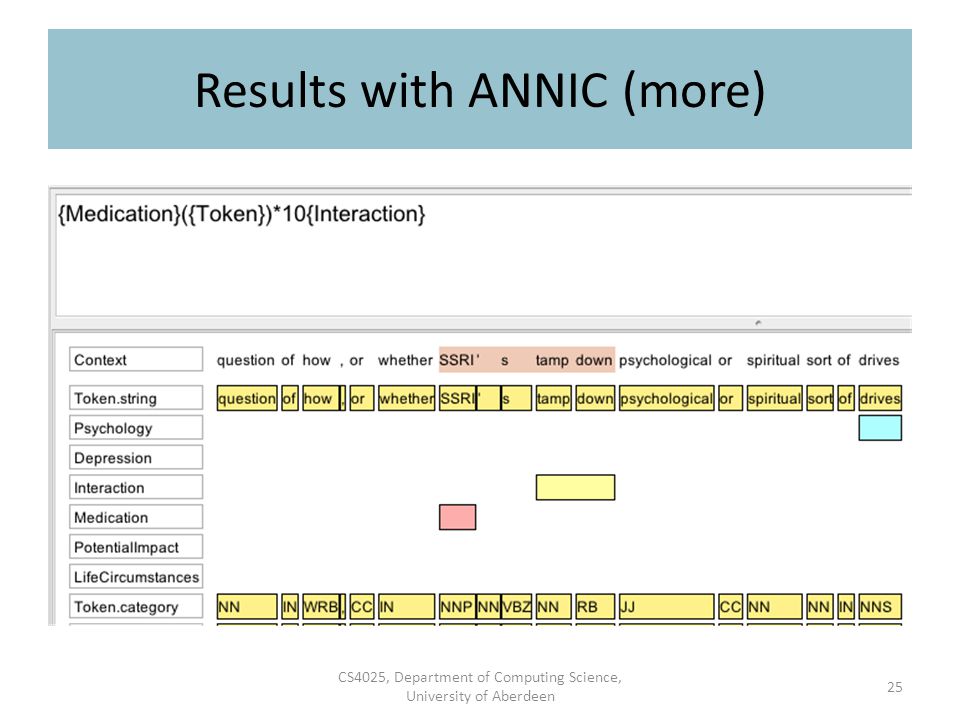

25. Results with ANNIC (more) CS4025, Department of Computing Science, University of Aberdeen 25

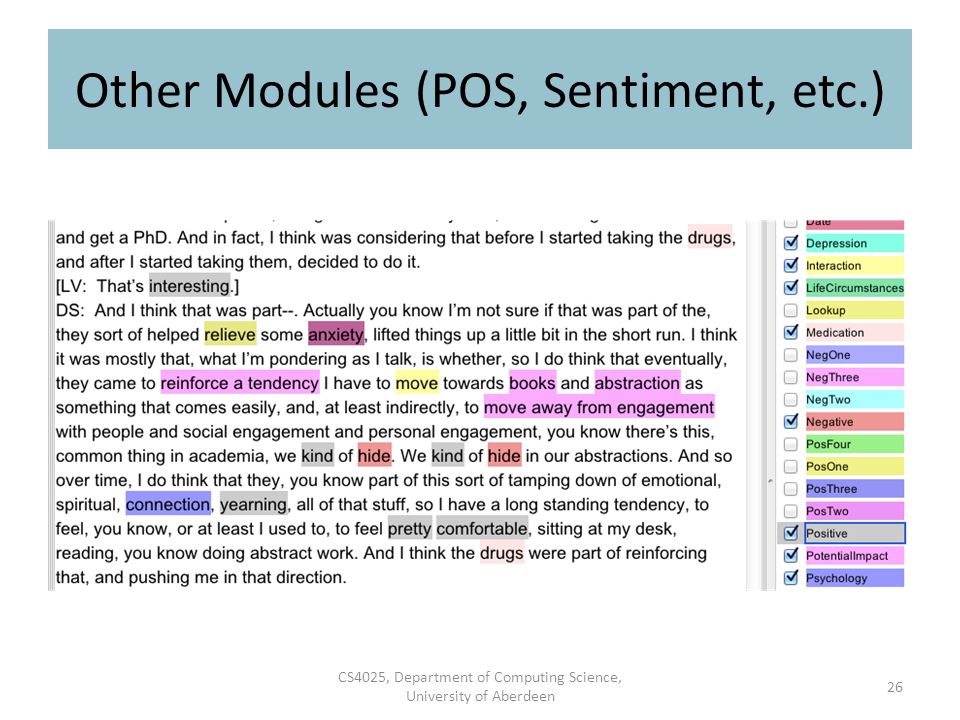

26. Other Modules (POS, Sentiment, etc.) CS4025, Department of Computing Science, University of Aberdeen 26

27. CS4025, Department of Computing Science, University of Aberdeen 27 Example 2 Rule Extraction from Regulations

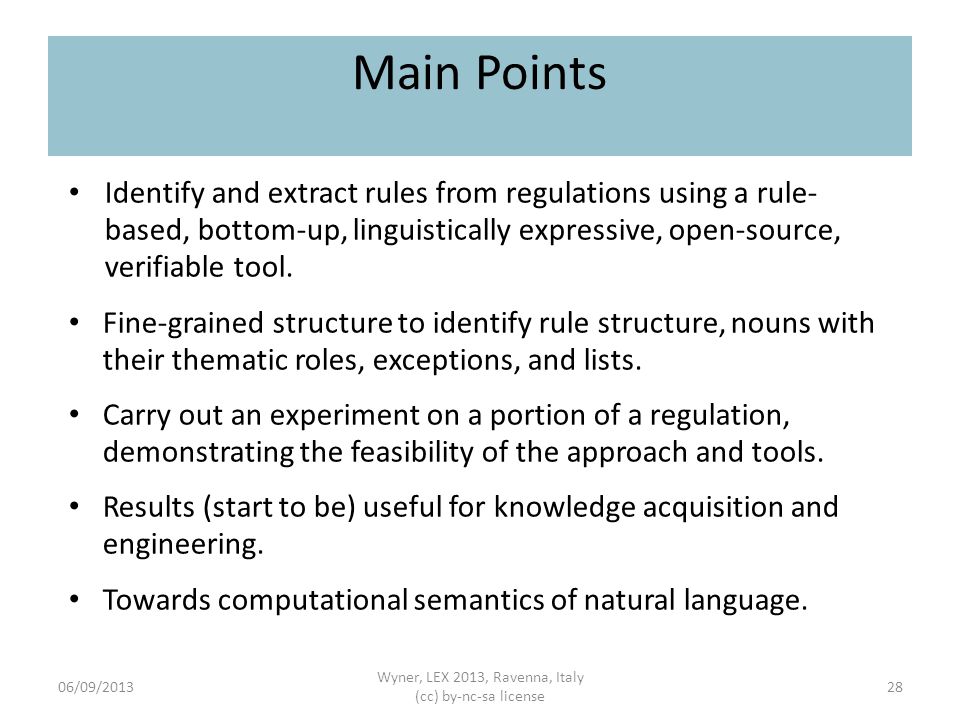

28. Identify and extract rules from regulations using a rule- based, bottom-up, linguistically expressive, open-source, verifiable tool. Fine-grained structure to identify rule structure, nouns with their thematic roles, exceptions, and lists. Carry out an experiment on a portion of a regulation, demonstrating the feasibility of the approach and tools. Results (start to be) useful for knowledge acquisition and engineering. Towards computational semantics of natural language. Main Points 06/09/2013 Wyner, LEX 2013, Ravenna, Italy (cc) by-nc-sa license 28

29. Use Cases Legislation and regulations have rules that must be identified to: create and maintain up to date rule books that are used in compliance management, where a company must comply with the rules. (ComplianceTrack) create logic programs that, given input of ground facts, can generate determinations, e.g. whether an individual is due a benefit from the government or owes taxes. (Oracle) exchange machine readable rules. (LegalRuleML) 06/09/2013 Wyner, LEX 2013, Ravenna, Italy (cc) by-nc-sa license 29

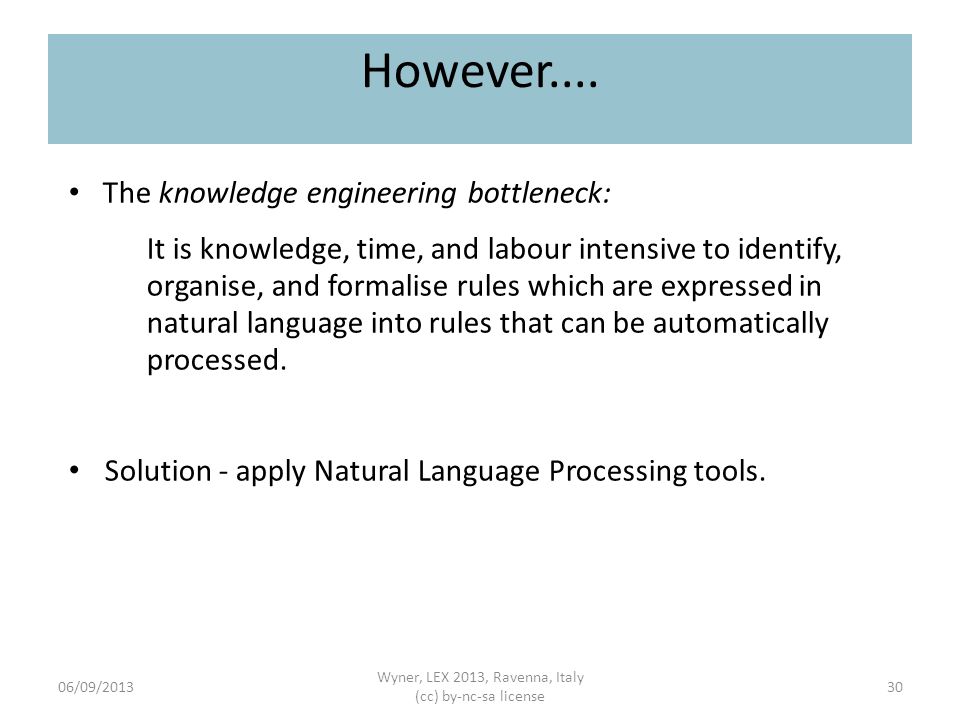

30. However.... The knowledge engineering bottleneck: It is knowledge, time, and labour intensive to identify, organise, and formalise rules which are expressed in natural language into rules that can be automatically processed. Solution - apply Natural Language Processing tools. 06/09/2013 Wyner, LEX 2013, Ravenna, Italy (cc) by-nc-sa license 30

31. Research Material US Code of Federal Regulations, US Food and Drug Administration, Department of Health and Human Services regulation for blood banks on testing requirements for communicable disease agents in human blood, Title 21 part 610 section 40. 4 page document of 1,777 words. 06/09/2013 Wyner, LEX 2013, Ravenna, Italy (cc) by-nc-sa license 31

32. Why Not Parse and Be Done? Applied the Stanford Parser, and it outputs: parses – sequences of words that form a grammatical phrase; dependencies – relationships between phrases, e.g. subject of verb; alternative parses. It failed to parse the whole text. Succeeds on portions, but still lots of issues. 06/09/2013 Wyner, LEX 2013, Ravenna, Italy (cc) by-nc-sa license 32

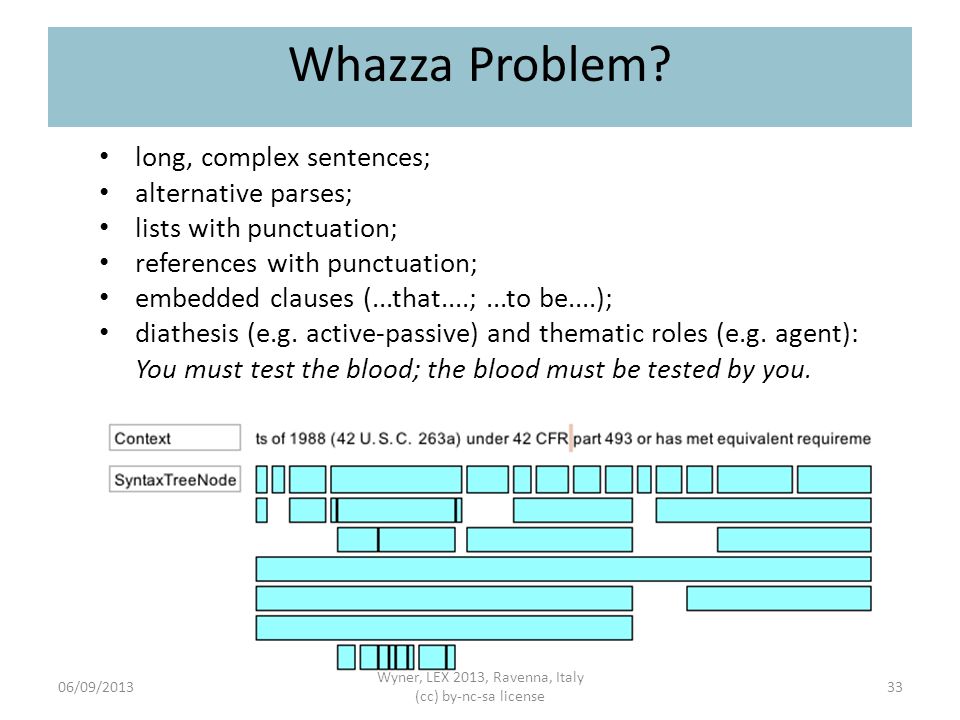

33. Whazza Problem? long, complex sentences; alternative parses; lists with punctuation; references with punctuation; embedded clauses (...that....;...to be....); diathesis (e.g. active-passive) and thematic roles (e.g. agent): You must test the blood; the blood must be tested by you. 06/09/2013 Wyner, LEX 2013, Ravenna, Italy (cc) by-nc-sa license 33

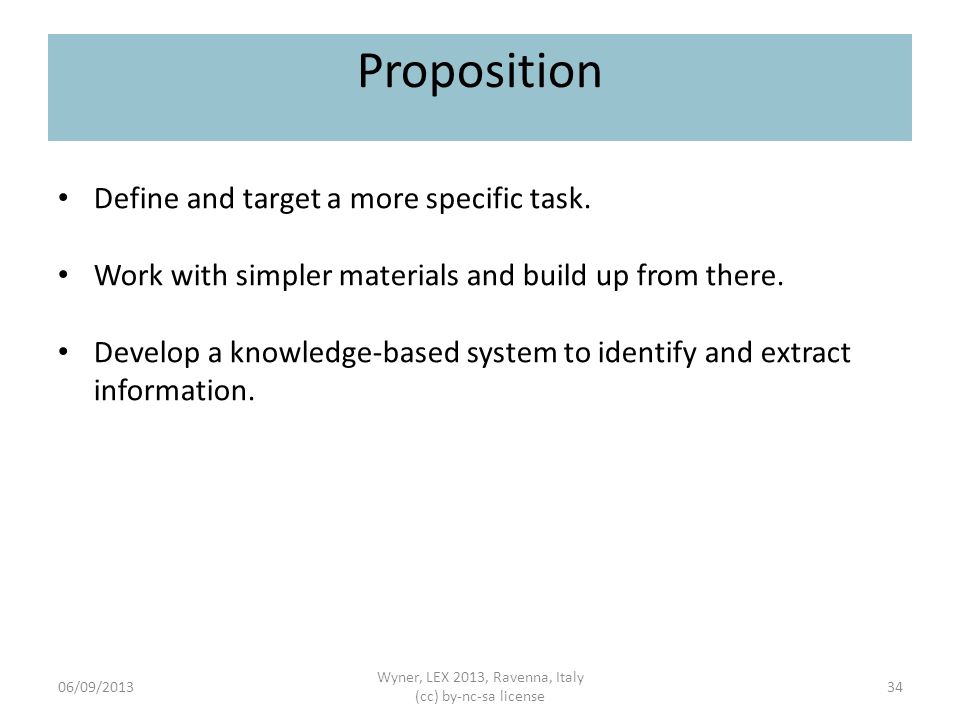

34. Proposition Define and target a more specific task. Work with simpler materials and build up from there. Develop a knowledge-based system to identify and extract information. 06/09/2013 Wyner, LEX 2013, Ravenna, Italy (cc) by-nc-sa license 34

35. Target Model Deontic rules: Conditional rules: Start with this. In future work, add punctuation, negation, temporal phrases, generics, Hohfeldian relations, tense in conditionals, references, and so on.... 06/09/2013 Wyner, LEX 2013, Ravenna, Italy (cc) by-nc-sa license 35

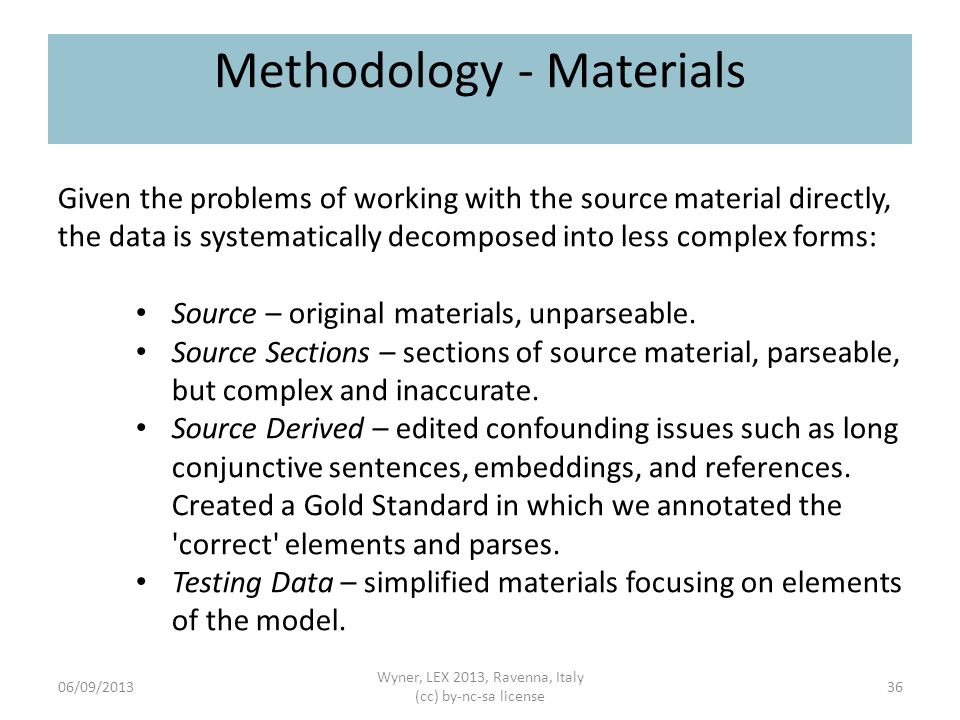

36. Methodology - Materials Given the problems of working with the source material directly, the data is systematically decomposed into less complex forms: Source – original materials, unparseable. Source Sections – sections of source material, parseable, but complex and inaccurate. Source Derived – edited confounding issues such as long conjunctive sentences, embeddings, and references. Created a Gold Standard in which we annotated the 'correct' elements and parses. Testing Data – simplified materials focusing on elements of the model. 06/09/2013 Wyner, LEX 2013, Ravenna, Italy (cc) by-nc-sa license 36

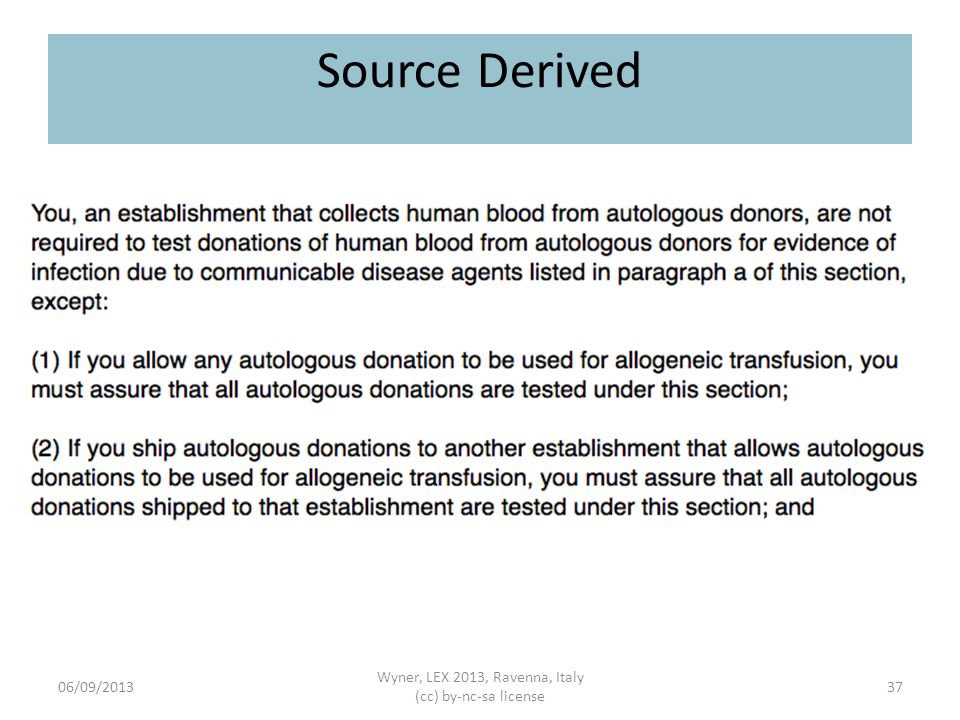

37. Source Derived 06/09/2013 Wyner, LEX 2013, Ravenna, Italy (cc) by-nc-sa license 37

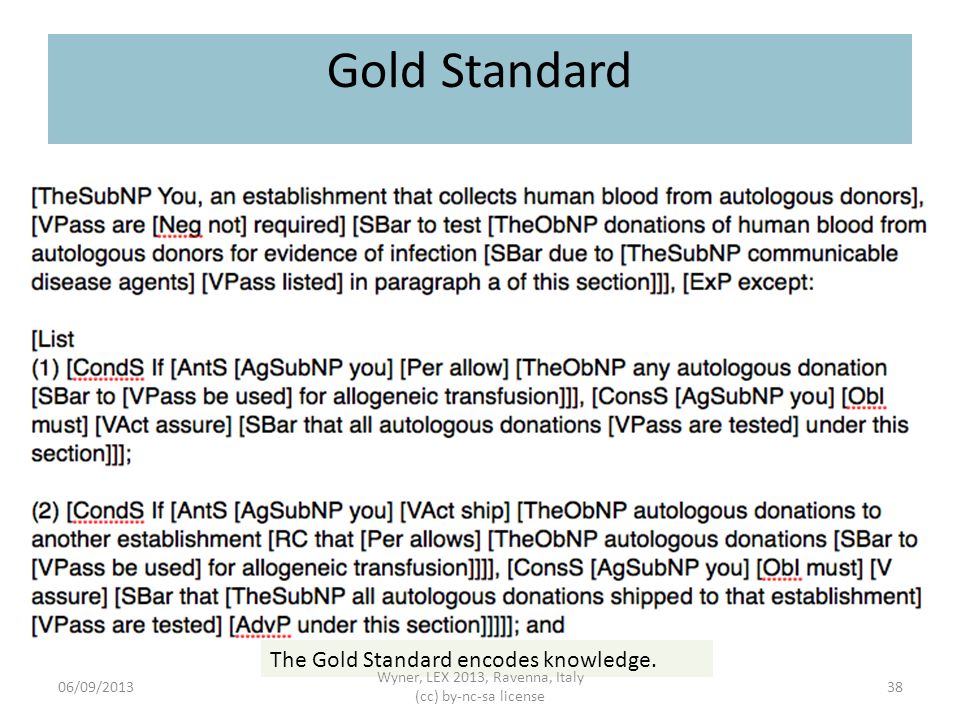

38. Gold Standard The Gold Standard encodes knowledge. 06/09/2013 Wyner, LEX 2013, Ravenna, Italy (cc) by-nc-sa license 38

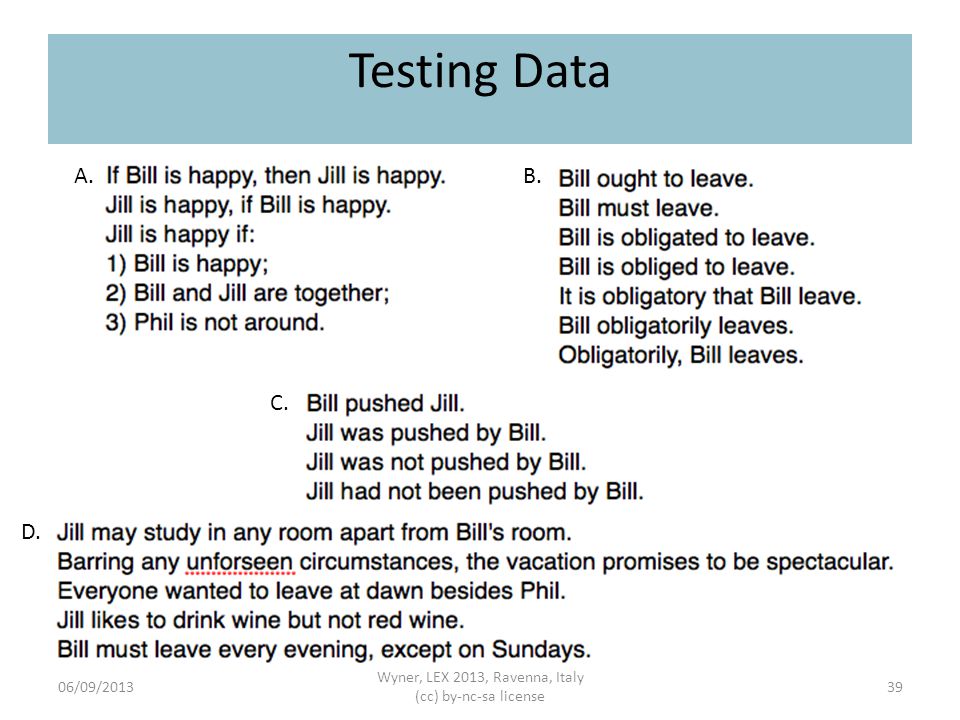

39. Testing Data A. B. C. D. 06/09/2013 Wyner, LEX 2013, Ravenna, Italy (cc) by-nc-sa license 39

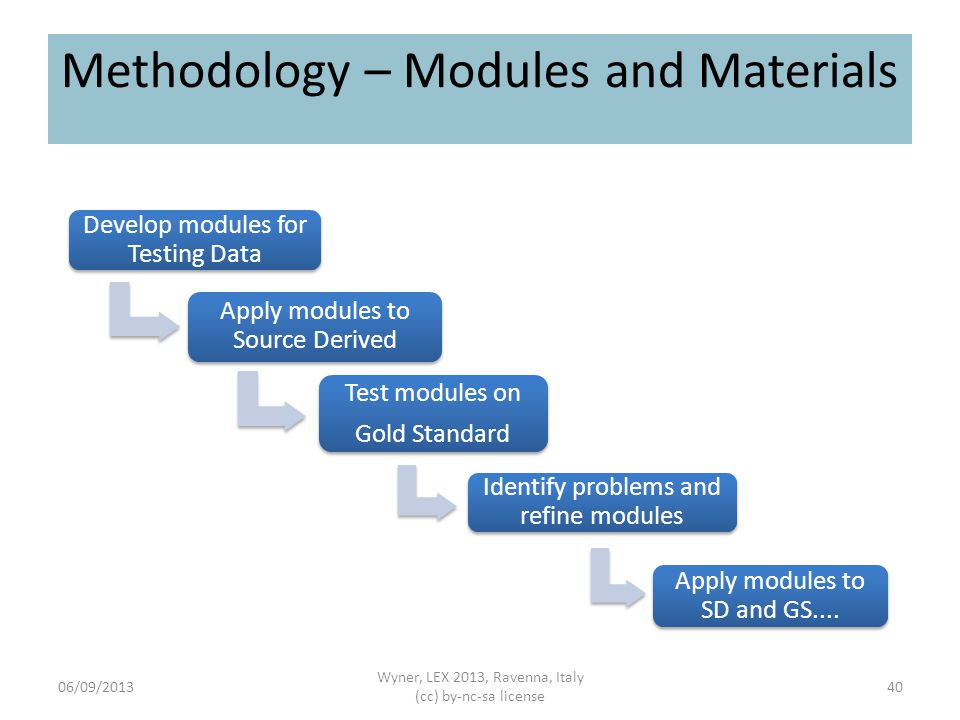

40. Methodology – Modules and Materials Develop modules for Testing Data Apply modules to Source Derived Test modules on Gold Standard Identify problems and refine modules Apply modules to SD and GS.... 06/09/2013 Wyner, LEX 2013, Ravenna, Italy (cc) by-nc-sa license 40

41. General Architecture for Text Engineering NLP pipeline 06/09/2013 Wyner, LEX 2013, Ravenna, Italy (cc) by-nc-sa license 41

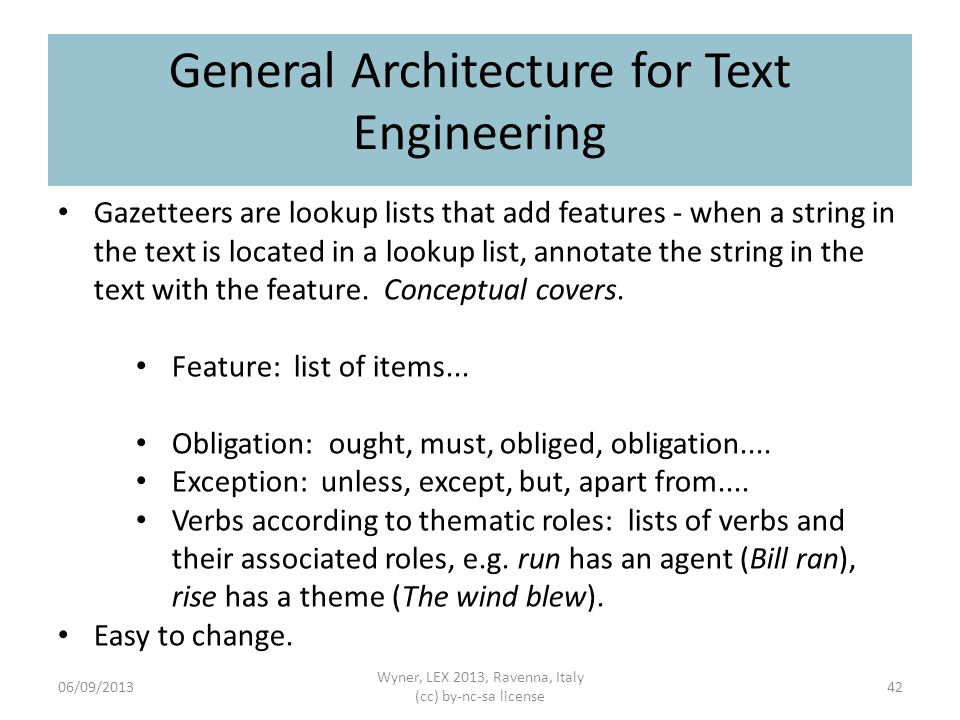

42. General Architecture for Text Engineering Gazetteers are lookup lists that add features - when a string in the text is located in a lookup list, annotate the string in the text with the feature. Conceptual covers. Feature: list of items... Obligation: ought, must, obliged, obligation.... Exception: unless, except, but, apart from.... Verbs according to thematic roles: lists of verbs and their associated roles, e.g. run has an agent (Bill ran), rise has a theme (The wind blew). Easy to change. 06/09/2013 Wyner, LEX 2013, Ravenna, Italy (cc) by-nc-sa license 42

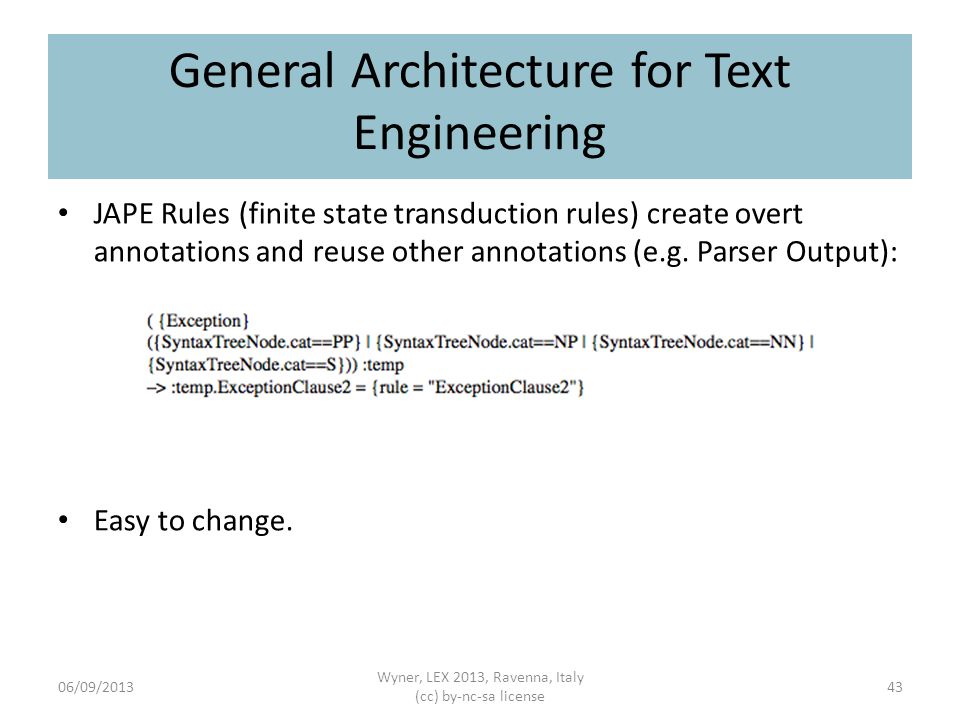

43. General Architecture for Text Engineering JAPE Rules (finite state transduction rules) create overt annotations and reuse other annotations (e.g. Parser Output): Easy to change. 06/09/2013 Wyner, LEX 2013, Ravenna, Italy (cc) by-nc-sa license 43

44. General Architecture for Text Engineering Have Gazetteer lists and JAPE rules for: lists in various forms; exception phrases in various forms; conditionals in various forms; deontic terms; associating grammatical roles (e.g. subject and object) with thematic roles (agent and theme) in various forms. 06/09/2013 Wyner, LEX 2013, Ravenna, Italy (cc) by-nc-sa license 44

45. Sample Outputs Consequence, list structure, and conjuncts of the antecedent. Exception, agent NP, deontic concept, active main verb, theme. 06/09/2013 Wyner, LEX 2013, Ravenna, Italy (cc) by-nc-sa license 45

46. Sample Output Theme, deontic modal, passive verb, agent with complex relative clause. 06/09/2013 Wyner, LEX 2013, Ravenna, Italy (cc) by-nc-sa license 46

47. Sample Output - Overall 06/09/2013 Wyner, LEX 2013, Ravenna, Italy (cc) by-nc-sa license 47

48. Sample Output - XML 06/09/2013 Wyner, LEX 2013, Ravenna, Italy (cc) by-nc-sa license 48

49. Sample Output – ANNIC Search 06/09/2013 Wyner, LEX 2013, Ravenna, Italy (cc) by-nc-sa license 49
