1. Numerical Analysis – Linear Equations(I) Hanyang University Jong-Il Park

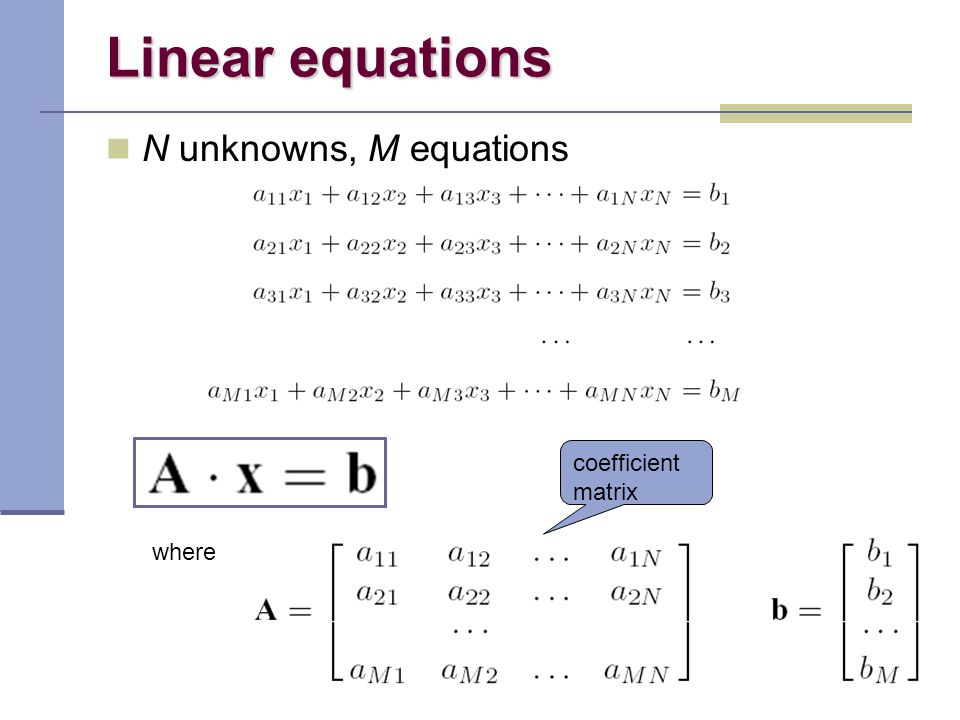

2. Linear equations N unknowns, M equations where coefficient matrix

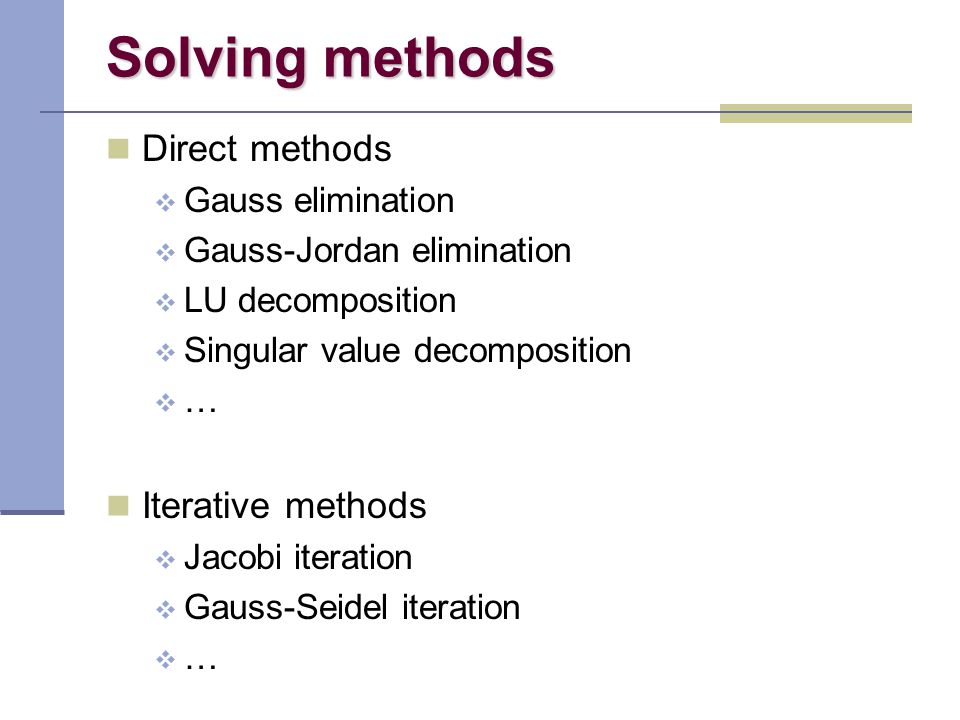

3. Solving methods Direct methods  Gauss elimination  Gauss-Jordan elimination  LU decomposition  Singular value decomposition  … Iterative methods  Jacobi iteration  Gauss-Seidel iteration  …

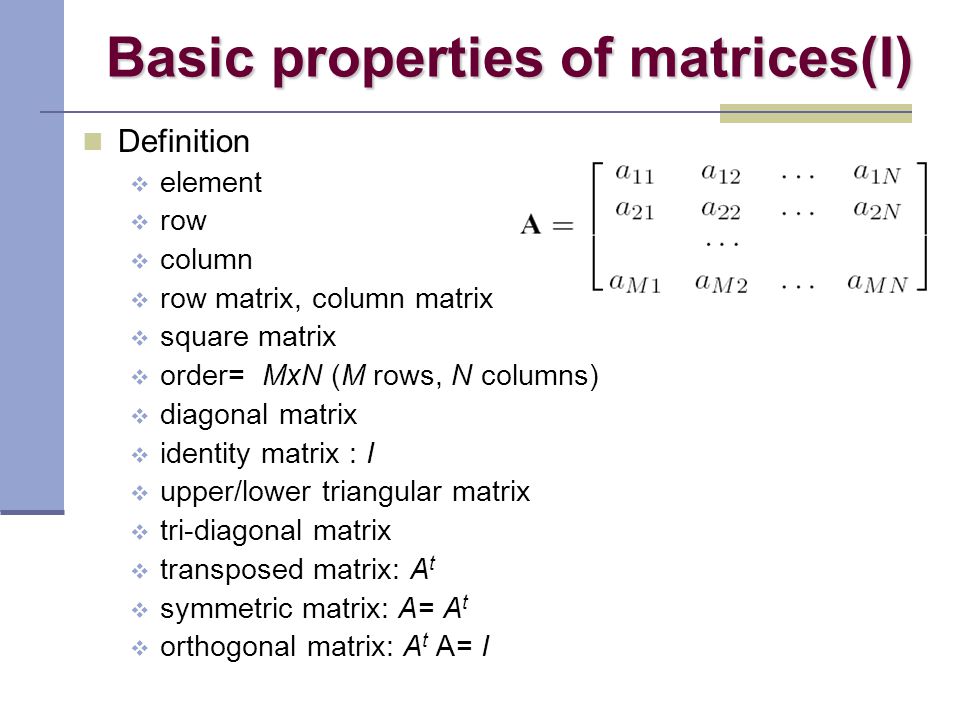

4. Basic properties of matrices(I) Definition  element  row  column  row matrix, column matrix  square matrix  order= MxN (M rows, N columns)  diagonal matrix  identity matrix : I  upper/lower triangular matrix  tri-diagonal matrix  transposed matrix: A t  symmetric matrix: A= A t  orthogonal matrix: A t A= I

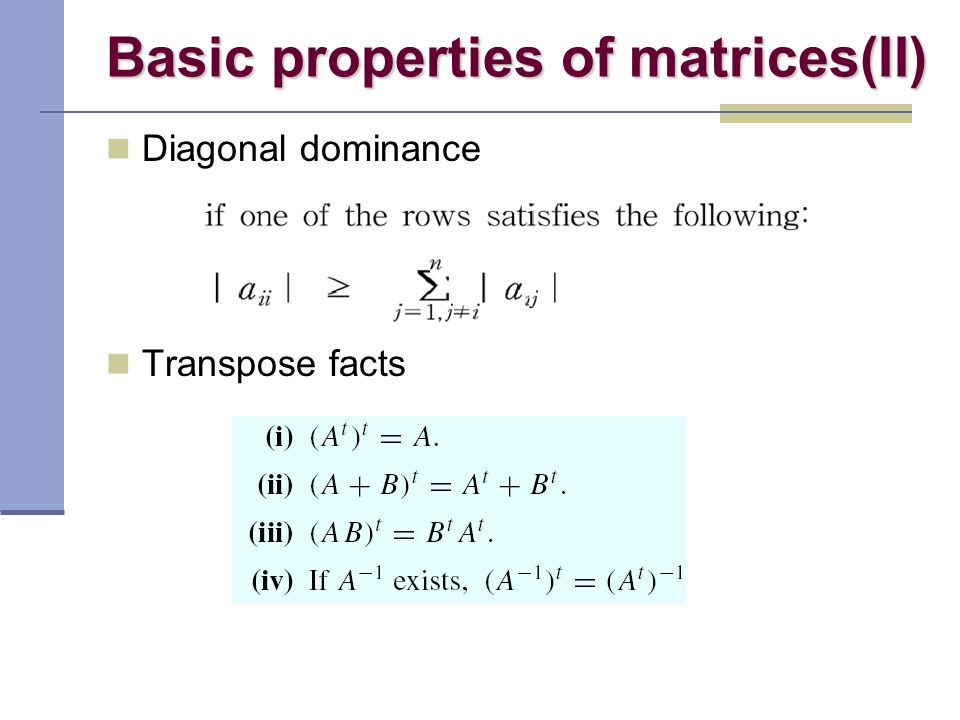

5. Diagonal dominance Transpose facts Basic properties of matrices(II)

6. Basic properties of matrices(III) Matrix multiplication

7. Determinant C

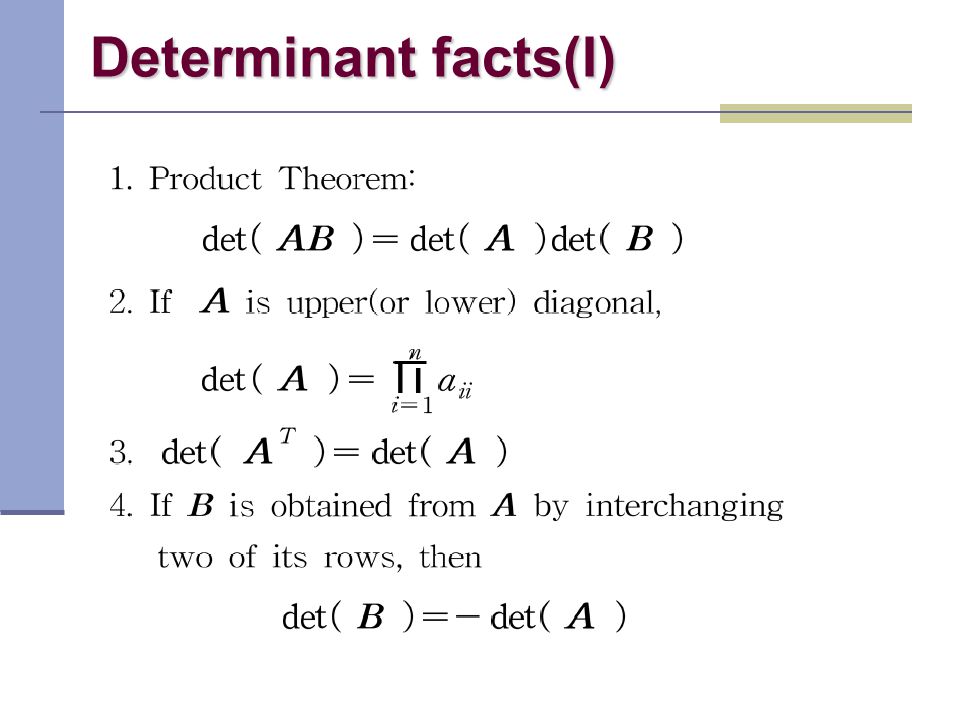

8. Determinant facts(I)

9. Determinant facts(II)

10. Geometrical interpretation of determinant

11. Over-determined/ Under-determined problem Over-determined problem (m>n)  least-square estimation,  robust estimation etc. Under-determined problem (n<m)  singular value decomposition

12. Augmented matrix

13. Cramer’s rule

14. Triangular coefficient matrix

15. Substitution Upper triangular matrix Lower triangular matrix

16. Gauss elimination 1. Step 1: Gauss reduction  =Forward elimination  Coefficient matrix  upper triangular matrix 2. Step 2: Backward substitution

17. Gauss reduction Gauss reduction

18. Eg. Gauss elimination(I)

19. Eg. Gauss elimination(II)

20. Troubles in Gauss elimination Harmful effect of round-off error in pivot coefficient Pivoting strategy

21. Eg. Trouble(I)

22. Eg. Trouble(II)

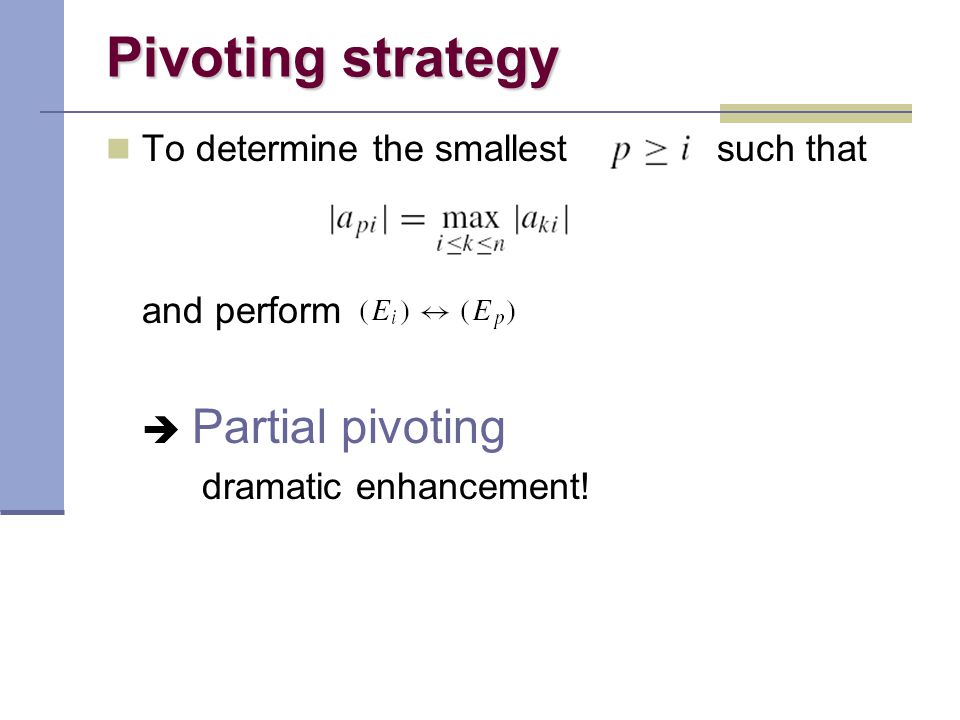

23. Pivoting strategy To determine the smallest such that and perform  Partial pivoting dramatic enhancement!

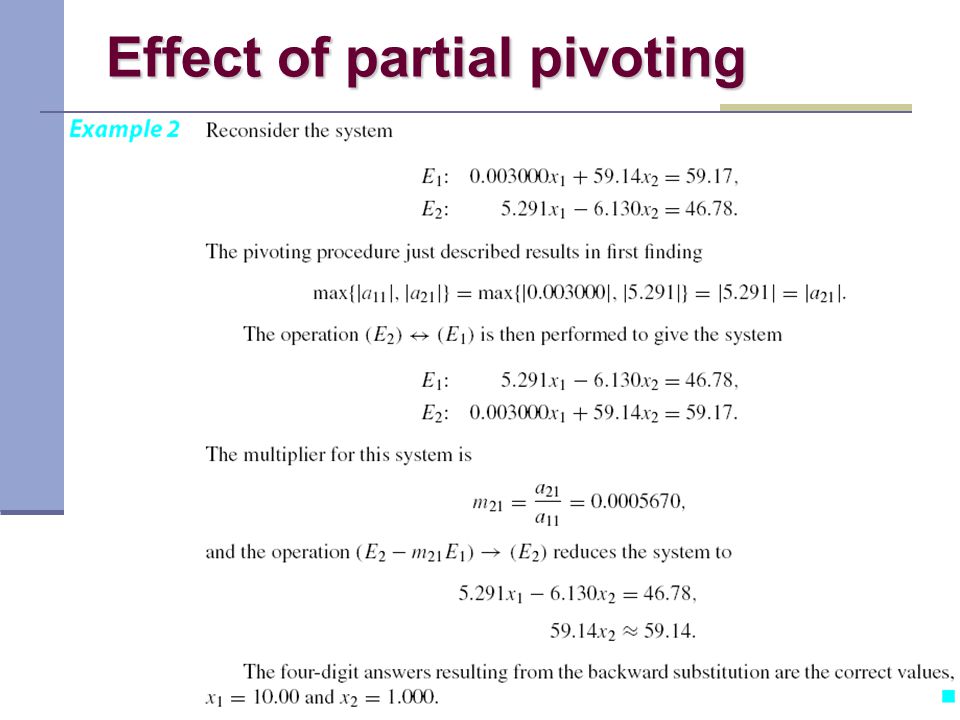

24. Effect of partial pivoting

25. Scaled partial pivoting Scaling is to ensure that the largest element in each row has a relative magnitude of 1 before the comparison for row interchange is performed.

26. Eg. Effect of scaling

27. Complexity of Gauss elimination  Too much!

28. Summary: Gauss elimination 1) Augmented matrix 의 행을 최대값이 1 이 되도록 scaling(= normalization) 2) 첫 번째 열에 가장 큰 원소가 오도록 partial pivoting 3) 둘째 행 이하의 첫 열을 모두 0 이 되도록 eliminating 4) 2 행에서 n 행까지 1)- 3) 을 반복 5) backward substitution 으로 해를 구함 0 0 0

29. Gauss-Jordan elimination

30. Eg. Obtaining inverse matrix(I)

31. Eg. Obtaining inverse matrix(II) Backward substitution For each column

32. LU decomposition Principle: Solving a set of linear equations based on decomposing the given coefficient matrix into a product of lower and upper triangular matrix. Ax = b  LUx = b  L -1 LUx = L -1 b A=LUL -1  L -1 b=c  U x = c L L L -1 b = Lc  L c = b (1) (2) By solving the equations (2) and (1) successively, we get the solution x. Upper triangular Lower triangular

33. Various LU decompositions Doolittle decomposition  L 의 diagonal element 를 모두 1 로 만들어줌 Crout decomposition  U 의 diagonal element 를 모두 1 로 만들어줌 Cholesky decomposition  L 과 U 의 diagonal element 를 같게 만들어줌  symmetric, positive-definite matrix 에 적합

34. Crout decomposition

35. Implementation of Crout method

36. Programming using NR in C(I) Solving a set of linear equations

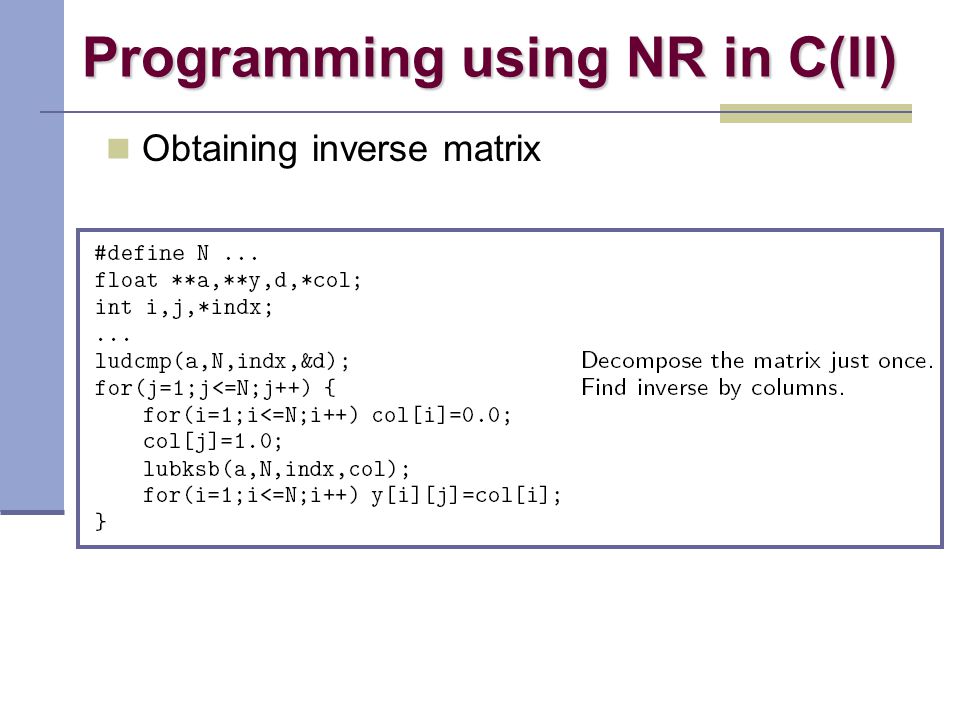

37. Programming using NR in C(II) Obtaining inverse matrix

38. Programming using NR in C(III) Calculating the determinant of a matrix

39. Homework #5 (Cont’) [Due: 10/22]

40. (Cont’) Homework #5
