1

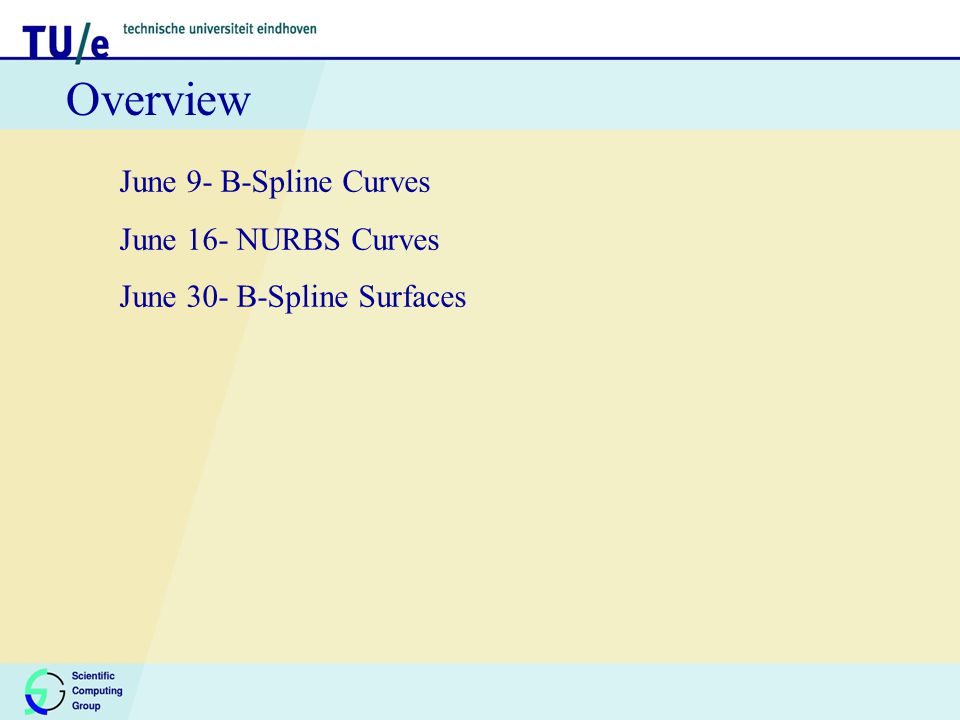

Overview June 9- B-Spline Curves June 16- NURBS Curves June 30- B-Spline Surfaces

2

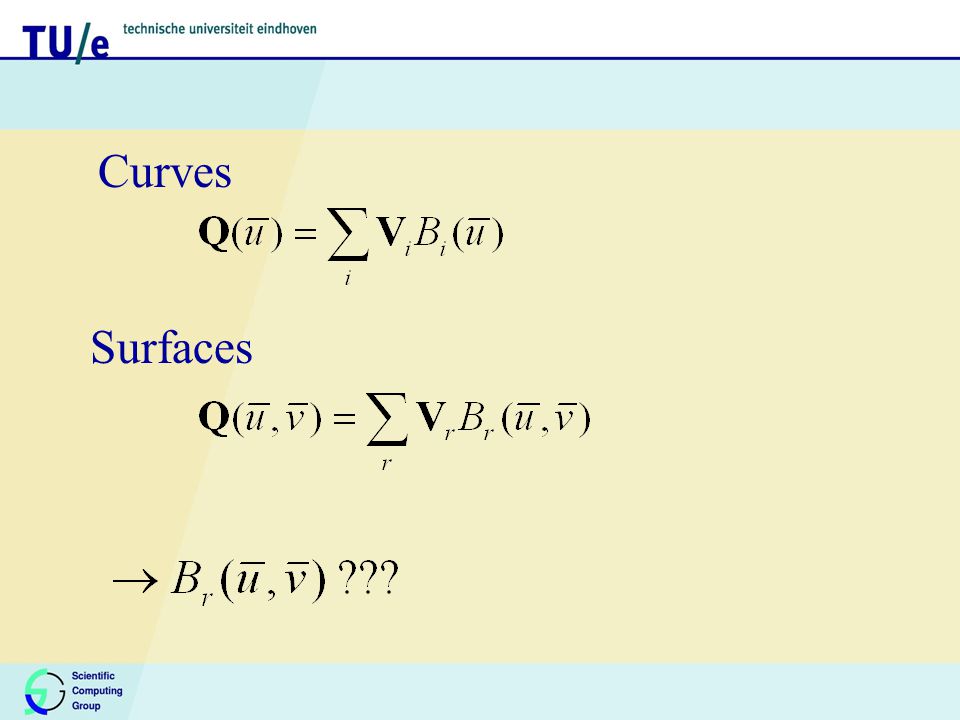

Curves Surfaces

3

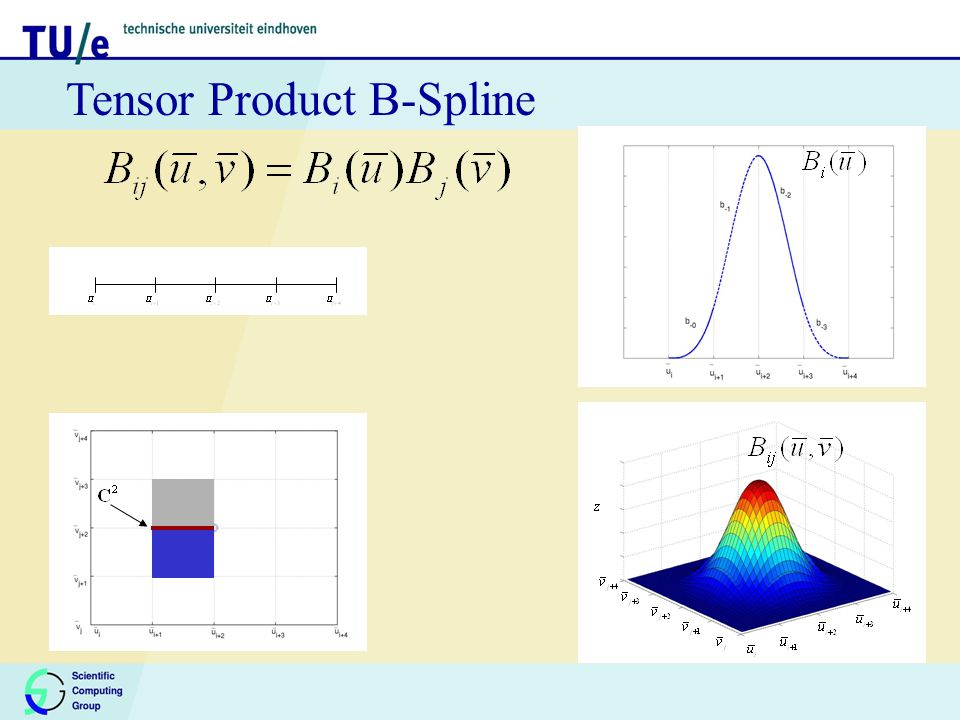

Tensor Product B-Spline

4
Adding Knots

5

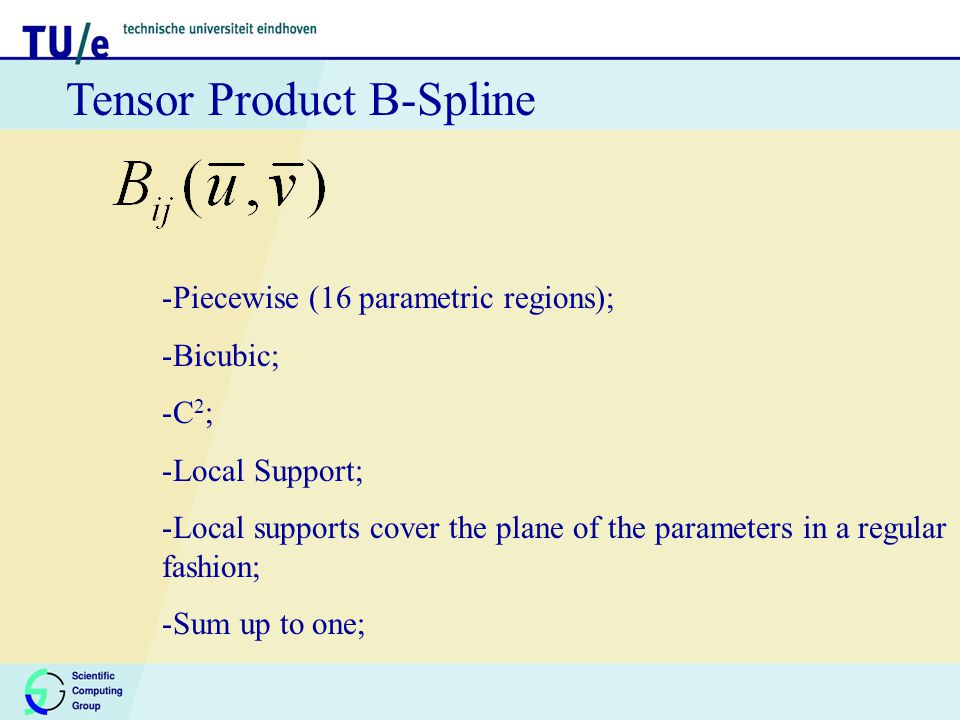

-Piecewise (16 parametric regions); -Bicubic; -C 2 ; -Local Support; -Local supports cover the plane of the parameters in a regular fashion; -Sum up to one; Tensor Product B-Spline

6
Uniform cubic B-spline Curves Uniform bicubic B-spline Surfaces Expression Vertices Basis Functions Parameter Space

7
Local expression

8
Surfaces and Curves Continuity: C 2

9

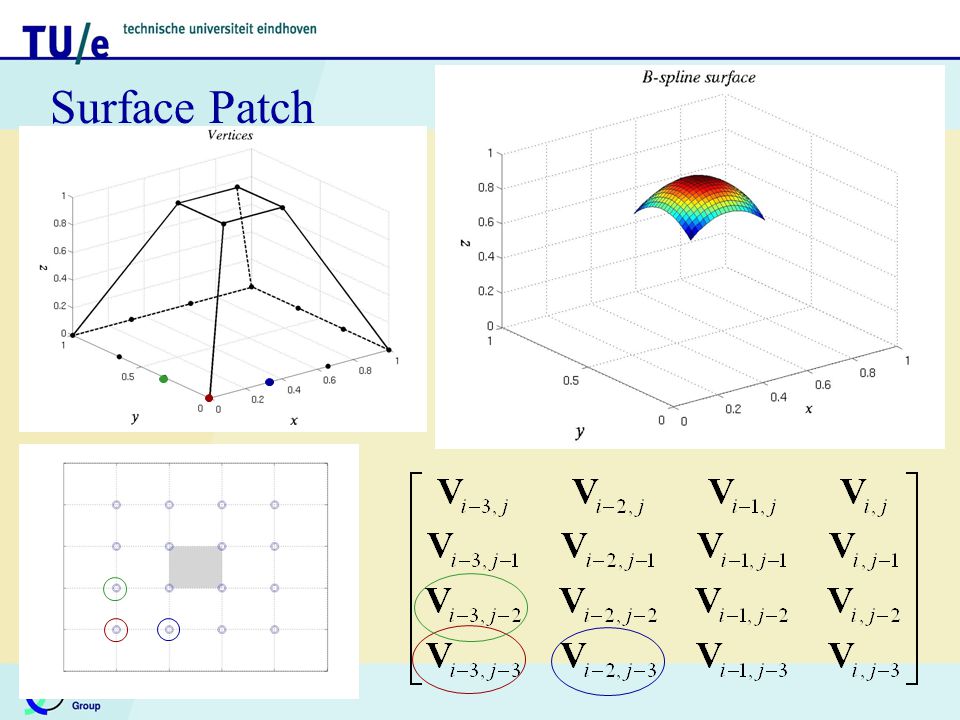

Surface Patch

10
Four Patches

11

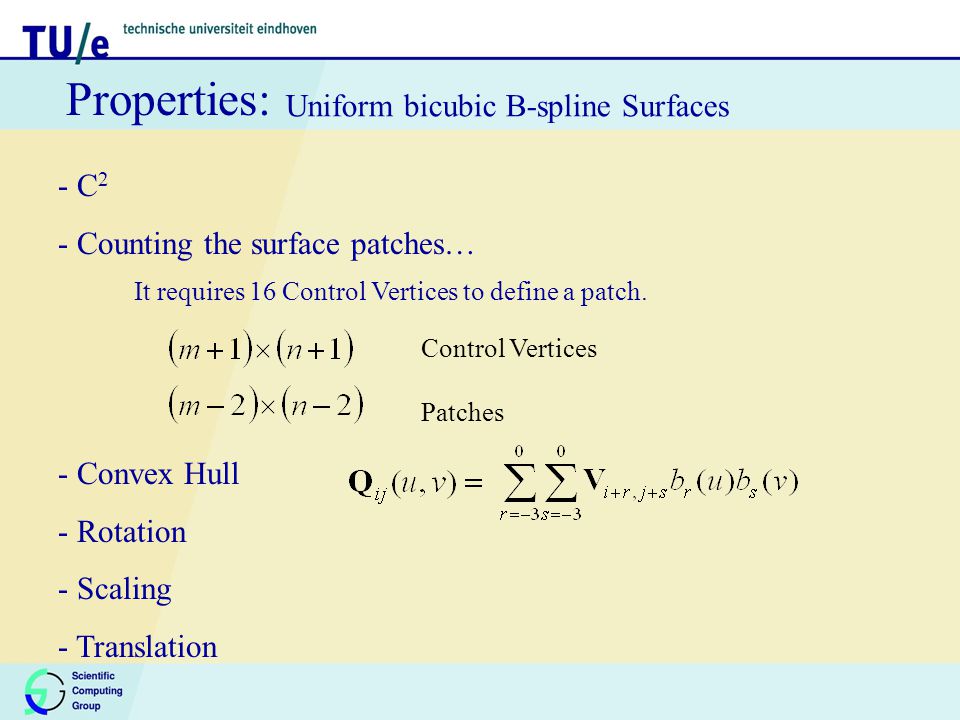

- C 2 - Counting the surface patches… - Convex Hull - Rotation - Scaling - Translation It requires 16 Control Vertices to define a patch. Control Vertices Patches Properties: Uniform bicubic B-spline Surfaces

12
Boundary Conditions

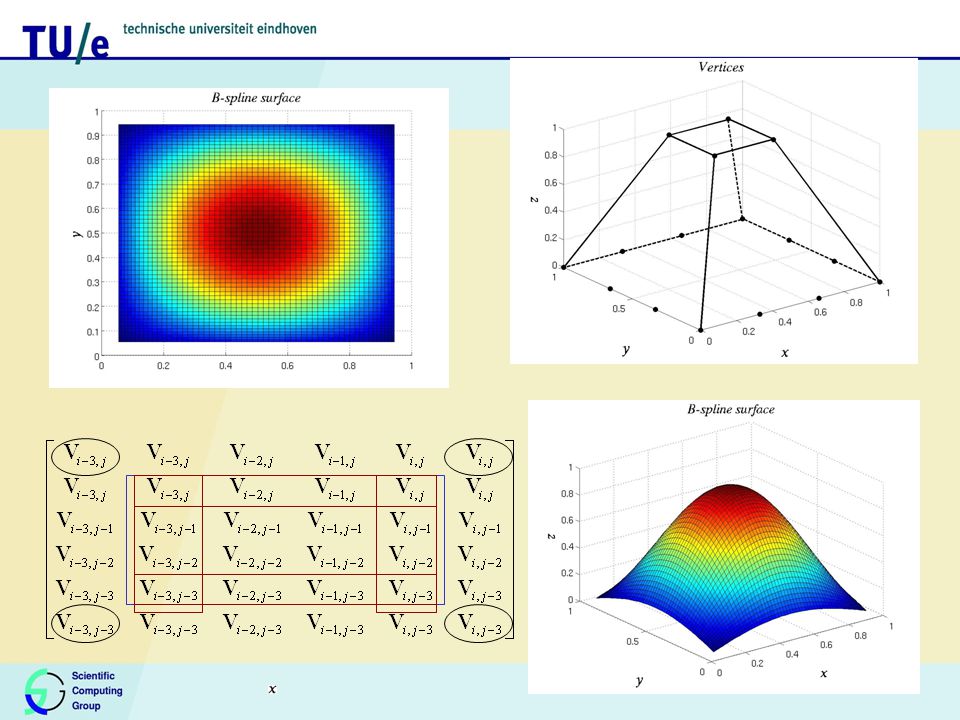

15
Interpolation ?

16

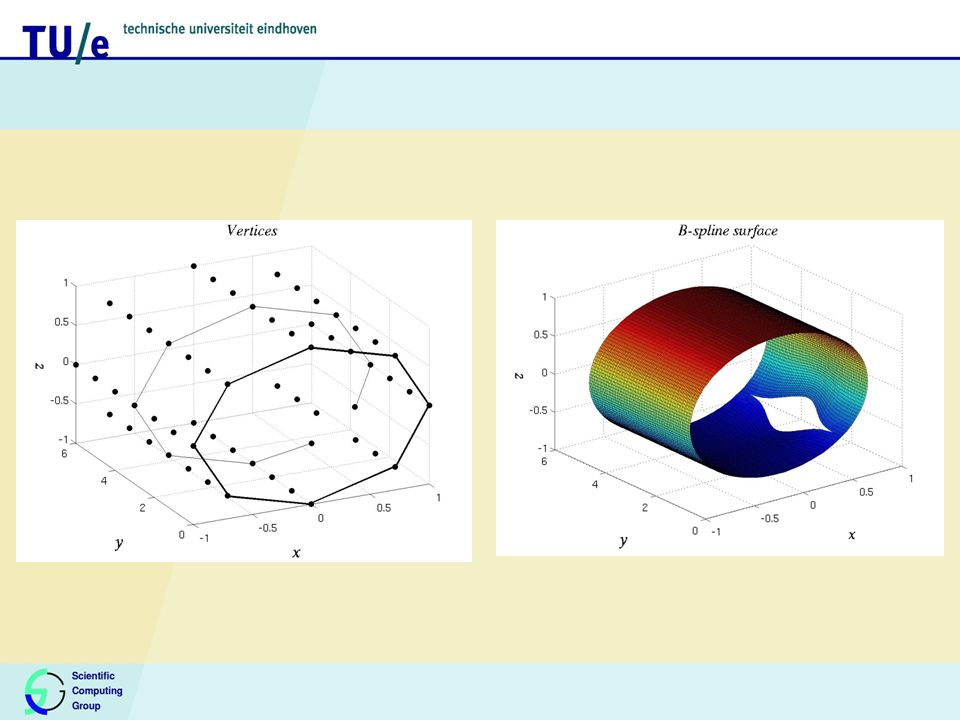

“Closed” Surfaces

18
Generalization- Tensor Product Surfaces -Choice of basic functions; -Given the vertices, we may compute the approximation surface; -Given a set of points in the surface, we can compute the vertices of the interpolating surface.

19
Tensor Product Interpolants Given Wanted

20
System 2 steps: Solve (Schoenberg-Whitney) (u-direction) (v-direction)

21

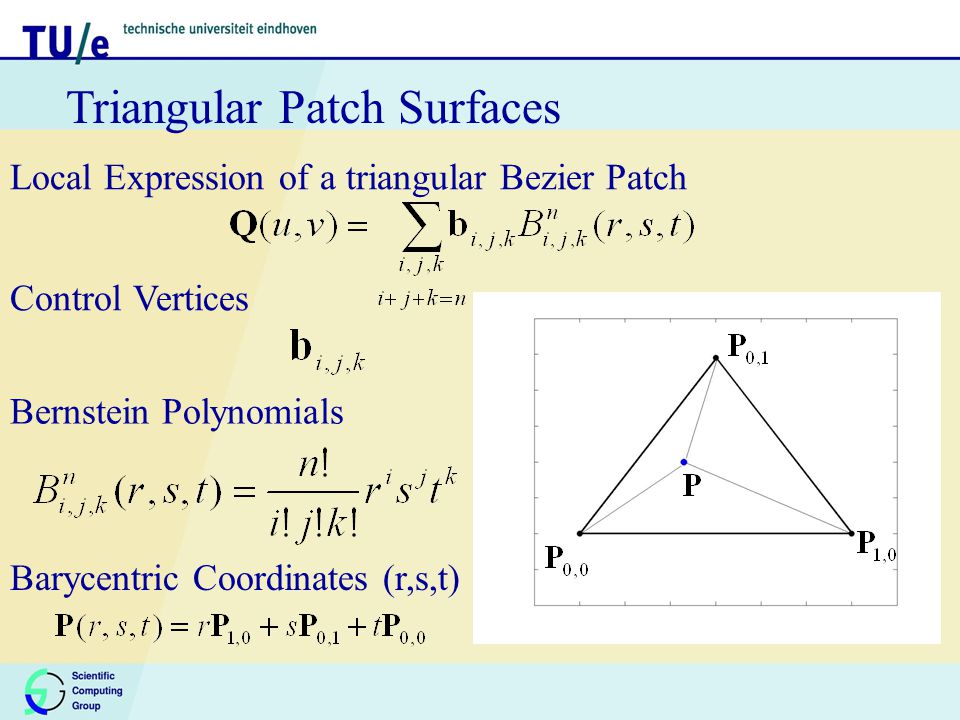

Triangular Patch Surfaces Barycentric Coordinates (r,s,t) Control Vertices Bernstein Polynomials Local Expression of a triangular Bezier Patch

22
Patch Domain Parameter Space Cubic Triangular Patch

23

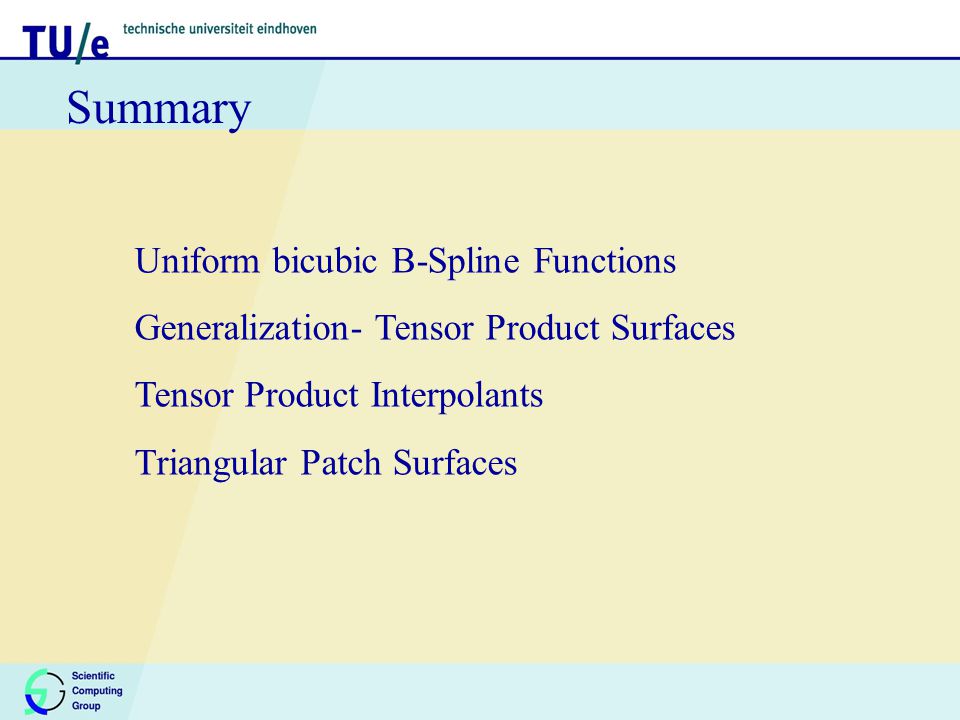

Summary Uniform bicubic B-Spline Functions Generalization- Tensor Product Surfaces Tensor Product Interpolants Triangular Patch Surfaces
