1. Location-Aware Security Services for Wireless Sensor Networks using Network Coding IEEE INFOCOM 2007 최임성

2. Agenda Introduction Preliminaries Location-aware Network Coding Security (LNCS) Security Analysis and Performance Evaluation Comparison with LEDS Conclusion and Discussion 2

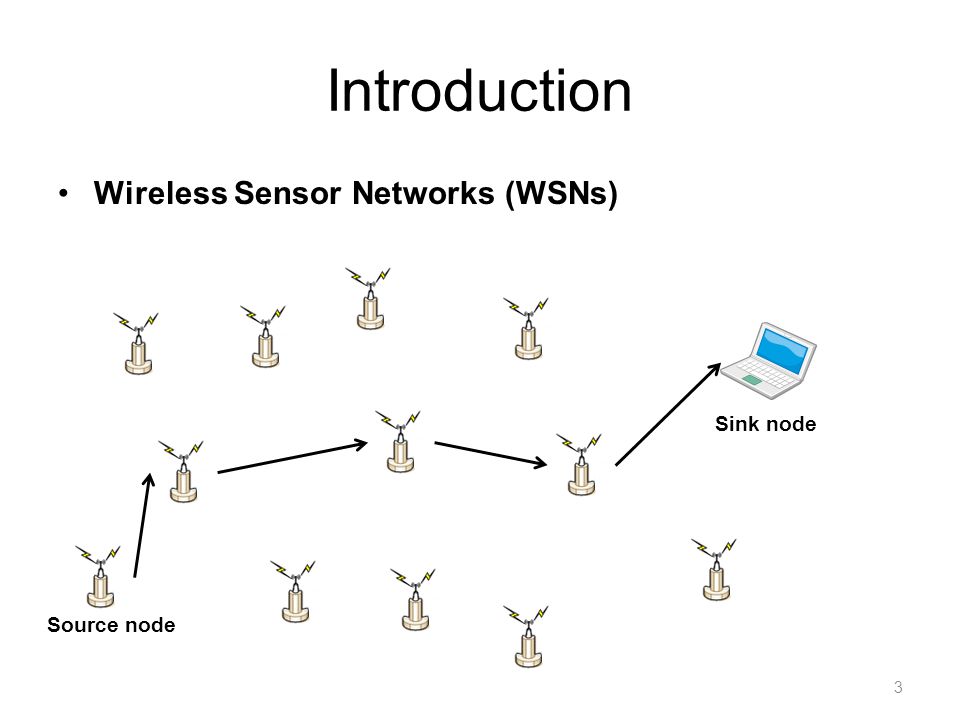

3. Introduction Wireless Sensor Networks (WSNs) 3 Sink node Source node

4. Introduction End-to-End Data Security Requirements –Data Confidentiality –Data Authenticity –Data Availability 4 Sink node Source node

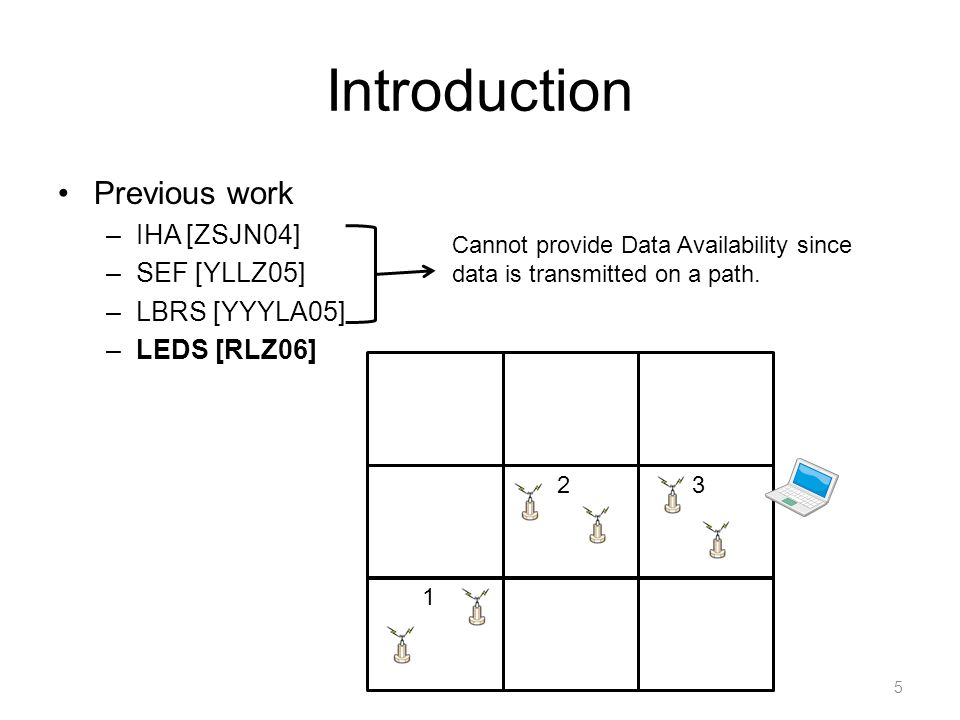

5. Introduction Previous work –IHA [ZSJN04] –SEF [YLLZ05] –LBRS [YYYLA05] –LEDS [RLZ06] 5 Cannot provide Data Availability since data is transmitted on a path. 1 23

6. Preliminaries Network coding –Present novel way to distribute information –Allow mixing of data at intermediate nodes 6

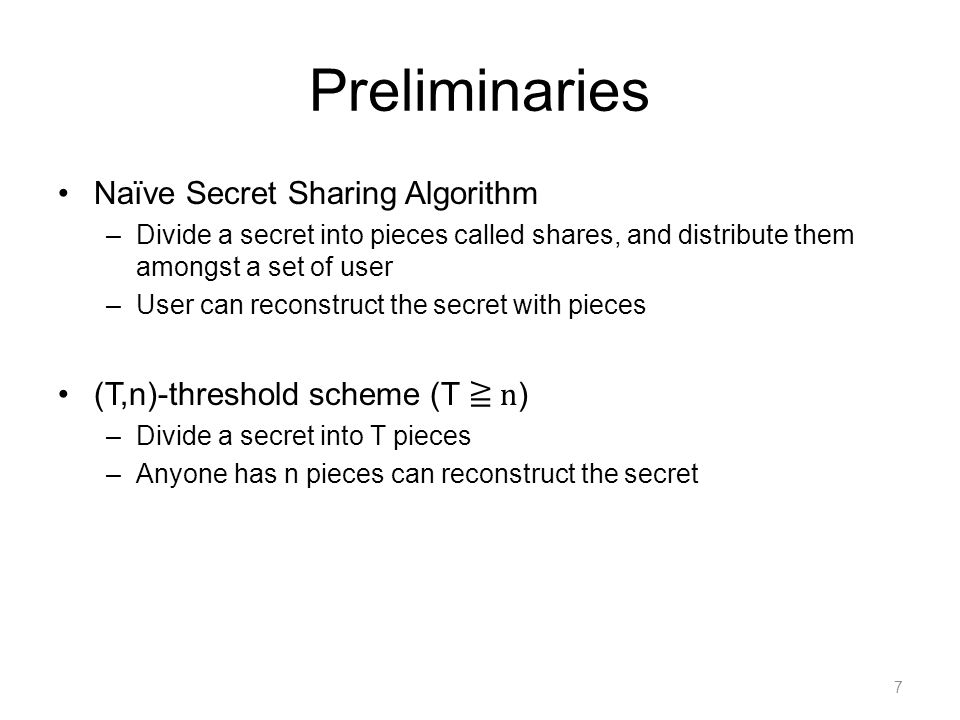

7. Preliminaries Naïve Secret Sharing Algorithm –Divide a secret into pieces called shares, and distribute them amongst a set of user –User can reconstruct the secret with pieces (T,n)-threshold scheme (T ≧ n ) –Divide a secret into T pieces –Anyone has n pieces can reconstruct the secret 7

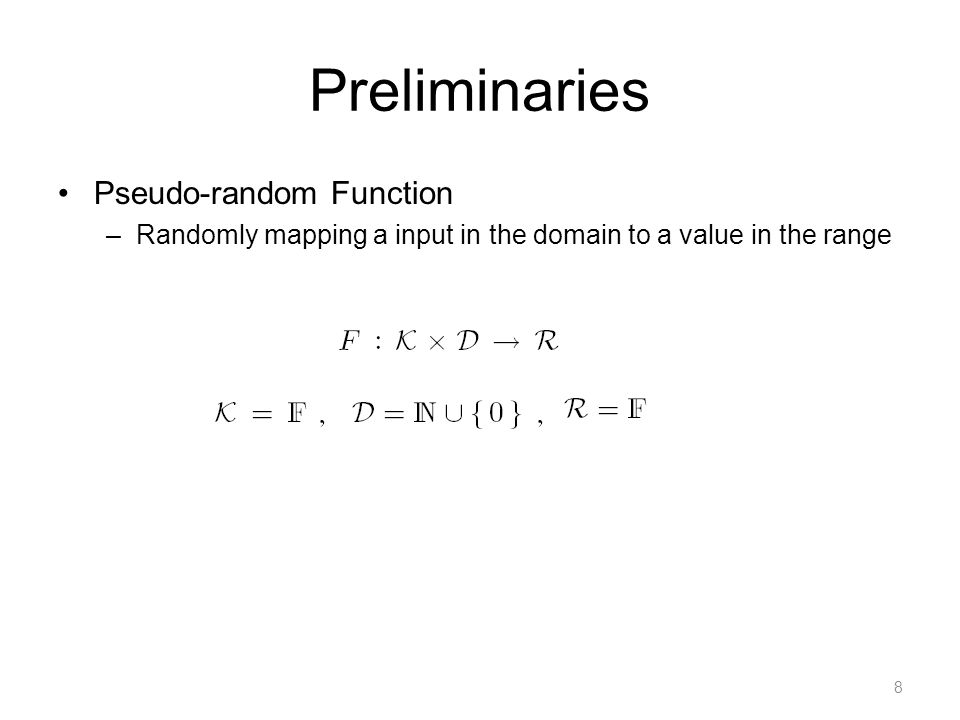

8. Preliminaries Pseudo-random Function –Randomly mapping a input in the domain to a value in the range 8

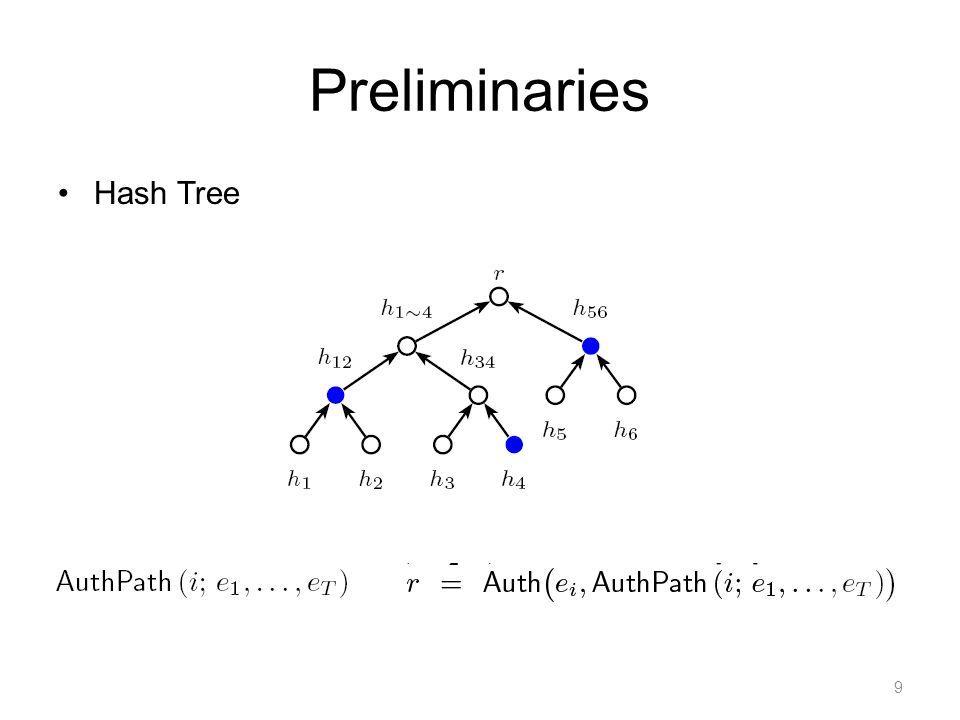

9. Preliminaries Hash Tree 9

10. Notations 10

11. LNCS-Overview Setup Secure Initialization Report Generation Report Authentication and Filtering Report Forwarding Sink Verification 11

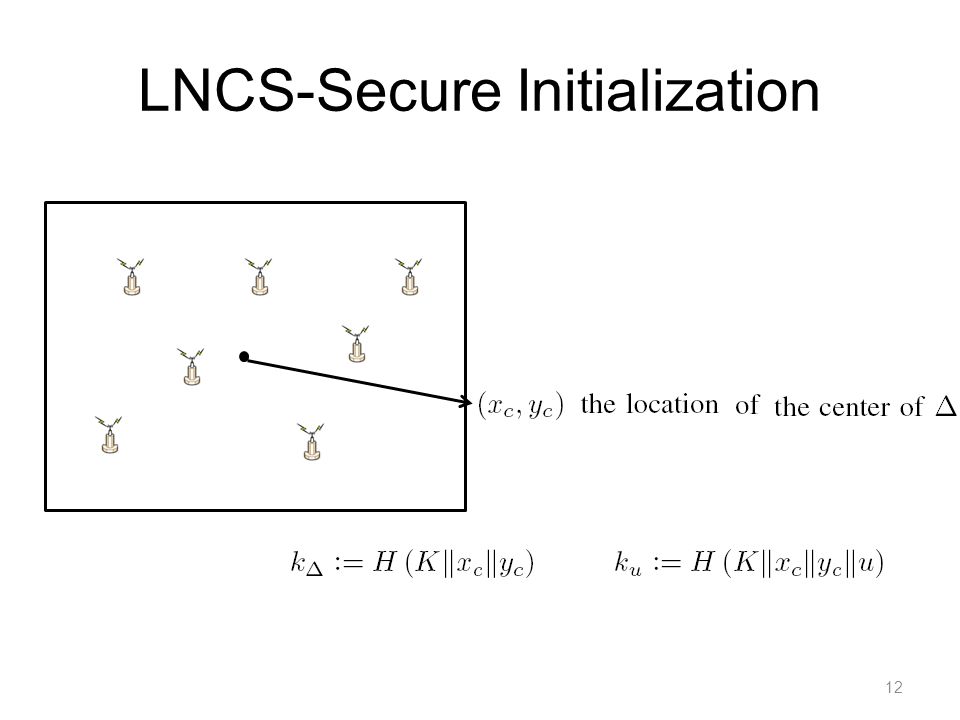

12. LNCS-Secure Initialization 12

13. LNCS-Report Generation 13 1. Broadcast its own sensor reading to other selected nodes 2. Aggregate all sensor reading with median 3. Make the report using secret sharing algorithm as like 4. Broadcast the d i to other node 5. Make the coefficients matrix C 0

14. LNCS-Report Generation 14 6. Encodes the vector d as follows 7. Divide e 0 and C 0 uniformly as much as T 0 8. Each node broadcasts the packets

15. LNCS-Report Authentication and Filtering 15

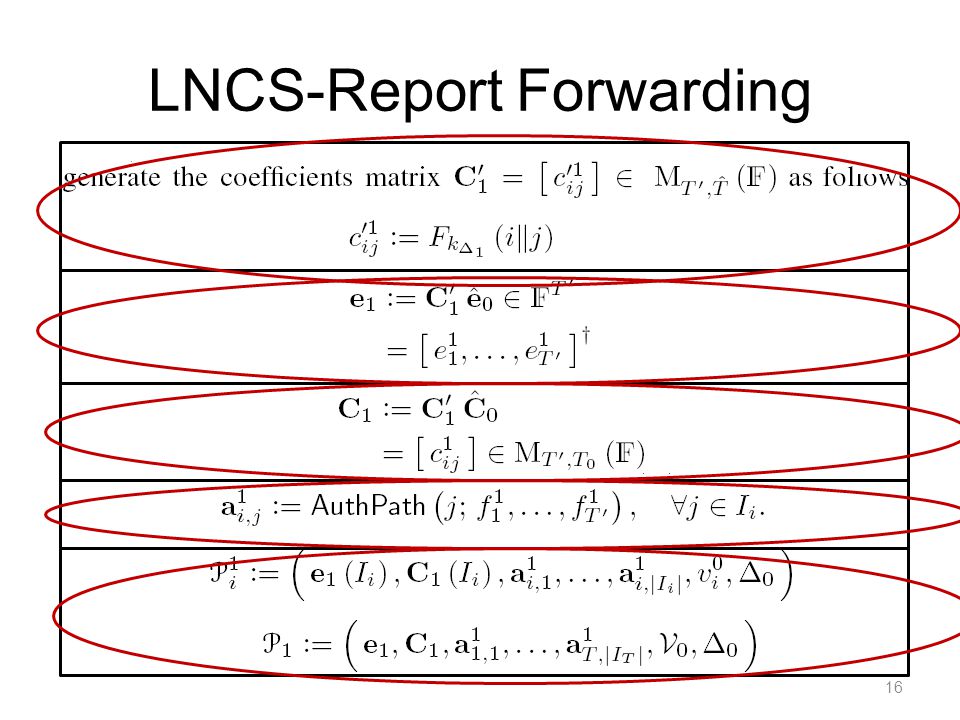

16. LNCS-Report Forwarding 16

17. LNCS-Sink Verification 17

18. Security Analysis Data Confidentiality –To recover original report data, the adversary should have the node keys of T 0 at least t. –In case of cell key 18

19. Security Analysis Data Authenticity 19

20. Security Analysis 20

21. Security Analysis Data Availability 21

22. Security Analysis 22

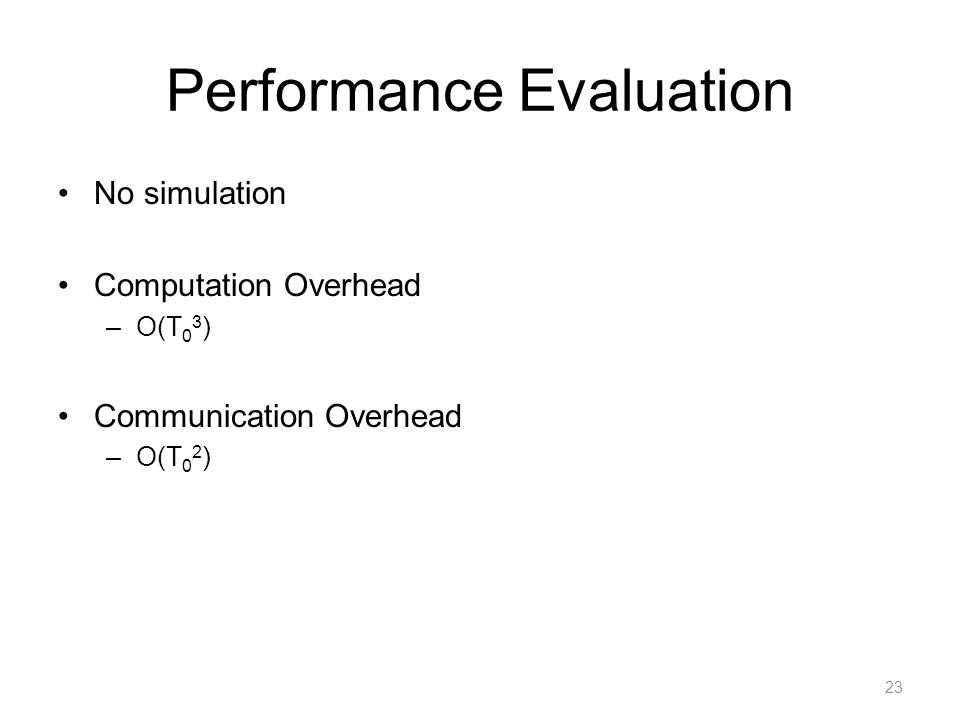

23. Performance Evaluation No simulation Computation Overhead –O(T 0 3 ) Communication Overhead –O(T 0 2 ) 23

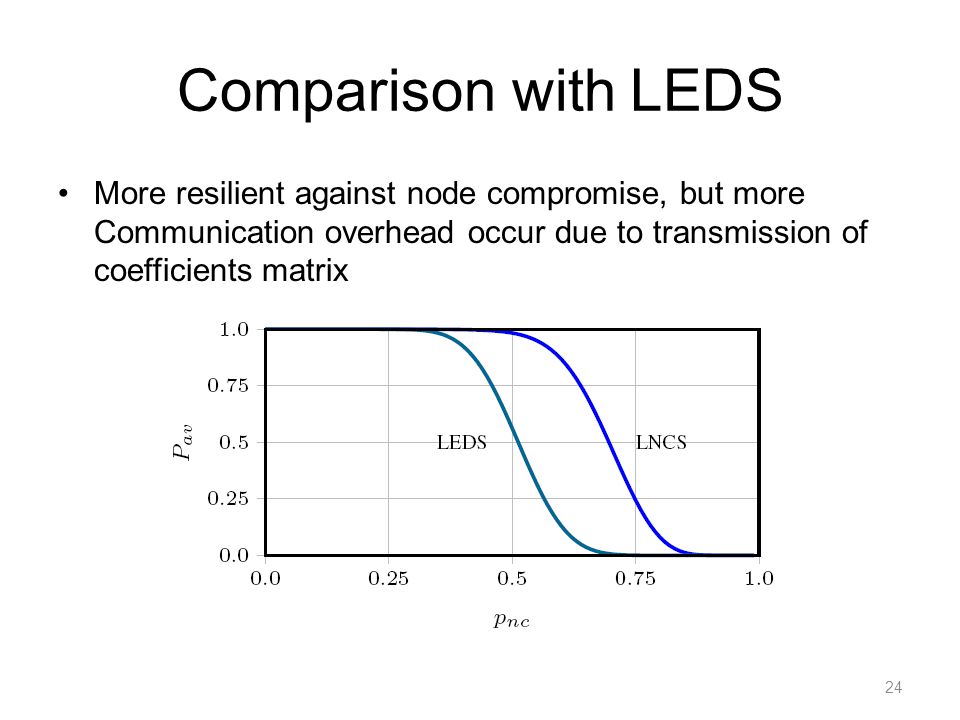

24. Comparison with LEDS More resilient against node compromise, but more Communication overhead occur due to transmission of coefficients matrix 24

25. Conclusion LNCS provides end-to-end data security with network coding. LNCS has higher resilience against node compromise and provides better data availability than LEDS. 25

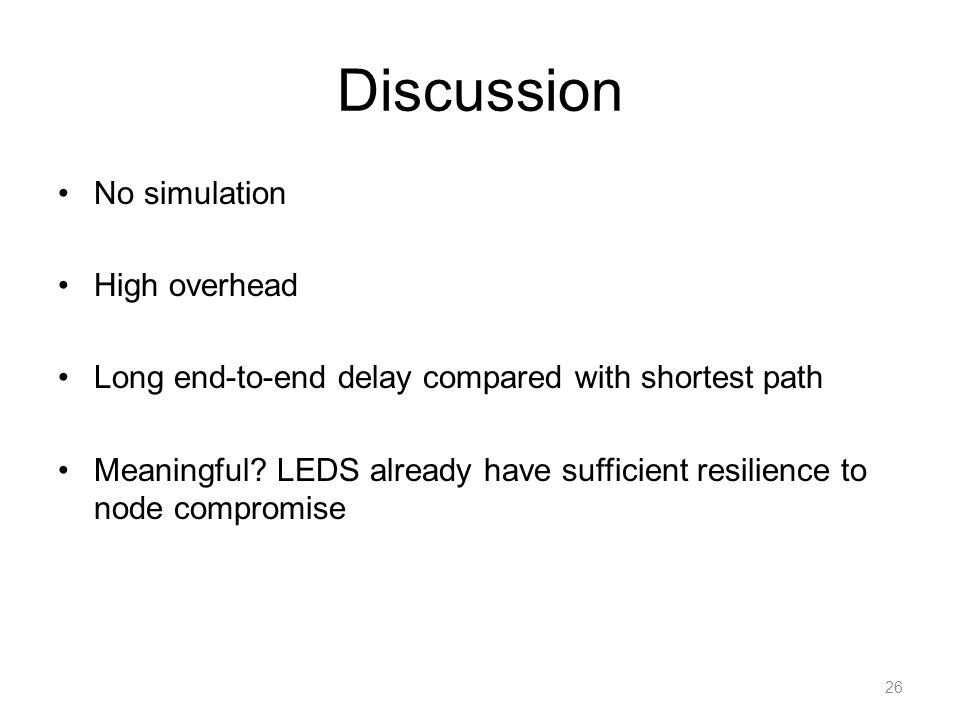

26. Discussion No simulation High overhead Long end-to-end delay compared with shortest path Meaningful? LEDS already have sufficient resilience to node compromise 26

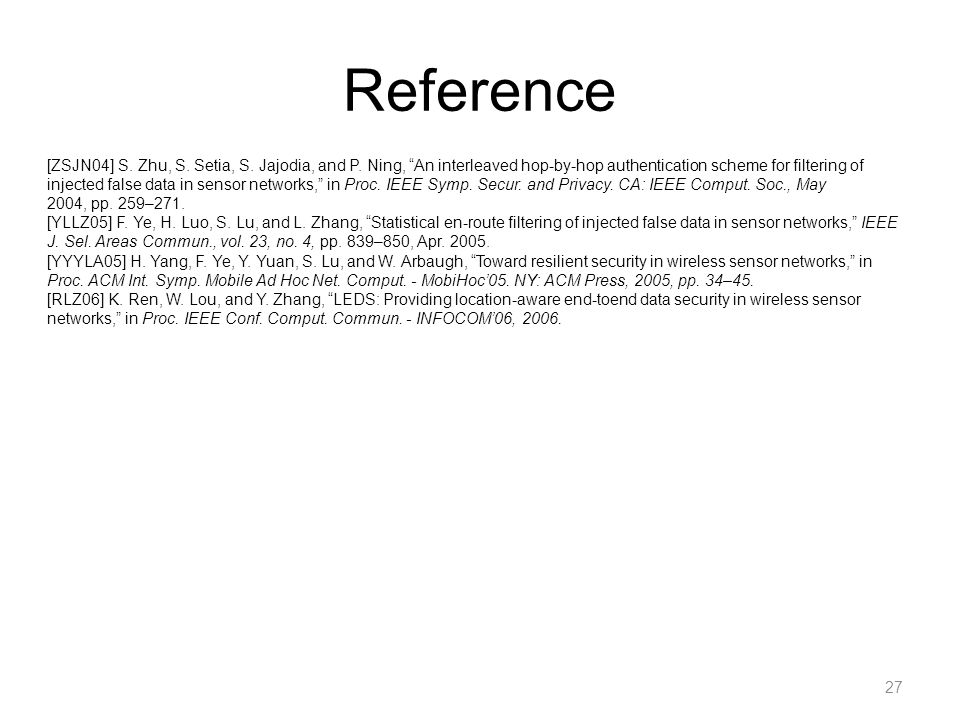

27. Reference 27 [ZSJN04] S. Zhu, S. Setia, S. Jajodia, and P. Ning, “An interleaved hop-by-hop authentication scheme for filtering of injected false data in sensor networks,” in Proc. IEEE Symp. Secur. and Privacy. CA: IEEE Comput. Soc., May 2004, pp. 259–271. [YLLZ05] F. Ye, H. Luo, S. Lu, and L. Zhang, “Statistical en-route filtering of injected false data in sensor networks,” IEEE J. Sel. Areas Commun., vol. 23, no. 4, pp. 839–850, Apr. 2005. [YYYLA05] H. Yang, F. Ye, Y. Yuan, S. Lu, and W. Arbaugh, “Toward resilient security in wireless sensor networks,” in Proc. ACM Int. Symp. Mobile Ad Hoc Net. Comput. - MobiHoc’05. NY: ACM Press, 2005, pp. 34–45. [RLZ06] K. Ren, W. Lou, and Y. Zhang, “LEDS: Providing location-aware end-toend data security in wireless sensor networks,” in Proc. IEEE Conf. Comput. Commun. - INFOCOM’06, 2006.
