1. 1 Application Protection as a Service EMC AppSync Update Presentation and Demo

2. 2 Let’s Transform Application Protection  Difficult –Multiple tools –Complex usage  Inefficient –Micromanagement –Wasted capacity  Static, Inflexible –Not virtual-aware –Trying to fit one size SIMPLE SELF-SERVICE SLA-DRIVEN DYNAMIC

3. 3 Deploying Protection as a Service

4. 4 Here’s some best practices for protecting Exchange and SQL today: 1.Tier apps by SLA RPO, RTO (Gold, Silver, Bronze) 2.Map appropriate technology to exceed goals for best cost 3.Automate protection for applications 4.Enable DBAs and app owners to make their own copies 5.Report on status on a regular basis Think in terms of Application Protection as a Service.

5. 5 Step 1. Tier Your Applications by RPO, RTO 1.Identify critical applications 2.Determine RPO 3.Determine RTO How much data can you lose in the event of an outage? How fast do you need to return to production? List your top 3 applications that are mission critical to your business. RPO: Recovery Point Objective RTO: Recovery Time Objective Application RPORTO Ordering Systems 1 min1 hr Email 30 min2 hr CRM 30 min4 hr

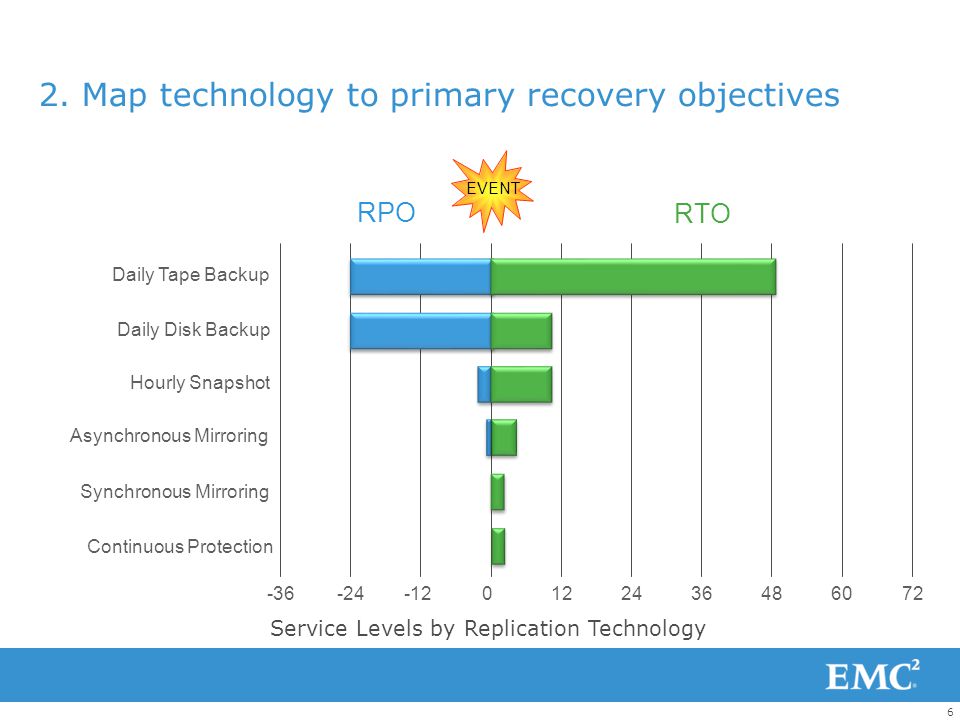

6. 6 2. Map technology to primary recovery objectives EVENT Daily Tape Backup Asynchronous Mirroring Synchronous Mirroring Continuous Protection Daily Disk Backup RPO RTO -36-24-120122436486072 Hourly Snapshot Service Levels by Replication Technology

7. 7 3. Automate Data Protection 6AM8AM 10AM12PM2PM4PM6PM8PM10PM12PM Snapshots Continuous Data Protection 8AM 10AM12PM2PM4PM6PM8PM10PM LocalRemote CDP= Continuous Data Protection

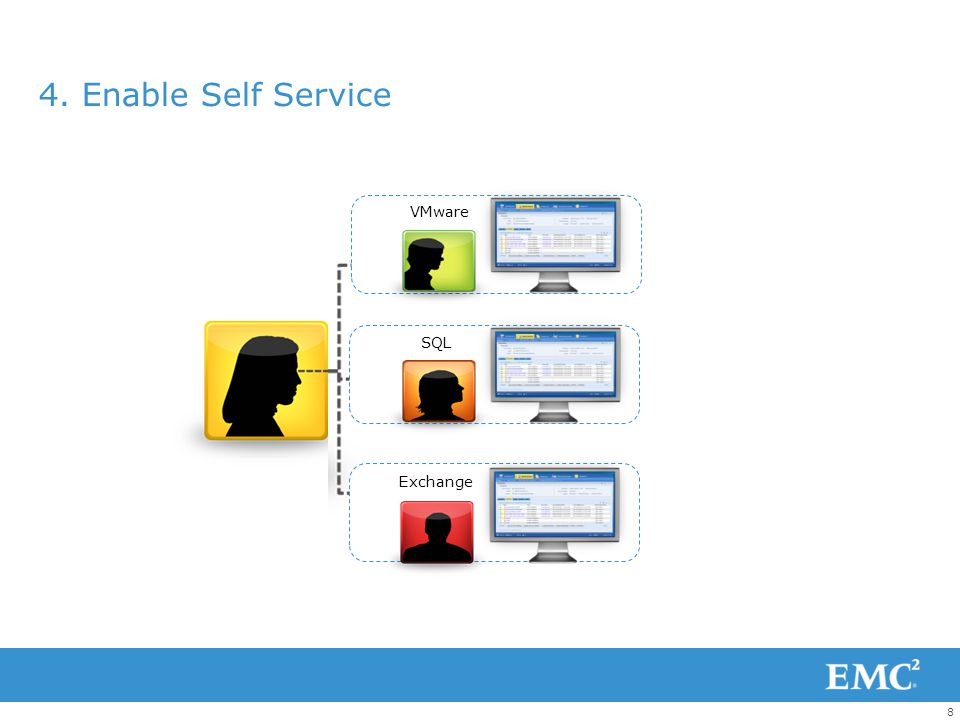

8. 8 4. Enable Self Service VMware SQL Exchange

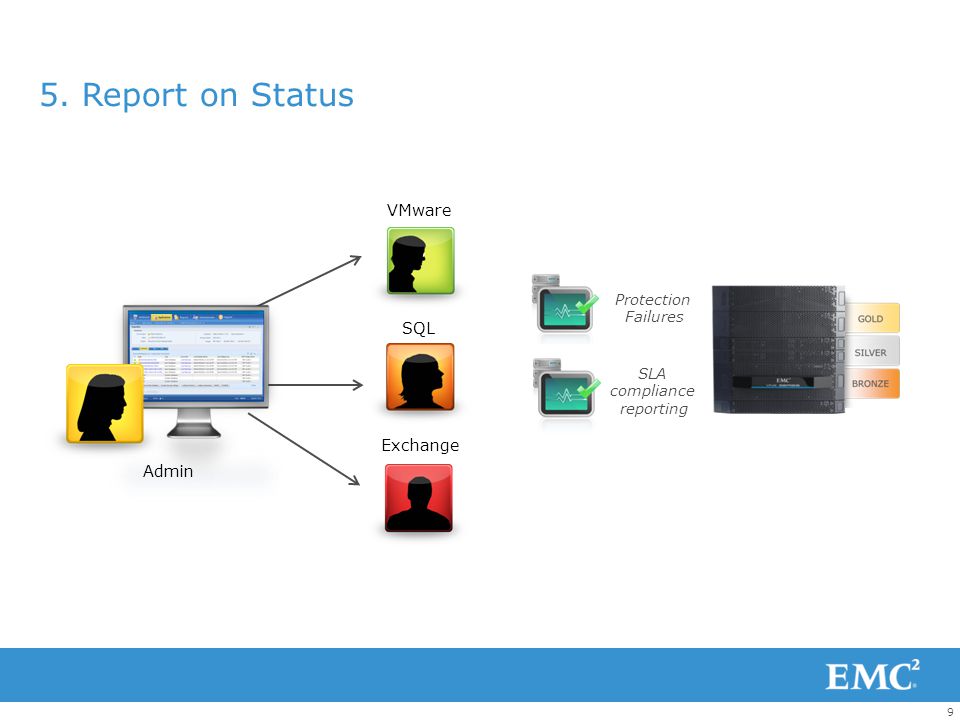

9. 9 5. Report on Status VMware SQL Exchange a Protection Failures a SLA compliance reporting

10. 10 Dynamic protection - synchronized to your virtual applications EMC AppSync SELF-SERVICE Enable application owners to drive protection SIMPLE Protect all your data in a single click SLA-DRIVEN Dial-in the correct service level  Deploy Application Protection as a Service

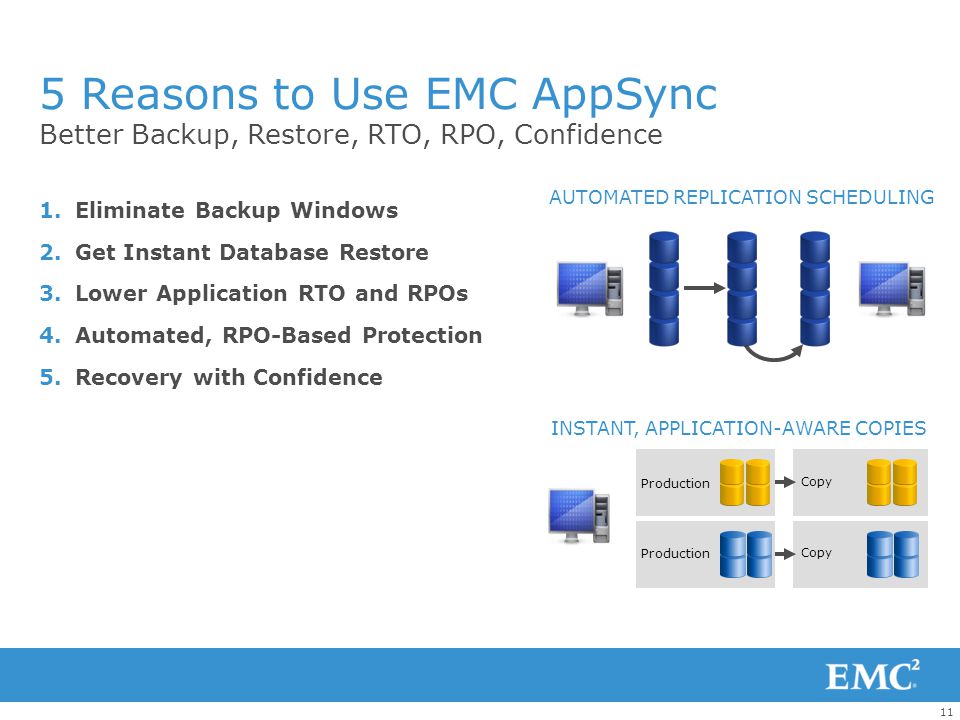

11. 11 5 Reasons to Use EMC AppSync Better Backup, Restore, RTO, RPO, Confidence 1.Eliminate Backup Windows 2.Get Instant Database Restore 3.Lower Application RTO and RPOs 4.Automated, RPO-Based Protection 5.Recovery with Confidence AUTOMATED REPLICATION SCHEDULING INSTANT, APPLICATION-AWARE COPIES Production Copy Production Copy

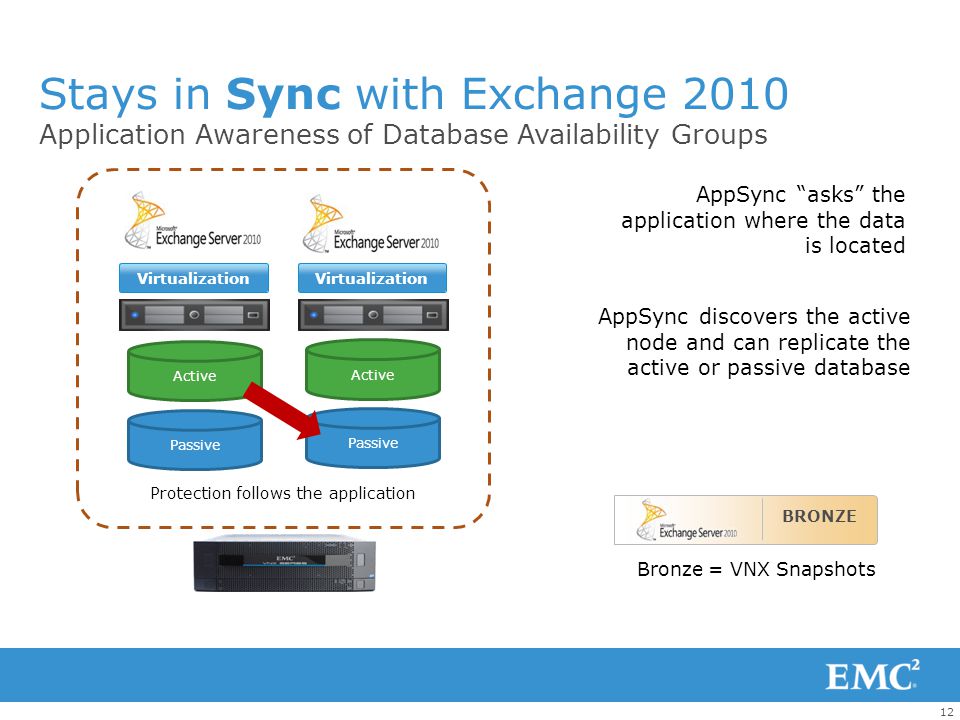

12. 12 Application Awareness of Database Availability Groups Stays in Sync with Exchange 2010 BRONZE Bronze = VNX Snapshots AppSync discovers the active node and can replicate the active or passive database Active Passive Virtualization Protection follows the application AppSync “asks” the application where the data is located

13. 13 VNX SNAPSHOTS Choose Your Service Plan Tiered Service Levels based on your business objectives TECHNOLOGYTIERPLAN RECOVERPOINT CONTINUOUS LOCAL AND REMOTE REPLICATION RECOVERPOINT CONTINUOUS REMOTE REPLICATION RECOVERPOINT CONTINUOUS DATA PROTECTION BRONZE SILVER GOLD 2 3 4 1 PLATINUM

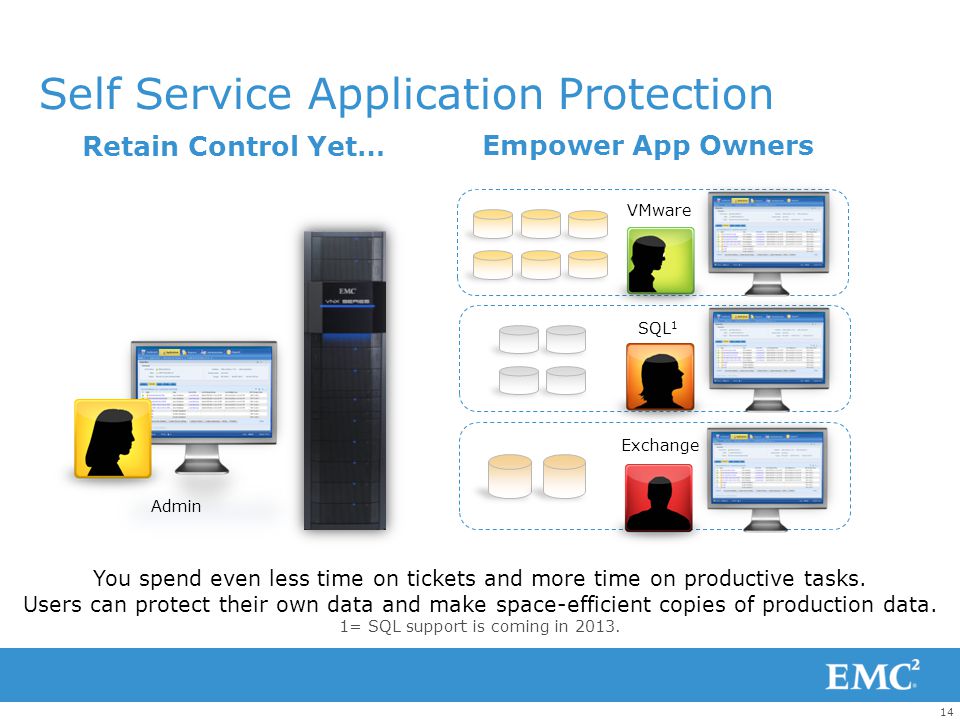

14. 14 Self Service Application Protection Retain Control Yet… Empower App Owners VMware SQL 1 Exchange You spend even less time on tickets and more time on productive tasks. Users can protect their own data and make space-efficient copies of production data. 1= SQL support is coming in 2013.

15. 15 Choose Your Management Interface Storage/App administrator AppSync Virtual server administrator vCenter Custom (API) Service Providers VSI required for VMware datastore protection Teams can be provided with 4 levels of access into AppSync Service providers can create their own interfaces

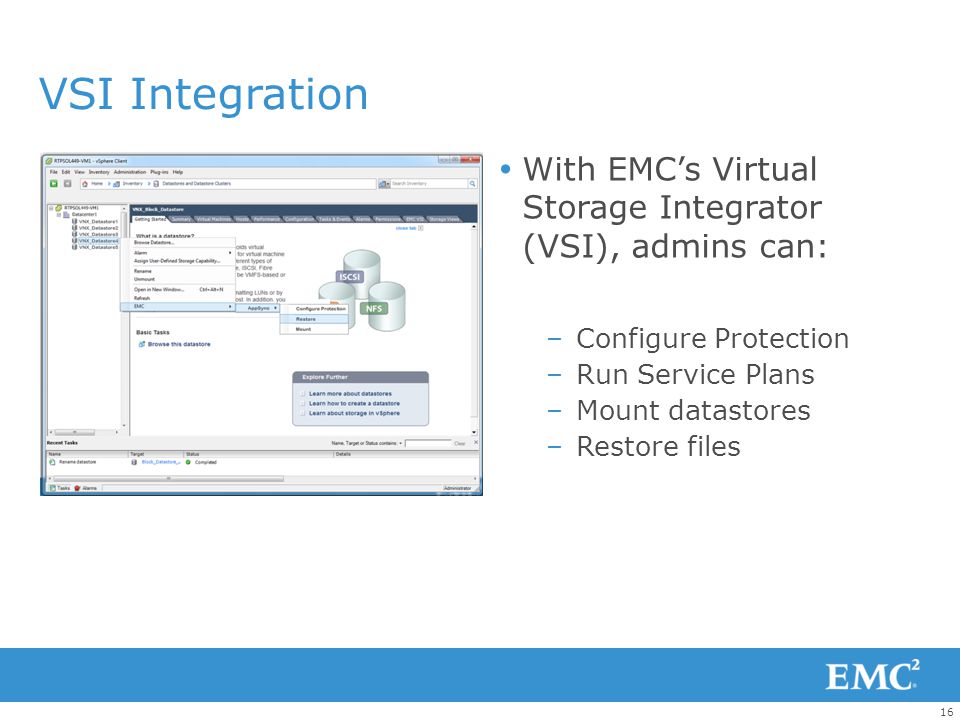

16. 16 VSI Integration  With EMC’s Virtual Storage Integrator (VSI), admins can: –Configure Protection –Run Service Plans –Mount datastores –Restore files

17. 17 VSI DEMO

18. 18 Comprehensive Recovery Assurance  Application-aware monitoring, reporting and alerting  Understands if application copies are recoverable  Self-service application recovery status  Application protection reports Always Know You Can Recover and Prove It EMC AppSync

19. 19 Intuitive SLA Dashboard

20. 20 Integration with VNX Snapshots Point-in time block based copy technology Improved Scalability – 256 writable snaps per LUN – up to 32,768 per system New Use Cases – Test and Development – Point-in-time backup – Reporting / Data Repurposing SSDNL-SASSAS ENHANCED SNAPSHOTS SNAPs of SNAPs LUN MonTuesWedThur 9:00 AM Wed Dev/ Test Backup Analysis Other … … … 10:00 AM

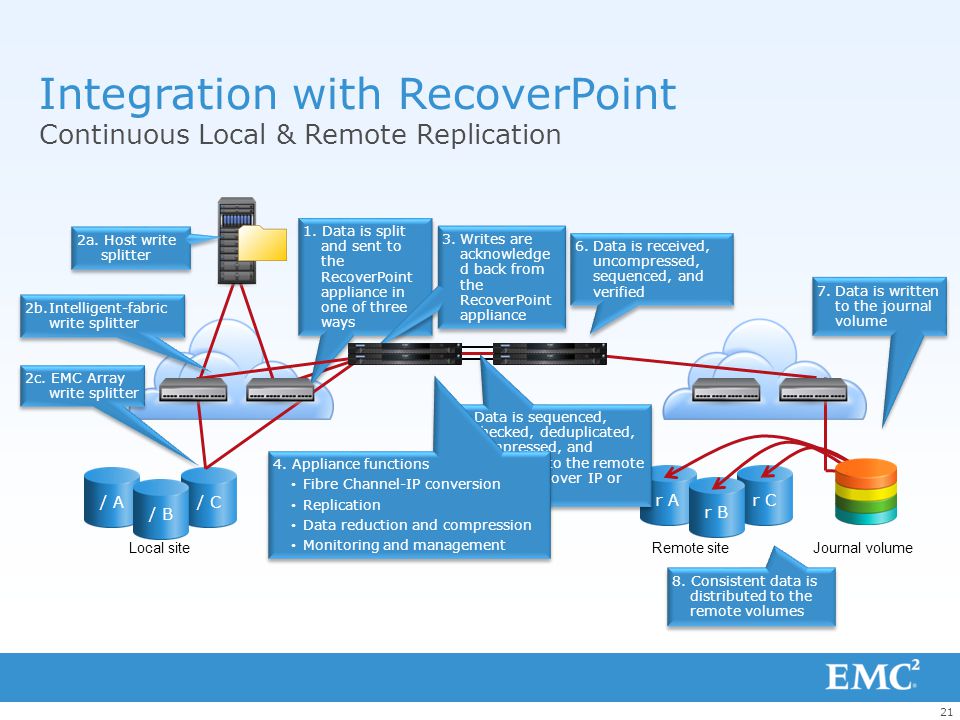

21. 21 Integration with RecoverPoint Continuous Local & Remote Replication r Ar C r B / A/ C / B Local site 2b.Intelligent-fabric write splitter 7.Data is written to the journal volume Remote siteJournal volume 5. Data is sequenced, checked, deduplicated, compressed, and replicated to the remote appliances over IP or SAN 1. Data is split and sent to the RecoverPoint appliance in one of three ways 8. Consistent data is distributed to the remote volumes 2c. EMC Array write splitter 3.Writes are acknowledge d back from the RecoverPoint appliance 4. Appliance functions Fibre Channel-IP conversion Replication Data reduction and compression Monitoring and management 4. Appliance functions Fibre Channel-IP conversion Replication Data reduction and compression Monitoring and management 6.Data is received, uncompressed, sequenced, and verified 2a. Host write splitter

22. 22 ItemPoint: Mailbox Restore as a Service ItemPoint integrates with AppSync for single item restore Exchange Admin Choose “Restore Individual Messages or Mailboxes” Search for items, drag & drop to recover! Choose Recent Exchange Database Copy 123 ItemPoint allows the quick recovery of individual mailboxes, email, attachments, contacts, and tasks from a copy of Microsoft Exchange Server created by EMC AppSync Easy to use, wizard-driven Powerful search capabilities Extract back to Exchange or to new PST file Does not require Exchange recovery environment ItemPoint is licensed per mailbox

23. 23 ITEMPOINT DEMO

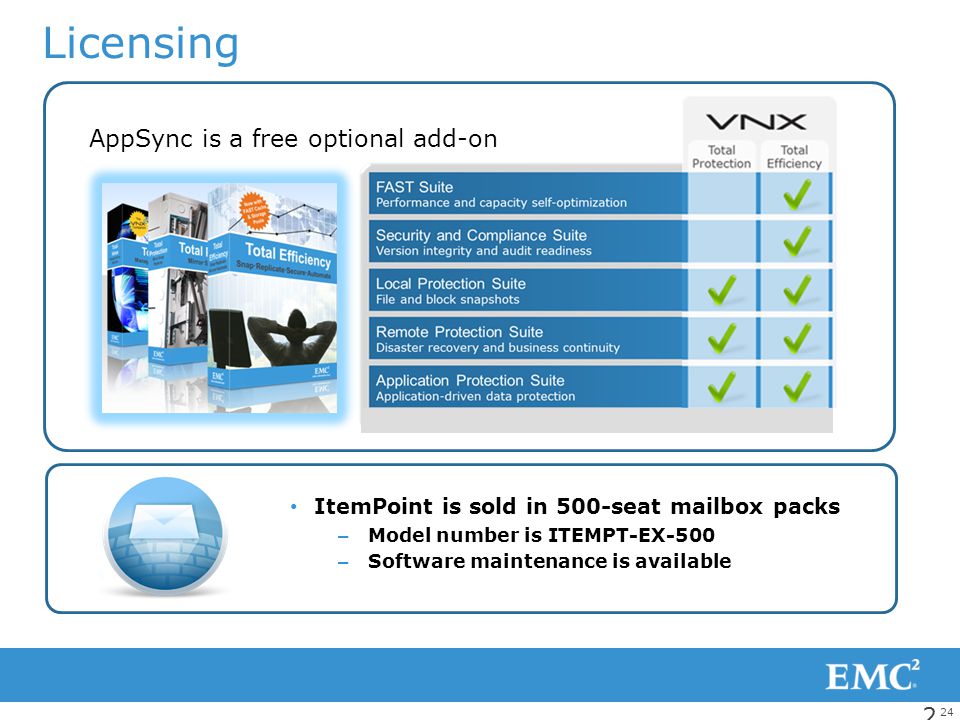

24. 24 Licensing ItemPoint is sold in 500-seat mailbox packs – Model number is ITEMPT-EX-500 – Software maintenance is available 24 AppSync is a free optional add-on

25. 25 Summary  Provide Application Protection as a Service.  Complement backups with technologies such as snapshots and CDP for lower RPO/RTO.  Ask any questions you might have!

26. 26 Resources / Next Steps  EMC AppSync Getting Started Video Series –https://community.emc.com/docs/DOC-18822https://community.emc.com/docs/DOC-18822  More Information –AppSync ECN Page – Demos, Webinars, PodcastsAppSync ECN Page –Product Support PageProduct Support Page –EMC.com / Powerlink
