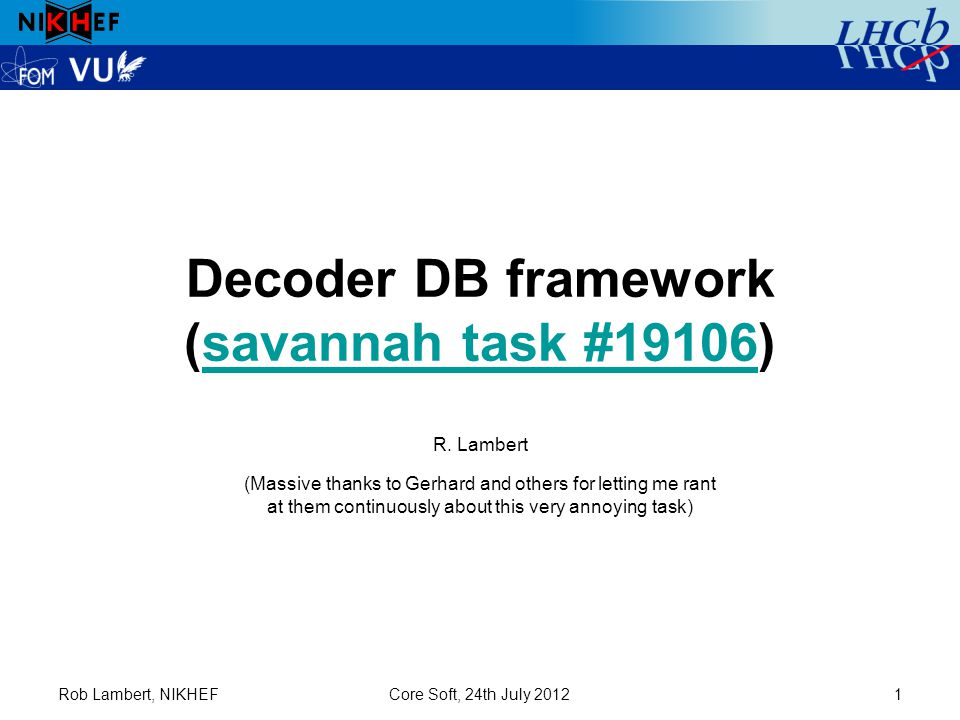

1. Rob Lambert, NIKHEFCore Soft, 24th July 20121 Decoder DB framework (savannah task #19106)savannah task #19106 R. Lambert (Massive thanks to Gerhard and others for letting me rant at them continuously about this very annoying task)

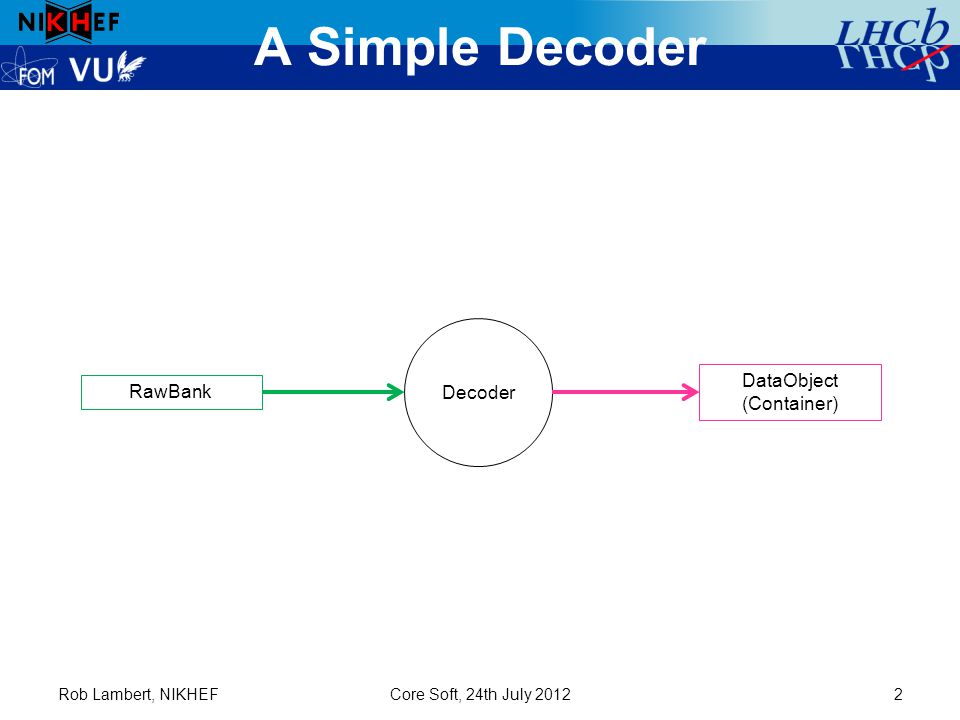

2. A Simple Decoder Rob Lambert, NIKHEFCore Soft, 24th July 20122 Decoder RawBank DataObject (Container)

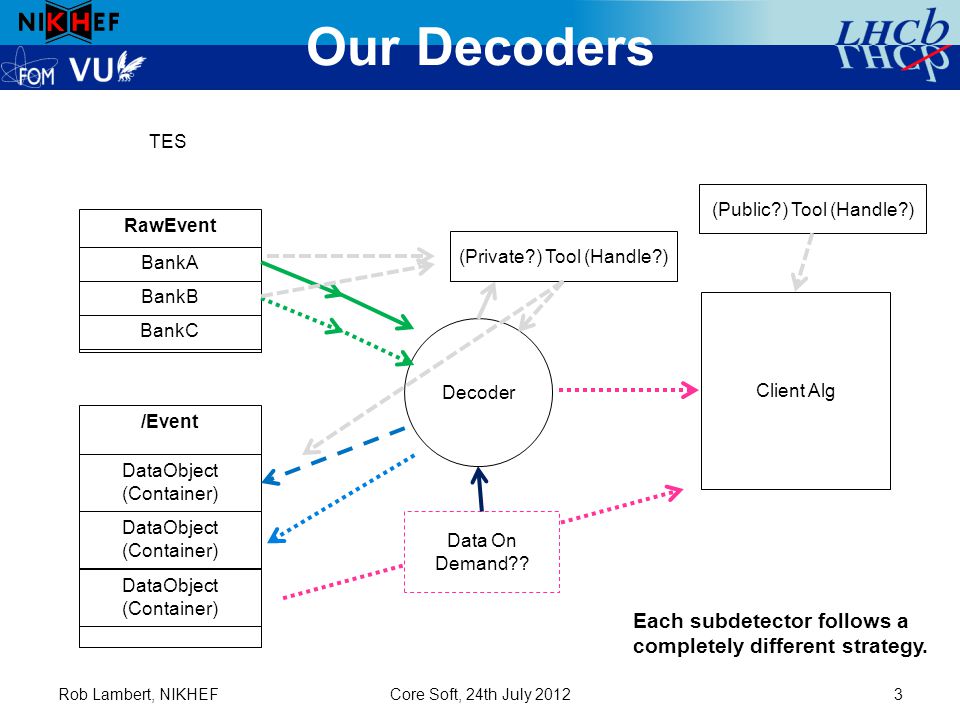

3. Our Decoders Rob Lambert, NIKHEFCore Soft, 24th July 20123 Client Alg RawEvent TES Decoder BankA BankB BankC /Event DataObject (Container) (Private?) Tool (Handle?) (Public?) Tool (Handle?) Each subdetector follows a completely different strategy. Data On Demand??

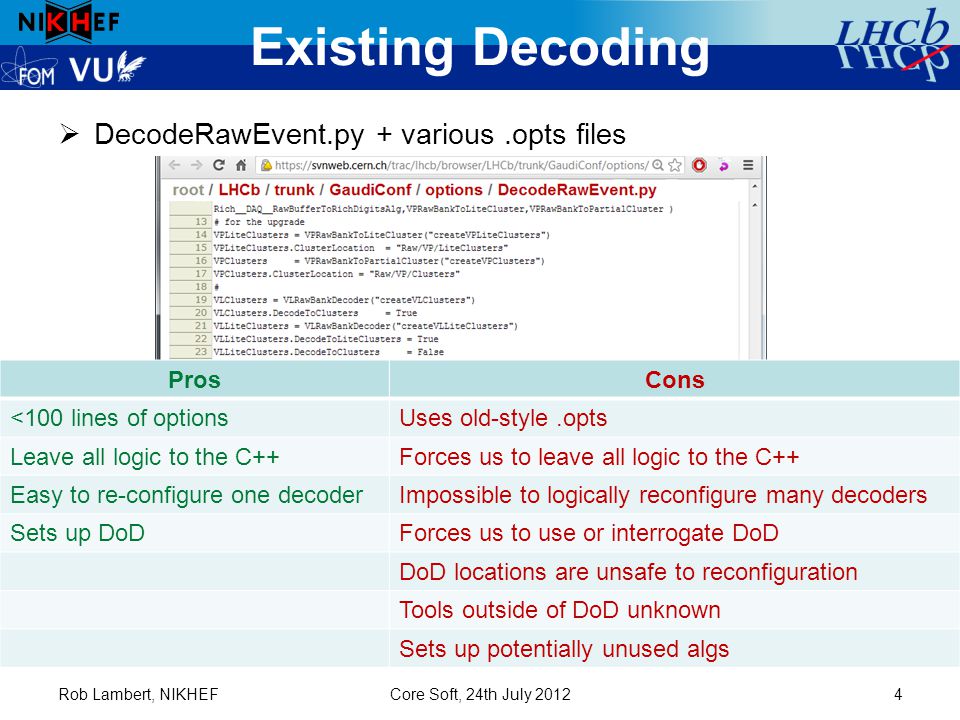

4.  DecodeRawEvent.py + various.opts files Existing Decoding Rob Lambert, NIKHEFCore Soft, 24th July 20124 ProsCons <100 lines of optionsUses old-style.opts Leave all logic to the C++Forces us to leave all logic to the C++ Easy to re-configure one decoderImpossible to logically reconfigure many decoders Sets up DoDForces us to use or interrogate DoD DoD locations are unsafe to reconfiguration Tools outside of DoD unknown Sets up potentially unused algs

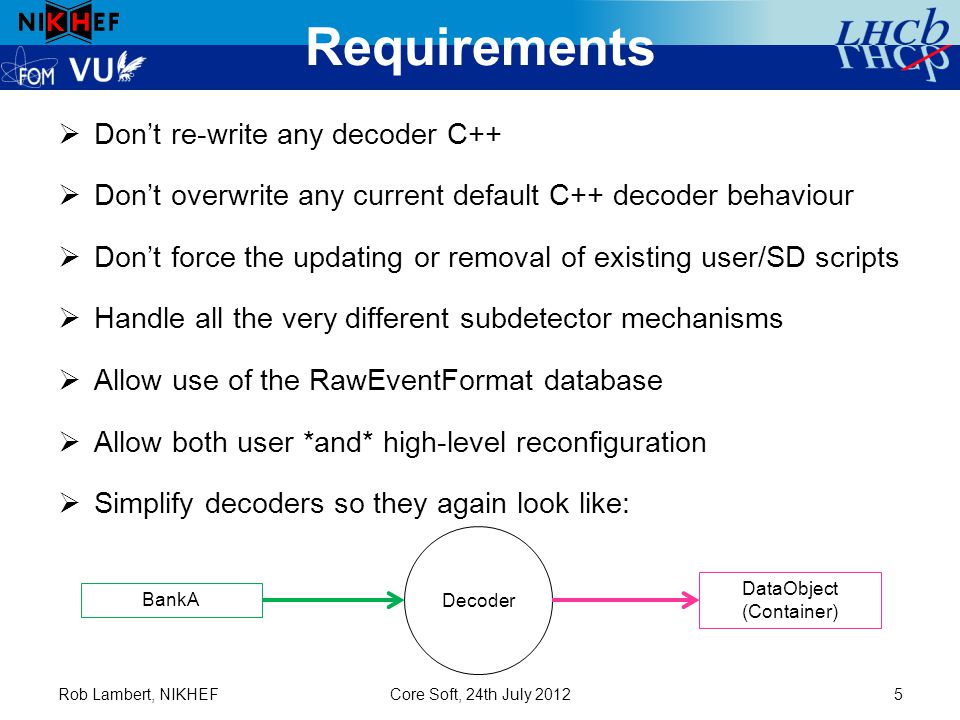

5. Requirements  Don’t re-write any decoder C++  Don’t overwrite any current default C++ decoder behaviour  Don’t force the updating or removal of existing user/SD scripts  Handle all the very different subdetector mechanisms  Allow use of the RawEventFormat database  Allow both user *and* high-level reconfiguration  Simplify decoders so they again look like: Rob Lambert, NIKHEFCore Soft, 24th July 20125 Decoder BankA DataObject (Container)

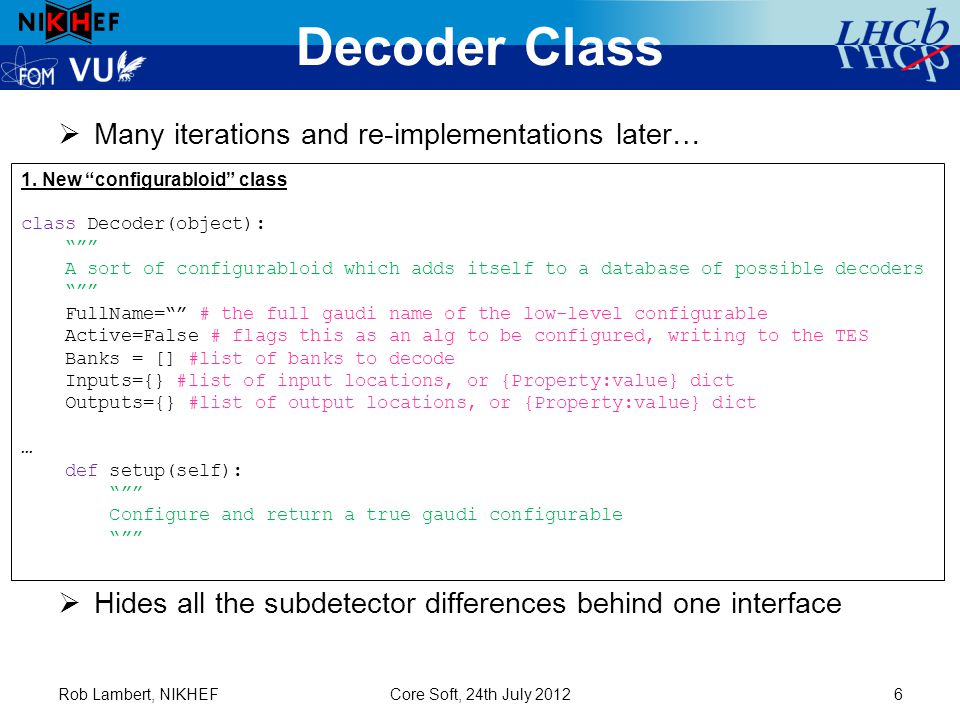

6. Decoder Class  Many iterations and re-implementations later…  Hides all the subdetector differences behind one interface Rob Lambert, NIKHEFCore Soft, 24th July 20126 1. New “configurabloid” class class Decoder(object): “”” A sort of configurabloid which adds itself to a database of possible decoders “”” FullName=“” # the full gaudi name of the low-level configurable Active=False # flags this as an alg to be configured, writing to the TES Banks = [] #list of banks to decode Inputs={} #list of input locations, or {Property:value} dict Outputs={} #list of output locations, or {Property:value} dict … def setup(self): “”” Configure and return a true gaudi configurable “””

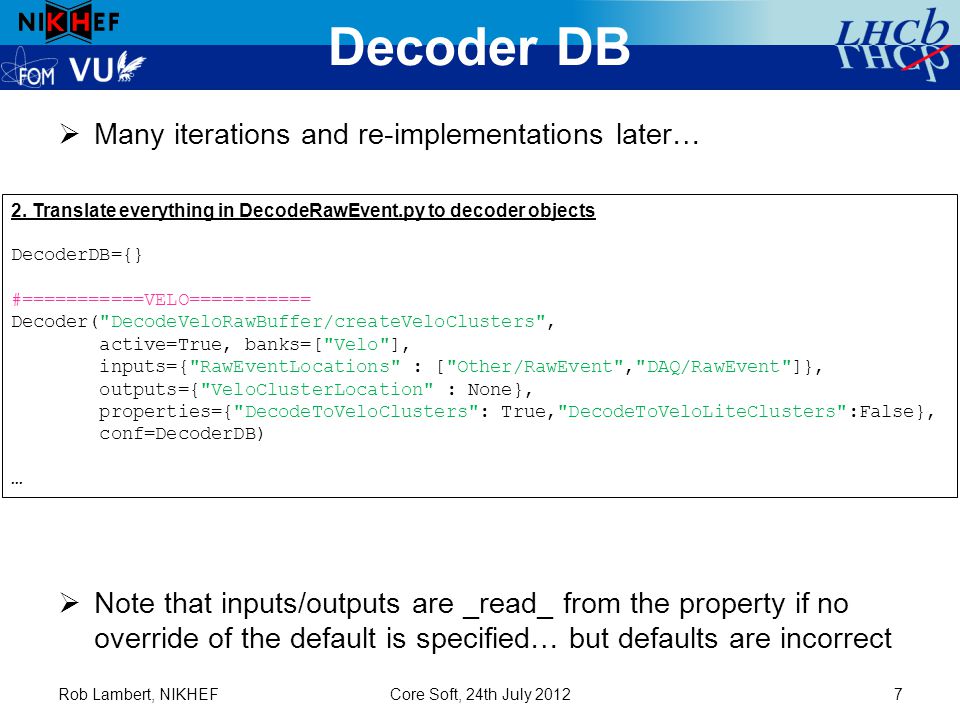

7. Decoder DB  Many iterations and re-implementations later…  Note that inputs/outputs are _read_ from the property if no override of the default is specified… but defaults are incorrect Rob Lambert, NIKHEFCore Soft, 24th July 20127 2. Translate everything in DecodeRawEvent.py to decoder objects DecoderDB={} #===========VELO=========== Decoder("DecodeVeloRawBuffer/createVeloClusters", active=True, banks=["Velo"], inputs={"RawEventLocations" : ["Other/RawEvent","DAQ/RawEvent"]}, outputs={"VeloClusterLocation" : None}, properties={"DecodeToVeloClusters": True,"DecodeToVeloLiteClusters":False}, conf=DecoderDB) …

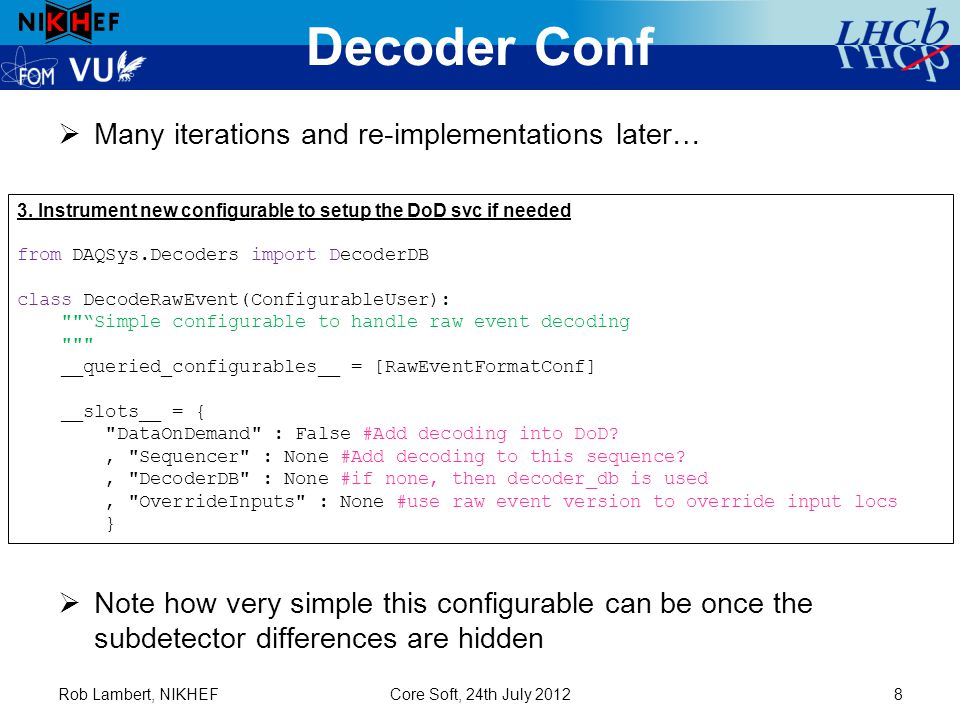

8. Decoder Conf  Many iterations and re-implementations later…  Note how very simple this configurable can be once the subdetector differences are hidden Rob Lambert, NIKHEFCore Soft, 24th July 20128 3. Instrument new configurable to setup the DoD svc if needed from DAQSys.Decoders import DecoderDB class DecodeRawEvent(ConfigurableUser): ""“Simple configurable to handle raw event decoding """ __queried_configurables__ = [RawEventFormatConf] __slots__ = { "DataOnDemand" : False #Add decoding into DoD?, "Sequencer" : None #Add decoding to this sequence?, "DecoderDB" : None #if none, then decoder_db is used, "OverrideInputs" : None #use raw event version to override input locs }

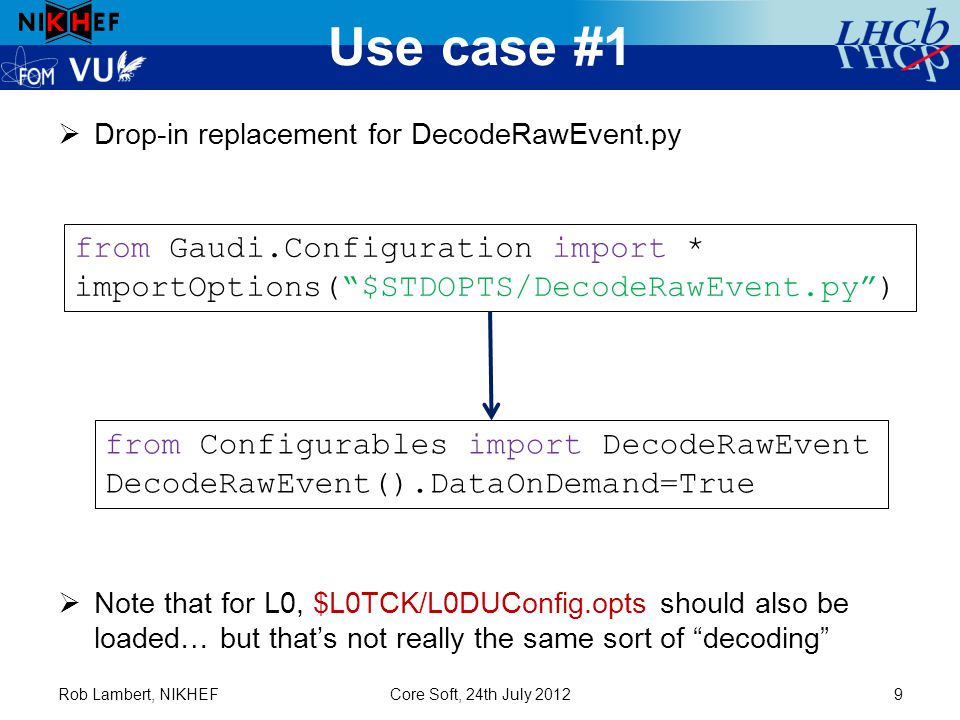

9. Use case #1  Drop-in replacement for DecodeRawEvent.py  Note that for L0, $L0TCK/L0DUConfig.opts should also be loaded… but that’s not really the same sort of “decoding” Rob Lambert, NIKHEFCore Soft, 24th July 20129 from Gaudi.Configuration import * importOptions(“$STDOPTS/DecodeRawEvent.py”) from Configurables import DecodeRawEvent DecodeRawEvent().DataOnDemand=True

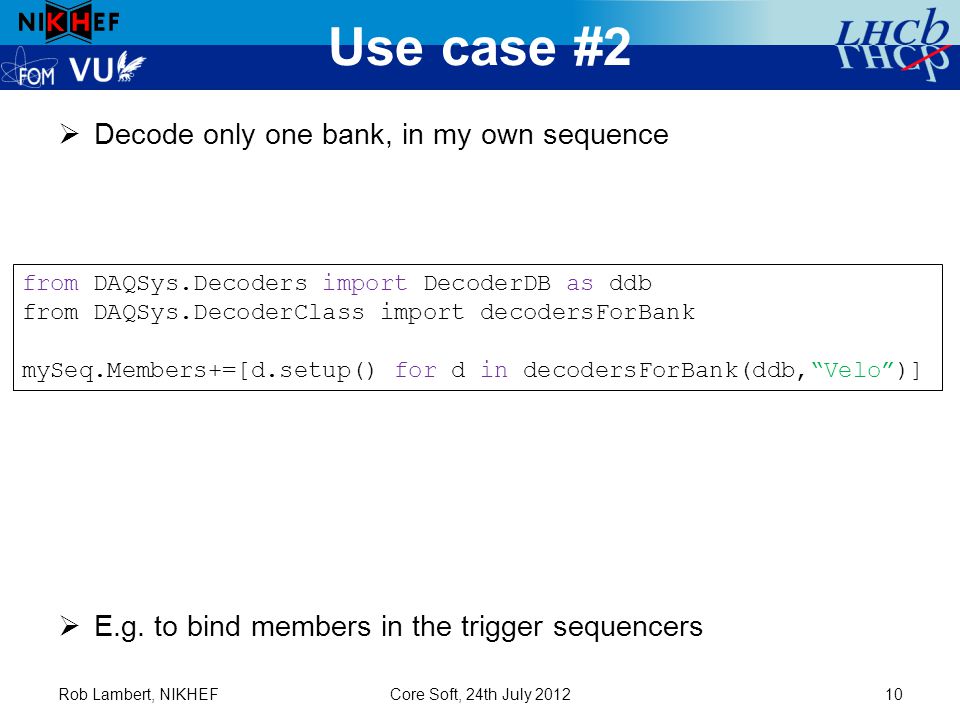

10. Use case #2  Decode only one bank, in my own sequence  E.g. to bind members in the trigger sequencers Rob Lambert, NIKHEFCore Soft, 24th July 201210 from DAQSys.Decoders import DecoderDB as ddb from DAQSys.DecoderClass import decodersForBank mySeq.Members+=[d.setup() for d in decodersForBank(ddb,“Velo”)]

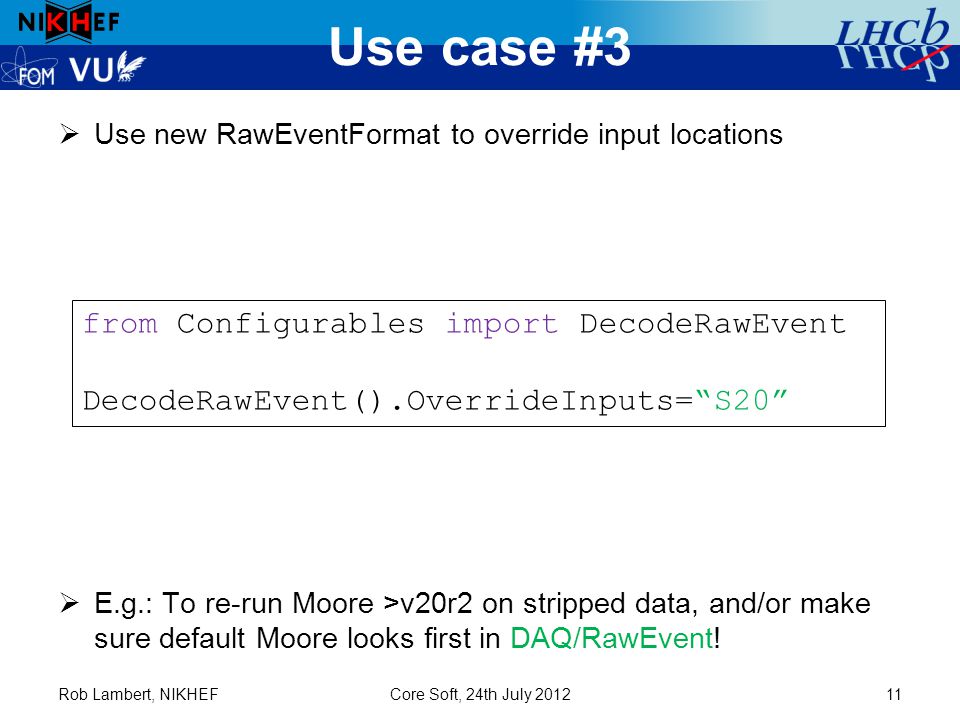

11. Use case #3  Use new RawEventFormat to override input locations  E.g.: To re-run Moore >v20r2 on stripped data, and/or make sure default Moore looks first in DAQ/RawEvent! Rob Lambert, NIKHEFCore Soft, 24th July 201211 from Configurables import DecodeRawEvent DecodeRawEvent().OverrideInputs=“S20”

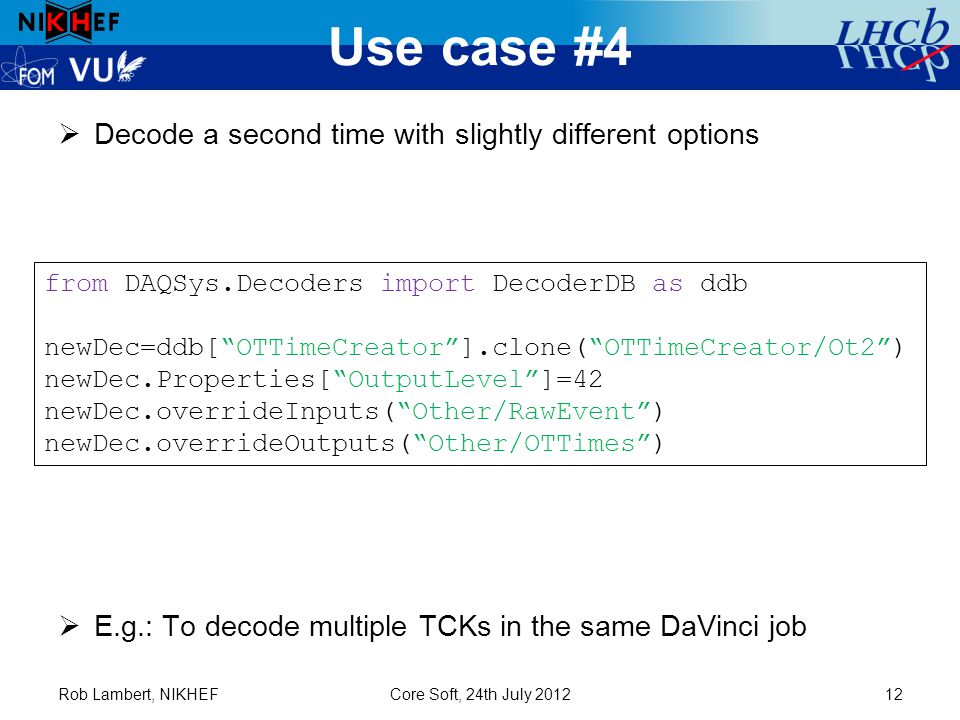

12. Use case #4  Decode a second time with slightly different options  E.g.: To decode multiple TCKs in the same DaVinci job Rob Lambert, NIKHEFCore Soft, 24th July 201212 from DAQSys.Decoders import DecoderDB as ddb newDec=ddb[“OTTimeCreator”].clone(“OTTimeCreator/Ot2”) newDec.Properties[“OutputLevel”]=42 newDec.overrideInputs(“Other/RawEvent”) newDec.overrideOutputs(“Other/OTTimes”)

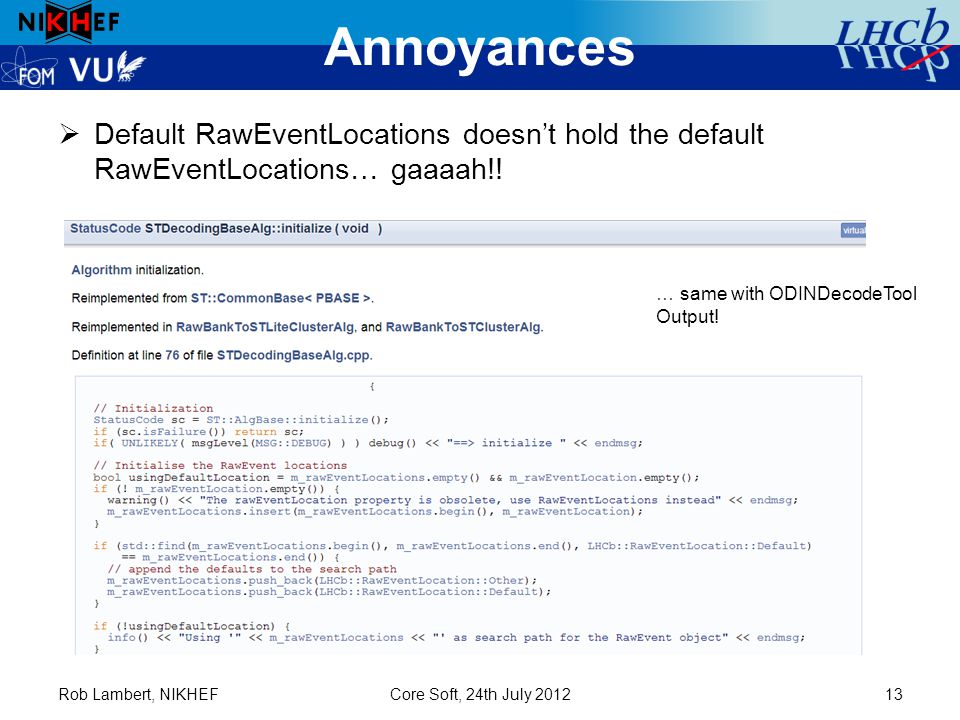

13. Annoyances  Default RawEventLocations doesn’t hold the default RawEventLocations… gaaaah!! Rob Lambert, NIKHEFCore Soft, 24th July 201213 … same with ODINDecodeTool Output!

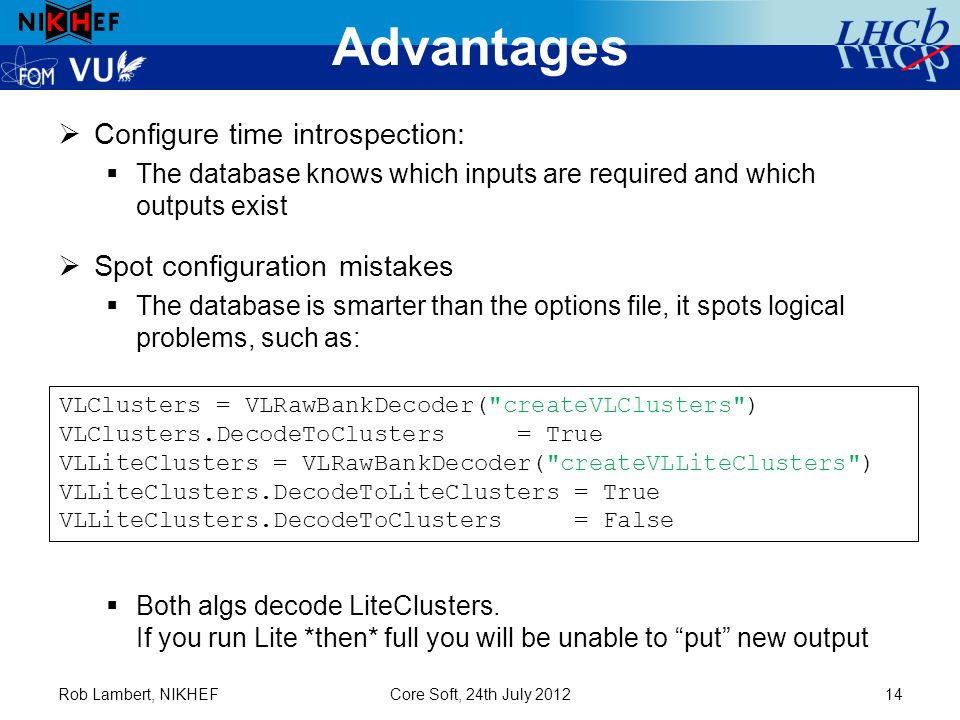

14. Advantages  Configure time introspection:  The database knows which inputs are required and which outputs exist  Spot configuration mistakes  The database is smarter than the options file, it spots logical problems, such as:  Both algs decode LiteClusters. If you run Lite *then* full you will be unable to “put” new output Rob Lambert, NIKHEFCore Soft, 24th July 201214 VLClusters = VLRawBankDecoder("createVLClusters") VLClusters.DecodeToClusters = True VLLiteClusters = VLRawBankDecoder("createVLLiteClusters") VLLiteClusters.DecodeToLiteClusters = True VLLiteClusters.DecodeToClusters = False

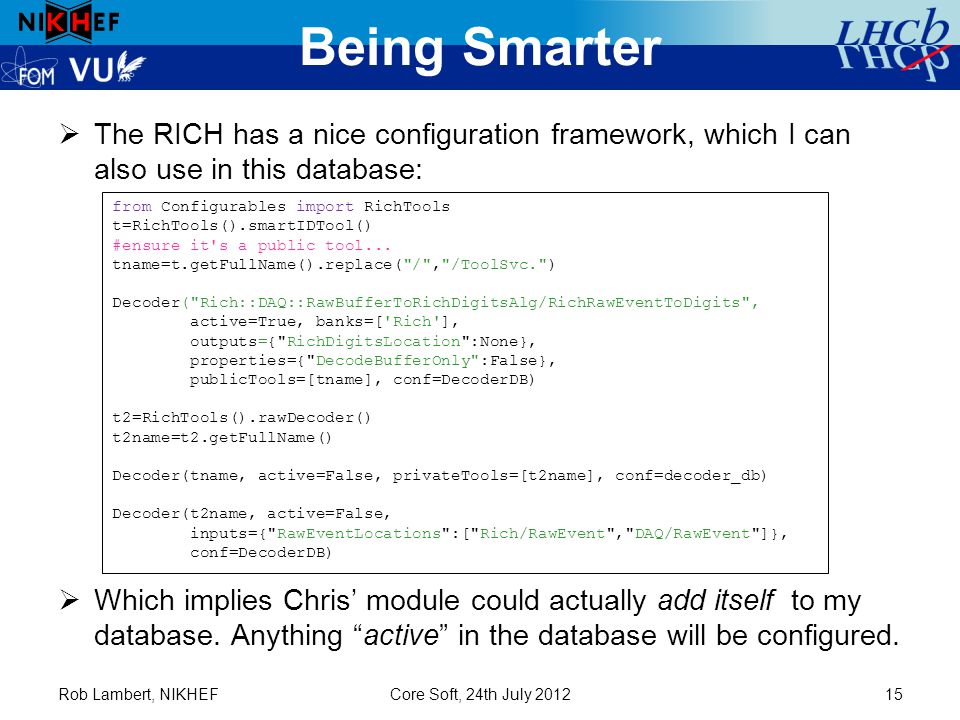

15. Being Smarter  The RICH has a nice configuration framework, which I can also use in this database:  Which implies Chris’ module could actually add itself to my database. Anything “active” in the database will be configured. Rob Lambert, NIKHEFCore Soft, 24th July 201215 from Configurables import RichTools t=RichTools().smartIDTool() #ensure it's a public tool... tname=t.getFullName().replace("/","/ToolSvc.") Decoder("Rich::DAQ::RawBufferToRichDigitsAlg/RichRawEventToDigits", active=True, banks=['Rich'], outputs={"RichDigitsLocation":None}, properties={"DecodeBufferOnly":False}, publicTools=[tname], conf=DecoderDB) t2=RichTools().rawDecoder() t2name=t2.getFullName() Decoder(tname, active=False, privateTools=[t2name], conf=decoder_db) Decoder(t2name, active=False, inputs={"RawEventLocations":["Rich/RawEvent","DAQ/RawEvent"]}, conf=DecoderDB)

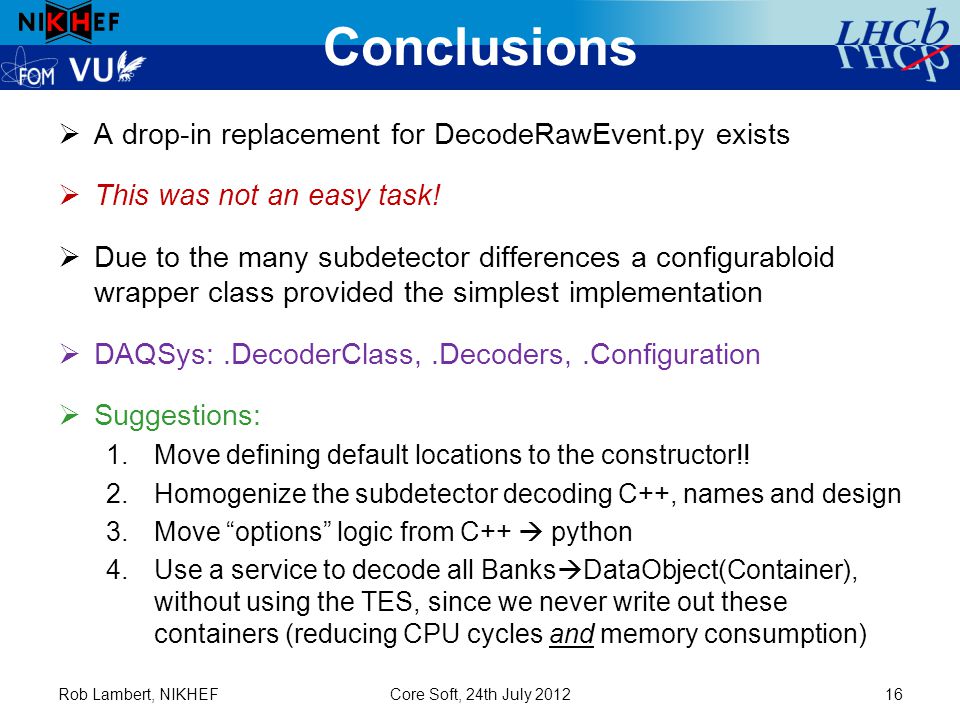

16. Conclusions  A drop-in replacement for DecodeRawEvent.py exists  This was not an easy task!  Due to the many subdetector differences a configurabloid wrapper class provided the simplest implementation  DAQSys:.DecoderClass,.Decoders,.Configuration  Suggestions: 1.Move defining default locations to the constructor!! 2.Homogenize the subdetector decoding C++, names and design 3.Move “options” logic from C++  python 4.Use a service to decode all Banks  DataObject(Container), without using the TES, since we never write out these containers (reducing CPU cycles and memory consumption) Rob Lambert, NIKHEFCore Soft, 24th July 201216

17. End  Backups are often required Rob Lambert, NIKHEFCore Soft, 24th July 201217
