1. Failure Detectors

2. Can we do anything in asynchronous systems? Reliable broadcast –Process j sends a message m to all processes in the system –Requirement: If m is delivered by any correct process then it should be delivered by all correct processes Intuition: message m may be received by the process but it may deliver it at a later point Assumption –A single message send is atomic –If a message is sent, it would be received as long as the receiving processes does not fail

3. Is this algorithm correct? Let 1..n be processes in the system –For x = 1 to n Send m to x –Upon receiving m Deliver m What is wrong?

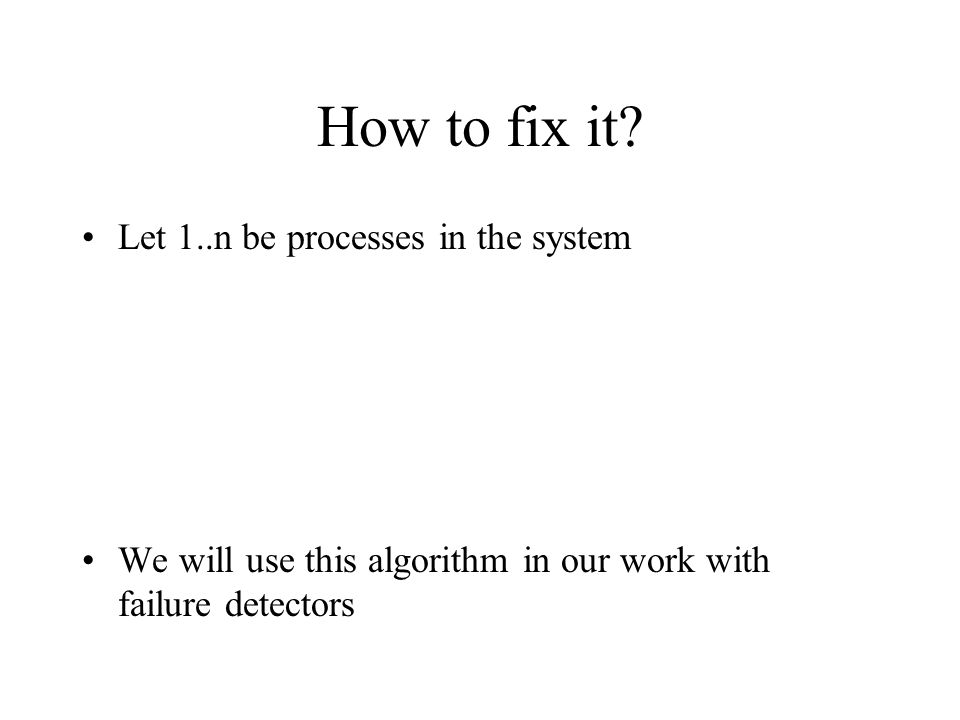

4. How to fix it? Let 1..n be processes in the system We will use this algorithm in our work with failure detectors

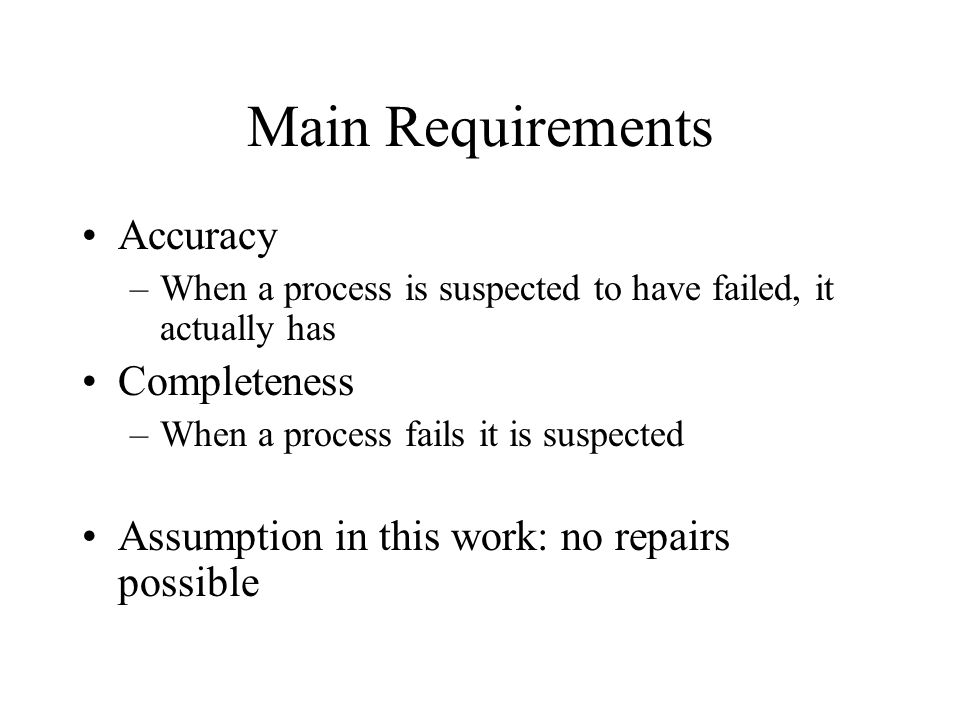

5. Main Requirements Accuracy –When a process is suspected to have failed, it actually has Completeness –When a process fails it is suspected Assumption in this work: no repairs possible

6. Different Completeness Requirements Strong completeness –Eventually every process that crashes is permanently suspected by all processes Weak completeness –Eventually every process that crashes is permanently suspected by some correct process

7. Different Accuracy Requirements Strong accuracy –No process is suspected before it crashes Weak accuracy –Some correct process is never suspected Eventual strong accuracy –There is a time (unknown to processes themselves) after which no process is suspected before it crashes Eventual weak accuracy –There is a time (unknown to processes themselves) after which some correct process is never suspected

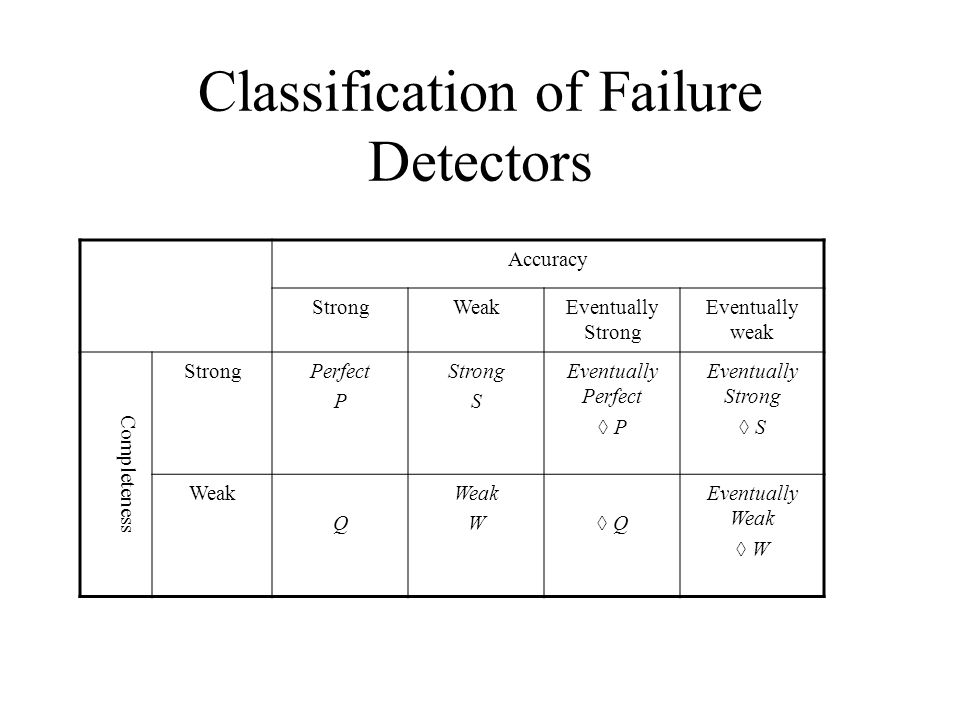

8. Classification of Failure Detectors Accuracy StrongWeakEventually Strong Eventually weak Completeness StrongPerfect P Strong S Eventually Perfect  P Eventually Strong  S Weak Q W  Q Q Eventually Weak  W

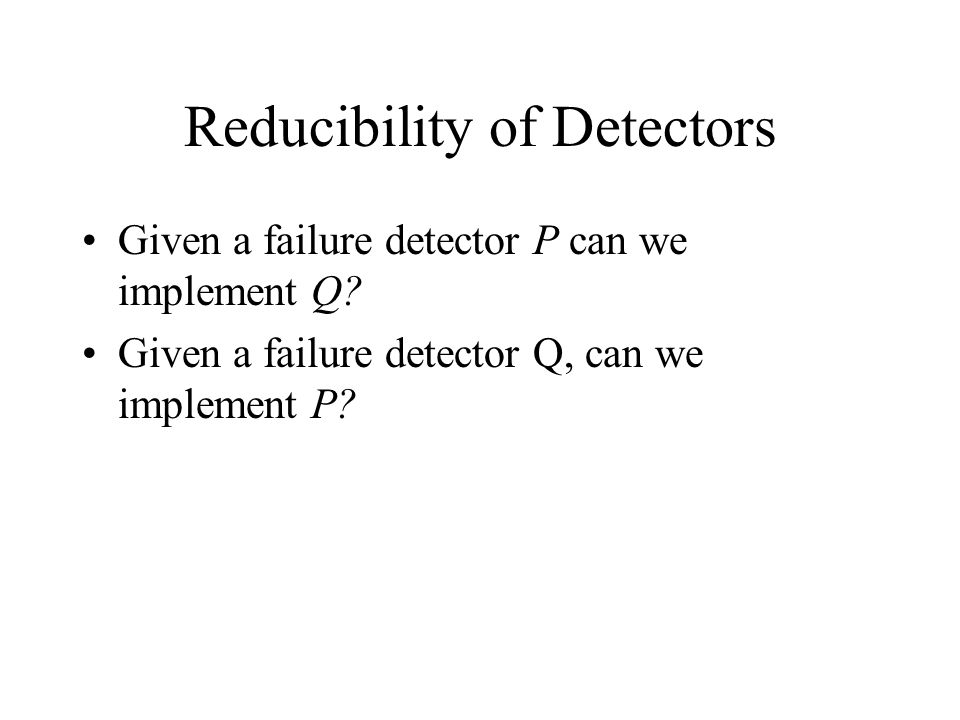

9. Reducibility of Detectors Given a failure detector P can we implement Q? Given a failure detector Q, can we implement P?

10. Reducibility of Detectors D T D->D’ D’

11. Reducibility of Detectors Repeat forever { p queries local failure detector D p } suspect p = D p send (p, suspect p ) to all [] When receive(q, suspect q ) output p = (output p  suspect q ) – { q }

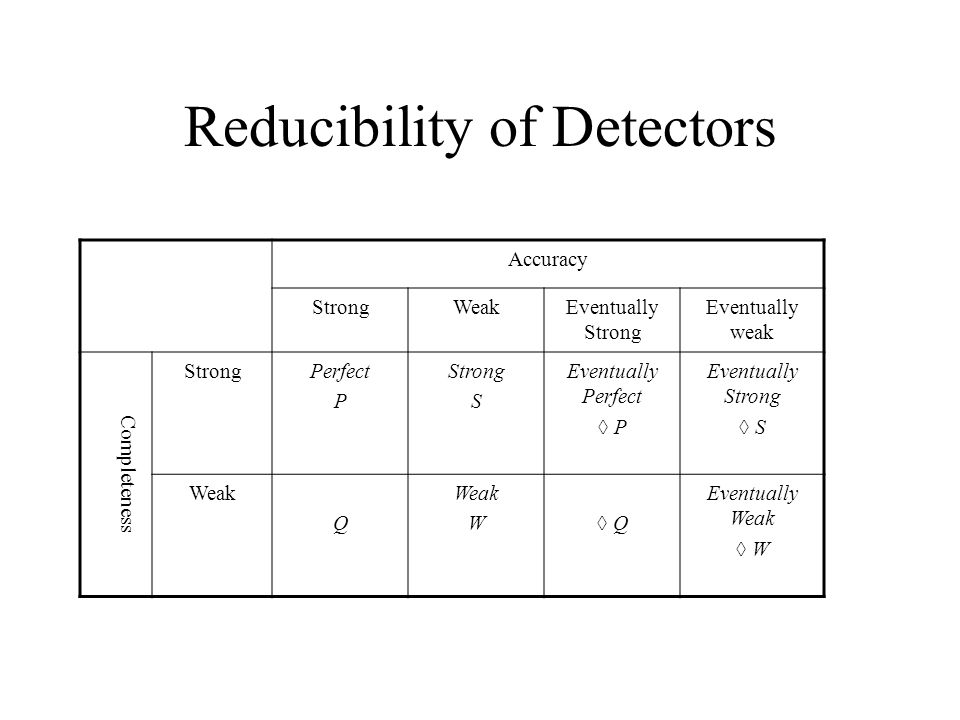

12. Reducibility of Detectors Accuracy StrongWeakEventually Strong Eventually weak Completeness StrongPerfect P Strong S Eventually Perfect  P Eventually Strong  S Weak Q W  Q Q Eventually Weak  W

13. Solving Consensus with Weak Failure Detector S Phase 1 for x = 1 to n – 1 report the new votes you learnt in the previous round wait until you receive votes from everyone you do not suspect to have failed end for Phase 2 report all the votes you have learnt wait until you receive votes from everyone you do not suspect to have failed Phase 3 Consider only those votes that are known to everyone Choose the vote of the smallest ID process as the decision

14. Solving Consensus with Weak Failure Detector  S Assume that the number of processes failed is strictly less than n/2 Round based computation –Coordinator in round x is (x mod n) + 1 Coordinator is just a process that follows a protocol that slightly differs from others Otherwise, there are no other assumptions about it

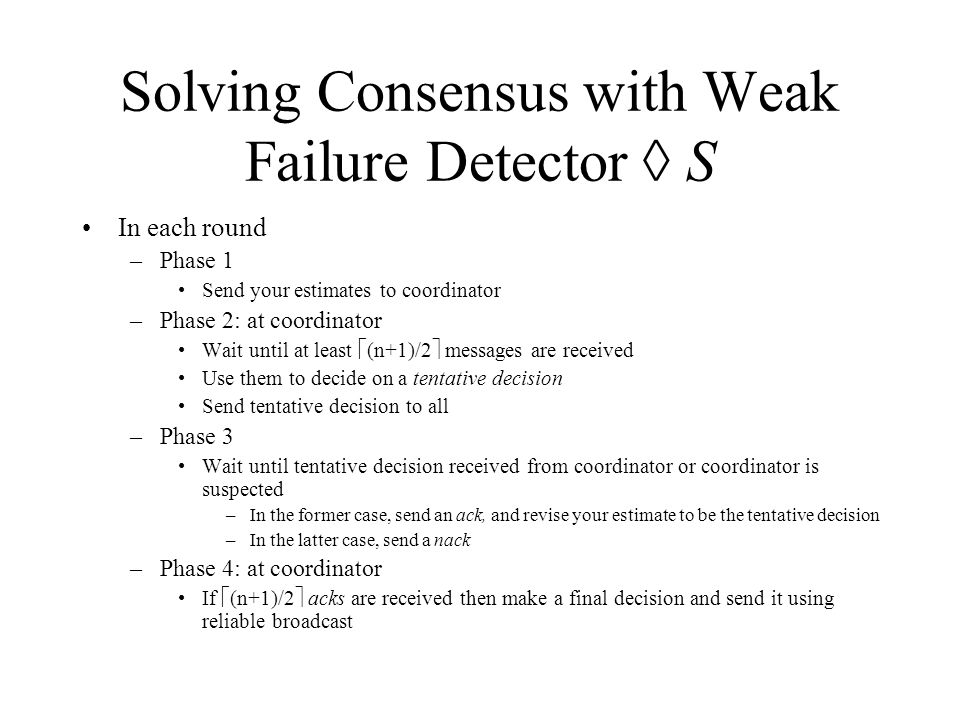

15. Solving Consensus with Weak Failure Detector  S In each round –Phase 1 Send your estimates to coordinator –Phase 2: at coordinator Wait until at least  (n+1)/2  messages are received Use them to decide on a tentative decision Send tentative decision to all –Phase 3 Wait until tentative decision received from coordinator or coordinator is suspected –In the former case, send an ack, and revise your estimate to be the tentative decision –In the latter case, send a nack –Phase 4: at coordinator If  (n+1)/2  acks are received then make a final decision and send it using reliable broadcast

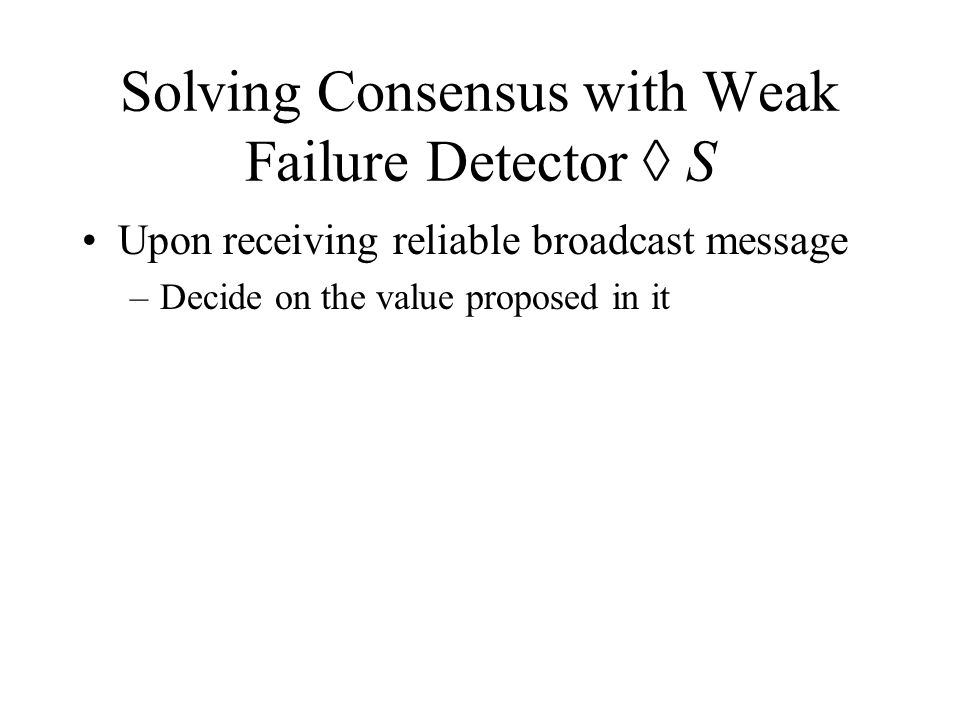

16. Solving Consensus with Weak Failure Detector  S Upon receiving reliable broadcast message –Decide on the value proposed in it

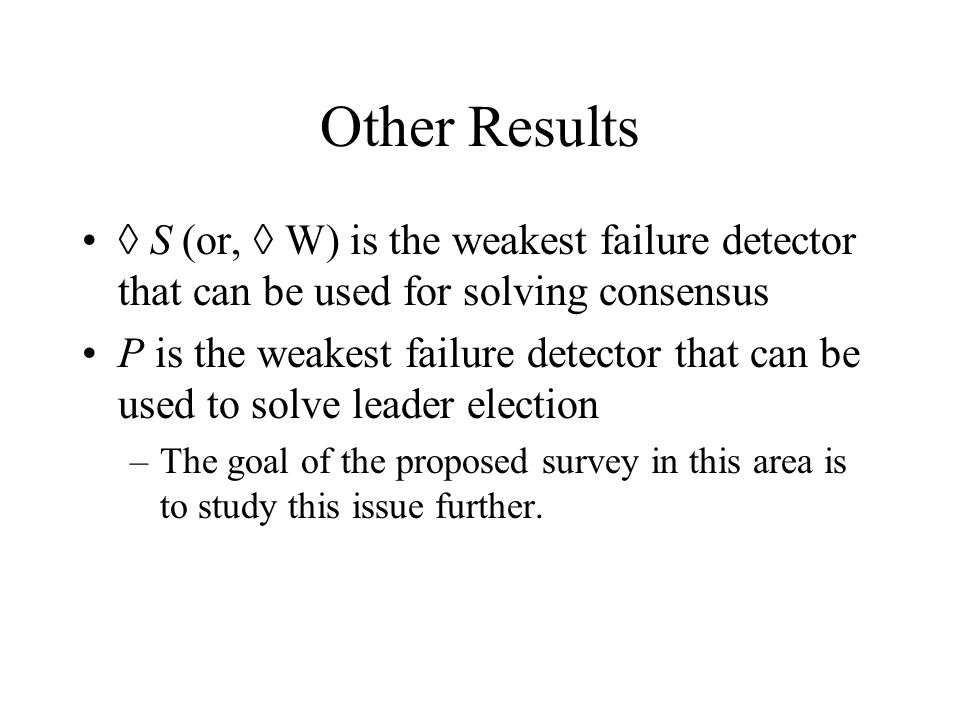

17. Other Results  S (or,  W) is the weakest failure detector that can be used for solving consensus P is the weakest failure detector that can be used to solve leader election –The goal of the proposed survey in this area is to study this issue further.
