1. Presented by: Energy Systems Laboratory (ESL) Texas A&M University Funded by: State Energy Conservation Office (SECO) US Department of Energy (DOE) The International Code Compliance Calculator ~ IC3

2. Special thanks to: Felix Lopez Senior Engineer 2

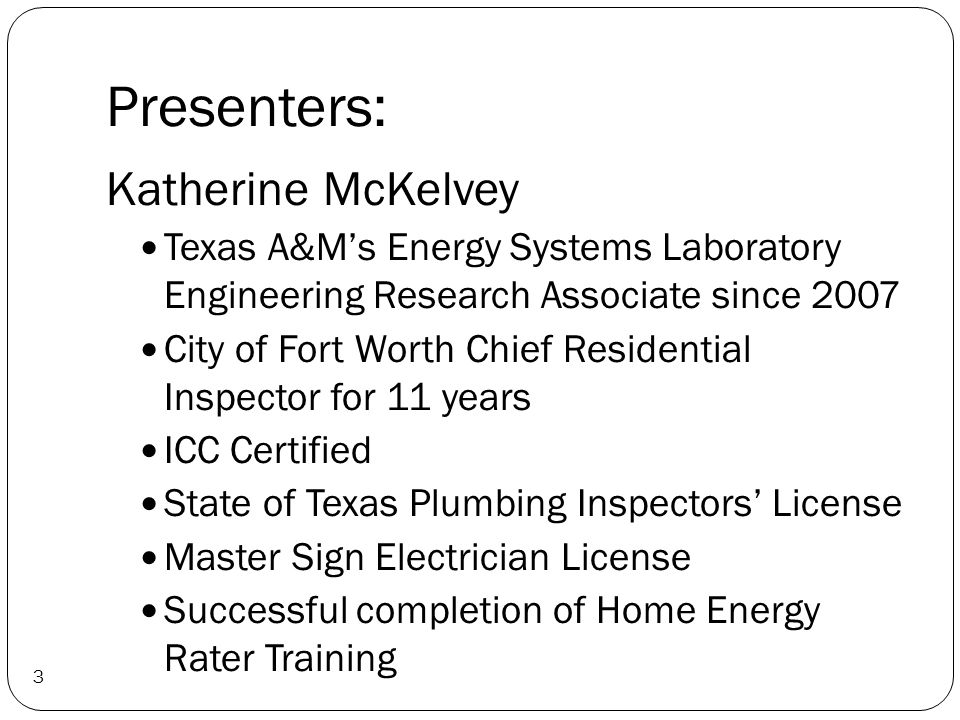

3. Presenters: Katherine McKelvey Texas A&M’s Energy Systems Laboratory Engineering Research Associate since 2007 City of Fort Worth Chief Residential Inspector for 11 years ICC Certified State of Texas Plumbing Inspectors’ License Master Sign Electrician License Successful completion of Home Energy Rater Training 3

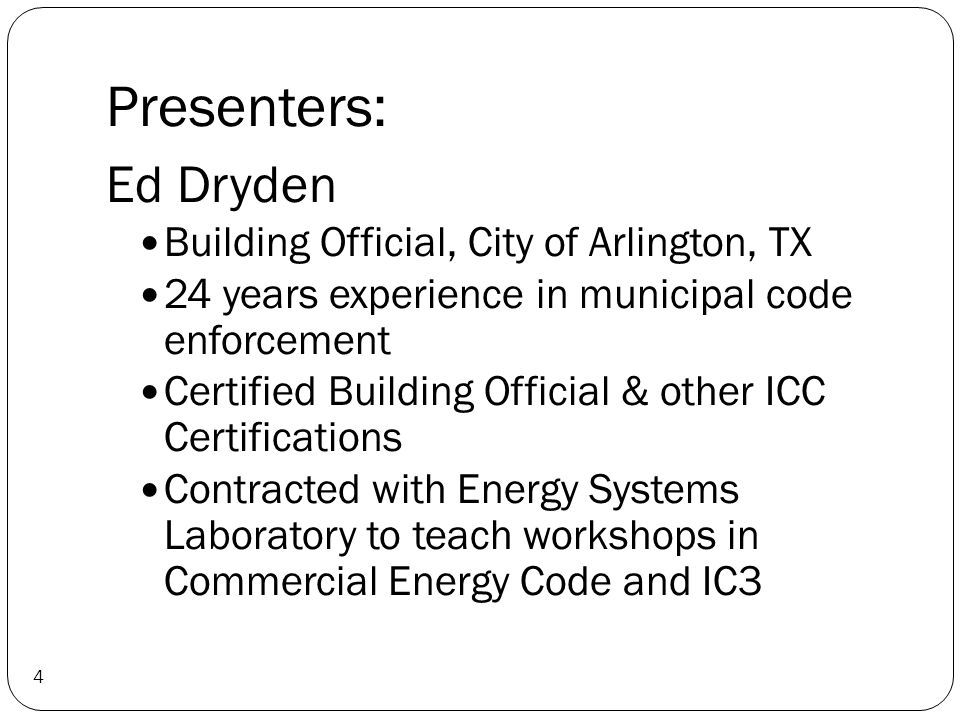

4. Presenters: 4 Ed Dryden Building Official, City of Arlington, TX 24 years experience in municipal code enforcement Certified Building Official & other ICC Certifications Contracted with Energy Systems Laboratory to teach workshops in Commercial Energy Code and IC3

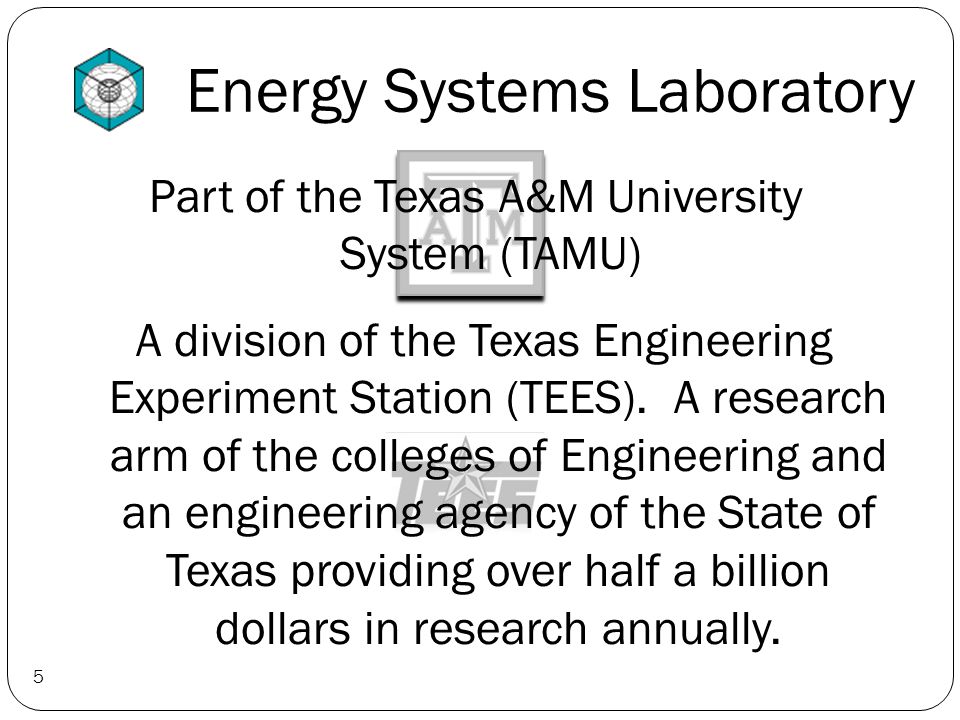

5. Energy Systems Laboratory 5 Part of the Texas A&M University System (TAMU) A division of the Texas Engineering Experiment Station (TEES). A research arm of the colleges of Engineering and an engineering agency of the State of Texas providing over half a billion dollars in research annually.

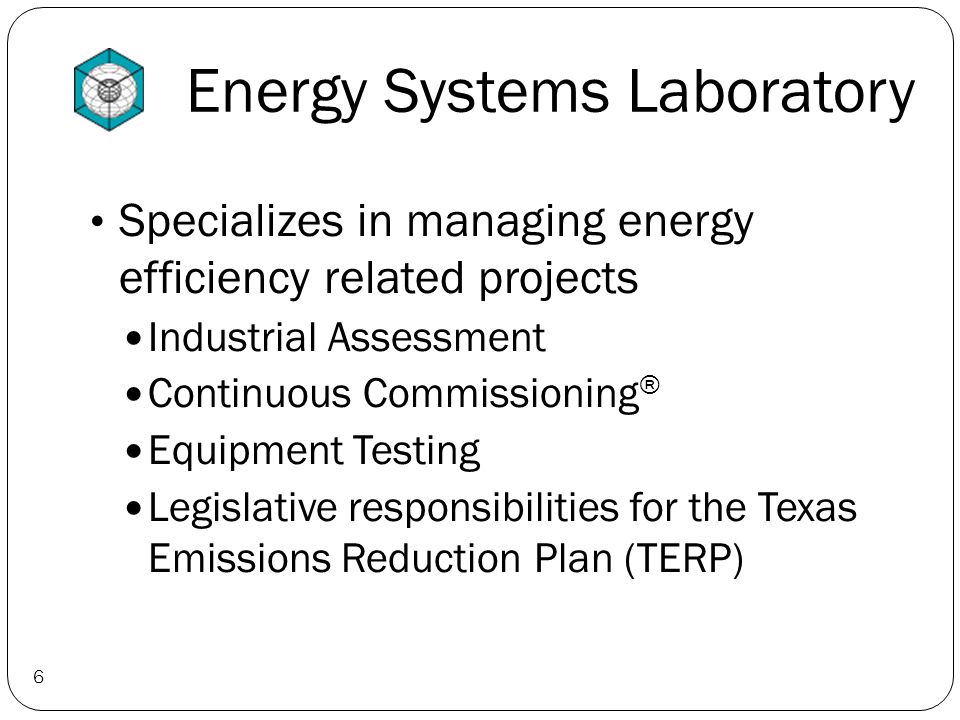

6. Energy Systems Laboratory 6 Specializes in managing energy efficiency related projects Industrial Assessment Continuous Commissioning ® Equipment Testing Legislative responsibilities for the Texas Emissions Reduction Plan (TERP)

7. Energy Systems Laboratory 7 Continuous Commissioning ®

8. Energy Systems Laboratory 8 Equipment Testing Services

9. 9 Established by 77 th Texas Legislature in 2001, through enactment of Senate Bill 5 Assures that the air in Texas is safe to breathe Develops approaches to solving environmental problems Funds research and development Establishes Texas Building Energy Performance Standards Texas Emission Reduction Plan (TERP)

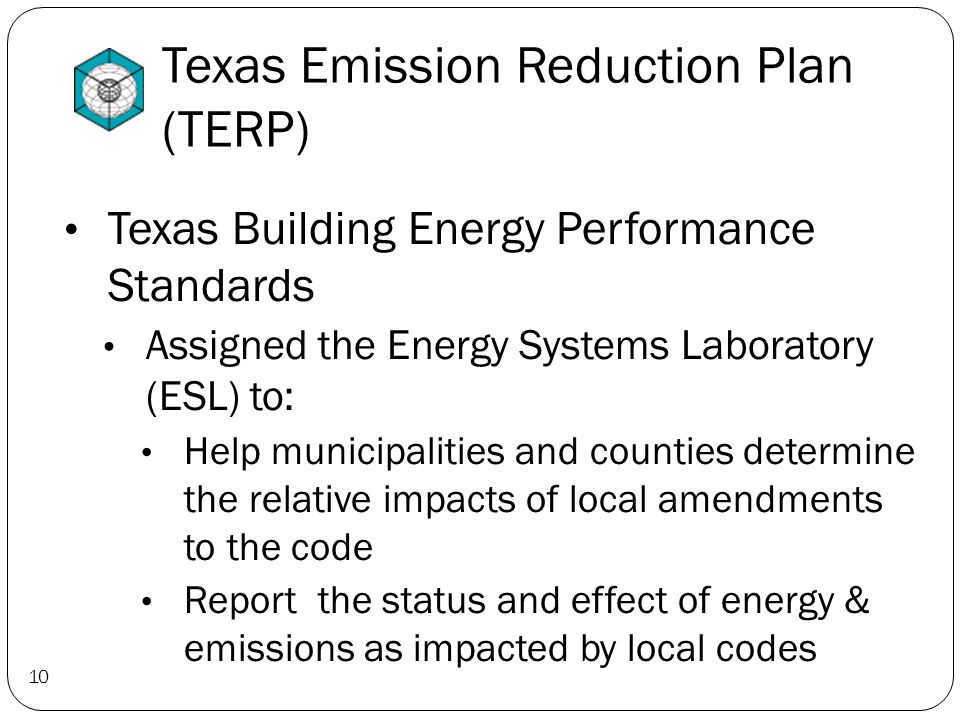

10. 10 Texas Building Energy Performance Standards Assigned the Energy Systems Laboratory (ESL) to: Help municipalities and counties determine the relative impacts of local amendments to the code Report the status and effect of energy & emissions as impacted by local codes Texas Emission Reduction Plan (TERP)

11. 11 Texas Building Energy Performance Standards Assigned the Energy Systems Laboratory (ESL) to: Help municipalities and counties determine the relative impacts of local amendments to the code Report the status and effect of energy & emissions as impacted by local codes Texas Emission Reduction Plan (TERP)

12. Energy Systems Laboratory 12 http://esl.eslwin.tamu.edu/reports/builders-information.html

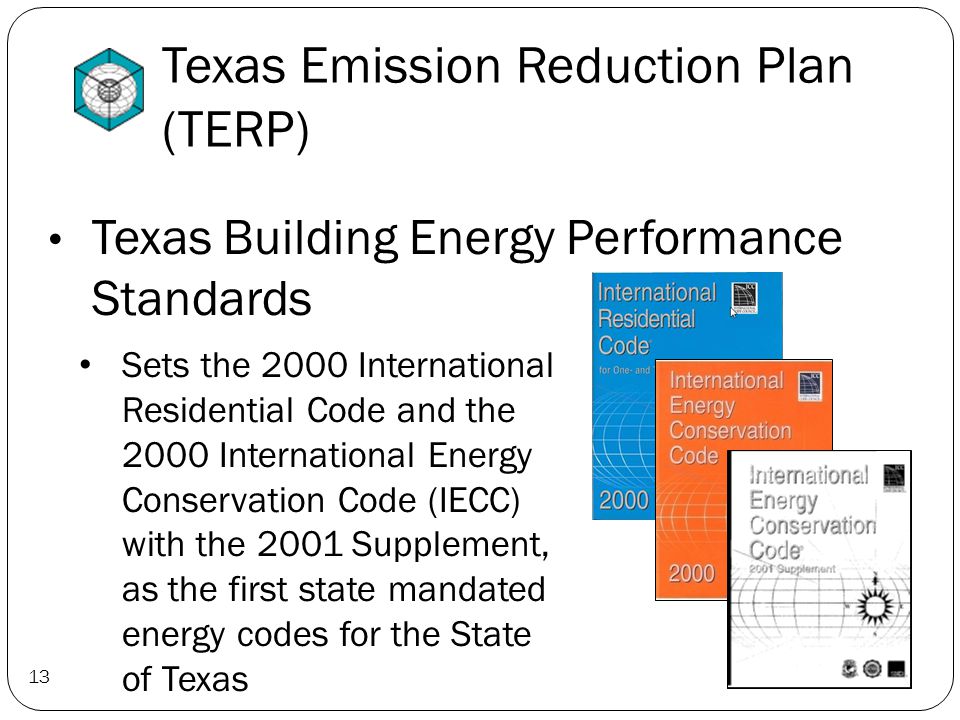

13. 13 Texas Building Energy Performance Standards Sets the 2000 International Residential Code and the 2000 International Energy Conservation Code (IECC) with the 2001 Supplement, as the first state mandated energy codes for the State of Texas Texas Emission Reduction Plan (TERP)

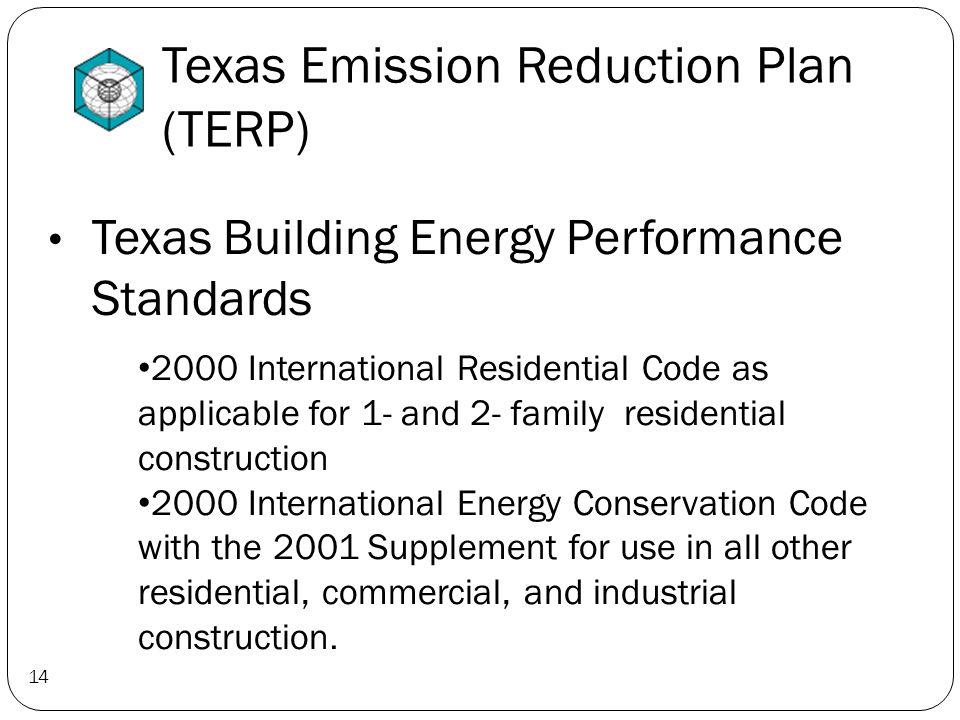

14. 14 2000 International Residential Code as applicable for 1- and 2- family residential construction 2000 International Energy Conservation Code with the 2001 Supplement for use in all other residential, commercial, and industrial construction. Texas Emission Reduction Plan (TERP) Texas Building Energy Performance Standards

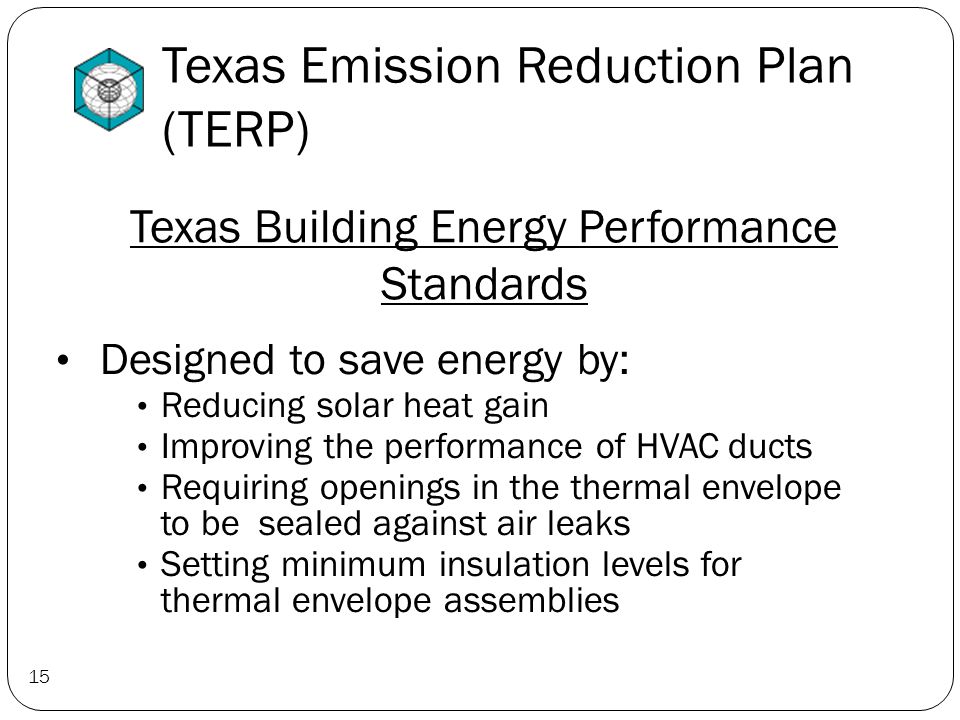

15. 15 Designed to save energy by: Reducing solar heat gain Improving the performance of HVAC ducts Requiring openings in the thermal envelope to be sealed against air leaks Setting minimum insulation levels for thermal envelope assemblies Texas Emission Reduction Plan (TERP)

16. 16 Texas’ Non- attainment and Near Non- attainment Areas Texas Emission Reduction Plan (TERP)

17. 17 Municipalities or counties may adopt local amendments to the International Energy Conservation Code and the energy efficiency chapter of the International Residential Code, however these amendments may not result in less stringent energy efficiency requirements in nonattainment areas and affected counties. Texas Emission Reduction Plan (TERP)

18. Energy Systems Laboratory 18 Developed a series of web-based calculators allowing Texas Government and Building Industry users to design energy efficient buildings at or above code, thus documenting their emissions reductions International Code Compliance Calculator (IC3) was developed for residential new construction Many jurisdictions mandate the use of IC3

19. Software Development 19 International Code Compliance Calculator (IC3) Based on the Texas Building Energy Performance Standards A performance-based residential energy code compliance tool Designed specifically to be used in residential construction within the state of Texas

20. International Code Compliance Calculator – IC3 20 Developed with emphasis on simplicity ESL’s goal is to develop an easy-to-use, easy-to-access simulated performance based tool that could be used to show code compliance and to report reduced energy consumption to the US EPA

21. 21 Let’s Get Started!... The first thing you need to do is type http://ic3.tamu.edu in your browser

22. IC3 First Page 22

23. IC3 Registration Page 23

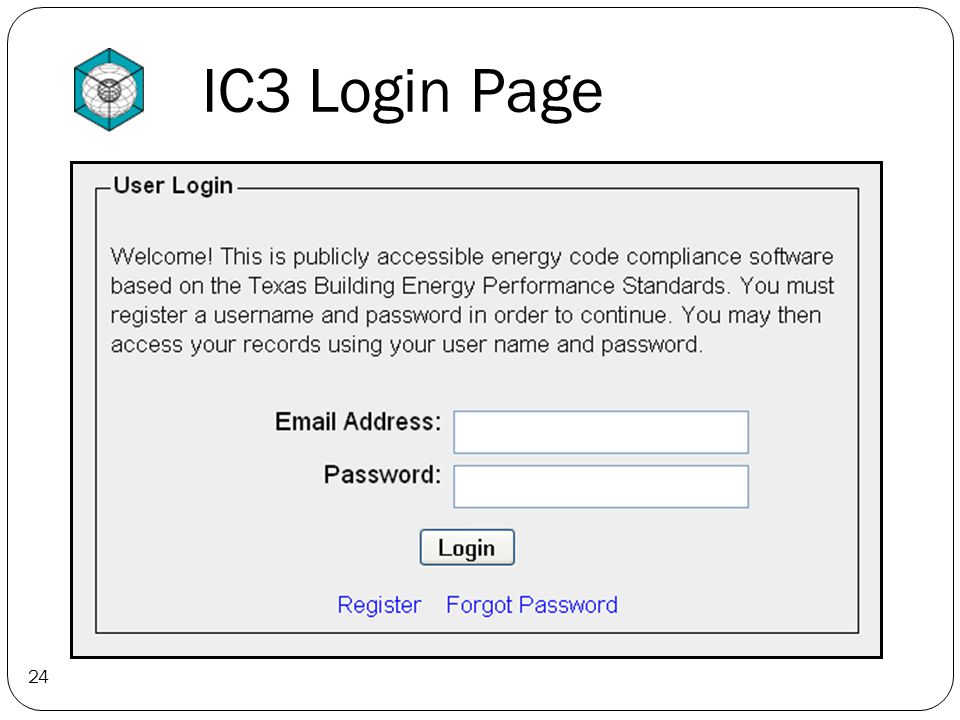

24. IC3 Login Page 24

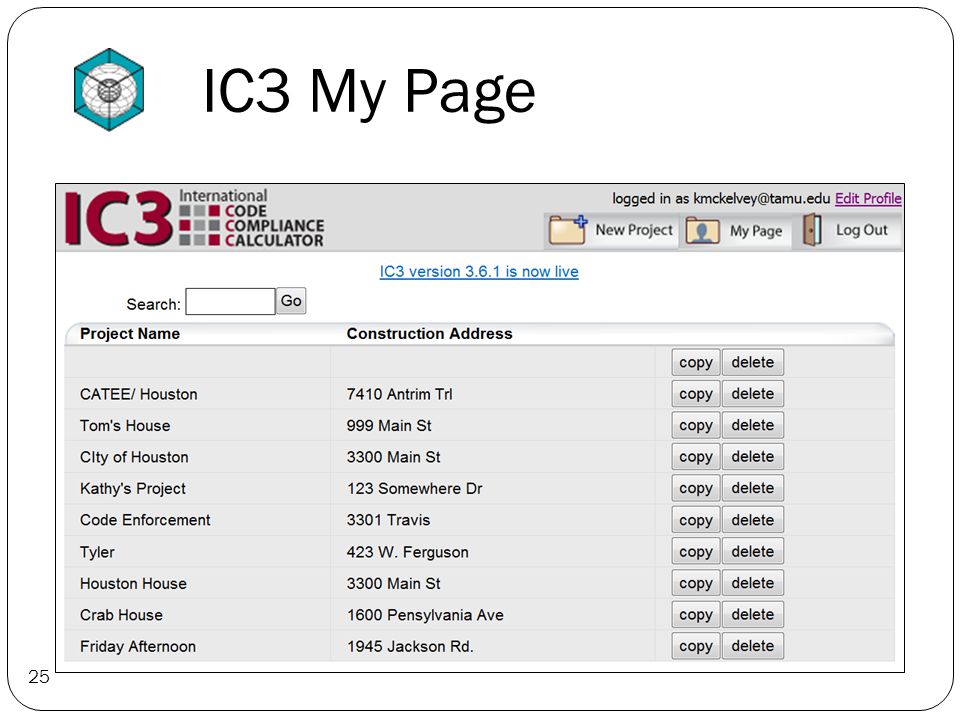

25. IC3 My Page 25

26. IC3 My Page ~ Links 26

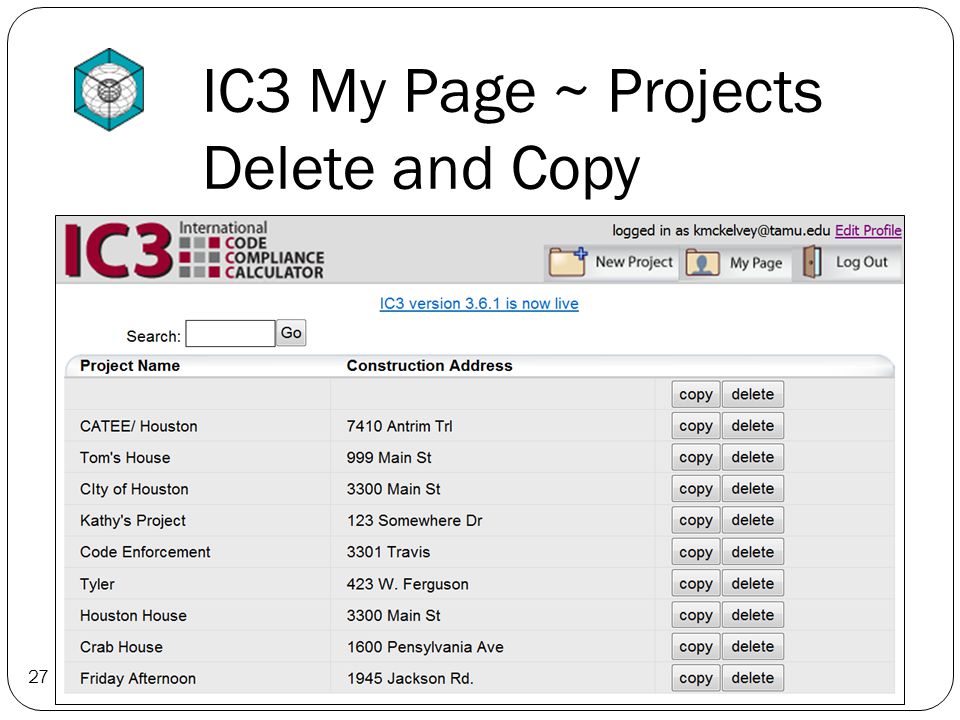

27. IC3 My Page ~ Projects Delete and Copy 27

28. IC3 - Project Information 28

29. 29 IC3 - Project Information

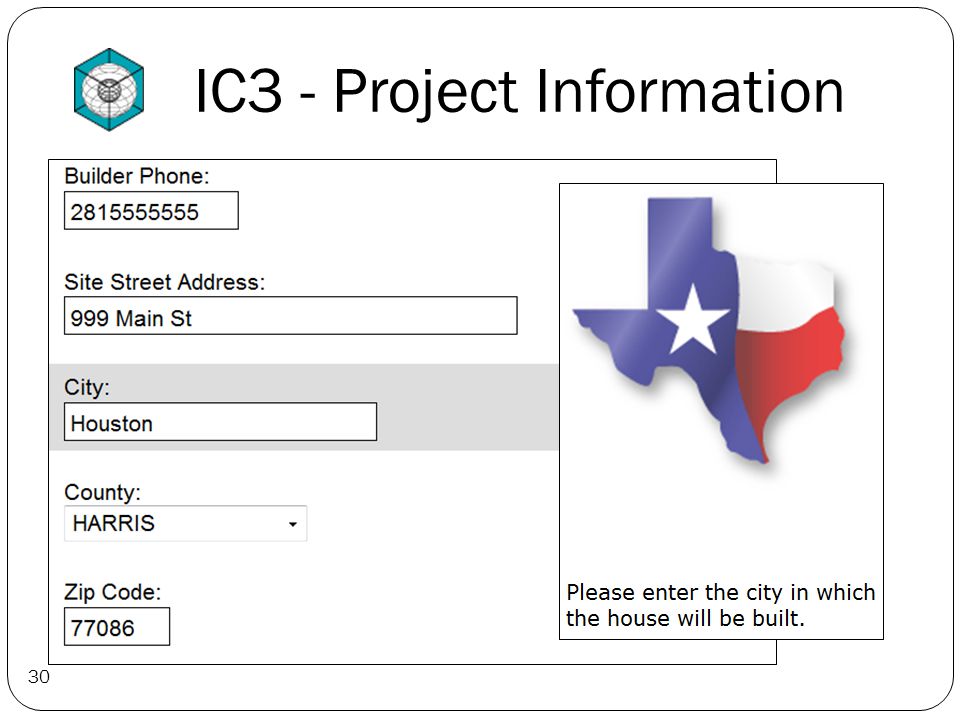

30. 30 IC3 - Project Information

31. 31 IC3 - Project Information

32. IC3 Floors 32

33. IC3 Floors - How Many? 33

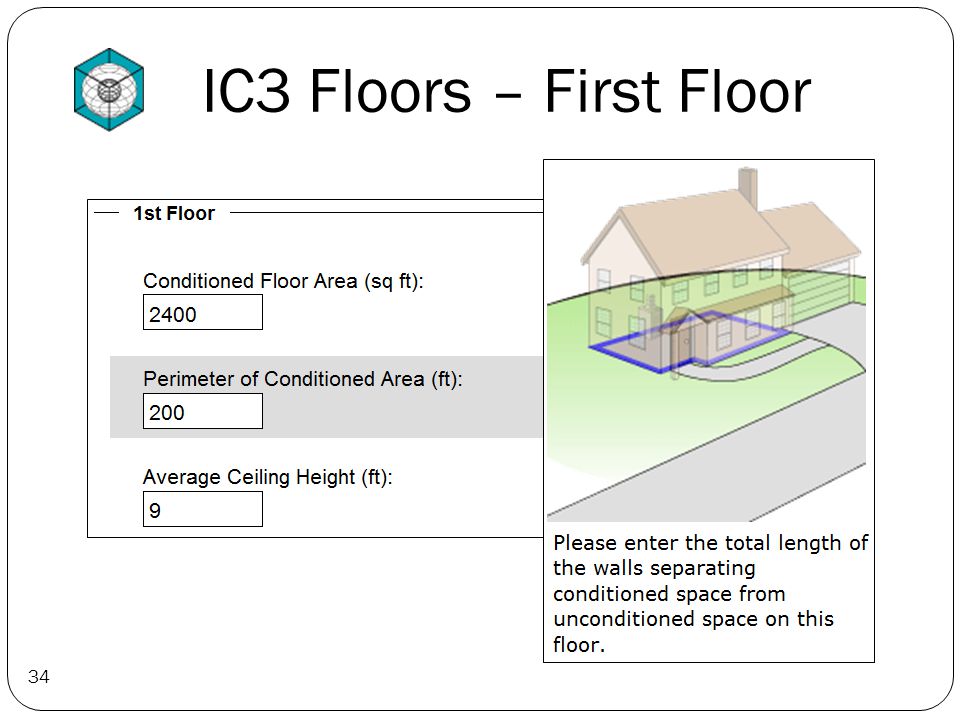

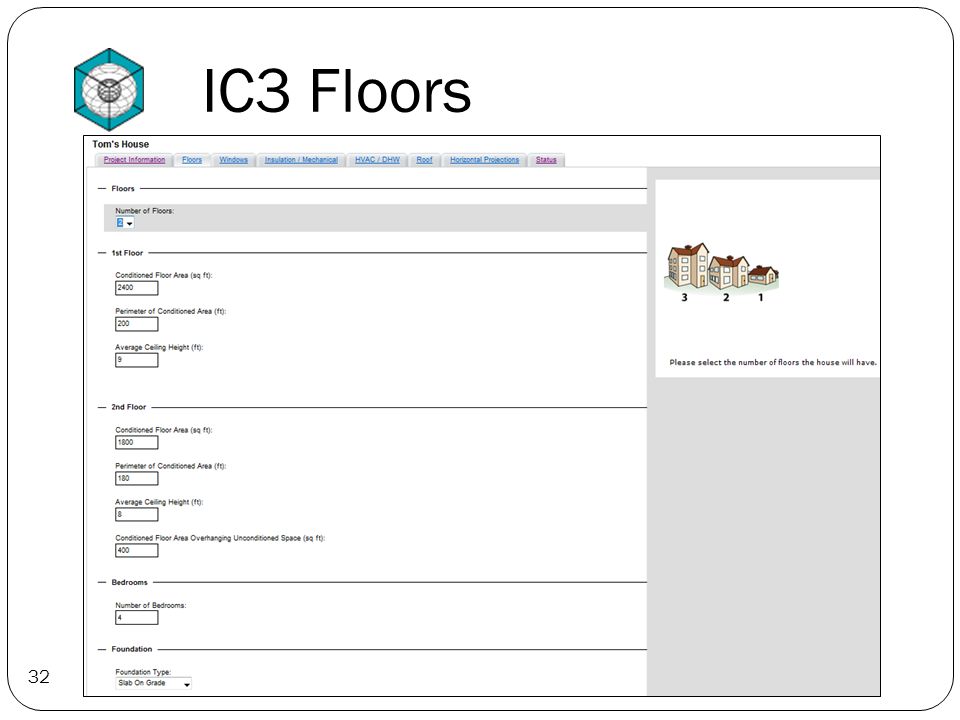

34. IC3 Floors – First Floor 34

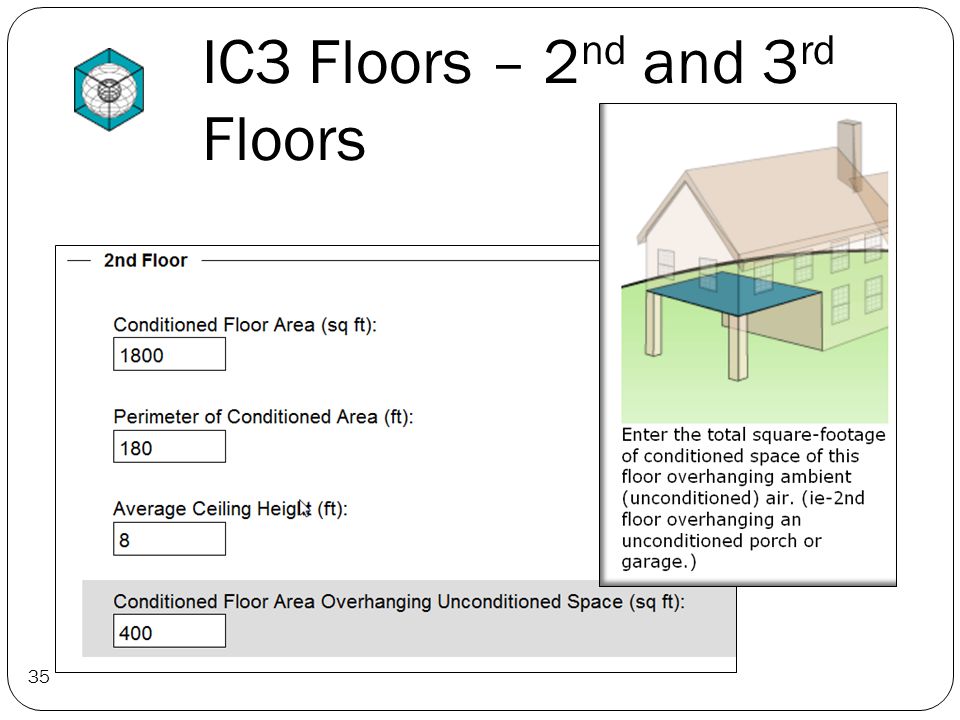

35. IC3 Floors – 2 nd and 3 rd Floors 35

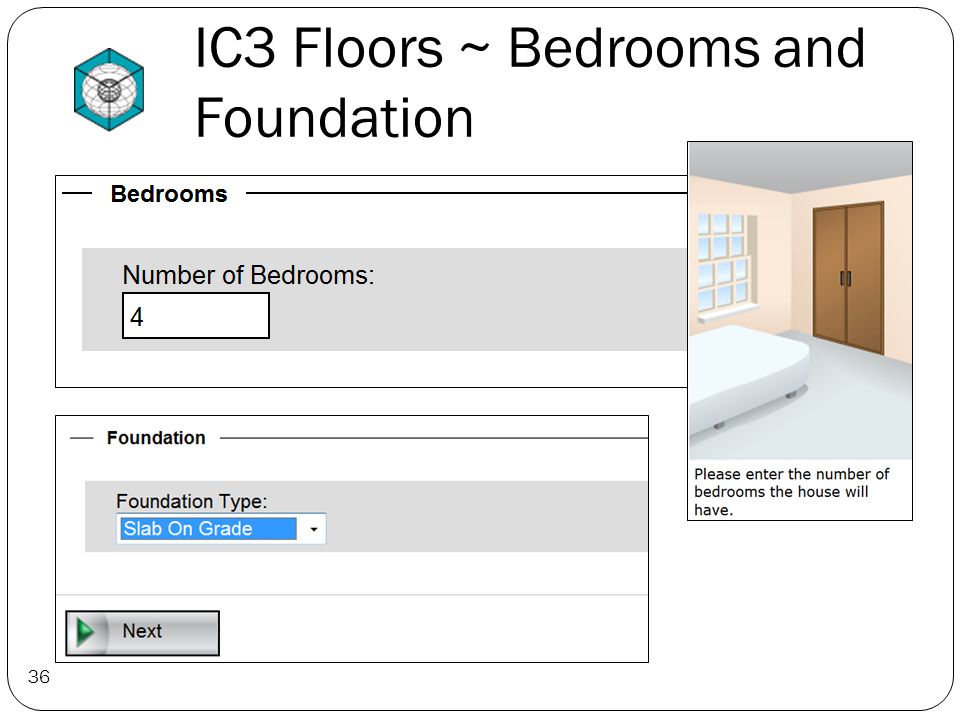

36. IC3 Floors ~ Bedrooms and Foundation 36

37. IC3 Windows 37

38. IC3 Windows – SHGC and U- Factor 38

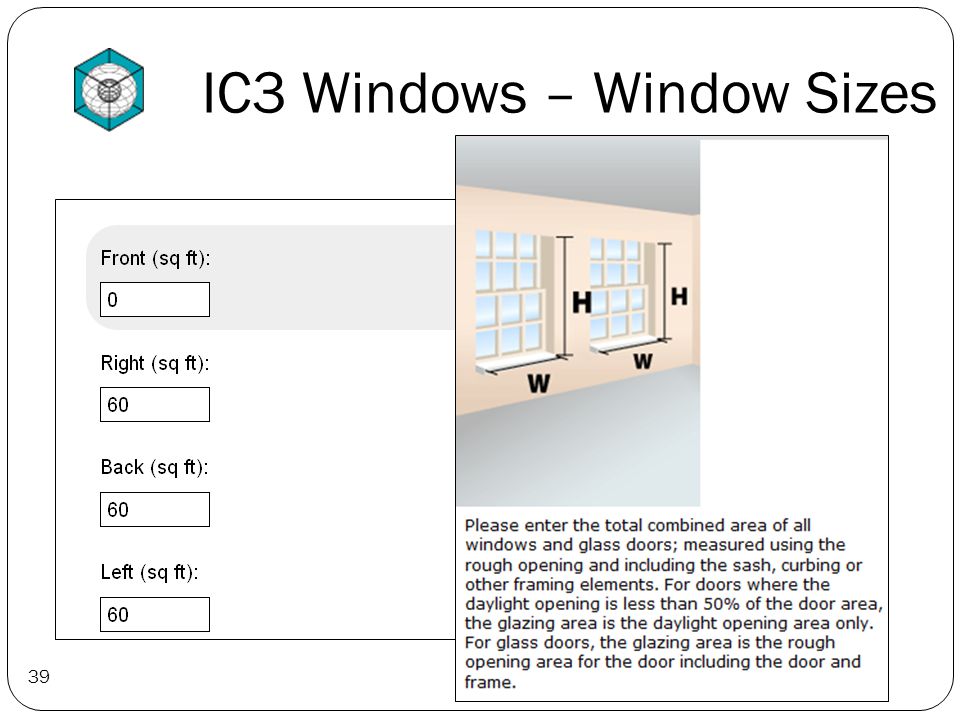

39. IC3 Windows – Window Sizes 39

40. IC3 Insulation / Mechanical 40

41. 41 IC3 Insulation / Mechanical Conditioned Space

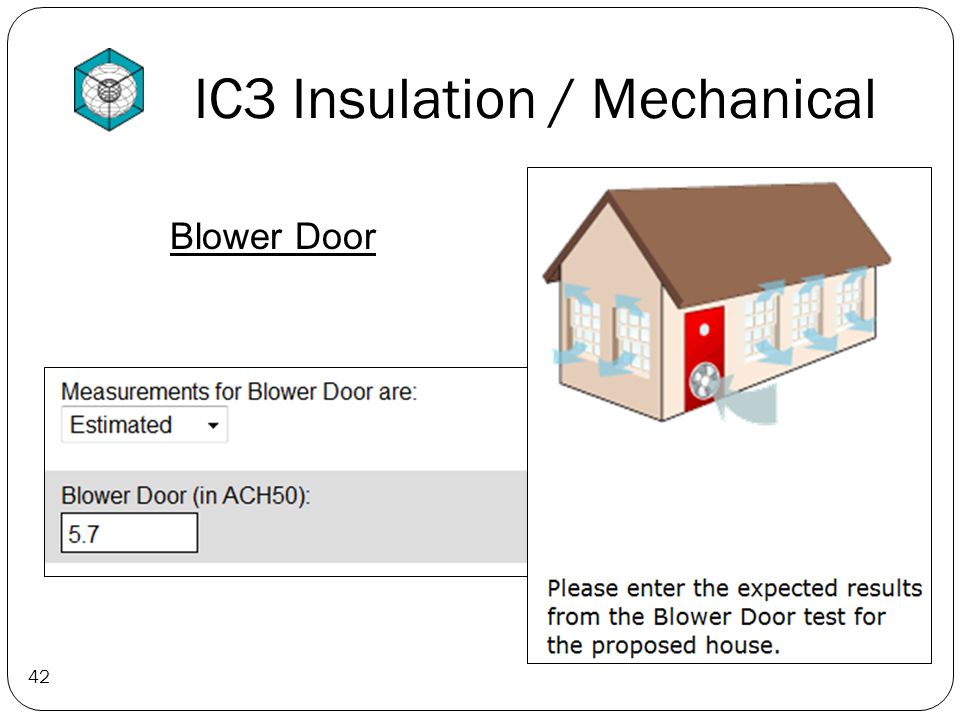

42. 42 IC3 Insulation / Mechanical Blower Door

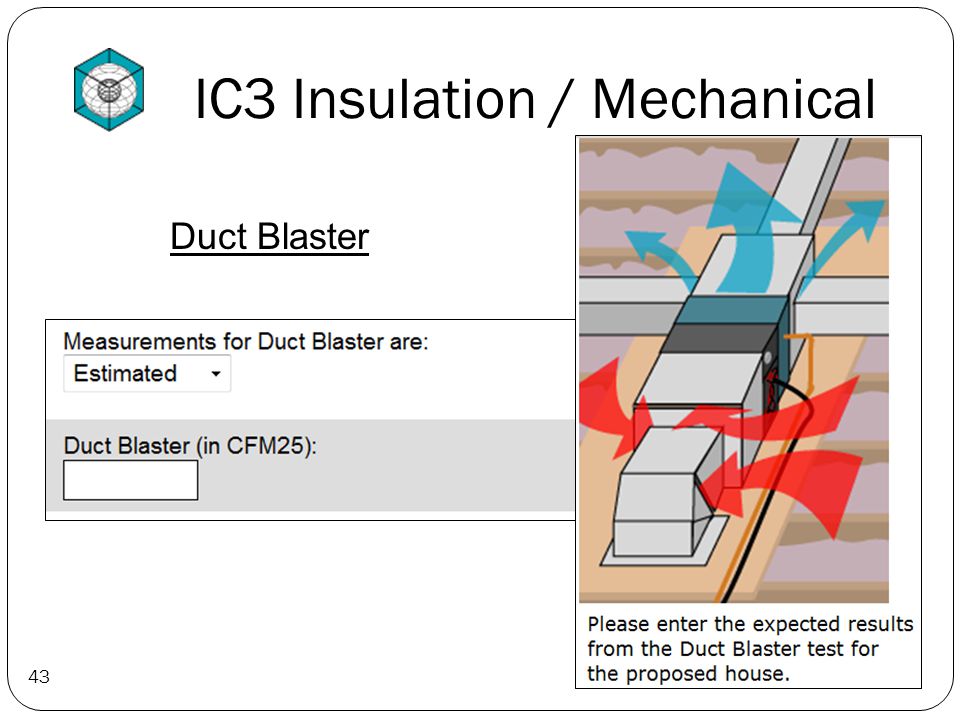

43. 43 IC3 Insulation / Mechanical Duct Blaster

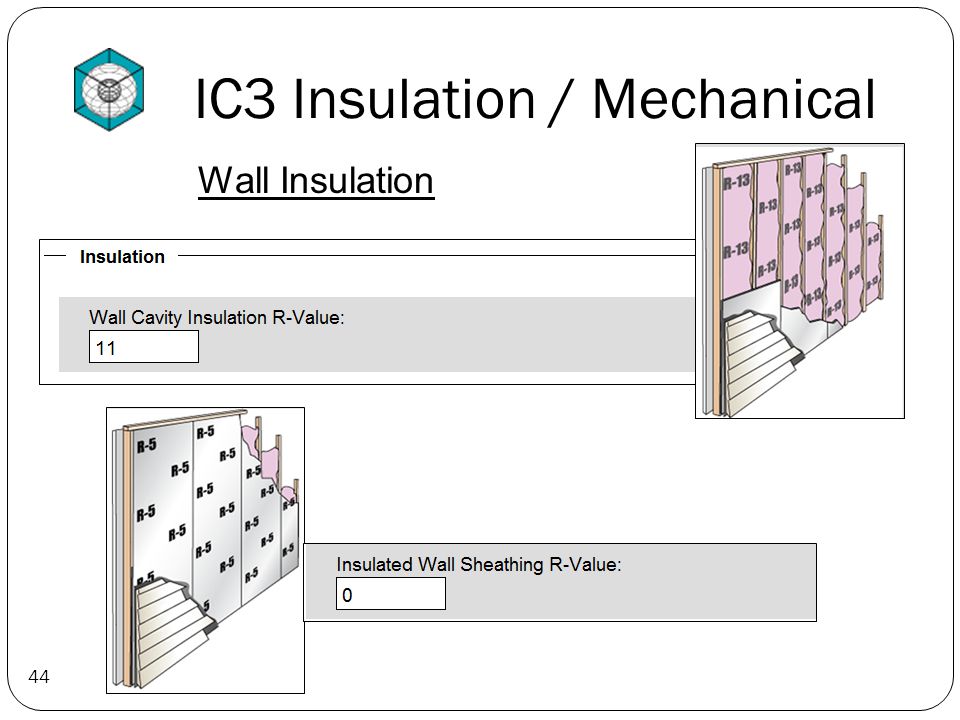

44. 44 IC3 Insulation / Mechanical Wall Insulation

45. 45 IC3 Insulation / Mechanical Wall Finish

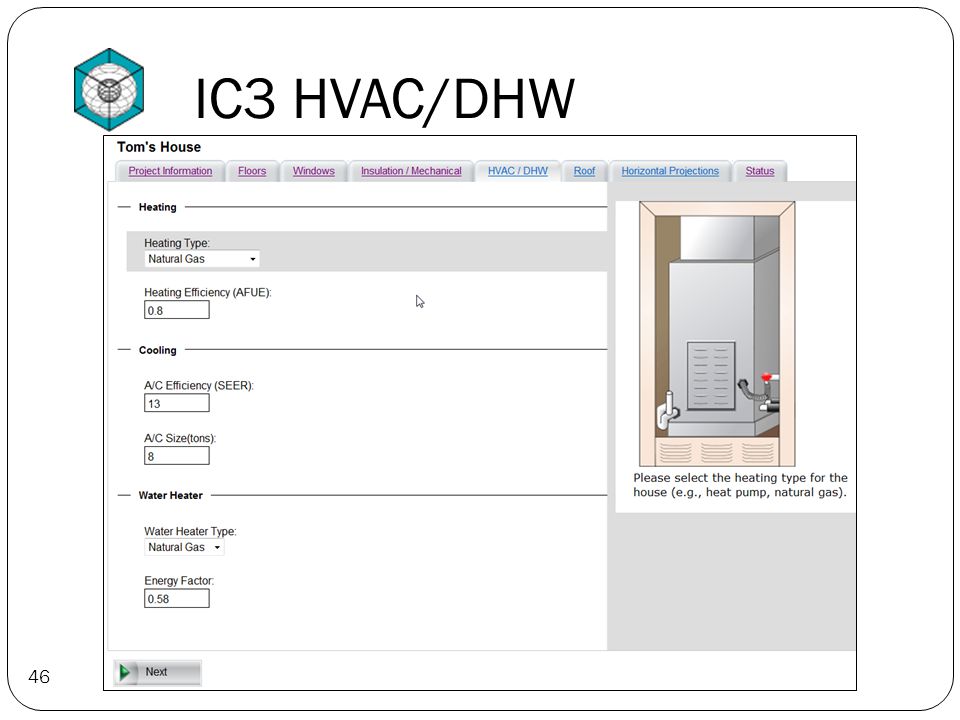

46. 46 IC3 HVAC/DHW

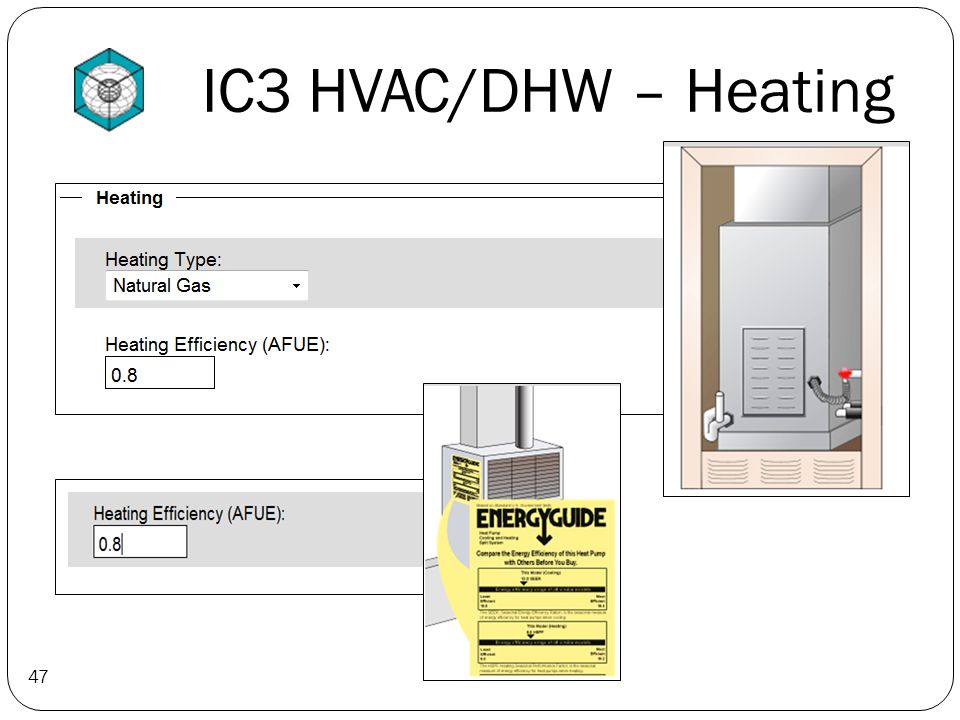

47. IC3 HVAC/DHW – Heating 47

48. IC3 HVAC/DHW – Cooling 48

49. IC3 HVAC/DHW – Water Heater 49

50. IC3 Roof 50

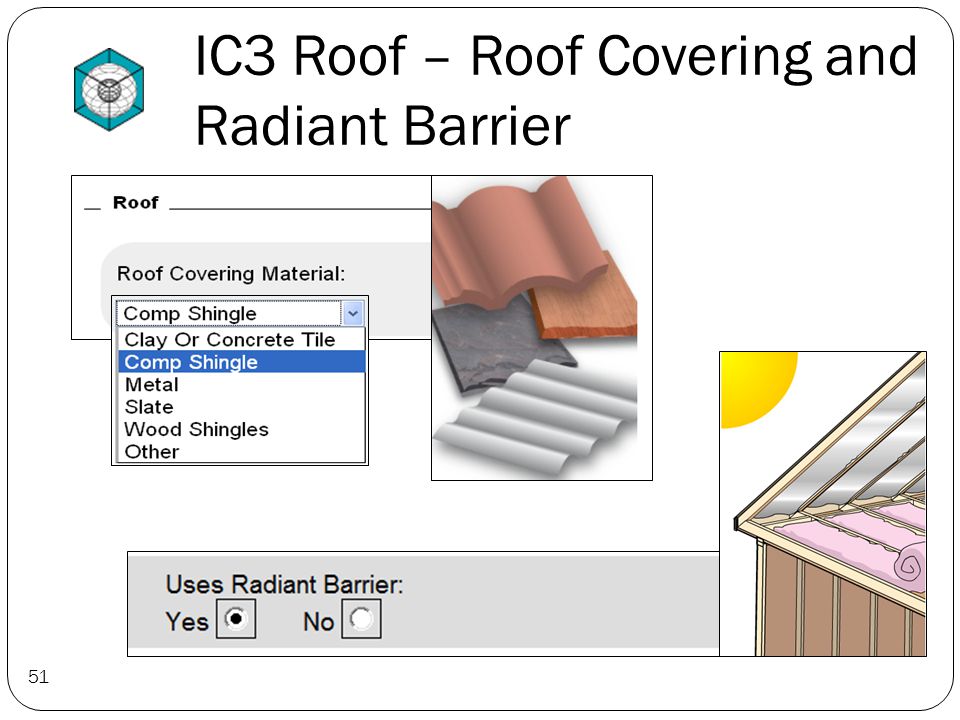

51. IC3 Roof – Roof Covering and Radiant Barrier 51

52. IC3 Roof – Ceiling Area 52

53. IC3 Roof – Ceiling Area 53

54. IC3 Horizontal Projections 54

55. IC3 Status 55

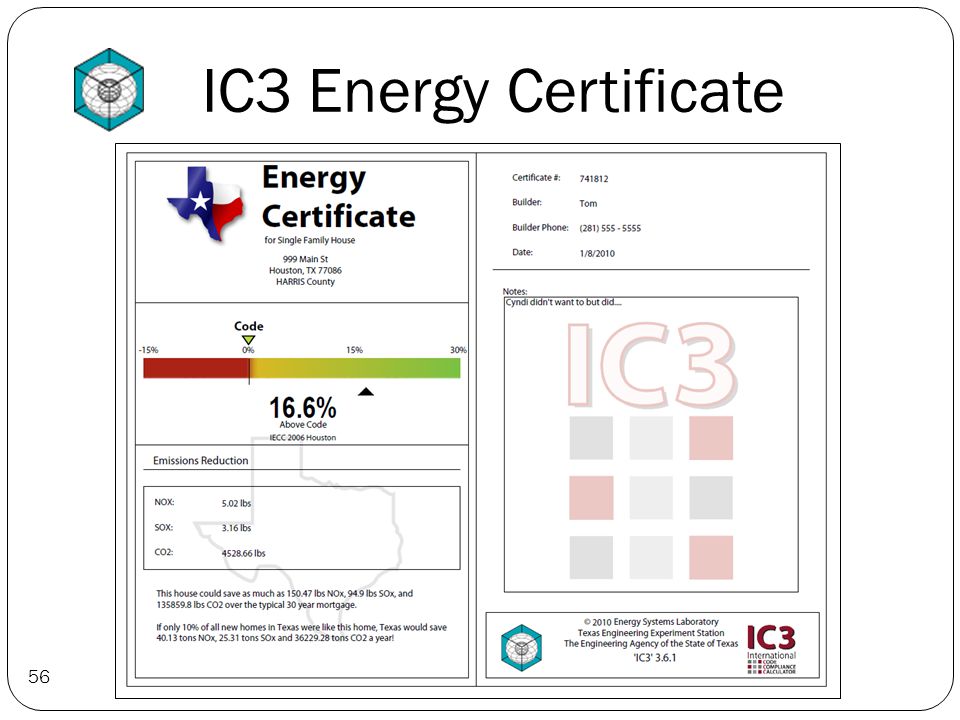

56. IC3 Energy Certificate 56

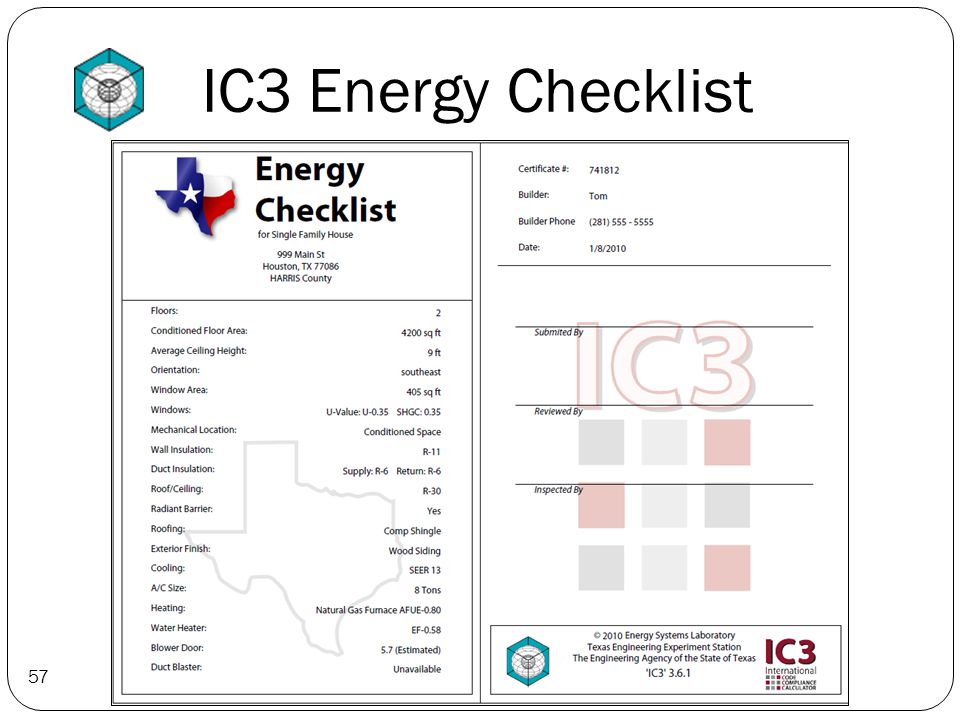

57. IC3 Energy Checklist 57

58. Questions and Answers 58 ESL’s Contact information IC3 Support Ic3_support@esl.tamu.edu Katherine McKelvey (979) 845-1781 Kmckelvey@tamu.ed u

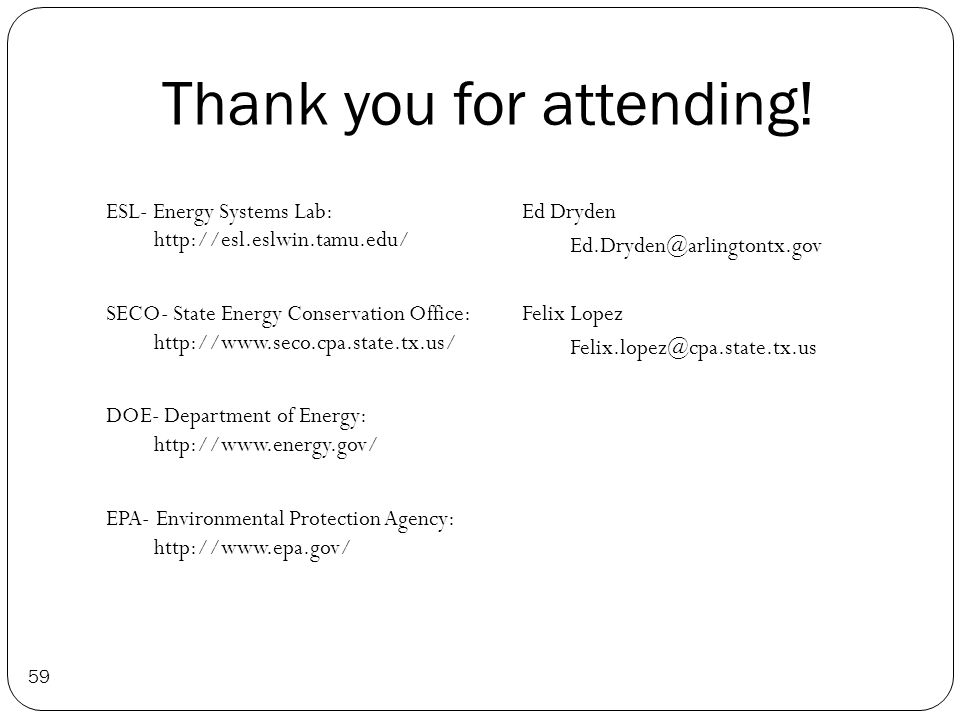

59. Thank you for attending! 59 ESL- Energy Systems Lab: http://esl.eslwin.tamu.edu/ SECO- State Energy Conservation Office: http://www.seco.cpa.state.tx.us/ DOE- Department of Energy: http://www.energy.gov/ EPA- Environmental Protection Agency: http://www.epa.gov/ Ed Dryden Ed.Dryden@arlingtontx.gov Felix Lopez Felix.lopez@cpa.state.tx.us
