1. An introduction to Bayesian networks Stochastic Processes Course Hossein Amirkhani Spring 2011

2. 2 An introduction to Bayesian networks Outline  Introduction,  Bayesian Networks,  Probabilistic Graphical Models,  Conditional Independence,  I-equivalence.

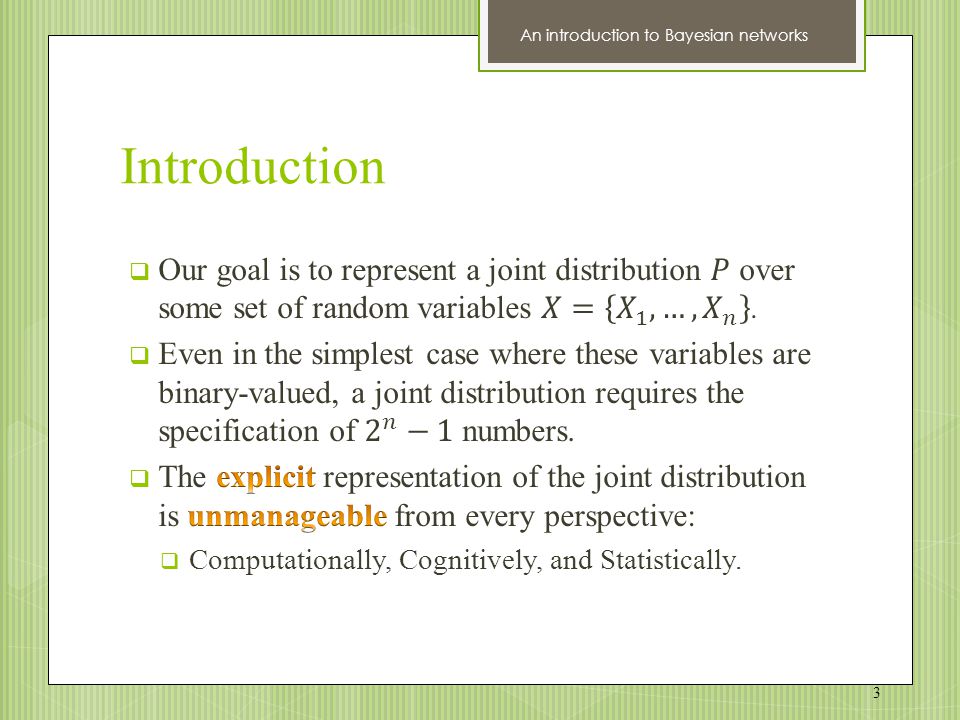

3. 3 An introduction to Bayesian networks Introduction

4. 4 An introduction to Bayesian networks Bayesian Networks

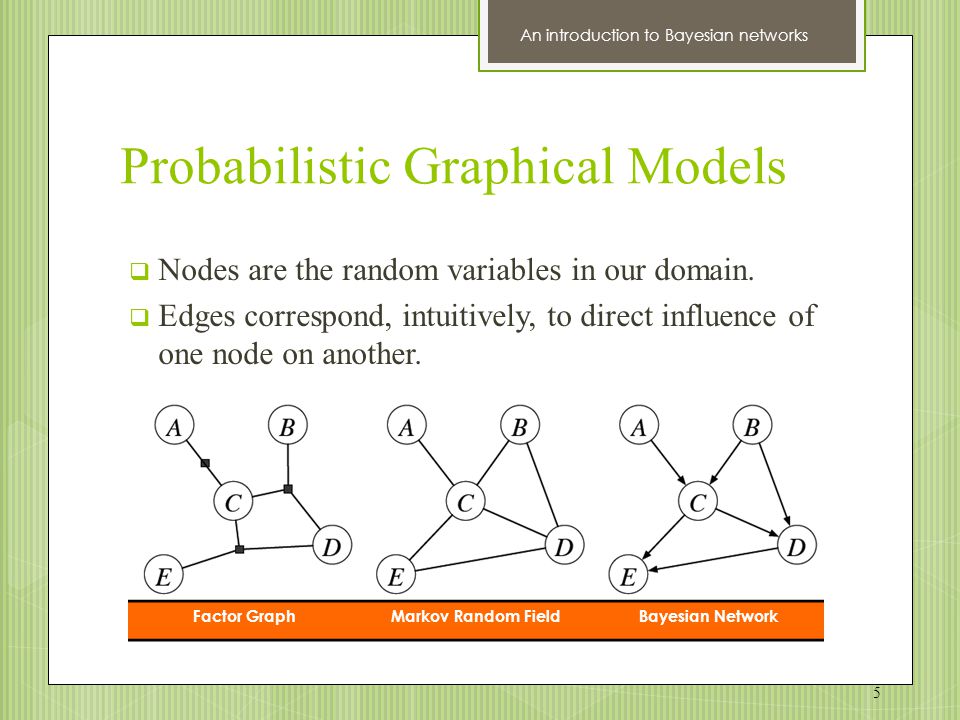

5. 5 An introduction to Bayesian networks Probabilistic Graphical Models  Nodes are the random variables in our domain.  Edges correspond, intuitively, to direct influence of one node on another. Factor GraphMarkov Random FieldBayesian Network

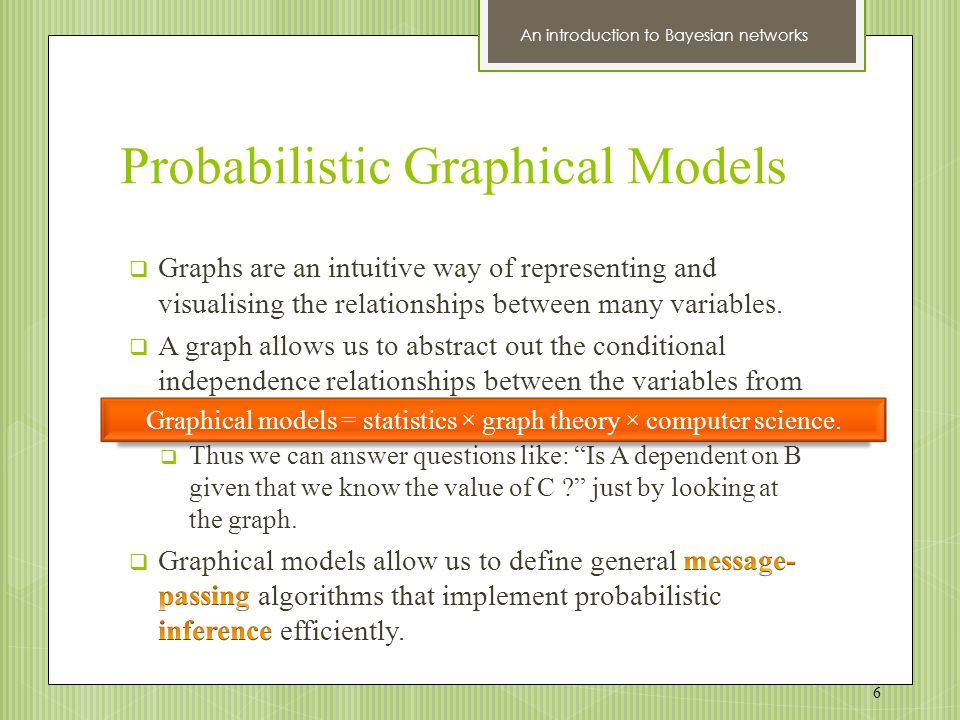

6. 6 An introduction to Bayesian networks Probabilistic Graphical Models Graphical models = statistics × graph theory × computer science.

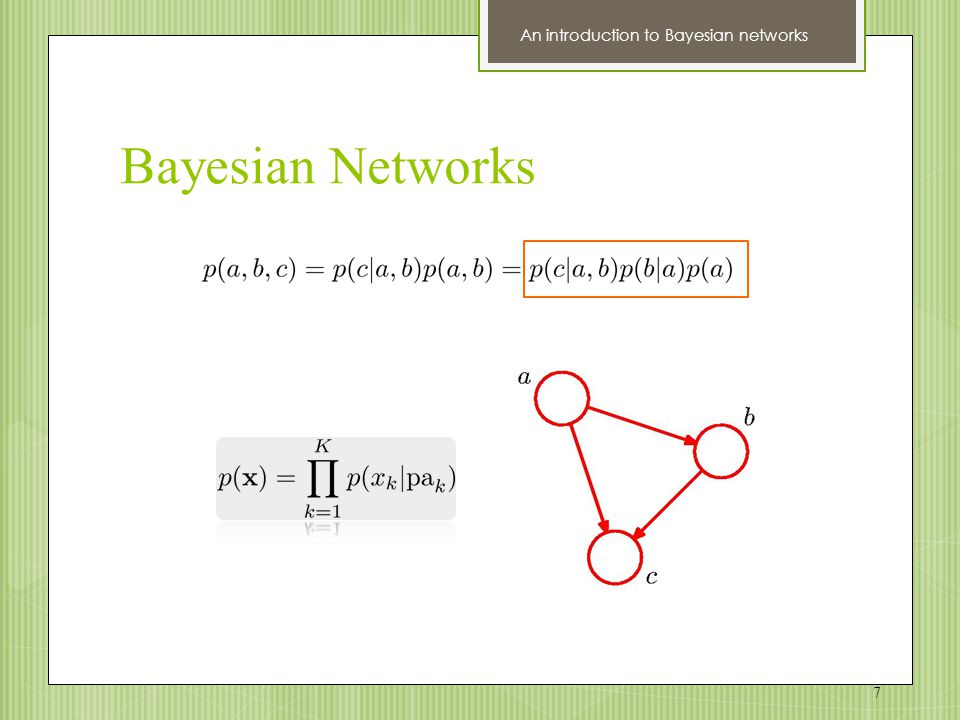

7. 7 An introduction to Bayesian networks Bayesian Networks

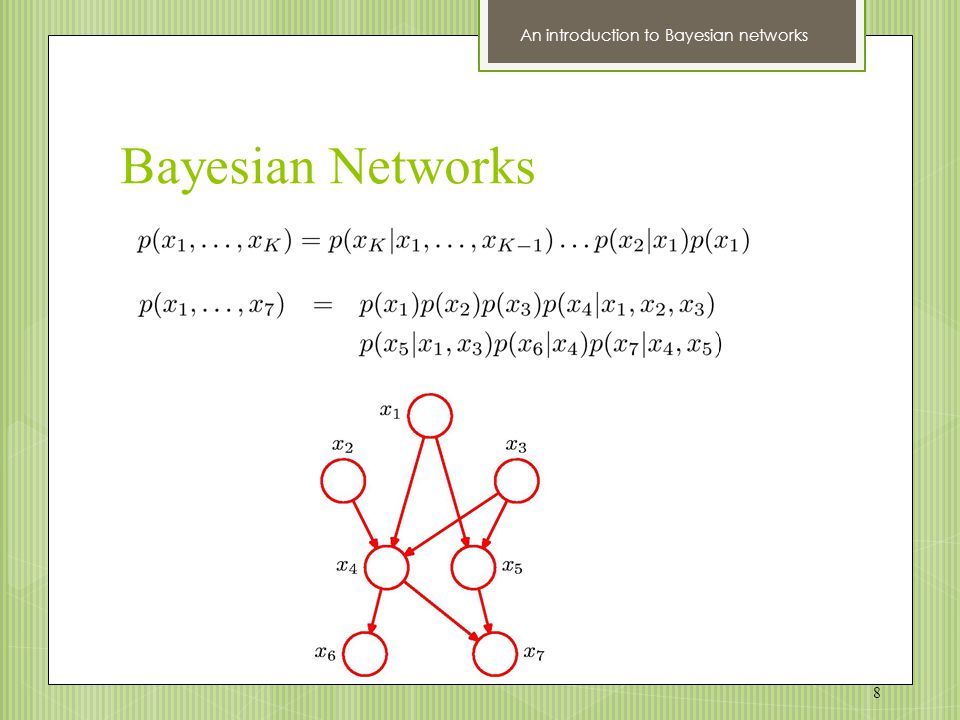

8. 8 An introduction to Bayesian networks Bayesian Networks

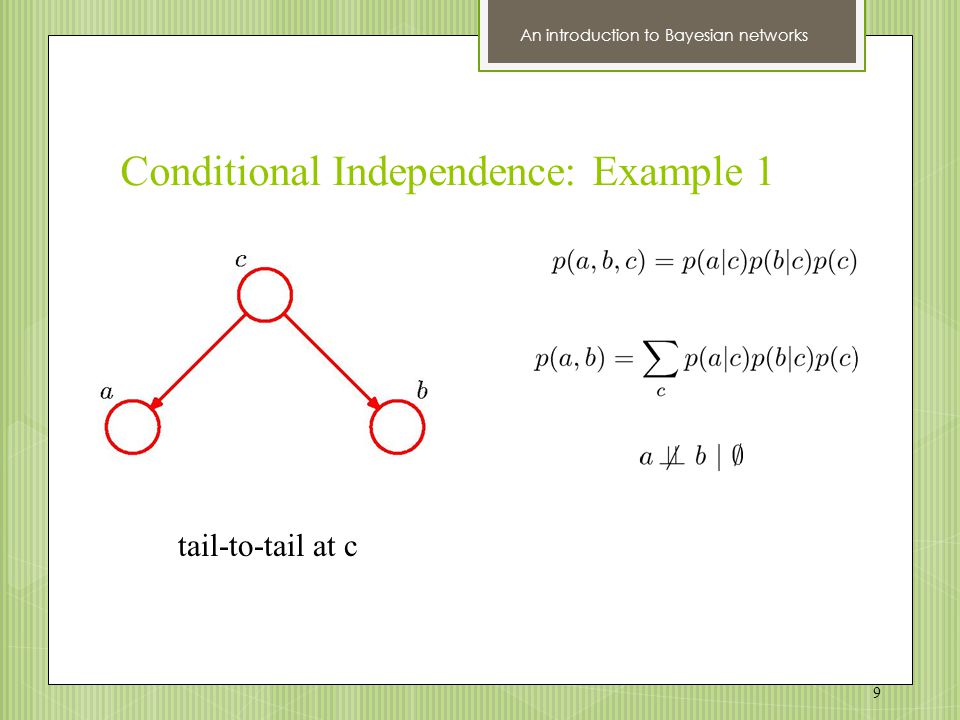

9. 9 An introduction to Bayesian networks Conditional Independence: Example 1 tail-to-tail at c

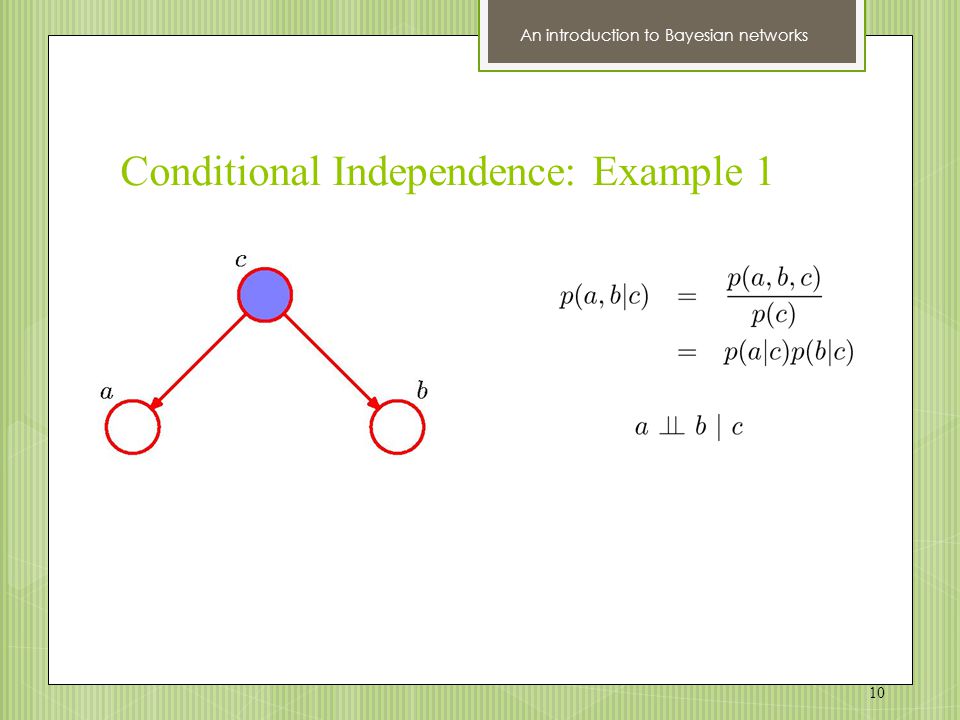

10. 10 An introduction to Bayesian networks Conditional Independence: Example 1

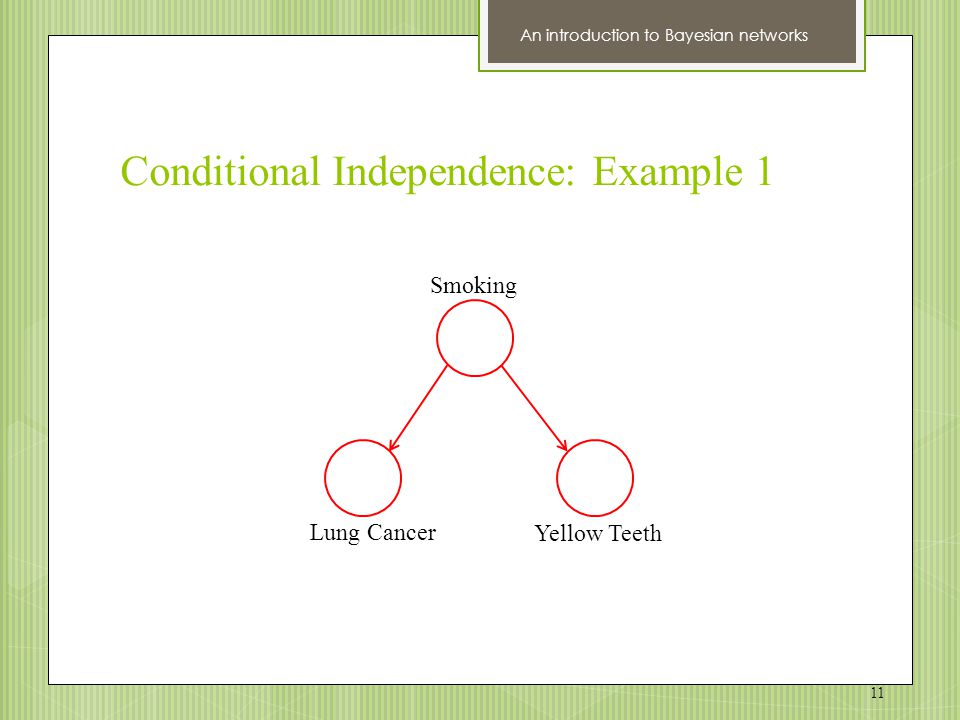

11. 11 An introduction to Bayesian networks Conditional Independence: Example 1 Smoking Lung Cancer Yellow Teeth

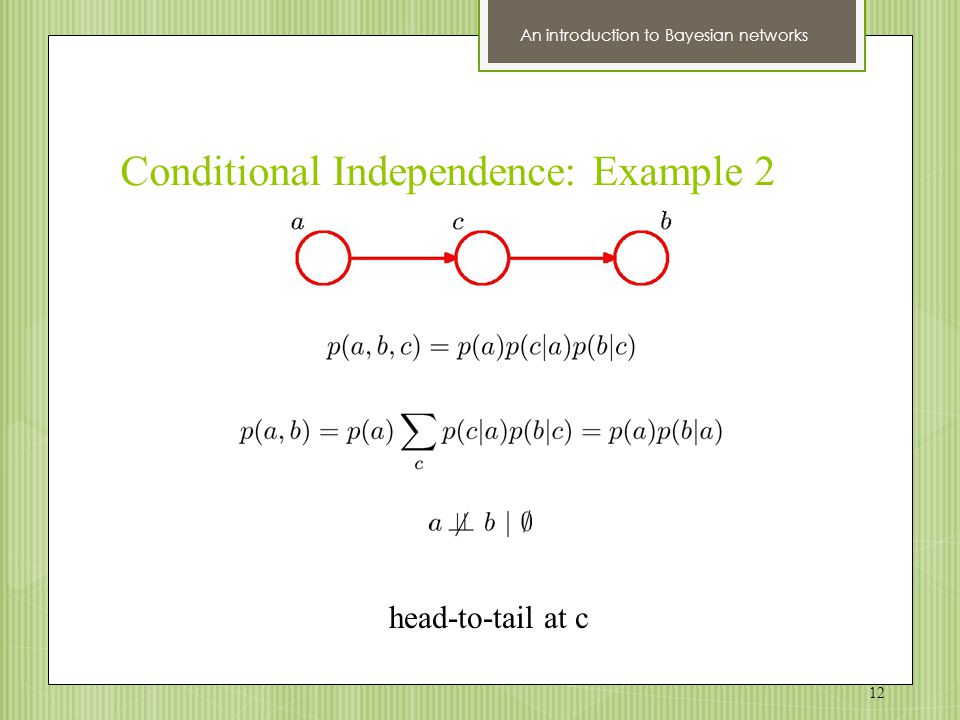

12. 12 An introduction to Bayesian networks Conditional Independence: Example 2 head-to-tail at c

13. 13 An introduction to Bayesian networks Conditional Independence: Example 2

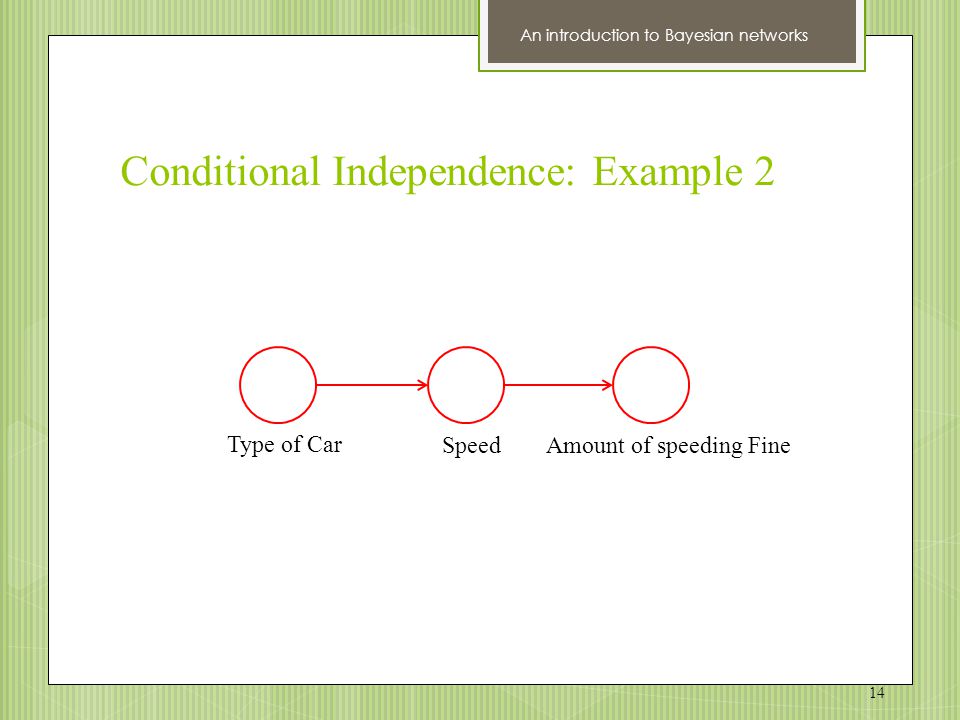

14. 14 An introduction to Bayesian networks Conditional Independence: Example 2 Type of Car SpeedAmount of speeding Fine

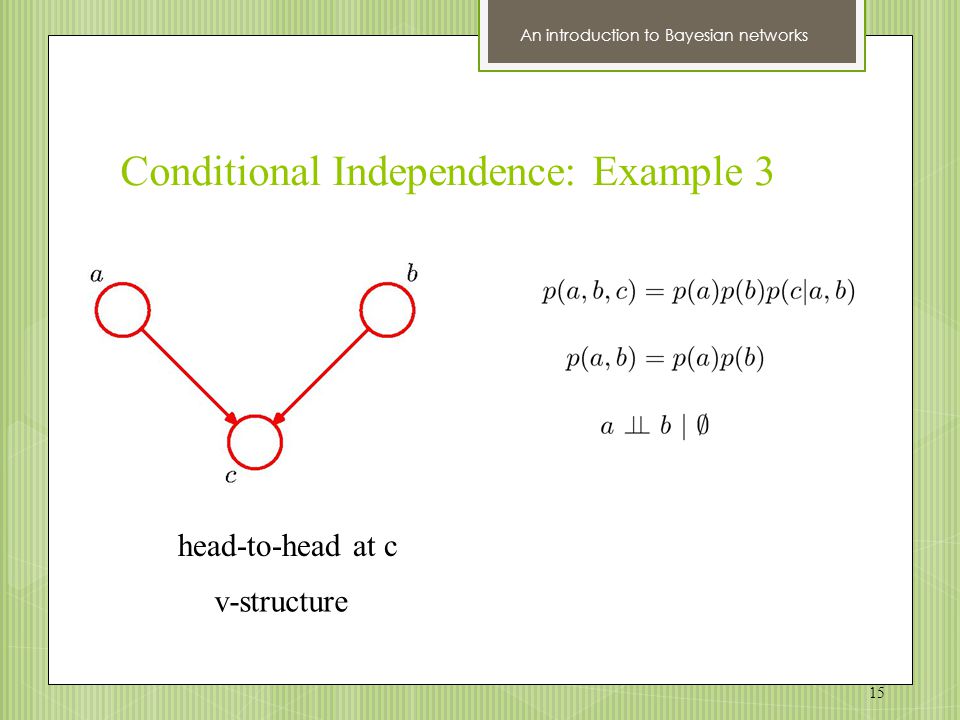

15. 15 An introduction to Bayesian networks Conditional Independence: Example 3 head-to-head at c v-structure

16. 16 An introduction to Bayesian networks Conditional Independence: Example 3

17. 17 An introduction to Bayesian networks Conditional Independence: Example 3 Ability of team A Ability of team B Outcome of A vs. B game

18. 18 An introduction to Bayesian networks D-separation

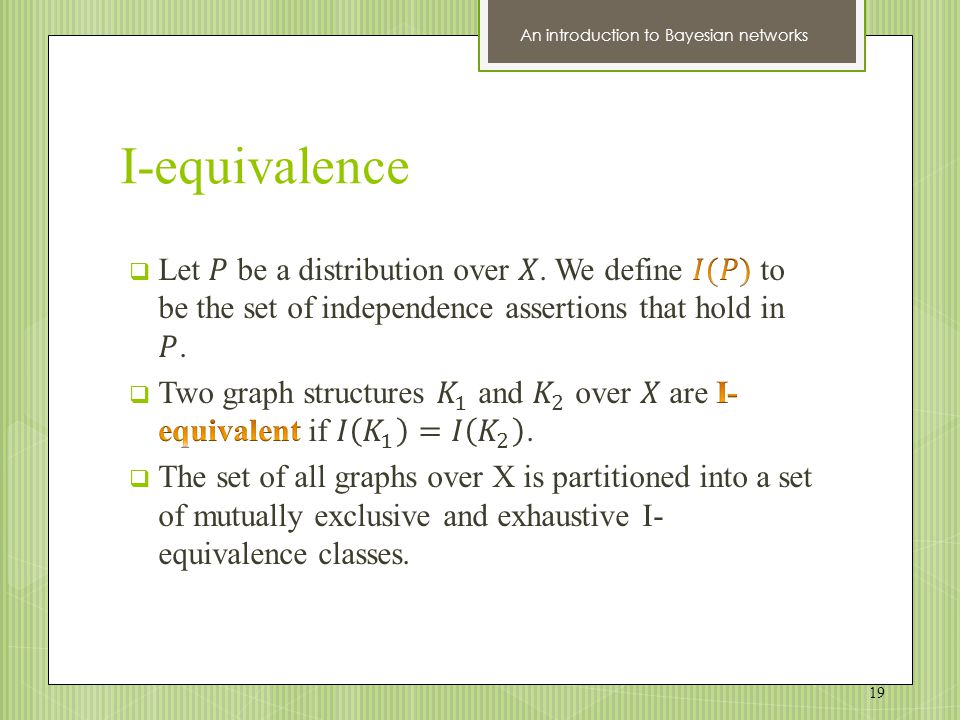

19. 19 An introduction to Bayesian networks I-equivalence

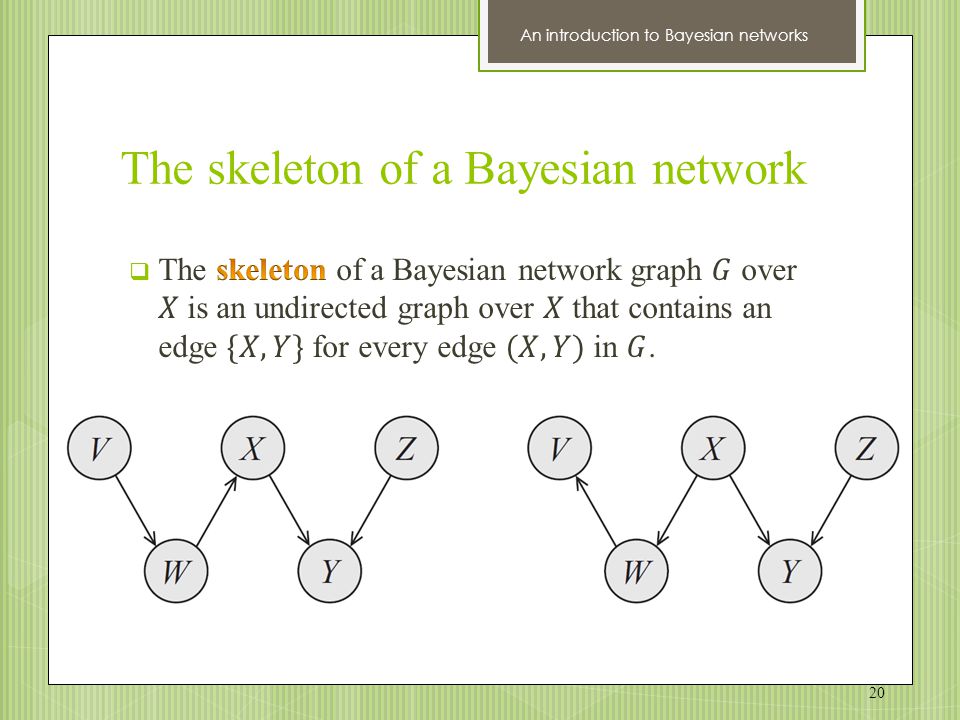

20. 20 An introduction to Bayesian networks The skeleton of a Bayesian network

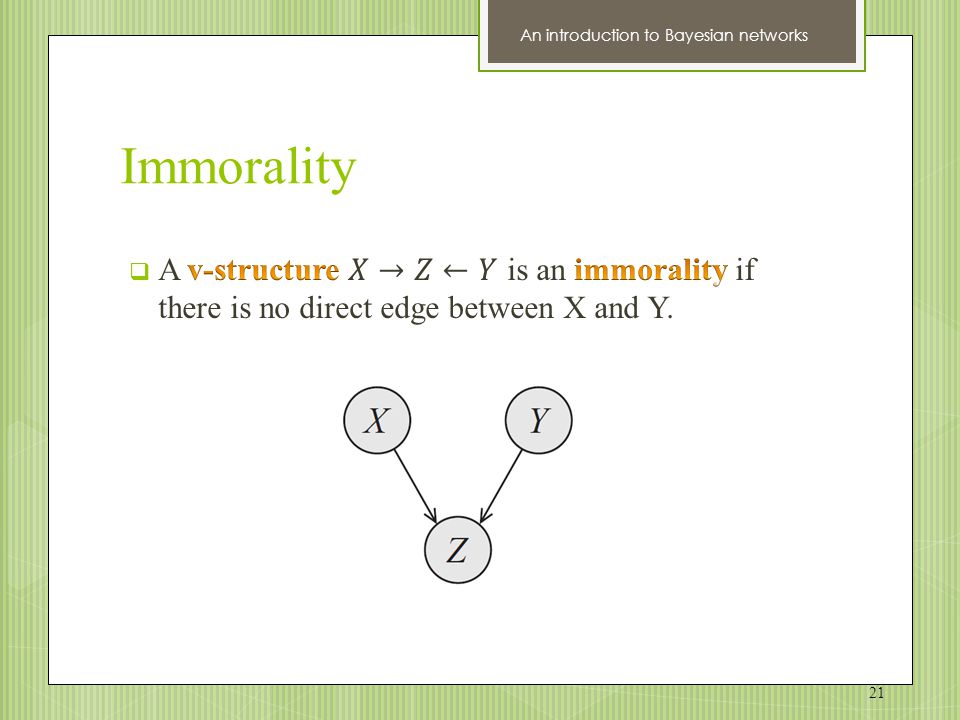

21. 21 An introduction to Bayesian networks Immorality

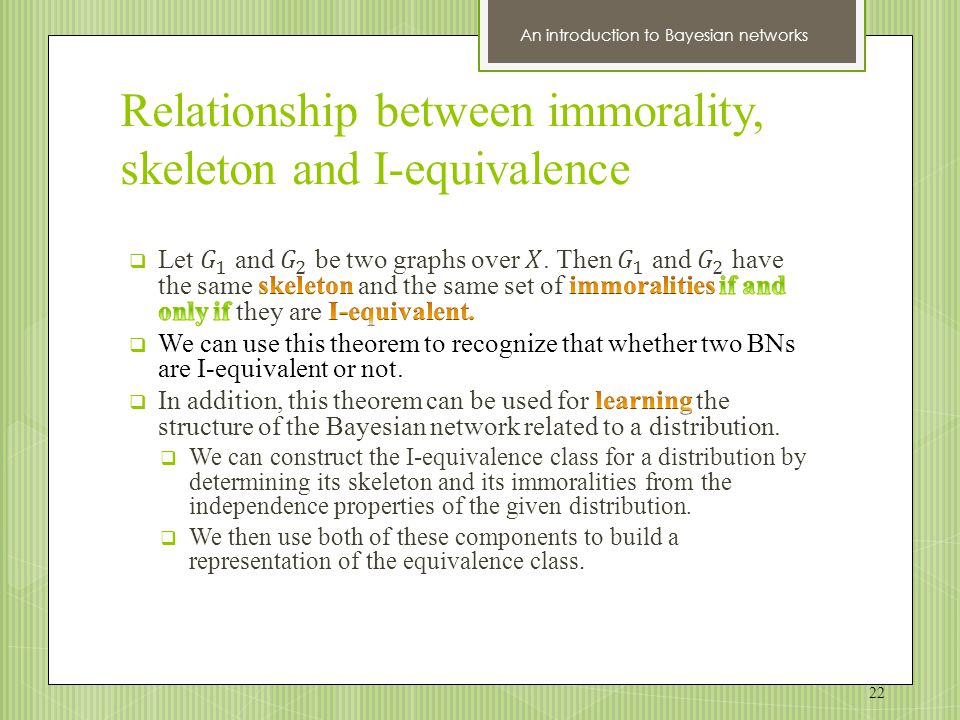

22. 22 An introduction to Bayesian networks Relationship between immorality, skeleton and I-equivalence

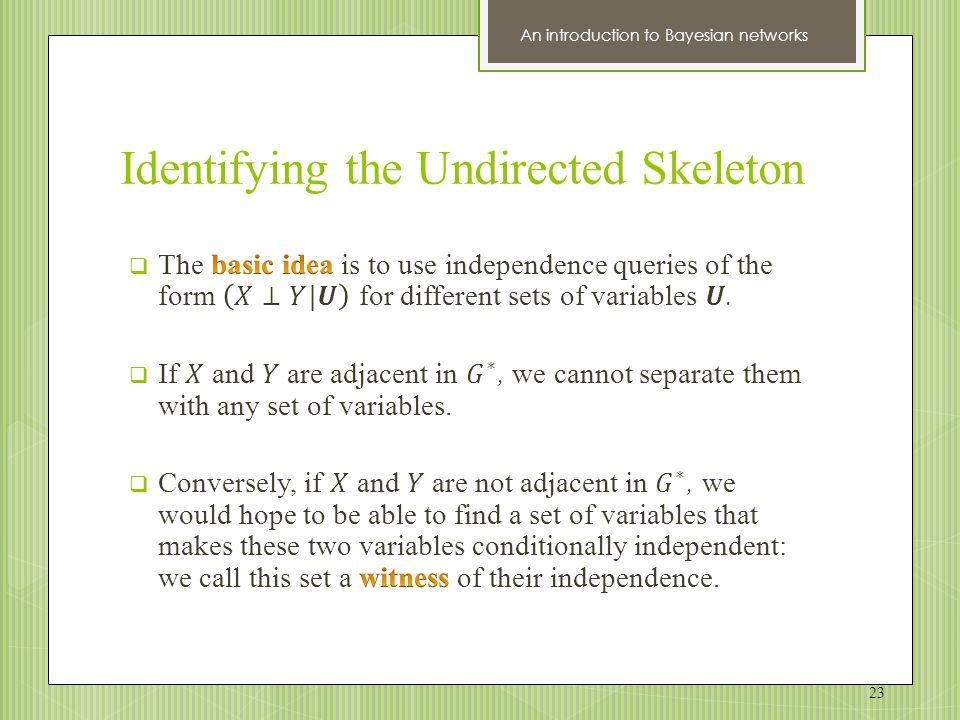

23. 23 An introduction to Bayesian networks Identifying the Undirected Skeleton

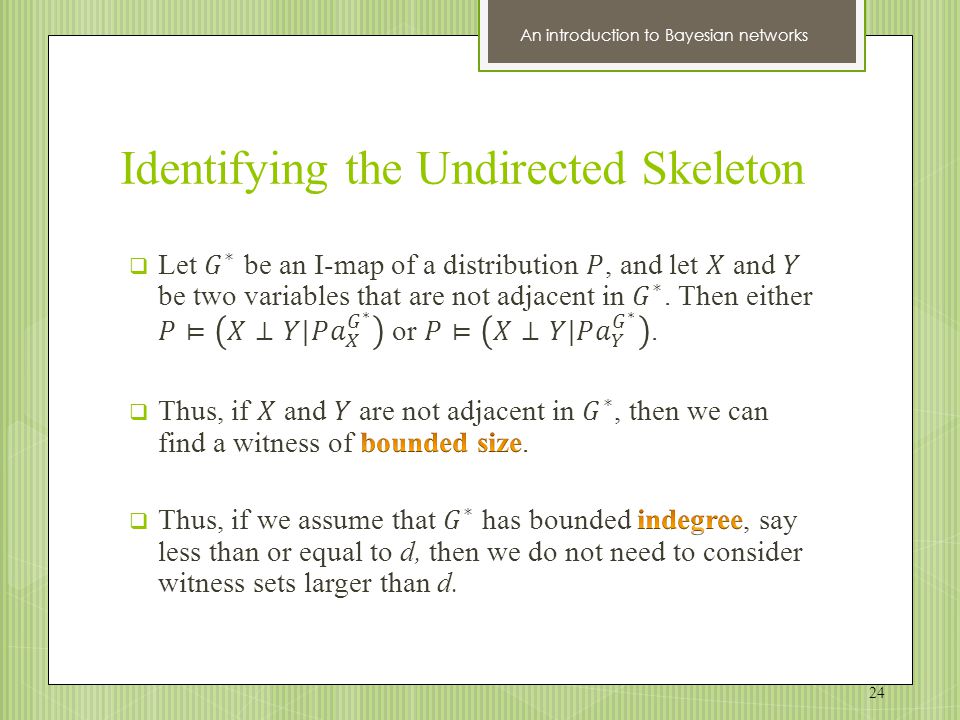

24. 24 An introduction to Bayesian networks Identifying the Undirected Skeleton

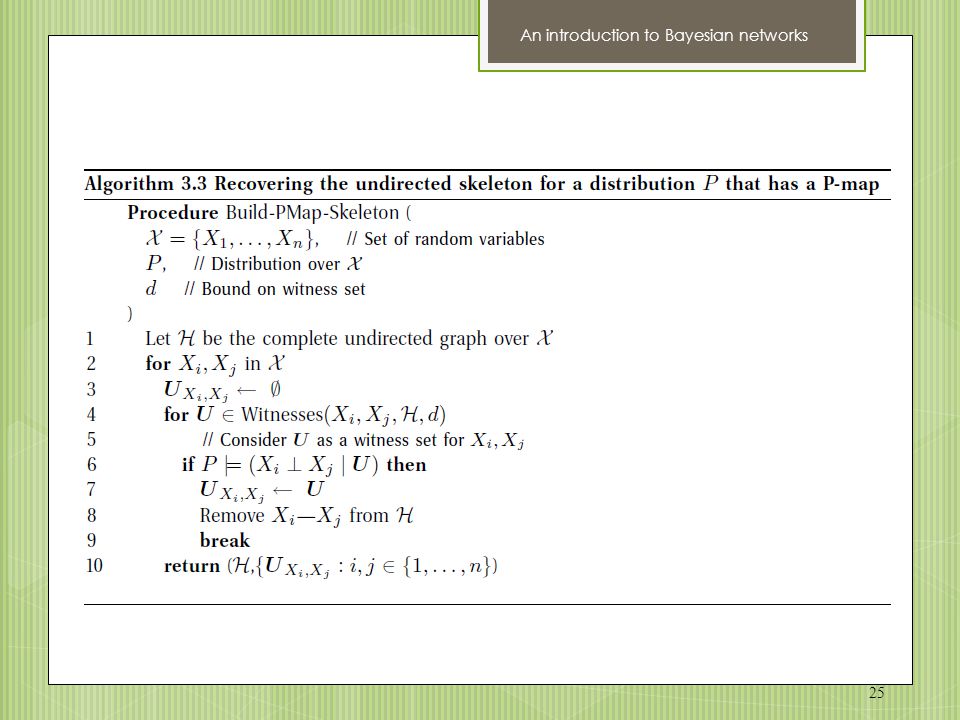

25. 25 An introduction to Bayesian networks

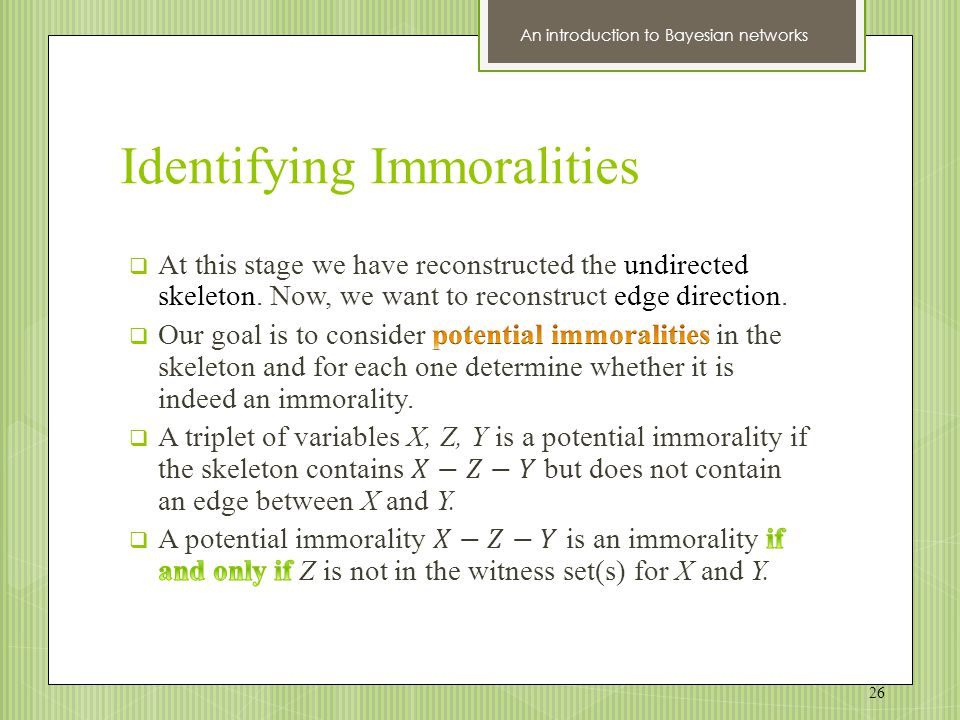

26. 26 An introduction to Bayesian networks Identifying Immoralities

27. 27 An introduction to Bayesian networks

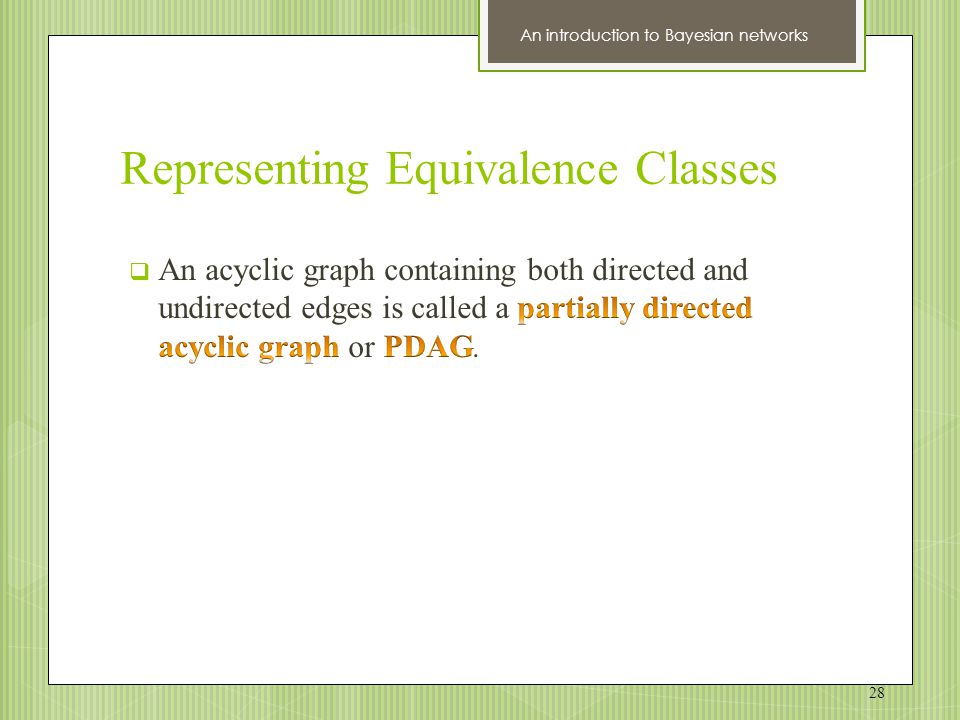

28. 28 An introduction to Bayesian networks Representing Equivalence Classes

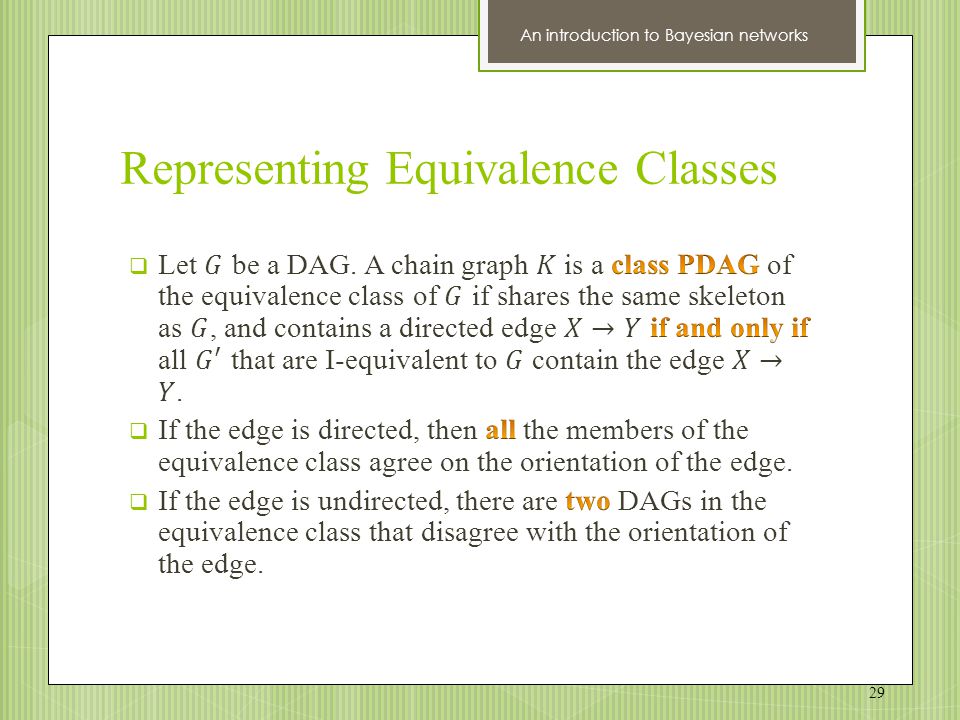

29. 29 An introduction to Bayesian networks Representing Equivalence Classes

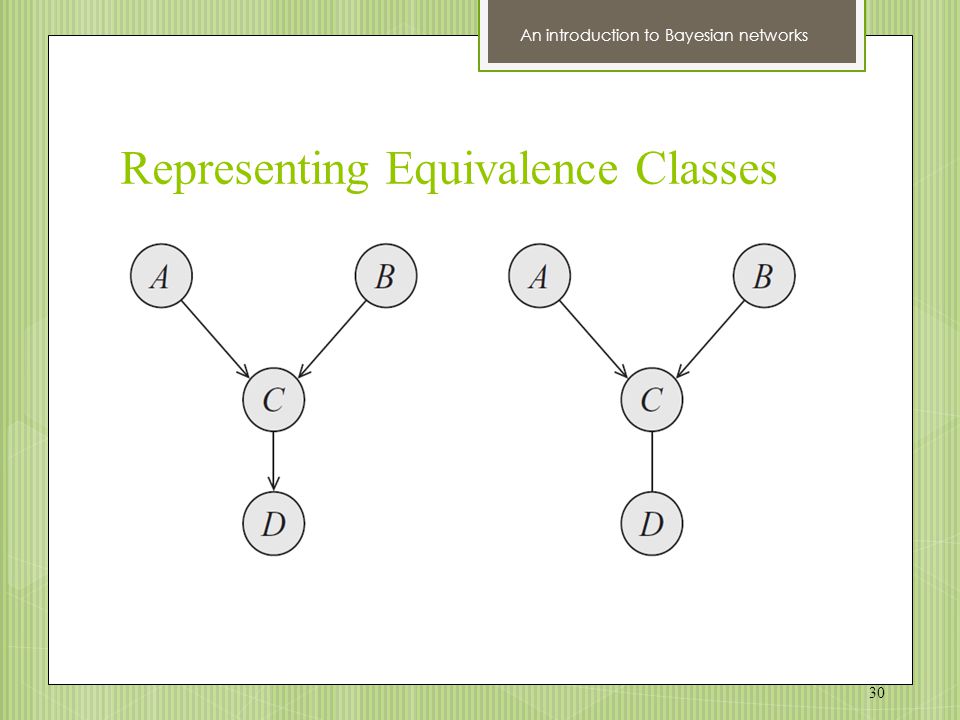

30. 30 An introduction to Bayesian networks Representing Equivalence Classes  Is the output of Mark-Immoralities the class PDAG?  Clearly, edges involved in immoralities must be directed in K.  The obvious question is whether K can contain directed edges that are not involved in immoralities.  In other words, can there be additional edges whose direction is necessarily the same in every member of the equivalence class?

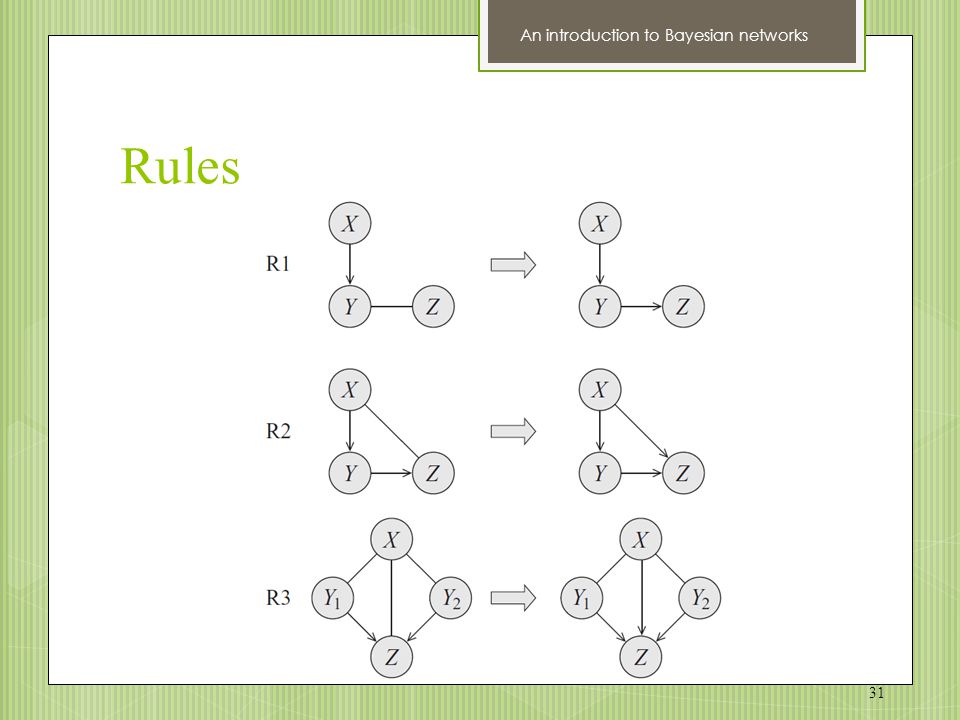

31. 31 An introduction to Bayesian networks Rules

32. 32 An introduction to Bayesian networks

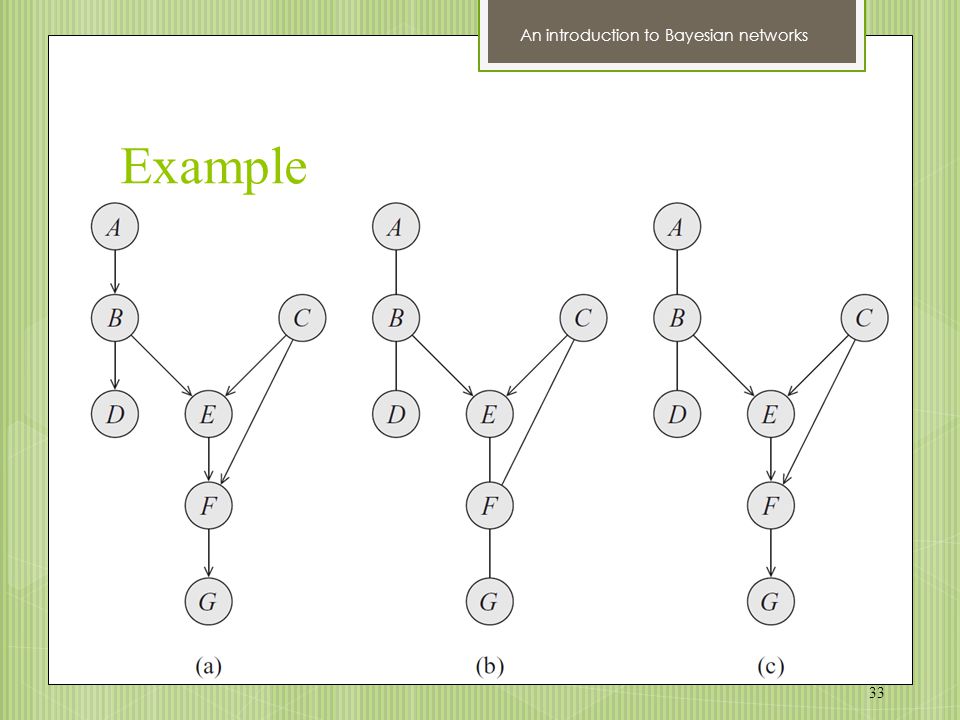

33. 33 An introduction to Bayesian networks Example

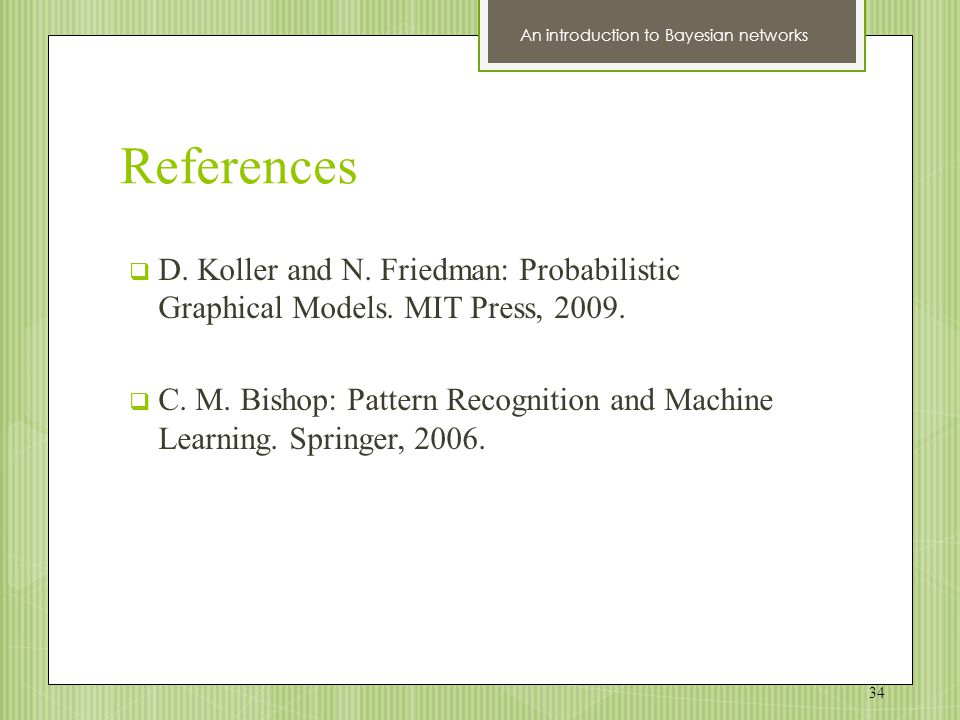

34. 34 An introduction to Bayesian networks References  D. Koller and N. Friedman: Probabilistic Graphical Models. MIT Press, 2009.  C. M. Bishop: Pattern Recognition and Machine Learning. Springer, 2006.
