CO - RELATION WITH ECG INTRA CARDIAC PRESSURES ASHOK MADRAS MEDICAL MISSION CHENNAI www.anaesthesia.co.in anaesthesia.co.in@gmail.com
2
What is the importance of the Intra cardiac pressures ?
3
PURPOSE To ASSESS. Severity of Valvular heart disease. Pulmonary Artery Hypertension. Shunt calculation. Cardiomyopathy. Ventricular function. Pulmonary & Systemic flow
4
INTRA CARDIAC PRESSURES CO - RELATION WITH ECG
5

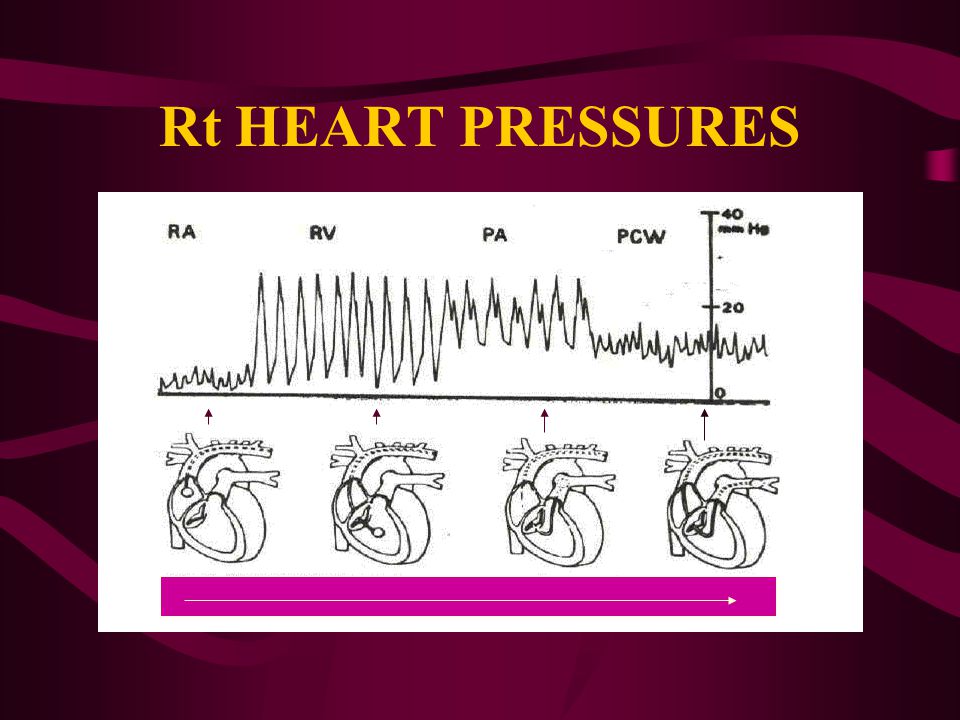

Rt HEART PRESSURES
6

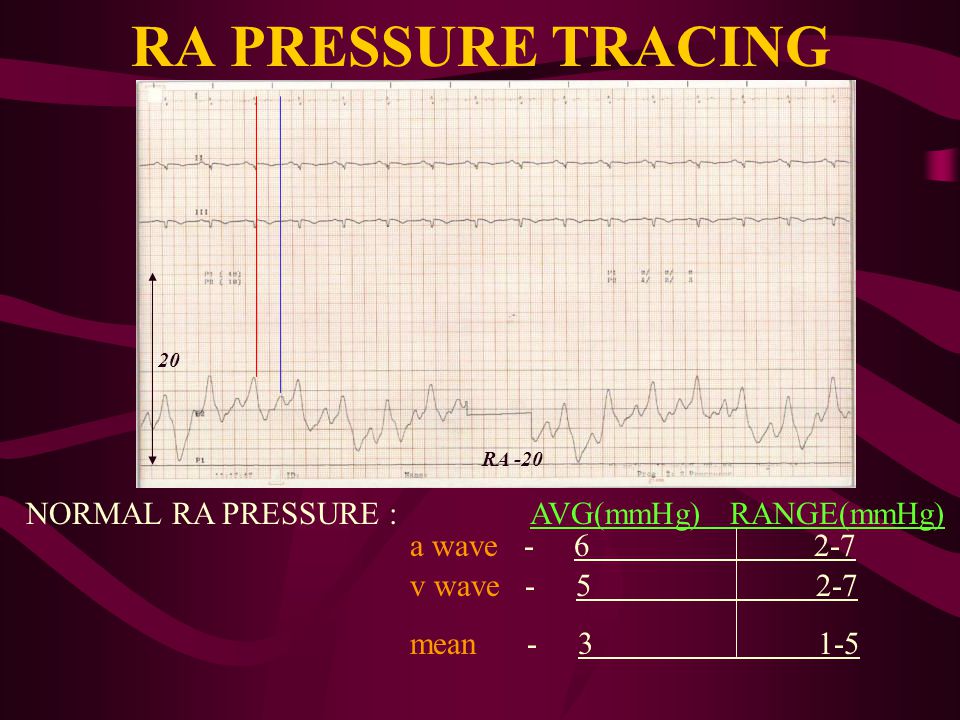

RA PRESSURE TRACING NORMAL RA PRESSURE : a wave - 6 2-7 AVG(mmHg) RANGE(mmHg) v wave - 5 2-7 mean - 3 1-5 RA -20 20
7

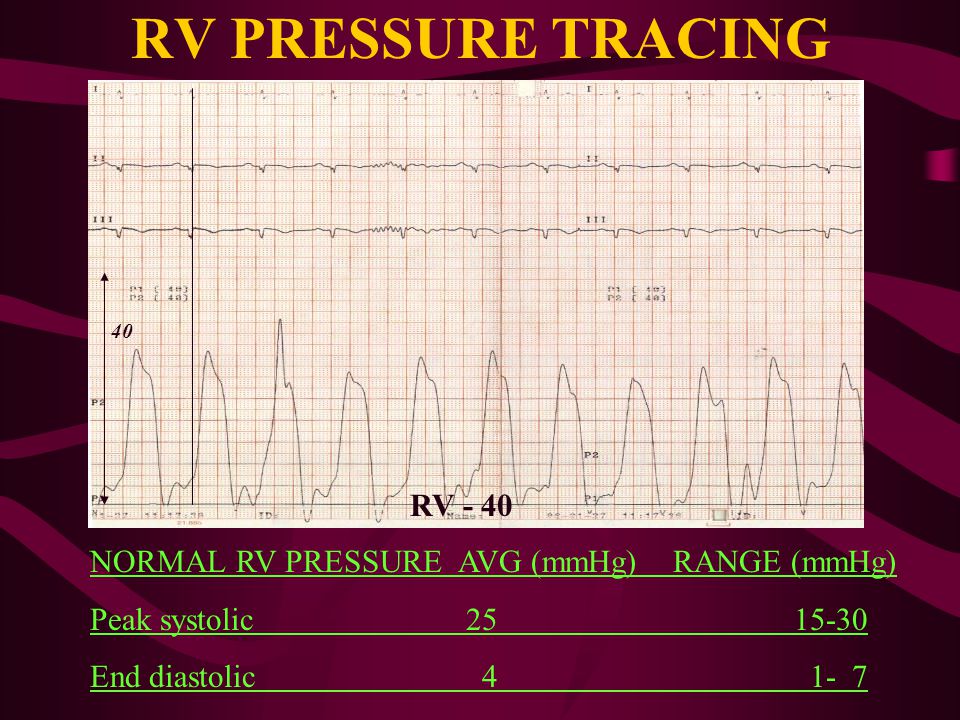

RV PRESSURE TRACING NORMAL RV PRESSURE AVG (mmHg) RANGE (mmHg) Peak systolic 25 15-30 End diastolic 4 1- 7 40 RV - 40
8
PCW AND PA PRESSURE TRACING NORMAL PCW AVG(mmHg) RANGE(mmHg) Mean 9 4-12 NORMAL PA AVG(mmHg) RANGE(mmHg) Peak Systolic 25 15-30 End diastolic 9 4- 12 Mean 15 9-19 40 PA PCW
9
Lt HEART PRESSURES 100 LV AO
10

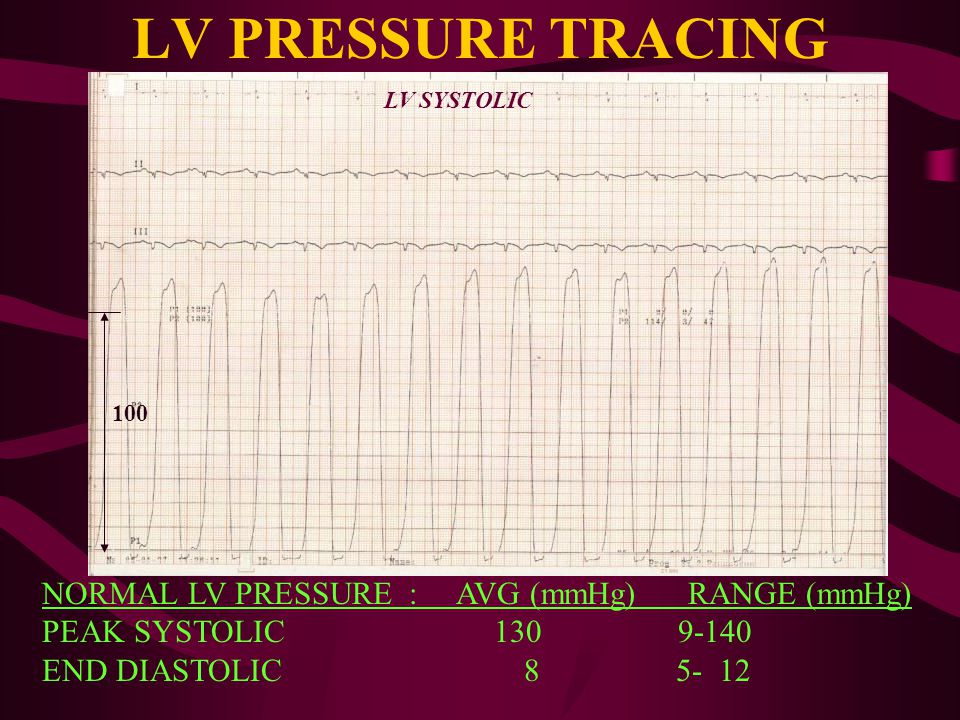

LV PRESSURE TRACING LV SYSTOLIC 100 NORMAL LV PRESSURE : AVG (mmHg) RANGE (mmHg) PEAK SYSTOLIC 130 9-140 END DIASTOLIC 8 5- 12
11

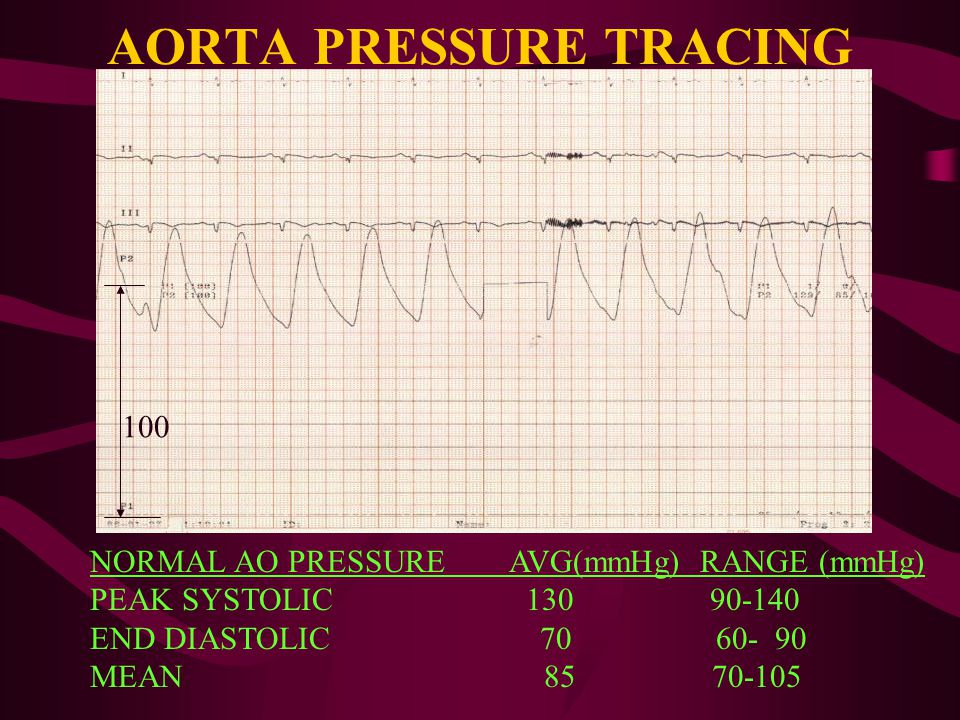

AORTA PRESSURE TRACING NORMAL AO PRESSURE AVG(mmHg) RANGE (mmHg) PEAK SYSTOLIC 130 90-140 END DIASTOLIC 70 60- 90 MEAN 85 70-105 100
12
LEFT VENTRICULAR END DIASTOLIC PRESSURE ( LVEDP )
13

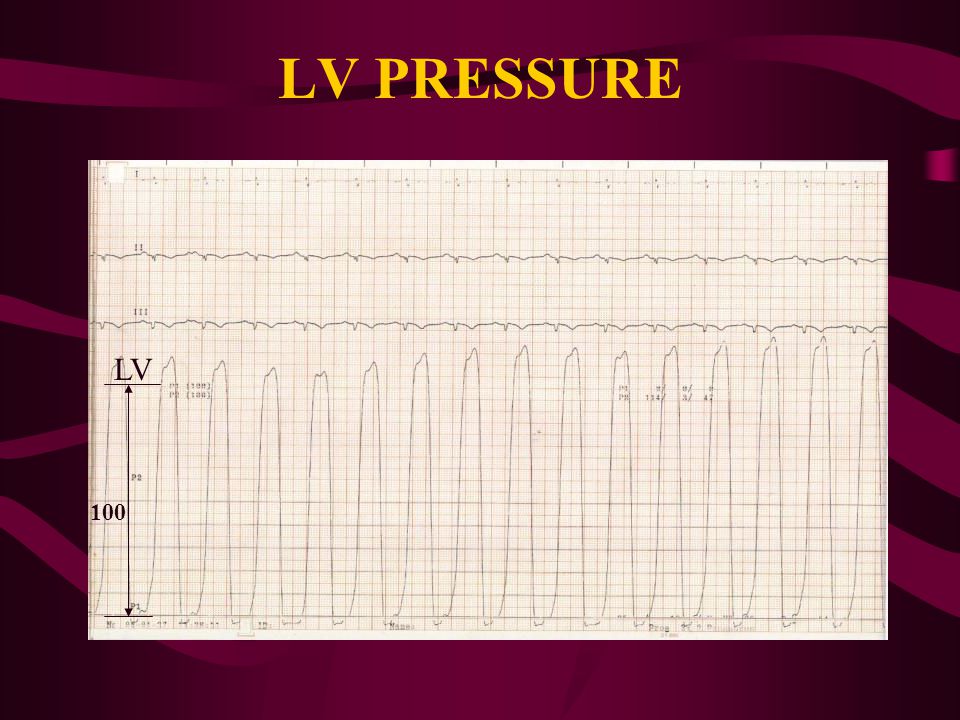

LV PRESSURE 100 LV
14

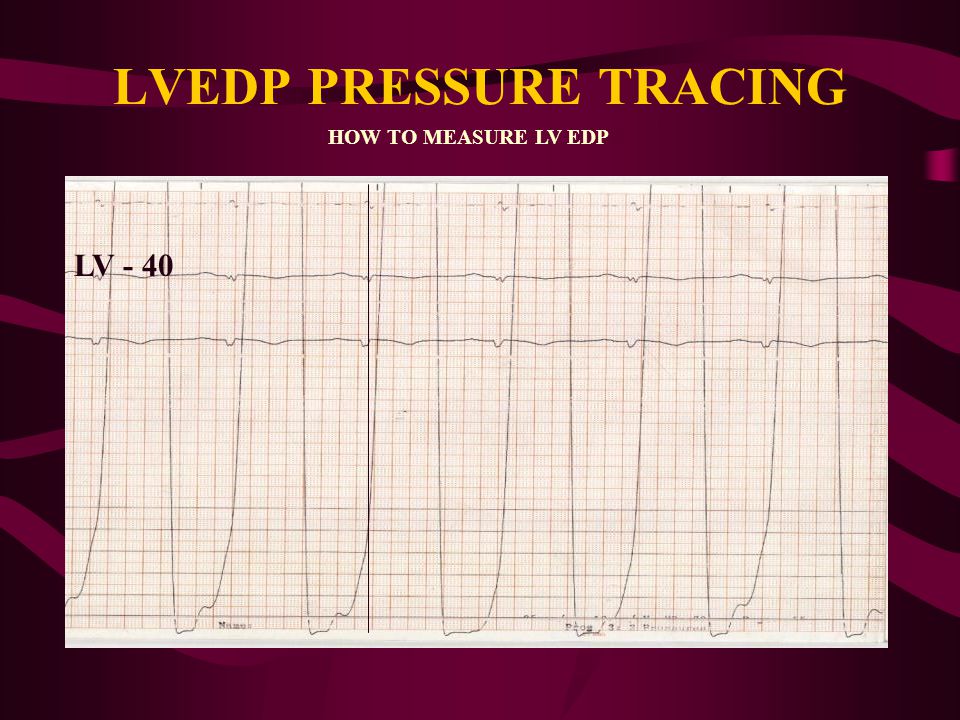

LVEDP PRESSURE TRACING HOW TO MEASURE LV EDP LV - 40
15

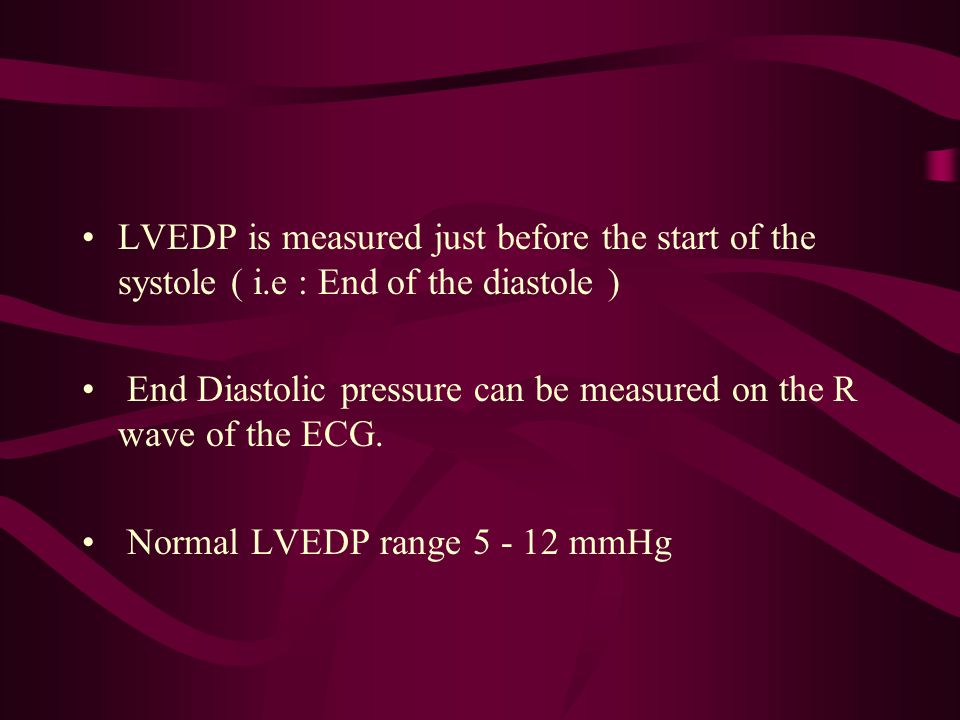

LVEDP is measured just before the start of the systole ( i.e : End of the diastole ) End Diastolic pressure can be measured on the R wave of the ECG. Normal LVEDP range 5 - 12 mmHg
16
ABNORMAL LVEDP
17
ELEVATED LVEDP 100 LV
18
LV PRESSURE IN AF LV - 100
19
PULMONARY CAPILLARY WEDGE PRESSURE
20

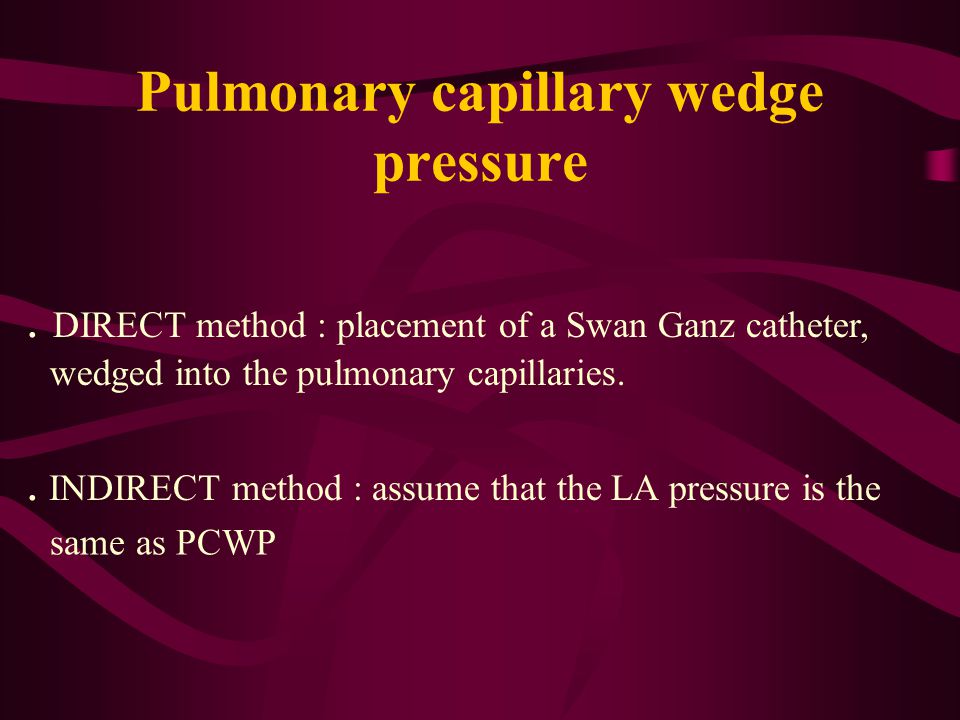

Pulmonary capillary wedge pressure. DIRECT method : placement of a Swan Ganz catheter,. INDIRECT method : assume that the LA pressure is the wedged into the pulmonary capillaries. same as PCWP
21
DIRECT METHOD. Placement of a Swan Ganz catheter in the pulmonary circulation.. Tip should be in the most distal position with the balloon inflated.. Wedge the catheter.. Loss of the waveforms.. Measure the value.
22
PCW - PA PRESSURE TRACING PCW PA 40
23

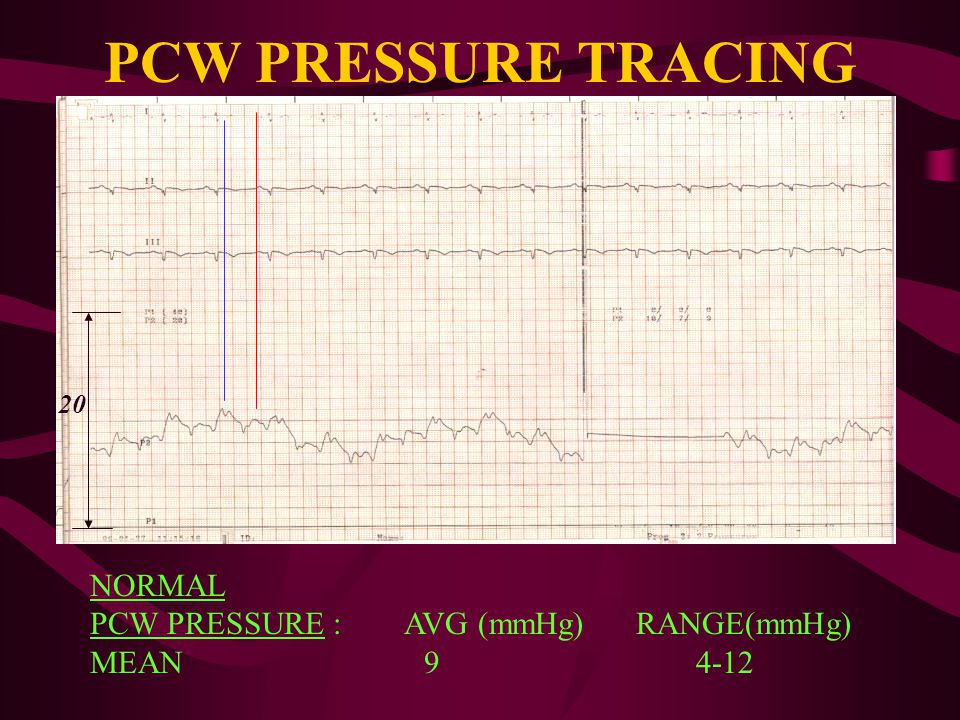

PCW PRESSURE TRACING NORMAL PCW PRESSURE : AVG (mmHg) RANGE(mmHg) MEAN 9 4-12 20
24
INDIRECT METHOD. Measurement of the LA pressure. Left atrial measurement: via a PFO ( patent foramen ovale ) Trans septal ( brockenbrough technique )
25

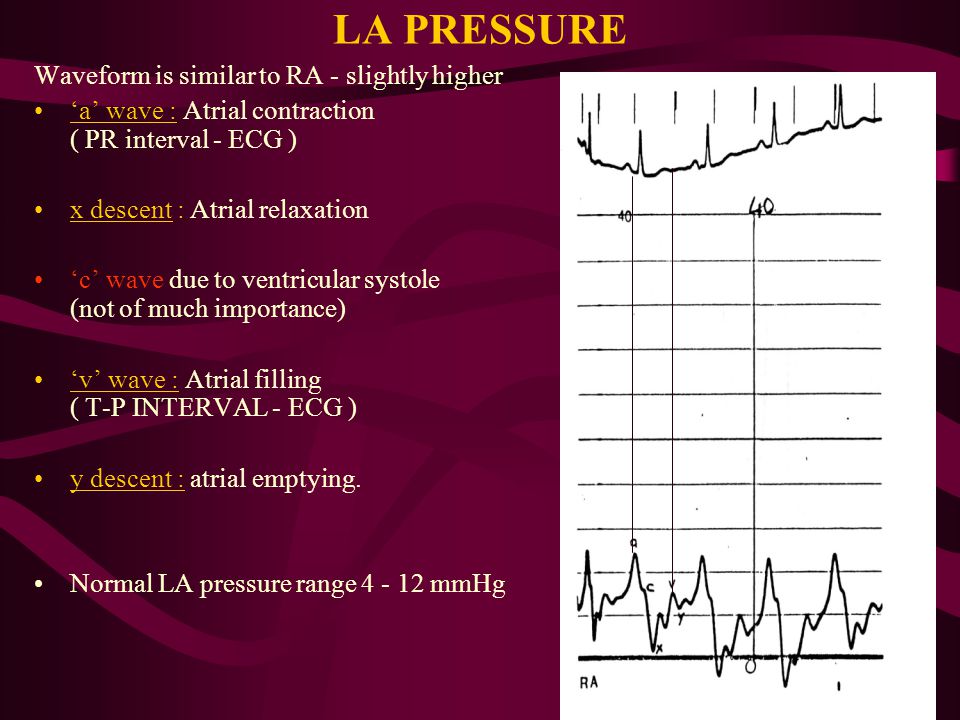

LA PRESSURE Waveform is similar to RA - slightly higher ‘a’ wave : Atrial contraction ( PR interval - ECG ) x descent : Atrial relaxation ‘c’ wave due to ventricular systole (not of much importance) ‘v’ wave : Atrial filling ( T-P INTERVAL - ECG ) y descent : atrial emptying. Normal LA pressure range 4 - 12 mmHg
26
MITRAL STENOSIS
27

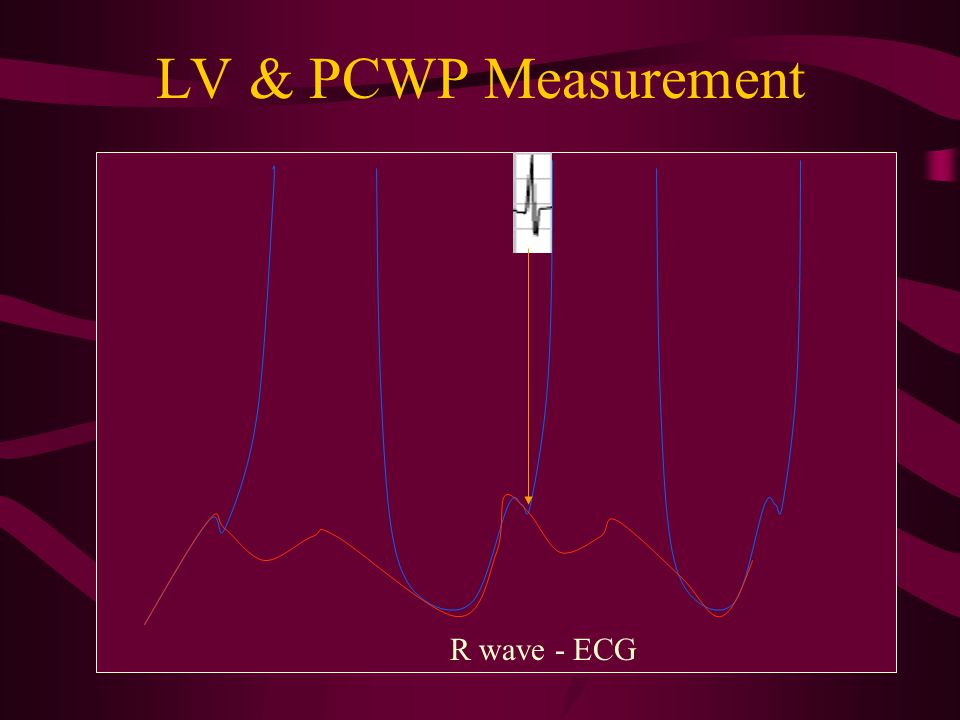

R wave - ECG LV & PCWP Measurement
28

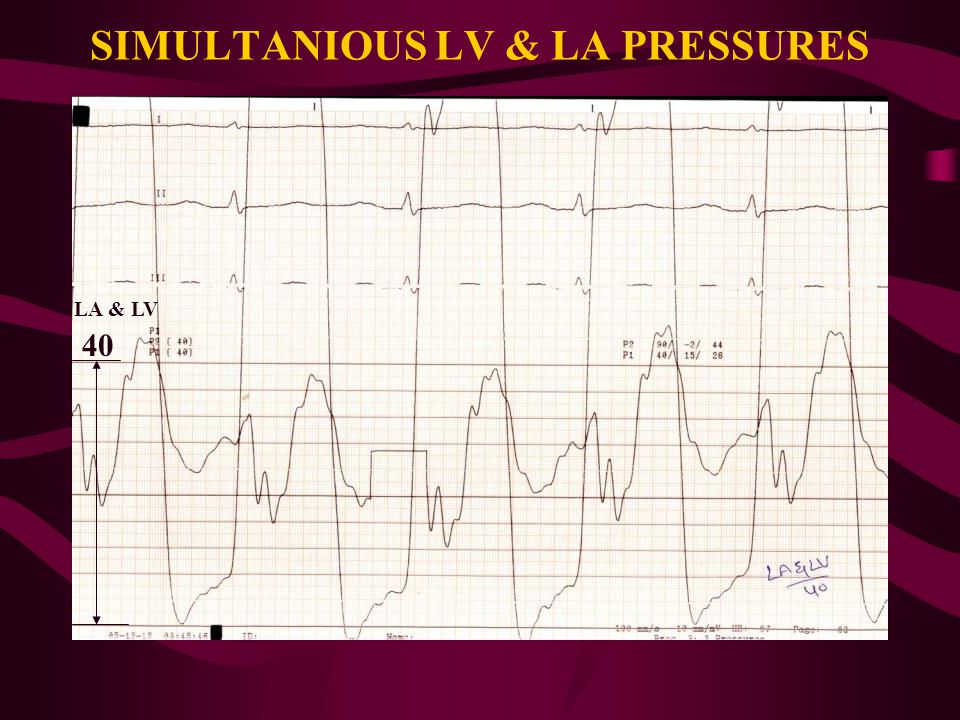

SIMULTANIOUS LV & LA PRESSURES 40 LA & LV
29

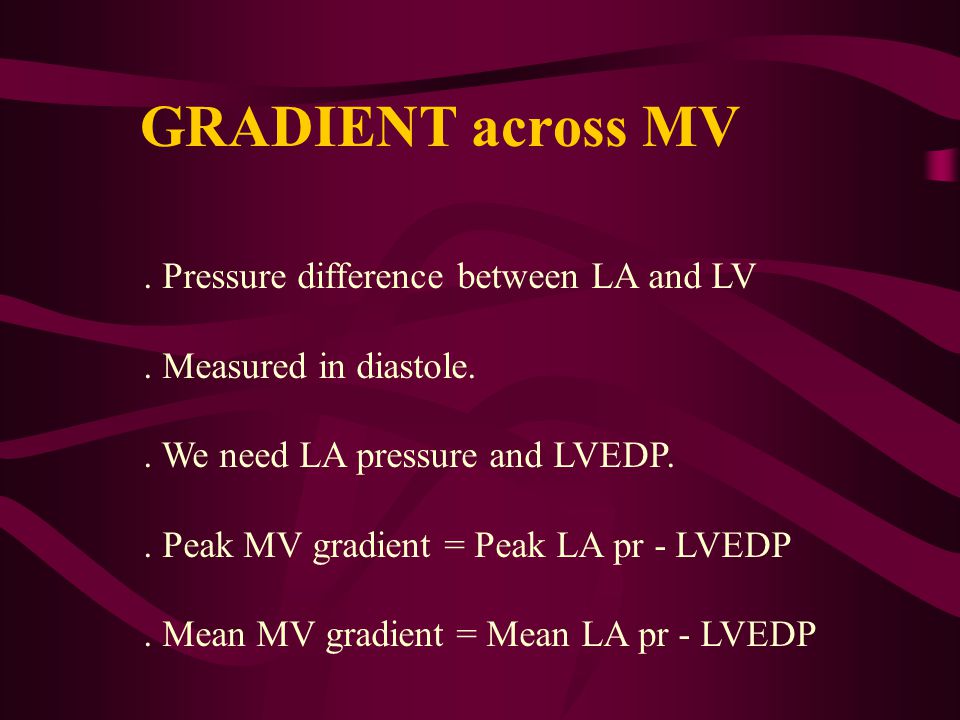

GRADIENT across MV. Pressure difference between LA and LV. Measured in diastole.. We need LA pressure and LVEDP.. Peak MV gradient = Peak LA pr - LVEDP. Mean MV gradient = Mean LA pr - LVEDP
30

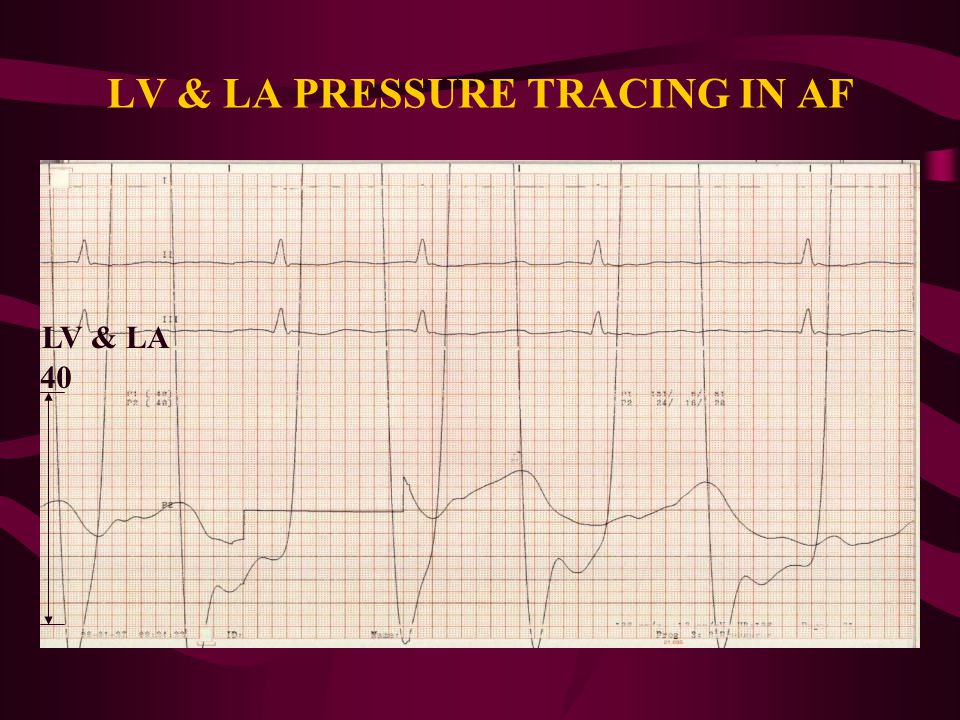

LV & LA PRESSURE TRACING IN AF LV & LA 40
31
CATHETER POSITION PCW & LV LV PCW
32
CATHETER POSITION LA & LV LV LA
33
HYPERTROPHIC OBSTRUCTIVE CARDIOMYOPATHY
34
LV TO AO PULL BACK GRADIENT
35
RESTING GRADIENT - LV & AO 200 LV & AO
36

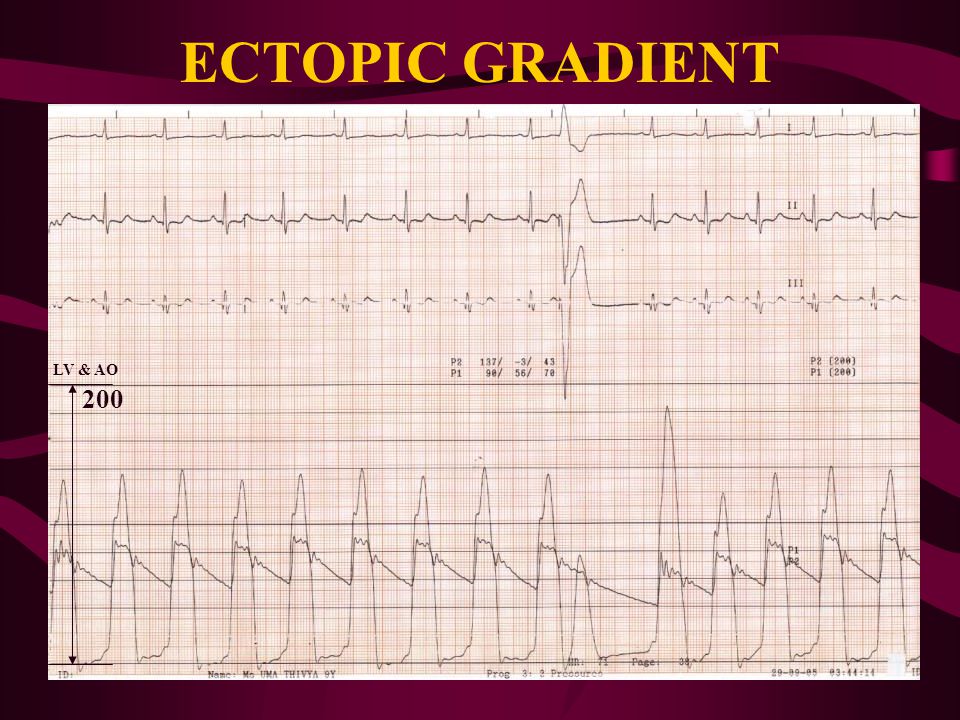

ECTOPIC GRADIENT 200 LV & AO
37

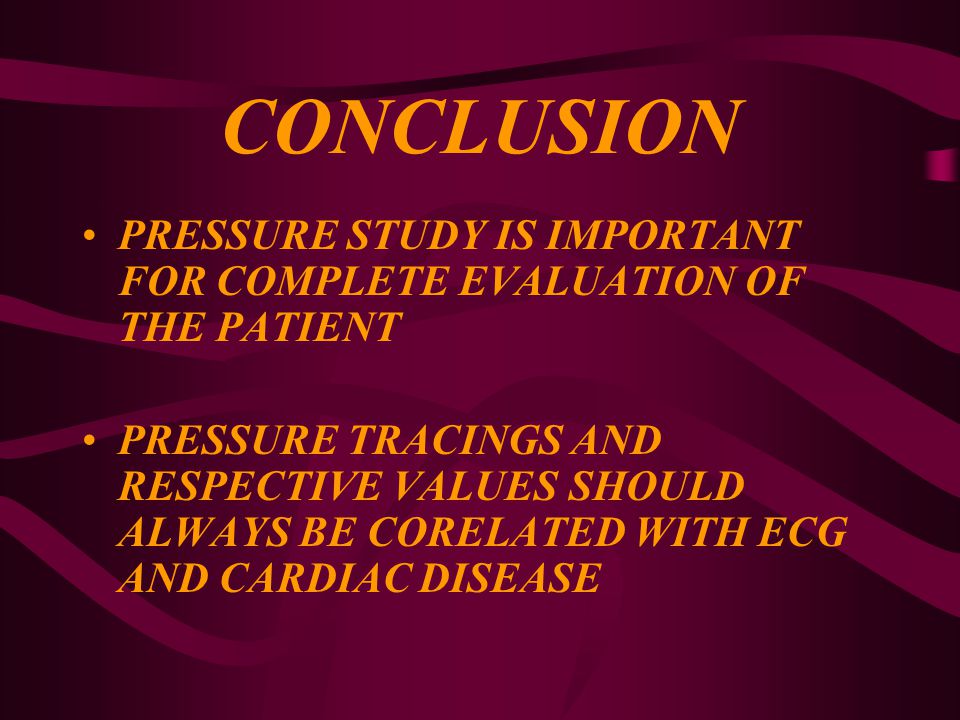

CONCLUSION PRESSURE STUDY IS IMPORTANT FOR COMPLETE EVALUATION OF THE PATIENT PRESSURE TRACINGS AND RESPECTIVE VALUES SHOULD ALWAYS BE CORELATED WITH ECG AND CARDIAC DISEASE
38
THANK YOU www.anaesthesia.co.in anaesthesia.co.in@gmail.com
