1. PURHOLZ Verbundelemente GmbH
Energy efficiency in Italy, March 2011
PURHOLZ Verbundelemente GmbH
PHONOPUR®plus – the smart panel for energy efficient timber housing industry
Margot Sander
Owner, CPO, CEO
responsable for export and marketing

2. PURHOLZ Verbundelemente GmbH
Mittweida near Chemnitz/ Sachsen
around 40 employees, turnaround approx. 4 Mio. EUR p.a.
privatized in 1992
private owners: Mrs. Margot Sander, Mrs. Heike Bräuer and Mr. Christian Delling
products: sandwich-technology since 1970
selling products in many European countries and Ukraine

3. History of PURHOLZ
- woodworking companies on the grounds (chairs, carpentry etc.)
- becoming a VEB under GDR government
starting the production of PU foam panels
- privatization after reunification
- „license to build“ with PHONOPUR®plus
more than 500 homes built with PURHOLZ-system

4. Perfect data of PHONOPUR®plus heat insulation U<0,28 Wm²/K
noise reduction dB
fire protection /90 minutes
Certificate of Material Proof Institute IBMB of Brunswick F30
Development of F90 integrated into PHONO+ for row and semidetached houses

5. Perfect data of PHONOPUR®plus light construction < 100 kg/pc.
quick assembly by hand, only roof by crane
low selling price EUR/ 100 m² kit
Plus:
self porting panels to/100 cm width
ETAG 007, Bruxelles
seismic proof since May 2004
The test construction broke after 33 tons of loading – not the panel!!!

6. Construction of PHONOPUR®plus From outside to inside: 10 mm OSB
60 mm PU rigid foam
50 mm Mineral Wool
12,5 mm Fermacell-plate
PHONOPUR®plus is the perfect combination of all materials‘ characteristics within 142,5 mm.
Dimensions: 1,25 x 3 m

7. Admitted all over Europe!
Seismics by
PHONOPUR®plus
Seismic approval by earthquake analysis
Also regions in Germany (e.g. valley of the Rhine)
Mediterrenean regions and also in Turkey
Effective ground acceleration 5.0 m/s² (= 0,5 g)
Resistance to an earthquake 1 to 3
Admitted all over Europe!

8. Seismics by
PHONOPUR®plus
See where it works!

9. 120 m² living area within 3 or 4 working days
Building by systems:
PHONOPUR®plus
„individual“ system dimensions up to a favourite 125 cm
all types of buildings are possible
quick assembly time for mounting team or owners
Also in winter time:
120 m² living area within 3 or 4 working days

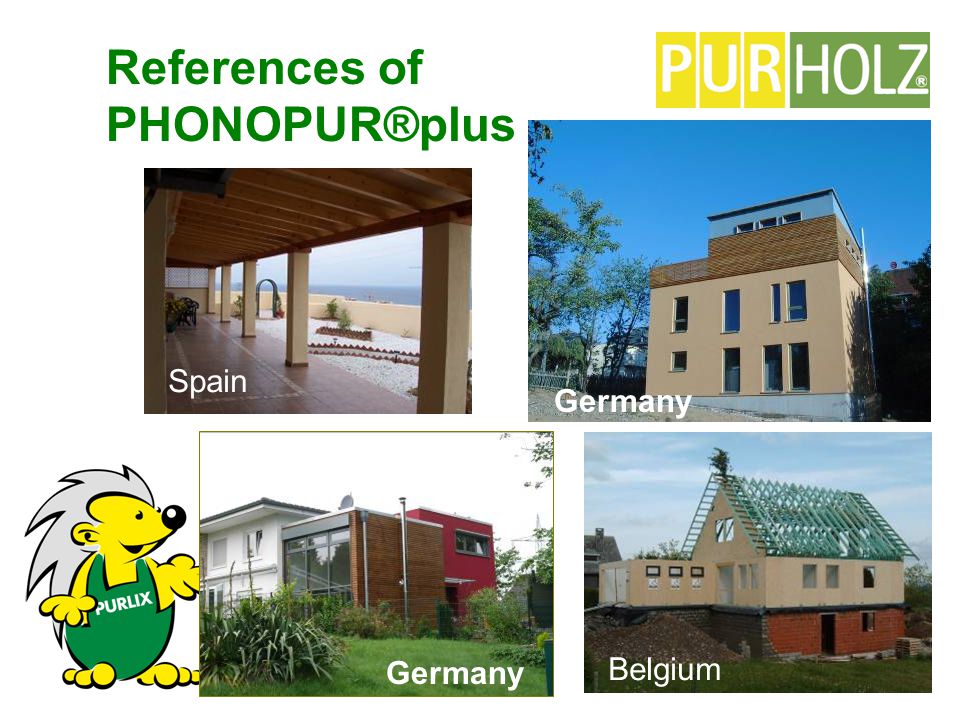

10. References of
PHONOPUR®plus
Spain
Germany
Germany
Belgium

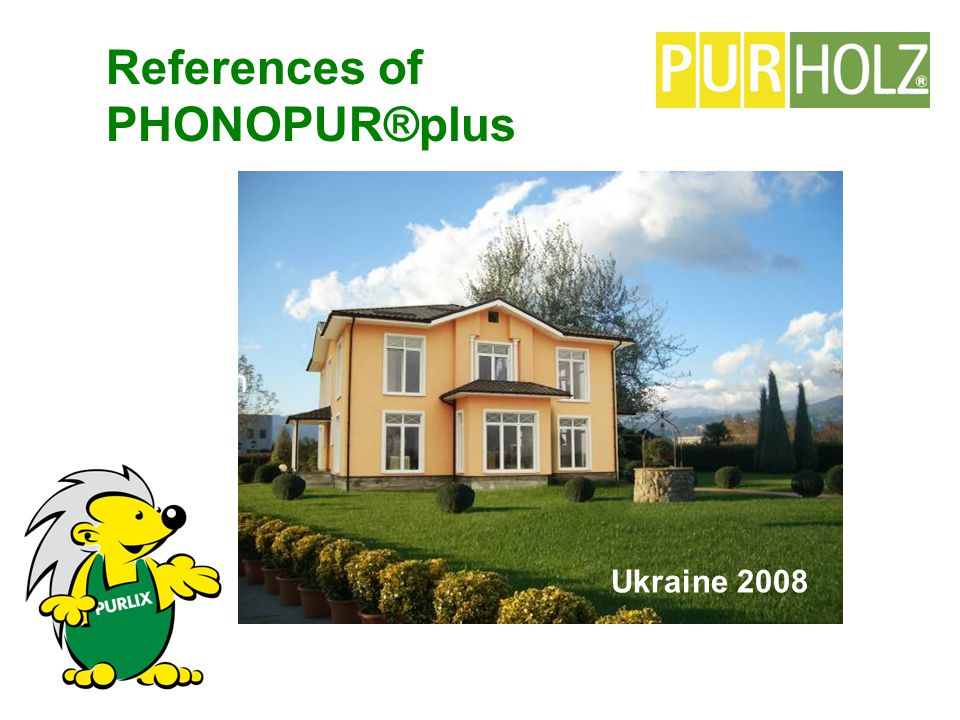

11. References of
PHONOPUR®plus
Spain
Ukraine 2008

12. References of
PHONOPUR®plus
First passiv home built in Belgium in 2009

13. NEW! Development Passiv loggias
Development of apartment construction kits on top of older plate buildings, type W 464 or similar, using the static reserves.
NEW!
Porting construction made of Nailweb beams and PHONOPUR®plus,
roof and floor panels in development until end of 2010.

14. With the „license to build“:
PHONOPUR®plus!
We are looking for partners who are interested in
- sales and construction of private and commercial timber buildings
in combination with local partners of modern housing technics (sanitary, heating etc.)
You are always welcome!
