1. Hidden Markov Models What are the good for? Morten Nielsen CBS

2. Absolutely nothing!

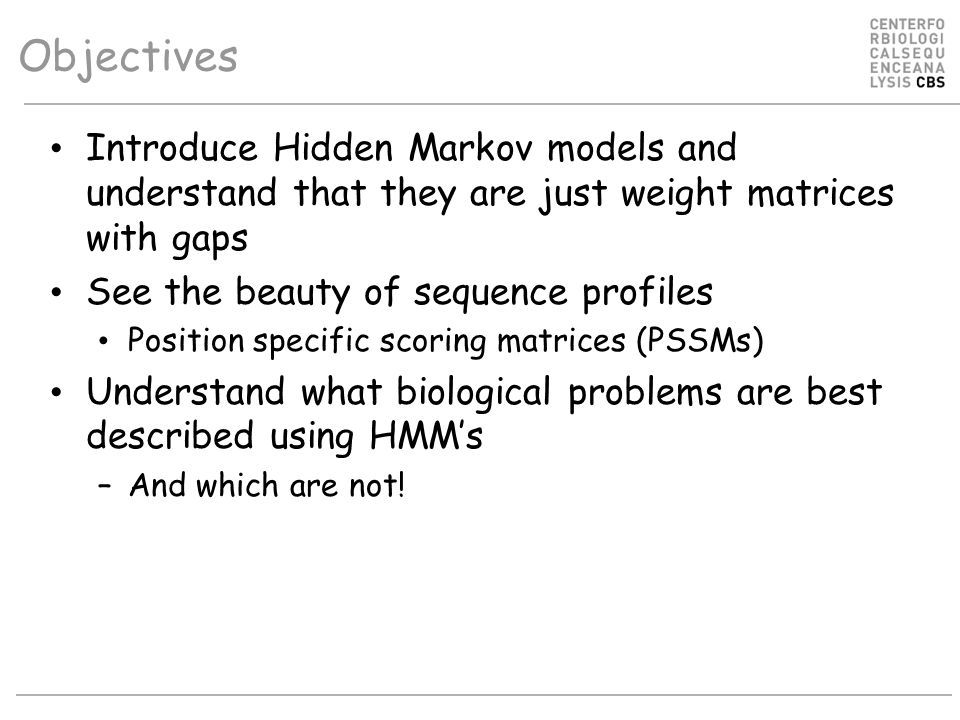

3. Objectives Introduce Hidden Markov models and understand that they are just weight matrices with gaps See the beauty of sequence profiles Position specific scoring matrices (PSSMs) Understand what biological problems are best described using HMM’s –And which are not!

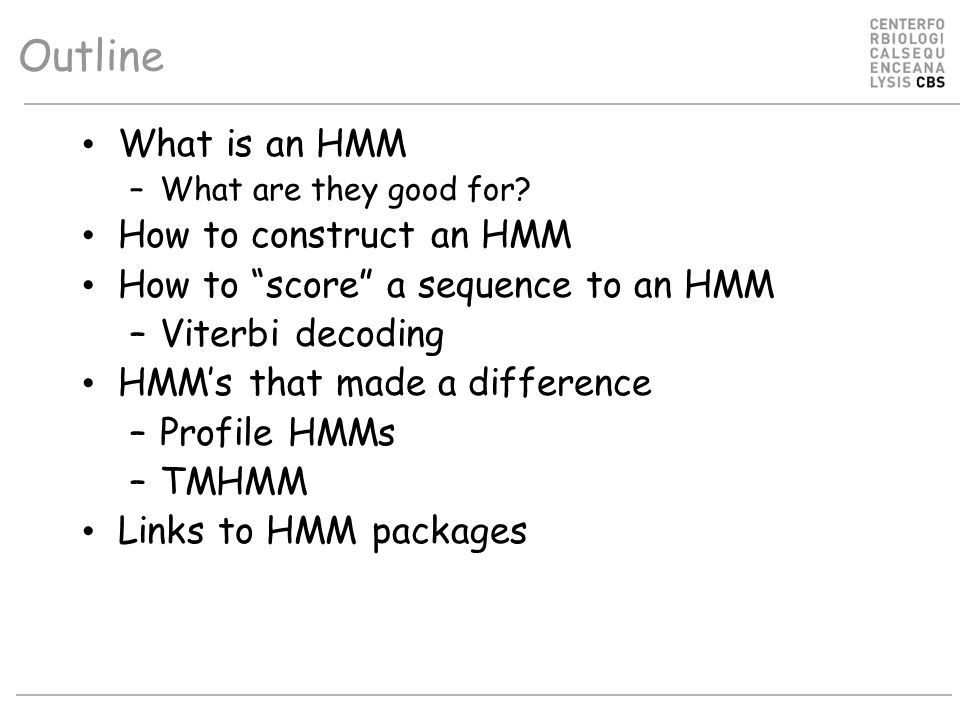

4. Outline What is an HMM –What are they good for? How to construct an HMM How to “score” a sequence to an HMM –Viterbi decoding HMM’s that made a difference –Profile HMMs –TMHMM Links to HMM packages

5. Markov Models A model with no memory –What I decide depends only on “state” now, not on what I have learned in the past –No dependence on i-1, i-2 …

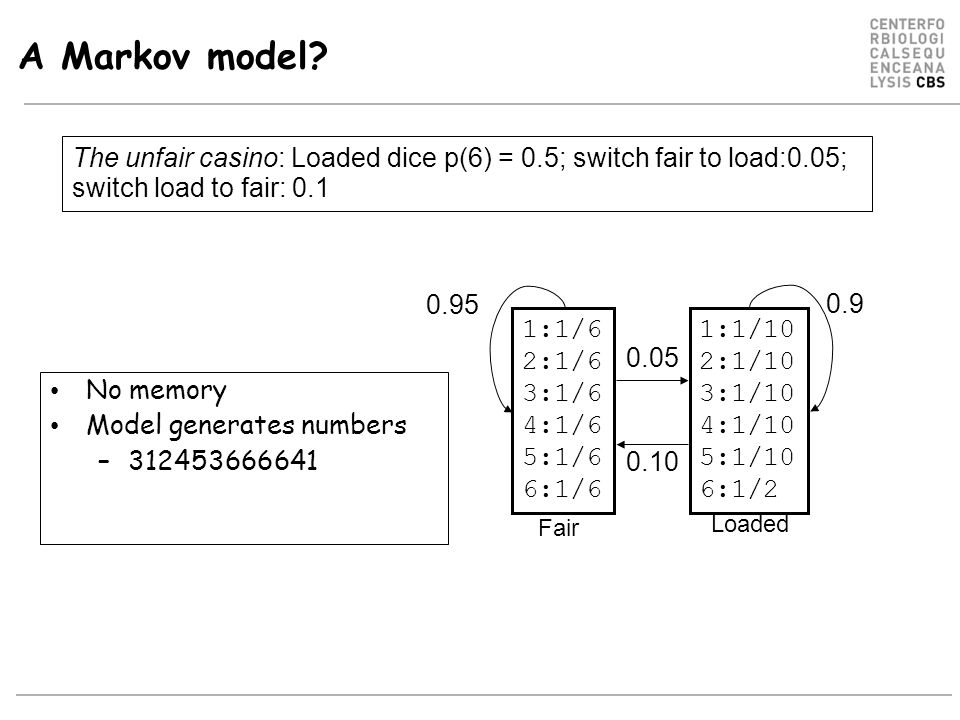

6. A Markov model? No memory Model generates numbers –312453666641 1:1/6 2:1/6 3:1/6 4:1/6 5:1/6 6:1/6 Fair 1:1/10 2:1/10 3:1/10 4:1/10 5:1/10 6:1/2 Loaded 0.95 0.10 0.05 0.9 The unfair casino: Loaded dice p(6) = 0.5; switch fair to load:0.05; switch load to fair: 0.1

7. Why hidden? Model generates numbers –312453666641 Does not tell which dice was used Alignment (decoding) can give the most probable solution/path (Viterby) –FFFFFFLLLLLL Or most probable set of states –FFFFFFLLLLLL 1:1/6 2:1/6 3:1/6 4:1/6 5:1/6 6:1/6 Fair 1:1/10 2:1/10 3:1/10 4:1/10 5:1/10 6:1/2 Loaded 0.95 0.10 0.05 0.9 The unfair casino: Loaded dice p(6) = 0.5; switch fair to load:0.05; switch load to fair: 0.1

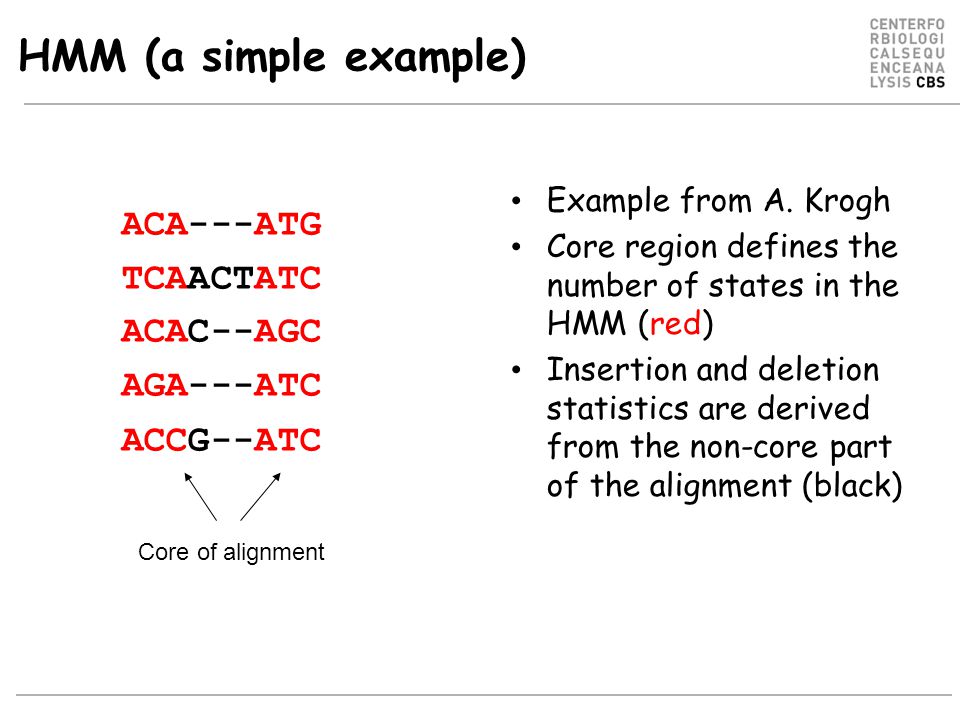

8. HMM (a simple example) ACA---ATG TCAACTATC ACAC--AGC AGA---ATC ACCG--ATC Example from A. Krogh Core region defines the number of states in the HMM (red) Insertion and deletion statistics are derived from the non-core part of the alignment (black) Core of alignment

9. .2.8.2 ACGTACGT ACGTACGT ACGTACGT ACGTACGT ACGTACGT ACGTACGT.8.2 1 ACGTACGT.4 1..4 1..6.4 HMM construction ACA---ATG TCAACTATC ACAC--AGC AGA---ATC ACCG--ATC 5 matches. A, 2xC, T, G 5 transitions in gap region C out, G out A-C, C-T, T out Out transition 3/5 Stay transition 2/5 ACA---ATG 0.8x1x0.8x1x0.8x0.4x1x1x0.8x1x0.2 = 3.3x10 -2

10. Align sequence to HMM ACA---ATG 0.8x1x0.8x1x0.8x0.4x1x0.8x1x0.2 = 3.3x10 -2 TCAACTATC 0.2x1x0.8x1x0.8x0.6x0.2x0.4x0.4x0.4x0.2x0.6x1x1x0.8x1x0.8 = 0.0075x10 -2 ACAC--AGC = 1.2x10 -2 Consensus: ACAC--ATC = 4.7x10 -2, ACA---ATC = 13.1x10 -2 Exceptional: TGCT--AGG = 0.0023x10 -2

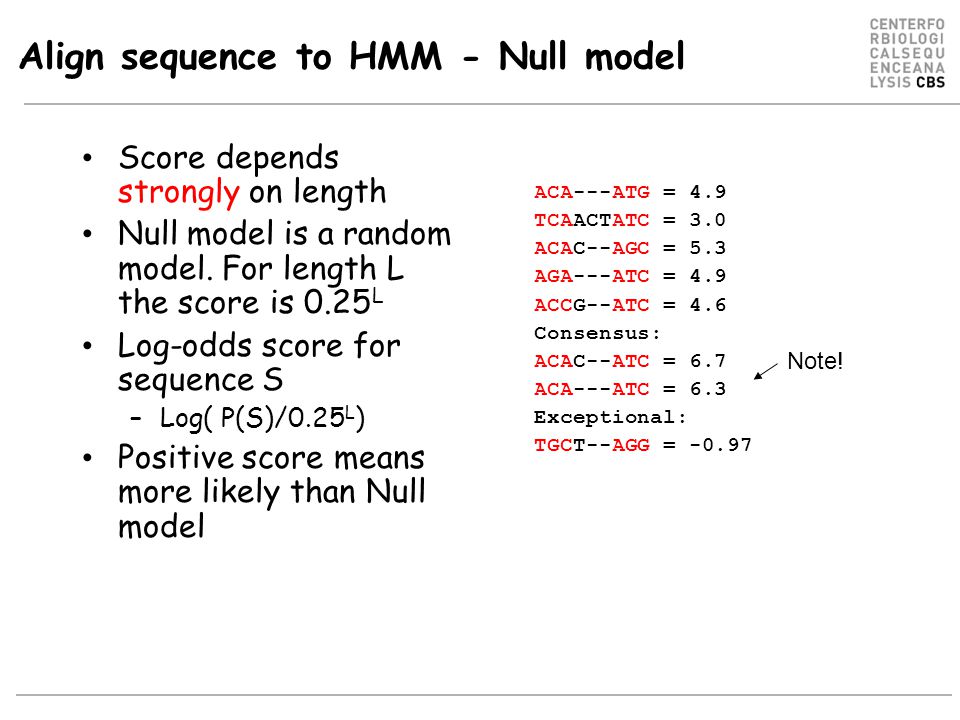

11. Align sequence to HMM - Null model Score depends strongly on length Null model is a random model. For length L the score is 0.25 L Log-odds score for sequence S –Log( P(S)/0.25 L ) Positive score means more likely than Null model ACA---ATG = 4.9 TCAACTATC = 3.0 ACAC--AGC = 5.3 AGA---ATC = 4.9 ACCG--ATC = 4.6 Consensus: ACAC--ATC = 6.7 ACA---ATC = 6.3 Exceptional: TGCT--AGG = -0.97 Note!

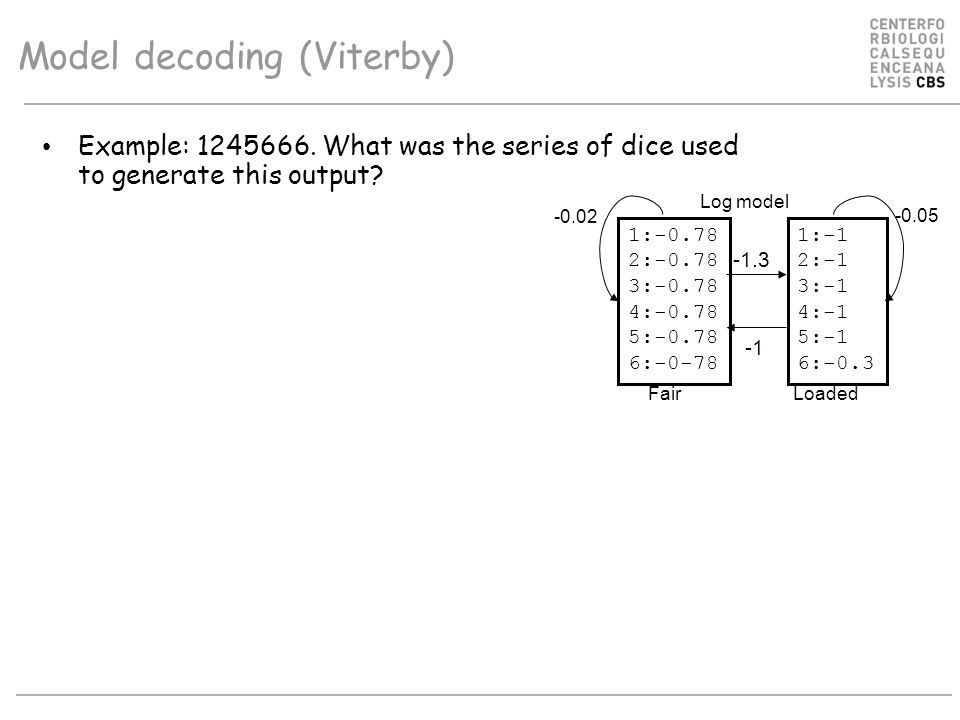

12. Model decoding (Viterby) Example: 1245666. What was the series of dice used to generate this output? 1:-0.78 2:-0.78 3:-0.78 4:-0.78 5:-0.78 6:-0-78 Fair 1:-1 2:-1 3:-1 4:-1 5:-1 6:-0.3 Loaded -0.02 -1.3 -0.05 Log model

13. Dynamic programming: computation of scores T C G C A T C A x Any given point in matrix can only be reached from three possible positions (you cannot “align backwards”). => Best scoring alignment ending in any given point in the matrix can be found by choosing the highest scoring of the three possibilities. Each new score is found by choosing the maximum of three possibilities. For each square in matrix: keep track of where best score came from. Fill in scores one row at a time, starting in upper left corner of matrix, ending in lower right corner. score(x,y) = max score(x,y-1) - gap-penalty score(x-1,y-1) + substitution-score(x,y) score(x-1,y) - gap-penalty

14. Model decoding (Viterby) Example: 1245666. What was the series of dice used to generate this output? 1:-0.78 2:-0.78 3:-0.78 4:-0.78 5:-0.78 6:-0-78 Fair 1:-1 2:-1 3:-1 4:-1 5:-1 6:-0.3 Loaded -0.02 -1.3 -0.05 Log model 1245666 F -0.78 L Null-3.08

15. Model decoding (Viterby) 1:-0.78 2:-0.78 3:-0.78 4:-0.78 5:-0.78 6:-0-78 Fair 1:-1 2:-1 3:-1 4:-1 5:-1 6:-0.3 Loaded -0.02 -1.3 -0.05 Log model 1245666 F -0.78-1.58 L Null-3.08-3.88

16. Model decoding (Viterby) 1:-0.78 2:-0.78 3:-0.78 4:-0.78 5:-0.78 6:-0-78 Fair 1:-1 2:-1 3:-1 4:-1 5:-1 6:-0.3 Loaded -0.02 -1.3 -0.05 Log model 1245666 F -0.78-1.58 L Null-3.08-3.88 Identify what series of dice was used to generate this output?

17. Model decoding (Viterby) 1:-0.78 2:-0.78 3:-0.78 4:-0.78 5:-0.78 6:-0-78 Fair 1:-1 2:-1 3:-1 4:-1 5:-1 6:-0.3 Loaded -0.02 -1.3 -0.05 Log model 1245666 F -0.78-1.58-2.38-3.18-3.98-4.78-5.58 L Null-3.08-3.88-4.68-4.78-5.13-5.48 Series of dice is FFFFLLL

18. HMM’s and weight matrices In the case of un-gapped alignments HMM’s become simple weight matrices

19. .2.8.2 ACGTACGT ACGTACGT ACGTACGT ACGTACGT ACGTACGT ACGTACGT.8.2 1 ACGTACGT.4 1..4 1..6.4 HMM construction X

20. .8.2 ACGTACGT ACGTACGT ACGTACGT ACGTACGT ACGTACGT ACGTACGT.8.2 1 1. HMM construction ACA---ATG sco = 0.8x1x0.8x1x0.8x1x1x1x0.8x1x0.2 = 3.3x10 -2 or Log-sco = log(0.8)+log(0.8)+log(0.8)+log(1)+log(0.8)+log(0.2)

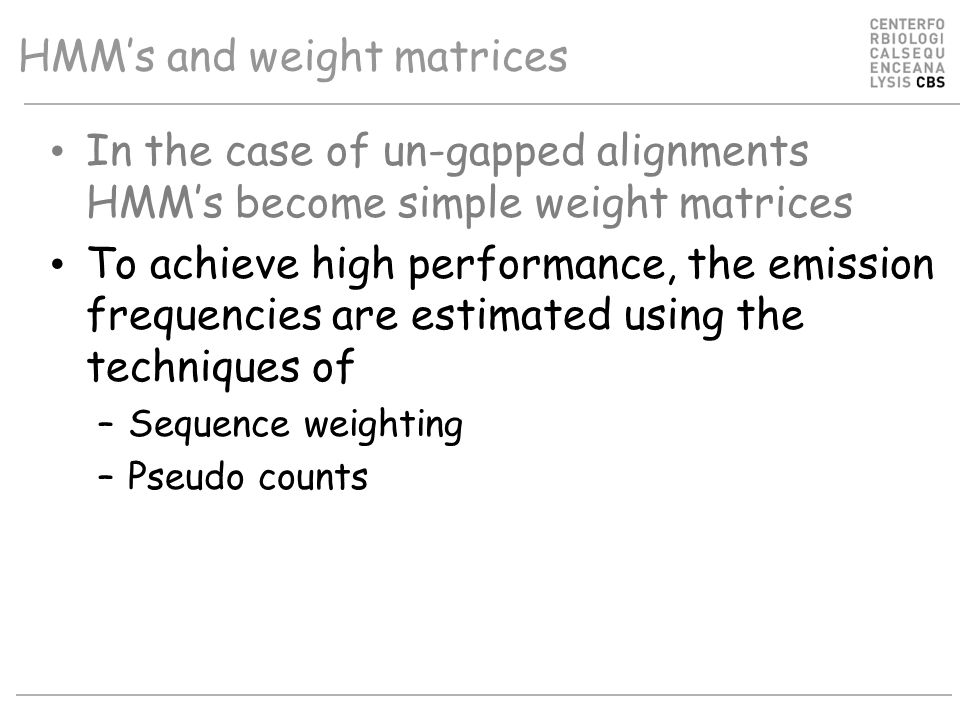

21. HMM’s and weight matrices In the case of un-gapped alignments HMM’s become simple weight matrices To achieve high performance, the emission frequencies are estimated using the techniques of –Sequence weighting –Pseudo counts

22. HMMs. What are they good for? Weight matrices do not deal with insertions and deletions In alignments, this is done in an ad-hoc manner by optimization of the two gap penalties for first gap and gap extension HMM is a natural frame work where insertions/deletions are dealt with explicitly

23. Profile HMM’s Alignments based on conventional scoring matrices (BLOSUM62) scores all positions in a sequence in an equal manner Some positions are highly conserved, some are highly variable (more than what is described in the BLOSUM matrix) Profile HMM’s are ideal suited to describe such position specific variations

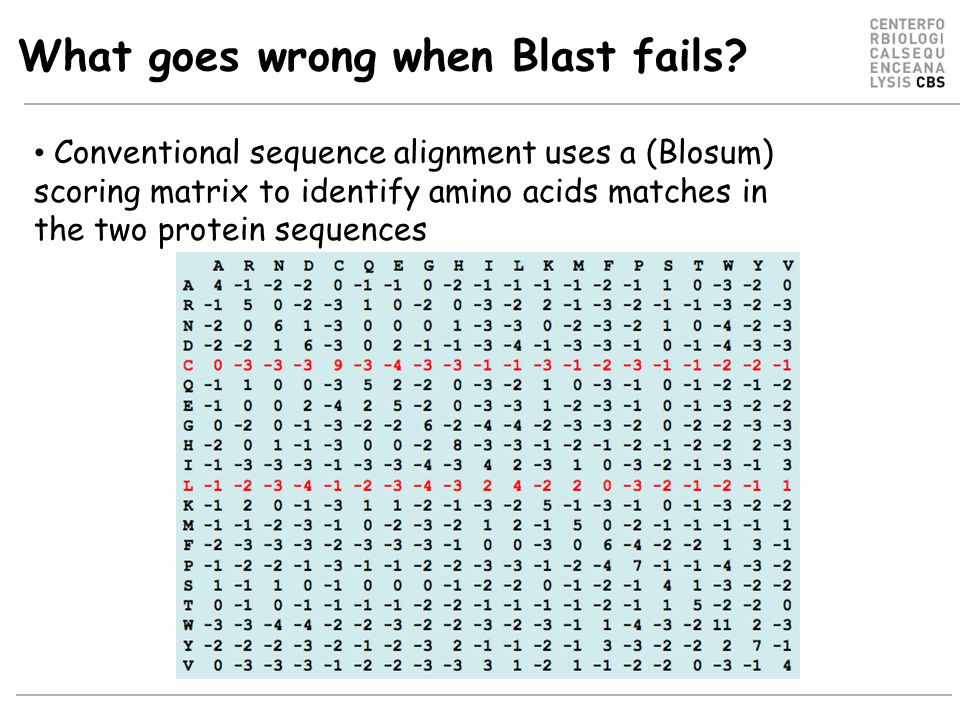

24. What goes wrong when Blast fails? Conventional sequence alignment uses a (Blosum) scoring matrix to identify amino acids matches in the two protein sequences

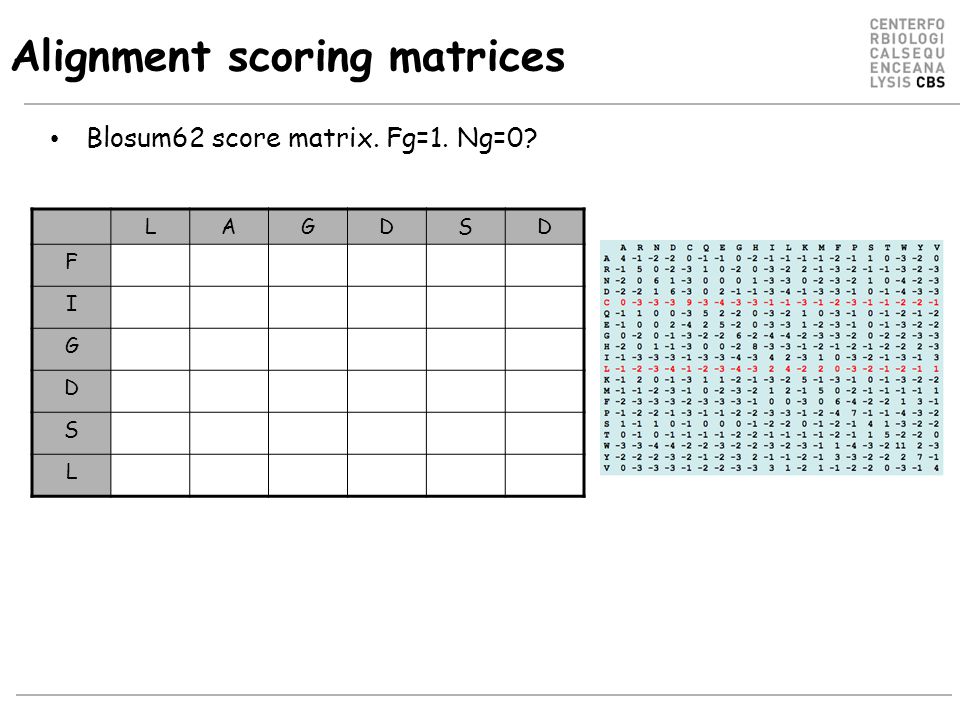

25. Alignment scoring matrices Blosum62 score matrix. Fg=1. Ng=0? LAGDSD F I G D S L

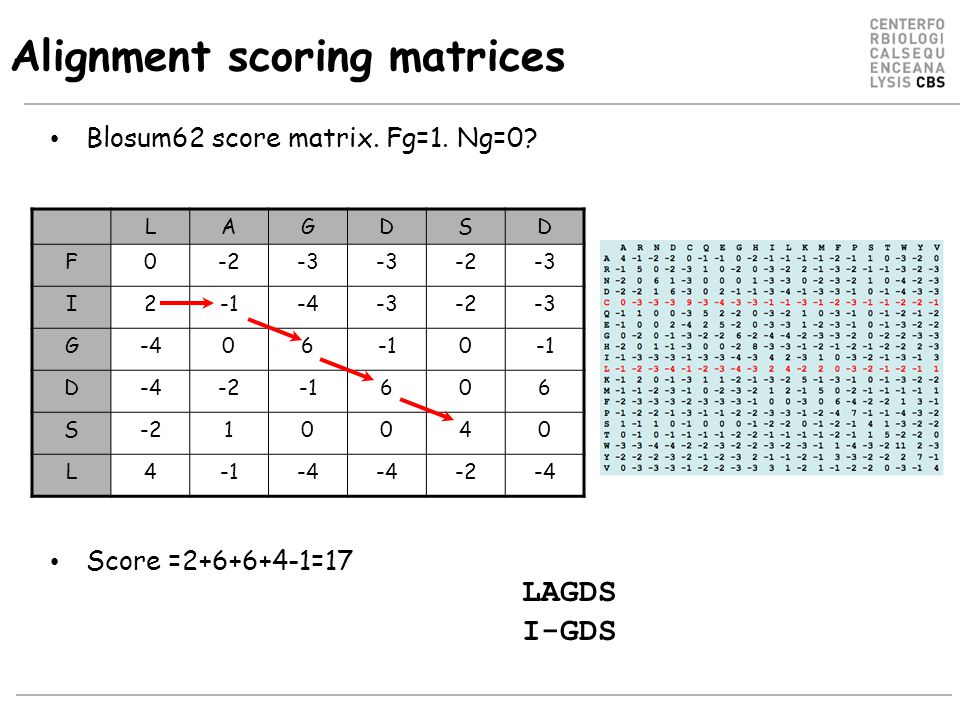

26. Alignment scoring matrices Blosum62 score matrix. Fg=1. Ng=0? Score =2+6+6+4-1=17 LAGDSD F0-2-3 -2-3 I2-4-3-2-3 G-4060 D-4-2606 S-210040 L4-4 -2-4 LAGDS I-GDS

27. What goes wrong when Blast fails? Conventional sequence alignment uses a (Blosum) scoring matrix to identify amino acids matches in the two protein sequences This scoring matrix is identical at all positions in the protein sequence! EVVFIGDSLVQLMHQC X X AGDS.GGGDSAGDS.GGGDS

28. When Blast works! 1PLC._ 1PLB._

29. When Blast fails! 1PLC._ 1PMY._

30. Sequence profiles In reality not all positions in a protein are equally likely to mutate Some amino acids (active cites) are highly conserved, and the score for mismatch must be very high Other amino acids can mutate almost for free, and the score for mismatch should be lower than the BLOSUM score Sequence profiles can capture these differences

31. ADDGSLAFVPSEF--SISPGEKIVFKNNAGFPHNIVFDEDSIPSGVDASKISMSEEDLLN TVNGAI--PGPLIAERLKEGQNVRVTNTLDEDTSIHWHGLLVPFGMDGVPGVSFPG---I -TSMAPAFGVQEFYRTVKQGDEVTVTIT-----NIDQIED-VSHGFVVVNHGVSME---I IE--KMKYLTPEVFYTIKAGETVYWVNGEVMPHNVAFKKGIV--GEDAFRGEMMTKD--- -TSVAPSFSQPSF-LTVKEGDEVTVIVTNLDE------IDDLTHGFTMGNHGVAME---V ASAETMVFEPDFLVLEIGPGDRVRFVPTHK-SHNAATIDGMVPEGVEGFKSRINDE---- TKAVVLTFNTSVEICLVMQGTSIV----AAESHPLHLHGFNFPSNFNLVDPMERNTAGVP TVNGQ--FPGPRLAGVAREGDQVLVKVVNHVAENITIHWHGVQLGTGWADGPAYVTQCPI Profile HMM’s Conserved Core: Position with < 2 gaps Deletion Insertion Non-conserved Must have a GAny thing can match

32. HMM vs. alignment Detailed description of core –Conserved/variable positions Price for insertions/deletions varies at different locations in sequence These features cannot be captured in conventional alignments

33. Profile-profile scoring matrix 1K7C.A 1WAB._

34. Profile HMM’s All M/D pairs must be visited once L1- Y2A3V4R5- I6P1D2P3P4I4P5D6P7L1- Y2A3V4R5- I6P1D2P3P4I4P5D6P7

35. Example. Sequence profiles Alignment of protein sequences 1PLC._ and 1GYC.A E-value > 1000 Profile alignment –Align 1PLC._ against Swiss-prot –Make position specific weight matrix from alignment –Use this matrix to align 1PLC._ against 1GYC.A E-value < 10 -22. Rmsd=3.3

36. Example continued Score = 97.1 bits (241), Expect = 9e-22 Identities = 13/107 (12%), Positives = 27/107 (25%), Gaps = 17/107 (15%) Query: 3 ADDGSLAFVPSEFSISPGEKI------VFKNNAGFPHNIVFDEDSIPSGVDASKIS 56 F + G++ N+ + +G + + Sbjct: 26 ------VFPSPLITGKKGDRFQLNVVDTLTNHTMLKSTSIHWHGFFQAGTNWADGP 79 Query: 57 MSEEDLLNAKGETFEVAL---SNKGEYSFYCSP--HQGAGMVGKVTV 98 A G +F G + ++ G+ G V Sbjct: 80 AFVNQCPIASGHSFLYDFHVPDQAGTFWYHSHLSTQYCDGLRGPFVV 126 Rmsd=3.3 Å Model red Structure blue

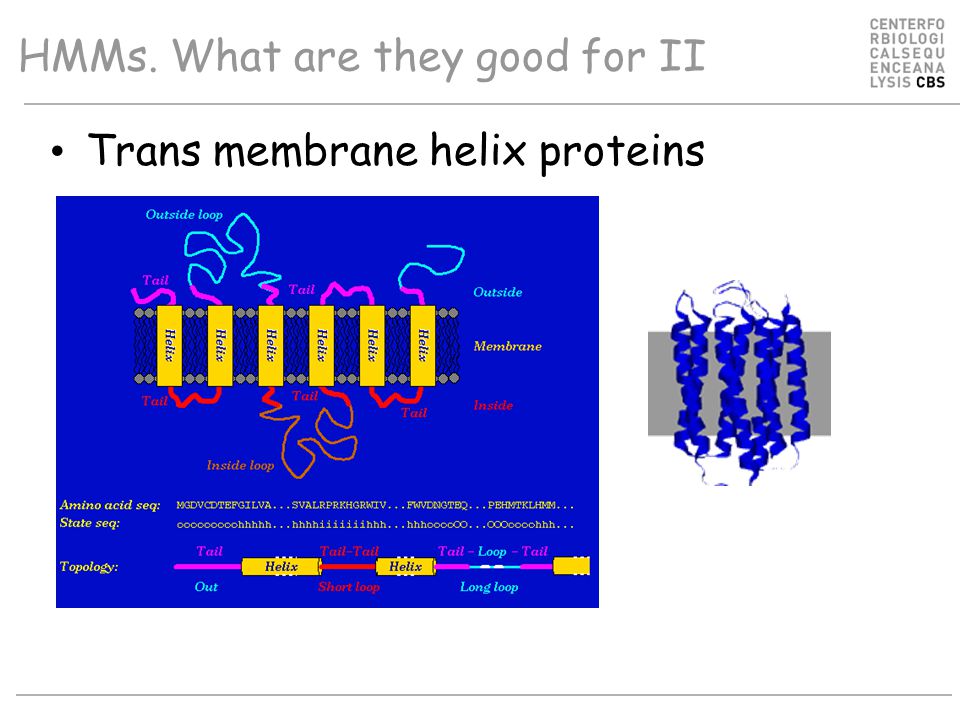

37. HMMs. What are they good for II Trans membrane helix proteins

38. HMMs. What are they good for II Transmembrane helix proteins TMHMM. A. Krogh, 2001

39. Gene Finding

40. HMM packages HMMER (http://hmmer.wustl.edu/) –S.R. Eddy, WashU St. Louis. Freely available. SAM ( http://www.cse.ucsc.edu/research/compbio/sam.html) –R. Hughey, K. Karplus, A. Krogh, D. Haussler and others, UC Santa Cruz. Freely available to academia, nominal license fee for commercial users. META-MEME ( http://metameme.sdsc.edu/) –William Noble Grundy, UC San Diego. Freely available. Combines features of PSSM search and profile HMM search. NET-ID, HMMpro (http://www.netid.com/html/hmmpro.html) –Freely available to academia, nominal license fee for commercial users. –Allows HMM architecture construction. EasyGibbs (http://www.cbs.dtu.dk/biotools/EasyGibbs/)http://www.cbs.dtu.dk/biotools/EasyGibbs/ –Webserver for Gibbs sampling of proteins sequences
