1. INDUSTRIAL CASE: HOMAG

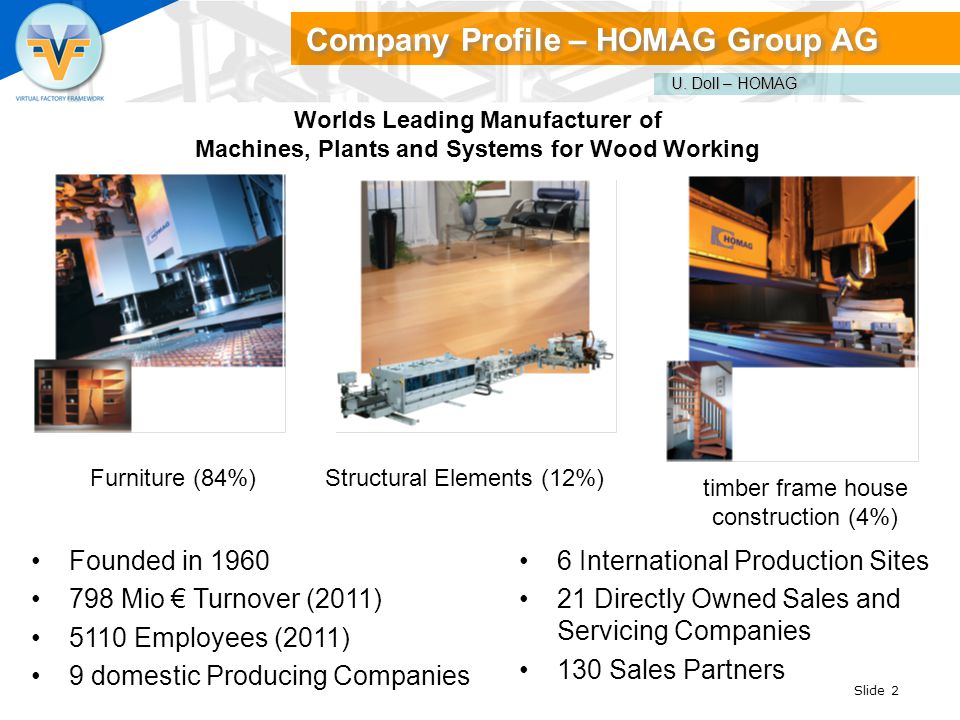

2. Company Profile – HOMAG Group AG Worlds Leading Manufacturer of Machines, Plants and Systems for Wood Working Furniture (84%)Structural Elements (12%) timber frame house construction (4%) Founded in 1960 798 Mio € Turnover (2011) 5110 Employees (2011) 9 domestic Producing Companies 6 International Production Sites 21 Directly Owned Sales and Servicing Companies 130 Sales Partners U. Doll – HOMAG Slide 2

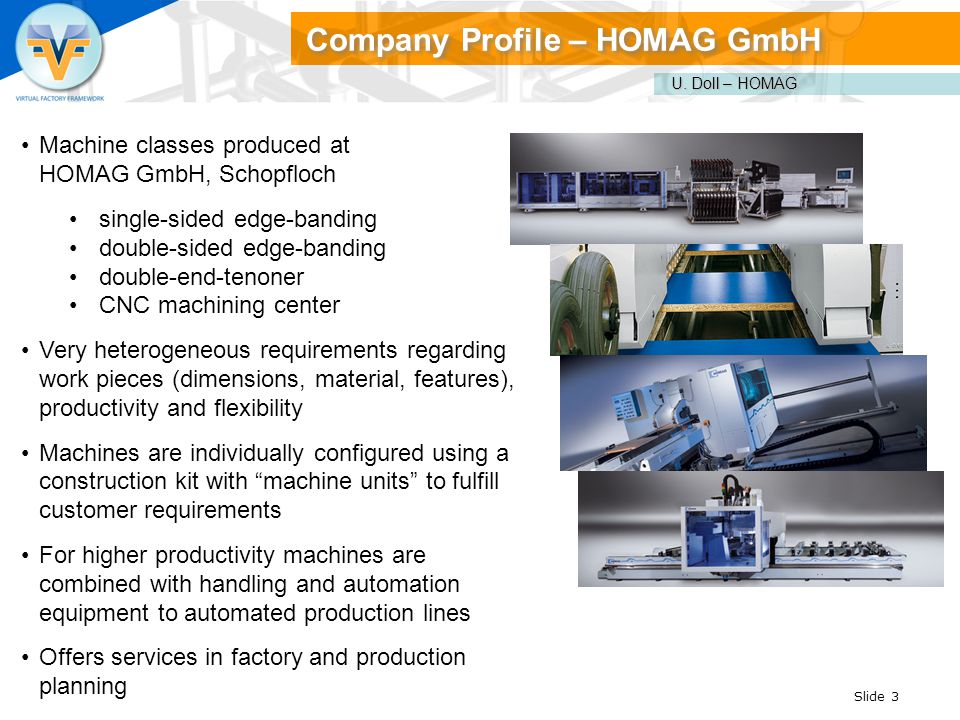

3. Company Profile – HOMAG GmbH Machine classes produced at HOMAG GmbH, Schopfloch single-sided edge-banding double-sided edge-banding double-end-tenoner CNC machining center Very heterogeneous requirements regarding work pieces (dimensions, material, features), productivity and flexibility Machines are individually configured using a construction kit with “machine units” to fulfill customer requirements For higher productivity machines are combined with handling and automation equipment to automated production lines Offers services in factory and production planning Slide 3 U. Doll – HOMAG

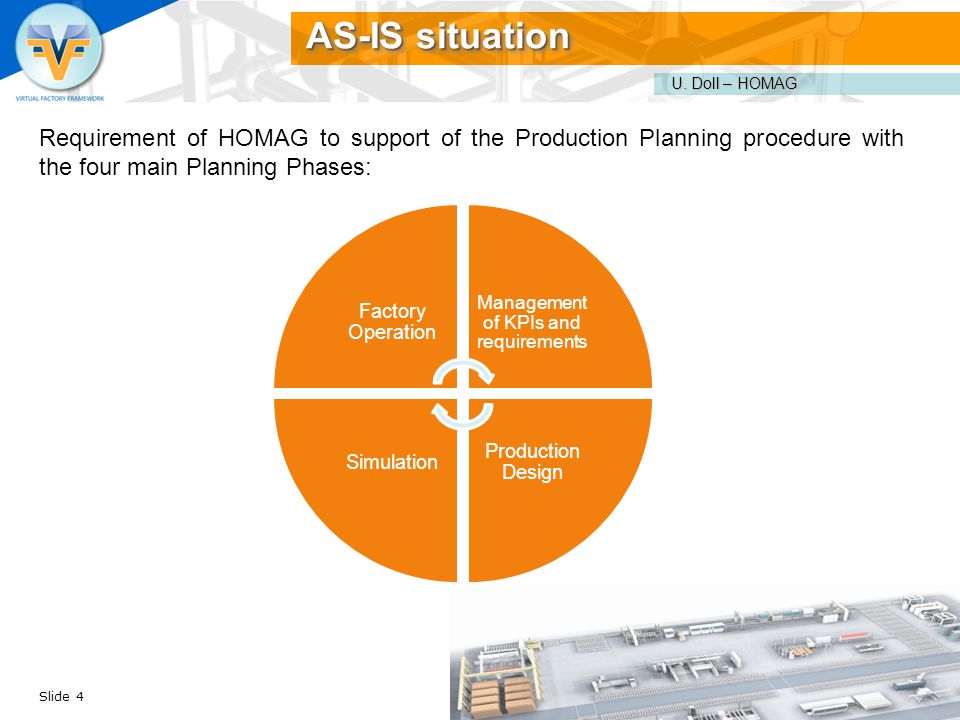

4. Requirement of HOMAG to support of the Production Planning procedure with the four main Planning Phases: Factory Operation Management of KPIs and requirements Production Design Simulation AS-IS situation Slide 4 U. Doll – HOMAG

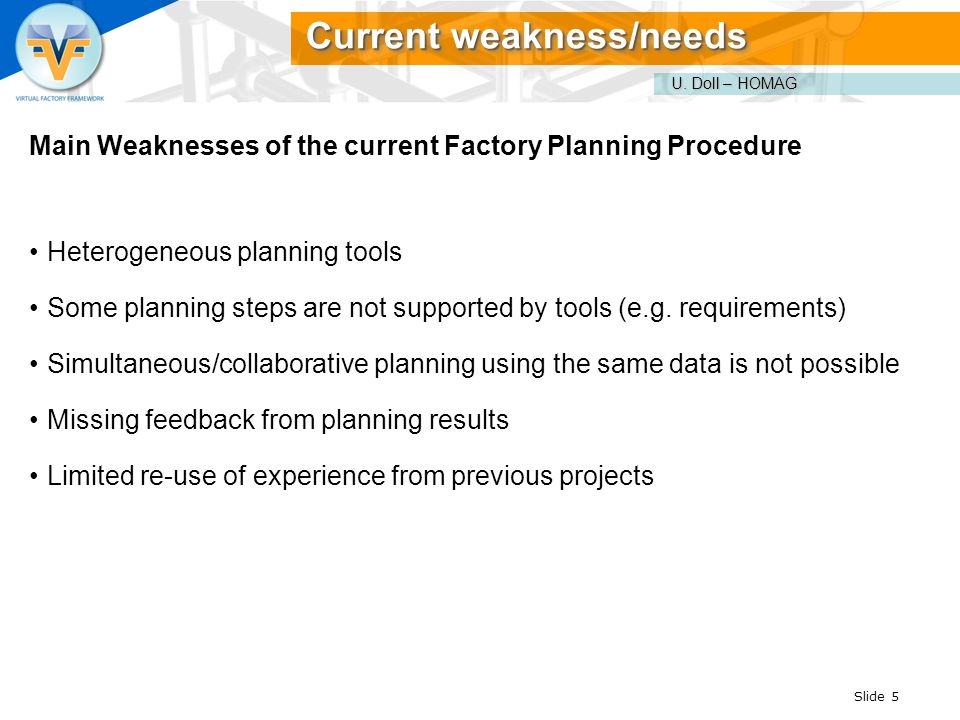

5. Main Weaknesses of the current Factory Planning Procedure Heterogeneous planning tools Some planning steps are not supported by tools (e.g. requirements) Simultaneous/collaborative planning using the same data is not possible Missing feedback from planning results Limited re-use of experience from previous projects Current weakness/needs Slide 5 U. Doll – HOMAG

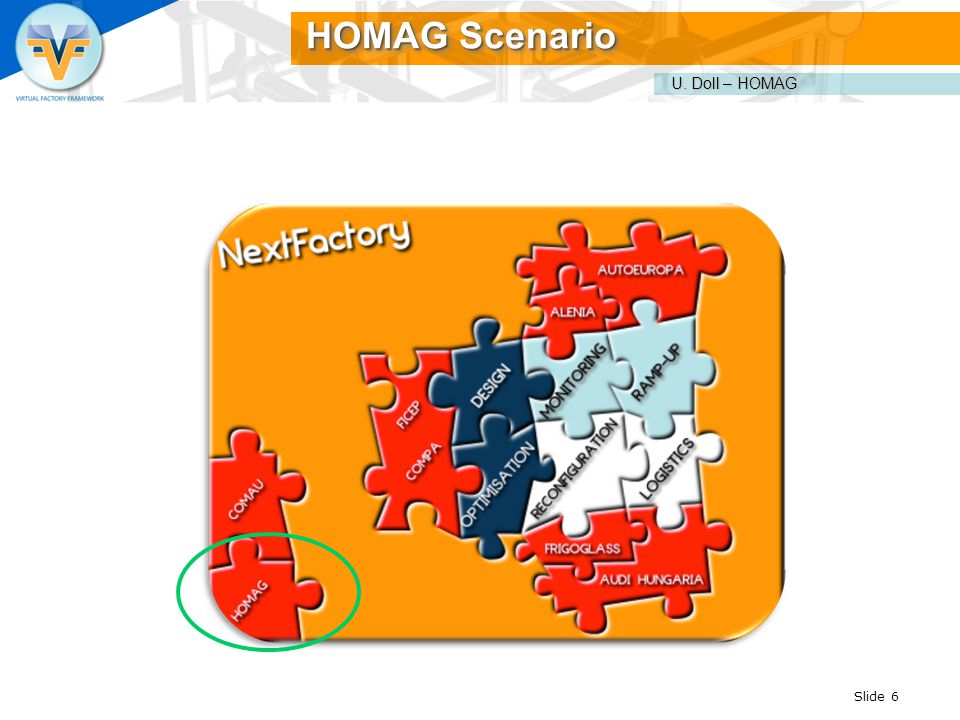

6. HOMAG Scenario Slide 6 U. Doll – HOMAG

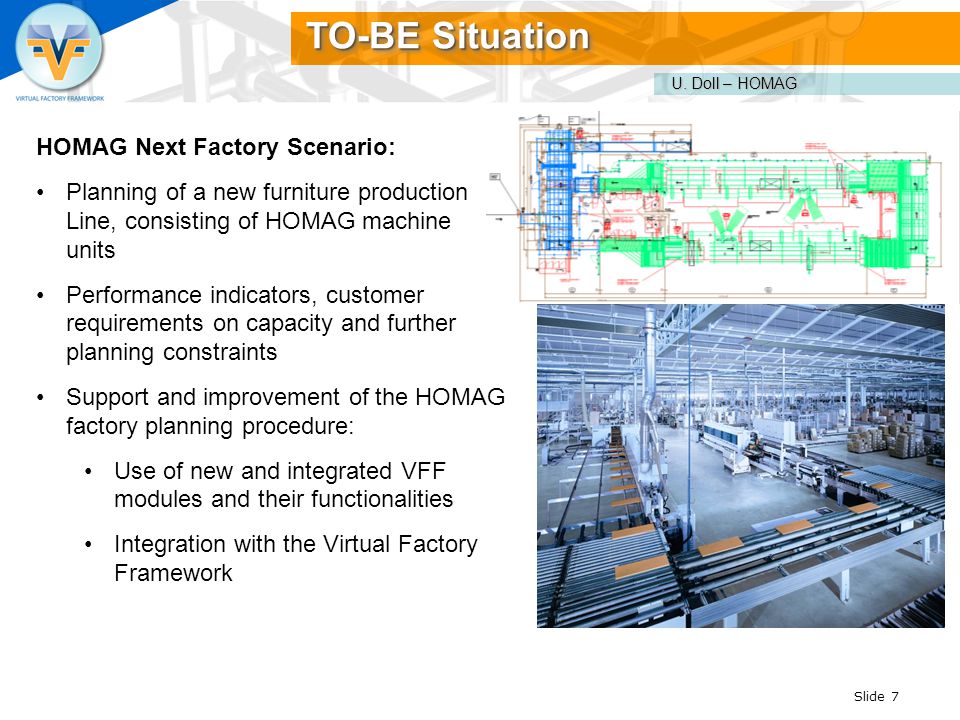

7. HOMAG Next Factory Scenario: Planning of a new furniture production Line, consisting of HOMAG machine units Performance indicators, customer requirements on capacity and further planning constraints Support and improvement of the HOMAG factory planning procedure: Use of new and integrated VFF modules and their functionalities Integration with the Virtual Factory Framework TO-BE Situation Slide 7 U. Doll – HOMAG

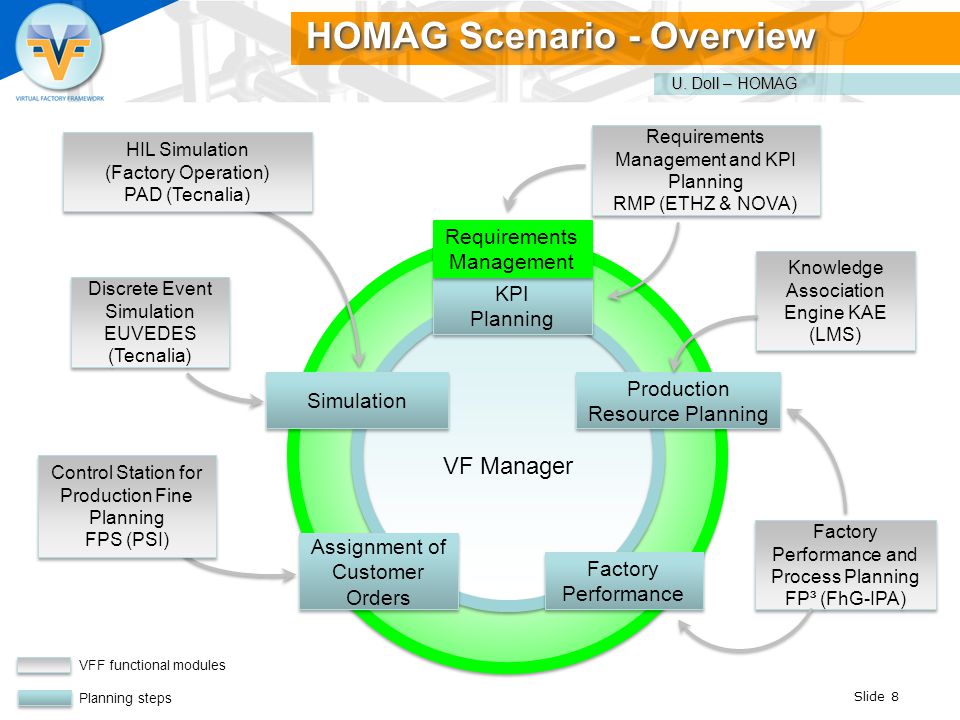

8. VF Manager KPI Planning Requirements Management Production Resource Planning Factory Performance Simulation Requirements Management and KPI Planning RMP (ETHZ & NOVA) Discrete Event Simulation EUVEDES (Tecnalia) Assignment of Customer Orders Factory Performance and Process Planning FP³ (FhG-IPA) VFF functional modules Planning steps Knowledge Association Engine KAE (LMS) Slide 8 HOMAG Scenario - Overview HIL Simulation (Factory Operation) PAD (Tecnalia) Control Station for Production Fine Planning FPS (PSI) Control Station for Production Fine Planning FPS (PSI) U. Doll – HOMAG

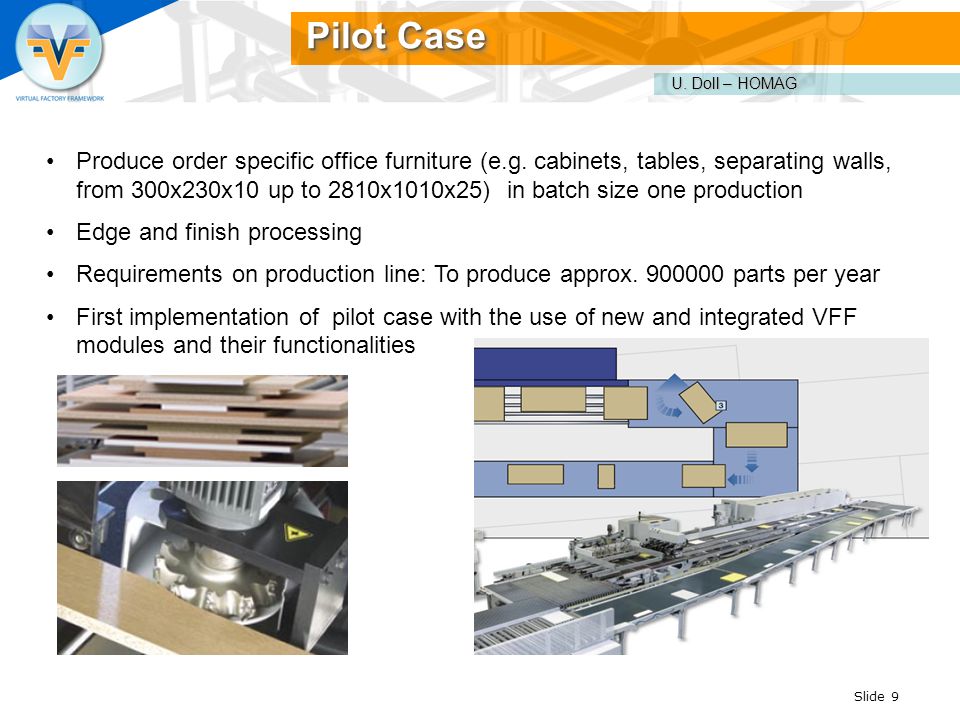

9. Pilot Case Produce order specific office furniture (e.g. cabinets, tables, separating walls, from 300x230x10 up to 2810x1010x25) in batch size one production Edge and finish processing Requirements on production line: To produce approx. 900000 parts per year First implementation of pilot case with the use of new and integrated VFF modules and their functionalities Slide 9 U. Doll – HOMAG

10. Slide 10 * DEMO * U. Doll – HOMAG

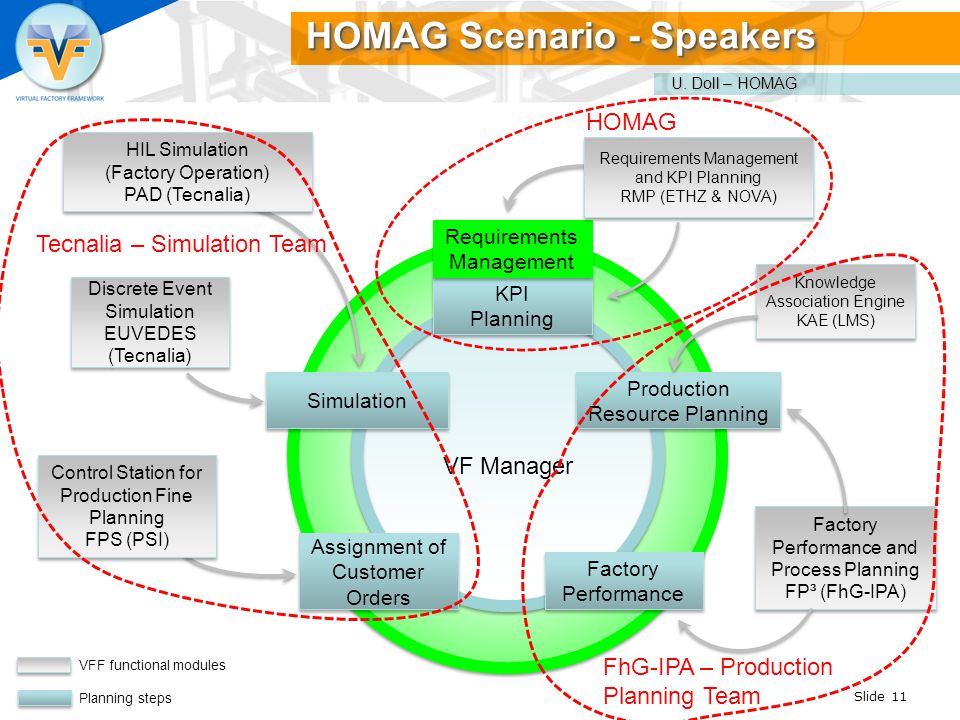

11. VF Manager KPI Planning Requirements Management Production Resource Planning Factory Performance Simulation Requirements Management and KPI Planning RMP (ETHZ & NOVA) Discrete Event Simulation EUVEDES (Tecnalia) Assignment of Customer Orders Factory Performance and Process Planning FP³ (FhG-IPA) VFF functional modules Planning steps Knowledge Association Engine KAE (LMS) Slide 11 HOMAG Scenario - Speakers HIL Simulation (Factory Operation) PAD (Tecnalia) Control Station for Production Fine Planning FPS (PSI) Control Station for Production Fine Planning FPS (PSI) HOMAG FhG-IPA – Production Planning Team Tecnalia – Simulation Team U. Doll – HOMAG

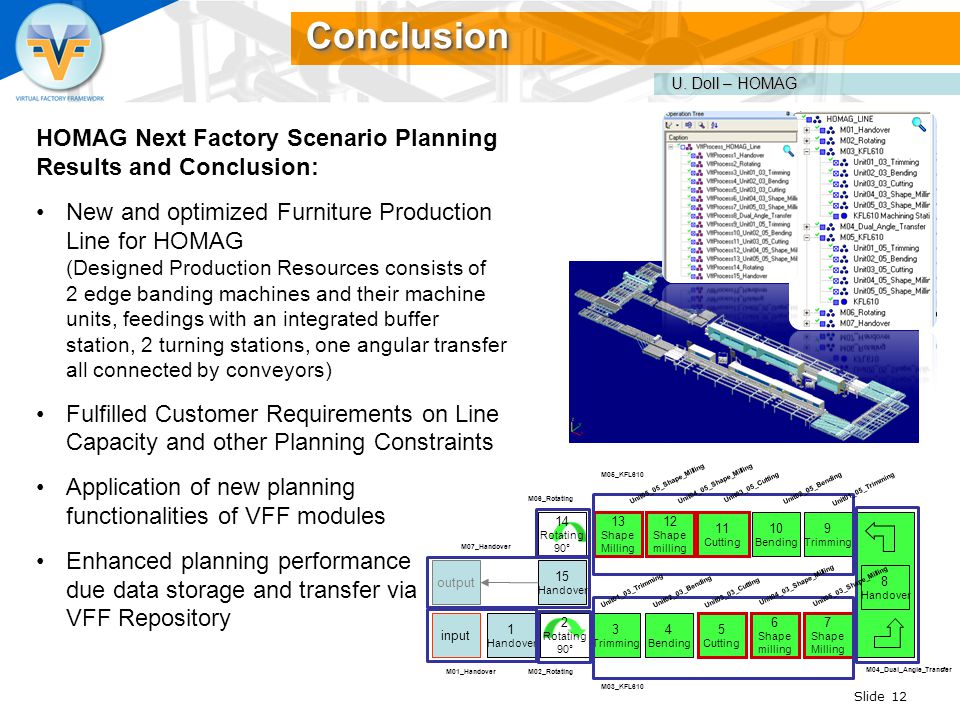

12. 1 Handover 2 Rotating 90° input 15 Handover 3 Trimming 4 Bending 6 Shape milling 8 Handover 14 Rotating 90° 9 Trimming 13 Shape Milling 11 Cutting 10 Bending output 5 Cutting 7 Shape Milling 12 Shape milling M01_HandoverM02_Rotating M03_KFL610 M06_Rotating M07_Handover M04_Dual_Angle_Transfer Unit01_03_Trimming Unit02_03_Bending Unit03_03_Cutting Unit04_03_Shape_Milling Unit05_03_Shape_Milling Unit05_05_Shape_MillingUnit04_05_Shape_Milling Unit03_05_Cutting Unit02_05_Bending Unit01_05_Trimming M05_KFL610 HOMAG Next Factory Scenario Planning Results and Conclusion: New and optimized Furniture Production Line for HOMAG (Designed Production Resources consists of 2 edge banding machines and their machine units, feedings with an integrated buffer station, 2 turning stations, one angular transfer all connected by conveyors) Fulfilled Customer Requirements on Line Capacity and other Planning Constraints Application of new planning functionalities of VFF modules Enhanced planning performance due data storage and transfer via VFF Repository ConclusionConclusion Slide 12 U. Doll – HOMAG

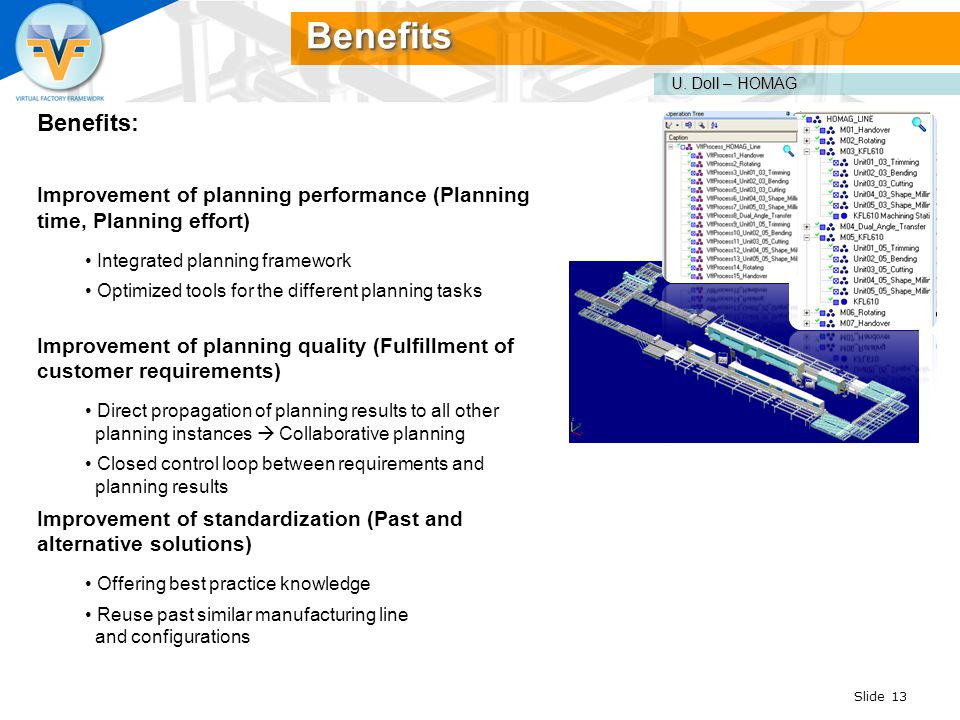

13. Benefits: Improvement of planning performance (Planning time, Planning effort) Integrated planning framework Optimized tools for the different planning tasks Improvement of planning quality (Fulfillment of customer requirements) Direct propagation of planning results to all other planning instances  Collaborative planning Closed control loop between requirements and planning results Improvement of standardization (Past and alternative solutions) Offering best practice knowledge Reuse past similar manufacturing line and configurations BenefitsBenefits Slide 13 U. Doll – HOMAG

15. *BACK UP*

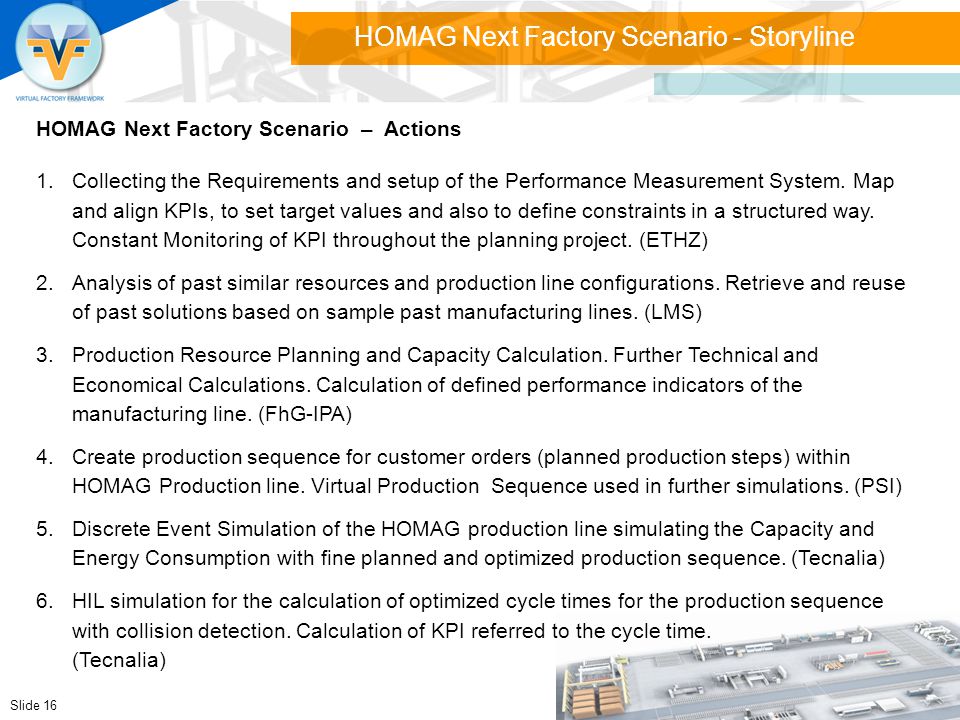

16. HOMAG Next Factory Scenario - Storyline Slide 16 HOMAG Next Factory Scenario – Actions 1.Collecting the Requirements and setup of the Performance Measurement System. Map and align KPIs, to set target values and also to define constraints in a structured way. Constant Monitoring of KPI throughout the planning project. (ETHZ) 2.Analysis of past similar resources and production line configurations. Retrieve and reuse of past solutions based on sample past manufacturing lines. (LMS) 3.Production Resource Planning and Capacity Calculation. Further Technical and Economical Calculations. Calculation of defined performance indicators of the manufacturing line. (FhG-IPA) 4.Create production sequence for customer orders (planned production steps) within HOMAG Production line. Virtual Production Sequence used in further simulations. (PSI) 5.Discrete Event Simulation of the HOMAG production line simulating the Capacity and Energy Consumption with fine planned and optimized production sequence. (Tecnalia) 6.HIL simulation for the calculation of optimized cycle times for the production sequence with collision detection. Calculation of KPI referred to the cycle time. (Tecnalia)

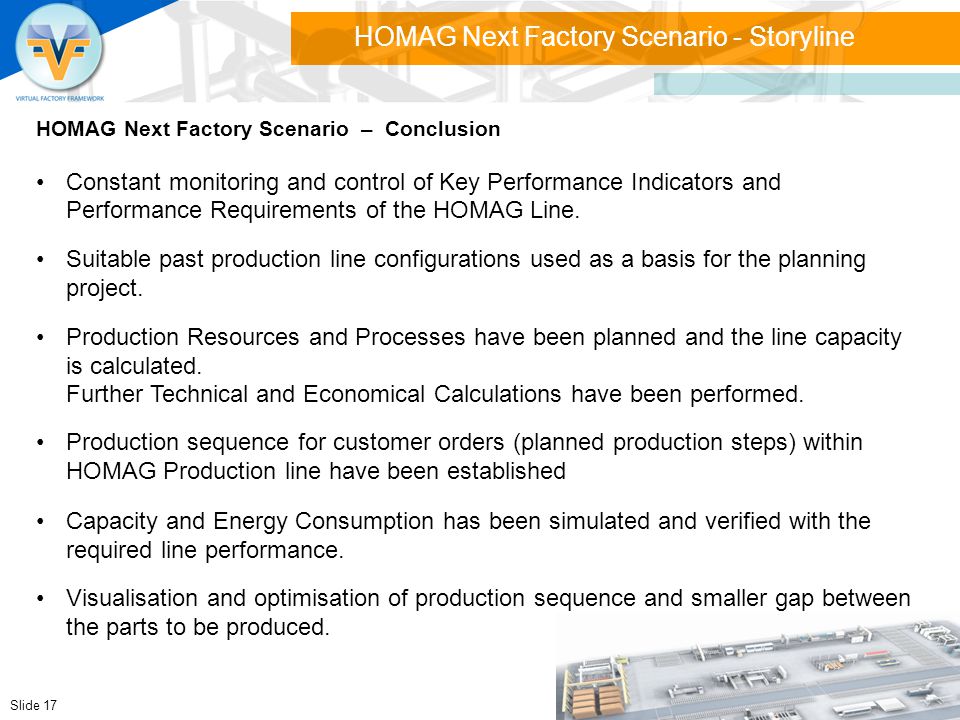

17. HOMAG Next Factory Scenario - Storyline Slide 17 HOMAG Next Factory Scenario – Conclusion Constant monitoring and control of Key Performance Indicators and Performance Requirements of the HOMAG Line. Suitable past production line configurations used as a basis for the planning project. Production Resources and Processes have been planned and the line capacity is calculated. Further Technical and Economical Calculations have been performed. Production sequence for customer orders (planned production steps) within HOMAG Production line have been established Capacity and Energy Consumption has been simulated and verified with the required line performance. Visualisation and optimisation of production sequence and smaller gap between the parts to be produced.

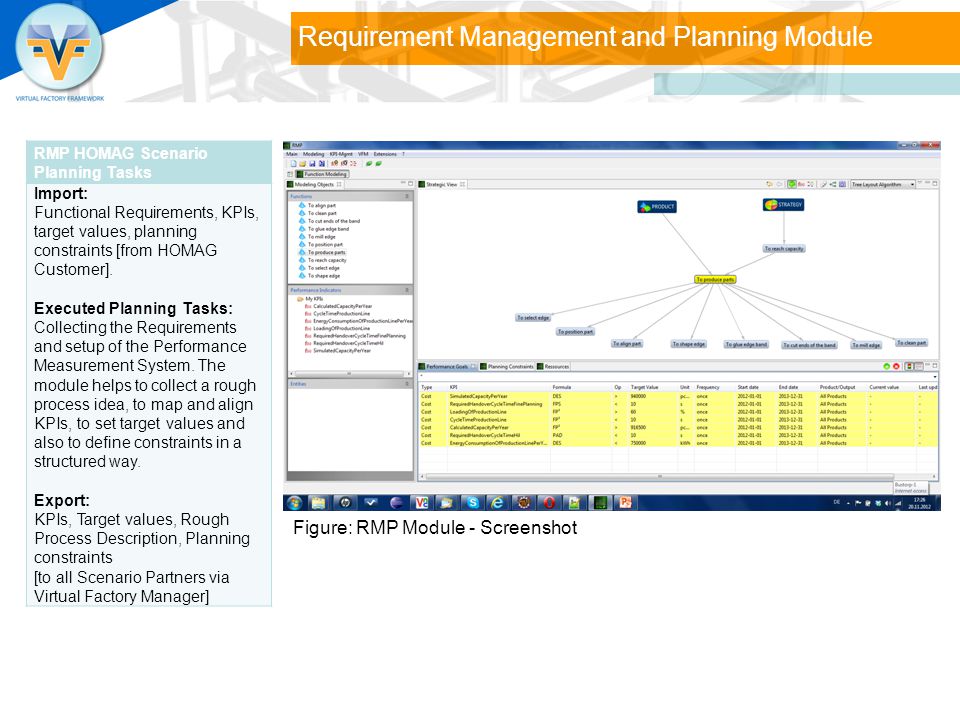

18. Requirement Management and Planning Module RMP HOMAG Scenario Planning Tasks Import: Functional Requirements, KPIs, target values, planning constraints [from HOMAG Customer]. Executed Planning Tasks: Collecting the Requirements and setup of the Performance Measurement System. The module helps to collect a rough process idea, to map and align KPIs, to set target values and also to define constraints in a structured way. Export: KPIs, Target values, Rough Process Description, Planning constraints [to all Scenario Partners via Virtual Factory Manager] Figure: RMP Module - Screenshot

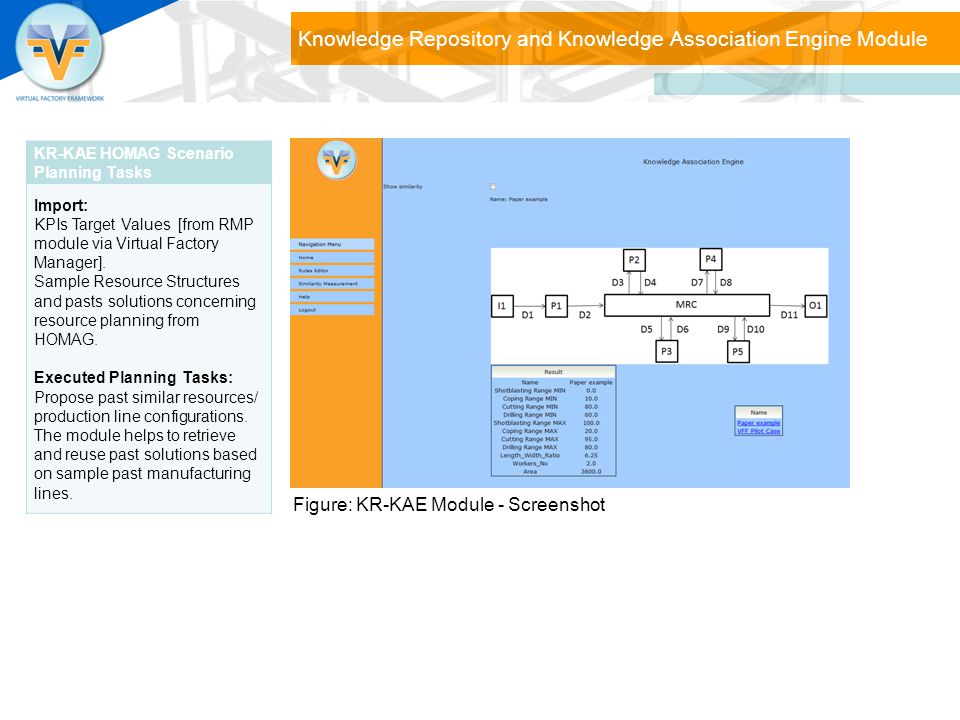

19. Knowledge Repository and Knowledge Association Engine Module KR-KAE HOMAG Scenario Planning Tasks Import: KPIs Target Values [from RMP module via Virtual Factory Manager]. Sample Resource Structures and pasts solutions concerning resource planning from HOMAG. Executed Planning Tasks: Propose past similar resources/ production line configurations. The module helps to retrieve and reuse past solutions based on sample past manufacturing lines. Figure: KR-KAE Module - Screenshot

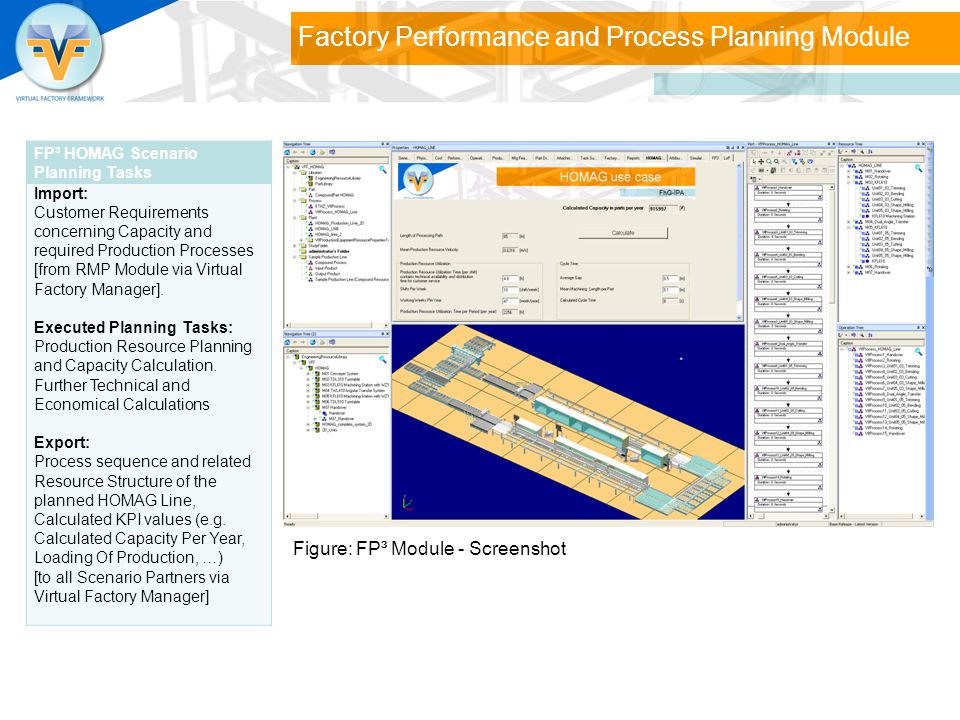

20. Factory Performance and Process Planning Module FP³ HOMAG Scenario Planning Tasks Import: Customer Requirements concerning Capacity and required Production Processes [from RMP Module via Virtual Factory Manager]. Executed Planning Tasks: Production Resource Planning and Capacity Calculation. Further Technical and Economical Calculations Export: Process sequence and related Resource Structure of the planned HOMAG Line, Calculated KPI values (e.g. Calculated Capacity Per Year, Loading Of Production, …) [to all Scenario Partners via Virtual Factory Manager] Figure: FP³ Module - Screenshot

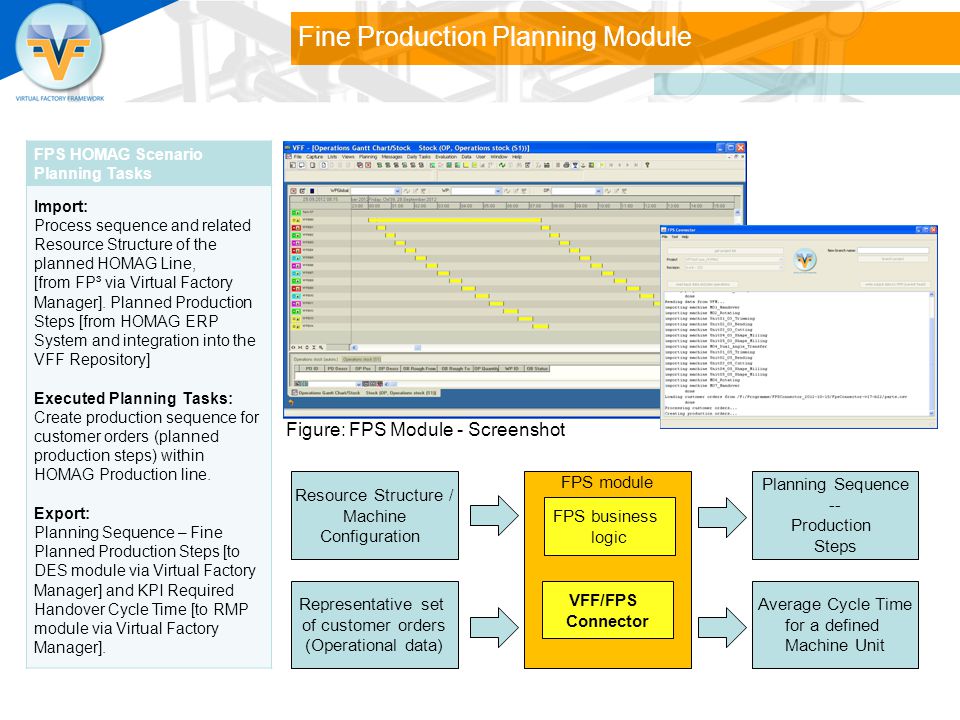

21. Fine Production Planning Module FPS HOMAG Scenario Planning Tasks Import: Process sequence and related Resource Structure of the planned HOMAG Line, [from FP³ via Virtual Factory Manager]. Planned Production Steps [from HOMAG ERP System and integration into the VFF Repository] Executed Planning Tasks: Create production sequence for customer orders (planned production steps) within HOMAG Production line. Export: Planning Sequence – Fine Planned Production Steps [to DES module via Virtual Factory Manager] and KPI Required Handover Cycle Time [to RMP module via Virtual Factory Manager]. Figure: FPS Module - Screenshot FPS module Resource Structure / Machine Configuration Representative set of customer orders (Operational data) Planning Sequence -- Production Steps Average Cycle Time for a defined Machine Unit FPS business logic VFF/FPS Connector

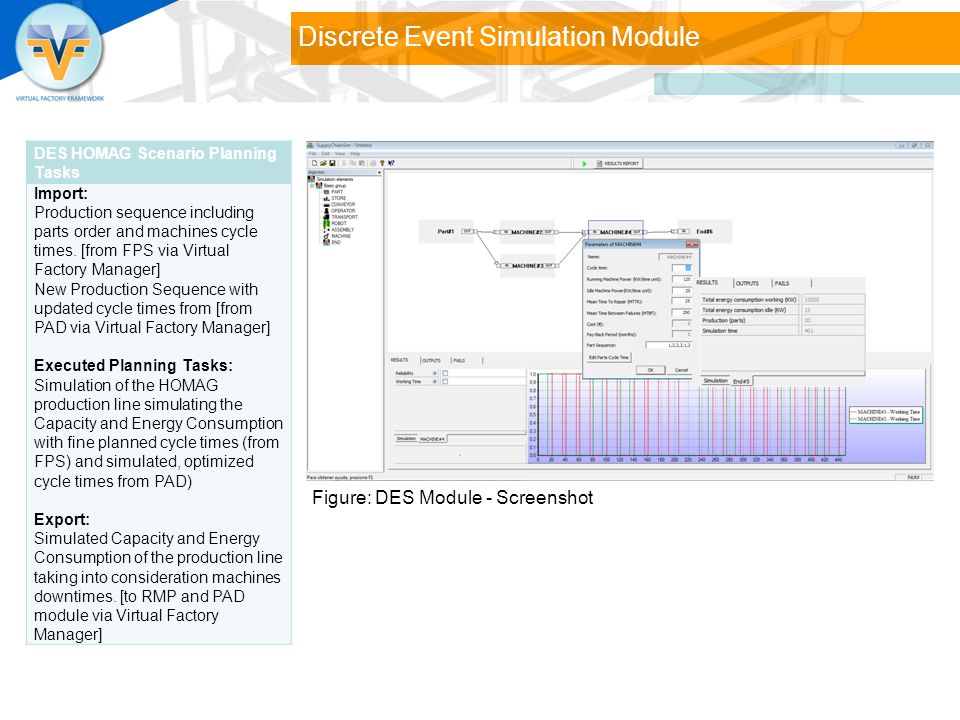

22. Discrete Event Simulation Module DES HOMAG Scenario Planning Tasks Import: Production sequence including parts order and machines cycle times. [from FPS via Virtual Factory Manager] New Production Sequence with updated cycle times from [from PAD via Virtual Factory Manager] Executed Planning Tasks: Simulation of the HOMAG production line simulating the Capacity and Energy Consumption with fine planned cycle times (from FPS) and simulated, optimized cycle times from PAD) Export: Simulated Capacity and Energy Consumption of the production line taking into consideration machines downtimes. [to RMP and PAD module via Virtual Factory Manager] Figure: DES Module - Screenshot

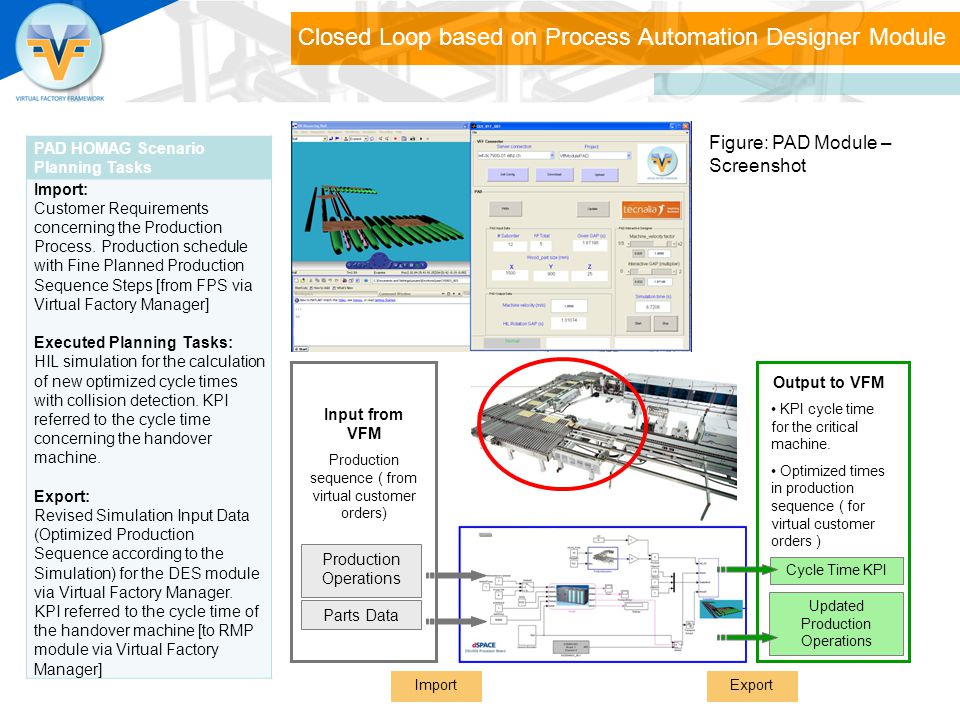

23. Closed Loop based on Process Automation Designer Module PAD HOMAG Scenario Planning Tasks Import: Customer Requirements concerning the Production Process. Production schedule with Fine Planned Production Sequence Steps [from FPS via Virtual Factory Manager] Executed Planning Tasks: HIL simulation for the calculation of new optimized cycle times with collision detection. KPI referred to the cycle time concerning the handover machine. Export: Revised Simulation Input Data (Optimized Production Sequence according to the Simulation) for the DES module via Virtual Factory Manager. KPI referred to the cycle time of the handover machine [to RMP module via Virtual Factory Manager] Figure: PAD Module – Screenshot Production Operations Parts Data Input from VFM Production sequence ( from virtual customer orders) Output to VFM KPI cycle time for the critical machine. Optimized times in production sequence ( for virtual customer orders ) Cycle Time KPI Updated Production Operations ImportExport

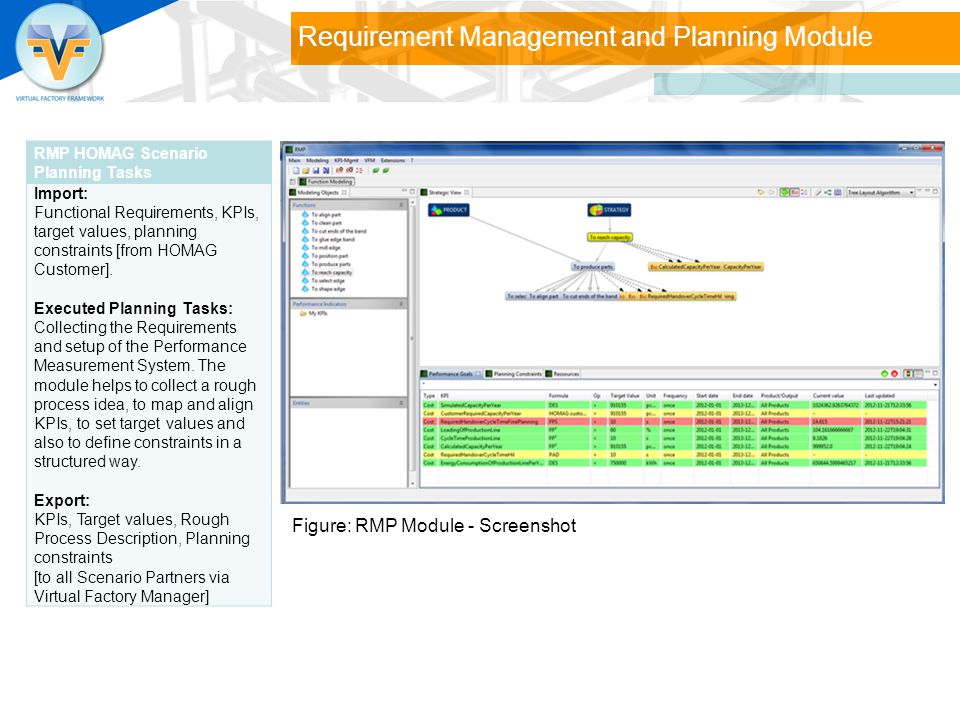

24. Requirement Management and Planning Module RMP HOMAG Scenario Planning Tasks Import: Functional Requirements, KPIs, target values, planning constraints [from HOMAG Customer]. Executed Planning Tasks: Collecting the Requirements and setup of the Performance Measurement System. The module helps to collect a rough process idea, to map and align KPIs, to set target values and also to define constraints in a structured way. Export: KPIs, Target values, Rough Process Description, Planning constraints [to all Scenario Partners via Virtual Factory Manager] Figure: RMP Module - Screenshot

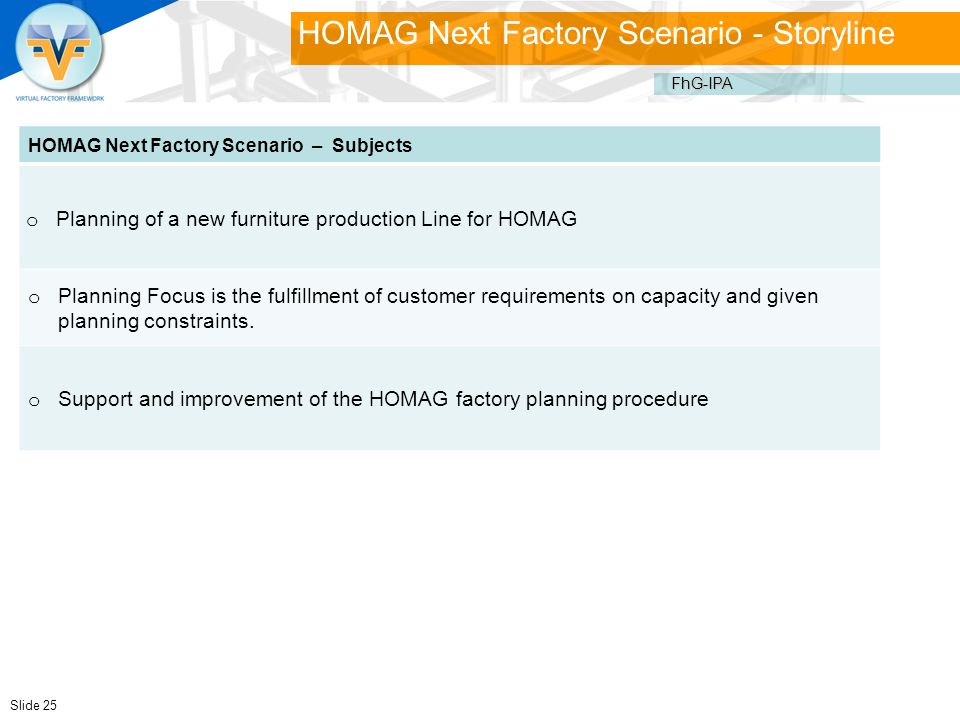

25. FhG-IPA HOMAG Next Factory Scenario - Storyline HOMAG Next Factory Scenario – Subjects o Planning of a new furniture production Line for HOMAG o Planning Focus is the fulfillment of customer requirements on capacity and given planning constraints. o Support and improvement of the HOMAG factory planning procedure Slide 25

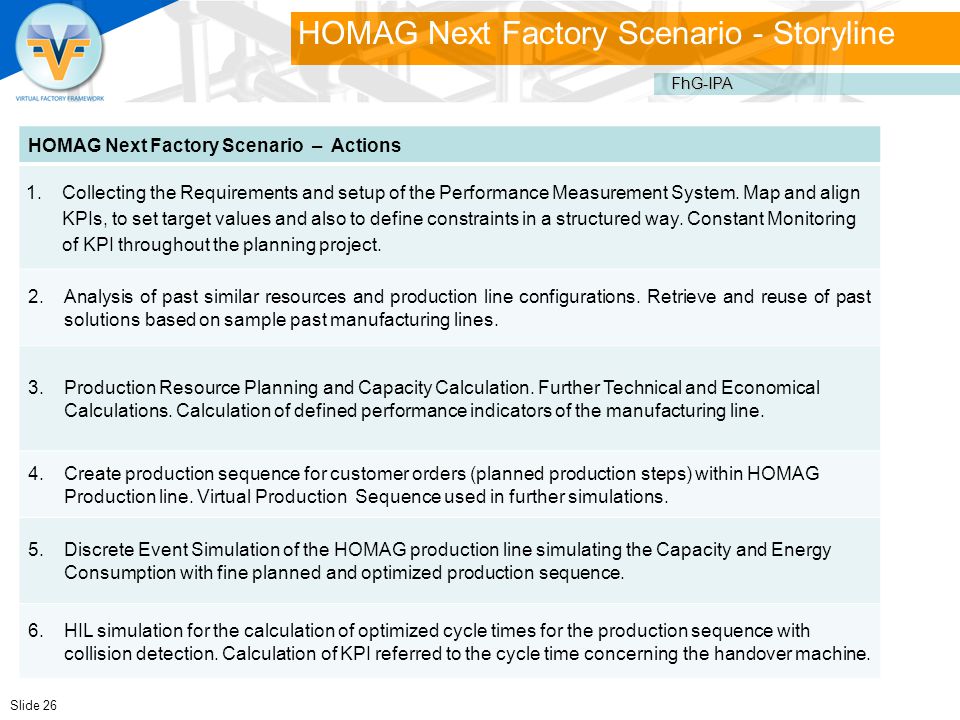

26. FhG-IPA HOMAG Next Factory Scenario - Storyline HOMAG Next Factory Scenario – Actions 1.Collecting the Requirements and setup of the Performance Measurement System. Map and align KPIs, to set target values and also to define constraints in a structured way. Constant Monitoring of KPI throughout the planning project. 2.Analysis of past similar resources and production line configurations. Retrieve and reuse of past solutions based on sample past manufacturing lines. 3.Production Resource Planning and Capacity Calculation. Further Technical and Economical Calculations. Calculation of defined performance indicators of the manufacturing line. 4.Create production sequence for customer orders (planned production steps) within HOMAG Production line. Virtual Production Sequence used in further simulations. 5.Discrete Event Simulation of the HOMAG production line simulating the Capacity and Energy Consumption with fine planned and optimized production sequence. 6.HIL simulation for the calculation of optimized cycle times for the production sequence with collision detection. Calculation of KPI referred to the cycle time concerning the handover machine. Slide 26

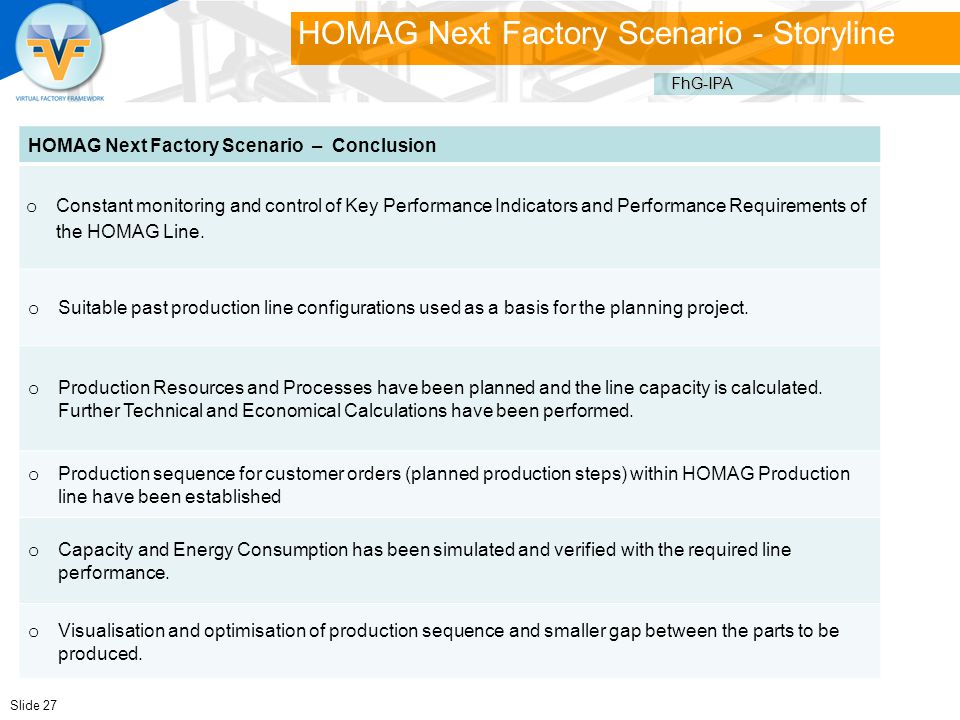

27. FhG-IPA HOMAG Next Factory Scenario - Storyline HOMAG Next Factory Scenario – Conclusion o Constant monitoring and control of Key Performance Indicators and Performance Requirements of the HOMAG Line. o Suitable past production line configurations used as a basis for the planning project. o Production Resources and Processes have been planned and the line capacity is calculated. Further Technical and Economical Calculations have been performed. o Production sequence for customer orders (planned production steps) within HOMAG Production line have been established o Capacity and Energy Consumption has been simulated and verified with the required line performance. o Visualisation and optimisation of production sequence and smaller gap between the parts to be produced. Slide 27
