1. GIS Tutorial 1 Lecture 7 Geocoding

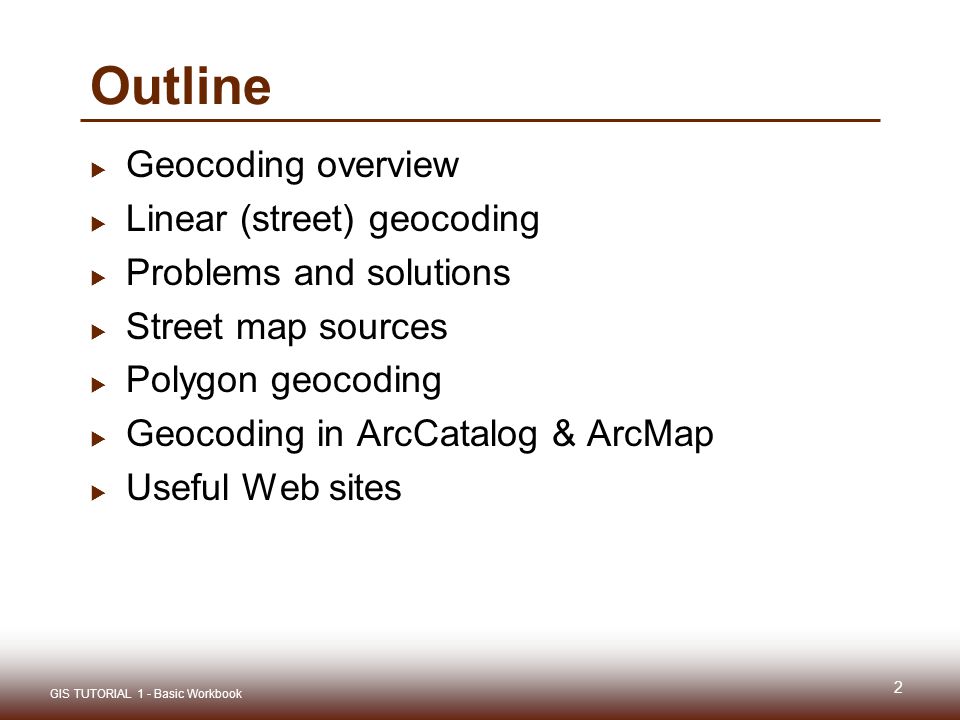

2. Outline  Geocoding overview  Linear (street) geocoding  Problems and solutions  Street map sources  Polygon geocoding  Geocoding in ArcCatalog & ArcMap  Useful Web sites 2 GIS TUTORIAL 1 - Basic Workbook

3. GEOCODING OVERVIEW Lecture 7 3 GIS TUTORIAL 1 - Basic Workbook

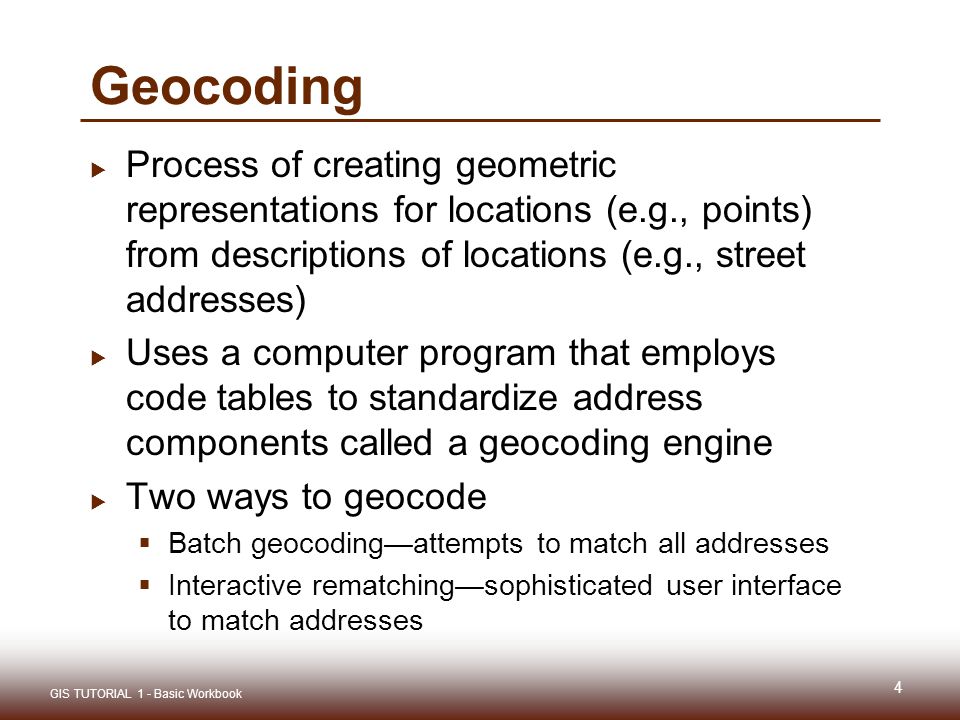

4. Geocoding  Process of creating geometric representations for locations (e.g., points) from descriptions of locations (e.g., street addresses)  Uses a computer program that employs code tables to standardize address components called a geocoding engine  Two ways to geocode  Batch geocoding—attempts to match all addresses  Interactive rematching—sophisticated user interface to match addresses 4 GIS TUTORIAL 1 - Basic Workbook

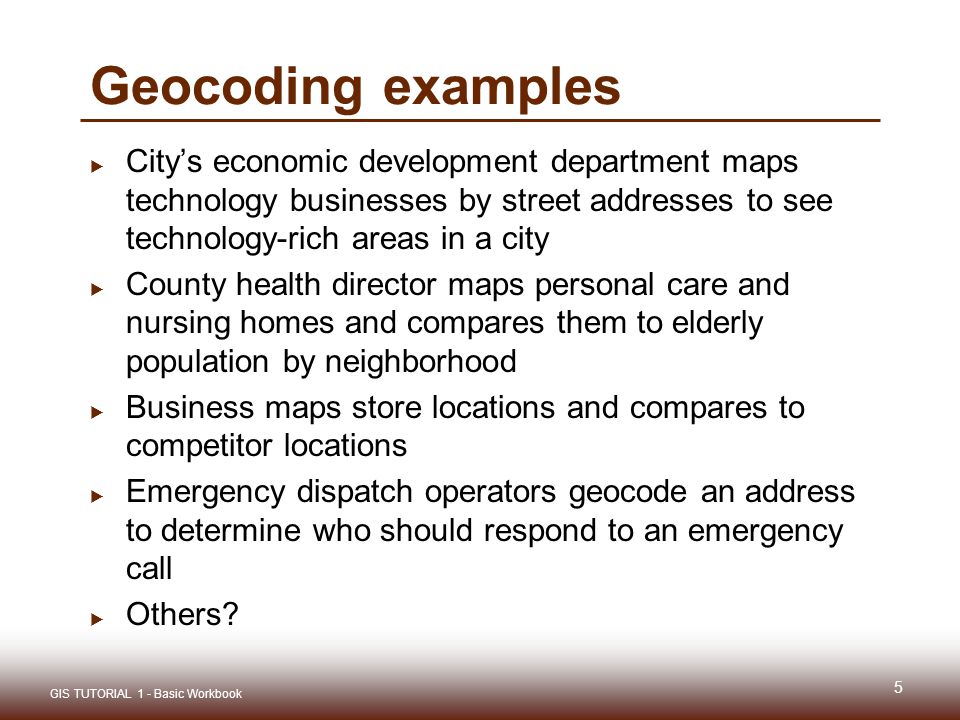

5. Geocoding examples  City’s economic development department maps technology businesses by street addresses to see technology-rich areas in a city  County health director maps personal care and nursing homes and compares them to elderly population by neighborhood  Business maps store locations and compares to competitor locations  Emergency dispatch operators geocode an address to determine who should respond to an emergency call  Others? 5 GIS TUTORIAL 1 - Basic Workbook

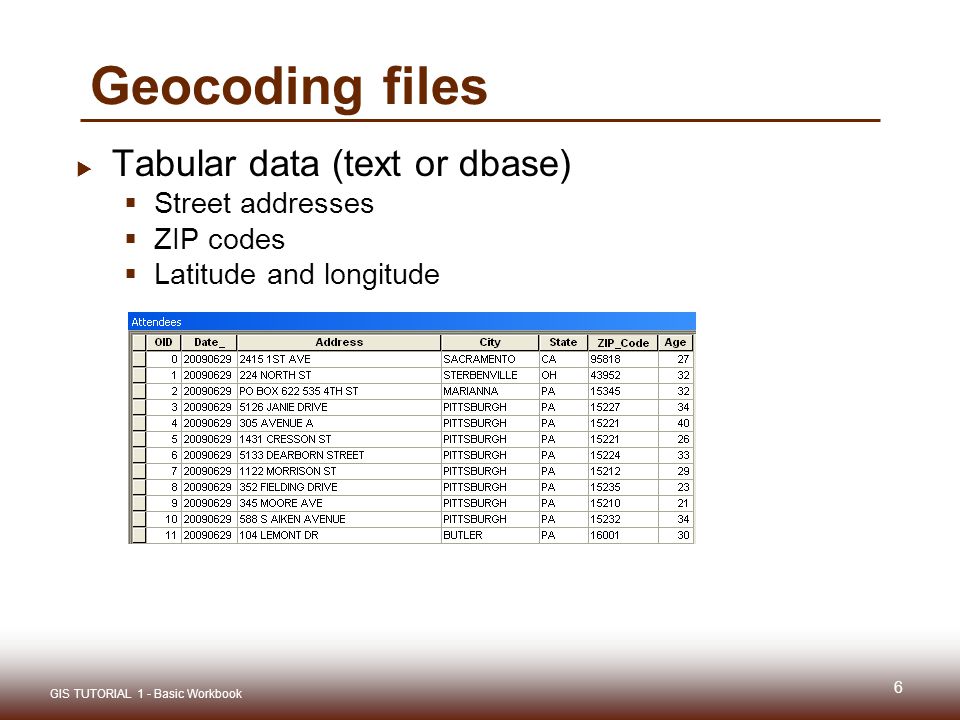

6. Geocoding files  Tabular data (text or dbase)  Street addresses  ZIP codes  Latitude and longitude 6 GIS TUTORIAL 1 - Basic Workbook

7. Geocoding files  Geographic data  Street centerlines  ZIP code polygons 7 GIS TUTORIAL 1 - Basic Workbook

8. Other geocoding files  Lines  Railroads, rivers  Polylines  Parcels, census blocks, tracts, MCD/CCDs, places, counties, etc.  Points  Landmarks such as churches, schools, and other cultural features represented as TIGER as points 8 GIS TUTORIAL 1 - Basic Workbook

9. LINEAR (STREET) GEOCODING Lecture 7 9 GIS TUTORIAL 1 - Basic Workbook

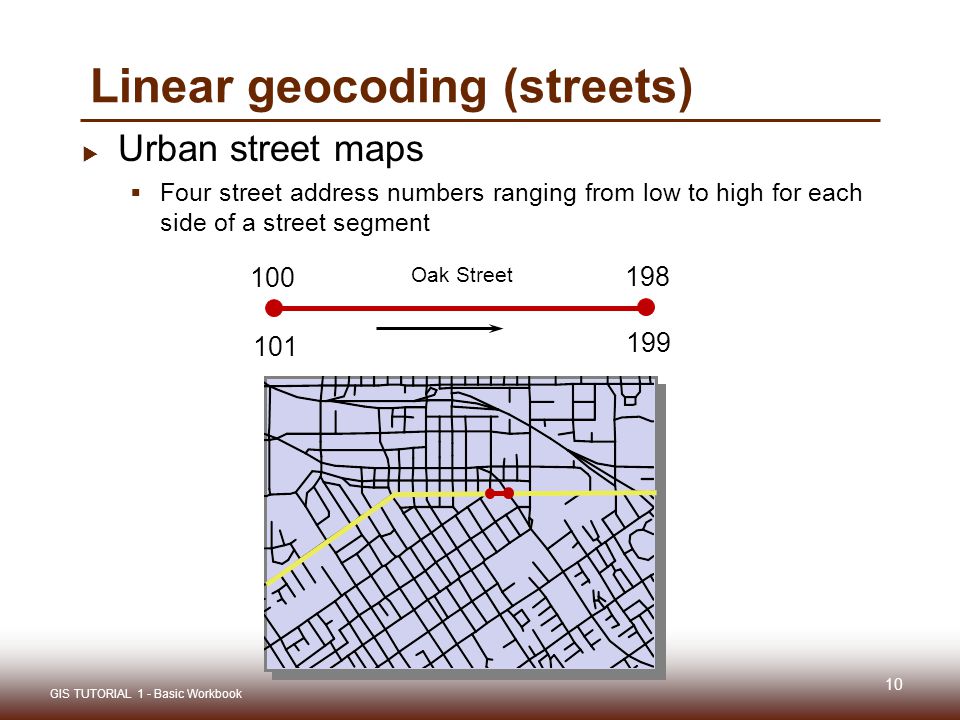

10. Linear geocoding (streets)  Urban street maps  Four street address numbers ranging from low to high for each side of a street segment 100 198 101 199 Oak Street 10 GIS TUTORIAL 1 - Basic Workbook

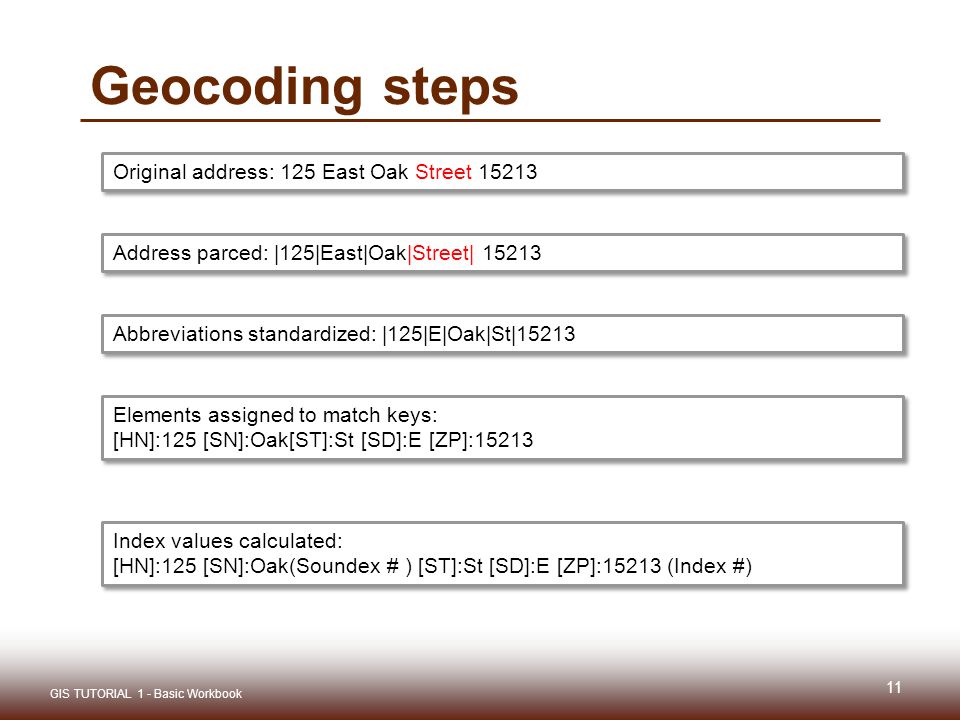

11. Geocoding steps Original address: 125 East Oak Street 15213 Address parced: |125|East|Oak|Street| 15213 Abbreviations standardized: |125|E|Oak|St|15213 Elements assigned to match keys: [HN]:125 [SN]:Oak[ST]:St [SD]:E [ZP]:15213 Elements assigned to match keys: [HN]:125 [SN]:Oak[ST]:St [SD]:E [ZP]:15213 Index values calculated: [HN]:125 [SN]:Oak(Soundex # ) [ST]:St [SD]:E [ZP]:15213 (Index #) 11 GIS TUTORIAL 1 - Basic Workbook

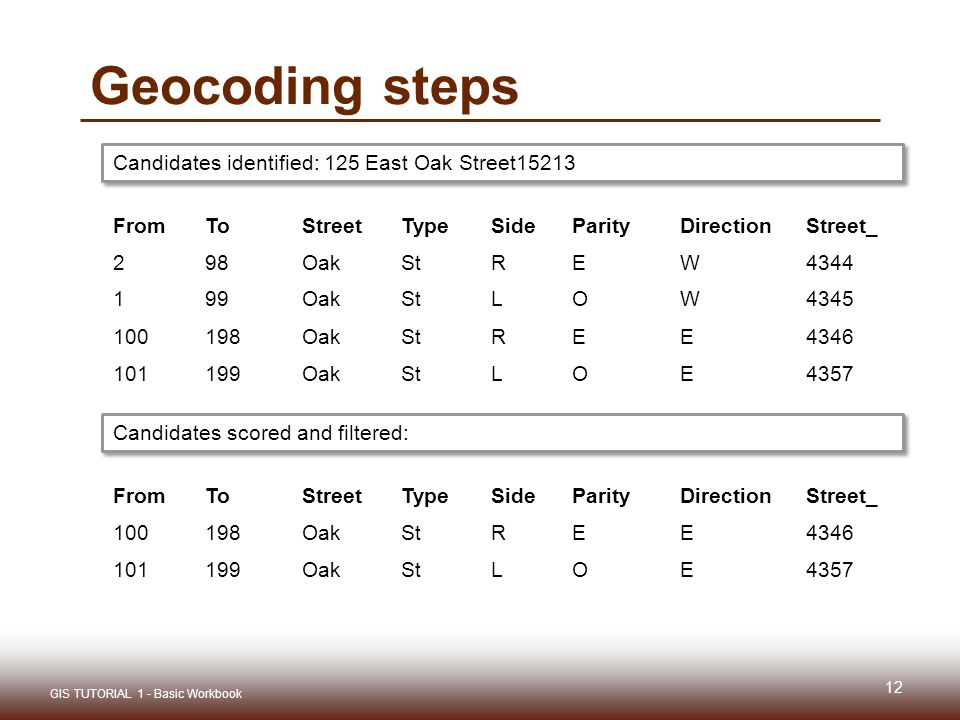

12. Geocoding steps FromToStreetTypeSideParityDirectionStreet_ 298OakStREW4344 199OakStLOW4345 100198OakStREE4346 101199OakStLOE4357 Candidates identified: 125 East Oak Street15213 Candidates scored and filtered: FromToStreetTypeSideParityDirectionStreet_ 100198OakStREE4346 101199OakStLOE4357 12 GIS TUTORIAL 1 - Basic Workbook

13. Geocoding steps FromToStreetTypeSideParityDirectionStreet_ 101199OakStLOE4357 Best candidate matched Oak St Pine Av 100 101 198 199 123 2 1 98 99 13 GIS TUTORIAL 1 - Basic Workbook

14. Number123 Oak St E, Apt. 2, Pittsburgh, PA 15213 Street name 123 Oak St E, Apt. 2, Pittsburgh, PA 15213 Street type 123 Oak St E, Apt. 2, Pittsburgh, PA 15213 Direction, suffix123 Oak St E, Apt. 2, Pittsburgh, PA 15213 Direction, prefix 123 E Oak St, Apt. 2, Pittsburgh, PA 15213 Unit number123 Oak St E, Apt. 2, Pittsburgh, PA 15213 Zone, city123 Oak St E, Apt. 2, Pittsburgh, PA 15213 Zone, ZIP code123 Oak St E, Apt. 2, Pittsburgh, PA 15213 Items for single number street address: Address Unit City ZIP Code 123 Oak St E Apt. 2 Pittsburgh 15213 Address components 14 GIS TUTORIAL 1 - Basic Workbook

15. PROBLEMS AND SOLUTIONS Lecture 7 15 GIS TUTORIAL 1 - Basic Workbook

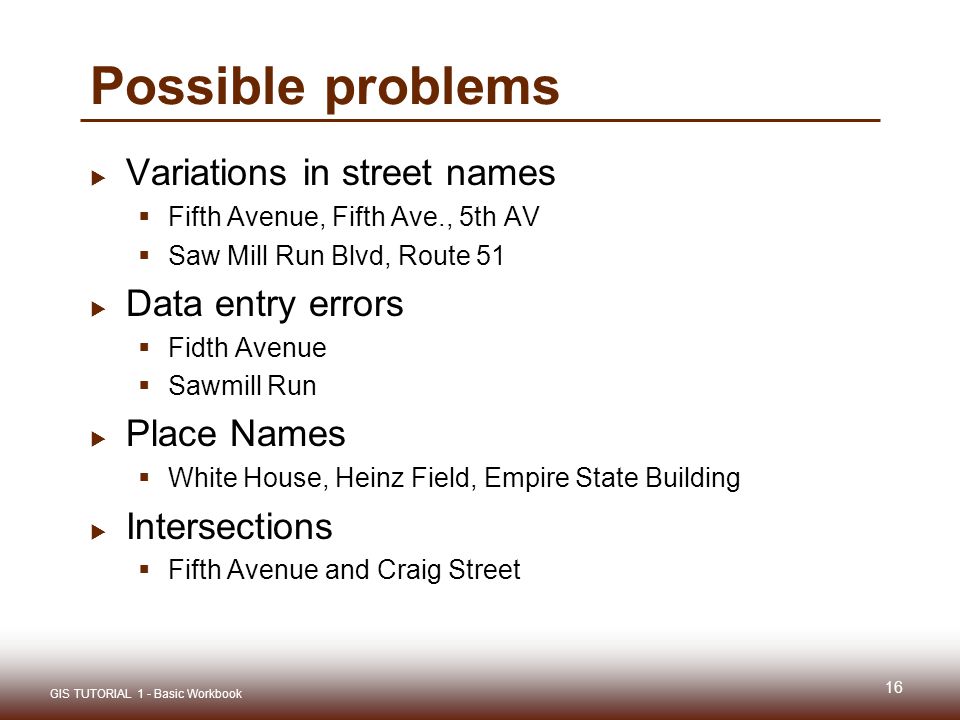

16. Possible problems  Variations in street names  Fifth Avenue, Fifth Ave., 5th AV  Saw Mill Run Blvd, Route 51  Data entry errors  Fidth Avenue  Sawmill Run  Place Names  White House, Heinz Field, Empire State Building  Intersections  Fifth Avenue and Craig Street 16 GIS TUTORIAL 1 - Basic Workbook

17. Possible problems  Zones  100 Main ST 15101, 100 Main ST 16202  P.O. boxes  P.O. Box 125  Missing street (TIGER) information 17 GIS TUTORIAL 1 - Basic Workbook

18. Solutions  Clean data before geocoding  Use postal address standards  Publication 28 of the U.S. Post Office (2000)  Ultimate source on mailing address formats and codes  Provides standard street address formats  Standards include house number, prefix directional, street name, street suffix, common unit designator abbreviation for apartment, city, state abbreviation, five- digit ZIP code, ZIP+4 extension  Use Standard Intersection Connectors  & | @ 18 GIS TUTORIAL 1 - Basic Workbook

19. Solutions  Use alias tables  Assign house numbers in rural areas  Purchase or build high quality maps (field verification) 19 GIS TUTORIAL 1 - Basic Workbook AliasAddress White House1600 Pennsylvania Avenue Heinz Field100 Art Rooney Avenue Empire State Building350 5th Ave

20. STREET MAP SOURCES Lecture 7 20 GIS TUTORIAL 1 - Basic Workbook

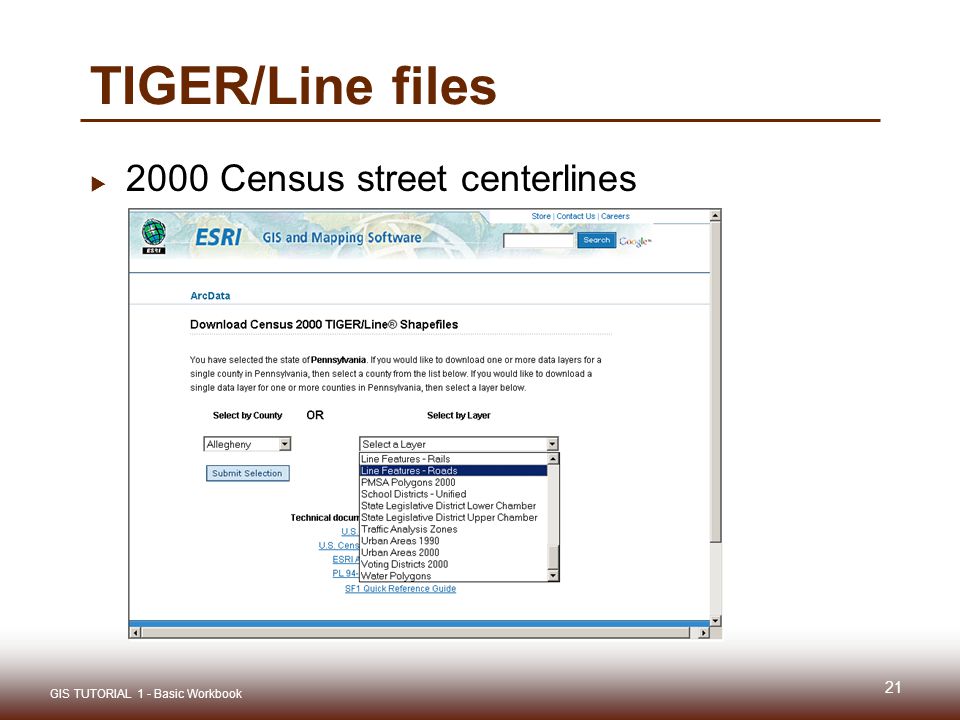

21. TIGER/Line files  2000 Census street centerlines 21 GIS TUTORIAL 1 - Basic Workbook

22. TIGER/Line files 22 GIS TUTORIAL 1 - Basic Workbook

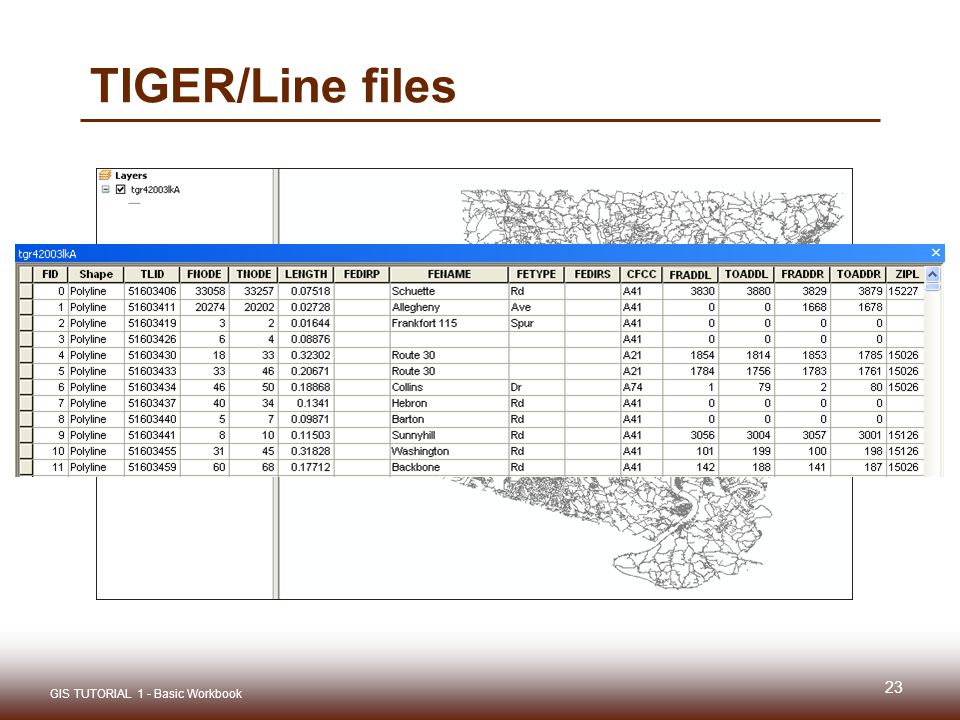

23. TIGER/Line files 23 GIS TUTORIAL 1 - Basic Workbook

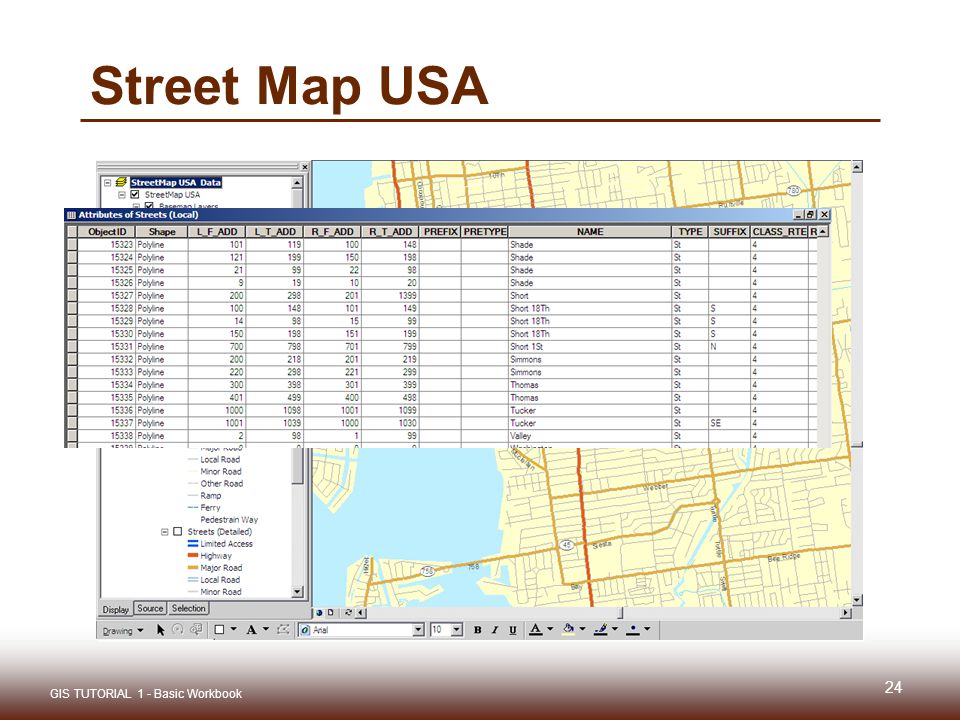

24. Street Map USA 24 GIS TUTORIAL 1 - Basic Workbook

25. GDT Dynamap/2000 U.S. street data  Small fee for individual ZIP code layers  Map layers are the highest quality street- map layers in terms of appearance, completeness, and accuracy  Maps include more than 14 million U.S. street segments and include postal boundaries, landmarks, water features, and other features 25 GIS TUTORIAL 1 - Basic Workbook

26. POLYGON GEOCODING Lecture 7 26 GIS TUTORIAL 1 - Basic Workbook

27. Polygon geocoding  Method to map data whose identifier is a polygon (e.g. ZIP code, city, parcel identifier- ppn, or county)  Create an aggregate table with a single record for each unique polygon  Count the records for each polygon  Join table to corresponding polygon layer  Symbolize with a choropleth map or graduated point symbols 27 GIS TUTORIAL 1 - Basic Workbook

28. TIGER: Polygon topology  ZIP codes  American Indian Reservation  Alaska Nature Village Statistical Area  Tribal Designated Statistical Area  Tribal Jurisdiction Statistical Area  Alaska Nature Regional Corp.  FIPS State and County Codes  MCD  Place  Census tract/block groups/blocks 28 GIS TUTORIAL 1 - Basic Workbook

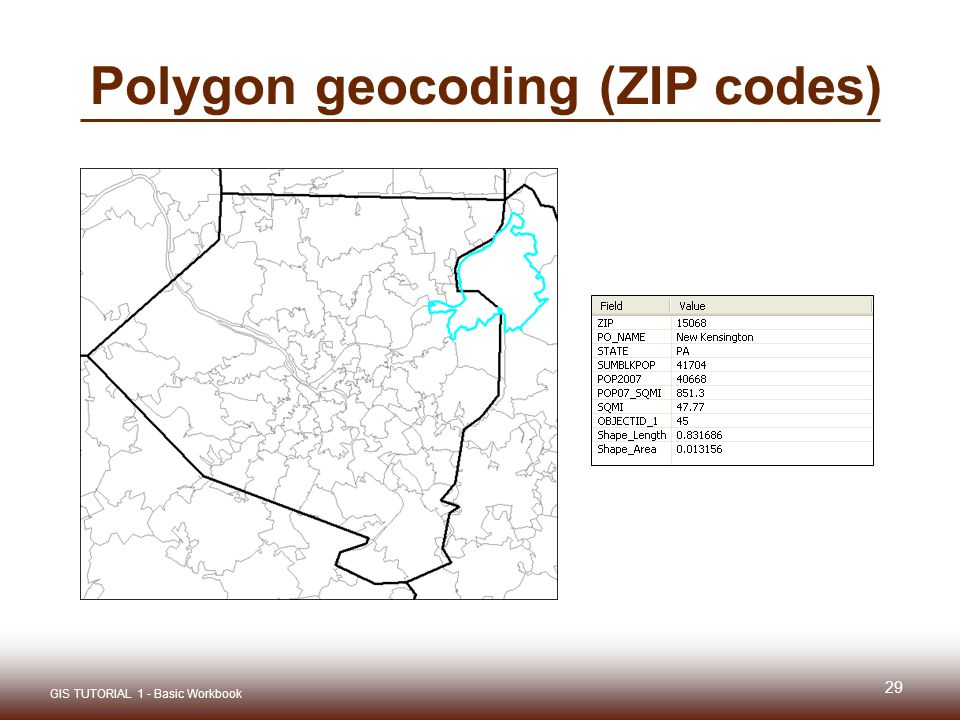

29. Polygon geocoding (ZIP codes) 29 GIS TUTORIAL 1 - Basic Workbook

30. Polygon geocoding (ZIP codes)  Points created at ZIP code centroids 30 GIS TUTORIAL 1 - Basic Workbook

31. Polygon geocoding (ZIP codes)  Spatially join points to polygons to make choropleth map 31 GIS TUTORIAL 1 - Basic Workbook

32. Choropleth map result 32 GIS TUTORIAL 1 - Basic Workbook

33. GEOCODING IN ARCCATALOG Lecture 7 33 GIS TUTORIAL 1 - Basic Workbook

34. Create address locator  ArcCatalog 34 GIS TUTORIAL 1 - Basic Workbook

35. Choose address locator style  Skeleton of the address locator  Based on data tables and reference layer 35 GIS TUTORIAL 1 - Basic Workbook

36. Choose reference layer  Streets, ZIP codes GIS TUTORIAL 1 - Basic Workbook 36

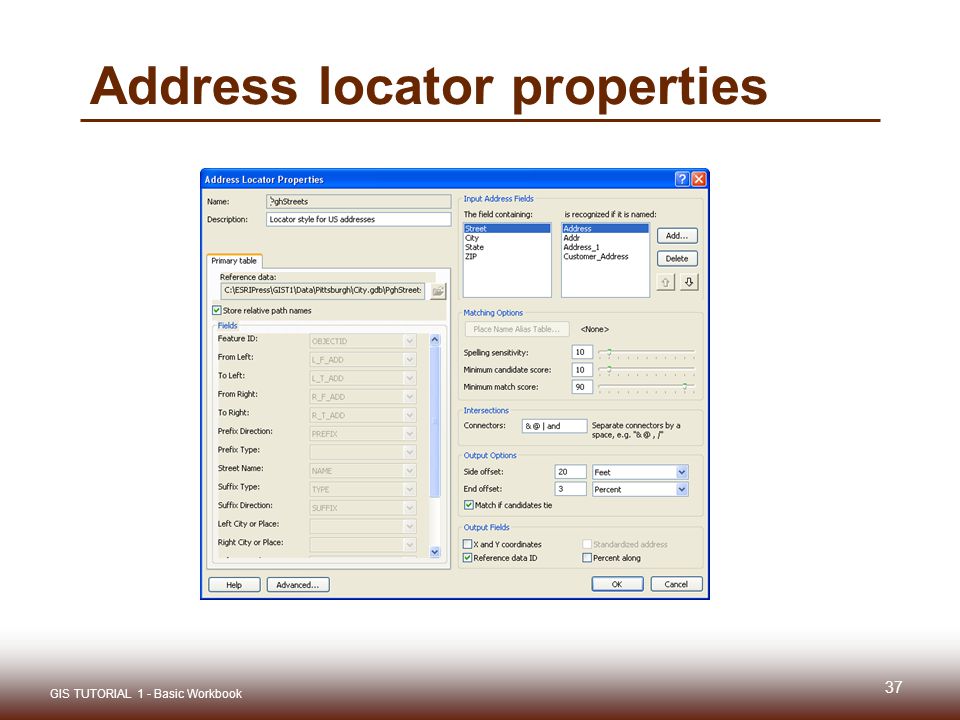

37. Address locator properties 37 GIS TUTORIAL 1 - Basic Workbook

38. Geocode in ArcMap  Add tabular data and streets layer  Add address locator  Geocode addresses  View geocoding results  Interactively rematch addresses 38 GIS TUTORIAL 1 - Basic Workbook

39. Address rematching  Investigate unmatched addresses  Generally requires expertise with knowledge of local streets  Compare street name in the attributes of streets table and address table 39 GIS TUTORIAL 1 - Basic Workbook

40. Prepare log file  Log file includes reasons why addresses did not geocode  Useful for future work on cleaning addresses or repairing street maps 40 GIS TUTORIAL 1 - Basic Workbook Incorrect addressPossible reason/solution 490 Penn AvenueMissing ZIP code 111 HawksworthSpelled incorrectly 900 Smallman StreetTIGER street missing 900 Lib AveSpelled incorrectly

41. USEFUL WEBSITES Lecture 7 41 GIS TUTORIAL 1 - Basic Workbook

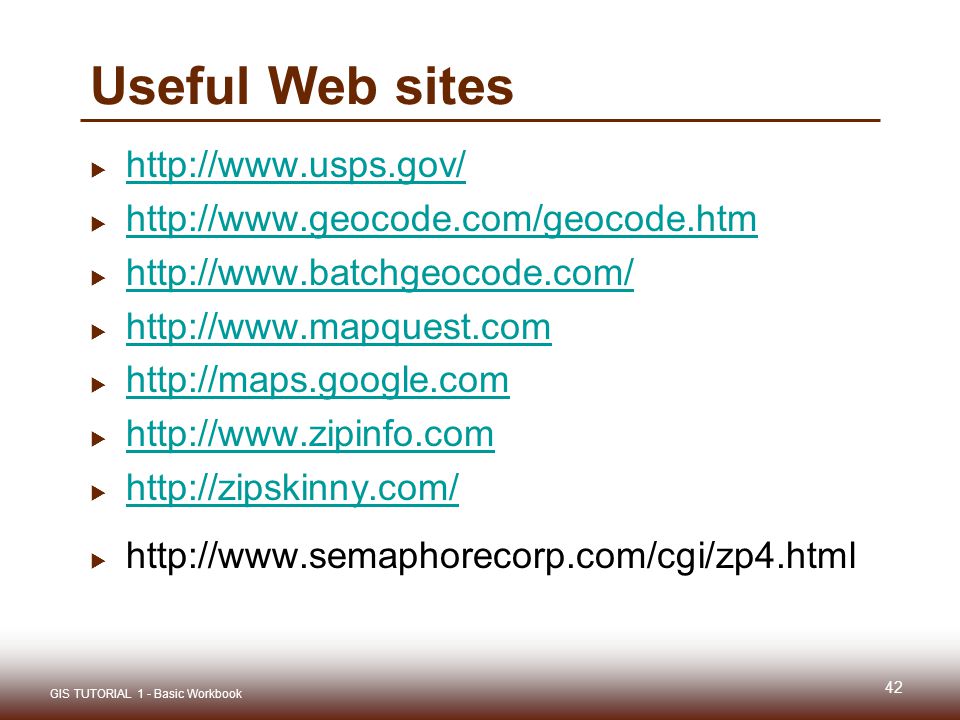

42. Useful Web sites  http://www.usps.gov/ http://www.usps.gov/  http://www.geocode.com/geocode.htm http://www.geocode.com/geocode.htm  http://www.batchgeocode.com/ http://www.batchgeocode.com/  http://www.mapquest.com http://www.mapquest.com  http://maps.google.com http://maps.google.com  http://www.zipinfo.com http://www.zipinfo.com  http://zipskinny.com/ http://zipskinny.com/  http://www.semaphorecorp.com/cgi/zp4.html 42 GIS TUTORIAL 1 - Basic Workbook

43. Summary  Geocoding overview  Linear (street) geocoding  Problems and solutions  Street map sources  Polygon geocoding  Geocoding in ArcView  Useful Web sites 43 GIS TUTORIAL 1 - Basic Workbook
