1. Protocol arrangement Slides Ecma/TC47/2012/056 (supersedes 2010/016-Rev1) TC47

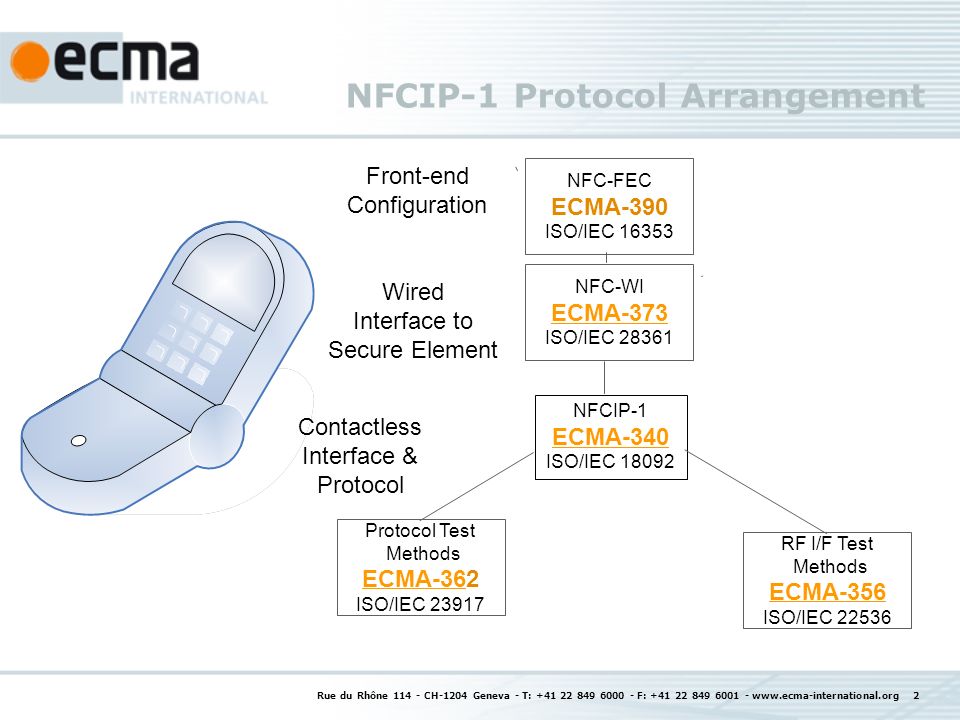

2. Rue du Rhône 114 - CH-1204 Geneva - T: +41 22 849 6000 - F: +41 22 849 6001 - www.ecma-international.org 2 NFCIP-1 Protocol Arrangement NFCIP-1 ECMA-340 ECMA-340 ISO/IEC 18092 RF I/F Test Methods ECMA-356 ECMA-356 ISO/IEC 22536 Protocol Test Methods ECMA-362 ECMA-36 ISO/IEC 23917 NFC-WI ECMA-373 ISO/IEC 28361 NFC-FEC ECMA-390 ISO/IEC 16353 Contactless Interface & Protocol Wired Interface to Secure Element Front-end Configuration

3. Rue du Rhône 114 - CH-1204 Geneva - T: +41 22 849 6000 - F: +41 22 849 6001 - www.ecma-international.org 3 NFCIP-2 Protocol Arrangement ISO/IEC 18092 ECMA-340 ECMA-340 (NFCIP-1) ISO/IEC 14443 PICC and PCD Mode ISO/IEC 15693 VCD Mode ISO/IEC 21481 ECMA-352 (NFCIP-2)ECMA-352 Test Methods ECMA-xxx

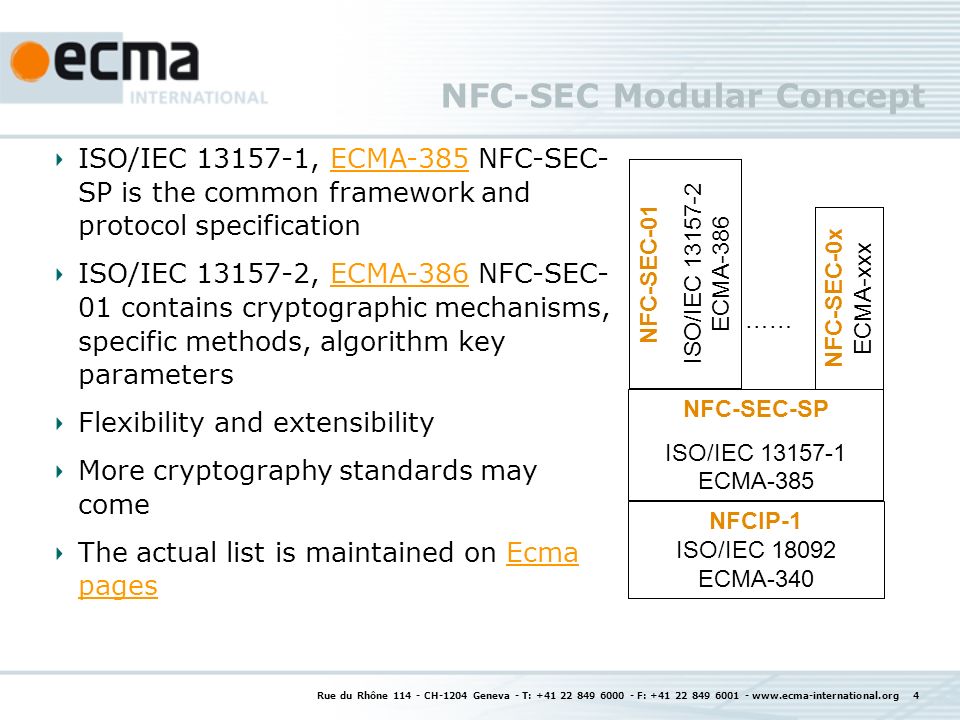

4. NFC-SEC Modular Concept Rue du Rhône 114 - CH-1204 Geneva - T: +41 22 849 6000 - F: +41 22 849 6001 - www.ecma-international.org 4 ISO/IEC 13157-1, ECMA-385 NFC-SEC- SP is the common framework and protocol specificationECMA-385 ISO/IEC 13157-2, ECMA-386 NFC-SEC- 01 contains cryptographic mechanisms, specific methods, algorithm key parametersECMA-386 Flexibility and extensibility More cryptography standards may come The actual list is maintained on Ecma pagesEcma pages NFCIP-1 ISO/IEC 18092 ECMA-340 NFC-SEC-SP ISO/IEC 13157-1 ECMA-385 NFC-SEC-01 ISO/IEC 13157-2 ECMA-386 NFC-SEC-0x ECMA-xxx ……

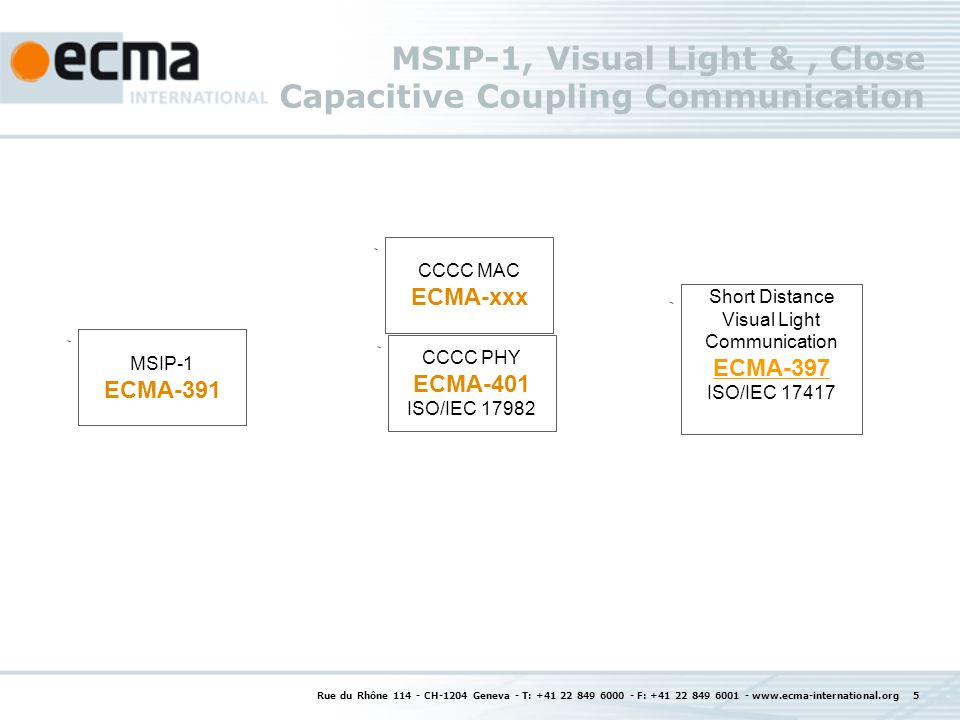

5. Rue du Rhône 114 - CH-1204 Geneva - T: +41 22 849 6000 - F: +41 22 849 6001 - www.ecma-international.org 5 MSIP-1, Visual Light &, Close Capacitive Coupling Communication MSIP-1 ECMA-391 Short Distance Visual Light Communication ECMA-397 ISO/IEC 17417 CCCC PHY ECMA-401 ISO/IEC 17982 CCCC MAC ECMA-xxx
