1. Glenair Micro-D Connectors: New Product Offerings

2.  High performance connectivity in a light-weight, microminiature package  Extremely small and light weight  Environmentally sealed  3 amp contact current rating  High temperature LCP insulator  Precision Gold TwistPin Contact for Optimal Mating Retention  Military Standard Pedigree  Ease of Customization Advantages of Micro-D Connectors

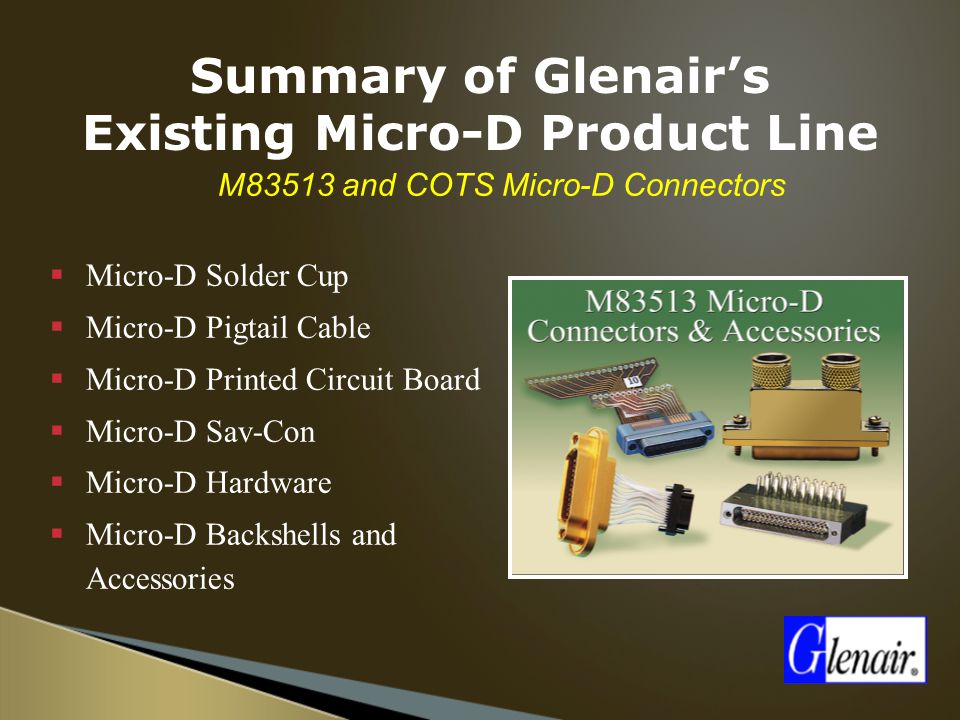

3.  M83513 and COTS Micro-D Connectors  Micro-D Solder Cup  Micro-D Pigtail Cable  Micro-D Printed Circuit Board  Micro-D Sav-Con  Micro-D Hardware  Micro-D Backshells and Accessories Summary of Glenair’s Existing Micro-D Product Line

4.  Scheduled Release June 06  Expanded PCB Offerings  Hermetic Micro-D  Filter Micro-D  GMSM Single Row Versions  Combo Micro-D’s  Special Glenair Micro-D  Micro-D Harnessing  New Backshell Designs  NanoMiniature Section New Micro-D Products New Micro-D Catalog

5.  Two Densities and All Mounting Styles  CBR Style Right Angle Thru-Hole.100 Inch  BR Style Right Angle Thru-Hole.100 Inch  BS Style Vertical Mount Thru-Hole.100 Inch  CBS Style Straight Mount Thru- Hole.075 Inch  GMR7580 Vertical Mount Thru- Hole.075 Inch  GMR7590 Right Angle Thru-Hole.075 Inch Broader Range of Printed Circuit Board Offerings

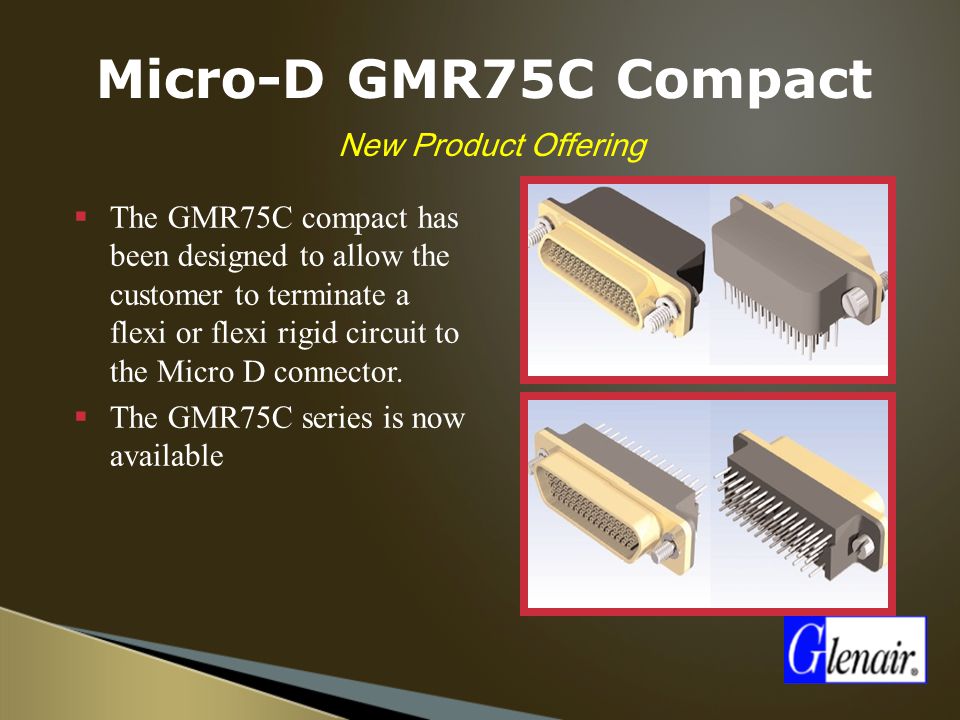

6.  The GMR75C compact has been designed to allow the customer to terminate a flexi or flexi rigid circuit to the Micro D connector.  The GMR75C series is now available  New Product Offering Micro-D GMR75C Compact

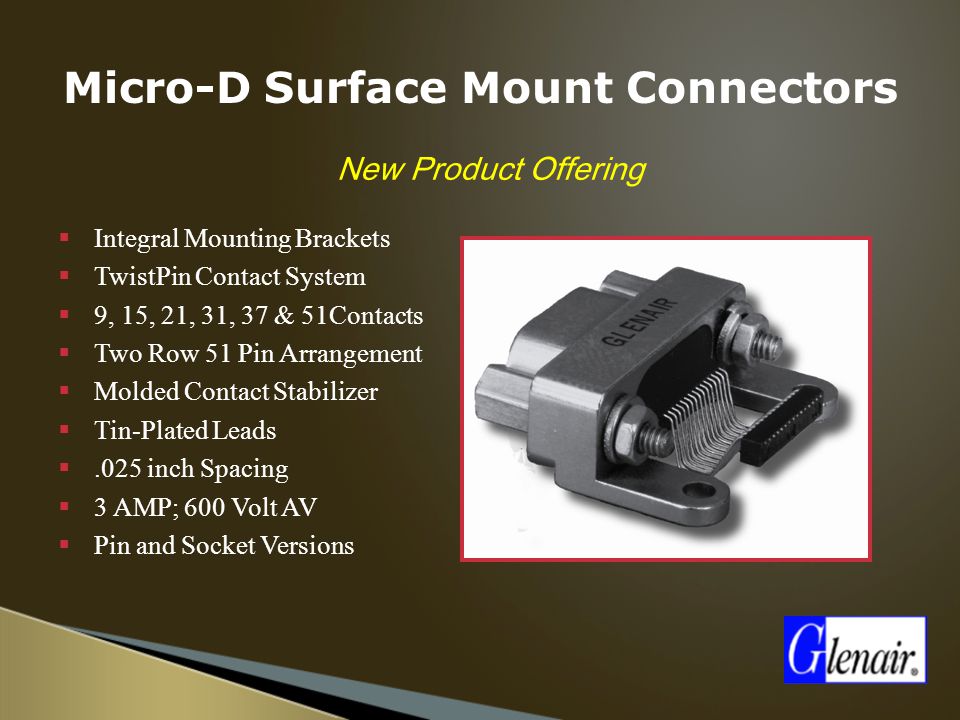

7.  New Product Offering  Integral Mounting Brackets  TwistPin Contact System  9, 15, 21, 31, 37 & 51Contacts  Two Row 51 Pin Arrangement  Molded Contact Stabilizer  Tin-Plated Leads .025 inch Spacing  3 AMP; 600 Volt AV  Pin and Socket Versions Micro-D Surface Mount Connectors

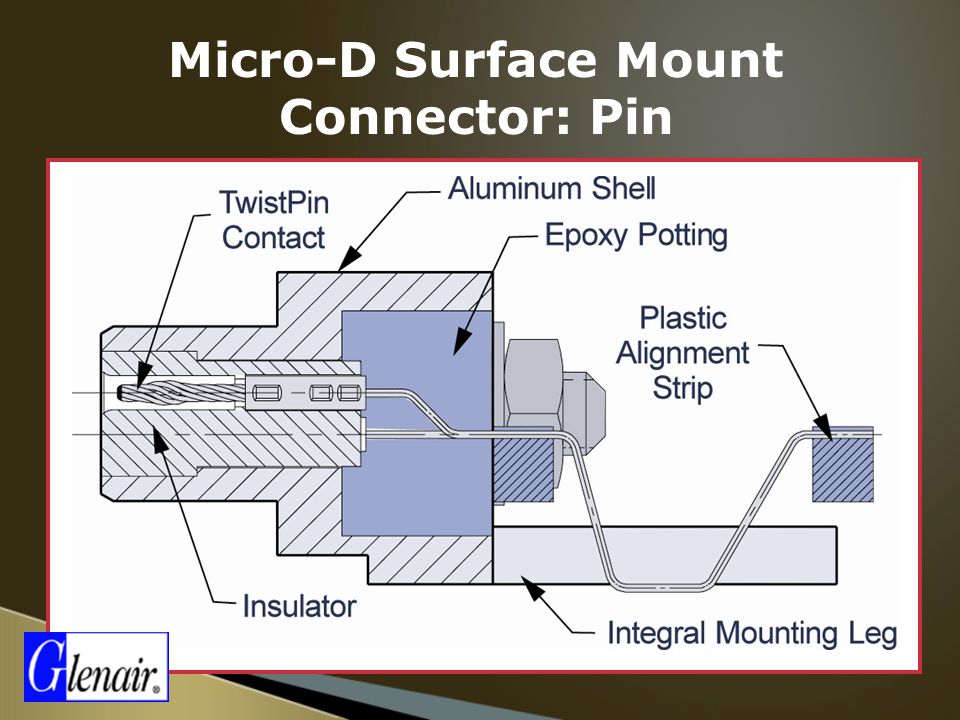

8. Micro-D Surface Mount Connector: Pin

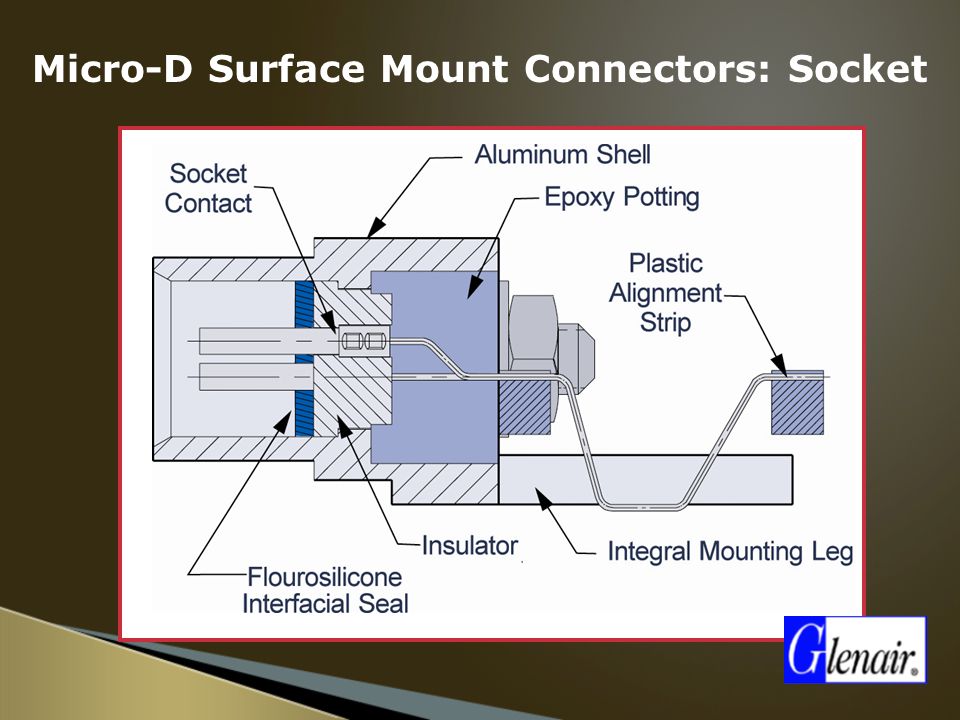

9. Micro-D Surface Mount Connectors: Socket

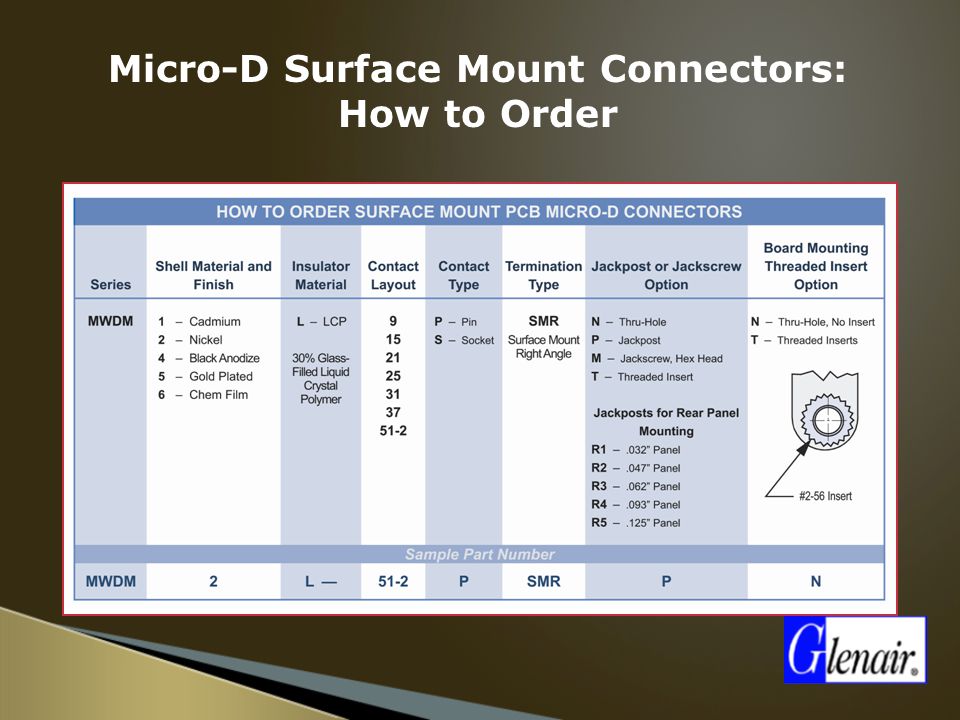

10. Micro-D Surface Mount Connectors: How to Order

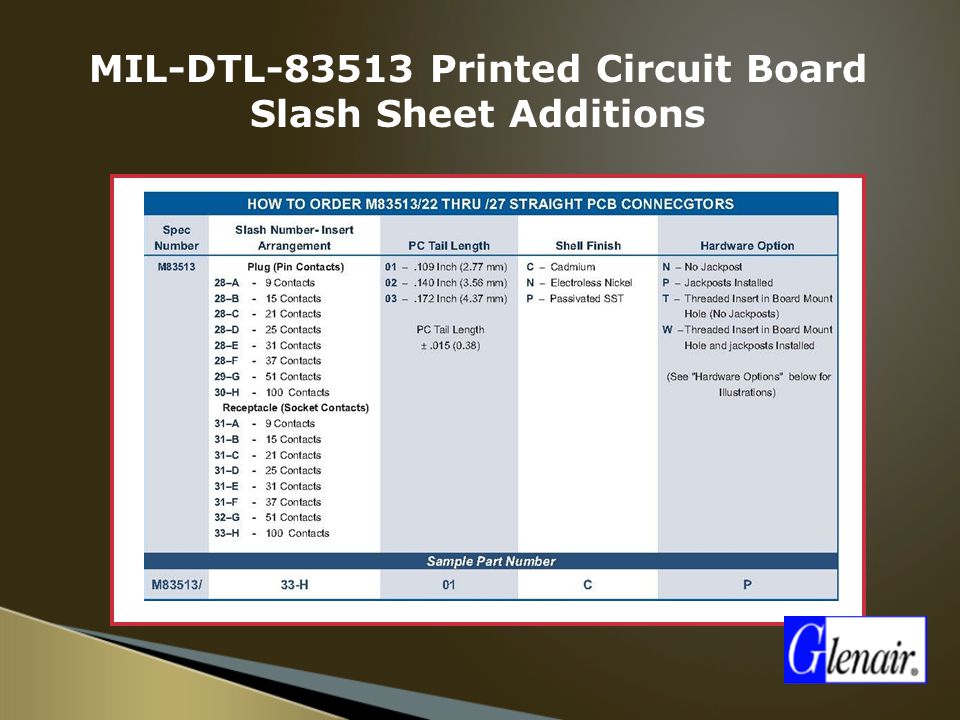

11. MIL-DTL-83513 Printed Circuit Board Slash Sheet Additions

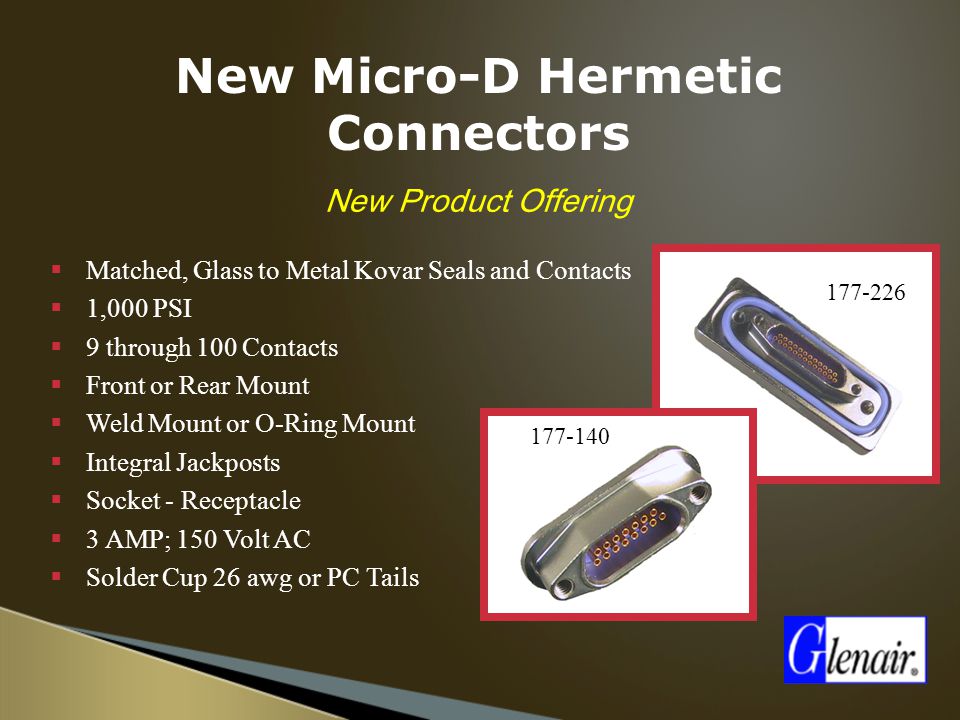

12.  New Product Offering  Matched, Glass to Metal Kovar Seals and Contacts  1,000 PSI  9 through 100 Contacts  Front or Rear Mount  Weld Mount or O-Ring Mount  Integral Jackposts  Socket - Receptacle  3 AMP; 150 Volt AC  Solder Cup 26 awg or PC Tails 177-226 177-140 New Micro-D Hermetic Connectors

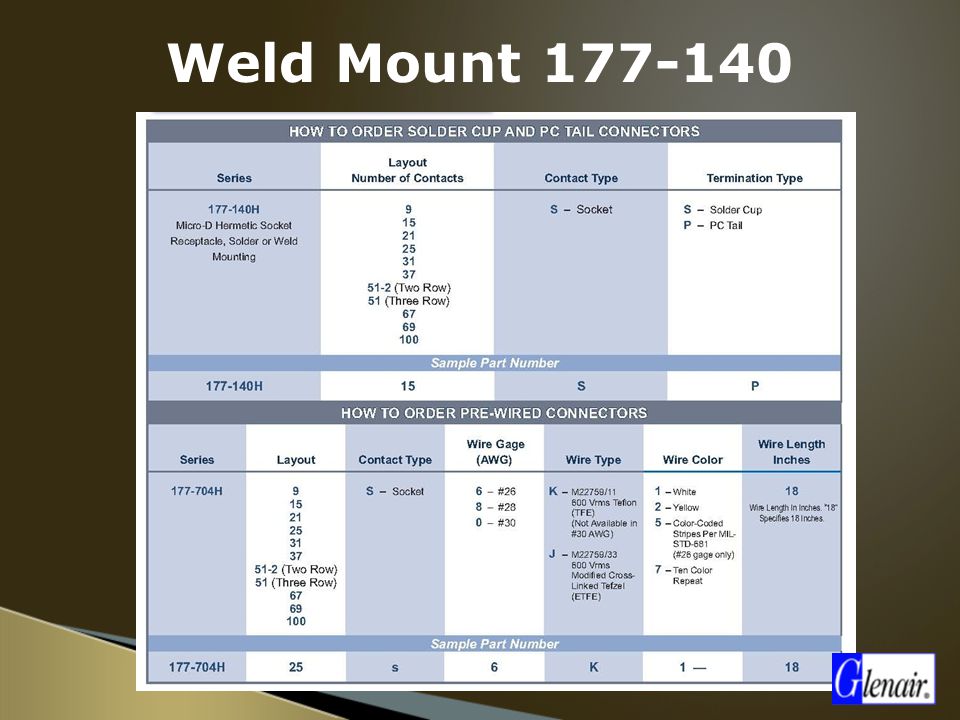

13. Weld Mount 177-140

14. O-Ring Mount 177-226

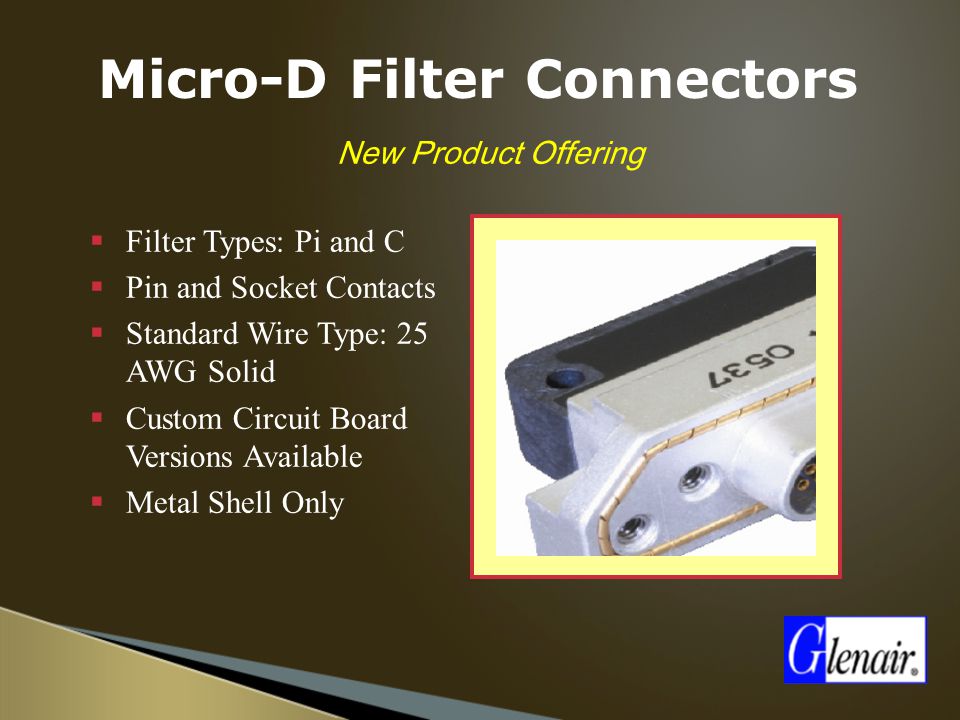

15.  New Product Offering  Filter Types: Pi and C  Pin and Socket Contacts  Standard Wire Type: 25 AWG Solid  Custom Circuit Board Versions Available  Metal Shell Only Micro-D Filter Connectors

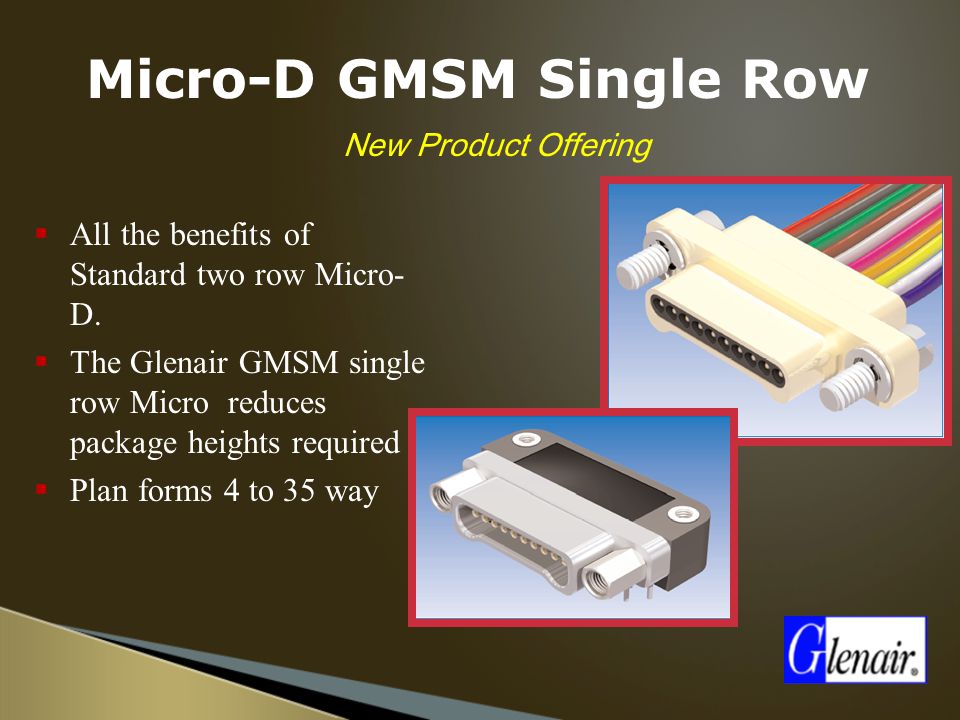

16. Micro-D GMSM Single Row  All the benefits of Standard two row Micro- D.  The Glenair GMSM single row Micro reduces package heights required  Plan forms 4 to 35 way New Product Offering

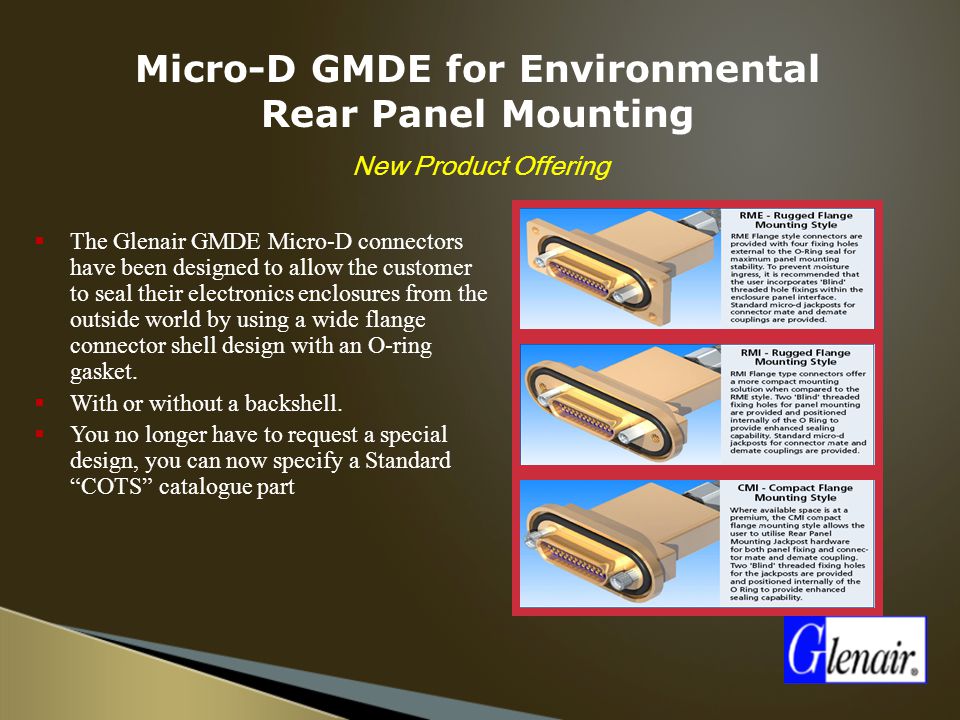

17. Micro-D GMDE for Environmental Rear Panel Mounting  The Glenair GMDE Micro-D connectors have been designed to allow the customer to seal their electronics enclosures from the outside world by using a wide flange connector shell design with an O-ring gasket.  With or without a backshell.  You no longer have to request a special design, you can now specify a Standard “COTS” catalogue part New Product Offering

18.  New Product Offering  Standard Micro Shells  Power Contacts  Coax Contacts  Signal Contacts  Fiber Contacts Combo-D Connectors

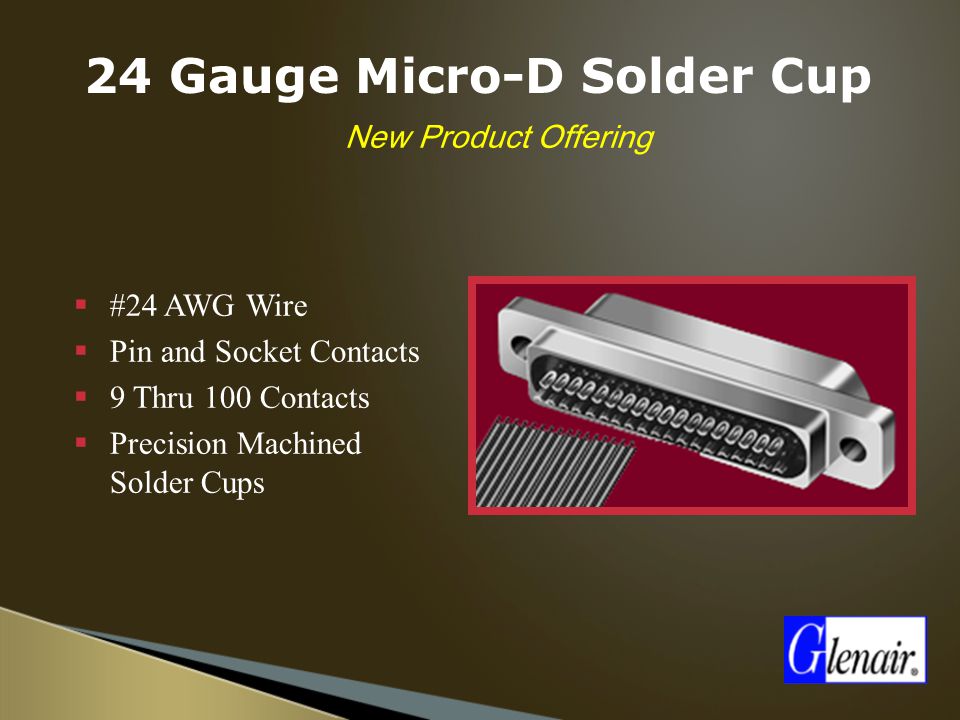

19.  New Product Offering  #24 AWG Wire  Pin and Socket Contacts  9 Thru 100 Contacts  Precision Machined Solder Cups 24 Gauge Micro-D Solder Cup

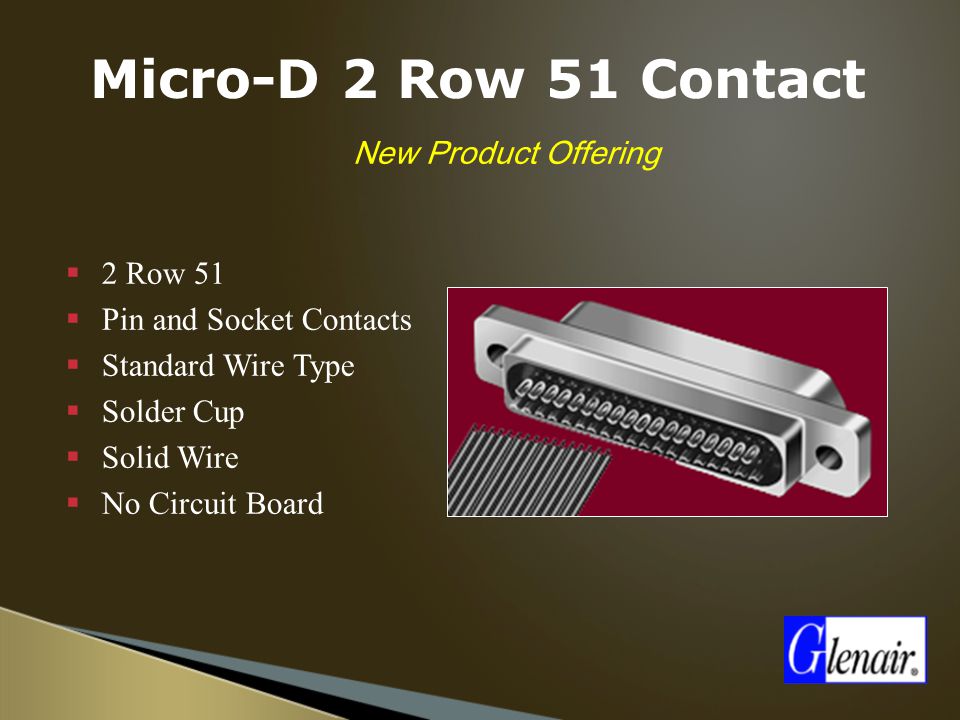

20.  New Product Offering  2 Row 51  Pin and Socket Contacts  Standard Wire Type  Solder Cup  Solid Wire  No Circuit Board Micro-D 2 Row 51 Contact

21.  New Product Offering  3 Row 69  Pin and Socket Contacts  Standard Wire Type  Solder Cup  Solid Wire  Circuit Board Micro-D 3 Row 69 Contact

22.  New Product Offering  Banded Platform  Shell Sizes 9-100  Ground Spring  Single or Double Ended  Shield & Halar Braid  P/N Series: 177-710 Banded Shell Connectors

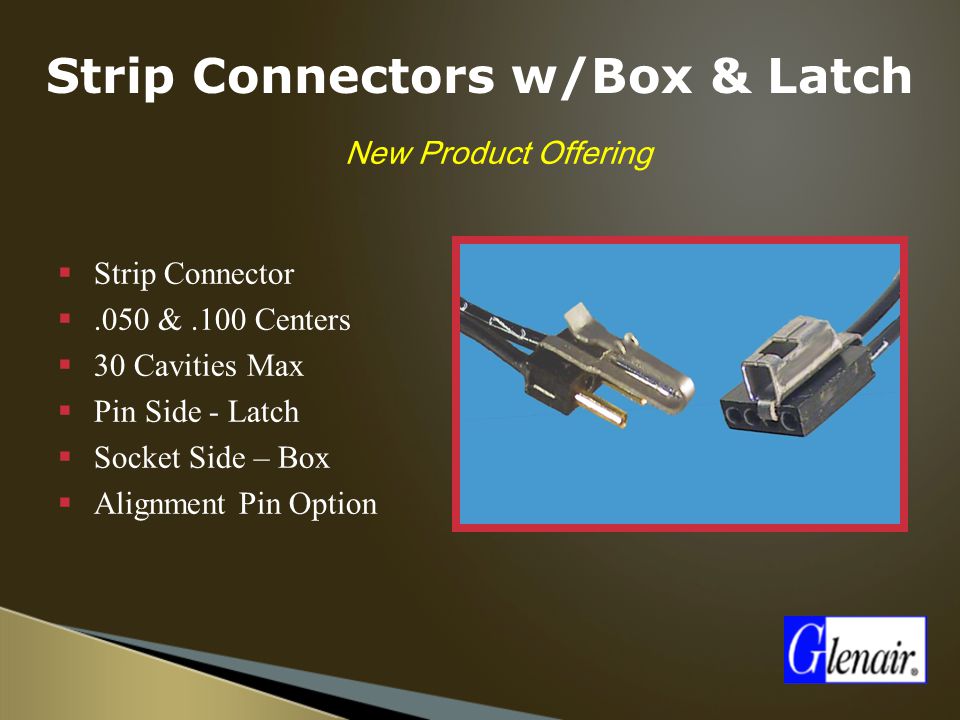

23.  New Product Offering  Strip Connector .050 &.100 Centers  30 Cavities Max  Pin Side - Latch  Socket Side – Box  Alignment Pin Option Strip Connectors w/Box & Latch

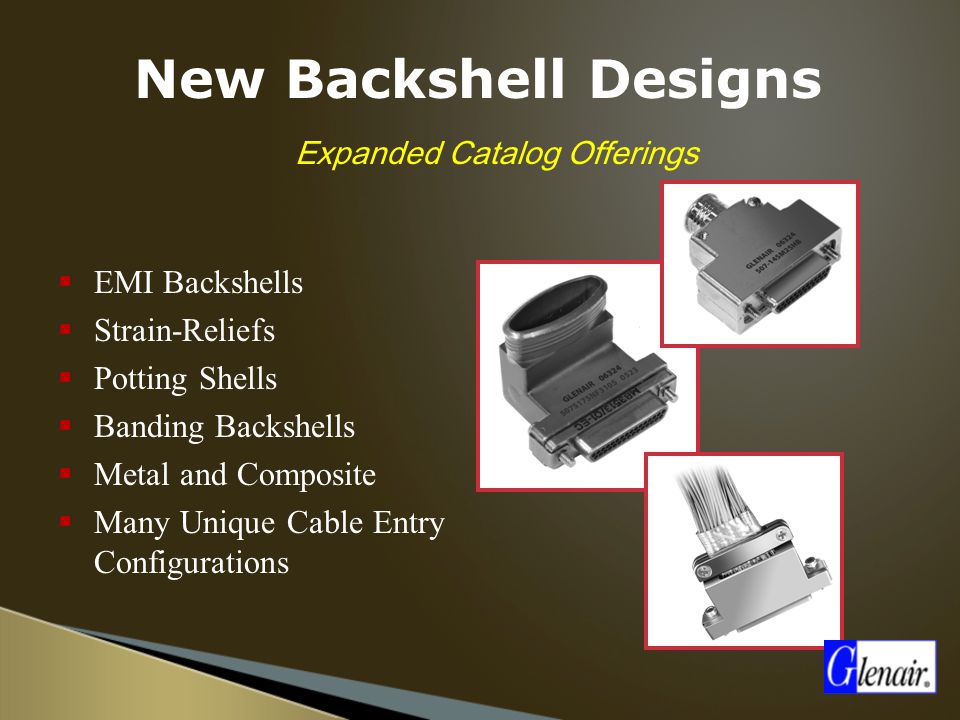

24. New Backshell Designs  EMI Backshells  Strain-Reliefs  Potting Shells  Banding Backshells  Metal and Composite  Many Unique Cable Entry Configurations Expanded Catalog Offerings

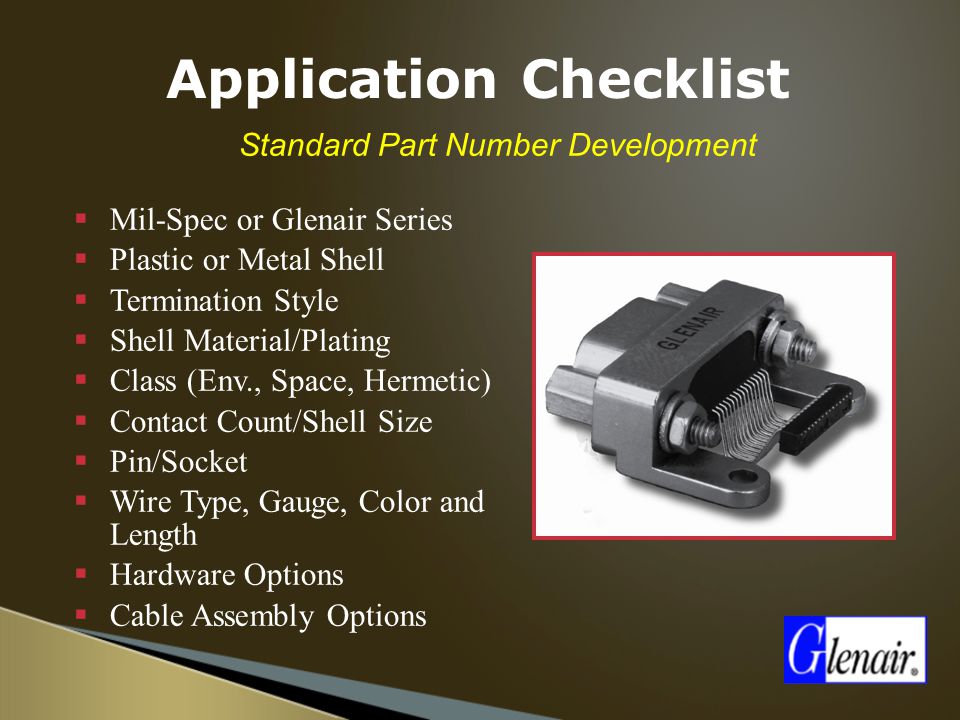

25.  Standard Part Number Development  Mil-Spec or Glenair Series  Plastic or Metal Shell  Termination Style  Shell Material/Plating  Class (Env., Space, Hermetic)  Contact Count/Shell Size  Pin/Socket  Wire Type, Gauge, Color and Length  Hardware Options  Cable Assembly Options Application Checklist
