1 Review Visual System Modeling Tools Todd Bacastow Penn State University Geospatial System Analysis & Design.

Similar presentations


Presentation on theme: "1 Review Visual System Modeling Tools Todd Bacastow Penn State University Geospatial System Analysis & Design."— Presentation transcript:

1 1 Review Visual System Modeling Tools Todd Bacastow Penn State University Geospatial System Analysis & Design

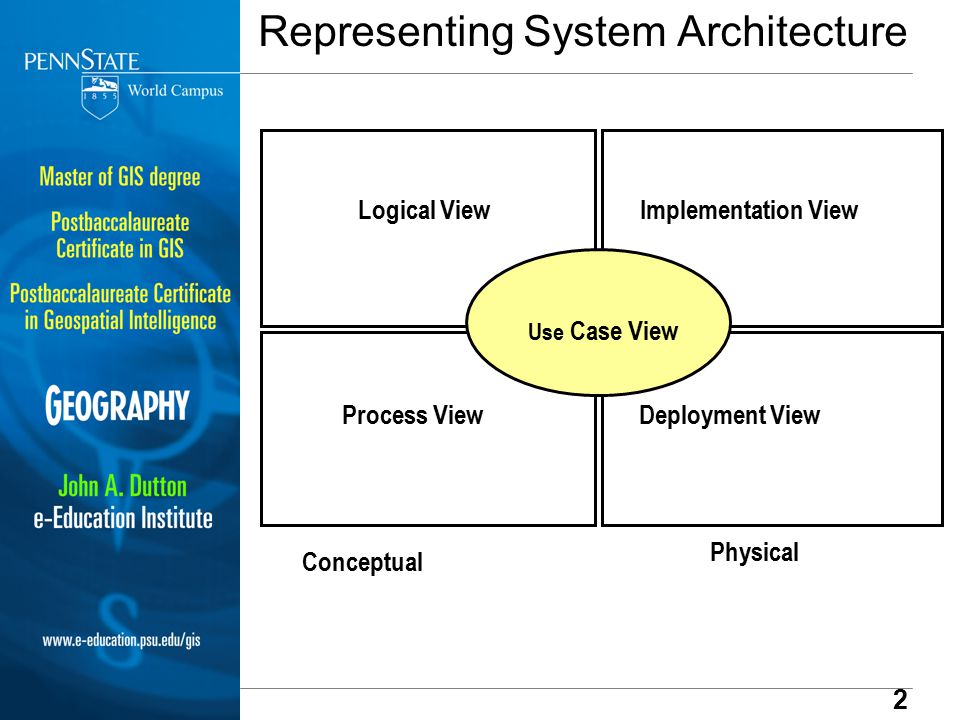

2 2 Representing System Architecture Conceptual Physical Logical ViewImplementation View Process ViewDeployment View Use Case View

3 3 Relationship Between Models and Diagrams Use Case Diagrams Use Case Diagrams Use Case Diagrams Scenario Diagrams Scenario Diagrams Collaboration Diagrams State Diagrams State Diagrams Component Diagrams Component Diagrams Component Diagrams Deployment Diagrams State Diagrams State Diagrams Object Diagrams Scenario Diagrams Scenario Diagrams Statechart Diagrams Use Case Diagrams Use Case Diagrams Sequence Diagrams State Diagrams State Diagrams Class Diagrams Activity Diagrams Models

4 4 Use Cases Describe interactions between users and computer systems (both called actors). Capture user-visible functions. Achieve discrete measurable goals. Are typically used during Analysis and Design.

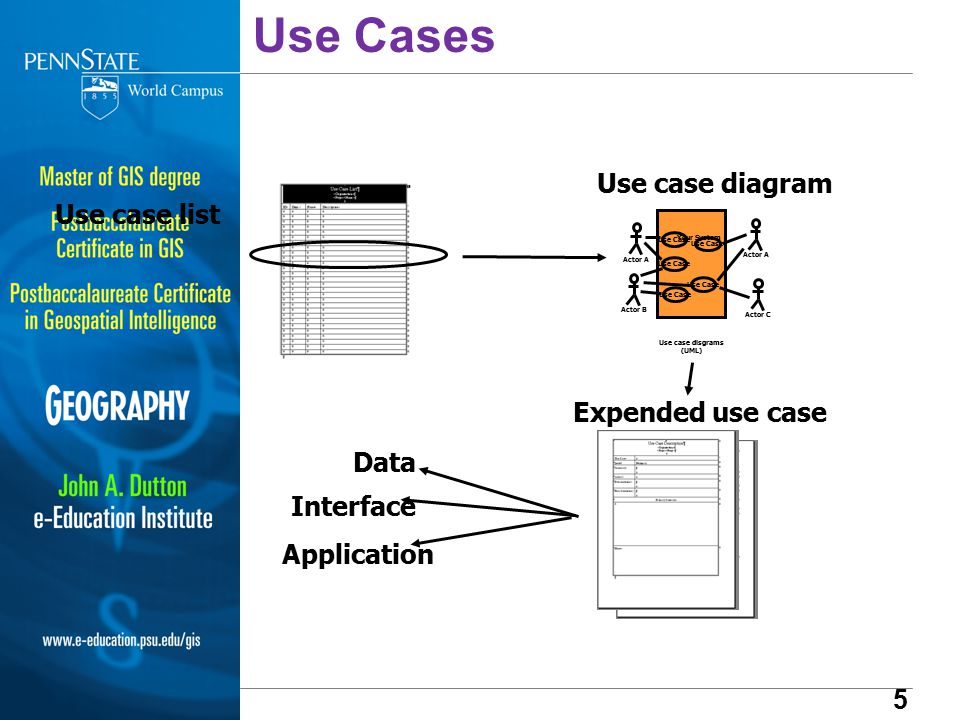

5 5 Use Cases Actor A Your System Use Case Actor B Actor A Use case disgrams (UML) Use Case Actor C Data Interface Application Use case diagram Use case list Expended use case

6 6 Use Case Diagram Telephone Customer In-Store Customer Clerk Identify Movie Open Account Return Movie Customer Review Account Status Actor Use Case

7 7 Use Case Report The Use Case Report provides documentation for the Use Case. A Use Case is not complete without the report. The elements of the Use Case Report are shown on the right. Brief description Precondition Flow of events –Main flow –Subflows –Alternate flows Postcondition Special Requirements Enclosures –Diagrams –Pictures of the UI Brief description Precondition Flow of events –Main flow –Subflows –Alternate flows Postcondition Special Requirements Enclosures –Diagrams –Pictures of the UI

8 8 Class Diagrams Are the most fundamental UML Diagram. Describe the classes in the system, and the static relationships between classes. Class diagrams are used during Analysis, Design and Development.

9 9 UML Class Diagram DVD MovieVHS MovieVideo Game Rental Item Rental Invoice 1..* 1 Customer Checkout Screen 1 0..1 1

10 10 UML Class Diagram DVD MovieVHS MovieVideo Game Rental Item {abstract} Rental Invoice 1..* 1 Customer Checkout Screen 0..1 1 Simple Association Class Abstract Class Simple Aggregation Generalization Composition (Dependency) Multiplicity

11 11 Parts of a Class Classes can have four parts –Name –Attributes –Operations –Responsibilities Classes can show visibility and types. All parts but the Name are optional. MyClassName +SomePublicAttribute : SomeType -SomePrivateAttribute : SomeType #SomeProtectedAttribute : SomeType +ClassMethodOne() +ClassMethodTwo() Responsibilities -- can optionally be described here.

12 12 Collaboration Diagrams Collaboration diagrams describe interactions and links Focus on exchange of messages between objects Appears during Analysis phase Enhanced during Design phase

13 13 :Check-out Manager :Customer :Inventory 1: enter_customer() 3: enter_movies() 5: add(customer, movies) 7: print invoice() 2: IsValidCust(CustId) 4:GetMovieByBarcode() Collaboration Diagram :Clerk Object Message :Rented Items 8: generateRentalTotal()

14 14 Sequence Diagrams Can be “morphed” from Collaboration Diagrams. Describe interactions between objects arranged in time sequence Focus on objects and classes involved in the scenario and the sequence of messages exchanged Associated with use cases Used heavily during Analysis phase and are enhanced and refined during Design phase

15 15 Sequence Diagram 1: find customer() 2: search (string) 4: search (string) 6: add(Cust, item) 3: enter movie() 5: rent (movie) 7: printInvoice() 8: generateRentalTotal() Object Lifeline Activation Message :CheckoutMgr:InventoryCust:Customer:RentedItems : Employee

16 16 Component Diagram Component Interface Dependency Note

17 17 Node Communication Association Deployment Diagram

18 18 Identify Caller Create Account Obtain Name & Address Open Account? Current Customer? [no] [yes] Action State Start State Decision End State Activity Diagram

19 19 Identify Movie Place Order Place Order Fill Order Pay Deliver Movie Pickup Movie CustomerManagerWalking Clerk Fork Point Join Point Collect Money Swimlanes and Fork/Join Points

20 20 State Diagram State Transition Activity Guard Action Event

21 21 UML Diagram Usage
