An exterior angle is outside the triangle and next to one of the sides. 4-2 Exterior Angle Theorem.

Published byLee Barton Modified over 9 years ago

Similar presentations

Presentation on theme: "An exterior angle is outside the triangle and next to one of the sides. 4-2 Exterior Angle Theorem."— Presentation transcript:

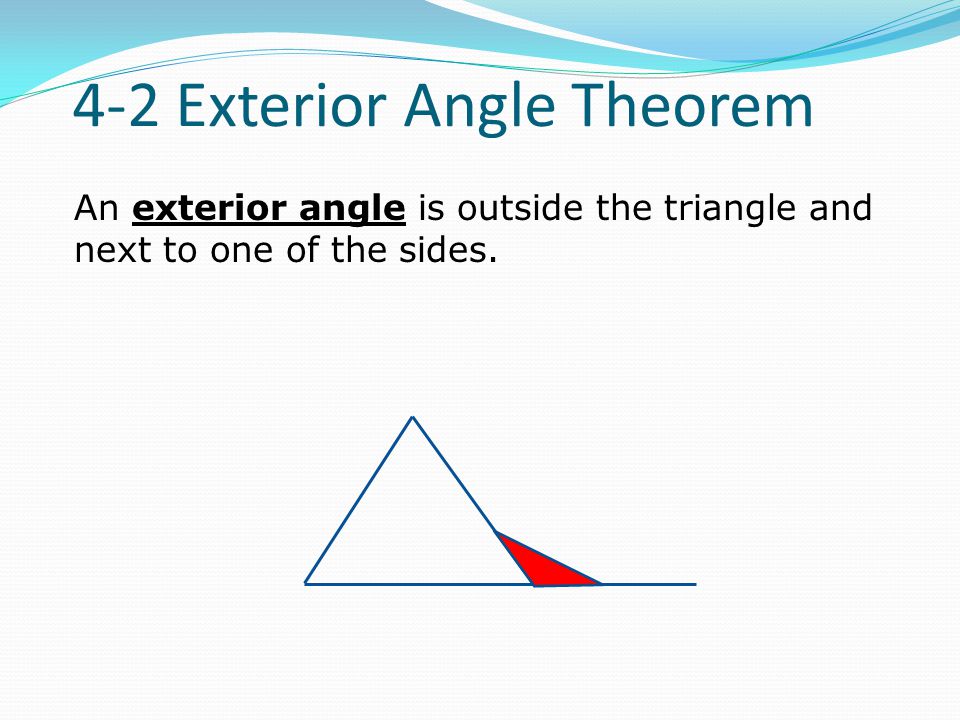

1 An exterior angle is outside the triangle and next to one of the sides. 4-2 Exterior Angle Theorem

2 Remote interior angle: an interior angle that is not adjacent to (not touching, away from) an exterior angle. There are always 2 remote interior angles for each exterior angle. *If you add the remote interior angles, they equal the exterior angle Interior Exterior m1 + m2 = m4

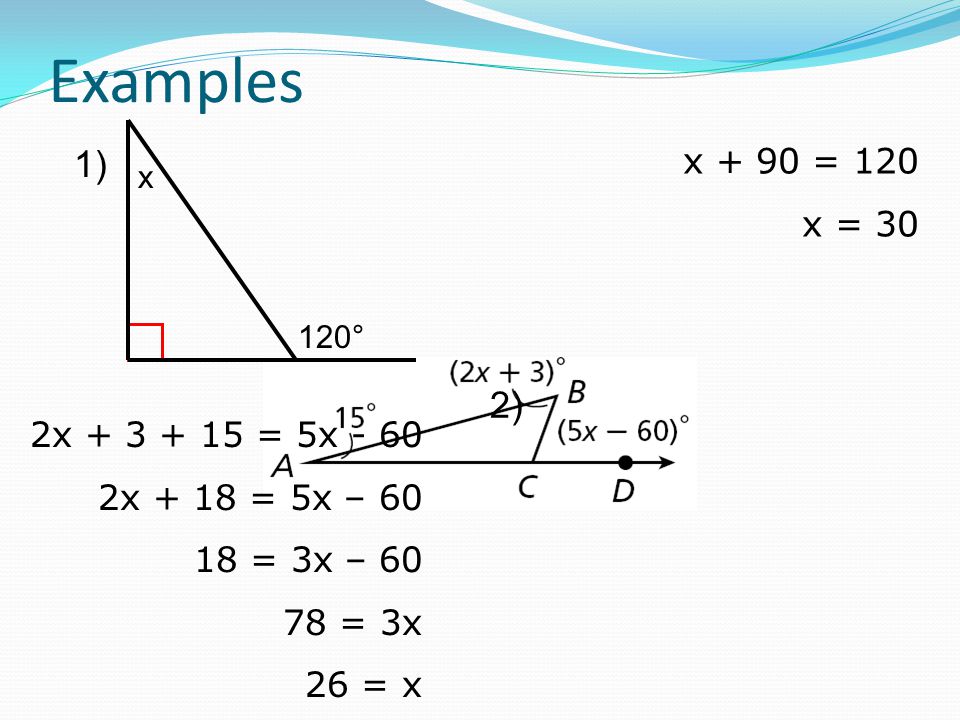

3 Examples 1) 2) 120° x x + 90 = 120 x = 30 2x + 3 + 15 = 5x - 60 2x + 18 = 5x – 60 18 = 3x – 60 78 = 3x 26 = x

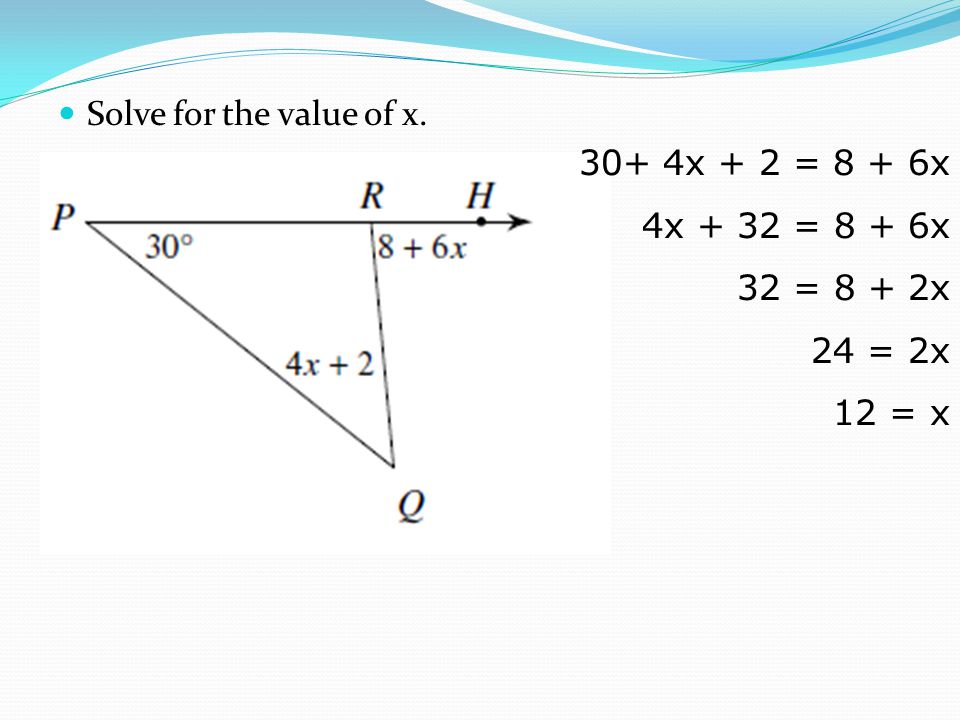

4 Solve for the value of x. 30+ 4x + 2 = 8 + 6x 4x + 32 = 8 + 6x 32 = 8 + 2x 24 = 2x 12 = x
