1. Advanced GIS Using ESRI ArcGIS 9.3 ADVANCED VISUALIZATION

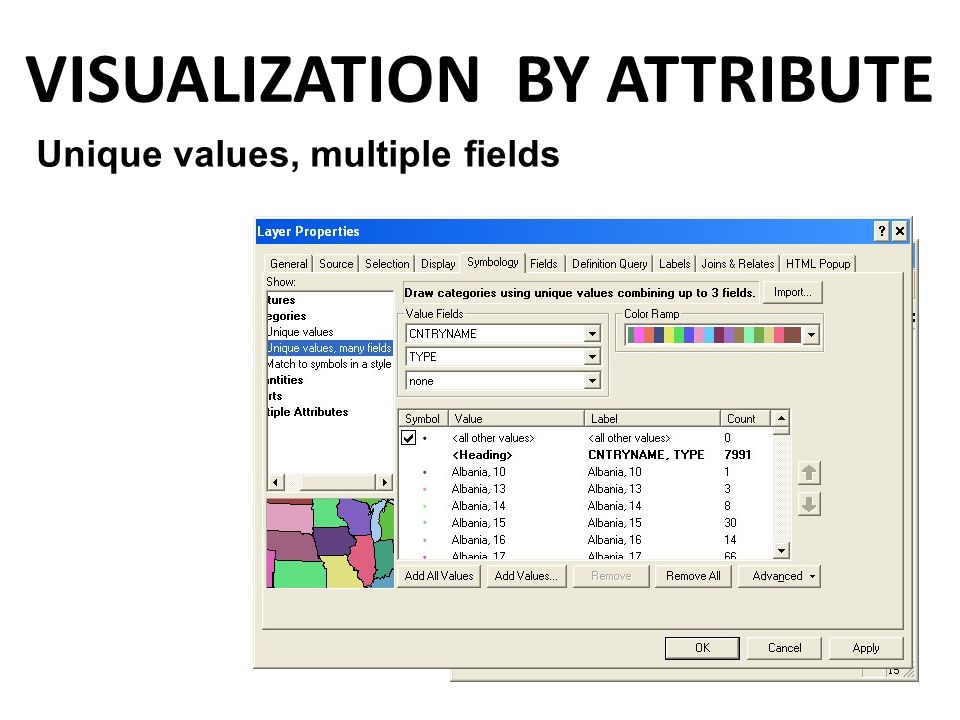

2. VISUALIZATION BY ATTRIBUTE Unique values, multiple fields

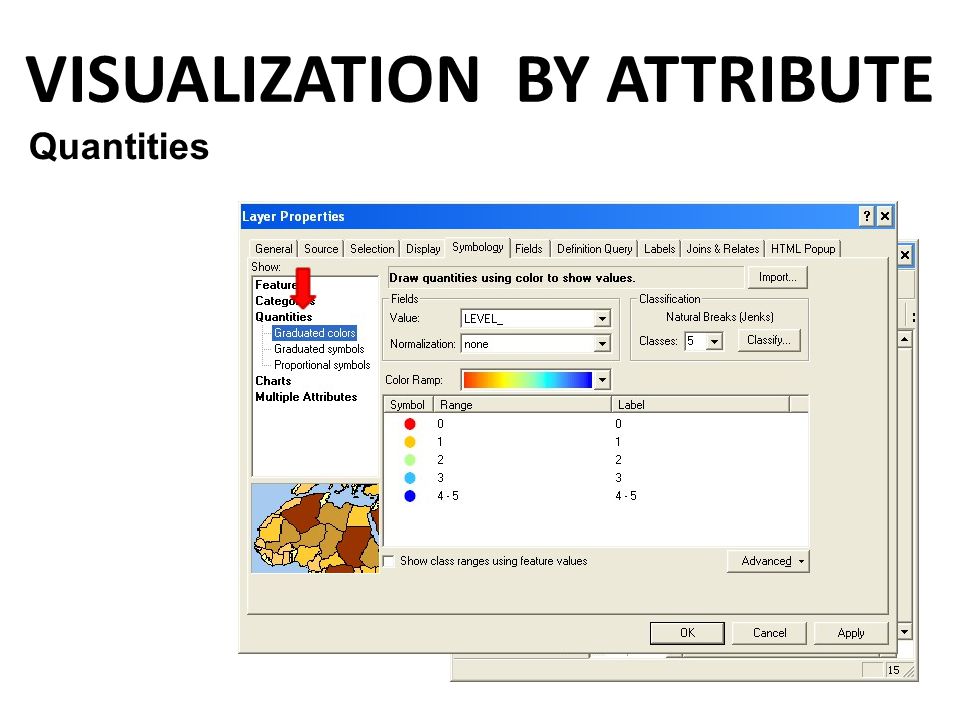

3. VISUALIZATION BY ATTRIBUTE Quantities

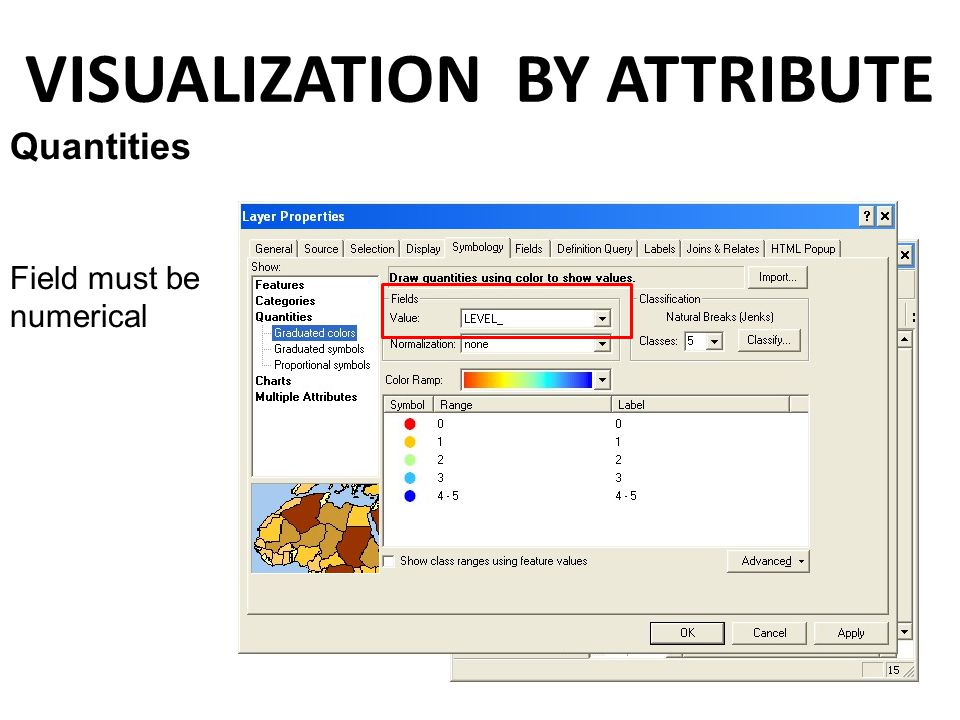

4. VISUALIZATION BY ATTRIBUTE Quantities Field must be numerical

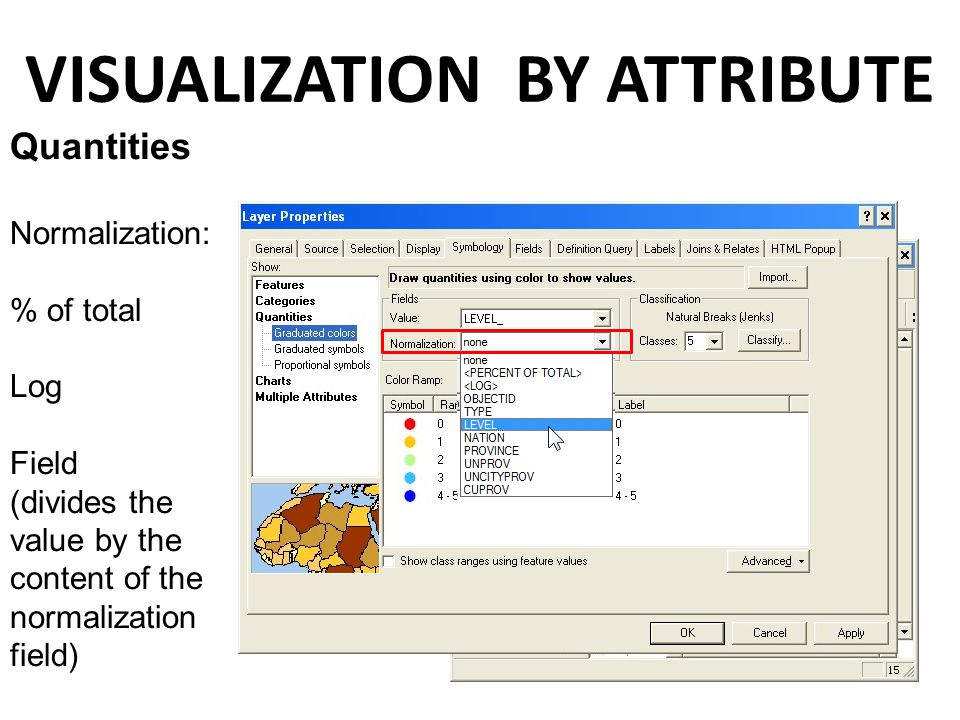

5. VISUALIZATION BY ATTRIBUTE Quantities Normalization: % of total Log Field (divides the value by the content of the normalization field)

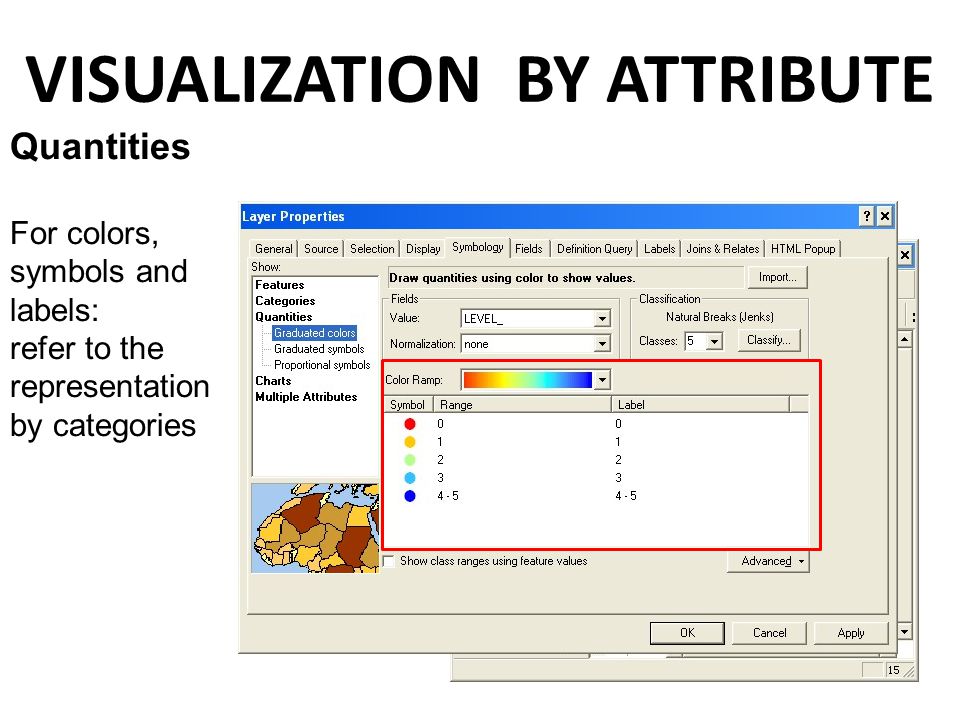

6. VISUALIZATION BY ATTRIBUTE Quantities For colors, symbols and labels: refer to the representation by categories

7. VISUALIZATION BY ATTRIBUTE Quantities Number of classes

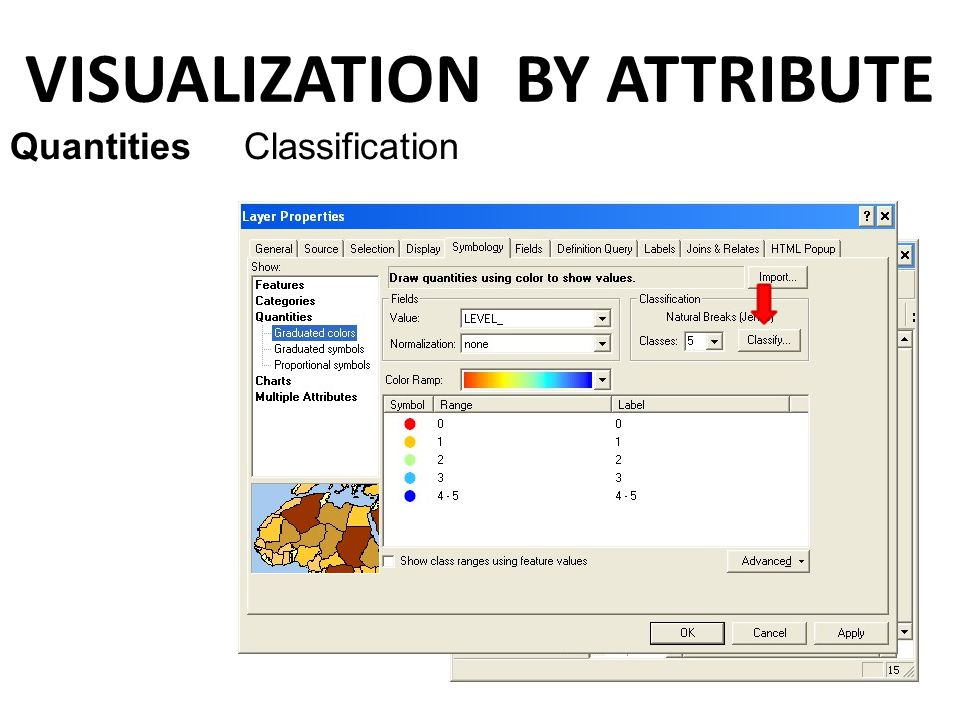

8. VISUALIZATION BY ATTRIBUTE Quantities Classification

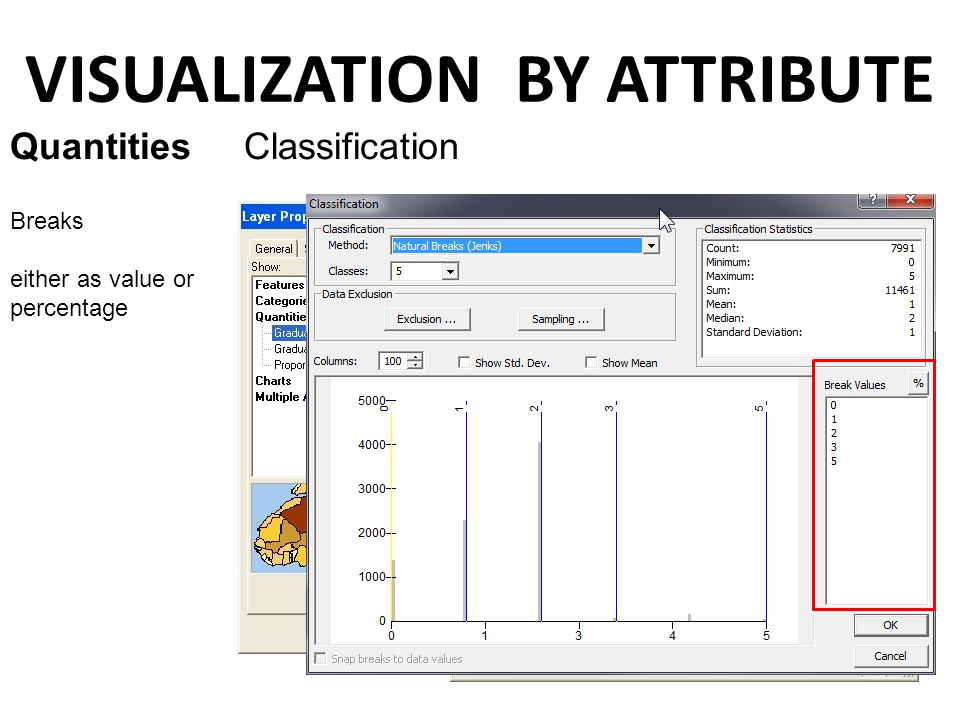

9. VISUALIZATION BY ATTRIBUTE Quantities Classification Breaks either as value or percentage

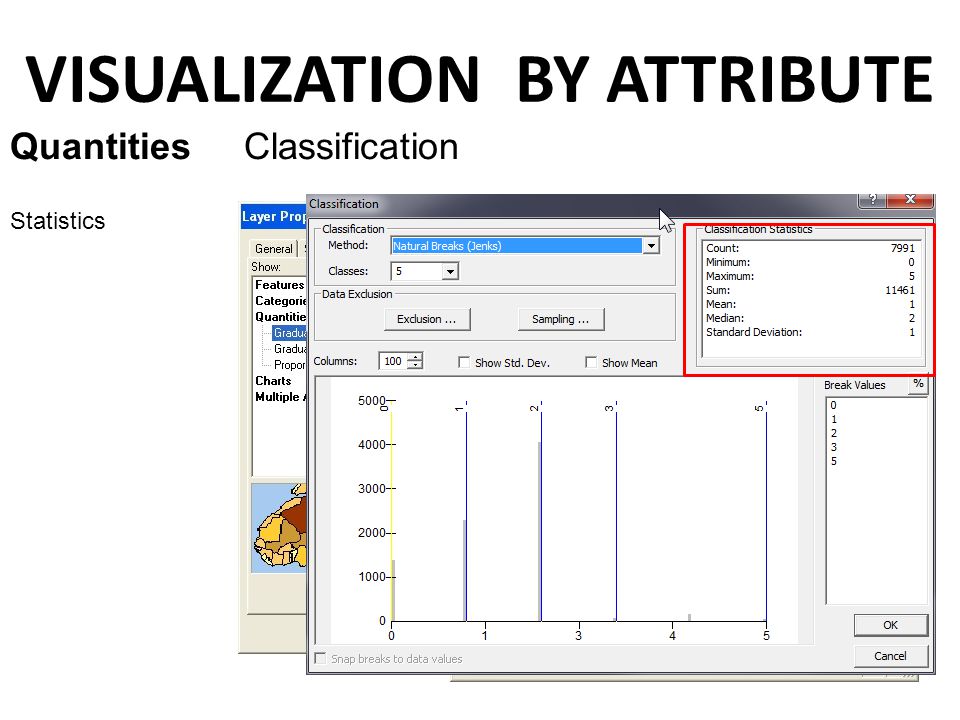

10. VISUALIZATION BY ATTRIBUTE Quantities Classification Statistics

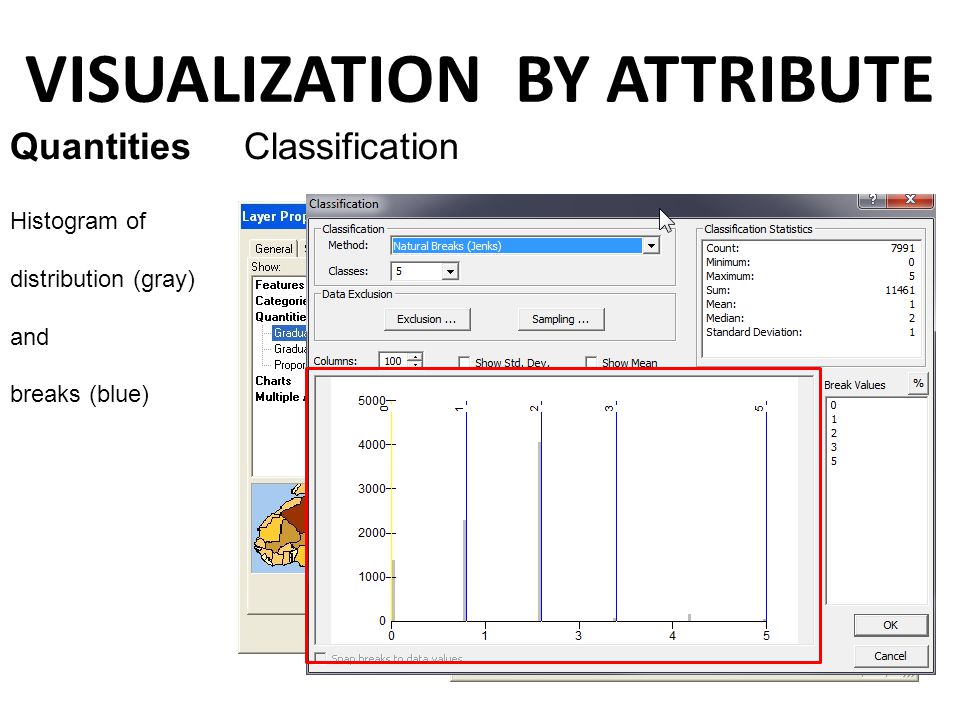

11. VISUALIZATION BY ATTRIBUTE Quantities Classification Histogram of distribution (gray) and breaks (blue)

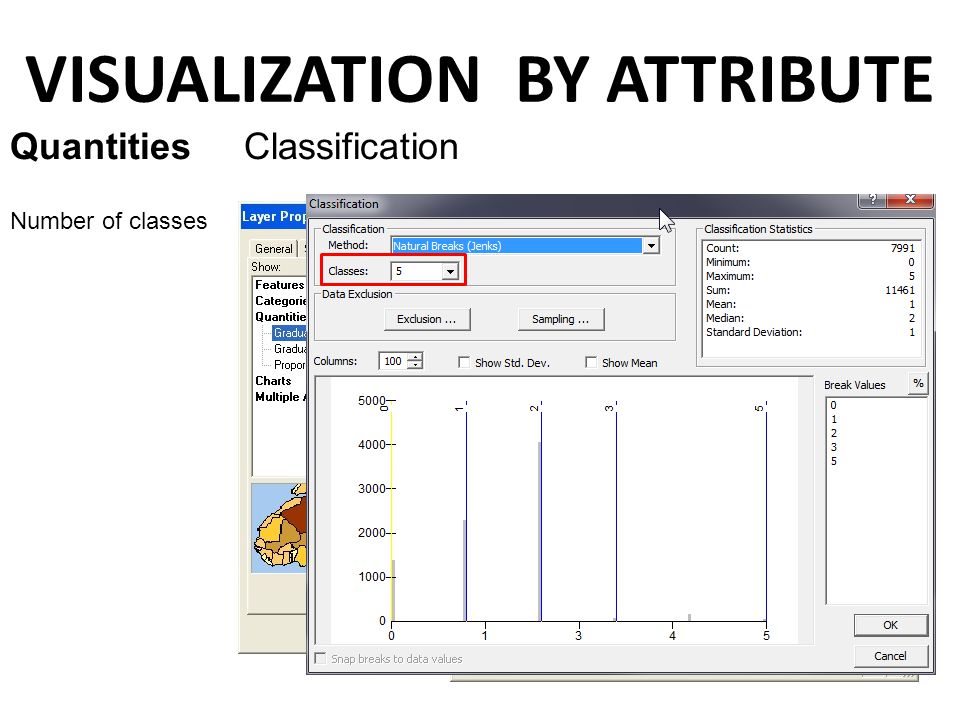

12. VISUALIZATION BY ATTRIBUTE Quantities Classification Number of classes

13. VISUALIZATION BY ATTRIBUTE Quantities Classification Method: Natural Breaks follows natural grouping and tries to optimize groups making them as equally large as possible (default method)

14. VISUALIZATION BY ATTRIBUTE Quantities Classification Method: Equal interval Divides the whole interval in n (where n is the number of classes) equally wide portions

15. VISUALIZATION BY ATTRIBUTE Quantities Classification Method: Defined interval Divides the whole interval in n portions of defined width (interval size)

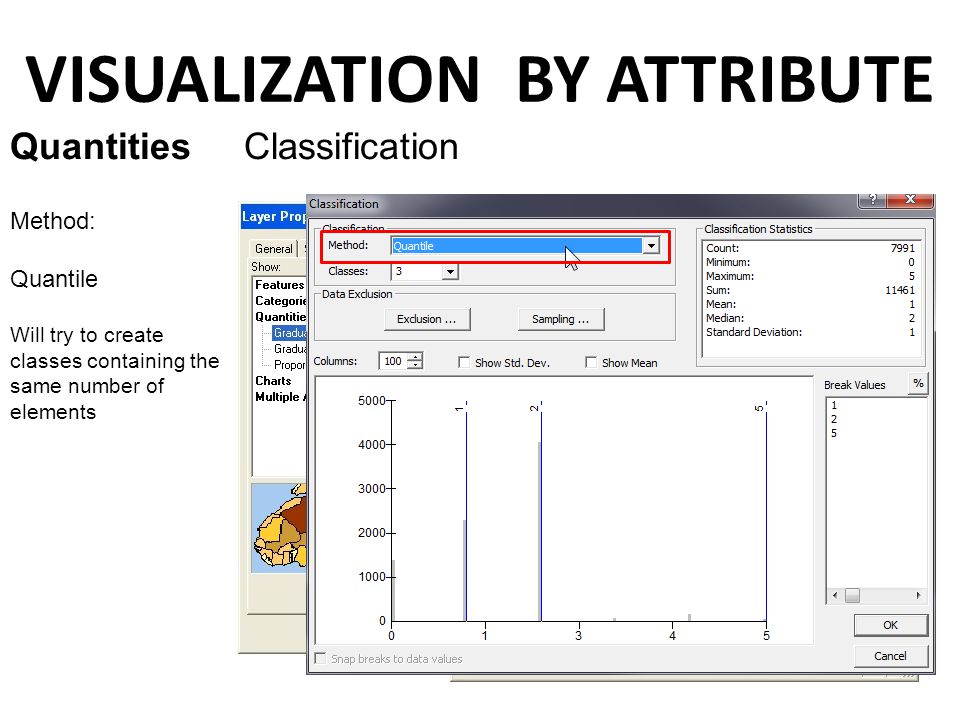

16. VISUALIZATION BY ATTRIBUTE Quantities Classification Method: Quantile Will try to create classes containing the same number of elements

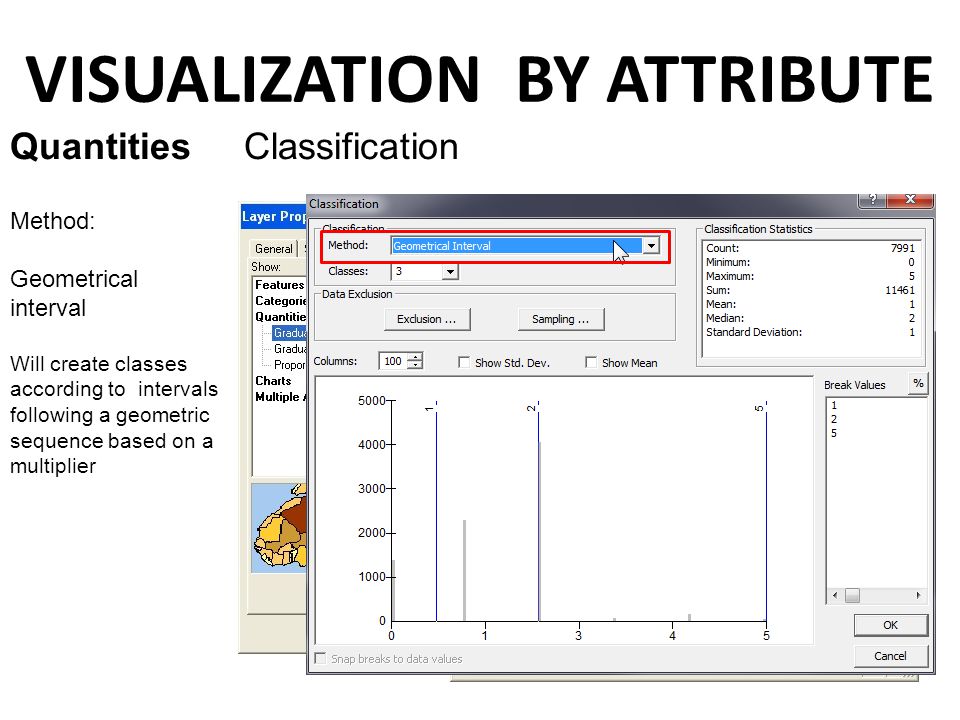

17. VISUALIZATION BY ATTRIBUTE Quantities Classification Method: Geometrical interval Will create classes according to intervals following a geometric sequence based on a multiplier

18. VISUALIZATION BY ATTRIBUTE Quantities Classification Method: Standard deviation Will create classes including a given a percentage of the standard deviation

19. VISUALIZATION BY ATTRIBUTE Quantities Classification Method: Manual After having choosen the number of classes, you can freely set the breaks manually simply typing them in the list to the right…

20. VISUALIZATION BY ATTRIBUTE Quantities Classification Method: Manual … or dragging and dropping the break line in the graph

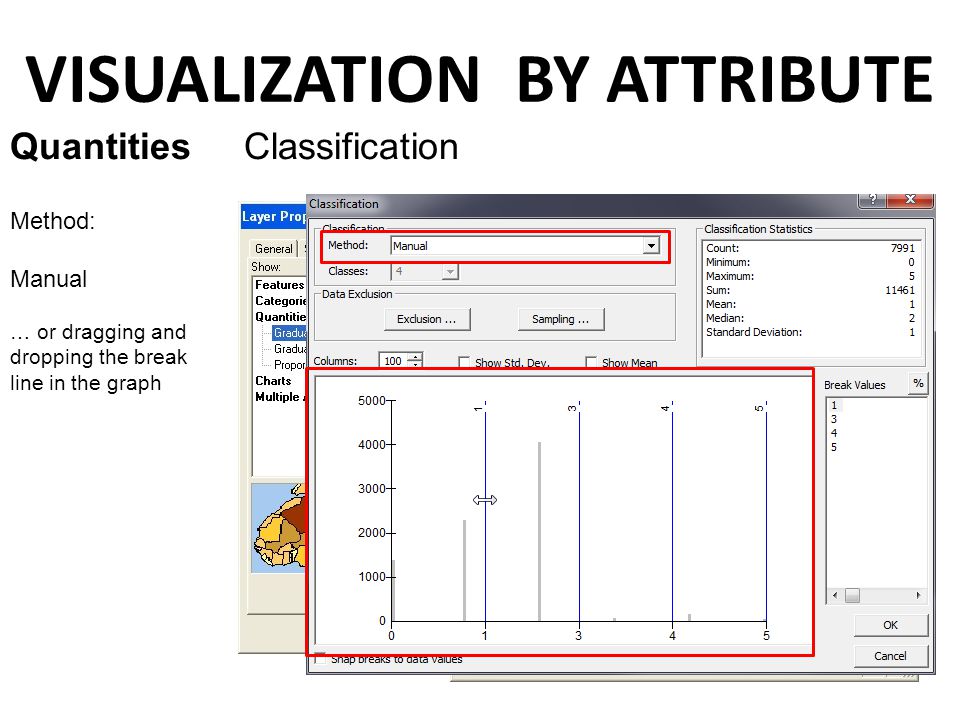

21. VISUALIZATION BY ATTRIBUTE Quantities Classification Method: Manual … or dragging and dropping the break line in the graph

22. VISUALIZATION BY ATTRIBUTE Quantities Classification With every method, you can exclude selected items fron the representation. Data exclusion requires knowledges that will be discussed later…

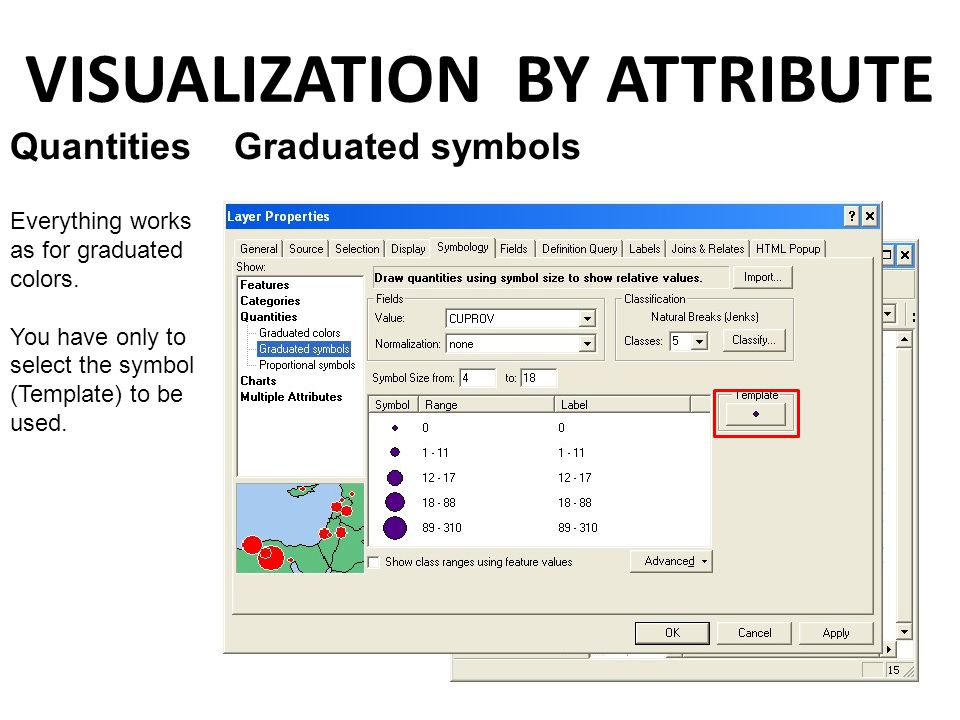

23. VISUALIZATION BY ATTRIBUTE Quantities Graduated symbols Everything works as for graduated colors. You have only to select the symbol (Template) to be used.

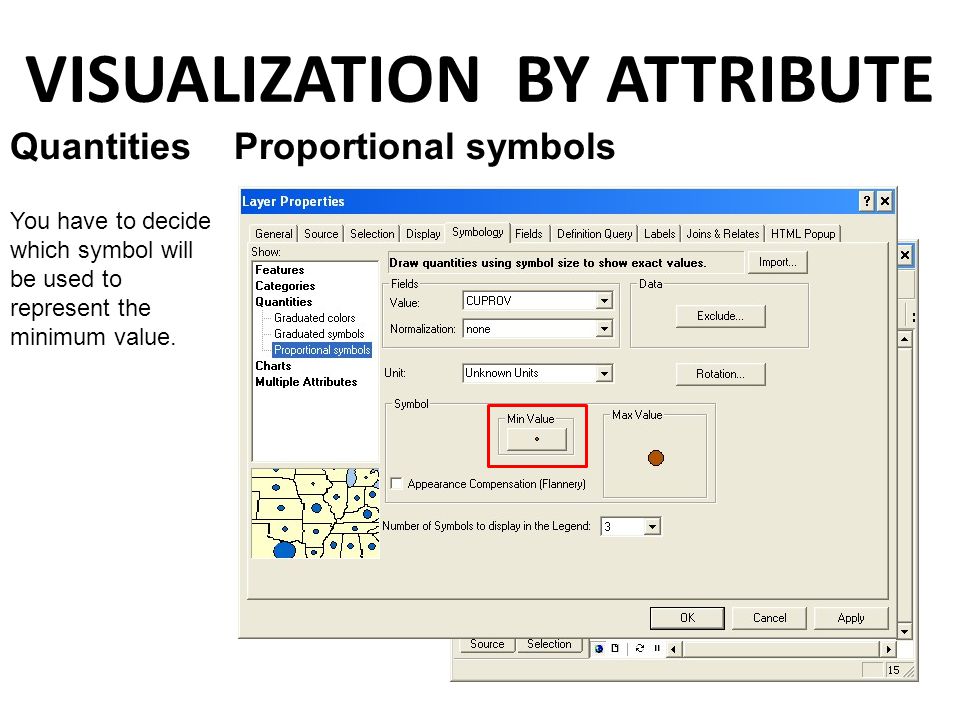

24. VISUALIZATION BY ATTRIBUTE Quantities Proportional symbols You have to decide which symbol will be used to represent the minimum value.

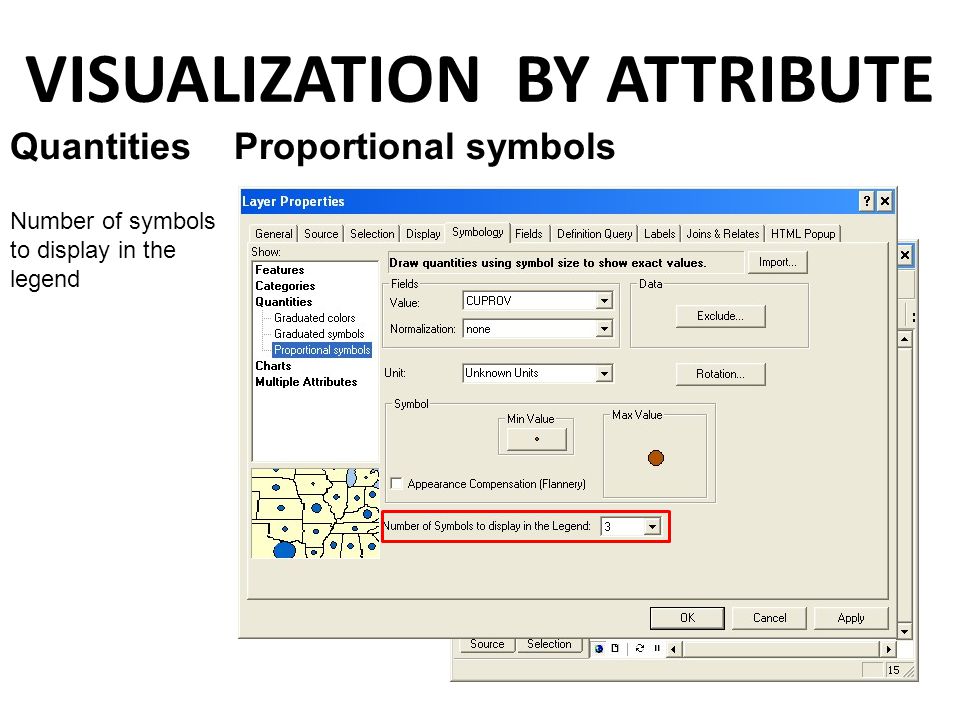

25. VISUALIZATION BY ATTRIBUTE Quantities Proportional symbols Number of symbols to display in the legend

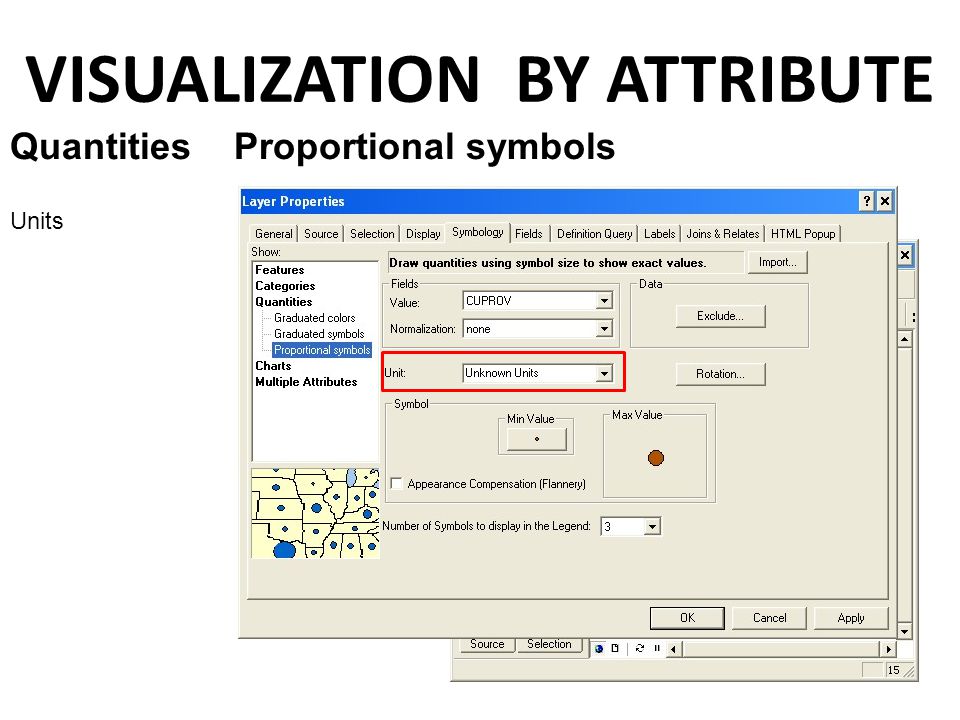

26. VISUALIZATION BY ATTRIBUTE Quantities Proportional symbols Units

27. VISUALIZATION BY ATTRIBUTE Quantities Proportional symbols Rotation

28. VISUALIZATION BY ATTRIBUTE Charts Pie Select the fields containing the values to be plotted and the representation

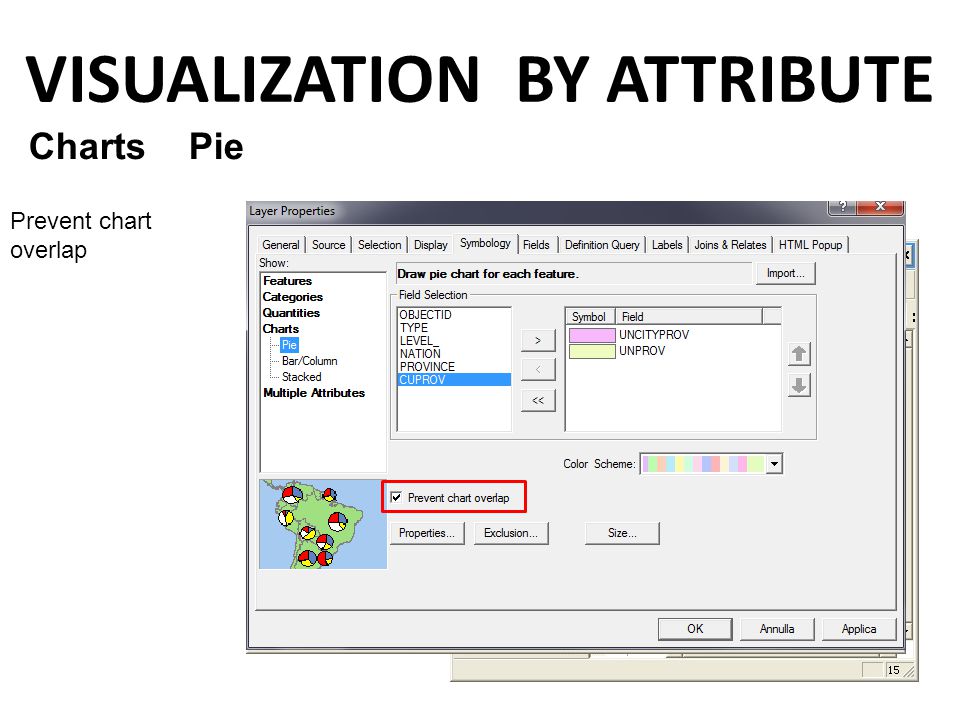

29. VISUALIZATION BY ATTRIBUTE Charts Pie Prevent chart overlap

30. VISUALIZATION BY ATTRIBUTE Charts Pie Size

31. VISUALIZATION BY ATTRIBUTE Charts Pie Size Variation type

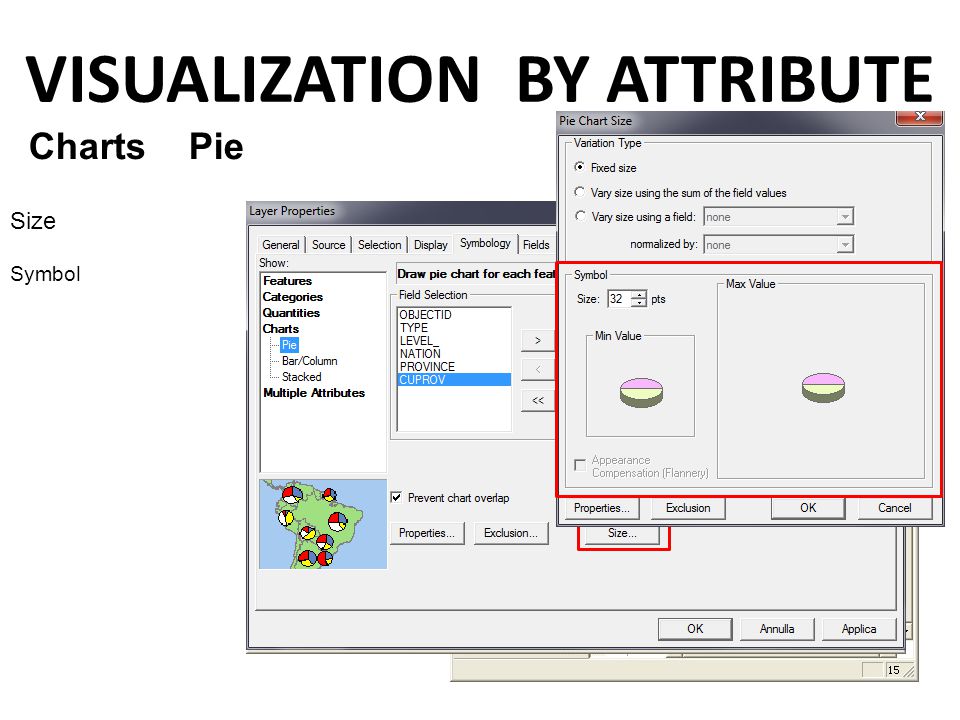

32. VISUALIZATION BY ATTRIBUTE Charts Pie Size Symbol

33. VISUALIZATION BY ATTRIBUTE Charts Pie Properties

34. VISUALIZATION BY ATTRIBUTE Charts Pie Properties Orientation

35. VISUALIZATION BY ATTRIBUTE Charts Pie Properties Orientation

36. VISUALIZATION BY ATTRIBUTE Charts Pie Properties 3D display

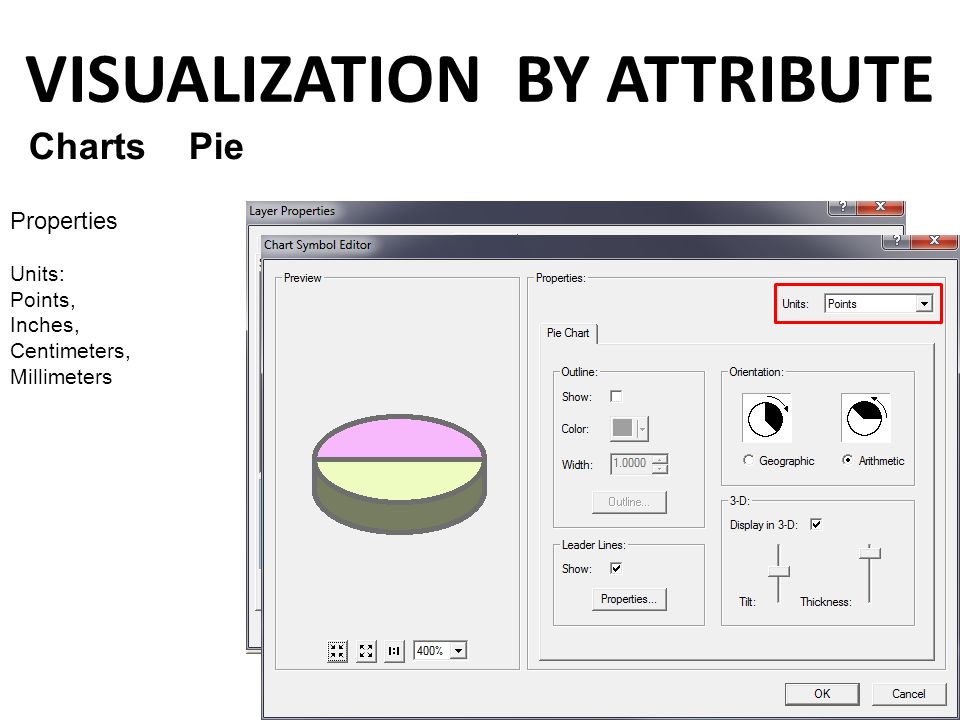

37. VISUALIZATION BY ATTRIBUTE Charts Pie Properties Units: Points, Inches, Centimeters, Millimeters

38. VISUALIZATION BY ATTRIBUTE Charts Pie Properties Leader lines: lines connecting the chart to the feature

39. VISUALIZATION BY ATTRIBUTE Charts Pie Properties Leader lines: lines connecting the chart to the feature

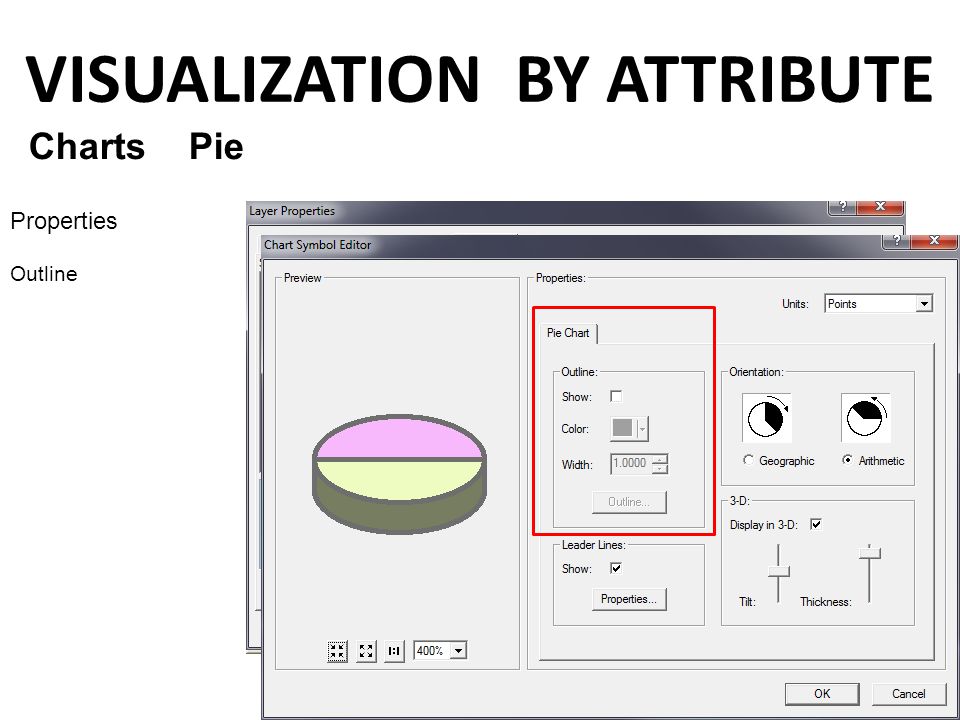

40. VISUALIZATION BY ATTRIBUTE Charts Pie Properties Outline

41. VISUALIZATION BY ATTRIBUTE Charts Histogram

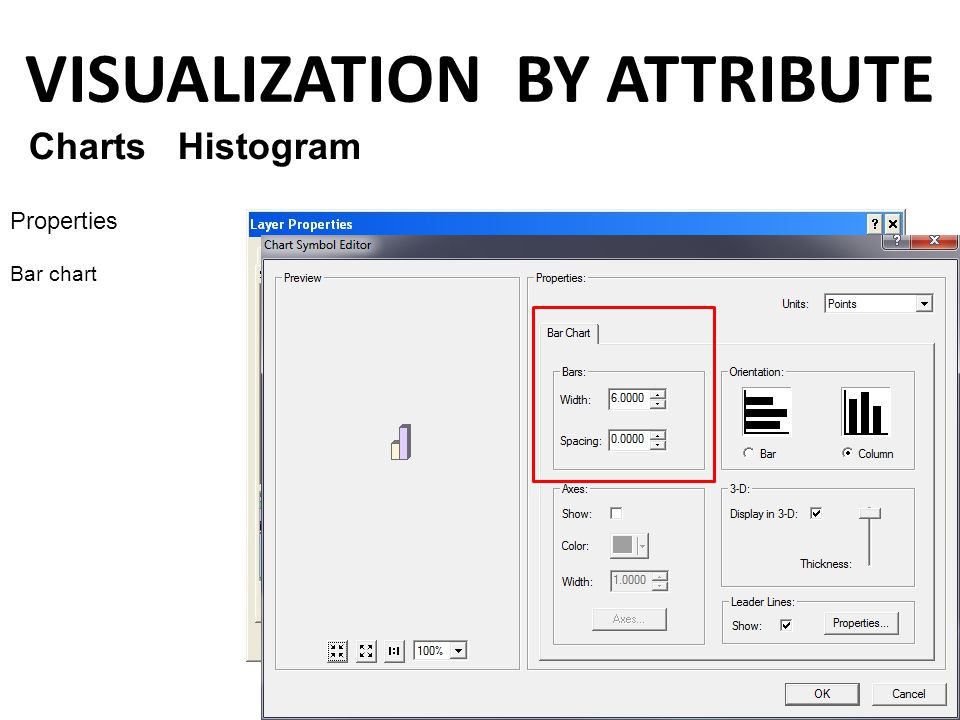

42. VISUALIZATION BY ATTRIBUTE Charts Histogram Properties Bar chart

43. VISUALIZATION BY ATTRIBUTE Charts Histogram Properties Orientation

44. VISUALIZATION BY ATTRIBUTE Charts Histogram Properties Axes

45. VISUALIZATION BY ATTRIBUTE Charts Histogram Properties 3D

46. VISUALIZATION BY ATTRIBUTE Charts Stacked

47. VISUALIZATION BY ATTRIBUTE Charts Stacked Properties Bar width

48. VISUALIZATION BY ATTRIBUTE Charts Stacked Properties Bar width

49. VISUALIZATION BY ATTRIBUTE Charts Stacked Properties Orientation

50. VISUALIZATION BY ATTRIBUTE Multiple attributes Variation by: Color ramp, Symbol size

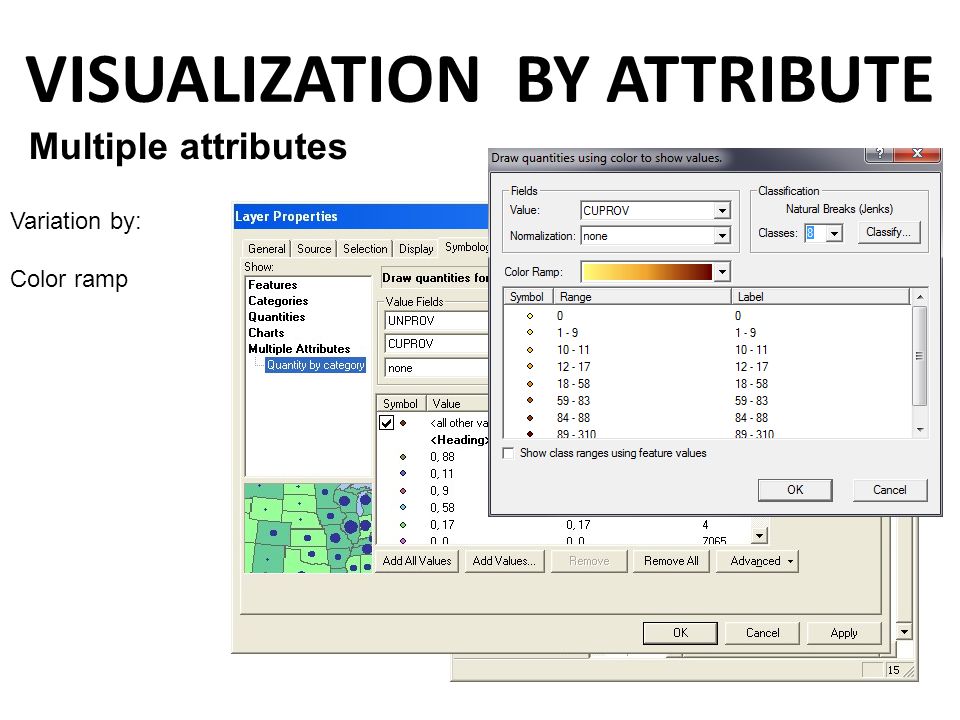

51. VISUALIZATION BY ATTRIBUTE Multiple attributes Variation by: Color ramp

52. VISUALIZATION BY ATTRIBUTE Multiple attributes Variation by: Symbol size
