1. 1 Overview of Image Retrieval Hui-Ying Wang

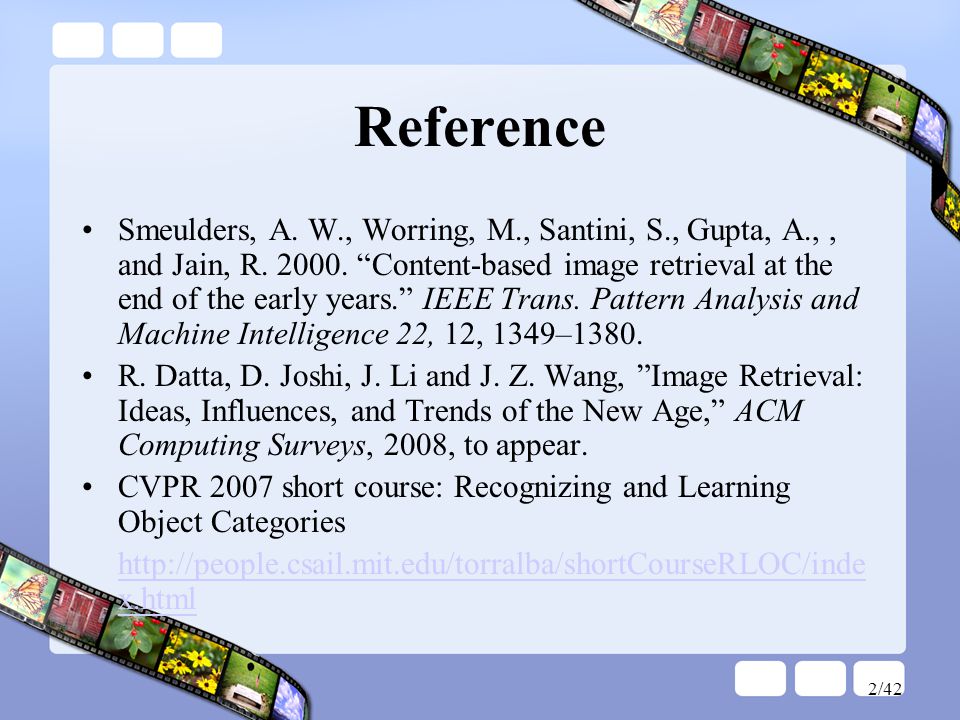

2. 2/42 Reference Smeulders, A. W., Worring, M., Santini, S., Gupta, A.,, and Jain, R. 2000. “Content-based image retrieval at the end of the early years.” IEEE Trans. Pattern Analysis and Machine Intelligence 22, 12, 1349–1380. R. Datta, D. Joshi, J. Li and J. Z. Wang, ”Image Retrieval: Ideas, Influences, and Trends of the New Age,” ACM Computing Surveys, 2008, to appear. CVPR 2007 short course: Recognizing and Learning Object Categories http://people.csail.mit.edu/torralba/shortCourseRLOC/inde x.html

3. 3/42 Outline Motive Academic and real world Difficulties and problem model Evaluation metrics

4. 4/42 Outline Motive Academic and real world Difficulties and problem model Evaluation metrics

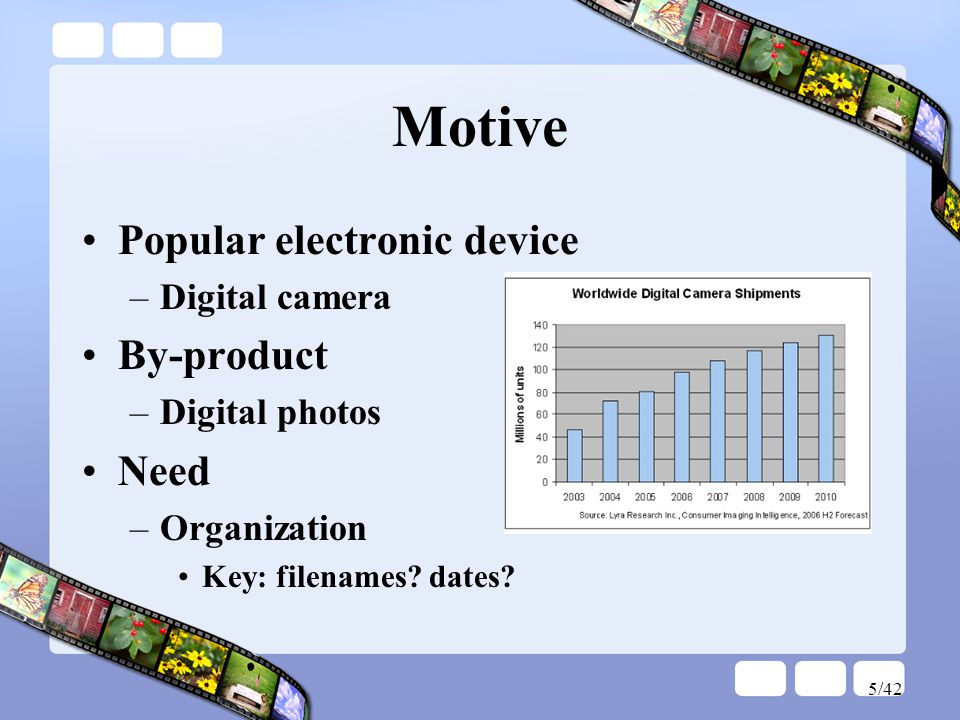

5. 5/42 Motive Popular electronic device –Digital camera By-product –Digital photos Need –Organization Key: filenames? dates?

6. 6/42 Outline Motive Academic and real world Difficulties and problem model Evaluation metrics

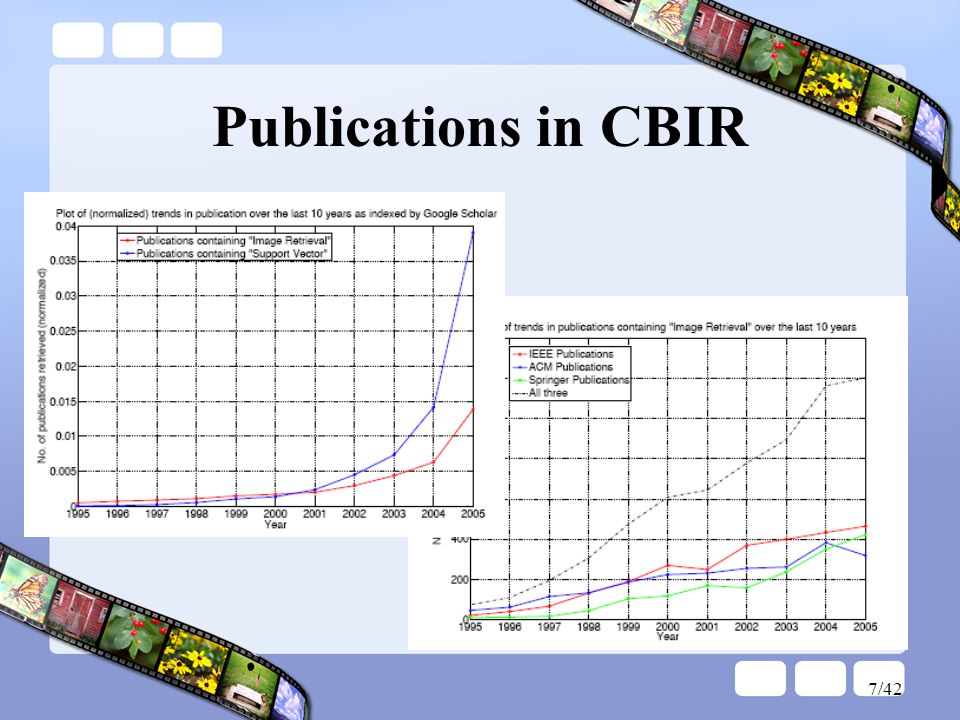

7. 7/42 Publications in CBIR

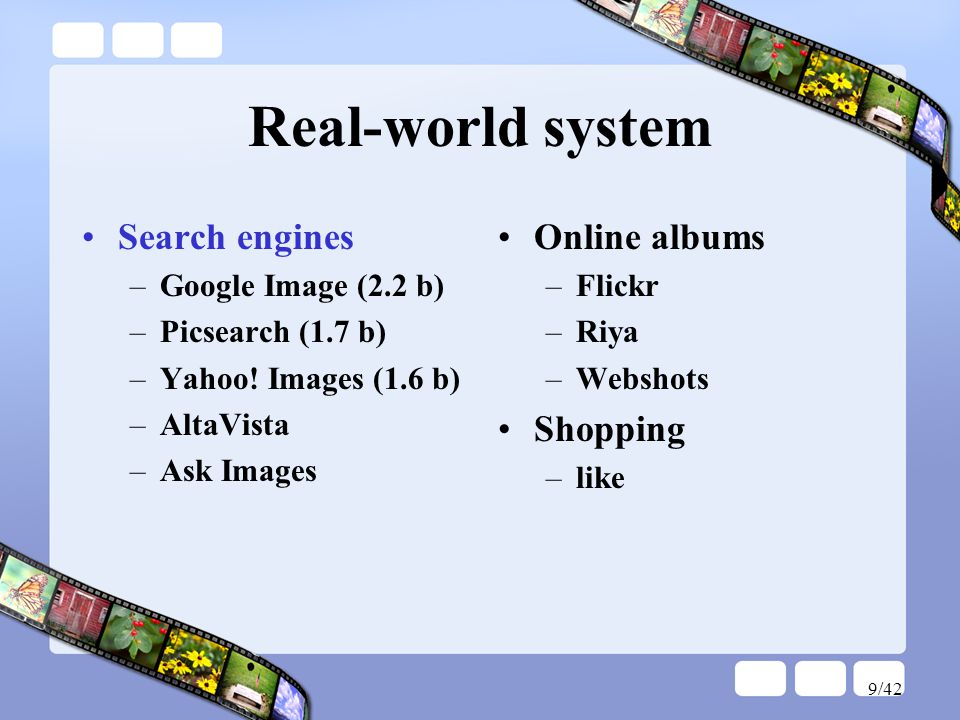

8. 8/42 Real-world system Search engines –Google Image (2.2 b) –Picsearch (1.7 b) –Yahoo! Images (1.6 b) –AltaVista –Ask Images Online albums –Flickr –Riya –Webshots Shopping –like

9. 9/42 Real-world system Search engines –Google Image (2.2 b) –Picsearch (1.7 b) –Yahoo! Images (1.6 b) –AltaVista –Ask Images Online albums –Flickr –Riya –Webshots Shopping –like

10. 10/42 Google Images

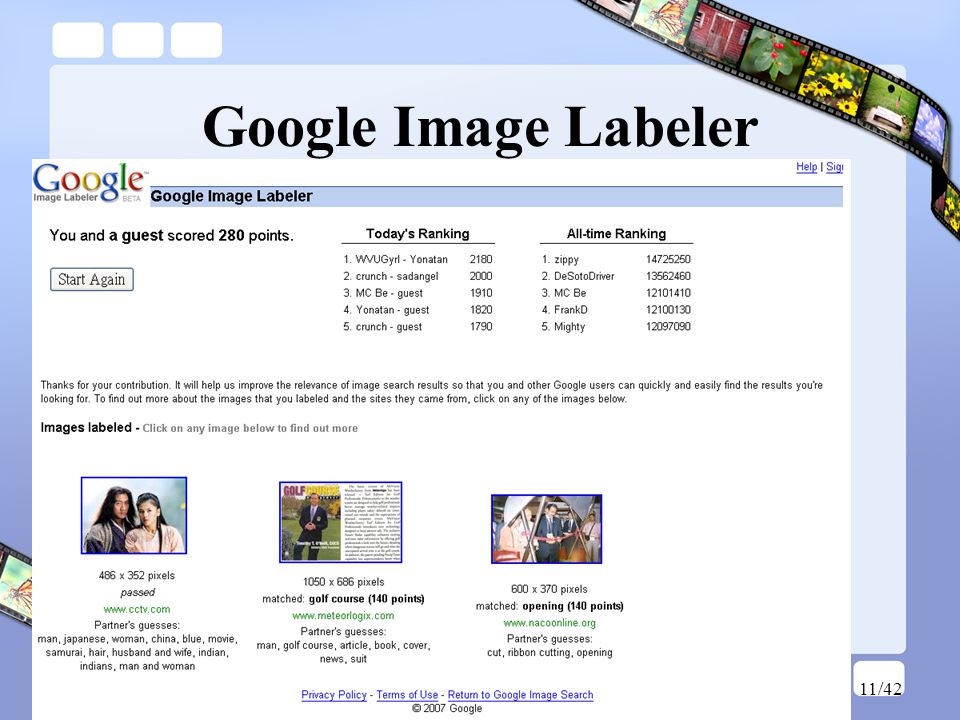

11. 11/42 Google Image Labeler

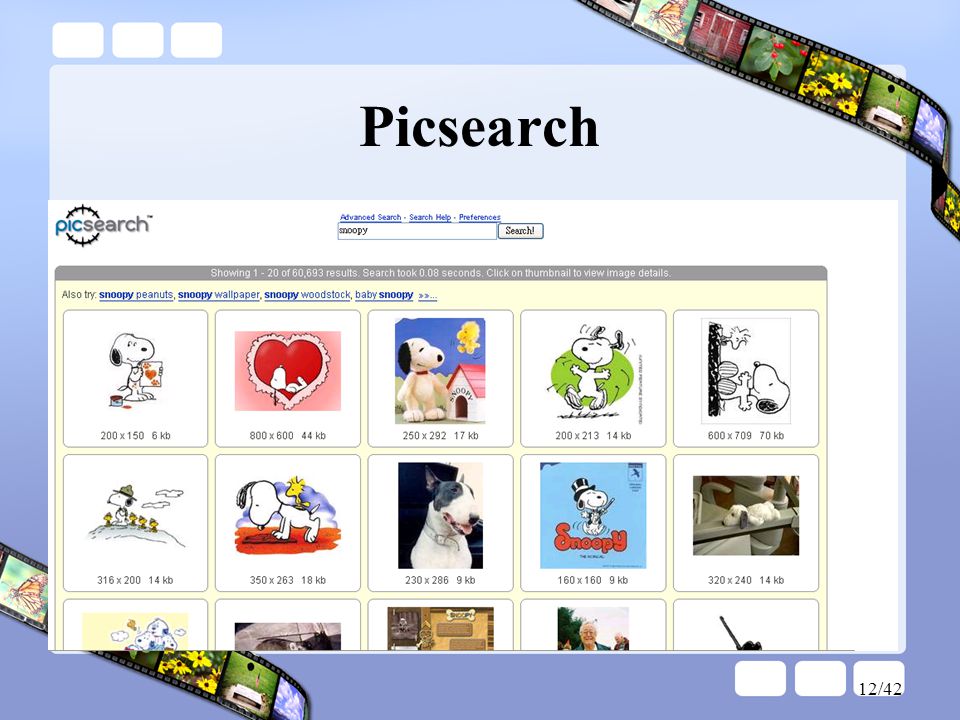

12. 12/42 Picsearch

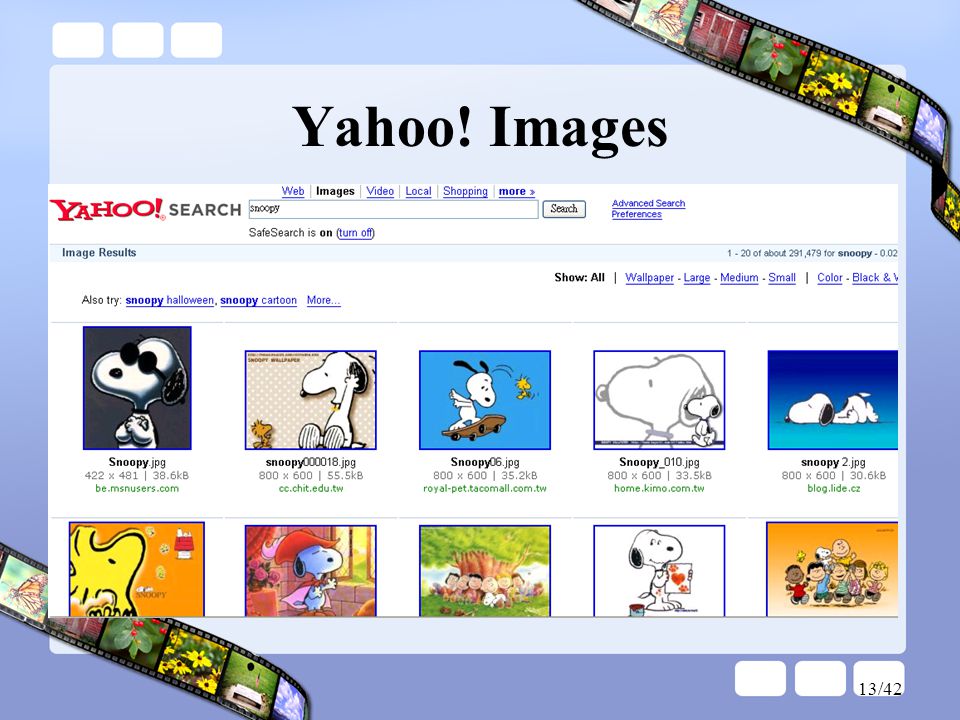

13. 13/42 Yahoo! Images

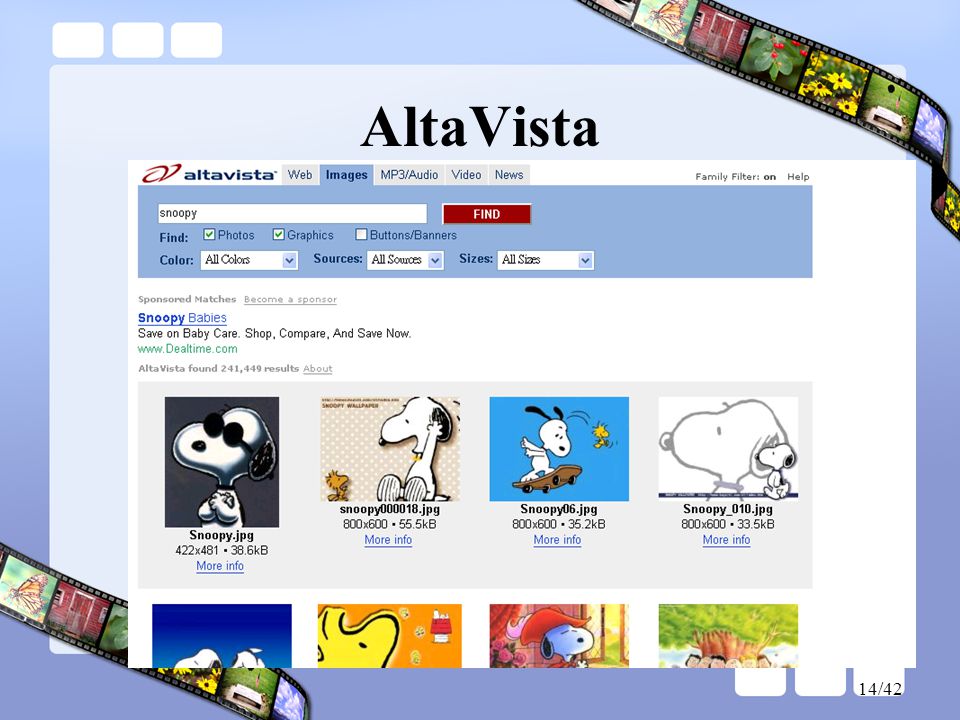

14. 14/42 AltaVista

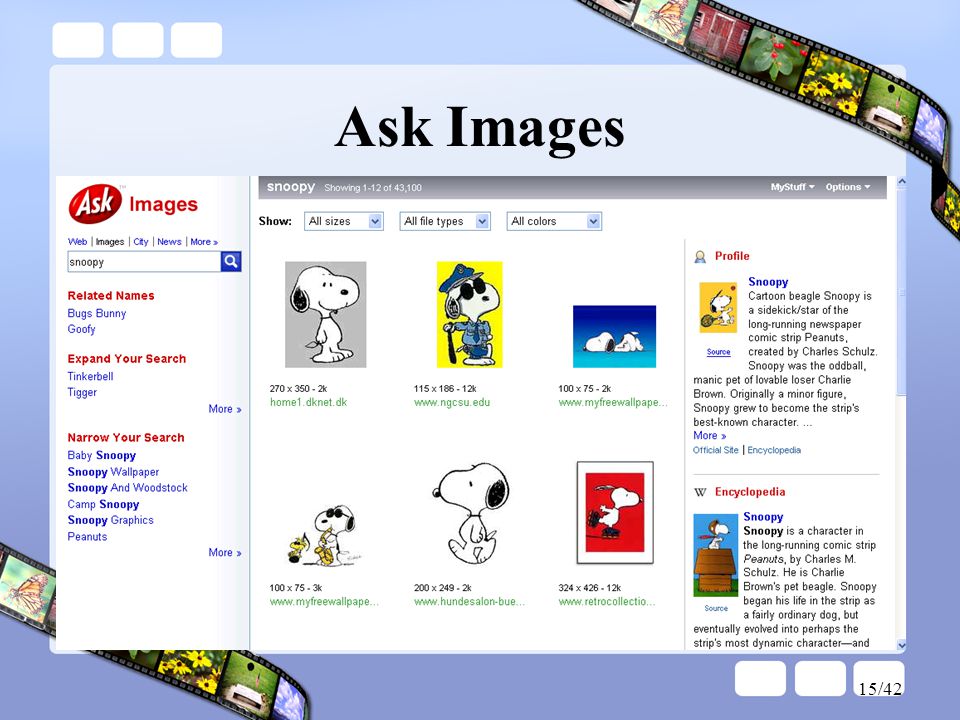

15. 15/42 Ask Images

16. 16/42 Real-world system Search engines –Google Image (2.2 b) –Picsearch (1.7 b) –Yahoo! Images (1.6 b) –AltaVista –Ask Images Online albums –Flickr –Riya –Webshots Shopping –like

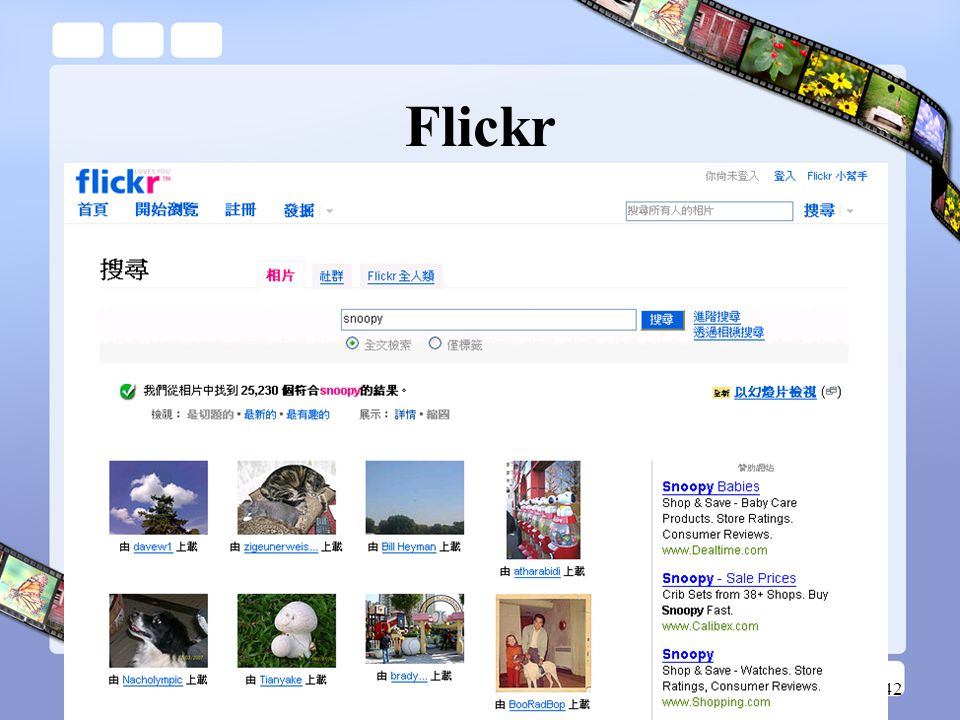

17. 17/42 Flickr

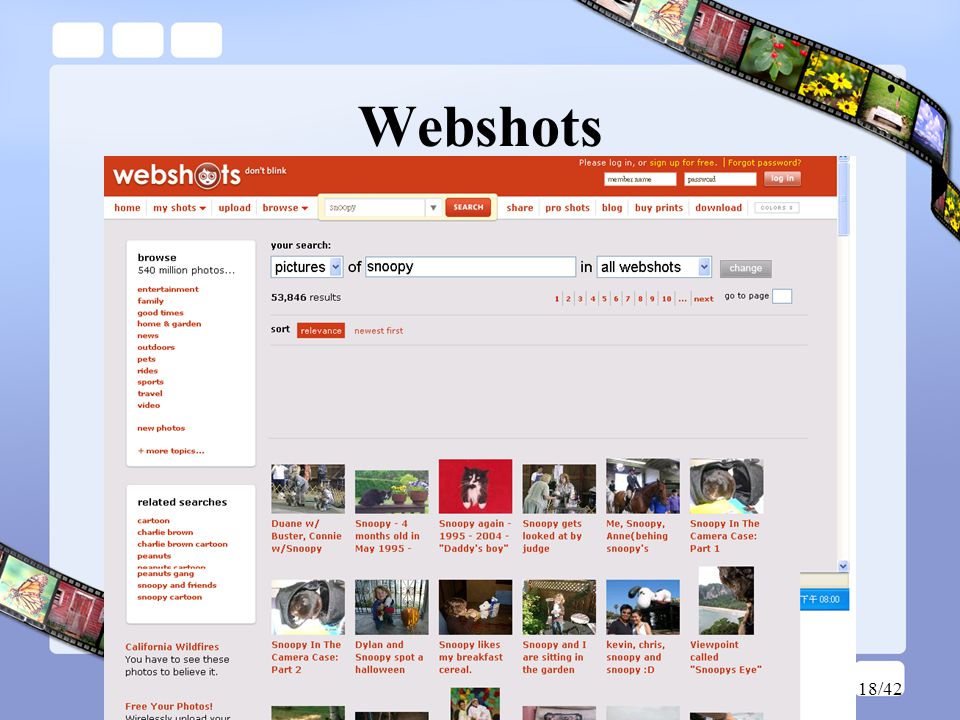

18. 18/42 Webshots

19. 19/42 Riya

20. 20/42 Real-world system Search engines –Google Image (2.2 b) –Picsearch (1.7 b) –Yahoo! Images (1.6 b) –AltaVista –Ask Images Online albums –Flickr –Riya –Webshots Shopping –like

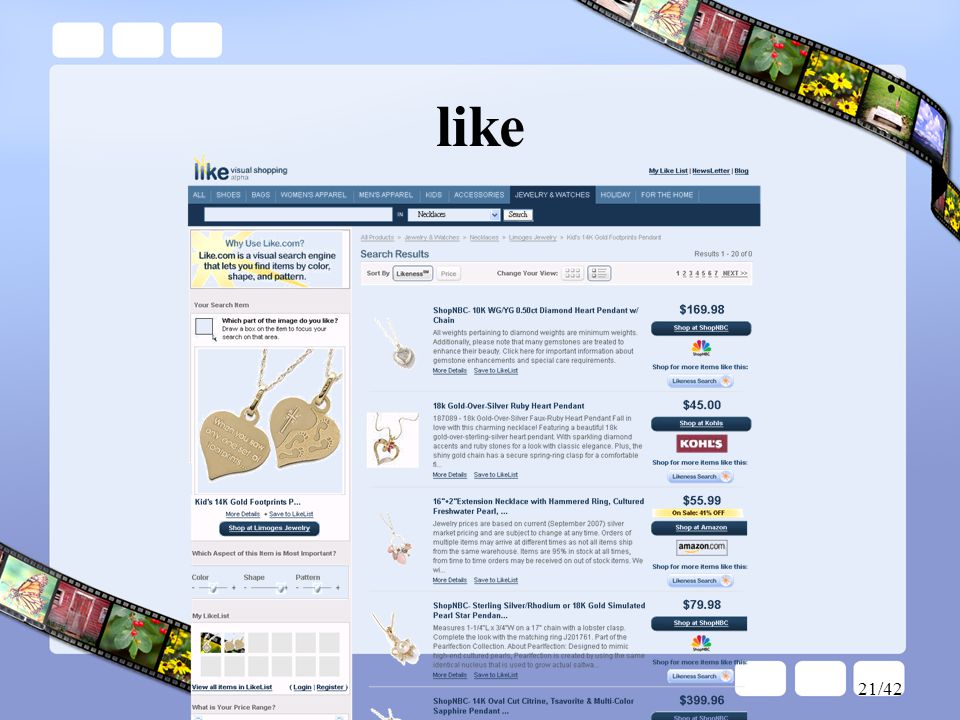

21. 21/42 like

22. 22/42 Outline Motive Academic and real world Difficulties and problem model Evaluation metrics

23. 23/42 Challenges view point variation scale illumination deformation occlusion

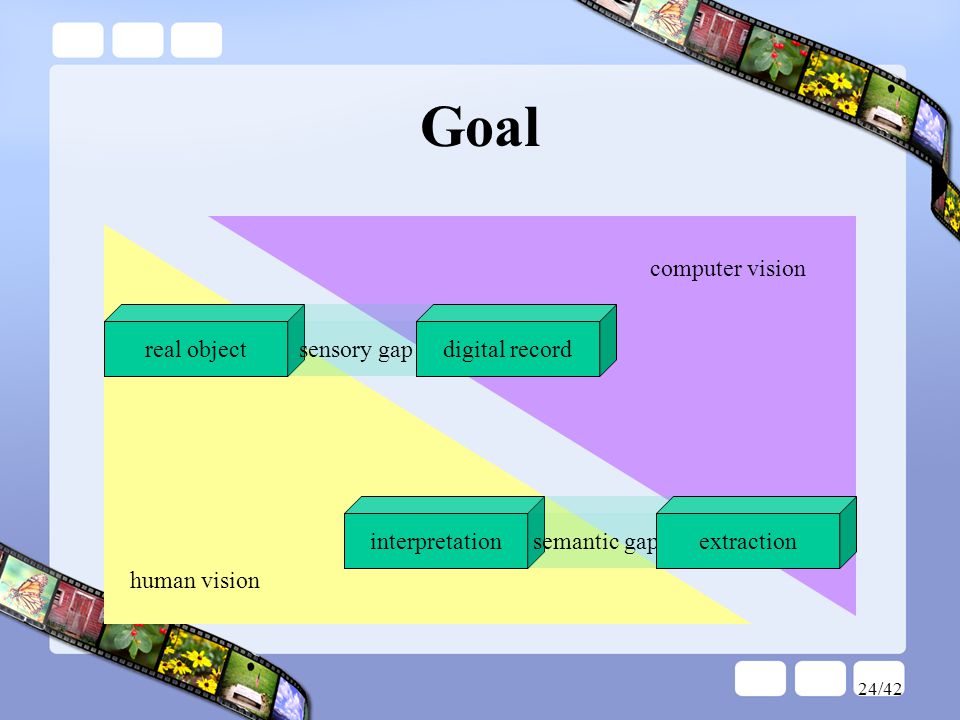

24. 24/42 Goal real object sensory gap digital record interpretation semantic gap extraction human vision computer vision

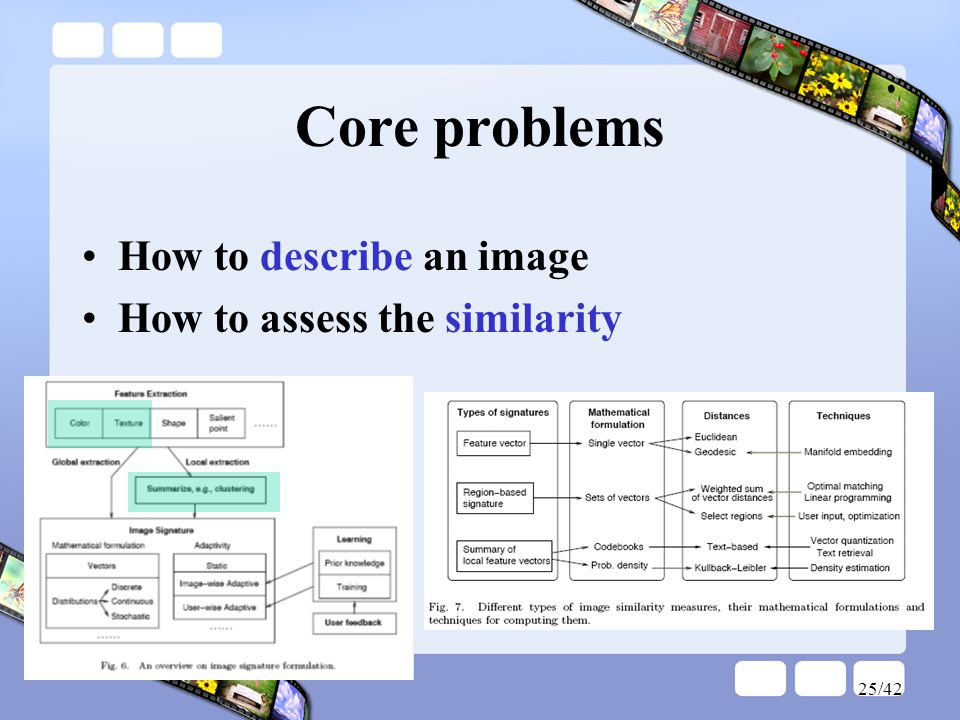

25. 25/42 Core problems How to describe an image How to assess the similarity

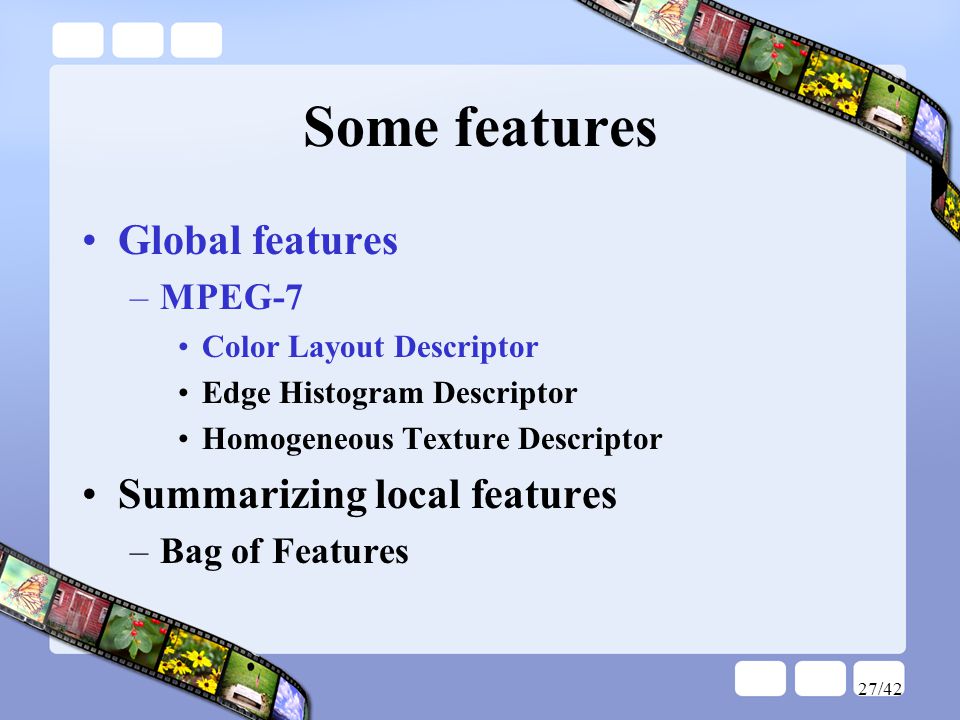

26. 26/42 Some features Global features –MPEG-7 Color Layout Descriptor Edge Histogram Descriptor Homogeneous Texture Descriptor Summarizing local features –Bag of Features

27. 27/42 Some features Global features –MPEG-7 Color Layout Descriptor Edge Histogram Descriptor Homogeneous Texture Descriptor Summarizing local features –Bag of Features

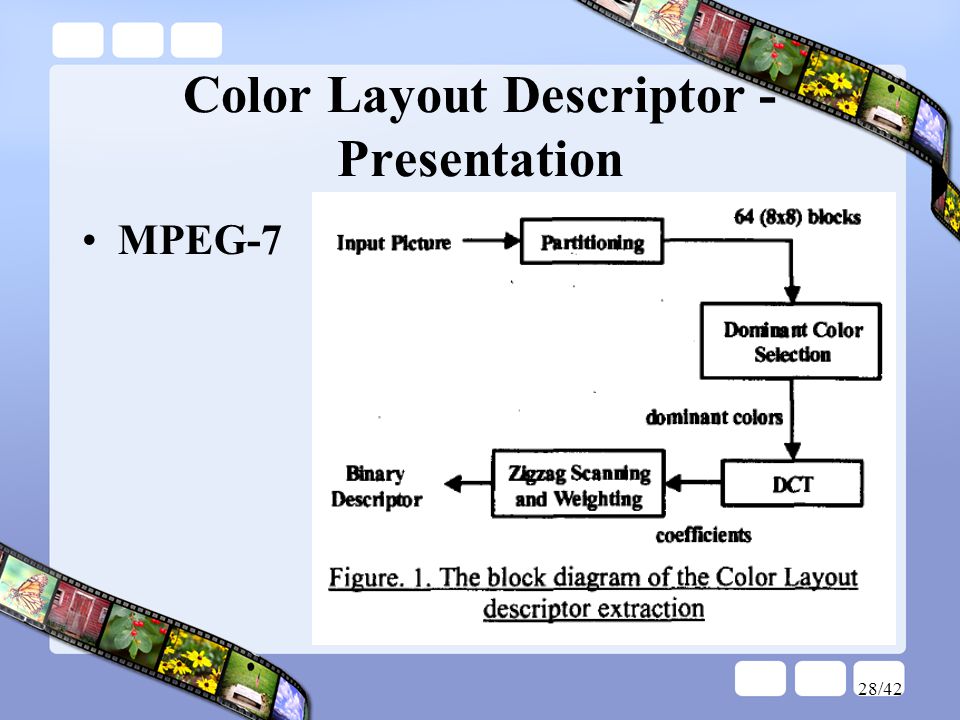

28. 28/42 Color Layout Descriptor - Presentation MPEG-7

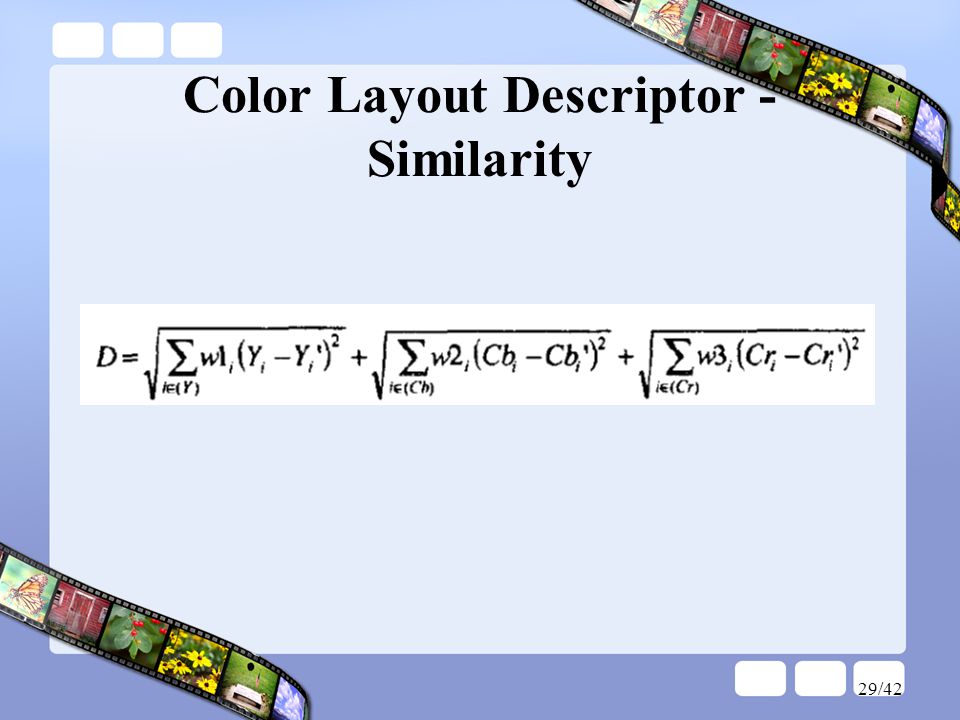

29. 29/42 Color Layout Descriptor - Similarity

30. 30/42 Some features Global features –MPEG-7 Color Layout Descriptor Edge Histogram Descriptor Homogeneous Texture Descriptor Summarizing local features –Bag of Features

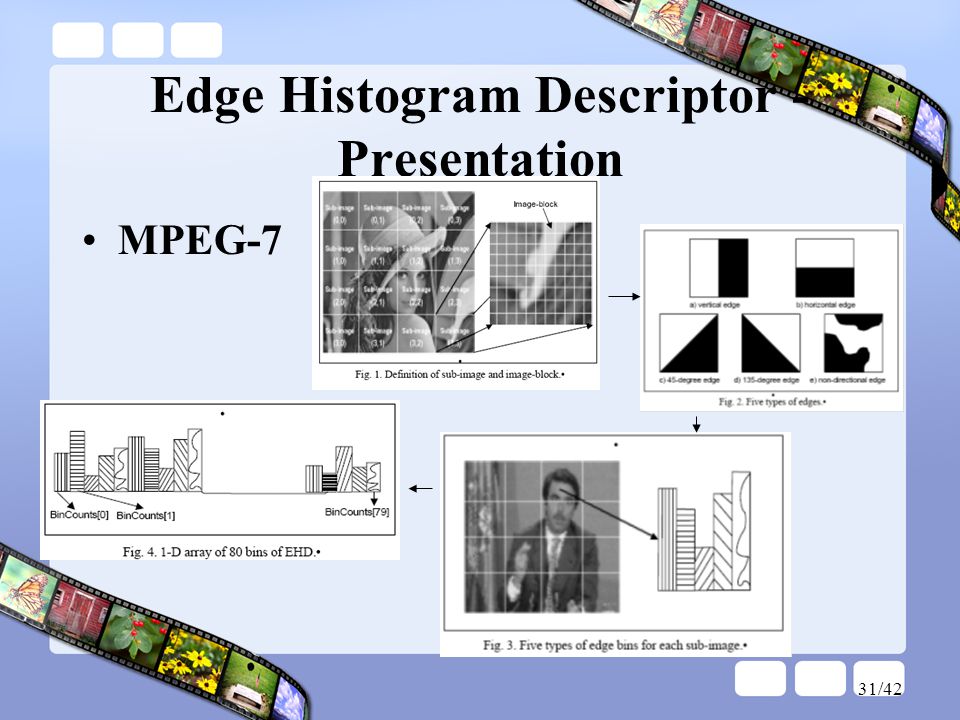

31. 31/42 Edge Histogram Descriptor - Presentation MPEG-7

32. 32/42 Edge Histogram Descriptor - Similarity

33. 33/42 Some features Global features –MPEG-7 Color Layout Descriptor Edge Histogram Descriptor Homogeneous Texture Descriptor Summarizing local features –Bag of Features

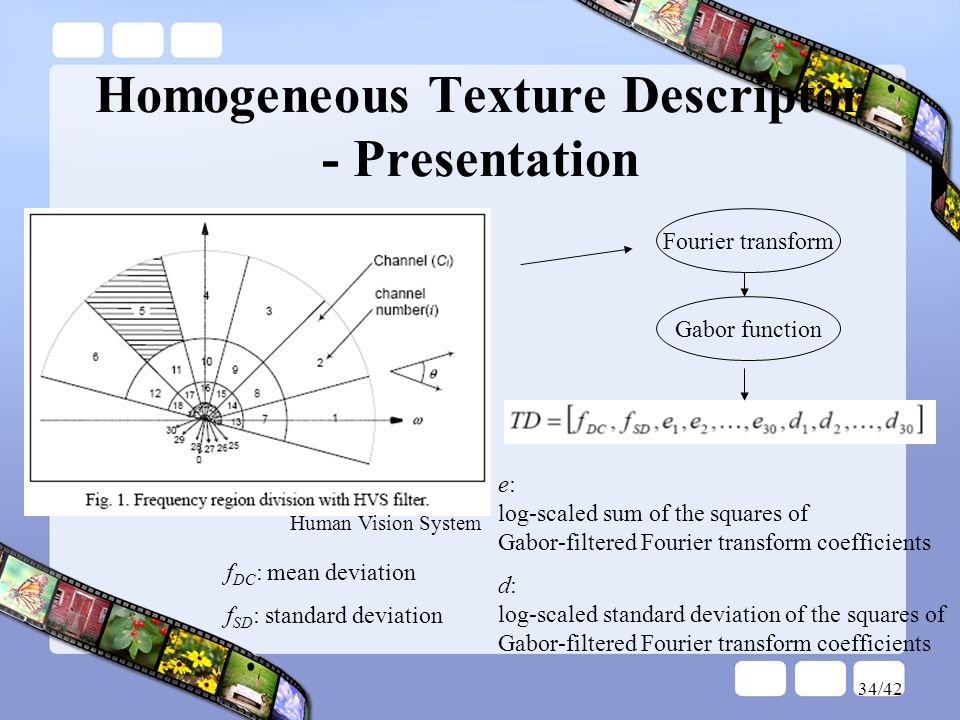

34. 34/42 Homogeneous Texture Descriptor - Presentation e: log-scaled sum of the squares of Gabor-filtered Fourier transform coefficients d: log-scaled standard deviation of the squares of Gabor-filtered Fourier transform coefficients Human Vision System Fourier transform Gabor function f DC : mean deviation f SD : standard deviation

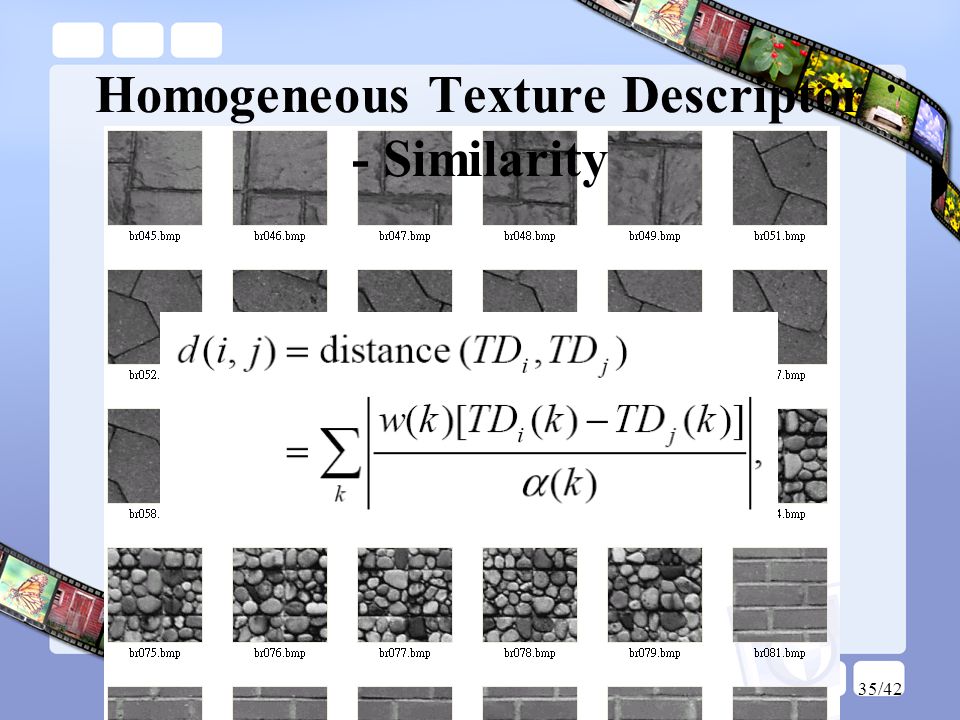

35. 35/42 Homogeneous Texture Descriptor - Similarity

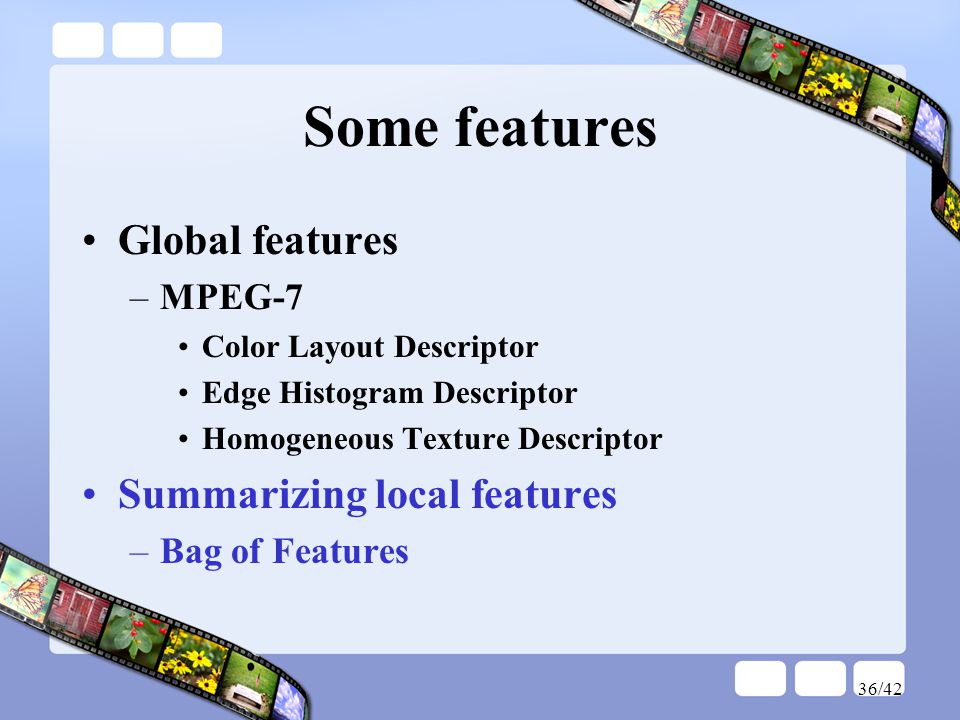

36. 36/42 Some features Global features –MPEG-7 Color Layout Descriptor Edge Histogram Descriptor Homogeneous Texture Descriptor Summarizing local features –Bag of Features

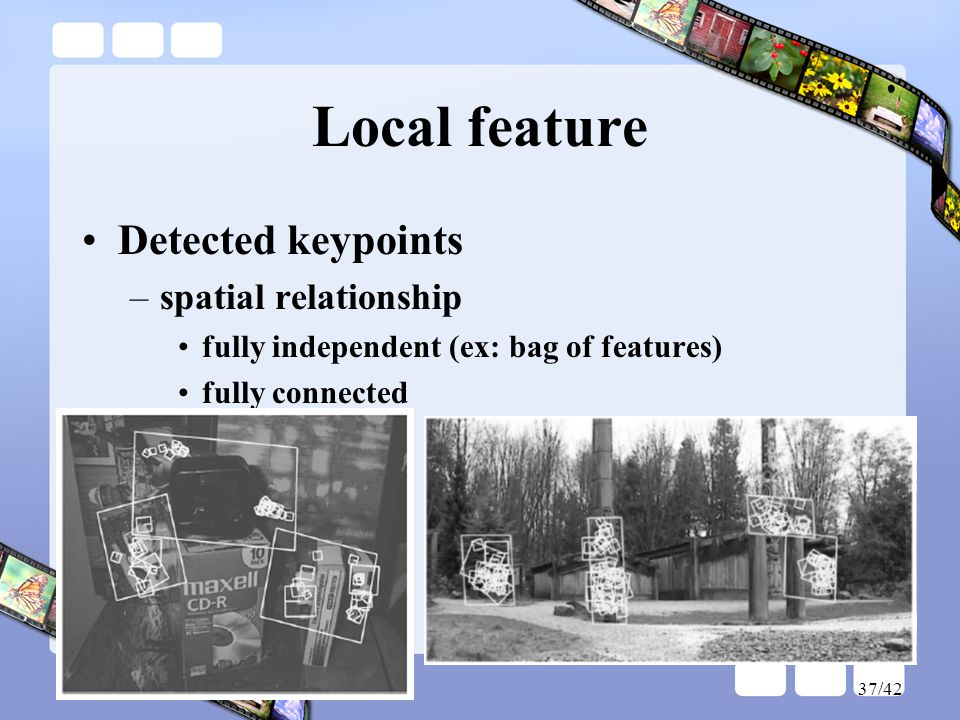

37. 37/42 Local feature Detected keypoints –spatial relationship fully independent (ex: bag of features) fully connected

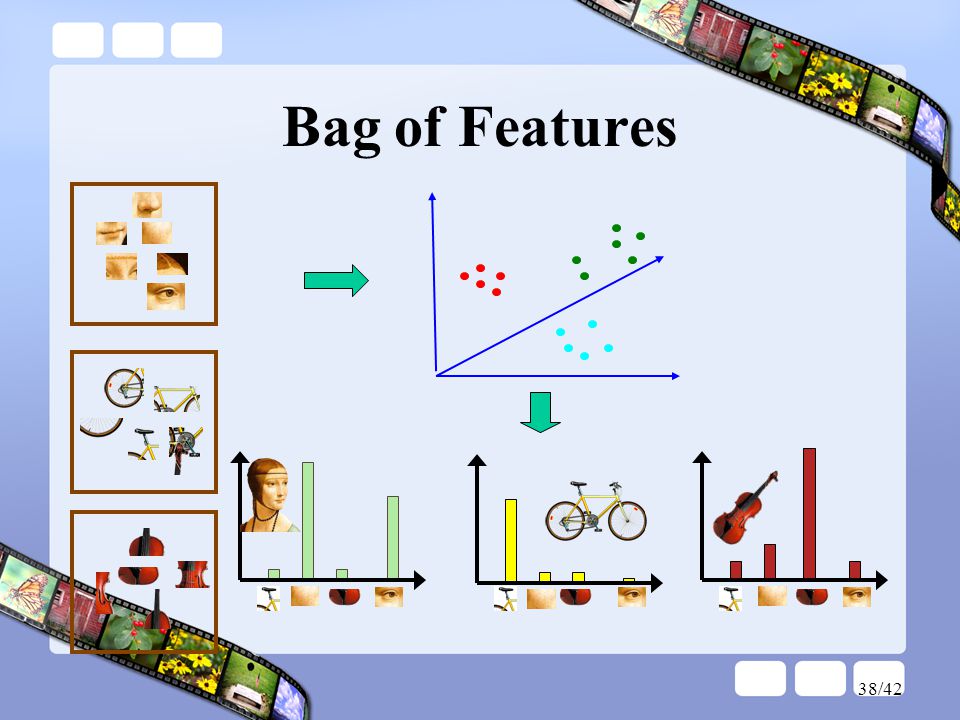

38. 38/42 Bag of Features

39. 39/42 Outline Motive Academic and real world Difficulties and problem model Evaluation metrics

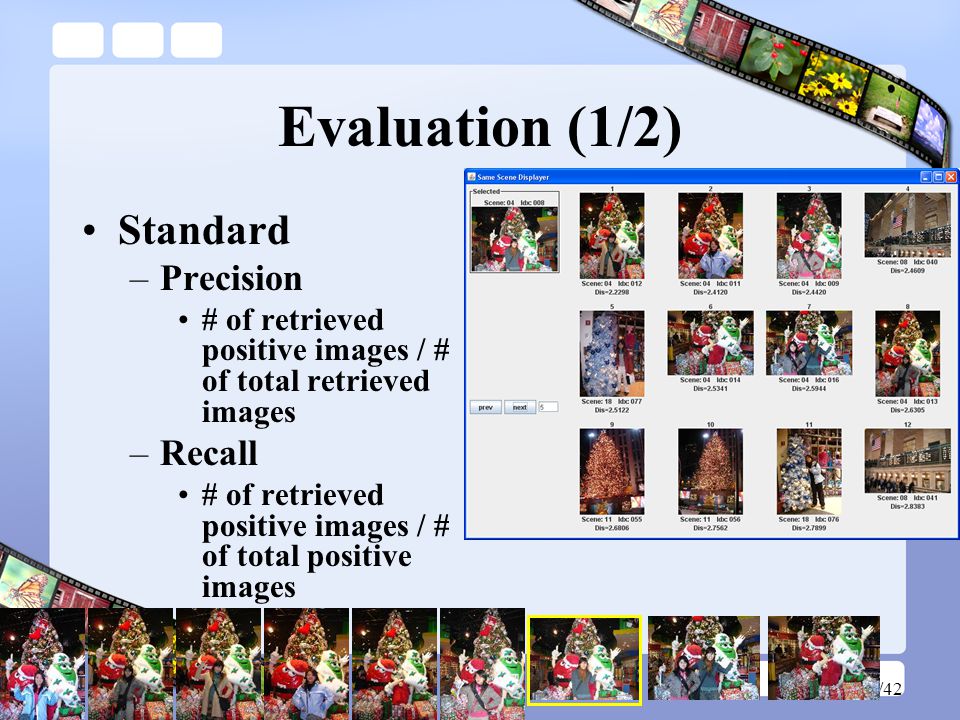

40. 40/42 Evaluation (1/2) Standard –Precision # of retrieved positive images / # of total retrieved images –Recall # of retrieved positive images / # of total positive images

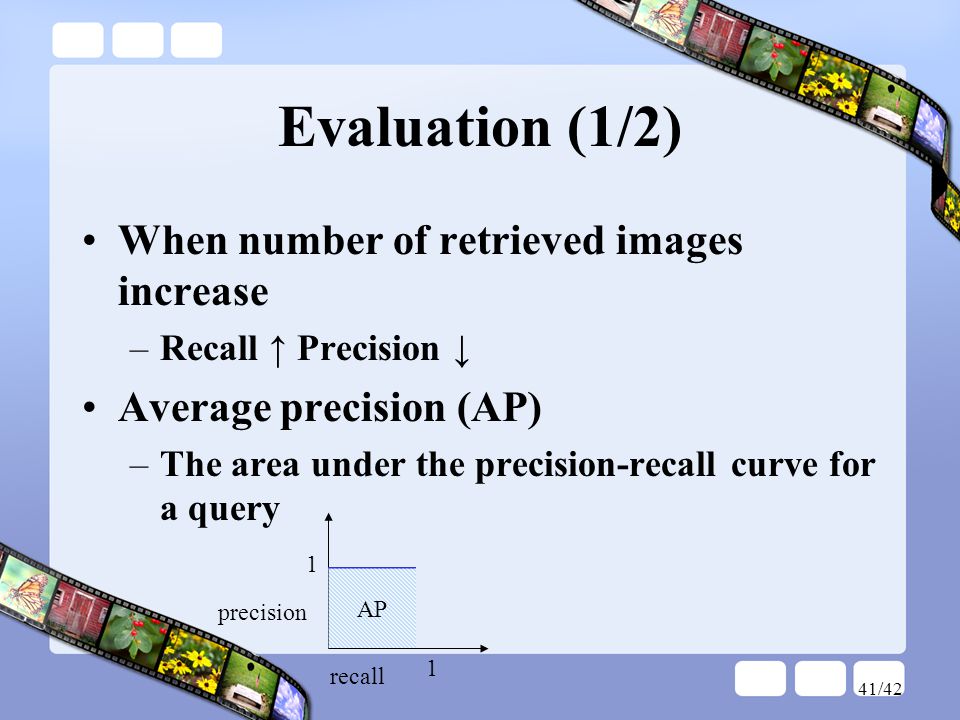

41. 41/42 Evaluation (1/2) When number of retrieved images increase –Recall ↑ Precision ↓ Average precision (AP) –The area under the precision-recall curve for a query precision recall 1 1 AP
