1. ELABORAZIONE DEL LINGUAGGIO NATURALE SEMANTICA: NAMED ENTITIES RELAZIONI

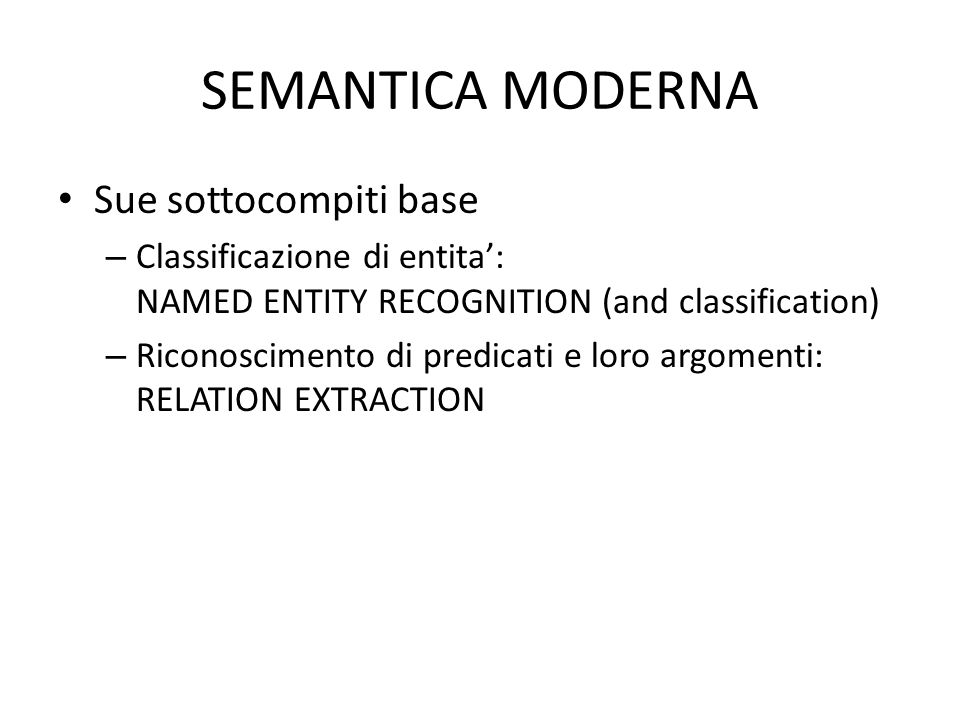

2. SEMANTICA MODERNA Sue sottocompiti base – Classificazione di entita’: NAMED ENTITY RECOGNITION (and classification) – Riconoscimento di predicati e loro argomenti: RELATION EXTRACTION

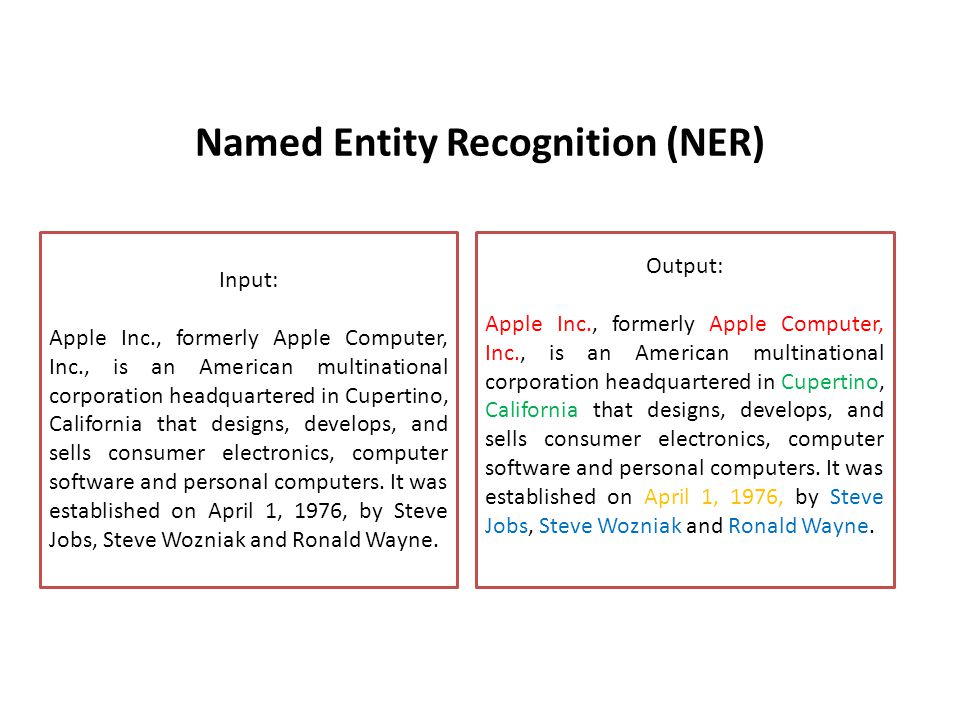

3. Named Entity Recognition (NER) Input: Apple Inc., formerly Apple Computer, Inc., is an American multinational corporation headquartered in Cupertino, California that designs, develops, and sells consumer electronics, computer software and personal computers. It was established on April 1, 1976, by Steve Jobs, Steve Wozniak and Ronald Wayne. Output: Apple Inc., formerly Apple Computer, Inc., is an American multinational corporation headquartered in Cupertino, California that designs, develops, and sells consumer electronics, computer software and personal computers. It was established on April 1, 1976, by Steve Jobs, Steve Wozniak and Ronald Wayne.

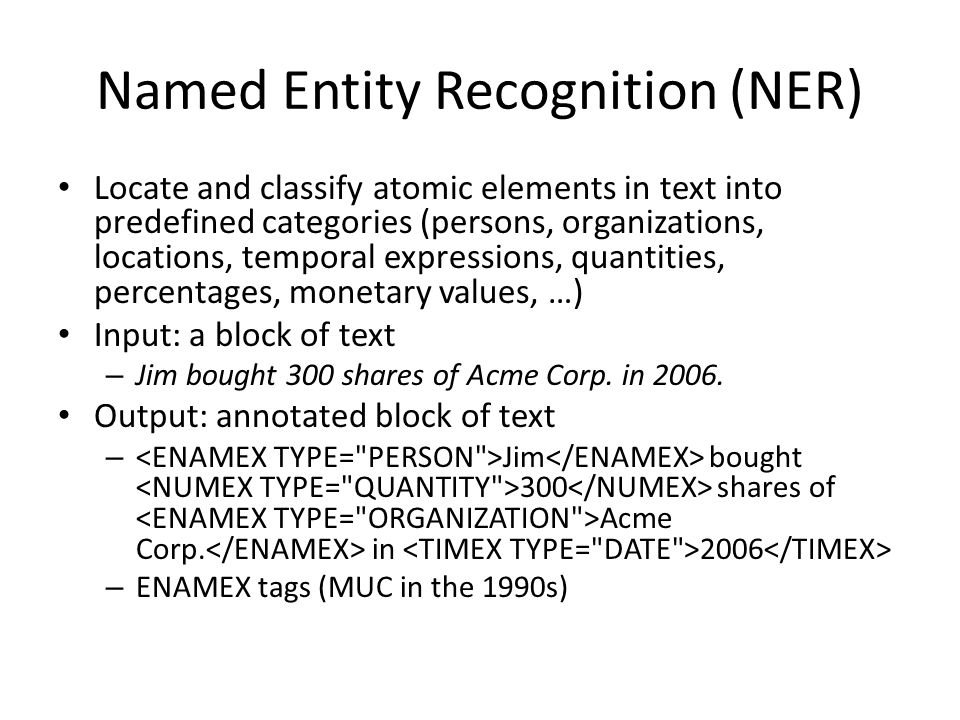

4. Named Entity Recognition (NER) Locate and classify atomic elements in text into predefined categories (persons, organizations, locations, temporal expressions, quantities, percentages, monetary values, …) Input: a block of text – Jim bought 300 shares of Acme Corp. in 2006. Output: annotated block of text – Jim bought 300 shares of Acme Corp. in 2006 – ENAMEX tags (MUC in the 1990s)

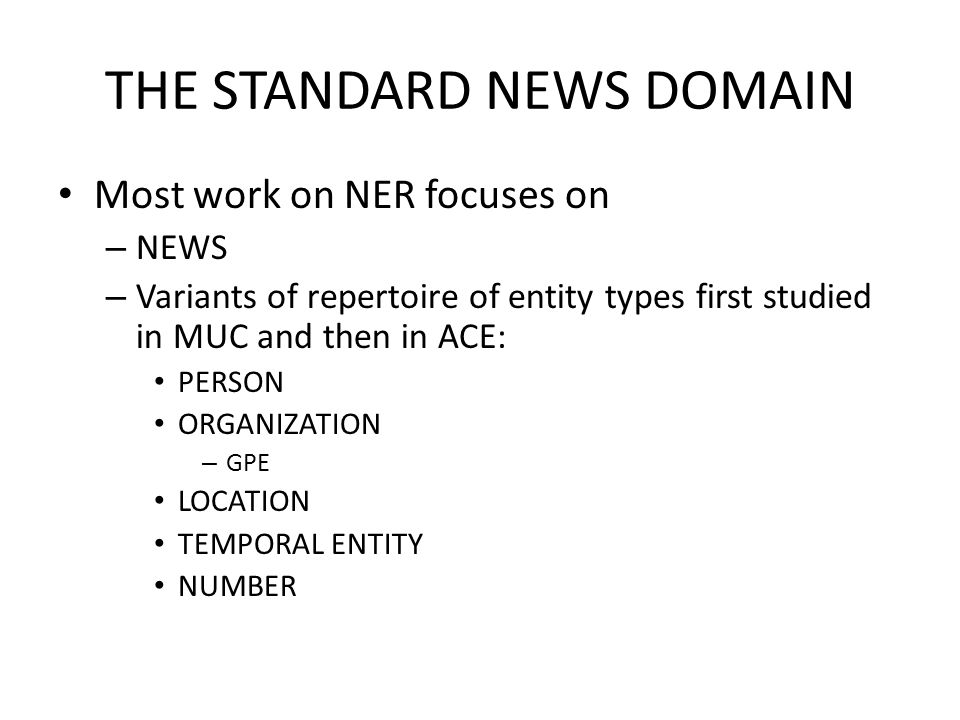

5. THE STANDARD NEWS DOMAIN Most work on NER focuses on – NEWS – Variants of repertoire of entity types first studied in MUC and then in ACE: PERSON ORGANIZATION – GPE LOCATION TEMPORAL ENTITY NUMBER

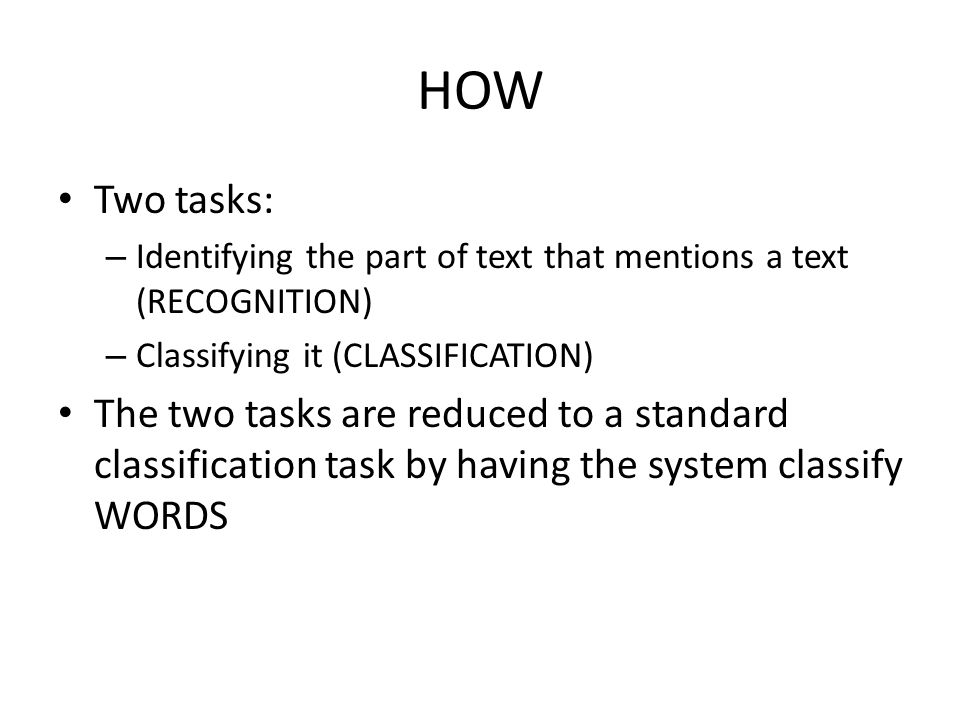

6. HOW Two tasks: – Identifying the part of text that mentions a text (RECOGNITION) – Classifying it (CLASSIFICATION) The two tasks are reduced to a standard classification task by having the system classify WORDS

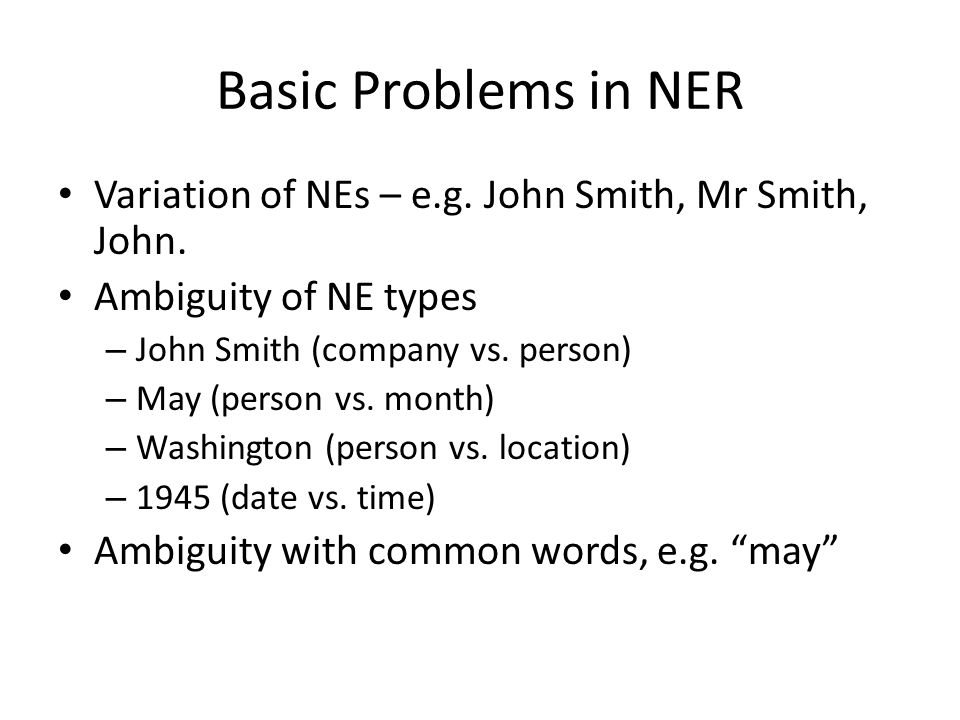

7. Basic Problems in NER Variation of NEs – e.g. John Smith, Mr Smith, John. Ambiguity of NE types – John Smith (company vs. person) – May (person vs. month) – Washington (person vs. location) – 1945 (date vs. time) Ambiguity with common words, e.g. “may”

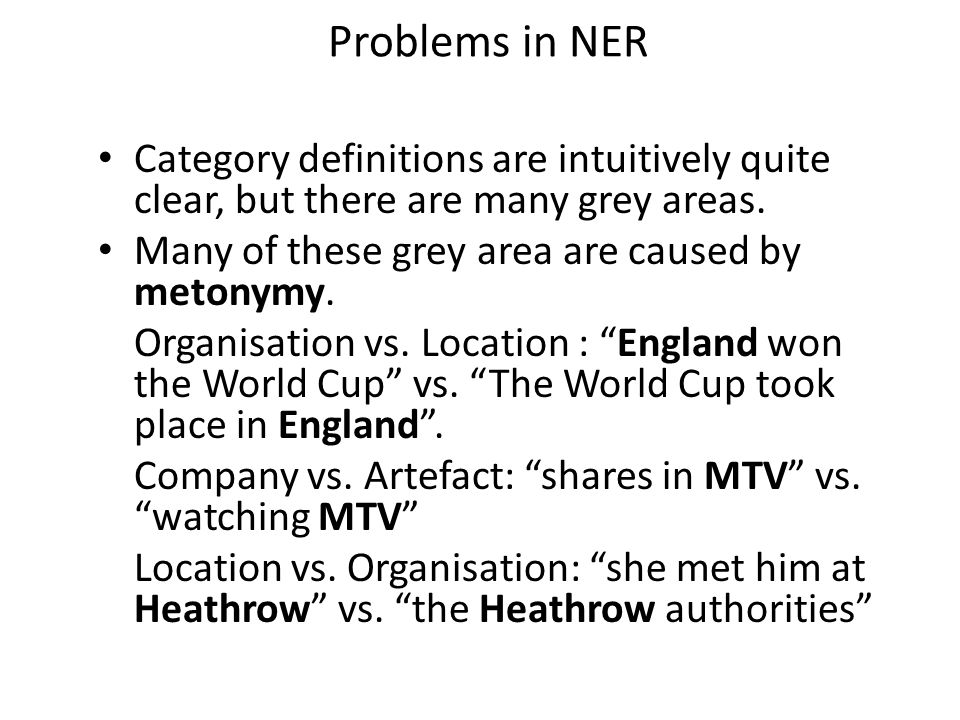

8. Problems in NER Category definitions are intuitively quite clear, but there are many grey areas. Many of these grey area are caused by metonymy. Organisation vs. Location : “England won the World Cup” vs. “The World Cup took place in England”. Company vs. Artefact: “shares in MTV” vs. “watching MTV” Location vs. Organisation: “she met him at Heathrow” vs. “the Heathrow authorities”

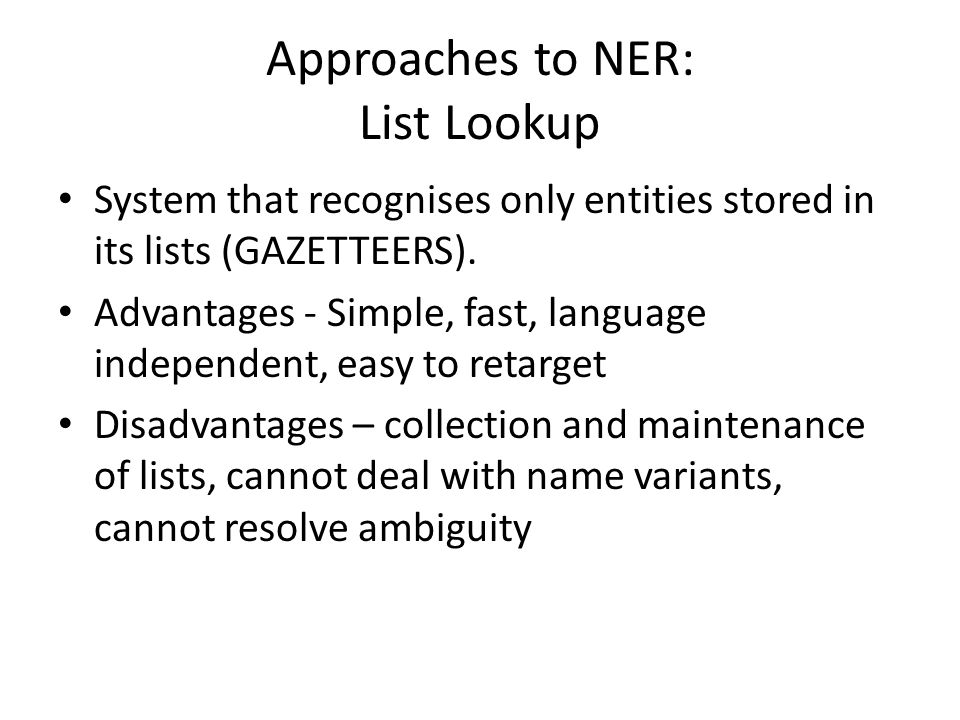

9. Approaches to NER: List Lookup System that recognises only entities stored in its lists (GAZETTEERS). Advantages - Simple, fast, language independent, easy to retarget Disadvantages – collection and maintenance of lists, cannot deal with name variants, cannot resolve ambiguity

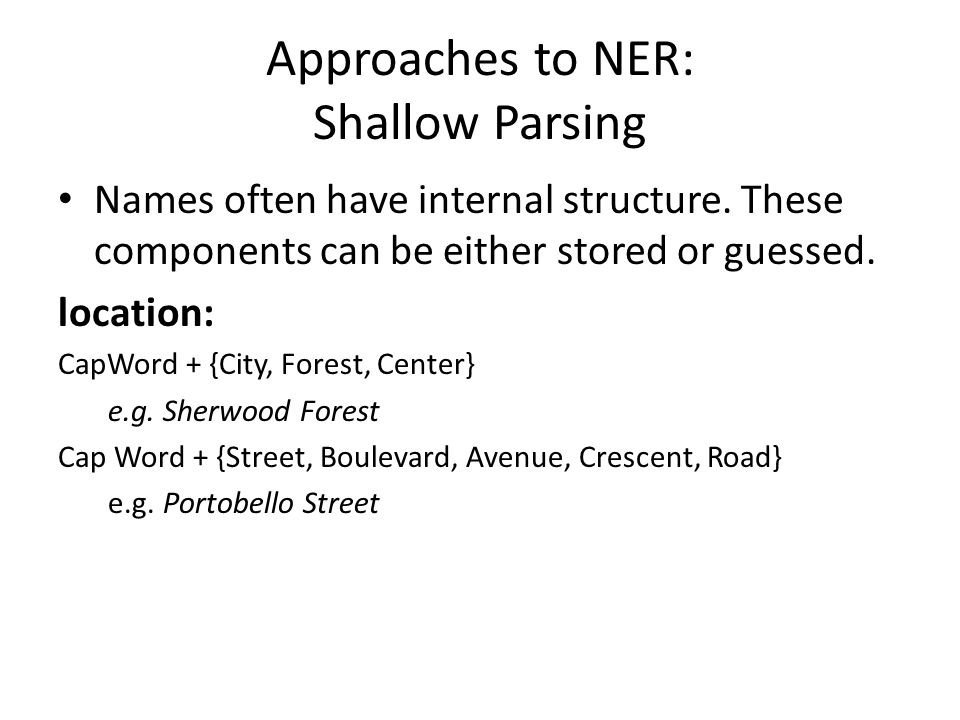

10. Approaches to NER: Shallow Parsing Names often have internal structure. These components can be either stored or guessed. location: CapWord + {City, Forest, Center} e.g. Sherwood Forest Cap Word + {Street, Boulevard, Avenue, Crescent, Road} e.g. Portobello Street

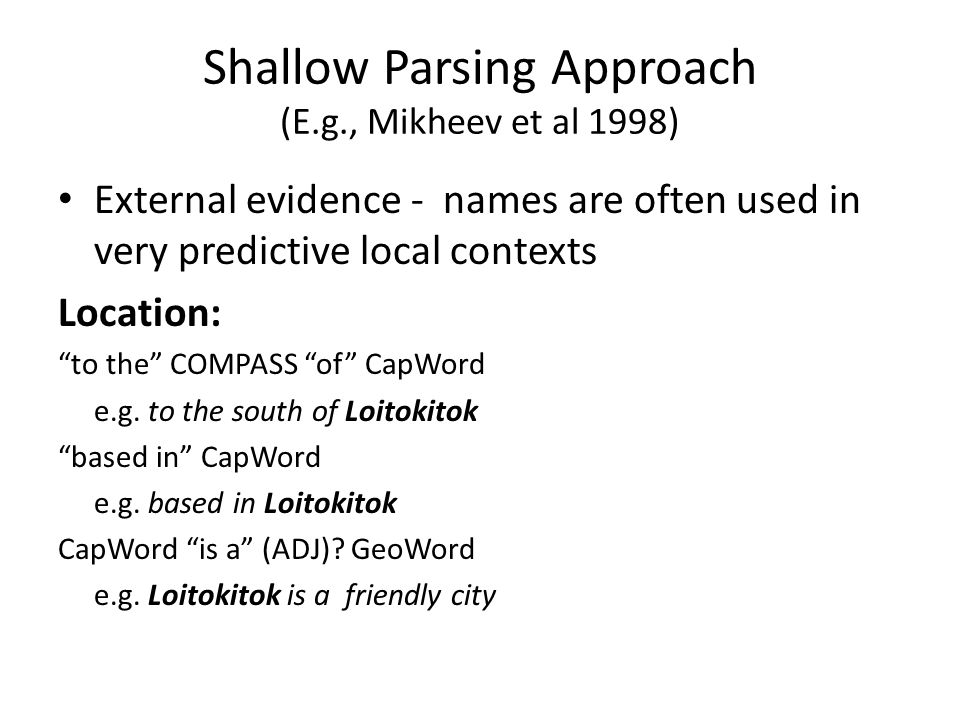

11. Shallow Parsing Approach (E.g., Mikheev et al 1998) External evidence - names are often used in very predictive local contexts Location: “to the” COMPASS “of” CapWord e.g. to the south of Loitokitok “based in” CapWord e.g. based in Loitokitok CapWord “is a” (ADJ)? GeoWord e.g. Loitokitok is a friendly city

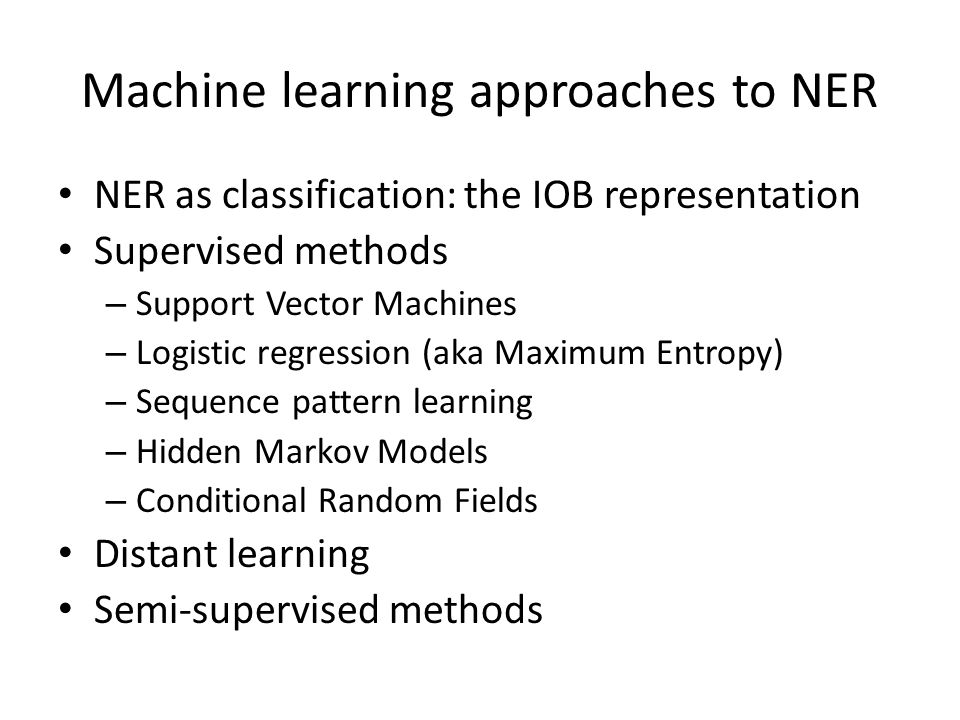

12. Machine learning approaches to NER NER as classification: the IOB representation Supervised methods – Support Vector Machines – Logistic regression (aka Maximum Entropy) – Sequence pattern learning – Hidden Markov Models – Conditional Random Fields Distant learning Semi-supervised methods

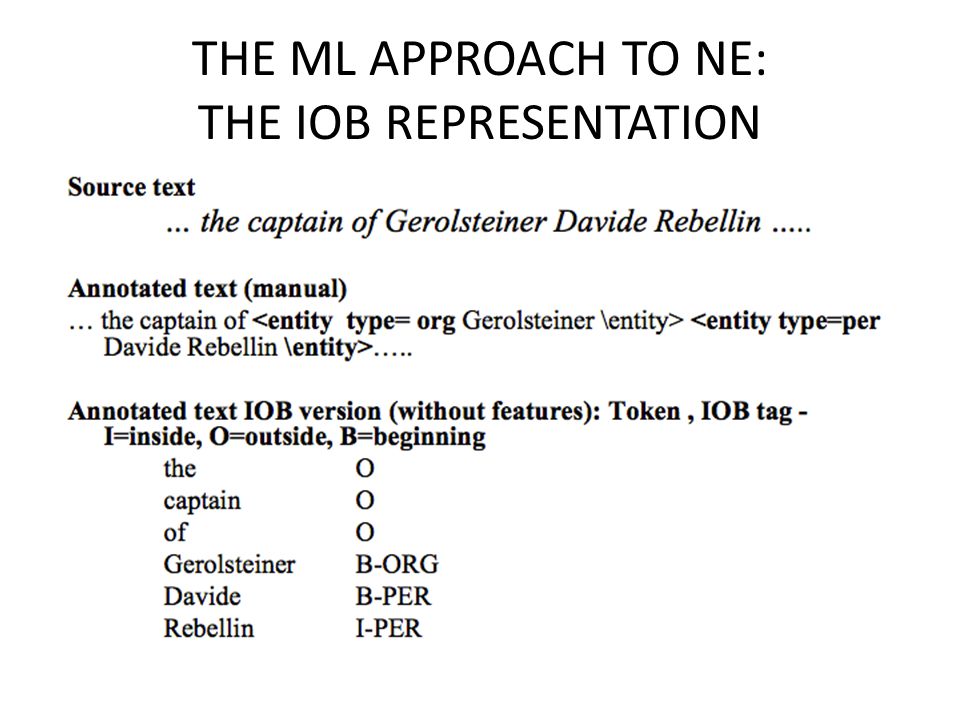

13. THE ML APPROACH TO NE: THE IOB REPRESENTATION

14. THE ML APPROACH TO NE: FEATURES

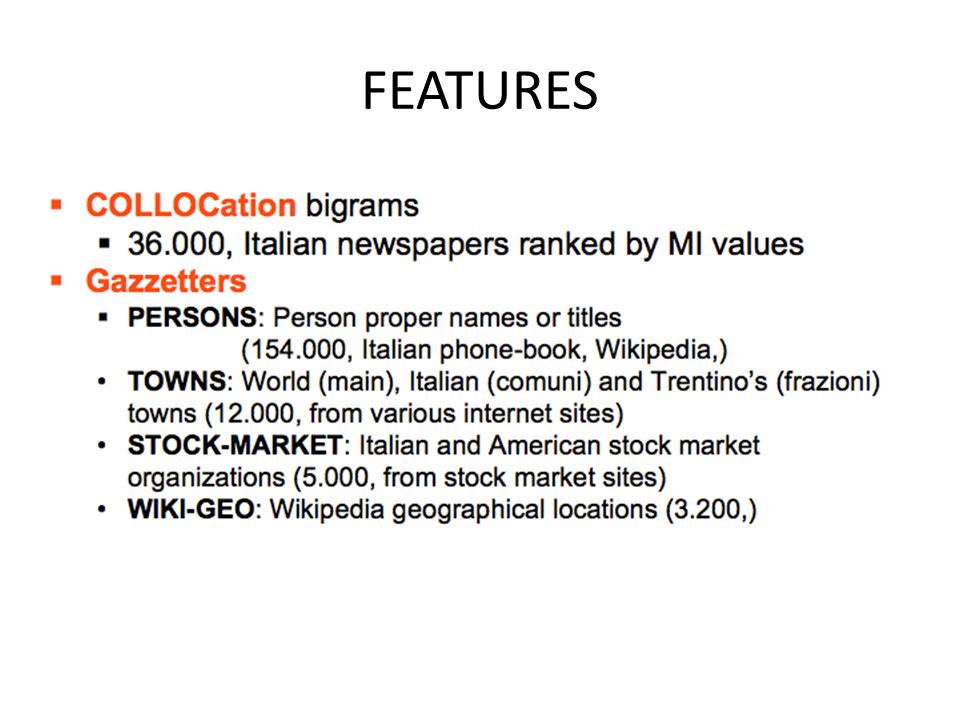

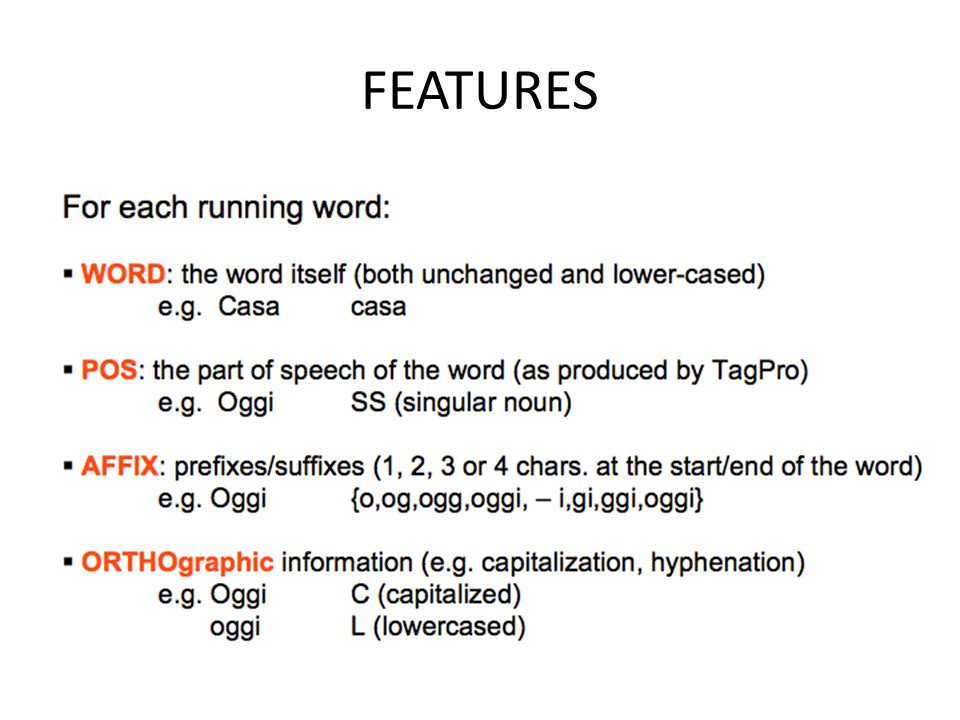

15. FEATURES

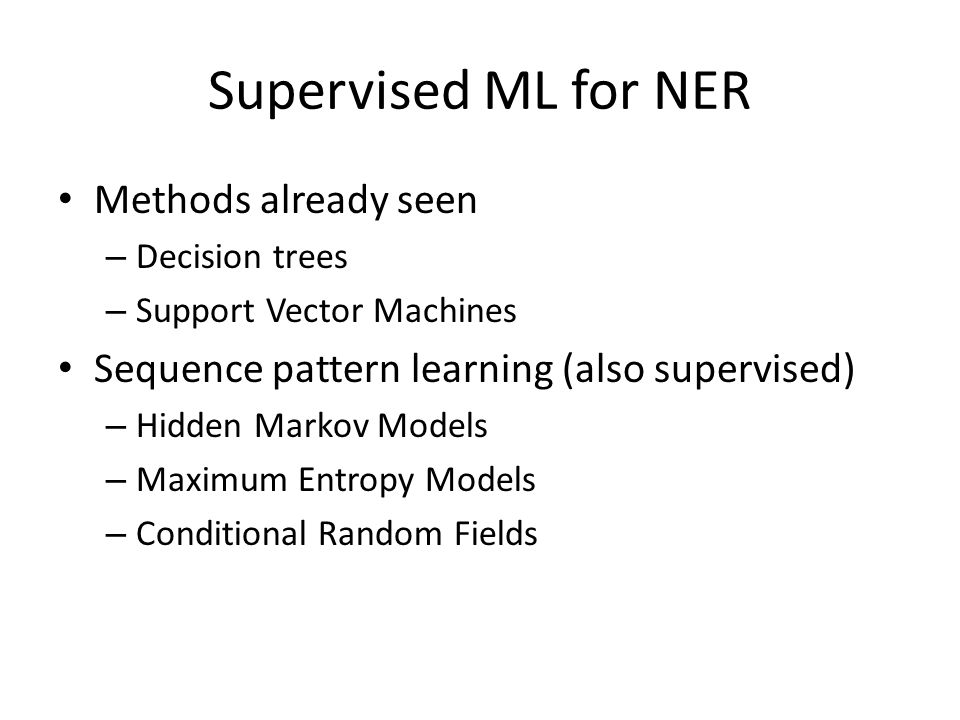

17. Supervised ML for NER Methods already seen – Decision trees – Support Vector Machines Sequence pattern learning (also supervised) – Hidden Markov Models – Maximum Entropy Models – Conditional Random Fields

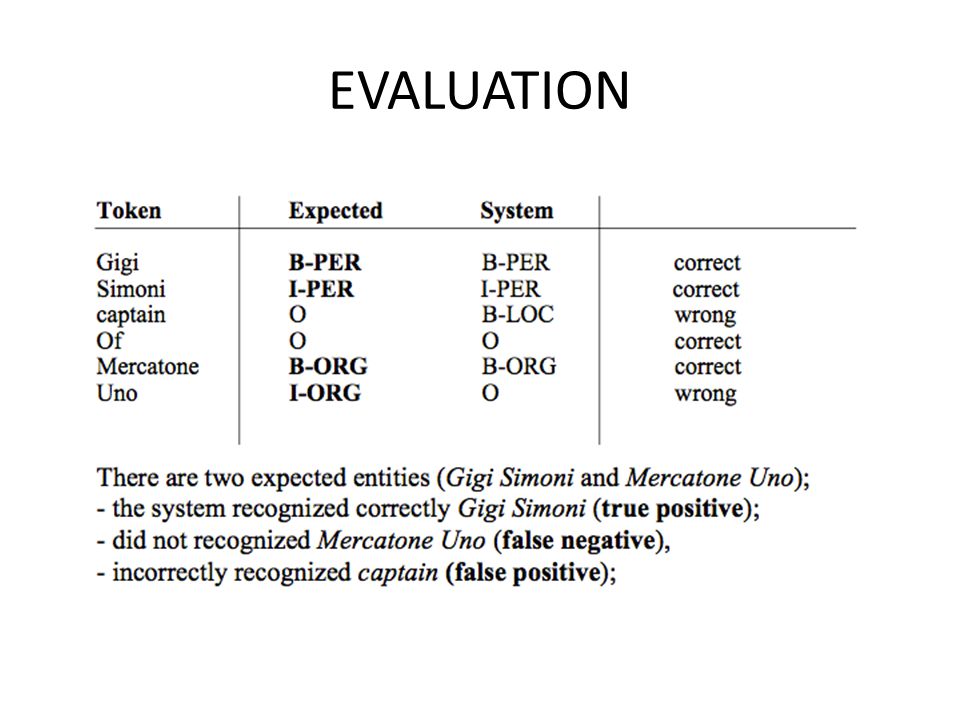

18. EVALUATION

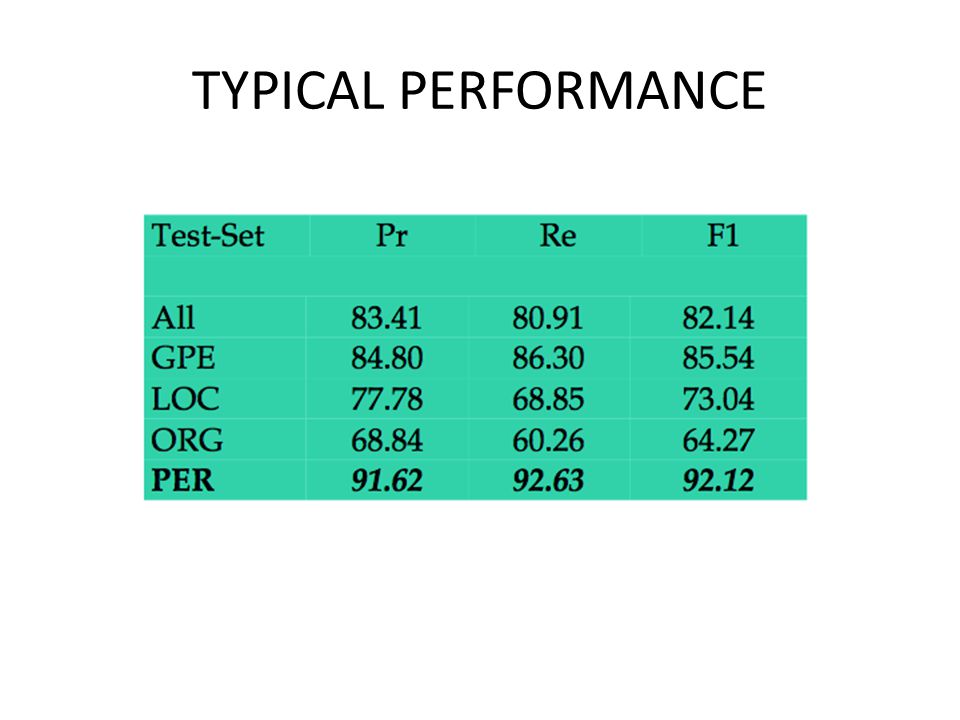

19. TYPICAL PERFORMANCE

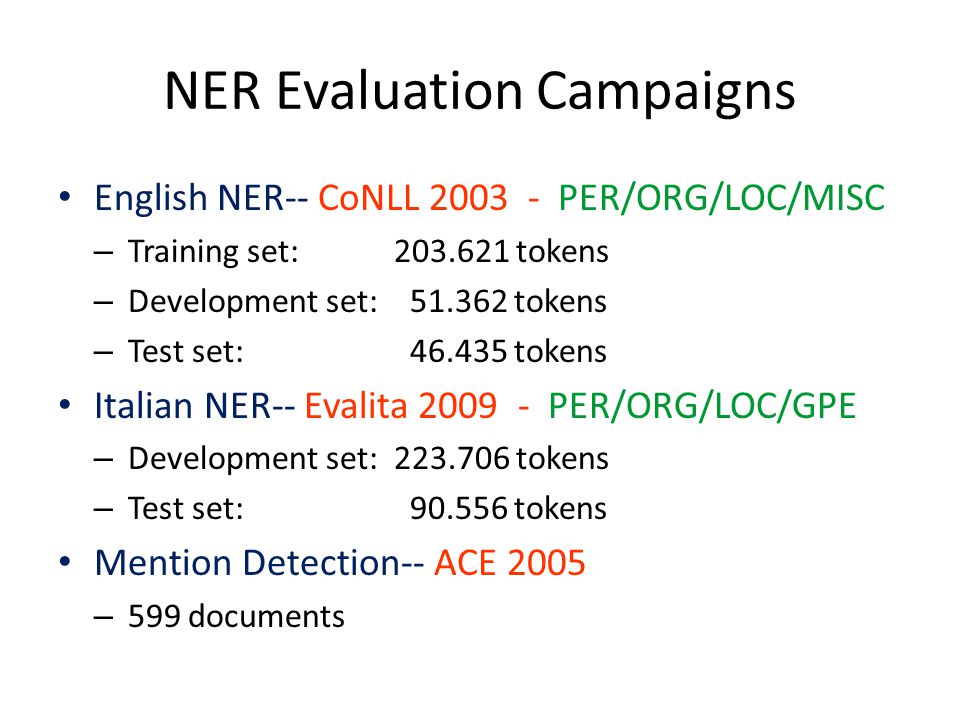

20. NER Evaluation Campaigns English NER-- CoNLL 2003 - PER/ORG/LOC/MISC – Training set:203.621 tokens – Development set: 51.362 tokens – Test set: 46.435 tokens Italian NER-- Evalita 2009 - PER/ORG/LOC/GPE – Development set:223.706 tokens – Test set: 90.556 tokens Mention Detection-- ACE 2005 – 599 documents

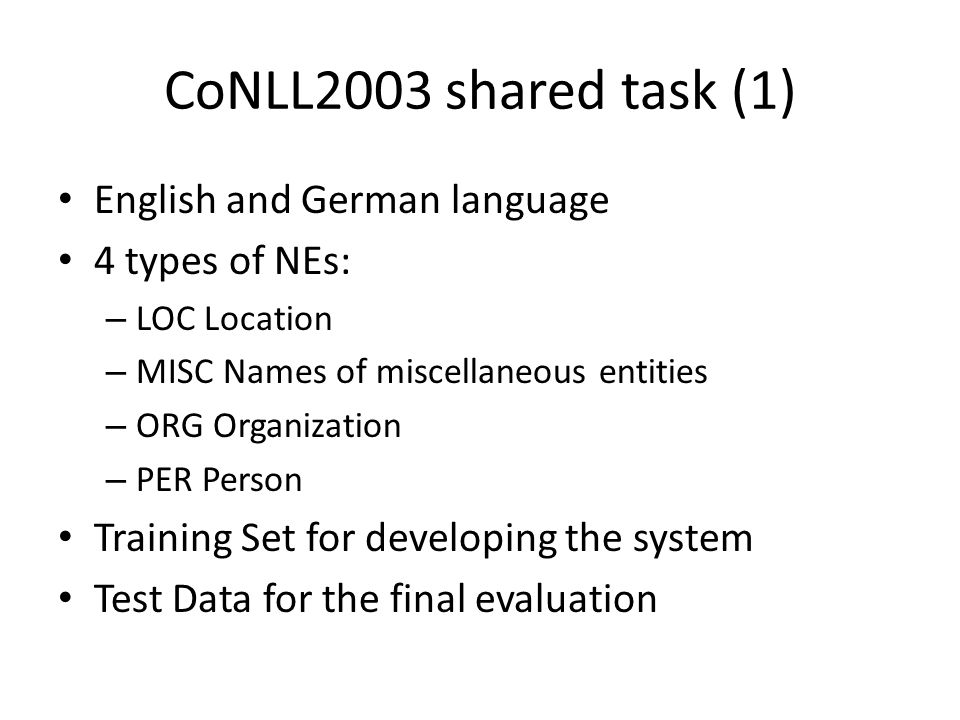

21. CoNLL2003 shared task (1) English and German language 4 types of NEs: – LOC Location – MISC Names of miscellaneous entities – ORG Organization – PER Person Training Set for developing the system Test Data for the final evaluation

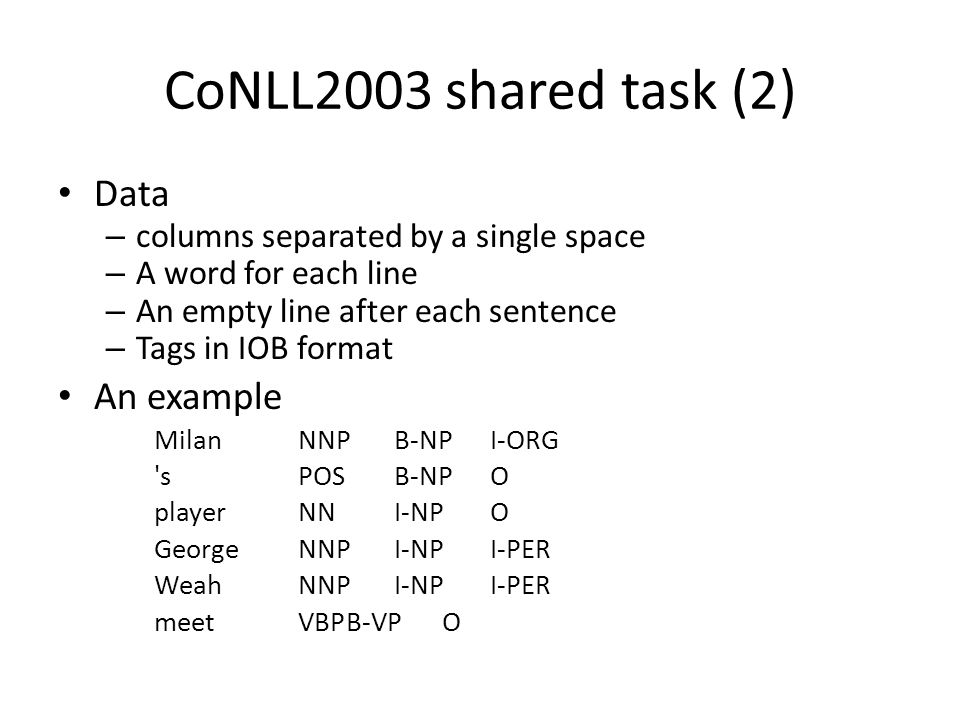

22. CoNLL2003 shared task (2) Data – columns separated by a single space – A word for each line – An empty line after each sentence – Tags in IOB format An example MilanNNPB-NPI-ORG 'sPOSB-NPO playerNNI-NPO GeorgeNNPI-NPI-PER WeahNNPI-NPI-PER meetVBPB-VPO

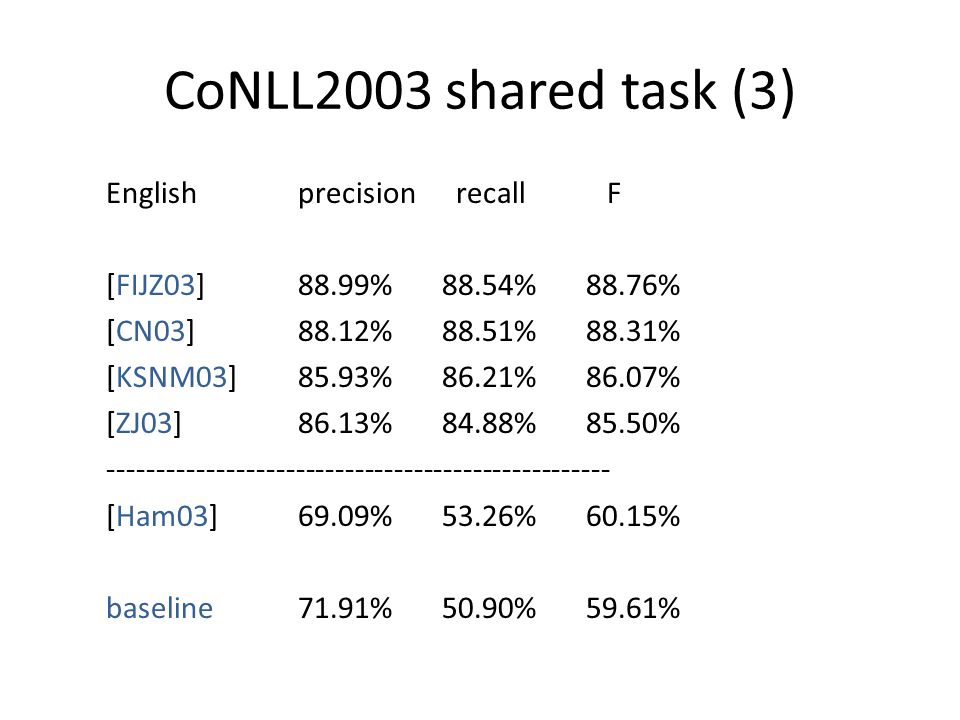

23. CoNLL2003 shared task (3) Englishprecision recall F [FIJZ03]88.99%88.54%88.76% [CN03]88.12%88.51%88.31% [KSNM03]85.93%86.21%86.07% [ZJ03]86.13%84.88%85.50% --------------------------------------------------- [Ham03]69.09%53.26%60.15% baseline71.91%50.90%59.61%

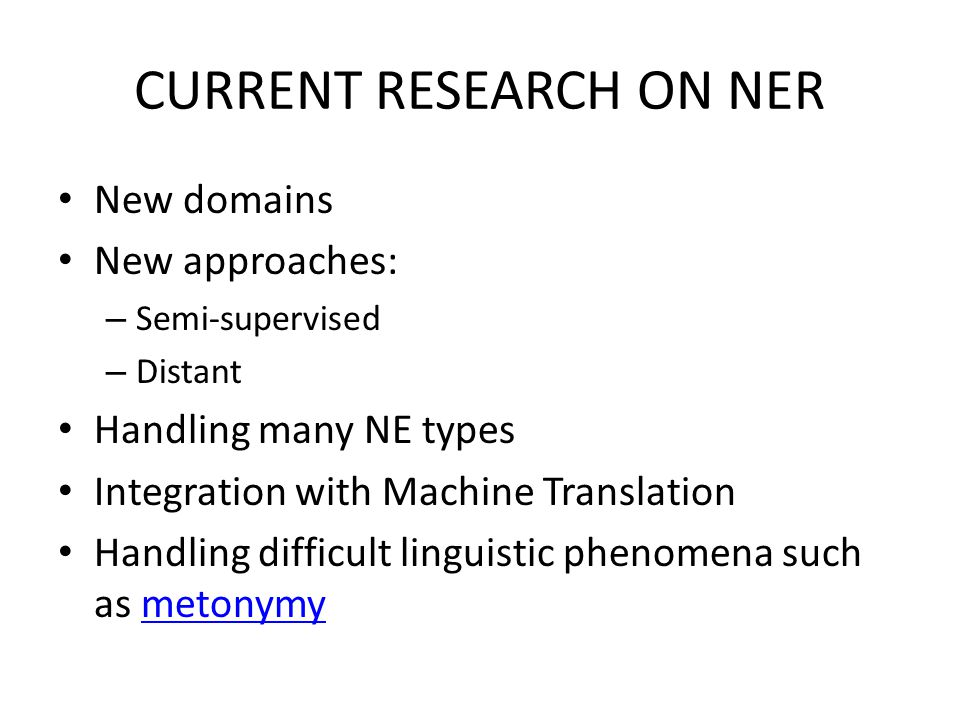

24. CURRENT RESEARCH ON NER New domains New approaches: – Semi-supervised – Distant Handling many NE types Integration with Machine Translation Handling difficult linguistic phenomena such as metonymymetonymy

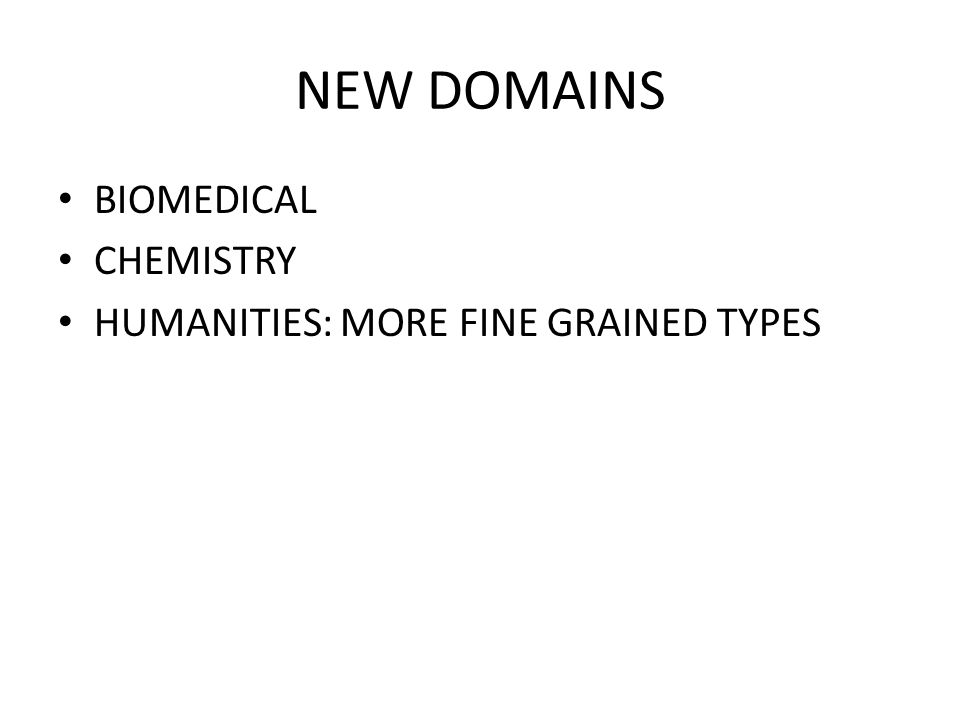

25. NEW DOMAINS BIOMEDICAL CHEMISTRY HUMANITIES: MORE FINE GRAINED TYPES

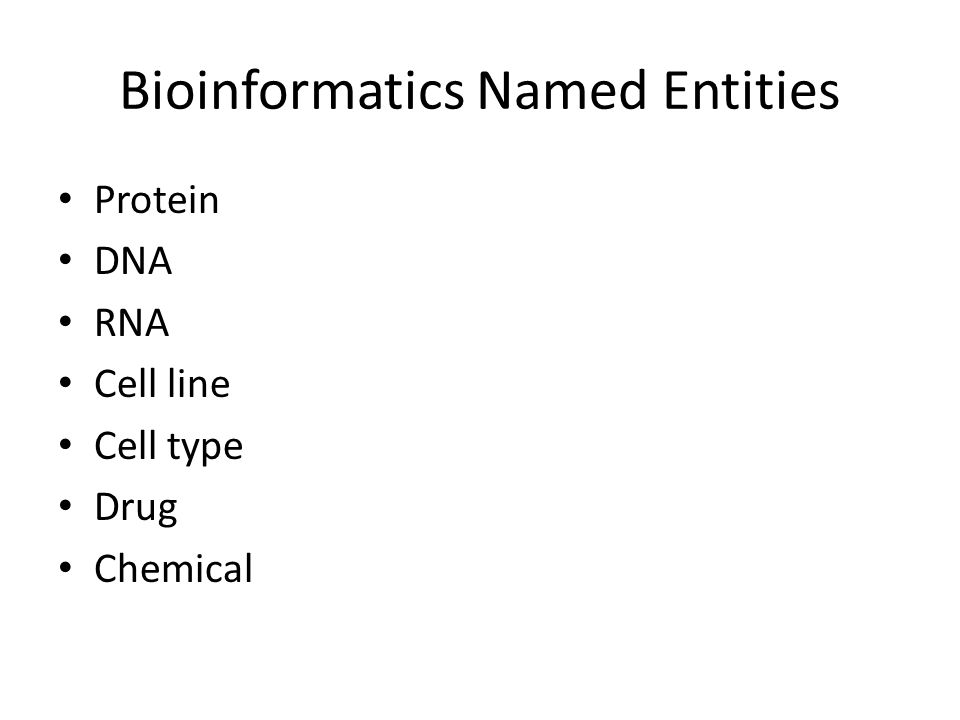

26. Bioinformatics Named Entities Protein DNA RNA Cell line Cell type Drug Chemical

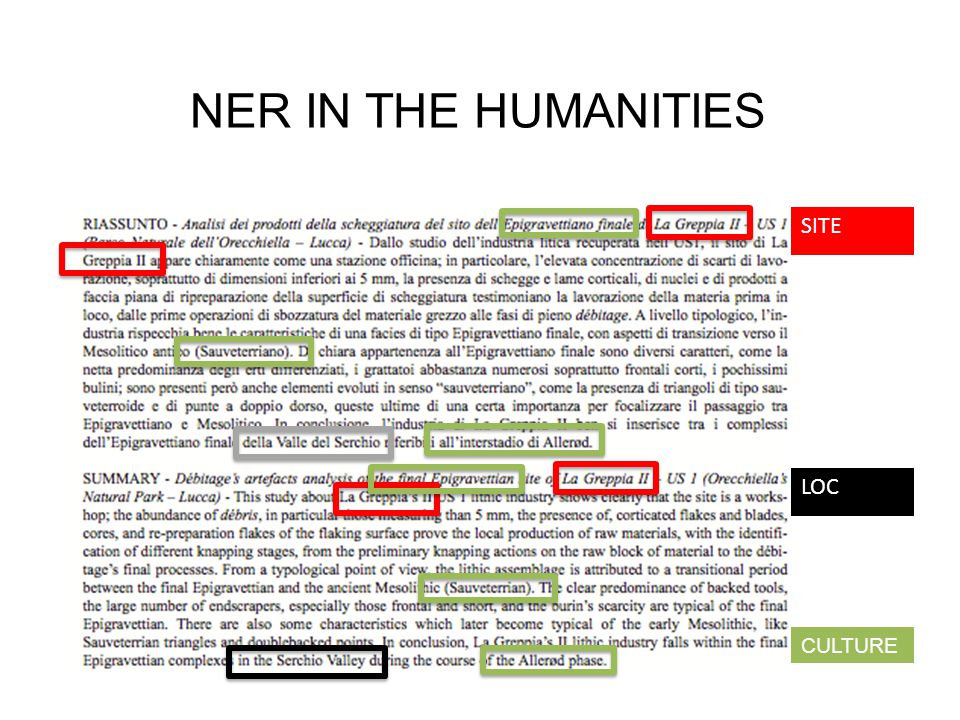

27. NER IN THE HUMANITIES LOC SITE CULTURE

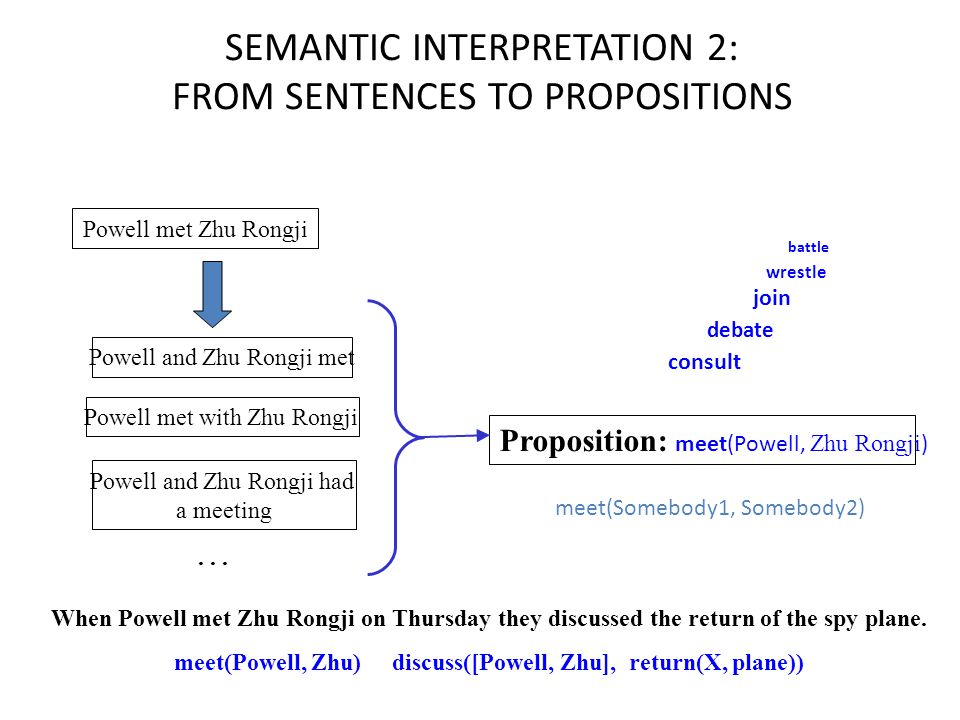

28. SEMANTIC INTERPRETATION 2: FROM SENTENCES TO PROPOSITIONS Powell met Zhu Rongji Proposition: meet(Powell, Zhu Rongji ) Powell met with Zhu Rongji Powell and Zhu Rongji met Powell and Zhu Rongji had a meeting... When Powell met Zhu Rongji on Thursday they discussed the return of the spy plane. meet(Powell, Zhu) discuss([Powell, Zhu], return(X, plane)) debate consult join wrestle battle meet(Somebody1, Somebody2)

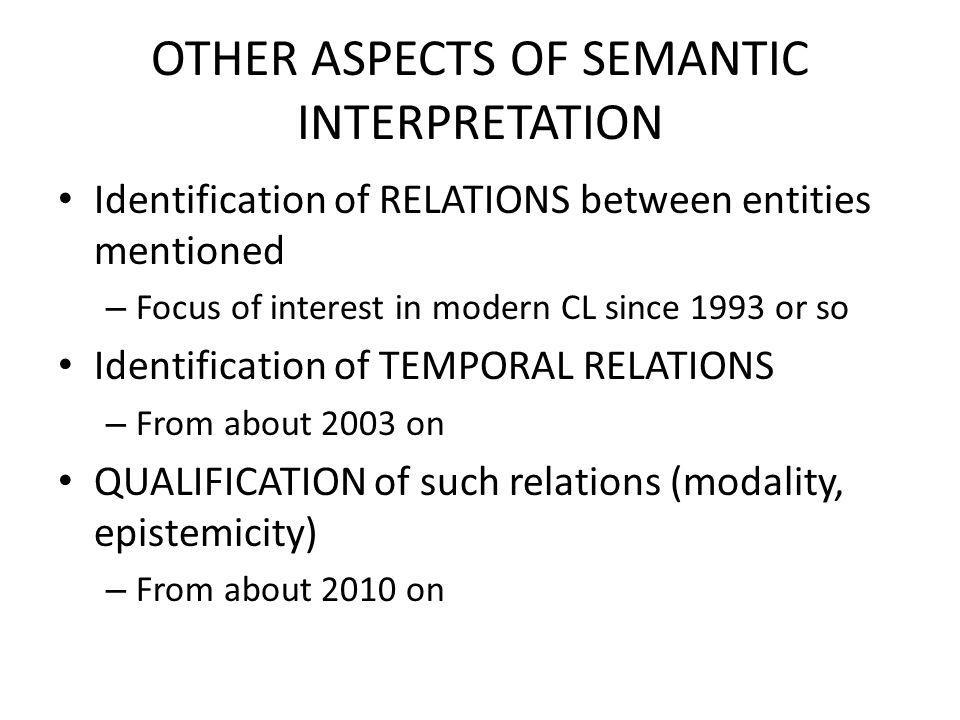

29. OTHER ASPECTS OF SEMANTIC INTERPRETATION Identification of RELATIONS between entities mentioned – Focus of interest in modern CL since 1993 or so Identification of TEMPORAL RELATIONS – From about 2003 on QUALIFICATION of such relations (modality, epistemicity) – From about 2010 on

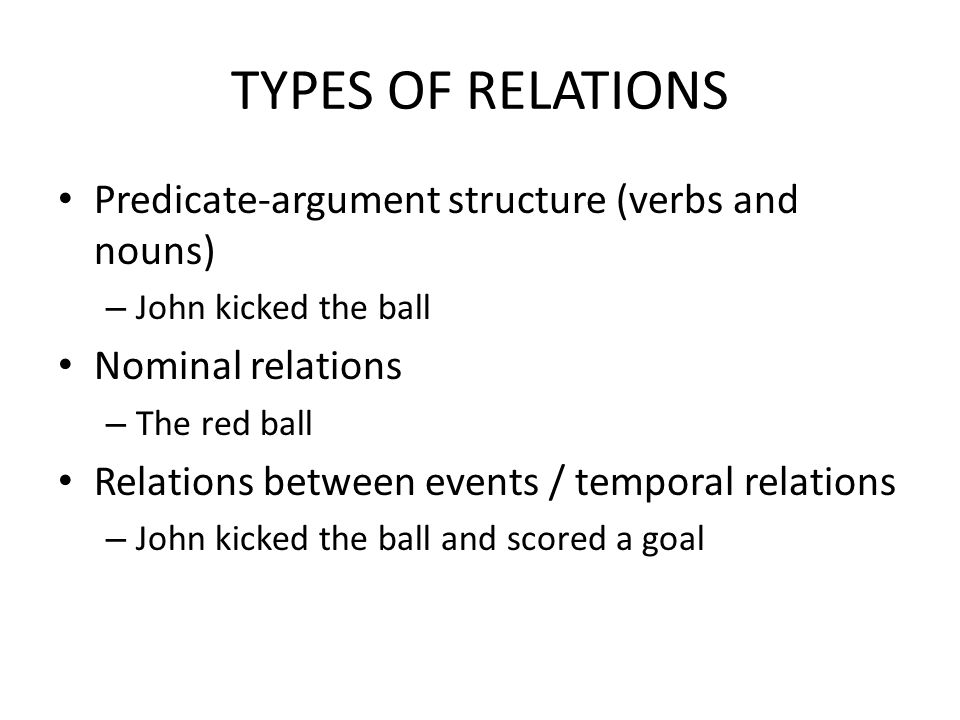

30. TYPES OF RELATIONS Predicate-argument structure (verbs and nouns) – John kicked the ball Nominal relations – The red ball Relations between events / temporal relations – John kicked the ball and scored a goal

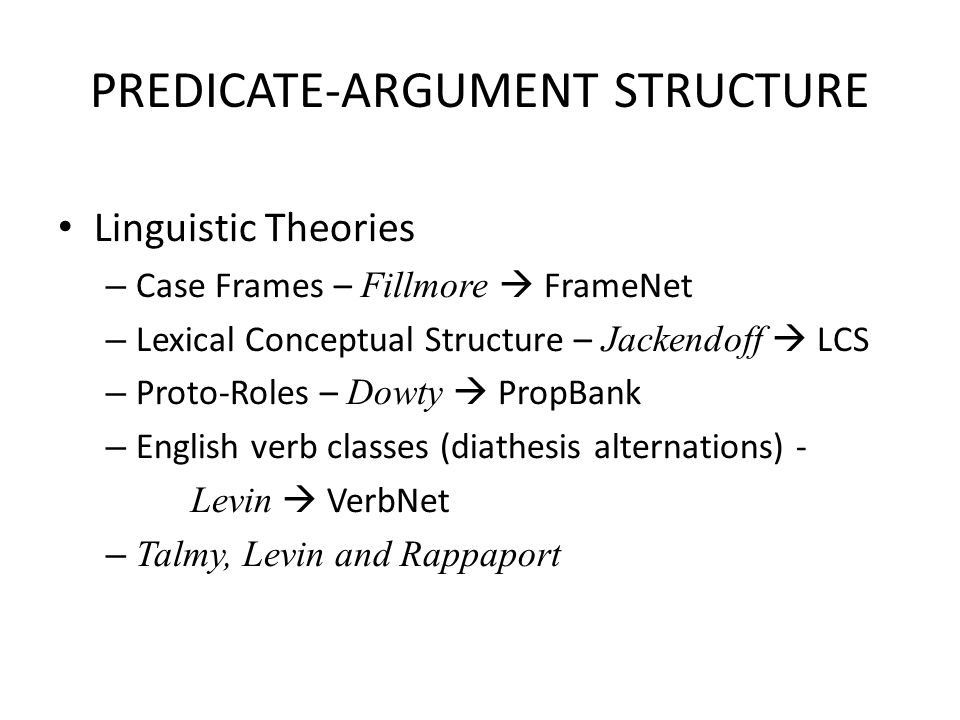

31. PREDICATE-ARGUMENT STRUCTURE Linguistic Theories – Case Frames – Fillmore  FrameNet – Lexical Conceptual Structure – Jackendoff  LCS – Proto-Roles – Dowty  PropBank – English verb classes (diathesis alternations) - Levin  VerbNet – Talmy, Levin and Rappaport

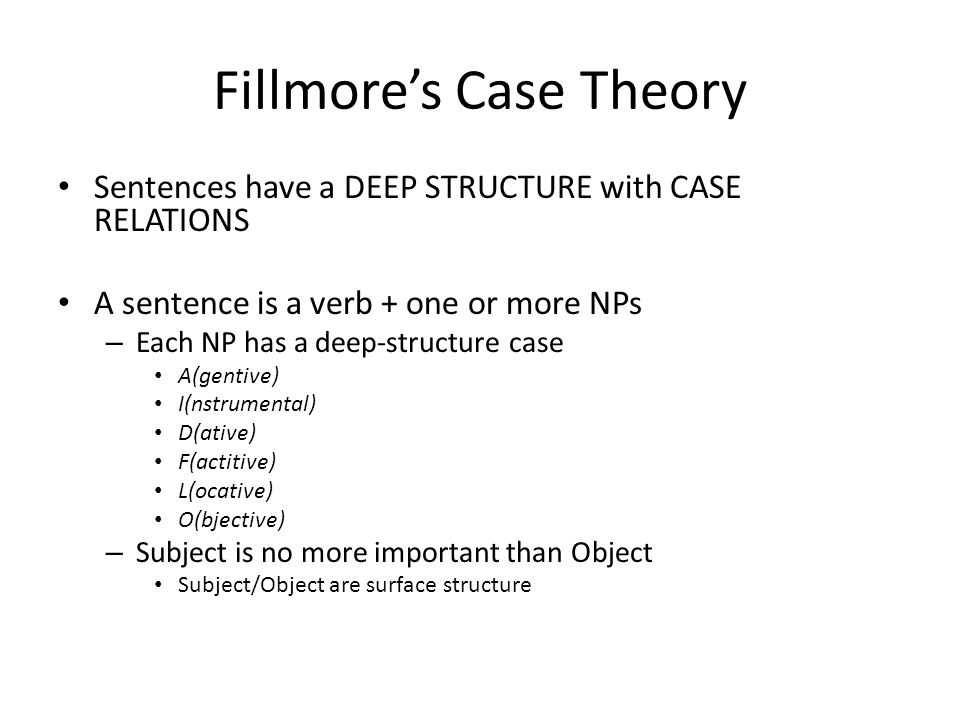

32. Fillmore’s Case Theory Sentences have a DEEP STRUCTURE with CASE RELATIONS A sentence is a verb + one or more NPs – Each NP has a deep-structure case A(gentive) I(nstrumental) D(ative) F(actitive) L(ocative) O(bjective) – Subject is no more important than Object Subject/Object are surface structure

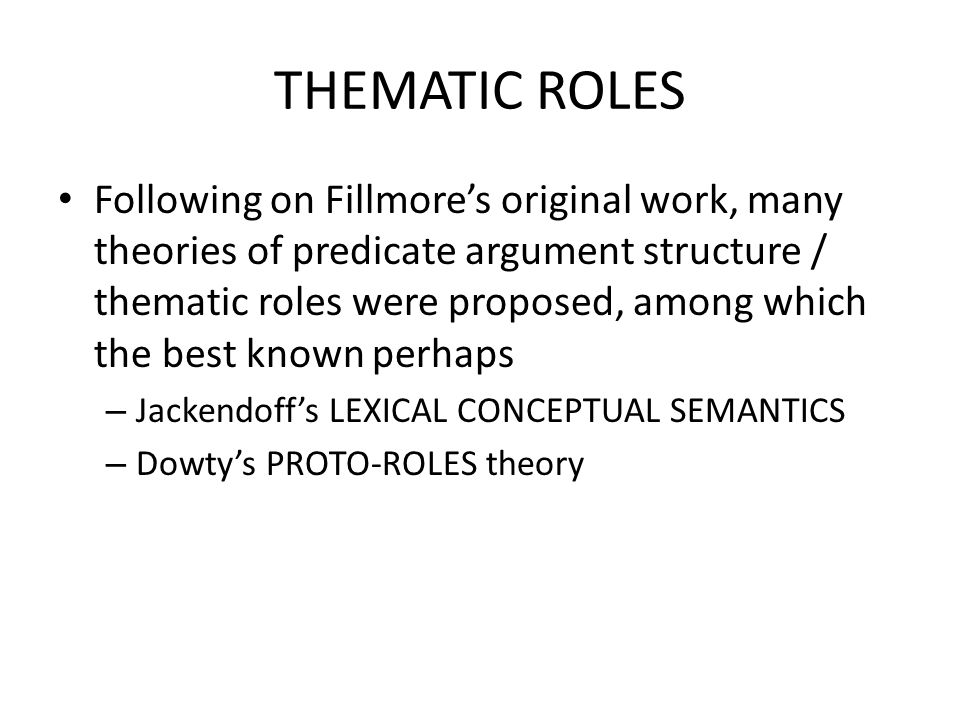

33. THEMATIC ROLES Following on Fillmore’s original work, many theories of predicate argument structure / thematic roles were proposed, among which the best known perhaps – Jackendoff’s LEXICAL CONCEPTUAL SEMANTICS – Dowty’s PROTO-ROLES theory

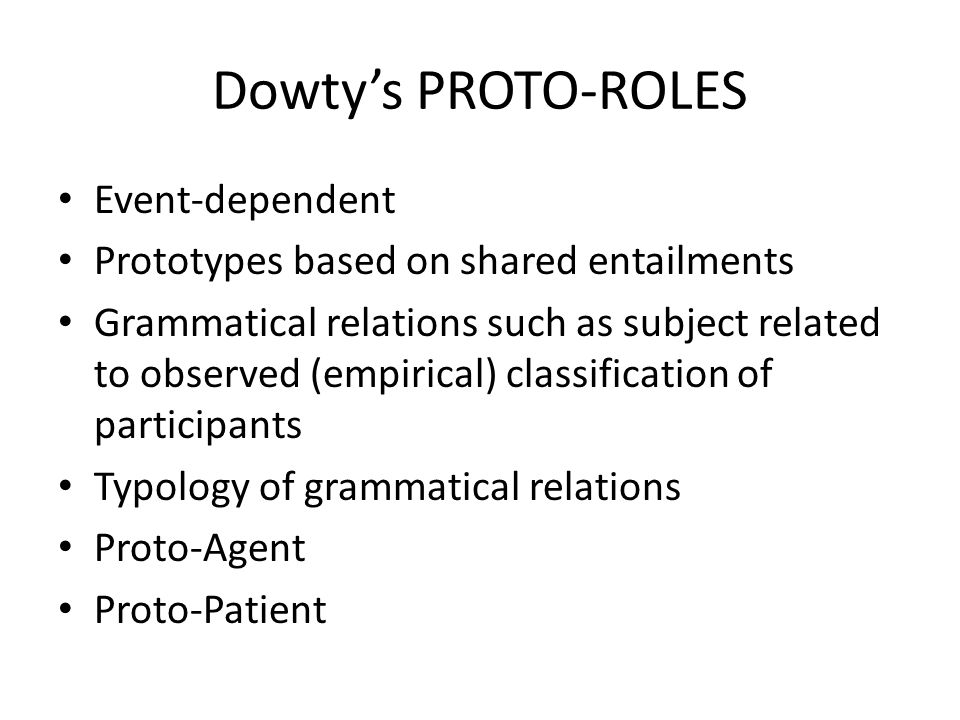

34. Dowty’s PROTO-ROLES Event-dependent Prototypes based on shared entailments Grammatical relations such as subject related to observed (empirical) classification of participants Typology of grammatical relations Proto-Agent Proto-Patient

35. Proto-Agent Properties – Volitional involvement in event or state – Sentience (and/or perception) – Causing an event or change of state in another participant – Movement (relative to position of another participant) – (exists independently of event named) *may be discourse pragmatic

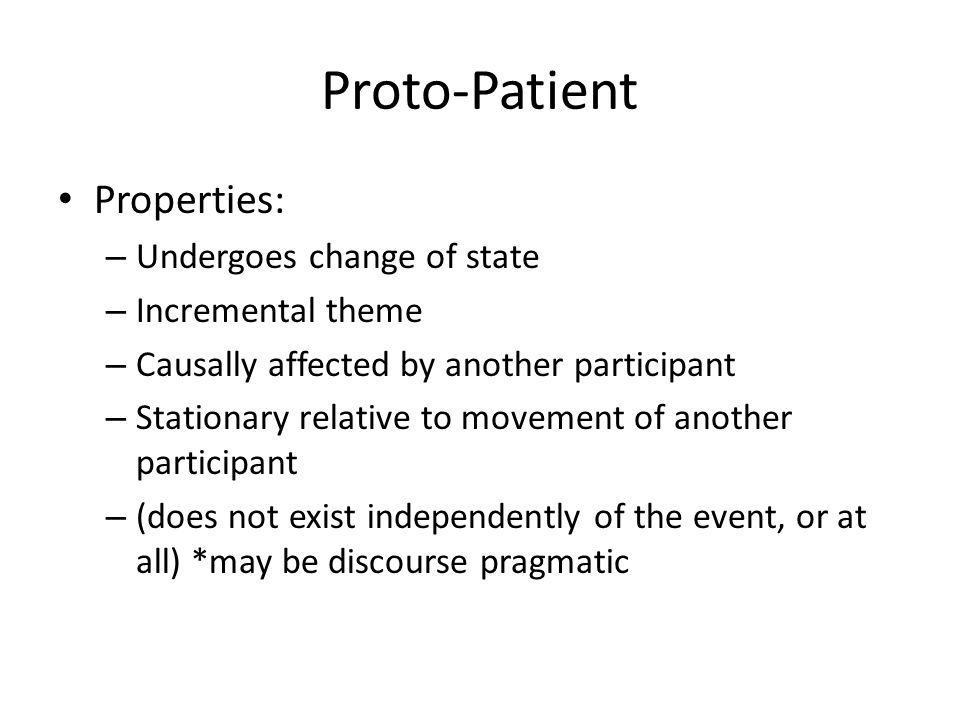

36. Proto-Patient Properties: – Undergoes change of state – Incremental theme – Causally affected by another participant – Stationary relative to movement of another participant – (does not exist independently of the event, or at all) *may be discourse pragmatic

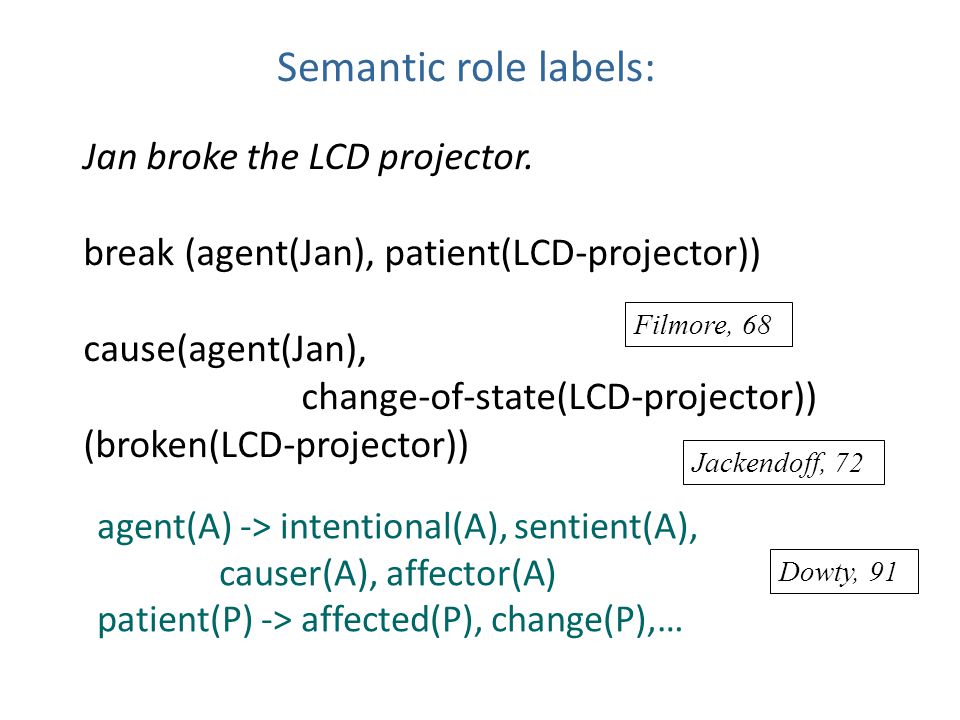

37. Semantic role labels: Jan broke the LCD projector. break (agent(Jan), patient(LCD-projector)) cause(agent(Jan), change-of-state(LCD-projector)) (broken(LCD-projector)) agent(A) -> intentional(A), sentient(A), causer(A), affector(A) patient(P) -> affected(P), change(P),… Filmore, 68 Jackendoff, 72 Dowty, 91

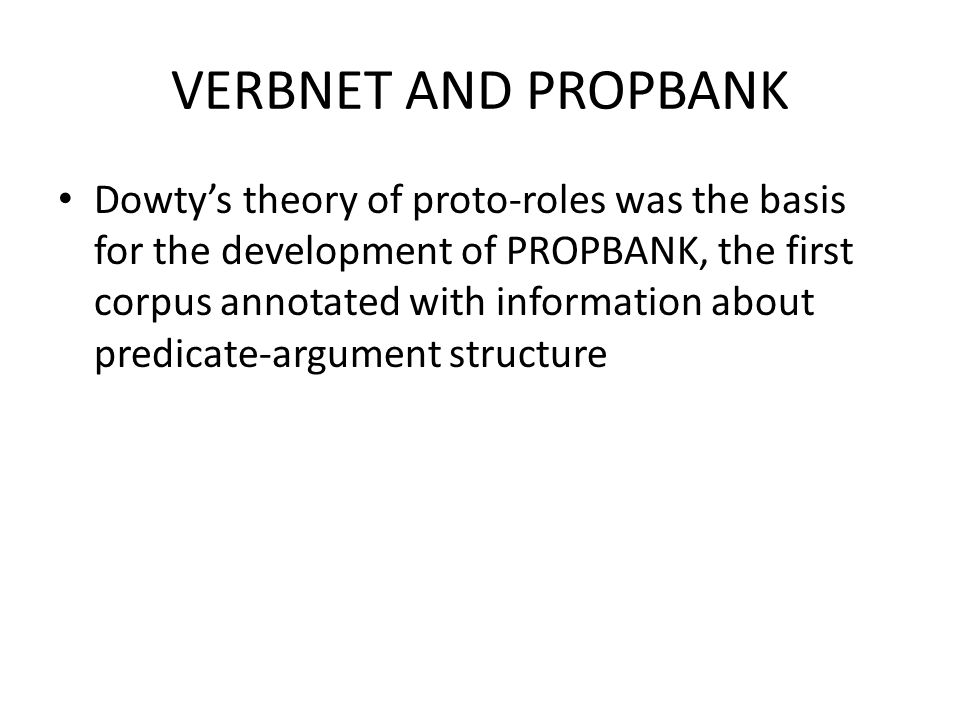

38. VERBNET AND PROPBANK Dowty’s theory of proto-roles was the basis for the development of PROPBANK, the first corpus annotated with information about predicate-argument structure

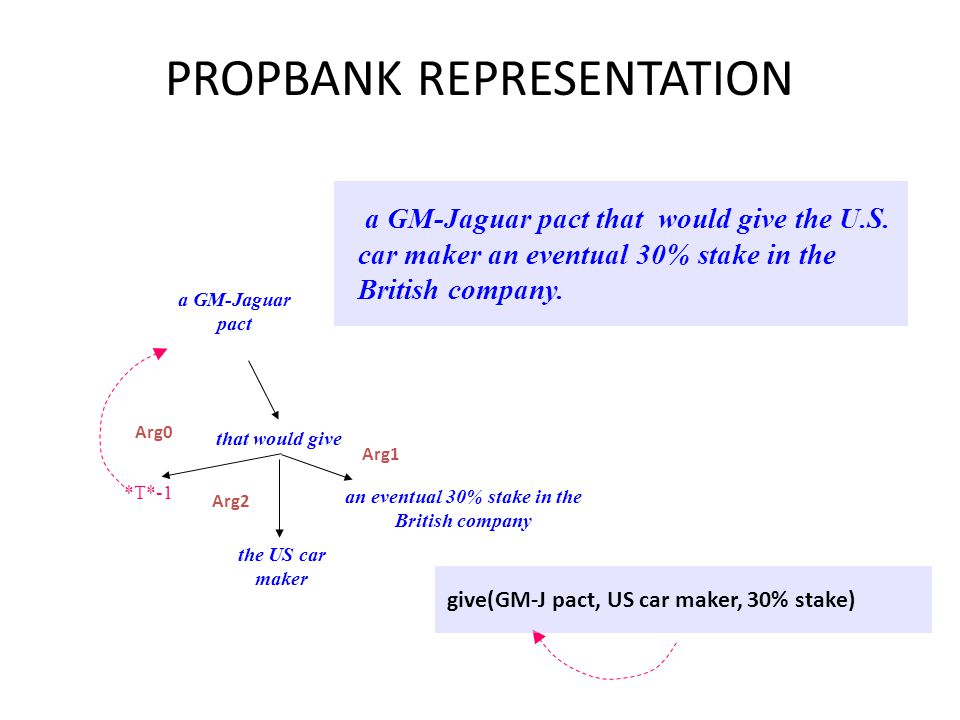

39. PROPBANK REPRESENTATION a GM-Jaguar pact that would give *T*-1 the US car maker an eventual 30% stake in the British company Arg0 Arg2 Arg1 give(GM-J pact, US car maker, 30% stake) a GM-Jaguar pact that would give the U.S. car maker an eventual 30% stake in the British company.

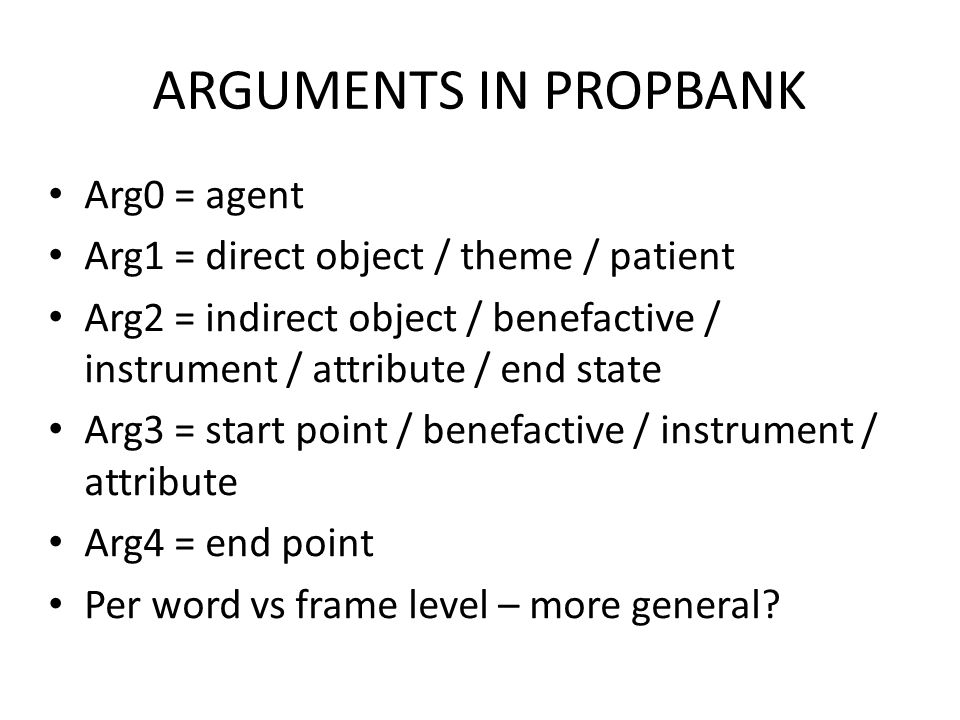

40. ARGUMENTS IN PROPBANK Arg0 = agent Arg1 = direct object / theme / patient Arg2 = indirect object / benefactive / instrument / attribute / end state Arg3 = start point / benefactive / instrument / attribute Arg4 = end point Per word vs frame level – more general?

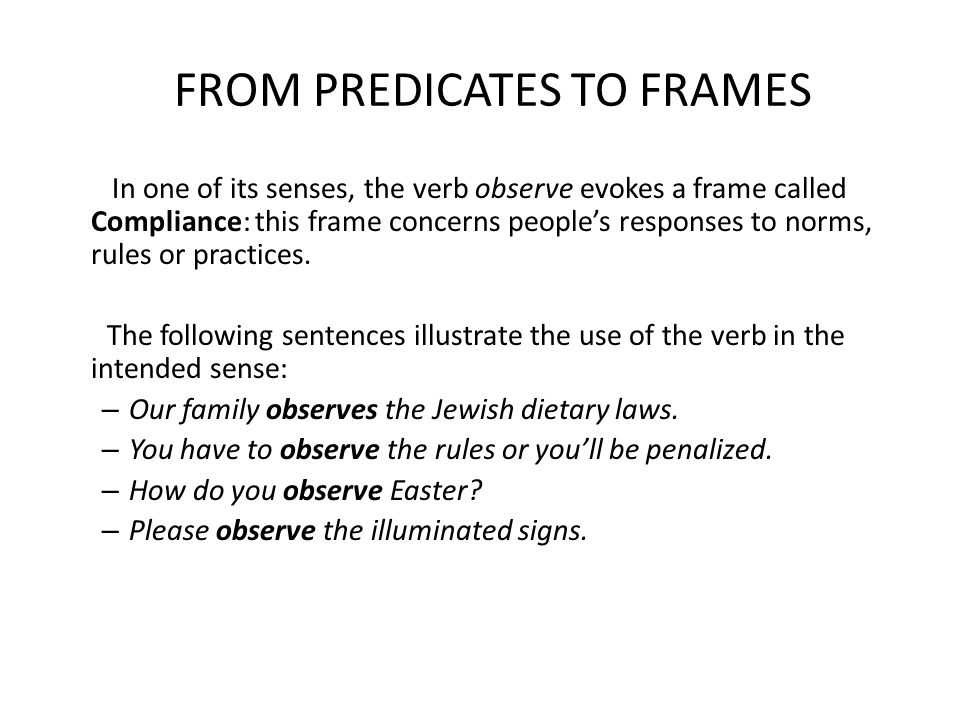

41. FROM PREDICATES TO FRAMES In one of its senses, the verb observe evokes a frame called Compliance: this frame concerns people’s responses to norms, rules or practices. The following sentences illustrate the use of the verb in the intended sense: – Our family observes the Jewish dietary laws. – You have to observe the rules or you’ll be penalized. – How do you observe Easter? – Please observe the illuminated signs.

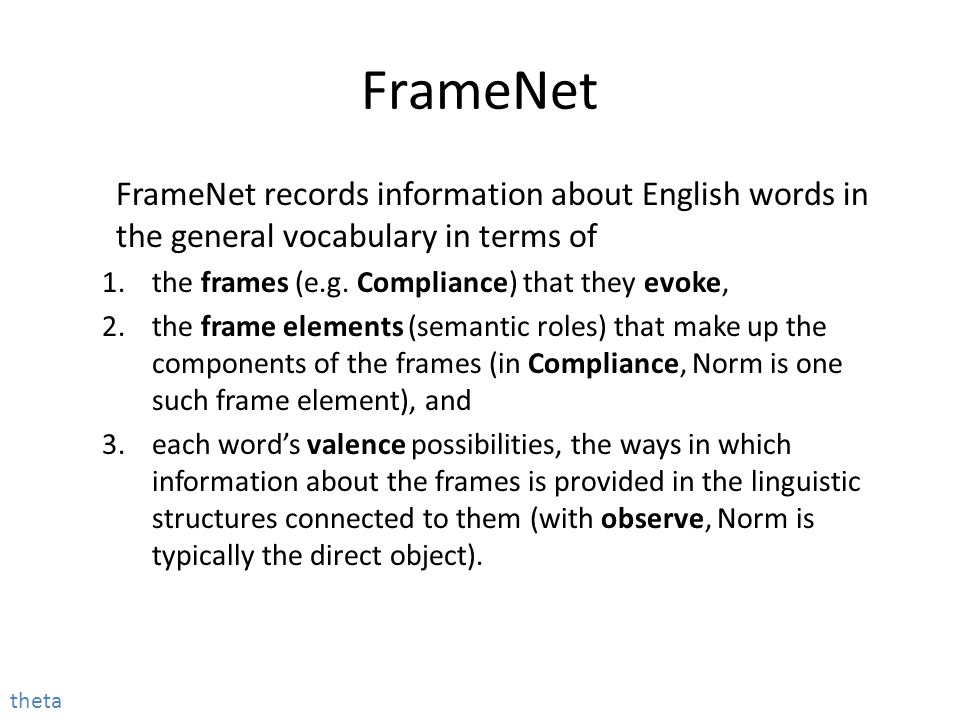

42. FrameNet FrameNet records information about English words in the general vocabulary in terms of 1.the frames (e.g. Compliance) that they evoke, 2.the frame elements (semantic roles) that make up the components of the frames (in Compliance, Norm is one such frame element), and 3.each word’s valence possibilities, the ways in which information about the frames is provided in the linguistic structures connected to them (with observe, Norm is typically the direct object). theta

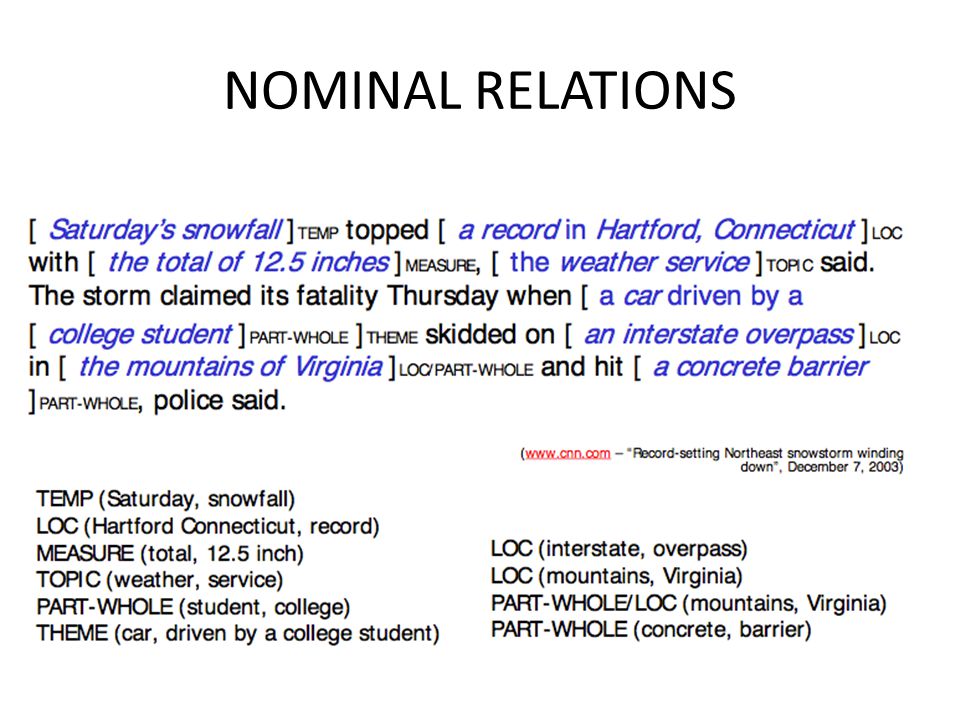

43. NOMINAL RELATIONS

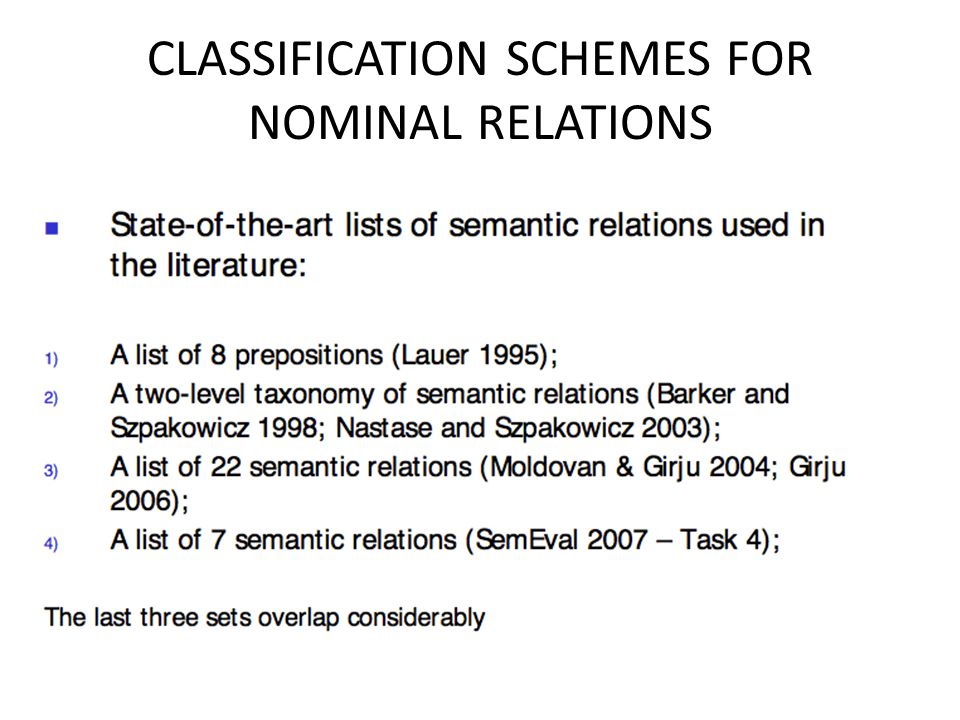

44. CLASSIFICATION SCHEMES FOR NOMINAL RELATIONS

45. ONE EXAMPLE (Barker et al1998, Nastase & Spakowicz 2003)

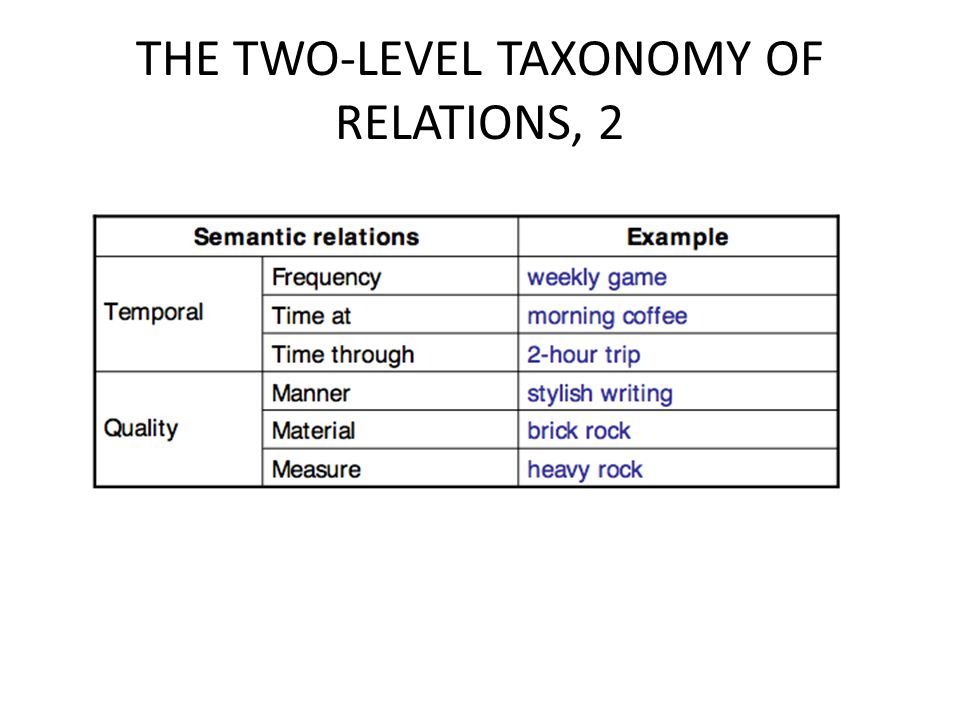

46. THE TWO-LEVEL TAXONOMY OF RELATIONS, 2

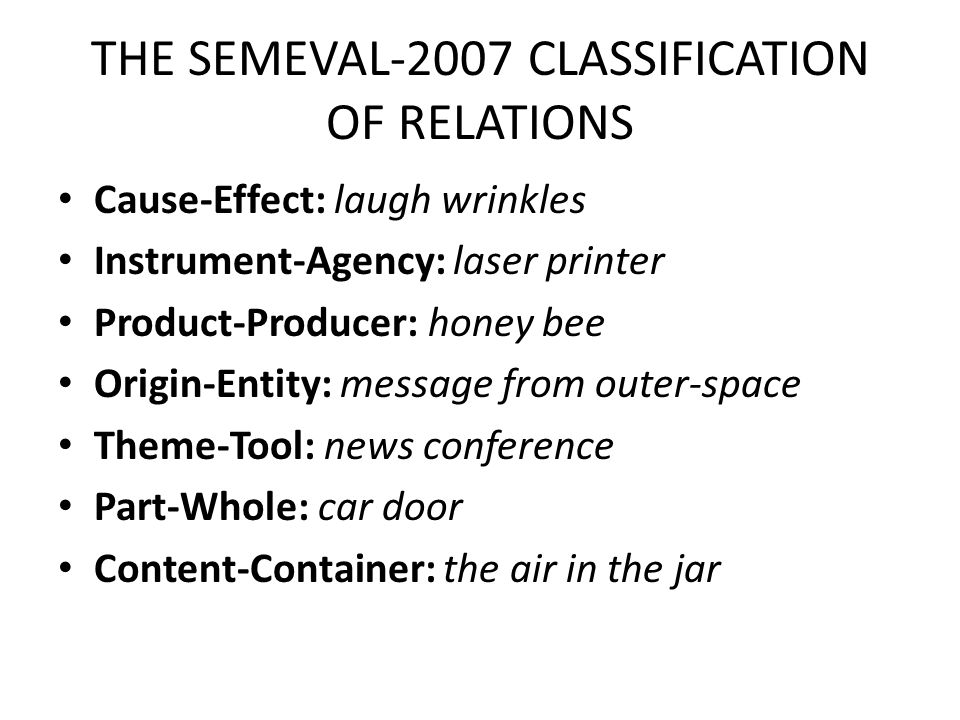

47. THE SEMEVAL-2007 CLASSIFICATION OF RELATIONS Cause-Effect: laugh wrinkles Instrument-Agency: laser printer Product-Producer: honey bee Origin-Entity: message from outer-space Theme-Tool: news conference Part-Whole: car door Content-Container: the air in the jar

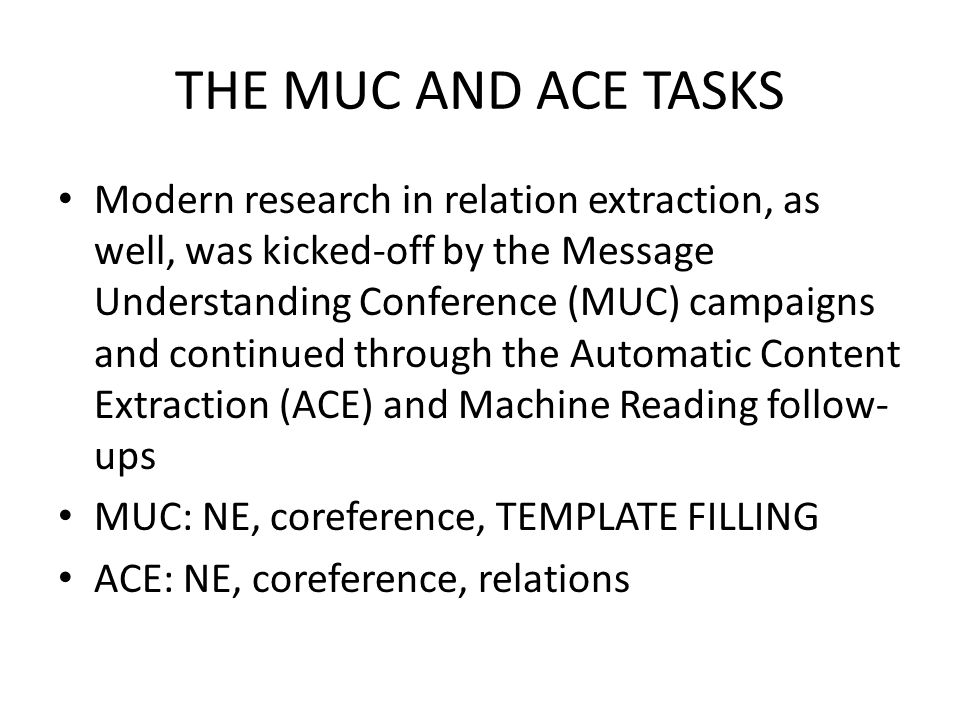

48. THE MUC AND ACE TASKS Modern research in relation extraction, as well, was kicked-off by the Message Understanding Conference (MUC) campaigns and continued through the Automatic Content Extraction (ACE) and Machine Reading follow- ups MUC: NE, coreference, TEMPLATE FILLING ACE: NE, coreference, relations

49. TEMPLATE-FILLING

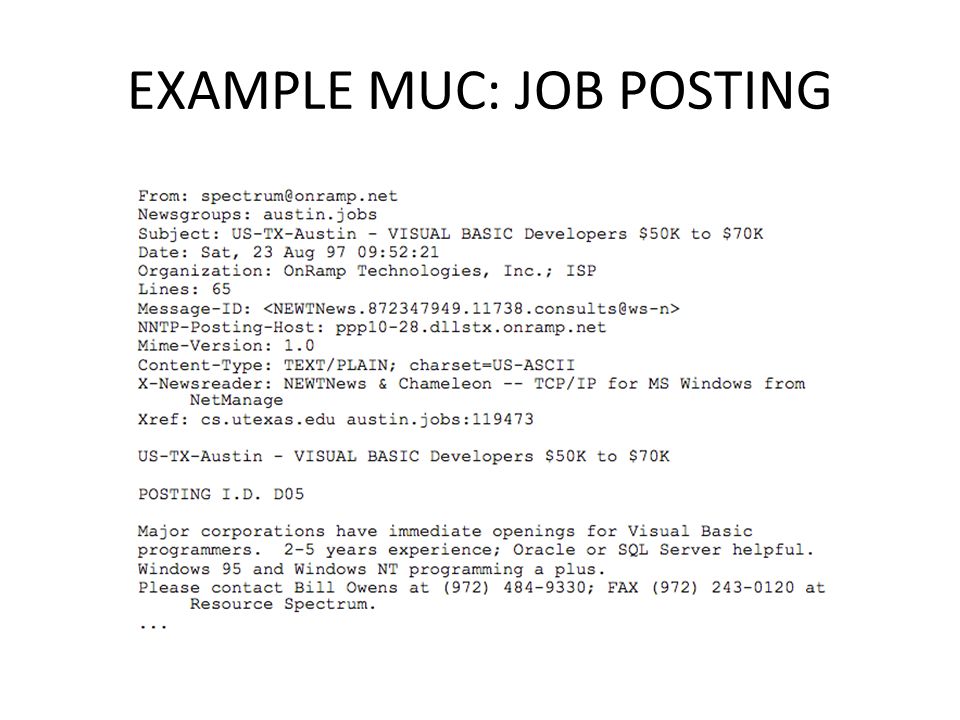

50. EXAMPLE MUC: JOB POSTING

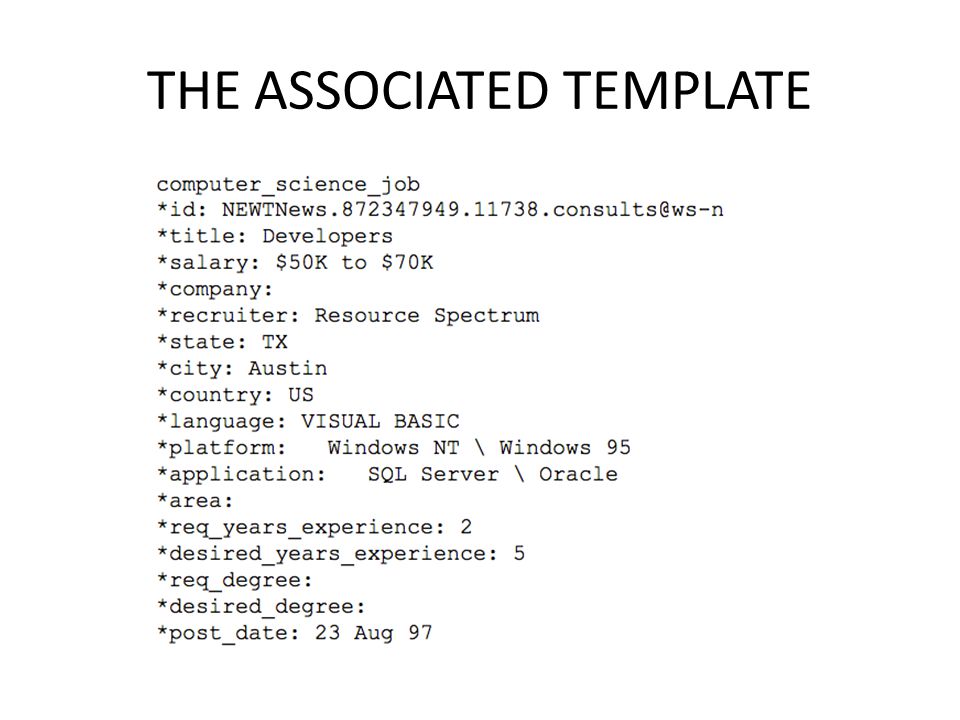

51. THE ASSOCIATED TEMPLATE

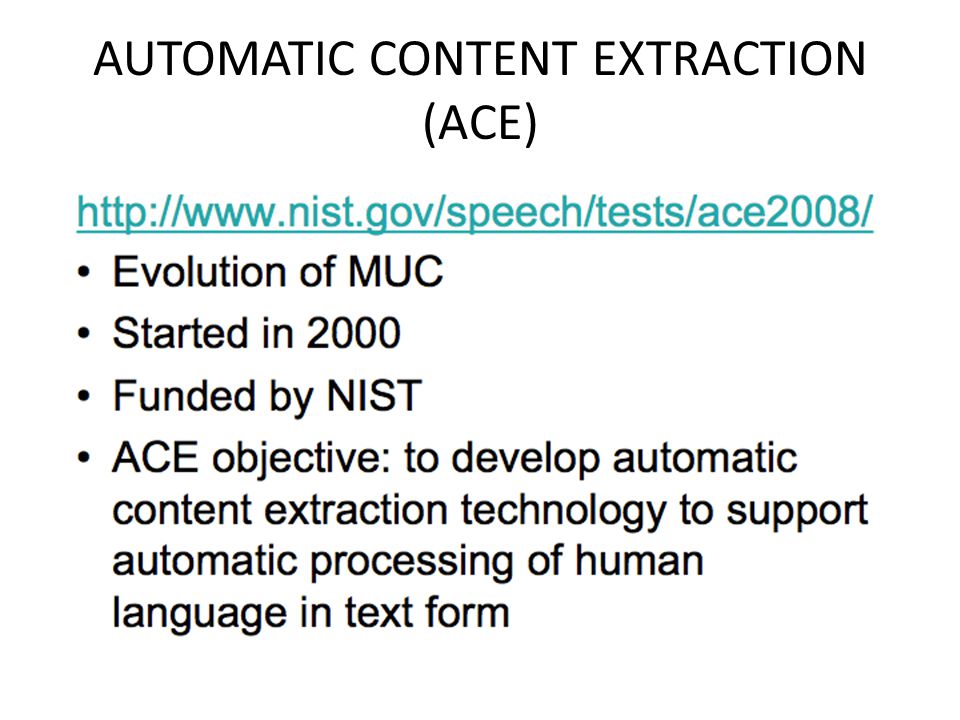

52. AUTOMATIC CONTENT EXTRACTION (ACE)

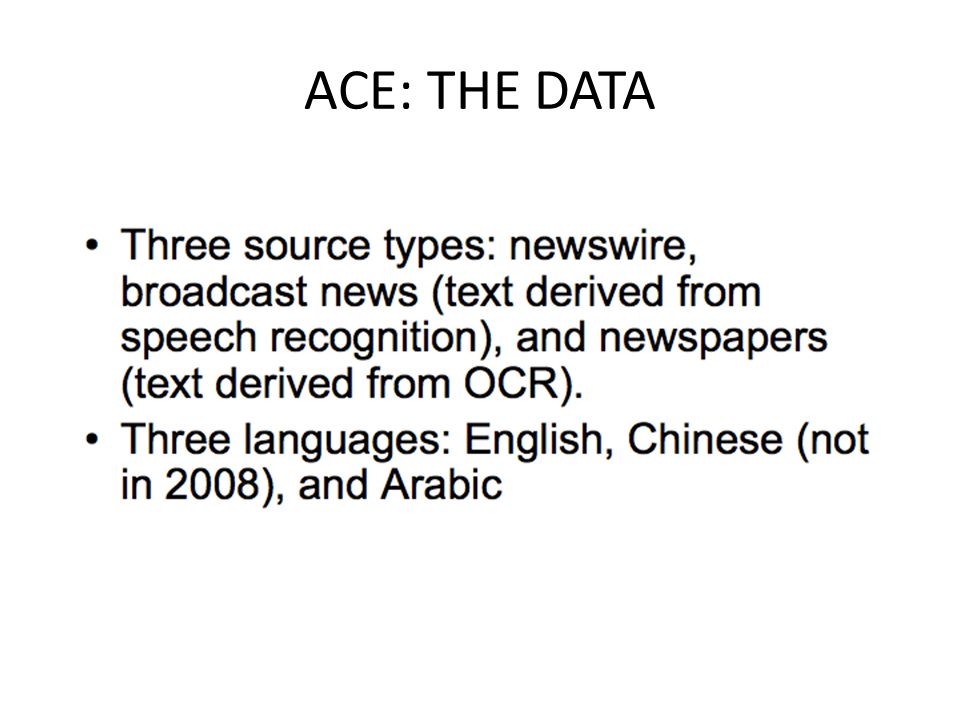

53. ACE: THE DATA

54. ACE: THE TASKS

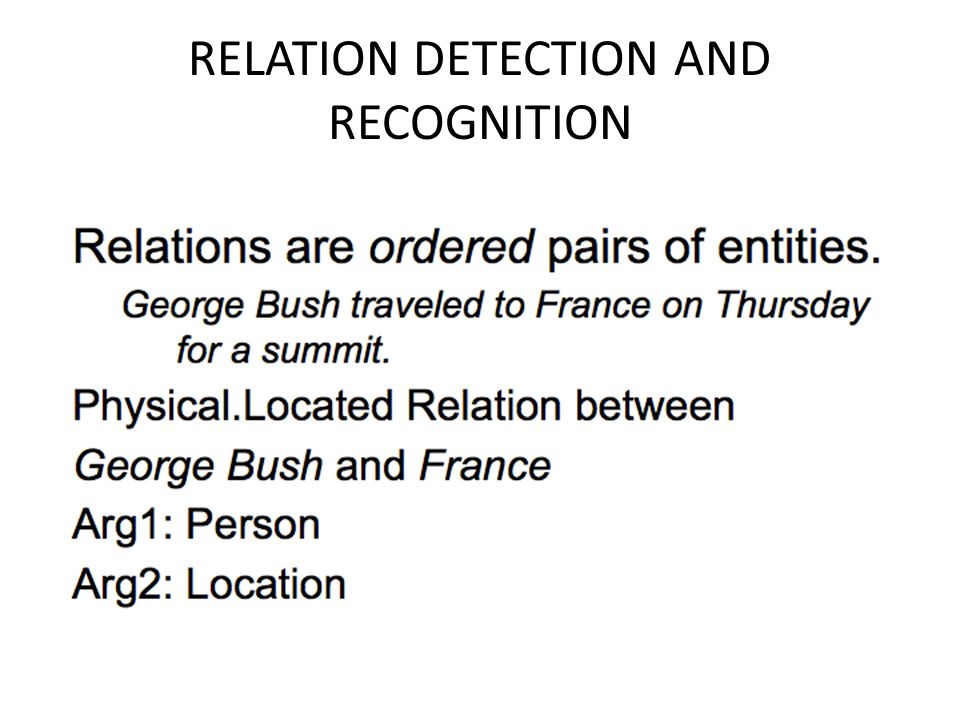

55. RELATION DETECTION AND RECOGNITION

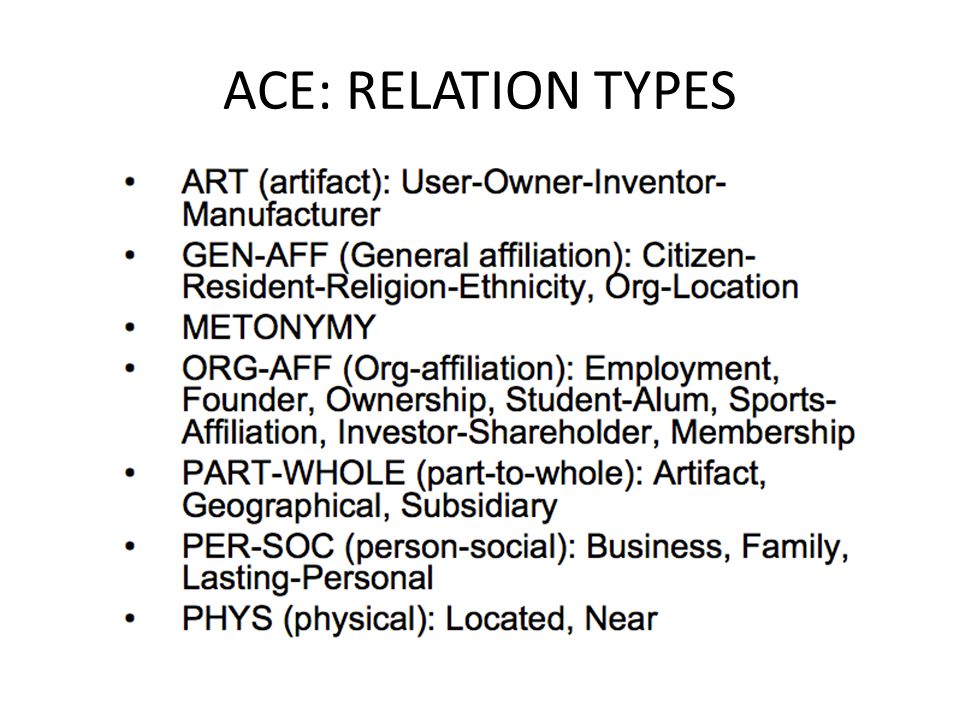

56. ACE: RELATION TYPES

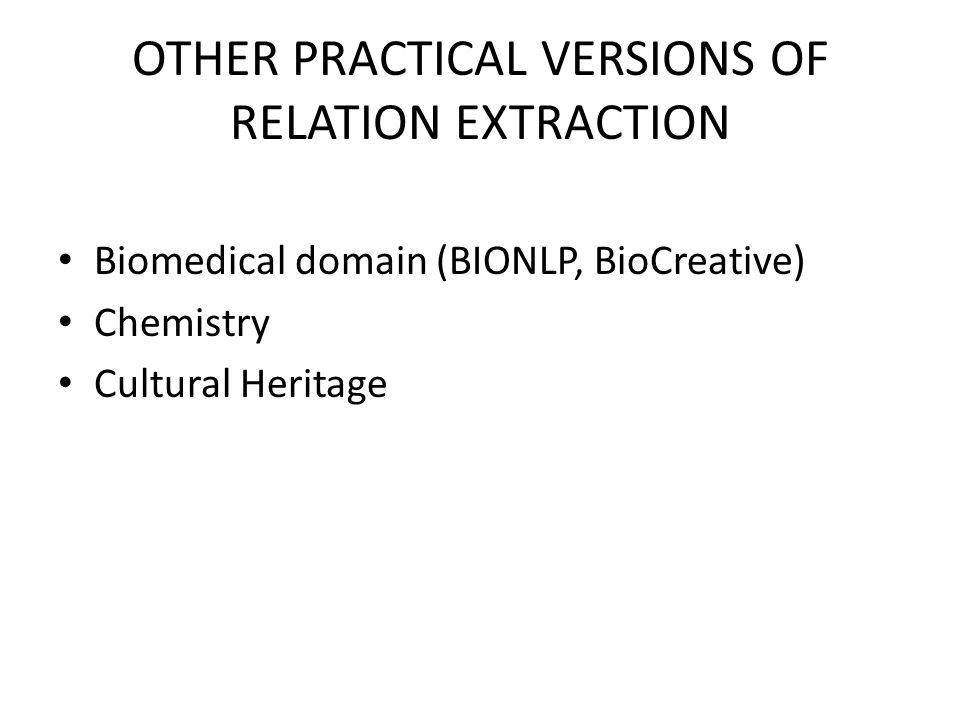

57. OTHER PRACTICAL VERSIONS OF RELATION EXTRACTION Biomedical domain (BIONLP, BioCreative) Chemistry Cultural Heritage

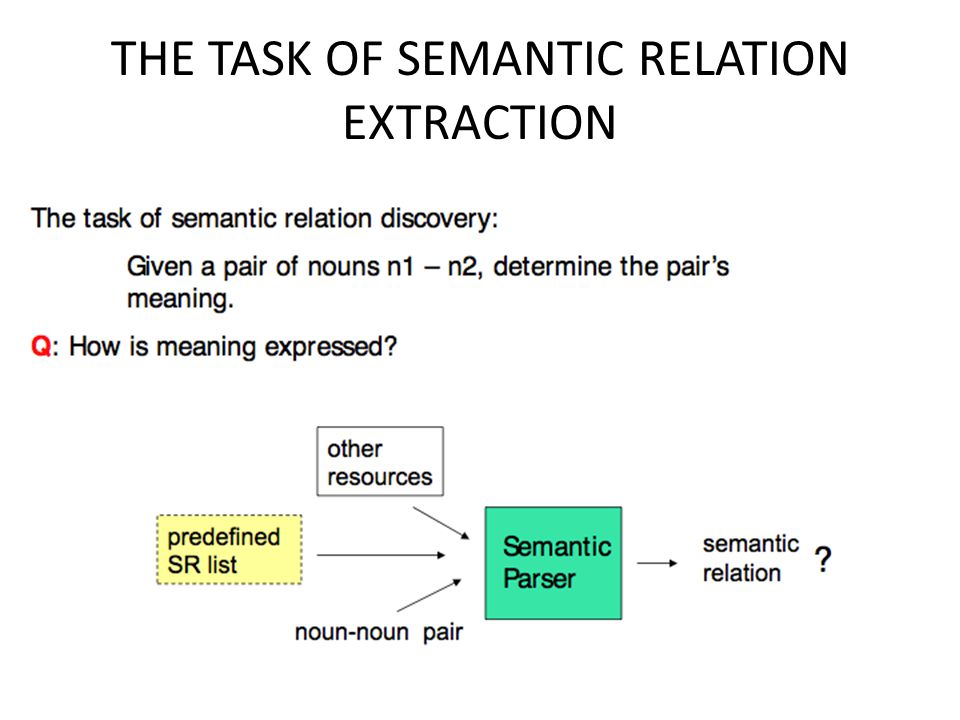

58. THE TASK OF SEMANTIC RELATION EXTRACTION

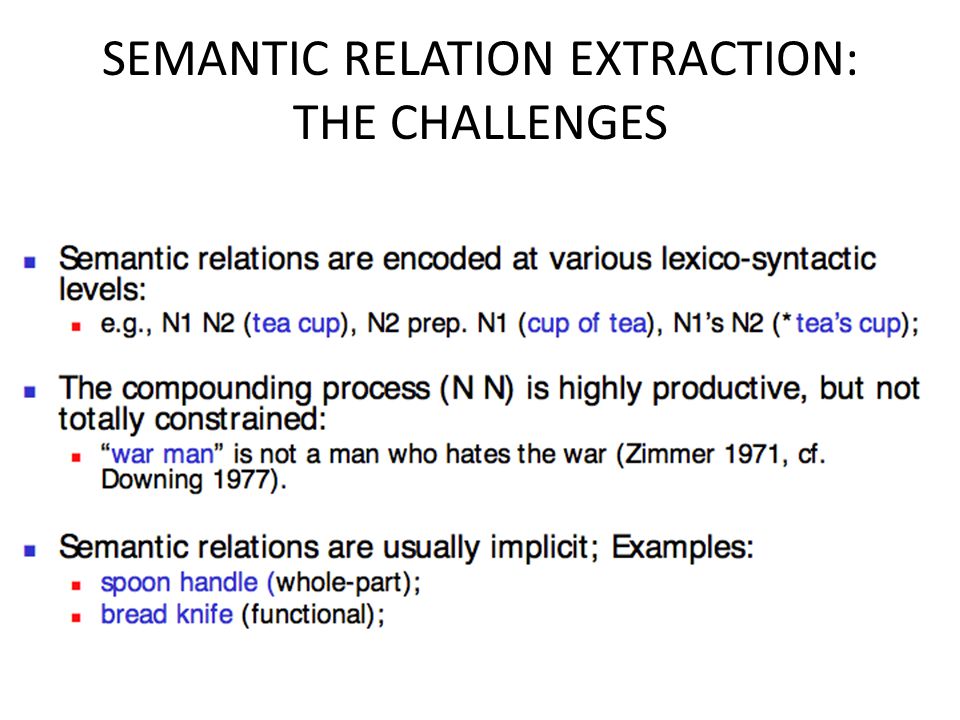

59. SEMANTIC RELATION EXTRACTION: THE CHALLENGES

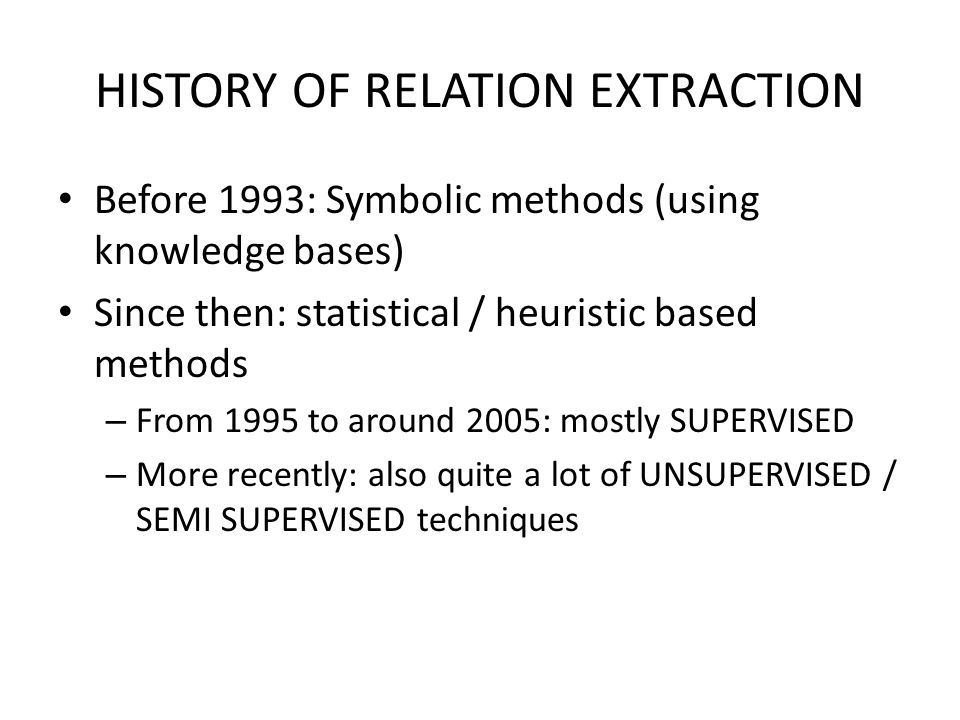

60. HISTORY OF RELATION EXTRACTION Before 1993: Symbolic methods (using knowledge bases) Since then: statistical / heuristic based methods – From 1995 to around 2005: mostly SUPERVISED – More recently: also quite a lot of UNSUPERVISED / SEMI SUPERVISED techniques

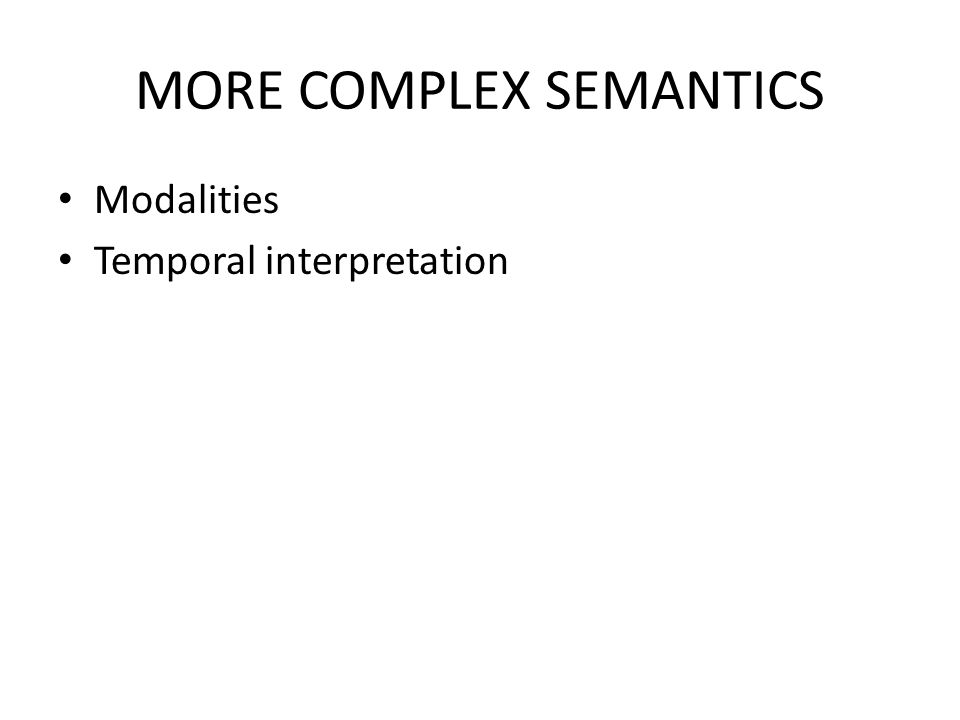

61. MORE COMPLEX SEMANTICS Modalities Temporal interpretation
