1. Senior Design Team 5: Final Presentation May 9, 2009

2. Outline Team & Project Introduction Design Process Obstacles Prototype Design Conclusion

3. Team Introduction Ryan Mejeur (EE) David VanKampen (EE)David VandeBunte (EE) Matt Lubbers (EE)

4. Inspiration Service-oriented Design automated system Robotics/ motor control

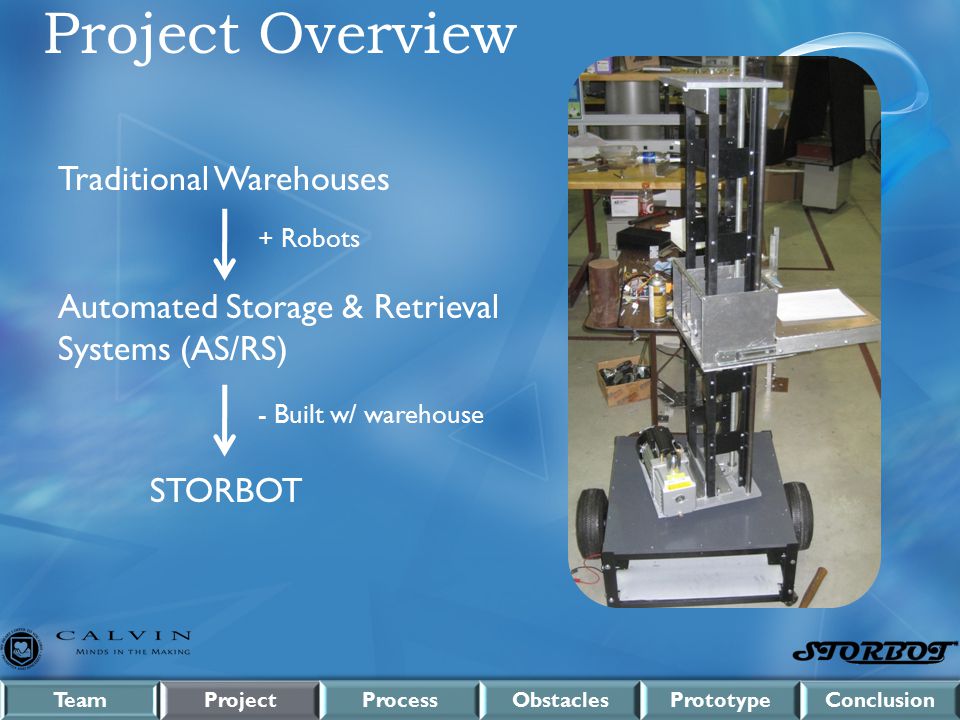

5. Project Overview Traditional Warehouses + Robots Automated Storage & Retrieval Systems (AS/RS) - Built w/ warehouse STORBOT

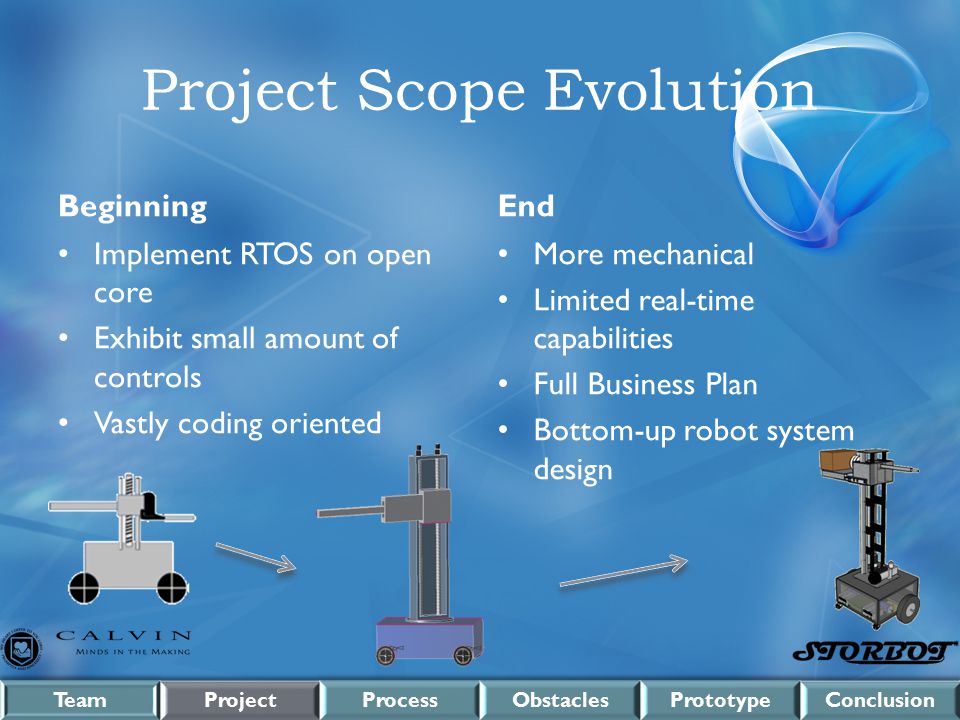

6. Project Scope Evolution Beginning Implement RTOS on open core Exhibit small amount of controls Vastly coding oriented End More mechanical Limited real-time capabilities Full Business Plan Bottom-up robot system design

7. System Architecture

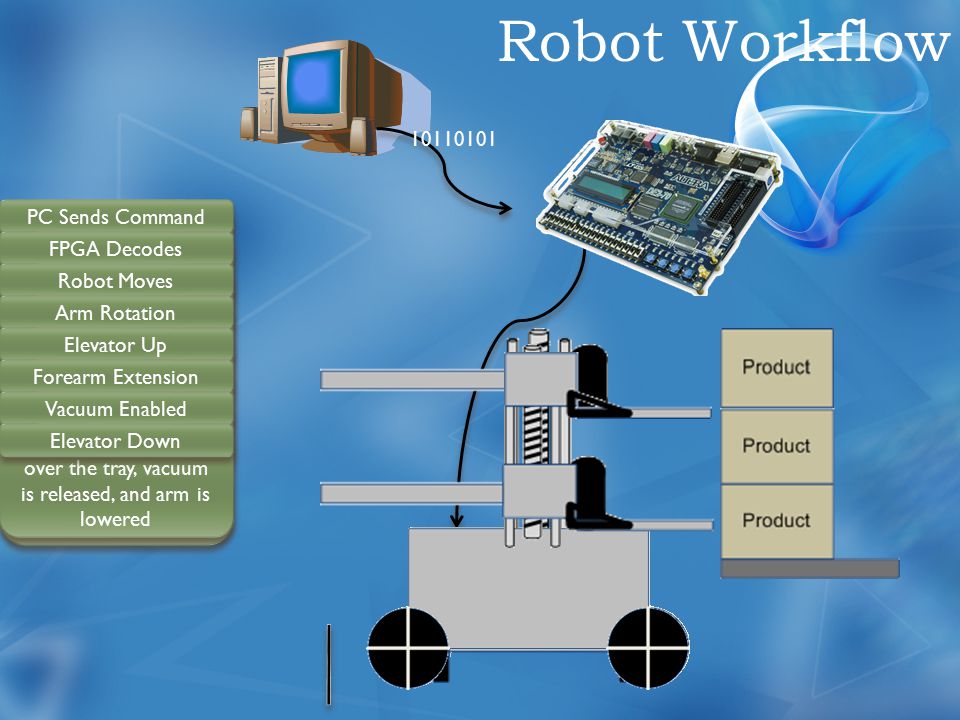

8. Host PC sends command PC Sends Command FPGA decodes and receives command FPGA signals wheel motors to advance FPGA Decodes Robot Moves At proper shelf, truck stops, rotator starts Arm Rotation After rotation, the elevator raises the arm Elevator Up Once correct height is reached, the forearm advances Forearm Extension Upon contact with the product, a vacuum is created, and the product is pulled back Vacuum Enabled Once the product is over the tray, vacuum is released, and arm is lowered 10110101 Elevator Down Robot Workflow

9. From Concept… Redesigned over Spring Break Addressed specific issues Visual conception drawn in Sketch-up … To Reality New Design Taller tower Longer arm Shelf Motor Linear bearings

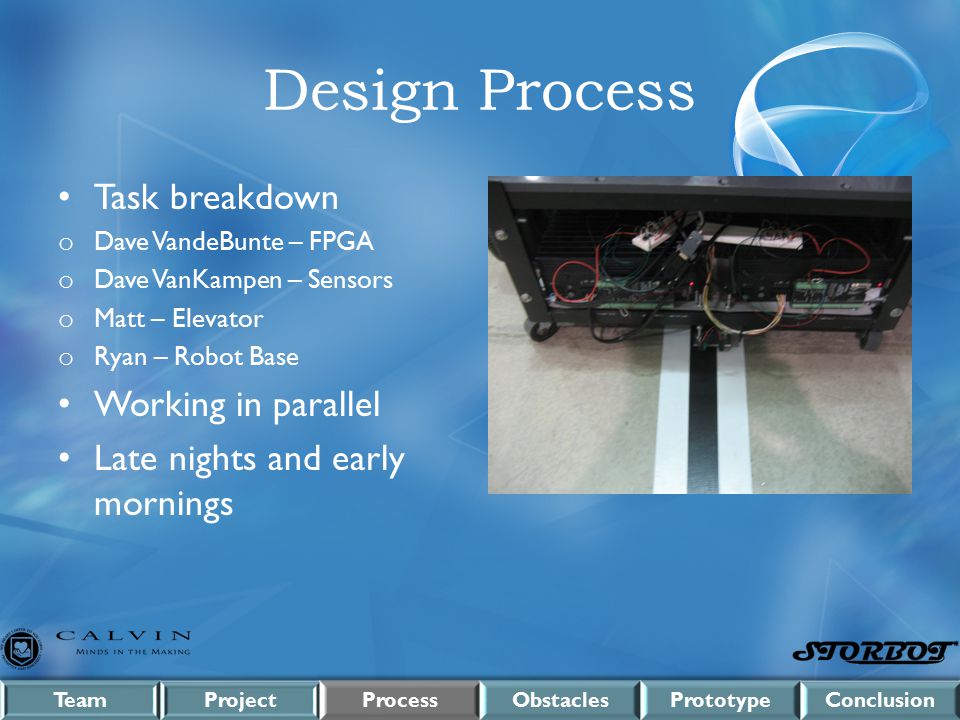

10. Design Process Task breakdown o Dave VandeBunte – FPGA o Dave VanKampen – Sensors o Matt – Elevator o Ryan – Robot Base Working in parallel Late nights and early mornings

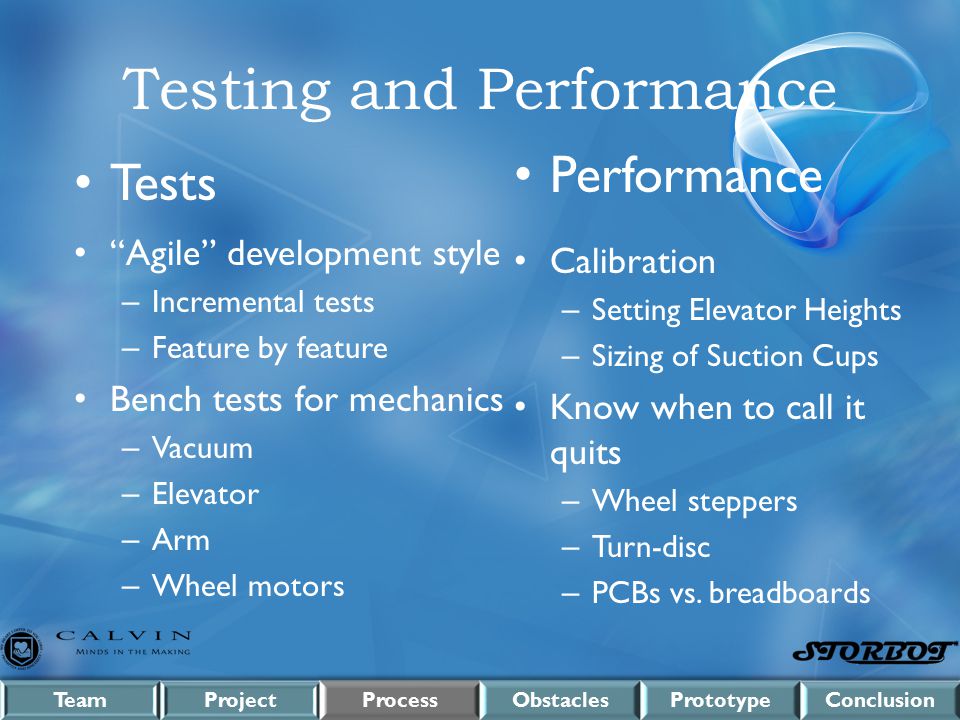

11. Testing and Performance Tests “Agile” development style – Incremental tests – Feature by feature Bench tests for mechanics – Vacuum – Elevator – Arm – Wheel motors Performance Calibration – Setting Elevator Heights – Sizing of Suction Cups Know when to call it quits – Wheel steppers – Turn-disc – PCBs vs. breadboards

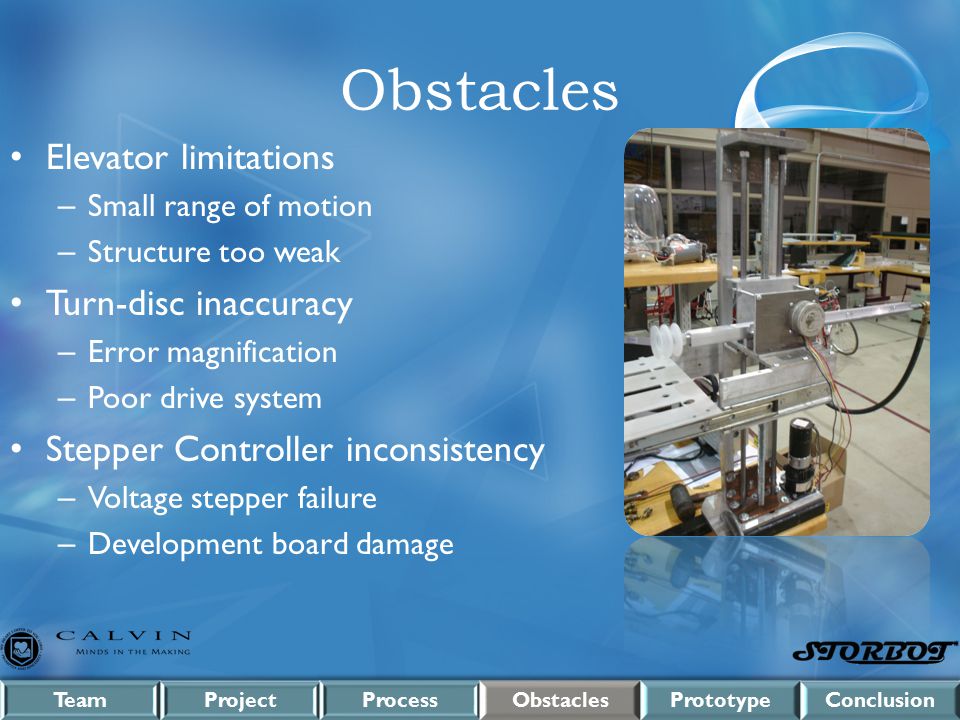

12. Obstacles Elevator limitations – Small range of motion – Structure too weak Turn-disc inaccuracy – Error magnification – Poor drive system Stepper Controller inconsistency – Voltage stepper failure – Development board damage

13. Solutions and Tradeoffs Redesign elevator – Linear bearings – Improved structural design Fix Turn-disc – Bolt in place – Loss in range of motion Controller opto-isolation – Far too much time & too many gray hairs – No level translation necessary

14. Prototype Design Base Design Elevator/Arm Design

15. Base Design Base Design Elevator/Arm Design Power Supplies Stepper Motor Controllers Wheel Stepper Motors Turn-disc Stepper Motor H-Bridge and Relay Development Board Powertrain

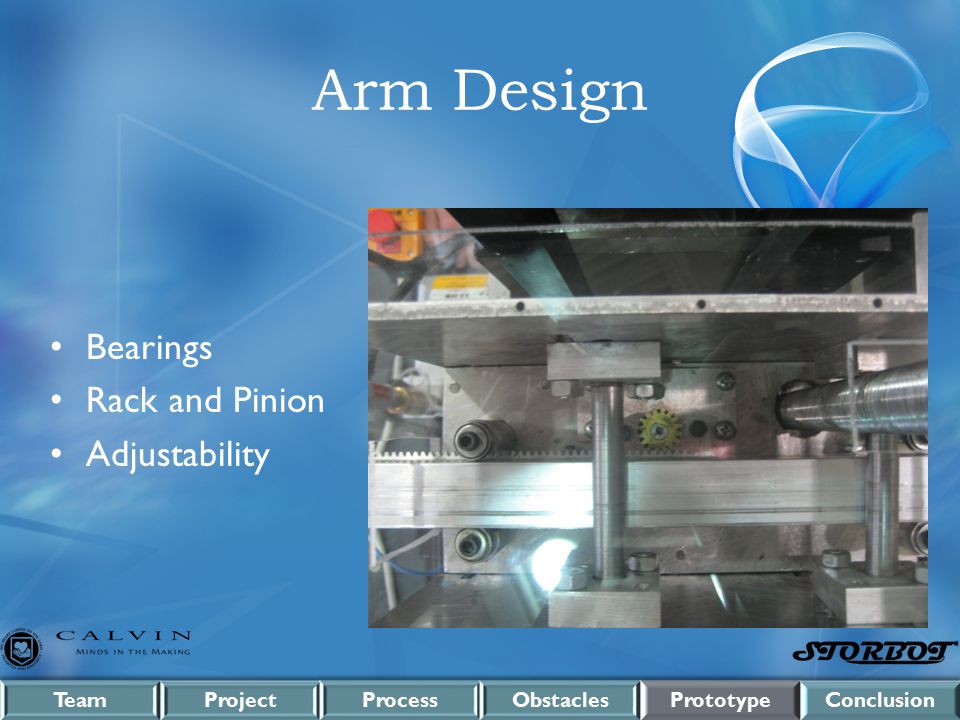

16. Arm Design Bearings Rack and Pinion Adjustability

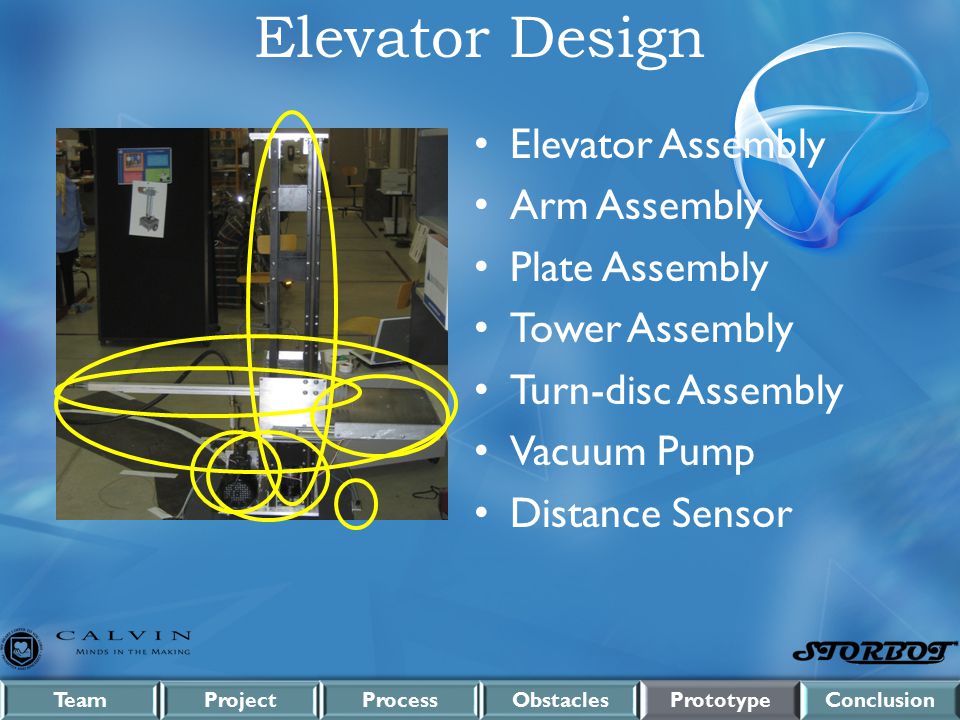

17. Elevator Design Elevator Assembly Arm Assembly Plate Assembly Tower Assembly Turn-disc Assembly Vacuum Pump Distance Sensor

18. Prototype -- Analog Sensors Reflectance Encoders Ultrasonic Distance IR Proximity Vacuum Peripheral Circuits High current H-bridges Voltage steppers Opto-isolation Transistor switches

19. Prototype -- Digital Functional GUI Front end for Serial Port Inventory Management System Successful coordination with CS student

20. Prototype -- Digital

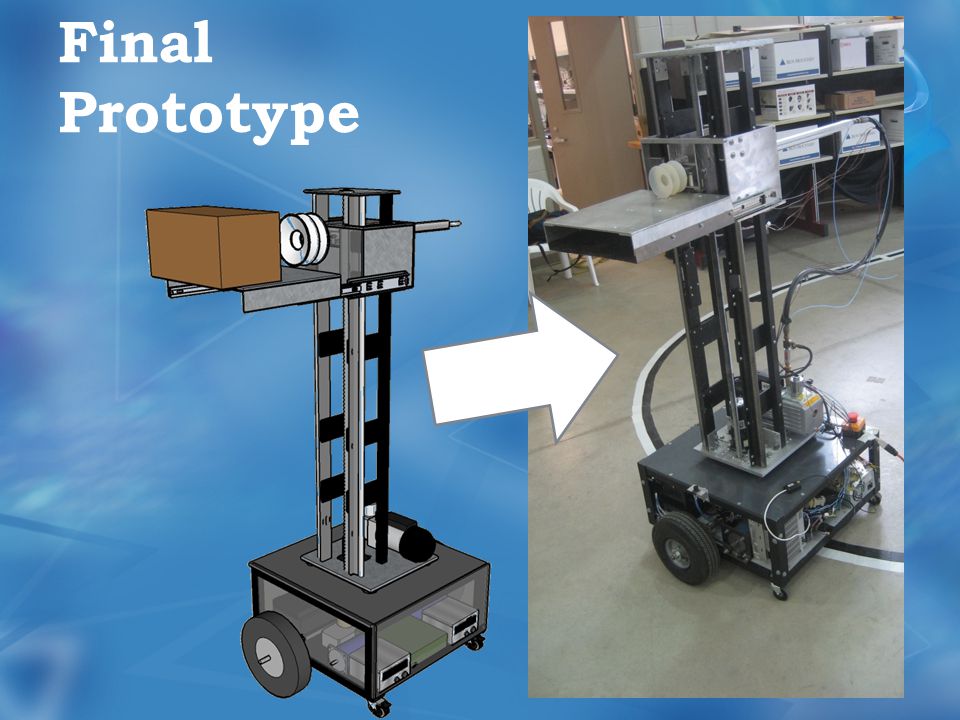

21. Final Prototype

22. Conclusions Success Heavier Box 15 to 30 lbs Larger Dimensions12 “ to 18” Lessons learned Robotics Field Debugging Potential Development Expandability Patent follow-up Debug turn-disc

23. Acknowledgements Phil Jasperse – Shop Attendant Josh Vroom – CS Student Chuck Holwerda – Electronics Professor Bossemeyer & Calvin Faculty DornerWorks Xilinx University Program Ben Lubbers and Jonathan Mejeur

24. Questions?
