1. SUSTAINABLE FUME CUPBOARDS BY TARIQ SHAMSI

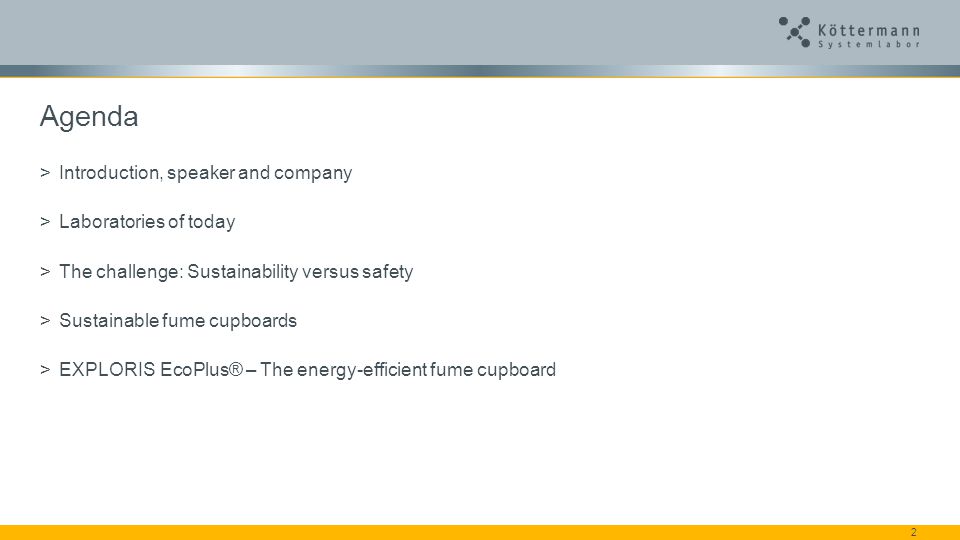

2.  Introduction, speaker and company  Laboratories of today  The challenge: Sustainability versus safety  Sustainable fume cupboards  EXPLORIS EcoPlus® – The energy-efficient fume cupboard 2 Agenda

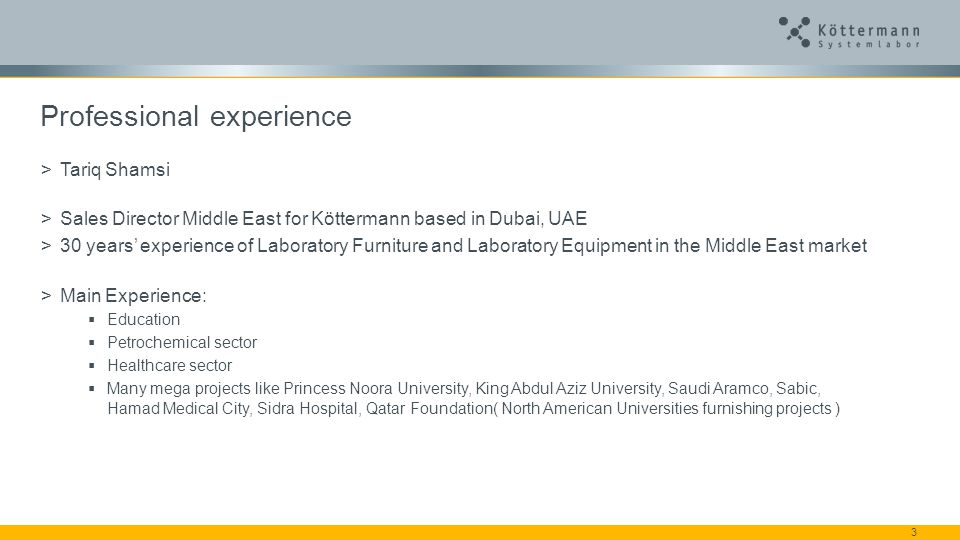

3. 3  Tariq Shamsi  Sales Director Middle East for Köttermann based in Dubai, UAE  30 years’ experience of Laboratory Furniture and Laboratory Equipment in the Middle East market  Main Experience:  Education  Petrochemical sector  Healthcare sector  Many mega projects like Princess Noora University, King Abdul Aziz University, Saudi Aramco, Sabic, Hamad Medical City, Sidra Hospital, Qatar Foundation( North American Universities furnishing projects ) Professional experience

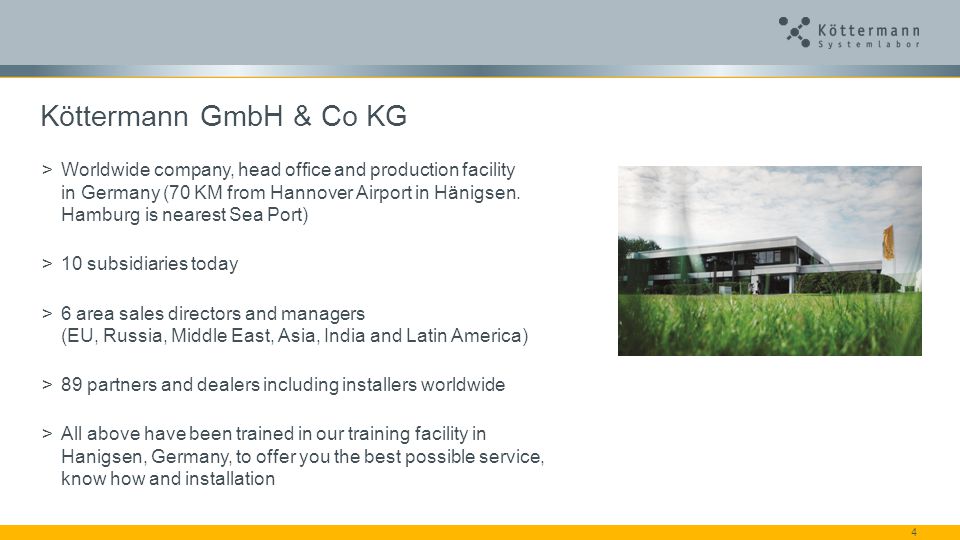

4. 4  Worldwide company, head office and production facility in Germany (70 KM from Hannover Airport in Hänigsen. Hamburg is nearest Sea Port)  10 subsidiaries today  6 area sales directors and managers (EU, Russia, Middle East, Asia, India and Latin America)  89 partners and dealers including installers worldwide  All above have been trained in our training facility in Hanigsen, Germany, to offer you the best possible service, know how and installation Köttermann GmbH & Co KG

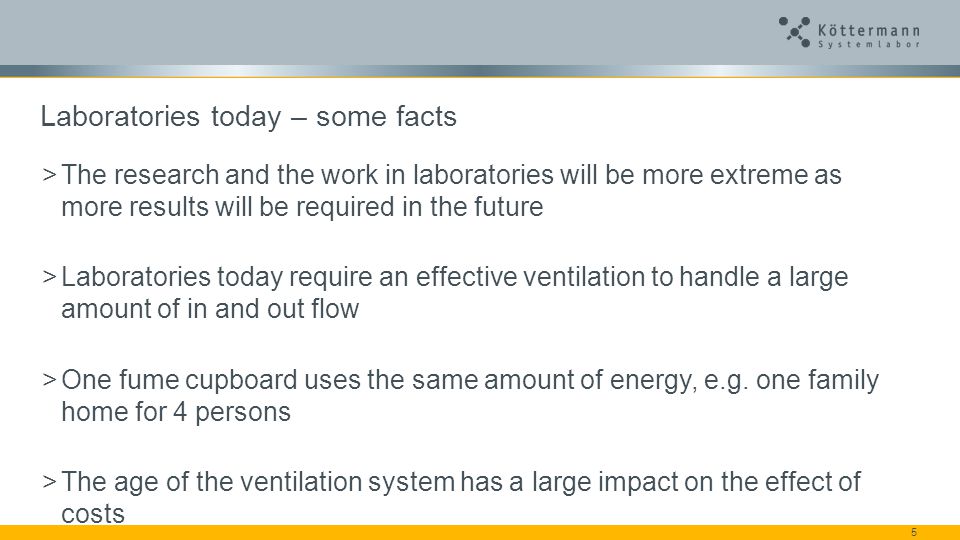

5. 5  The research and the work in laboratories will be more extreme as more results will be required in the future  Laboratories today require an effective ventilation to handle a large amount of in and out flow  One fume cupboard uses the same amount of energy, e.g. one family home for 4 persons  The age of the ventilation system has a large impact on the effect of costs  Therefore it is very important that the ventilation can cope with all/most activities in the lab Laboratories today – some facts

6. 6  There are many different interests in laboratories today as many different departemens are involved. And each one of them believe that their task is the most importent one. But : What is the main goal for a new laboratory ? High interest in laboratories

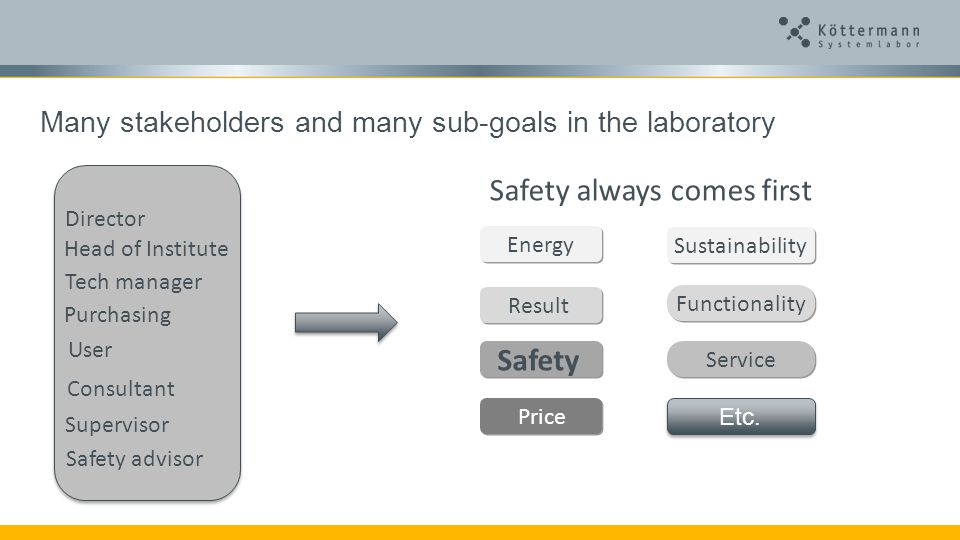

7. Many stakeholders and many sub-goals in the laboratory Energy Result Safety Price Sustainability Functionality Service Director Head of Institute Tech manager Purchasing User Consultant Supervisor Safety advisor Safety always comes first Etc.

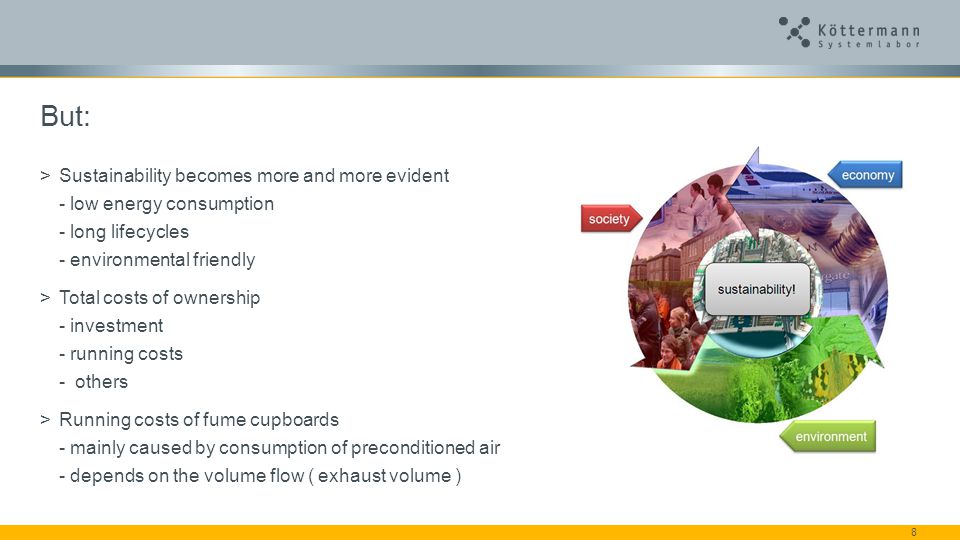

8.  Sustainability becomes more and more evident - low energy consumption - long lifecycles - environmental friendly  Total costs of ownership - investment - running costs - others  Running costs of fume cupboards - mainly caused by consumption of preconditioned air - depends on the volume flow ( exhaust volume ) 8 But:

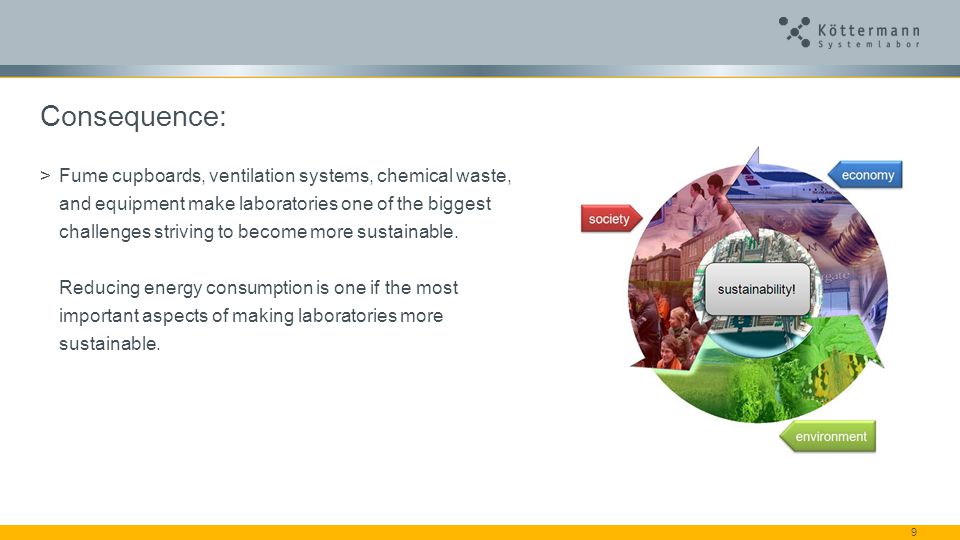

9.  Fume cupboards, ventilation systems, chemical waste, and equipment make laboratories one of the biggest challenges striving to become more sustainable. Reducing energy consumption is one if the most important aspects of making laboratories more sustainable. 9 Consequence:

10. 10 What can be done to make laboratory work more sustainable?  Providing knowledge about the total energy costs of running laboratories can build motivation for more energy-efficient behaviour in those who use them.  Reduce water  Proper waste management

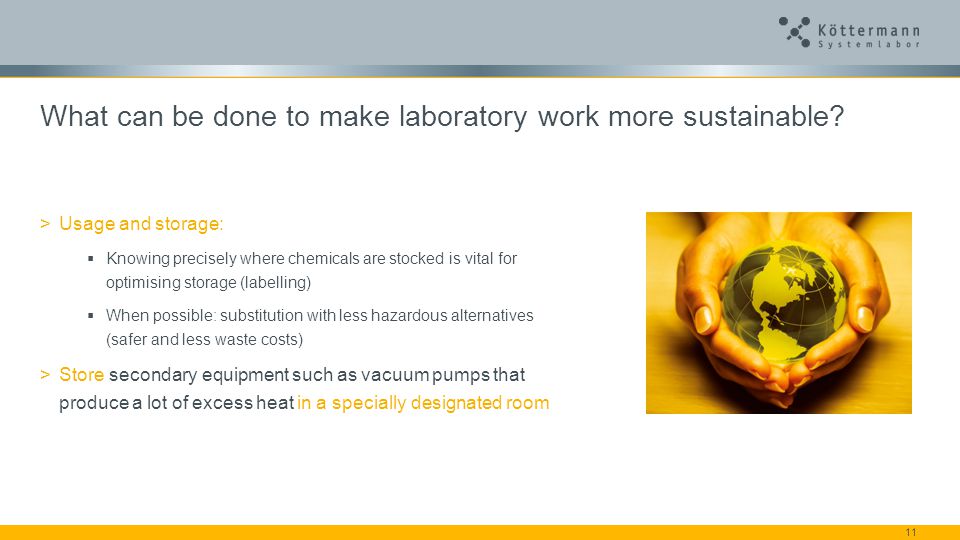

11.  Usage and storage:  Knowing precisely where chemicals are stocked is vital for optimising storage (labelling)  When possible: substitution with less hazardous alternatives (safer and less waste costs)  Store secondary equipment such as vacuum pumps that produce a lot of excess heat in a specially designated room 11 What can be done to make laboratory work more sustainable?

12. AND, of course:  Reduction of energy consumption !  Energy visualisation in the laboratory 12 What can be done to make laboratory work more sustainable?

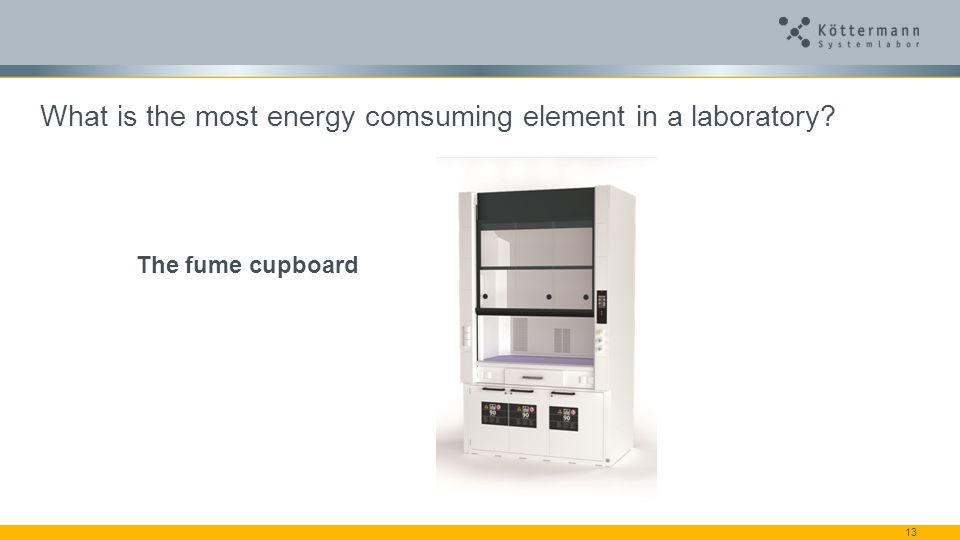

13. 13 The fume cupboard What is the most energy comsuming element in a laboratory?

14. 14  The fume cupboard functions can be expressed as the ability to  Remove pollution released from a source inside the fume cupboard  Extracting gases, fumes, and vapors etc. from fume cupboard  Protection against spatter and fragments from uncontrolled reactions  Explosion protection  Main function is to make people and the environment around the fume cupboard safe ! What is a fume cupboard ?

15.  Dilemma The higher the volume flow the higher the safety 15 Safety vs. Sustainability

16.  Answer: Energy efficient fume cupboards that remain safe ! 16 Safety vs. Sustainability

17. 17 Fume cupboard sash closes automatically when user is absent  self-closing sash (AutoProtect) Important fume cupboard characteristics for energy-saving and safety:

18. 18 Easy and safe operation of fume cupboards  Operating panel for easy use of all necessary fume cupboard functions User receives all important information at a glance, e.g. about the state of the ventilation system Important fume cupboard characteristics for energy-saving and safety:

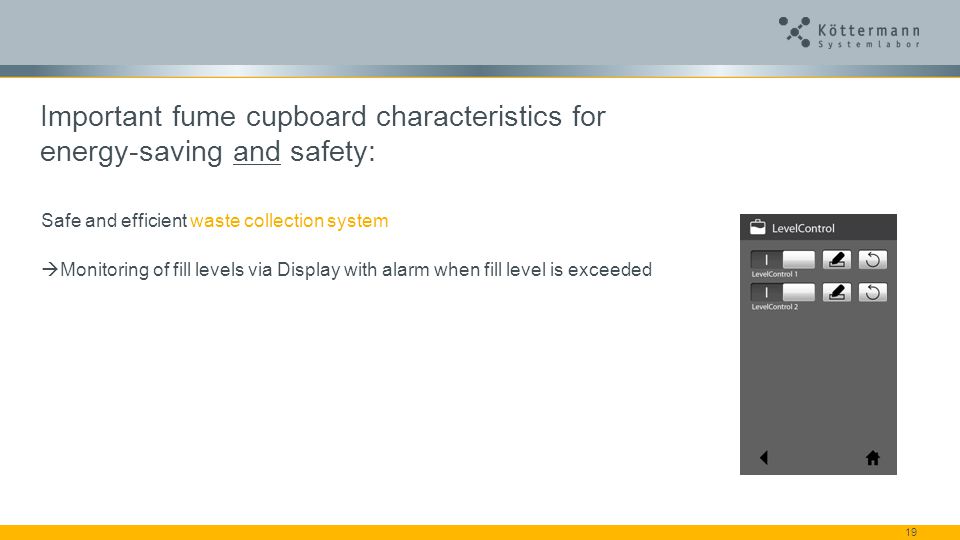

19. 19 Safe and efficient waste collection system  Monitoring of fill levels via Display with alarm when fill level is exceeded Important fume cupboard characteristics for energy-saving and safety:

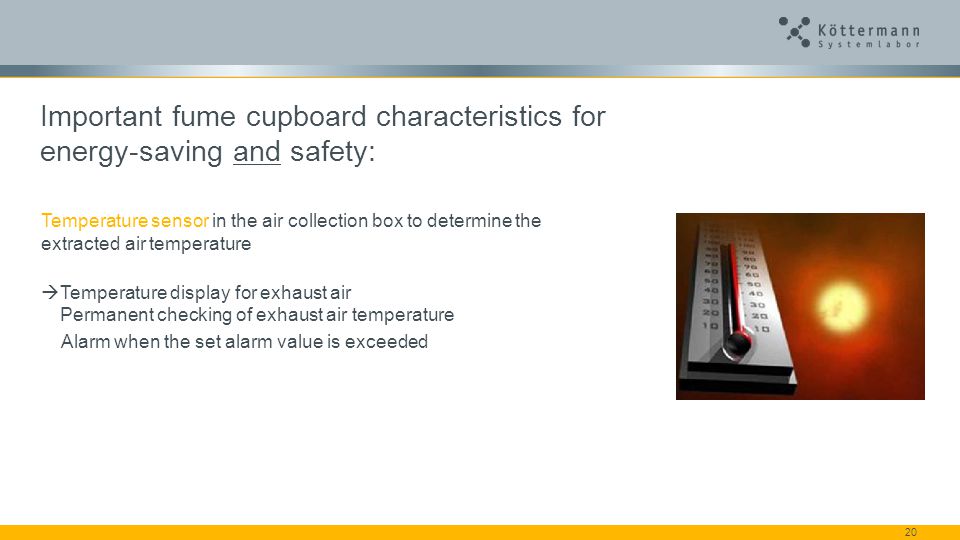

20. 20 Temperature sensor in the air collection box to determine the extracted air temperature  Temperature display for exhaust air Permanent checking of exhaust air temperature Alarm when the set alarm value is exceeded Important fume cupboard characteristics for energy-saving and safety:

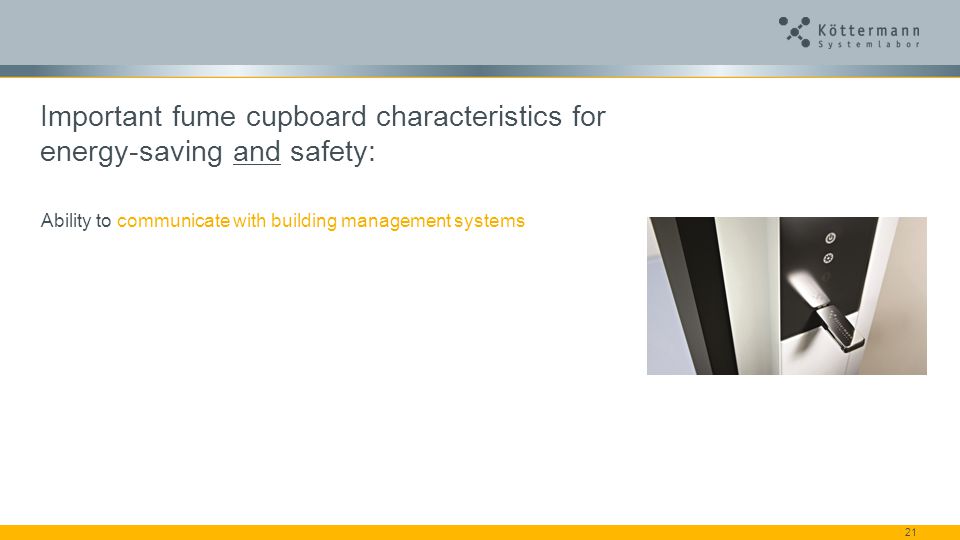

21. 21 Ability to communicate with building management systems Important fume cupboard characteristics for energy-saving and safety:

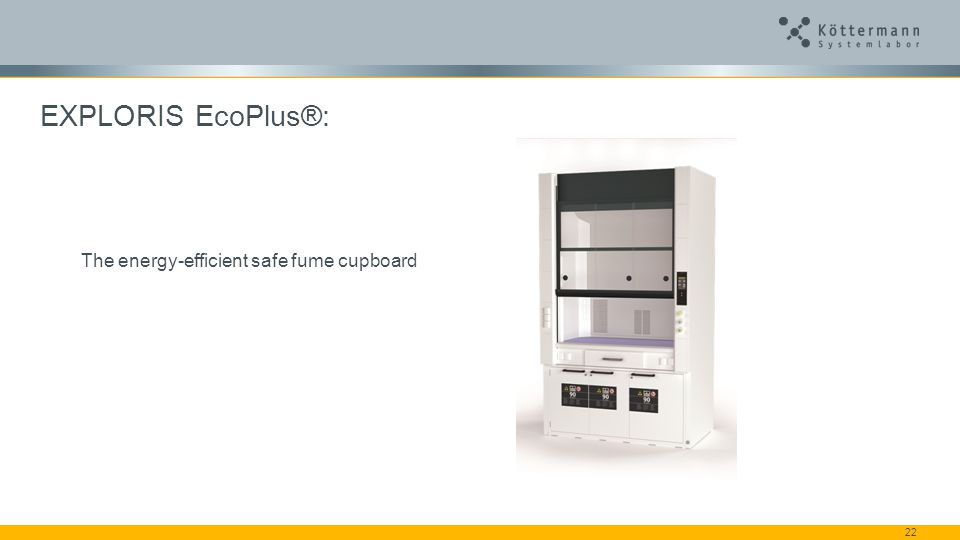

22. 22 EXPLORIS EcoPlus®: The energy-efficient safe fume cupboard

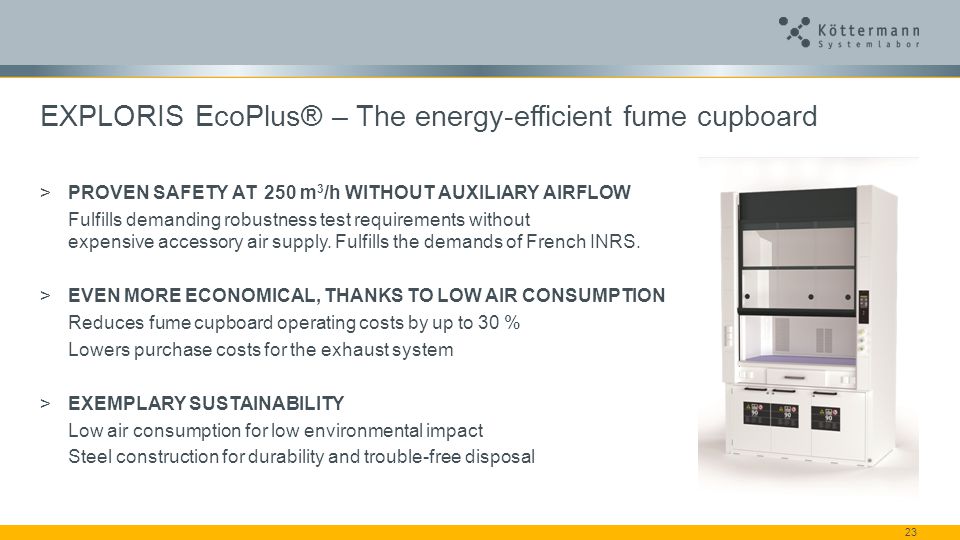

23.  PROVEN SAFETY AT 250 m 3 /h WITHOUT AUXILIARY AIRFLOW Fulfills demanding robustness test requirements without expensive accessory air supply. Fulfills the demands of French INRS.  EVEN MORE ECONOMICAL, THANKS TO LOW AIR CONSUMPTION Reduces fume cupboard operating costs by up to 30 % Lowers purchase costs for the exhaust system  EXEMPLARY SUSTAINABILITY Low air consumption for low environmental impact Steel construction for durability and trouble-free disposal 23 EXPLORIS EcoPlus® – The energy-efficient fume cupboard

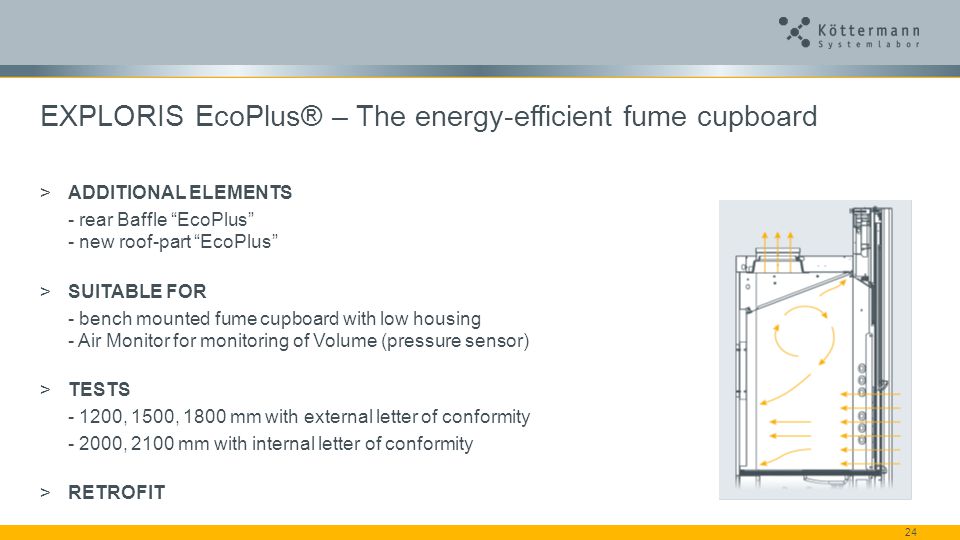

24.  ADDITIONAL ELEMENTS - rear Baffle “EcoPlus” - new roof-part “EcoPlus”  SUITABLE FOR - bench mounted fume cupboard with low housing - Air Monitor for monitoring of Volume (pressure sensor)  TESTS - 1200, 1500, 1800 mm with external letter of conformity - 2000, 2100 mm with internal letter of conformity  RETROFIT 24 EXPLORIS EcoPlus® – The energy-efficient fume cupboard

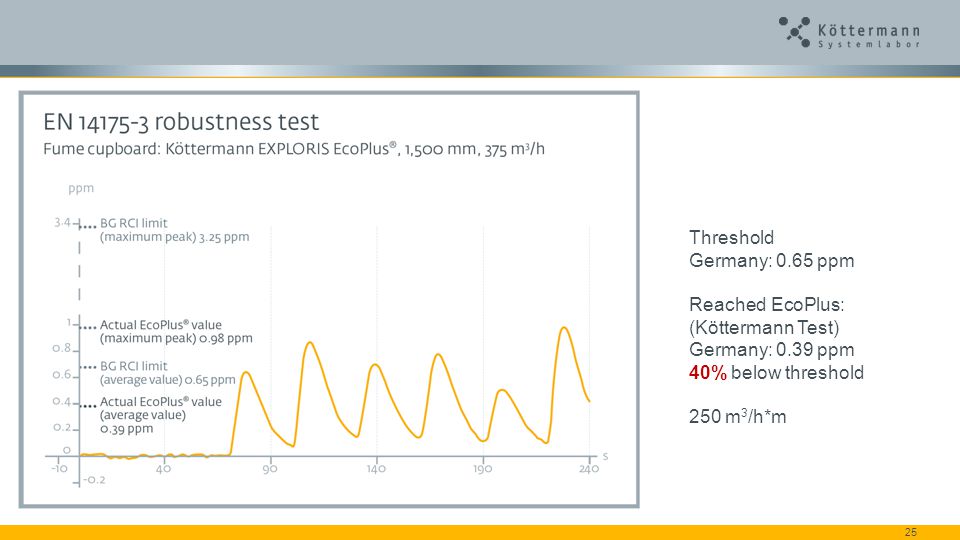

25. 25 Threshold Germany: 0.65 ppm Reached EcoPlus: (Köttermann Test) Germany: 0.39 ppm 40% below threshold 250 m 3 /h*m

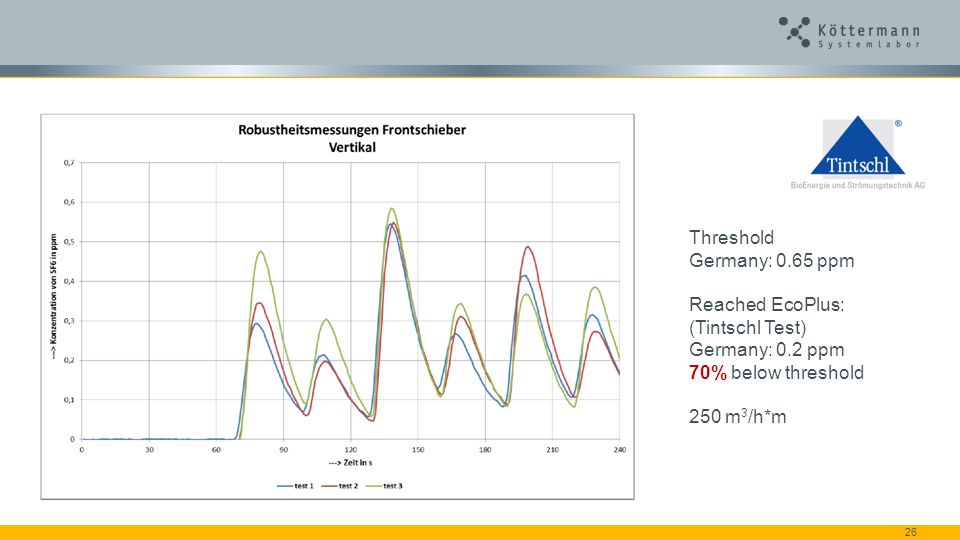

26. 26 Threshold Germany: 0.65 ppm Reached EcoPlus: (Tintschl Test) Germany: 0.2 ppm 70% below threshold 250 m 3 /h*m

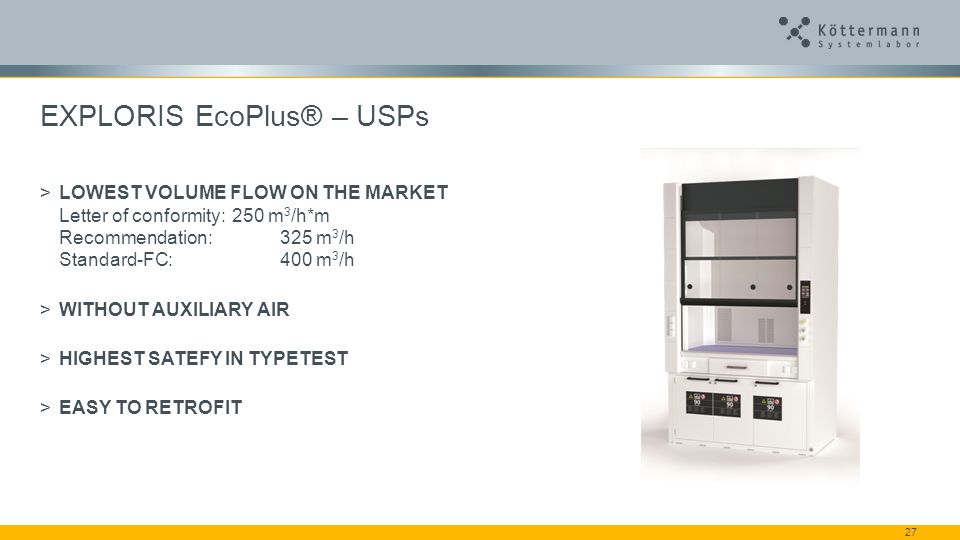

27.  LOWEST VOLUME FLOW ON THE MARKET Letter of conformity: 250 m 3 /h*m Recommendation:325 m 3 /h Standard-FC:400 m 3 /h  WITHOUT AUXILIARY AIR  HIGHEST SATEFY IN TYPETEST  EASY TO RETROFIT 27 EXPLORIS EcoPlus® – USPs
