1. Using Multiple Synchronized Views Heymo Kou

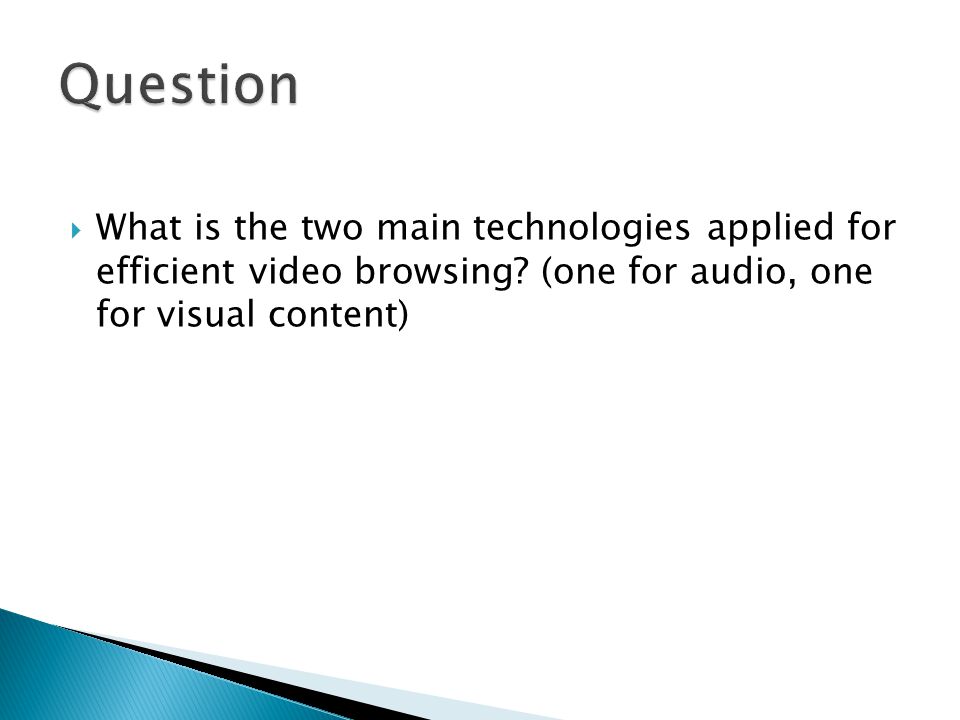

2.  What is the two main technologies applied for efficient video browsing? (one for audio, one for visual content)

3.  Background  Current technology  Advanced technology  Summary  Reference

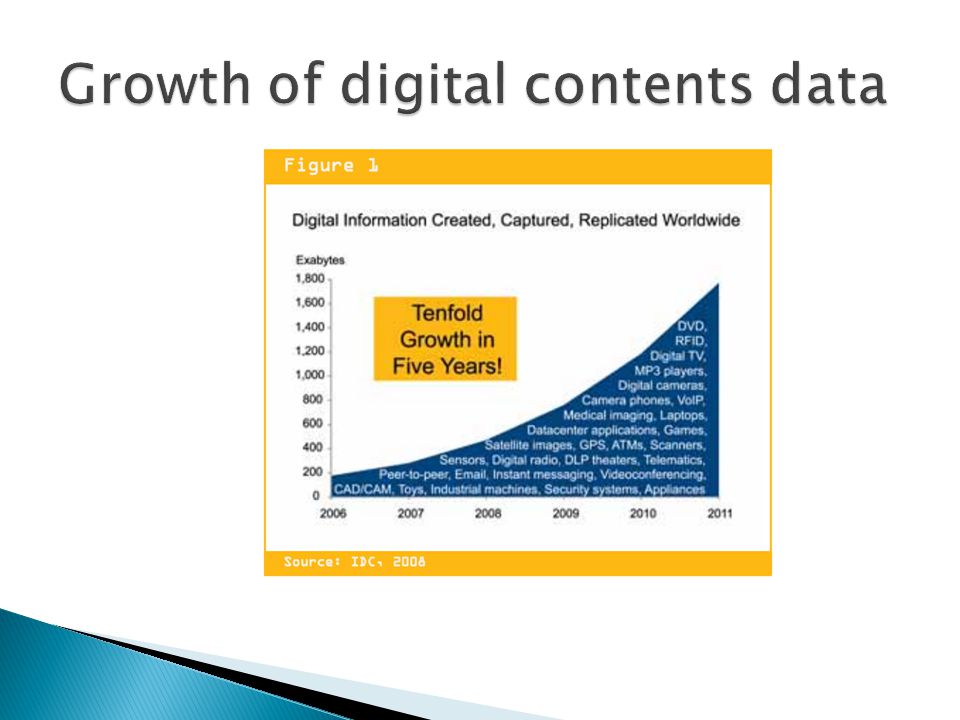

6.  From your ◦ Smart phones ◦ Notebooks ◦ Webcams ◦ Digital camera and camcorders ◦ Security and monitoring cameras  With advanced streaming technology ◦ Fast Internet access ◦ MPEG-4 format

7.  Search through categories ◦ Similar to Internet shopping mall  We search for big categories  Then smaller categories  …and so on…  User should choose which to browse ◦ Should check whether the selected data matches what user was finding  Time consuming!  Manual categorizing and annotation ◦ One by one?

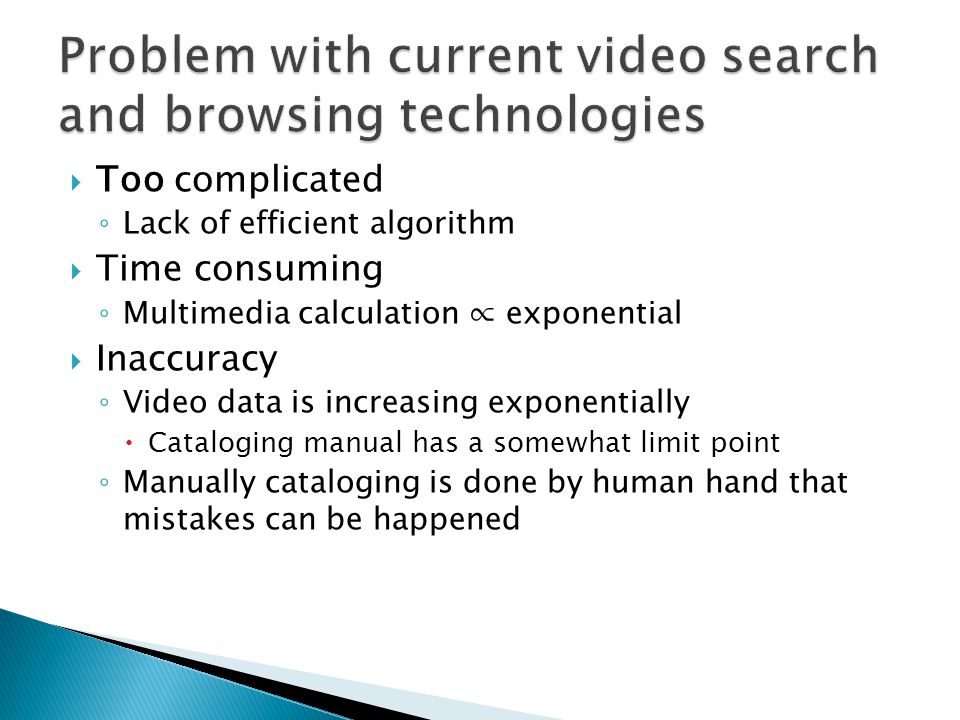

8.  Too complicated ◦ Lack of efficient algorithm  Time consuming ◦ Multimedia calculation ∝ exponential  Inaccuracy ◦ Video data is increasing exponentially  Cataloging manual has a somewhat limit point ◦ Manually cataloging is done by human hand that mistakes can be happened

9.  MPEG-7 Standards  Speech indexing  Shot Boundary Detection  Time Scale Modification of Audio Signals  Storyboards, Moving Storyboards and Animation  Adaptive Accelerating Fast Playback  Streaming Synchronized Views

10.  Standardized by ISO/IEC ◦ International Standard Organization ◦ International Electrotechnical Commission  Not a video encoding format  XML to store metadata ◦ Attached to timecode in multimedia  By this tag ◦ Able to index and search efficiently  Yet, improvement is needed

11.  Search through speech transcripts ◦ Finds familiar metaphor of free text search  Automatic speech recognition (ASR) ◦ Indexed transcript → semantic information  Main advantage : Representation ◦ Speech is built of words

12.  Frame  Key frame  Shot ◦ Group of frames which represents similar frames Start key frame end key frame animation

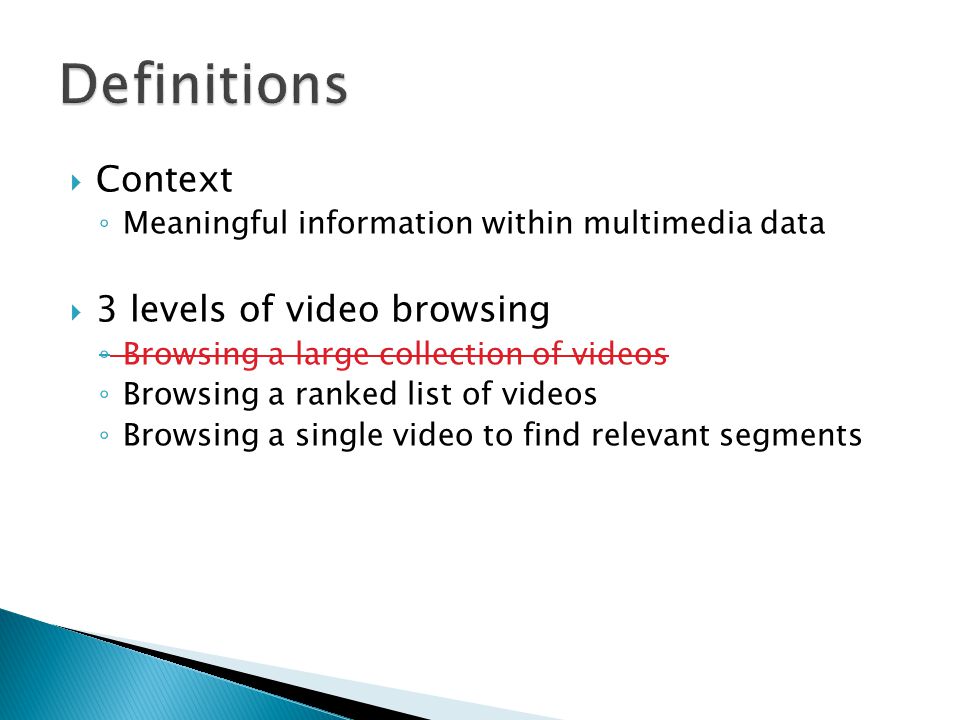

13.  Context ◦ Meaningful information within multimedia data  3 levels of video browsing ◦ Browsing a large collection of videos ◦ Browsing a ranked list of videos ◦ Browsing a single video to find relevant segments

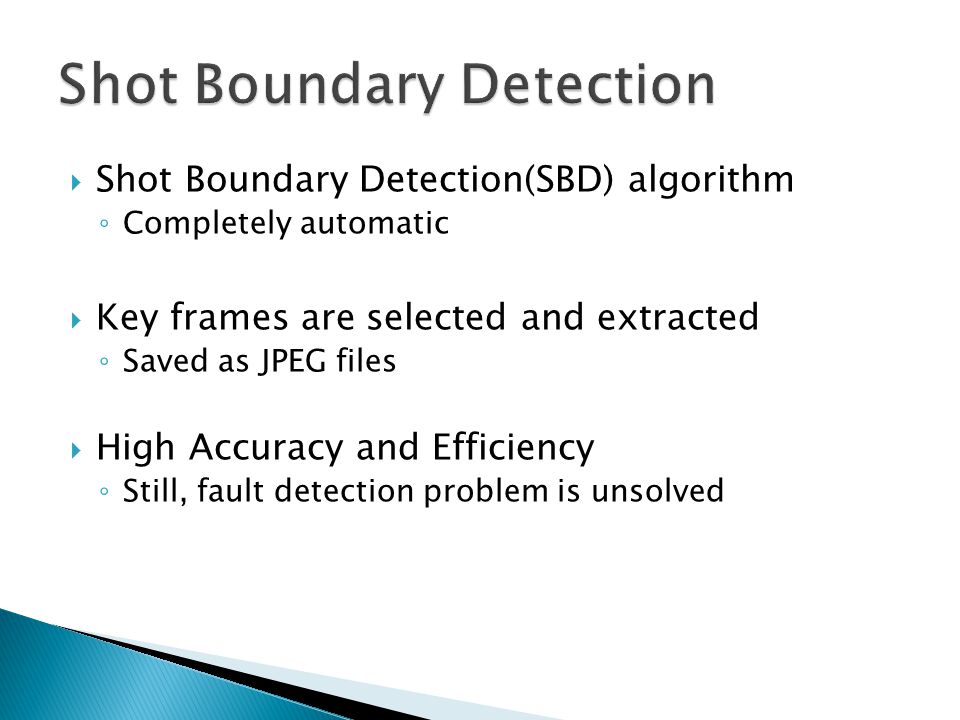

14.  Shot Boundary Detection(SBD) algorithm ◦ Completely automatic  Key frames are selected and extracted ◦ Saved as JPEG files  High Accuracy and Efficiency ◦ Still, fault detection problem is unsolved

17.  Audio browsing is as important as video browsing ◦ Except images, most digital contents are audible  Faster audio browsing is necessary  Speeding up of audio signal by ◦ By deleting small audio segments ◦ Especially, human speech signals are quasi-periodic

18. Time-Domain Harmonic Scaling(TDHS) technique Time-Domain, Pitch Synchronous Overlap Add Time Scale Modification (TSM) algorithm Waveform Synchronous Overlap(WSOLA)

20.  Storyboard ◦ a set of one or more pages, each consists of a two dimensional array of key-frames, sorted in chronological order.  Animation ◦ a quick slide show, where each of the key-frames is shown for a fixed short period (e.g., 0.6 seconds)  Moving Storyboard (MSB) ◦ the animated key frames, fully synchronized with the original audio track. Each key-frame is shown for the entire duration of the associated shot.

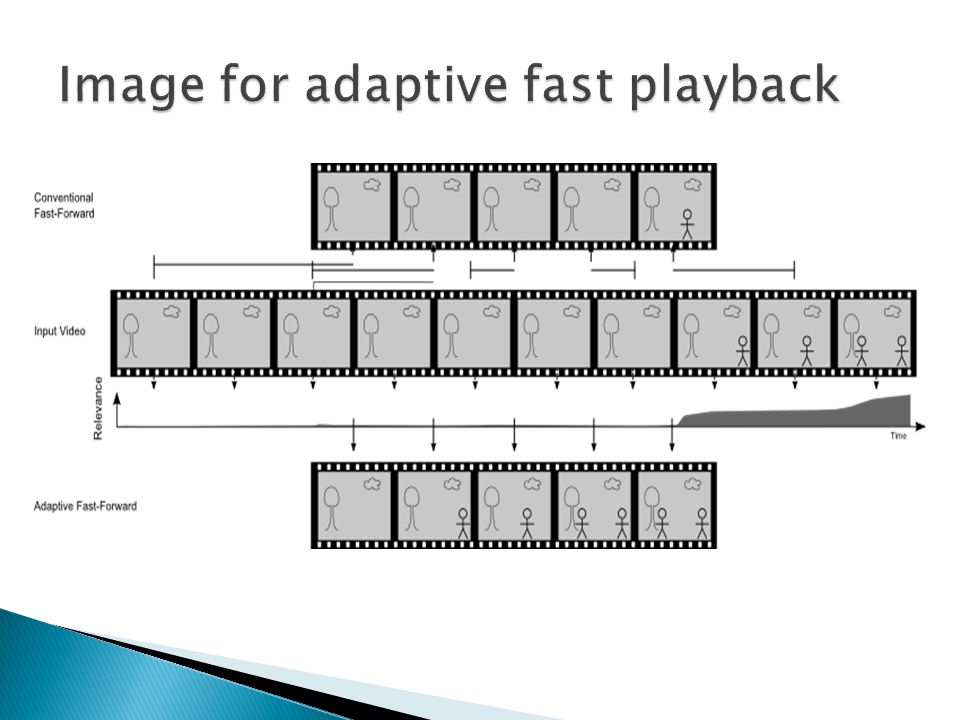

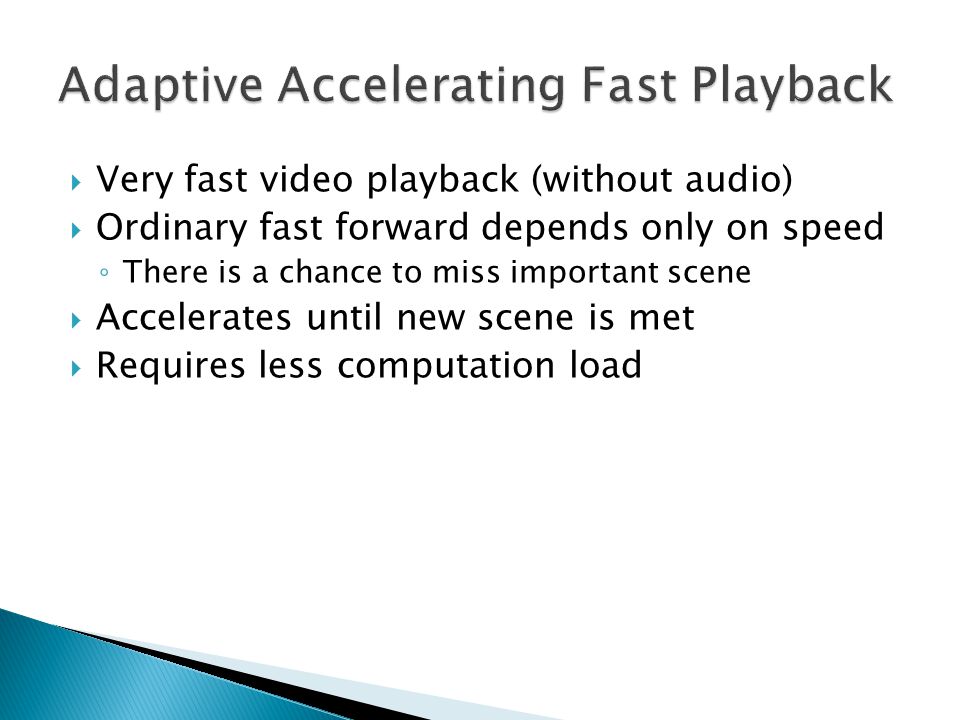

21.  Very fast video playback (without audio)  Ordinary fast forward depends only on speed ◦ There is a chance to miss important scene  Accelerates until new scene is met  Requires less computation load

23.  Example in surveillance camera

24.  Server preprocesses media ◦ Keep same media, but different speed encoded  When user selects other speed ◦ 1. pause current media ◦ 2. open file with same content with selected speed ◦ 3. seek to the corresponding position ◦ 4. play the selected view  Needs no extra computational load ◦ However, requires more storage: Tradeoff

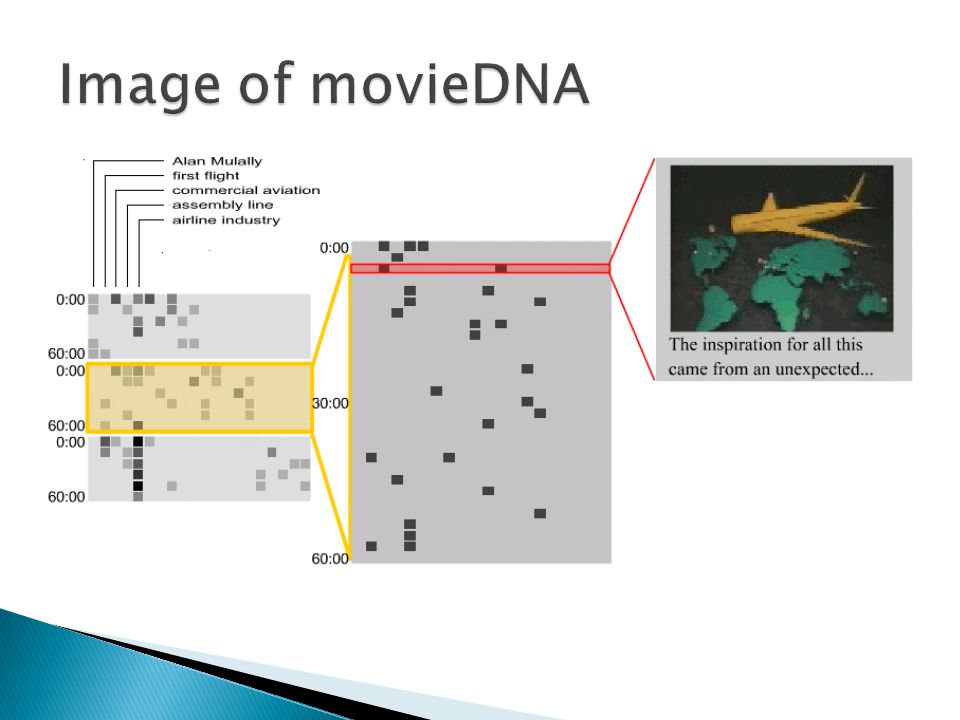

25.  Can browse multiple videos at once  Split frames every given time ◦ (i.e 10 seconds)  Strong information scent is visible ◦ With aggregation of occurrences

27. View Visual Audio Typical speedup rate StaticDynamic Full video (w/o TSM) ○○1 – 2X Video Skim ○○2 – 20X Slide show (w/o TSM) ○○1 – 2X Adaptive Fast Playback ○5 – 30X Animation ○10 – 40X Storyboard, mosaic ○NA

28.  Streaming synchronized views and movieDNA ◦ Less computation, multiple videos at once  Active accelerating fast playback ◦ Most useful at analyzing surveillance videos  SBD & TSM ◦ Efficient for implementing above technologies  Then, what is current limitation?

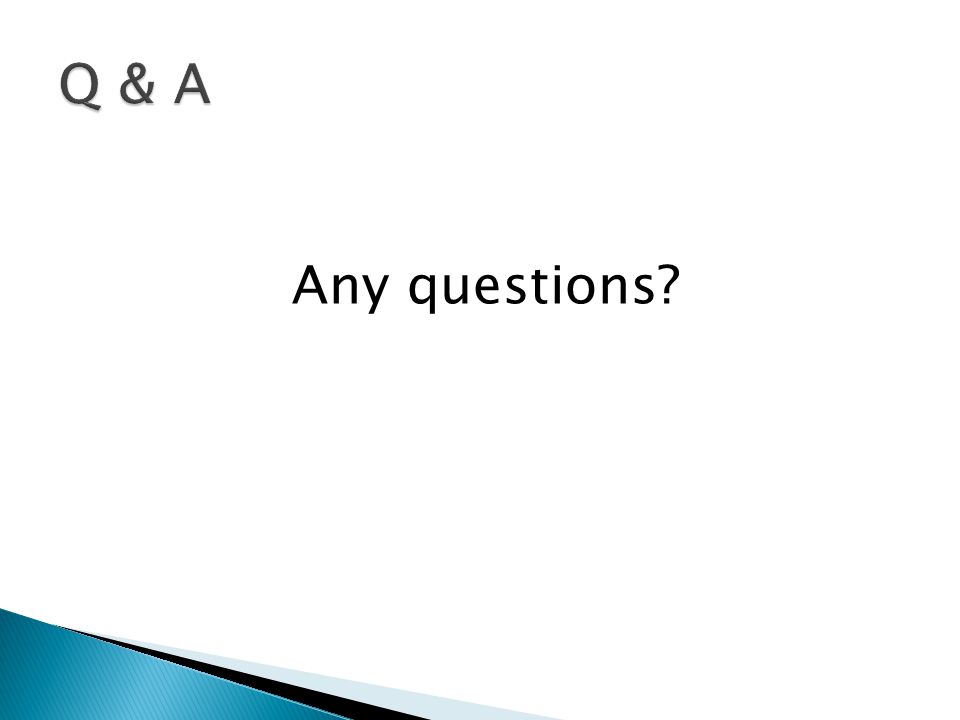

29. Any questions?

30.  What is the two main technologies applied for efficient video browsing? (one for audio, one for visual content)  Answer : The two main technologies are Shot Boundary Detection(SBD) for visual content and Time Scale Modification(TSM) for audio signals

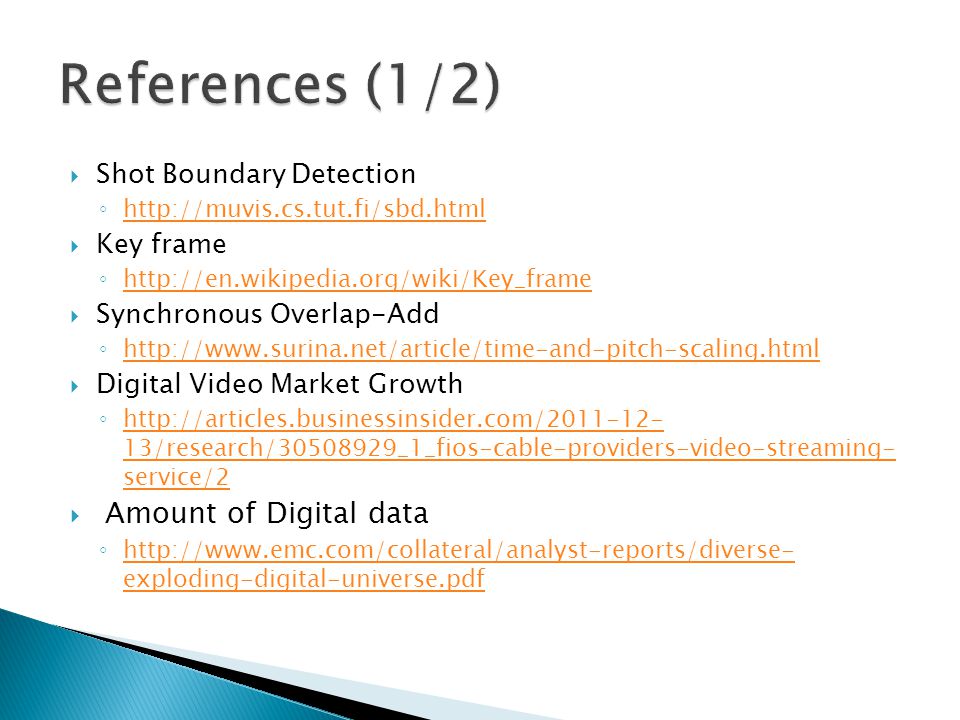

31.  Shot Boundary Detection ◦ http://muvis.cs.tut.fi/sbd.html http://muvis.cs.tut.fi/sbd.html  Key frame ◦ http://en.wikipedia.org/wiki/Key_frame http://en.wikipedia.org/wiki/Key_frame  Synchronous Overlap-Add ◦ http://www.surina.net/article/time-and-pitch-scaling.html http://www.surina.net/article/time-and-pitch-scaling.html  Digital Video Market Growth ◦ http://articles.businessinsider.com/2011-12- 13/research/30508929_1_fios-cable-providers-video-streaming- service/2 http://articles.businessinsider.com/2011-12- 13/research/30508929_1_fios-cable-providers-video-streaming- service/2  Amount of Digital data ◦ http://www.emc.com/collateral/analyst-reports/diverse- exploding-digital-universe.pdf http://www.emc.com/collateral/analyst-reports/diverse- exploding-digital-universe.pdf

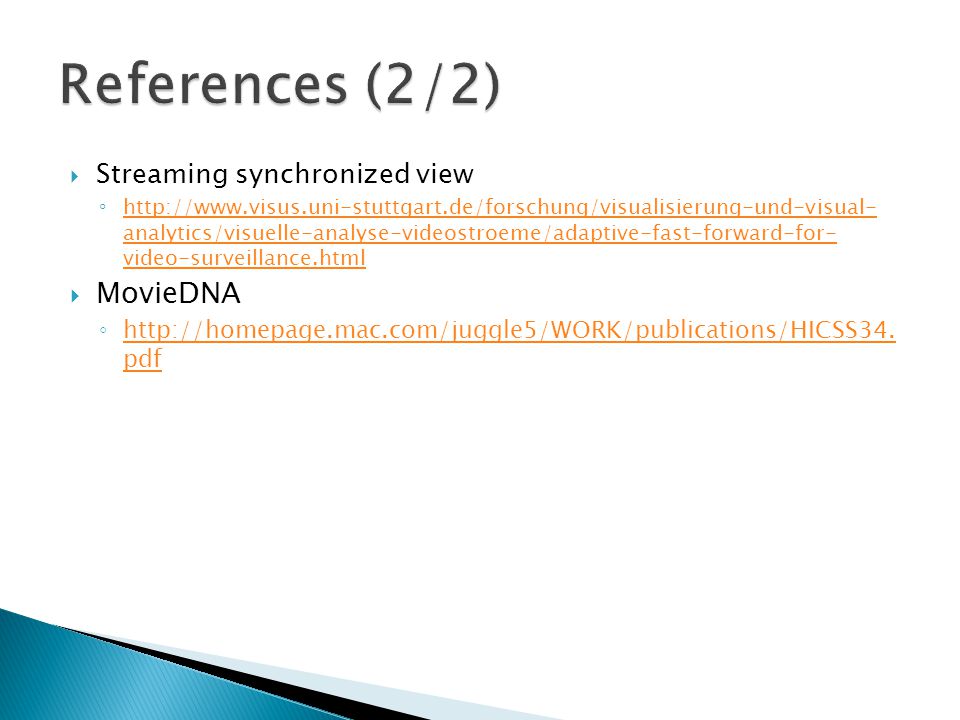

32.  Streaming synchronized view ◦ http://www.visus.uni-stuttgart.de/forschung/visualisierung-und-visual- analytics/visuelle-analyse-videostroeme/adaptive-fast-forward-for- video-surveillance.html http://www.visus.uni-stuttgart.de/forschung/visualisierung-und-visual- analytics/visuelle-analyse-videostroeme/adaptive-fast-forward-for- video-surveillance.html  MovieDNA ◦ http://homepage.mac.com/juggle5/WORK/publications/HICSS34. pdf http://homepage.mac.com/juggle5/WORK/publications/HICSS34. pdf
