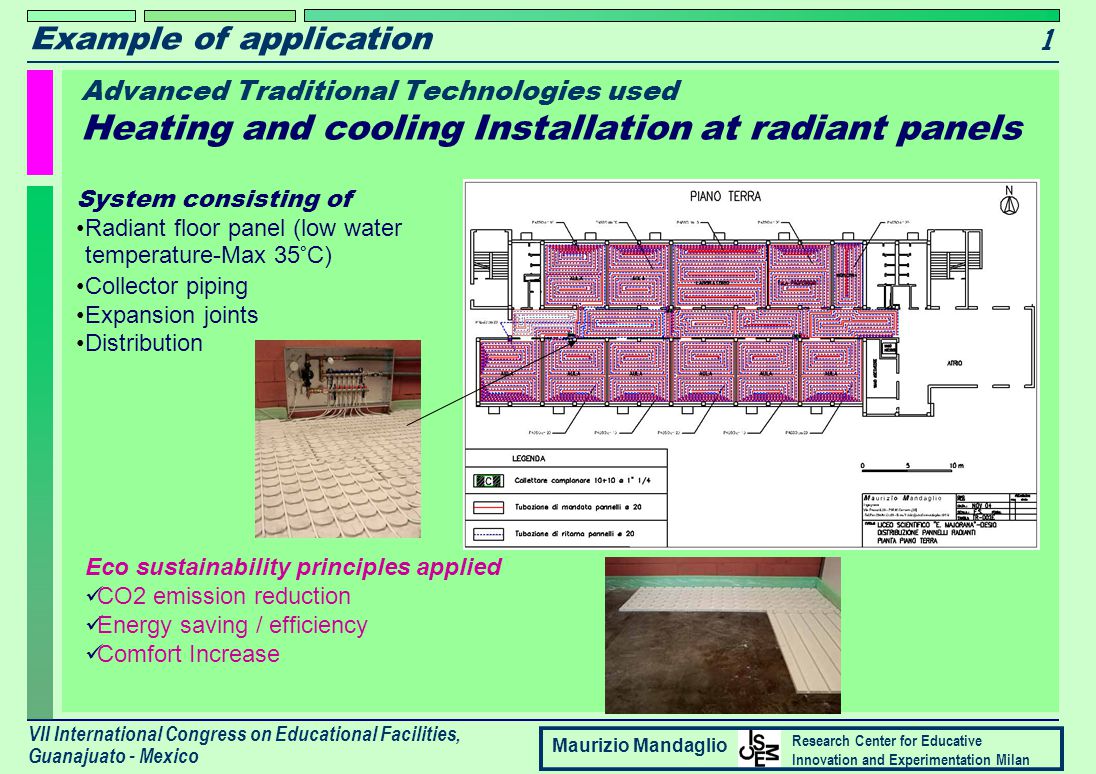

1. Advanced Traditional Technologies used Heating and cooling Installation at radiant panels 1 VII International Congress on Educational Facilities, Guanajuato - Mexico Research Center for Educative Innovation and Experimentation Milan Maurizio Mandaglio Eco sustainability principles applied CO2 emission reduction Energy saving / efficiency Comfort Increase Example of application System consisting of Radiant floor panel (low water temperature-Max 35°C) Collector piping Expansion joints Distribution

2. Advanced Traditional Technologies used District heating from waste management 2 VII International Congress on Educational Facilities, Guanajuato - Mexico Research Center for Educative Innovation and Experimentation Milan Maurizio Mandaglio System consisting of Connection to the network of town district heating -Heat from waste Plate heat exchangers connected to the heating system Eco sustainability principles applied CO2 emission reduction Energy saving / efficiency Numbers of the efficiency In heat reduction up 100% of CO 2 emission Example of application

3. Advanced Traditional Technologies used Ventilation controlled with heat recovery 3 VII International Congress on Educational Facilities, Guanajuato - Mexico Research Center for Educative Innovation and Experimentation Milan Maurizio Mandaglio System consisting of System of channels for controlled ventilation Heat recuperator Eco sustainability principles applied CO2 emission reduction Energy saving / efficiency Numbers of efficiency In heat and cooling 60% of the energy ventilation recovered Example of application

4. Advanced Traditional Technologies used: Photovoltaic Solar system 4 VII International Congress on Educational Facilities, Guanajuato - Mexico Research Center for Educative Innovation and Experimentation Milan Maurizio Mandaglio System consisting of 3 rows of photovoltaic panels of monocrystalline silicon (150 m 2 ) Electrical system of connection Inverter Electrical Power of peak Wp 15kW Eco sustainability principles applied Zero CO2 emission! Energy saving / efficiency Numbers of efficiency Reduction of 50% of the electricity needed for cooling Example of application

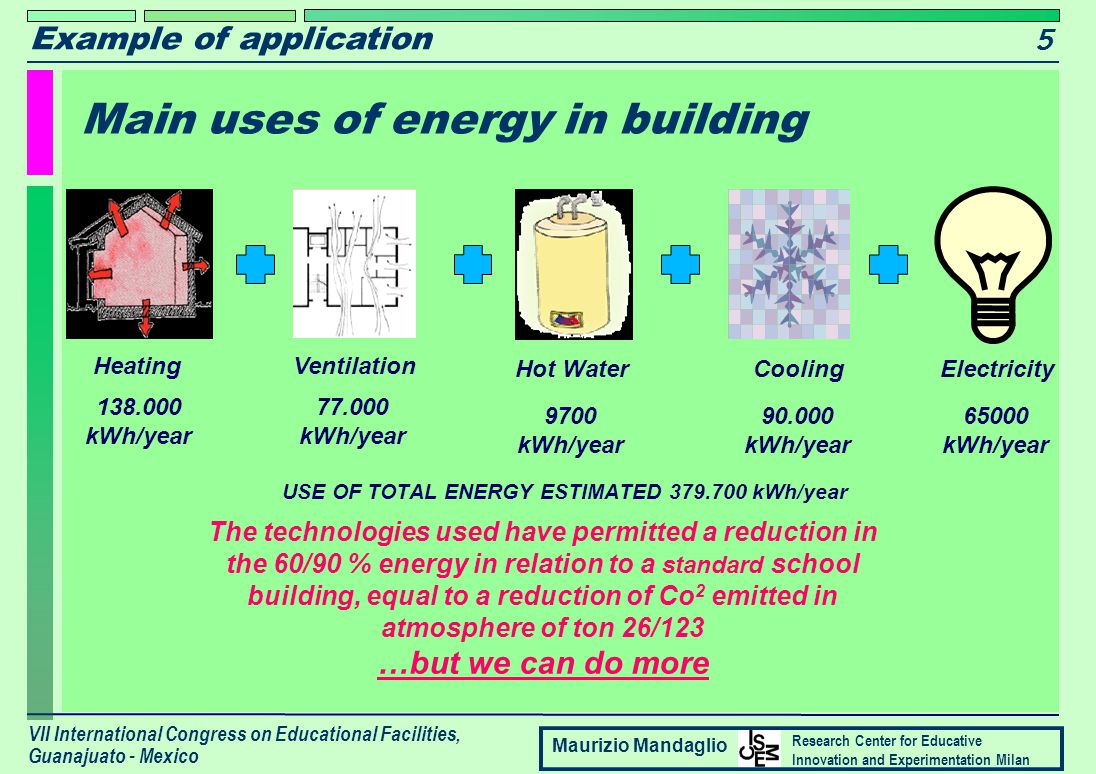

5. Main uses of energy in building USE OF TOTAL ENERGY ESTIMATED 379.700 kWh/year 5 VII International Congress on Educational Facilities, Guanajuato - Mexico Research Center for Educative Innovation and Experimentation Milan Maurizio Mandaglio HeatingVentilation Hot WaterCoolingElectricity 138.000 kWh/year 77.000 kWh/year 9700 kWh/year 90.000 kWh/year 65000 kWh/year Example of application The technologies used have permitted a reduction in the 60/90 % energy in relation to a standard school building, equal to a reduction of Co 2 emitted in atmosphere of ton 26/123 …but we can do more

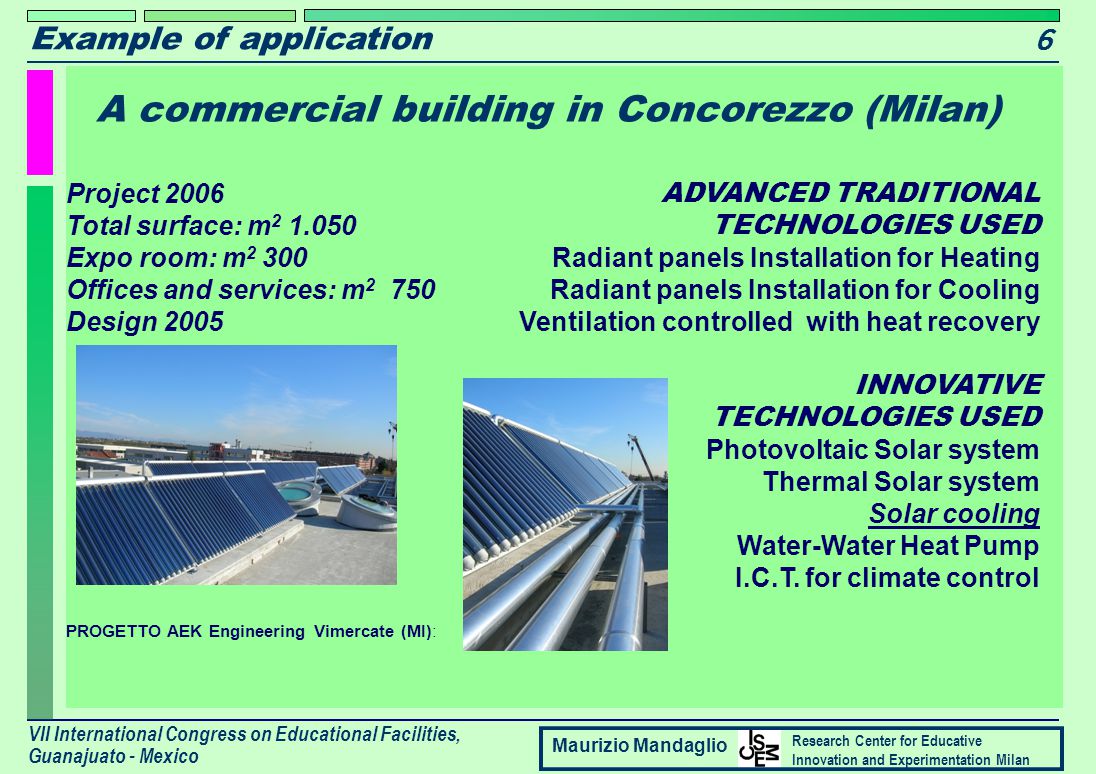

6. A commercial building in Concorezzo (Milan) ‏ 6 VII International Congress on Educational Facilities, Guanajuato - Mexico Research Center for Educative Innovation and Experimentation Milan Maurizio Mandaglio Example of application Project 2006 Total surface: m 2 1.050 Expo room: m 2 300 Offices and services: m 2 750 Design 2005 PROGETTO AEK Engineering Vimercate (MI): ADVANCED TRADITIONAL TECHNOLOGIES USED Radiant panels Installation for Heating Radiant panels Installation for Cooling Ventilation controlled with heat recovery INNOVATIVE TECHNOLOGIES USED Photovoltaic Solar system Thermal Solar system Solar cooling Water-Water Heat Pump I.C.T. for climate control

7. Advanced Traditional Technologies used. Focus on Solar Cooling 7 VII International Congress on Educational Facilities, Guanajuato - Mexico Research Center for Educative Innovation and Experimentation Milan Maurizio Mandaglio System consisting of Solar panels with vacuum technology Heat water storage reservoir Absorption Chillers Condensing boiler SCHEME Eco sustainability principles applied High reduction of CO2 emission! Energy saving / efficiency Numbers of efficiency Reduction of 58% of the energy needed for cooling Example of application

8. Advanced Traditional Technologies used. Focus on Solar Cooling 8 VII International Congress on Educational Facilities, Guanajuato - Mexico Research Center for Educative Innovation and Experimentation Milan Maurizio Mandaglio The plant uses solar energy in its maximum availability Eco sustainability principles applied Zero CO2 emission! Energy saving / efficiency Numbers of efficiency Reduction of 50% of the electricity needed for cooling Example of application

9. Advanced Traditional Technologies used. Focus on Solar Cooling: economical consideration 9 VII International Congress on Educational Facilities, Guanajuato - Mexico Research Center for Educative Innovation and Experimentation Milan Maurizio Mandaglio The taxes incentive policy of country has a fundamental role for the development of renewable sources Example of application Through the Italian policy of tax incentives the plant is amortized over 4 years

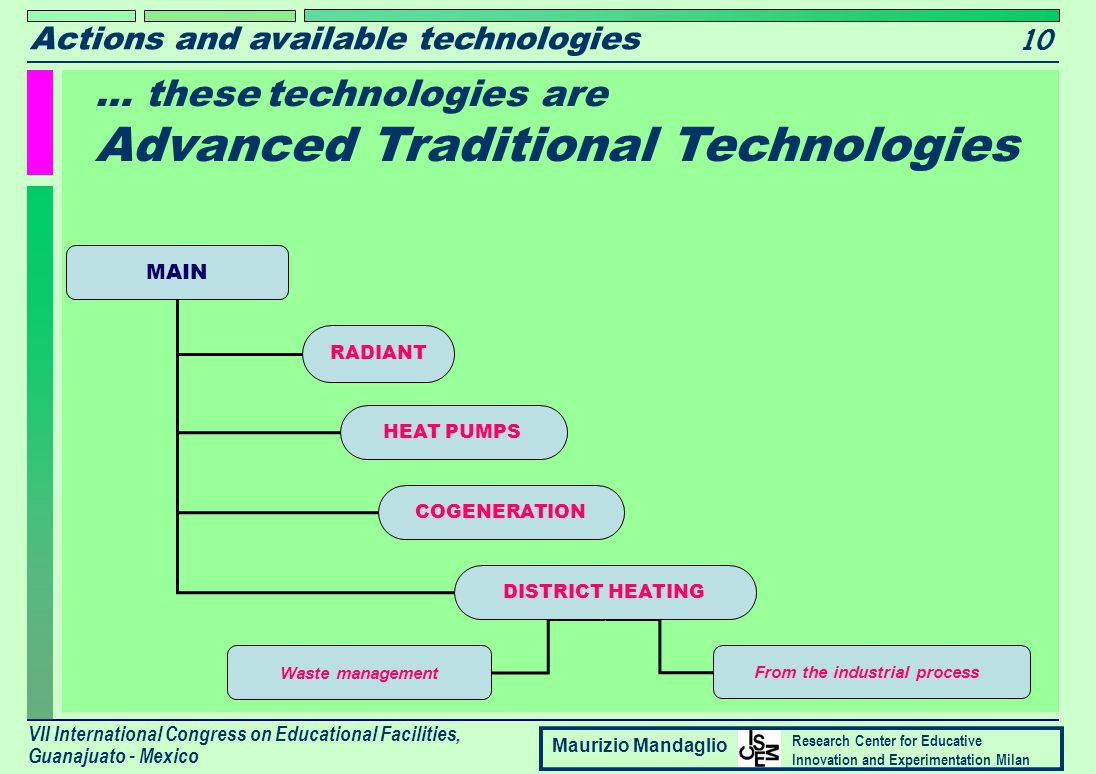

10. 10 VII International Congress on Educational Facilities, Guanajuato - Mexico Research Center for Educative Innovation and Experimentation Milan Maurizio Mandaglio MAIN RADIANT COGENERATION DISTRICT HEATING Waste management From the industrial process HEAT PUMPS Actions and available technologies … these technologies are Advanced Traditional Technologies

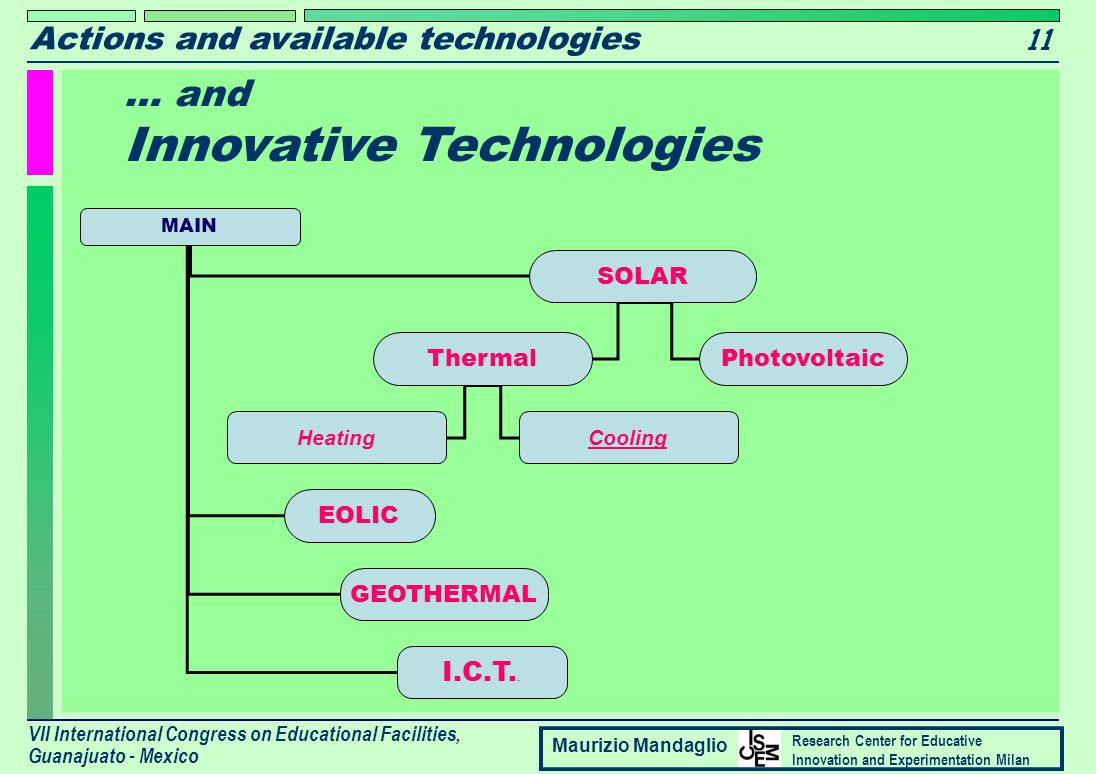

11. 11 VII International Congress on Educational Facilities, Guanajuato - Mexico Research Center for Educative Innovation and Experimentation Milan Maurizio Mandaglio Actions and available technologies … and Innovative Technologies MAIN SOLAR EOLIC GEOTHERMAL ThermalPhotovoltaic Heating Cooling I.C.T..

12. Conclusions These technologies are now mature, reliable and may be applied on a large scale. Their application allows you to pursue the objectives of SUSTAINABILITY and to provide impetus for technological and economical development Energy Efficiency Policies and Products Create Jobs 12 VII International Congress on Educational Facilities, Guanajuato - Mexico Research Center for Educative Innovation and Experimentation Milan Maurizio Mandaglio Actions and available technologies

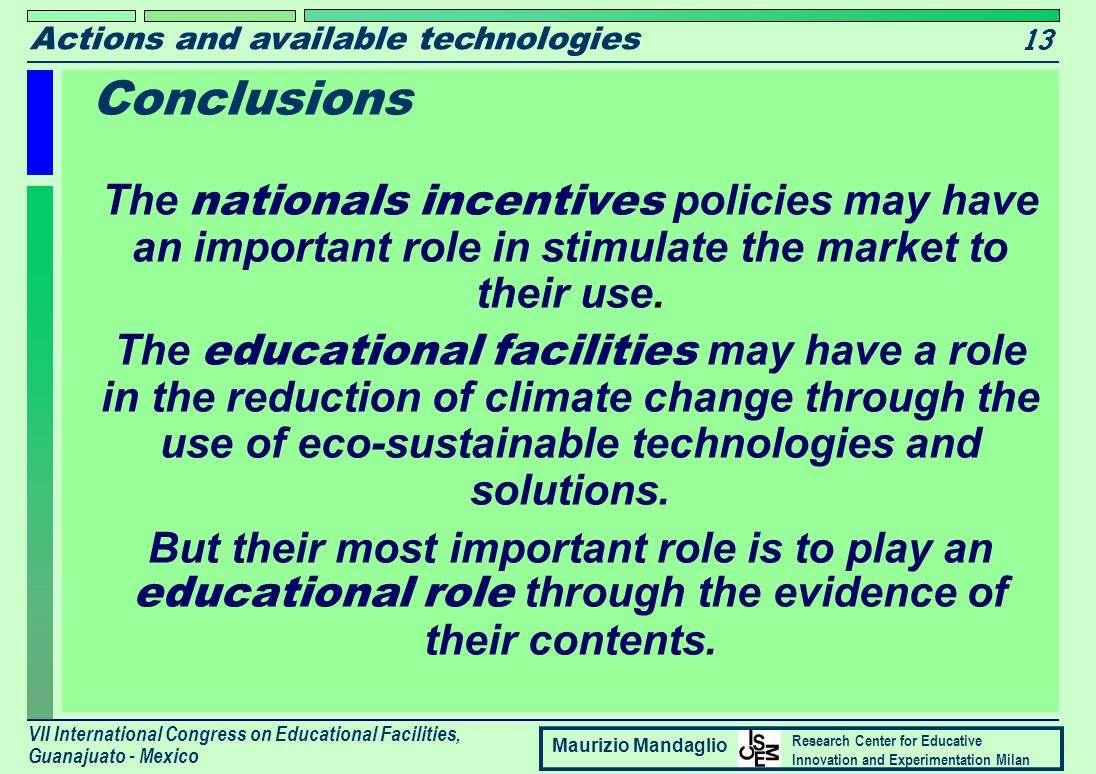

13. Conclusions The nationals incentives policies may have an important role in stimulate the market to their use. The educational facilities may have a role in the reduction of climate change through the use of eco-sustainable technologies and solutions. But their most important role is to play an educational role through the evidence of their contents. 13 VII International Congress on Educational Facilities, Guanajuato - Mexico Research Center for Educative Innovation and Experimentation Milan Maurizio Mandaglio Actions and available technologies

14. How can we ensure the verification of the results? 14 VII International Congress on Educational Facilities, Guanajuato - Mexico Research Center for Educative Innovation and Experimentation Milan Maurizio Mandaglio The question of certification CAN HUMANITY SURVIVE? WANT TO BET ON IT?
