1. Impacts of volcanism on climate

2. Natural events that can trigger global climate changes include: (1) known astronomical variations in the orbital elements of the Earth (Milankovitch theory) (2) changes in energy output from the Sun and (3) airborne volcanic material ejected into the stratosphere

3. Changes in the composition of the earth’s atmosphere can result in: 1.Ozone effect 2.Greenhouse effect 3.Haze effect Volcanic eruptions can influence all of the above climatic effects to different extents

4. Stratospheric ozone depletion Ozone (O 3 ) in the stratosphere absorbs ultraviolet radiation This ozone is destroyed by chlorine bearing CFC compounds The region in blue is the hole of ozone depletion, which extended to a record 10.5 million square miles on Sept 19,1998. Image from NASA

5. Satellite data showed significant ozone loss after the 1991 Pinatubo eruption Volcanic aerosols can play an indirect but significant role in ozone depletion by providing a surface for the chemical reaction to take place Short-lived impact The region in blue is the hole of ozone depletion, which extended to a record 10.5 million square miles on Sept 19,1998. Image from NASA

6. Volcanic influence on the greenhouse effect Volcanoes can create a greenhouse effect Deccan Trap volcanism and subsequent greenhouse effect is considered a viable cause for the K-T extinction 65 million years ago (McLean, D. M., 1982, Flood basalt volcanism and global extinctions at the Cretaceous-Tertiary transition: American Association for the Advancement of Science, 148th National Meeting, Abstract of papers, p. 47.) http://filebox.vt.edu/artsci/geology/mclean/Dinosaur_Volcano_Extinction /pages/studentv.html

7. However, at present a far greater portion of greenhouse gases in the atmosphere are from human actions than from volcanism Volcanoes emit between about 145-255 million tons of CO 2 into the atmosphere every year Emissions of CO 2 by human activities, amount to about 24 billion tons per year Human activities release more than 150 times the amount of CO 2 emitted by volcanoes http://volcanoes.usgs.gov/Hazards/What/VolGas/volgas.html

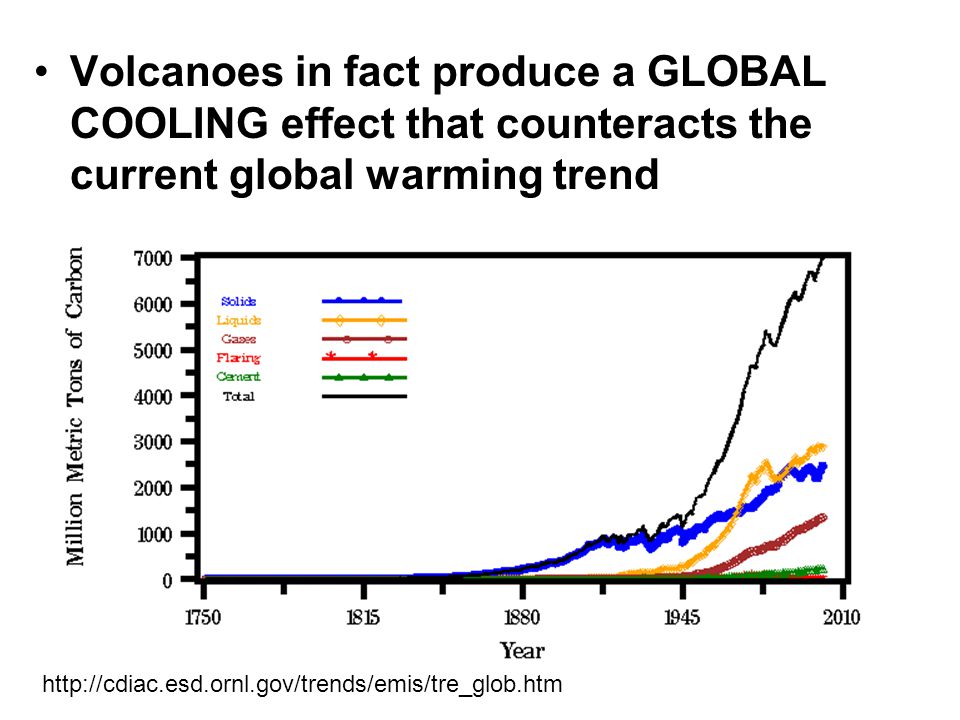

8. http://cdiac.esd.ornl.gov/trends/emis/tre_glob.htm Volcanoes in fact produce a GLOBAL COOLING effect that counteracts the current global warming trend

9. Volcanic influence on the haze effect Suspended particles, such as dust and ash, can block out the earth's sunlight This reduces solar radiation and lowers mean global temperatures (HAZE EFFECT) Volcanic eruptions have a far greater impact on the haze effect than on the greenhouse effect Pacific sunset through haze. Courtesy of NOAA

10. http://asd-www.larc.nasa.gov/SOLAR/learning-aerosol.htmlasd-www.larc.nasa.gov/SOLAR/learning-aerosol.html

11. The amount of sulfur-rich gases emitted in a volcanic eruption appears to be more effective in causing the haze effect than pyroclastic particles such as ash The 1982 eruption of El Chichon had a greater impact on the climate than Mt. St. Helens due to its larger SO 2 emission Pacific sunset through haze. Courtesy of NOAA

12. SO 2 combines with water vapor to form dense clouds of tiny sulfuric acid droplets which can take several years to settle out These droplets absorb solar radiation and scatter it back to space This reduces global temperature Pacific sunset through haze. Courtesy of NOAA

13. Why Don't All Volcanoes Affect Climate? Factors which determine whether and how a volcano will affect the climate: SIZE. To send gas and ash into the stratosphere, an eruption column at least 15 km high is necessary. SHAPE AND DIRECTION. Even a very large eruption will not reach the stratosphere if it explodes sideways. Example: Mount St. Helens

14. LOCATION. To cover the entire earth in volcanic aerosols, the eruption must occur near the equator, so the ash and gases can spread both north and south. SULFUR CONTENT. This is important in producing the haze effect WATER CONTENT. The more water in the magma that feeds a volcano, the more explosively that volcano will erupt.

15. PINATUBO: ALL OF THE ABOVE

16. The Total Ozone Mapping Spectrometer (TOMS) on Nimbus 7 recorded the dispersal of the Pinatubo plume by tracking the sulfur dioxide released. http://eos.higp.hawaii.edu/education/slide_set1/slides.captions.html

19. NASA Langley's SAGE II instrument

20. AVHRR satellite data Image credit: Dr. Larry Stowe, NOAA/NESDIS

21. Pinatubo Skies Many parts of the world experienced vividly colored sunsets for months following the June 1991 explosion of Mt. Pinatubo in the Philippines. This photo was taken in January 1992 in El Segundo, California, on the west coast of North America, approximately 7500 miles from the Philippines. http://pages.prodigy.net/pam.orman/joeatmospheric/Atmospheric_9201_3.html

22. Other climatic effects Acid rain and volcanic smog or “VOG” from sulfur gases (very pronounced in Hawaii)Acid rain and volcanic smog or “VOG” from sulfur gases (very pronounced in Hawaii) Fluorine from volcanic gases can contaminate groundwater and grass, and can cause fluorosis in livestock (e.g. Hekla, Iceland, 1970)Fluorine from volcanic gases can contaminate groundwater and grass, and can cause fluorosis in livestock (e.g. Hekla, Iceland, 1970) Lava fountain, Pu`u `O`o cinder and spatter cone
