1. Active Queue Management: Theory, Experiment and Implementation Vishal Misra Dept. of Computer Science Columbia University in the City of New York

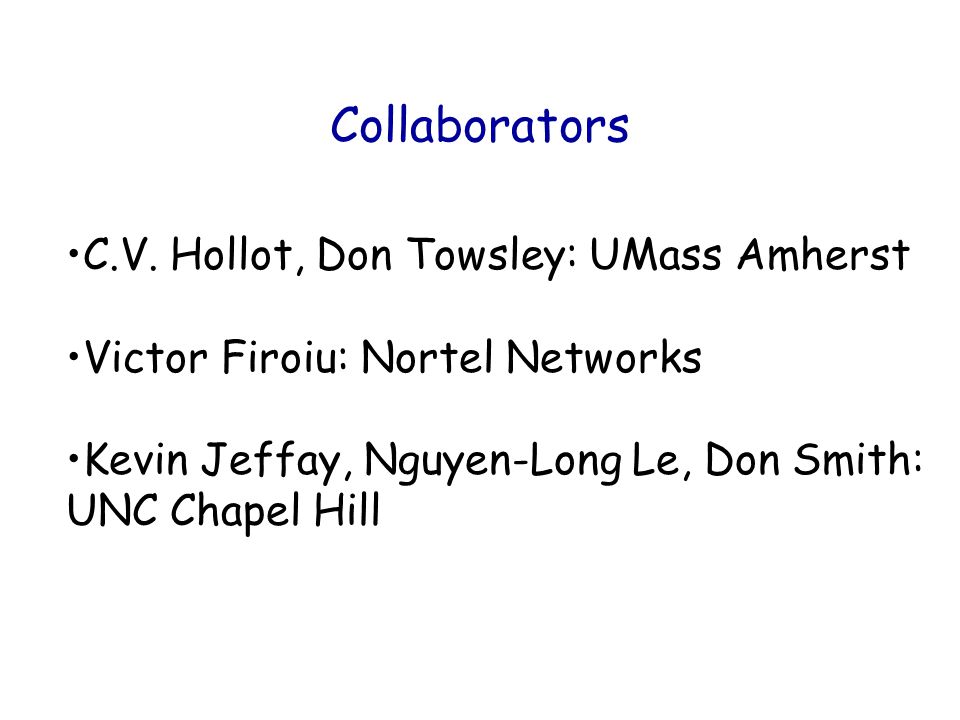

2. Collaborators C.V. Hollot, Don Towsley: UMass Amherst Victor Firoiu: Nortel Networks Kevin Jeffay, Nguyen-Long Le, Don Smith: UNC Chapel Hill

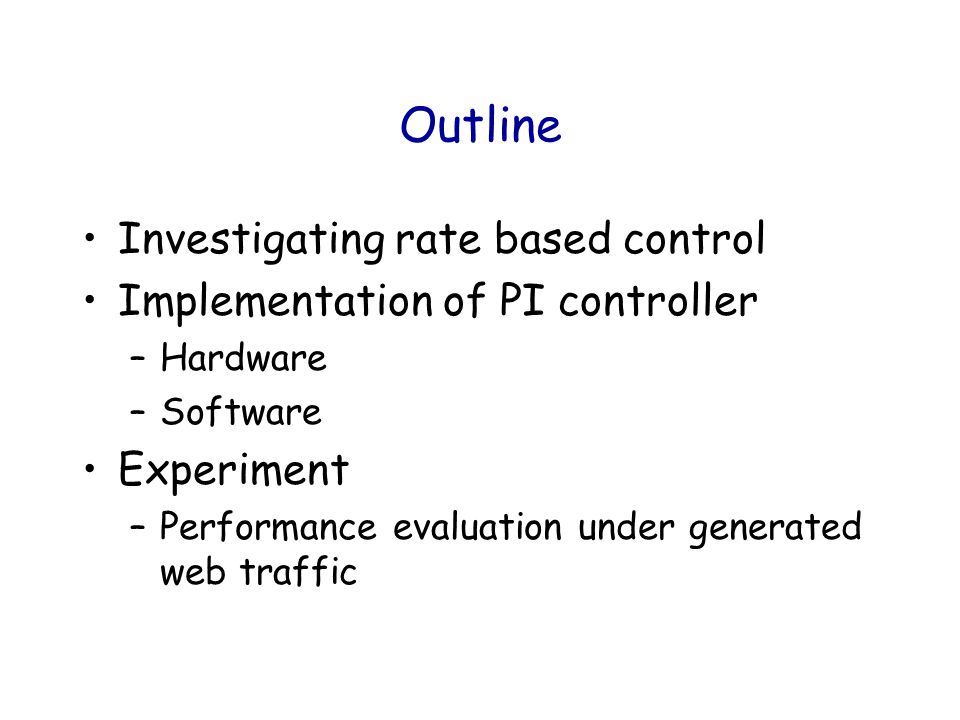

3. Outline Investigating rate based control Implementation of PI controller –Hardware –Software Experiment –Performance evaluation under generated web traffic

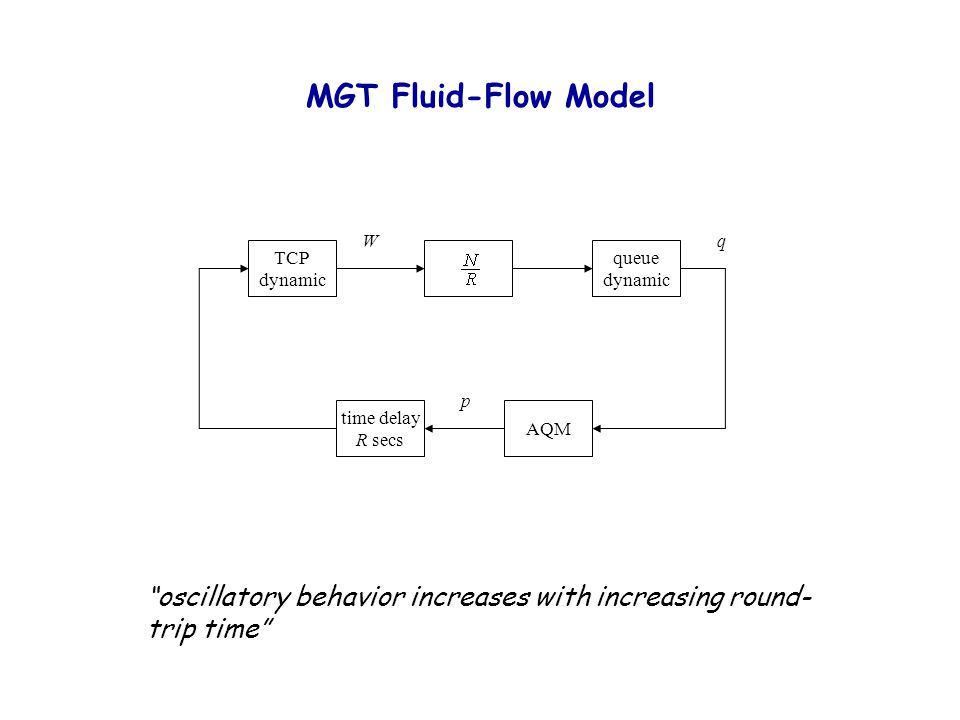

4. TCP dynamic queue dynamic AQM p W q time delay R secs MGT Fluid-Flow Model “oscillatory behavior increases with increasing round- trip time”

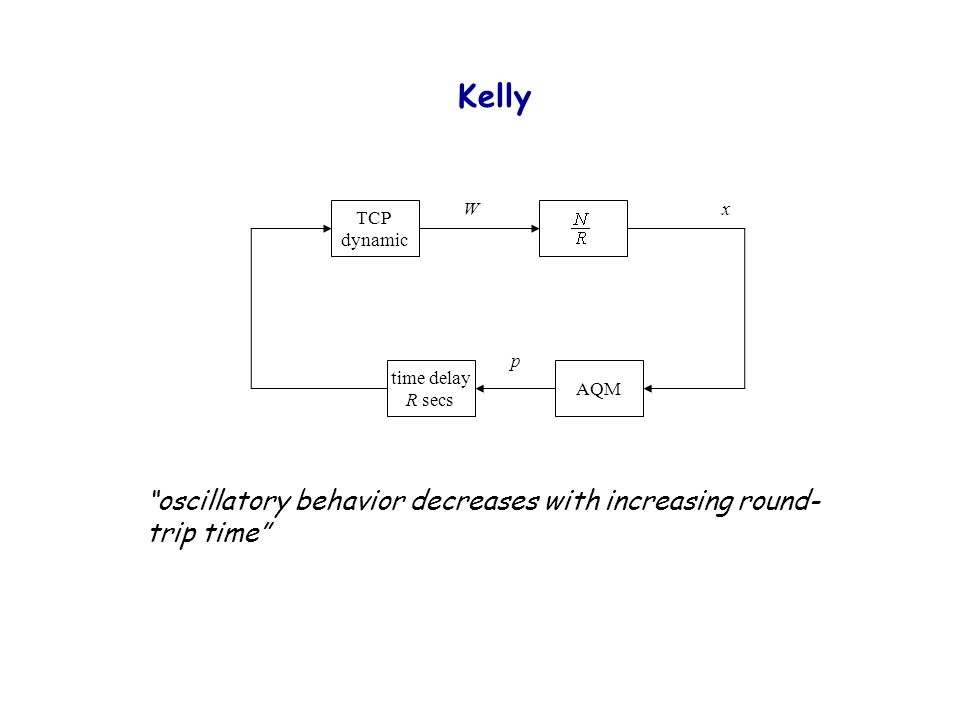

5. TCP dynamic AQM p W time delay R secs Kelly “oscillatory behavior decreases with increasing round- trip time” x

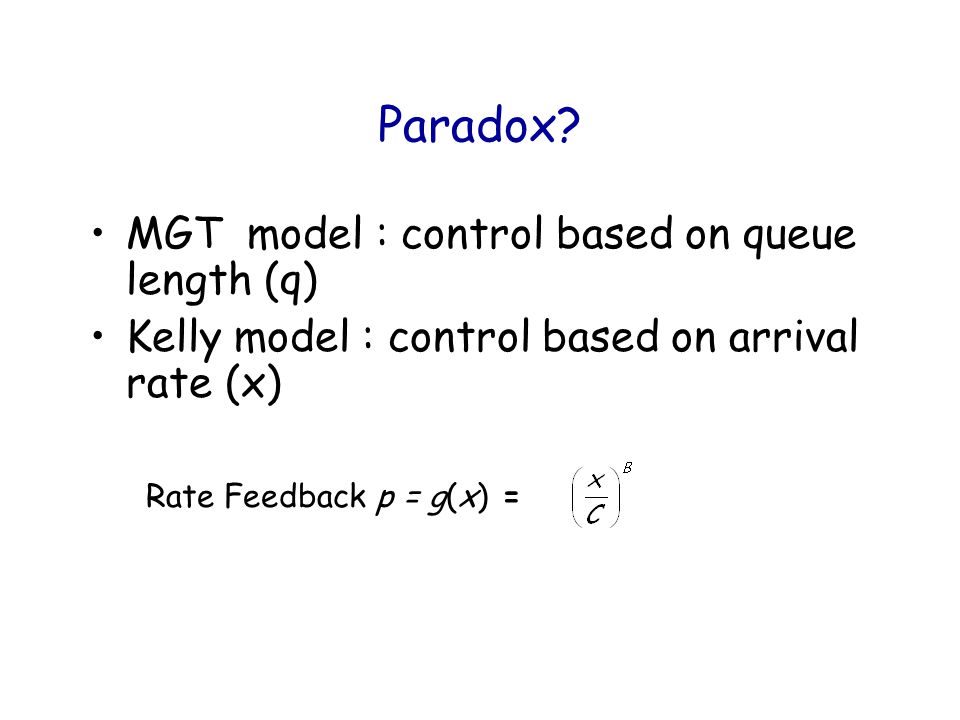

6. Paradox? MGT model : control based on queue length (q) Kelly model : control based on arrival rate (x) Rate Feedback p = g(x) =

7. Utilization with different B

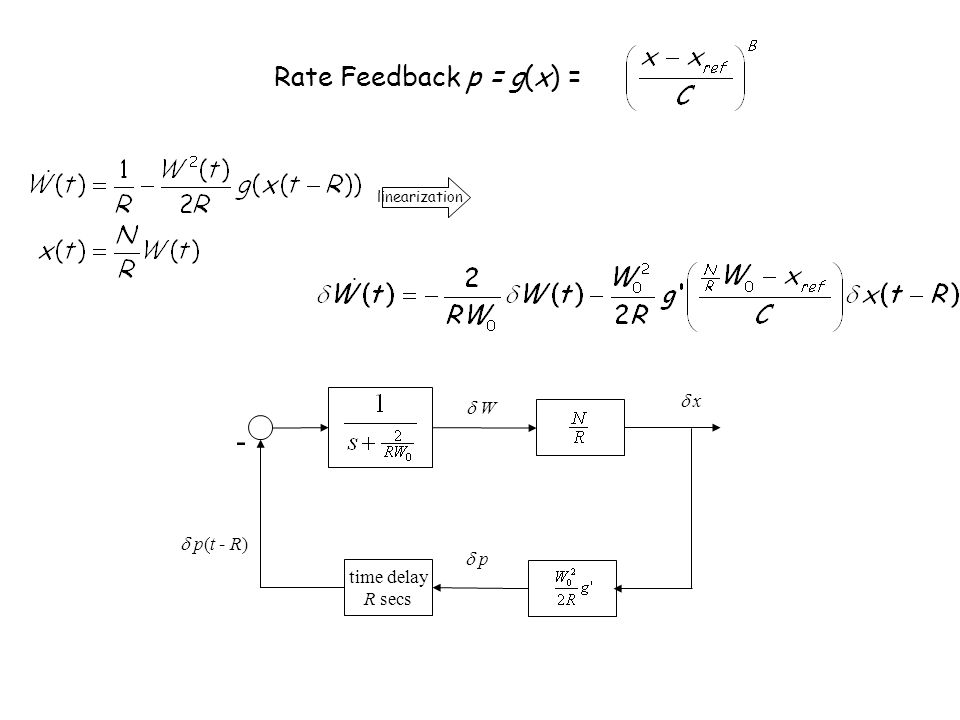

8. Rate Feedback p = g(x) =  p  W time delay R secs  x -  p(t - R) linearization

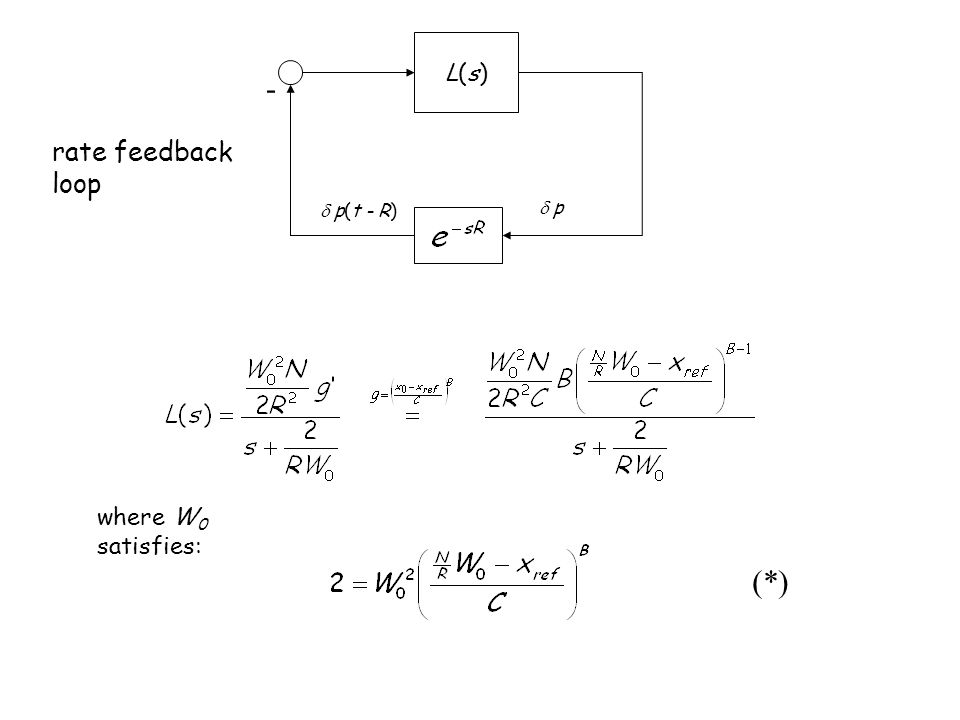

9. L(s)L(s)  p -  p(t - R) where W 0 satisfies: rate feedback loop (*)

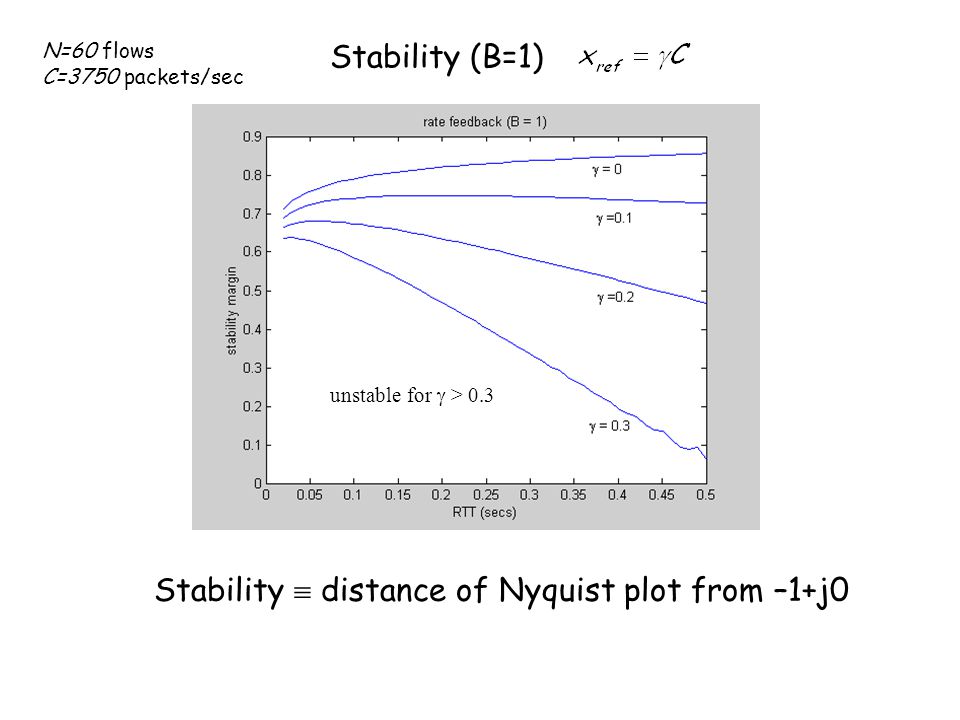

10. unstable for  > 0.3 Stability (B=1) Stability  distance of Nyquist plot from –1+j0 N=60 flows C=3750 packets/sec

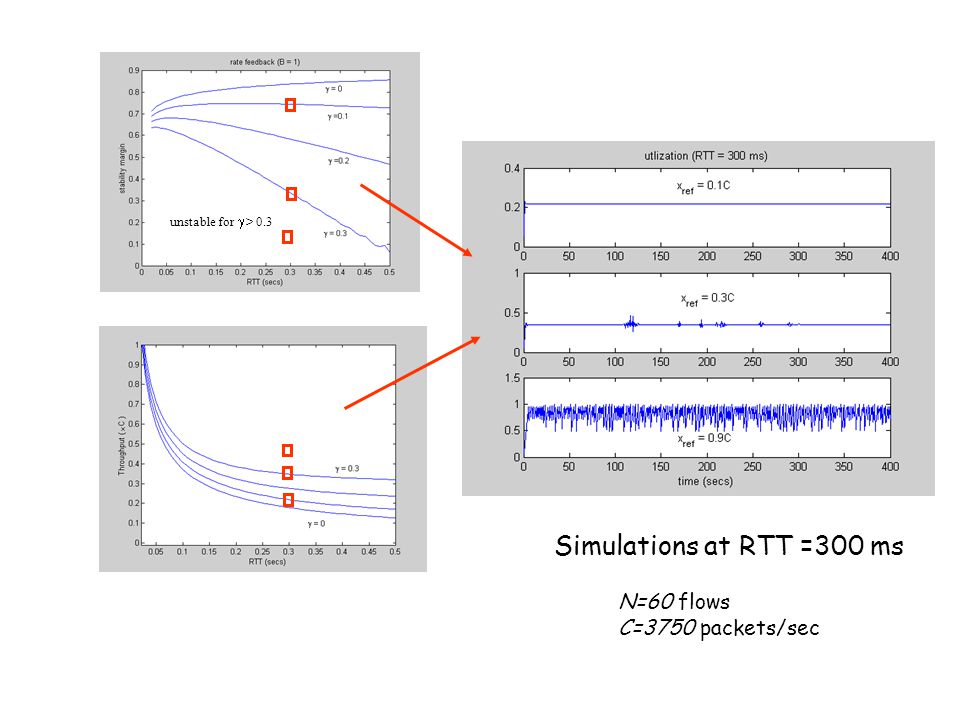

11. Simulations at RTT =300 ms unstable for  > 0.3 N=60 flows C=3750 packets/sec

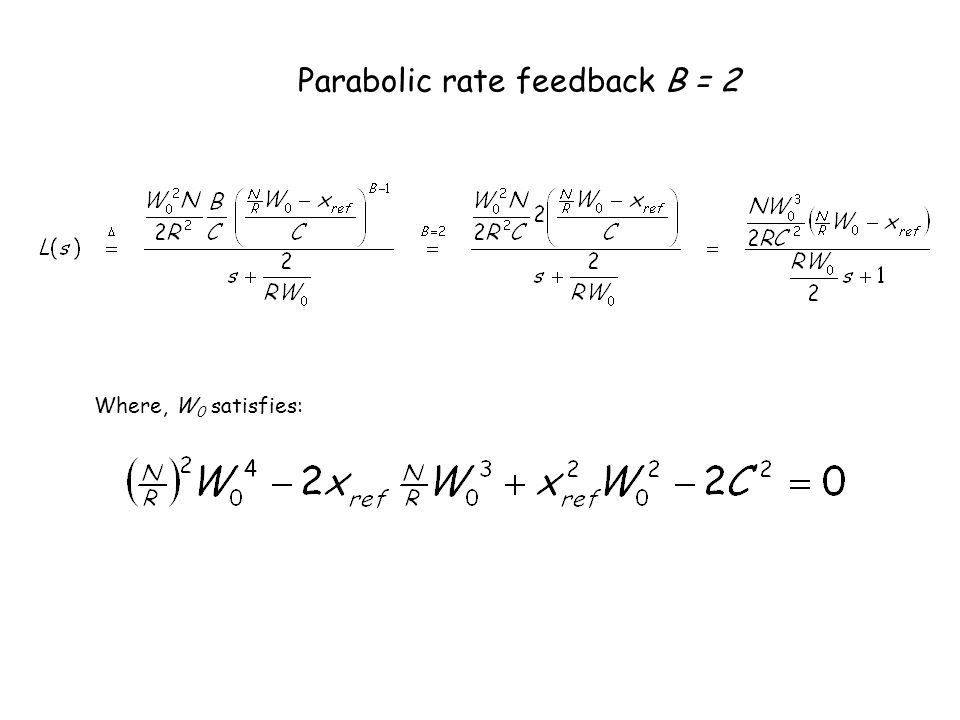

12. Parabolic rate feedback B = 2 Where, W 0 satisfies:

13. Multiple Equilibria (Throughput)

14. Multiple Equilibria (Stability)

15. Stability (B=2) unstable for  > 0.8 N=60 flows C=3750 packets/sec

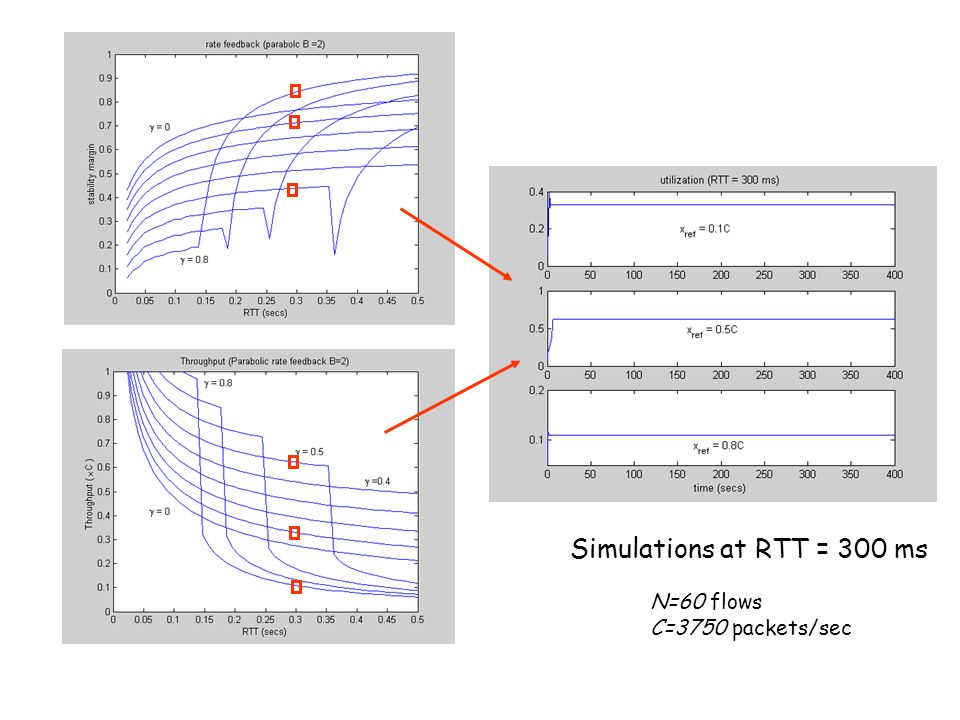

16. Simulations at RTT = 300 ms N=60 flows C=3750 packets/sec

17. Implementation and Experiments

18. Implementing PI controller PI q(t) p(t) q ref Integral controller, regulates router buffer to some operator controlled value q ref

19. Hardware Implementation Active collaboration with two vendors on implementing PI on a router –Nortel Networks: Next generation edge router –Cisco: IOS on the 3260 platform

20. Transitioning from theory to practice (Nortel) Theory, Simulations: Worry about computations at one output queue, for a single class of traffic Practice: Typical router has M (~ 512) queues, E (~ 8) classes

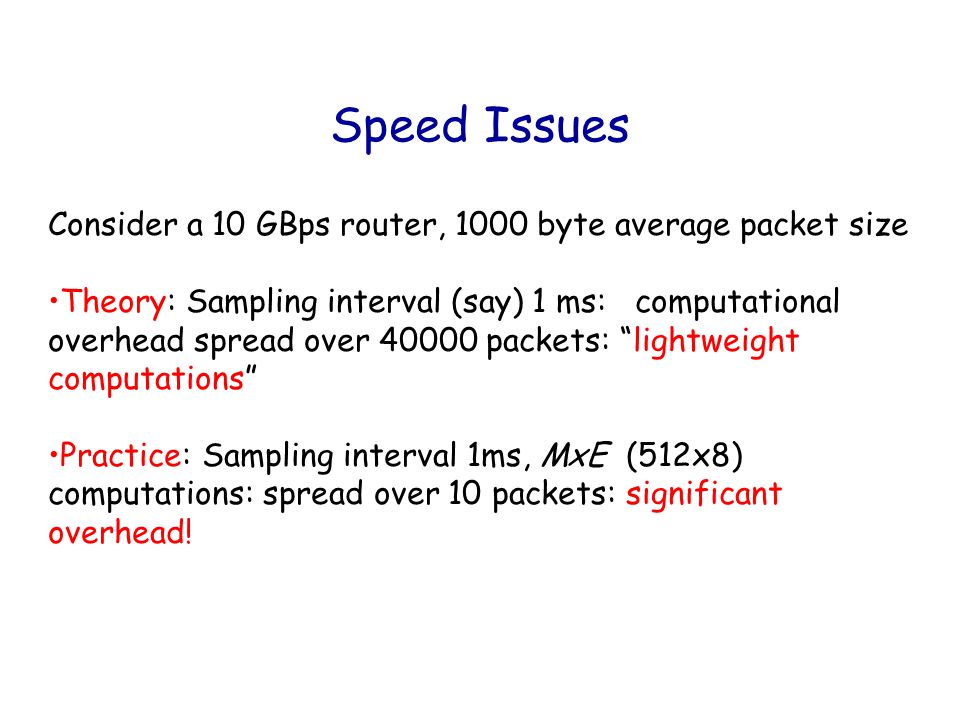

21. Speed Issues Consider a 10 GBps router, 1000 byte average packet size Theory: Sampling interval (say) 1 ms: computational overhead spread over 40000 packets: “lightweight computations” Practice: Sampling interval 1ms, MxE (512x8) computations: spread over 10 packets: significant overhead!

22. Memory issues Theory: One drop/marking probability needs to be maintained Practice: MxE values have to be maintained! Hardware designers unwilling to allot memory real estate for AQM (relatively small part of a router) Solution: Discretize [0,1] and use small precomputed tables

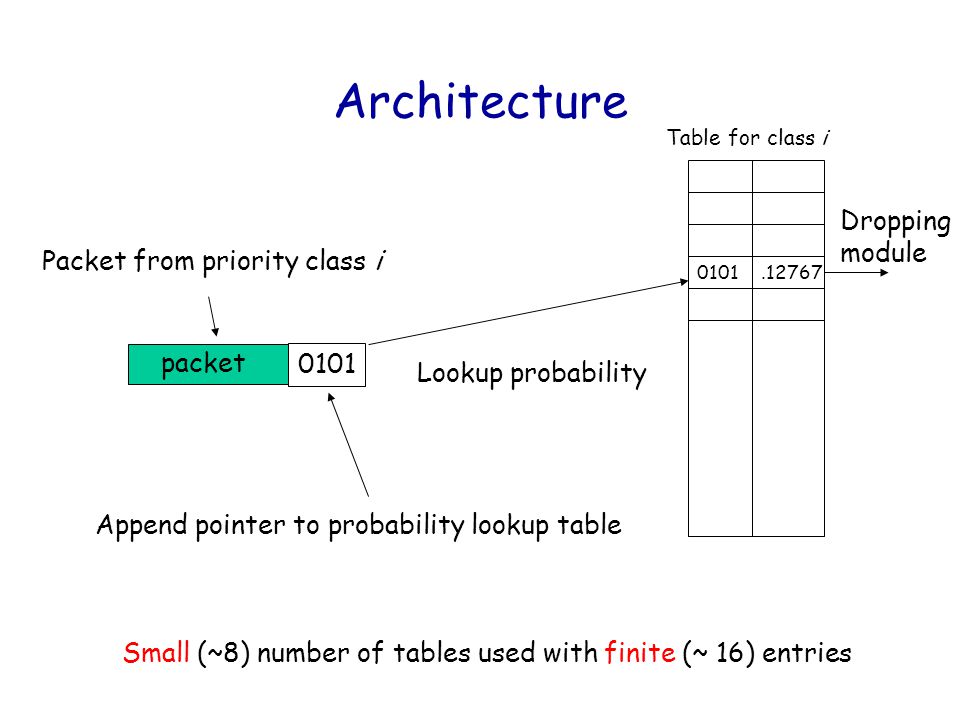

23. Architecture 0101 Append pointer to probability lookup table 0101.12767 Table for class i packet Packet from priority class i Lookup probability Dropping module Small (~8) number of tables used with finite (~ 16) entries

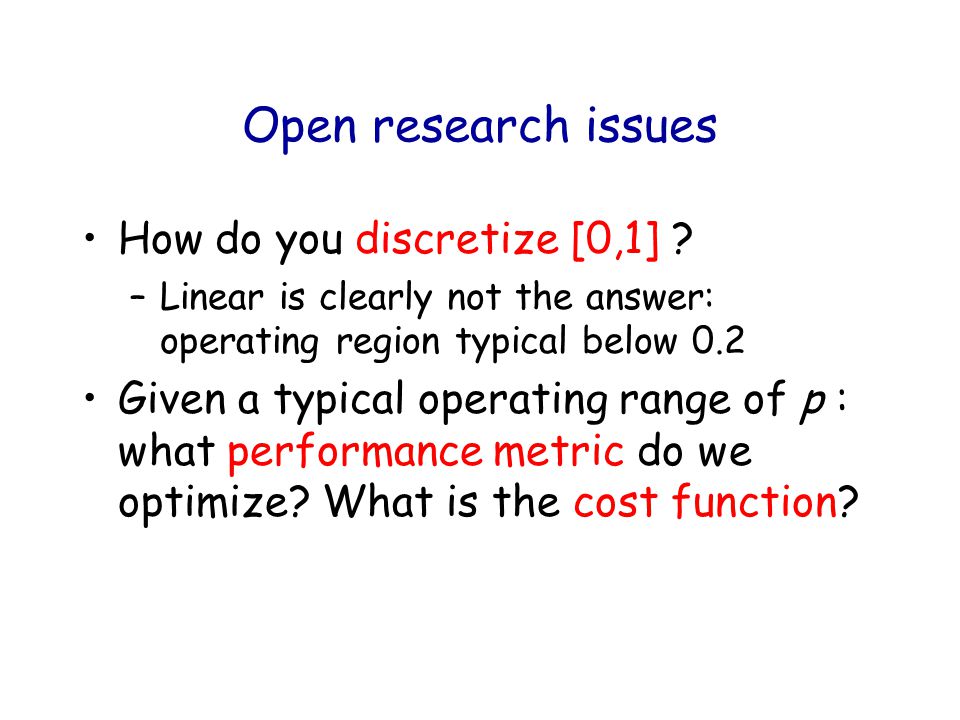

24. Open research issues How do you discretize [0,1] ? –Linear is clearly not the answer: operating region typical below 0.2 Given a typical operating range of p : what performance metric do we optimize? What is the cost function?

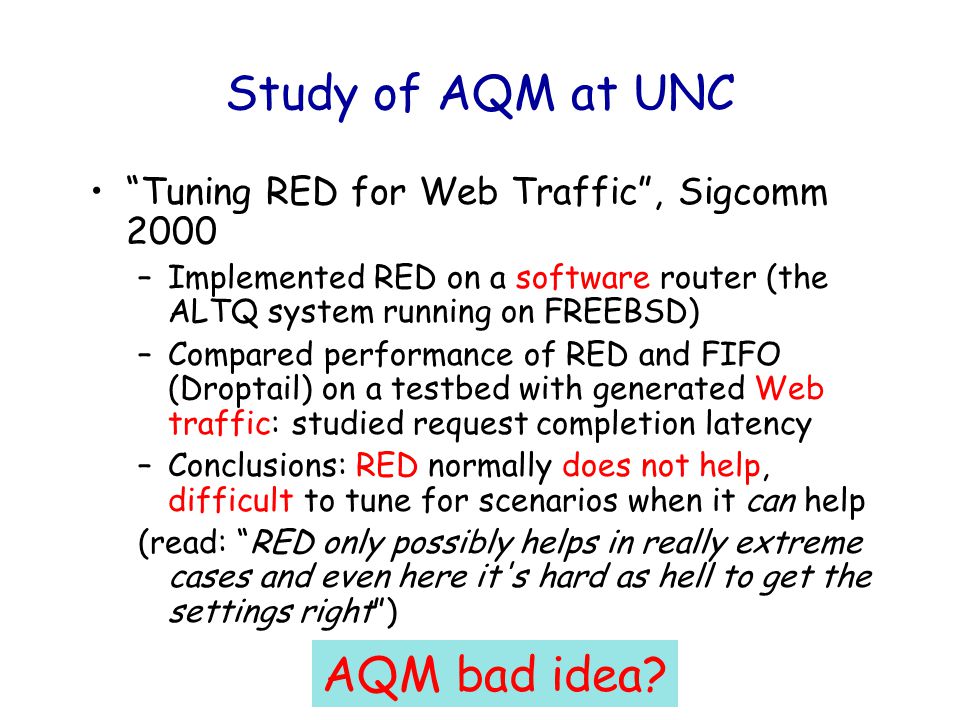

25. Software Implementation of PI “Tuning RED for Web Traffic”, Sigcomm 2000 –Implemented RED on a software router (the ALTQ system running on FREEBSD) –Compared performance of RED and FIFO (Droptail) on a testbed with generated Web traffic: studied request completion latency –Conclusions: RED normally does not help, difficult to tune for scenarios when it can help (read: “RED only possibly helps in really extreme cases and even here it's hard as hell to get the settings right”) AQM bad idea? Study of AQM at UNC

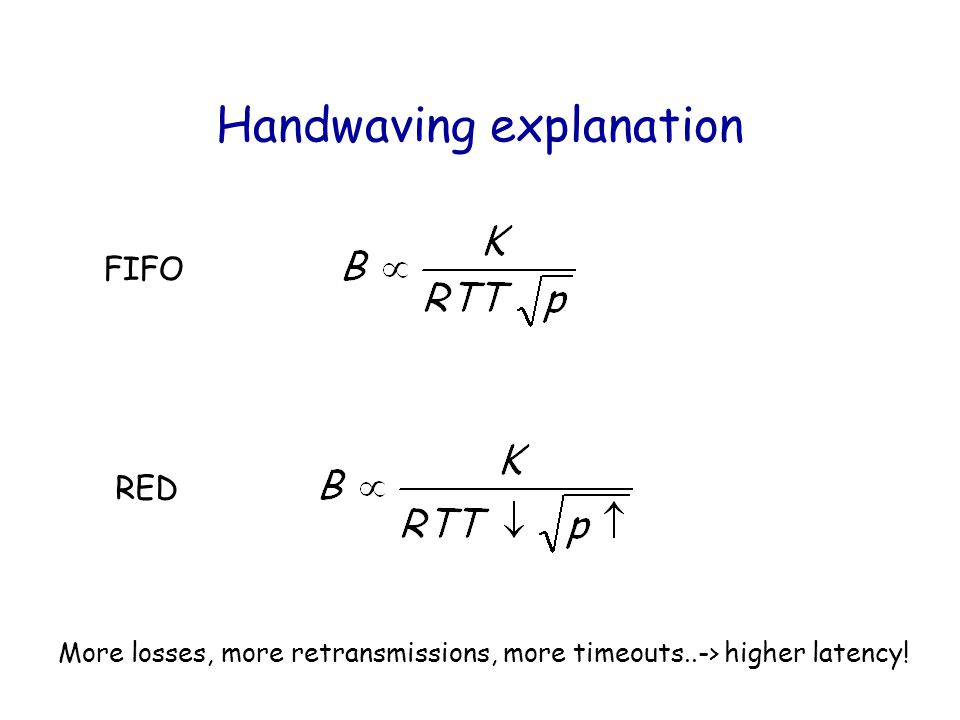

26. Handwaving explanation FIFO RED More losses, more retransmissions, more timeouts..-> higher latency!

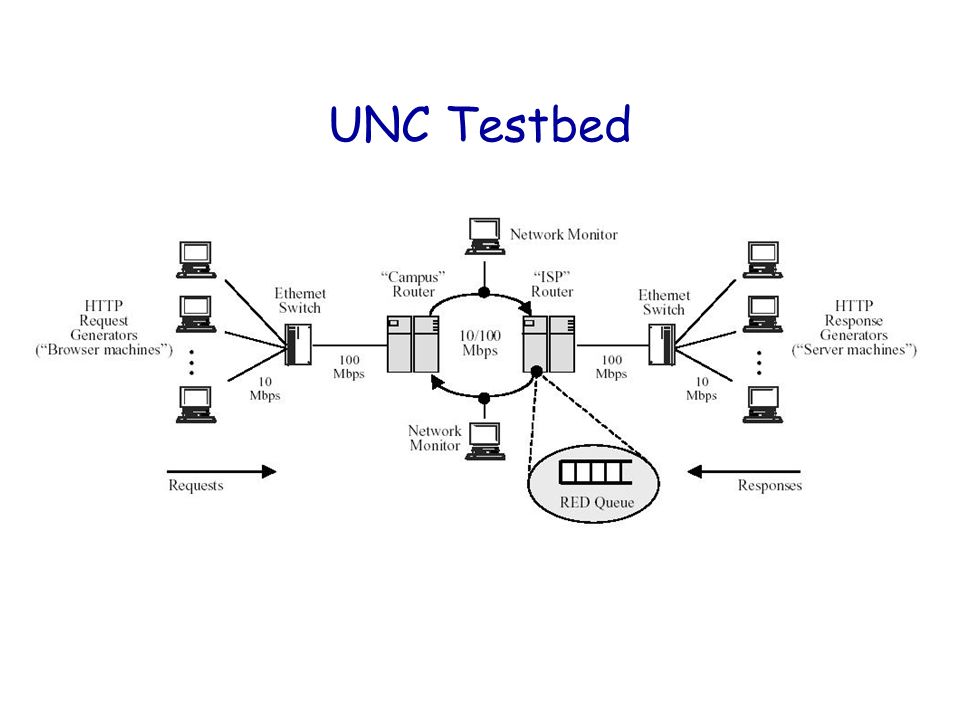

27. UNC Testbed

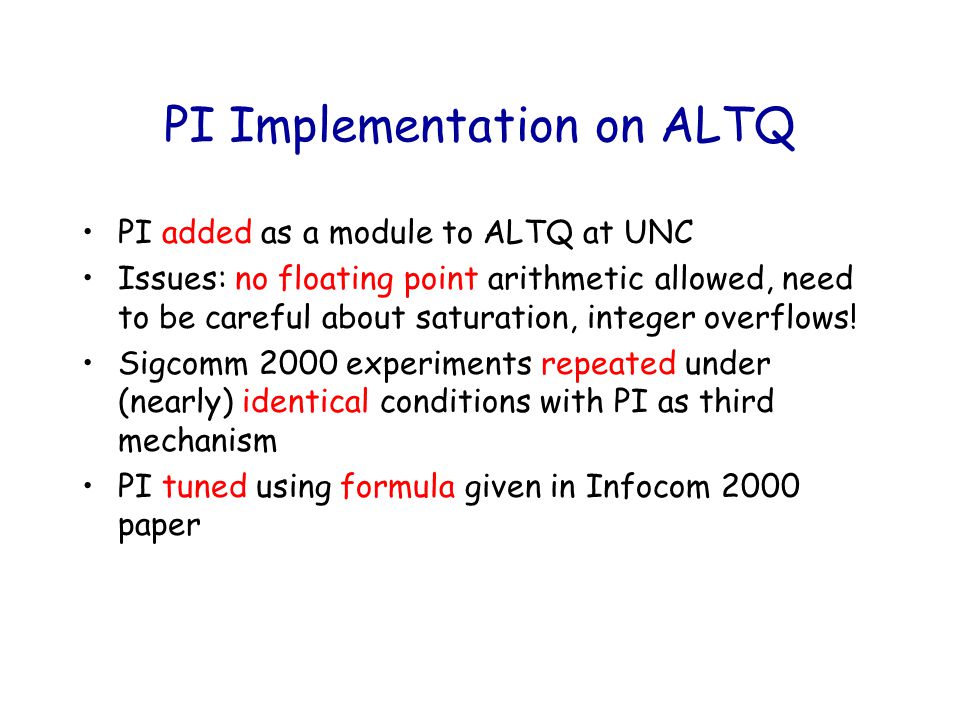

28. PI Implementation on ALTQ PI added as a module to ALTQ at UNC Issues: no floating point arithmetic allowed, need to be careful about saturation, integer overflows! Sigcomm 2000 experiments repeated under (nearly) identical conditions with PI as third mechanism PI tuned using formula given in Infocom 2000 paper

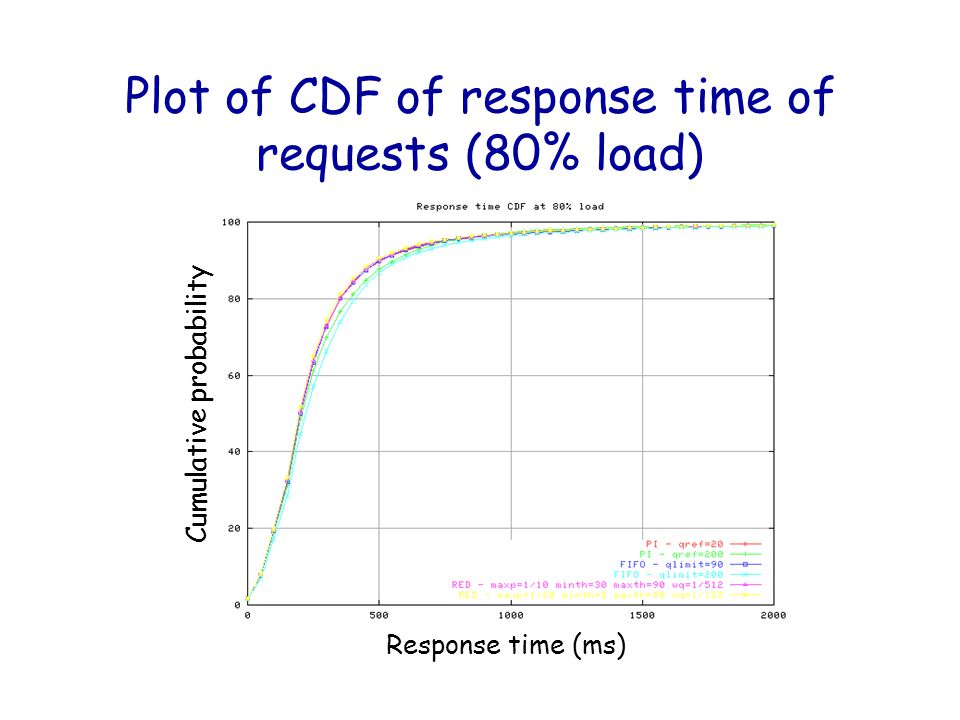

29. Plot of CDF of response time of requests (80% load) Cumulative probability Response time (ms)

30. Plot of CDF of response time of requests (100% load) Cumulative probability Response time (ms) PI, qref=20 FIFO, RED PI, qref=200

31. Plot of CDF of response time of requests (110% load) Cumulative probability Response time (ms) PI, qref=20 PI, qref=200 FIFO, RED

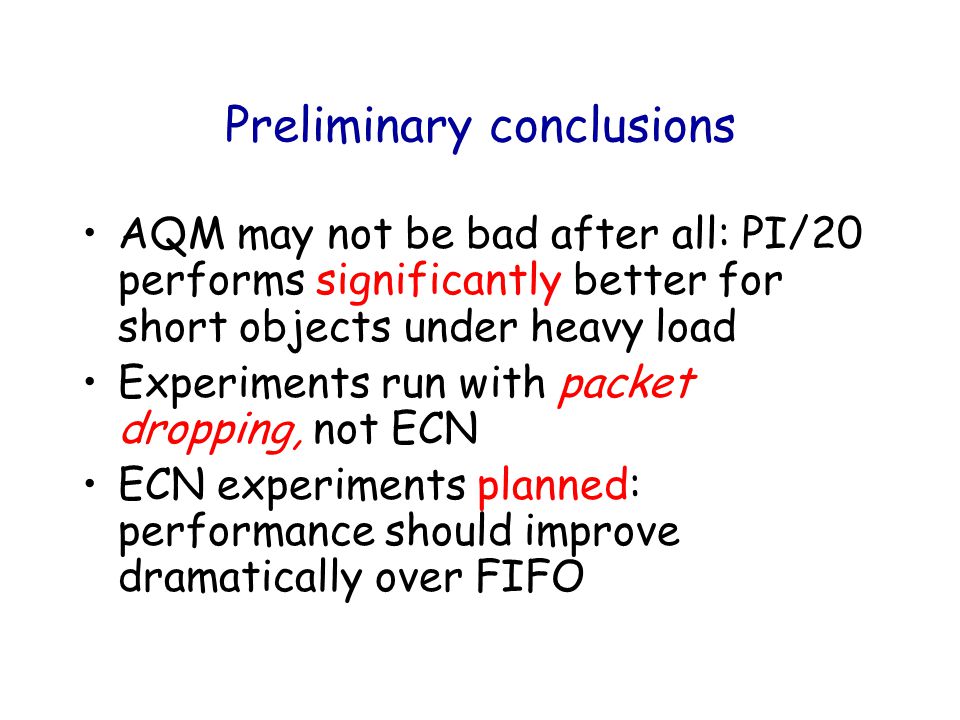

32. Preliminary conclusions AQM may not be bad after all: PI/20 performs significantly better for short objects under heavy load Experiments run with packet dropping, not ECN ECN experiments planned: performance should improve dramatically over FIFO
