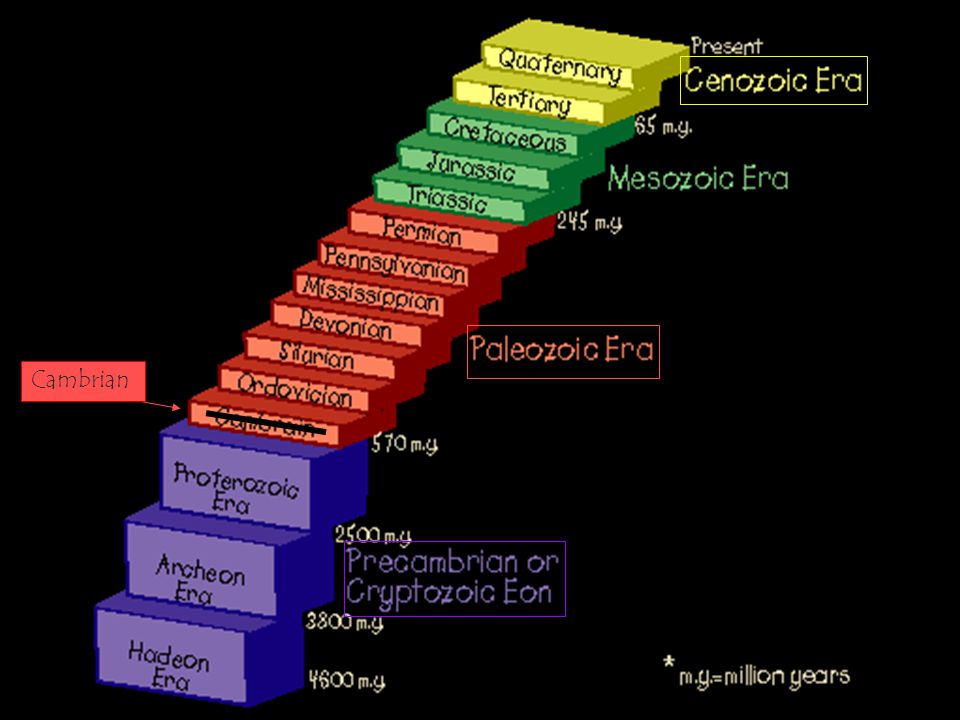

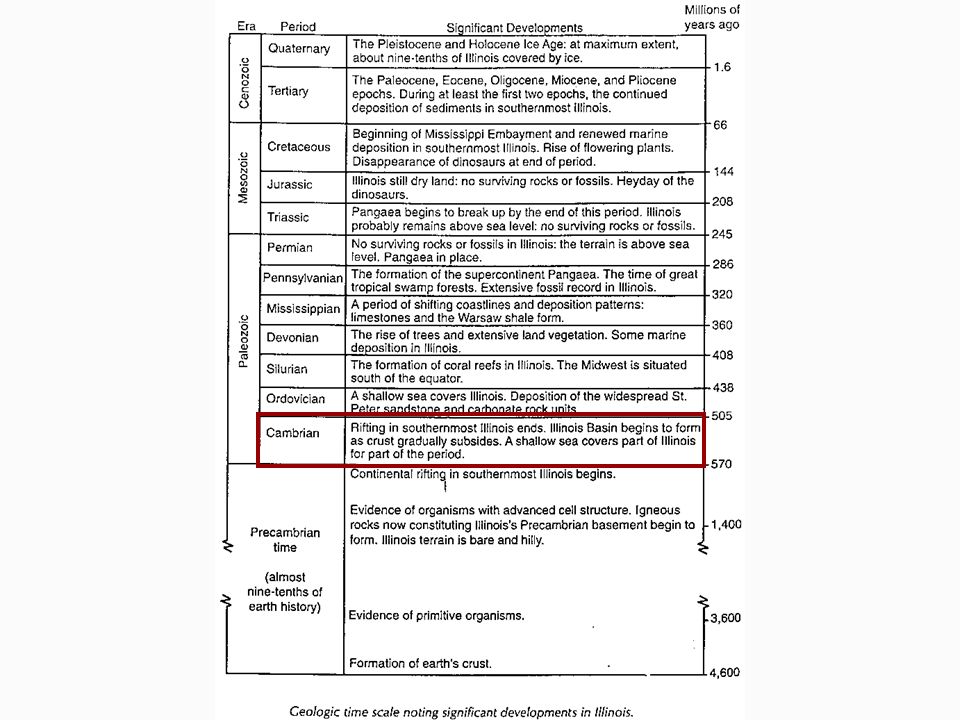

1. Cambrian

5. Anomalocaris Marella Hallucigenea

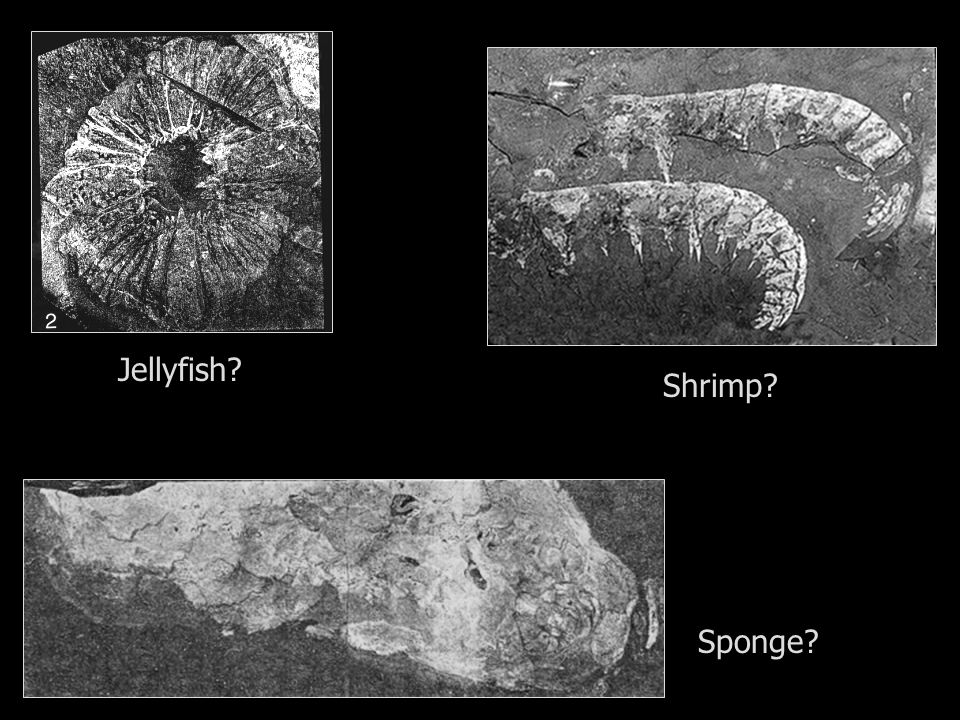

6. Jellyfish? Shrimp? Sponge?

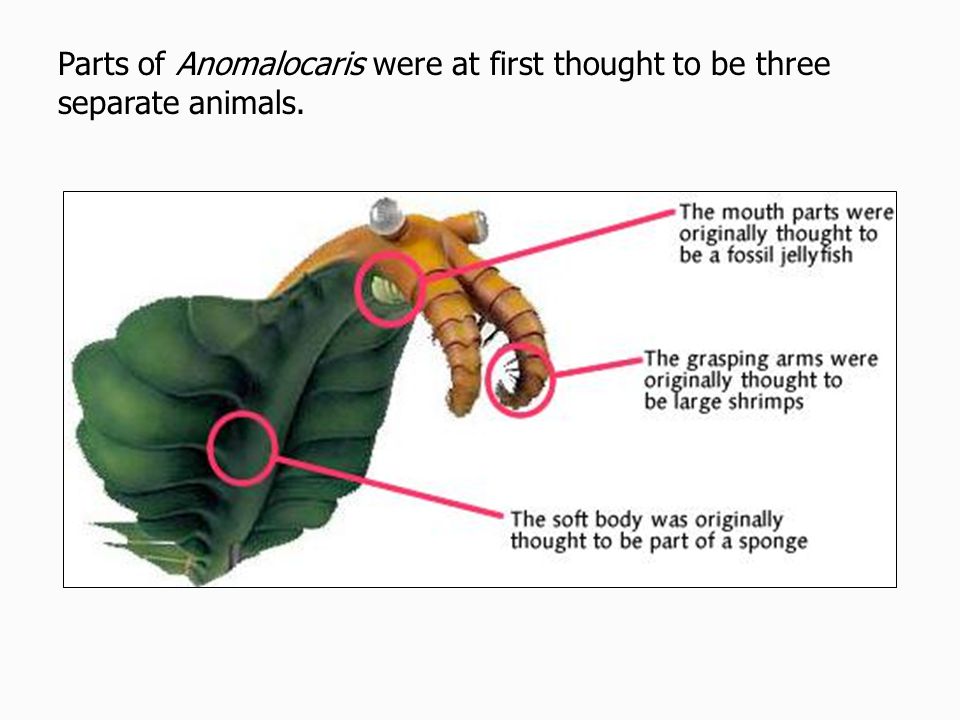

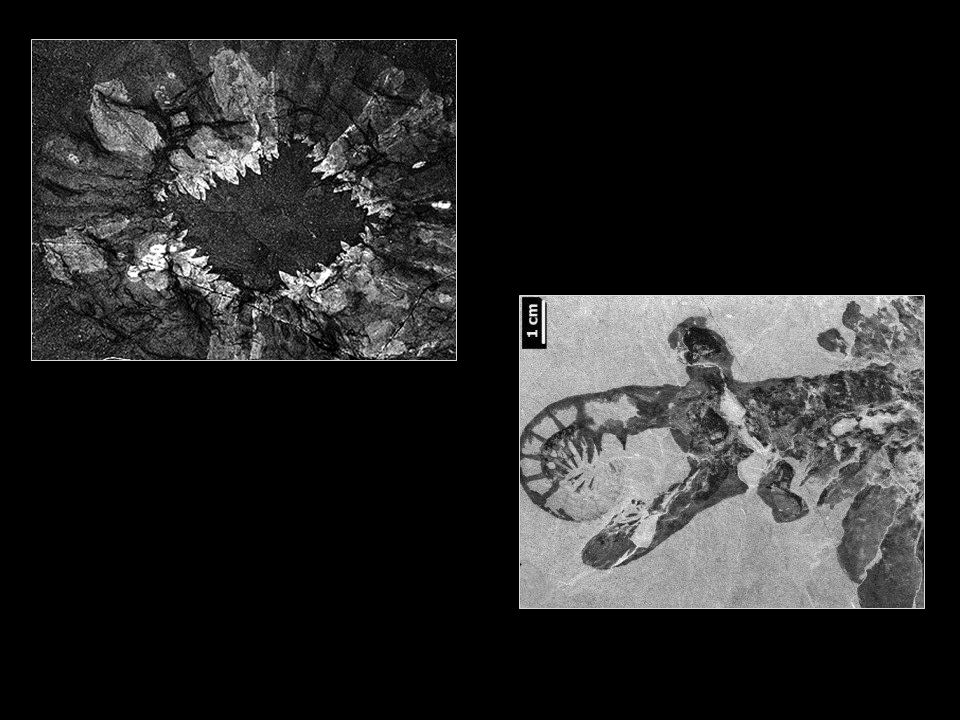

8. Parts of Anomalocaris were at first thought to be three separate animals.

12. Anomalocaris

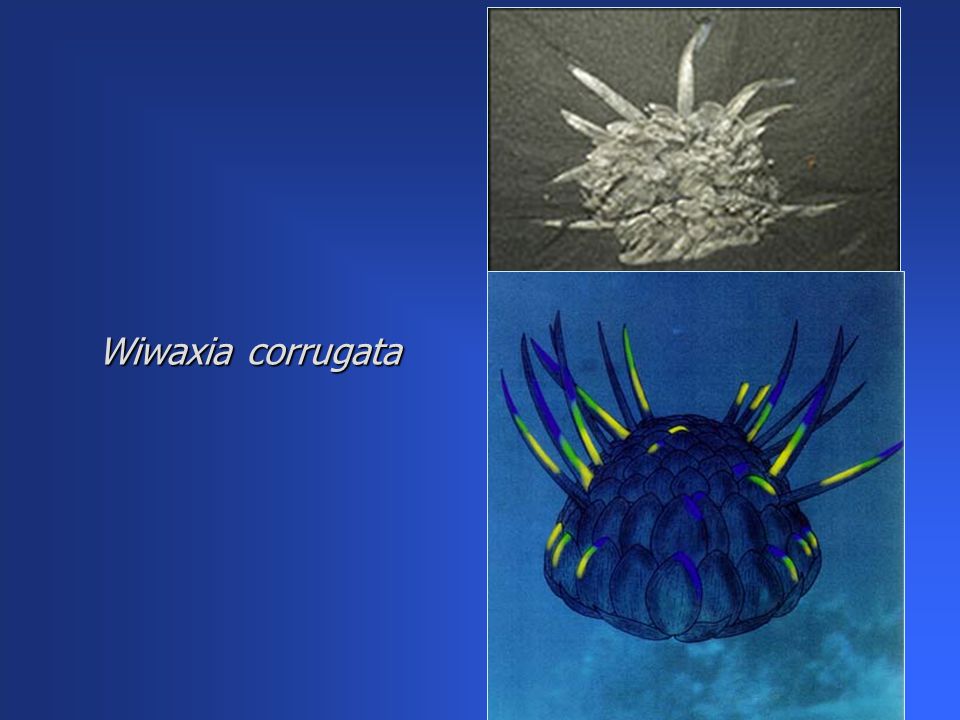

13. Wiwaxia corrugata

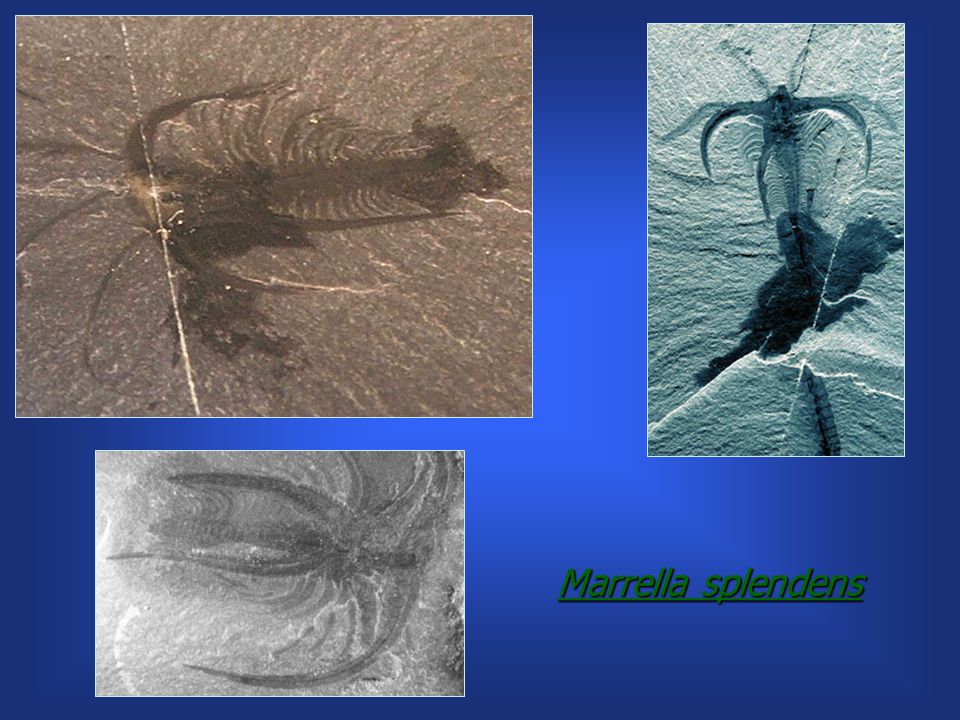

15. Marrella splendens Marrella splendens

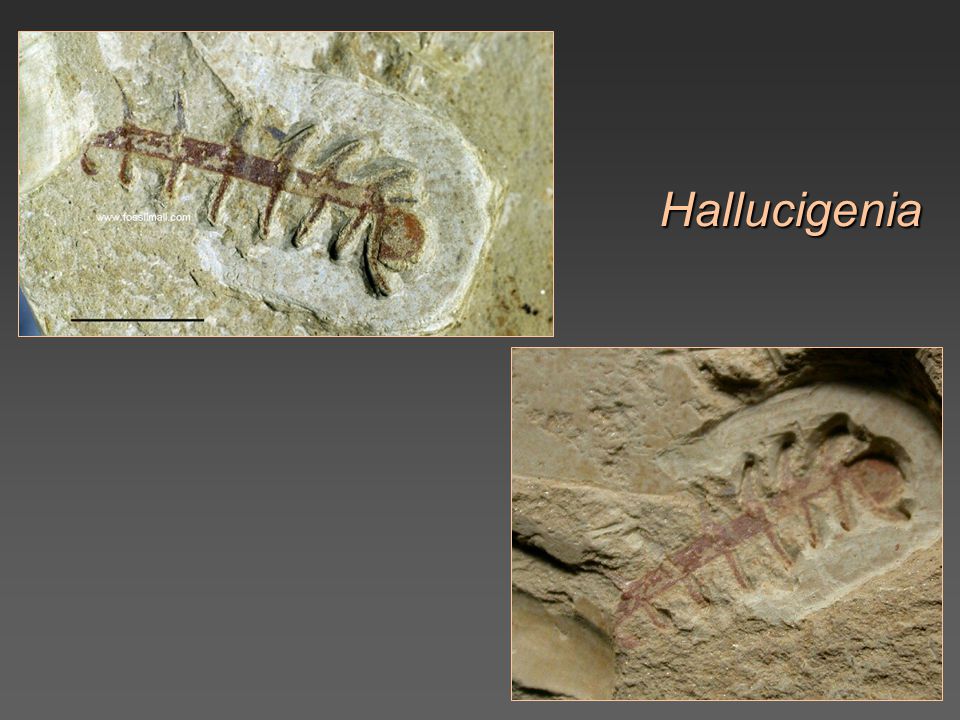

16. Hallucigenia

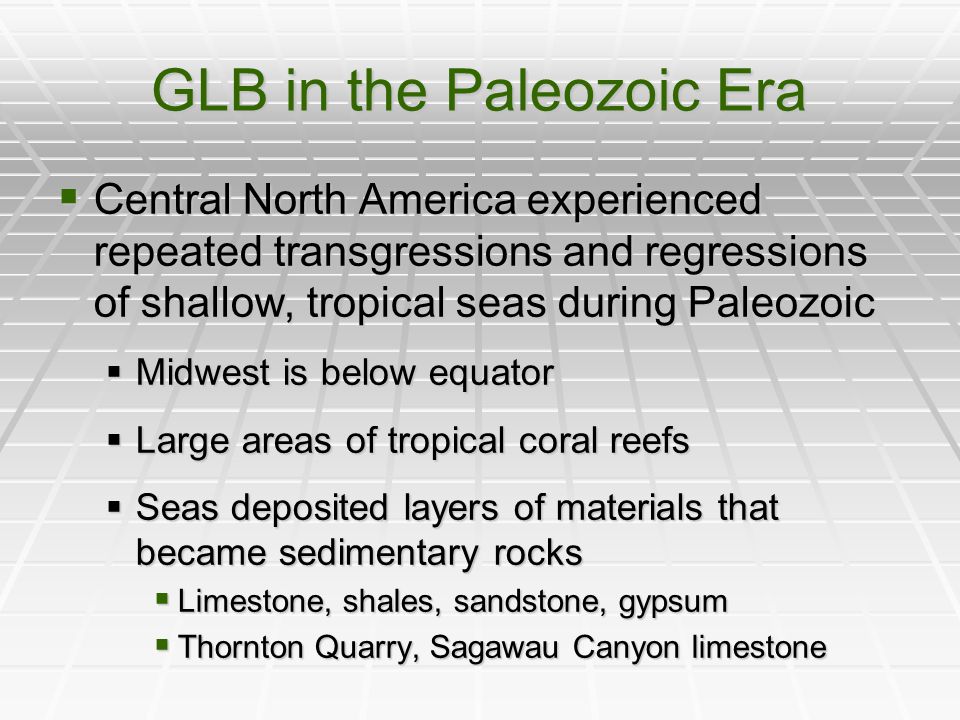

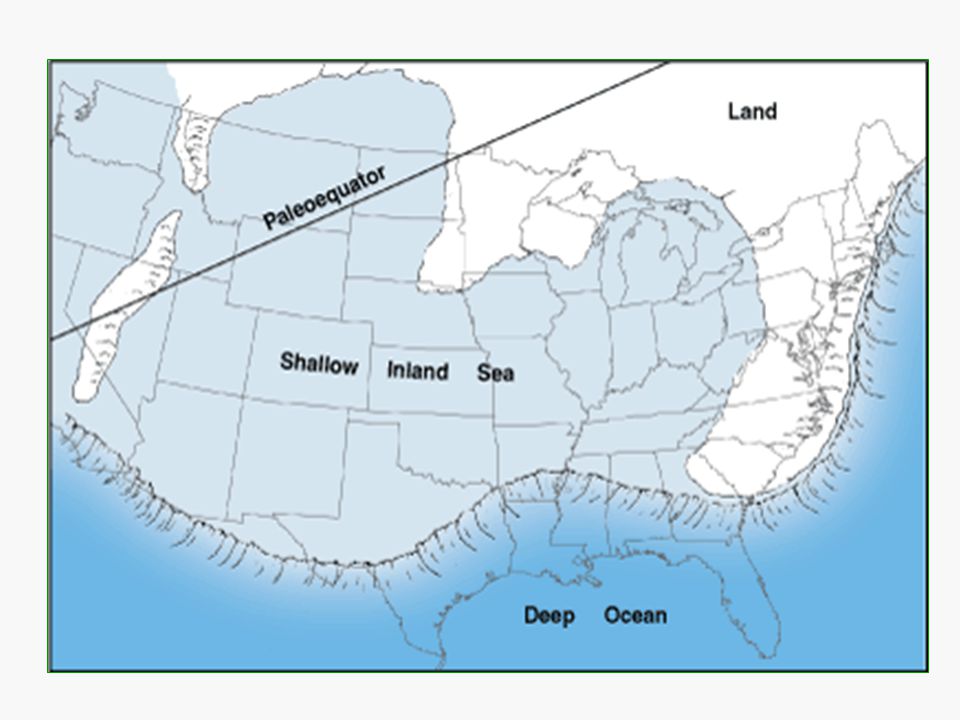

17. GLB in the Paleozoic Era  Central North America experienced repeated transgressions and regressions of shallow, tropical seas during Paleozoic  Midwest is below equator  Large areas of tropical coral reefs  Seas deposited layers of materials that became sedimentary rocks  Limestone, shales, sandstone, gypsum  Thornton Quarry, Sagawau Canyon limestone

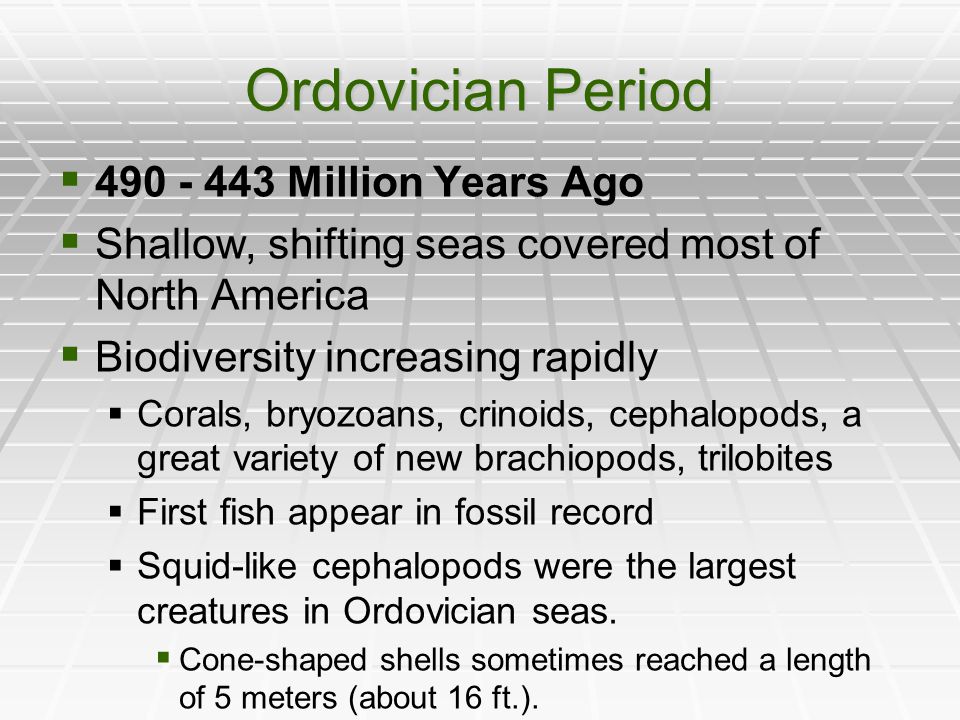

19. Ordovician Period   490 - 443 Million Years Ago   Shallow, shifting seas covered most of North America   Biodiversity increasing rapidly   Corals, bryozoans, crinoids, cephalopods, a great variety of new brachiopods, trilobites   First fish appear in fossil record   Squid-like cephalopods were the largest creatures in Ordovician seas.   Cone-shaped shells sometimes reached a length of 5 meters (about 16 ft.).

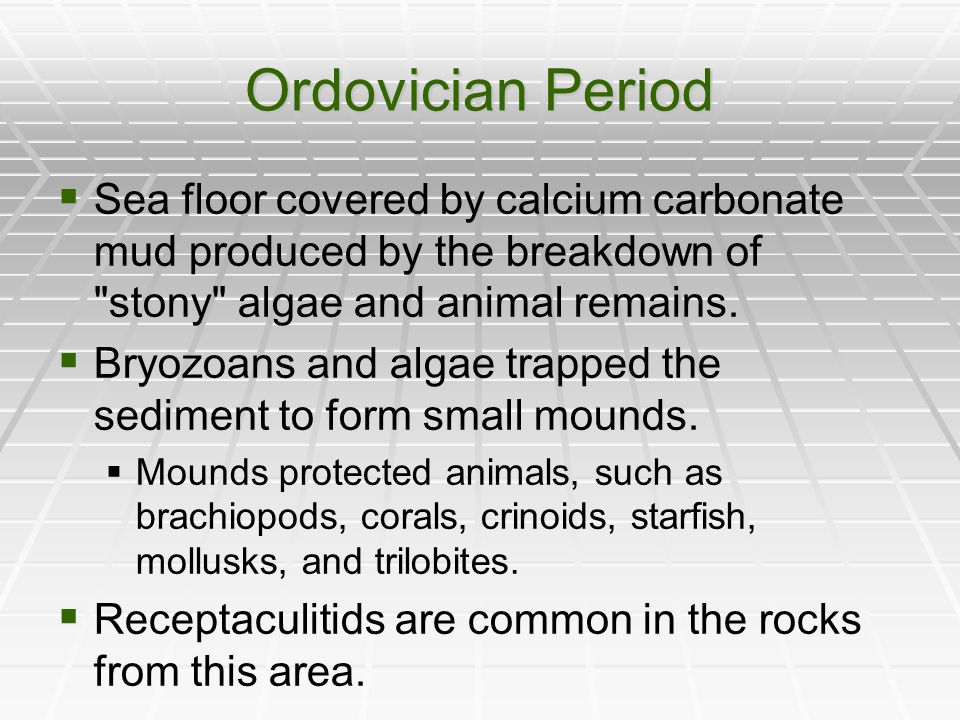

20. Ordovician Period   Sea floor covered by calcium carbonate mud produced by the breakdown of "stony" algae and animal remains.   Bryozoans and algae trapped the sediment to form small mounds.   Mounds protected animals, such as brachiopods, corals, crinoids, starfish, mollusks, and trilobites.   Receptaculitids are common in the rocks from this area.

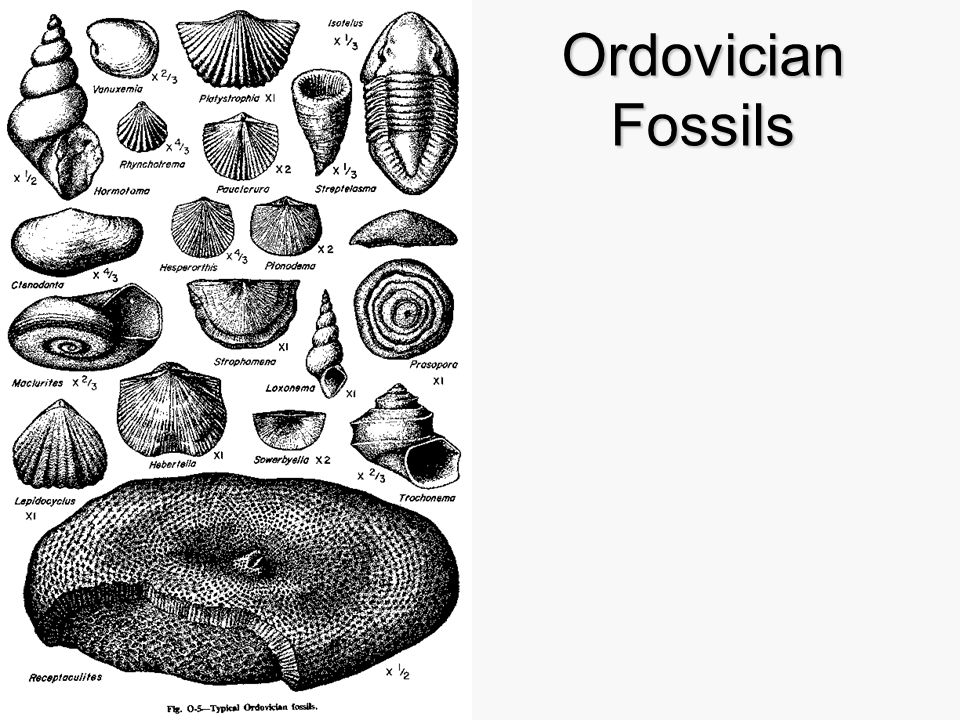

22. Ordovician Fossils

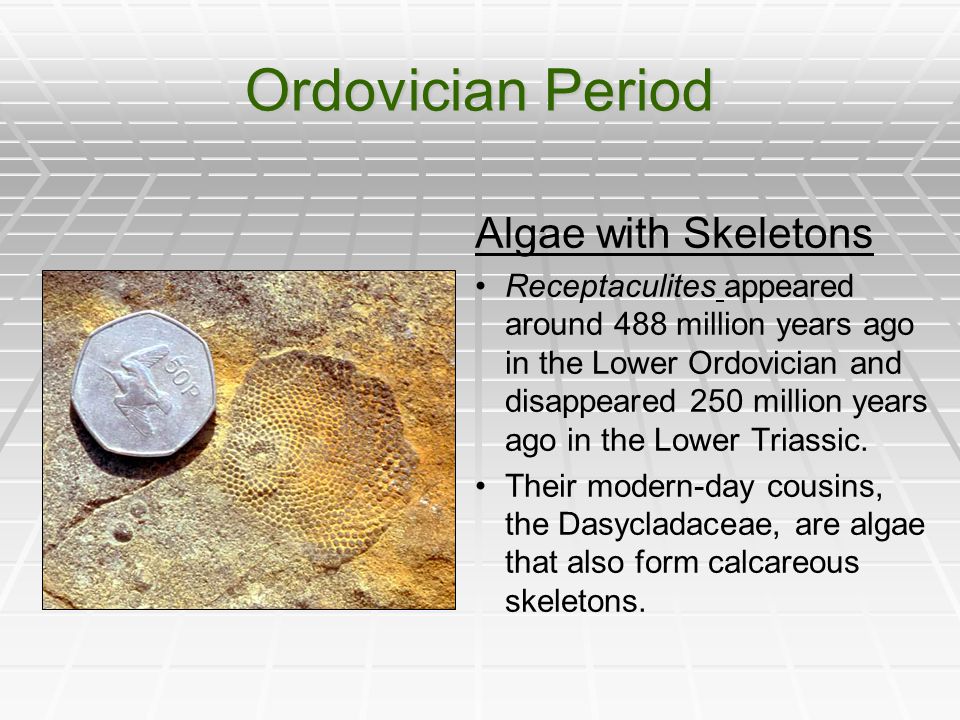

23. Ordovician Period Algae with Skeletons Receptaculites appeared around 488 million years ago in the Lower Ordovician and disappeared 250 million years ago in the Lower Triassic. Their modern-day cousins, the Dasycladaceae, are algae that also form calcareous skeletons.

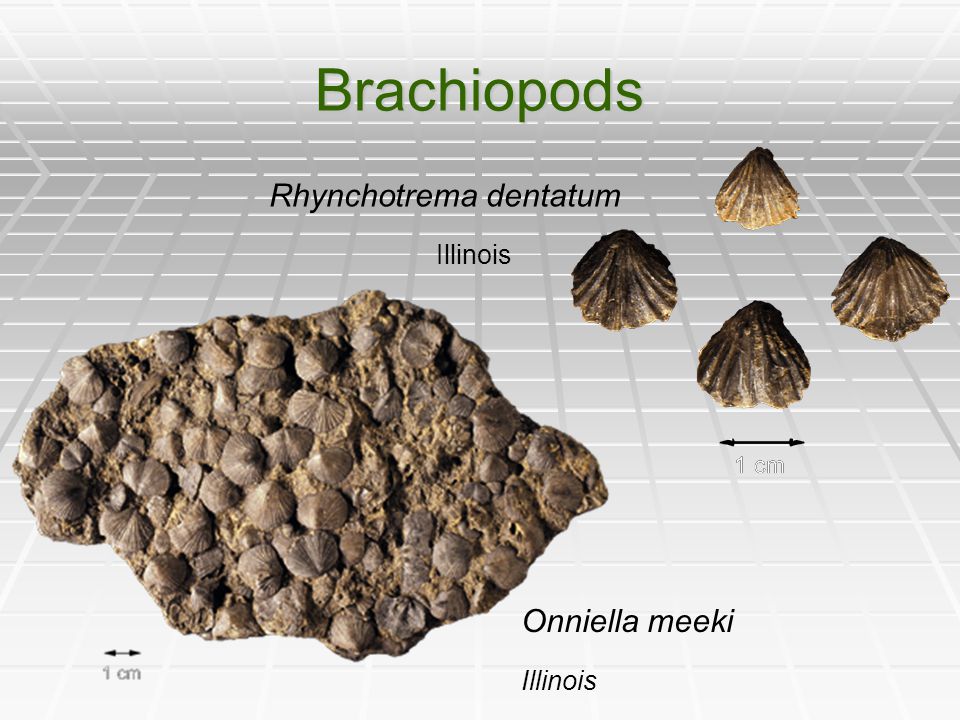

25. Brachiopods Onniella meeki Illinois Rhynchotrema dentatum Illinois

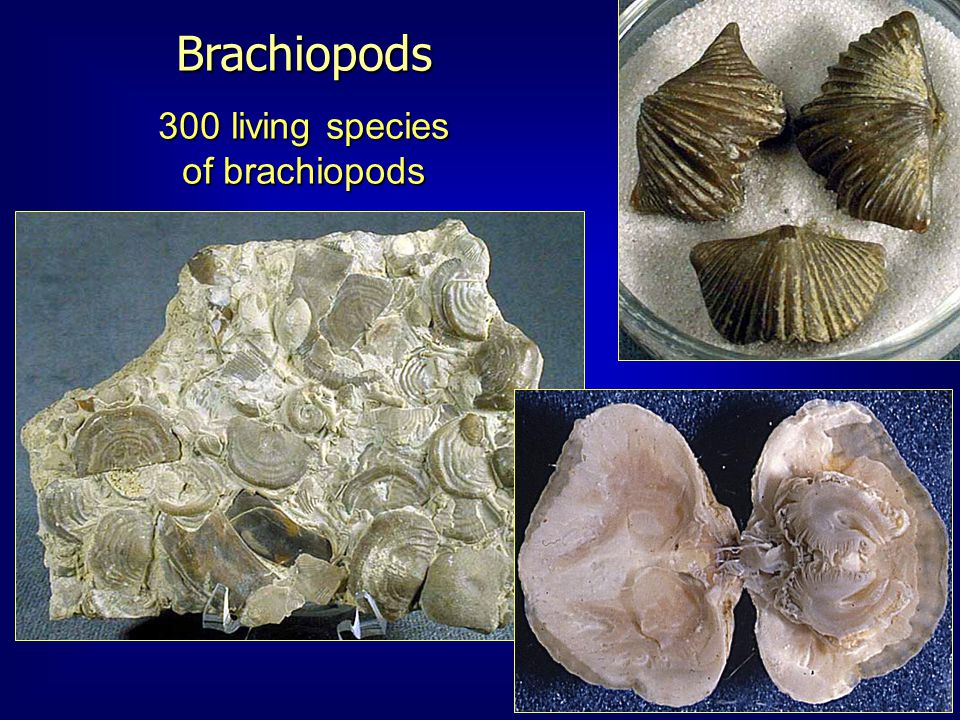

26. Brachiopods 300 living species of brachiopods

27. Brachiopods- Lampshells

30. Crinoid Pycnocrinus dyeri Cincinnati, Ohio

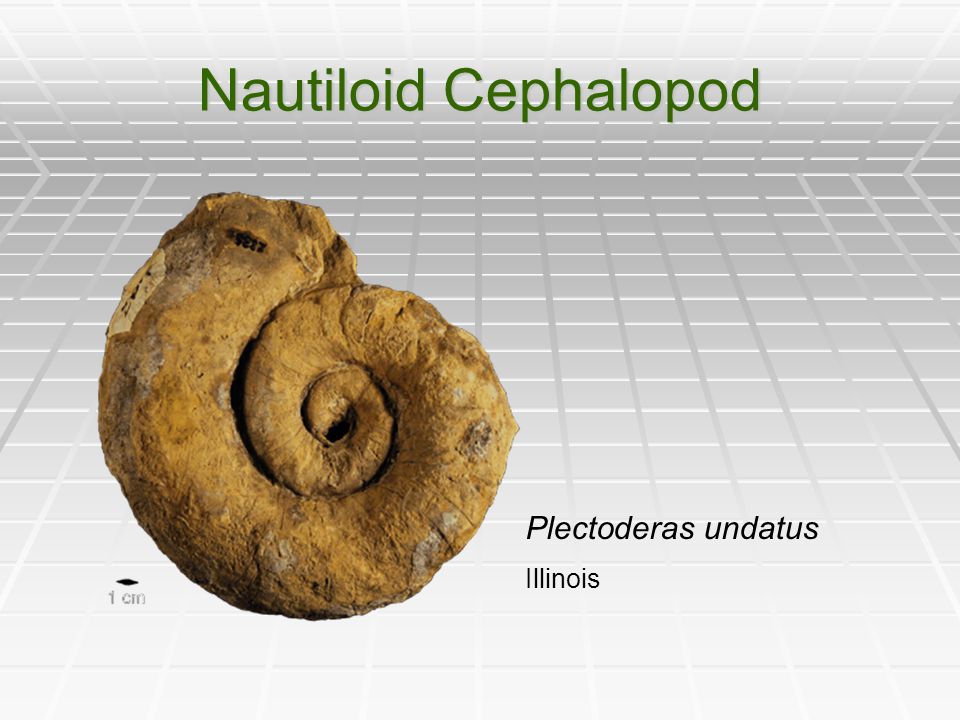

31. Nautiloid Cephalopod Plectoderas undatus Illinois

32. Corals tabulate coral Favistella alveolata Illinois rugose coral Grewingkia canadensis Cincinnati, Ohio

33. Coral Reconstructions Rugose coral Tabulate Coral

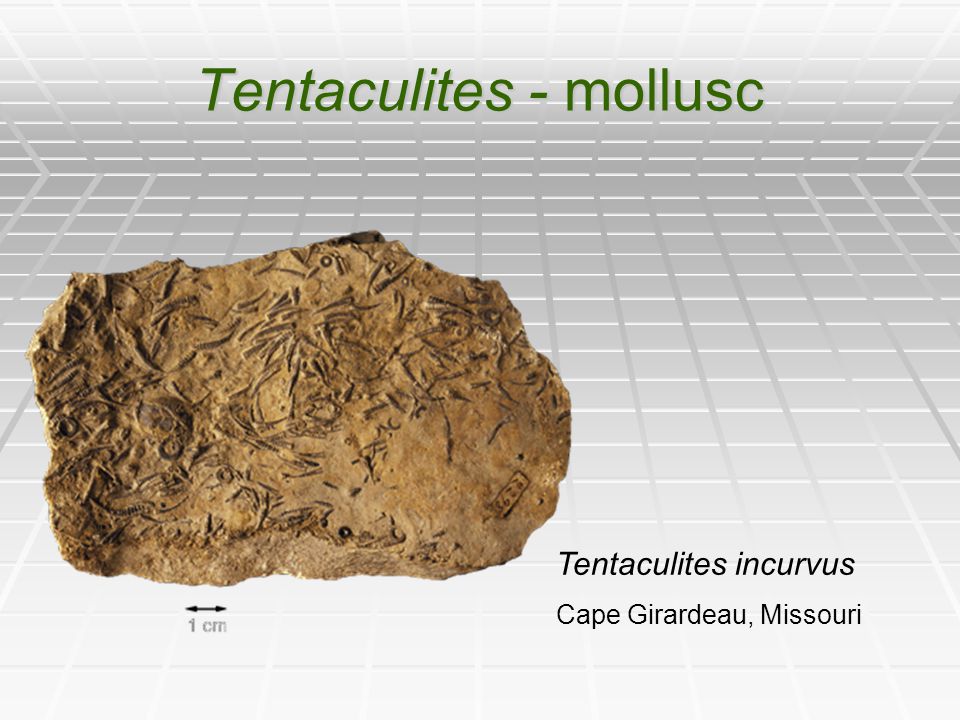

34. Tentaculites - mollusc Tentaculites incurvus Cape Girardeau, Missouri

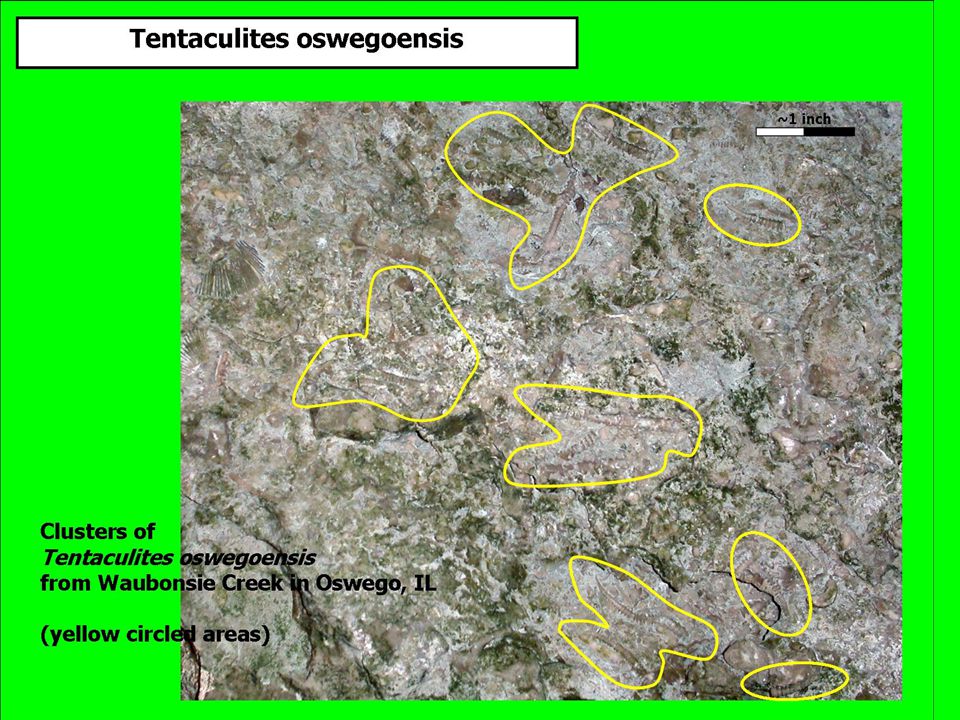

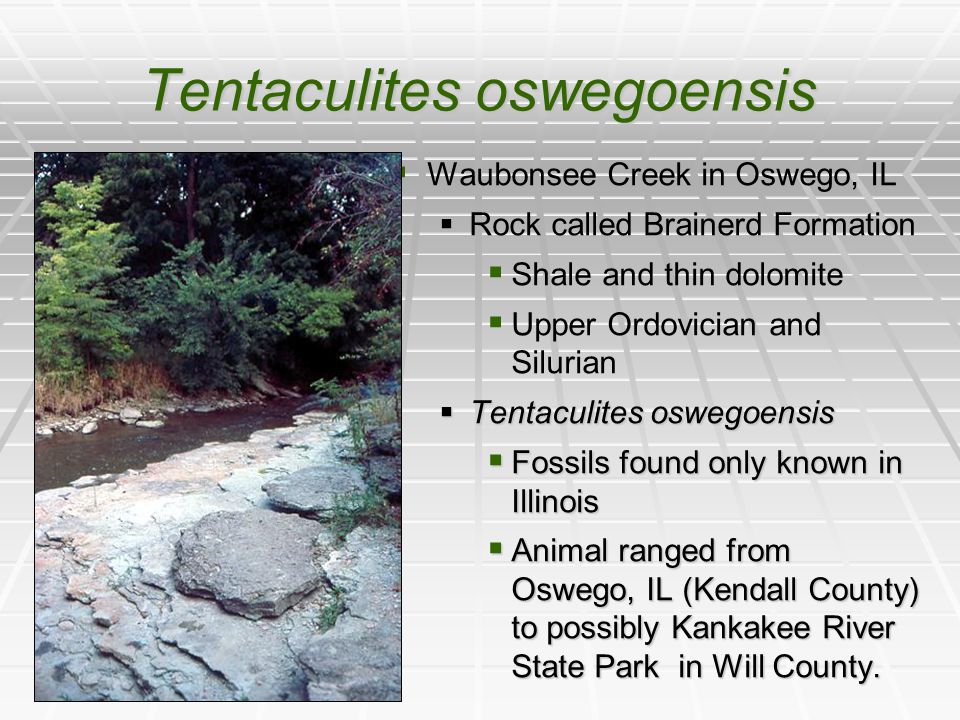

35. Tentaculites oswegoensis   Waubonsee Creek in Oswego, IL  Rock called Brainerd Formation  Shale and thin dolomite  Upper Ordovician and Silurian  Tentaculites oswegoensis  Fossils found only known in Illinois  Animal ranged from Oswego, IL (Kendall County) to possibly Kankakee River State Park in Will County.

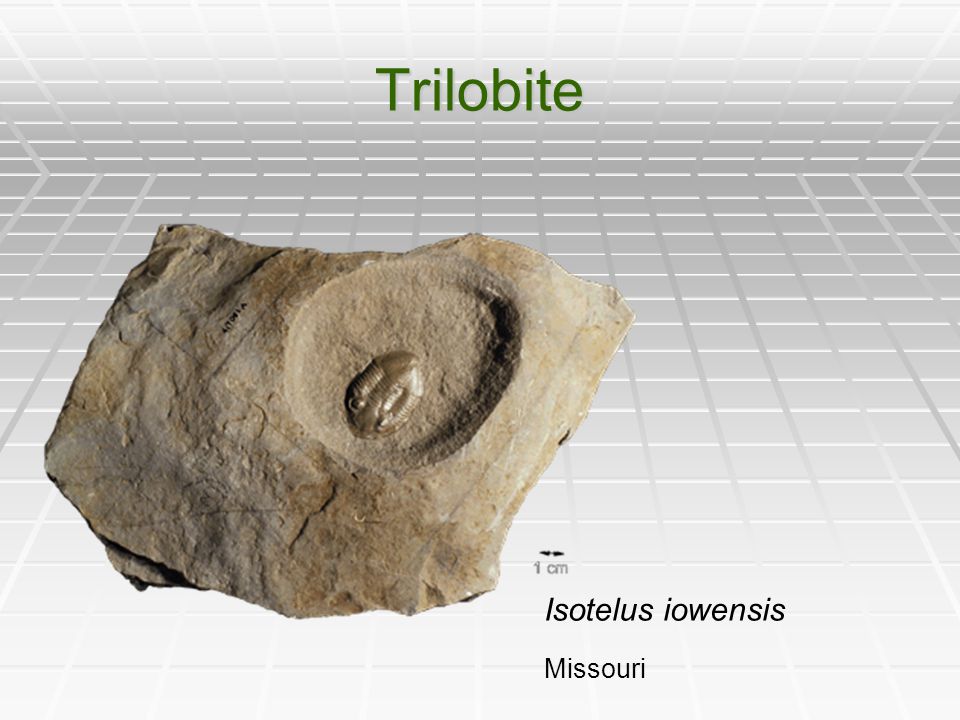

38. Trilobite Isotelus iowensis Missouri

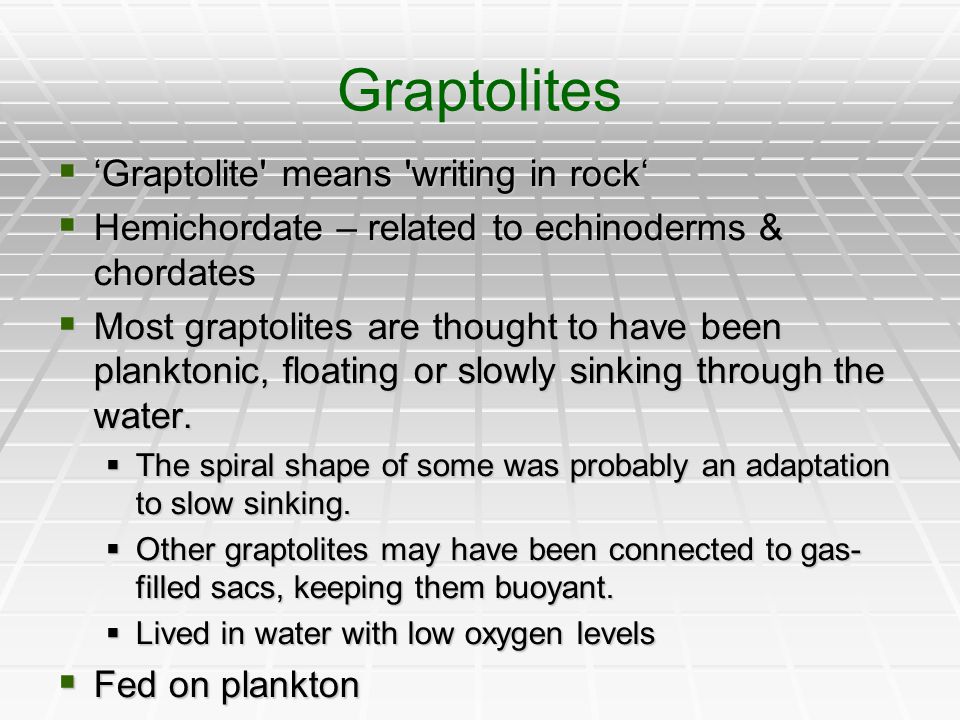

40. Graptolites  ‘Graptolite' means 'writing in rock‘  Hemichordate – related to echinoderms & chordates  Most graptolites are thought to have been planktonic, floating or slowly sinking through the water.  The spiral shape of some was probably an adaptation to slow sinking.  Other graptolites may have been connected to gas- filled sacs, keeping them buoyant.  Lived in water with low oxygen levels  Fed on plankton

41. GraptolitesHemichordates

42. Phyllograptus archaios

43. Spirograptus

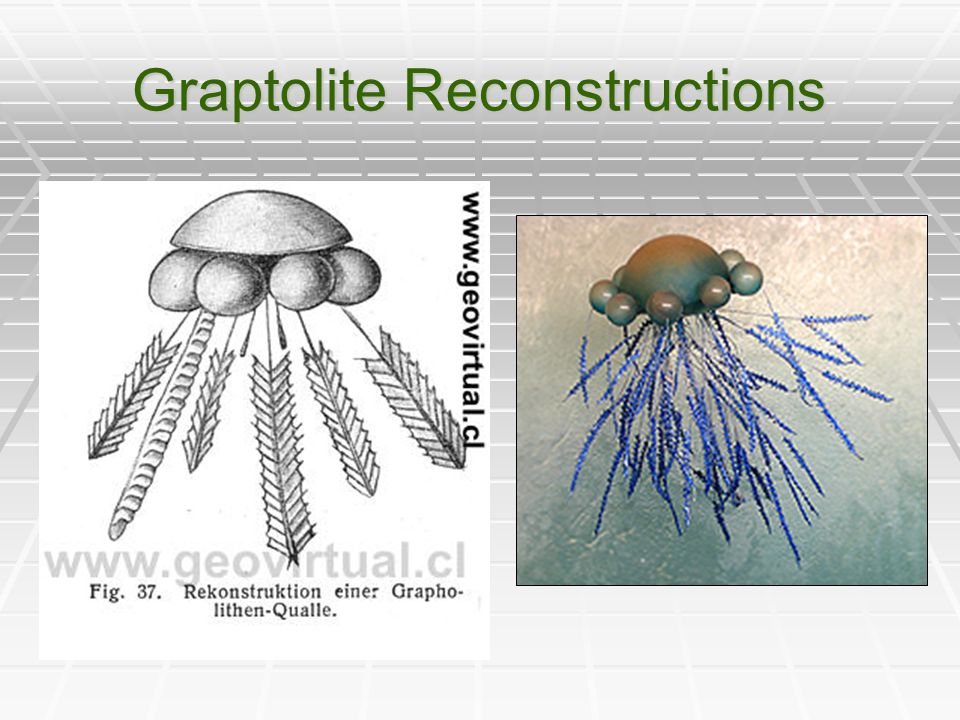

44. Graptolite Reconstructions

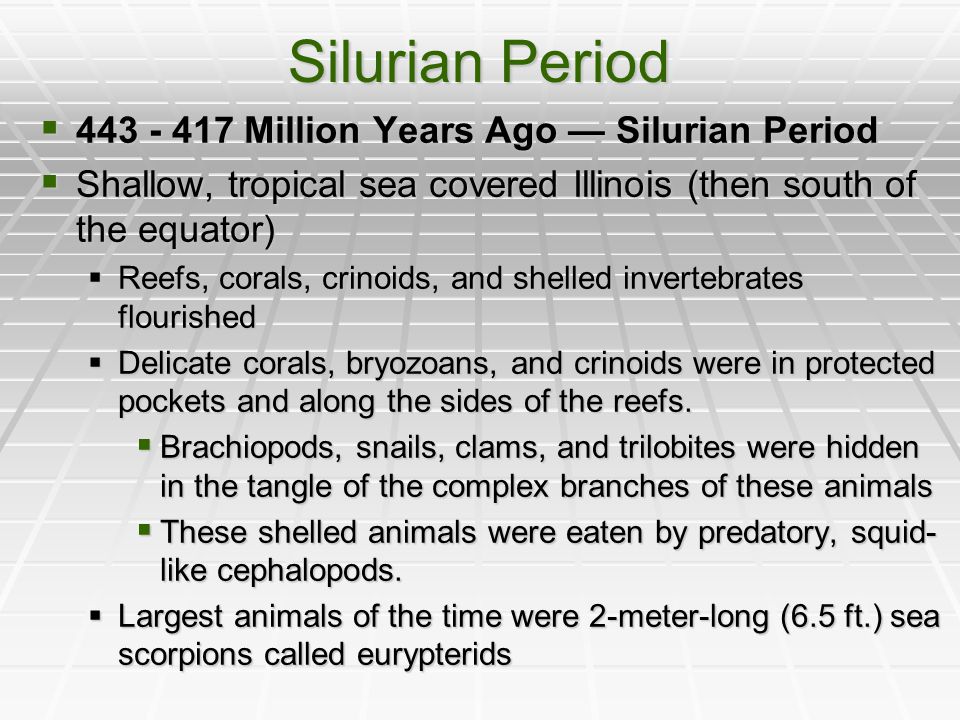

45. Silurian Period  443 - 417 Million Years Ago — Silurian Period  Shallow, tropical sea covered Illinois (then south of the equator)  Reefs, corals, crinoids, and shelled invertebrates flourished  Delicate corals, bryozoans, and crinoids were in protected pockets and along the sides of the reefs.  Brachiopods, snails, clams, and trilobites were hidden in the tangle of the complex branches of these animals  These shelled animals were eaten by predatory, squid- like cephalopods.  Largest animals of the time were 2-meter-long (6.5 ft.) sea scorpions called eurypterids

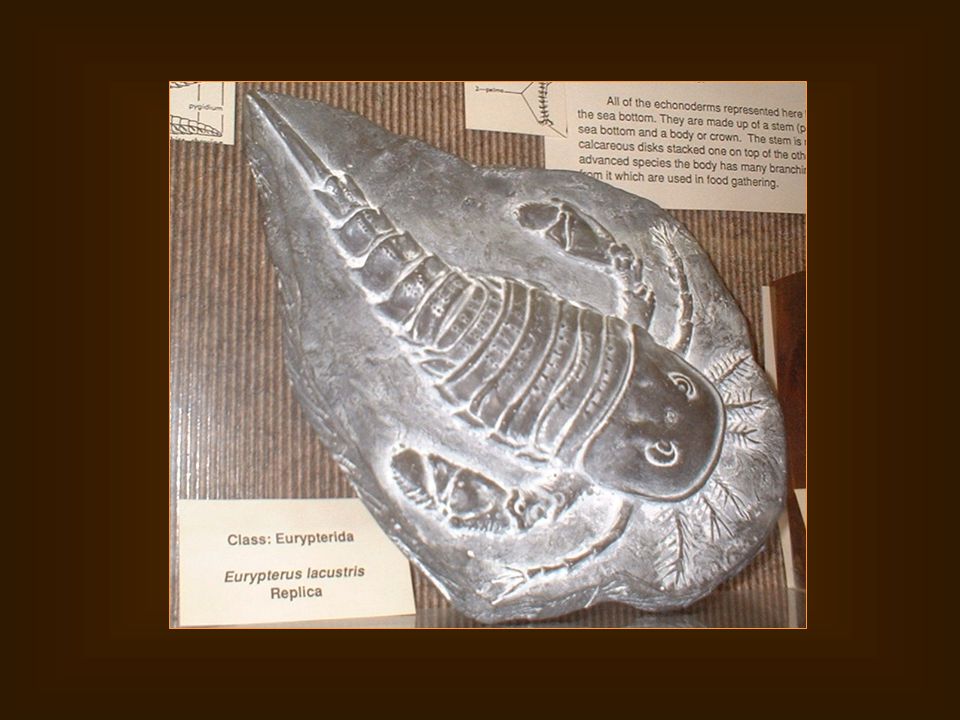

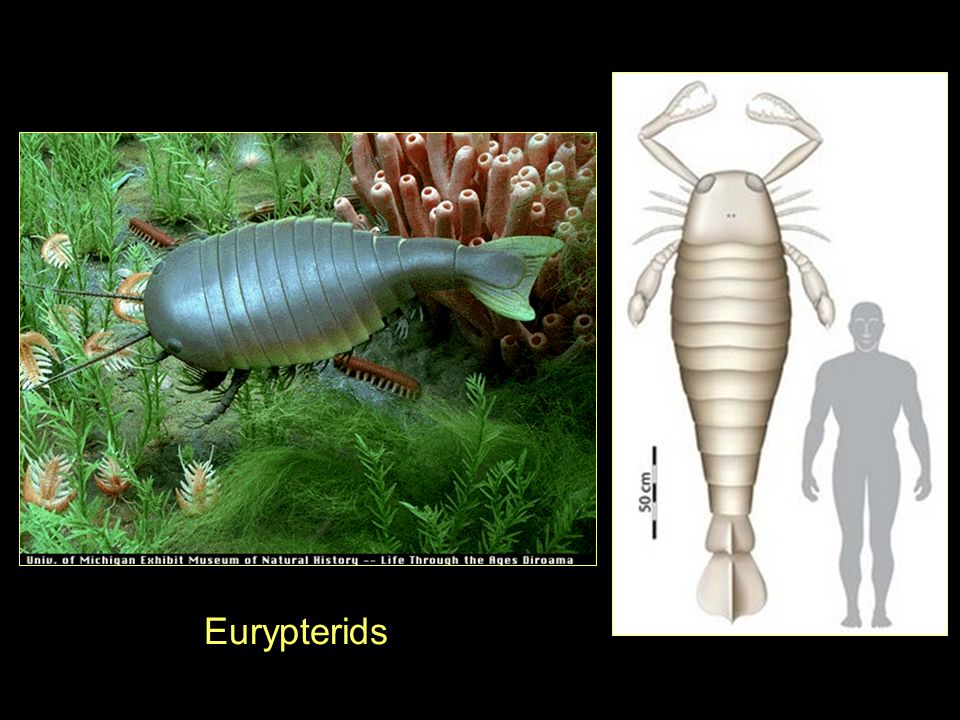

46. Eurypterids

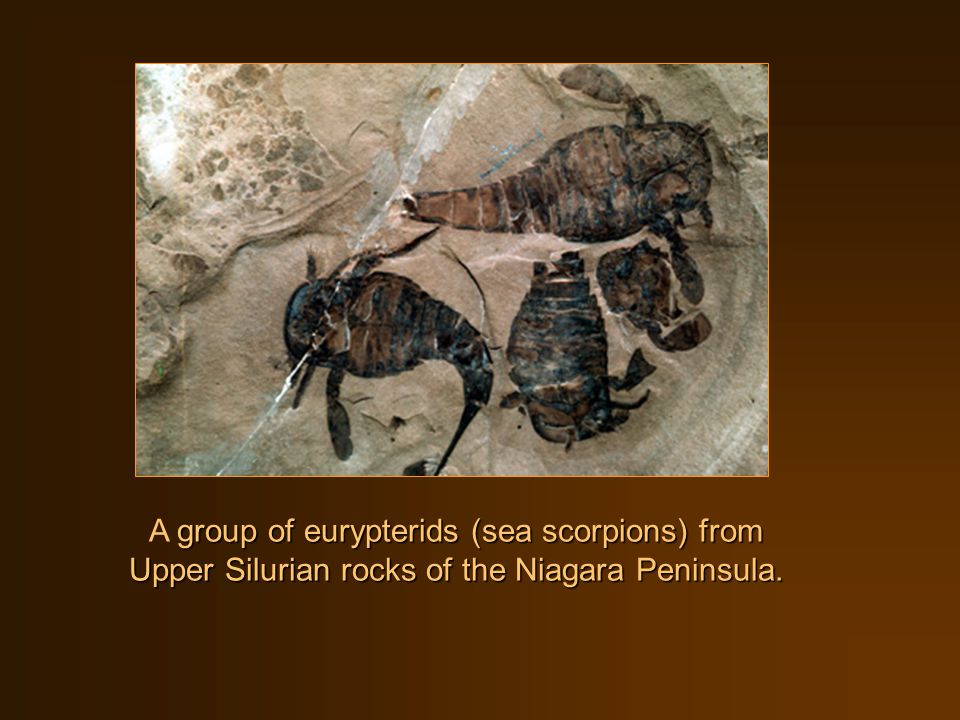

48. group of eurypterids (sea scorpions) from Upper Silurian rocks of the Niagara Peninsula. A group of eurypterids (sea scorpions) from Upper Silurian rocks of the Niagara Peninsula.

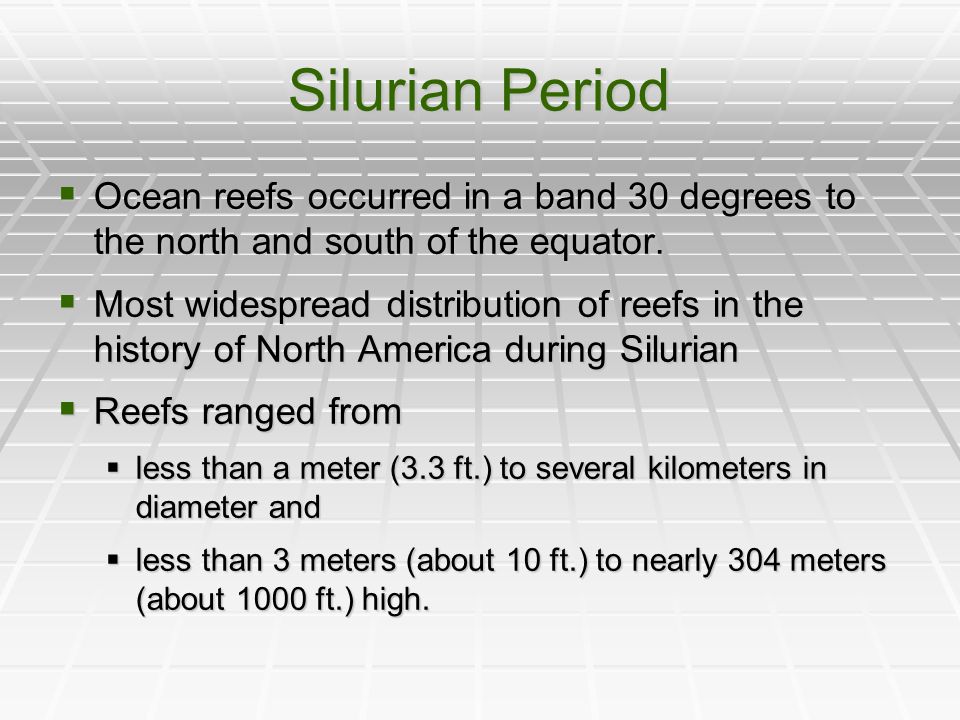

49. Silurian Period  Ocean reefs occurred in a band 30 degrees to the north and south of the equator.  Most widespread distribution of reefs in the history of North America during Silurian  Reefs ranged from  less than a meter (3.3 ft.) to several kilometers in diameter and  less than 3 meters (about 10 ft.) to nearly 304 meters (about 1000 ft.) high.

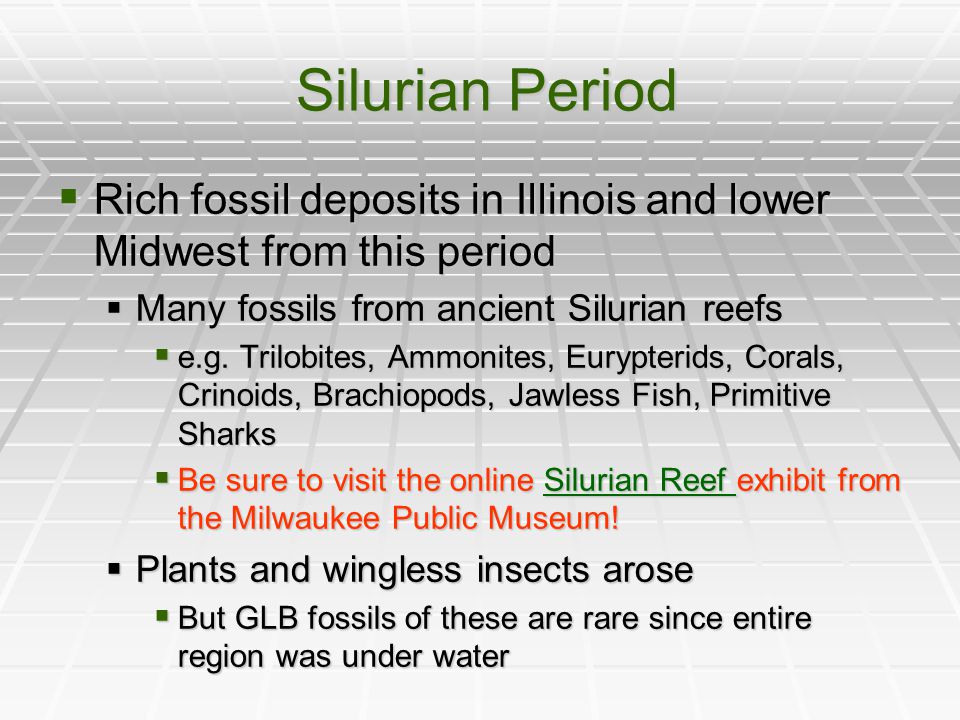

50. Silurian Period Silurian Period  Rich fossil deposits in Illinois and lower Midwest from this period  Many fossils from ancient Silurian reefs  e.g. Trilobites, Ammonites, Eurypterids, Corals, Crinoids, Brachiopods, Jawless Fish, Primitive Sharks  Be sure to visit the online Silurian Reef exhibit from the Milwaukee Public Museum! Silurian Reef Silurian Reef  Plants and wingless insects arose  But GLB fossils of these are rare since entire region was under water

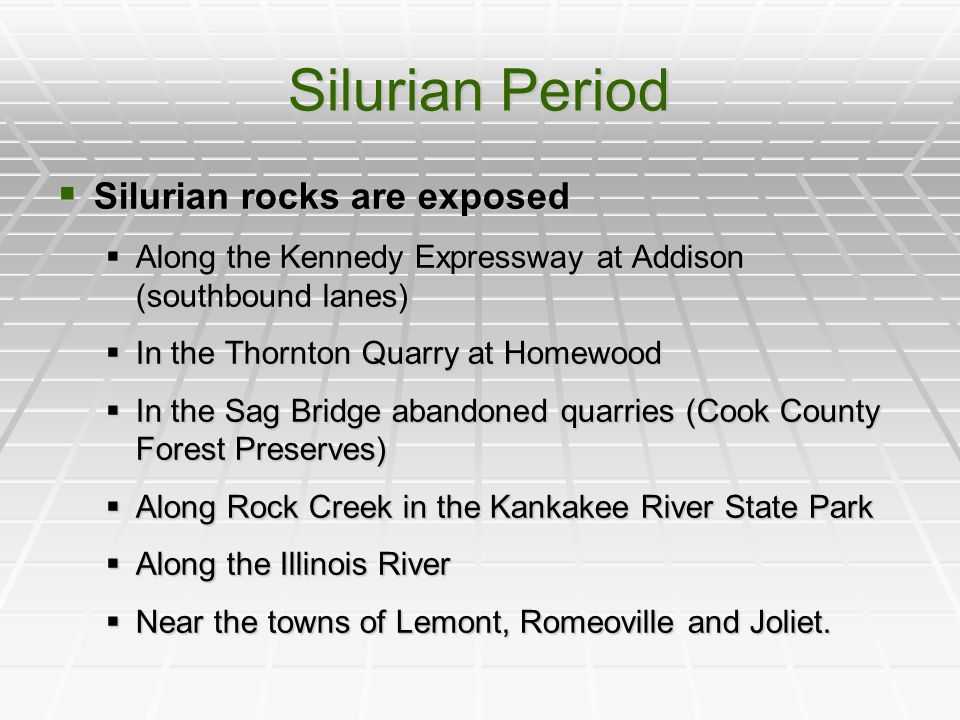

51. Silurian Period  Silurian rocks are exposed  Along the Kennedy Expressway at Addison (southbound lanes)  In the Thornton Quarry at Homewood  In the Sag Bridge abandoned quarries (Cook County Forest Preserves)  Along Rock Creek in the Kankakee River State Park  Along the Illinois River  Near the towns of Lemont, Romeoville and Joliet.

52. Silurian Seat at Navy Pier

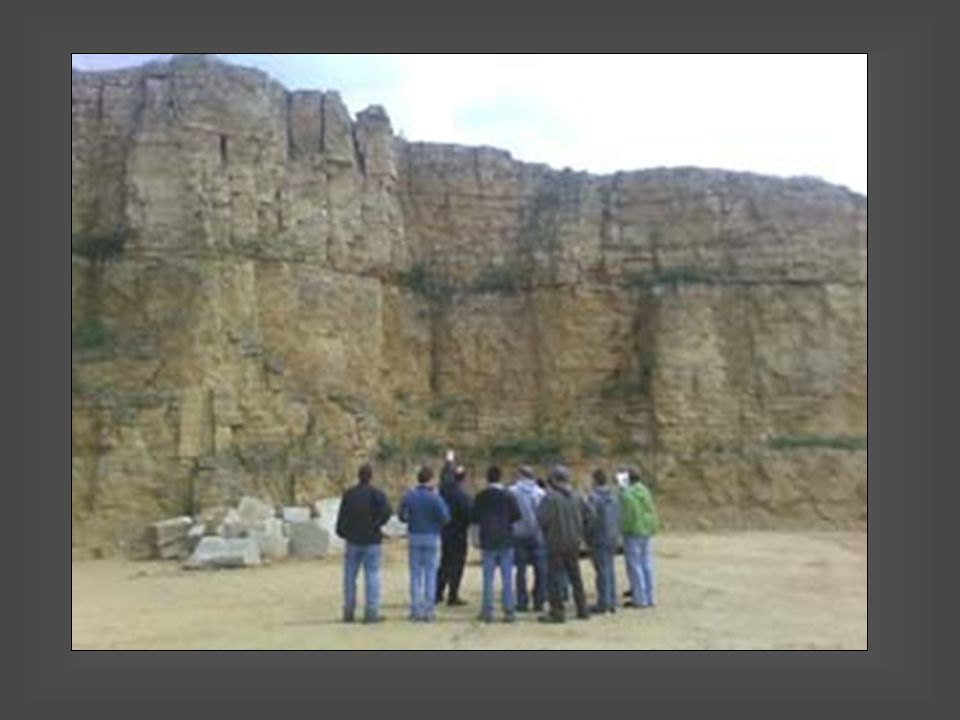

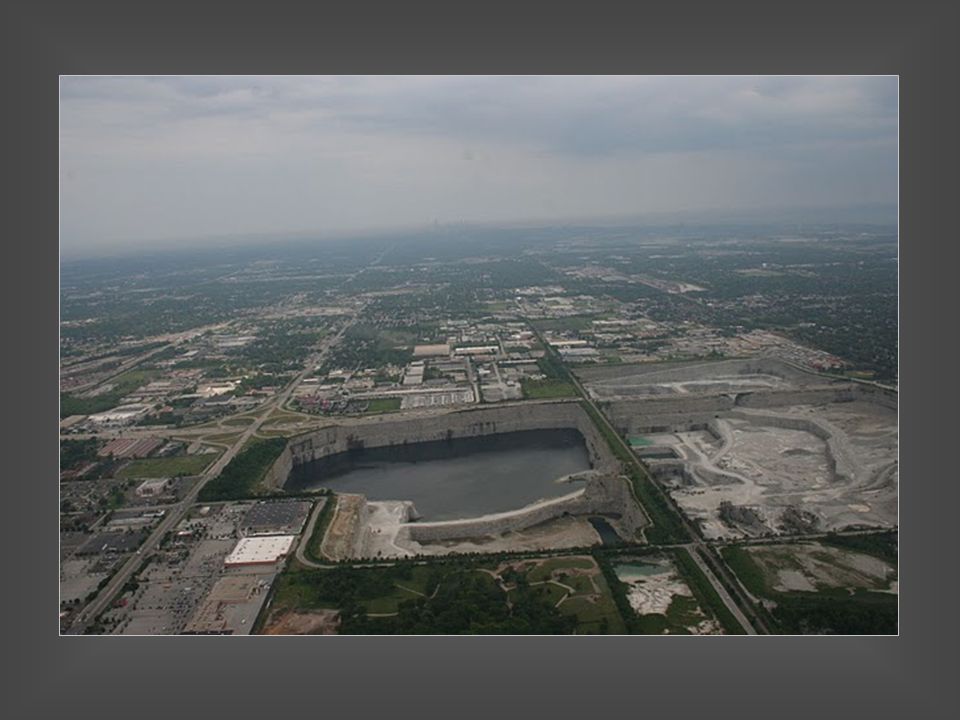

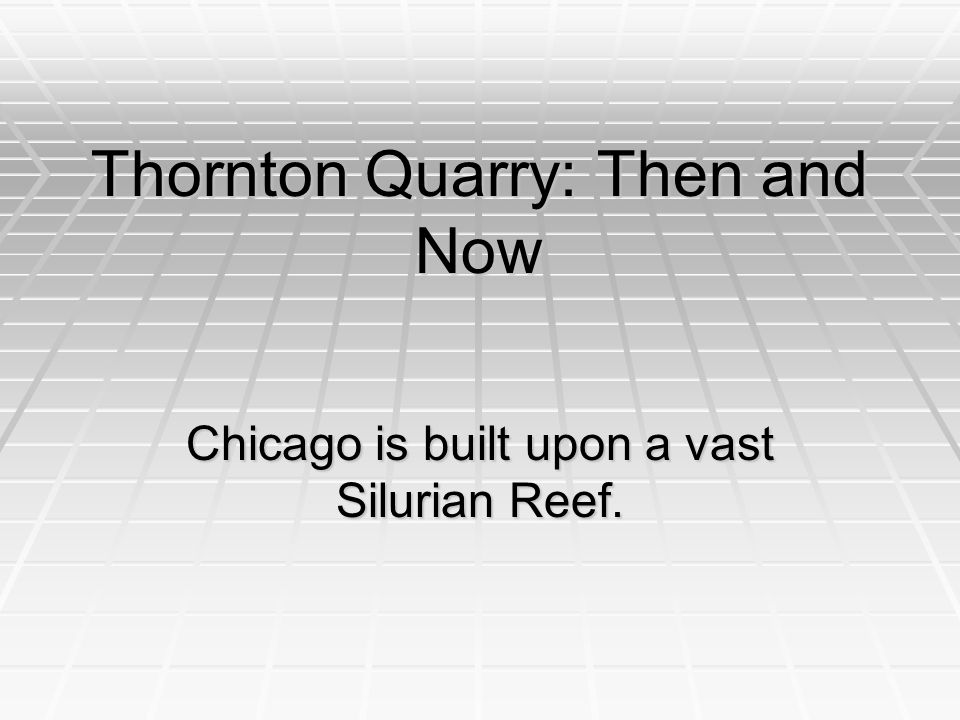

53. Thornton Quarry: Then and Now Chicago is built upon a vast Silurian Reef.

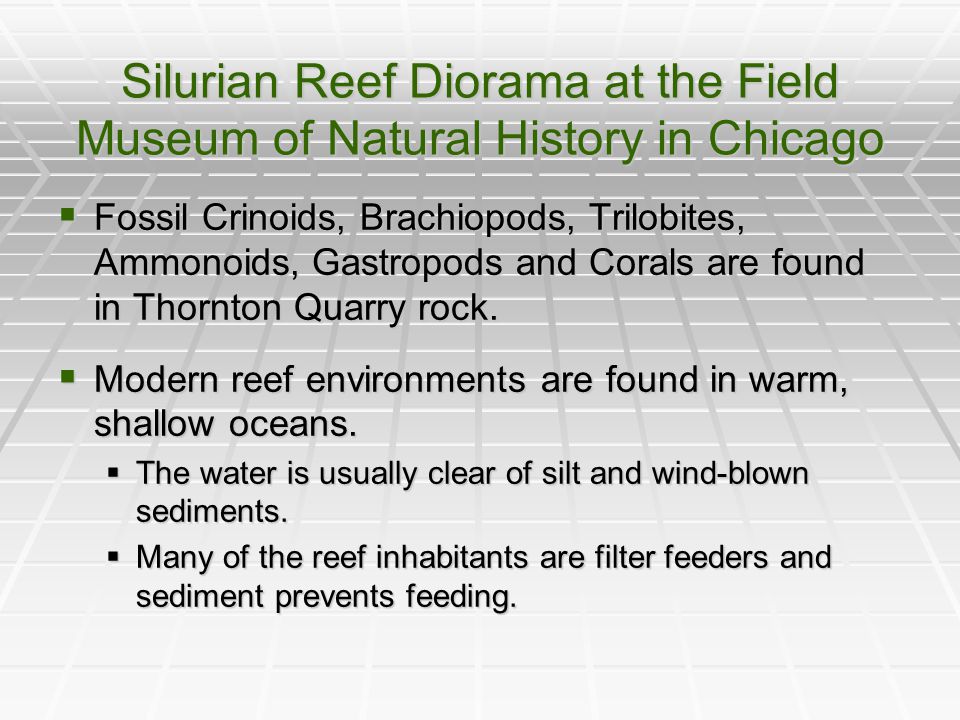

56. Silurian Reef Diorama at the Field Museum of Natural History in Chicago  Fossil Crinoids, Brachiopods, Trilobites, Ammonoids, Gastropods and Corals are found in Thornton Quarry rock.  Modern reef environments are found in warm, shallow oceans.  The water is usually clear of silt and wind-blown sediments.  Many of the reef inhabitants are filter feeders and sediment prevents feeding.

57. Scene from a Silurian sea

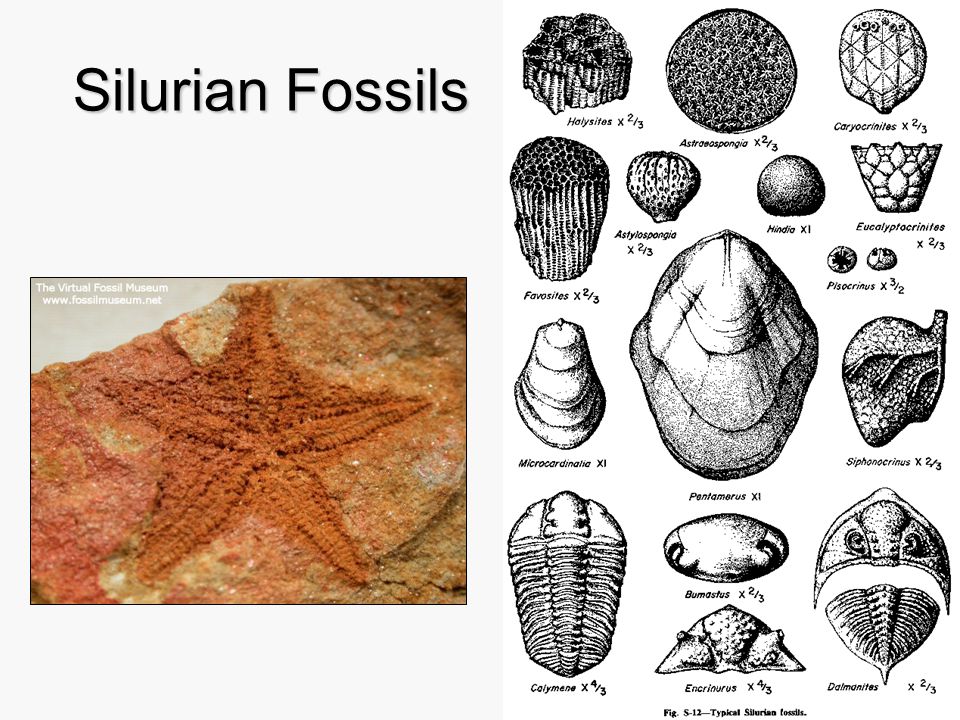

58. Silurian Fossils

60. Bryozoan Fenestrellina elegans Chicago

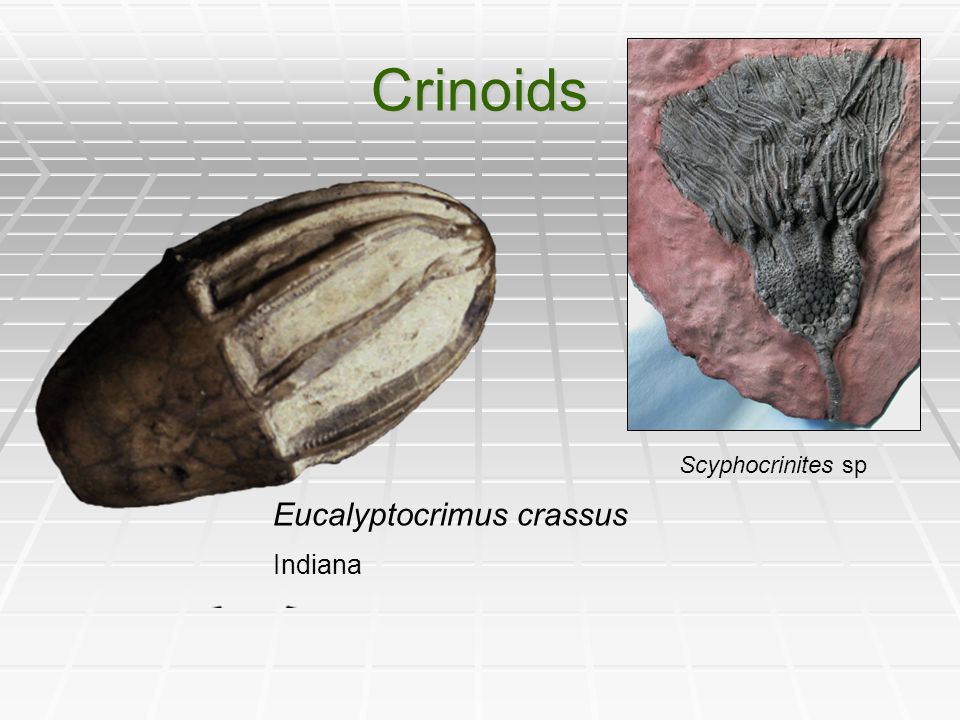

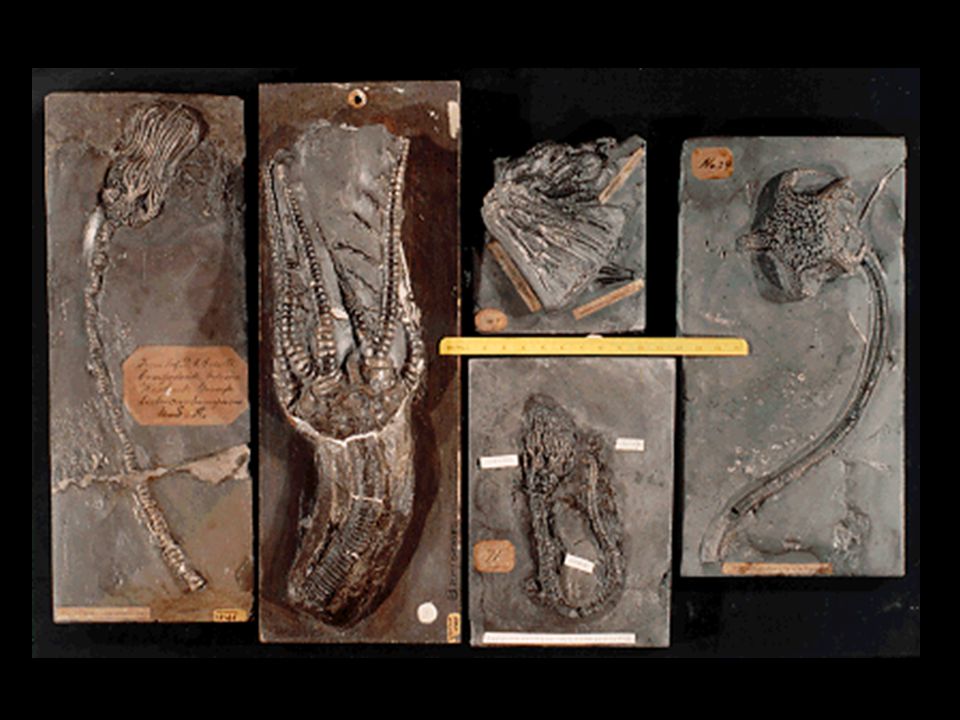

61. Crinoids Eucalyptocrimus crassus Indiana Scyphocrinites sp

63. Diorama of a Silurian Reef

64. Living Crinoids

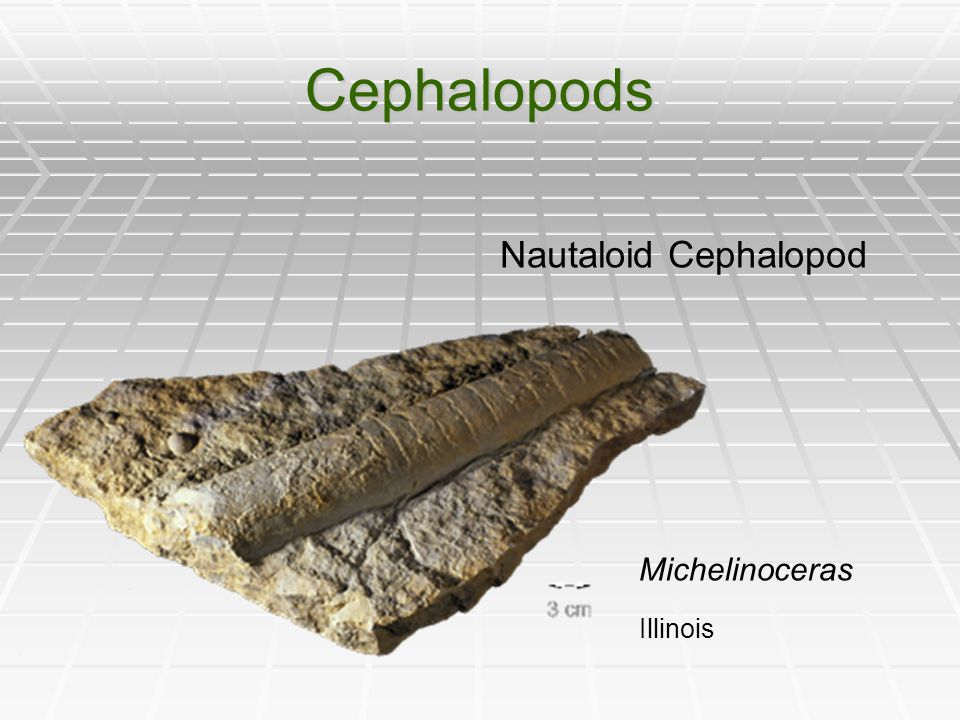

66. Cephalopods Nautaloid Cephalopod Michelinoceras Illinois

67. Ammonoid

68. Living Chambered Nautilus

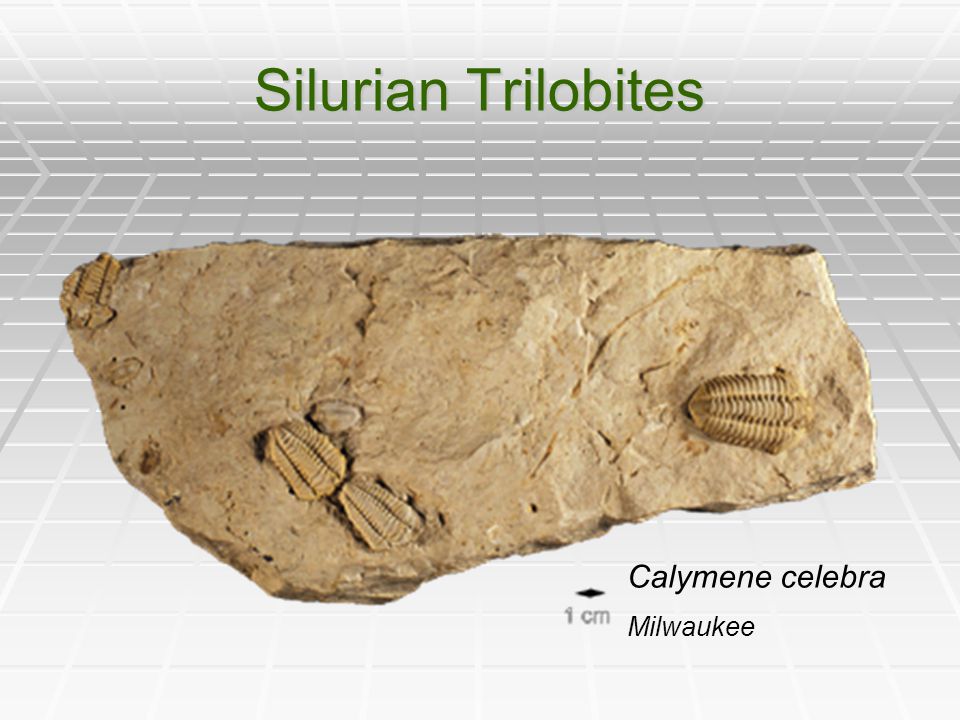

69. Silurian Trilobites Calymene celebra Milwaukee

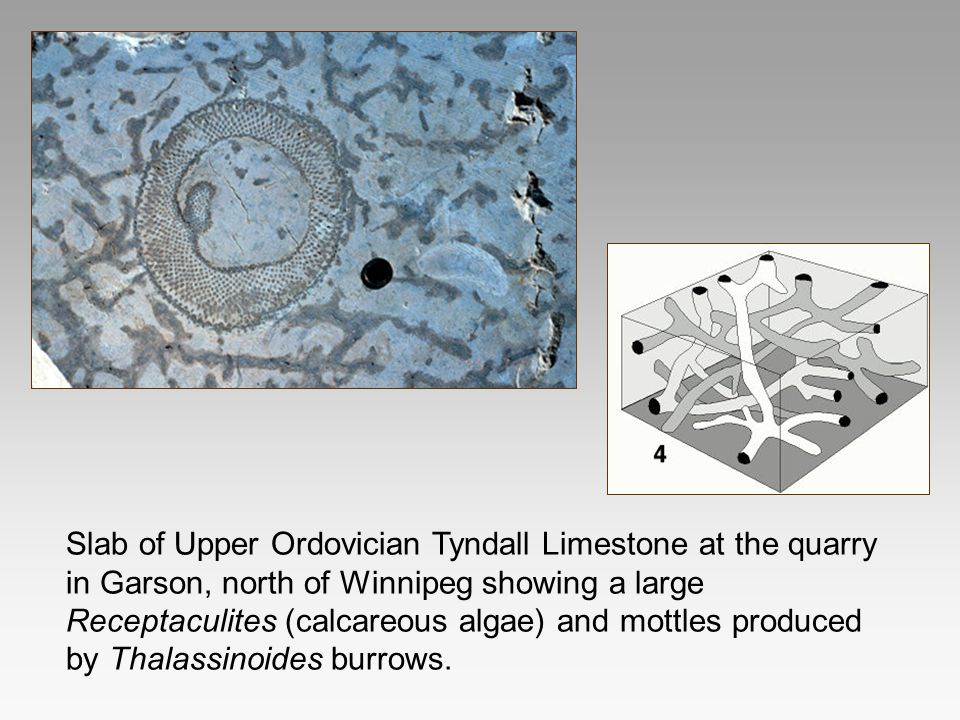

70. Slab of Upper Ordovician Tyndall Limestone at the quarry in Garson, north of Winnipeg showing a large Receptaculites (calcareous algae) and mottles produced by Thalassinoides burrows.

71. Sponges Astylospongia praemosa

72. Modern Sponges

73. Sponge Fossils

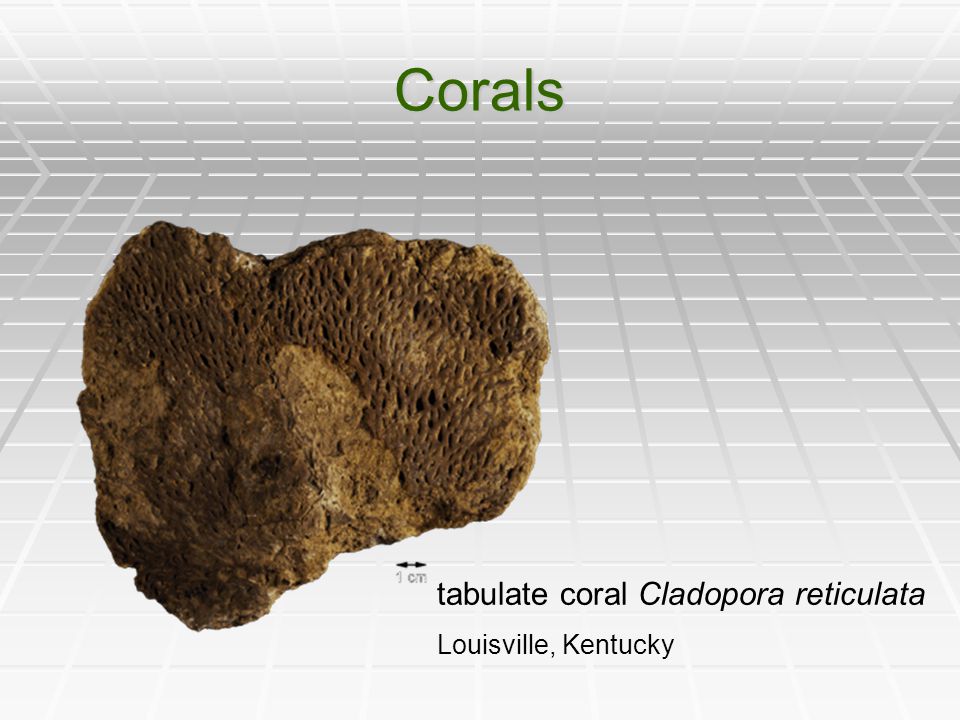

74. Corals tabulate coral Cladopora reticulata Louisville, Kentucky

75. Tabulate Coral

76. Living Corals

77. Living Coral Polyps

78. Trilobites

80. Dicranurus monstrosus Note: defensive spines

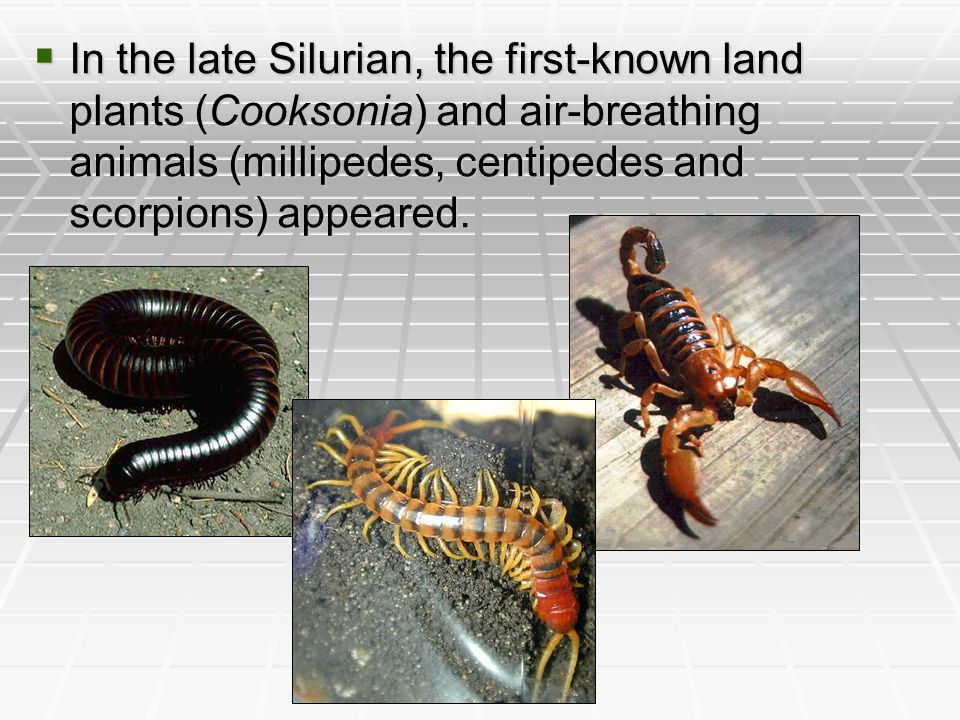

81.  In the late Silurian, the first-known land plants (Cooksonia) and air-breathing animals (millipedes, centipedes and scorpions) appeared.

82. Cooksonia Psilotum

83. ArthropleuraPleurojulus steuri Myriopodamillipede

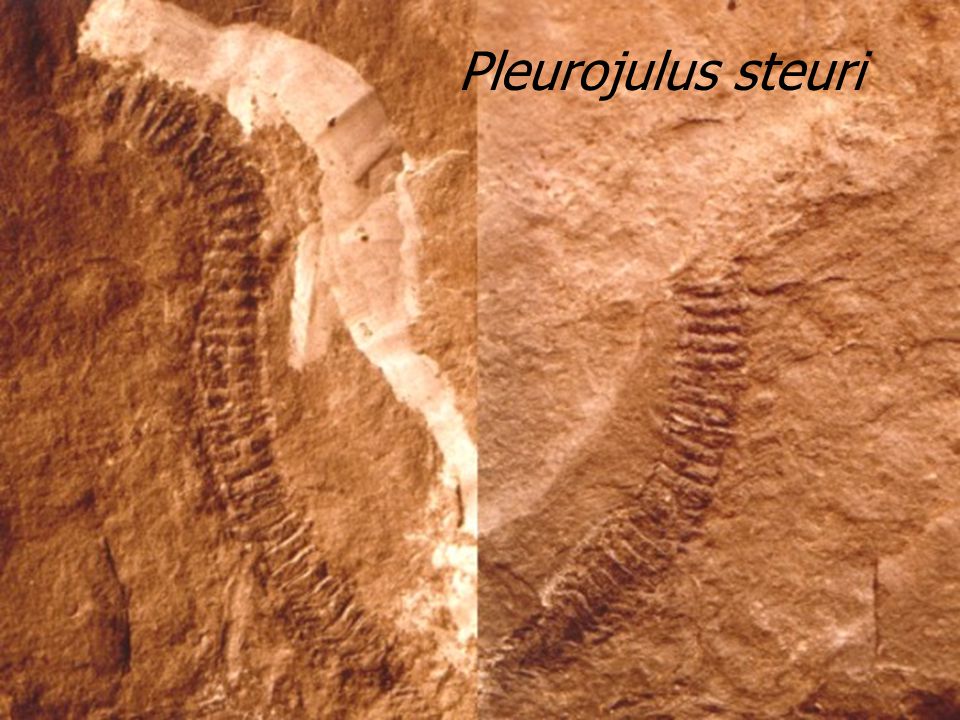

85. Pleurojulus steuri
