1. SP2006 CSE598A/EE597G CAD Tool Tutorial Spring 2006 CSE598A / EE597G Analog-Digital Mixed-Signal CMOS Chip Design

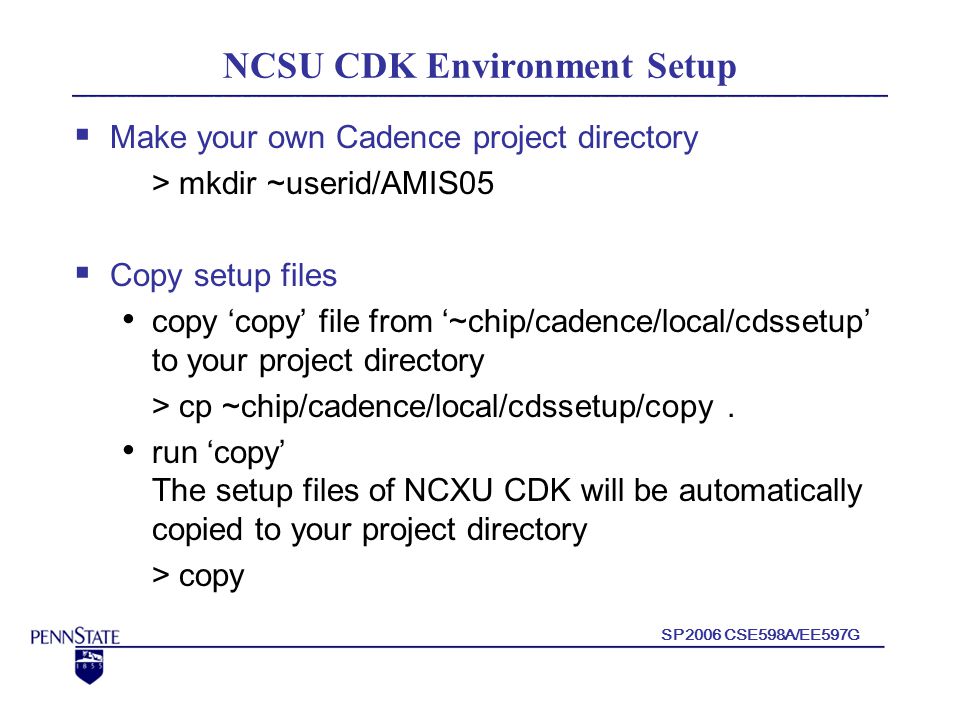

2. SP2006 CSE598A/EE597G NCSU CDK Environment Setup  Make your own Cadence project directory > mkdir ~userid/AMIS05  Copy setup files copy ‘copy’ file from ‘~chip/cadence/local/cdssetup’ to your project directory > cp ~chip/cadence/local/cdssetup/copy. run ‘copy’ The setup files of NCXU CDK will be automatically copied to your project directory > copy

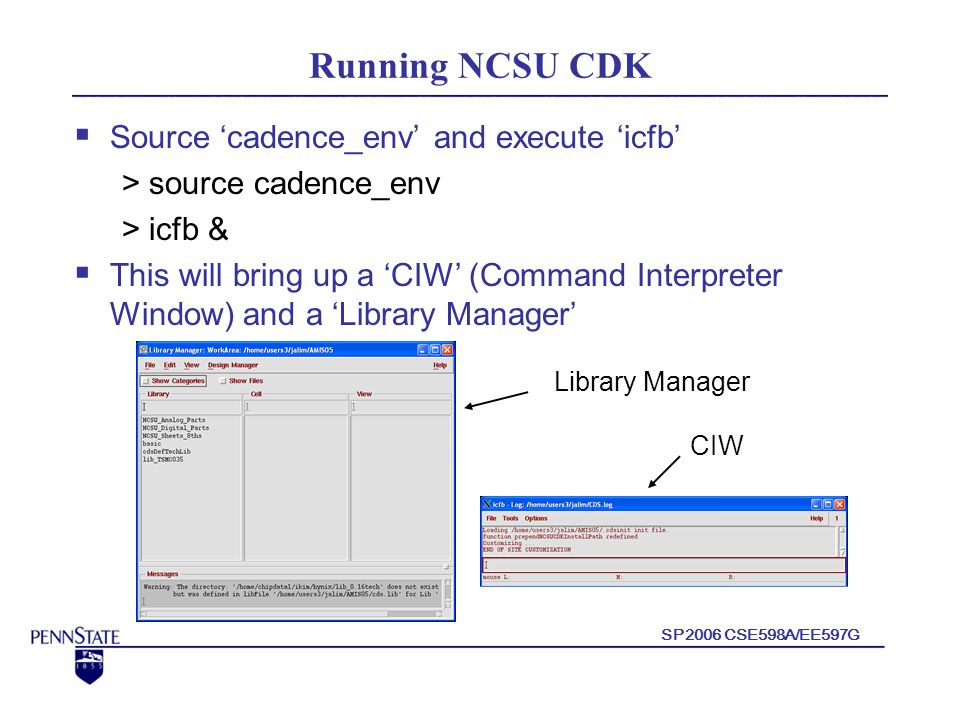

3. SP2006 CSE598A/EE597G Running NCSU CDK  Source ‘cadence_env’ and execute ‘icfb’ > source cadence_env > icfb &  This will bring up a ‘CIW’ (Command Interpreter Window) and a ‘Library Manager’ Library Manager CIW

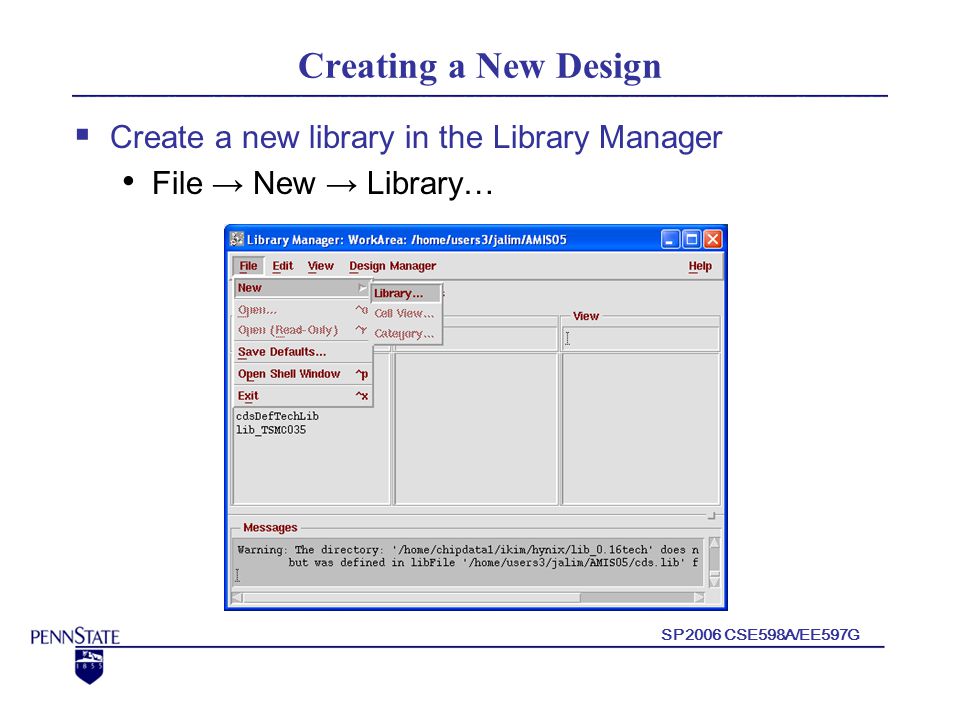

4. SP2006 CSE598A/EE597G Creating a New Design  Create a new library in the Library Manager File → New → Library…

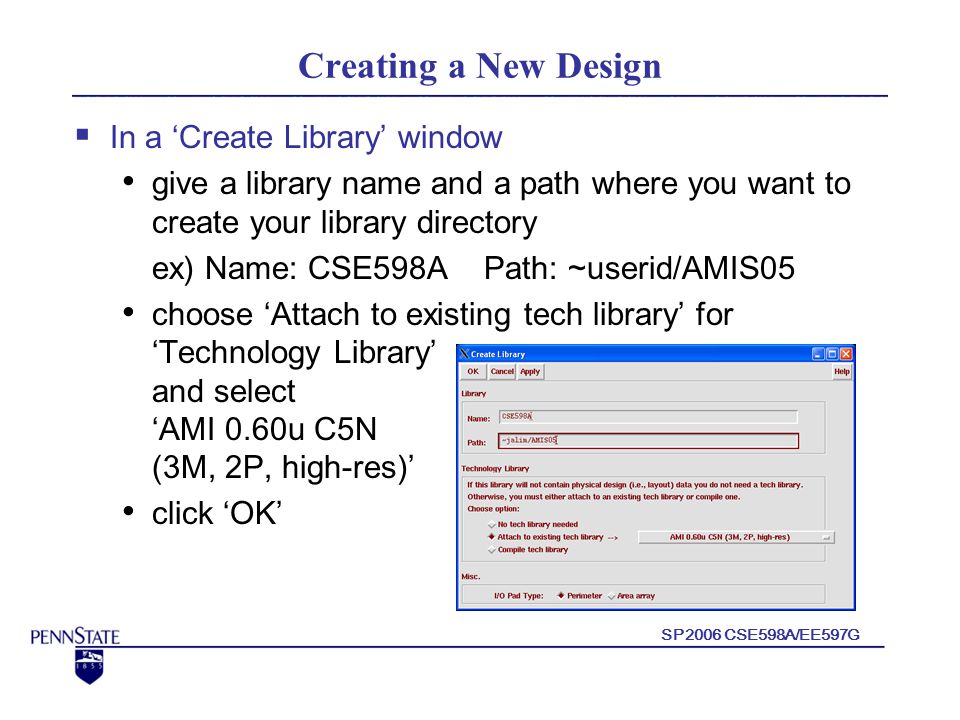

5. SP2006 CSE598A/EE597G Creating a New Design  In a ‘Create Library’ window give a library name and a path where you want to create your library directory ex) Name: CSE598A Path: ~userid/AMIS05 choose ‘Attach to existing tech library’ for ‘Technology Library’ and select ‘AMI 0.60u C5N (3M, 2P, high-res)’ click ‘OK’

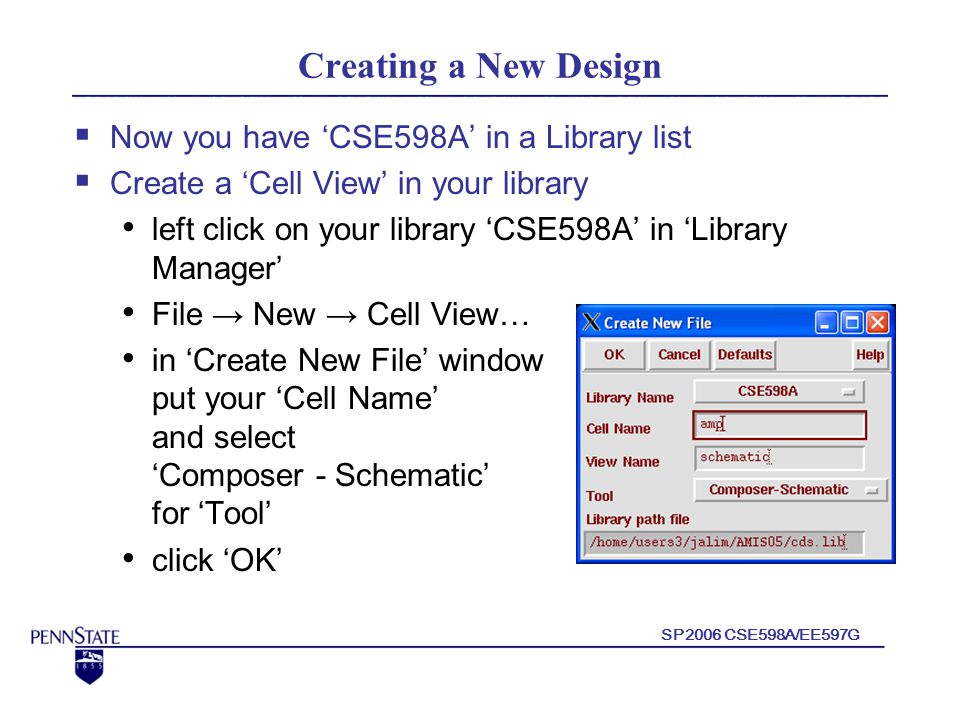

6. SP2006 CSE598A/EE597G Creating a New Design  Now you have ‘CSE598A’ in a Library list  Create a ‘Cell View’ in your library left click on your library ‘CSE598A’ in ‘Library Manager’ File → New → Cell View… in ‘Create New File’ window put your ‘Cell Name’ and select ‘Composer - Schematic’ for ‘Tool’ click ‘OK’

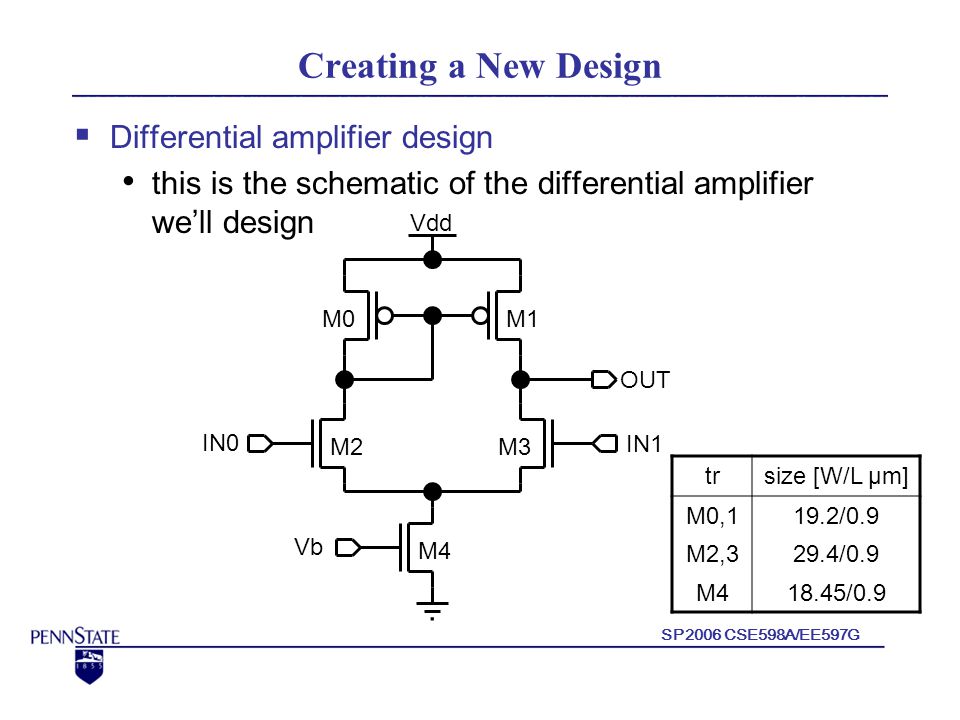

7. SP2006 CSE598A/EE597G Creating a New Design  Differential amplifier design this is the schematic of the differential amplifier we’ll design. Vdd M0 M3 M1 M2 M4 IN0 IN1 Vb OUT trsize [W/L μm] M0,119.2/0.9 M2,329.4/0.9 M418.45/0.9

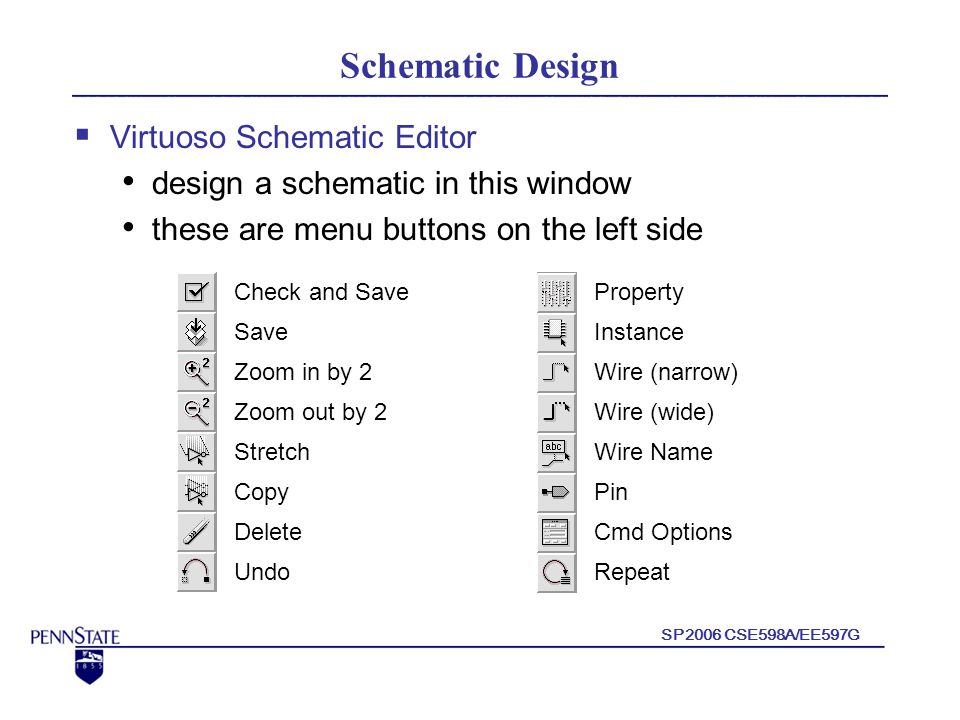

8. SP2006 CSE598A/EE597G Schematic Design  Virtuoso Schematic Editor design a schematic in this window these are menu buttons on the left side Check and Save Save Zoom in by 2 Zoom out by 2 Stretch Copy Delete Undo Property Instance Wire (narrow) Wire (wide) Wire Name Pin Cmd Options Repeat

9. SP2006 CSE598A/EE597G Schematic Design  Placing parts in the schematic click ‘Instance’ button or type ‘i’ in the ‘Component Browser’, select ‘NCSU_Analog_Parts’ and browse for the parts you need you can change the properties of the parts in ‘Add Instance’

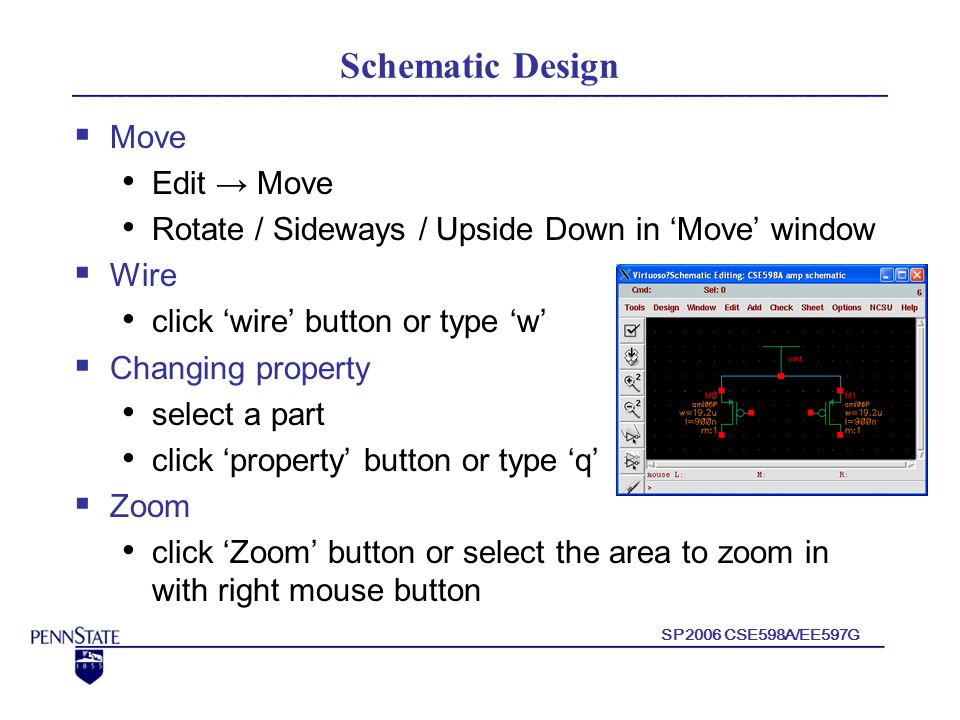

10. SP2006 CSE598A/EE597G Schematic Design  Move Edit → Move Rotate / Sideways / Upside Down in ‘Move’ window  Wire click ‘wire’ button or type ‘w’  Changing property select a part click ‘property’ button or type ‘q’  Zoom click ‘Zoom’ button or select the area to zoom in with right mouse button

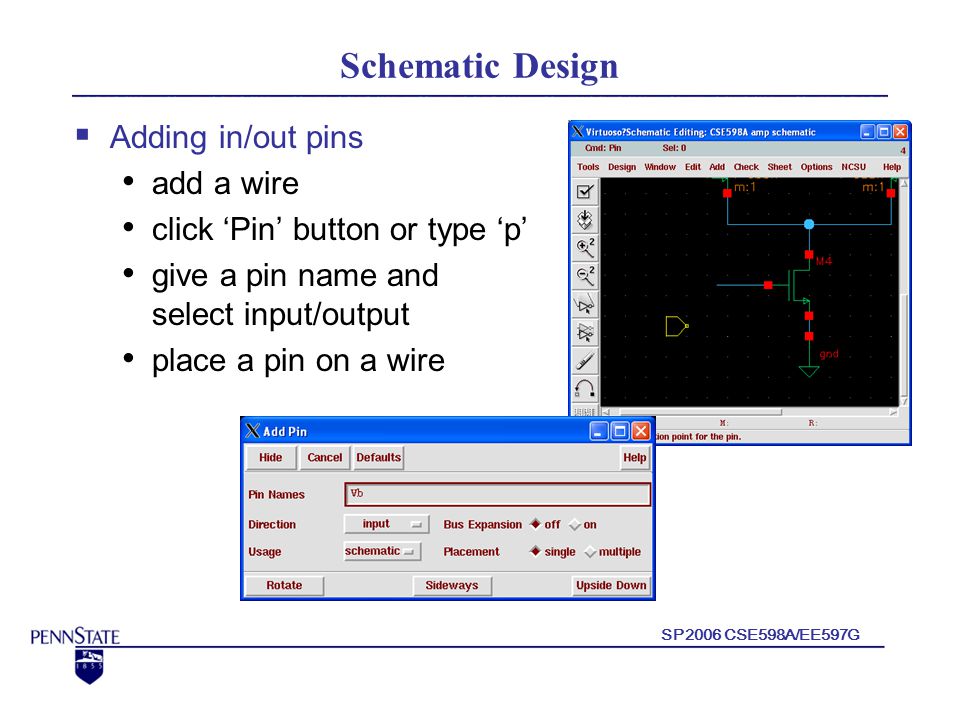

11. SP2006 CSE598A/EE597G Schematic Design  Adding in/out pins add a wire click ‘Pin’ button or type ‘p’ give a pin name and select input/output place a pin on a wire

12. SP2006 CSE598A/EE597G Schematic Design  Check for any error click ‘Check and Save’ button make sure you don’t get warning or error message in CIW  Your design is now ready for a simulation

13. SP2006 CSE598A/EE597G HSpice Simulation  Creating a netlist (1/4) run ‘Analog Environment’ from ‘Schematic Editor’ :Tools → Analog Environment

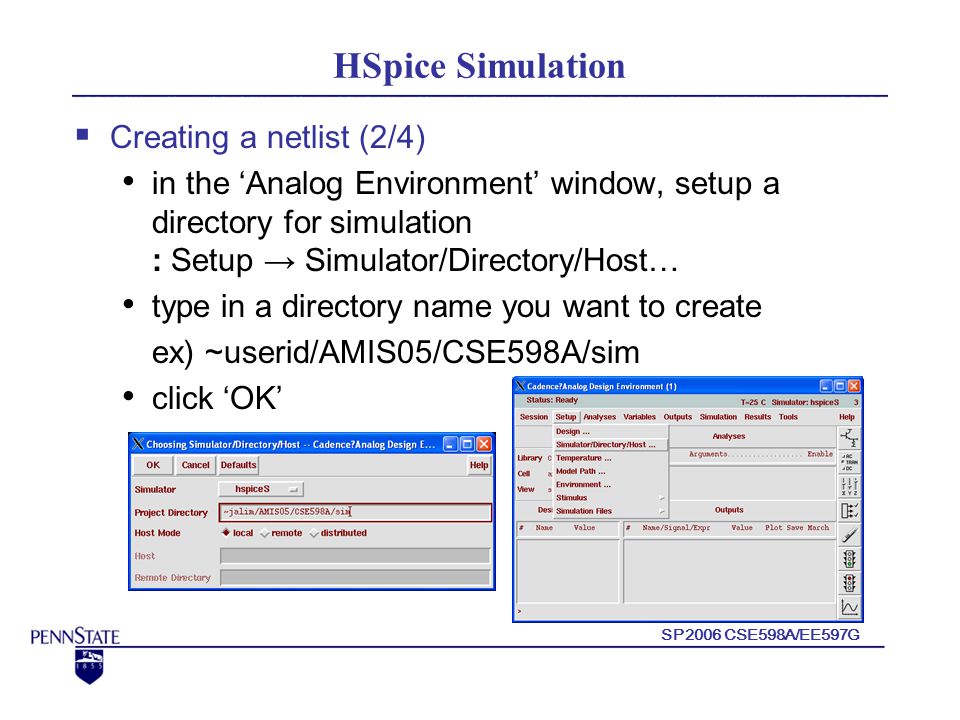

14. SP2006 CSE598A/EE597G HSpice Simulation  Creating a netlist (2/4) in the ‘Analog Environment’ window, setup a directory for simulation : Setup → Simulator/Directory/Host… type in a directory name you want to create ex) ~userid/AMIS05/CSE598A/sim click ‘OK’

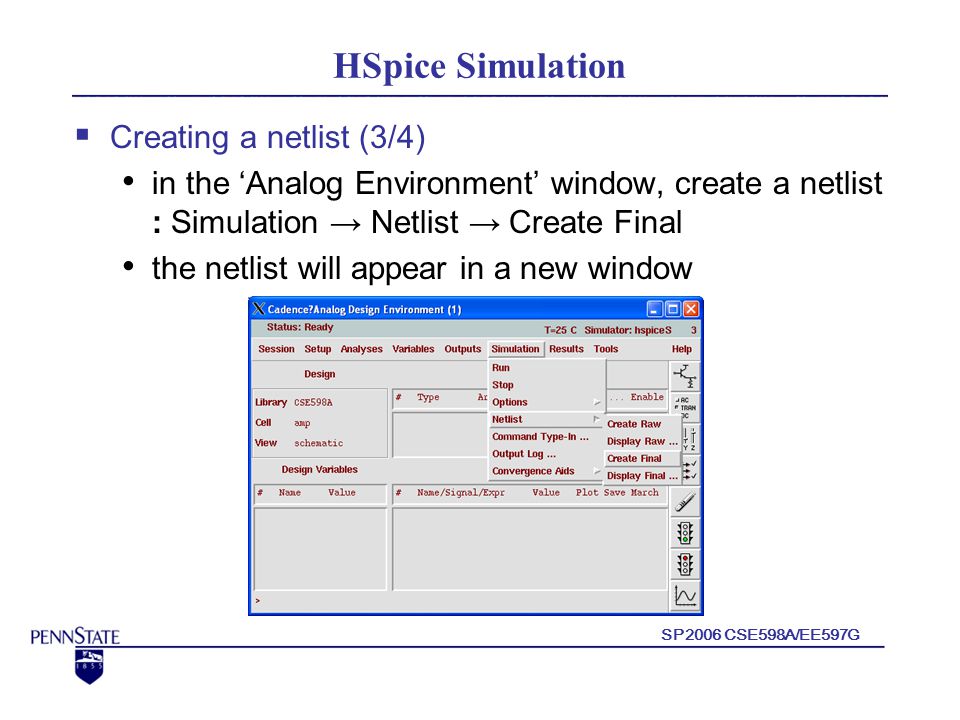

15. SP2006 CSE598A/EE597G HSpice Simulation  Creating a netlist (3/4) in the ‘Analog Environment’ window, create a netlist : Simulation → Netlist → Create Final the netlist will appear in a new window

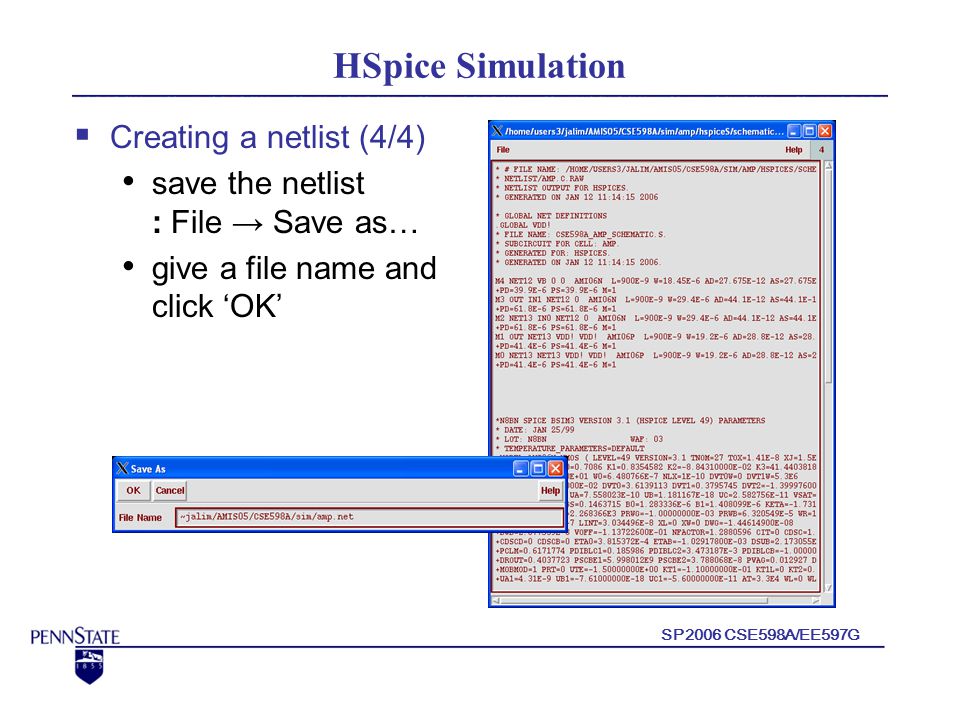

16. SP2006 CSE598A/EE597G HSpice Simulation  Creating a netlist (4/4) save the netlist : File → Save as… give a file name and click ‘OK’

17. SP2006 CSE598A/EE597G HSpice Simulation  Creating a Spice file (1/4) running simulation (Spectre or Hspice) in Cadence is not set up yet we need to create Spice file (.sp) manually for now open the netlist at your terminal > nedit amp.net & remove everything below the circuit netlist modify the circuit netlist - AMI06N to nch - AMI06P to pch circuit netlist

18. SP2006 CSE598A/EE597G HSpice Simulation  Creating a Spice file (2/4) type in following Spice options.option post.option post_version=9007.option ACCT=1 BRIEF=1.option NUMDGT=8 MEASDGT=8.option ACCURATE Spice options

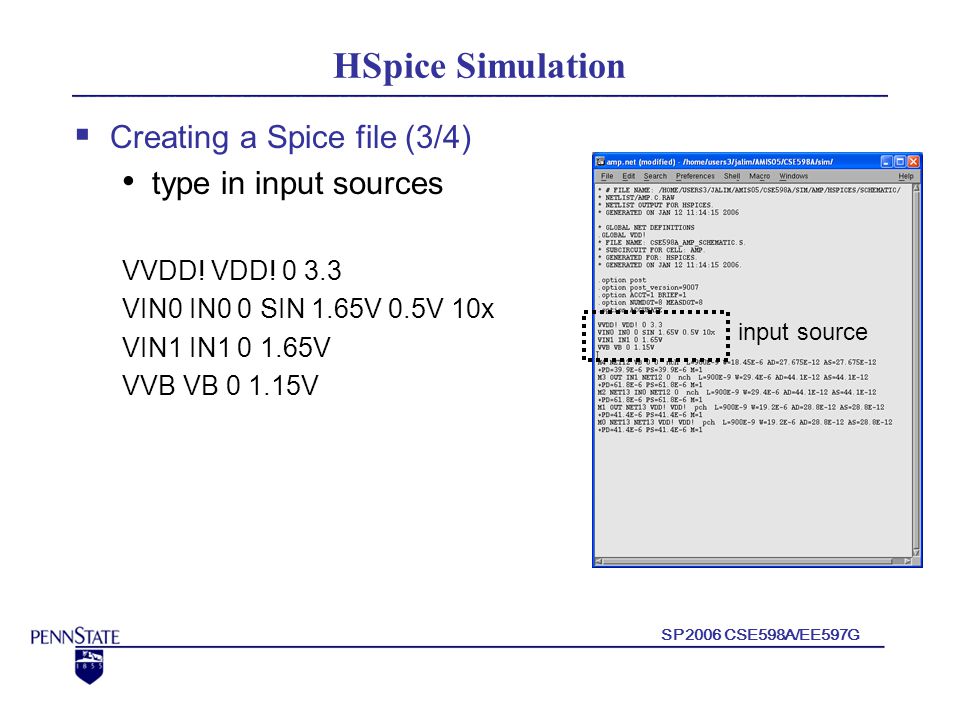

19. SP2006 CSE598A/EE597G HSpice Simulation  Creating a Spice file (3/4) type in input sources VVDD! VDD! 0 3.3 VIN0 IN0 0 SIN 1.65V 0.5V 10x VIN1 IN1 0 1.65V VVB VB 0 1.15V input source

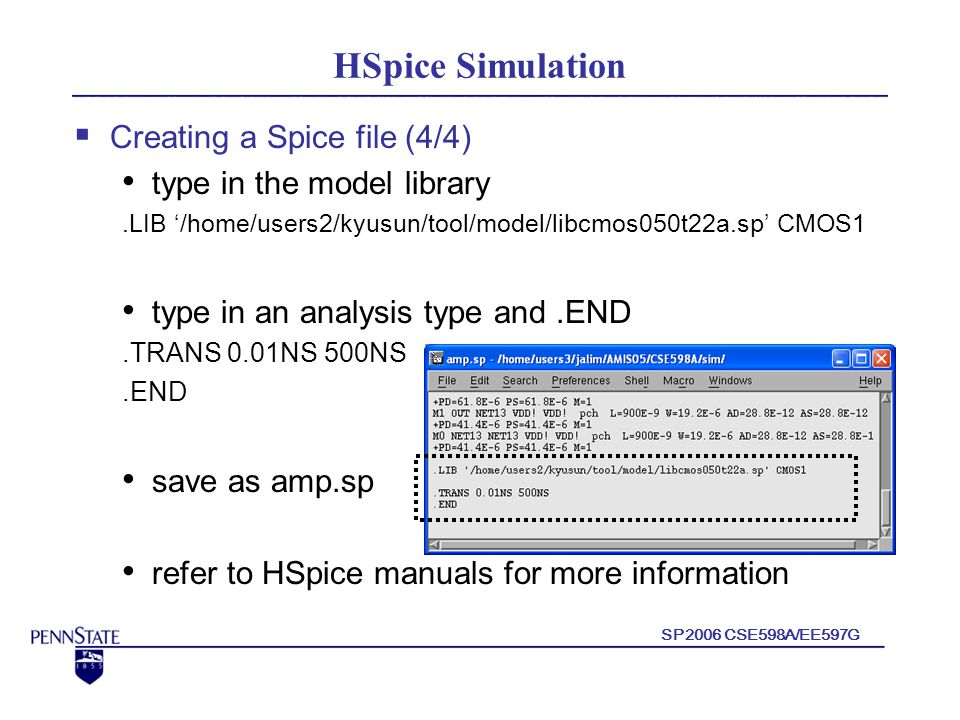

20. SP2006 CSE598A/EE597G HSpice Simulation  Creating a Spice file (4/4) type in the model library.LIB ‘/home/users2/kyusun/tool/model/libcmos050t22a.sp’ CMOS1 type in an analysis type and.END.TRANS 0.01NS 500NS.END save as amp.sp refer to HSpice manuals for more information

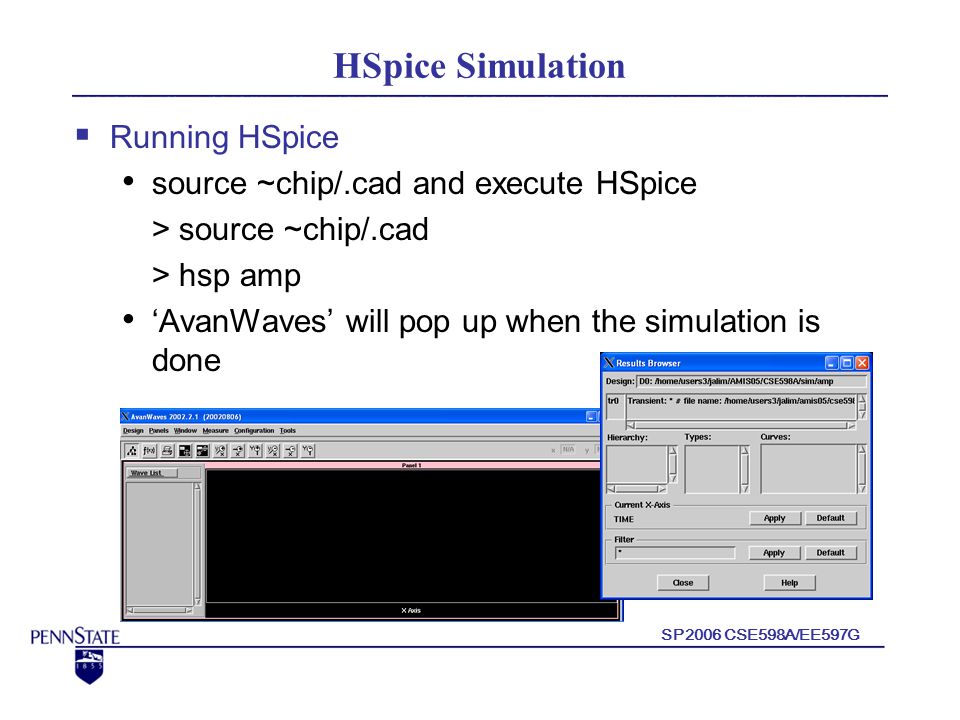

21. SP2006 CSE598A/EE597G HSpice Simulation  Running HSpice source ~chip/.cad and execute HSpice > source ~chip/.cad > hsp amp ‘AvanWaves’ will pop up when the simulation is done

22. SP2006 CSE598A/EE597G HSpice Simulation  Simulation result select an analysis type (Transient in this example) and double click the nodes to check the results you’ll see display menus when right click on the display panel

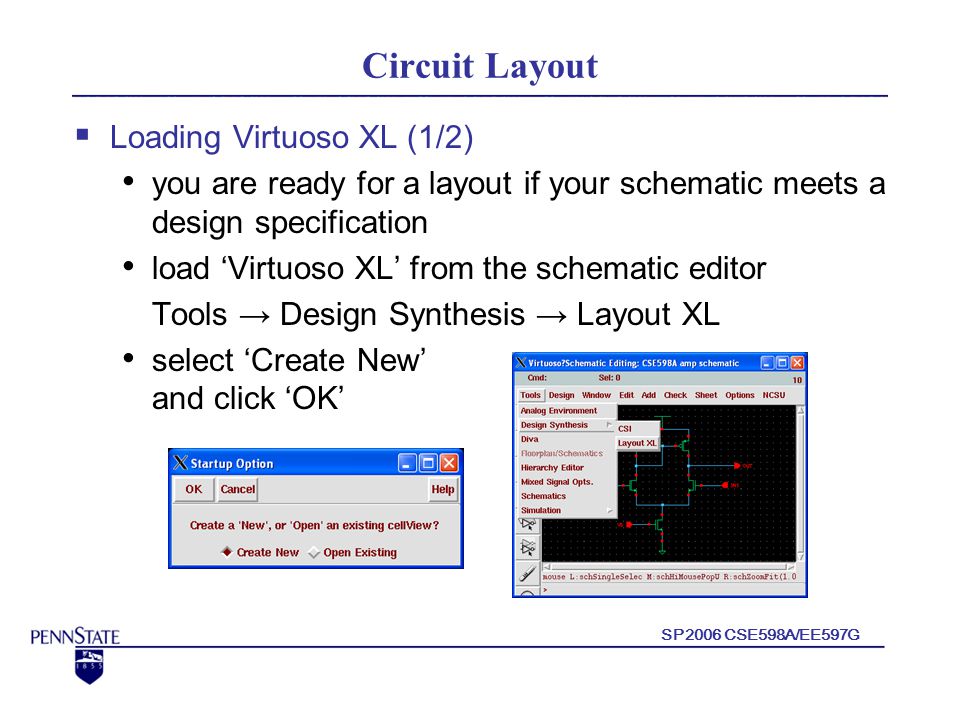

23. SP2006 CSE598A/EE597G Circuit Layout  Loading Virtuoso XL (1/2) you are ready for a layout if your schematic meets a design specification load ‘Virtuoso XL’ from the schematic editor Tools → Design Synthesis → Layout XL select ‘Create New’ and click ‘OK’

24. SP2006 CSE598A/EE597G Circuit Layout  Loading Virtuoso XL (2/2) select options in ‘Create New File’ - Library Name : CSE598A - Cell Name : amp - View Name : layout - Tool : Virtuoso click ‘OK’

25. SP2006 CSE598A/EE597G Circuit Layout  Virtuoso XL Layout Editor layout your design in this window these are menu buttons on the left side Save Fit Edit Zoom in Zoom out Stretch Copy Move Delete Undo Property Instance Path Polygon Label Rectangle Ruler

26. SP2006 CSE598A/EE597G Circuit Layout  Generating transistors (1/2) generate transistors and in/out pins from your schematic : Design → Gen From Source…

27. SP2006 CSE598A/EE597G Circuit Layout  Generating transistors (2/2) Layout Generation :I/O Pins, Instances I/O Pins : select metal1/dg, set the size to 0.9x0.9, and click ‘Apply’ click ‘OK’

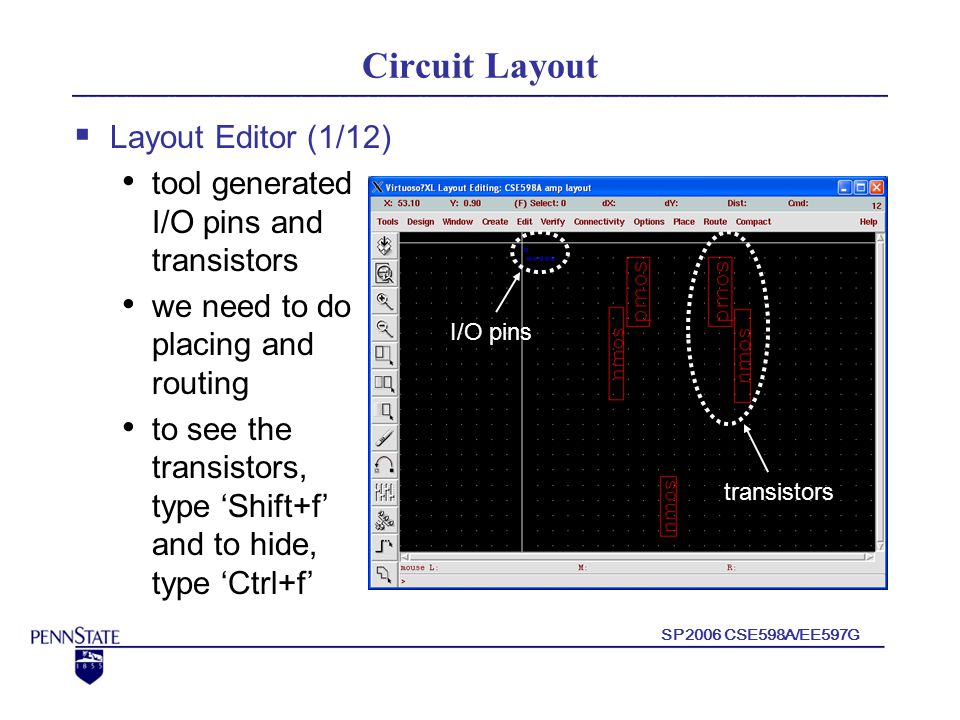

28. SP2006 CSE598A/EE597G Circuit Layout  Layout Editor (1/12) tool generated I/O pins and transistors we need to do placing and routing to see the transistors, type ‘Shift+f’ and to hide, type ‘Ctrl+f’ I/O pins transistors

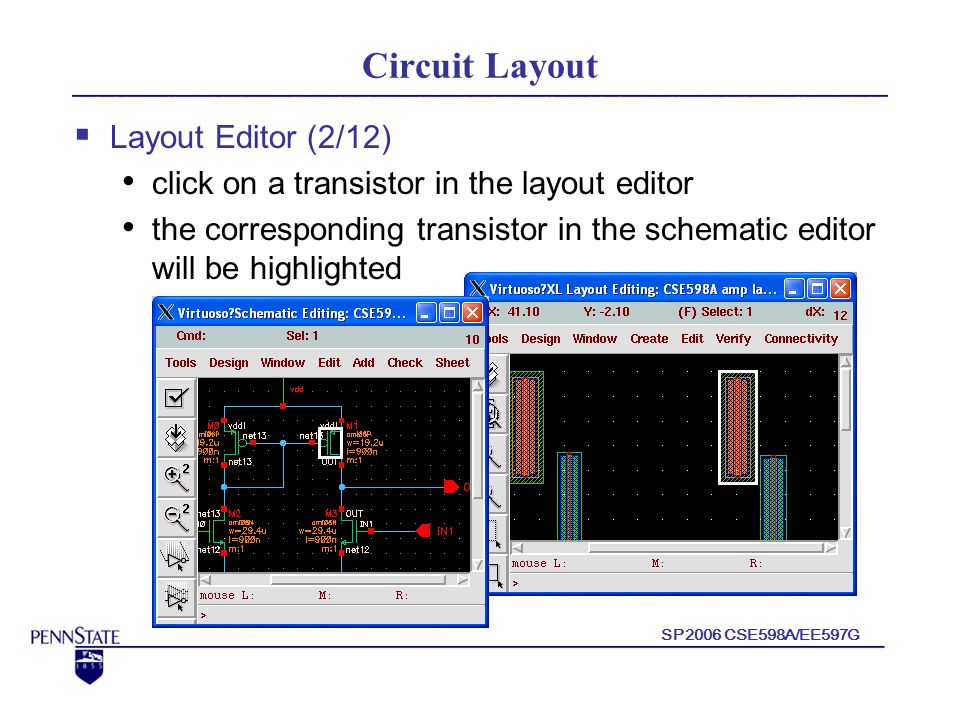

29. SP2006 CSE598A/EE597G Circuit Layout  Layout Editor (2/12) click on a transistor in the layout editor the corresponding transistor in the schematic editor will be highlighted

30. SP2006 CSE598A/EE597G Circuit Layout  Layout Editor (3/12) pins and instance names appear in the CIW when you click them in the layout editor

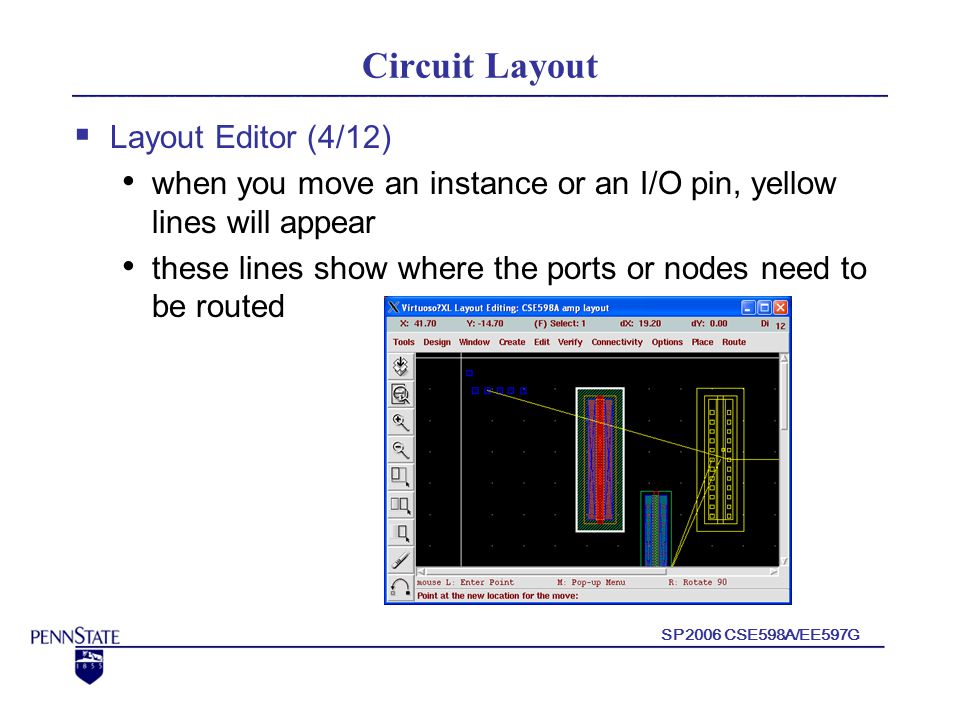

31. SP2006 CSE598A/EE597G Circuit Layout  Layout Editor (4/12) when you move an instance or an I/O pin, yellow lines will appear these lines show where the ports or nodes need to be routed

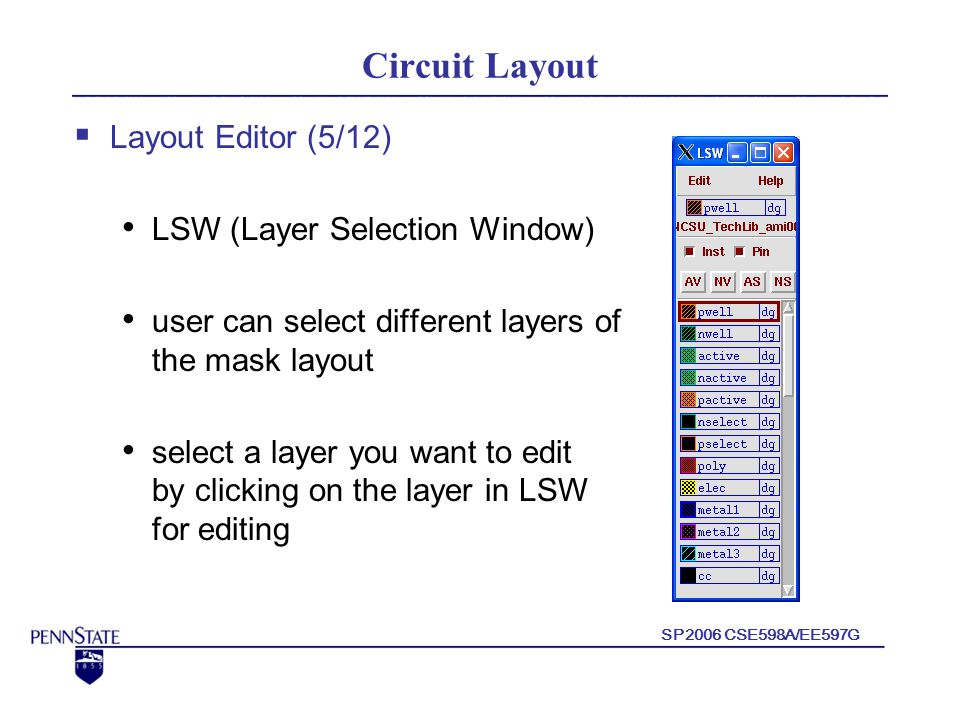

32. SP2006 CSE598A/EE597G Circuit Layout  Layout Editor (5/12) LSW (Layer Selection Window) user can select different layers of the mask layout select a layer you want to edit by clicking on the layer in LSW for editing

33. SP2006 CSE598A/EE597G Circuit Layout  Layout Editor (6/12) there is a glitch in current layout editor setup transistors are placed off-grid after generating layers in some case (this causes DRC errors) to fix, go to ‘Display Options’ - Options → Display… or type ‘e’ change ‘Grid Controls’ - Type : Lines - Minor Spacing : 0.15 - Snap Spacing : 0 click ‘OK’

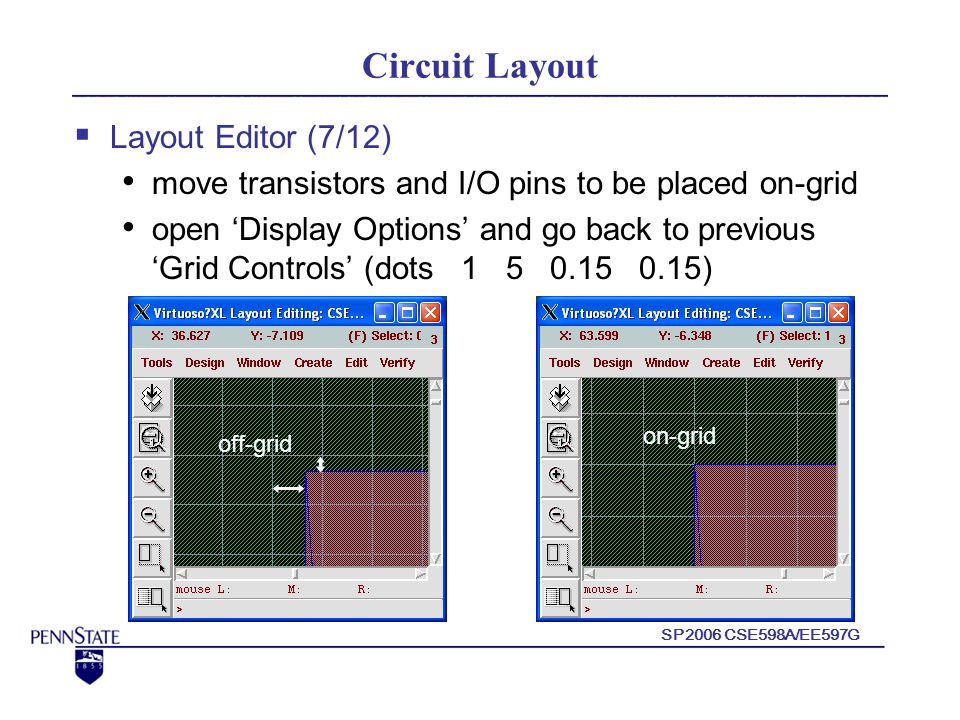

34. SP2006 CSE598A/EE597G Circuit Layout  Layout Editor (7/12) move transistors and I/O pins to be placed on-grid open ‘Display Options’ and go back to previous ‘Grid Controls’ (dots 1 5 0.15 0.15) off-grid on-grid

35. SP2006 CSE598A/EE597G Circuit Layout  Layout Editor (8/12) now place transistors as you want to layout Rotate / Sideways / Upside Down are available in ‘Move’ window

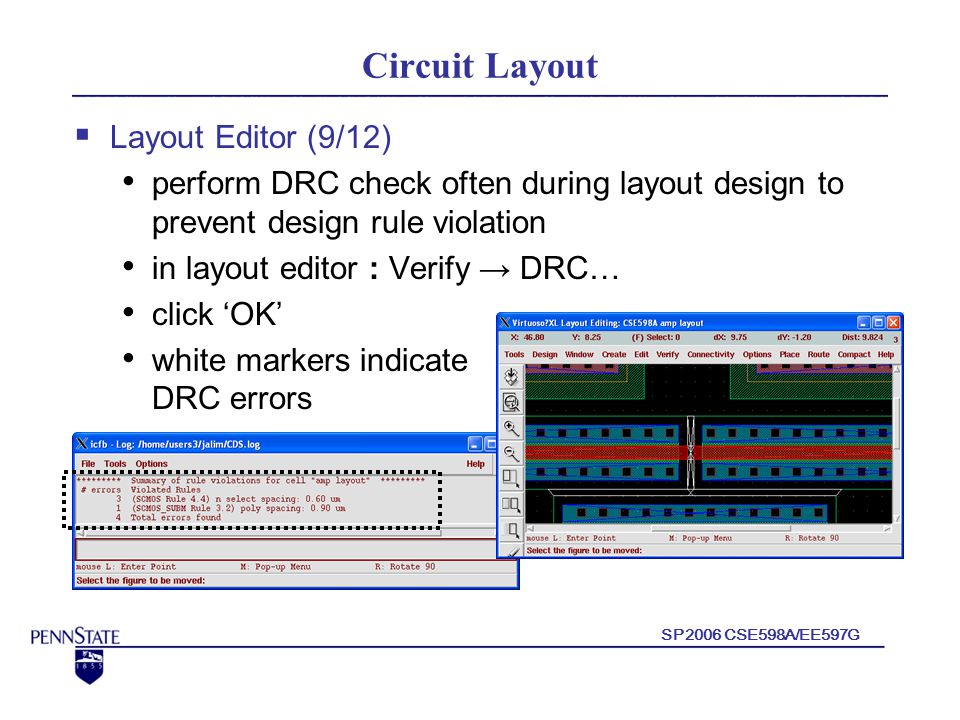

36. SP2006 CSE598A/EE597G Circuit Layout  Layout Editor (9/12) perform DRC check often during layout design to prevent design rule violation in layout editor : Verify → DRC… click ‘OK’ white markers indicate DRC errors

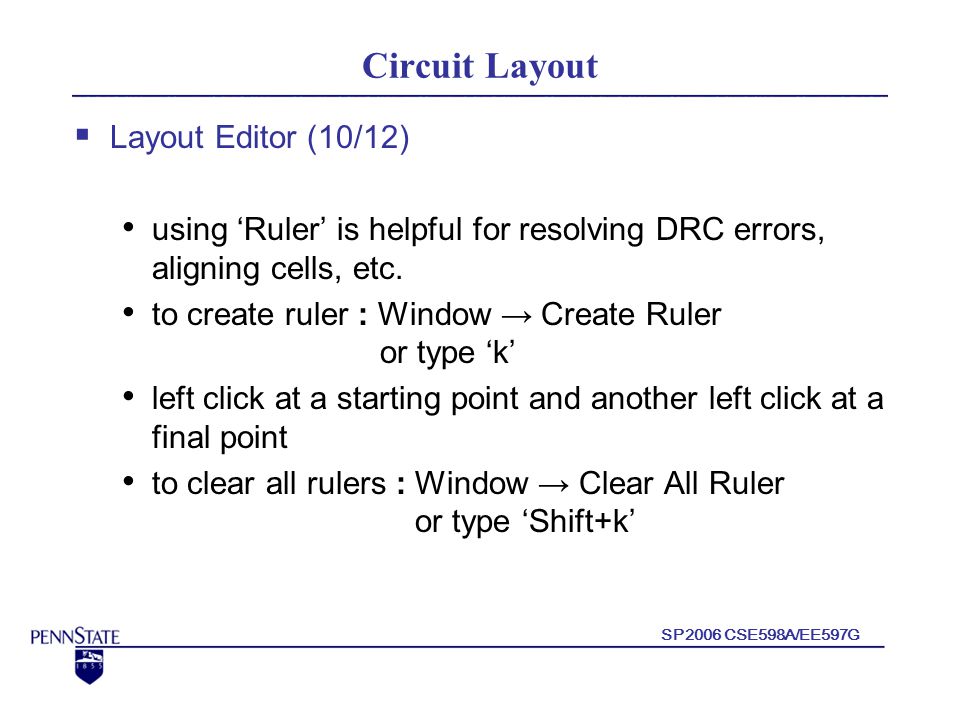

37. SP2006 CSE598A/EE597G Circuit Layout  Layout Editor (10/12) using ‘Ruler’ is helpful for resolving DRC errors, aligning cells, etc. to create ruler : Window → Create Ruler or type ‘k’ left click at a starting point and another left click at a final point to clear all rulers : Window → Clear All Ruler or type ‘Shift+k’

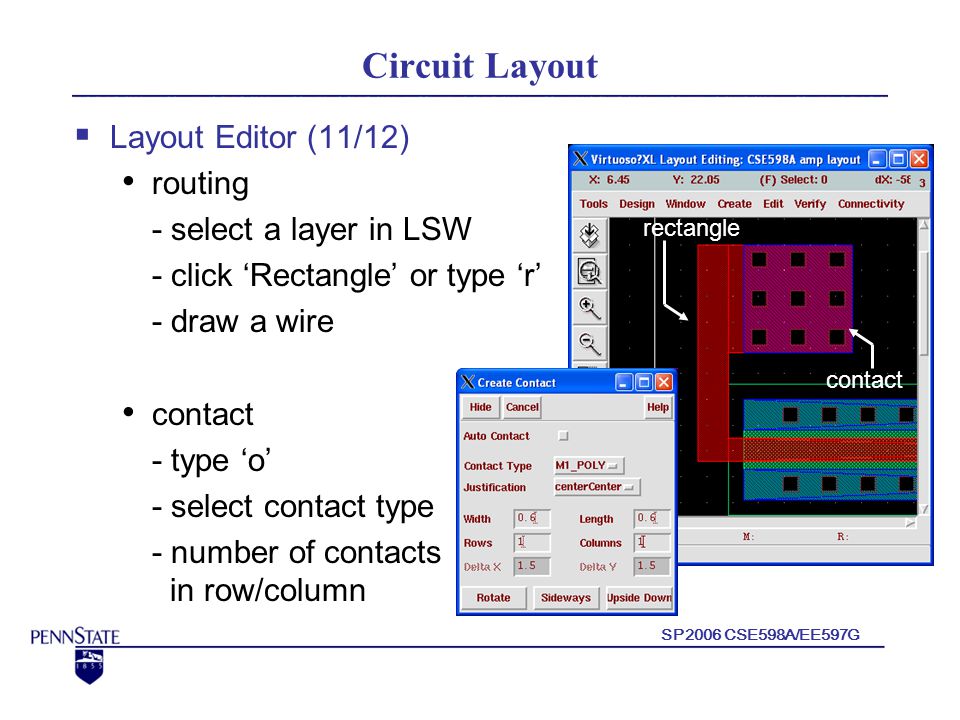

38. SP2006 CSE598A/EE597G Circuit Layout  Layout Editor (11/12) routing - select a layer in LSW - click ‘Rectangle’ or type ‘r’ - draw a wire contact - type ‘o’ - select contact type - number of contacts in row/column contact rectangle

39. SP2006 CSE598A/EE597G Circuit Layout  Layout Editor (12/12) run a final DRC check when done with layout and save your design

40. SP2006 CSE598A/EE597G Netlist and Simulation  Netlist extraction (1/3) run ‘Extractor’ - Verify → Extract… - click ‘Set Switches’ - select ‘Extract_Parasitic_Caps’ - click ‘OK’ - check for any error message

41. SP2006 CSE598A/EE597G Netlist and Simulation  Netlist extraction (2/3) you may close layout editor and schematic editor windows now double click ‘extracted’ view in your ‘Library Manager’ a layout editor with the extracted view will pop up

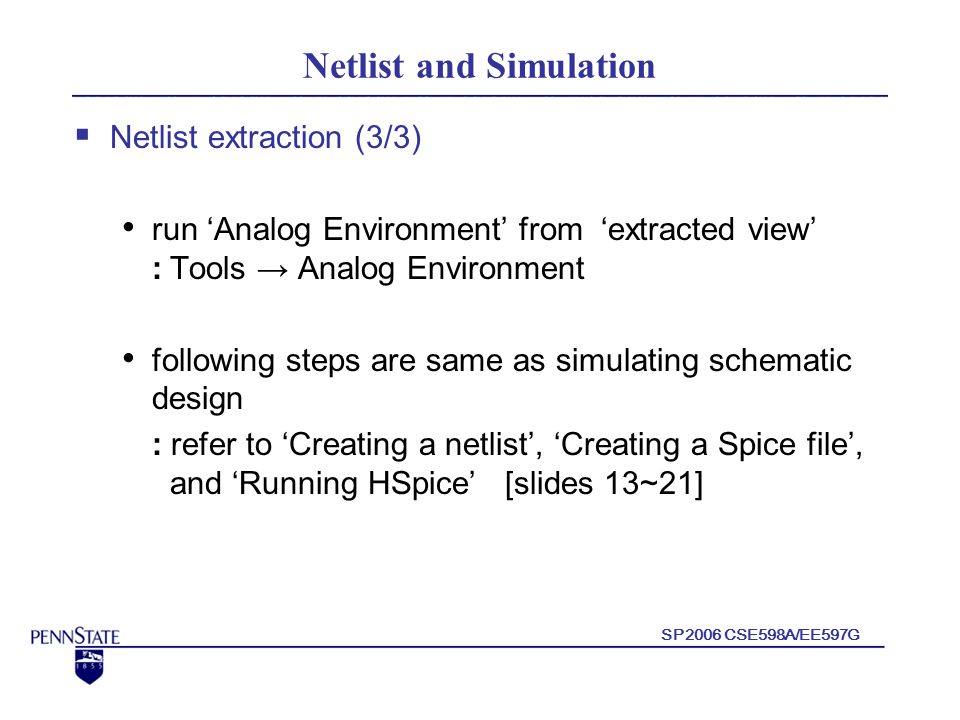

42. SP2006 CSE598A/EE597G Netlist and Simulation  Netlist extraction (3/3) run ‘Analog Environment’ from ‘extracted view’ :Tools → Analog Environment following steps are same as simulating schematic design : refer to ‘Creating a netlist’, ‘Creating a Spice file’, and ‘Running HSpice’ [slides 13~21]

43. SP2006 CSE598A/EE597G Product Documentation  Help ‘HELP’ button in each window brings up product documentation this is very useful for learning basic features ex) or email jalim@cse.psu.edu documentation for ‘Stretch’ in layout editor
