Dr. Scott Schaefer Clipping Lines. 2/94 Why Clip? We do not want to waste time drawing objects that are outside of viewing window (or clipping window)

Similar presentations


Presentation on theme: "Dr. Scott Schaefer Clipping Lines. 2/94 Why Clip? We do not want to waste time drawing objects that are outside of viewing window (or clipping window)"— Presentation transcript:

1 Dr. Scott Schaefer Clipping Lines

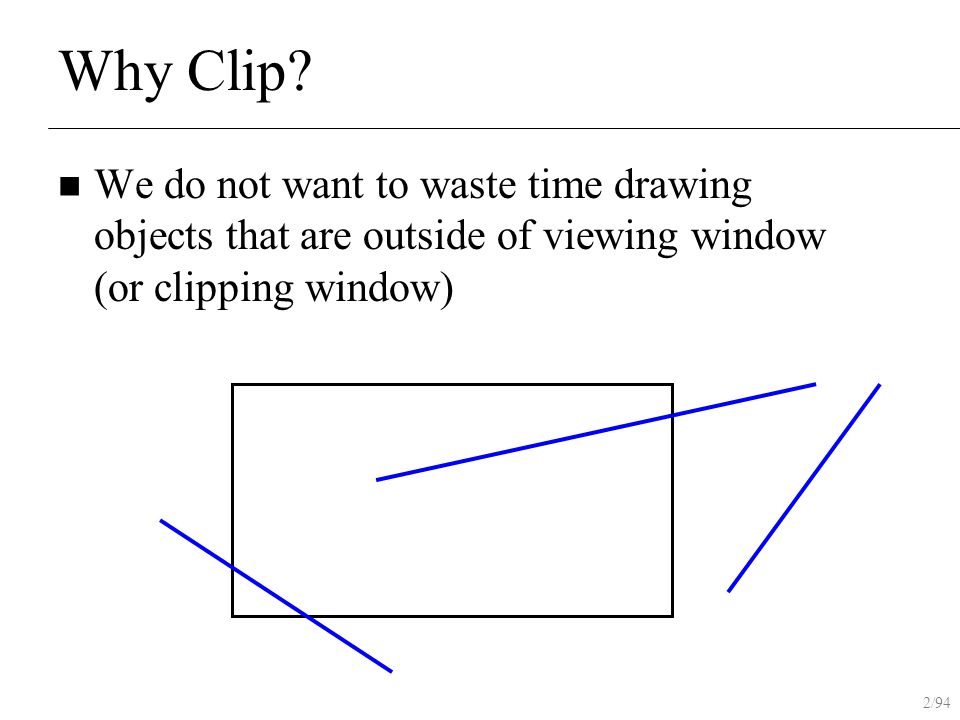

2 2/94 Why Clip? We do not want to waste time drawing objects that are outside of viewing window (or clipping window)

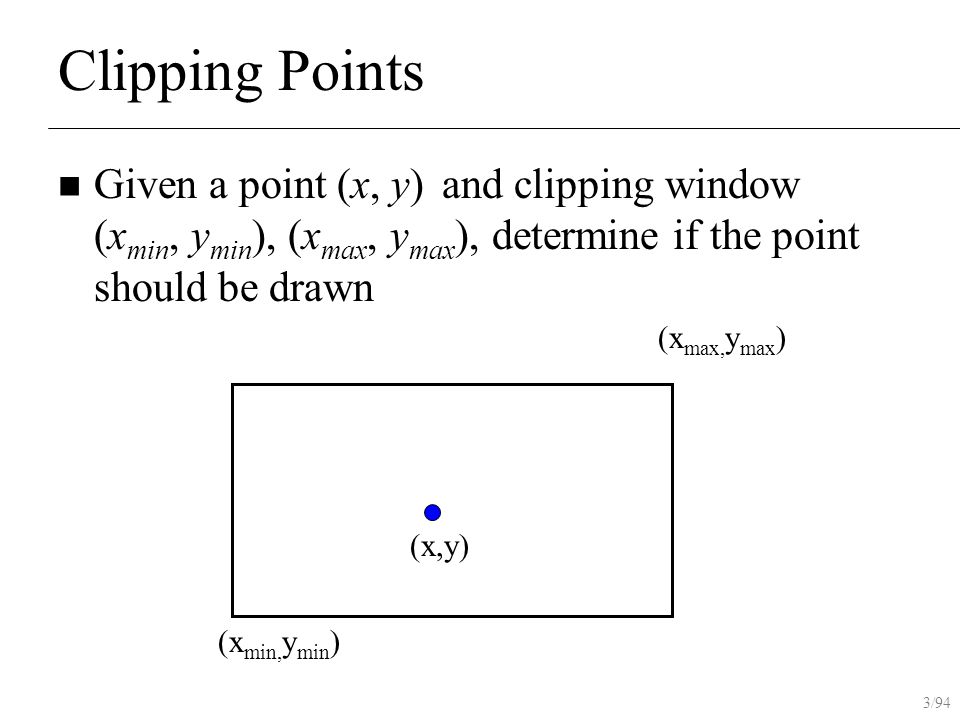

3 3/94 Clipping Points Given a point (x, y)and clipping window (x min, y min ), (x max, y max ), determine if the point should be drawn (x min, y min ) (x max, y max ) (x,y)

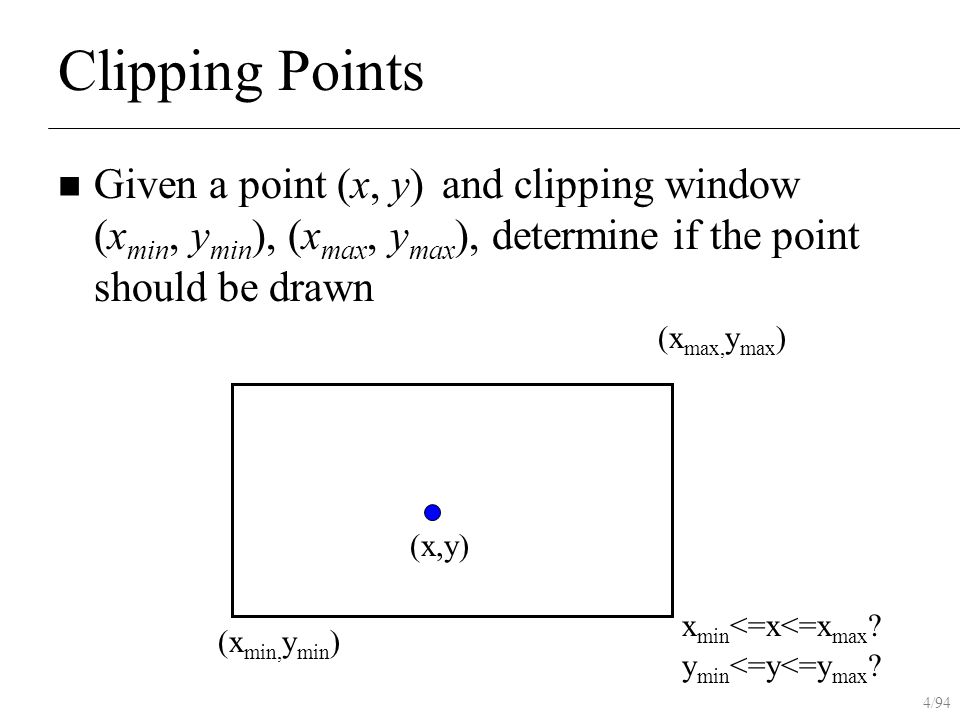

4 4/94 Clipping Points Given a point (x, y)and clipping window (x min, y min ), (x max, y max ), determine if the point should be drawn (x min, y min ) (x max, y max ) (x,y) x min <=x<=x max ? y min <=y<=y max ?

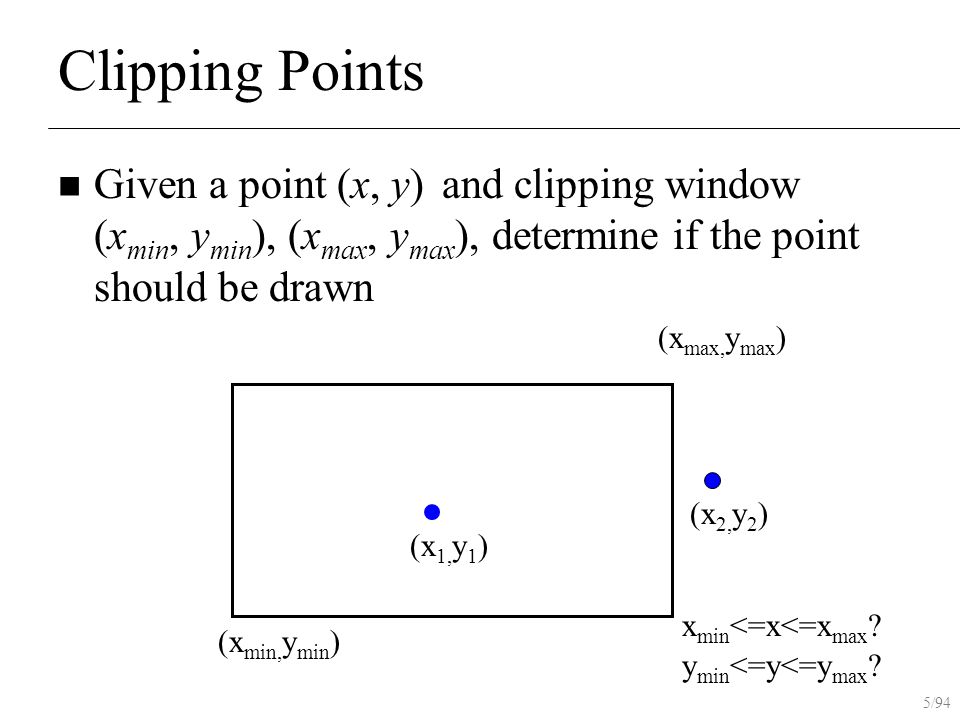

5 5/94 Clipping Points Given a point (x, y)and clipping window (x min, y min ), (x max, y max ), determine if the point should be drawn (x 1, y 1 ) (x 2, y 2 ) (x min, y min ) (x max, y max ) x min <=x<=x max ? y min <=y<=y max ?

6 6/94 Clipping Points Given a point (x, y)and clipping window (x min, y min ), (x max, y max ), determine if the point should be drawn (x min, y min ) (x max, y max ) x min <=x 1 <=x max Yes y min <=y 1 <=y max Yes (x 1, y 1 ) (x 2, y 2 )

7 7/94 Clipping Points Given a point (x, y)and clipping window (x min, y min ), (x max, y max ), determine if the point should be drawn (x min, y min ) (x max, y max ) x min <=x 2 <=x max No y min <=y 2 <=y max Yes (x 1, y 1 ) (x 2, y 2 )

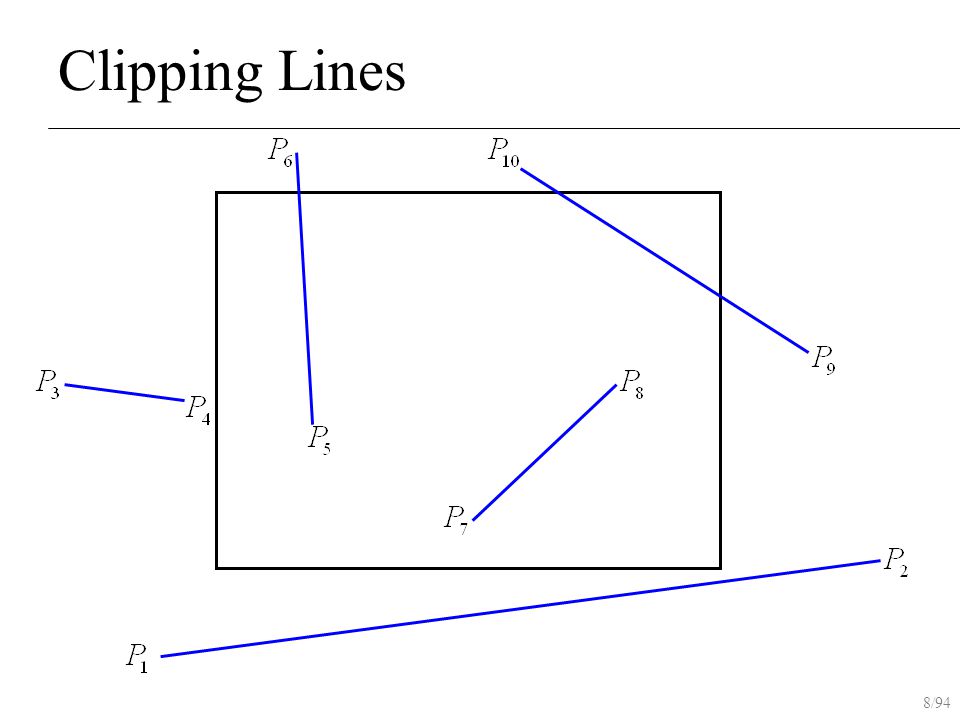

8 8/94 Clipping Lines

9 9/94 Clipping Lines

10 10/94 Clipping Lines Given a line with end-points (x 0, y 0 ), (x 1, y 1 ) and clipping window (x min, y min ), (x max, y max ), determine if line should be drawn and clipped end-points of line to draw. (x 0, y 0 ) (x 1, y 1 ) (x min, y min ) (x max, y max )

11 11/94 Clipping Lines

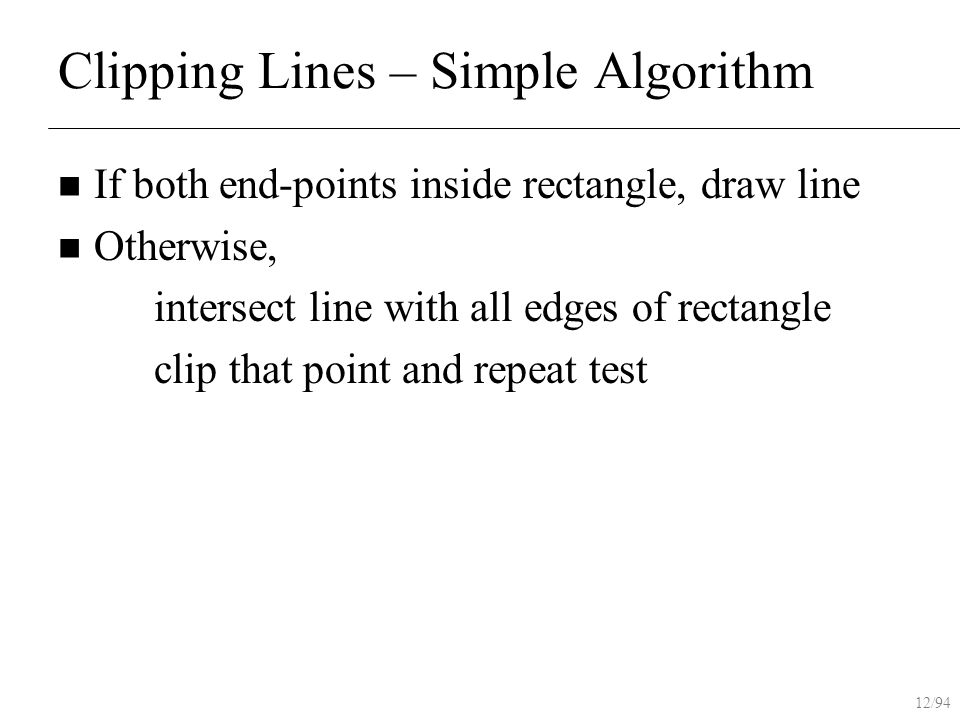

12 12/94 Clipping Lines – Simple Algorithm If both end-points inside rectangle, draw line Otherwise, intersect line with all edges of rectangle clip that point and repeat test

13 13/94 Clipping Lines – Simple Algorithm

14 14/94 Clipping Lines – Simple Algorithm

15 15/94 Clipping Lines – Simple Algorithm

16 16/94 Clipping Lines – Simple Algorithm

17 17/94 Clipping Lines – Simple Algorithm

18 18/94 Clipping Lines – Simple Algorithm

19 19/94 Clipping Lines – Simple Algorithm

20 20/94 Clipping Lines – Simple Algorithm

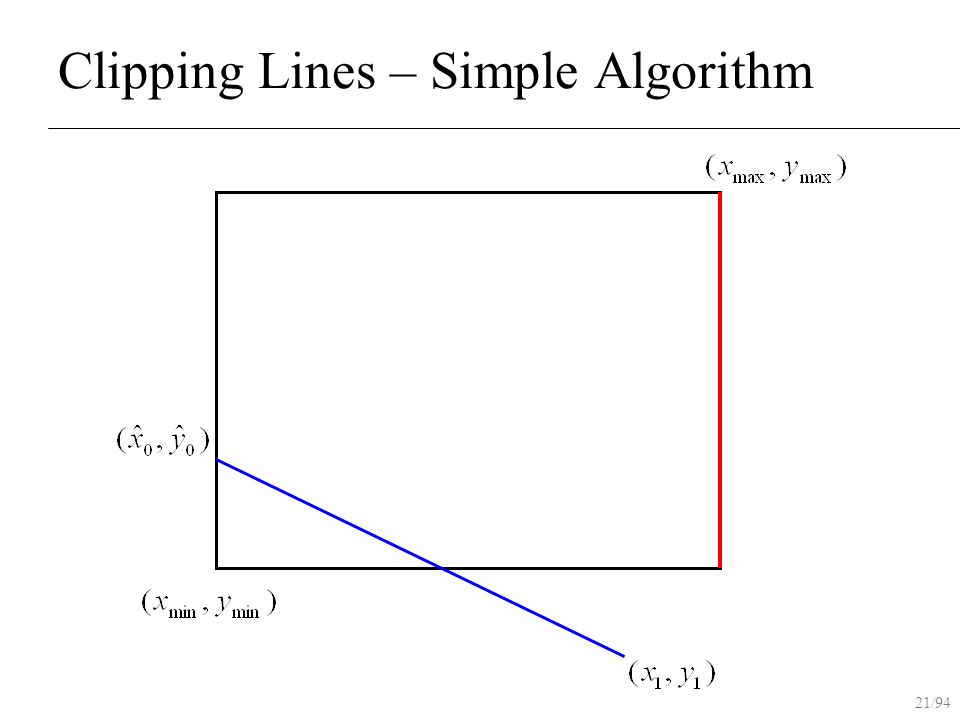

21 21/94 Clipping Lines – Simple Algorithm

22 22/94 Clipping Lines – Simple Algorithm

23 23/94 Clipping Lines – Simple Algorithm

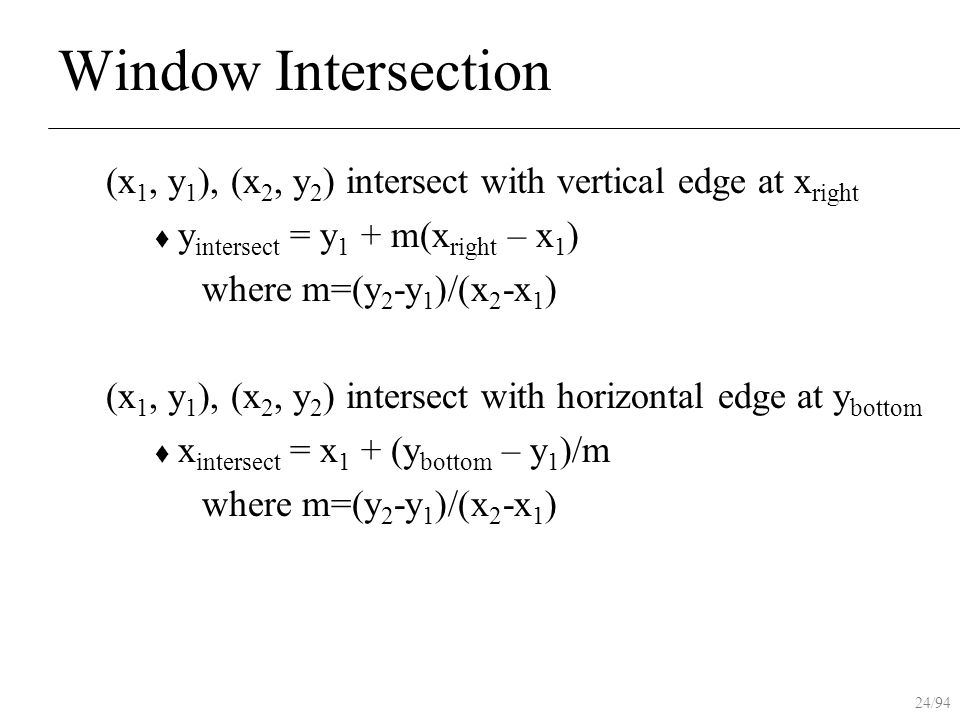

24 24/94 Window Intersection (x 1, y 1 ), (x 2, y 2 ) intersect with vertical edge at x right  y intersect = y 1 + m(x right – x 1 ) where m=(y 2 -y 1 )/(x 2 -x 1 ) (x 1, y 1 ), (x 2, y 2 ) intersect with horizontal edge at y bottom  x intersect = x 1 + (y bottom – y 1 )/m where m=(y 2 -y 1 )/(x 2 -x 1 )

25 25/94 Clipping Lines – Simple Algorithm Lots of intersection tests makes algorithm expensive Complicated tests to determine if intersecting rectangle Is there a better way?

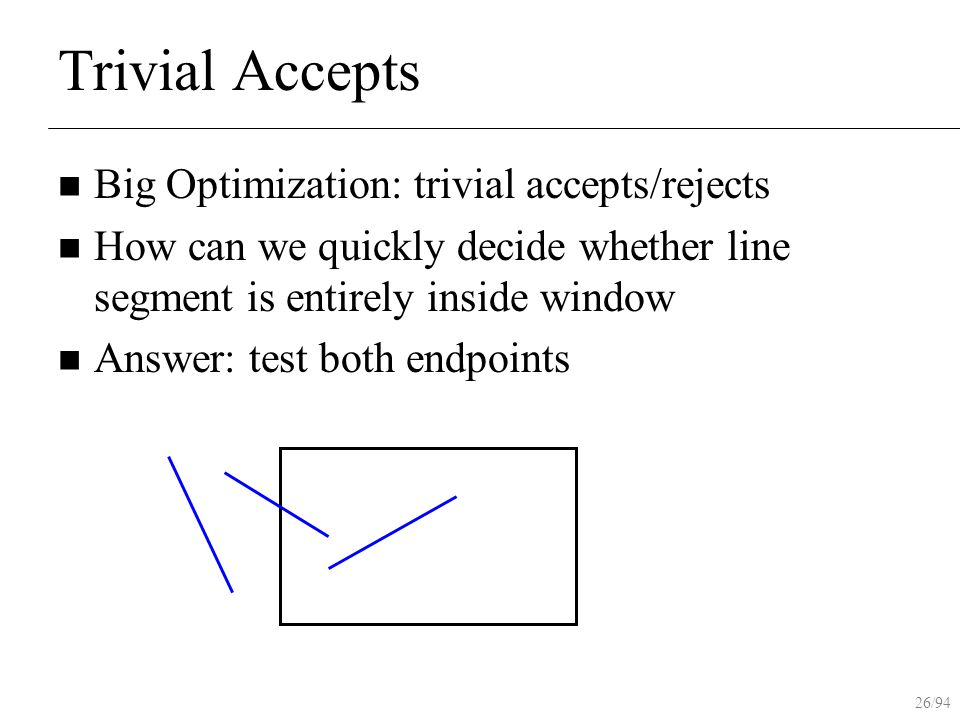

26 26/94 Trivial Accepts Big Optimization: trivial accepts/rejects How can we quickly decide whether line segment is entirely inside window Answer: test both endpoints

27 27/94 Trivial Accepts Big Optimization: trivial accepts/rejects How can we quickly decide whether line segment is entirely inside window Answer: test both endpoints

28 28/94 Trivial Rejects How can we know a line is outside of the window Answer: both endpoints on wrong side of same edge, can trivially reject the line

29 29/94 Trivial Rejects How can we know a line is outside of the window Answer: both endpoints on wrong side of same edge, can trivially reject the line

30 30/94 Cohen-Sutherland Algorithm Classify p 0, p 1 using region codes c 0, c 1 If, trivially reject If, trivially accept Otherwise reduce to trivial cases by splitting into two segments

31 31/94 Cohen-Sutherland Algorithm Every end point is assigned to a four-digit binary value, i.e. Region code Each bit position indicates whether the point is inside or outside of a specific window edge bit 4bit 3bit 2bit 1 leftrightbottomtop

32 32/94 Cohen-Sutherland Algorithm

33 33/94 Cohen-Sutherland Algorithm Classify p 0, p 1 using region codes c 0, c 1 If, trivially reject If, trivially accept Otherwise reduce to trivial cases by splitting into two segments

34 34/94 Cohen-Sutherland Algorithm Classify p 0, p 1 using region codes c 0, c 1 If, trivially reject If, trivially accept Otherwise reduce to trivial cases by splitting into two segments

35 35/94 Cohen-Sutherland Algorithm Classify p 0, p 1 using region codes c 0, c 1 If, trivially reject If, trivially accept Otherwise reduce to trivial cases by splitting into two segments Line is outside the window! reject

36 36/94 Cohen-Sutherland Algorithm Classify p 0, p 1 using region codes c 0, c 1 If, trivially reject If, trivially accept Otherwise reduce to trivial cases by splitting into two segments Line is inside the window! draw

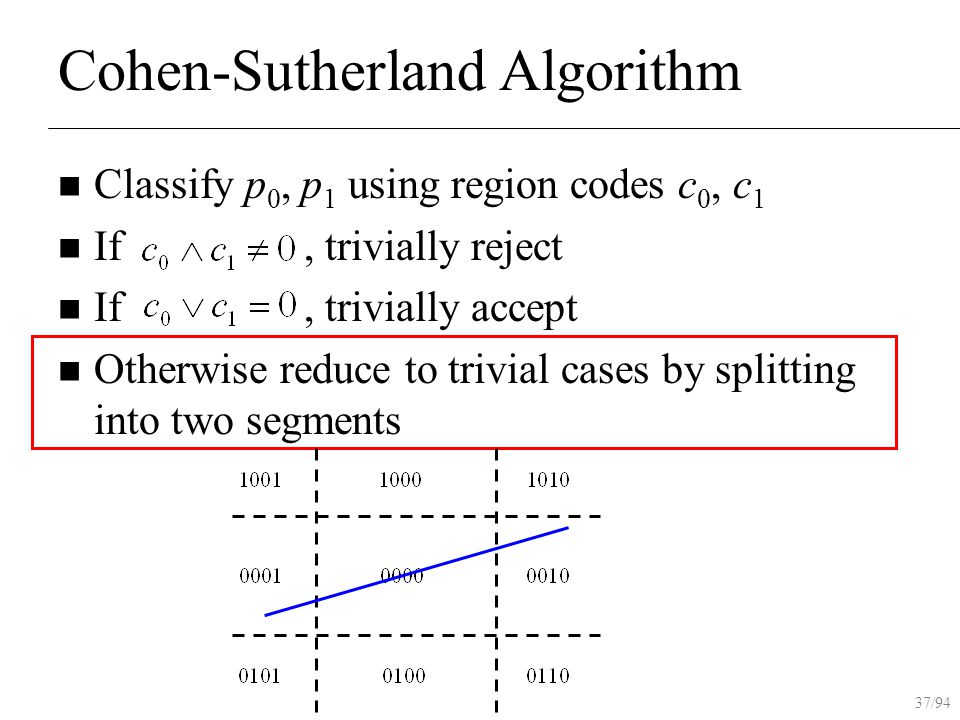

37 37/94 Cohen-Sutherland Algorithm Classify p 0, p 1 using region codes c 0, c 1 If, trivially reject If, trivially accept Otherwise reduce to trivial cases by splitting into two segments

38 38/94 Cohen-Sutherland Algorithm

39 39/94 Cohen-Sutherland Algorithm

40 40/94 Cohen-Sutherland Algorithm

41 41/94 Cohen-Sutherland Algorithm

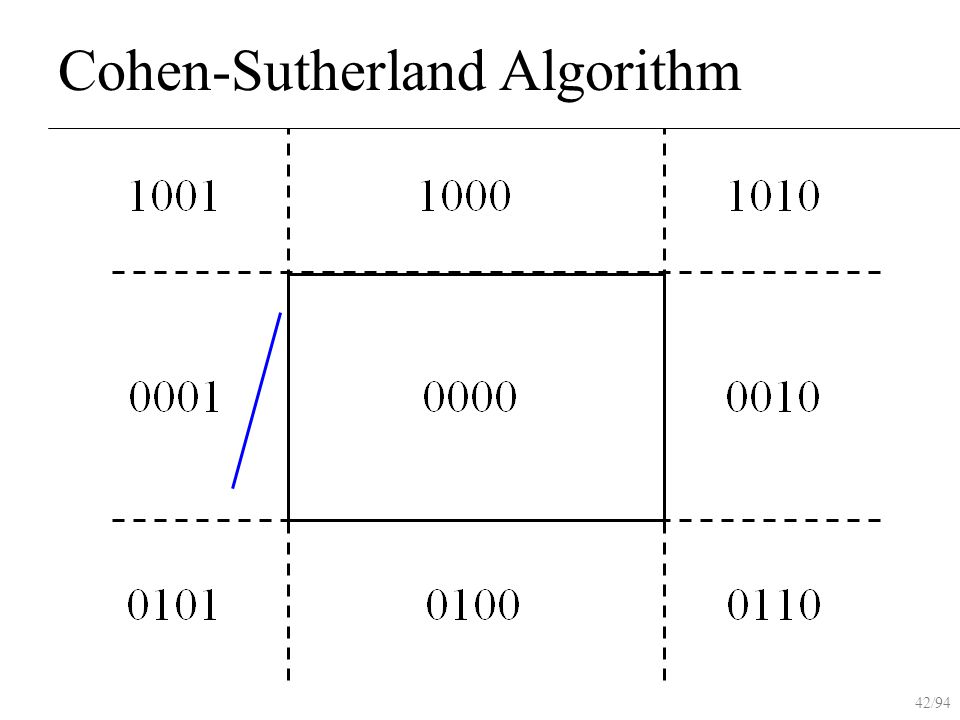

42 42/94 Cohen-Sutherland Algorithm

43 43/94 Cohen-Sutherland Algorithm

44 44/94 Cohen-Sutherland Algorithm

45 45/94 Cohen-Sutherland Algorithm

46 46/94 Cohen-Sutherland Algorithm

47 47/94 Cohen-Sutherland Algorithm

48 48/94 Cohen-Sutherland Algorithm

49 49/94 Cohen-Sutherland Algorithm

50 50/94 Cohen-Sutherland Algorithm

51 51/94 Cohen-Sutherland Algorithm

52 52/94 Cohen-Sutherland Algorithm

53 53/94 Liang-Barsky Algorithm Uses parametric form of line for clipping Lines are oriented Classify lines as moving inside to out or outside to in Don’t find actual intersection points Find parameter values on line to draw

54 54/94 Liang-Barsky Algorithm Initialize interval to [t min, t max ]=[0,1] For each boundary  Find parametric intersection t with boundary  If moving in to out, t max = min(t max, t)  else t min = max(t min, t)  If t min >t max, reject line

55 55/94 Intersecting Two Parametric Lines

56 56/94 Intersecting Two Parametric Lines

57 57/94 Intersecting Two Parametric Lines

58 58/94 Intersecting Two Parametric Lines

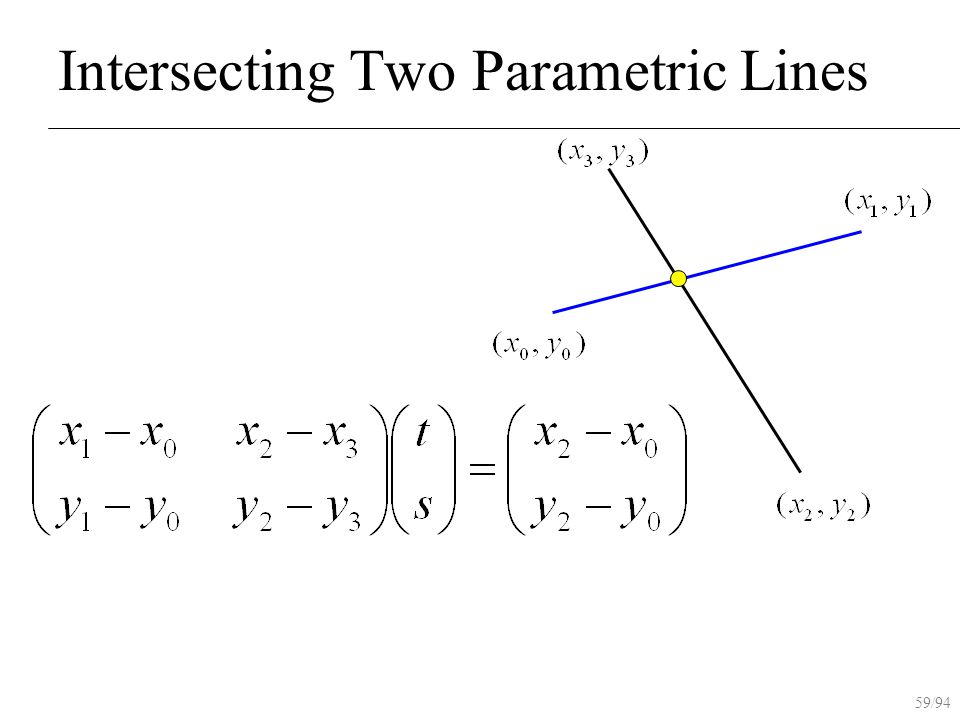

59 59/94 Intersecting Two Parametric Lines

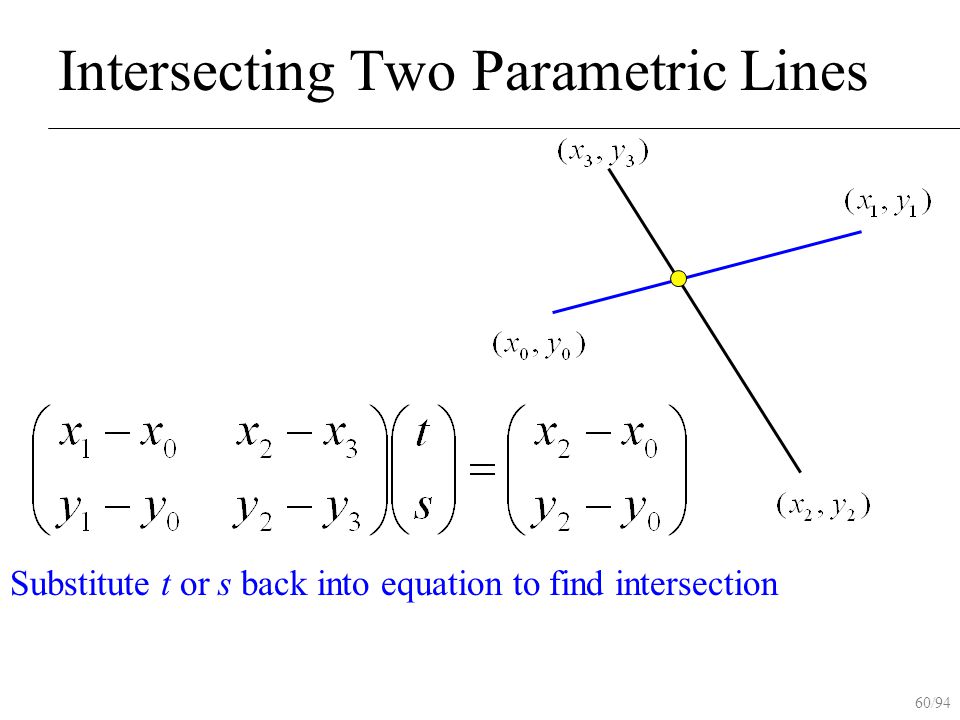

60 60/94 Intersecting Two Parametric Lines Substitute t or s back into equation to find intersection

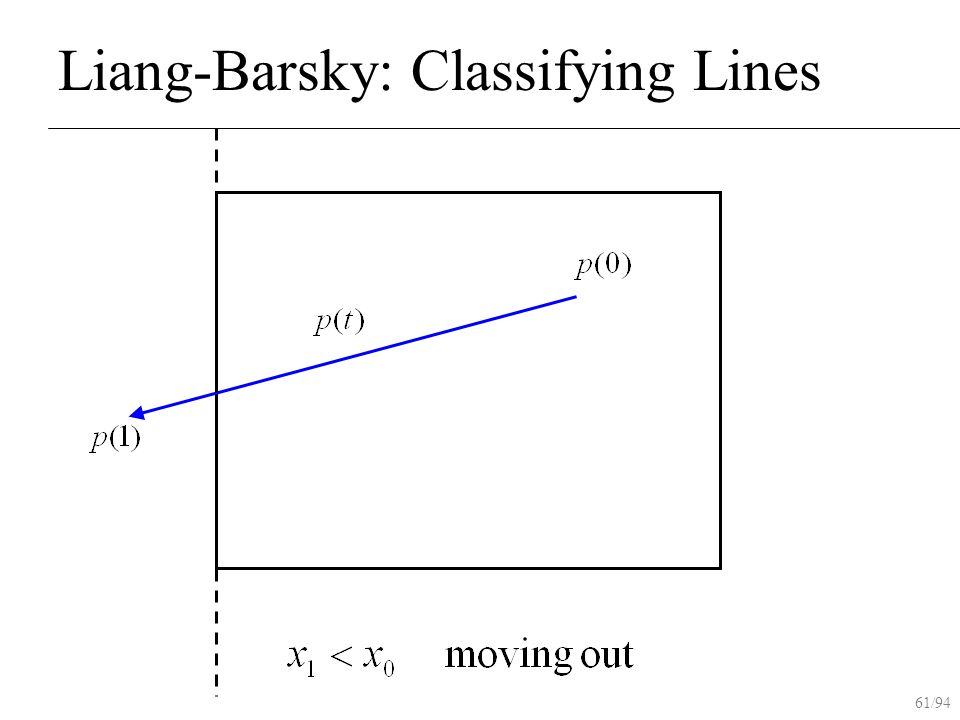

61 61/94 Liang-Barsky: Classifying Lines

62 62/94 Liang-Barsky: Classifying Lines

63 63/94 Liang-Barsky: Classifying Lines

64 64/94 Liang-Barsky: Classifying Lines

65 65/94 Liang-Barsky: Classifying Lines

66 66/94 Liang-Barsky: Classifying Lines

67 67/94 Liang-Barsky: Classifying Lines

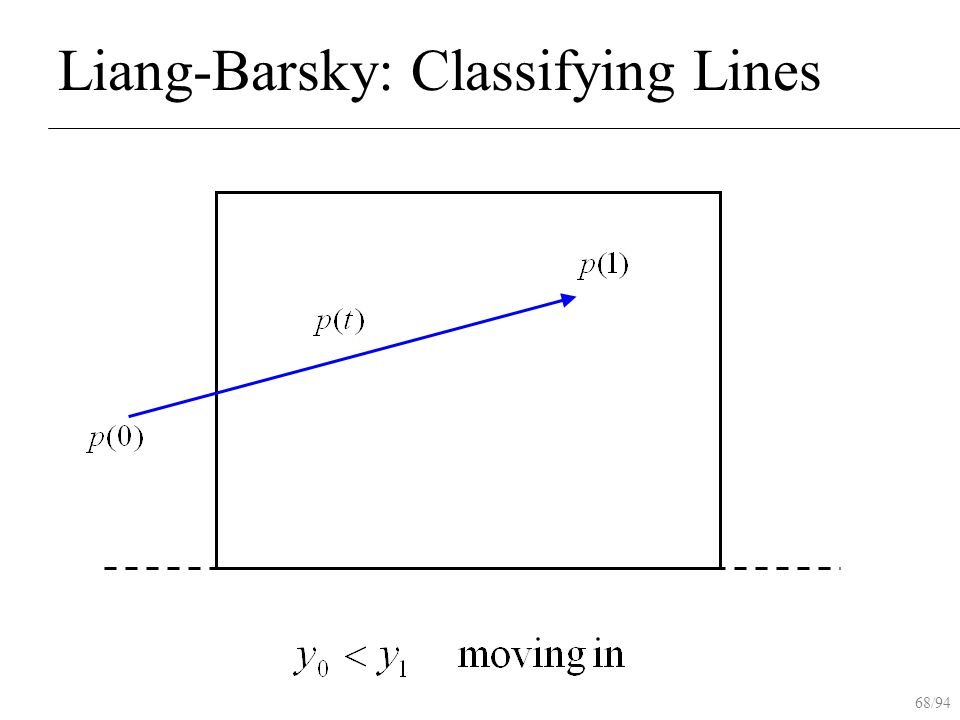

68 68/94 Liang-Barsky: Classifying Lines

69 69/94 Liang-Barsky Algorithm

70 70/94 Liang-Barsky Algorithm

71 71/94 Liang-Barsky Algorithm

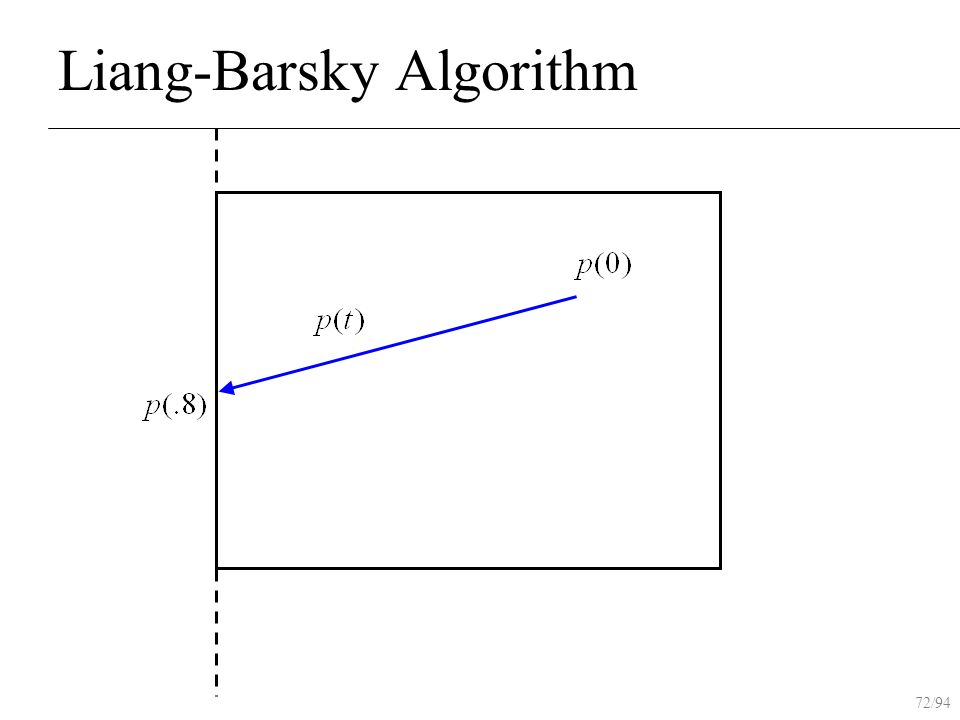

72 72/94 Liang-Barsky Algorithm

73 73/94 Liang-Barsky Algorithm

74 74/94 Liang-Barsky Algorithm

75 75/94 Liang-Barsky Algorithm

76 76/94 Liang-Barsky Algorithm

77 77/94 Liang-Barsky Algorithm

78 78/94 Liang-Barsky Algorithm

79 79/94 Liang-Barsky Algorithm

80 80/94 Liang-Barsky Algorithm

81 81/94 Liang-Barsky Algorithm

82 82/94 Liang-Barsky Algorithm

83 83/94 Liang-Barsky Algorithm

84 84/94 Liang-Barsky Algorithm

85 85/94 Liang-Barsky Algorithm

86 86/94 Liang-Barsky Algorithm

87 87/94 Liang-Barsky Algorithm

88 88/94 Liang-Barsky Algorithm

89 89/94 Liang-Barsky Algorithm

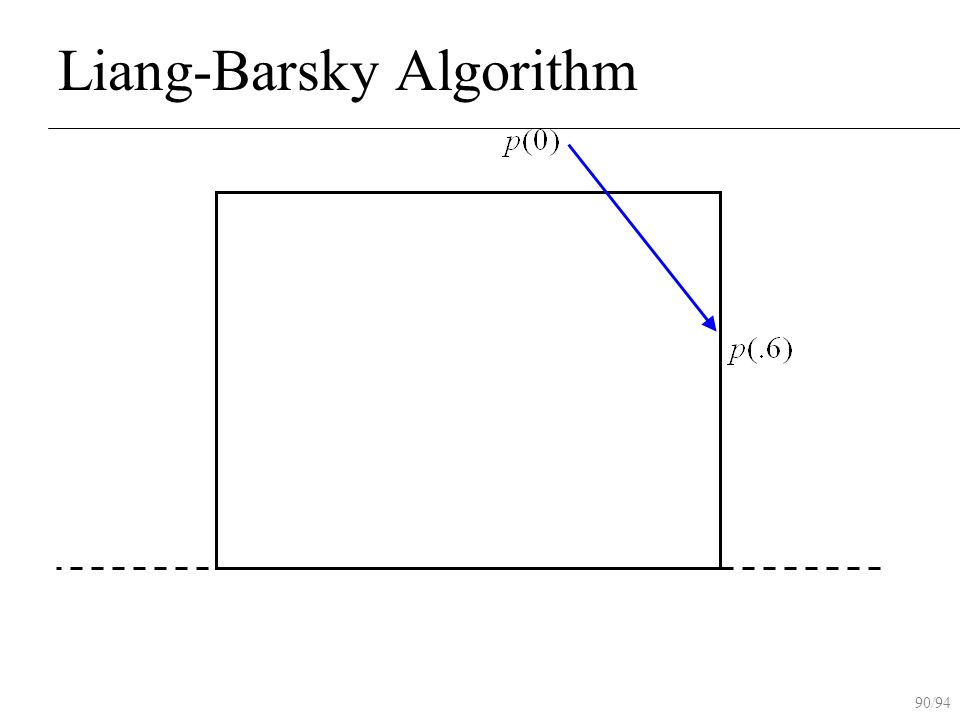

90 90/94 Liang-Barsky Algorithm

91 91/94 Liang-Barsky Algorithm

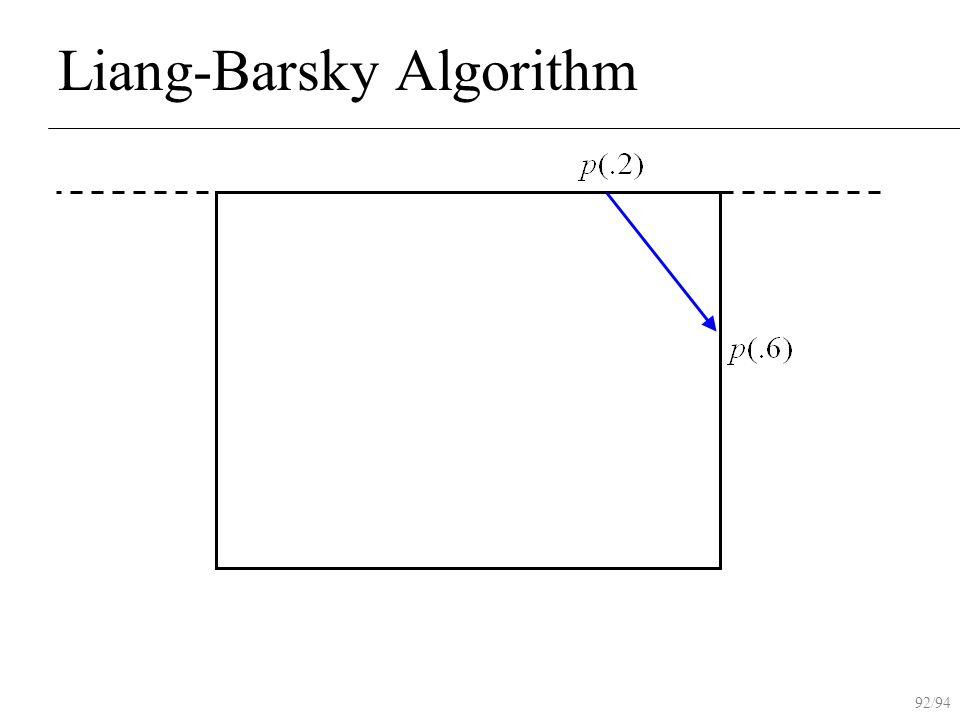

92 92/94 Liang-Barsky Algorithm

93 93/94 Comparison Cohen-Sutherland  Repeated clipping is expensive  Best used when trivial acceptance and rejection is possible for most lines Liang-Barsky  Computation of t-intersections is cheap (only one division)  Computation of (x,y) clip points is only done once  Algorithm doesn’t consider trivial accepts/rejects  Best when many lines must be clipped

94 94/94 Line Clipping – Considerations Just clipping end-points does not produce the correct results inside the window Must also update sum in midpoint algorithm Clipping against non-rectangular polygons is also possible but seldom used
