1. 1 All About HDTV TCF April 2008

2. They Look Great 50” Vizio

3. 3 All About HDTV - Outline Digital TV (DTV) and High Definition (HDTV) Frequency Allocation What are Broadcasters Doing Where are the Signals Coming from Plasma, LCD and DLP Displays How to Hook Up HDTV to Your System HD Recording Consumer Guide

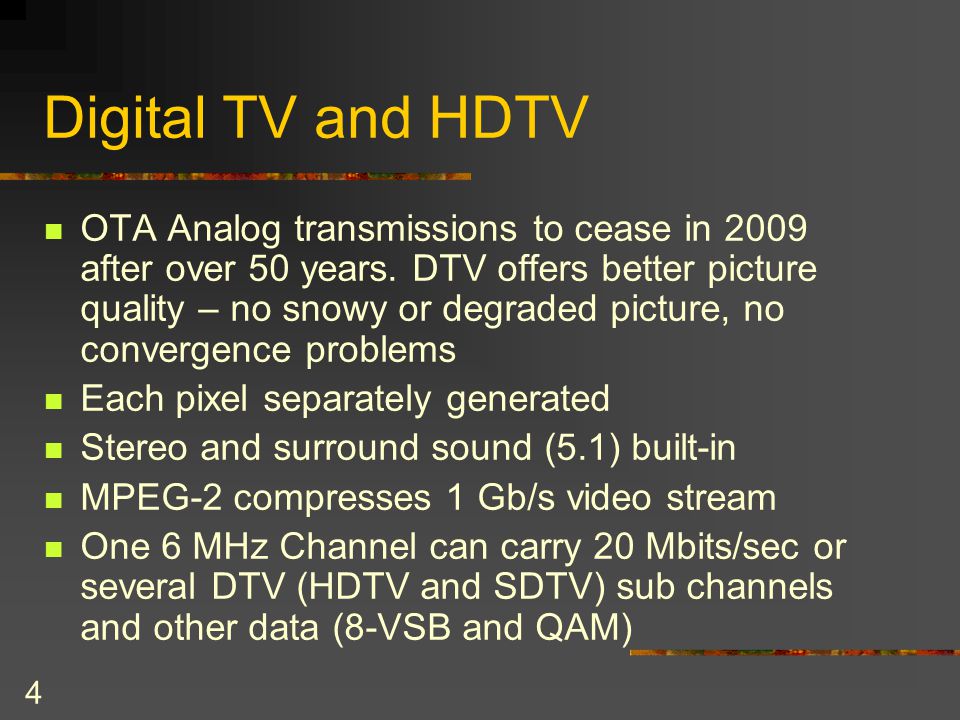

4. 4 Digital TV and HDTV OTA Analog transmissions to cease in 2009 after over 50 years. DTV offers better picture quality – no snowy or degraded picture, no convergence problems Each pixel separately generated Stereo and surround sound (5.1) built-in MPEG-2 compresses 1 Gb/s video stream One 6 MHz Channel can carry 20 Mbits/sec or several DTV (HDTV and SDTV) sub channels and other data (8-VSB and QAM)

5. 5 Digital TV and HDTV (cont.) DTV Formats – 480i, 576i, 720p, 1080i, 1080p (1080p Blue-Ray, HD-DVD only) Native HDTV Formats - 720p or 1080i, up or down conversion is required Aspect Ratios – 4:3, 16:9 – black stripes, missing foreheads or 300 lbs bodies On-Screen Daily Schedules

6. 2008 TV Receivers Sets with HD display and no tuners (HD ready or HD monitor) Sets with HD display, NTSC/ATSC and QAM tuners with or without cable cards (most common) Sets with SD display (LCD or CRT) and NTSC/ATSC tuner (least expensive)

7. 7 Frequency Allocation Old Assignments: VHF (Ch. 2-13) and UHF (Ch. 14-68) New Assignments: Upper VHF, lower UHF (Ch. 7-53) Government Will Auction the Vacated Channels for $$ Billions, is issuing rebate coupons for converter boxes

8. 8 What are Broadcasters Doing Broadcasters take advantage of uninformed public Saving on Quality for Profits – more channels, less HD Few Broadcasters provide a consistent true HD Signal Basic Cable May or May not Include Digital Channels Cable and satellite providers degrade the HD signal by further compressing it Over-the-air still the best – not publicized and hushed up by cable providers and retailers

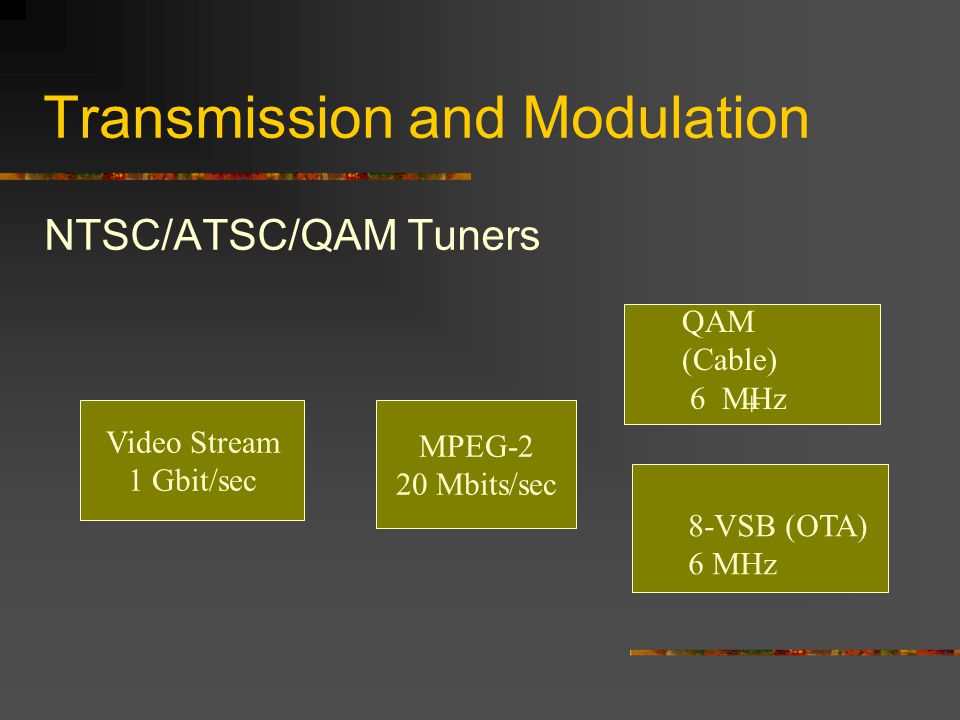

9. Transmission and Modulation NTSC/ATSC/QAM Tuners Video Stream 1 Gbit/sec + MPEG-2 20 Mbits/sec QAM (Cable) 6 MHz 8-VSB (OTA) 6 MHz

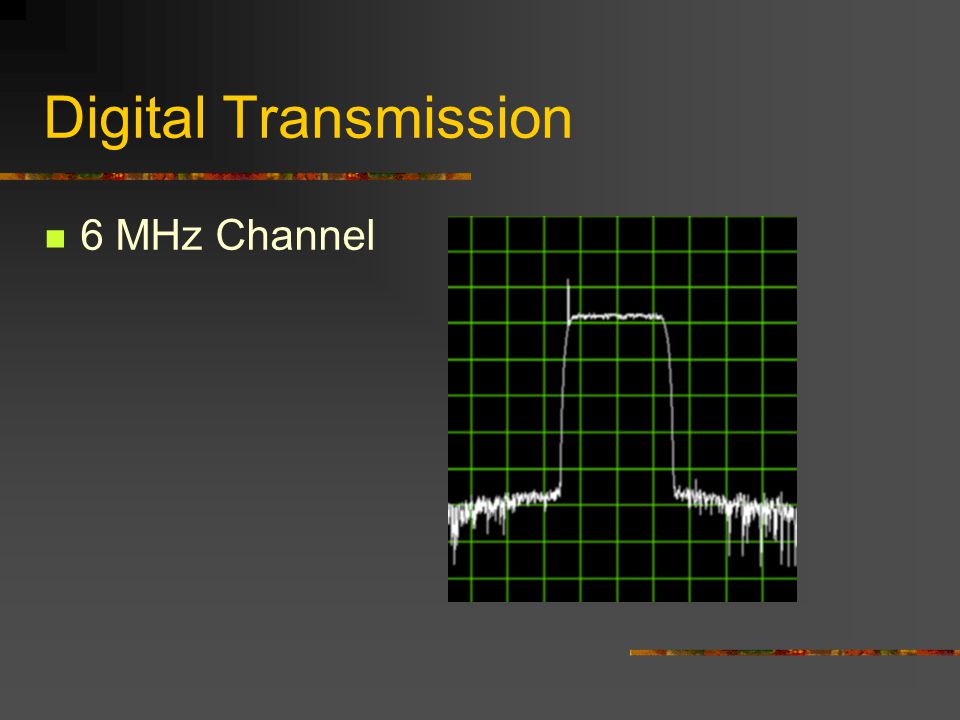

10. Digital Transmission 6 MHz Channel

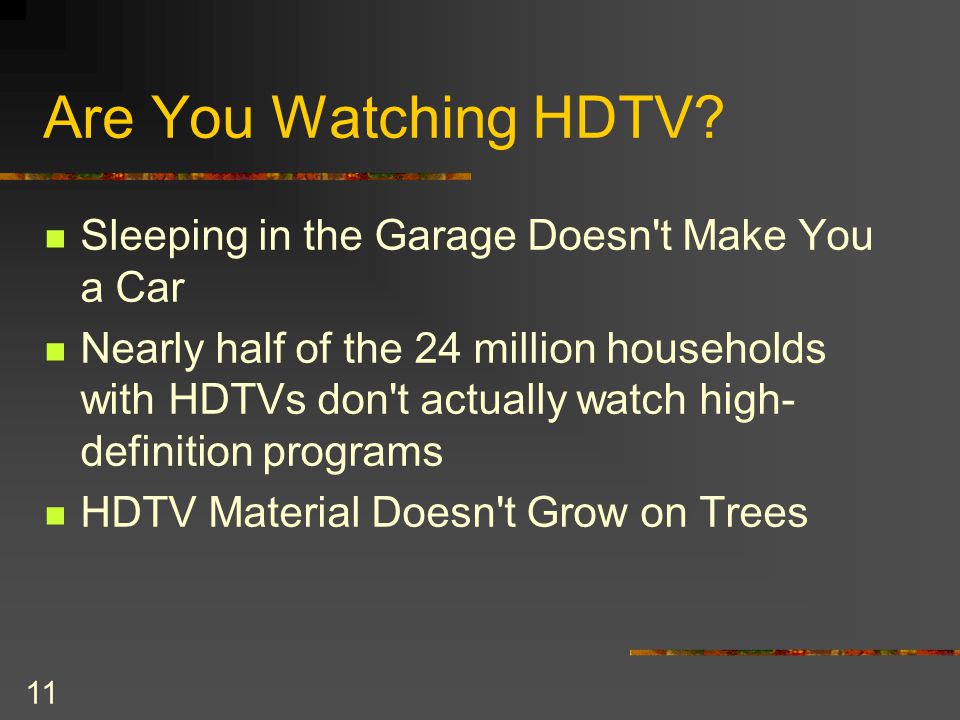

11. 11 Are You Watching HDTV? Sleeping in the Garage Doesn't Make You a Car Nearly half of the 24 million households with HDTVs don't actually watch high- definition programs HDTV Material Doesn't Grow on Trees

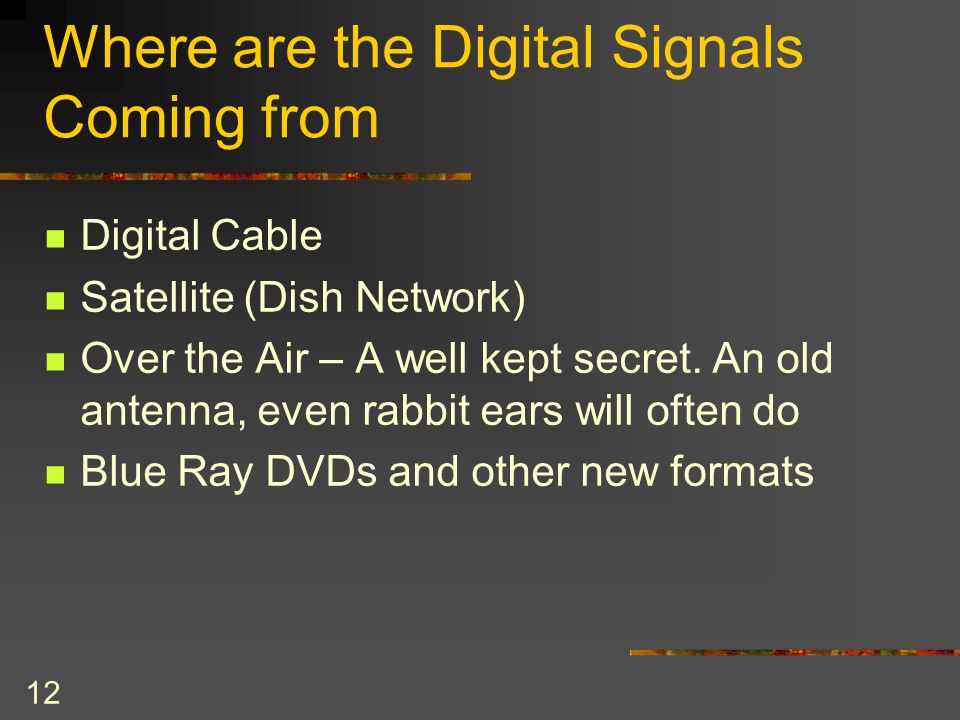

12. 12 Where are the Digital Signals Coming from Digital Cable Satellite (Dish Network) Over the Air – A well kept secret. An old antenna, even rabbit ears will often do Blue Ray DVDs and other new formats

13. 13 Plasma, LCD and DLP Displays Plasma – Generates its own light, vivid colors, best viewing angle, but subject to burn-in, ambient light a problem (glare, reflections) LCD – Backlit, (Venetian blinds) good pastel colors, poor blacks, low power consumption, low weight, good in lighted areas, 42” or less DLP – Reflected light (Rear projection), bright colors, relatively expensive, fragile, 50” and up, www.howstuffworks.com/lcd2.htm

14. 14 Plasma Display Panel Cross Section

15. 15 Plasma Display Cell arrangement

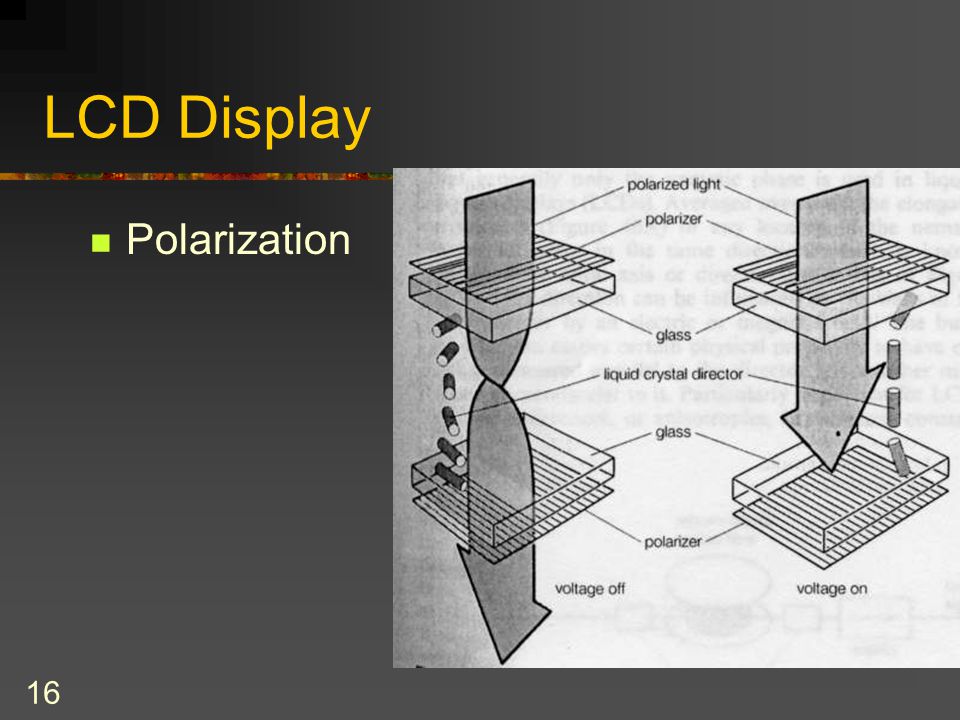

16. 16 LCD Display Polarization

17. 17 LCD Display More Details

18. 18 DLP (Projection) Display How it works

19. 19 How to Hook Up HDTV to Your System (A/V Components) Over-the-air and cable combination Analog vs. digital cable (cable cards, boxes) Use of additional tuners (VCR, ATSC) Analog and digital audio to your HiFi Use with Laptop as Monitor DVD Player Games, computer and other components

20. 20 How to Hook Up HDTV to Your System (Inputs and Outputs) Varies between Manufacturers and Models Composite - AVI (3 RCA cables) Component (5 RCA cables) HDMI Svideo + audio RGB (15 pins) + audio Analog Audio (Stereo) Digital Audio (5.1)

21. 21 How to Hook Up HDTV to Your System (Cable Types) HDMI, RCA, Svideo, RGB

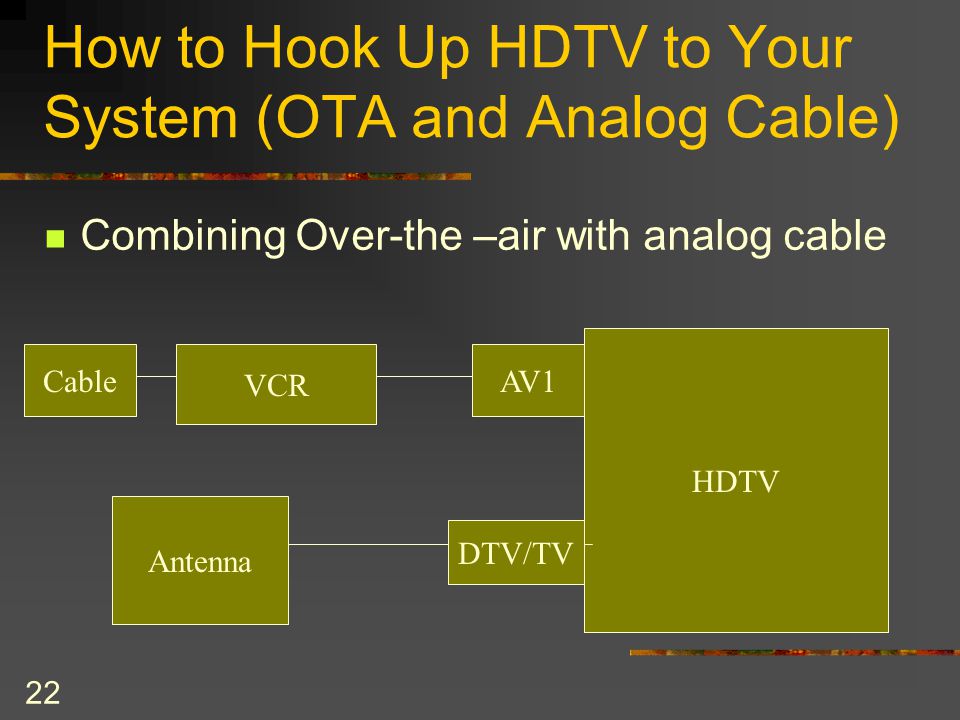

22. 22 How to Hook Up HDTV to Your System (OTA and Analog Cable) Combining Over-the –air with analog cable VCR HDTV Antenna CableAV1 DTV/TV

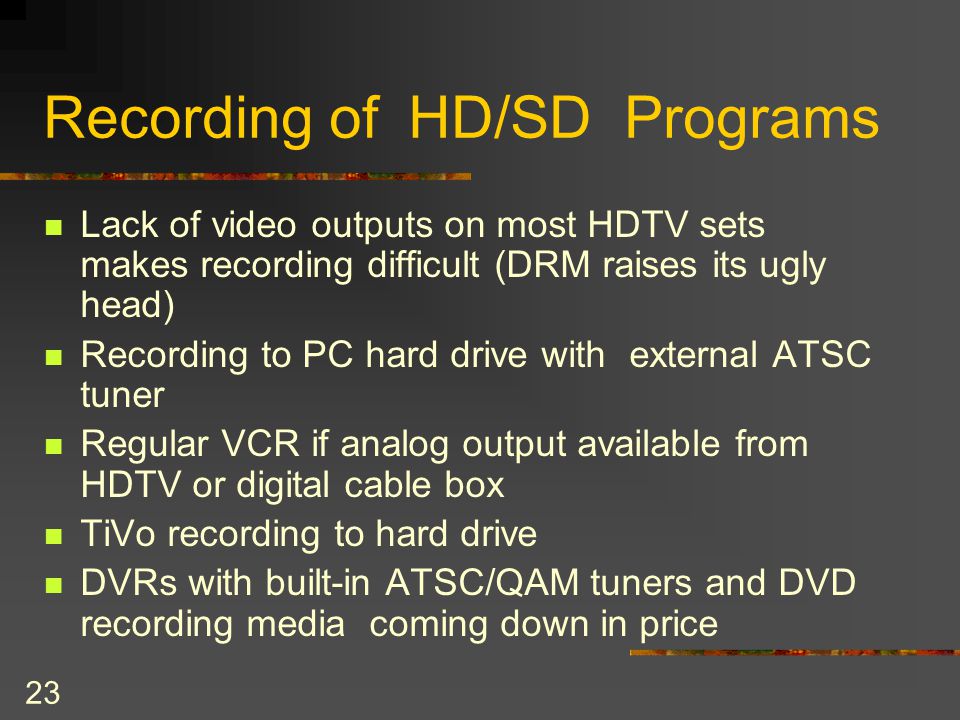

23. 23 Recording of HD/SD Programs Lack of video outputs on most HDTV sets makes recording difficult (DRM raises its ugly head) Recording to PC hard drive with external ATSC tuner Regular VCR if analog output available from HDTV or digital cable box TiVo recording to hard drive DVRs with built-in ATSC/QAM tuners and DVD recording media coming down in price

24. Pinnacle PCTV HD Stick.

25. HD Picture on PC Screen.

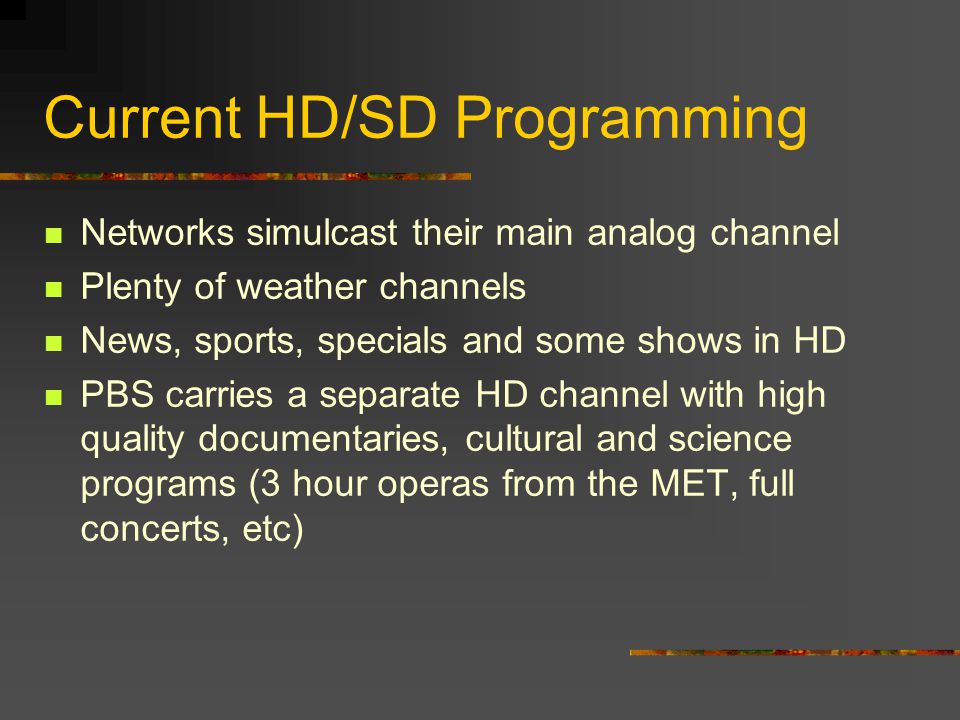

26. Current HD/SD Programming Networks simulcast their main analog channel Plenty of weather channels News, sports, specials and some shows in HD PBS carries a separate HD channel with high quality documentaries, cultural and science programs (3 hour operas from the MET, full concerts, etc)

27. Government Coupon Program Analog OTA transmission will cease on 2/17/2009 Between 1/1/08 and 3/31/09 you can call 1-888-388-2009 to apply 1-2 $40 Rebate coupons per household Coupons expire 90 days after issue ATSC to analog converters will give new life to old TVs and VCRs

28. 28 Consumer Guide Fit Size to Your Viewing Area Built-in ATSC/QAM tuner or HD-Ready Plasma. LCD or DLP Availability of Inputs and Outputs Price, warranties, repair cost Ask questions on alt.tv.tech.hdtv and check http://www.avsforum.comhttp://www.avsforum.com

29. Additional Resources Converter box site: www.dtv2009.gov:www.dtv2009.gov Find out about OTA reception at your home: www.antennaweb.orgwww.antennaweb.org Quiz to tell if you are ready for HDTV: www.dtvtransition.org: www.dtvtransition.org
