1. SIE 550 – Formal Languages Lecture for SIE 550 Matt Dube Doctoral Student – Spatial IGERT Fellow

2. Languages What do we think of when we think of languages? lettersnumberspunctuation syllables words parts of speech grammar phrases sentences BUILDING BLOCKS BUILDINGS IN THE LANGUAGE

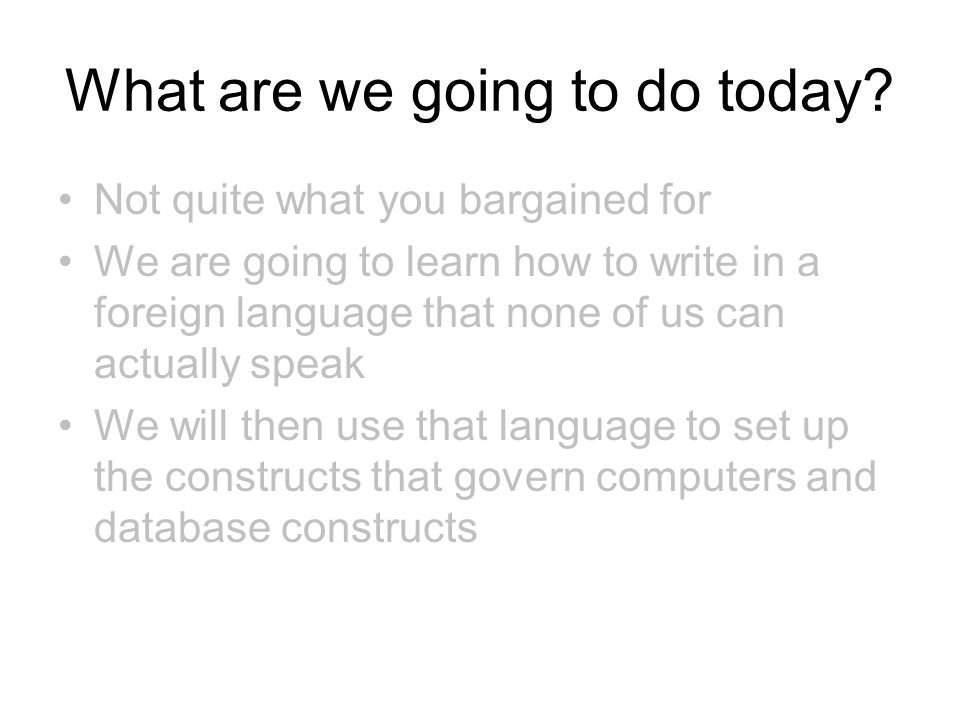

3. What are we going to do today? Not quite what you bargained for We are going to learn how to write in a foreign language that none of us can actually speak We will then use that language to set up the constructs that govern computers and database constructs

4. The Language Is…. KOREAN

5. Korean Words 말하다 This is a one word English physical action. So everyone take a guess by doing a physical action. SPEAK

6. Now That You Understand Korean… (pause for raucous laughter) Korean appears to be a graphical language, like Chinese and quite unlike English Looks are very deceiving though 말하다

7. KOREAN ALPHABET Korean is an alphabetical language! ConsonantsVowels

8. ConsonantsVowels 말하다 But wait….Those characters aren’t in the alphabet! Let’s take a closer look: So what exactly is each character in the phrase “speak”?

9. Syllables Each character in written Korean is actually a syllable! Any patterns?

10. ConsonantsVowels 말하다

11. Syllables Korean characters are syllables! Any patterns? –Consonant followed by a vowel –Consonant followed by a vowel followed by a consonant All characters in written Korean follow either of those two patterns A syllable is thus a composite of characters in a specified order (and they all exist ironically enough). Words, phrases, sentences, etc. are composite of syllables.

12. What About English? NOT SO SIMPLE!

13. Example What then does “qeb” mean? ABSOLUTELY NOTHING! “dog” CUTE, CUDDLY, FURRY ANIMAL THAT BARKS

14. English Language Syllables do not work with our alphabet Thus some are not valid Syllables are phonetically based Korean is a phonetically based language English is the hardest language to learn Korean is the easiest language to learn

15. Why Did We Do That? Necessity Computers and databases need a “Korean” type of language as opposed to an English type of language –Parsing –Relevancy Korean is a formal language

16. Formal Languages Characters –Letters, numbers, punctuation –Building blocks –We call these terminal symbols or axioms Uses of characters –Syllables, words, phrases, grammar, sentences, etc. –Buildings –We call these non-terminal symbols or production rules or predicates

17. Where do we find them? Music Mathematics World Languages Art Computer Languages Almost Anywhere

18. Conventions The production rules form the syntax (grammar/spelling) of a language Valid combinations under the syntax are called well formed formulas (sentences) Example: –Jack in the box –We should say: Jack is in the box. JACK BOX IN

19. Forming a WFF Operators are needed for these languages: | = exclusive or ::= = is replaced by [ ] = optional (0 or 1) { } = optional (0 to many) “ ” = designators of terminal symbols Examples of situations for these? Assigning a sign (+ or -) Fullname ::= First Last Area code Letters in a name

20. Programming Korean Syllables Start with what we are trying to create

21. Korean Syllables start ::= syllable start “is replaced by” syllable

22. Programming Korean Syllables Start with what we are trying to create Establish the form of the creation

23. Korean Syllables start ::= syllable syllable ::= consonant vowel [consonant] consonant followed by a vowel another consonant if necessary

24. Programming Korean Syllables Start with what we are trying to create Establish the form of the creation Establish the terminal symbols

25. Korean Syllables can be substituted for consonant can be substituted for vowel start ::= syllable syllable ::= consonant vowel [consonant] consonant ::= “A” | “B” | “C” | “D” | “E” | “F” | “G” | “H” | “I” | “J” | “K” | “L” | “M” | “N” vowel ::= “0” | “1” | “2” | “3” | “4” | “5” | “6” | “7” | “8” | “9”

26. Let’s Try to Program Korean Syllables Start with what we are trying to create Establish the form of the creation Establish the terminal symbols Congratulations! We can now generate any Korean syllable mechanically Let’s test a few examples

27. start ::= syllable syllable ::= consonant vowel [consonant] consonant ::= “A” | “B” | “C” | “D” | “E” | “F” | “G” | “H” | “I” | “J” | “K” | “L” | “M” | “N” vowel ::= “0” | “1” | “2” | “3” | “4” | “5” | “6” | “7” | “8” | “9” Korean Syllables A3A?100? AAA?K9?M4? O7K? 3D? C3P0?

28. Syllables aren’t enough though… We speak and write in words What do we need to do to make our program generate possible Korean words?

29. Korean Words start ::= word word ::= {syllable} arbitrary number of syllables What is wrong with this? A word can have 0 syllables??? How can we deal with this?

30. Korean Words Revised start ::= word word ::= syllable {syllable} one syllable 0 to n more possible Now add the lines from syllable

31. Korean Words start ::= word word ::= syllable {syllable} syllable ::= consonant vowel [consonant] consonant ::= “A” | “B” | “C” | “D” | “E” | “F” | “G” | “H” | “I” | “J” | “K” | “L” | “M” | “N” vowel ::= “0” | “1” | “2” | “3” | “4” | “5” | “6” | “7” | “8” | “9”

32. This goes to show that semantics are not accounted for in a formal language. The Problem with English… DOGSHYBEEAXE QEV No matter what, we can’t define syllables or words such that we get all “words” as results (provided we don’t code all words in)! start ::= syllable syllable ::= consonant vowel [consonant] consonant ::= “B” | “C” | “D” | “F” | “G” | “H” | “J” | “K” | “L” | “M” | “N” | “P” | “Q” | “R” | “S” | “T” | “V” | “W” | “X” | “Y” | “Z” | vowel ::= “A” | “E” | “I” | “O” | “U”

33. Positive Integers Let’s construct a language for positive integers on the board.

34. Why Formal Languages? Mathematical Induction –How many syllables exist in Korean? 14 Consonants * 10 Vowels * (14 Consonants + 1 Blank) = 2,100 –How many syllables in English? Can’t tell without counting one by one

35. Why Formal Languages? Parsing –Conversion to other useful information Φ = “ph” 1/2 = ½

36. Why Formal Languages? Grafiti Palm Pilots –Allow for symbolic recognition –Writing on a small object easier than typing on one (texting on a cell phone)

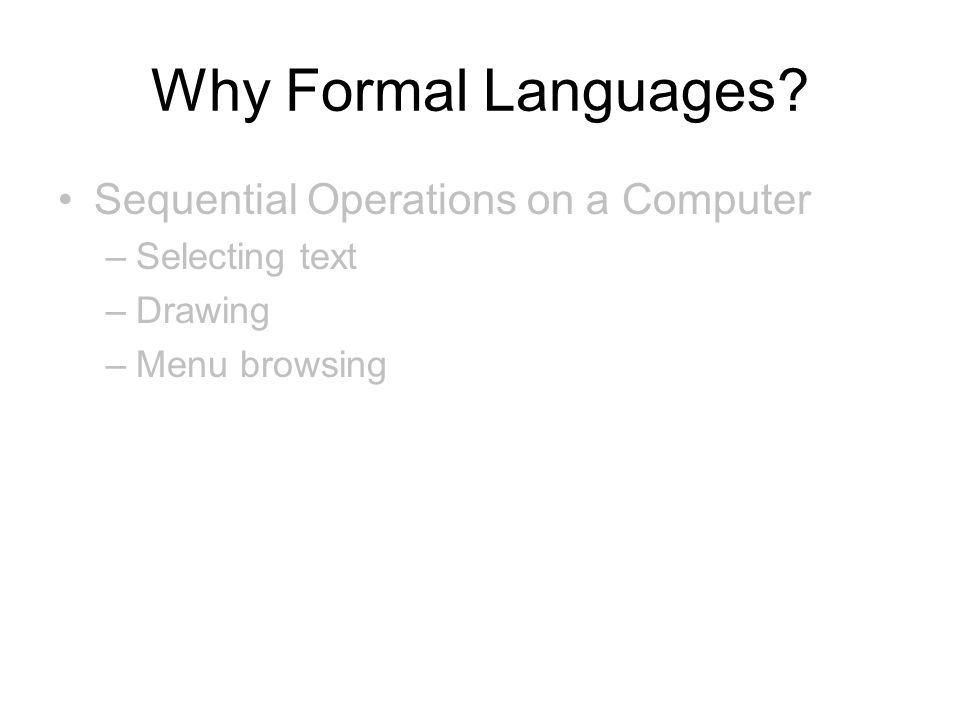

37. Why Formal Languages? Sequential Operations on a Computer –Selecting text –Drawing –Menu browsing

38. Why Formal Languages? Mechanical recognition of commands –Spell checkers –Proper commands in DOS prompt

39. To think about Won’t be collected, but for your own exercise: Create a formal language that will output addition and subtraction questions for positive integers, namely 4+9-7=? –Should be able to do arbitrary amount of calculations –No leading zeroes for a number Discuss on Friday
