1. AutoCons Manjeri Krishnan Brian Borchers Texas Instruments, Inc. 1 Taming the Constraints Beast:

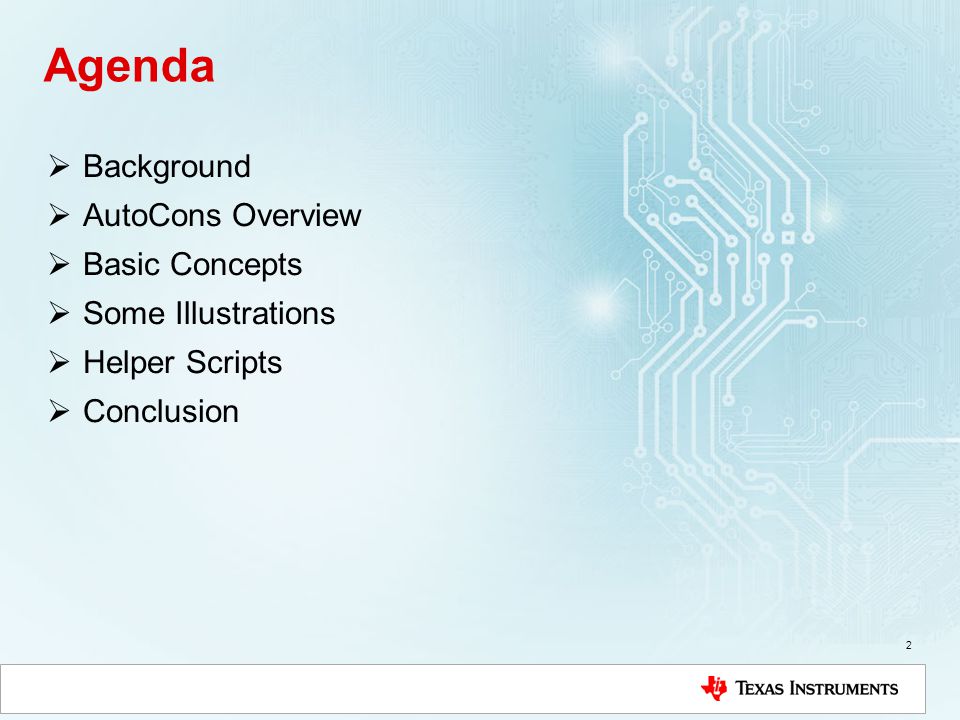

2. Agenda  Background  AutoCons Overview  Basic Concepts  Some Illustrations  Helper Scripts  Conclusion 2

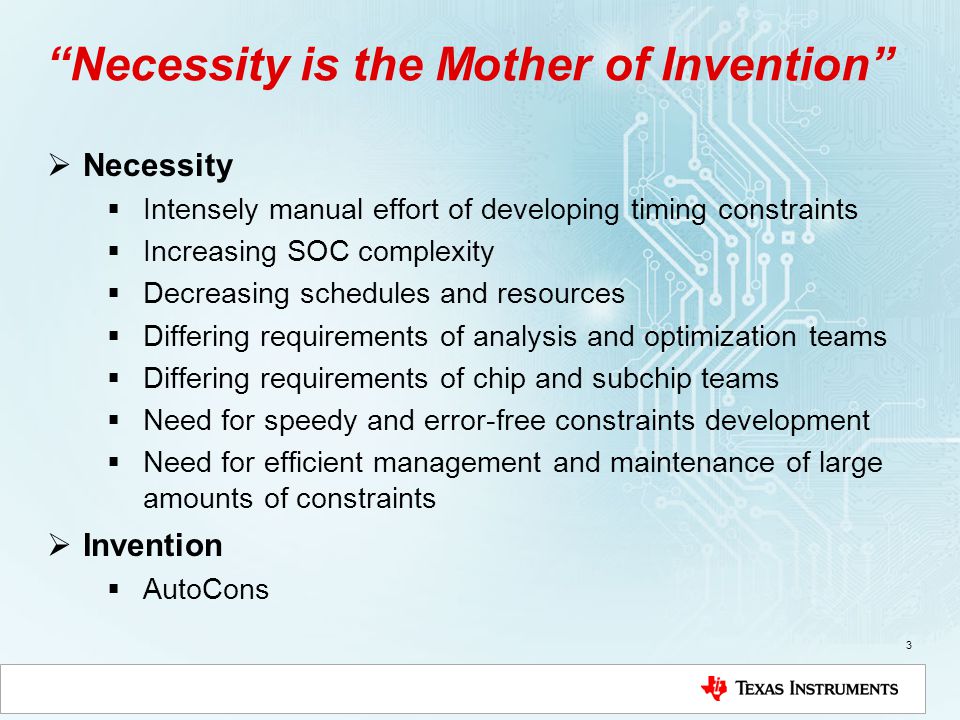

3. “Necessity is the Mother of Invention”  Necessity  Intensely manual effort of developing timing constraints  Increasing SOC complexity  Decreasing schedules and resources  Differing requirements of analysis and optimization teams  Differing requirements of chip and subchip teams  Need for speedy and error-free constraints development  Need for efficient management and maintenance of large amounts of constraints  Invention  AutoCons … 3

4. Sample Target Design  1.2GHz, 28nm, 208mm 2  2.7B transistors, 37.7M instances  Over 60 subchips  Flat STA signoff at chip-level  3 STA and OPT modes  Over 1500 clock definitions  Mission mode tcl constraints  Over 44K lines at chip-level  Over 89K lines at subchip-level 4 Constraints Beast

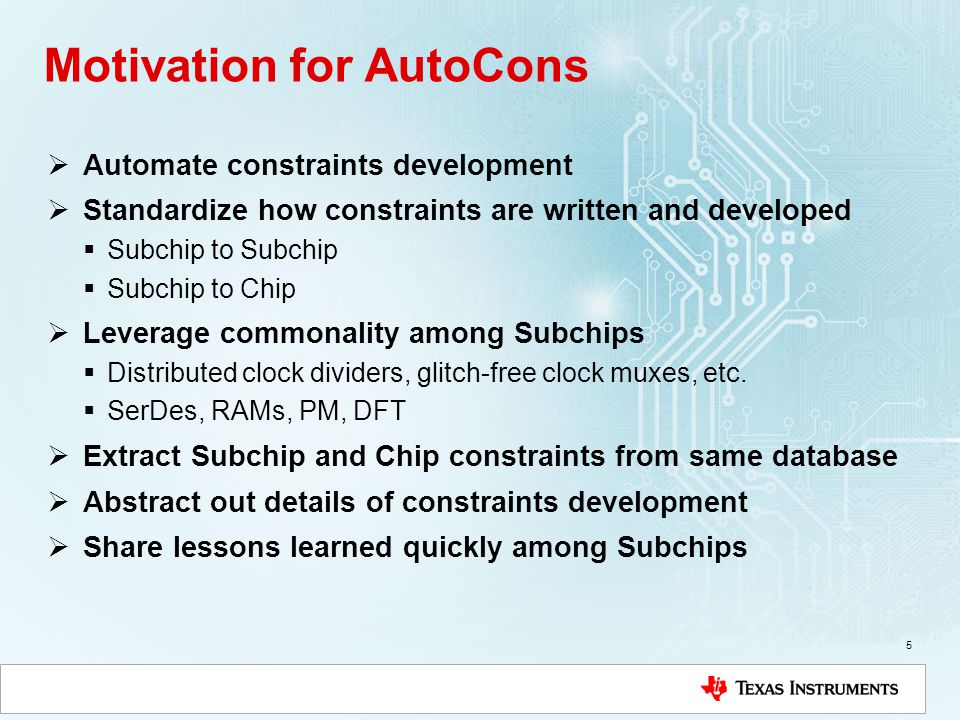

5. Motivation for AutoCons  Automate constraints development  Standardize how constraints are written and developed  Subchip to Subchip  Subchip to Chip  Leverage commonality among Subchips  Distributed clock dividers, glitch-free clock muxes, etc.  SerDes, RAMs, PM, DFT  Extract Subchip and Chip constraints from same database  Abstract out details of constraints development  Share lessons learned quickly among Subchips 5

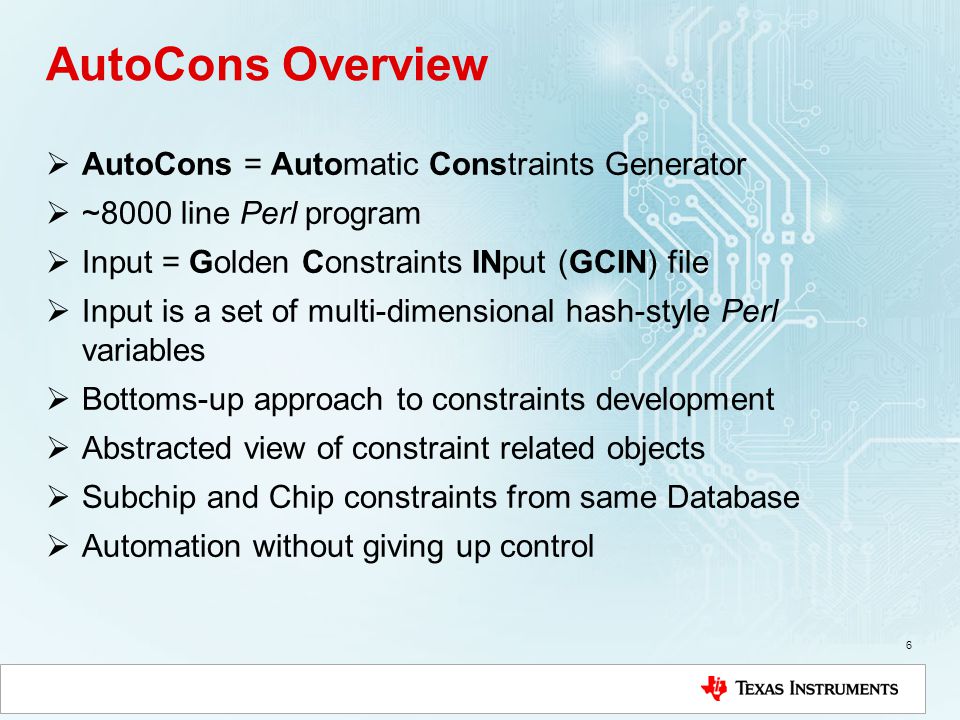

6. AutoCons Overview  AutoCons = Automatic Constraints Generator  ~8000 line Perl program  Input = Golden Constraints INput (GCIN) file  Input is a set of multi-dimensional hash-style Perl variables  Bottoms-up approach to constraints development  Abstracted view of constraint related objects  Subchip and Chip constraints from same Database  Automation without giving up control 6

7. AutoCons Overview - Flow 7 AutoCons miss.tcl hold.tcl atpg.tcl miss.tcl hold.tcl atpg.tcl miss.tcl tftc.tcl atpg.tcl GCIN file(s) 300K lines 22K lines

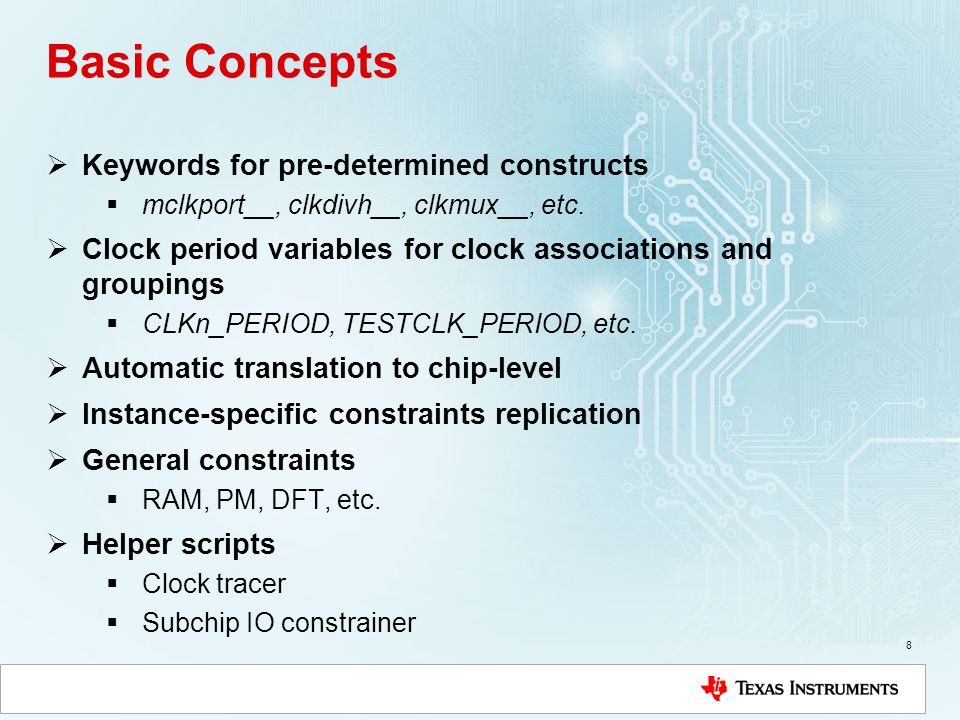

8. Basic Concepts  Keywords for pre-determined constructs  mclkport__, clkdivh__, clkmux__, etc.  Clock period variables for clock associations and groupings  CLKn_PERIOD, TESTCLK_PERIOD, etc.  Automatic translation to chip-level  Instance-specific constraints replication  General constraints  RAM, PM, DFT, etc.  Helper scripts  Clock tracer  Subchip IO constrainer 8

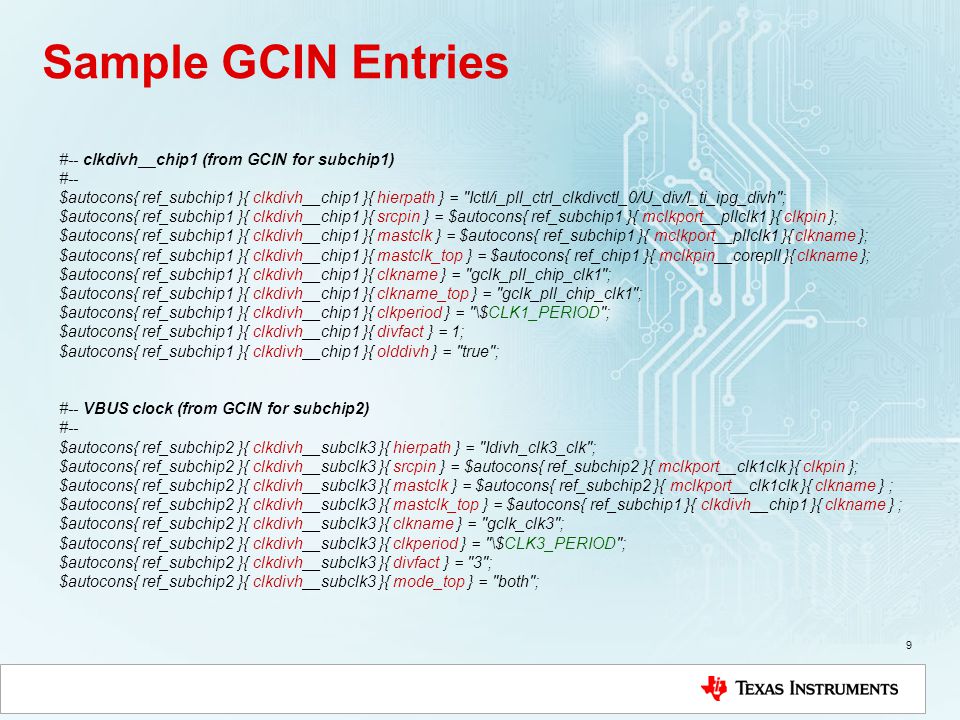

9. Sample GCIN Entries 9 #-- clkdivh__chip1 (from GCIN for subchip1) #-- $autocons{ ref_subchip1 }{ clkdivh__chip1 }{ hierpath } = "Ictl/i_pll_ctrl_clkdivctl_0/U_div/I_ti_ipg_divh"; $autocons{ ref_subchip1 }{ clkdivh__chip1 }{ srcpin } = $autocons{ ref_subchip1 }{ mclkport__pllclk1 }{ clkpin }; $autocons{ ref_subchip1 }{ clkdivh__chip1 }{ mastclk } = $autocons{ ref_subchip1 }{ mclkport__pllclk1 }{ clkname }; $autocons{ ref_subchip1 }{ clkdivh__chip1 }{ mastclk_top } = $autocons{ ref_chip1 }{ mclkpin__corepll }{ clkname }; $autocons{ ref_subchip1 }{ clkdivh__chip1 }{ clkname } = "gclk_pll_chip_clk1"; $autocons{ ref_subchip1 }{ clkdivh__chip1 }{ clkname_top } = "gclk_pll_chip_clk1"; $autocons{ ref_subchip1 }{ clkdivh__chip1 }{ clkperiod } = "\$CLK1_PERIOD"; $autocons{ ref_subchip1 }{ clkdivh__chip1 }{ divfact } = 1; $autocons{ ref_subchip1 }{ clkdivh__chip1 }{ olddivh } = "true"; #-- VBUS clock (from GCIN for subchip2) #-- $autocons{ ref_subchip2 }{ clkdivh__subclk3 }{ hierpath } = "Idivh_clk3_clk"; $autocons{ ref_subchip2 }{ clkdivh__subclk3 }{ srcpin } = $autocons{ ref_subchip2 }{ mclkport__clk1clk }{ clkpin }; $autocons{ ref_subchip2 }{ clkdivh__subclk3 }{ mastclk } = $autocons{ ref_subchip2 }{ mclkport__clk1clk }{ clkname } ; $autocons{ ref_subchip2 }{ clkdivh__subclk3 }{ mastclk_top } = $autocons{ ref_subchip1 }{ clkdivh__chip1 }{ clkname } ; $autocons{ ref_subchip2 }{ clkdivh__subclk3 }{ clkname } = "gclk_clk3"; $autocons{ ref_subchip2 }{ clkdivh__subclk3 }{ clkperiod } = "\$CLK3_PERIOD"; $autocons{ ref_subchip2 }{ clkdivh__subclk3 }{ divfact } = "3"; $autocons{ ref_subchip2 }{ clkdivh__subclk3 }{ mode_top } = "both";

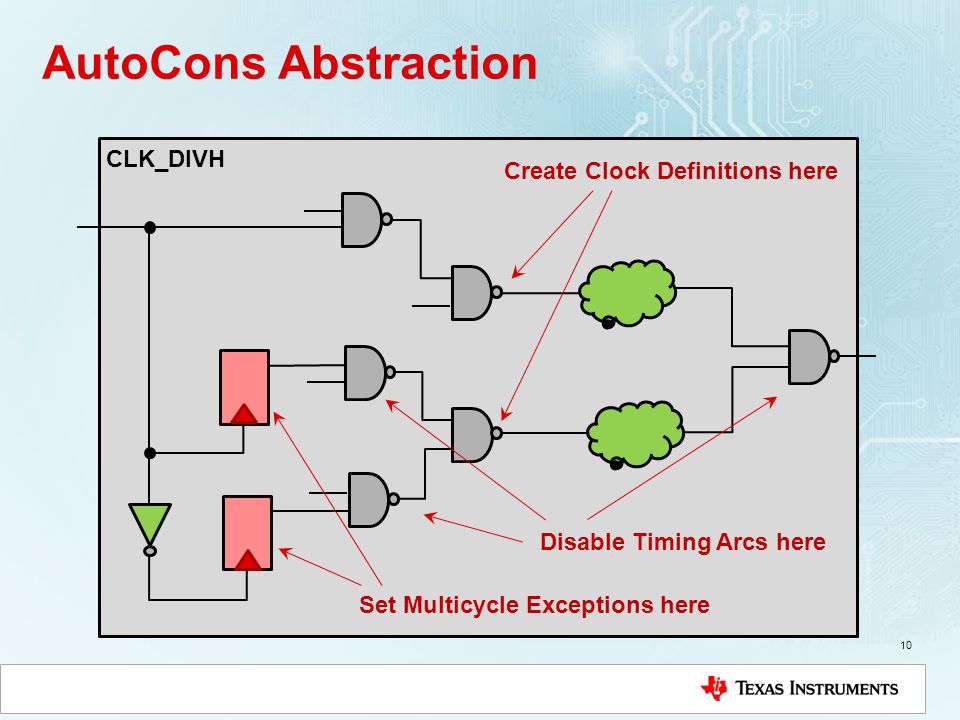

10. AutoCons Abstraction 10 Disable Timing Arcs here Create Clock Definitions here Set Multicycle Exceptions here CLK_DIVH

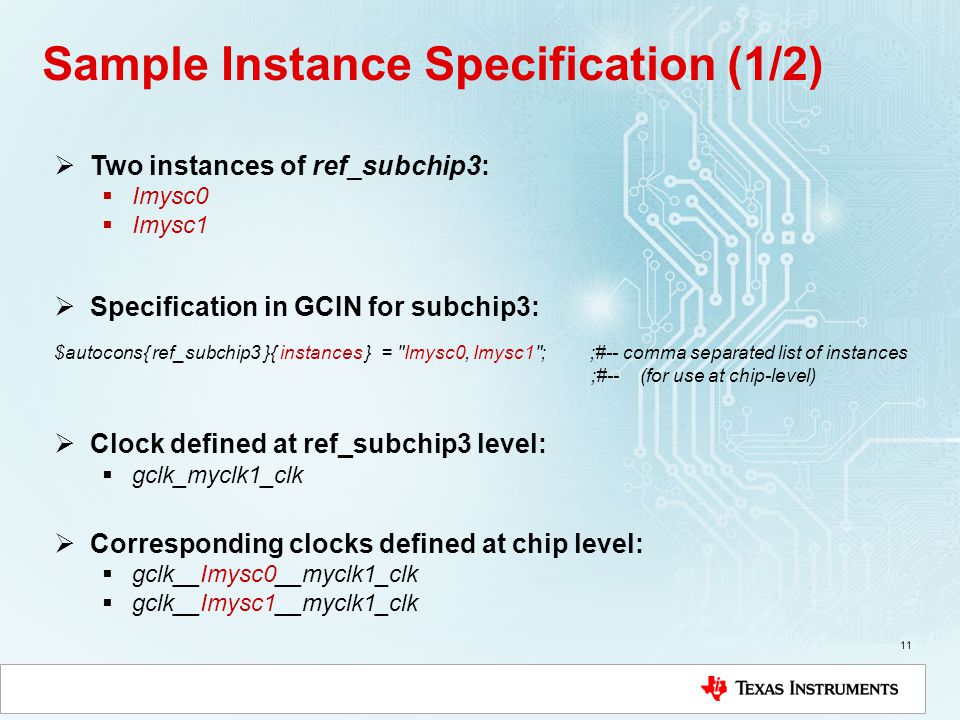

11. Sample Instance Specification (1/2) 11  Two instances of ref_subchip3:  Imysc0  Imysc1  Specification in GCIN for subchip3: $autocons{ ref_subchip3 }{ instances } = "Imysc0, Imysc1"; ;#-- comma separated list of instances ;#-- (for use at chip-level)  Clock defined at ref_subchip3 level:  gclk_myclk1_clk  Corresponding clocks defined at chip level:  gclk__Imysc0__myclk1_clk  gclk__Imysc1__myclk1_clk

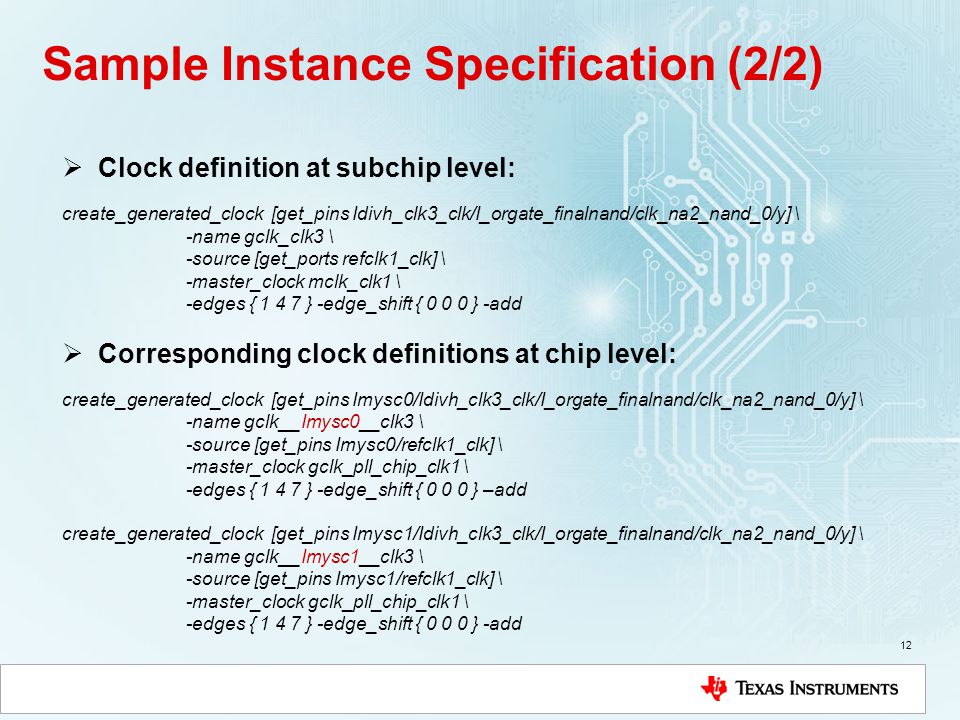

12. Sample Instance Specification (2/2) 12  Clock definition at subchip level: create_generated_clock [get_pins Idivh_clk3_clk/I_orgate_finalnand/clk_na2_nand_0/y] \ -name gclk_clk3 \ -source [get_ports refclk1_clk] \ -master_clock mclk_clk1 \ -edges { 1 4 7 } -edge_shift { 0 0 0 } -add  Corresponding clock definitions at chip level: create_generated_clock [get_pins Imysc0/Idivh_clk3_clk/I_orgate_finalnand/clk_na2_nand_0/y] \ -name gclk__Imysc0__clk3 \ -source [get_pins Imysc0/refclk1_clk] \ -master_clock gclk_pll_chip_clk1 \ -edges { 1 4 7 } -edge_shift { 0 0 0 } –add create_generated_clock [get_pins Imysc1/Idivh_clk3_clk/I_orgate_finalnand/clk_na2_nand_0/y] \ -name gclk__Imysc1__clk3 \ -source [get_pins Imysc1/refclk1_clk] \ -master_clock gclk_pll_chip_clk1 \ -edges { 1 4 7 } -edge_shift { 0 0 0 } -add

13. Helper Scripts – Clock Tracer  Used to understand clocking of given netlist  Traces gate-mapped netlist to identify clock objects and clock flow  Starts with all clock pins and traces backwards, then forwards  Finds all clock dividers, clock muxes, and primary clock IO (plus tieoffs, fanout stats, and control points)  Runs iteratively, taking in design-specific information as needed  Produces a textual representation of clock flow and objects 13

14. Sample Clock Tracer Output 14 CLOCK BRANCH SRC: refclk1_clk >> CLOCK TREE FANOUT = 259 << Idbg/Idbg_wrap/Idivh_clk3_clk/I_c_clkin_clockgate/tiboxv_clk_icg_icg_0/clkin (icg_f4_svt) Idbg/Idbg_wrap/Idivh_clk3_clk/I_c_ti_ipg_div1_dummynand1/tiboxv_clk_na2_nand_0/a (ctnand2_f8_dh_svt) Idbg/Idbg_wrap/Idivh_clk3_clk/I_c_ti_ipg_div1_dummynand1/tiboxv_clk_na2_nand_0/b (ctnand2_f8_dh_svt) **Logic 1** Idbg/Idbg_wrap/Idivh_clk3_clk/I_c_clksel_divideone_clockgate/tiboxv_clk_icg_inv_icg_0/clkin (icg_f4_svt) Idbg/Idbg_wrap/Idivh_clk3_clk/I_c_ti_ipg_mx_finalnand/tiboxv_clk_na2_nand_0/a (ctnand2_f8_dh_svt) >> CLOCK TREE FANOUT = 25188 << Idbg/Idbg_wrap/Idbg/I_dvs/I_ct_tbr/I_clkgen/I_sys/U0_FIRSTGCM/tiboxv_clk_icg_icg_0/clkin (icg_f4_svt) Idbg/Idbg_wrap/Idbg/I_dvs/I_ct_tbr/I_clkgen/I_sys/U0_SECONDGCM_0/tiboxv_clk_icg_icg_0/clkin (icg_f4_svt) Idbg/Idbg_wrap/Idbg/I_dvs/I_ct_tbr/I_tbrI_mem_ctl/I_rd_clk_mx2/tiboxv_clk_mx2_mux_0/b (ctmux2_f6_dh_svt) >> CLOCK TREE FANOUT = 24 << CLOCK BRANCH SRC: Idbg/Idbg_wrap/Idivh_clk3_clk/I_c_ti_ipg_mx_finalnand/tiboxv_clk_na2_nand_0 Idbg/Idbg_wrap/Idbg/I_dvs/I_mipi_stm/U0_ /Itiboxh_clk_mx2/tiboxv_clk_mx2_mux_0/b (ctmux2_f6_dh_svt) CLOCK BRANCH SRC: Idbg/Idbg_wrap/Idivh_clk3_clk/I_c_clkin_clockgate/tiboxv_clk_icg_icg_0 Idbg/Idbg_wrap/Idivh_clk3_clk/I_c_ti_ipg_divh_clkoutreg/tiboxv_clk_reg_apncn_reg_0/clk (ctsdffbqs_f4_dh_svt) Idbg/Idbg_wrap/Idivh_clk3_clk/I_c_ti_ipg_orgate_nanda/tiboxv_clk_na2_nand_0/a (ctnand2_f8_dh_svt) Idbg/Idbg_wrap/Idivh_clk3_clk/I_c_ti_ipg_orgate_nanda/tiboxv_clk_na2_nand_0/b (ctnand2_f8_dh_svt) **Control Branch** Idbg/Idbg_wrap/Idivh_clk3_clk/I_c_ti_ipg_orgate_finalnand/tiboxv_clk_na2_nand_0/b (ctnand2_f8_dh_svt) Idbg/Idbg_wrap/Idivh_clk3_clk/I_c_clksel_divout_clockgate/tiboxv_clk_icg_inv_icg_0/clkin (icg_f4_svt) Idbg/Idbg_wrap/Idivh_clk3_clk/I_c_ti_ipg_mx_finalnand/tiboxv_clk_na2_nand_0/b (ctnand2_f8_dh_svt) >> CLOCK TREE FANOUT = 25188 <<

15. Helper Scripts – Subchip IO Constrainer  Used to constrain subchip IO  Runs on gate-mapped netlist with AutoCons constraints loaded  Traces netlist to associate each input and output port with correct clocks  Applies IO constraint as a predetermined fraction of clock cycle time  Handles situation of an input (output) port that is captured (driven) by multiple clocks 15

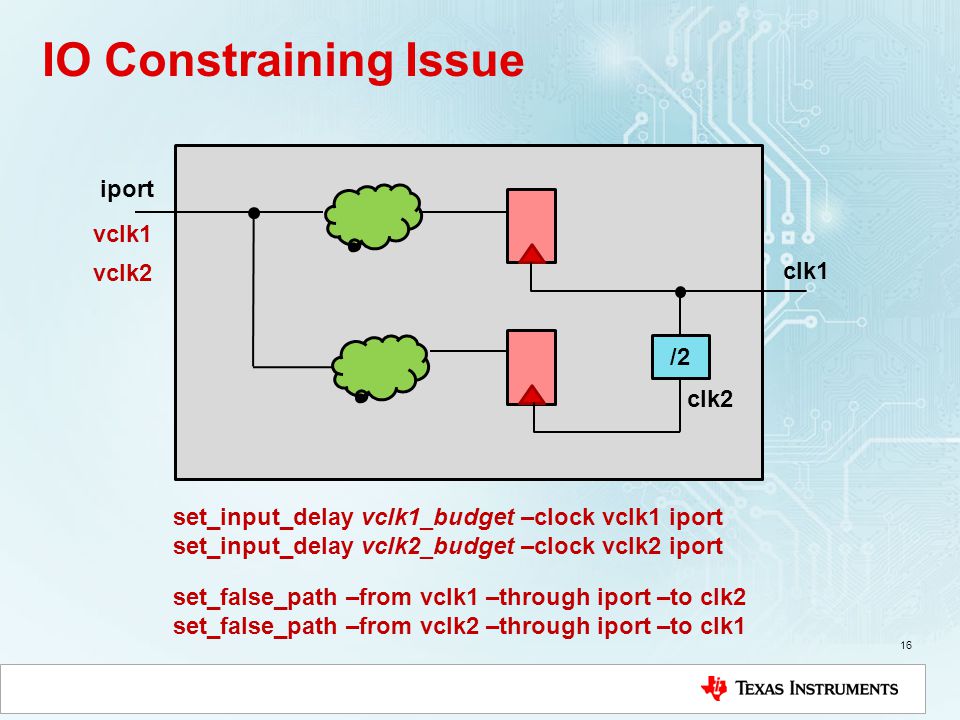

16. IO Constraining Issue 16 set_false_path –from vclk1 –through iport –to clk2 set_false_path –from vclk2 –through iport –to clk1 set_input_delay vclk1_budget –clock vclk1 iport set_input_delay vclk2_budget –clock vclk2 iport iport clk1 /2 clk2 vclk1 vclk2

17. Conclusion  Automation is the way forward  AutoCons is here to stay (4 successful SOCs so far)  Standardization is a key enabler for automation  Methodology changes to enable more automation 17

18. 18

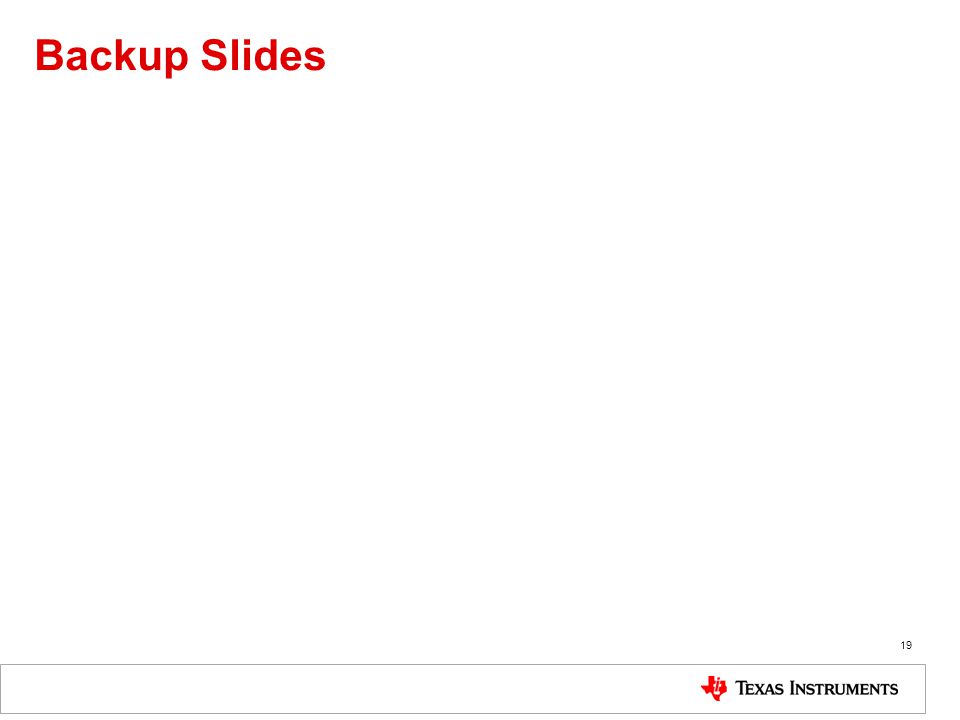

19. Backup Slides 19

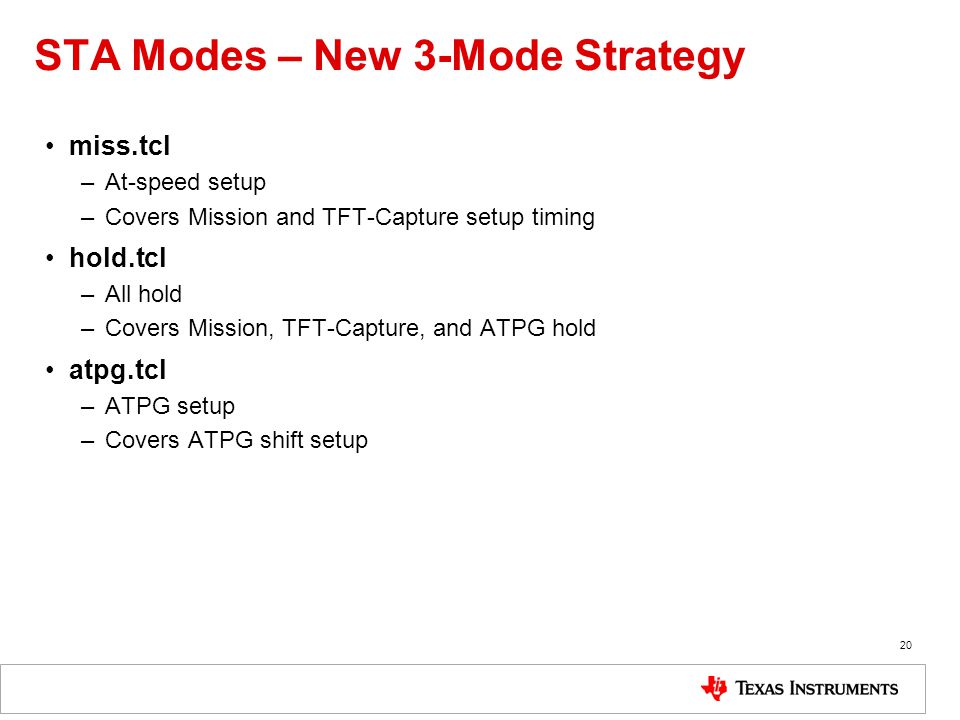

20. STA Modes – New 3-Mode Strategy miss.tcl –At-speed setup –Covers Mission and TFT-Capture setup timing hold.tcl –All hold –Covers Mission, TFT-Capture, and ATPG hold atpg.tcl –ATPG setup –Covers ATPG shift setup 20

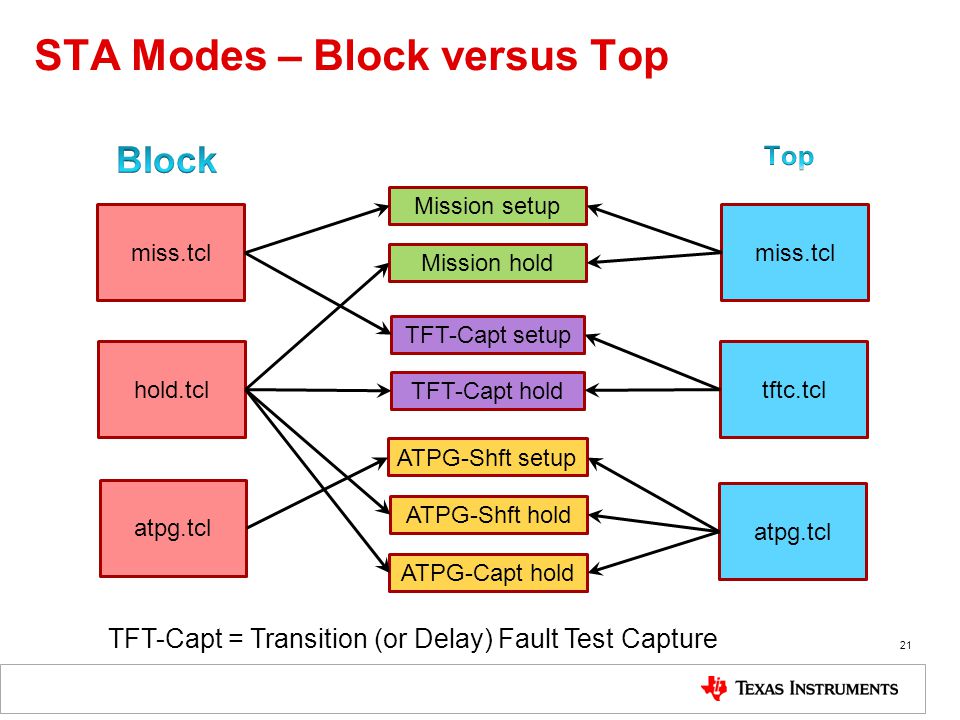

21. STA Modes – Block versus Top 21 miss.tcl hold.tcl atpg.tcl miss.tcl atpg.tcl tftc.tcl Mission setup Mission hold TFT-Capt setup TFT-Capt hold ATPG-Shft setup ATPG-Shft hold ATPG-Capt hold TFT-Capt = Transition (or Delay) Fault Test Capture

22. Fully Automatic IO Constraining Clocking configurations that can be fully constrained automatically 22 mclk fclk divh mclk gclk divh mclk fclk gclk bcp, bcr, fftc, intc, qm, tac, vcp eag_cpu, eag_l2_tbnk

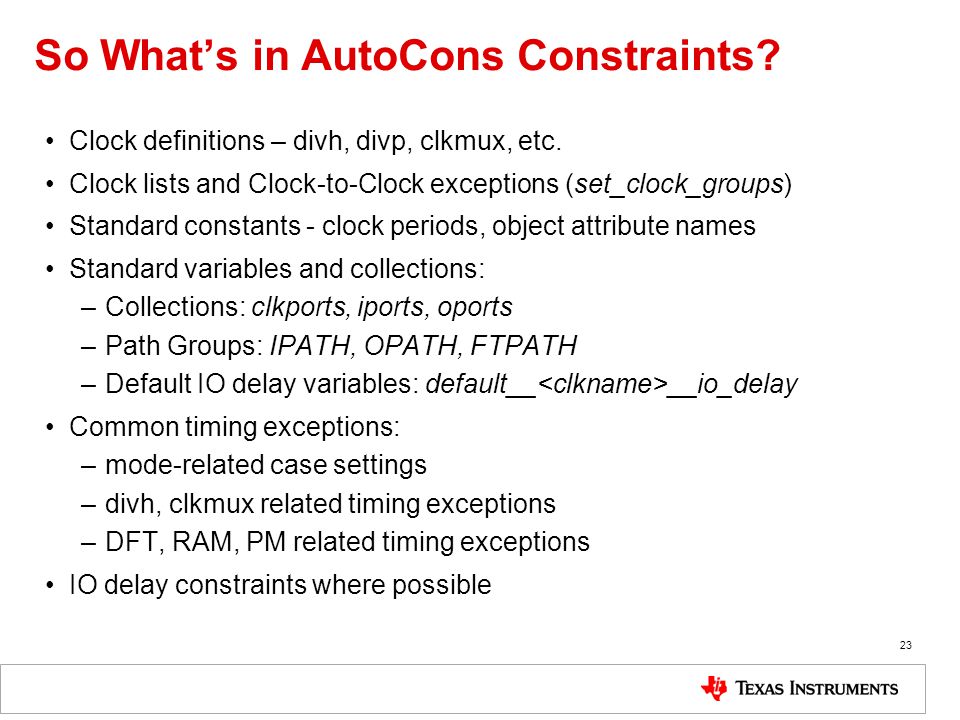

23. 23 So What’s in AutoCons Constraints? Clock definitions – divh, divp, clkmux, etc. Clock lists and Clock-to-Clock exceptions (set_clock_groups) Standard constants - clock periods, object attribute names Standard variables and collections: –Collections: clkports, iports, oports –Path Groups: IPATH, OPATH, FTPATH –Default IO delay variables: default__ __io_delay Common timing exceptions: –mode-related case settings –divh, clkmux related timing exceptions –DFT, RAM, PM related timing exceptions IO delay constraints where possible
