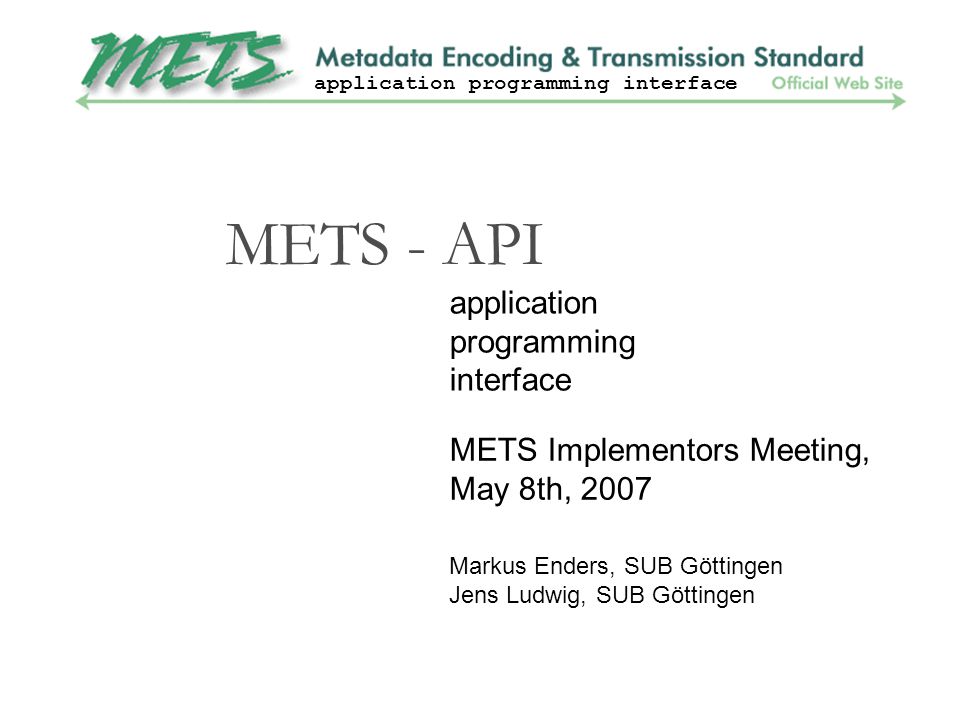

1. application programming interface METS - API application programming interface Markus Enders, SUB Göttingen Jens Ludwig, SUB Göttingen METS Implementors Meeting, May 8th, 2007

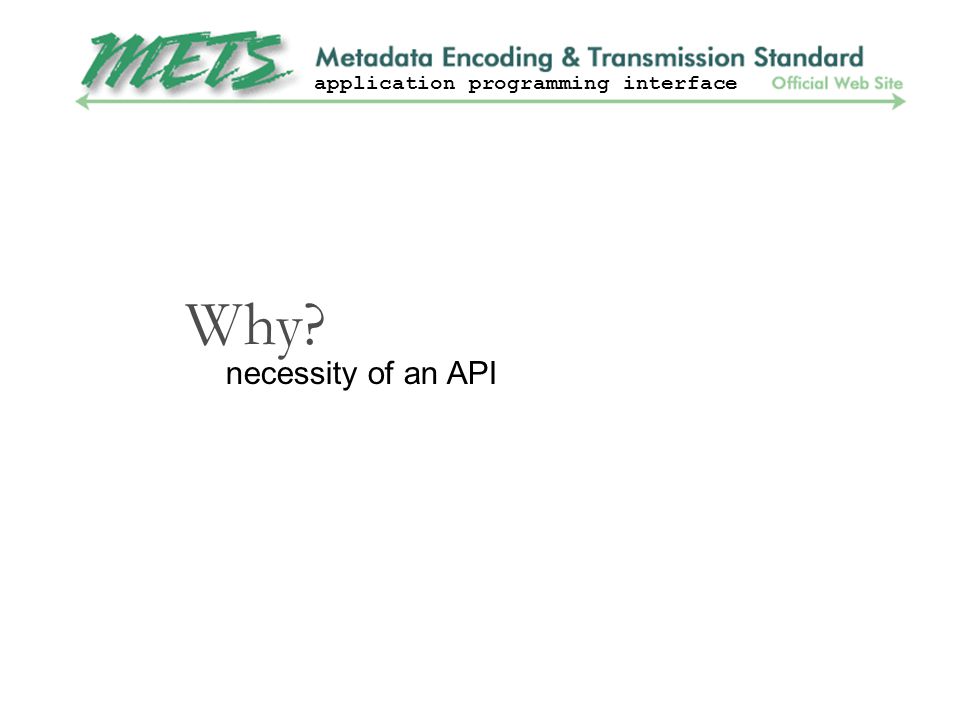

2. application programming interface Why? necessity of an API

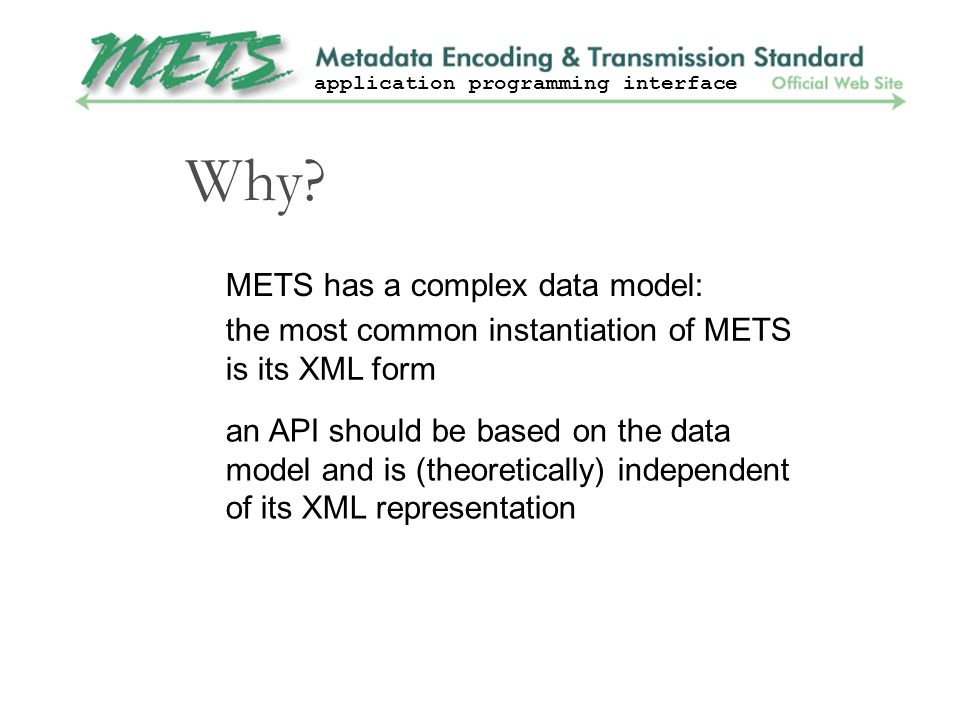

3. application programming interface Why? METS has a complex data model: the most common instantiation of METS is its XML form an API should be based on the data model and is (theoretically) independent of its XML representation

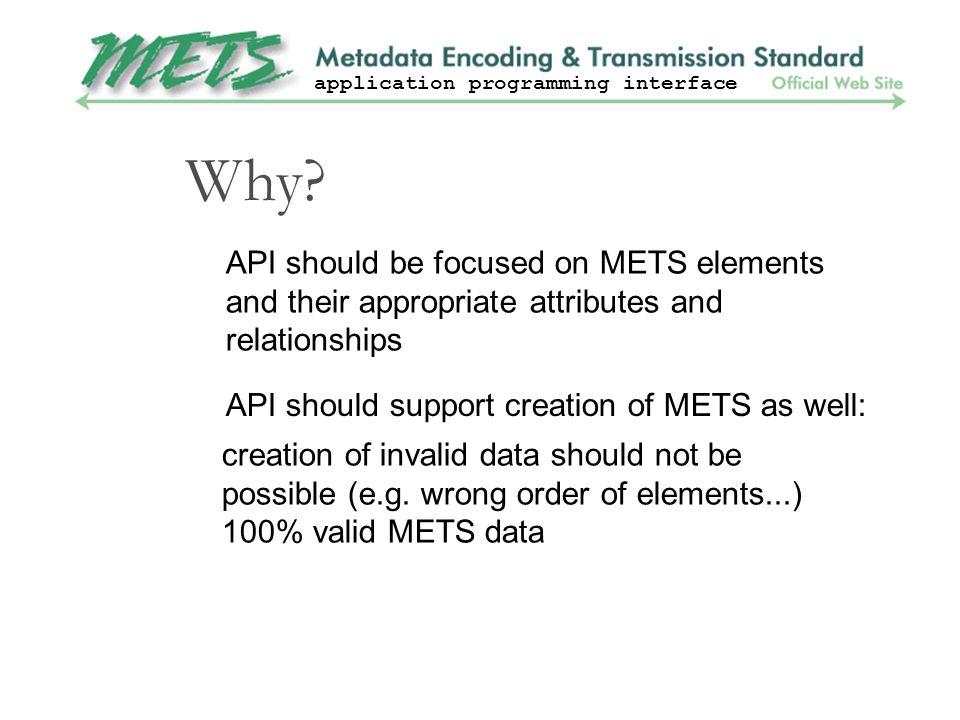

4. application programming interface Why? API should support creation of METS as well: creation of invalid data should not be possible (e.g. wrong order of elements...) 100% valid METS data API should be focused on METS elements and their appropriate attributes and relationships

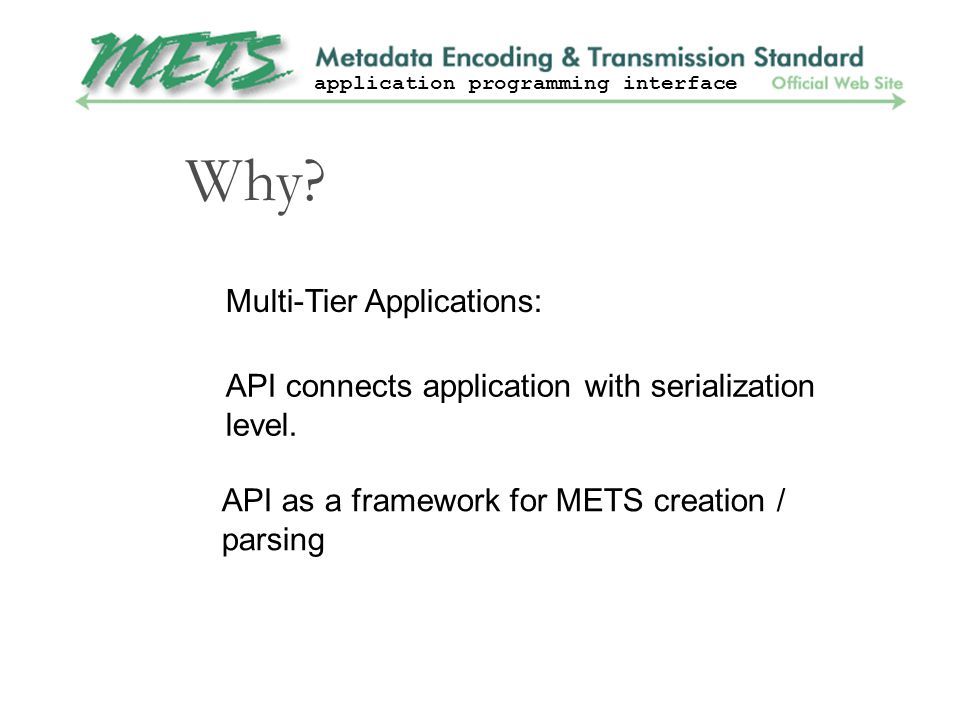

5. application programming interface Why? API connects application with serialization level. API as a framework for METS creation / parsing Multi-Tier Applications:

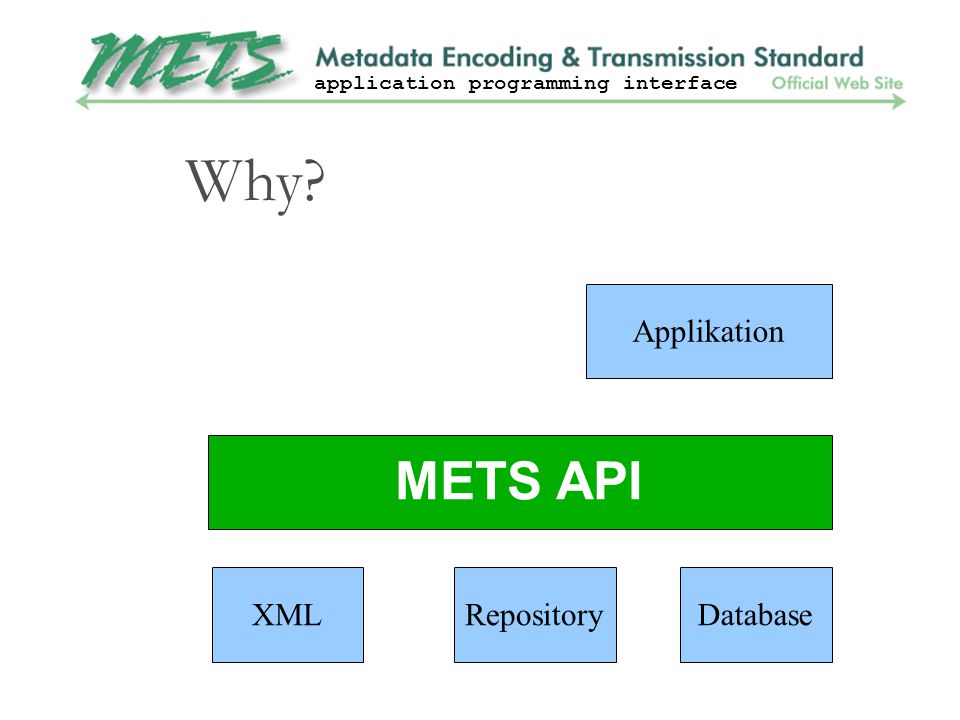

6. application programming interface Why? METS API DatabaseRepositoryXML Applikation

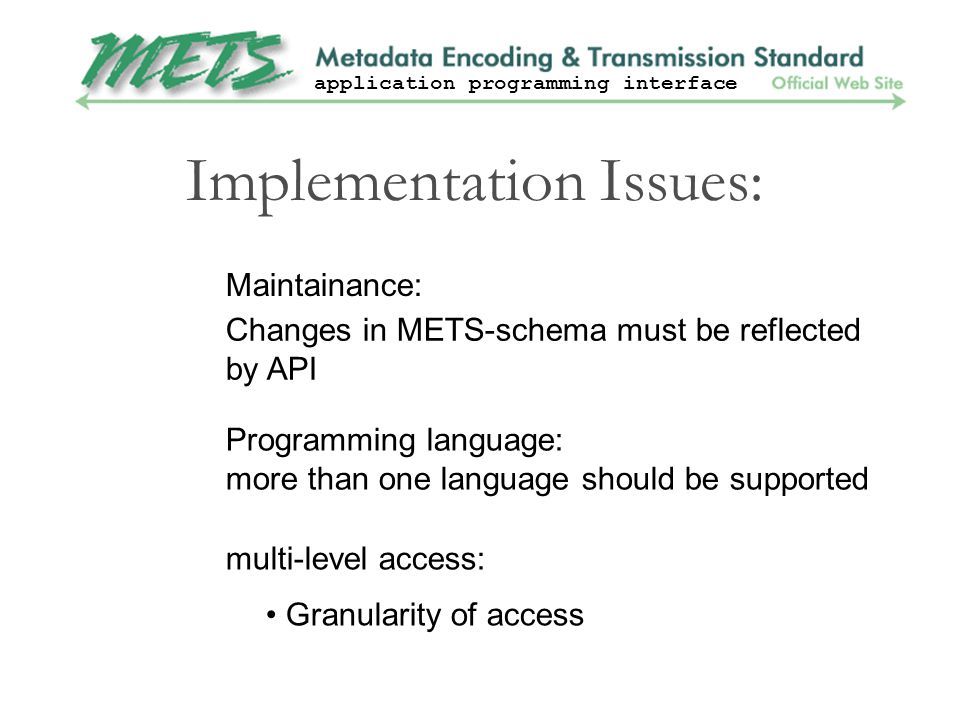

7. application programming interface Implementation Issues: Maintainance: Changes in METS-schema must be reflected by API Programming language: more than one language should be supported multi-level access: Granularity of access

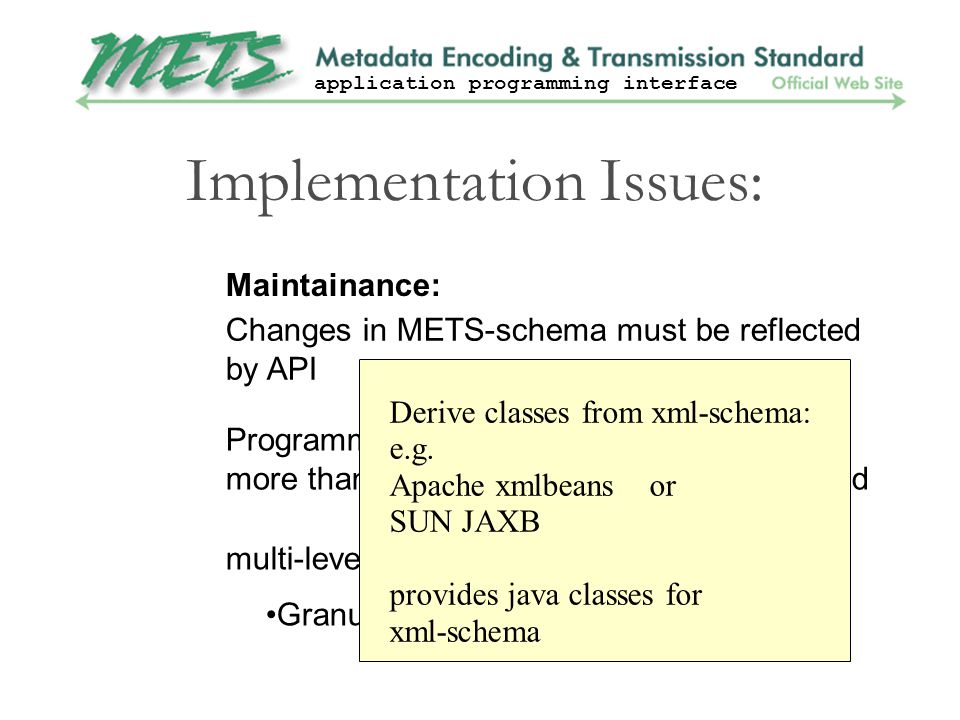

8. application programming interface Implementation Issues: Maintainance: Changes in METS-schema must be reflected by API Programming language: more than one language should be supported multi-level access: Granularity of access Derive classes from xml-schema: e.g. Apache xmlbeans or SUN JAXB provides java classes for xml-schema

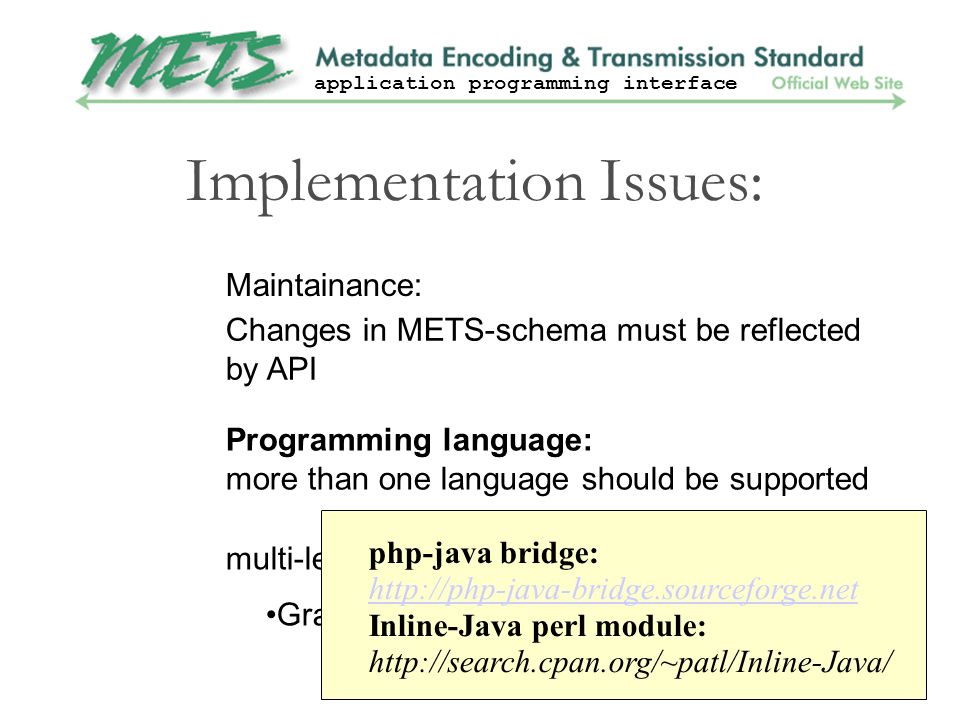

9. application programming interface Implementation Issues: Maintainance: Changes in METS-schema must be reflected by API Programming language: more than one language should be supported multi-level access: Granularity of access php-java bridge: http://php-java-bridge.sourceforge.net Inline-Java perl module: http://search.cpan.org/~patl/Inline-Java/

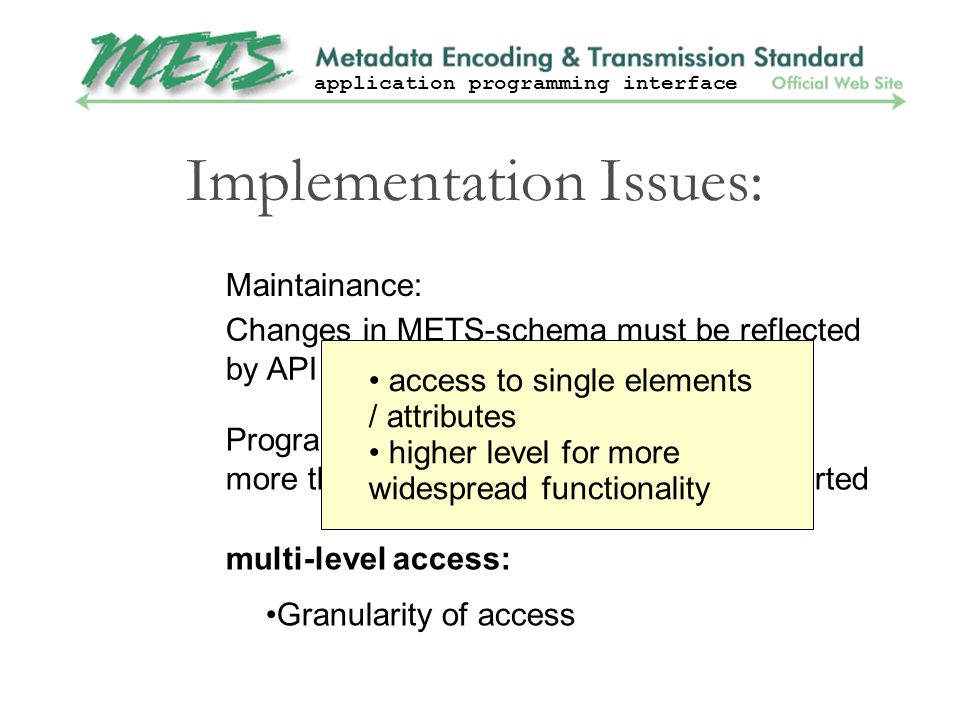

10. application programming interface Implementation Issues: Maintainance: Changes in METS-schema must be reflected by API Programming language: more than one language should be supported multi-level access: Granularity of access access to single elements / attributes higher level for more widespread functionality

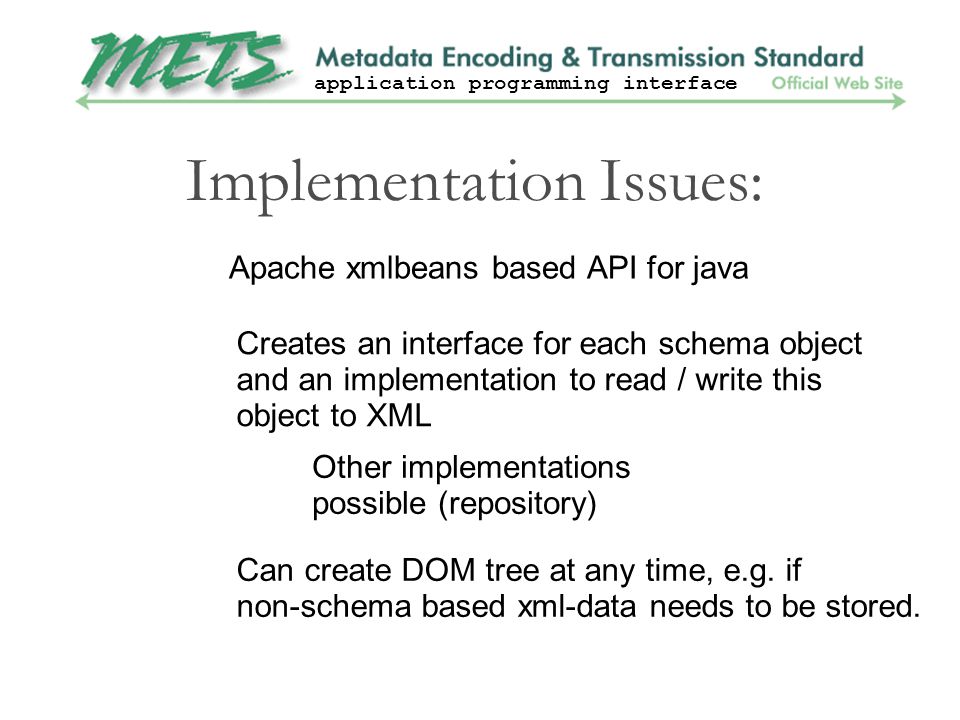

11. application programming interface Implementation Issues: Apache xmlbeans based API for java Creates an interface for each schema object and an implementation to read / write this object to XML Other implementations possible (repository) Can create DOM tree at any time, e.g. if non-schema based xml-data needs to be stored.

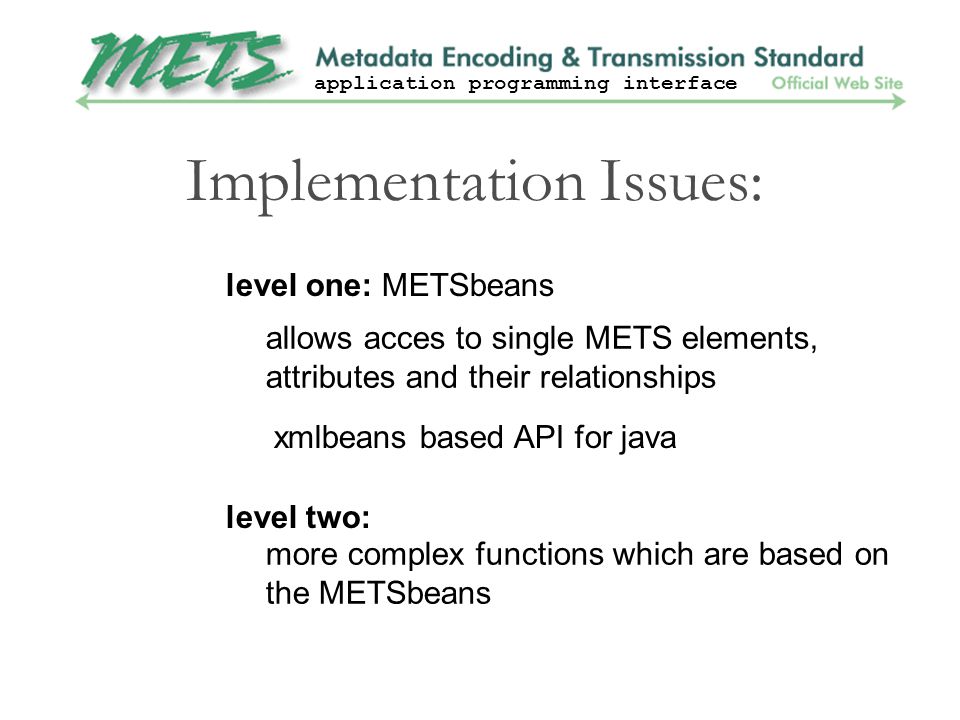

12. application programming interface Implementation Issues: level one: METSbeans xmlbeans based API for java allows acces to single METS elements, attributes and their relationships level two: more complex functions which are based on the METSbeans

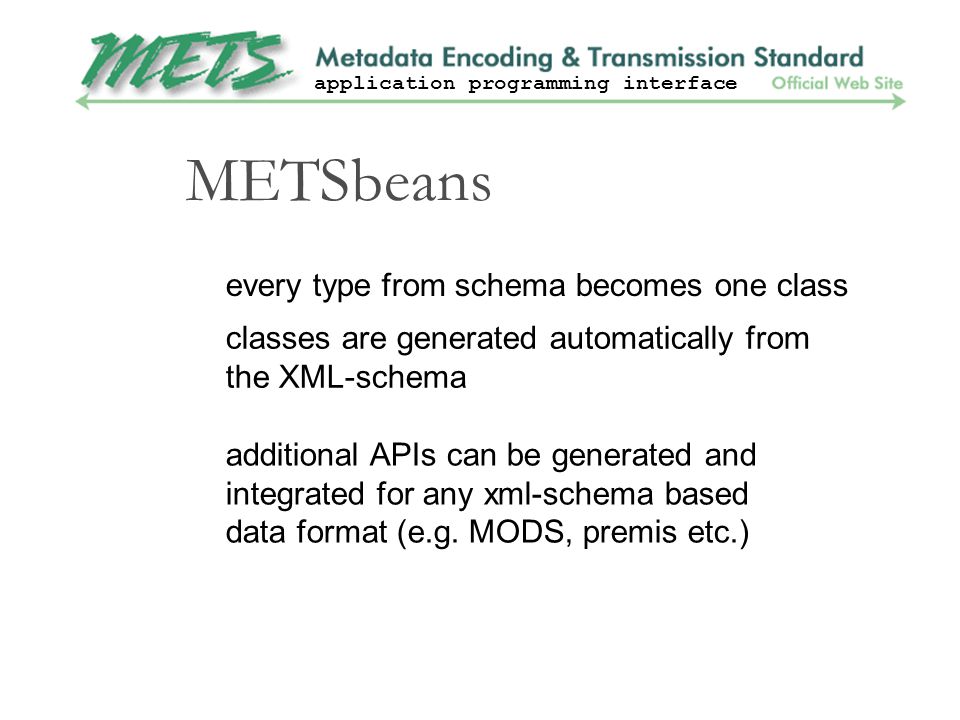

13. application programming interface METSbeans every type from schema becomes one class classes are generated automatically from the XML-schema additional APIs can be generated and integrated for any xml-schema based data format (e.g. MODS, premis etc.)

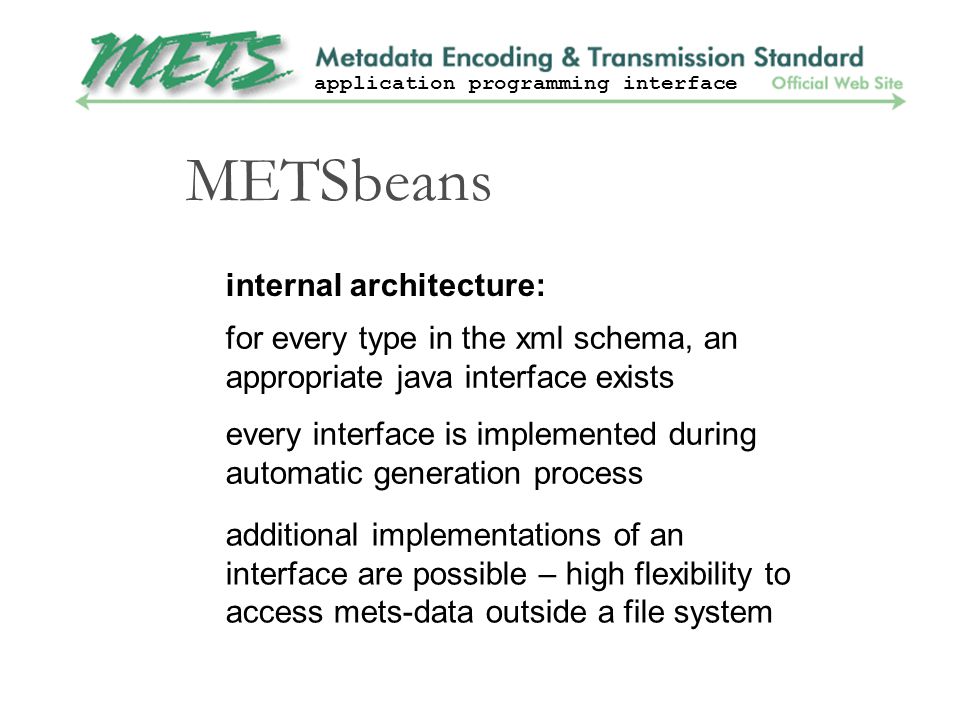

14. application programming interface METSbeans internal architecture: for every type in the xml schema, an appropriate java interface exists every interface is implemented during automatic generation process additional implementations of an interface are possible – high flexibility to access mets-data outside a file system

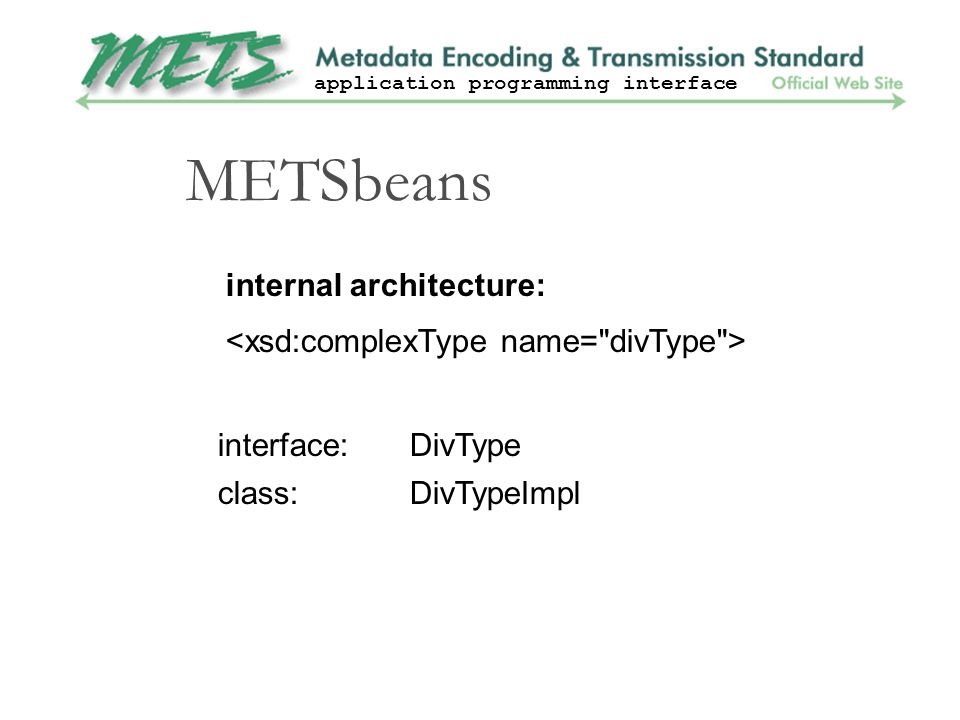

15. application programming interface METSbeans internal architecture: interface: DivType class: DivTypeImpl

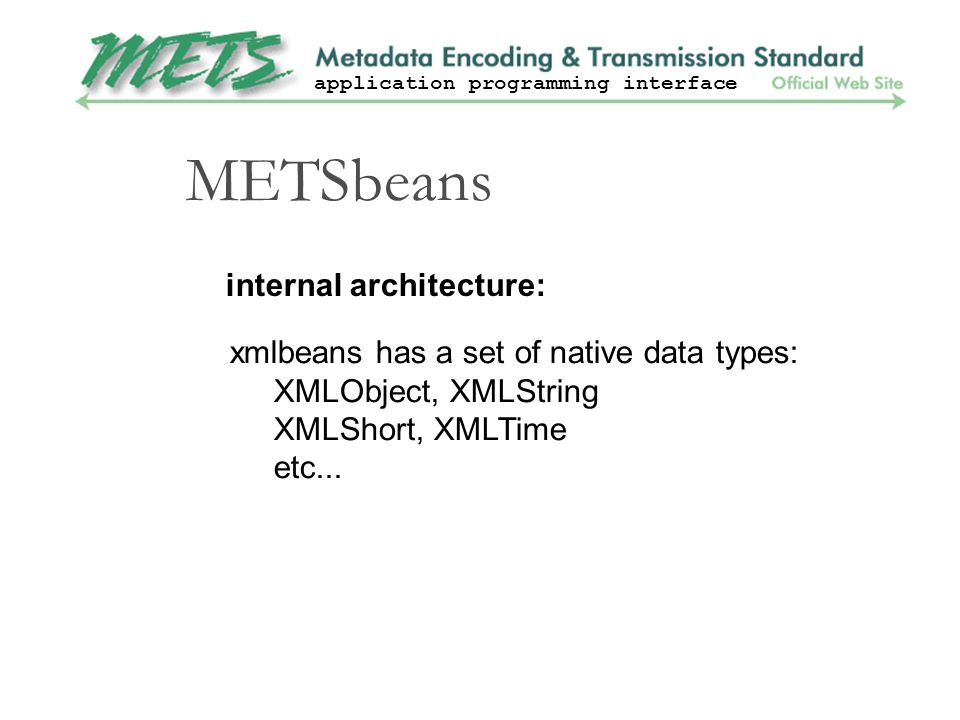

16. application programming interface METSbeans internal architecture: xmlbeans has a set of native data types: XMLObject, XMLString XMLShort, XMLTime etc...

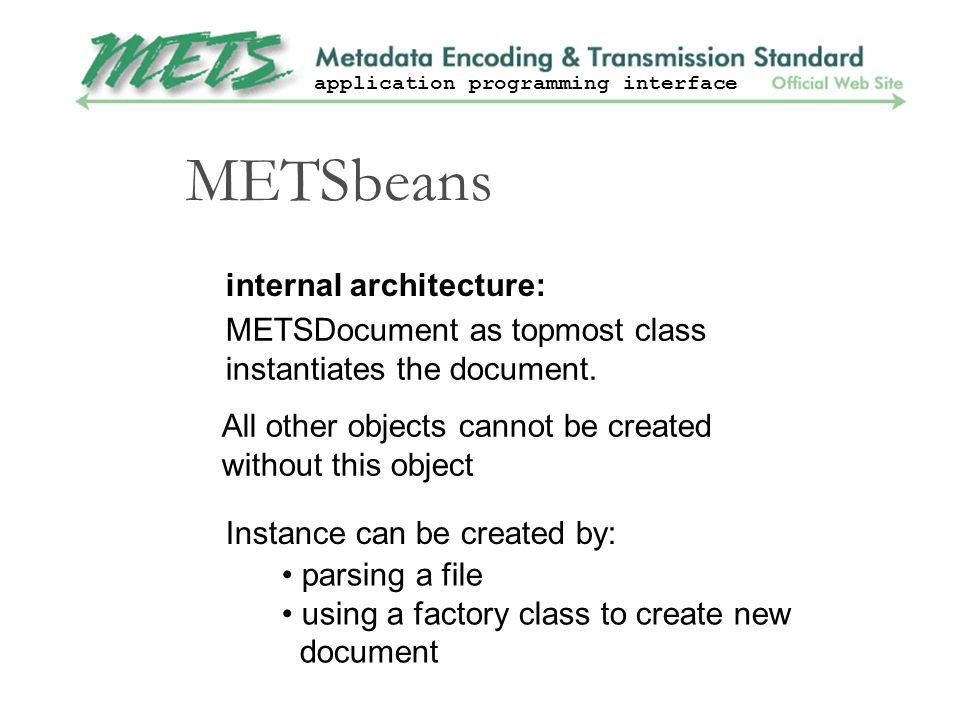

17. application programming interface METSbeans internal architecture: All other objects cannot be created without this object METSDocument as topmost class instantiates the document. Instance can be created by: parsing a file using a factory class to create new document

18. application programming interface METSbeans snippet: MetsDocument example factory class: MetsDocument mets=MetsDocument.Factory.newInstance(); try { xml = XmlObject.Factory.parse(f); } catch (XmlException e) { e.printStackTrace(); return false; } MetsDocument metsDoc=(MetsDocument) xml; example parsing a file:

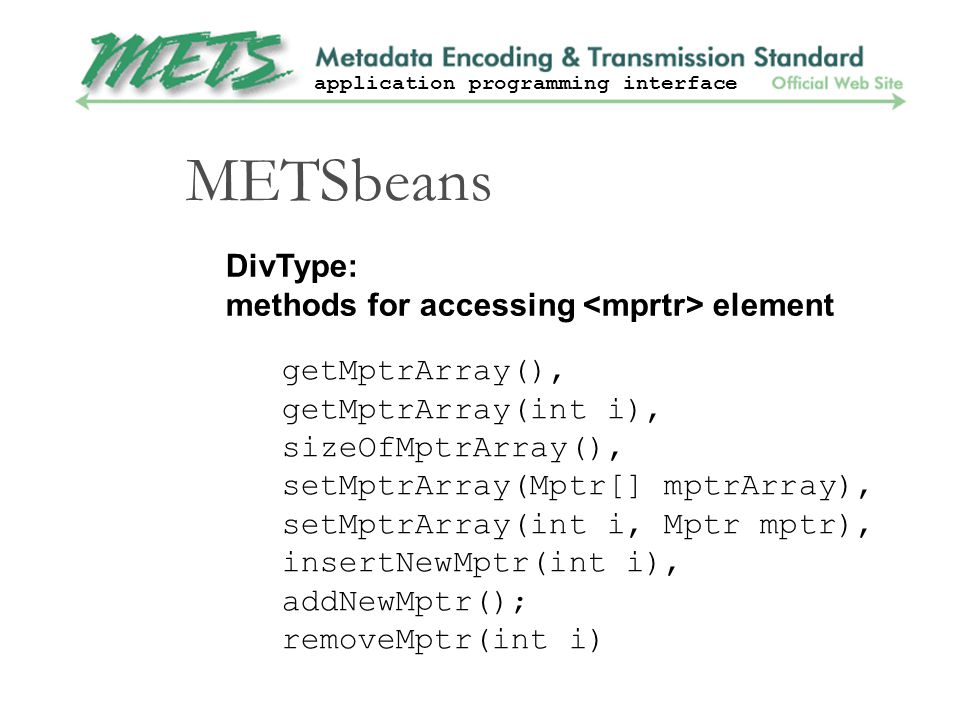

19. application programming interface METSbeans DivType: methods for accessing element getMptrArray(), getMptrArray(int i), sizeOfMptrArray(), setMptrArray(Mptr[] mptrArray), setMptrArray(int i, Mptr mptr), insertNewMptr(int i), addNewMptr(); removeMptr(int i)

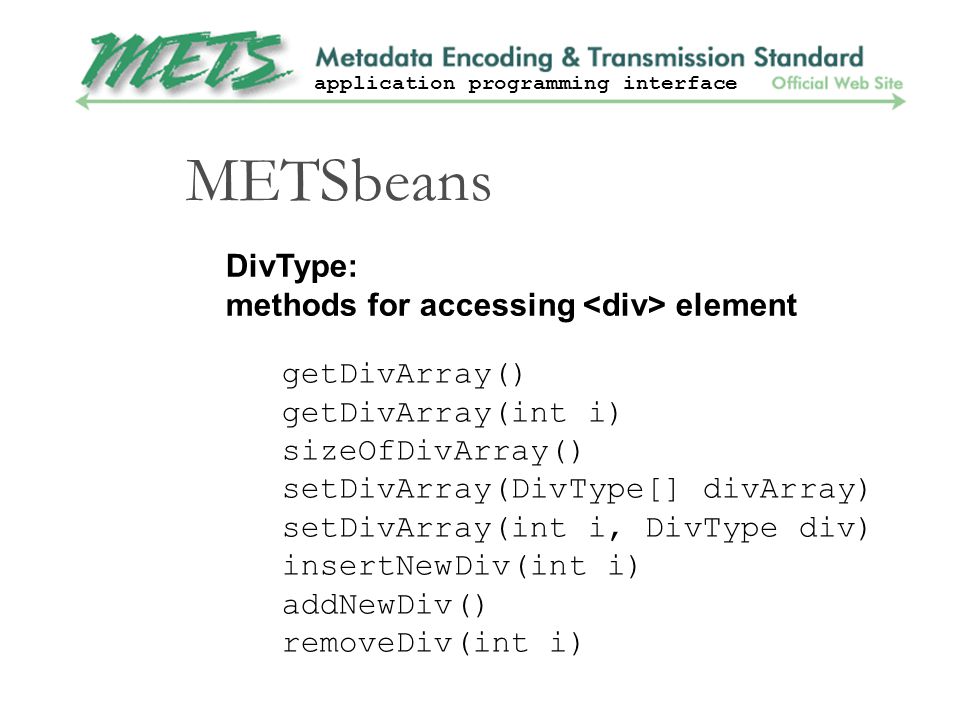

20. application programming interface METSbeans DivType: methods for accessing element getDivArray() getDivArray(int i) sizeOfDivArray() setDivArray(DivType[] divArray) setDivArray(int i, DivType div) insertNewDiv(int i) addNewDiv() removeDiv(int i)

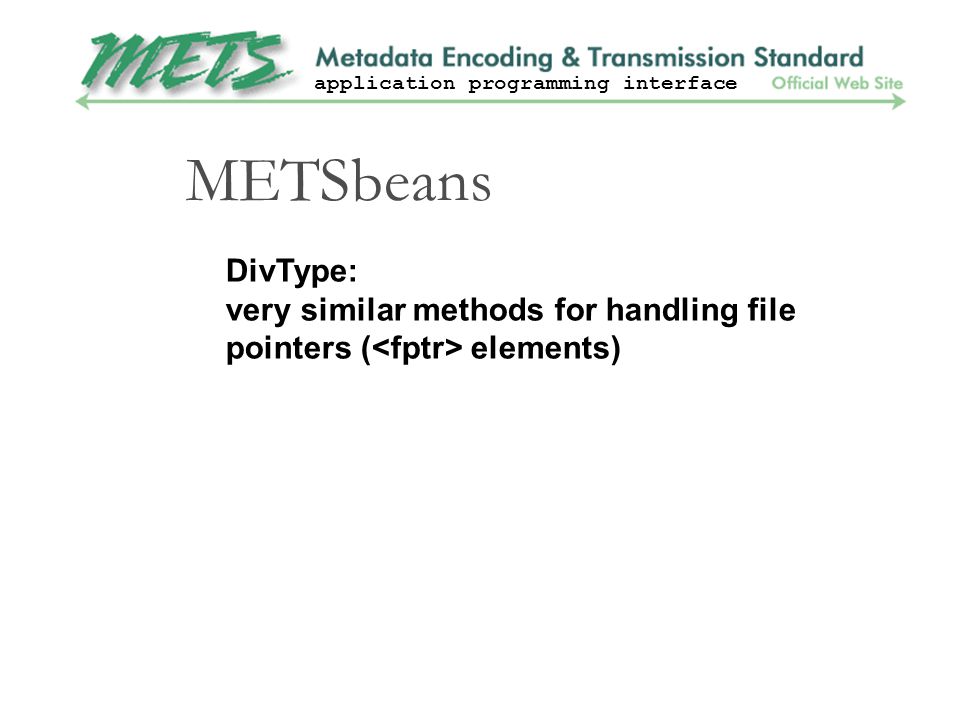

21. application programming interface METSbeans DivType: very similar methods for handling file pointers ( elements)

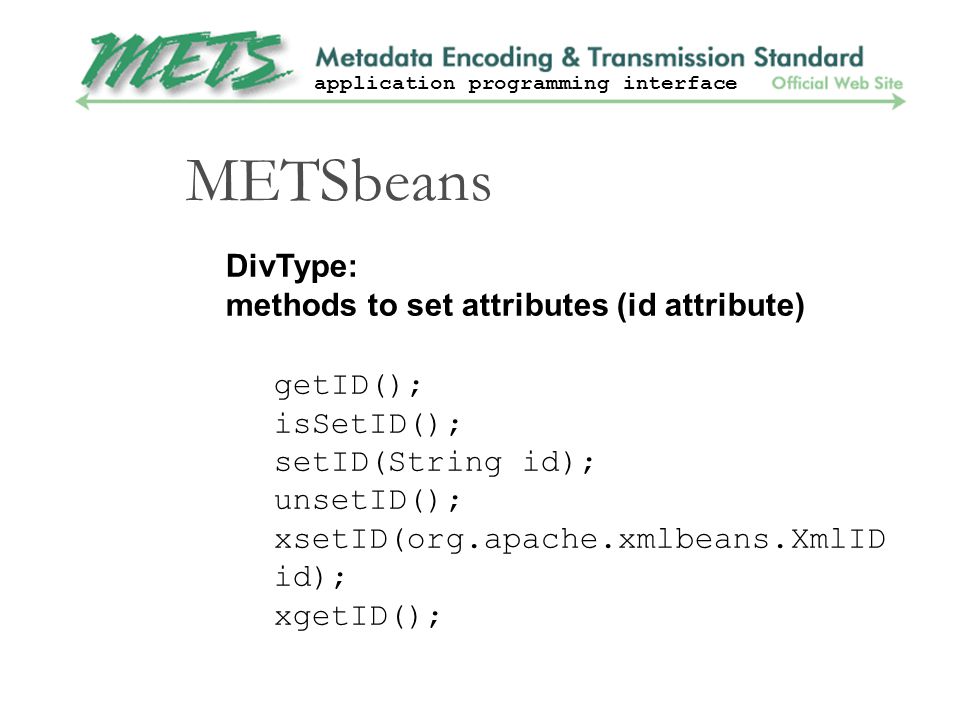

22. application programming interface METSbeans DivType: methods to set attributes (id attribute) getID(); isSetID(); setID(String id); unsetID(); xsetID(org.apache.xmlbeans.XmlID id); xgetID();

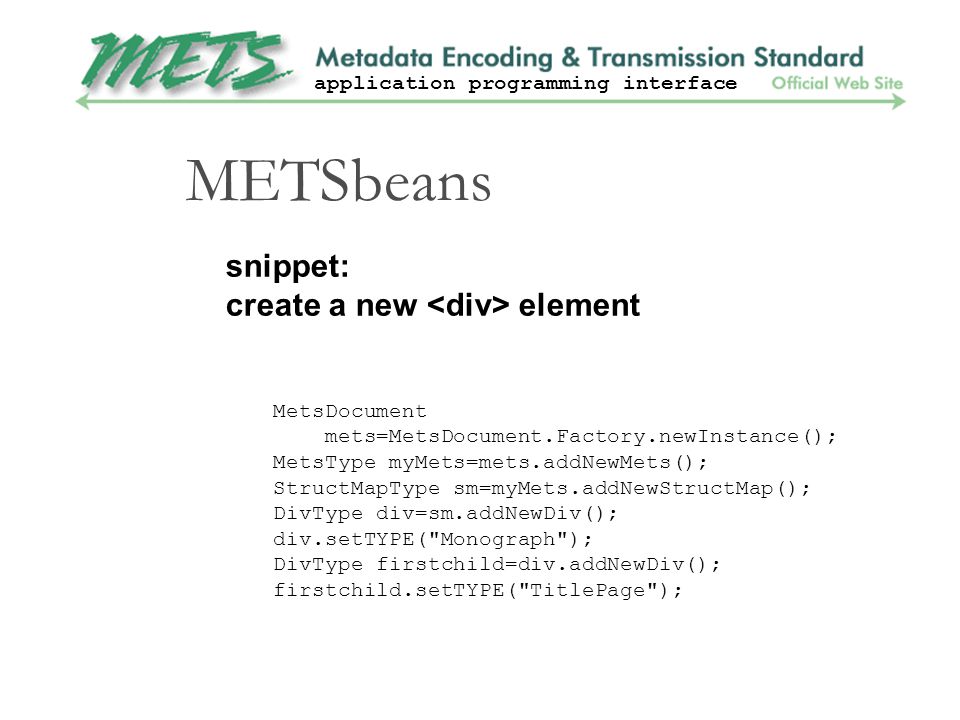

23. application programming interface METSbeans snippet: create a new element MetsDocument mets=MetsDocument.Factory.newInstance(); MetsType myMets=mets.addNewMets(); StructMapType sm=myMets.addNewStructMap(); DivType div=sm.addNewDiv(); div.setTYPE("Monograph"); DivType firstchild=div.addNewDiv(); firstchild.setTYPE("TitlePage");

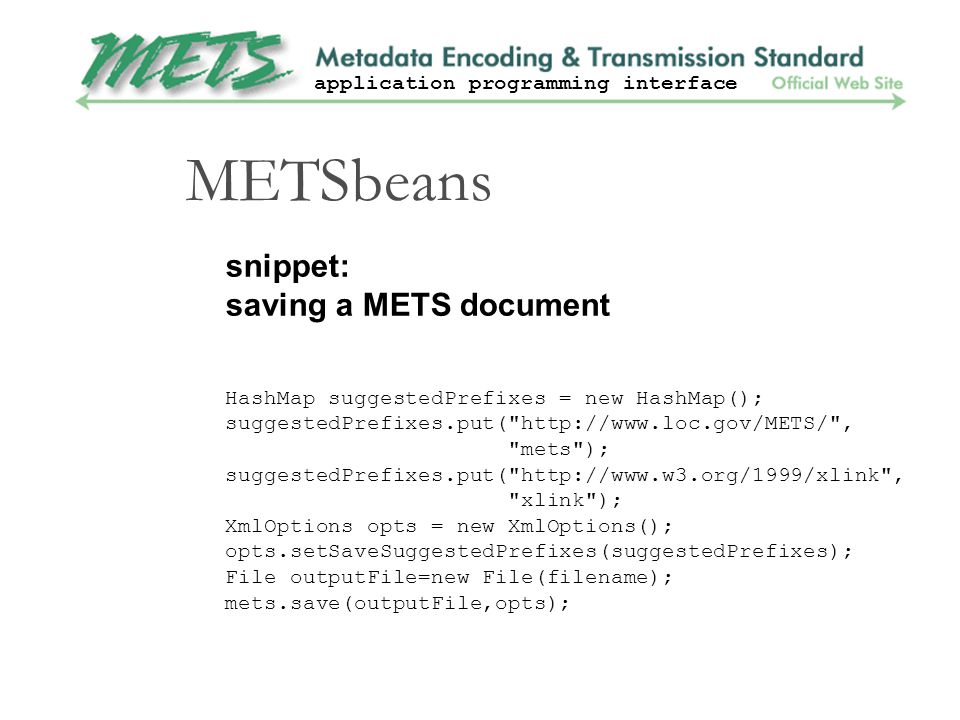

24. application programming interface METSbeans snippet: saving a METS document HashMap suggestedPrefixes = new HashMap(); suggestedPrefixes.put("http://www.loc.gov/METS/", "mets"); suggestedPrefixes.put("http://www.w3.org/1999/xlink", "xlink"); XmlOptions opts = new XmlOptions(); opts.setSaveSuggestedPrefixes(suggestedPrefixes); File outputFile=new File(filename); mets.save(outputFile,opts);

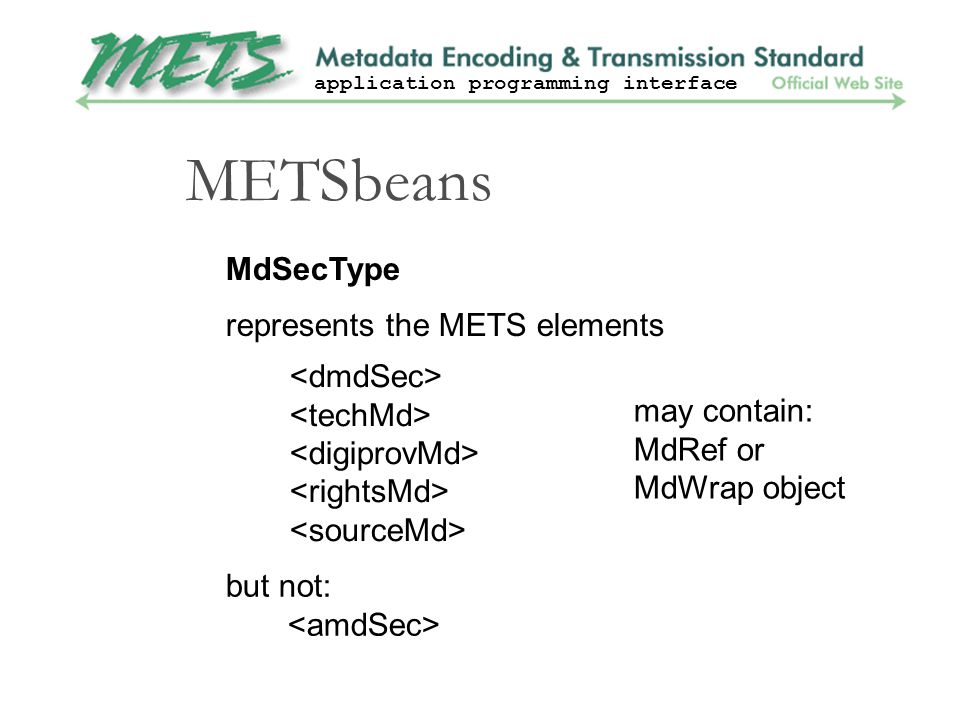

25. application programming interface METSbeans MdSecType represents the METS elements but not: may contain: MdRef or MdWrap object

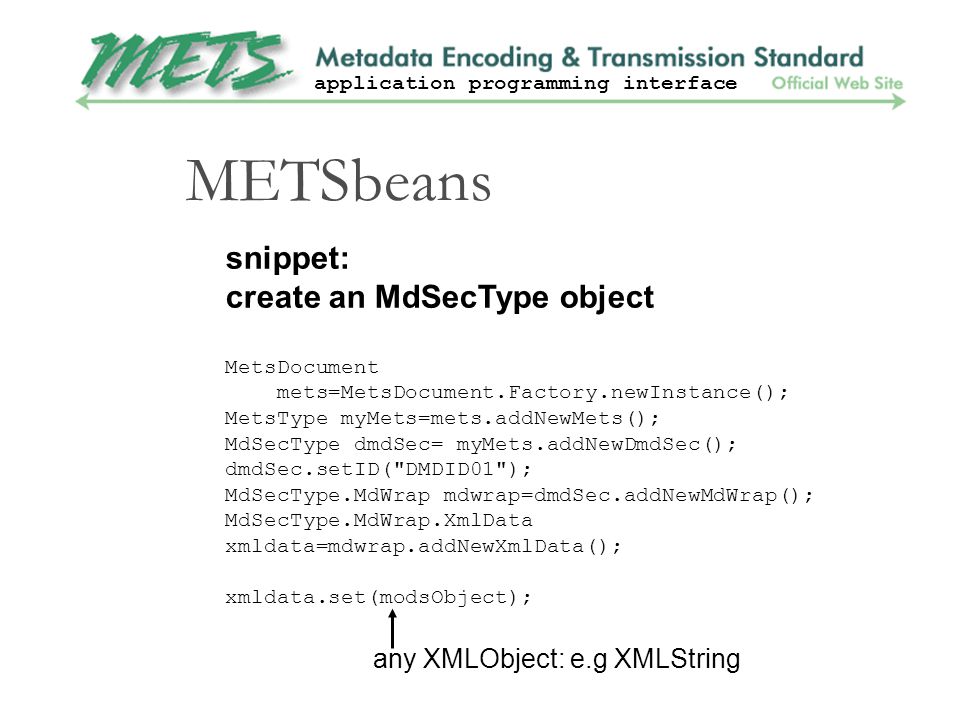

26. application programming interface METSbeans snippet: create an MdSecType object MetsDocument mets=MetsDocument.Factory.newInstance(); MetsType myMets=mets.addNewMets(); MdSecType dmdSec= myMets.addNewDmdSec(); dmdSec.setID("DMDID01"); MdSecType.MdWrap mdwrap=dmdSec.addNewMdWrap(); MdSecType.MdWrap.XmlData xmldata=mdwrap.addNewXmlData(); xmldata.set(modsObject); any XMLObject: e.g XMLString

27. application programming interface METSbeans snippet: create an MdSecType object ModsDocument modsObject=ModsDocument.Factory.newInstance(); ModsType myMods=mods.addNewMods(); IdentifierType identifier=myMods.addNewIdentifier();.... xmldata.set(modsObject); String: Document: XmlString xs=XmlString.Factory.newValue(" "); xmldata.set(xs);

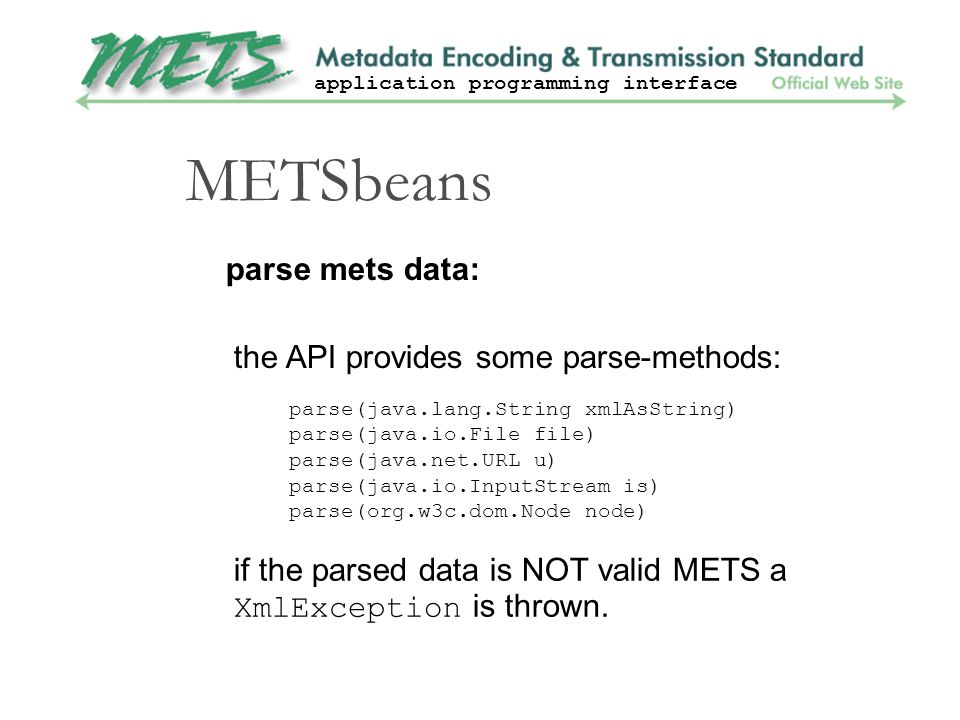

28. application programming interface METSbeans parse mets data: the API provides some parse-methods: parse(java.lang.String xmlAsString) parse(java.io.File file) parse(java.net.URL u) parse(java.io.InputStream is) parse(org.w3c.dom.Node node) if the parsed data is NOT valid METS a XmlException is thrown.

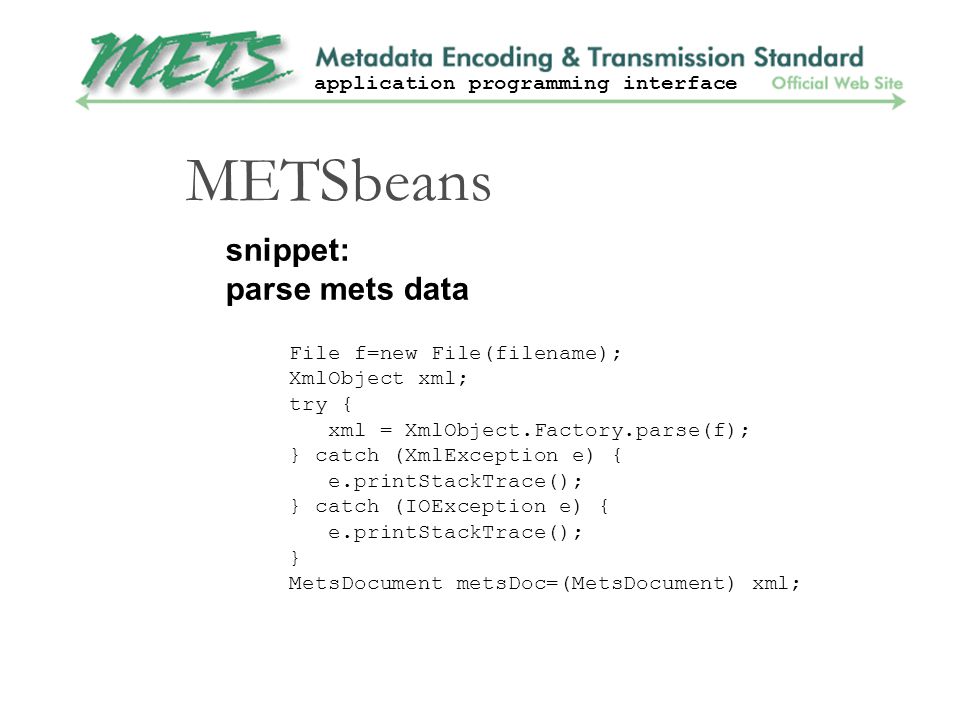

29. application programming interface METSbeans snippet: parse mets data File f=new File(filename); XmlObject xml; try { xml = XmlObject.Factory.parse(f); } catch (XmlException e) { e.printStackTrace(); } catch (IOException e) { e.printStackTrace(); } MetsDocument metsDoc=(MetsDocument) xml;

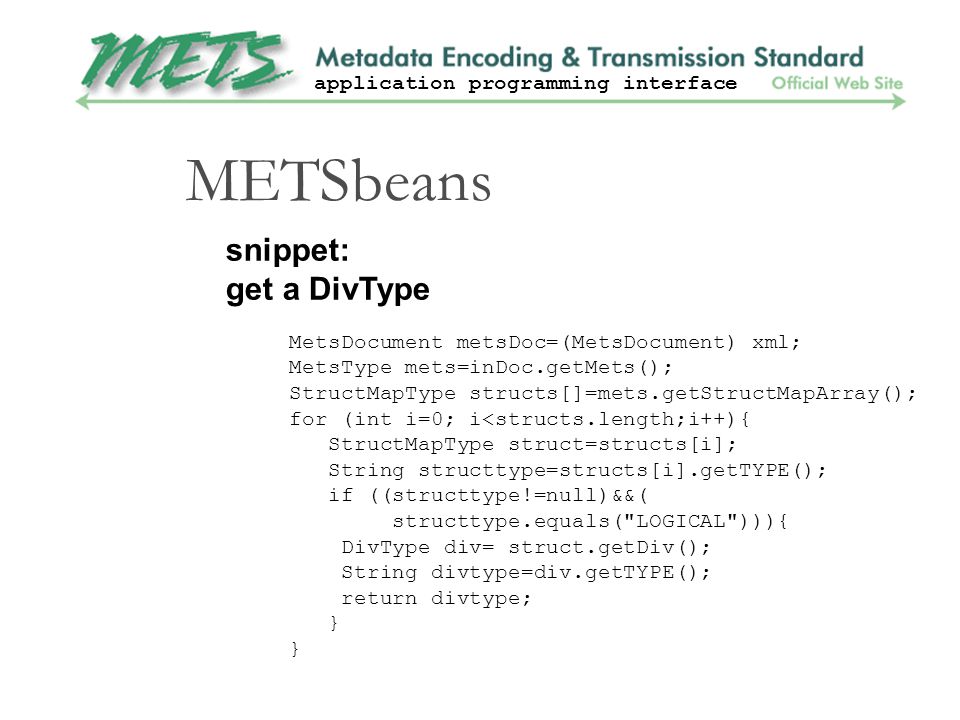

30. application programming interface METSbeans snippet: get a DivType MetsDocument metsDoc=(MetsDocument) xml; MetsType mets=inDoc.getMets(); StructMapType structs[]=mets.getStructMapArray(); for (int i=0; i<structs.length;i++){ StructMapType struct=structs[i]; String structtype=structs[i].getTYPE(); if ((structtype!=null)&&( structtype.equals("LOGICAL"))){ DivType div= struct.getDiv(); String divtype=div.getTYPE(); return divtype; }

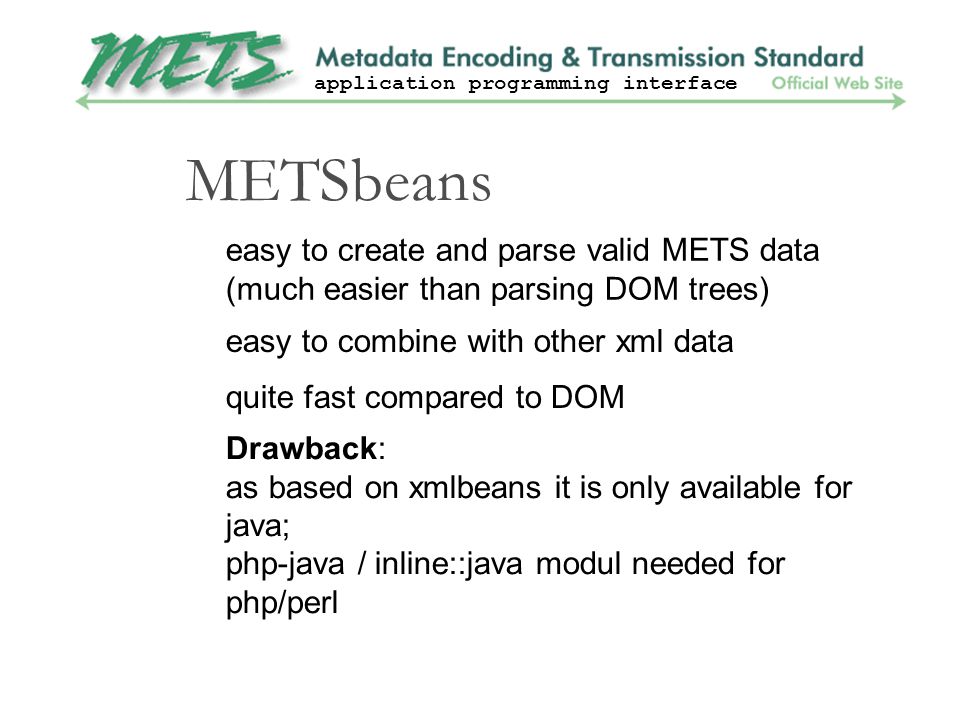

31. application programming interface METSbeans easy to create and parse valid METS data (much easier than parsing DOM trees) easy to combine with other xml data Drawback: as based on xmlbeans it is only available for java; php-java / inline::java modul needed for php/perl quite fast compared to DOM

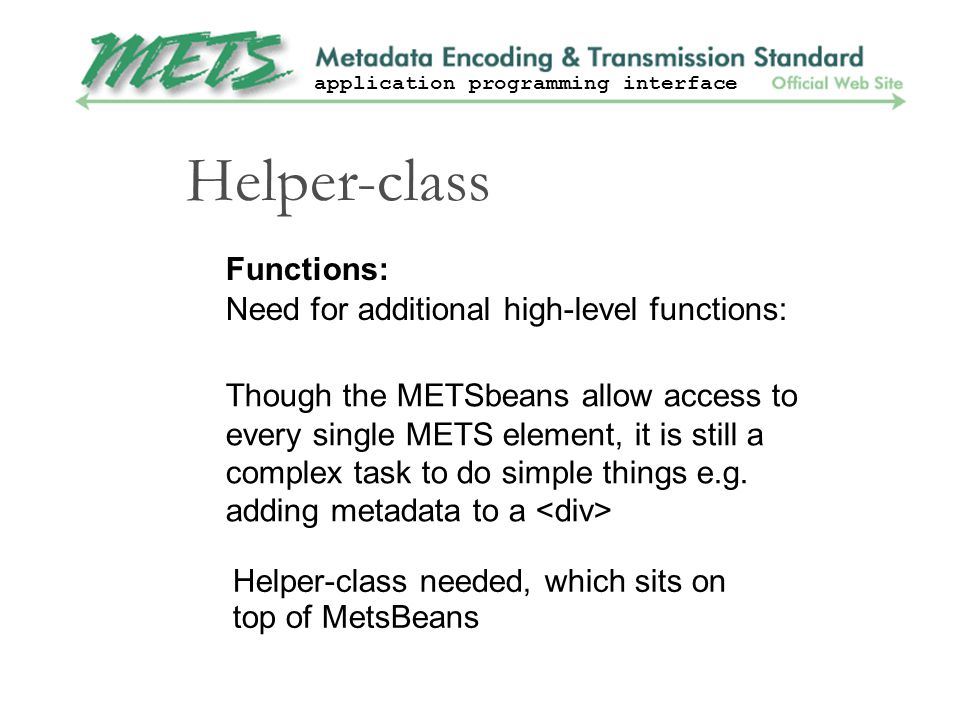

32. application programming interface Helper-class Functions: Though the METSbeans allow access to every single METS element, it is still a complex task to do simple things e.g. adding metadata to a Need for additional high-level functions: Helper-class needed, which sits on top of MetsBeans

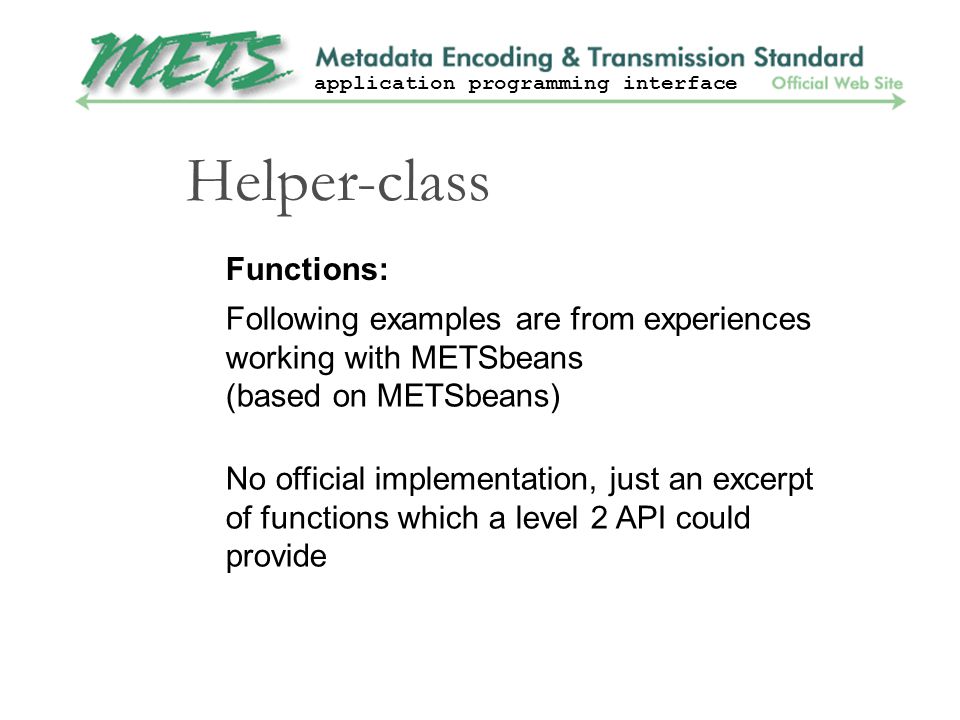

33. application programming interface Helper-class Functions: No official implementation, just an excerpt of functions which a level 2 API could provide Following examples are from experiences working with METSbeans (based on METSbeans)

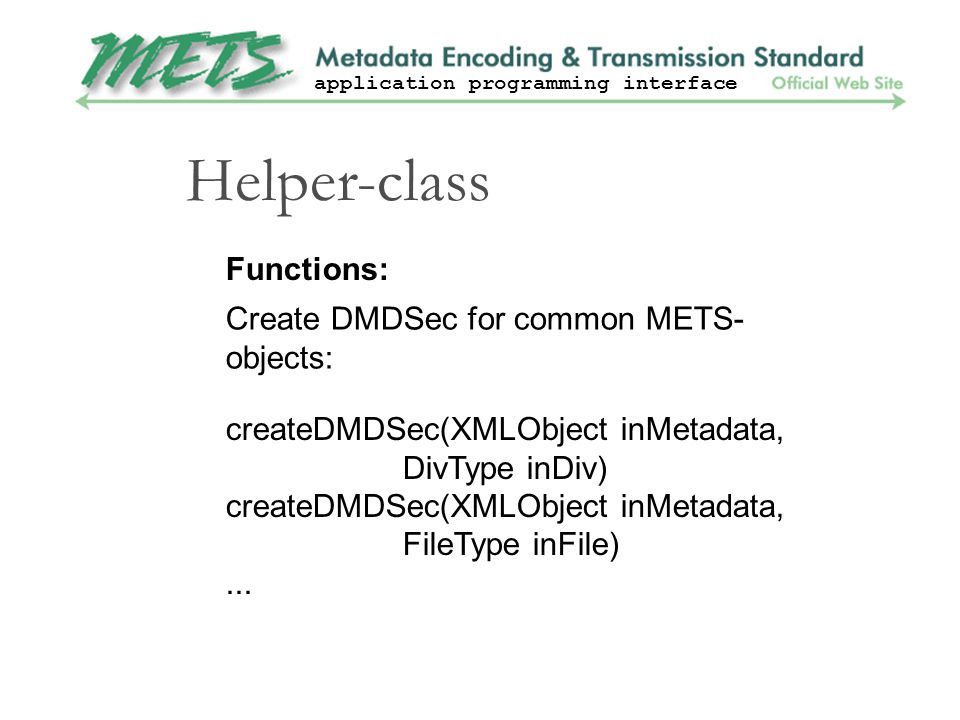

34. application programming interface Helper-class Functions: createDMDSec(XMLObject inMetadata, DivType inDiv) createDMDSec(XMLObject inMetadata, FileType inFile)... Create DMDSec for common METS- objects:

35. application programming interface Helper-class Functions: createMDSectionInAMDSec( XMLObject inMetadata, String type, DivType inDiv, AmdSecType inAmdSec)... Create adminsitrative metadata for common METS-objects: e.g.

36. application programming interface Helper-class Functions: getMDSecTypeByID( String inID) getMDSecTypeByType( String inType)... function to retrieve special metadata sections by ID or TYPE:

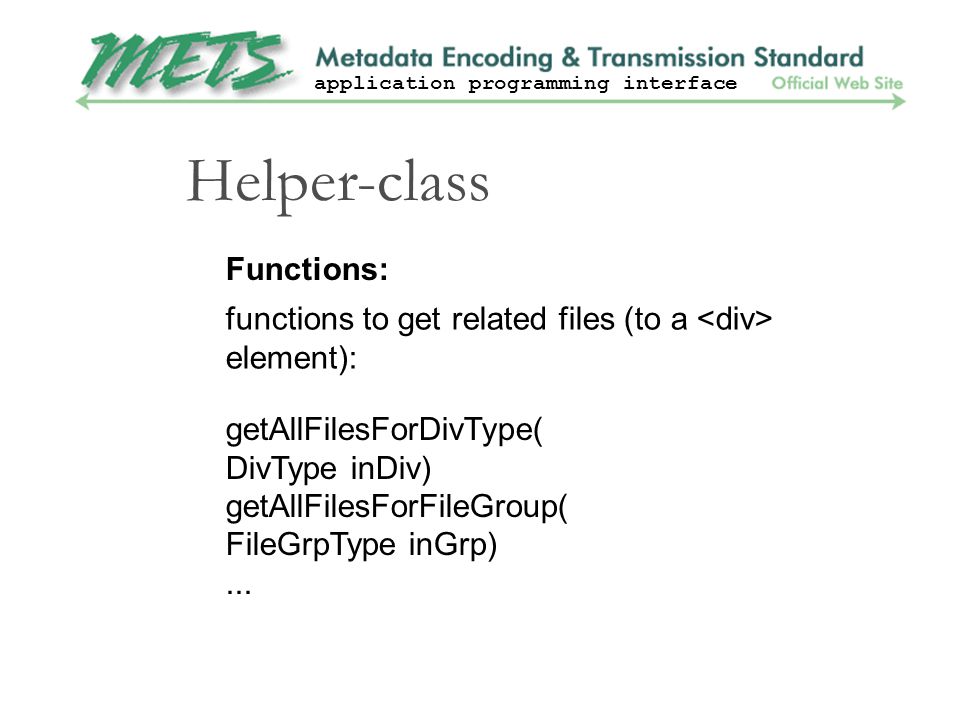

37. application programming interface Helper-class Functions: getAllFilesForDivType( DivType inDiv) getAllFilesForFileGroup( FileGrpType inGrp)... functions to get related files (to a element):

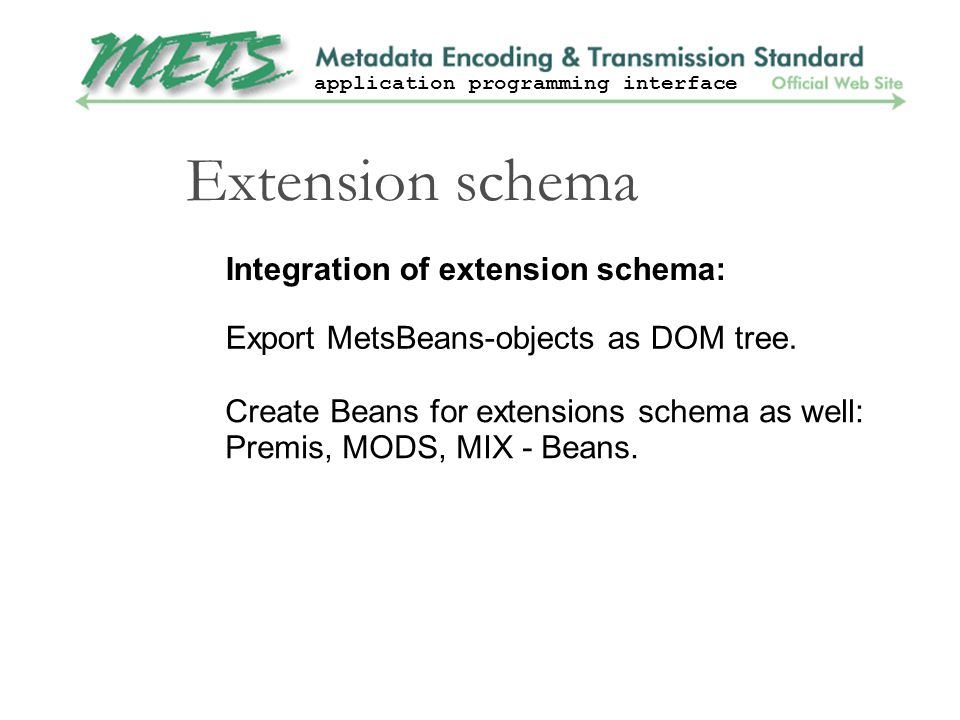

38. application programming interface Extension schema Integration of extension schema: Export MetsBeans-objects as DOM tree. Create Beans for extensions schema as well: Premis, MODS, MIX - Beans.

39. application programming interface Extension schema Example: create MODS data MdSecType dmdSec=mets.addNewDmdSec(); dmdSec.setID(dmdid_string); MdSecType.MdWrap mdwrap=dmdSec.addNewMdWrap(); MdSecType.MdWrap.XmlData xml=mdwrap.addNewXmlData(); ModsDocument mods=ModsDocument.Factory.newInstance(); ModsType myMods=mods.addNewMods(); xml.set(mods);

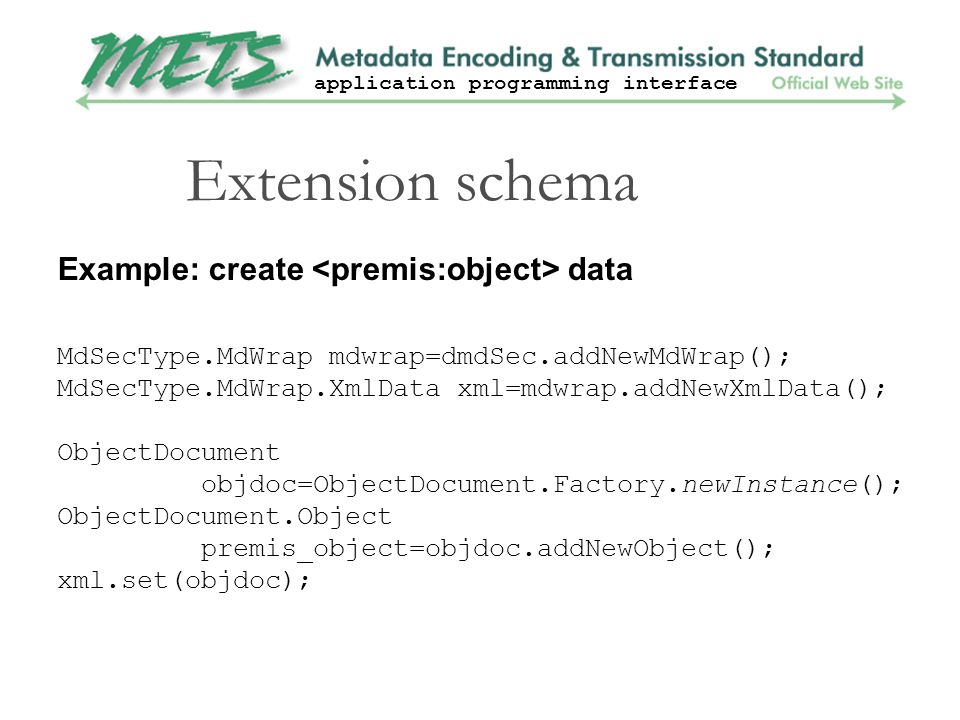

40. application programming interface Extension schema Example: create data MdSecType.MdWrap mdwrap=dmdSec.addNewMdWrap(); MdSecType.MdWrap.XmlData xml=mdwrap.addNewXmlData(); ObjectDocument objdoc=ObjectDocument.Factory.newInstance(); ObjectDocument.Object premis_object=objdoc.addNewObject(); xml.set(objdoc);

41. application programming interface Extension schema Example: parse MODS data MdSecType dmdSec;.... MdSecType.MdWrap mdw= dmdSec.getMdWrap(); MdSecType.MdWrap.XmlData xml_data=mdw.getXmlData(); String result=xml_data.xmlText(); ModsDocument mods=ModsDocument.Factory.parse(result);

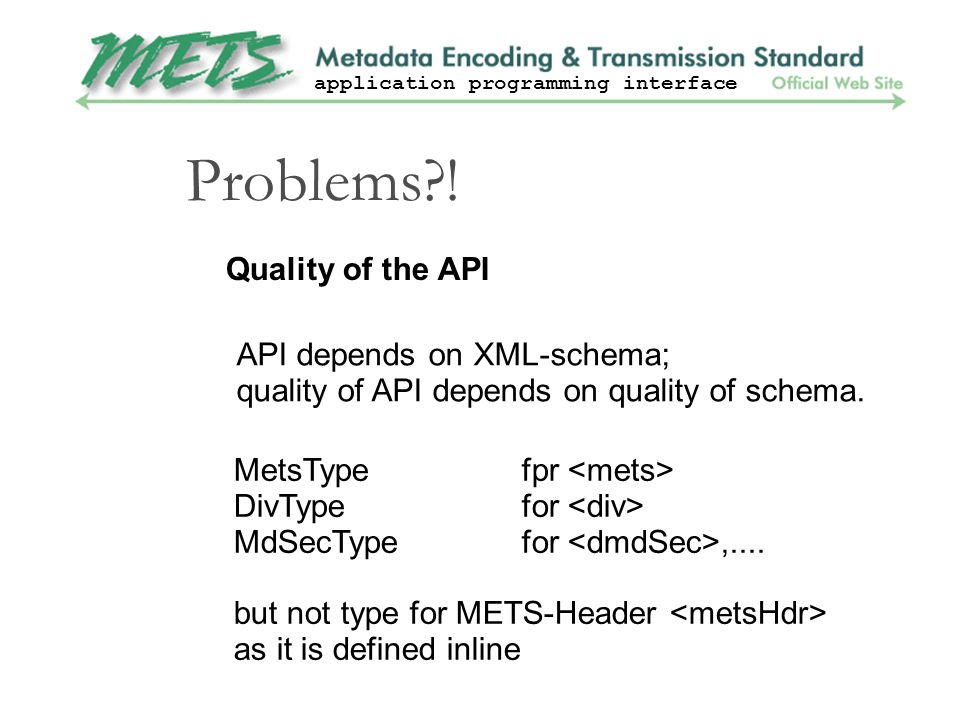

42. application programming interface Problems?! Quality of the API API depends on XML-schema; quality of API depends on quality of schema. MetsTypefpr DivTypefor MdSecTypefor,.... but not type for METS-Header as it is defined inline

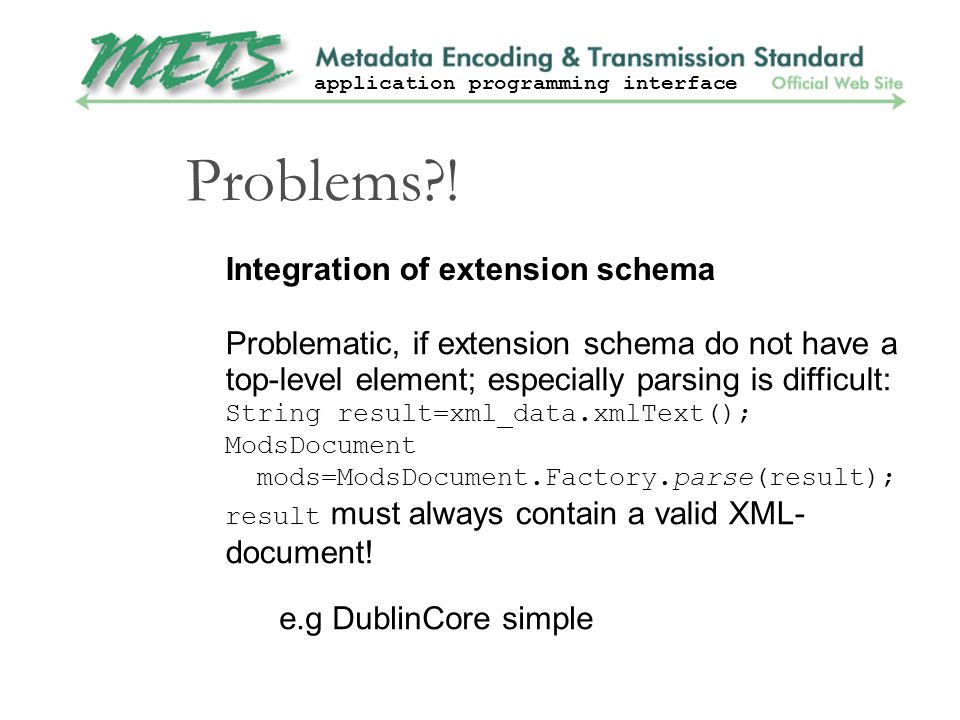

43. application programming interface Problems?! Integration of extension schema Problematic, if extension schema do not have a top-level element; especially parsing is difficult: String result=xml_data.xmlText(); ModsDocument mods=ModsDocument.Factory.parse(result); result must always contain a valid XML- document! e.g DublinCore simple

44. application programming interface How to continue Work with METSbeans everybody can create METSbeans by him/herself -> see Apache xmlbeans Downloadable from GDZ website Will provide a primer as a non- complete documention for METSbeans.

45. application programming interface How to continue Identify necessary functions for helper-class Over time we will identify additional methods which might be useful and should be integrated in the "helper- class".

46. application programming interface Application Layer can be build on top of METSbeans Profile specific implementations can be build on top of METSbeans and provide an API to the underlying document/content model.

47. application programming interface Application Layer can be build on top of METSbeans METS API XML serialization Applikation helper class API for content model Applikation
