1 Science and Tech 11

2 1. An atom is the smallest particle of an element that has the properties of that element.

3 2. An element is a pure substance that cannot be chemically broken down into simpler substances. Example: Oxygen (O) is an element.

4 3. A compound is a pure substance that is made up of two or more different elements that have been combined in a specific way. 4. Example: H 2 O is a compound made of the elements hydrogen and oxygen.

5 4. An atom includes smaller particles called protons, neutrons, and electrons:

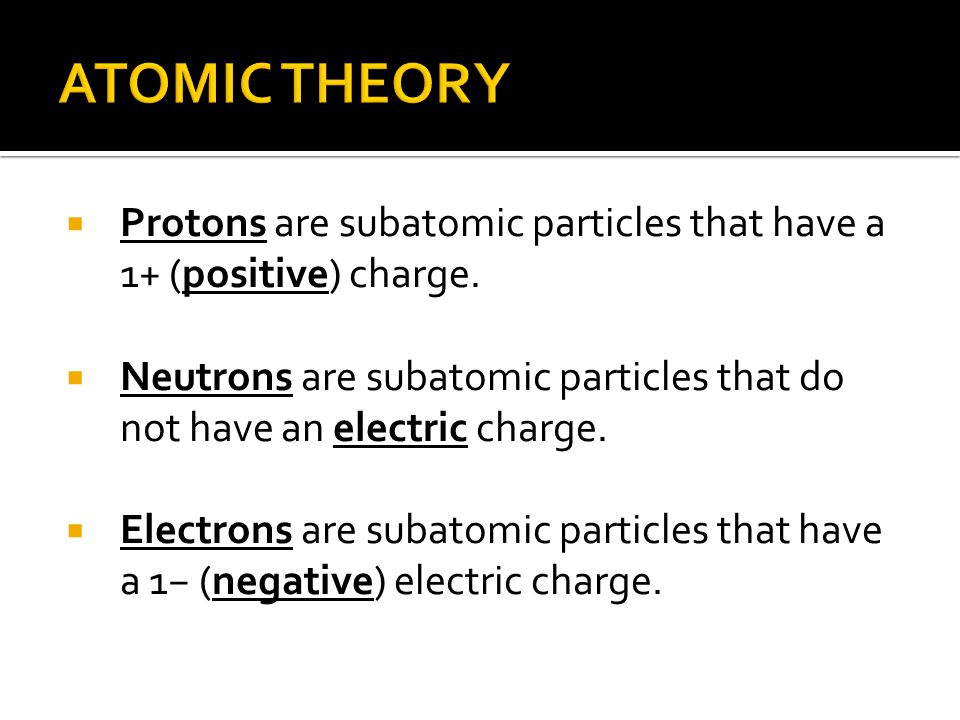

6  Protons are subatomic particles that have a 1+ (positive) charge.  Neutrons are subatomic particles that do not have an electric charge.  Electrons are subatomic particles that have a 1− (negative) electric charge.

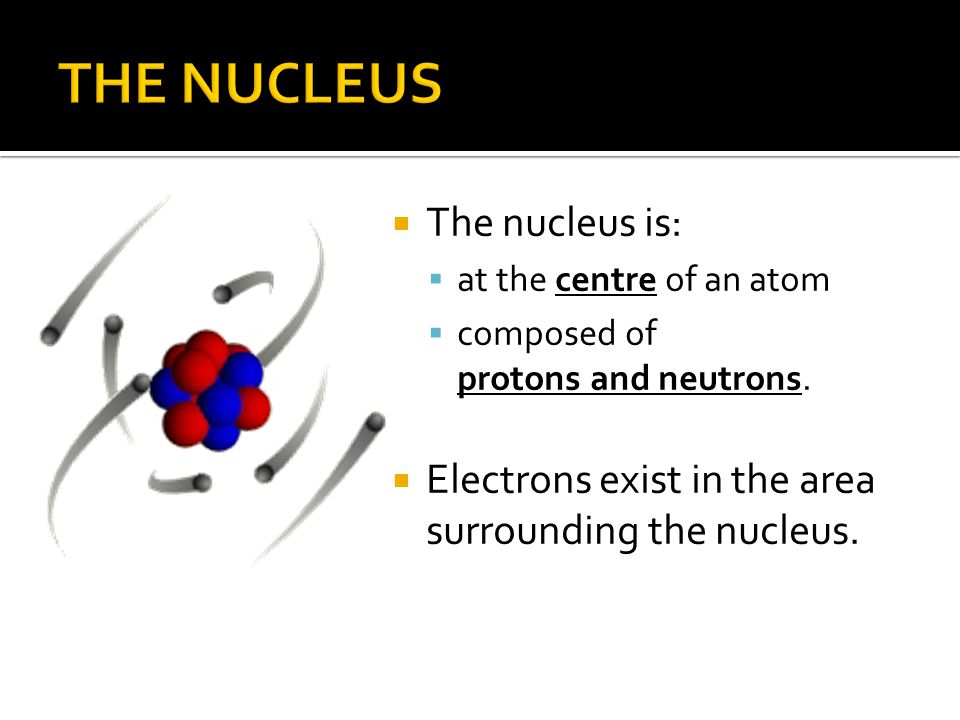

7  The nucleus is:  at the centre of an atom  composed of protons and neutrons.  Electrons exist in the area surrounding the nucleus.

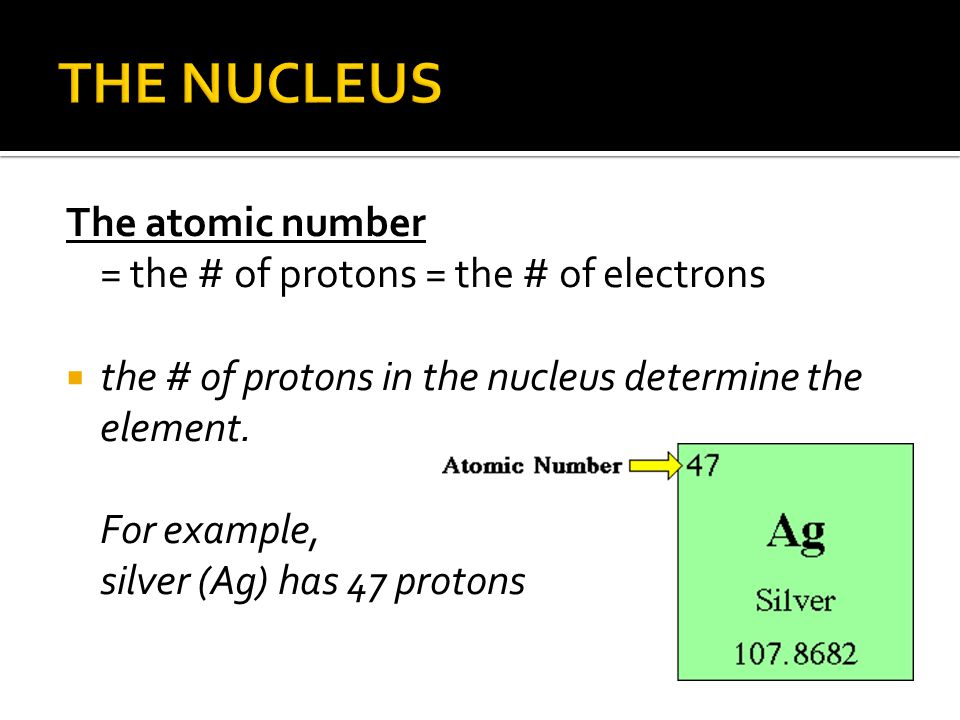

8 The atomic number = the # of protons = the # of electrons  the # of protons in the nucleus determine the element. For example, silver (Ag) has 47 protons

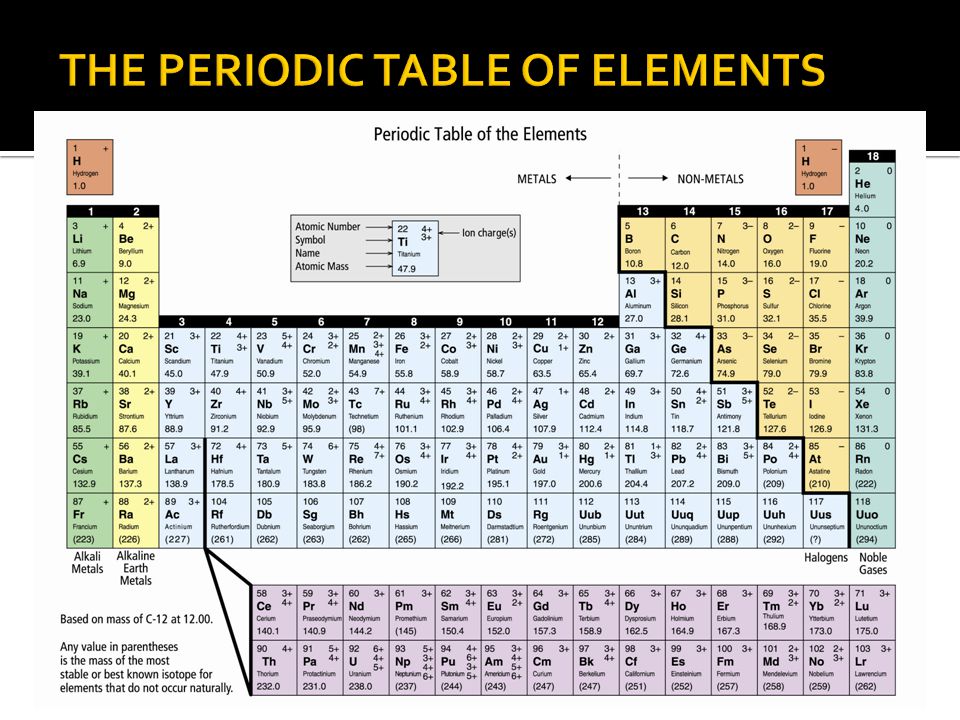

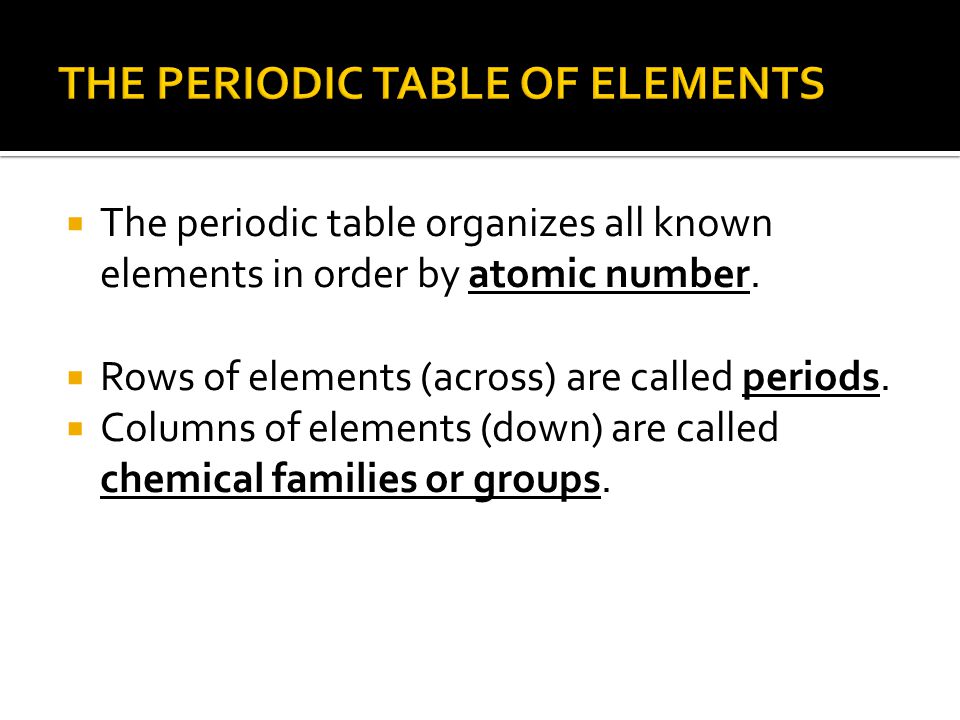

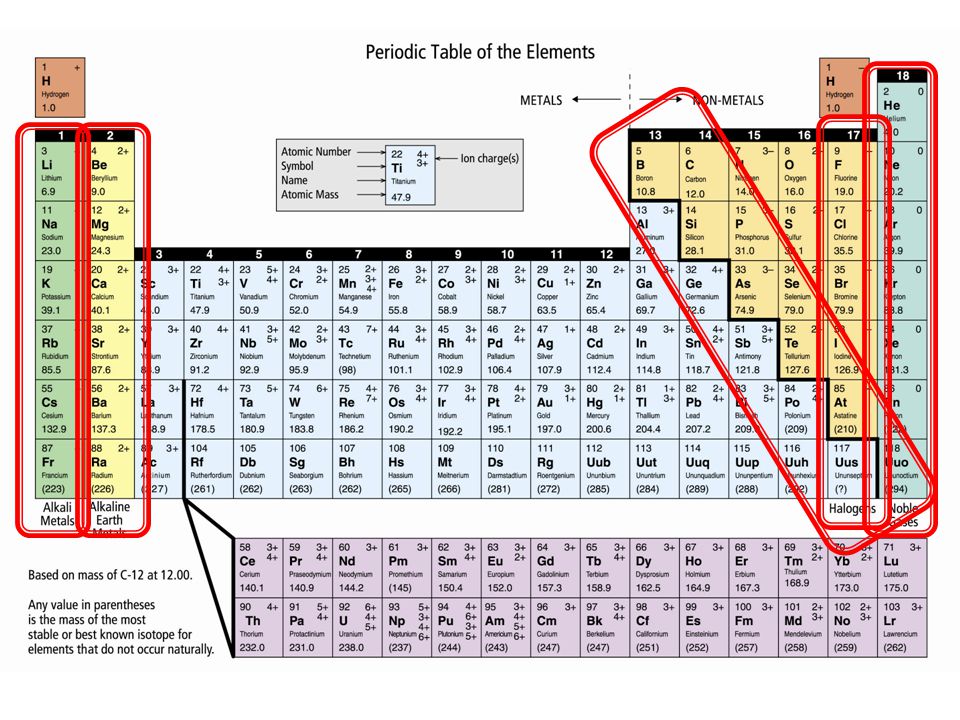

10  The periodic table organizes all known elements in order by atomic number.  Rows of elements (across) are called periods.  Columns of elements (down) are called chemical families or groups.

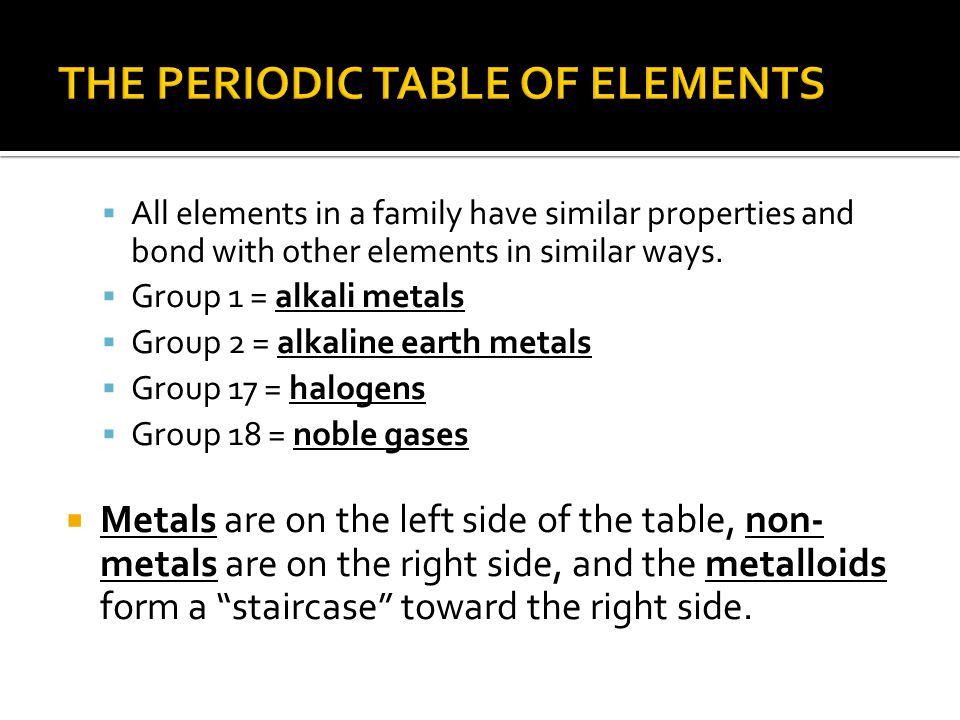

12  All elements in a family have similar properties and bond with other elements in similar ways.  Group 1 = alkali metals  Group 2 = alkaline earth metals  Group 17 = halogens  Group 18 = noble gases  Metals are on the left side of the table, non- metals are on the right side, and the metalloids form a “staircase” toward the right side.

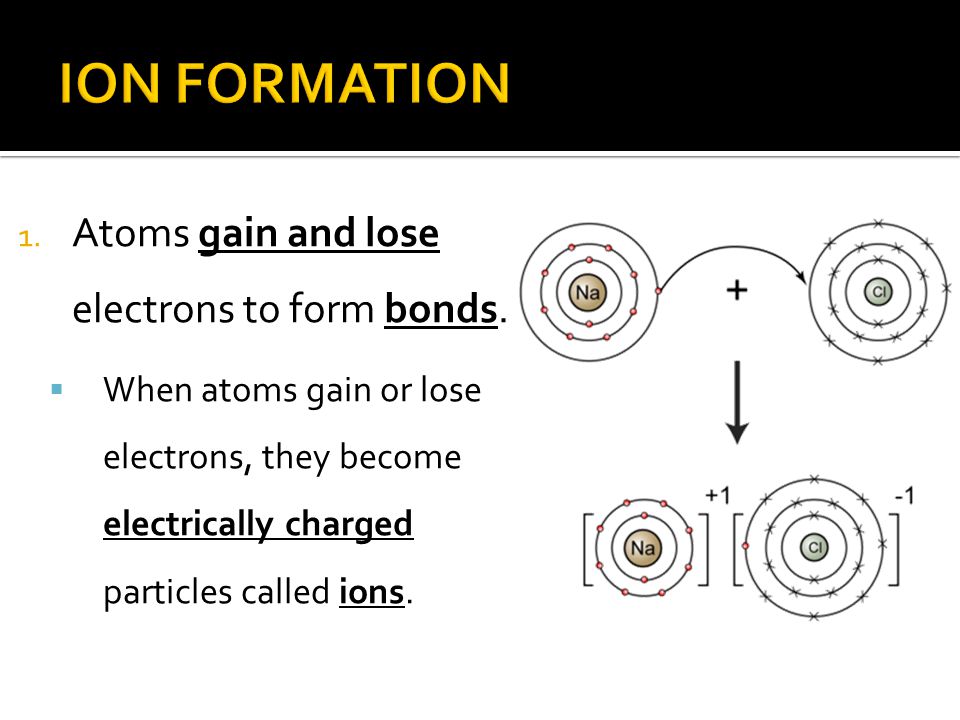

14 1. Atoms gain and lose electrons to form bonds.  When atoms gain or lose electrons, they become electrically charged particles called ions.

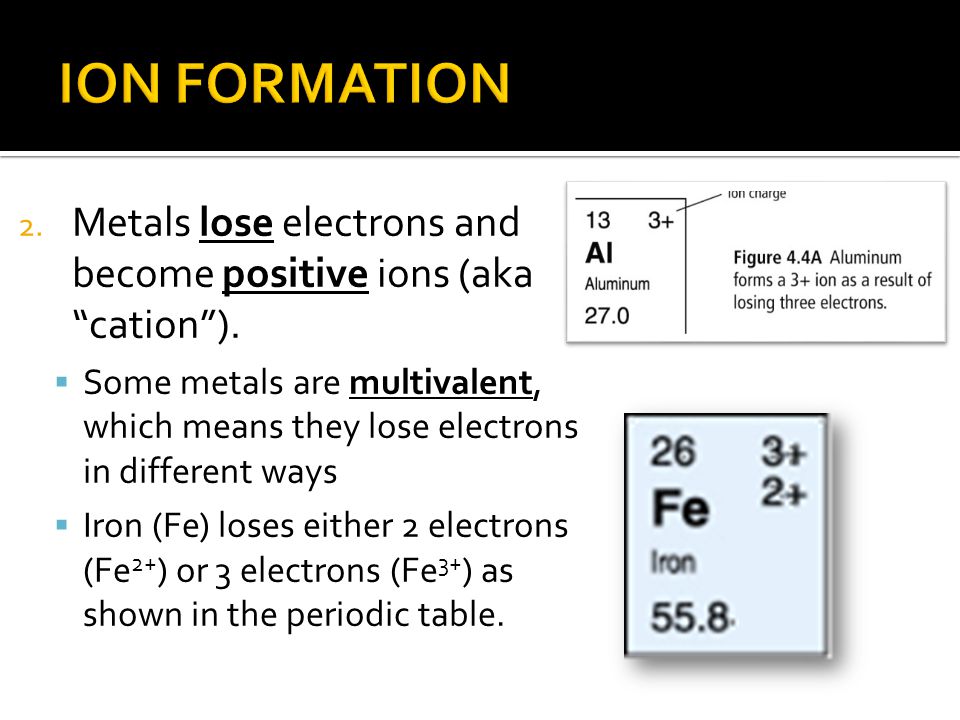

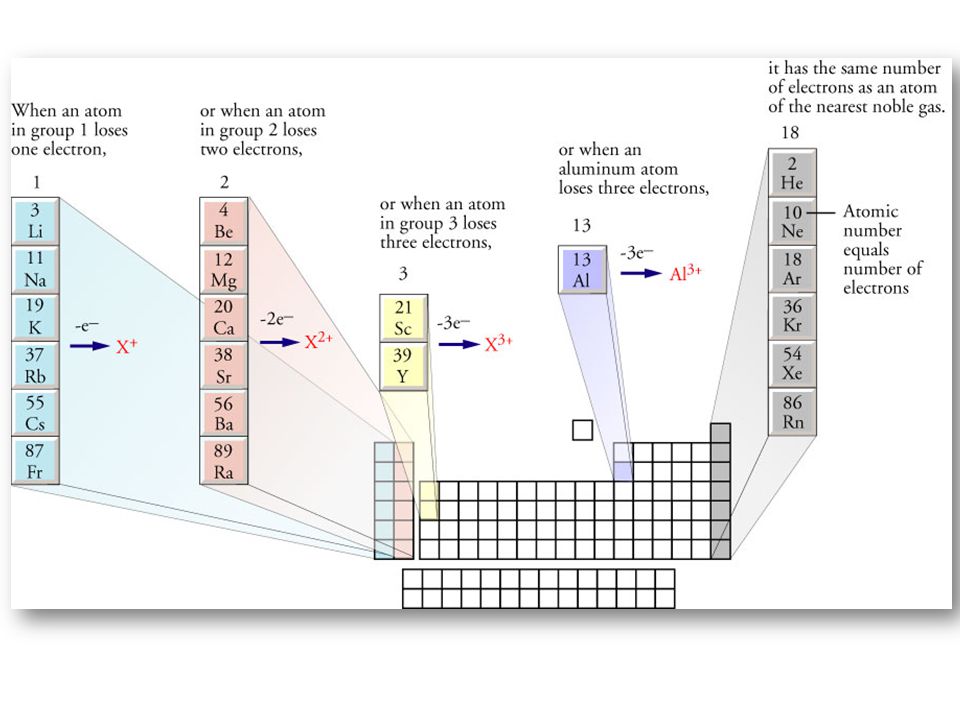

15 2. Metals lose electrons and become positive ions (aka “cation”).  Some metals are multivalent, which means they lose electrons in different ways  Iron (Fe) loses either 2 electrons (Fe 2+ ) or 3 electrons (Fe 3+ ) as shown in the periodic table.

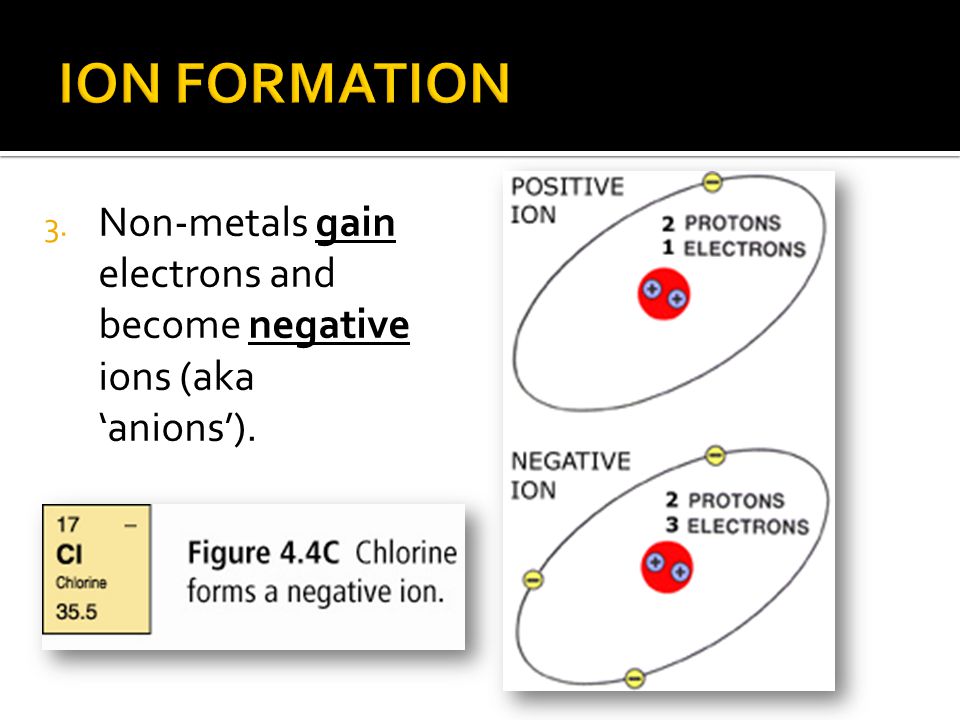

17 3. Non-metals gain electrons and become negative ions (aka ‘anions’).

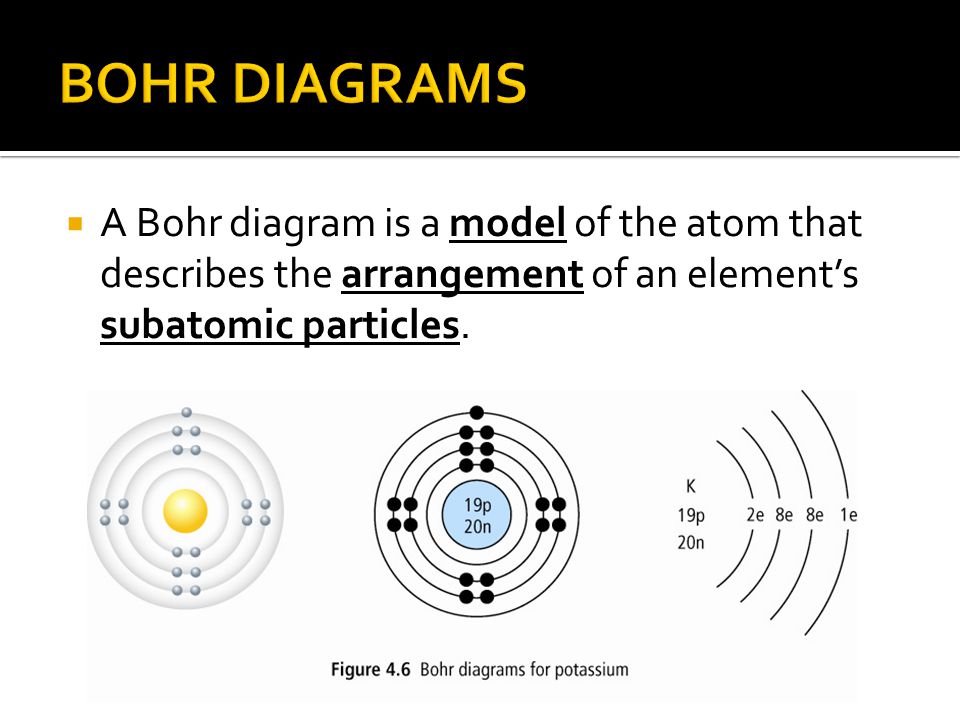

18  A Bohr diagram is a model of the atom that describes the arrangement of an element’s subatomic particles.

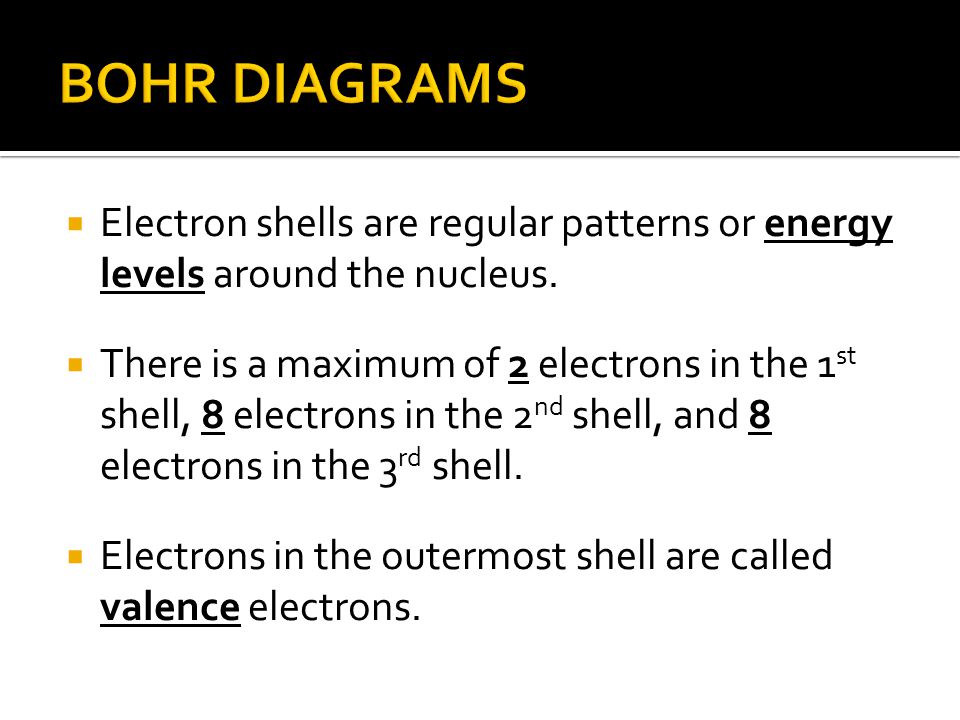

19  Electron shells are regular patterns or energy levels around the nucleus.  There is a maximum of 2 electrons in the 1 st shell, 8 electrons in the 2 nd shell, and 8 electrons in the 3 rd shell.  Electrons in the outermost shell are called valence electrons.

20 2. Patterns seen in the Periodic Table of Elements:  By PERIOD: ▪ The period number equals the # of shells in the atom.  By GROUPS: ▪ Except for the transition elements (Groups 3–12), the last digit of the group number equals the number of electrons in the valence shell.

21 Example: Period 2 elements have only 2 shells (or energy levels) 12345671234567

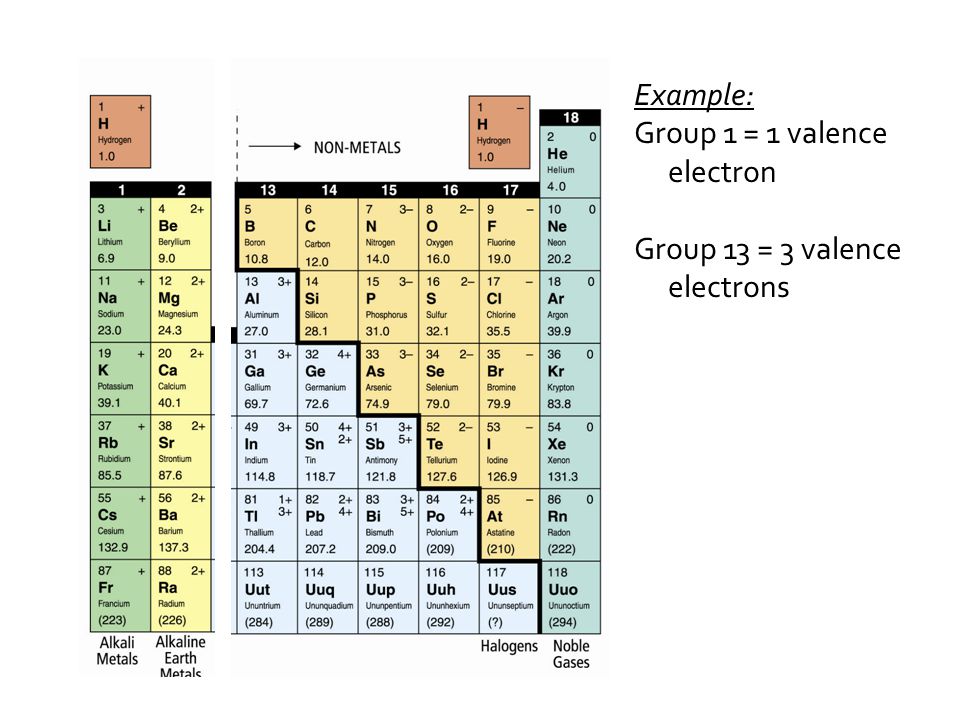

22 Example: Group 1 = 1 valence electron Group 13 = 3 valence electrons

23 3. A full valence shell is very stable and atoms will lose or gain electrons to accomplish this  Why atoms may bond or react with other atoms  The noble gas elements already have full electron shells and are very stable and thus, rarely react with other elements

24 4. Electrons can exist singly as unpaired electrons, or they can be in pairs, called paired electrons.



27 Science and Tech 11

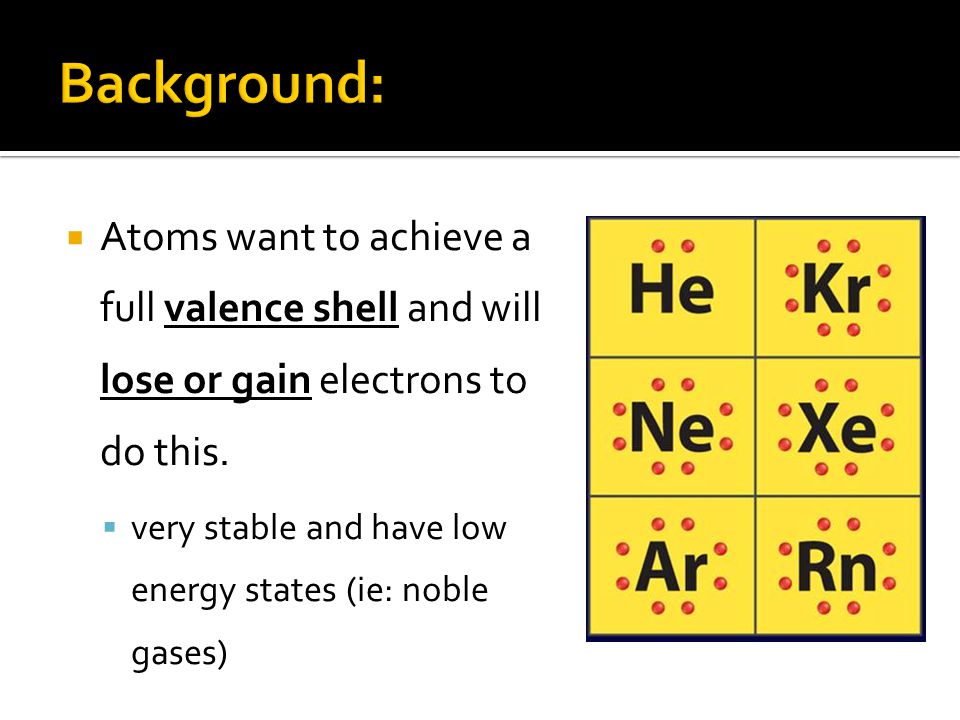

28  Atoms want to achieve a full valence shell and will lose or gain electrons to do this.  very stable and have low energy states (ie: noble gases)

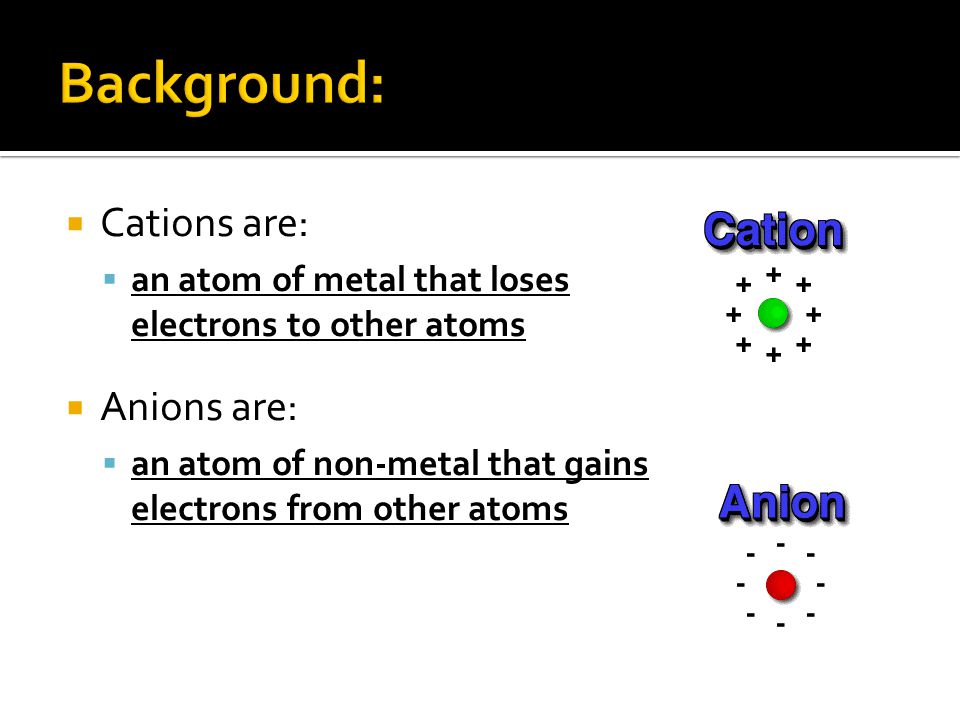

29  Cations are:  an atom of metal that loses electrons to other atoms  Anions are:  an atom of non-metal that gains electrons from other atoms

30  Atoms can also share electrons

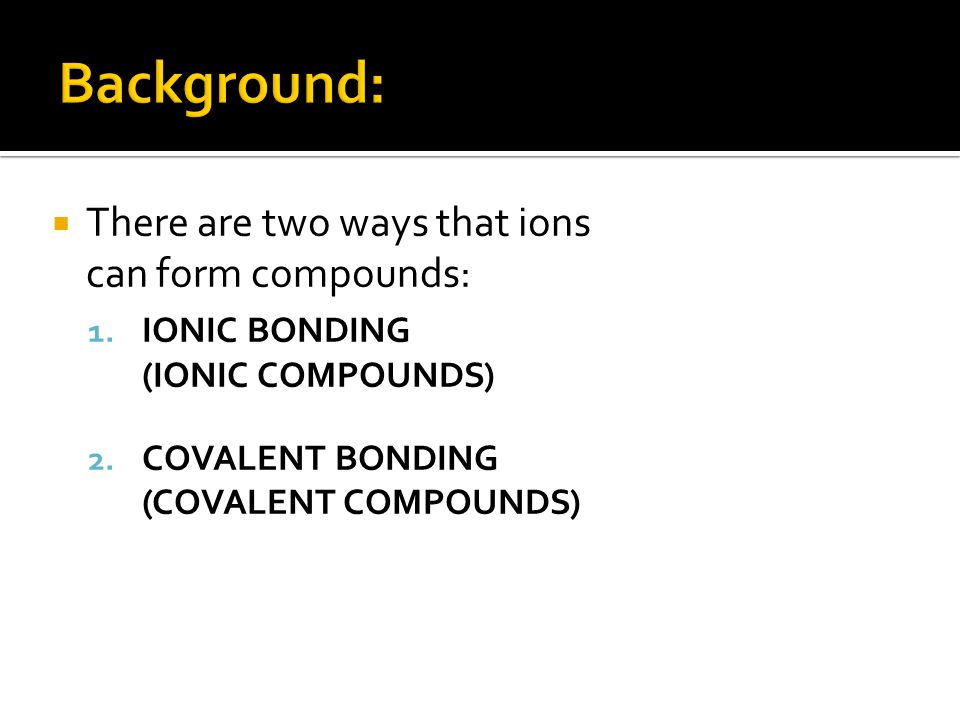

31  There are two ways that ions can form compounds: 1. IONIC BONDING (IONIC COMPOUNDS) 2. COVALENT BONDING (COVALENT COMPOUNDS)

32  Ionic compounds are formed usually between a METAL/CATION and a NON-METAL/ANION  one or more electrons are transferred from the metal to the non-metal

33 Example #1: Sodium (Na) is a metal that can get a full valence shell by losing 1 electron and chlorine (Cl) is a non-metal that can get a full valence shell by gaining 1 electron. They’re perfect for each other and they form sodium chloride (NaCl)!

34 Example #2: Calcium fluoride (CaF 2 ) is an ionic compounds formed from 1 atom of the metal calcium and 2 atoms of the non- metal fluorine. The calcium atom transfers 2 electrons in total (1 electron to each of the fluorine atoms).

35  covalent compounds/molecules are formed when two non-metal atoms share electrons (“CO” = together/share and “VALENT” = valence electrons  shared valence electrons)

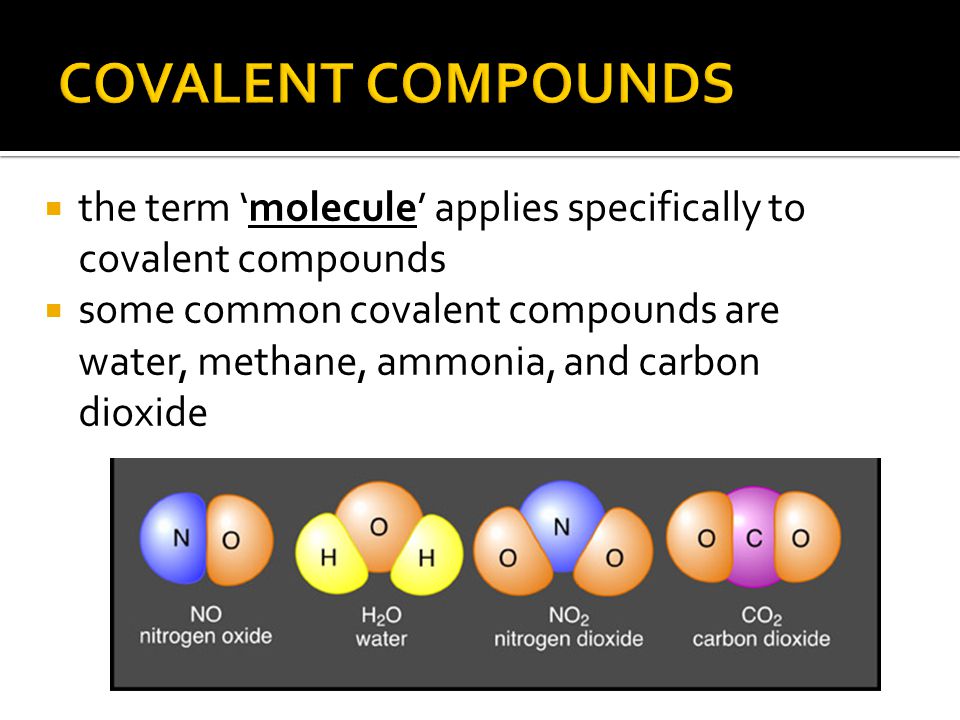

36  the term ‘molecule’ applies specifically to covalent compounds  some common covalent compounds are water, methane, ammonia, and carbon dioxide

37  Bonding pair:  Each atom in a covalent molecule will share 1 valence electron  Any pairs of valence electrons NOT shared are called lone pairs.

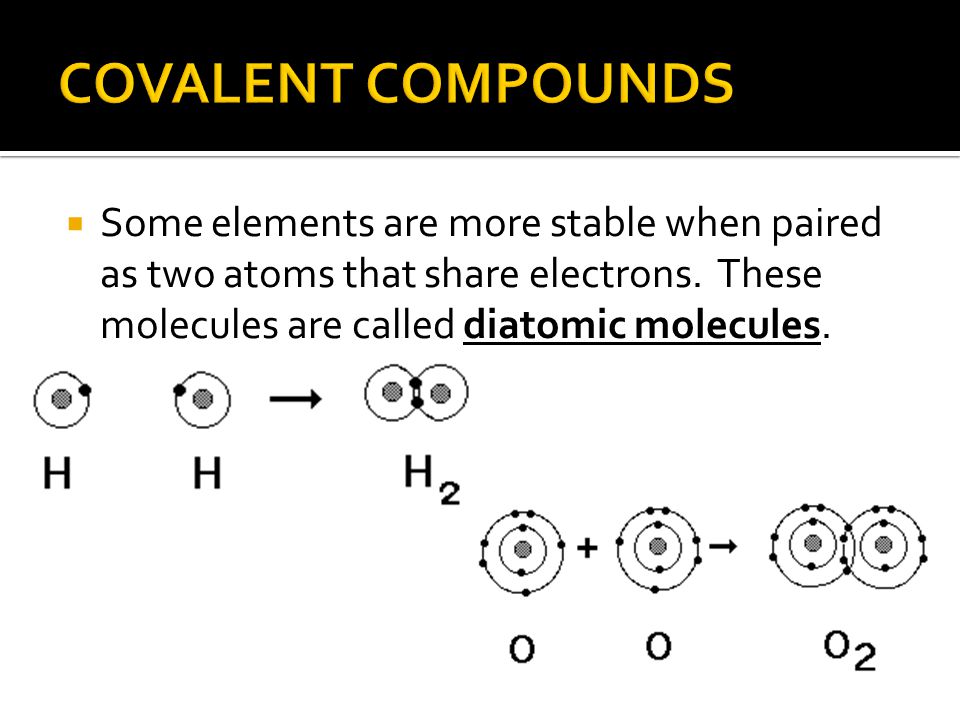

38  Some elements are more stable when paired as two atoms that share electrons. These molecules are called diatomic molecules.

39  Elements that are diatomic are: hydrogen (H 2 ), nitrogen (N 2 ), oxygen (O 2 ), chlorine (Cl 2 ), fluorine (F 2 ), bromine (Br 2 ), and iodine (I 2 ).

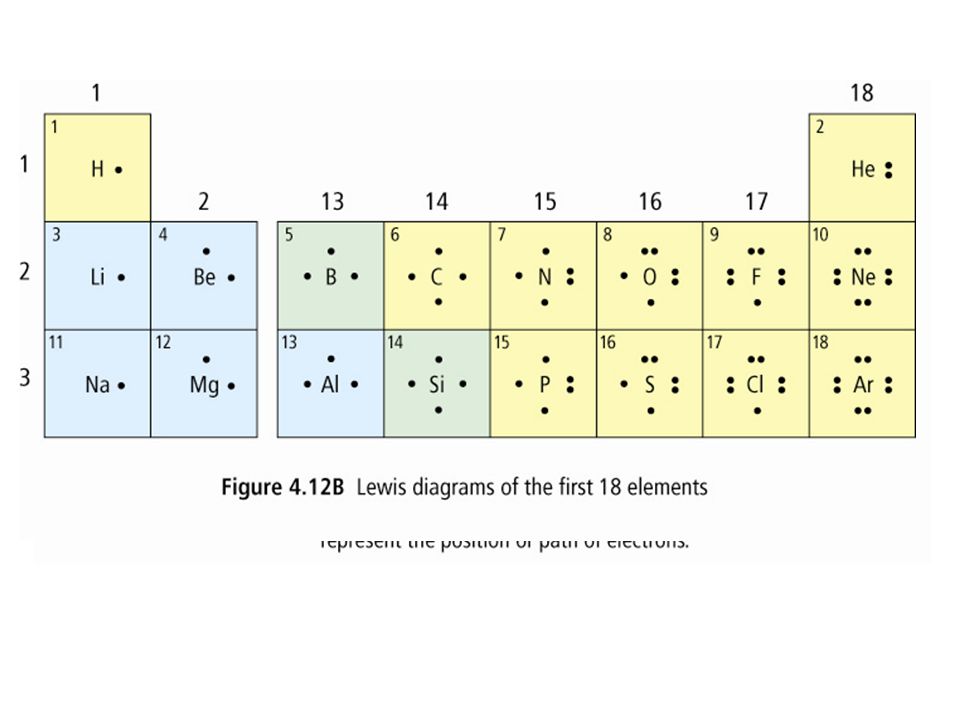

42  Lewis diagrams are great for illustrating chemical bonding because they show only the valence electrons of atoms  A lot less work than drawing Bohr diagrams! Ca


44 1. figure out how many valence electrons an atom has 2. place 1 electron at a time starting at the North position until all electrons have been place  you may end up with paired and unpaired electrons

45 1. find the electric charge of the element 2. the cation will have no valence electrons and the anion will have a full valance shell 3. add square brackets around each atom 4. include an ion charge to the top right

46 Example: Sodium chloride (NaCl)

47 Example: Barium bromide (BaBr 2 )

48 1. identify bonding pair (shared electrons) 2. draw a line to represent the bonding pair

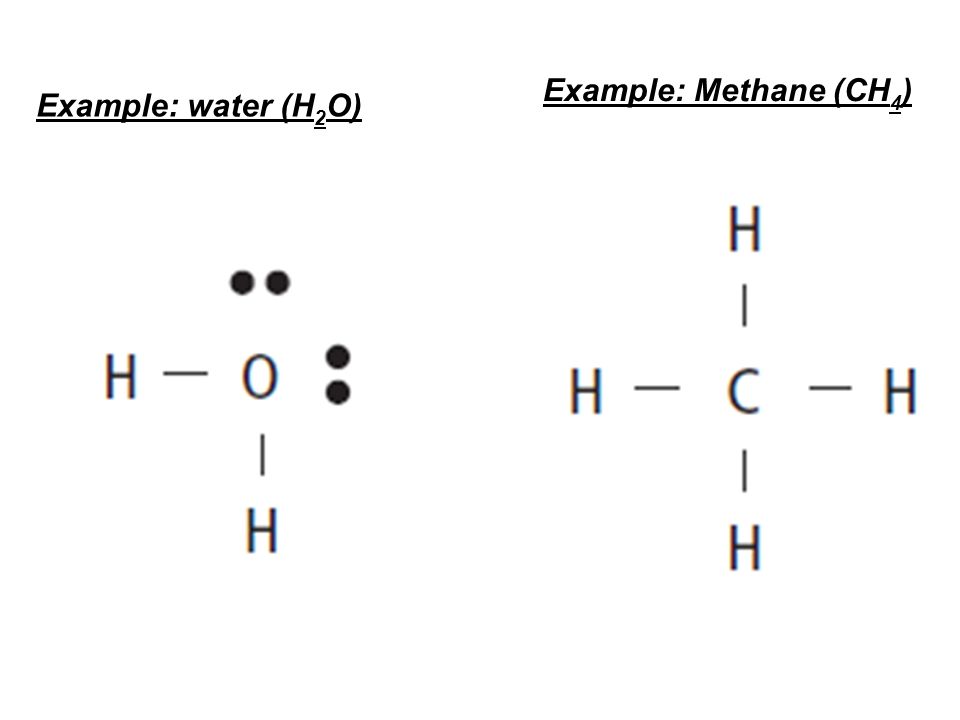

49 Example: water (H 2 O) Example: Methane (CH 4 )
