1 Methods of Purification (a)Describe methods of separation for the components of the following types of mistures:solid-solidsolid-liquidliquid-liquid(miscible)Techniques to be covered for separations and purification include:Use of a suitable solvent, filtration and crystallization or evaporationDistillation and fractional distillationPaper chromatography(b)
2 Pure Substances & Mixtures A pure substance contains only one type of substance, and is not mixed with any other substance.Are the following pure substances or mixtures?Clean tap water100% orange juiceDistilled watermixturemixturePure substance
3 Methods of Purification Some terms :Solute - the solid that dissolvesSolvent - the liquid that does the dissolvingSolution - solid + solventResidue - the insoluble solid trapped in the filter paperFiltrate - the liquid that passes through the filter paperSublimate - the condensed solid produced during sublimation
4 Methods of Purification The particular method used for separating any given mixture depends on the nature (eg. solubility, physical state) of its constituents.
5 mixture of solid and liquid FiltrationUsed to separate a solid from a liquid in which the solid is insolublefilter paperfilter funnelresiduemixture of solid and liquidfiltrate
6 Principle of Filtration The separation works only if the particles concerned are of different sizes, such as larger particles of an insoluble solid and smaller particles of a liquid or solution.
7 Principle of Filtration The filter material acts as a sieve which allows the smaller particles to pass through and keeps the bigger particles behind.
8 Principle of Filtration Can a mixture of common salt and water be separated by filtration? Why?
9 Filtration - large scale use Sand filters used in water treatment plants to remove solid impuritiesDissolved substances and bacteria will not be removed
10 Decanting Separates an insoluble solid from a liquid liquid is carefully poured away from the solid which is usually heavier and settles at the bottom of the container.
11 Evaporation (Heating )to Dryness used to recover a soluble solid from its solutionOnly for solids that will NOT decompose on heating.Eg. sodium chloride (common salt) from salt solution
13 Crystallisation used to recover a soluble solid from its solution for solids that decompose on heatingEg. Copper(II) sulphate and most other saltsSteps :The solution is heated (evaporated) to saturation point OR ‘heated to remove most of the solvent’The saturated solution is left to cool; crystals are formed.The crystals are removed by filtration. To purify the crystals, they can then be washed with cold distilled water and dried between filter papers.
14 Crystallisation - the Principle behind Substances are usually more soluble in hot water than cold water eg. more copper(II) sulphate will dissolve in water at 80ºC than at 30 ºC.When the hot saturated solution is cooled, the cooled solution is unable to hold as much solute as when it was hot. The extra solute that cannot remain dissolved appears as crystals.
15 Solubility & Crystallisation Solubility data for NH4Cl in grams/100 mL H2O 30oC - 41.4 g 50oC - 50.4 g 70oC - 60.2 g 90oC - 71.3 gIf the water was heated to 90°C, how much of the solute will be able to dissolve?If this hot solution is then cooled to 30 °C, how much solute can the water contain now?Hence what is the mass of crystals you would expect to obtain?
16 Separating a mixture of solids Method used depends on the nature of the solids :-If the mixture of solids behave differently in a particular solvent , that is, one component is soluble in it while the other is insoluble…carefully choose a solvent that will dissolve only one of the solidsEgs. common salt and sand;naphthalene and sandUse water as solventUse methylated spirits as solvent
17 Separating a mixture of solids Basic Steps :Evaporation to drynessDissolutionFiltrationORCrystallisation
21 Separating a mixture of solids (3) Other methods :make use of the special properties of the substanceEg. mixture of iron filings and sulphur ….…use a magnetBring a magnet to the mixture.The iron filings will be attracted to the magnet while the sulphur will be left behind.
22 Separating the Solvent from the Solution CrystallisationDistillationEvaporation to drynesssolutesolventsolution
23 Simple Distillation Some Terms Used : Distillate - the liquid that distils overMiscible liquids - liquids that mix completely to form a single layerImmiscible liquids - liquids that do not mixA solvent can be separated from a solution and collected by simple distillation.
25 Principle of Distillation A liquid boils and turns into vapour at its boiling point.When the vapour is condensed, the (pure) liquid is obtained again.

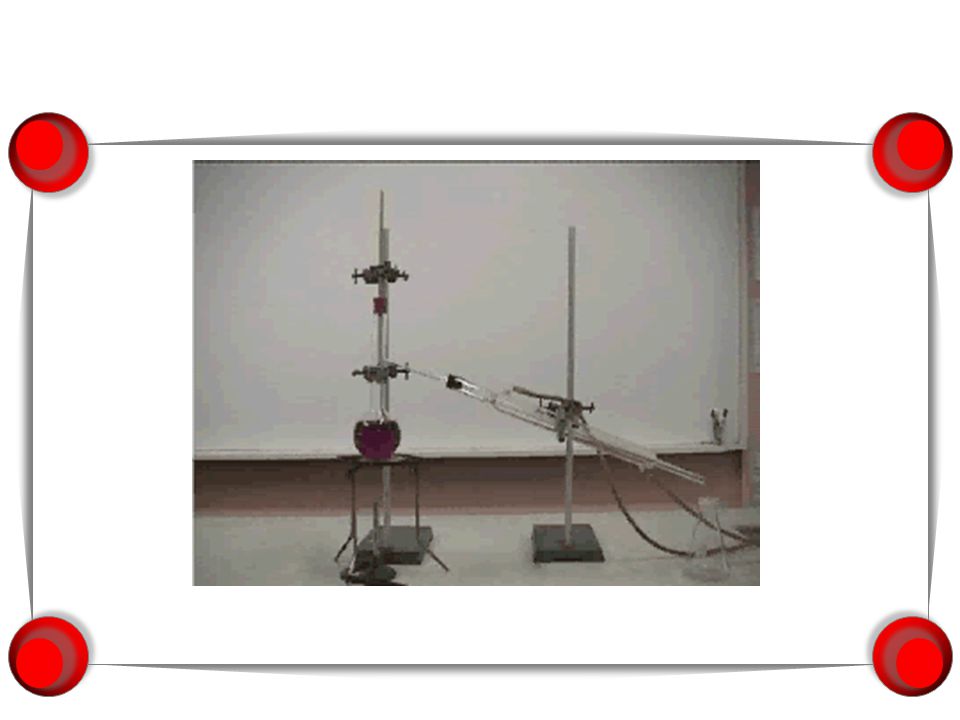

26 Simple Distillation3. the condenser is cold, so the vapour condenses to liquid water.2. .. vapourise. The vapour rises up the flaskthermometerflasksea watercondenserBoiling chips4. Pure water drips into the beaker. It is distilled water.1. Solution is heated, causing the solvent to …distillate
27 Simple Distillation thermometer Water out flask sea water condenser Boiling chipsWater outTo maintain even boiling, with not too much bumpingWater in
28 Liebig Condenser Water flows in anti-current to the flow of vapour. Condensed vapour in liquid form (distillate) leavesVapour entersDirection of water flowWater outCold water inWater flows in anti-current to the flow of vapour.
29 Direction of water flow Liebig CondenserCondensed vapour in liquid form (distillate) leavesVapour entersDirection of water flowWater outCold water inThis is to make sure the coldest part of the condenser is just before the vapour escapes.
30 Simple Distillation Simple distillation can be used to obtain from salt solutionfrom copper(II) sulphate solutionfrom a solution of sugar in etherwaterwateretherNote :The liquid that distils over is called the distillate .The solid that remains in the flask is called the residue .
31 Simple DistillationQns. : Where is the thermometer placed? What is the reason for this?flasksea waterthermometercondenserdistillateBoiling chips
32 Simple DistillationThermometer placed at the side arm of the flask so that it records the temperature of the vapour as it enters the condenser.flasksea waterthermometercondenserdistillateBoiling chips
33 Separating miscible liquids - Fractional distillation miscible liquids can only be separated by fractional distillation if they have different boiling points .Eg. mixture of ethanol and water.
34 Separating miscible liquids - Fractional distillation thermometerFractionating columnWater outcondenserflaskdistillateWater inBoiling chipsmixture of ethanol and water
35 Separating miscible liquids - Fractional distillation 3. Eventually, the liquid with the lower boiling point reaches the top and distils over.2. The fractionating column is packed with glass beads to increase its surface area. Vaporisation followed by condensation takes place many times as the vapour is swept upwards.1. When heated, the liquid with the lower boiling point will vaporize more readily.
36 Separating miscible liquids - Fractional distillation 4. The temperature stays constant at 78°C. When all the ethanol has distilled over, the temperature reading rises above 78°C. At 100°C, water starts to distil over.5. The receiver is changed to collect each distillate separately.
37 Separating miscible liquids - Fractional distillation Sketch a graph of temperature versus time to show the changes in temperature readings throughout the distillation.temperature100°C78°Ctime
38 Separating miscible liquids - Fractional distillation Note :The glass beads in the fractionating column provides a large surface area so that condensation occurs more readily.The liquid with the lower boiling point distils over first, followed by the liquid with the next higher boiling point.glass beads
39 Separating miscible liquids - Fractional distillation Note :If the liquids in the mixture have the same boiling point, fractional distillation is not possible.If the difference in boiling point is great, fractional distillation occurs readily.glass beads
40 Fractional distillation - applications Fractional distillation can be used to separate :-nitrogen and oxygen from liquid airthe components of crude oilethanol from fermented liquor
43 Separating immiscible liquids A separating funnel can be used to separate two immiscible liquids.Eg. water and petrol.This method can be used to separate :a mixture of petrol and waterengine oil and water
44 (Solid INSOLUBLE in liquid) The main points so far…liquid + liquidMixturessolid + solidsolid + liquid(Solid INSOLUBLE in liquid)FiltrationResidue(solid)Filtrate(liquid)
45 (Solid SOLUBLE in liquid) The main points so far…liquid + liquidMixturessolid + solidsolid + liquid(Solid SOLUBLE in liquid)Simple DistillationResidue(solid/ solute)Distillate(liquid/ solvent)
46 Difference in solubility? The main points so far…liquid + liquidMixturessolid + solidsolid + solutionYESDifference in solubility?Add suitable solventFiltrationCrystals(soluble solid)Residue(insoluble solid)Filtrate(solution)Crystallisation
47 The main points so far… liquid + liquid Mixtures solid + solid YES Difference in solubility?solid + solutionAdd suitable solventFiltrationNOSublimationCrystallisationOther physical difference?Using magnetEgs.
48 The main points so far… liquid + liquid Mixtures miscible liquids (different boiling pts.)Fractional distillationimmiscible liquidsSeparating funnel
