1 Exploring Solar Energy

2 Review: Atomic Structure  Three particles  Nucleus  Electrostatic Force  Strong nuclear force © The NEED Project

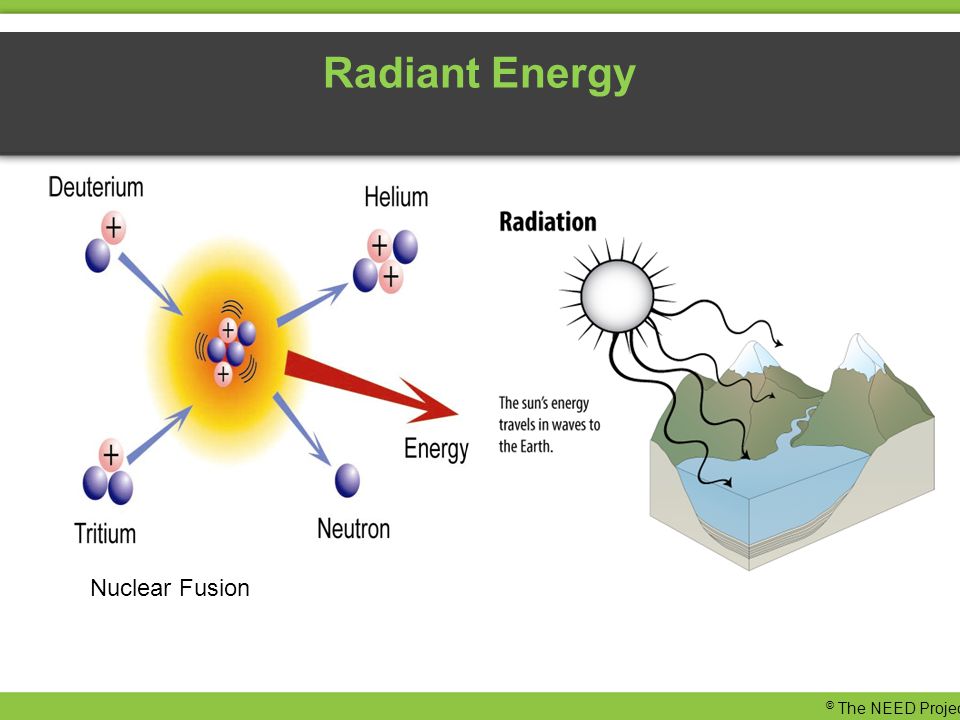

3 Radiant Energy Nuclear Fusion © The NEED Project

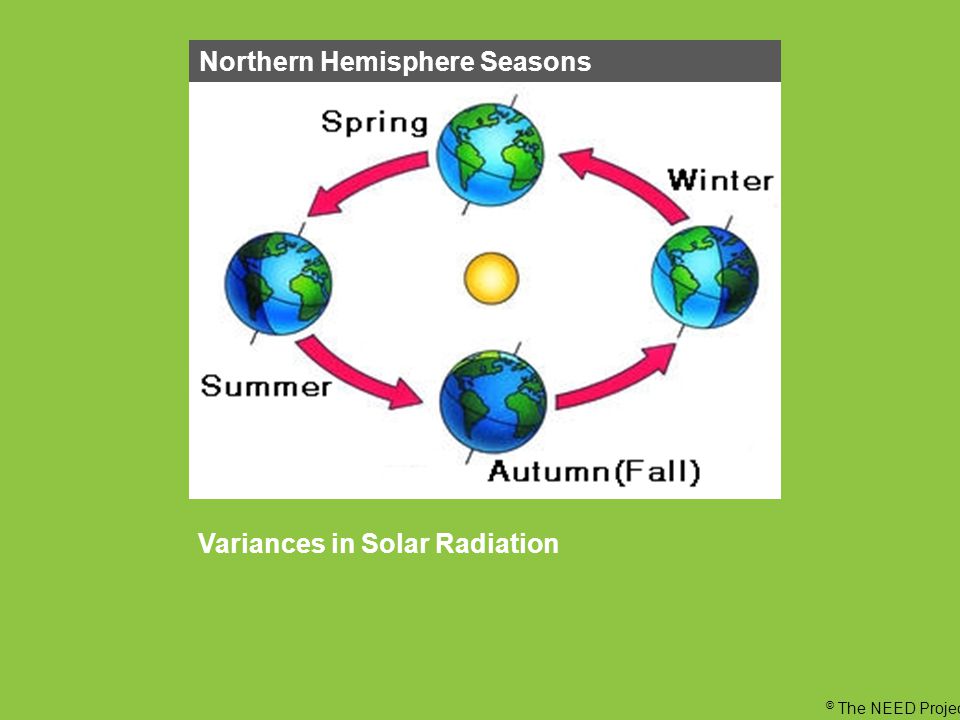

4 Variances in Solar Radiation Northern Hemisphere Seasons © The NEED Project

5 Average Daily Solar Insolation Per Month © The NEED Project

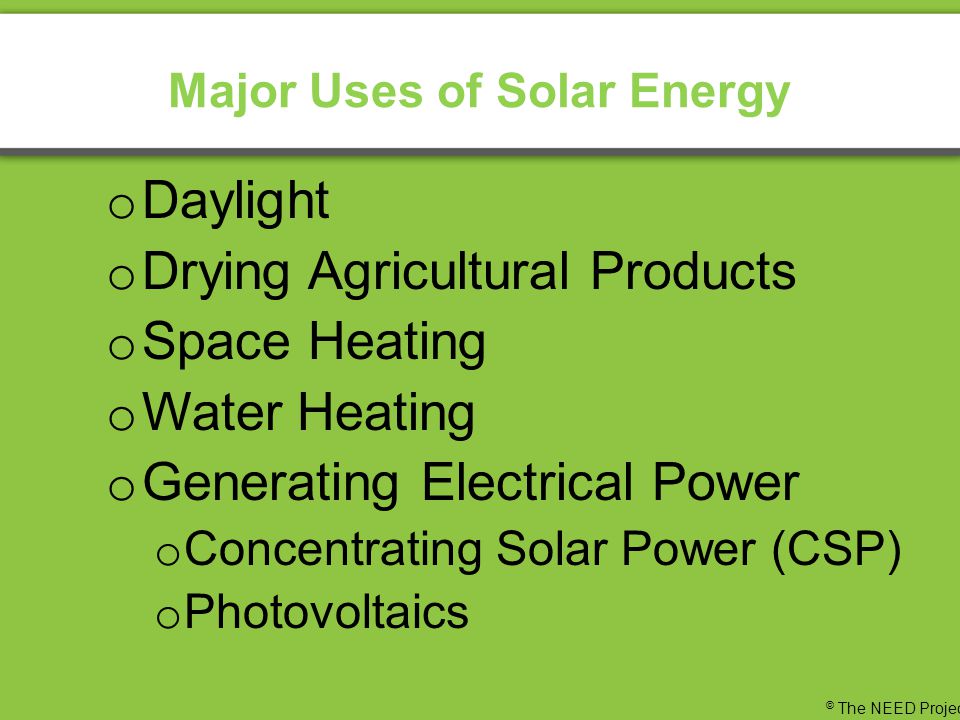

6 Major Uses of Solar Energy o Daylight o Drying Agricultural Products o Space Heating o Water Heating o Generating Electrical Power o Concentrating Solar Power (CSP) o Photovoltaics © The NEED Project

7 Daylighting © The NEED Project

8 Daylighting © The NEED Project

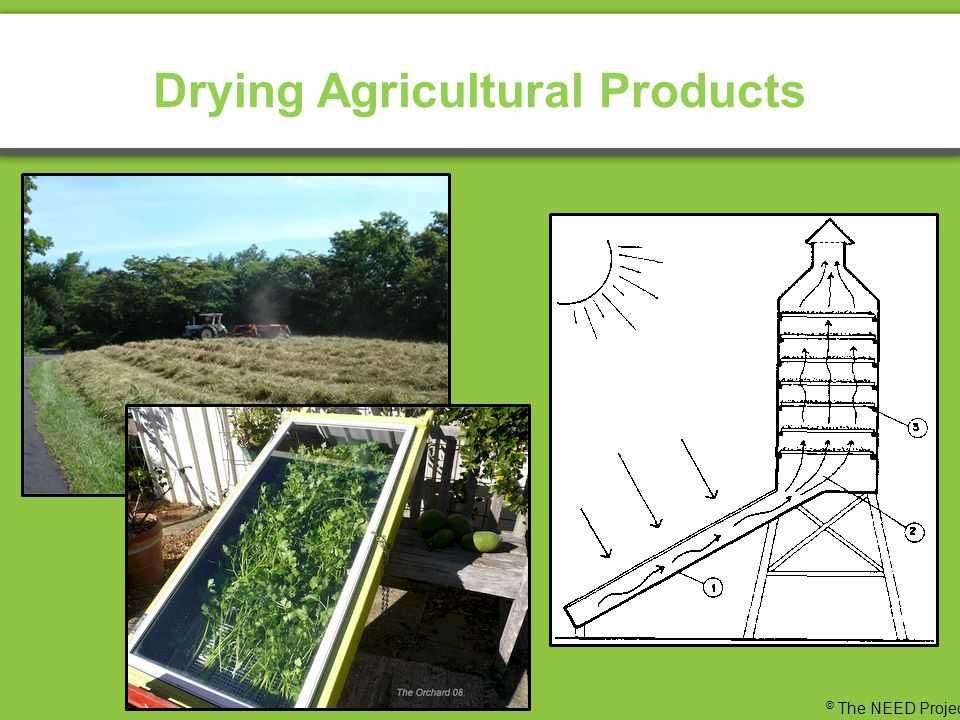

9 Drying Agricultural Products © The NEED Project

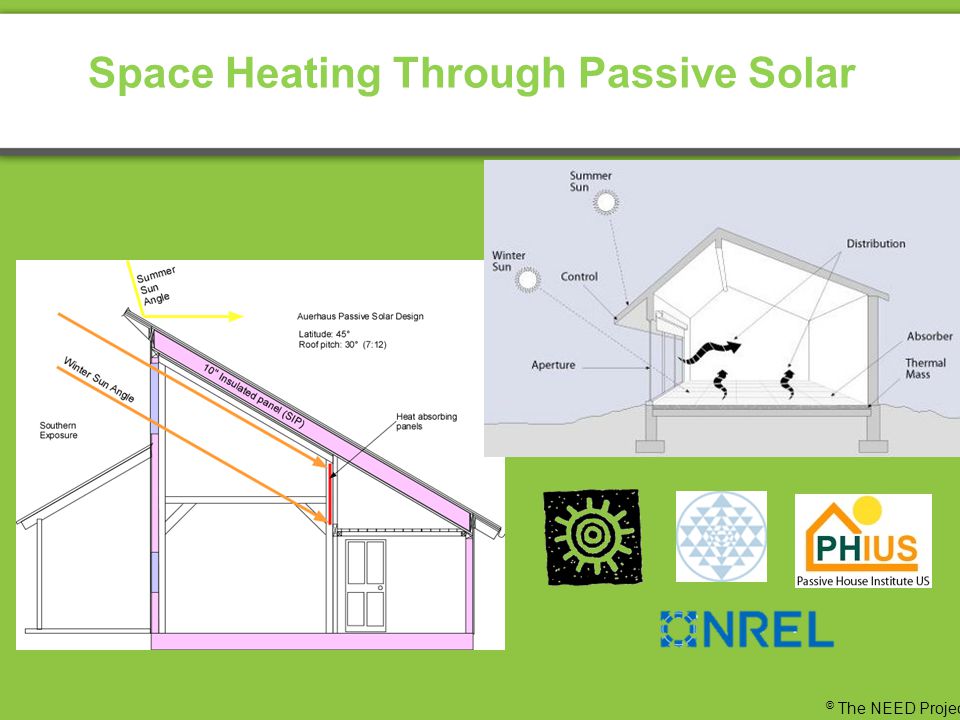

10 Space Heating Through Passive Solar © The NEED Project

11 Passive Solar © The NEED Project

12 Active Solar Heating © The NEED Project

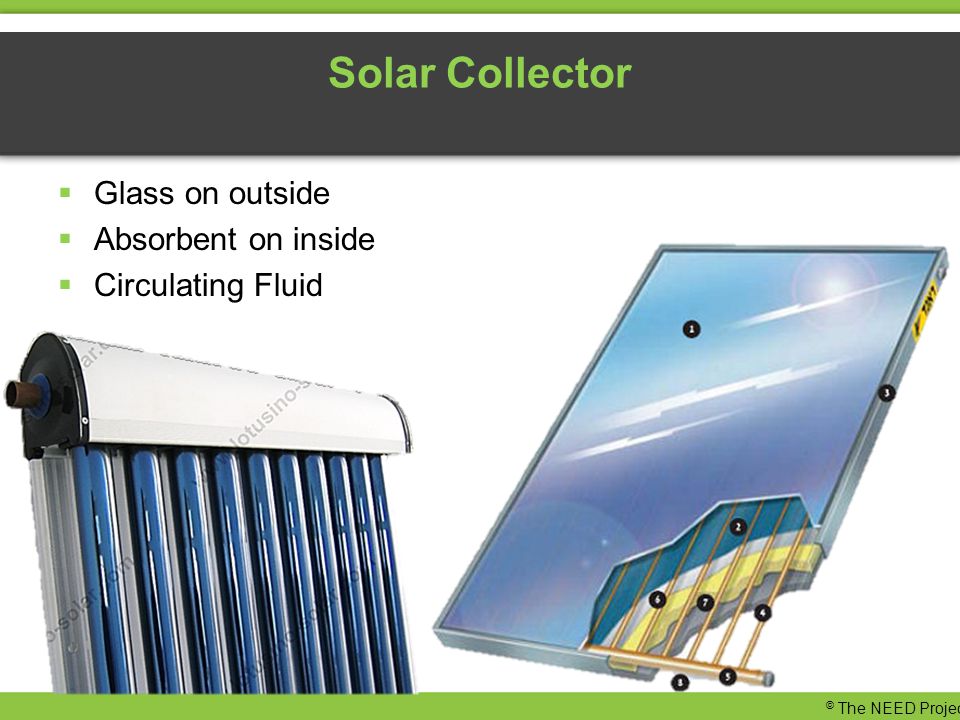

13 Solar Collector  Glass on outside  Absorbent on inside  Circulating Fluid © The NEED Project

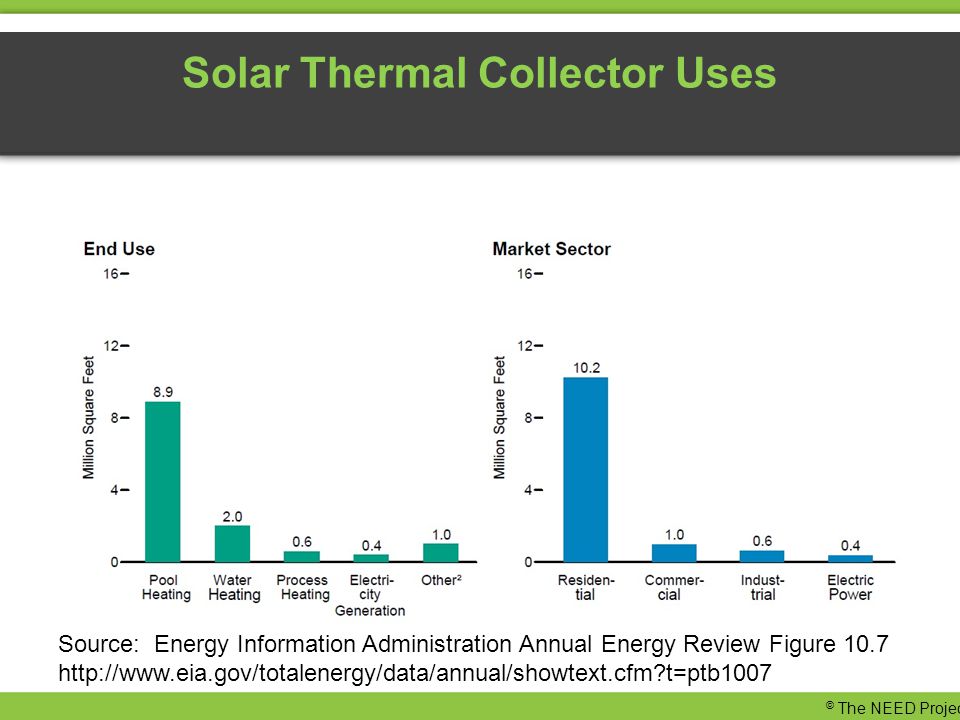

14 Solar Thermal Collector Uses Source: Energy Information Administration Annual Energy Review Figure 10.7 http://www.eia.gov/totalenergy/data/annual/showtext.cfm?t=ptb1007 © The NEED Project

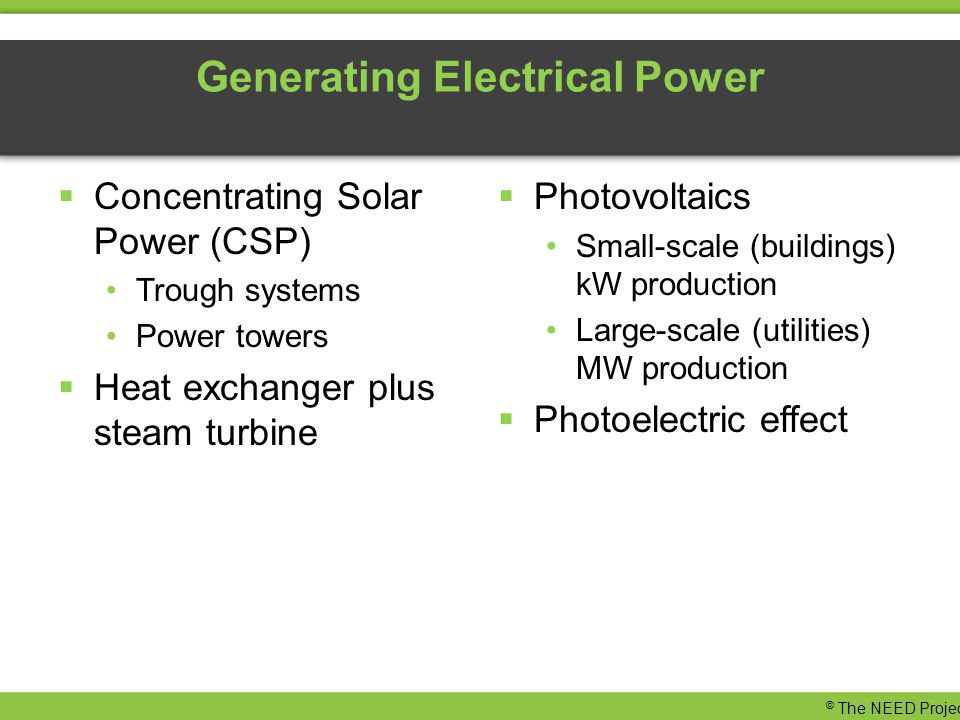

15 Generating Electrical Power  Concentrating Solar Power (CSP) Trough systems Power towers  Heat exchanger plus steam turbine  Photovoltaics Small-scale (buildings) kW production Large-scale (utilities) MW production  Photoelectric effect © The NEED Project

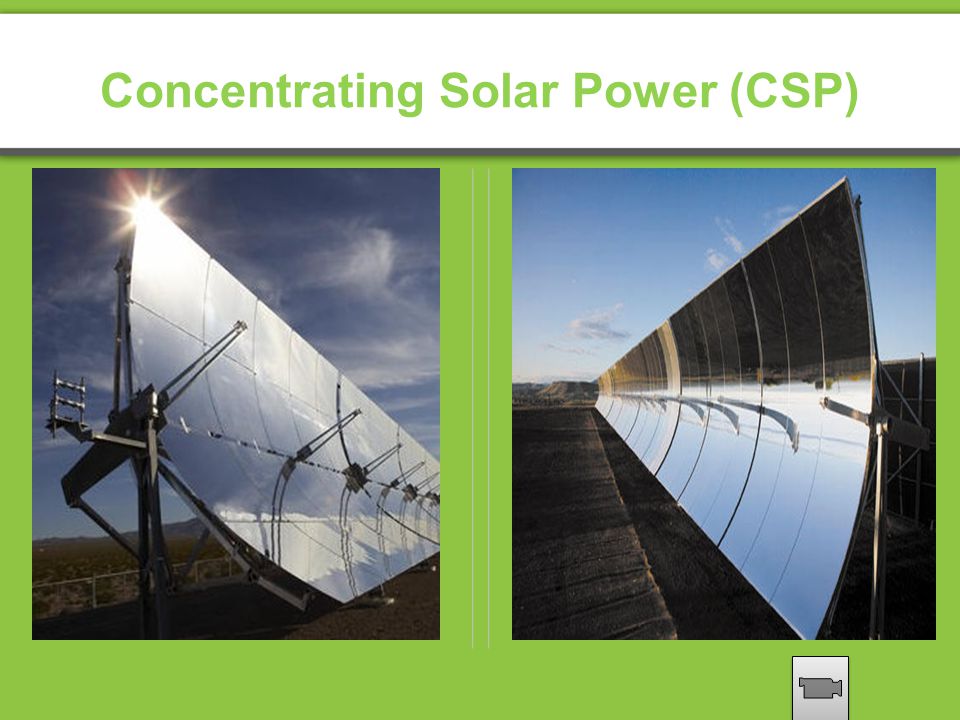

16 Concentrating Solar Power (CSP)

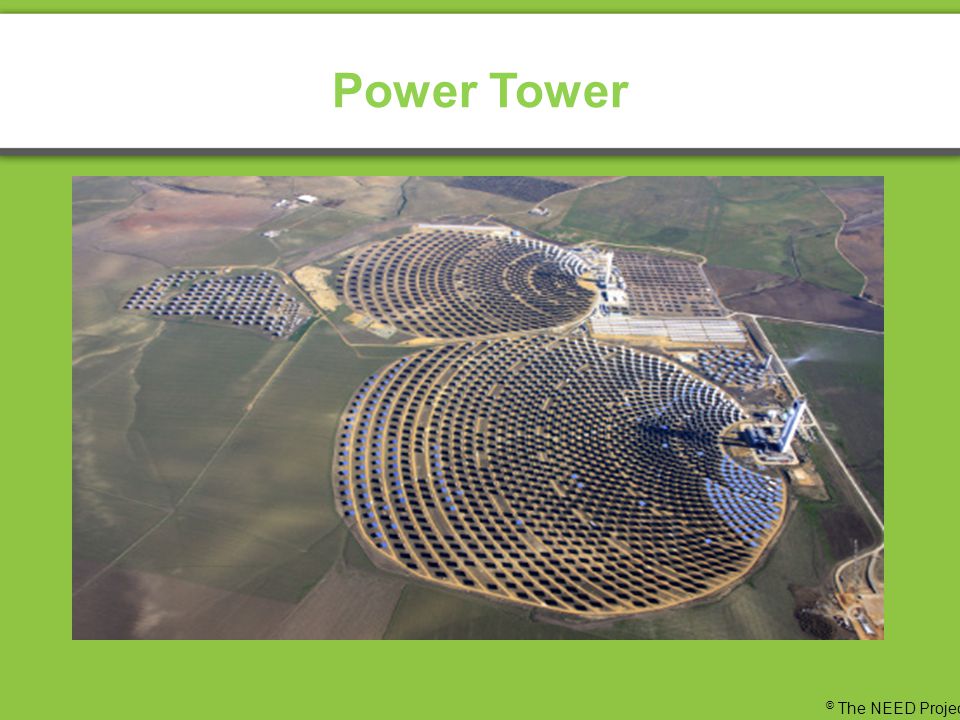

17 Power Tower © The NEED Project

18 How a Power Tower Works © The NEED Project

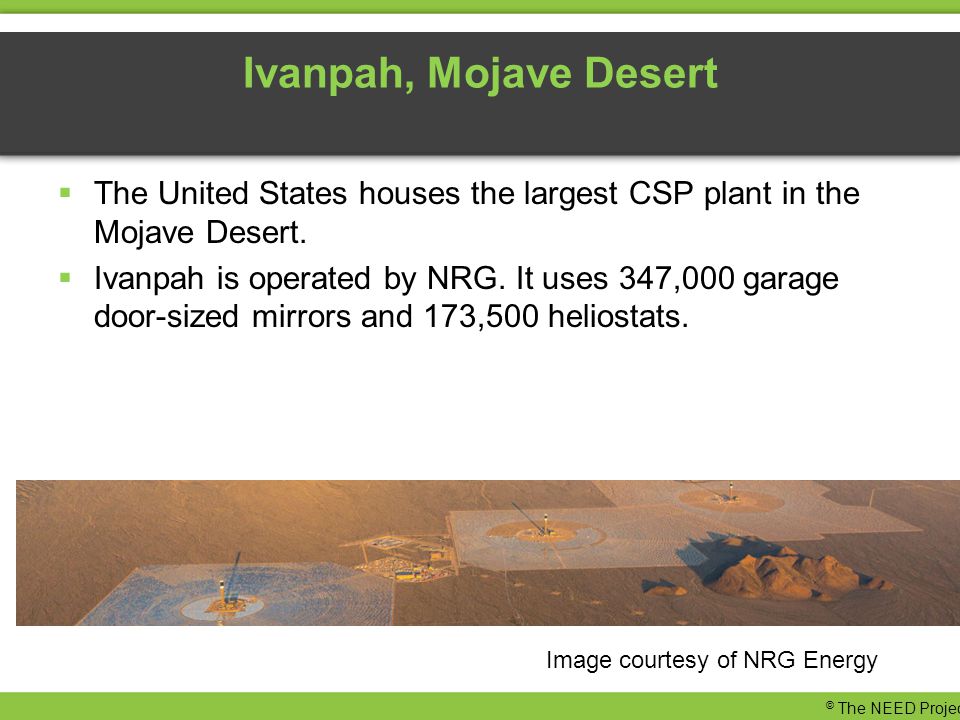

19 Ivanpah, Mojave Desert  The United States houses the largest CSP plant in the Mojave Desert.  Ivanpah is operated by NRG. It uses 347,000 garage door-sized mirrors and 173,500 heliostats. Image courtesy of NRG Energy © The NEED Project

20 Photovoltaics © The NEED Project

21

22 PV Cell © The NEED Project

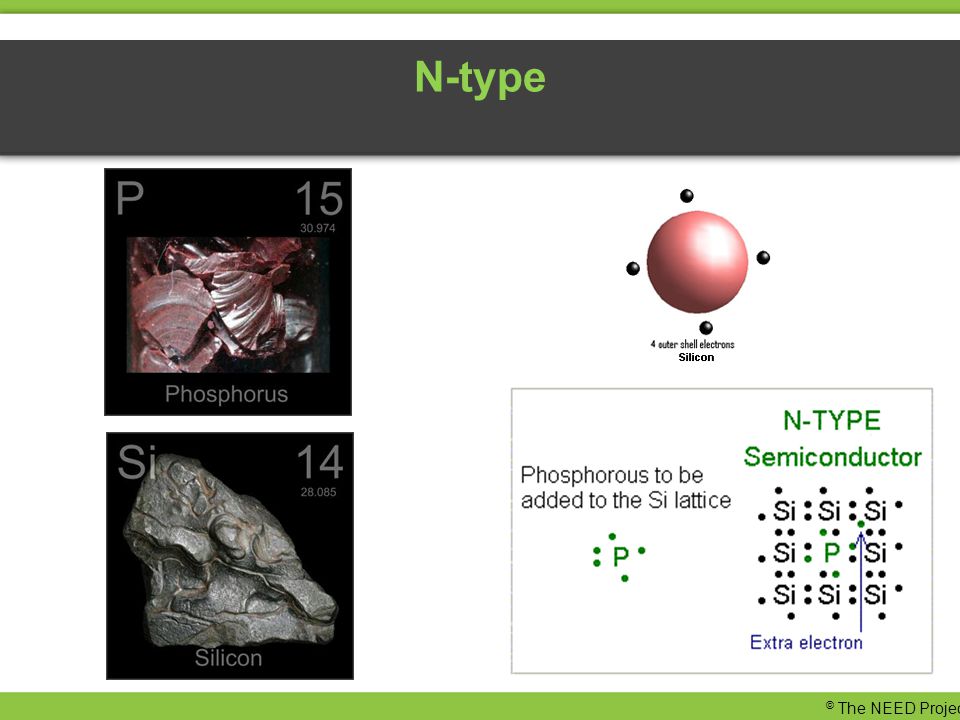

23 N-type © The NEED Project

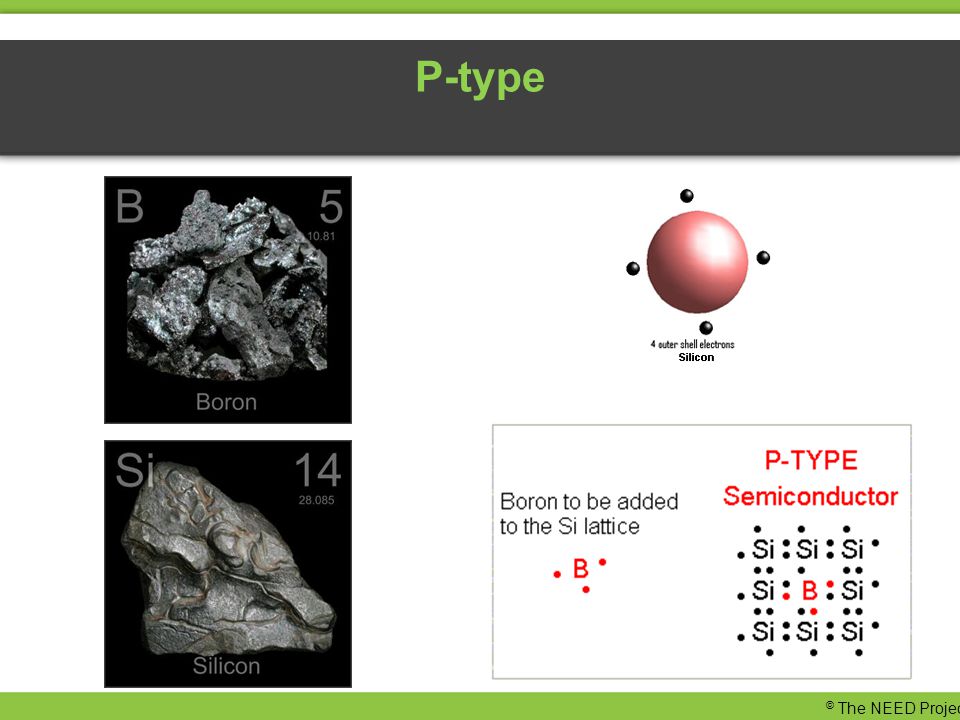

24 P-type © The NEED Project

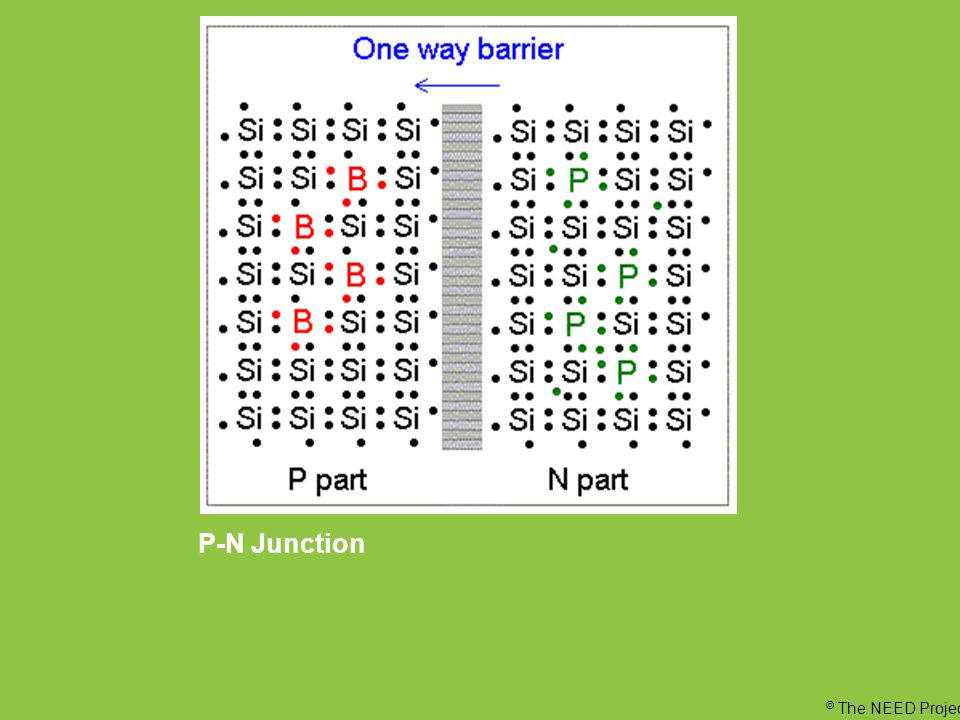

25 P-N Junction © The NEED Project

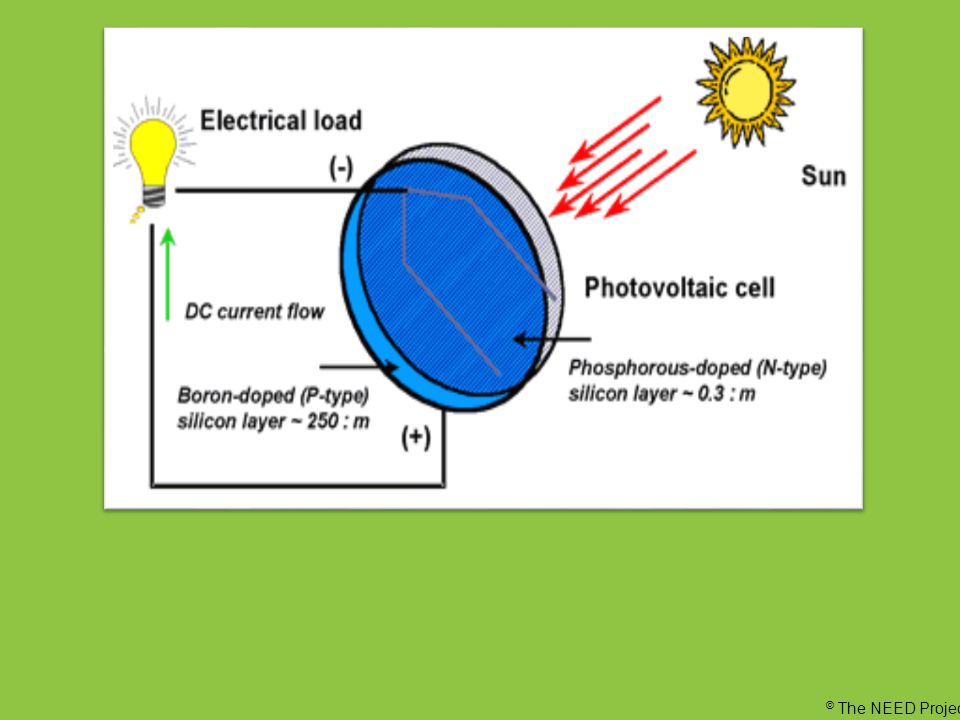

26

27 Conversion Efficiency © The NEED Project

28 PV Array Components  PV Cells  Modules  Arrays © The NEED Project

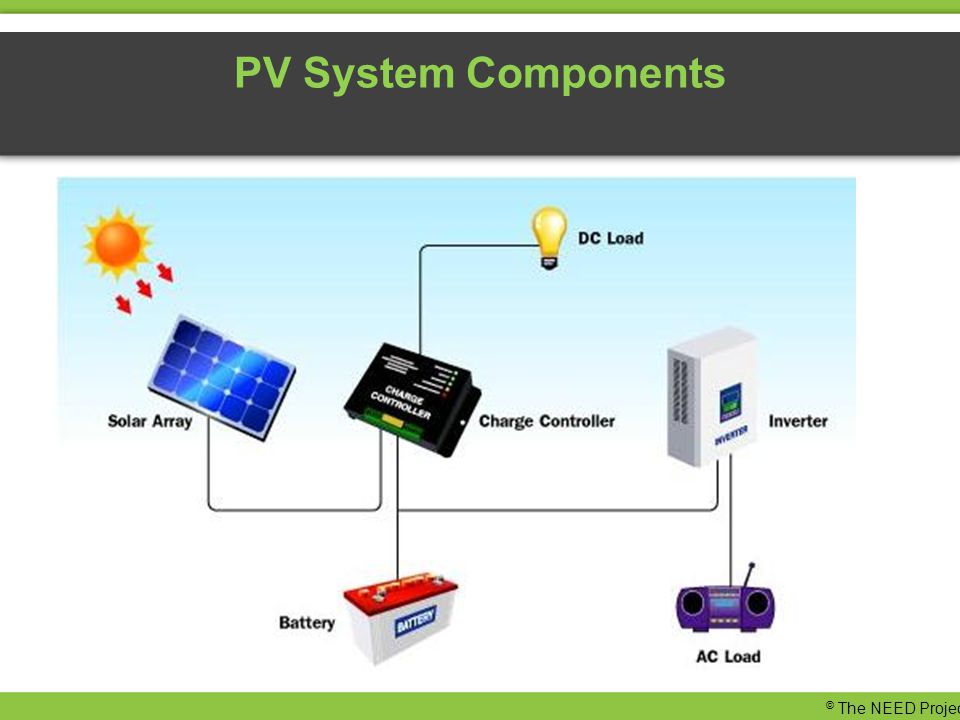

29 PV System Components © The NEED Project

30 Net Metering © The NEED Project

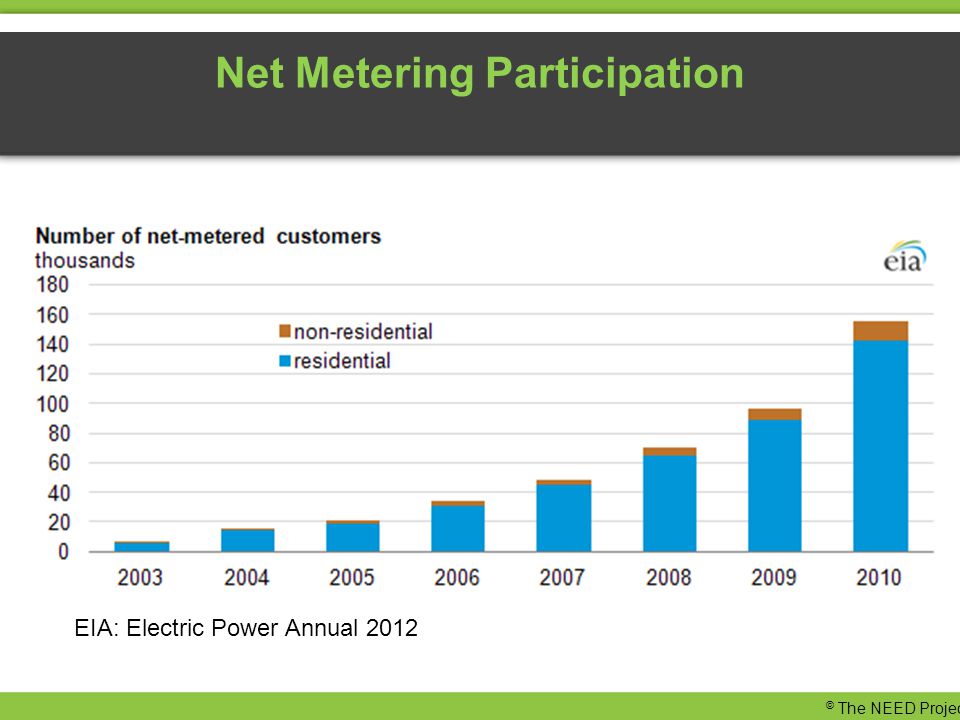

31 Net Metering Participation EIA: Electric Power Annual 2012 © The NEED Project

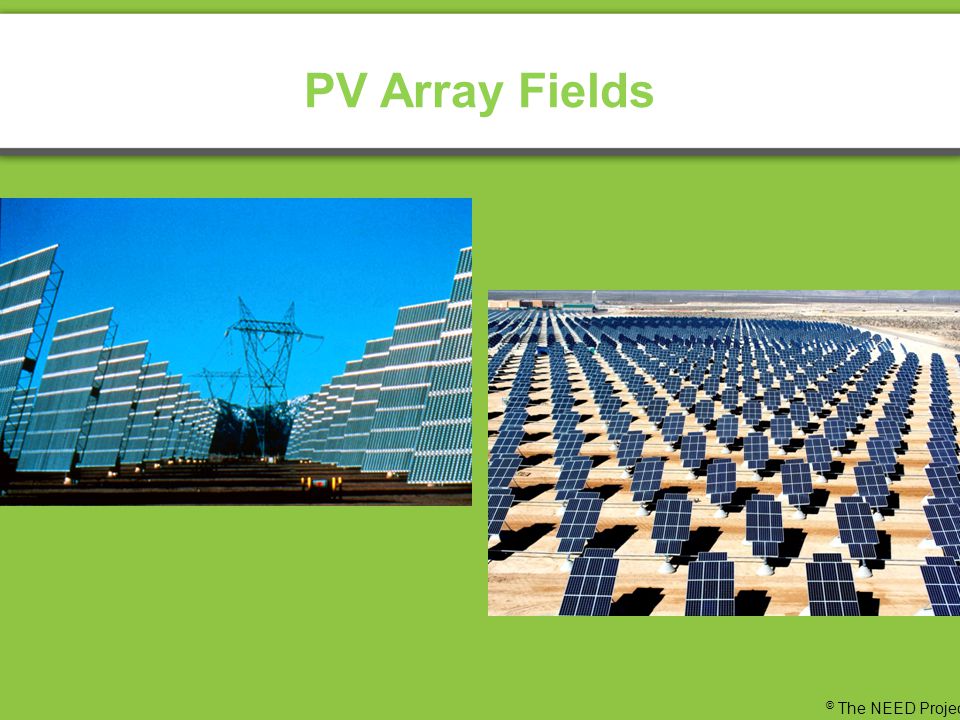

32 PV Array Fields © The NEED Project

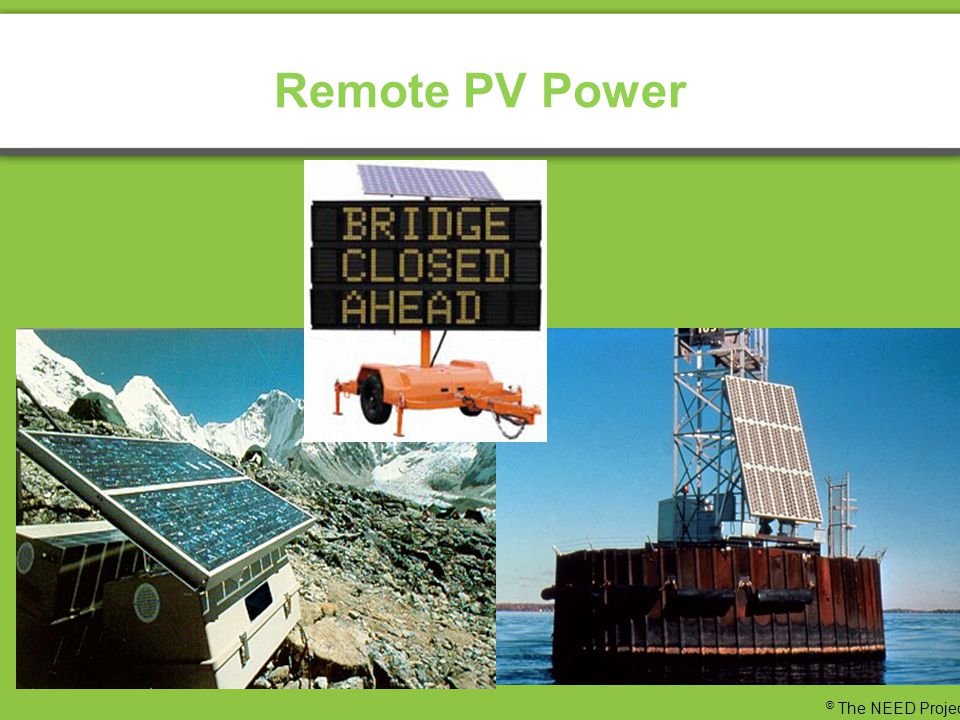

33 Remote PV Power © The NEED Project

34 Total PV Installation Worldwide © The NEED Project Source: European Photovoltaic Industry Association

35 World Photovoltaic Capacity © The NEED Project US Department of Energy, NREL 2012 Renewable Energy Data Book

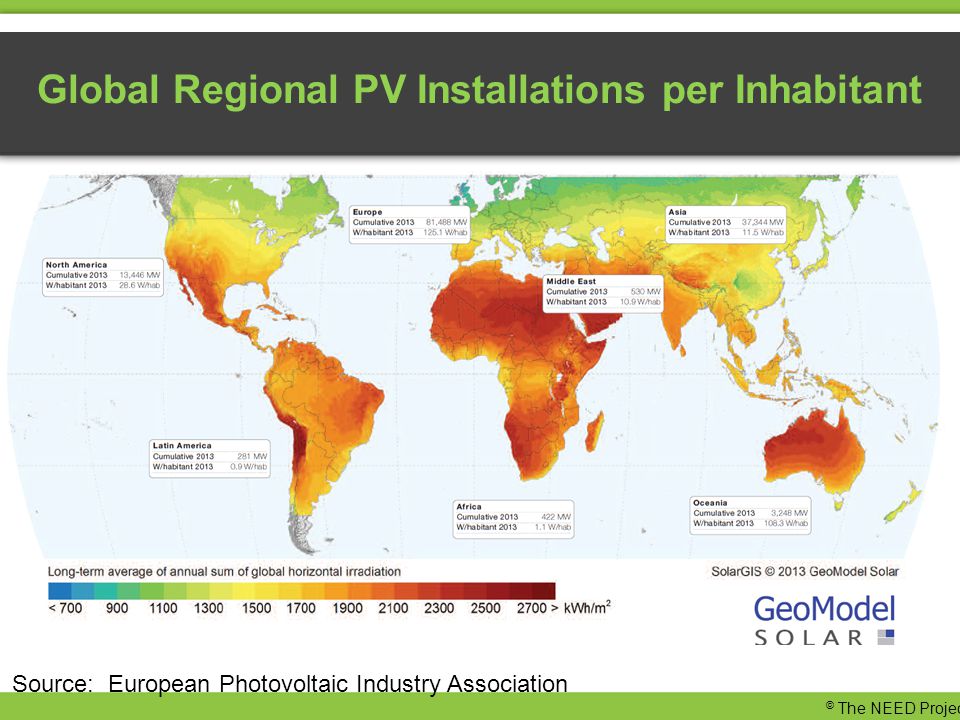

36 Global Regional PV Installations per Inhabitant © The NEED Project Source: European Photovoltaic Industry Association

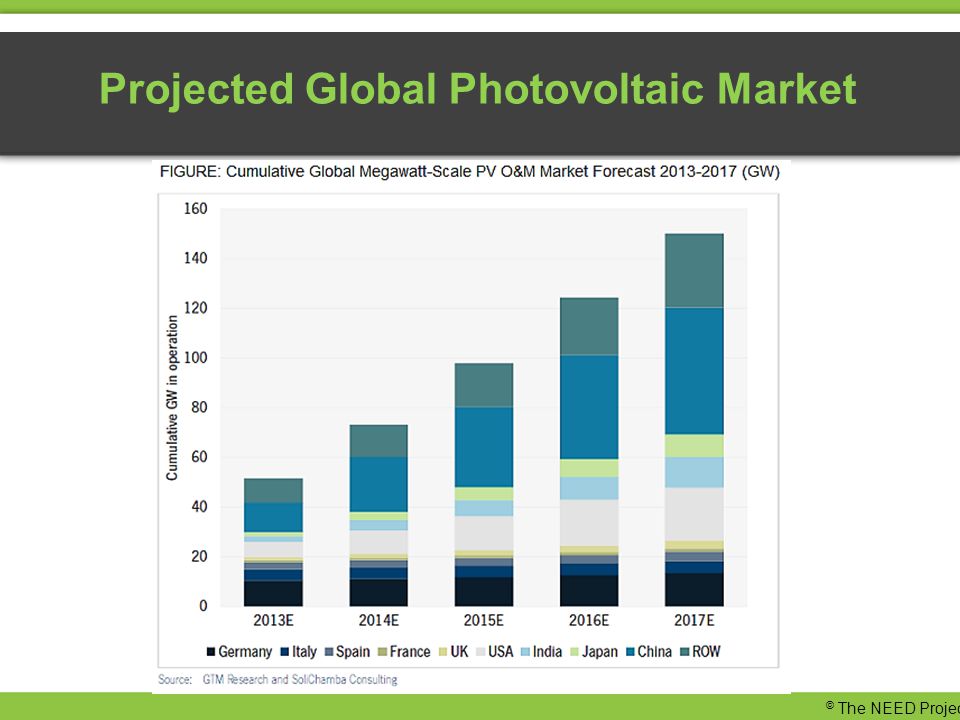

37 Projected Global Photovoltaic Market © The NEED Project

38 Advantages of Solar Energy Clean Sustainable Free Provide electricity to remote places © The NEED Project

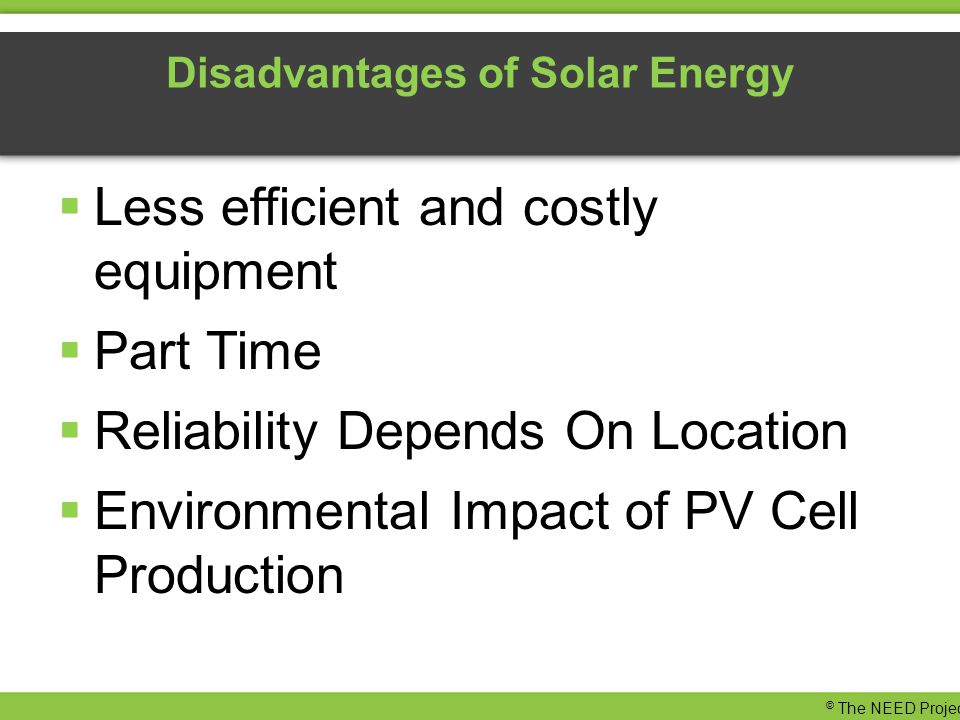

39 Disadvantages of Solar Energy  Less efficient and costly equipment  Part Time  Reliability Depends On Location  Environmental Impact of PV Cell Production © The NEED Project

40 Classroom Photovoltaics  Experiments help students understand the conditions needed for optimal power production  Focus of secondary-level solar curriculum  Use digital multimeters © The NEED Project

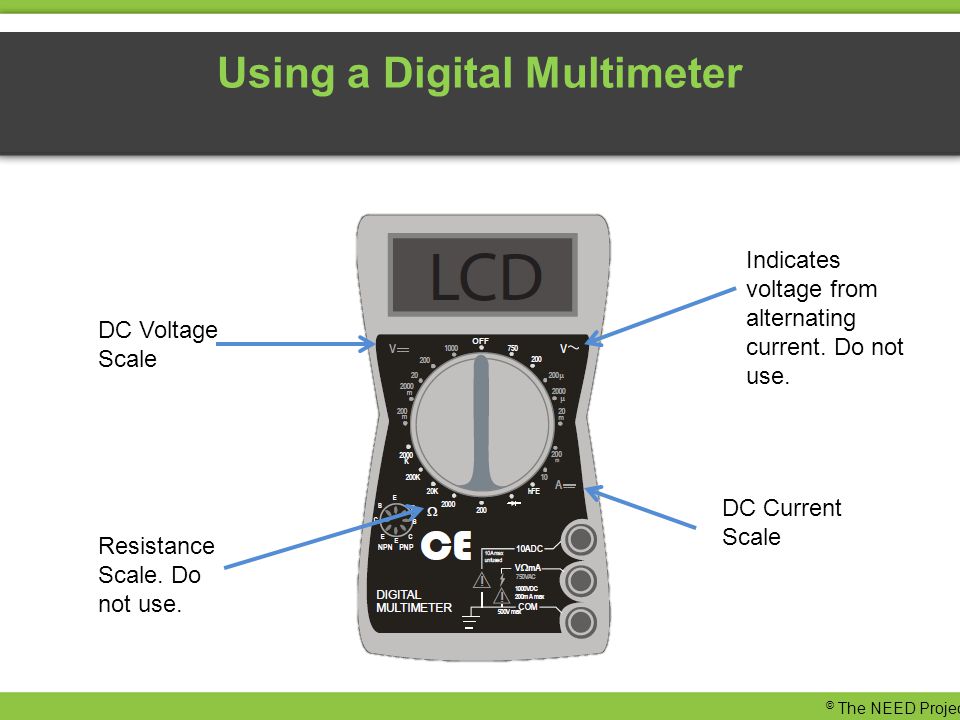

41 Using a Digital Multimeter Indicates voltage from alternating current. Do not use. DC Current Scale DC Voltage Scale Resistance Scale. Do not use. © The NEED Project

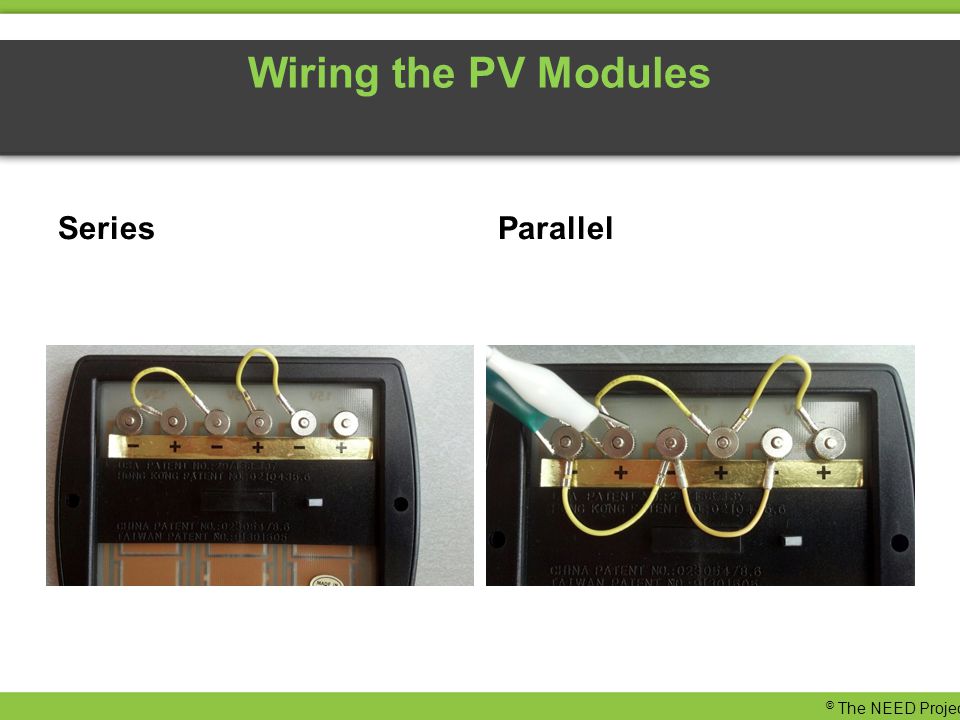

42 Wiring the PV Modules SeriesParallel © The NEED Project

43 For More Information The NEED Project www.need.org info@need.org 1-800-875-5029 Energy Information Administration U.S. Department of Energy www.eia.gov
