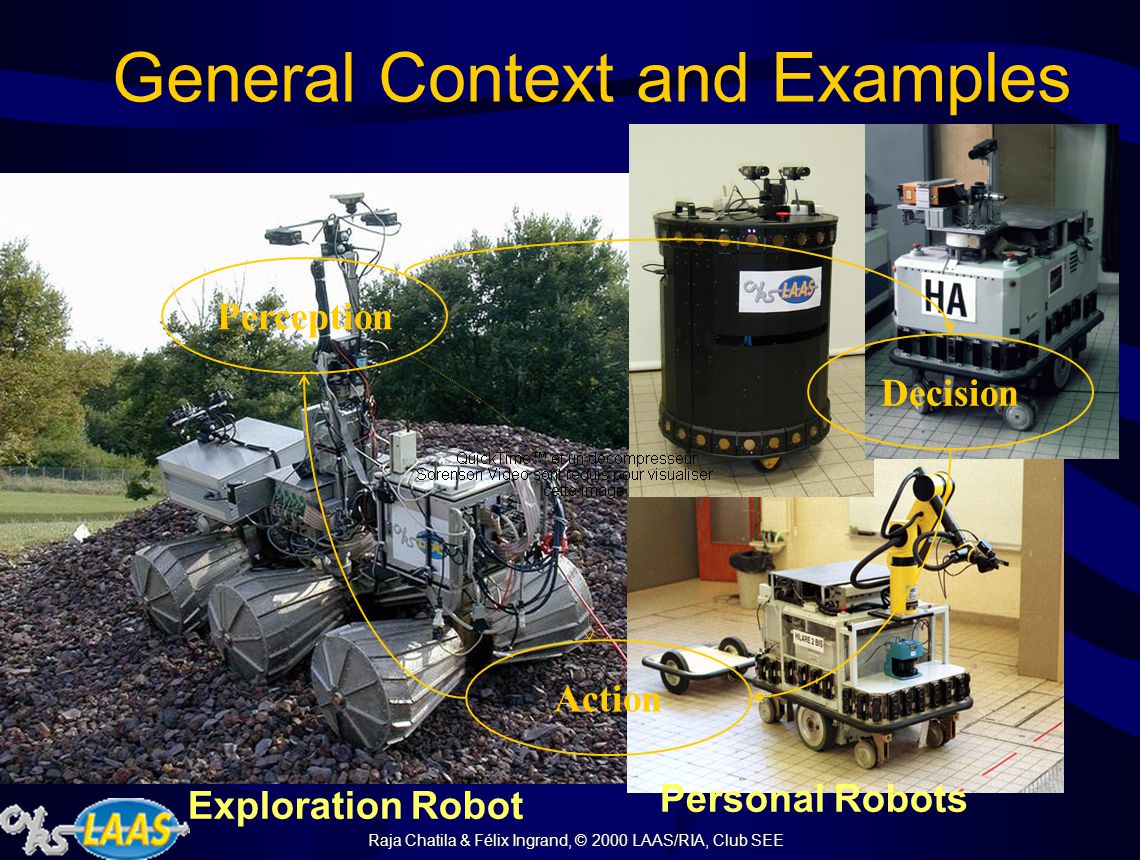

2. Raja Chatila & Félix Ingrand, LAAS/RIA, © 2000, Club SEE An Architecture for Autonomous Embedded Systems: methods and tools for dependability R. Alami, R. Chatila, S. Fleury, M. Ghallab, M. Herrb, F. Ingrand LAAS-CNRS RIA Group

3. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE General Context and Examples Exploration Robot Personal Robots Perception Action Decision

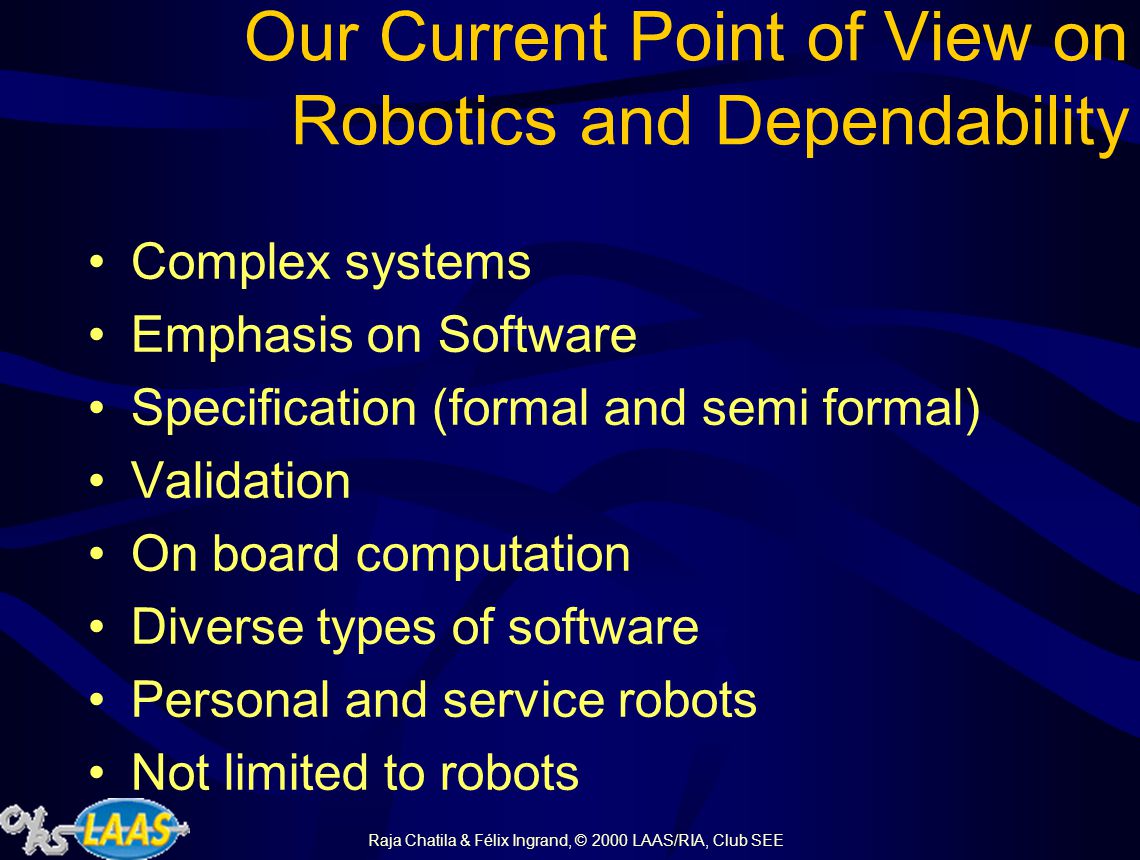

4. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Our Current Point of View on Robotics and Dependability Complex systems Emphasis on Software Specification (formal and semi formal) Validation On board computation Diverse types of software Personal and service robots Not limited to robots

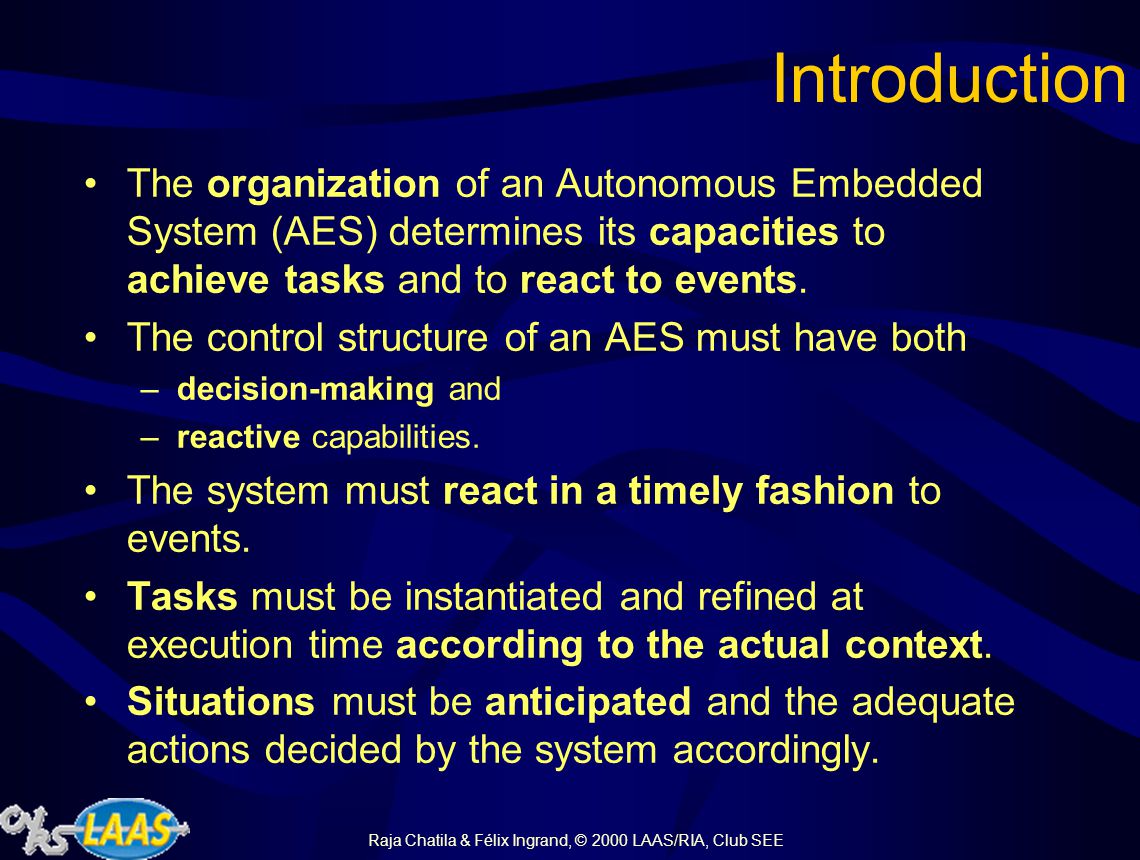

5. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Introduction The organization of an Autonomous Embedded System (AES) determines its capacities to achieve tasks and to react to events. The control structure of an AES must have both –decision-making and –reactive capabilities. The system must react in a timely fashion to events. Tasks must be instantiated and refined at execution time according to the actual context. Situations must be anticipated and the adequate actions decided by the system accordingly.

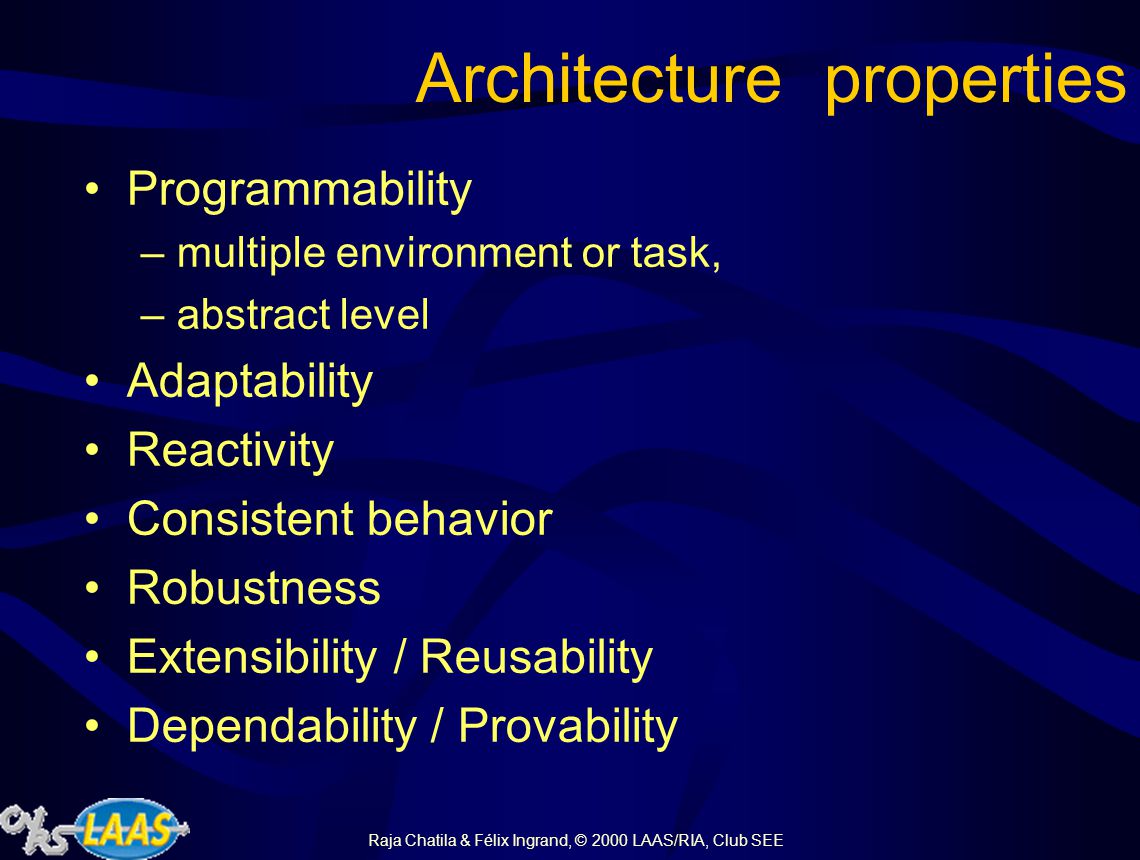

6. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Architecture properties Programmability –multiple environment or task, –abstract level Adaptability Reactivity Consistent behavior Robustness Extensibility / Reusability Dependability / Provability

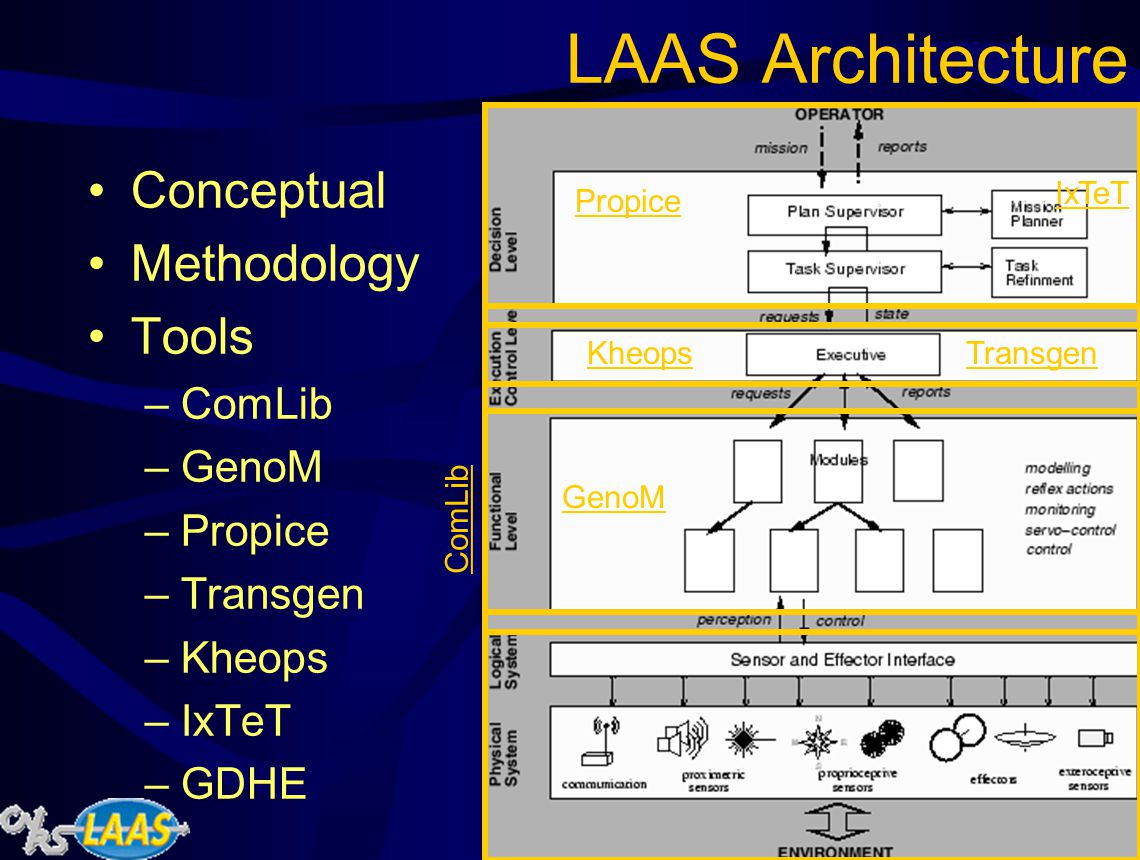

7. LAAS Architecture Conceptual Methodology Tools –ComLib –GenoM –Propice –Transgen –Kheops –IxTeT –GDHE GenoM KheopsTransgen ComLib Propice IxTeT

8. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Example: Diligent

9. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Example: Diligent Functional Level: –11 modules –11 posters ellipsoids stick to the producer thin arrows toward the consumers –Request to modules thick arows “client -> server”

10. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Example: Multi-Robots

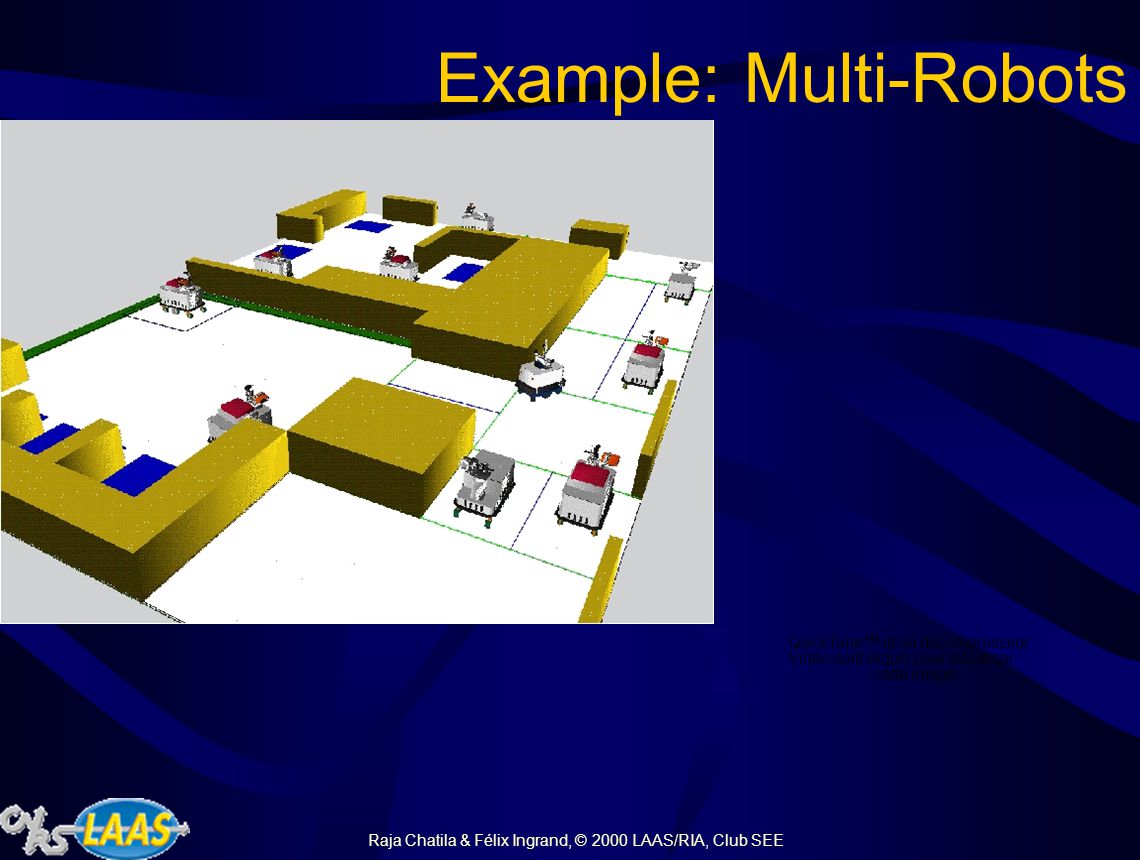

11. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Example: Multi Robots Functional Level Decision Level

12. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Example: Autonomous Satellite

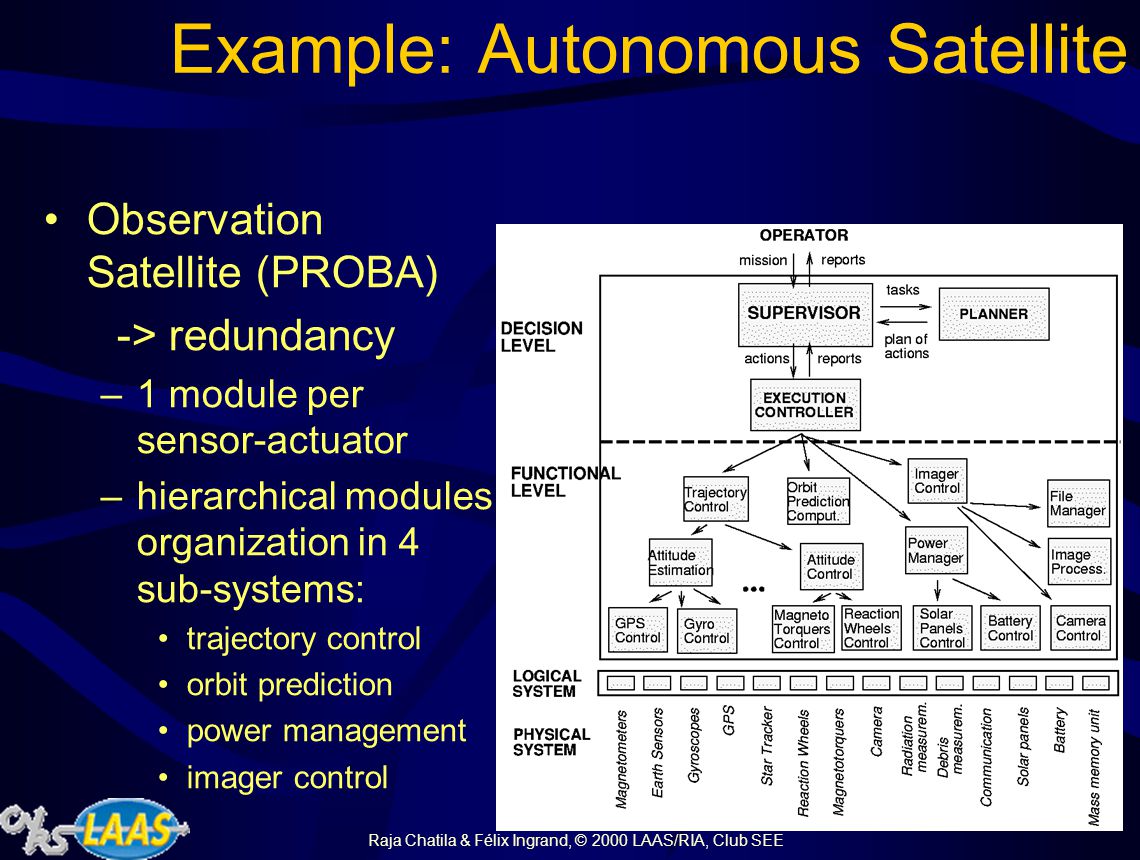

13. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Example: Autonomous Satellite Observation Satellite (PROBA) -> redundancy –1 module per sensor-actuator –hierarchical modules organization in 4 sub-systems: trajectory control orbit prediction power management imager control

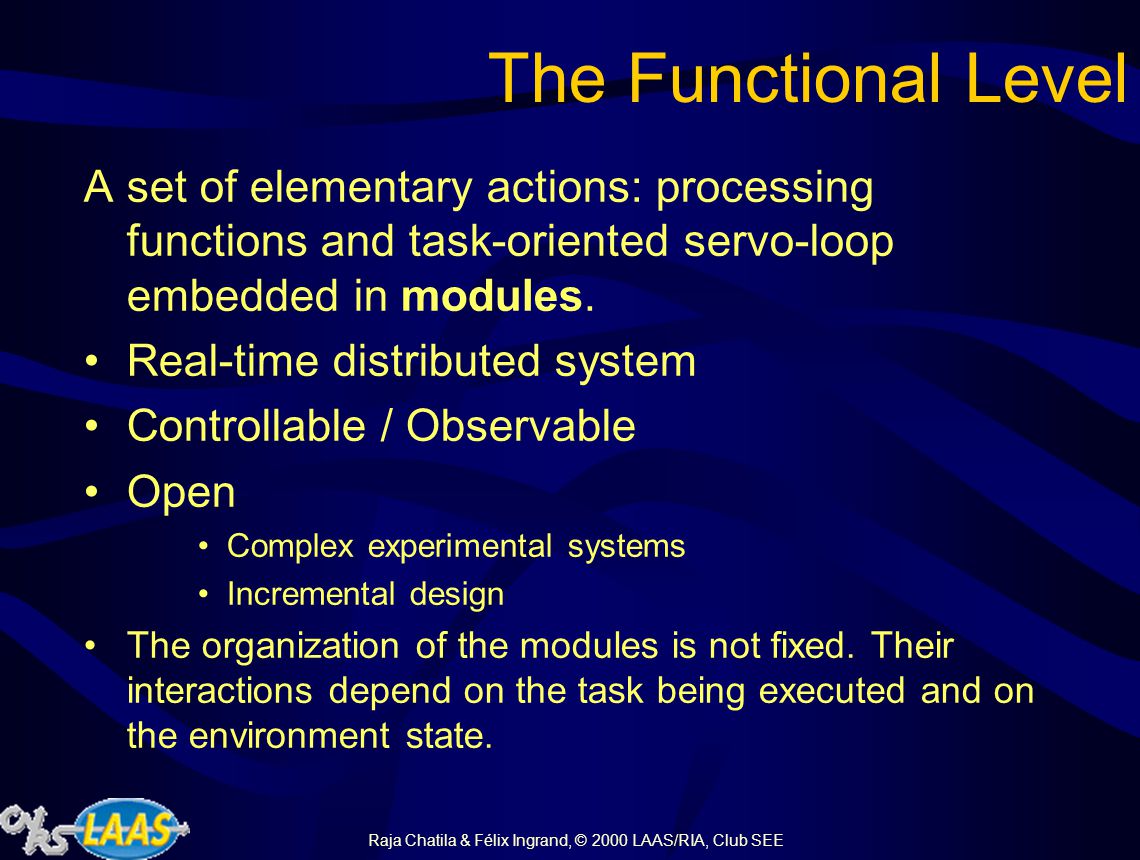

14. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE The Functional Level A set of elementary actions: processing functions and task-oriented servo-loop embedded in modules. Real-time distributed system Controllable / Observable Open Complex experimental systems Incremental design The organization of the modules is not fixed. Their interactions depend on the task being executed and on the environment state.

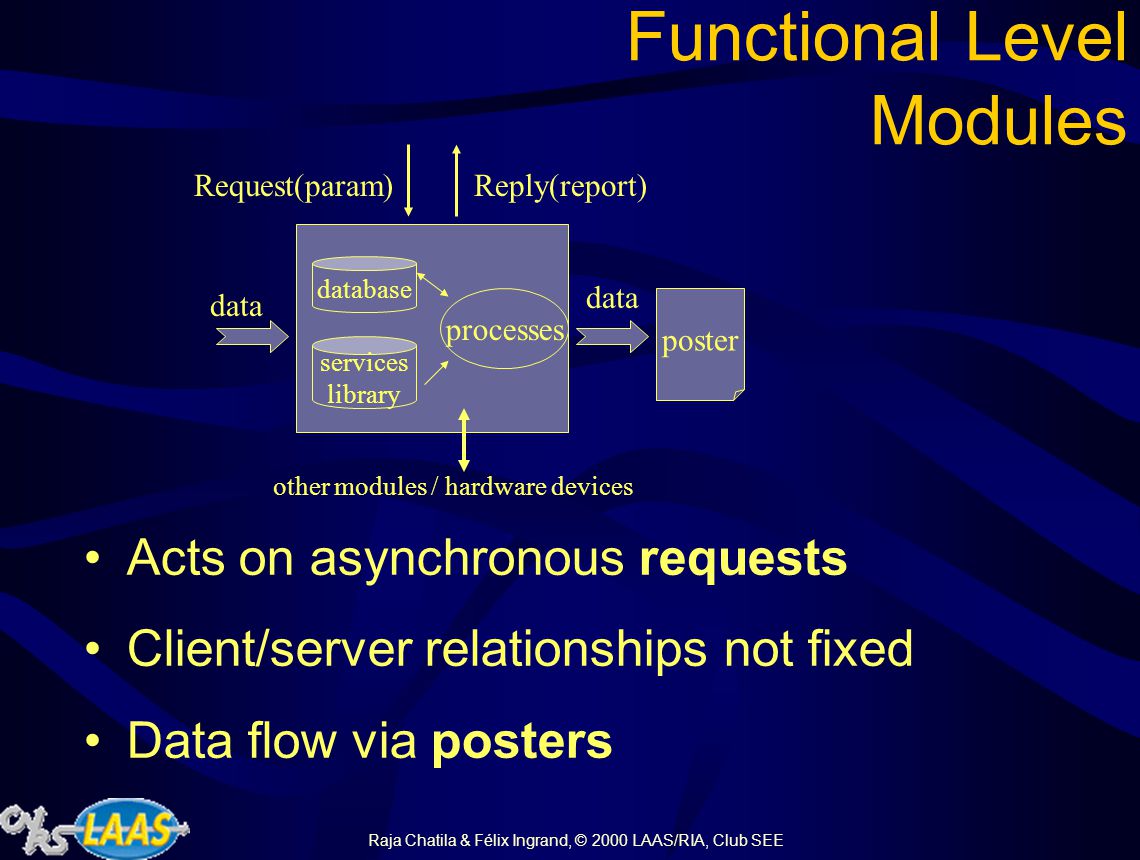

15. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Functional Level Modules Acts on asynchronous requests Client/server relationships not fixed Data flow via posters database services library processes Request(param)Reply(report) other modules / hardware devices data poster

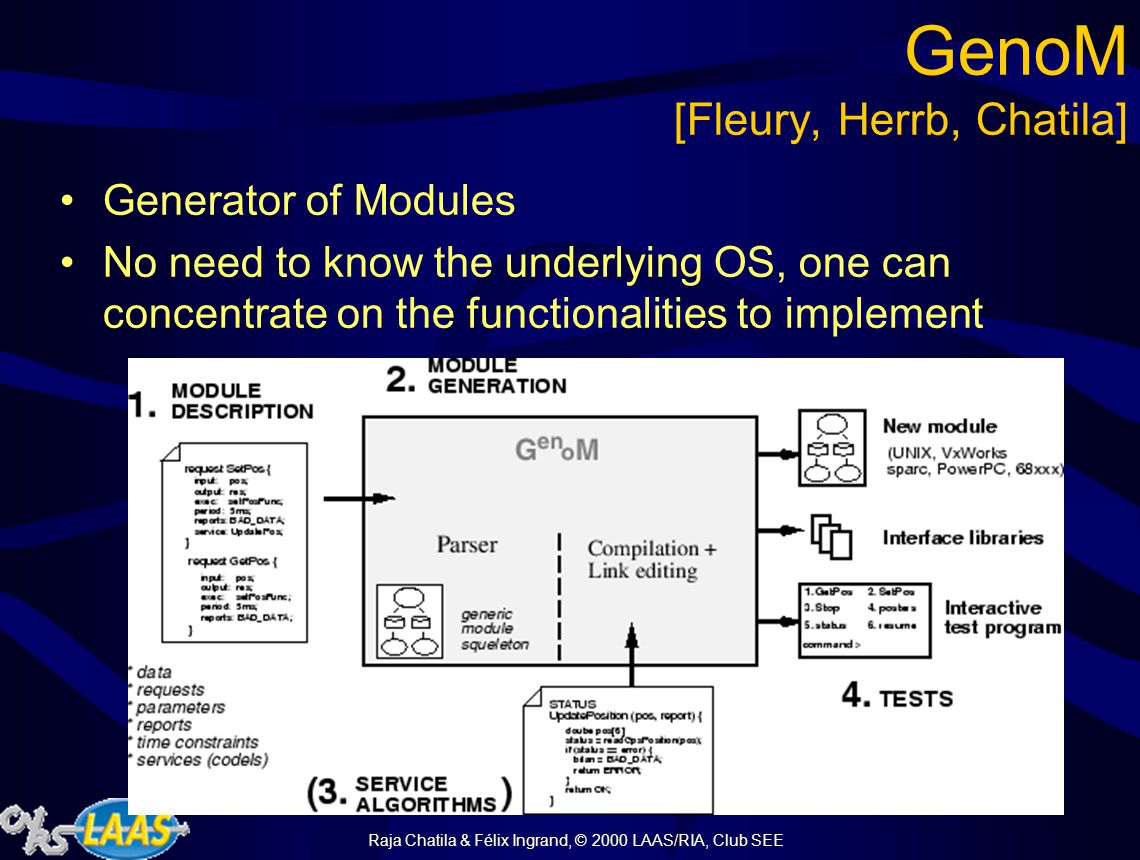

16. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE GenoM [Fleury, Herrb, Chatila] Generator of Modules No need to know the underlying OS, one can concentrate on the functionalities to implement

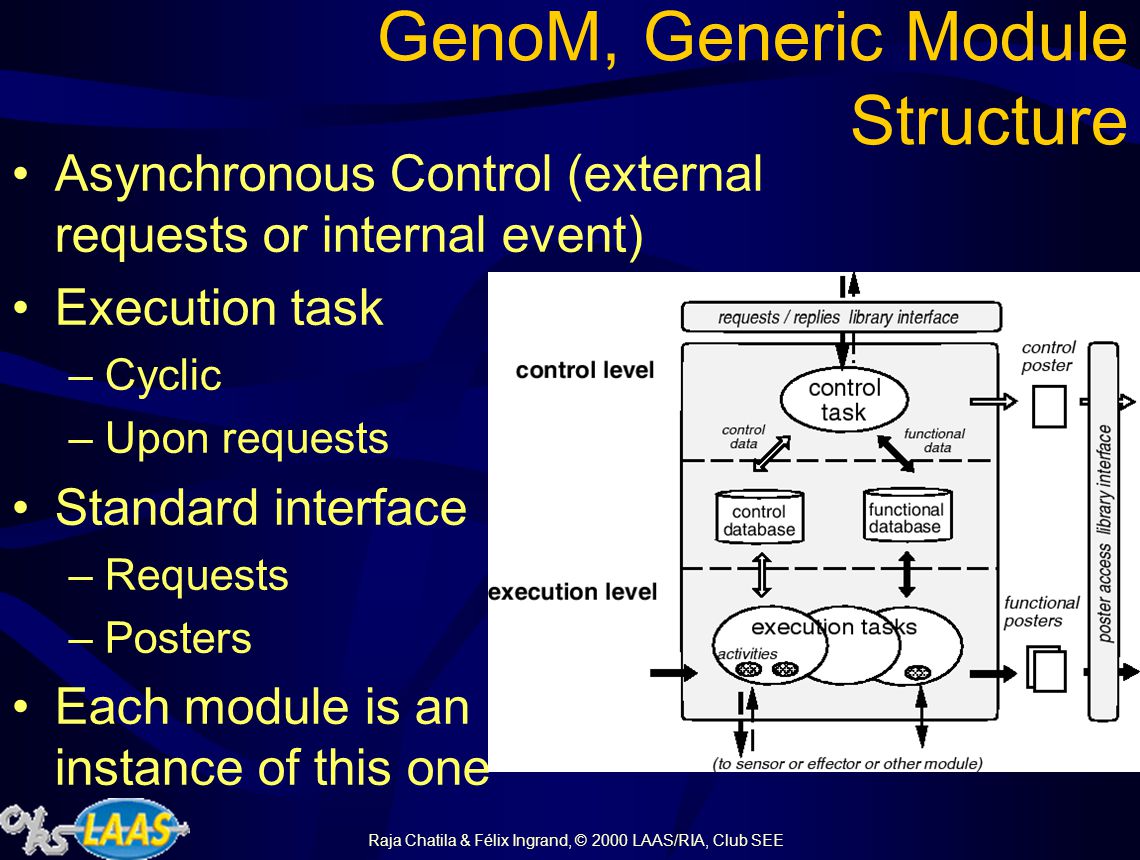

17. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE GenoM, Generic Module Structure Asynchronous Control (external requests or internal event) Execution task –Cyclic –Upon requests Standard interface –Requests –Posters Each module is an instance of this one

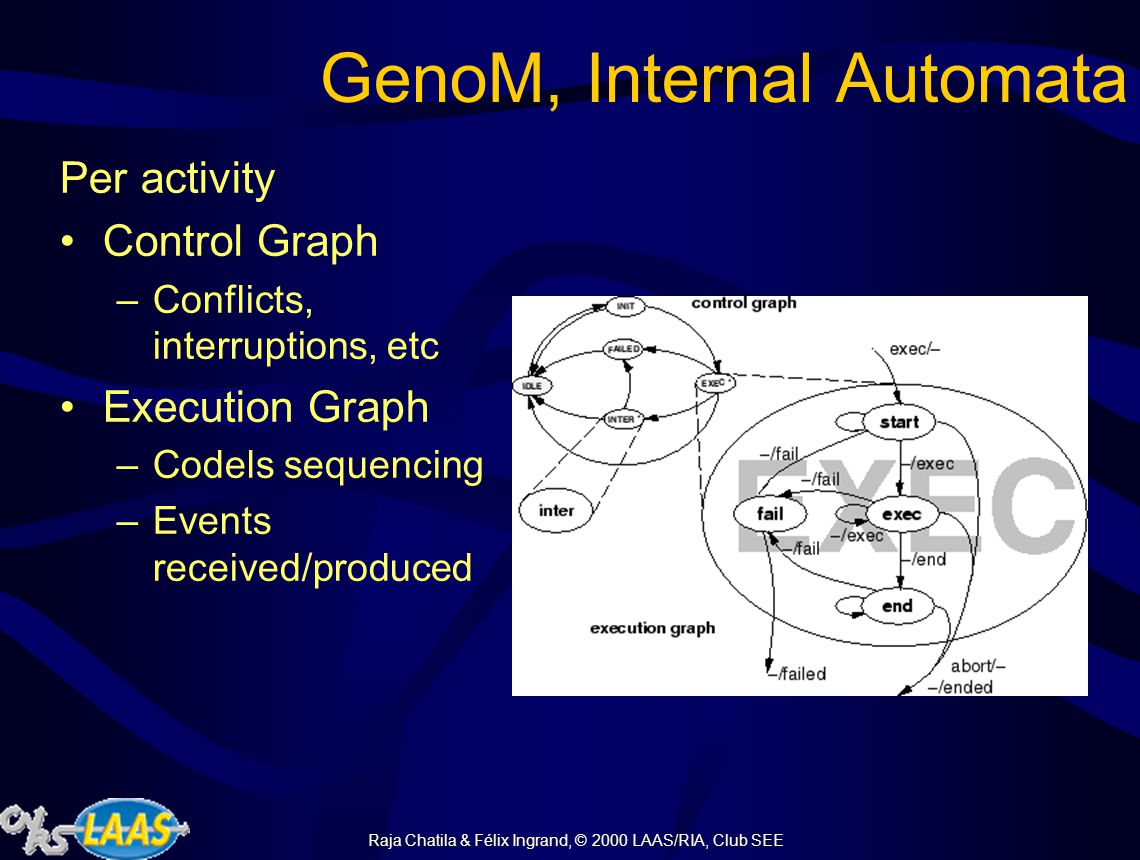

18. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE GenoM, Internal Automata Per activity Control Graph –Conflicts, interruptions, etc Execution Graph –Codels sequencing –Events received/produced

19. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE GenoM Example /* ---- Module Declaration ---- */ module demo { number: 9000; internal_data: DEMO_STR; }; /* ---- Data Structures Definitions ---- */ #include "demoStruct.h" #include "demoConst.h" /* ---- Module Data Base ---- */ typedef struct DEMO_STR { DEMO_STATE_STR state; /* Current state */ DEMO_SPEED speedRef; /* Speed reference */ double distRef; /* Distance reference */ doubleposRef; /* Position reference */ doublemonitor; /* Positions monitors */ }DEMO_STR; /* ---- Requests Declaration ---- */ /* Control Requests */ request SetSpeed { type: control; input: speed::speedRef; c_control_func: controlSpeed; fail_msg: INVALID_SPEED; }; /* Execution Requests */ request MoveDistance { type: exec; input: distance::distRef; c_control_func: controlDistance; fail_msg: TOO_FAR_AWAY; c_exec_func_start: startEngin; c_exec_func: gotoPosition; c_exec_func_end: stopEngin; c_exec_func_inter: stopEngin; incompatible_with: MoveDistance, GotoPosition; exec_task: MotionTask; }; /* ---- Posters ---- */ poster Mobile { update: auto; data: state::state, ref::distRef; exec_task: MotionTask; }; /* ---- Execution Tasks ---- */ exec_task MotionTask { period: 40; delay: 0; priority: 100; stack_size: 4000; c_init_func: InitDemoSDI; };

20. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Dependability Aspects of the Functional Level Done: Semi-Formal description Automatic code generation (safer code, safer integration) Todo: Explicit specific automata Time to execute codels (for worst case evaluation) Explicit request between modules Explicit resources management Distribution of real-time modules on multiple boards

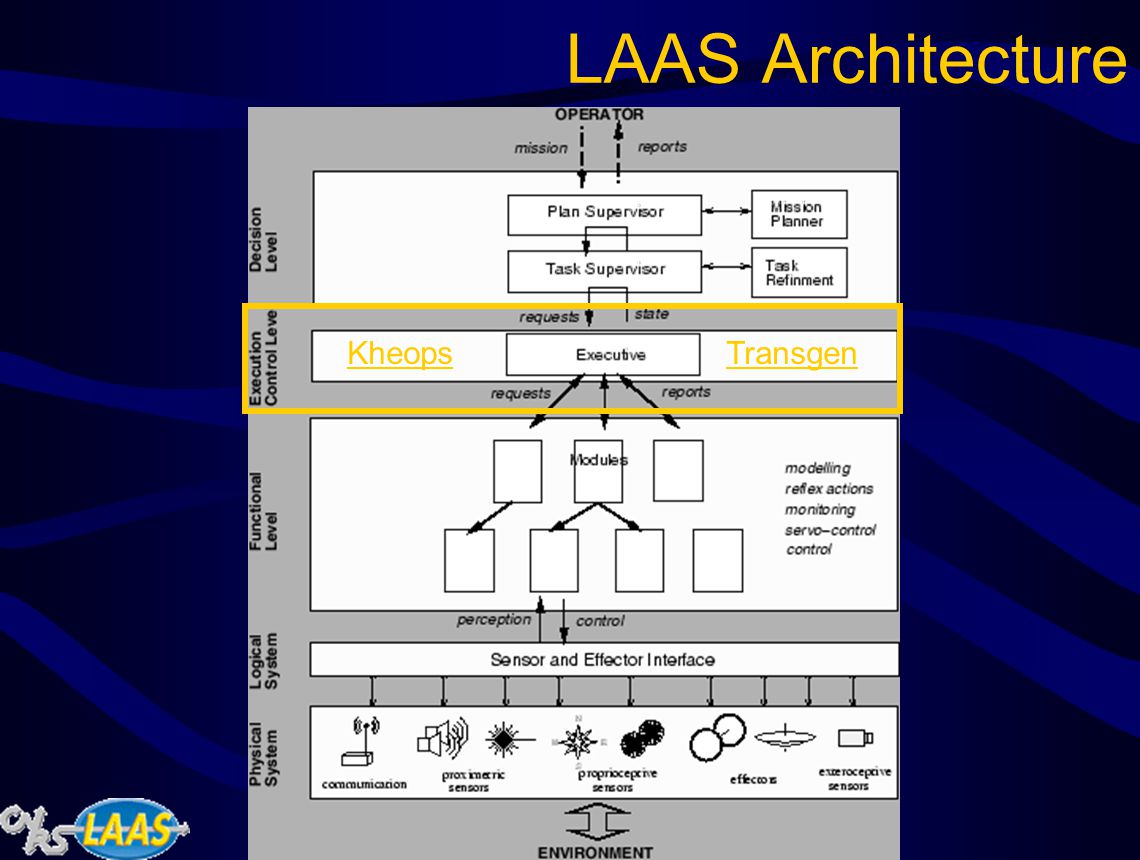

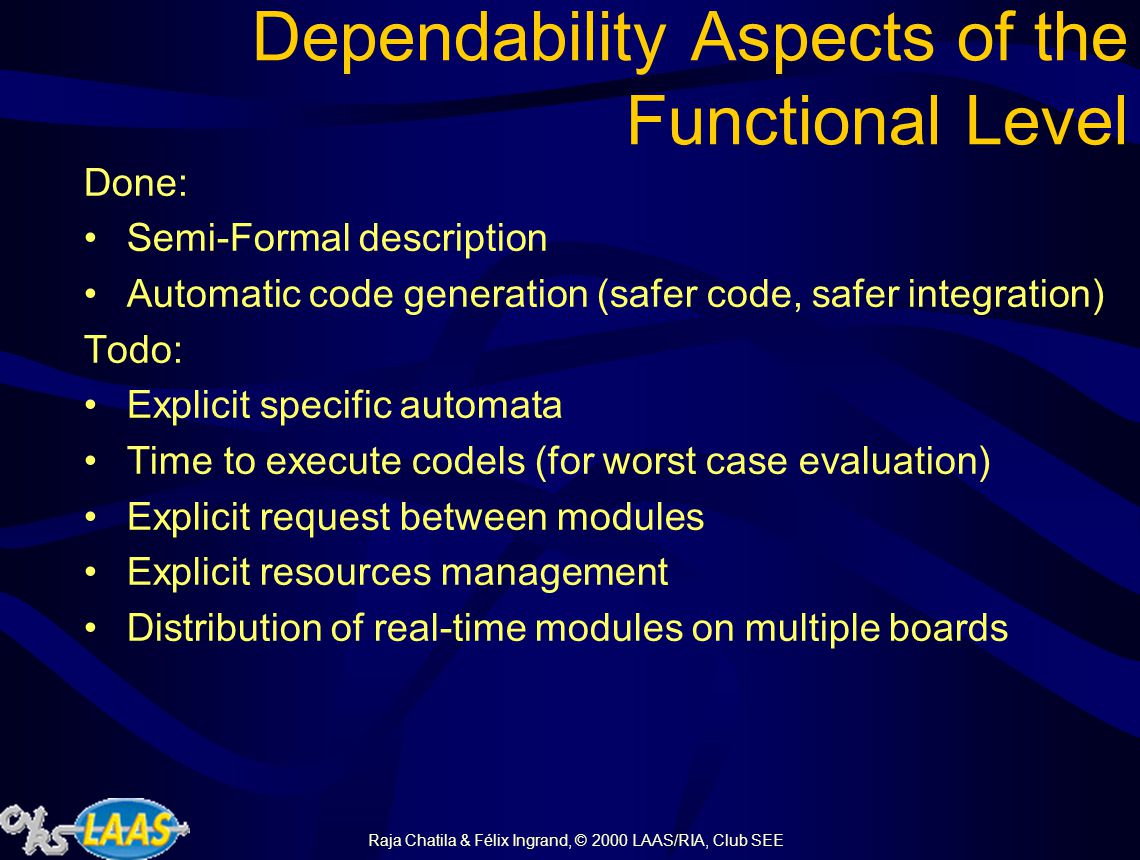

21. LAAS Architecture KheopsTransgen

22. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE The Execution Control level Pivot between functional/decision levels Purely reactive system that reacts to: –decision level requests –functional level replies State controller of function level: –maintains functional level state –filters decision level requests –detects and manages conflicts –recovers failures locally

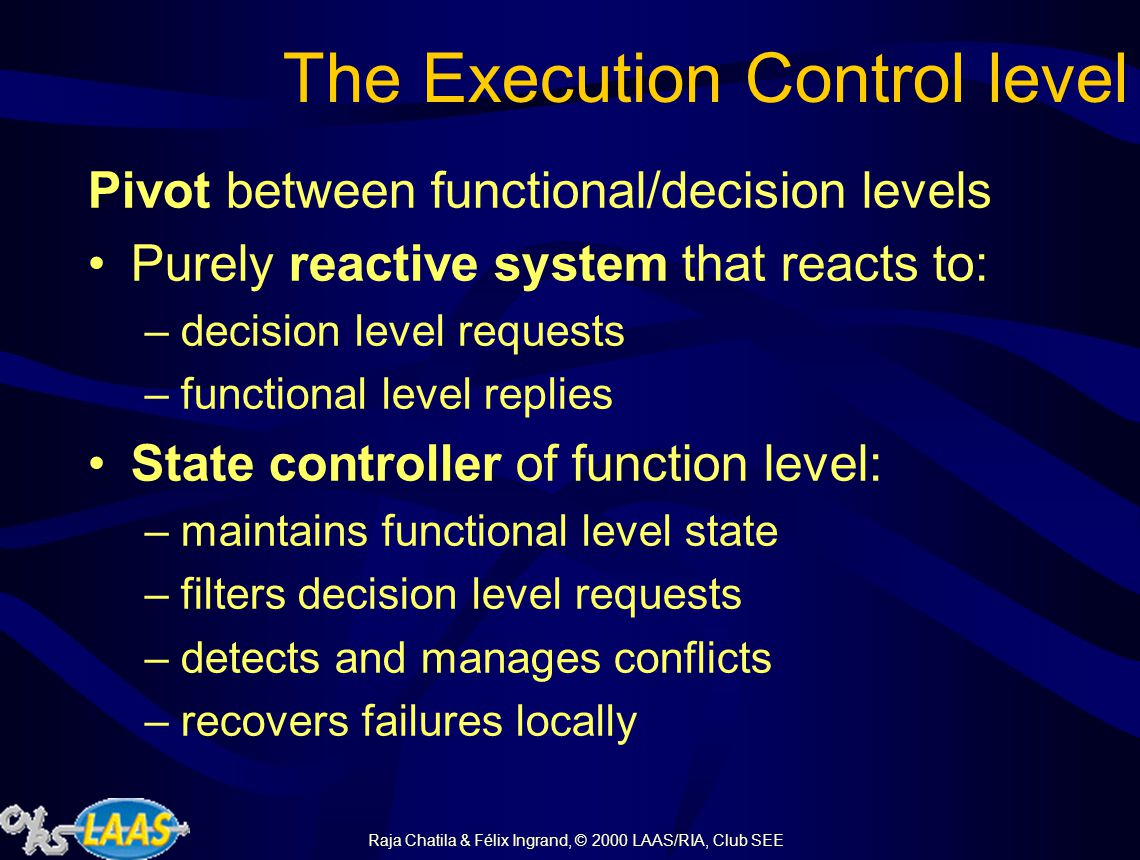

23. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Executive with KHEOPS Input: a set a propositional rules (if... then...) –inter module conflicts –resource conflicts (could be synthesised) –manip dependant conflicts (from an expert) Automatic automaton synthesis: –Complete? (all inputs X state combinations) –Consistent –Optimised (limited and known tree depth) Eg: 130 rules -> 6000 branches -> 213 nodes -> 8 depths

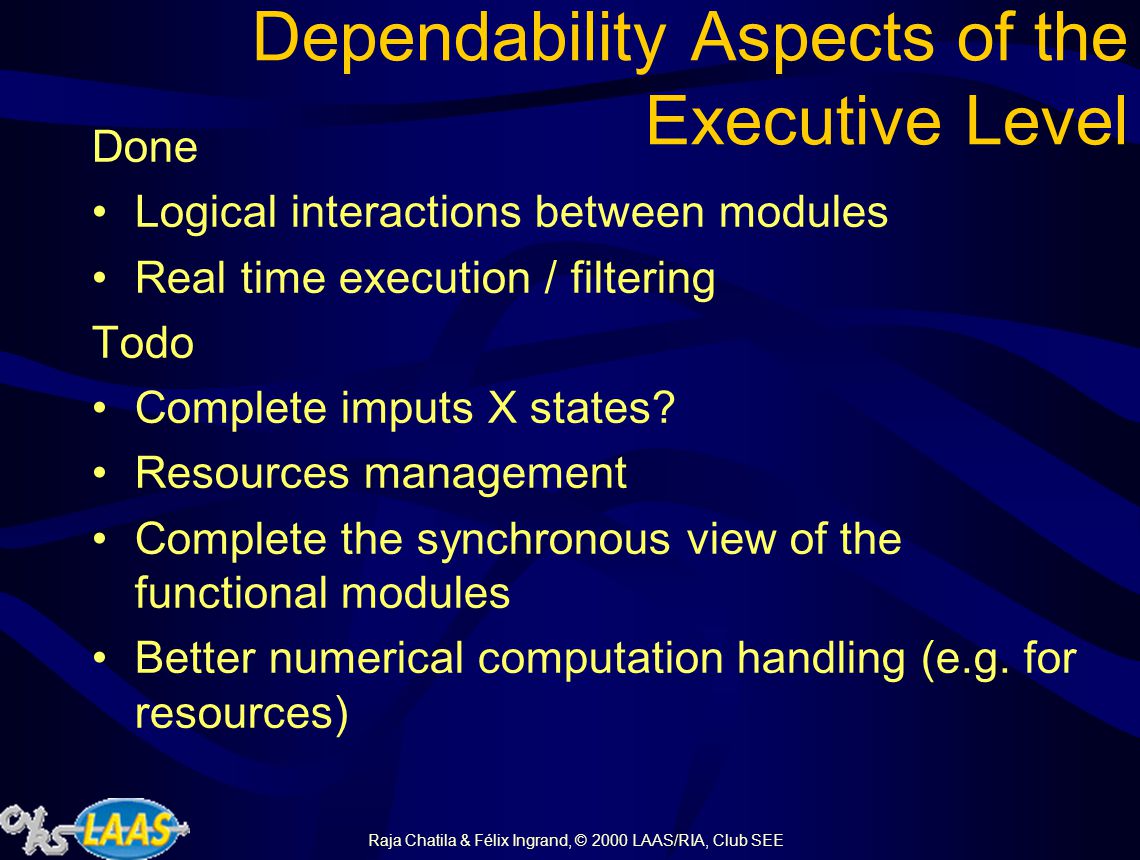

24. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Dependability Aspects of the Executive Level Done Logical interactions between modules Real time execution / filtering Todo Complete imputs X states? Resources management Complete the synchronous view of the functional modules Better numerical computation handling (e.g. for resources)

25. LAAS Architecture Propice IxTeT

26. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Decision Level All processes that require: –anticipation, –global knowledge of the task, –global knowledge of the execution context. Requirements: –planning capacities –decision making –reaction to incoming events –situations recognition

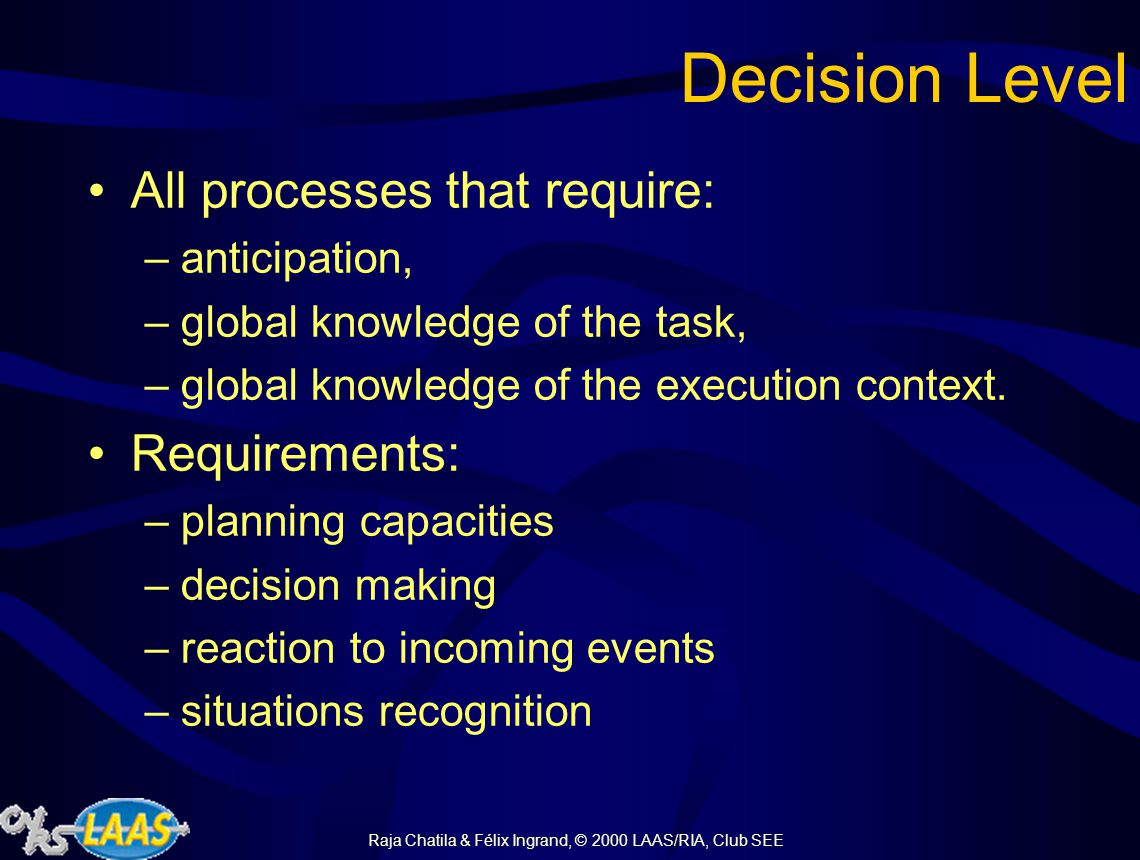

27. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Decision Level Main components: –Supervision –Situation Recognition –Planning Structured in supervisor-planner layers supervisorplanner goal + state plan + modalities signals from processes signals to processes situation-driven procedures missionsresults

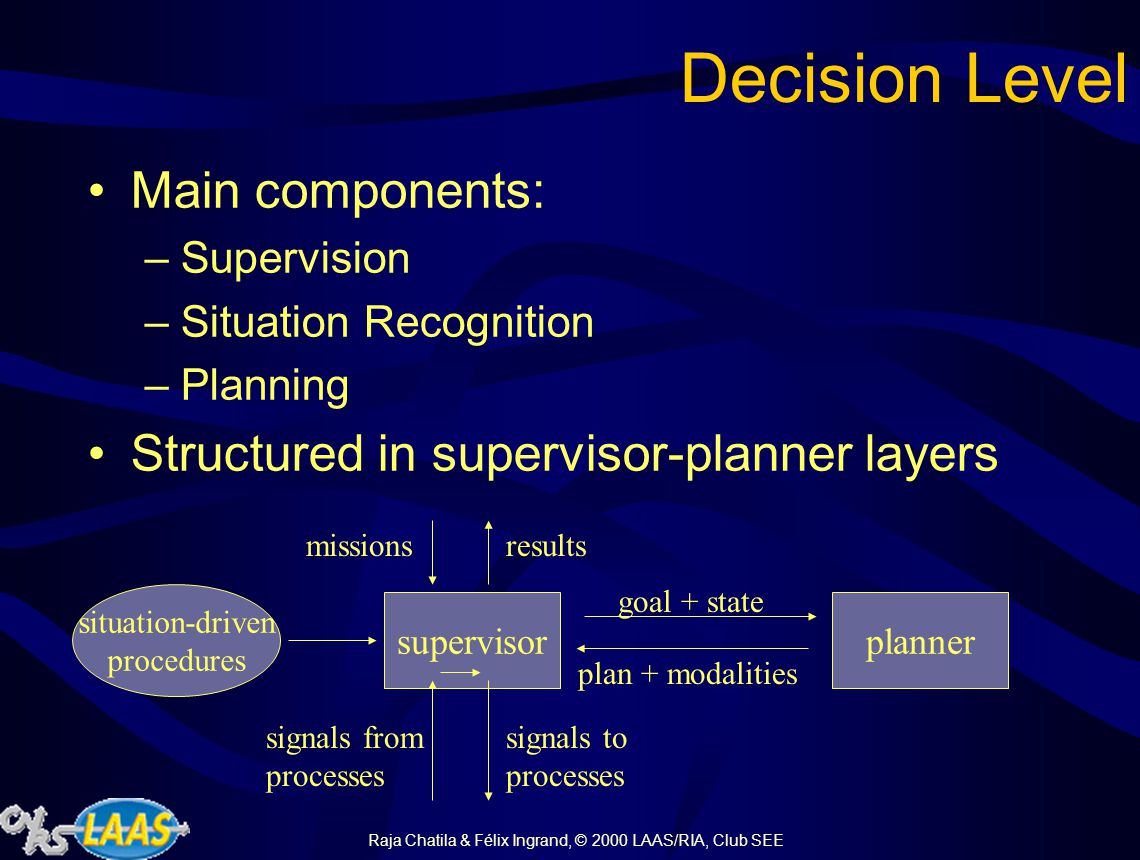

28. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Supervision Main functions executed in parallel: –Interprets/refines upper missions –Calls planner (if required) –Supervises execution of plans of actions: Sends requests to lower level Analyses replies Requirements: –high-level language (plans, goals,…) –parallel tasks + asynchronous events handling –temporal properties

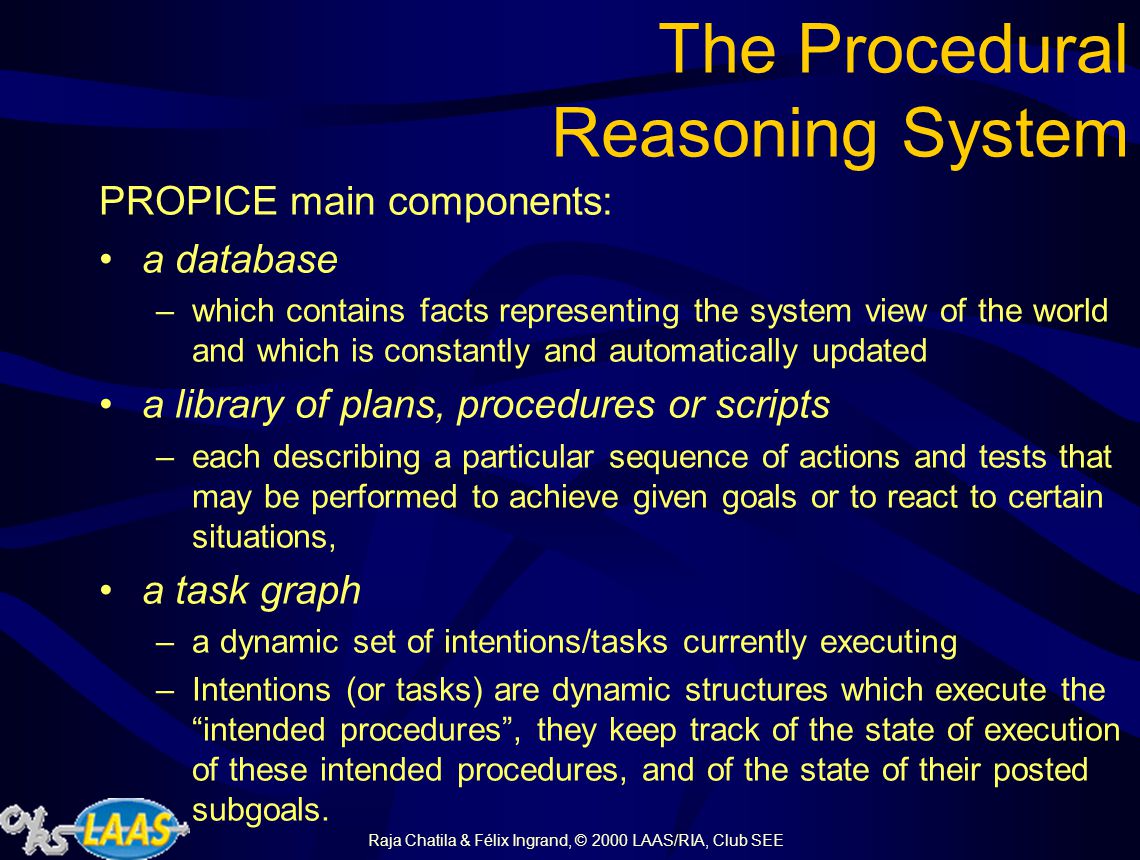

29. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE The Procedural Reasoning System PROPICE main components: a database –which contains facts representing the system view of the world and which is constantly and automatically updated a library of plans, procedures or scripts –each describing a particular sequence of actions and tests that may be performed to achieve given goals or to react to certain situations, a task graph –a dynamic set of intentions/tasks currently executing –Intentions (or tasks) are dynamic structures which execute the “intended procedures”, they keep track of the state of execution of these intended procedures, and of the state of their posted subgoals.

30. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Goals in Propice The goals in C-PRS can be of different types: test goal (to test if a statement is satisfied or not) –is the robot loaded with a container? achieve goal (to realize a statement) –plan a motion to reach a given position wait goal (to wait until a statement becomes true) –wait until you have received a response from the station or 10 minutes have elapsed passive maintenance goal (to test if a condition stays true) –keep moving as long as the path is clear active maintenance (to keep a condition true) –keep moving while maintaining a safe distance from area-23 assertion goal (to assert a statement in the database) retraction goal (to retract a statement from the database)

31. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Example of procedure

32. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Example of procedure ;;;;;;;;;;;;;;;;;;;;;;;;; ;;; |Control Band Move| ;;;;;;;;;;;;;;;;;;;;;;;;; (defop |Control Band Move| :invocation (FR BAND BAND_MOVE $RQST-ID $REPORT $DATA) :context (& (NBSUCCESS $NBSUCCESS)(NBBANDCOLLISION $NBBANDCOLLISION) (NBBANDINVALIDSTATE $NBBANDINVALIDSTATE)(NBFAILED $NBFAILED)) :body ((~> (FR BAND BAND_MOVE $RQST-ID $REPORT $DATA)) (~> (IR BAND BAND_MOVE $RQST-ID $ACTID)) (! (kill-all-survloc)) (IF (? (EQUAL $REPORT "OK")) (! (SPEAK "Navigation Mission Completed!")) (! (ABORT-CURRENT-MISSION)) (! (CURRENT-MISSION-COMPLETED)) (=>(NBSUCCESS (+ $NBSUCCESS 1))) ELSEIF (? (EQUAL $REPORT "COLLISION_DETECTED")) (! (ABORT-CURRENT-MISSION)) (? (CURRENT-MISSION $CURRENT-NAV)) (=> (NBBANDCOLLISION (+ $NBBANDCOLLISION 1))) (=> (PP-ADD-OBSTACLE 1)) (IF (! (EXECUTE $CURRENT-NAV)) ELSE (! (CURRENT-MISSION-COMPLETED))) ELSEIF (? (EQUAL $REPORT "JOYSTICK_IN_USE")) (! (SUSPEND-CURRENT-MISSION)) (! (WAIT-JOYSTICK-END)) (! (CHECK-IR-ON)) (! (RESUME-CURRENT-MISSION)) ELSEIF(? (EQUAL $REPORT "INVALID_STATE")) (=> (NBBANDINVALIDSTATE (+ $NBBANDINVALIDSTATE 1))) (! (PRINTF (FORMAT "Control Band Move : INVALID_STATE \n"))) (! (SPEAK "Navigation failed \n")) (=> (NBFAILED (+ $NBFAILED 1))) (! (ABORT-CURRENT-MISSION)) (! (CURRENT-MISSION-COMPLETED)) ELSE ;(! (SPEAK (term-string-cat "Band: " $report))) (=> (band-uncatched-error BAND_MOVE $RQST-ID $REPORT $DATA)) )

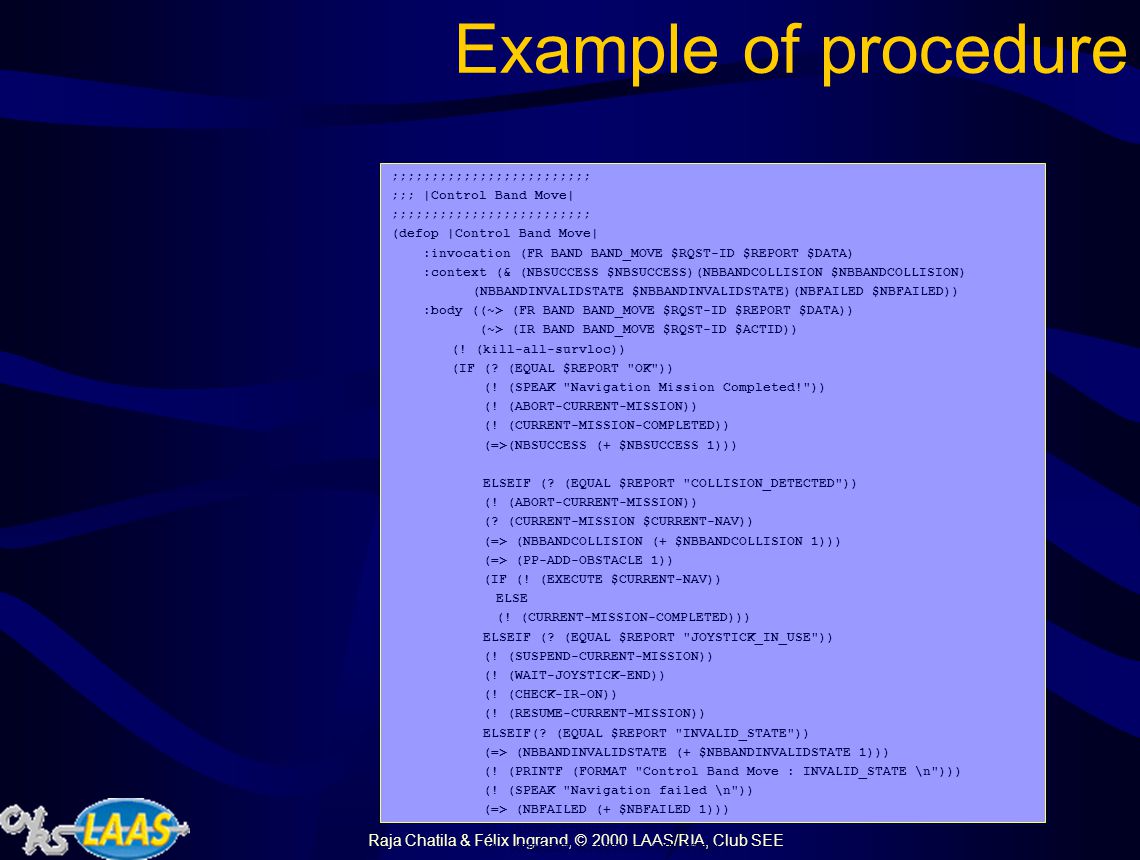

33. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Propice Main Loop

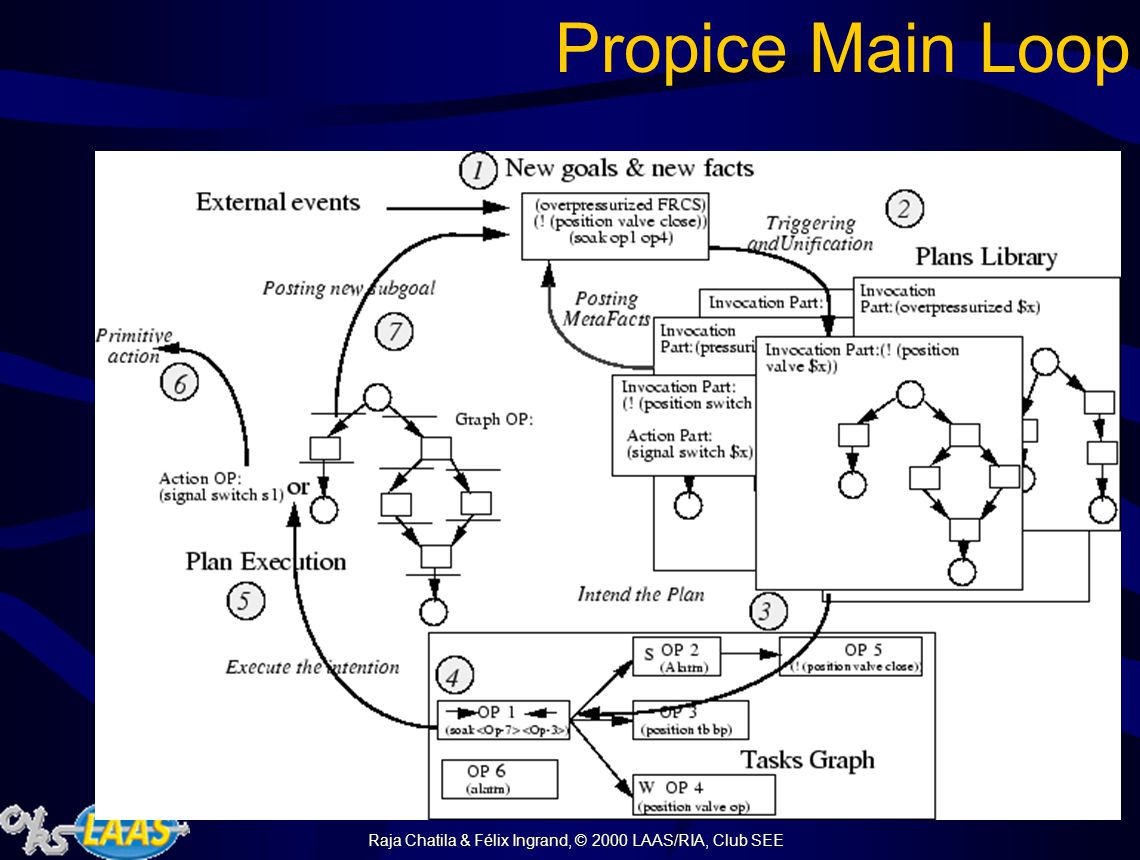

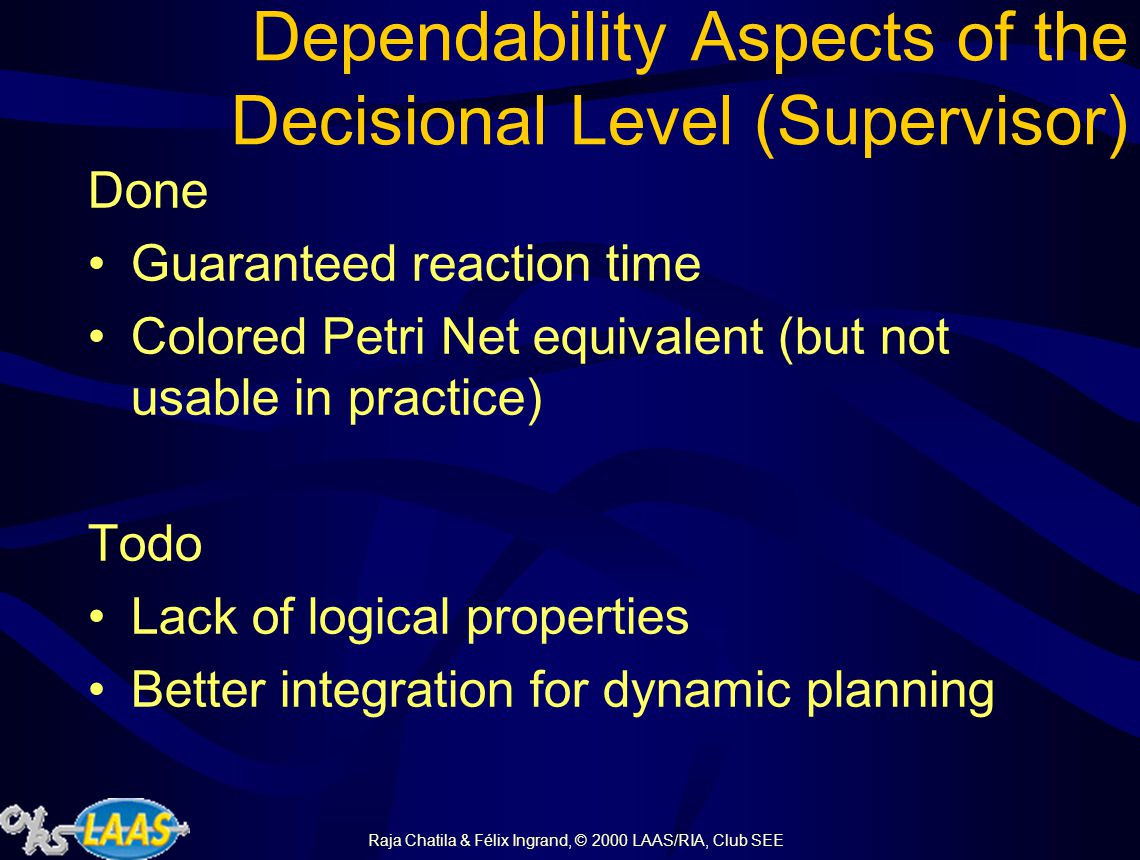

34. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Dependability Aspects of the Decisional Level (Supervisor) Done Guaranteed reaction time Colored Petri Net equivalent (but not usable in practice) Todo Lack of logical properties Better integration for dynamic planning

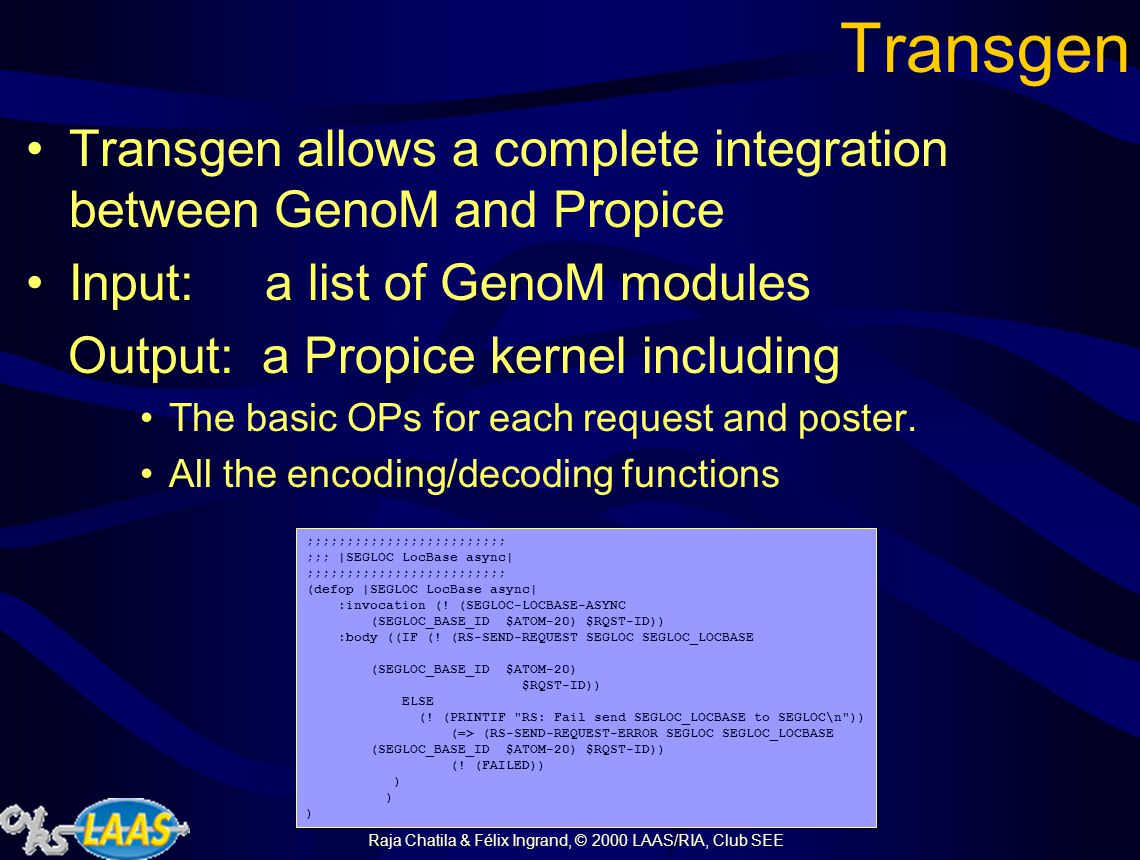

35. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Transgen Transgen allows a complete integration between GenoM and Propice Input: a list of GenoM modules Output: a Propice kernel including The basic OPs for each request and poster. All the encoding/decoding functions ;;;;;;;;;;;;;;;;;;;;;;;;; ;;; |SEGLOC LocBase async| ;;;;;;;;;;;;;;;;;;;;;;;;; (defop |SEGLOC LocBase async| :invocation (! (SEGLOC-LOCBASE-ASYNC (SEGLOC_BASE_ID $ATOM-20) $RQST-ID)) :body ((IF (! (RS-SEND-REQUEST SEGLOC SEGLOC_LOCBASE (SEGLOC_BASE_ID $ATOM-20) $RQST-ID)) ELSE (! (PRINTIF "RS: Fail send SEGLOC_LOCBASE to SEGLOC\n")) (=> (RS-SEND-REQUEST-ERROR SEGLOC SEGLOC_LOCBASE (SEGLOC_BASE_ID $ATOM-20) $RQST-ID)) (! (FAILED)) )

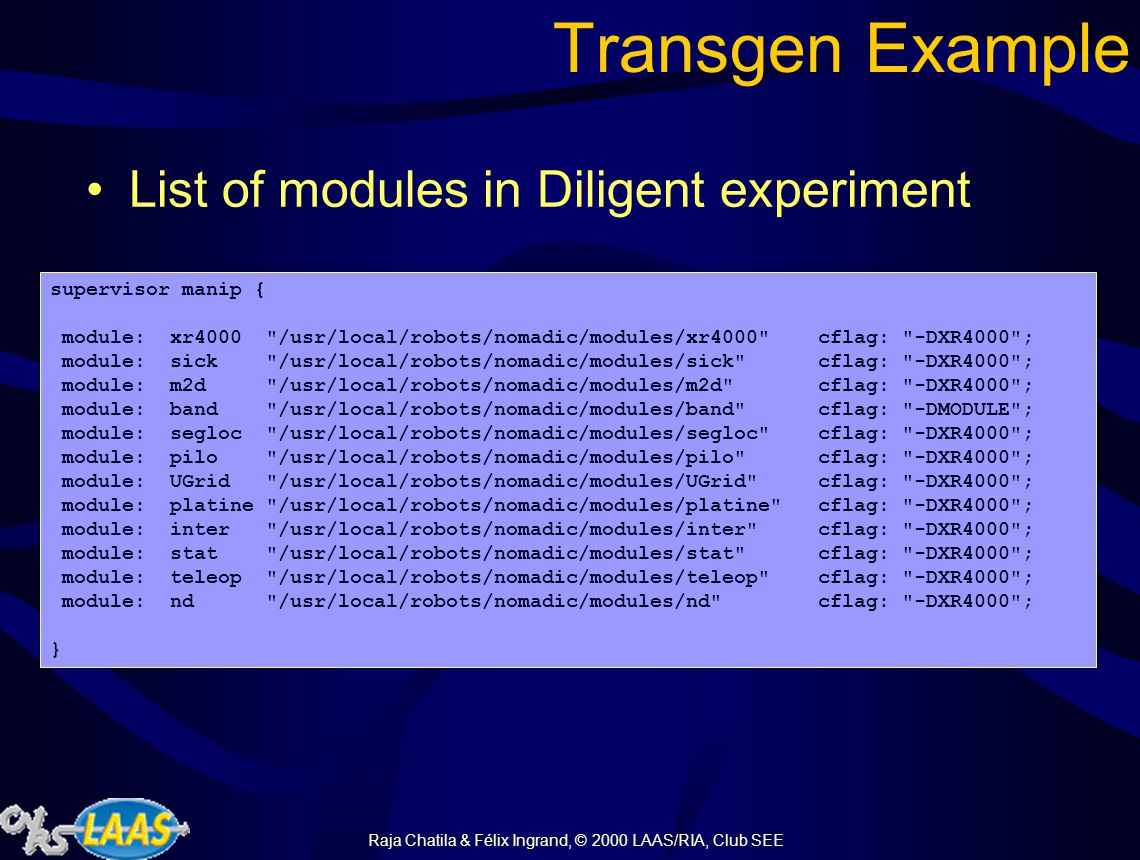

36. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Transgen Example List of modules in Diligent experiment supervisor manip { module: xr4000 "/usr/local/robots/nomadic/modules/xr4000" cflag: "-DXR4000"; module: sick "/usr/local/robots/nomadic/modules/sick" cflag: "-DXR4000"; module: m2d "/usr/local/robots/nomadic/modules/m2d" cflag: "-DXR4000"; module: band "/usr/local/robots/nomadic/modules/band" cflag: "-DMODULE"; module: segloc "/usr/local/robots/nomadic/modules/segloc"cflag: "-DXR4000"; module: pilo "/usr/local/robots/nomadic/modules/pilo"cflag: "-DXR4000"; module: UGrid "/usr/local/robots/nomadic/modules/UGrid"cflag: "-DXR4000"; module: platine "/usr/local/robots/nomadic/modules/platine"cflag: "-DXR4000"; module: inter "/usr/local/robots/nomadic/modules/inter"cflag: "-DXR4000"; module: stat "/usr/local/robots/nomadic/modules/stat"cflag: "-DXR4000"; module: teleop "/usr/local/robots/nomadic/modules/teleop"cflag: "-DXR4000"; module: nd "/usr/local/robots/nomadic/modules/nd"cflag: "-DXR4000"; }

37. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Task and Mission Planning Queried by the supervision Must deal with: –time constraints (duration, orders, parallelism, …) –resources constraints –predictable events (contingent changes, resources-availability profiles, …) Requirements: –powerful representation to specify model of tasks

38. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Task Planning Integrating Time and Resources Classical separation States: as sets of fluent values Actions: as state transitions Not convenient for –Concurrent actions with duration –Actions that preserve a value, e.g., servoing –Goals situated in time with maintenance conditions –Dynamic domain with contingent fluents Other desirable features –Dynamics as concurrent histories of fluent values over time (timelines) –Elementary actions as change or persistence of fluent values –Planning operators as purposeful set of concurrent elementary actions

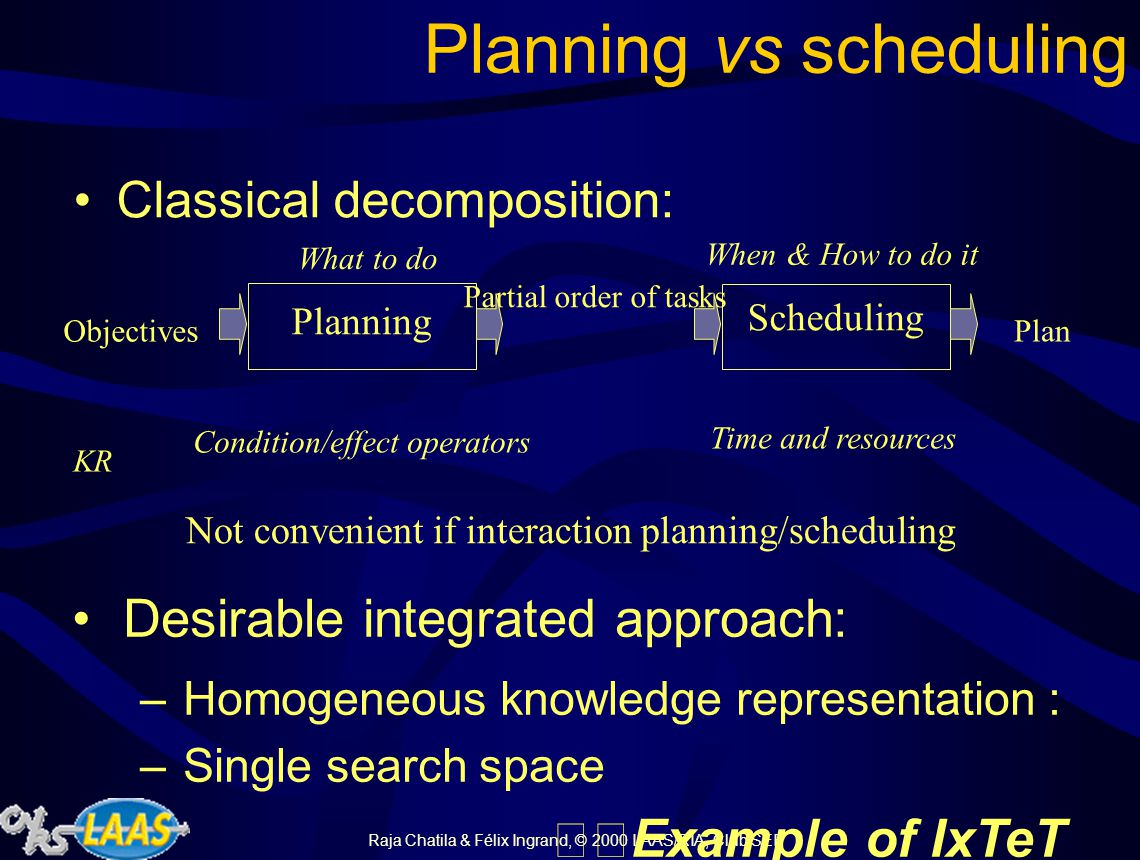

39. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Planning vs scheduling Classical decomposition: Objectives Partial order of tasks Planning What to do KR Condition/effect operators Plan Scheduling When & How to do it Time and resources Not convenient if interaction planning/scheduling Desirable integrated approach: –Homogeneous knowledge representation : –Single search space Example of IxTeT

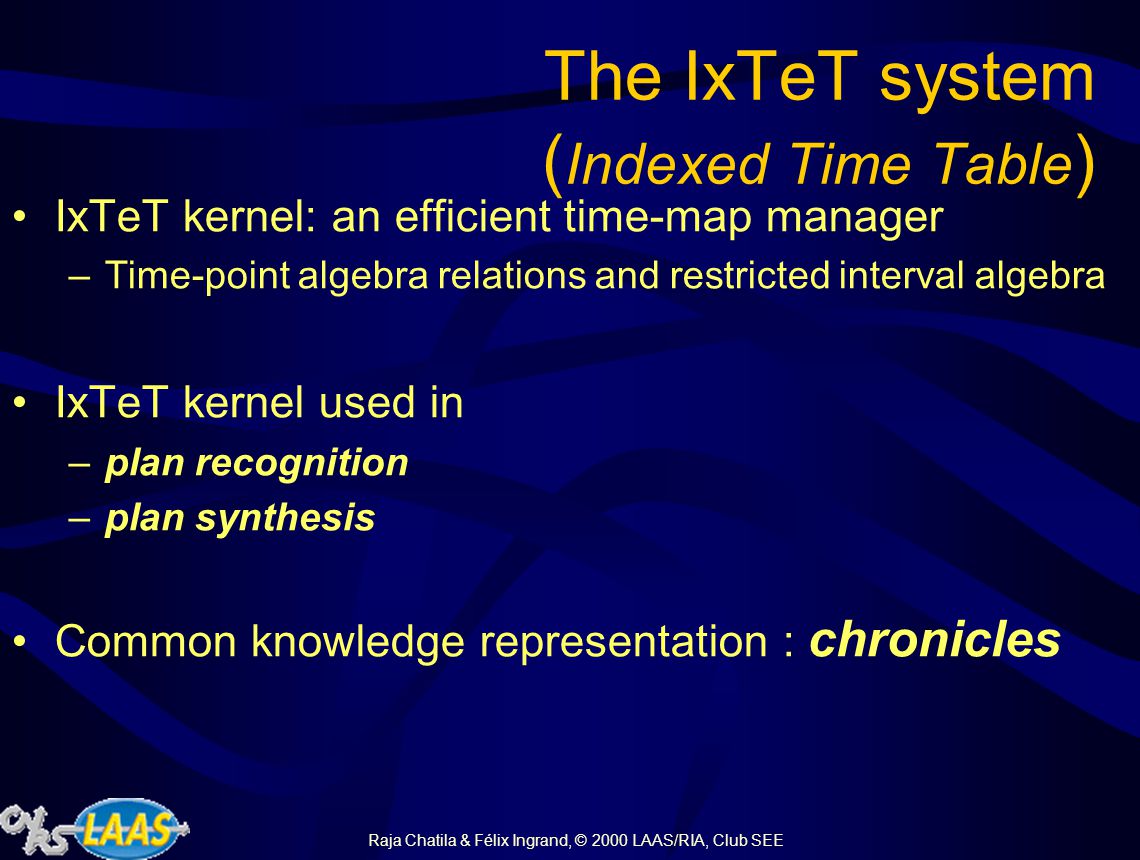

40. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE The IxTeT system ( Indexed Time Table ) IxTeT kernel: an efficient time-map manager –Time-point algebra relations and restricted interval algebra IxTeT kernel used in –plan recognition –plan synthesis Common knowledge representation : chronicles

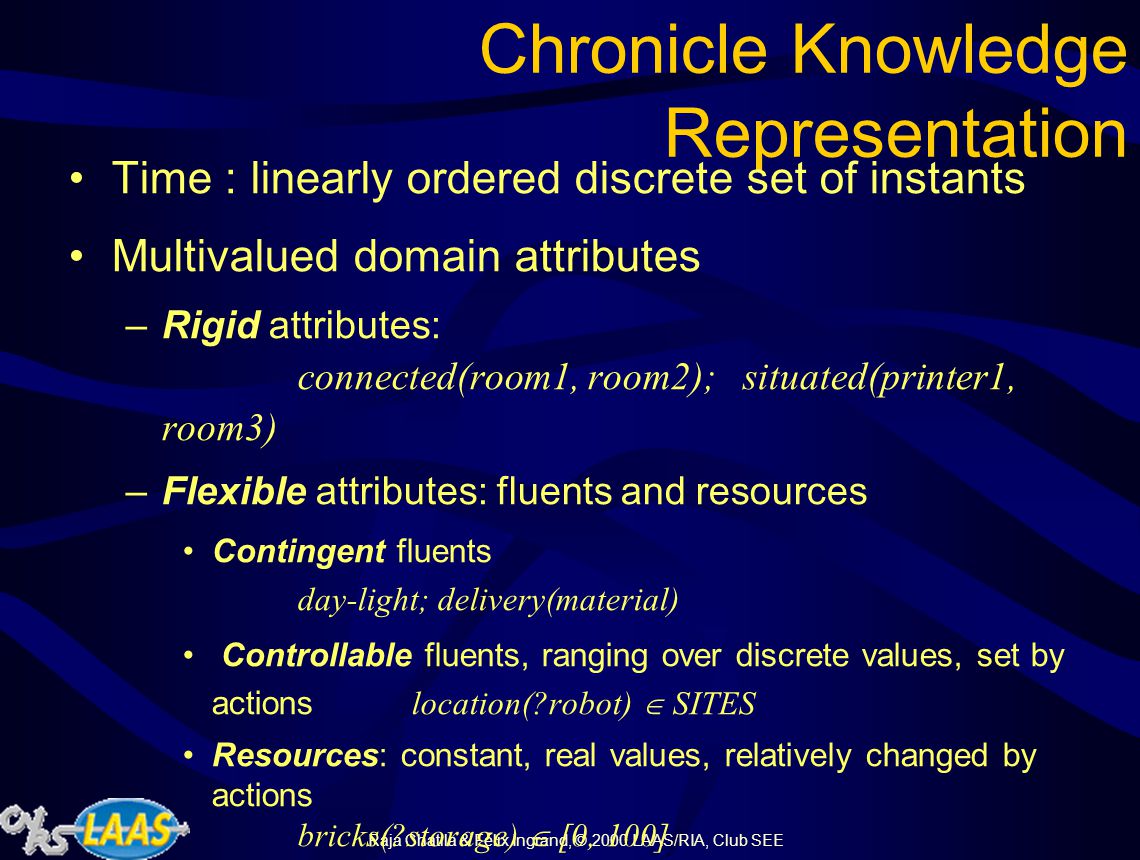

41. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Chronicle Knowledge Representation Time : linearly ordered discrete set of instants Multivalued domain attributes –Rigid attributes: connected(room1, room2); situated(printer1, room3) –Flexible attributes: fluents and resources Contingent fluents day-light; delivery(material) Controllable fluents, ranging over discrete values, set by actionslocation(?robot)  SITES Resources: constant, real values, relatively changed by actions bricks(?storage)  [0, 100]

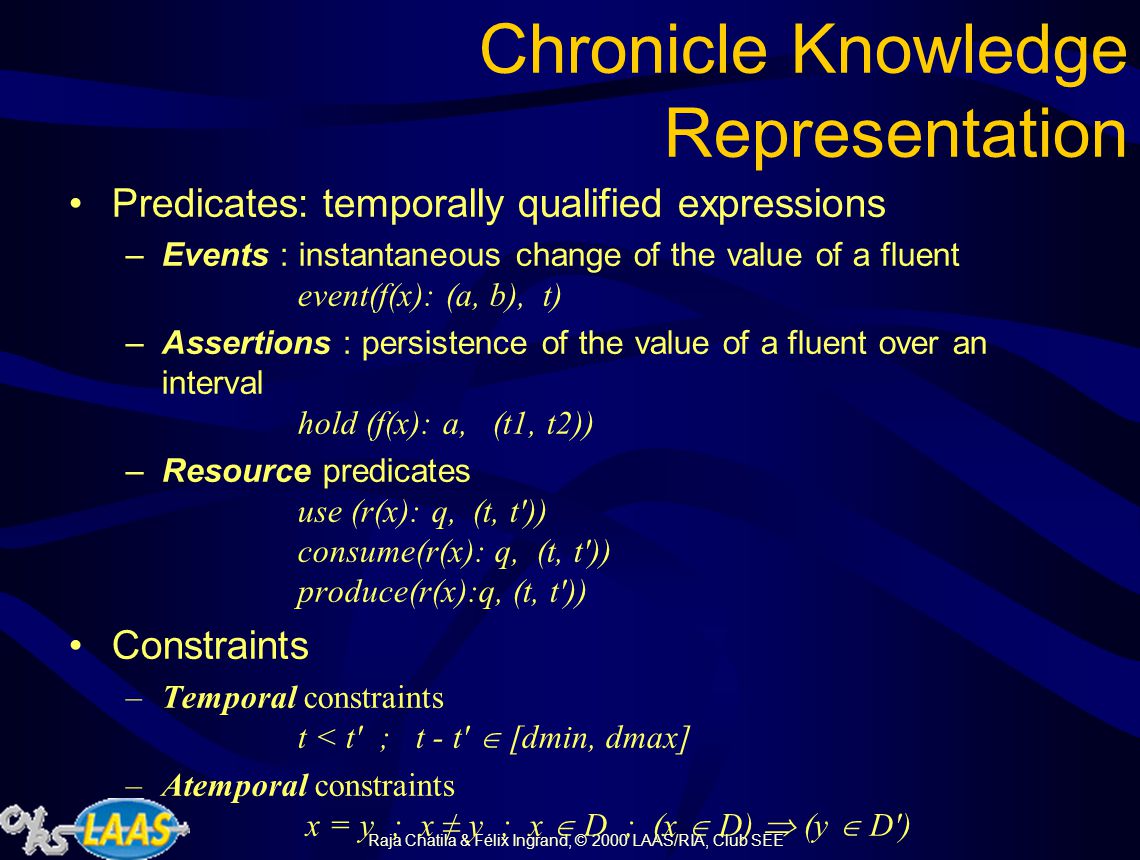

42. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Chronicle Knowledge Representation Predicates: temporally qualified expressions –Events : instantaneous change of the value of a fluent event(f(x): (a, b), t) –Assertions : persistence of the value of a fluent over an interval hold (f(x): a, (t1, t2)) –Resource predicates use (r(x): q, (t, t')) consume(r(x): q, (t, t')) produce(r(x):q, (t, t')) Constraints –Temporal constraints t < t' ; t - t'  [dmin, dmax] –Atemporal constraints x = y ; x ≠ y ; x  D ; (x  D)  (y  D')

43. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Planning operators Conjunction of –Predicates : assertions (hold), events and resource predicates –Subtasks –Temporal and atemporal constraints –Conditional expressions task Incubate (?elt, ?d) { hold(position(?elt): incubator, (start, end)) event(state(?elt):(?s, incubated), end) hold(temp(incubat): ?d, (start, end)) use(power: 10, (start, end)) (end-start) in [9., 10.] } startend -10 incubator incubated ?d

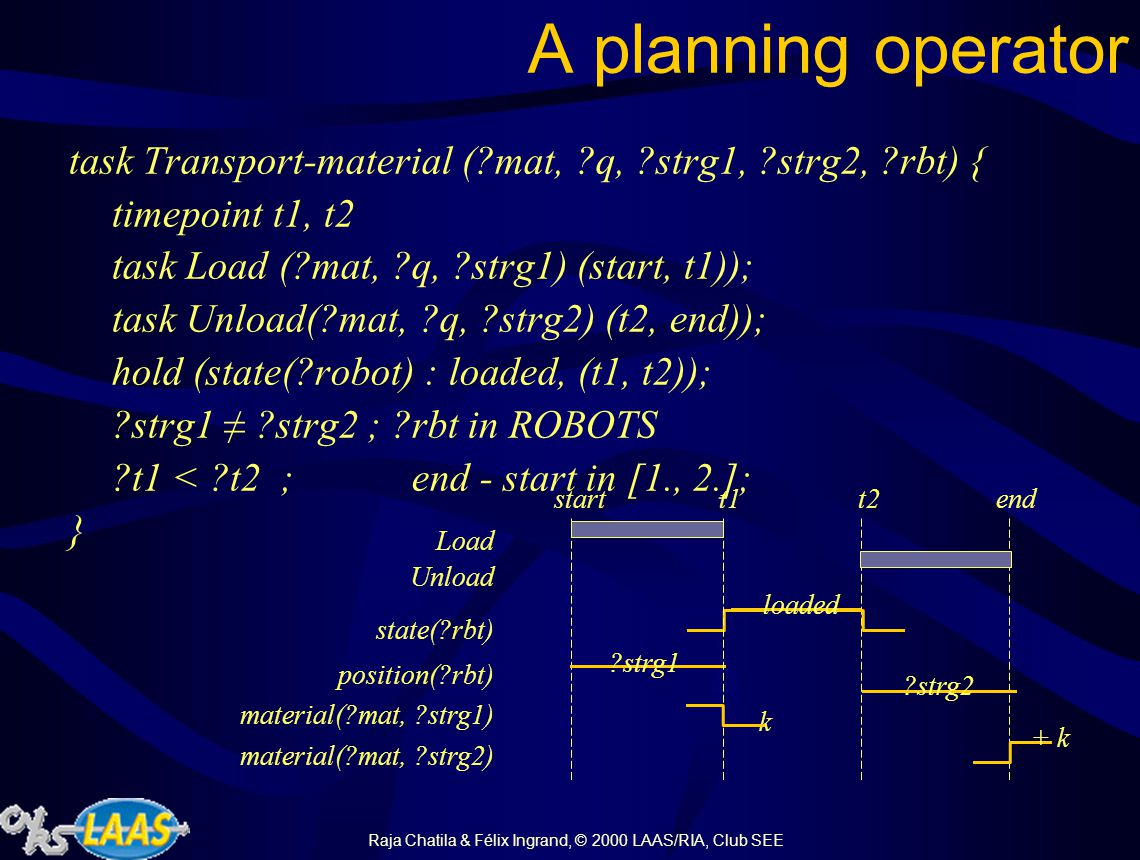

44. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE A planning operator task Transport-material (?mat, ?q, ?strg1, ?strg2, ?rbt) { timepoint t1, t2 task Load (?mat, ?q, ?strg1) (start, t1)); task Unload(?mat, ?q, ?strg2) (t2, end)); hold (state(?robot) : loaded, (t1, t2)); ?strg1 ≠ ?strg2 ; ?rbt in ROBOTS ?t1 < ?t2 ; end - start in [1., 2.]; } startend - k t2t1 Load Unload state(?rbt) position(?rbt) material(?mat, ?strg1) material(?mat, ?strg2) loaded ?strg1 ?strg2 + k

45. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE A planning operator

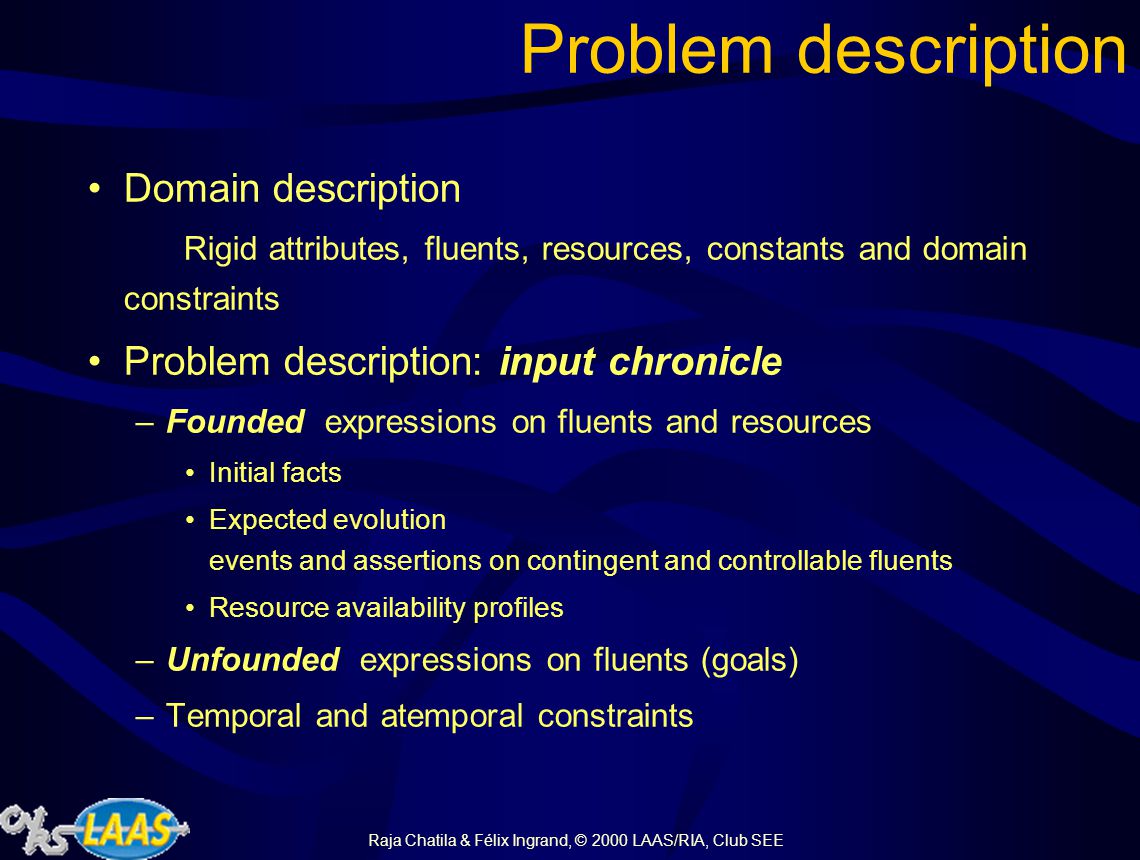

46. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Problem description Domain description Rigid attributes, fluents, resources, constants and domain constraints Problem description: input chronicle –Founded expressions on fluents and resources Initial facts Expected evolution events and assertions on contingent and controllable fluents Resource availability profiles –Unfounded expressions on fluents (goals) –Temporal and atemporal constraints

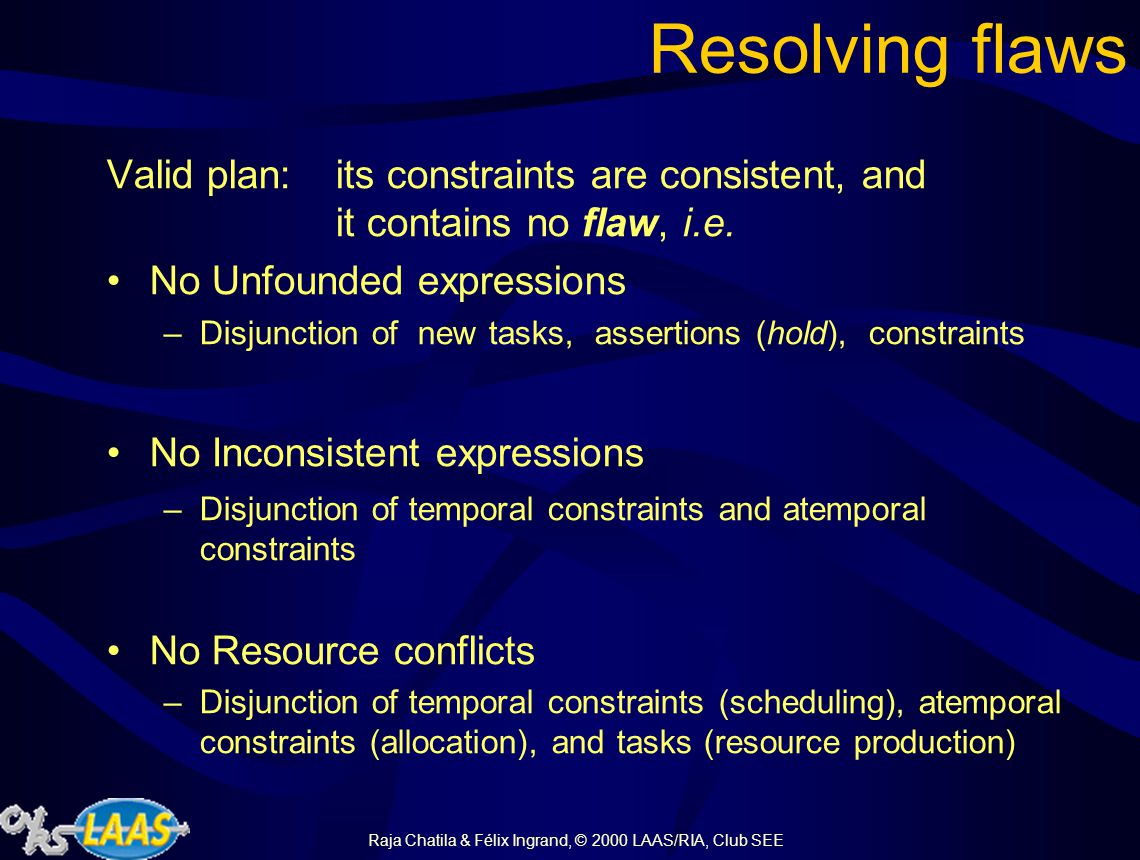

47. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Resolving flaws Valid plan:its constraints are consistent, and it contains no flaw, i.e. No Unfounded expressions –Disjunction of new tasks, assertions (hold), constraints No Inconsistent expressions –Disjunction of temporal constraints and atemporal constraints No Resource conflicts –Disjunction of temporal constraints (scheduling), atemporal constraints (allocation), and tasks (resource production)

48. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Choice of a flaw and resolver OperatorsConstraintsAssertions SubgoalsThreatsResources Initial Chronicle Courant partial plan Solution plan Time-Map Atemporal Variables Resolvers Insertion resolver Constraints managers Flaws IxTeT Main Algorithm

49. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Example of an IxTeT plan

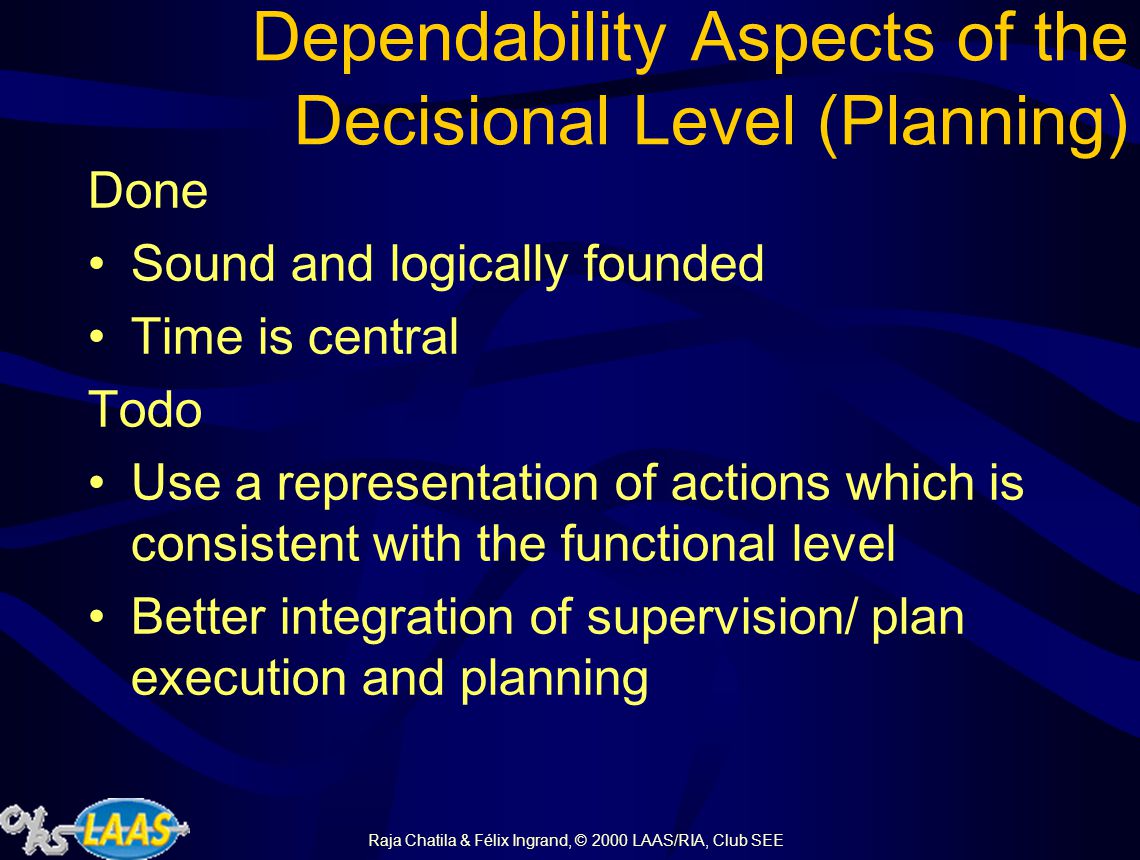

50. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Dependability Aspects of the Decisional Level (Planning) Done Sound and logically founded Time is central Todo Use a representation of actions which is consistent with the functional level Better integration of supervision/ plan execution and planning

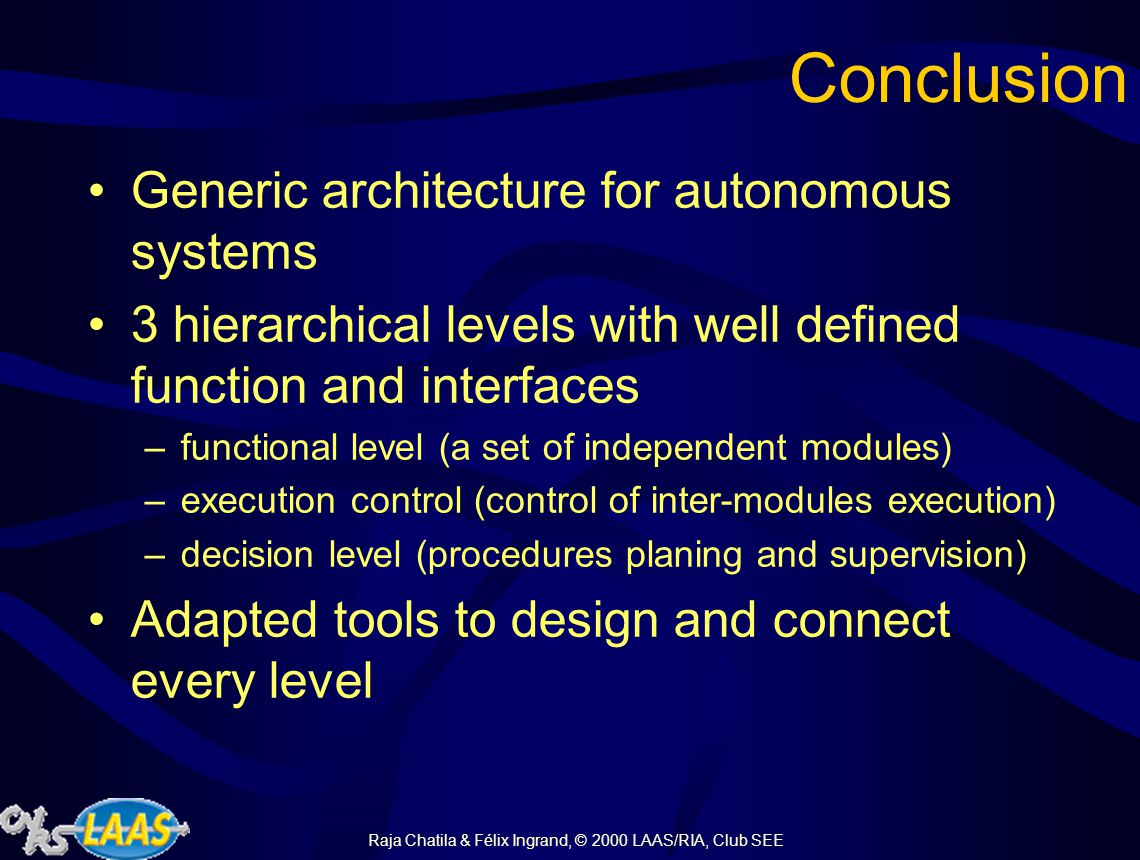

51. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Conclusion Generic architecture for autonomous systems 3 hierarchical levels with well defined function and interfaces –functional level (a set of independent modules) –execution control (control of inter-modules execution) –decision level (procedures planing and supervision) Adapted tools to design and connect every level

52. Raja Chatila & Félix Ingrand, © 2000 LAAS/RIA, Club SEE Dependability Perspectives Use a consistent action representation from the functional level up to the planning level Improve the specification/verification from the executive level –Better representation of module interactions Temporal validations of the functional modules Better representation of action automaton
