1. 1 The metacircular evaluator

2. 2 2. Names Extend the calculator to store intermediate results as named values (define x (+ 4 5)) store result as x (+ x 2) use that result Store bindings between names and values in a table

3. 3 2. Names ( define (define? exp) (tag-check exp 'define)) (define (eval exp) (cond ((number? exp) exp) ((symbol? exp) (lookup exp)) ((sum? exp) (eval-sum exp)) ((define? exp) (eval-define exp)) (else (error "unknown expression " exp)))) (define environment (make-frame nil nil)) (define (lookup name) (lookup-variable-value name environment)) (define (eval-define exp) (let ((name (cadr exp)) (defined-to-be (eval (caddr exp)))) (add-binding-to-frame! name defined-to-be environment) ‘undefined))

4. 4 (define (make-frame variables values) (cons variables values)) (define (lookup-variable-value var frame) (define (scan vars vals) (cond ((null? vars) (error "Unbound variable" var)) ((eq? var (car vars) (car vals)) (else (scan (cdr vars) (cdr vals))))) (let ((vars (car frame)) (vals (cdr frame))) (scan vars vals))) (define (add-binding-to-frame! var val frame) (set-car! frame (cons var (car frame))) (set-cdr! frame (cons val (cdr frame))))

5. 5 The environment is a single frame list of values list of variables frame xy4 5

6. 6 Evaluation of (eval '(define x (+ 4 5))) (eval '(+ 4 5)) (eval 4) ==> 4 (eval 5) ==> 5 ==> 9 names values x 9 ==> undefined (eval '(+ x 2)) (eval 'x) ==> 9 (eval 2) ==> 2 ==> 11 (define x (+ 4 5)) (+ x 2)

7. 7 2. Things to observe Use scheme function symbol? to check for a name the reader converts sequences of characters like "x" to symbols in the parse tree Can use any implementation of the environment, in particular we could use put and get from previous lectures. eval-define recursively calls eval on the second subtree but not on the first one eval-define returns a special undefined value

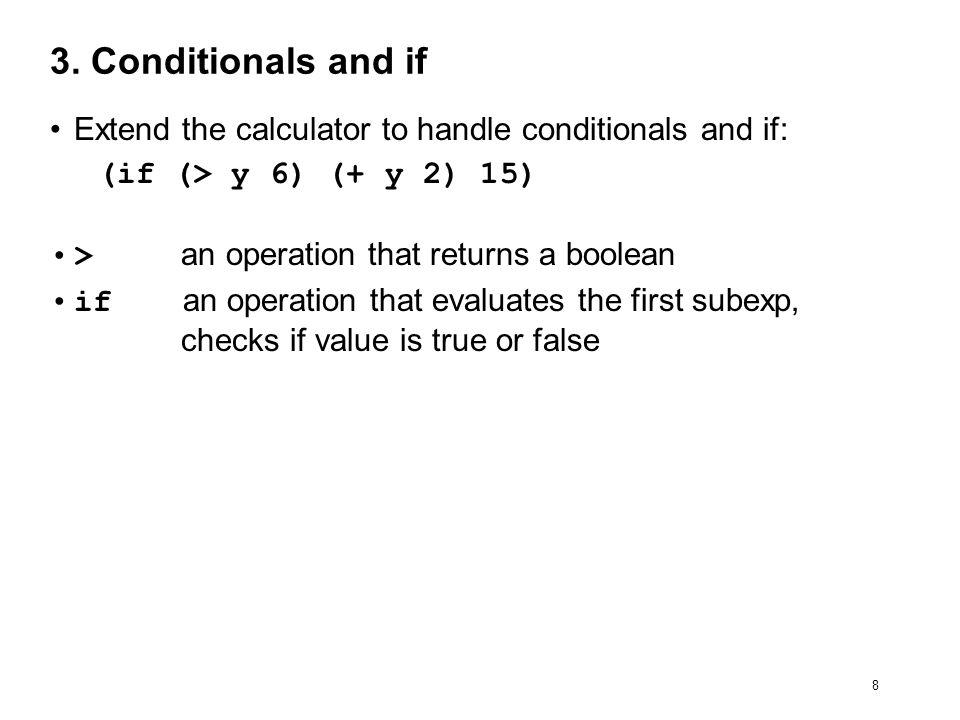

8. 8 3. Conditionals and if Extend the calculator to handle conditionals and if: (if (> y 6) (+ y 2) 15) > an operation that returns a boolean if an operation that evaluates the first subexp, checks if value is true or false

9. 9 3. Conditionals and if (define (greater? exp) (tag-check exp ’>)) (define (if? exp) (tag-check exp 'if)) (define (eval exp) (cond ((number? exp) exp) ((symbol? exp) (lookup exp)) ((sum? exp) (eval-sum exp)) ((greater? exp) (eval-greater exp)) ((define? exp) (eval-define exp)) ((if? exp) (eval-if exp)) (else (error "unknown expression " exp)))) (define (eval-greater exp) (> (eval (cadr exp)) (eval (caddr exp))))

10. 10 (define (eval-if exp) (if (true? (eval (if-predicate exp))) (eval (if-consequent exp)) (eval (if-alternative exp)))) (define (if-predicate exp) (cadr exp)) (define (if-consequent exp) (caddr exp)) (define (if-alternative exp) (if (not (null? (cdddr exp))) (cadddr exp) 'false)) (define (true? x) (not (eq? x #f))) (define (false? x) (eq? x #f)) (eval '(define y 9)) (eval '(if (> y 6) (+ y 2) 15))

11. 11 We are just walking through a tree … (eval ) 6y> if 6y>2y+ 15 Then (eval ) or (eval 15 ) 2y>

12. 12 Evaluation of (eval '(if (> y 6) (+ y 2) 15)) (eval '(> y 6)) (eval 'y) ==> 9 (eval 6) ==> 6 ==> #t (eval '(+ y 2)) (eval 'y) ==> 9 (eval 2) ==> 2 ==> 11

13. 13 3. Things to observe eval-greater is just like eval-sum from page 1 recursively call eval on both argument expressions call scheme > to compute value eval-if does not call eval on all argument expressions: call eval on the predicate call eval on the consequent or on the alternative but not both

14. 14 4. Store operators in the environment Want to add lots of operators but keep eval short Operations like + and > are similar evaluate all the argument subexpressions perform the operation on the resulting values Call this standard pattern an application Implement a single case in eval for all applications Approach: eval the first subexpression of an application put a name in the environment for each operation value of that name is an procedure apply the procedure to the operands

15. 15 4. Store procedures in the environment (define (application? e) (pair? e)) (define (eval exp) (cond ((number? exp) exp) ((symbol? exp) (lookup exp)) ((define? exp) (eval-define exp)) ((if? exp) (eval-if exp)) ((application? exp) (apply (eval (car exp)) (map eval (cdr exp)))) (else (error "unknown expression " exp)))) ;; rename scheme’s apply so we can reuse the name (define scheme-apply apply) (define (apply procedure arguments) (if (primitive-procedure? procedure) (apply-primitive-procedure procedure arguments) (error "operator not a procedure: " procedure))) (define (apply-primitive-procedure proc args) (scheme-apply (primitive-implementation proc) args))

16. 16 4. Store procedures in the environment (define prim-tag 'primitive) (define (make-primitive scheme-proc)(list prim-tag scheme-proc)) (define (primitive-procedure? e) (tag-check e prim-tag)) (define (primitive-implementation prim) (cadr prim)) (define environment (make-frame nil nil)) (add-binding-to-frame! environment ’+ (make-primitive +)) (add-binding-to-frame! environment ’> (make-primitive >)) (add-binding-to-frame! environment 'true #t) (eval '(define z 9)) (eval '(+ 9 6)) (eval '(if true 10 15))

17. 17 The Environment after first green line names values z 9 true #t > + symbol primitive scheme procedure > symbol primitive scheme procedure +

18. 18 Evaluation of (+ 9 6) (eval '(+ 9 6)) (apply (eval +) (map eval '(9 6))) (apply '(primitive #[add]) (list (eval 9) (eval 6)) (apply '(primitive #[add]) '(9 6)) (scheme-apply (primitive-implementation '(primitive #[add])) '(9 6)) (scheme-apply #[add] '(9 6)) 15

19. 19 Evaluation of (if true 10 15) (eval '(if true 10 15)) (eval-if '(if true 10 15)) (if (true? (eval 'true))...) (if (true? (lookup 'true)))...) (if (true? #t)...) (eval 10) 10 Apply is never called!

20. 20 4. Things to observe applications must be last case in eval no tag check applications evaluate all subexpressions expressions that need special handling, like if, gets their own case in eval

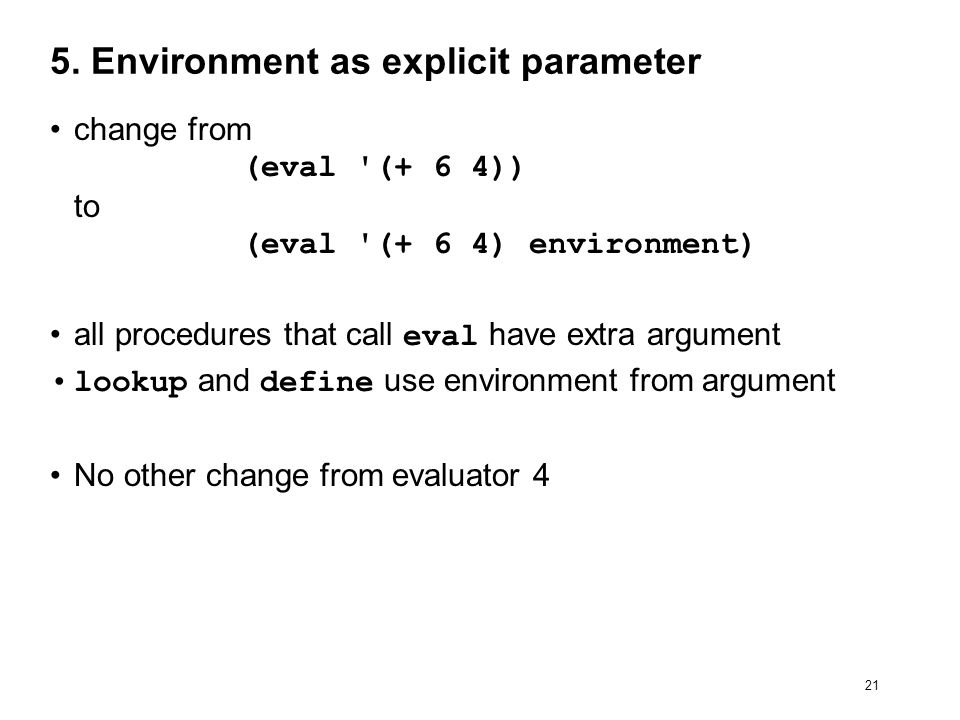

21. 21 5. Environment as explicit parameter change from (eval '(+ 6 4)) to (eval '(+ 6 4) environment) all procedures that call eval have extra argument lookup and define use environment from argument No other change from evaluator 4

22. 22 5. Environment as explicit parameter ;This change is boring! Exactly the same functionality as #4. (define (eval exp env) (cond ((number? exp) exp) ((symbol? exp) (lookup exp env)) ((define? exp) (eval-define exp env)) ((if? exp) (eval-if exp env)) ((application? exp) (apply (eval (car exp) env) (map (lambda (e) (eval e env)) (cdr exp)))) (else (error "unknown expression " exp)))) (define (lookup name env) (lookup-variable-value name env)) (define (eval-define exp env) (let ((name (cadr exp)) (defined-to-be (eval (caddr exp) env))) (add-binding-to-frame! name defined-to-be env) ‘undefined))

23. 23 5. Environment as explicit parameter (define (eval-if exp env) (if (true? (eval (if-predicate exp) env)) (eval (if-consequent exp) env) (eval (if-alternative exp) env)))

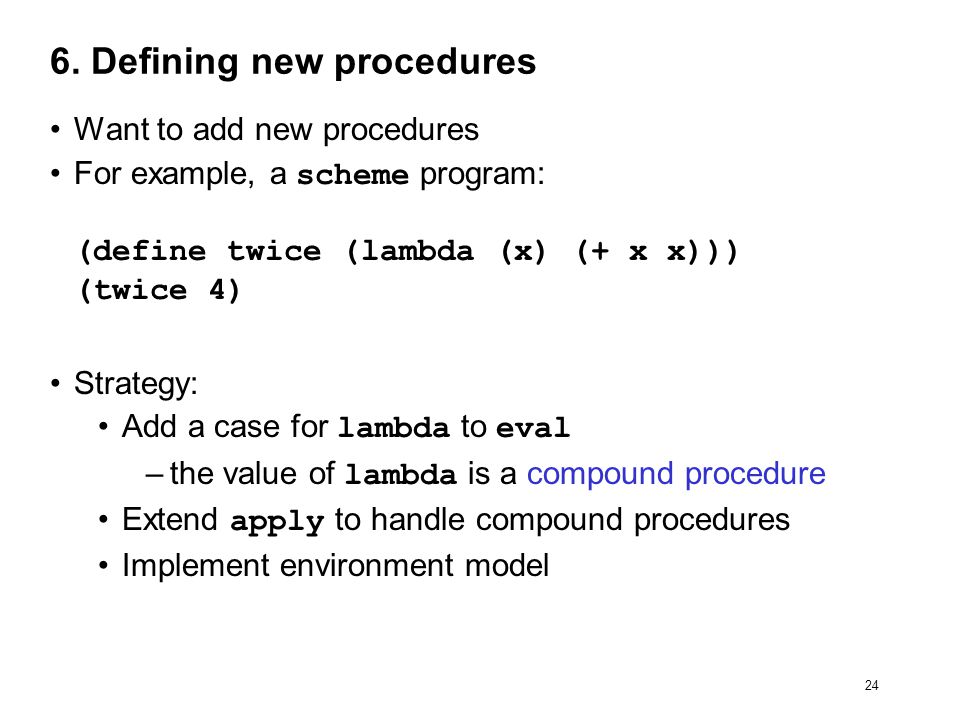

24. 24 6. Defining new procedures Want to add new procedures For example, a scheme program: (define twice (lambda (x) (+ x x))) (twice 4) Strategy: Add a case for lambda to eval –the value of lambda is a compound procedure Extend apply to handle compound procedures Implement environment model

25. 25 6. Defining new procedures (define (lambda? e) (tag-check e 'lambda)) (define (eval exp env) (cond ((number? exp) exp) ((symbol? exp) (lookup exp env)) ((define? exp) (eval-define exp env)) ((if? exp) (eval-if exp env)) ((lambda? exp) (eval-lambda exp env)) ((application? exp) (apply (eval (car exp) env) (map (lambda (e) (eval e env)) (cdr exp)))) (else (error "unknown expression " exp)))) (define (eval-lambda exp env) (make-procedure (lambda-parameters exp) (lambda-body exp) env)) (define (lambda-parameters exp) (cadr exp)) (define (lambda-body exp) (cddr exp)) (define (make-procedure parameters body env) (list 'procedure parameters body env))

26. 26 6. Defining new procedures (define (apply procedure arguments) (cond ((primitive-procedure? procedure) (apply-primitive-procedure procedure arguments)) ((compound-procedure? procedure) (eval-sequence (procedure-body procedure) (extend-environment (procedure-parameters procedure) arguments (procedure-env procedure)))) (else (error "Unknown procedure type -- APPLY" procedure)))) (define (compound-procedure? exp) (tag-check exp ‘procedure)) (define (procedure-parameters compound) (cadr compound)) (define (procedure-body compound) (caddr compound)) (define (procedure-env compound) (cadddr compound))

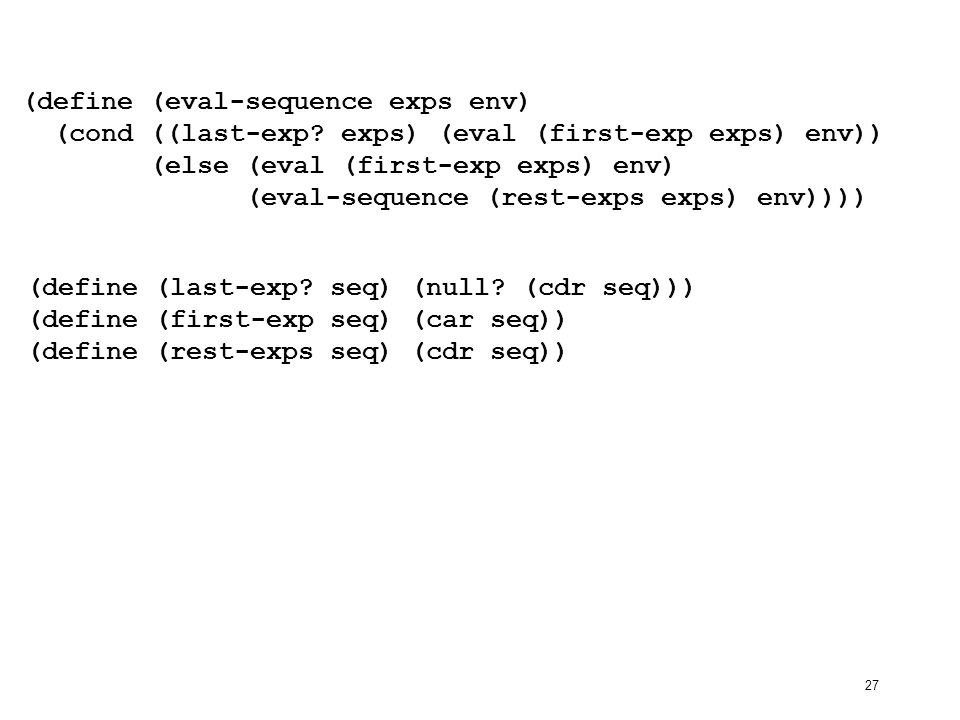

27. 27 (define (eval-sequence exps env) (cond ((last-exp? exps) (eval (first-exp exps) env)) (else (eval (first-exp exps) env) (eval-sequence (rest-exps exps) env)))) (define (last-exp? seq) (null? (cdr seq))) (define (first-exp seq) (car seq)) (define (rest-exps seq) (cdr seq))

28. 28 How the Environment Works Abstractly – in our environment diagrams: Concretely – our implementation (as in SICP) E2 x: 10 plus: (procedure...) E1 environment manipulation 3. list of values enclosing- environment list of variables frame xplus 10 E2 procedure

29. 29 Extending the Environment (extend-environment '(x y) (list 4 5) E2) E1 E2 x: 10 plus: (procedure...) E3 x: 4 y: 5 Abstractly Concretely E2 list of values list of variables frame xy4 E3 5 E1

30. 30 (define (extend-environment vars vals base-env) (if (= (length vars) (length vals)) (cons (make-frame vars vals) base-env) (if (< (length vars) (length vals)) (error "Too many arguments supplied" vars vals) (error "Too few arguments supplied" vars vals))))

31. 31 "Scanning" the environment Look for a variable in the environment... Look for a variable in a frame... –loop through the list of vars and list of vals in parallel –detect if the variable is found in the frame If not found in frame (out of variables in the frame), look in enclosing environment

32. 32 (define (lookup-variable-value var env) (define (env-loop env) (define (scan vars vals) (cond ((null? vars) (env-loop (enclosing-environment env))) ((eq? var (car vars)) (car vals)) (else (scan (cdr vars) (cdr vals))))) (if (eq? env the-empty-environment) (error "Unbound variable" var) (let ((frame (first-frame env))) (scan (frame-variables frame) (frame-values frame))))) (env-loop env)) (define (frame-variables frame) (car frame)) (define (frame-values frame) (cdr frame)) (define (enclosing-environment env) (cdr env))

33. 33 (define (define-variable! var val env) (let ((frame (first-frame env))) (define (scan vars vals) (cond ((null? vars) (add-binding-to-frame! var val frame)) ((eq? var (car vars)) (set-car! vals val)) (else (scan (cdr vars) (cdr vals))))) (scan (frame-variables frame) (frame-values frame)))) (define (eval-define exp env) (let ((name (cadr exp)) (defined-to-be (eval (caddr exp) env))) (define-variable! name defined-to-be env) ‘undefined))
