1. Current Diagnosis and Treatment of Voice Disorders Seth H. Dailey, MD Assistant Professor University of Wisconsin Hospital and Clinics University of Wisconsin School of Medicine Internal Medicine Grand Rounds: February 28 th, 2007

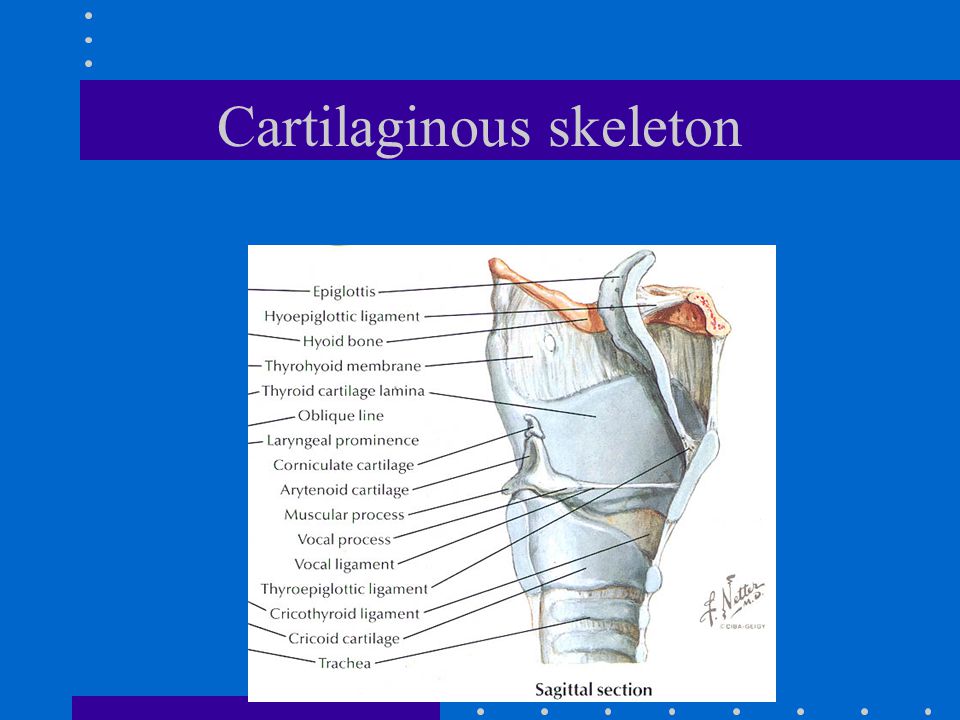

3. Cartilaginous skeleton

4. Intrinsic Musculature Abductors Adductors Tensors

5. Intrinsic Musculature

6. Innervation

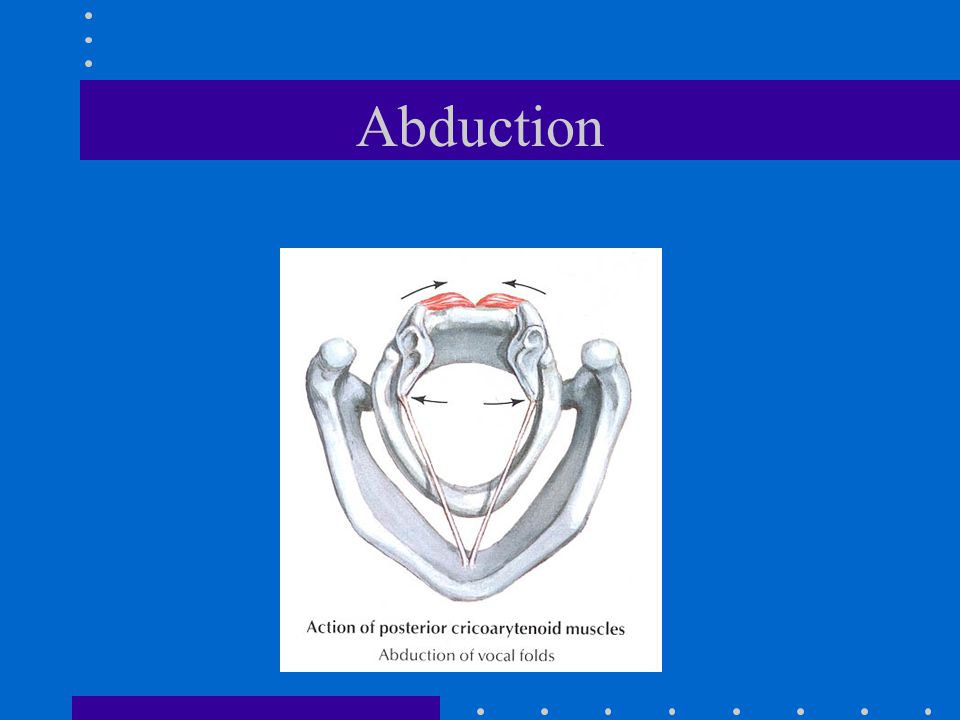

7. Abduction

8. Adduction

9. Tension

10. Vocal Fold Anatomy

11. Laryngeal Anatomy Three surrounding structures- pharynx, trachea and esophagus Three levels - supraglottis, glottis and subglottis Three fixed structures - hyoid, thyroid and cricoid Three mobile structures -epiglottis, false vocal cords and true vocal cords (folds)

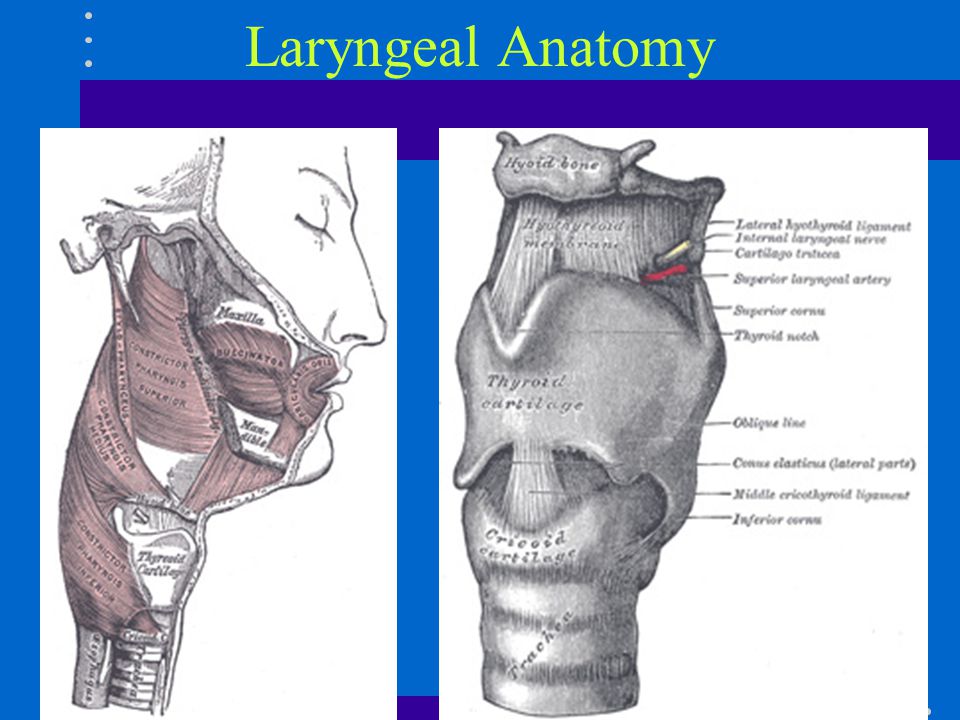

12. Laryngeal Anatomy

15. Mucosal wave/Phase delay

16. Body-Cover Theory Changes to mucosal wave –Stiffness –tension

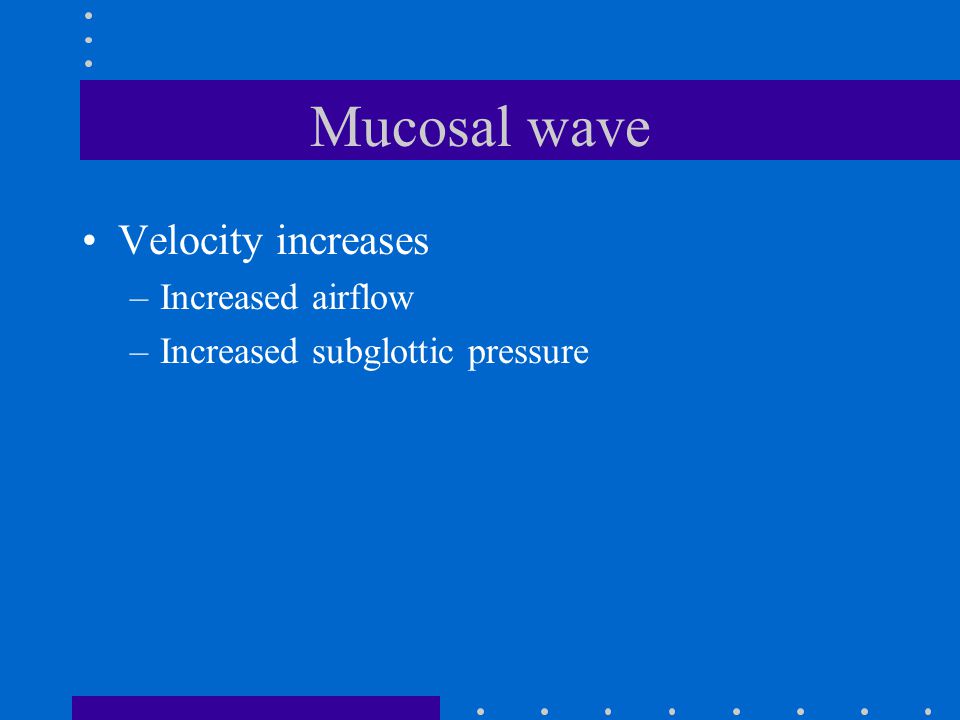

17. Mucosal wave Velocity increases –Increased airflow –Increased subglottic pressure

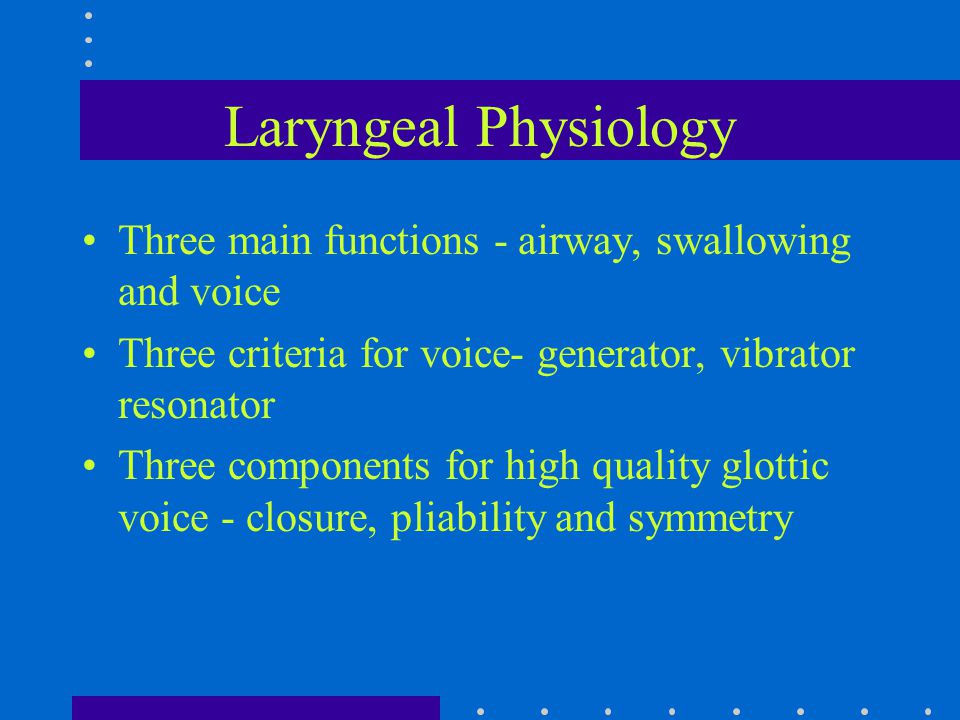

18. Laryngeal Physiology Three main functions - airway, swallowing and voice Three criteria for voice- generator, vibrator resonator Three components for high quality glottic voice - closure, pliability and symmetry

19. Indirect mirror examination Advantages –Quick –Inexpensive –Little equipment Disadvantages –Gag –Anatomic features –nonphysiologic

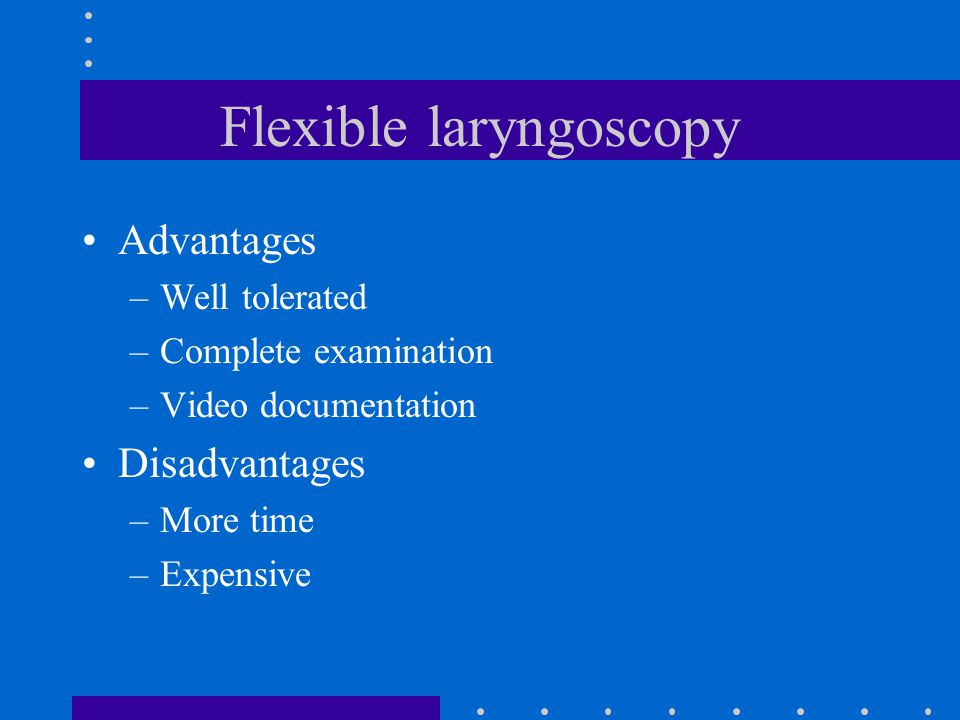

20. Flexible laryngoscopy Advantages –Well tolerated –Complete examination –Video documentation Disadvantages –More time –Expensive

21. Rigid laryngoscopy Advantages –Best images –Magnification –Video documentation Disadvantages –Expensive –Nonphysiologic –Gag –Anatomic features

22. Common disorders affect the “magic three” Closure - neuromuscular, joint, vocal fold Pliability - “golden layer” - mass, scar Symmetry - tension and viscoelasticity VOICE DISORDERS ARISE FROM A COMBINATION OF THESE ELEMENTS

23. Differential Diagnosis of Hoarseness Vocal quality- determined by: –distance between vocal cords, –tenseness of the cords –how rapid cords vibrate Hoarseness is caused by –

24. Differential Diagnosis of Hoarseness Types of voice Breathy- vocal cords do not approximate so air escapes. Raspy- harsh voice. Cord thickening due to edema or inflammation. Voice is low in pitch and poor quality

25. Differential Diagnosis of Hoarseness Types of voice Muffled voice- painful dysphagia and dyspnea Shaky- high pitch or low soft. –Elderly –debilitated

26. Differential Diagnosis of Hoarseness Acute Hoarseness/Acute Laryngitis Laryngeal mucous membrane infection, usually viral (adenovirus/ influenza, RSV, coxsackie, rhinovirus) Also can be due to trauma to throat, vocal abuse, toxic exposure, GI complications, smoking, allergy

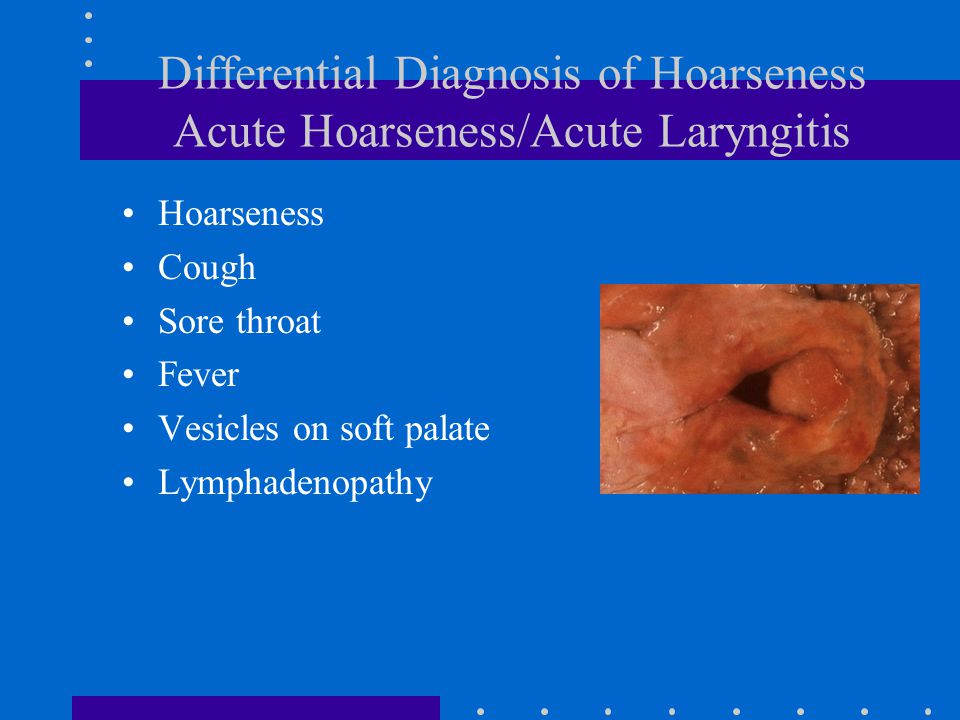

27. Differential Diagnosis of Hoarseness Acute Hoarseness/Acute Laryngitis Hoarseness Cough Sore throat Fever Vesicles on soft palate Lymphadenopathy

28. Differential Diagnosis of Hoarseness Acute Hoarseness/Acute Laryngitis Diagnostics: Laryngoscopy if suspect mass, infection, vocal cord dysfunction Management: Voice rest, smoking/alcohol cessation, hydration

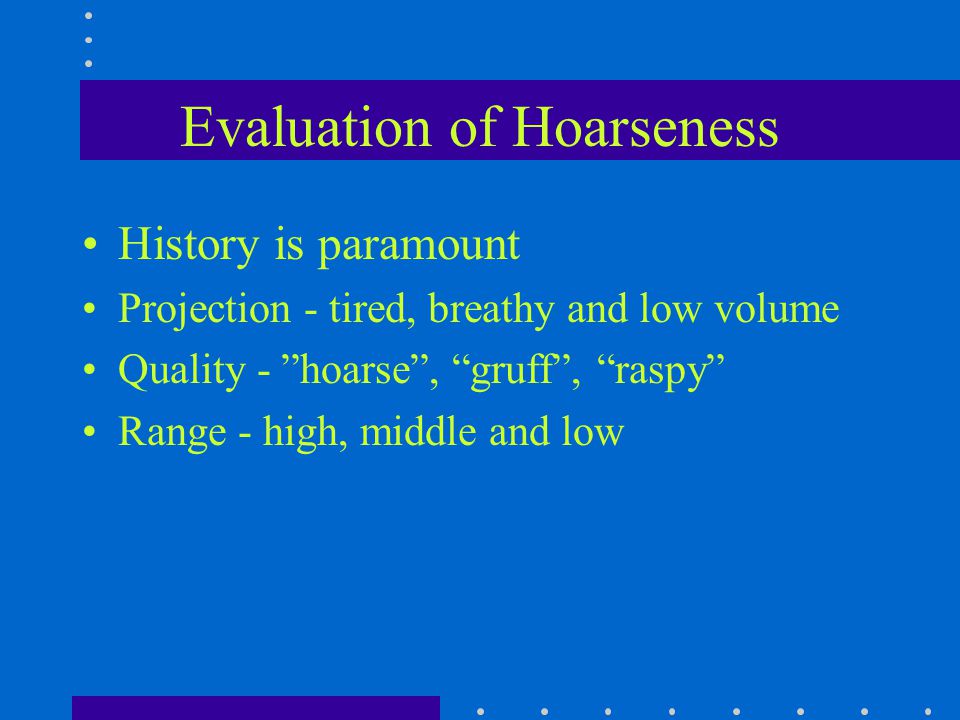

29. Evaluation of Hoarseness History is paramount Projection - tired, breathy and low volume Quality - ”hoarse”, “gruff”, “raspy” Range - high, middle and low

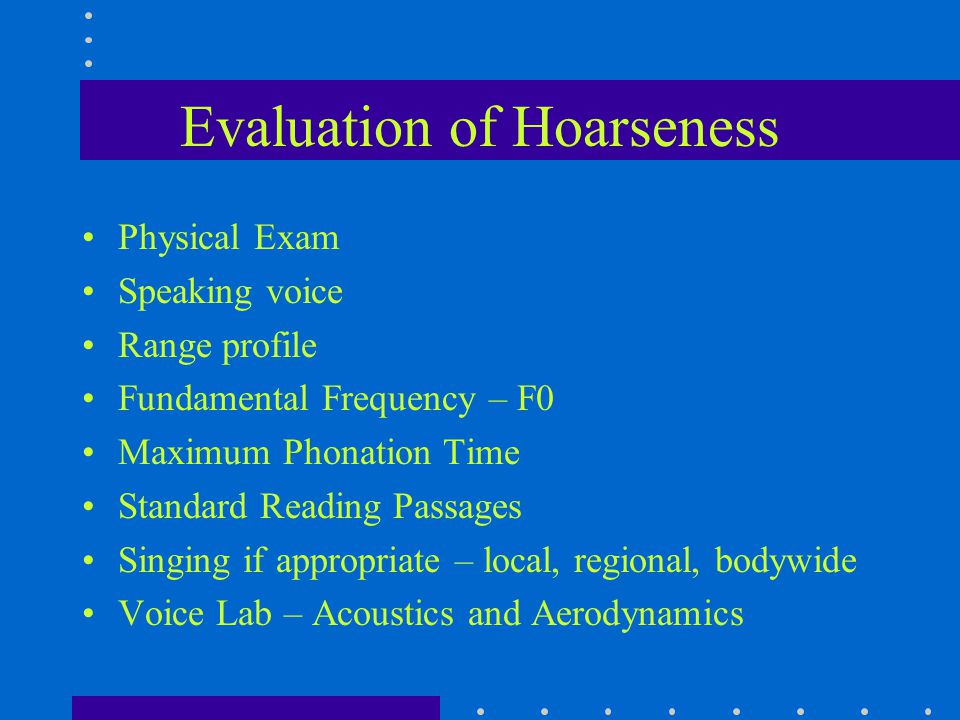

30. Evaluation of Hoarseness Physical Exam Speaking voice Range profile Fundamental Frequency – F0 Maximum Phonation Time Standard Reading Passages Singing if appropriate – local, regional, bodywide Voice Lab – Acoustics and Aerodynamics

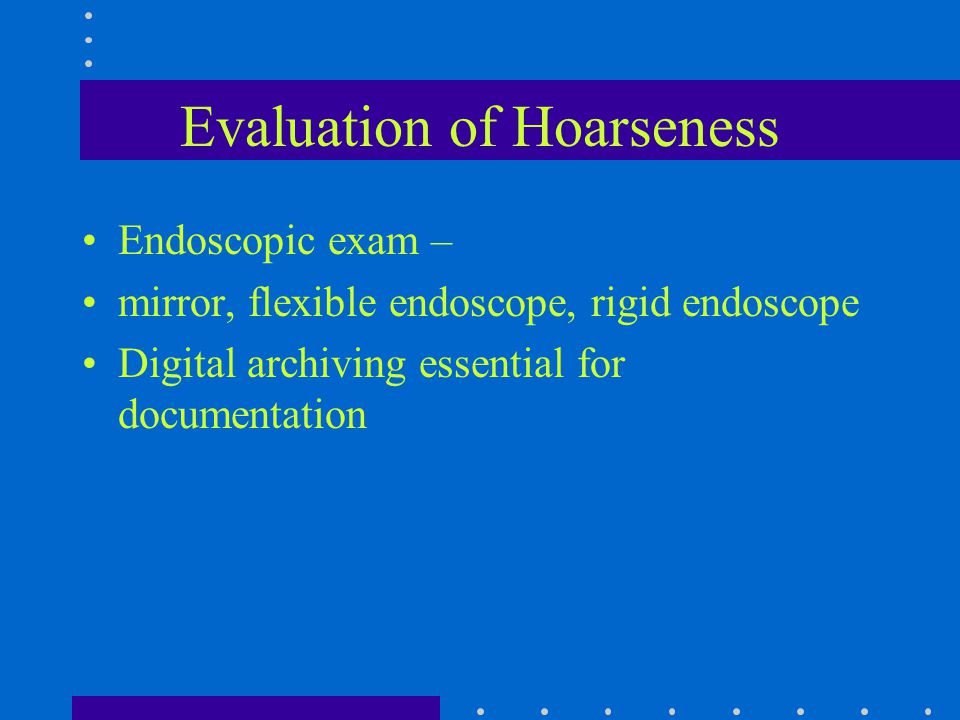

31. Evaluation of Hoarseness Endoscopic exam – mirror, flexible endoscope, rigid endoscope Digital archiving essential for documentation

32. Evaluation of Hoarseness Studies CT scan – evaluation of course of RLN EMG – Is there an nerve to muscle problem? Double pH probe – What is the severity of Laryngopharyngeal reflux (LPR)? Microlaryngoscopy – some lesions missed in the office.

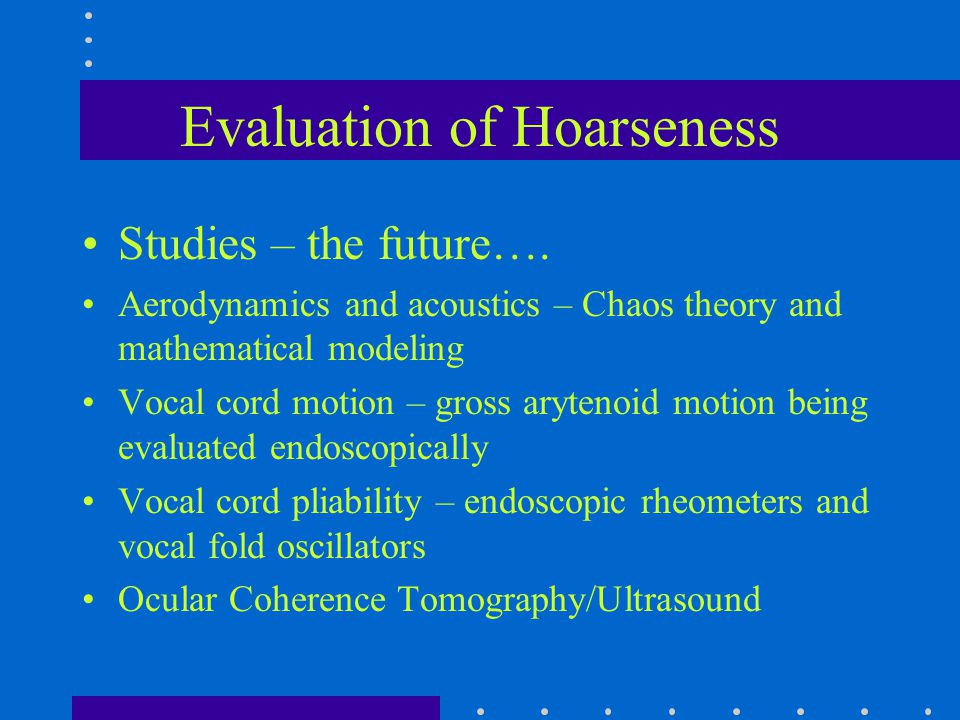

33. Evaluation of Hoarseness Studies – the future…. Aerodynamics and acoustics – Chaos theory and mathematical modeling Vocal cord motion – gross arytenoid motion being evaluated endoscopically Vocal cord pliability – endoscopic rheometers and vocal fold oscillators Ocular Coherence Tomography/Ultrasound

34. Normal Stroboscopy

35. Neuromuscular Disorders Vocal cord paralysis Vocal cord paresis Cricoarytenoid joint dysmobility Presbylaryngis (aging larynx) Muscle Tension Dysphonia (Hyperfunction)

36. Vocal Cord Paralysis Thoracic, thyroid surgery, “Bell’s” palsy of the larynx Closure and symmetry Swallowing and voice Static Repair - Watch and wait, temporary procedure, permanent procedure (Laryngoplasty). Dynamic repair Nerve Muscle Transosition

37. Vocal Cord Paresis

38. Vocal Cord Paralysis 2

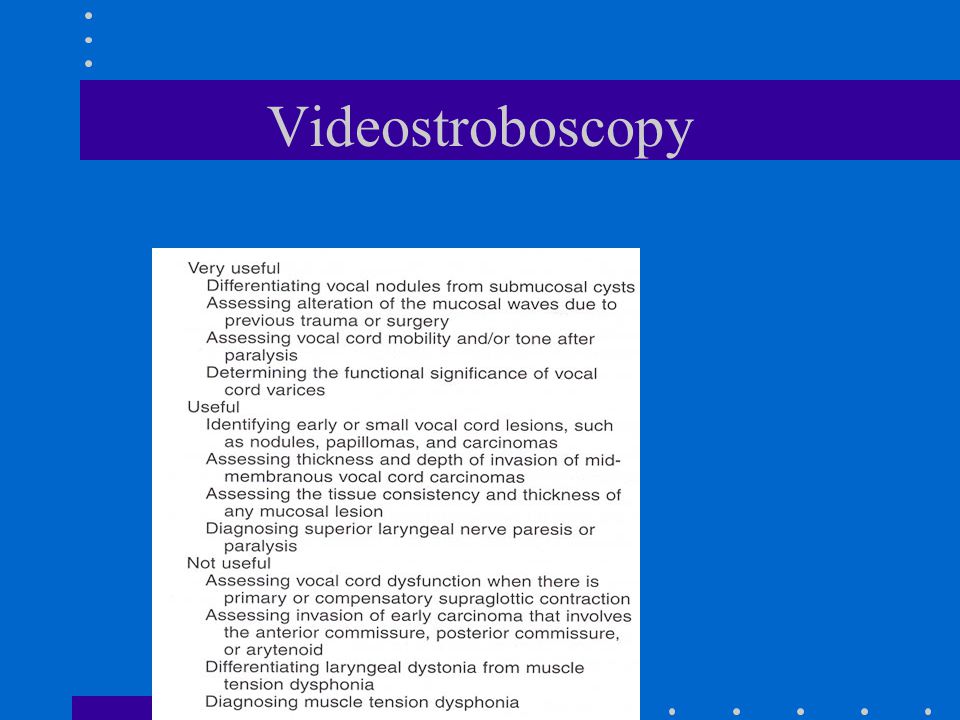

41. Videostroboscopy

42. Radiographic studies MRI CT

43. Laryngeal EMG Myopathy – normal frequency of firing but decreased amplitude Neuropathy – decreased frequency but occasional normal amplitudes Polyphasic reinnervation potentials indicate some loss of function but reinnervation has begun

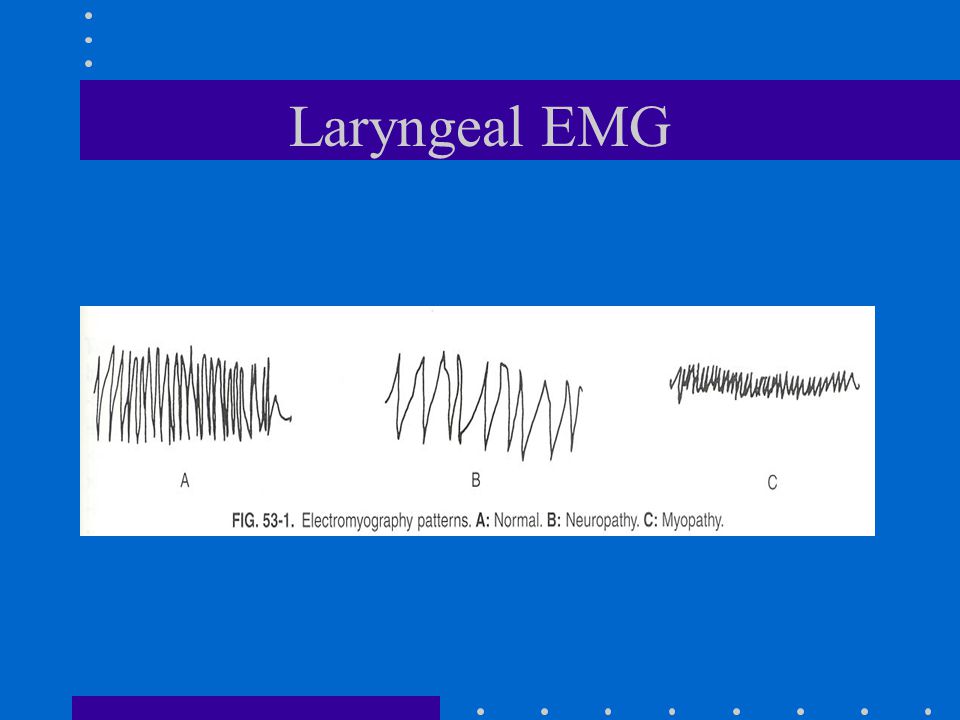

44. Laryngeal EMG

45. Differential Congenital Inflammatory Neoplastic Traumatic Neurologic Endocrine Iatrogenic Local factors

49. Vocal Cysts

51. Vocal Nodules Usually bilateral Voice rest and speech therapy for 6 months Surgical removal

53. Vocal cord granulomas LPR Intubation Treat medically

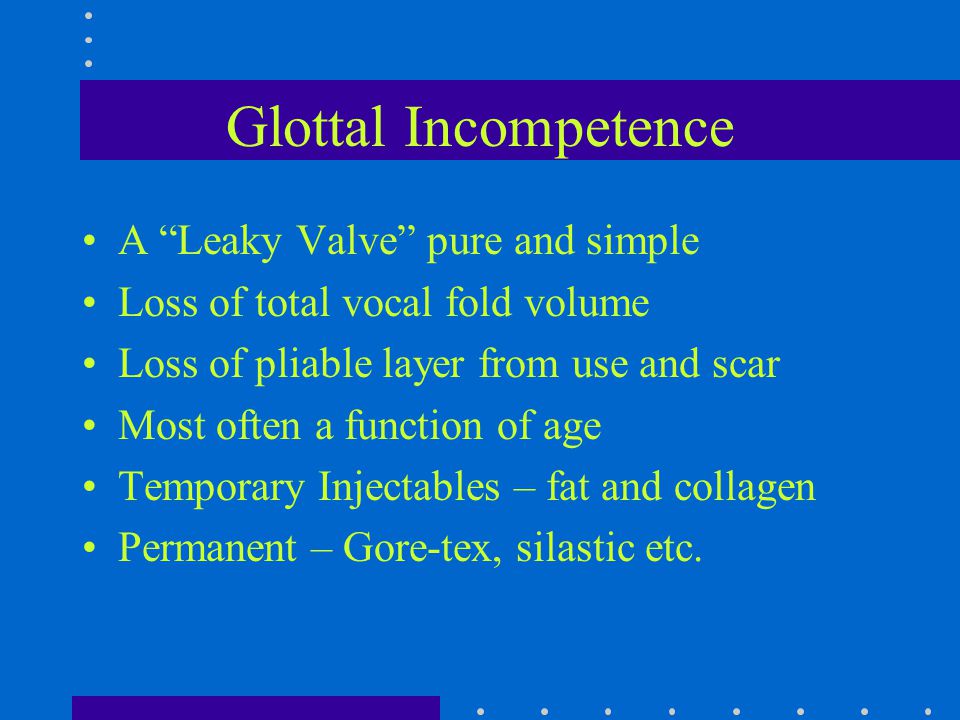

56. Glottal Incompetence A “Leaky Valve” pure and simple Loss of total vocal fold volume Loss of pliable layer from use and scar Most often a function of age Temporary Injectables – fat and collagen Permanent – Gore-tex, silastic etc.

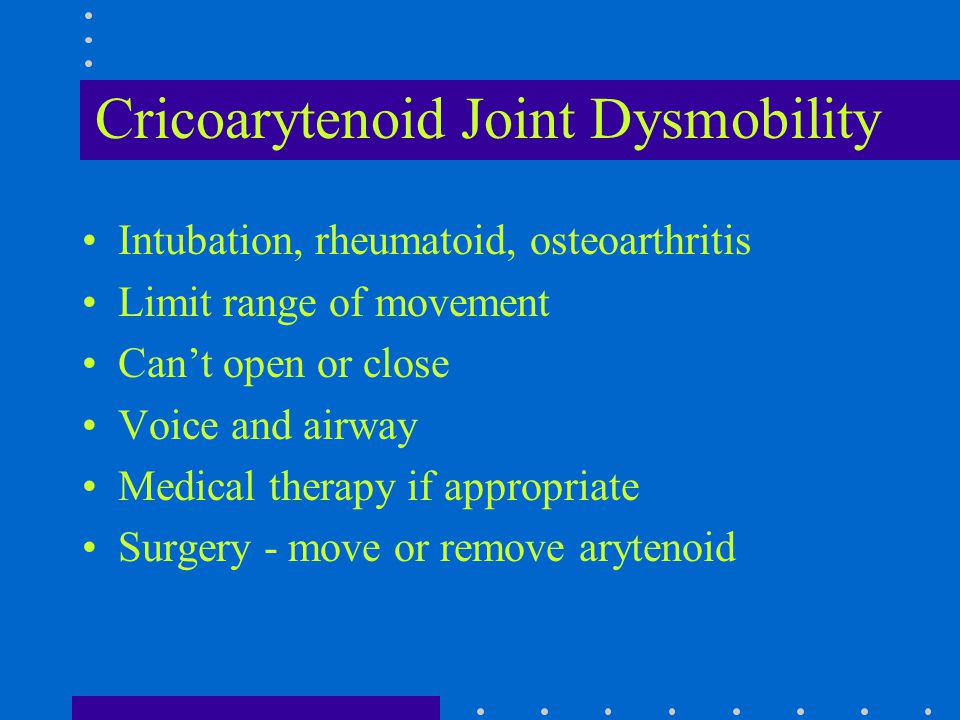

59. Cricoarytenoid Joint Dysmobility Intubation, rheumatoid, osteoarthritis Limit range of movement Can’t open or close Voice and airway Medical therapy if appropriate Surgery - move or remove arytenoid

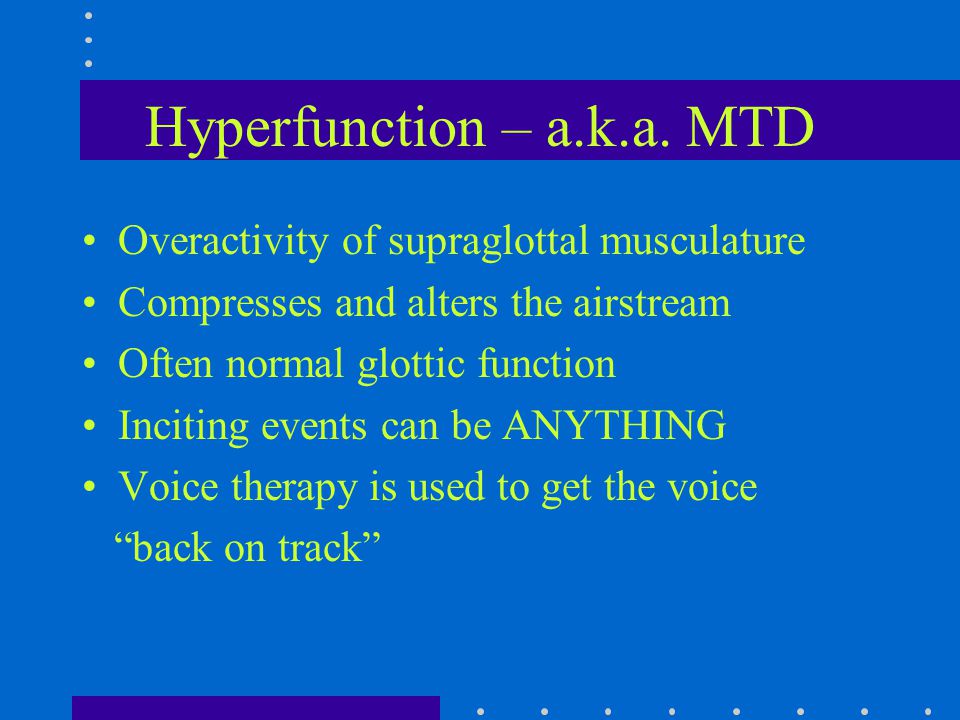

63. Hyperfunction – a.k.a. MTD Overactivity of supraglottal musculature Compresses and alters the airstream Often normal glottic function Inciting events can be ANYTHING Voice therapy is used to get the voice “back on track”

66. Epithelial Diseases Papilloma Premalignancy (Vocal cord dysplasia) Malignancy

67. Vocal Cord Papilloma Most common benign tumor of vcs Pediatric and adult forms Voice and airway Surgery - mechanical or laser debulking Anti-virals in children High risk of permanent dysphonia 585nm Pulsed Dye Laser – Treatment can now be done in the office!!!

70. Vocal Cord Keratosis with Atypia Smoking and alcohol Repetitive chemical insult to vocal folds Dysplasia into cancer Closure, pliability and symmetry Radiation therapy - not recommended Phonomicrosurgery Pulsed Dye Laser - Treatment can now be done in the office!!!

73. Vocal Cord Cancer Smoking and Drinking are synergistic U.S. - 2/3 glottic, Europe 2/3 supraglottic Hoarseness Closure pliability and symmetry Voice and airway Radiation Ultra-narrow margin surgery Endoscopic approach for early cancers – increasing evidence for late cancer also

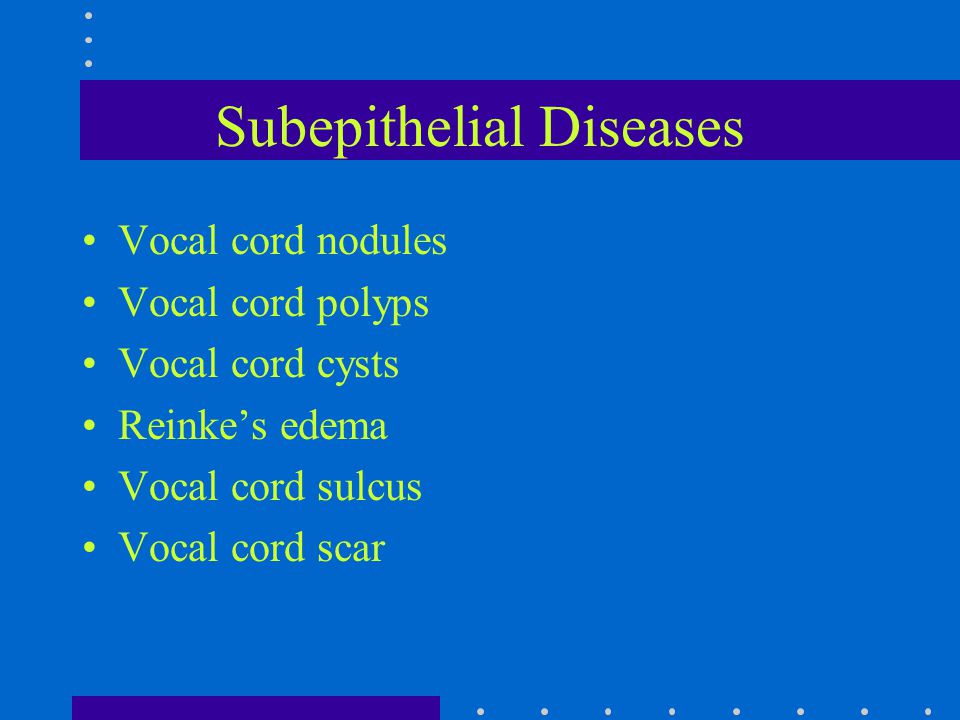

75. Subepithelial Diseases Vocal cord nodules Vocal cord polyps Vocal cord cysts Reinke’s edema Vocal cord sulcus Vocal cord scar

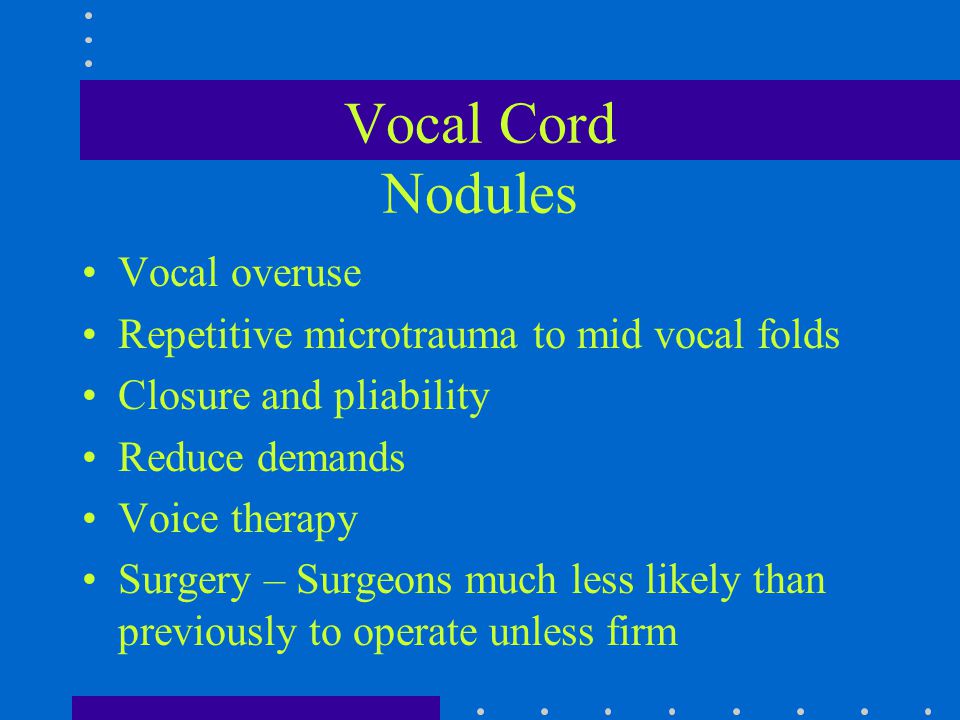

76. Vocal Cord Nodules Vocal overuse Repetitive microtrauma to mid vocal folds Closure and pliability Reduce demands Voice therapy Surgery – Surgeons much less likely than previously to operate unless firm

77. Vocal Cord Nodules 1

78. Vocal Cord Nodules 2

81. Vocal Cord Polyp Vocal overuse Repetitive microtrauma to mid vocal folds Closure and pliability Reduce demands Voice therapy Surgery – Instrumentation and even robotics being applied to improve precision and safety

88. Vocal Fold Cyst Congenital anomaly Uni or bilateral Mucus or keratin Closure, pliability and symmetry Voice only affected Surgery - excise, but not likely to have a normal voice

91. Reinke’s Edema Benign enlargement and alteration of golden layer Adult female smokers Closure, pliability and symmetry Voice and airway Surgery - cytoreduction of SLP Return almost to normal

95. Vocal Fold Scar Forms at the junction of epithelium and golden layer (SLP) Decreases the pliability of the membrane Decreases the closure and therefore the efficiency Fatigue and projection problems are common LOSS OF UPPER REGISTER!!!

98. Vocal Cord Sulcus Developmental loss of SLP Decreased pliability Loss of cycle-to-cycle closure Management with surgery is best hope Slicing technique Fat implantation Medialization Thyroplasty

101. Vocal Cord Inflammatory Diseases Reflux Laryngopharyngitis (LPR) Arytenoid Granuloma

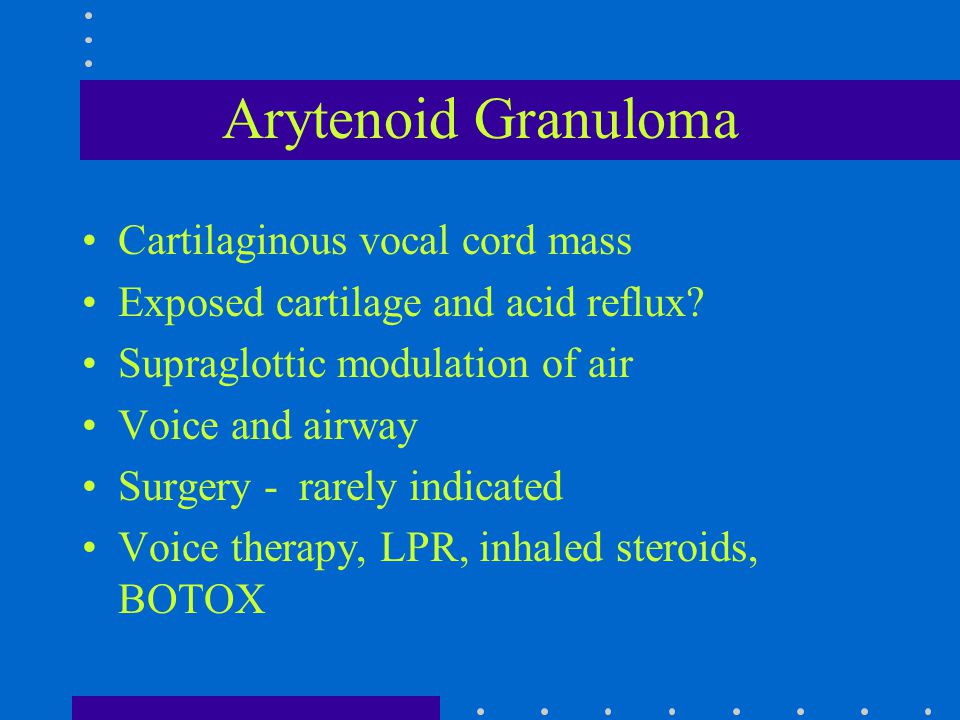

104. Cartilaginous vocal cord mass Exposed cartilage and acid reflux? Supraglottic modulation of air Voice and airway Surgery - rarely indicated Voice therapy, LPR, inhaled steroids, BOTOX

110. Vocal Cysts

112. Vocal Nodules Usually bilateral Voice rest and speech therapy for 6 months Surgical removal

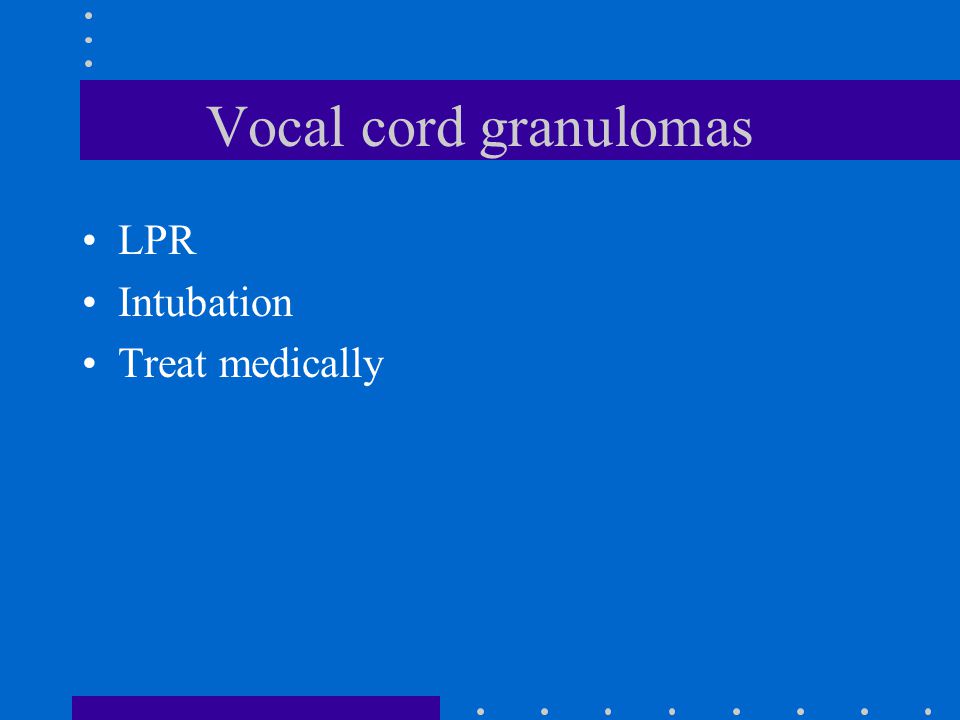

114. Vocal cord granulomas LPR Intubation Treat medically

118. Vocal Cord Paralysis Lesion at nuclear level – cadaveric Lesion above nodose ganglion – abducted Lesion below nodose ganglion - paramedian

119. Vocal Cord Paralysis Superior laryngeal nerve – subtle voice changes with decreased pitch range, tilting of the larynx with a rotation of the glottis

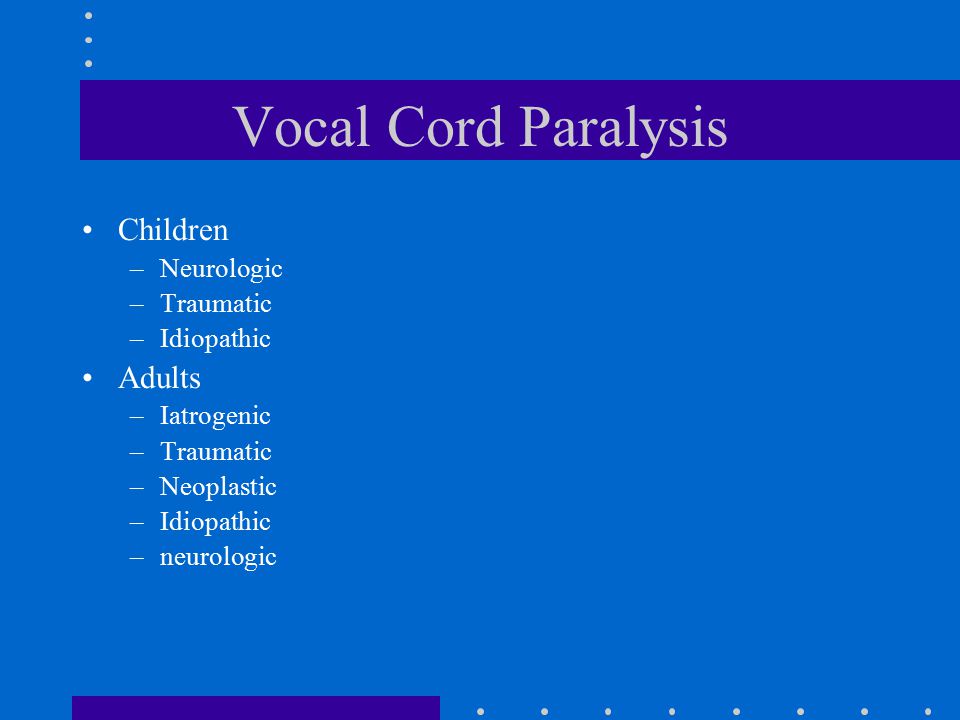

120. Vocal Cord Paralysis Children –Neurologic –Traumatic –Idiopathic Adults –Iatrogenic –Traumatic –Neoplastic –Idiopathic –neurologic

121. THANK YOU !!!

122. Rule of Thumb Any patient with hoarseness of two weeks duration or longer must undergo visualization of the vocal cords
