1. Nervous System

2. The Neuron Also called the nerve cell It is the basic structural unit of the nervous system

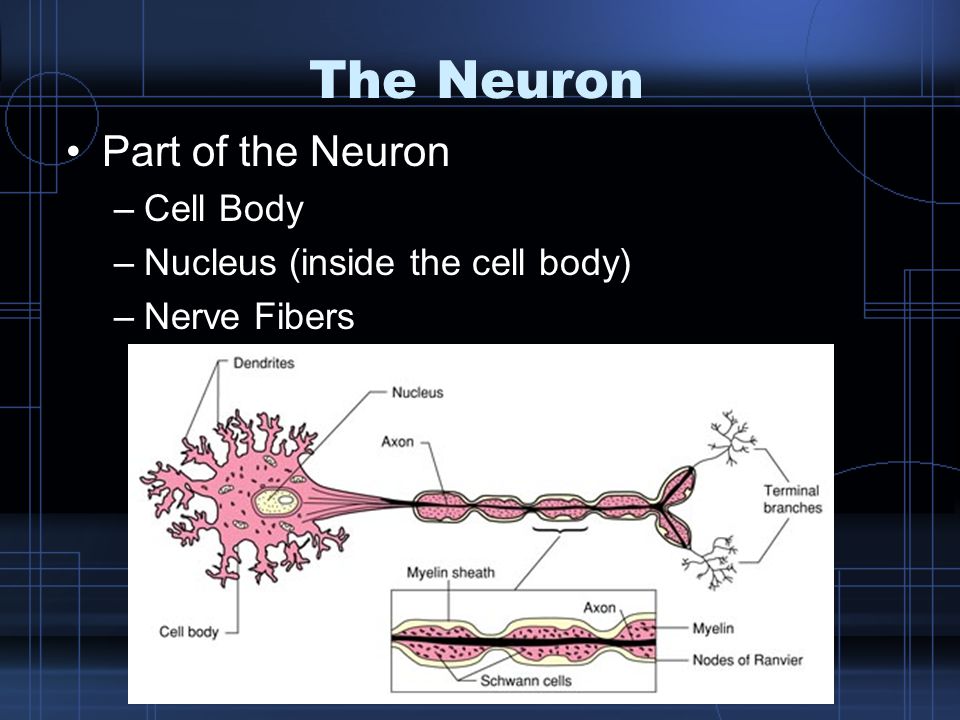

3. The Neuron Part of the Neuron –Cell Body –Nucleus (inside the cell body) –Nerve Fibers

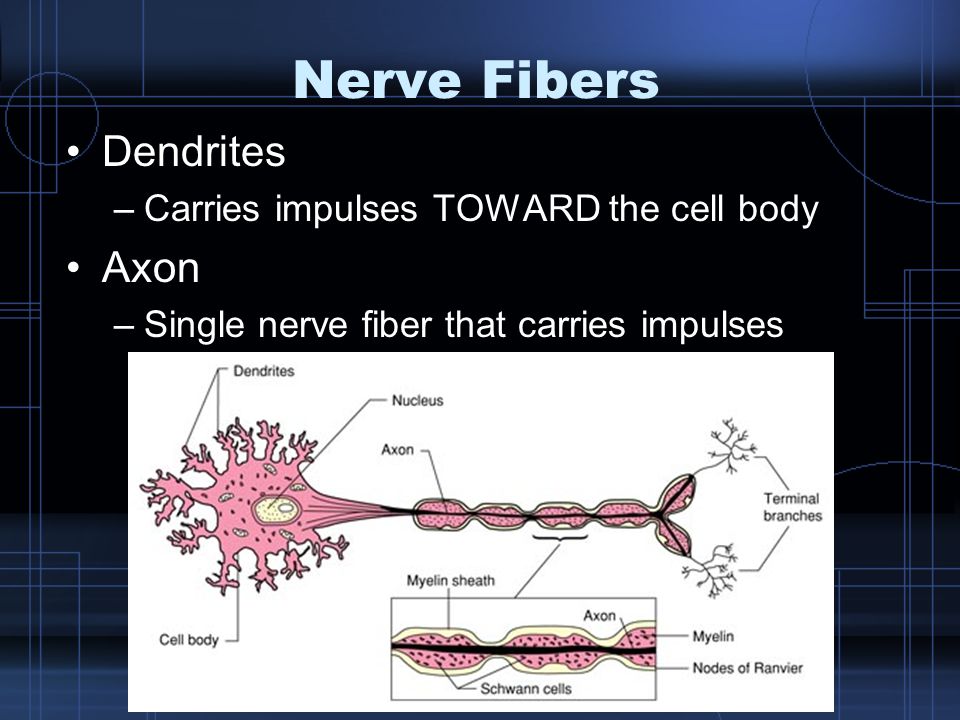

4. Nerve Fibers Dendrites –Carries impulses TOWARD the cell body Axon –Single nerve fiber that carries impulses AWAY from the cell body

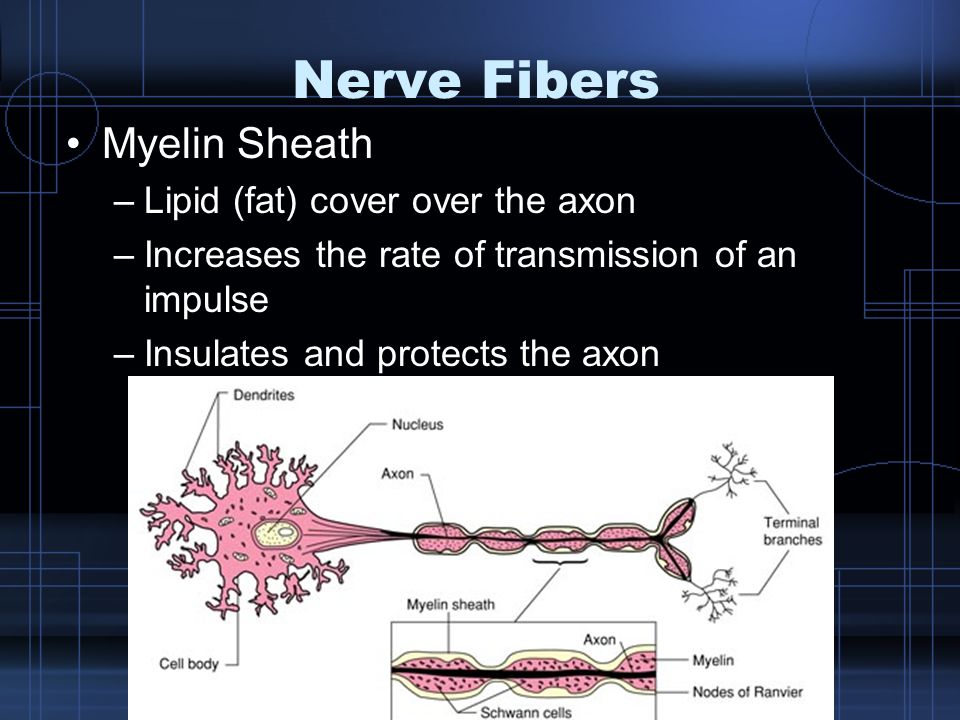

5. Nerve Fibers Myelin Sheath –Lipid (fat) cover over the axon –Increases the rate of transmission of an impulse –Insulates and protects the axon

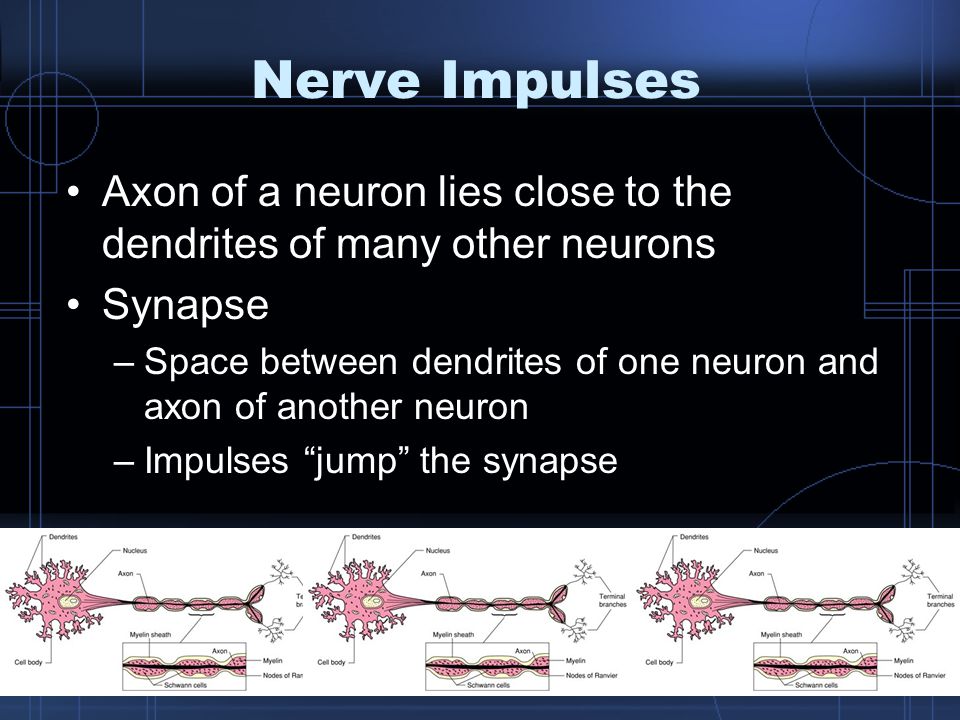

6. Nerve Impulses Axon of a neuron lies close to the dendrites of many other neurons Synapse –Space between dendrites of one neuron and axon of another neuron –Impulses “jump” the synapse

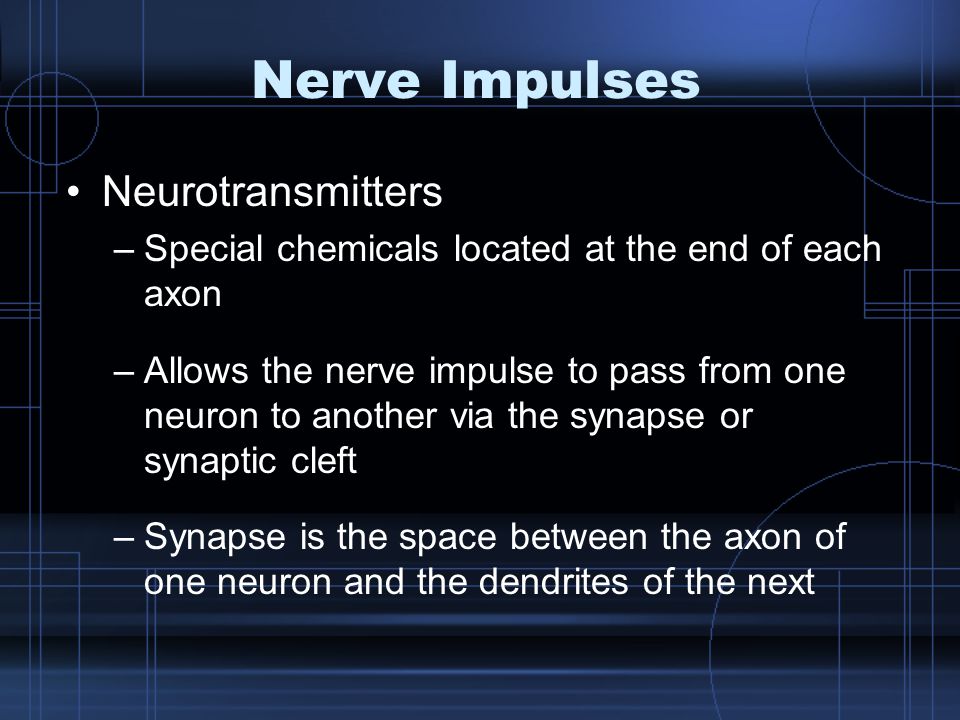

7. Nerve Impulses Neurotransmitters –Special chemicals located at the end of each axon –Allows the nerve impulse to pass from one neuron to another via the synapse or synaptic cleft –Synapse is the space between the axon of one neuron and the dendrites of the next

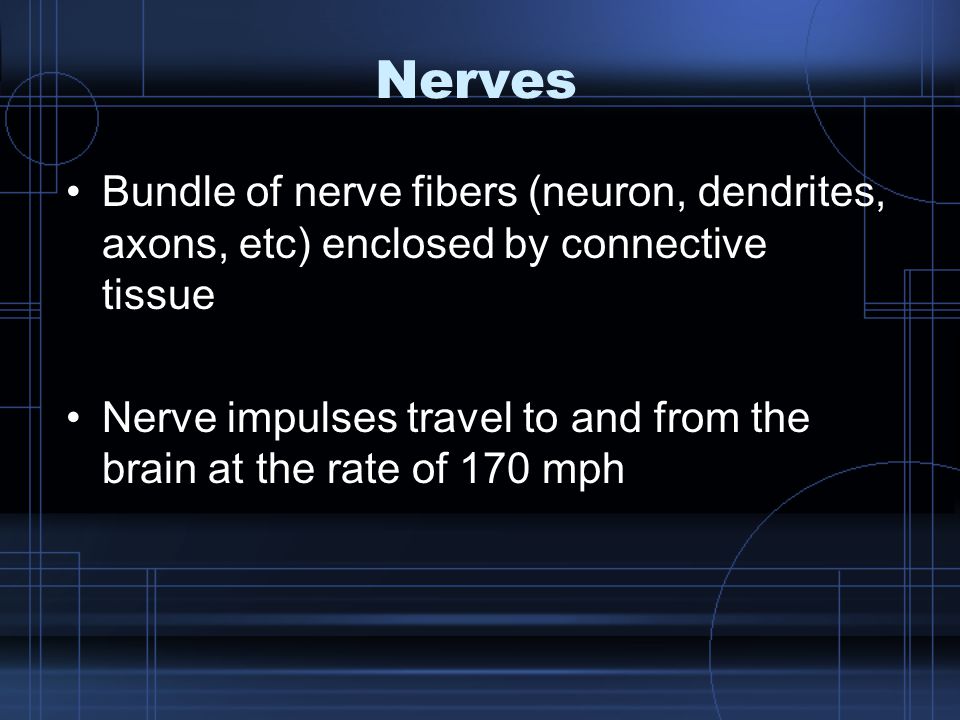

8. Nerves Bundle of nerve fibers (neuron, dendrites, axons, etc) enclosed by connective tissue Nerve impulses travel to and from the brain at the rate of 170 mph

9. Types of Nerves AFFERENT/Sensory –Carries messages from all parts of the body (sensory organs) to the brain and spinal cord EFFERENT/Motor –Carries messages from the brain and spinal cord to muscles and glands

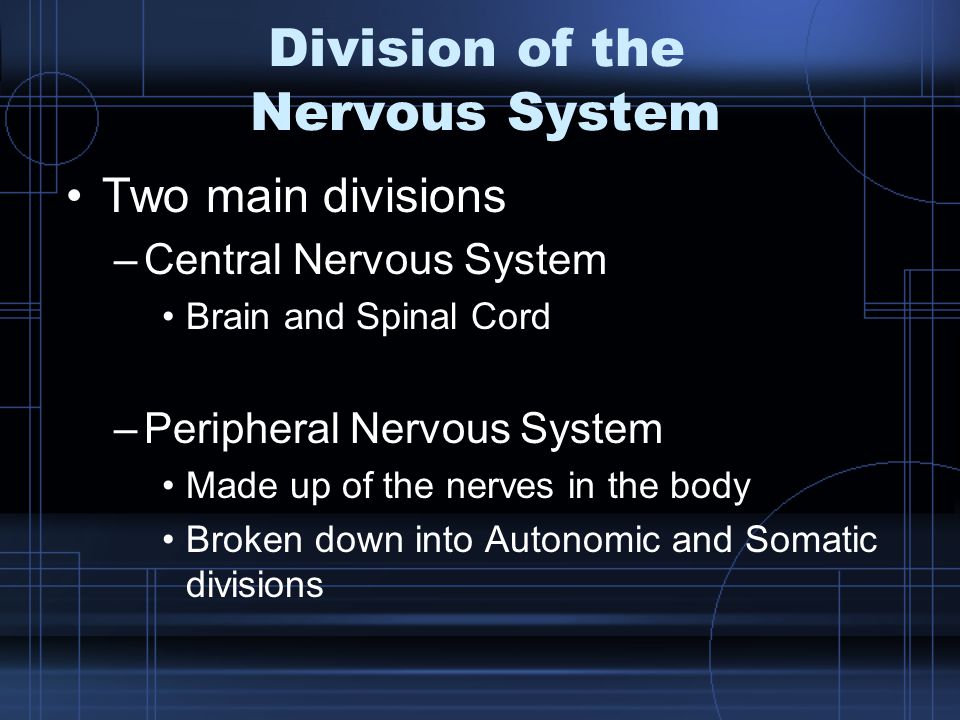

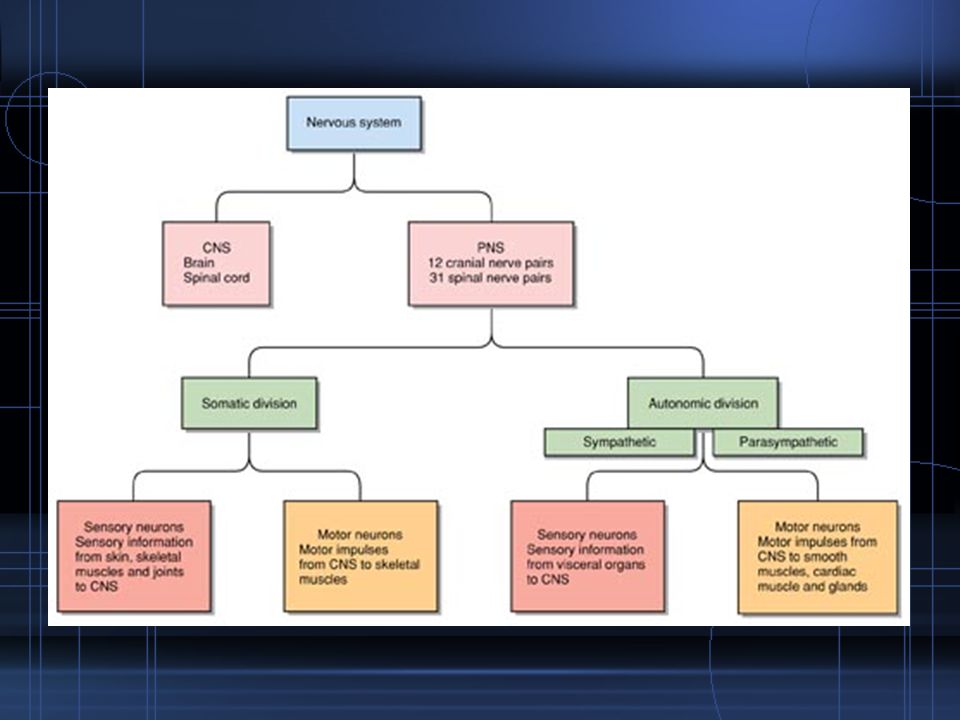

10. Division of the Nervous System Two main divisions –Central Nervous System Brain and Spinal Cord –Peripheral Nervous System Made up of the nerves in the body Broken down into Autonomic and Somatic divisions

11. Central Nervous System Brain –Mass of nerve tissue –Protected by membranes and the cranium (skull)

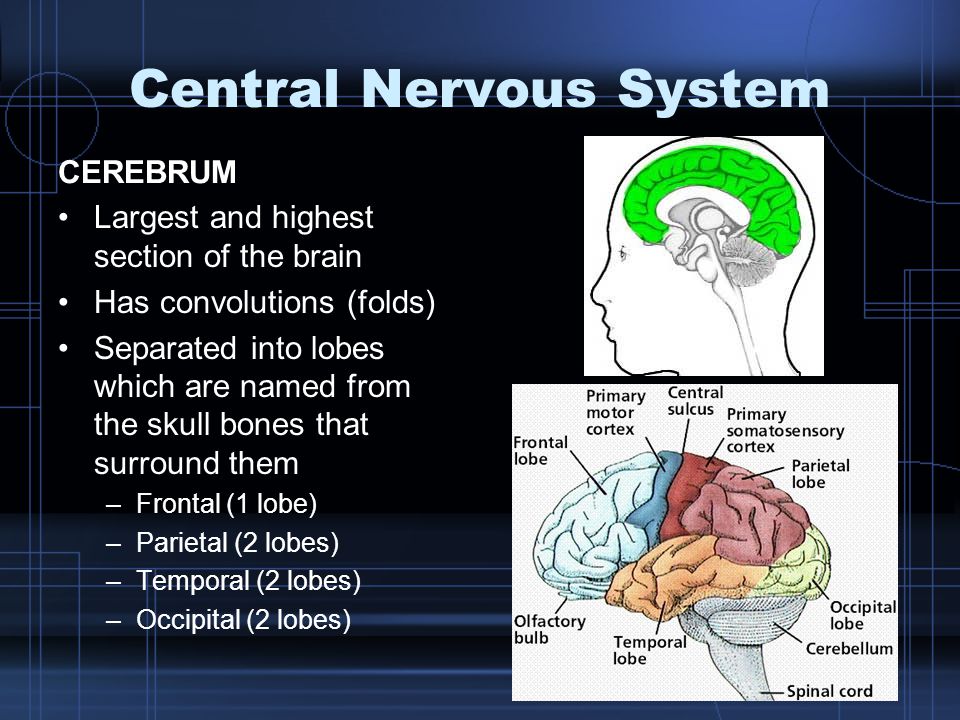

12. Central Nervous System CEREBRUM Largest and highest section of the brain Has convolutions (folds) Separated into lobes which are named from the skull bones that surround them –Frontal (1 lobe) –Parietal (2 lobes) –Temporal (2 lobes) –Occipital (2 lobes)

13. Central Nervous System Cerebellum Section below the cerebrum Responsible for coordination of muscles, balance and posture, and muscle tone Diencephalon Located between the cerebrum and midbrain Contains two structures –Thalamus – acts as relay center –Hypothalamus – regulates Autonomic Nervous System

14. Central Nervous System Midbrain –Located below the cerebrum at the top of the brain stem –Responsible for conducting impulses between brain parts –Responsible for certain eye reflexes

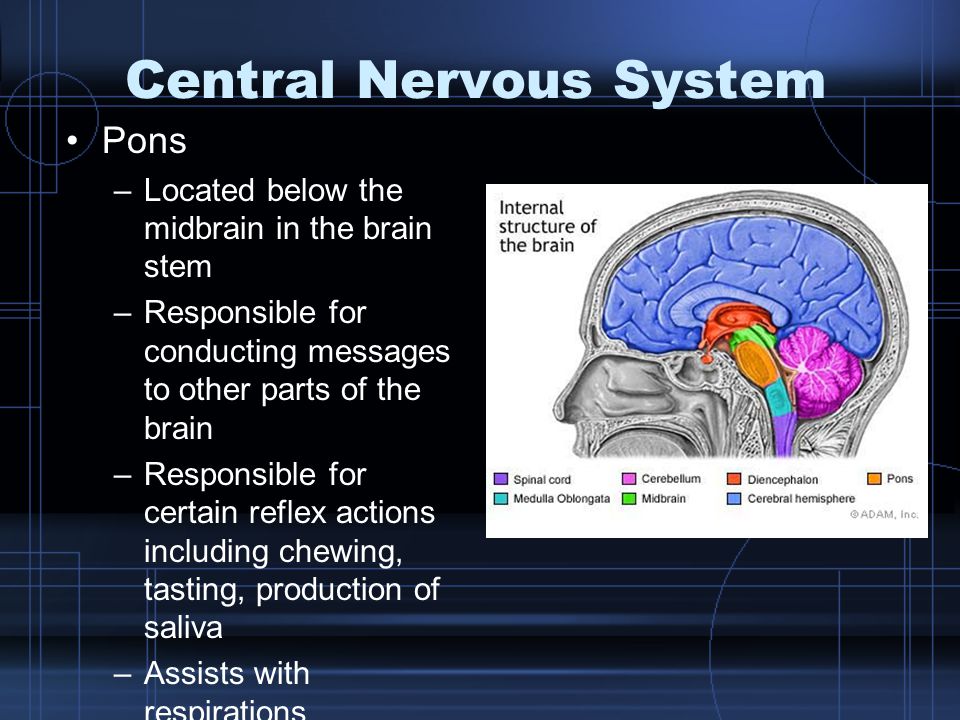

15. Central Nervous System Pons –Located below the midbrain in the brain stem –Responsible for conducting messages to other parts of the brain –Responsible for certain reflex actions including chewing, tasting, production of saliva –Assists with respirations

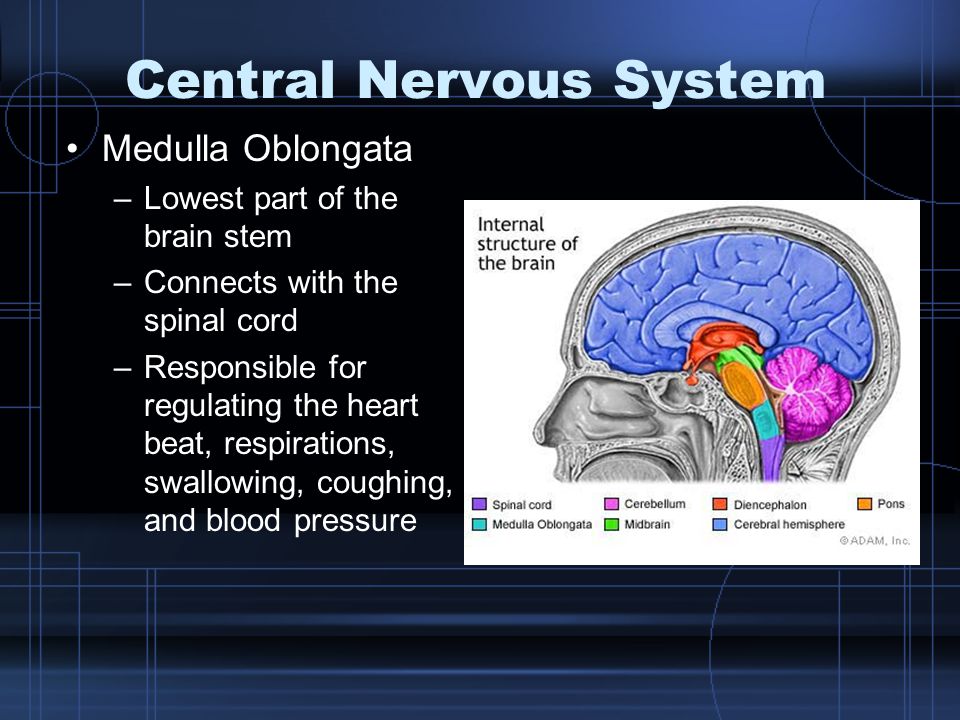

16. Central Nervous System Medulla Oblongata –Lowest part of the brain stem –Connects with the spinal cord –Responsible for regulating the heart beat, respirations, swallowing, coughing, and blood pressure

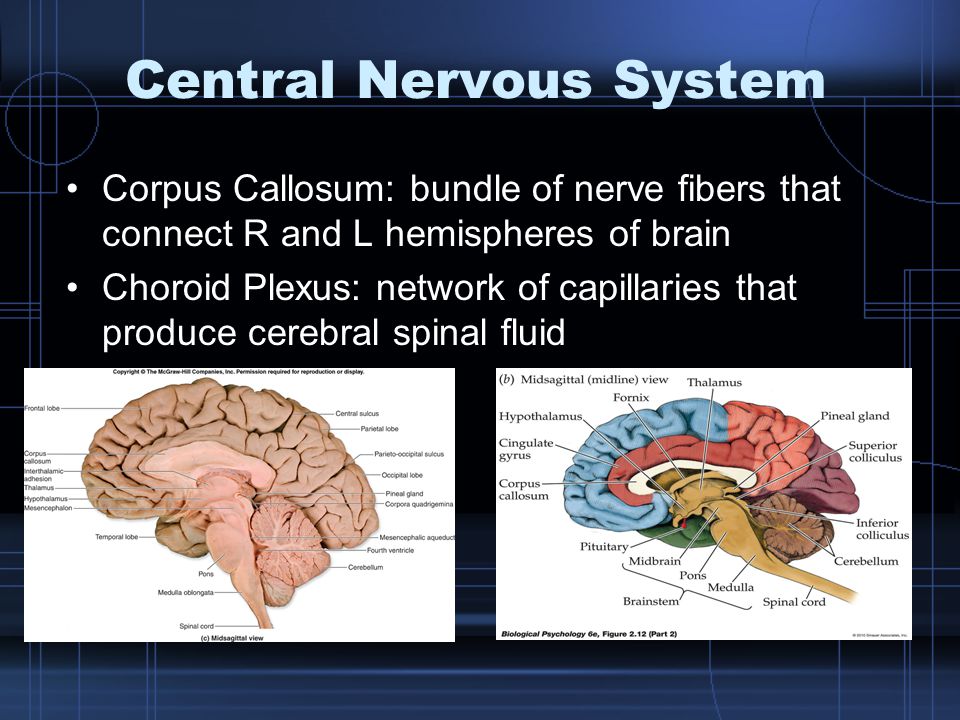

17. Central Nervous System Corpus Callosum: bundle of nerve fibers that connect R and L hemispheres of brain Choroid Plexus: network of capillaries that produce cerebral spinal fluid

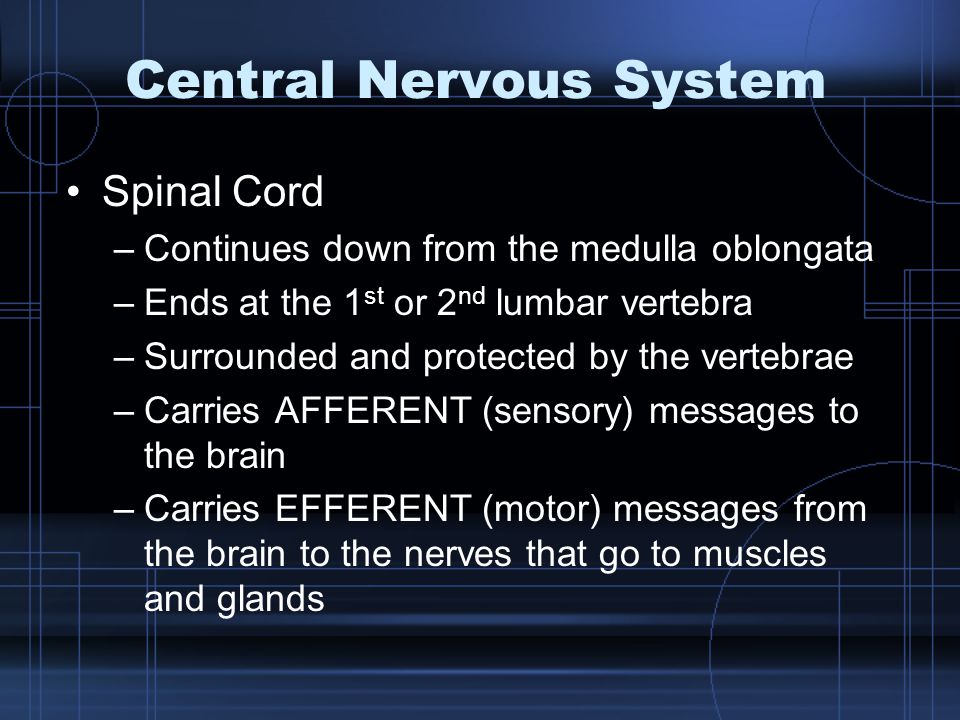

18. Central Nervous System Spinal Cord –Continues down from the medulla oblongata –Ends at the 1 st or 2 nd lumbar vertebra –Surrounded and protected by the vertebrae –Carries AFFERENT (sensory) messages to the brain –Carries EFFERENT (motor) messages from the brain to the nerves that go to muscles and glands

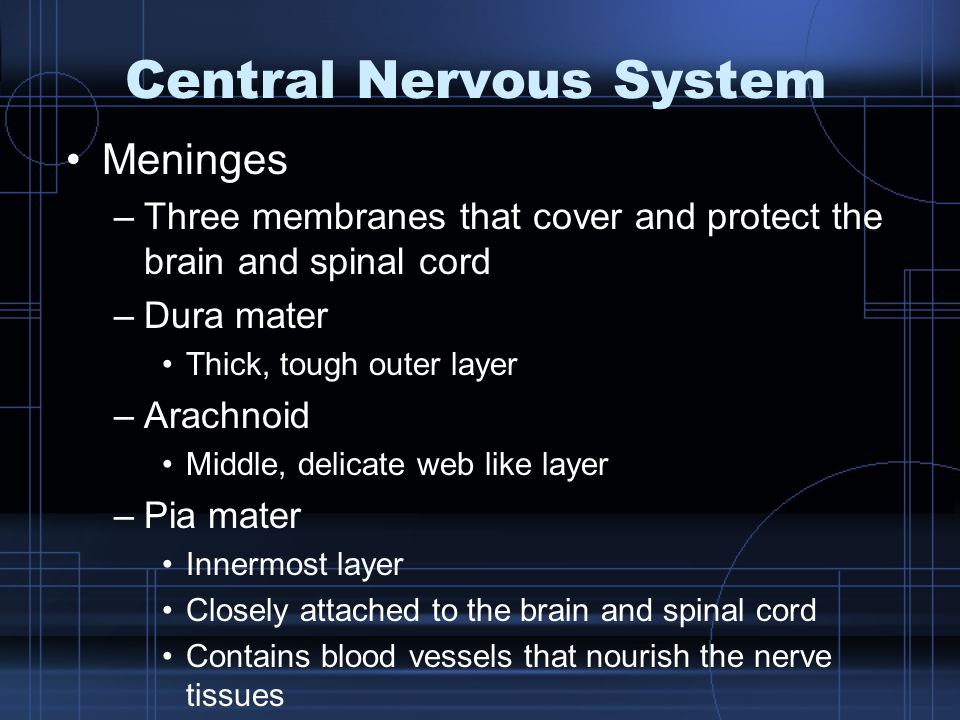

19. Central Nervous System Meninges –Three membranes that cover and protect the brain and spinal cord –Dura mater Thick, tough outer layer –Arachnoid Middle, delicate web like layer –Pia mater Innermost layer Closely attached to the brain and spinal cord Contains blood vessels that nourish the nerve tissues

20. Central Nervous System

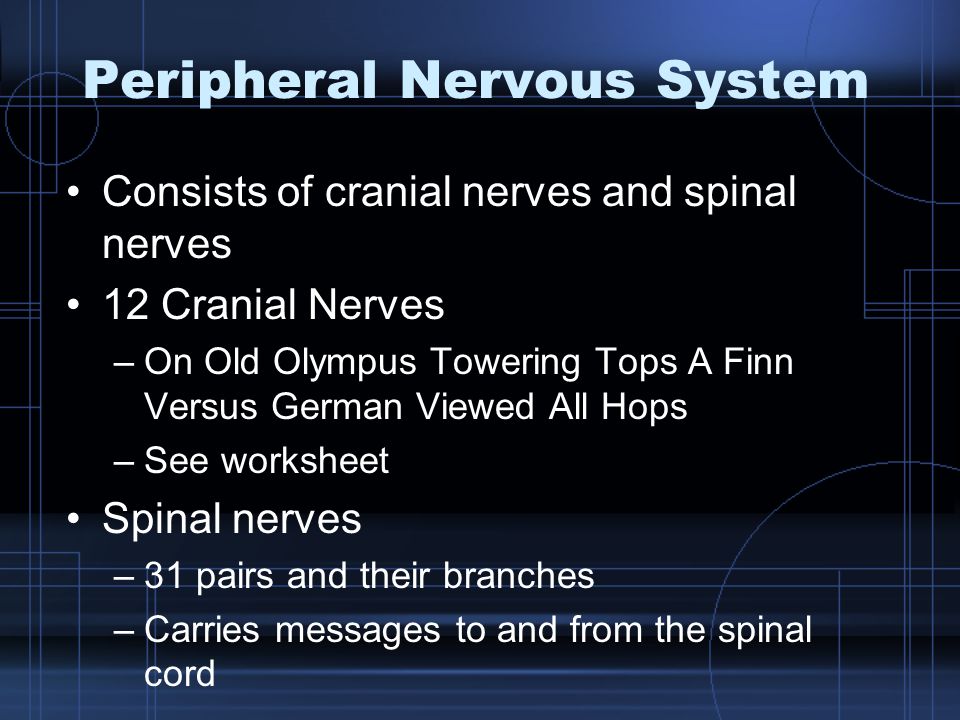

21. Peripheral Nervous System Consists of cranial nerves and spinal nerves 12 Cranial Nerves –On Old Olympus Towering Tops A Finn Versus German Viewed All Hops –See worksheet Spinal nerves –31 pairs and their branches –Carries messages to and from the spinal cord

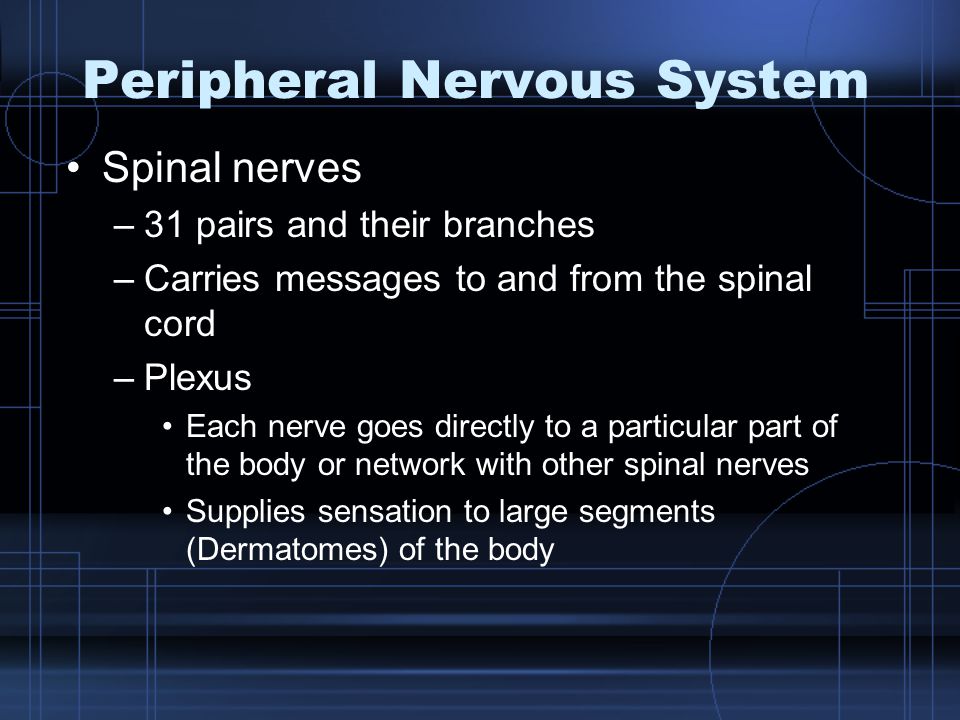

22. Peripheral Nervous System Spinal nerves –31 pairs and their branches –Carries messages to and from the spinal cord –Plexus Each nerve goes directly to a particular part of the body or network with other spinal nerves Supplies sensation to large segments (Dermatomes) of the body

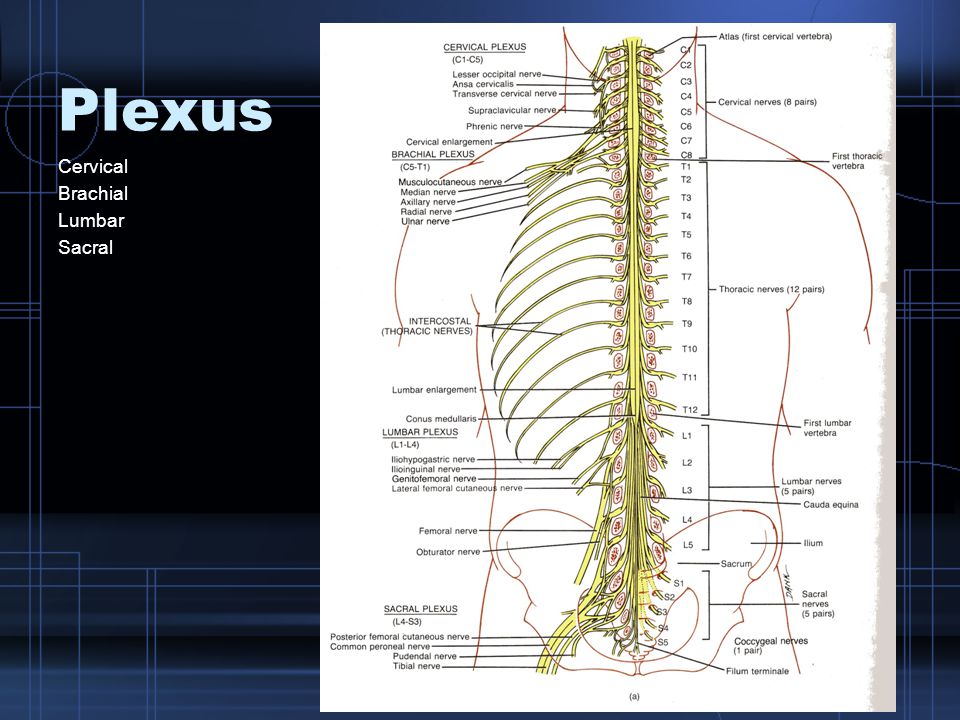

23. Plexus Cervical Brachial Lumbar Sacral

24. Dermatomes

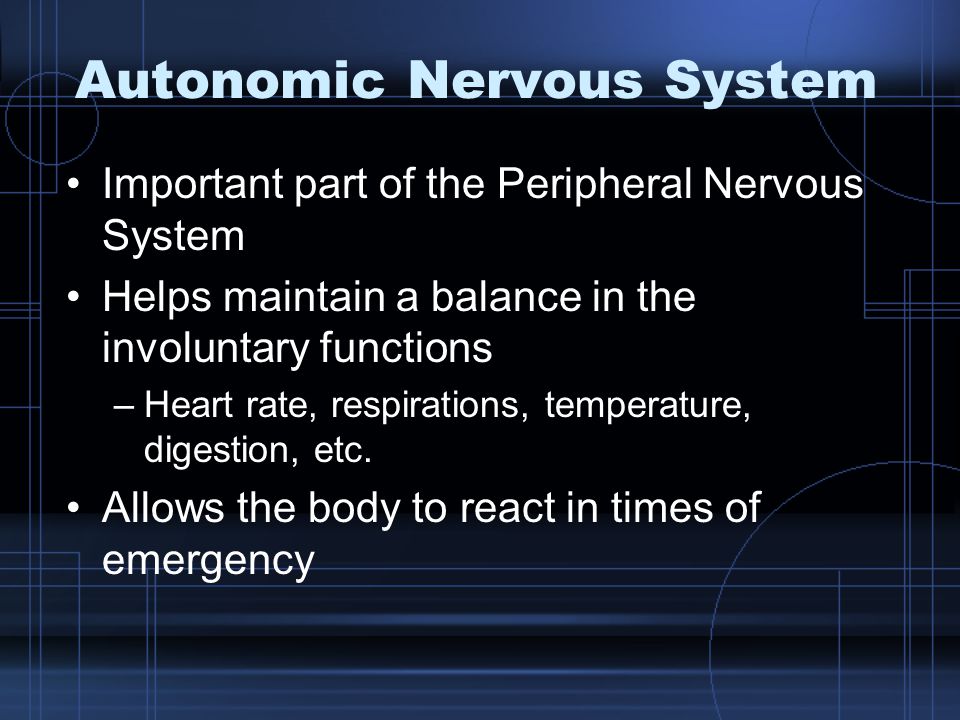

26. Autonomic Nervous System Important part of the Peripheral Nervous System Helps maintain a balance in the involuntary functions –Heart rate, respirations, temperature, digestion, etc. Allows the body to react in times of emergency

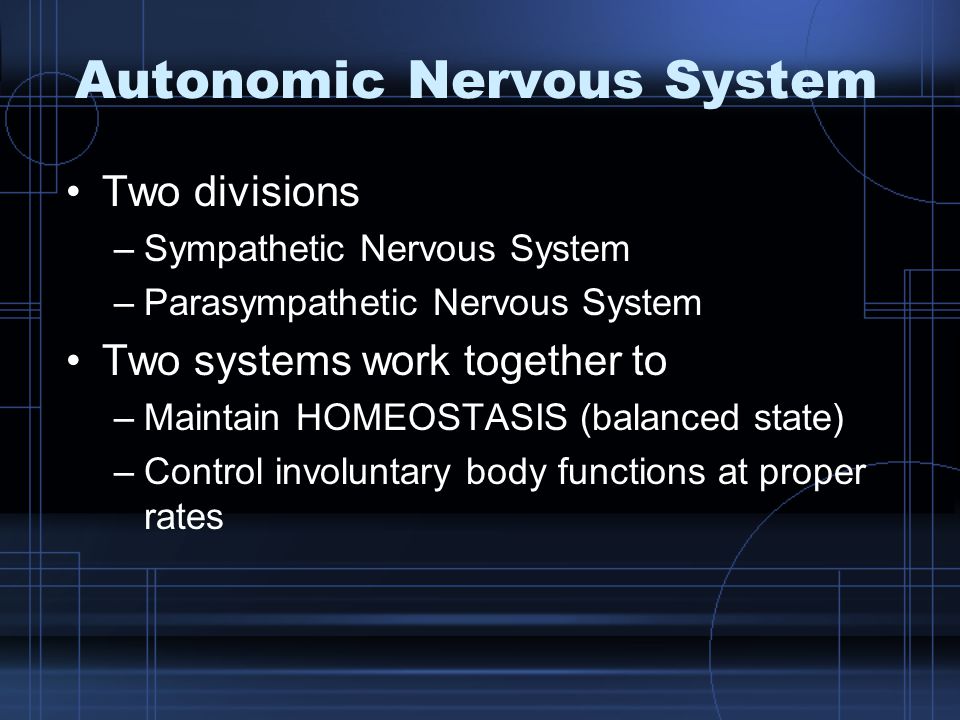

27. Autonomic Nervous System Two divisions –Sympathetic Nervous System –Parasympathetic Nervous System Two systems work together to –Maintain HOMEOSTASIS (balanced state) –Control involuntary body functions at proper rates

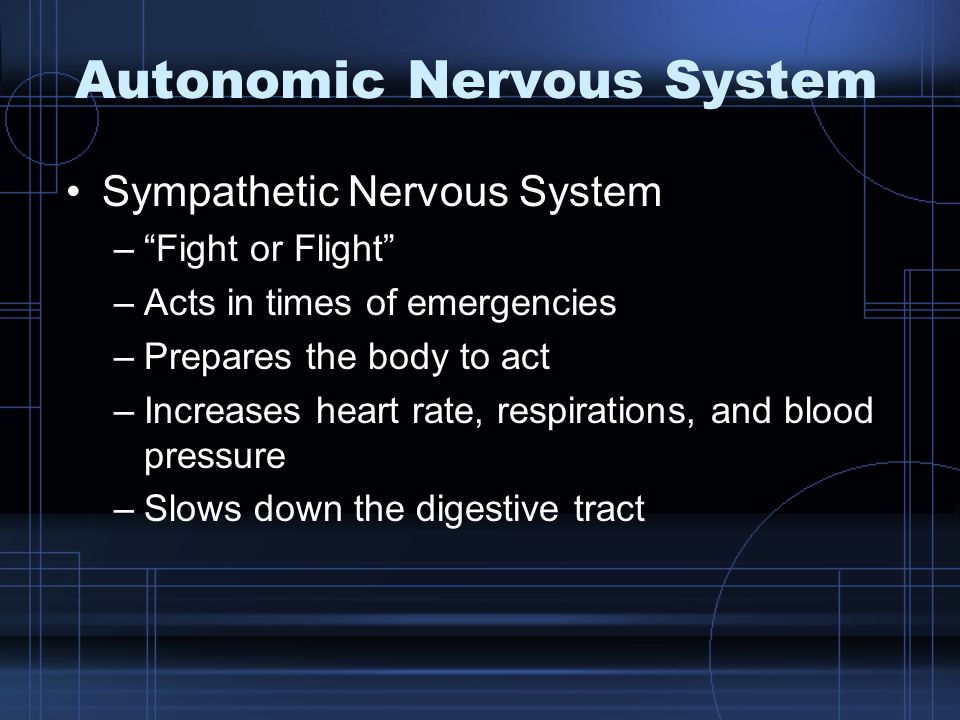

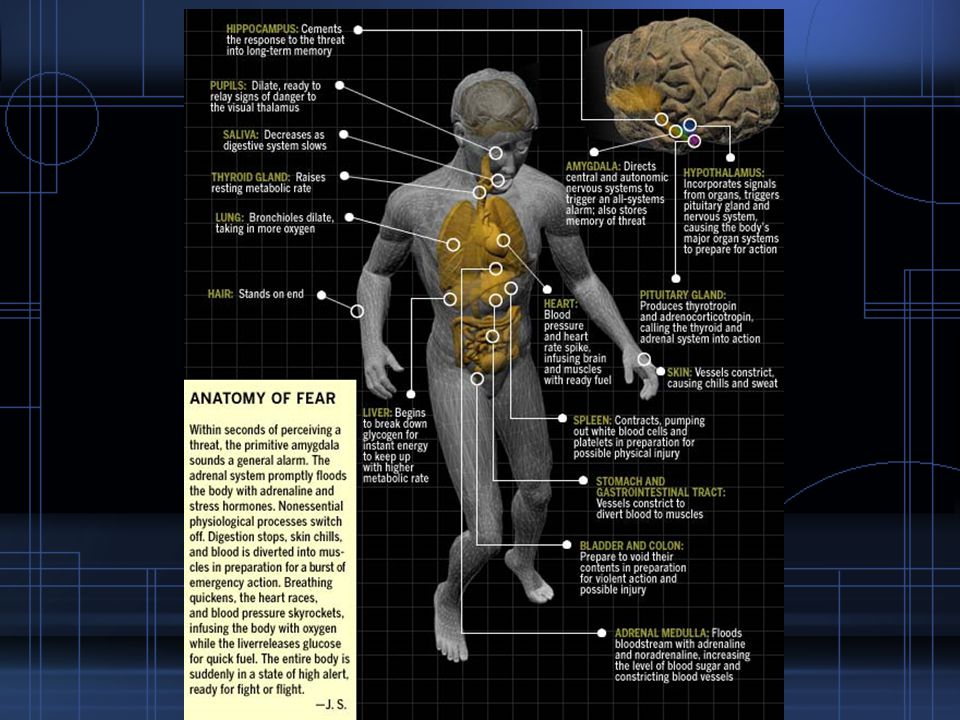

28. Autonomic Nervous System Sympathetic Nervous System –“Fight or Flight” –Acts in times of emergencies –Prepares the body to act –Increases heart rate, respirations, and blood pressure –Slows down the digestive tract

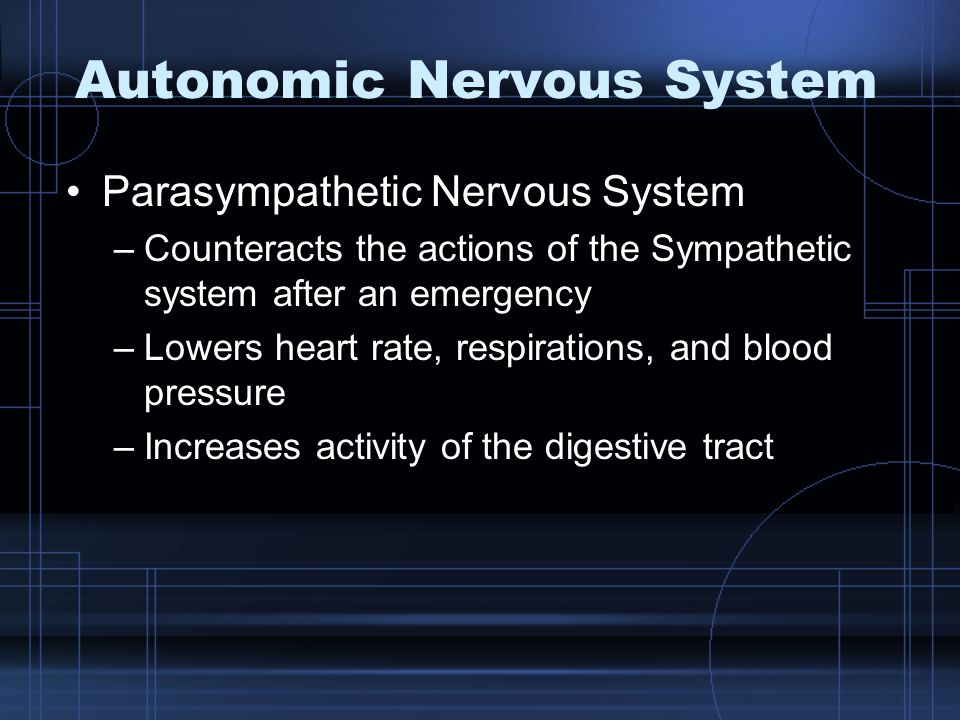

29. Autonomic Nervous System Parasympathetic Nervous System –Counteracts the actions of the Sympathetic system after an emergency –Lowers heart rate, respirations, and blood pressure –Increases activity of the digestive tract

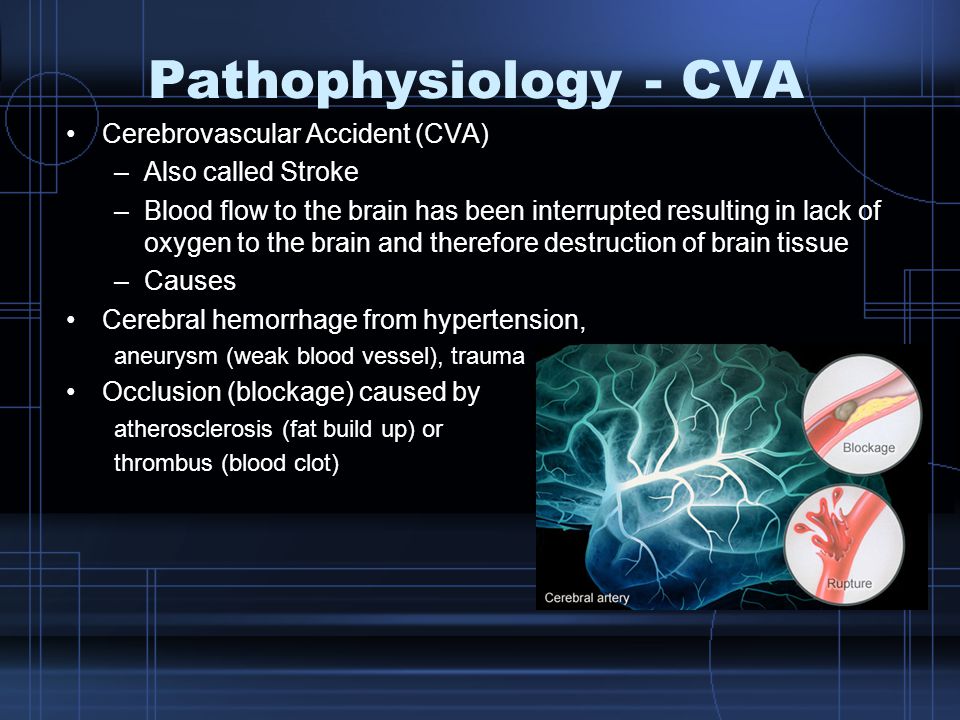

31. Pathophysiology - CVA Cerebrovascular Accident (CVA) –Also called Stroke –Blood flow to the brain has been interrupted resulting in lack of oxygen to the brain and therefore destruction of brain tissue –Causes Cerebral hemorrhage from hypertension, aneurysm (weak blood vessel), trauma Occlusion (blockage) caused by atherosclerosis (fat build up) or thrombus (blood clot)

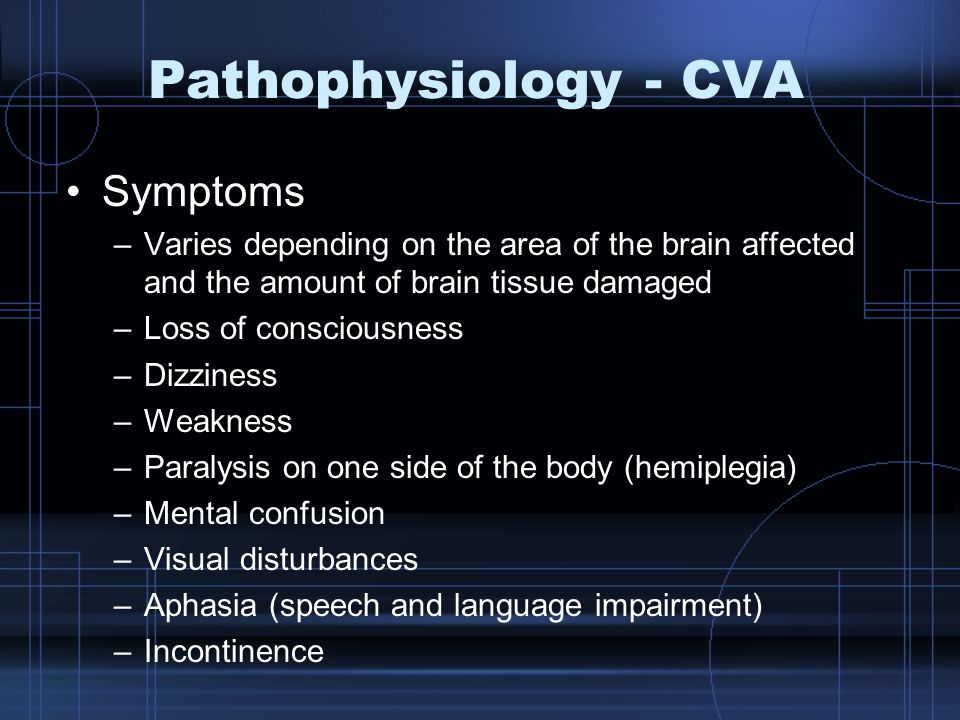

32. Pathophysiology - CVA Symptoms –Varies depending on the area of the brain affected and the amount of brain tissue damaged –Loss of consciousness –Dizziness –Weakness –Paralysis on one side of the body (hemiplegia) –Mental confusion –Visual disturbances –Aphasia (speech and language impairment) –Incontinence

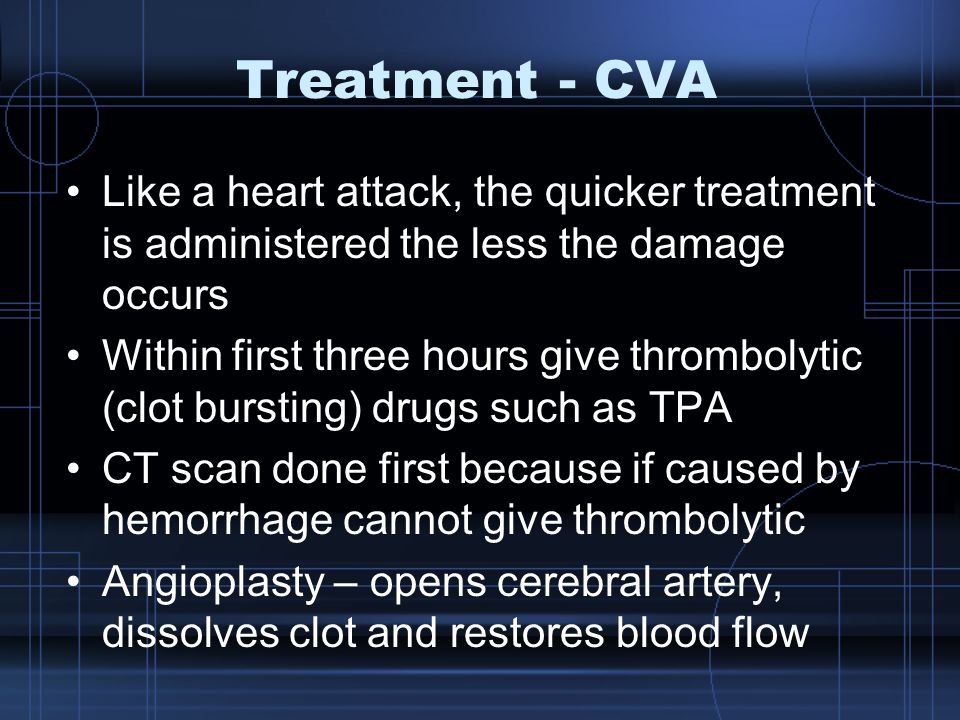

34. Treatment - CVA Like a heart attack, the quicker treatment is administered the less the damage occurs Within first three hours give thrombolytic (clot bursting) drugs such as TPA CT scan done first because if caused by hemorrhage cannot give thrombolytic Angioplasty – opens cerebral artery, dissolves clot and restores blood flow

35. Treatment - CVA Long term treatment depends on the damage that has occurred Often need therapies such as physical, occupational, and speech therapies May need assistive devices such as canes, walkers, and braces Prevention of blood clots – thin blood –Take ASA, Coumadin, etc for the rest of your life Treat underlying conditions such as high blood pressure, atherosclerosis, diabetes, etc

36. Pathophysiology – Parkinson’s Disease Chronic, progressive condition involving degeneration of brain cells Usually occurs in persons over 50 years of age but not always

37. Pathophysiology – Parkinson’s Disease Cause: Nerve cells use a brain chemical called dopamine to help control muscle movement. dopamine Nerve cells in the brain that make dopamine are slowly destroyed. This leads to the loss of muscle function. The damage gets worse with time. Exactly why these brain cells waste away is unknown.

38. Pathophysiology – Parkinson’s Disease Symptoms: –Tremors, stiffness, and muscular rigidity –Forward leaning position and a shuffling gait –Difficulty in stopping while walking –Loss of facial expression and drooling Parkinson’s Mask –Mood swings, behavioral changes, and frequent depression

39. Treatment – Parkinson’s Disease No known cure Medication to lessen symptoms and possibly slow progression –Levodopa – synthetic dopamine Physical therapy and assistive devices to limit the muscular rigidity

40. Paralysis Usually results from brain or spinal cord injuryUsually results from brain or spinal cord injury –Hemiplegia Paralysis on one sideParalysis on one side -Paraplegia -Paralysis of the lower extremities –Quadriplegia Paralysis of the arms, legs, and body below the spinal cord injuryParalysis of the arms, legs, and body below the spinal cord injury No cure, treatment is supportiveNo cure, treatment is supportive

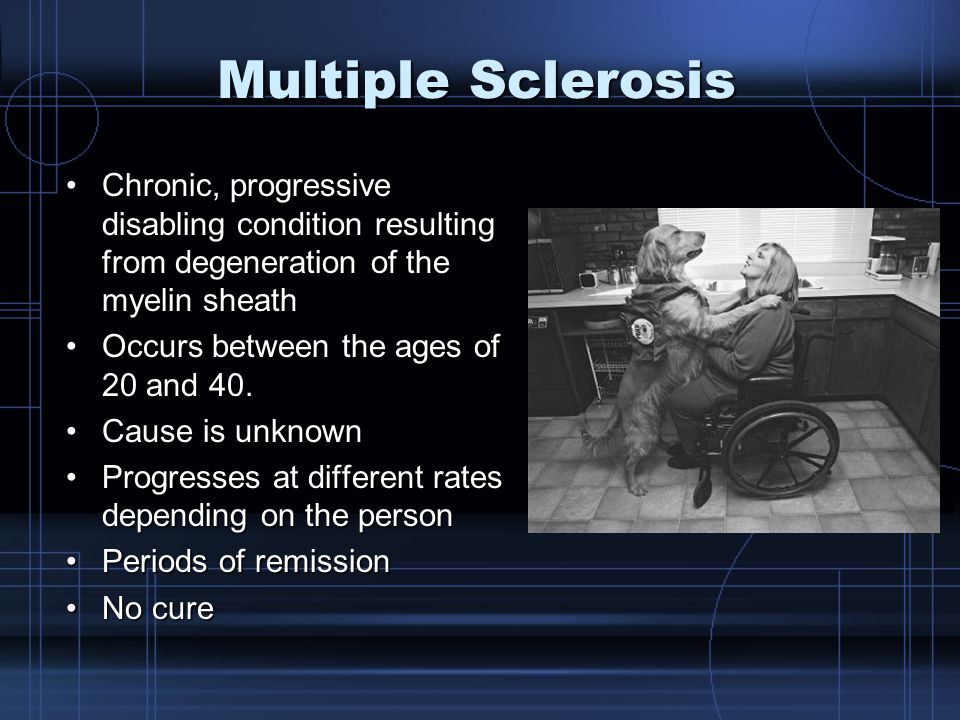

41. Multiple Sclerosis Chronic, progressive disabling condition resulting from degeneration of the myelin sheathChronic, progressive disabling condition resulting from degeneration of the myelin sheath Occurs between the ages of 20 and 40.Occurs between the ages of 20 and 40. Cause is unknownCause is unknown Progresses at different rates depending on the personProgresses at different rates depending on the person Periods of remissionPeriods of remission No cureNo cure

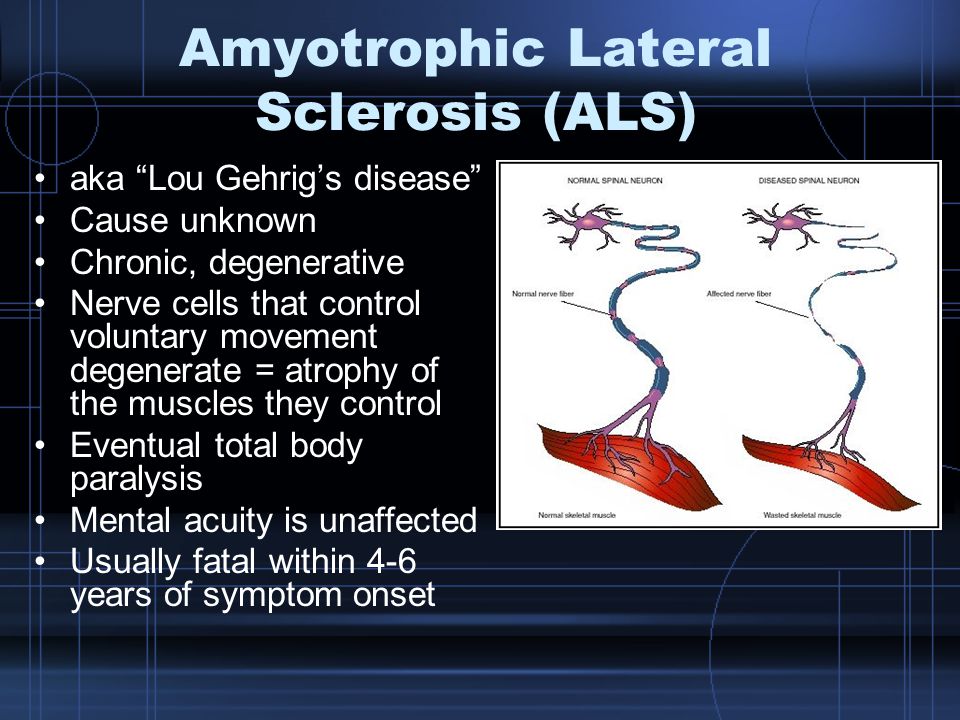

42. Amyotrophic Lateral Sclerosis (ALS) aka “Lou Gehrig’s disease” Cause unknown Chronic, degenerative Nerve cells that control voluntary movement degenerate = atrophy of the muscles they control Eventual total body paralysis Mental acuity is unaffected Usually fatal within 4-6 years of symptom onset

43. Carpal Tunnel Syndrome Repetitive movement of the wrist causes swelling which puts pressure on the nerves Sx: Pain, numbness, and tingling in the thumb, ring finger, and middle finger Tx: NSAIDS, splinting, surgery

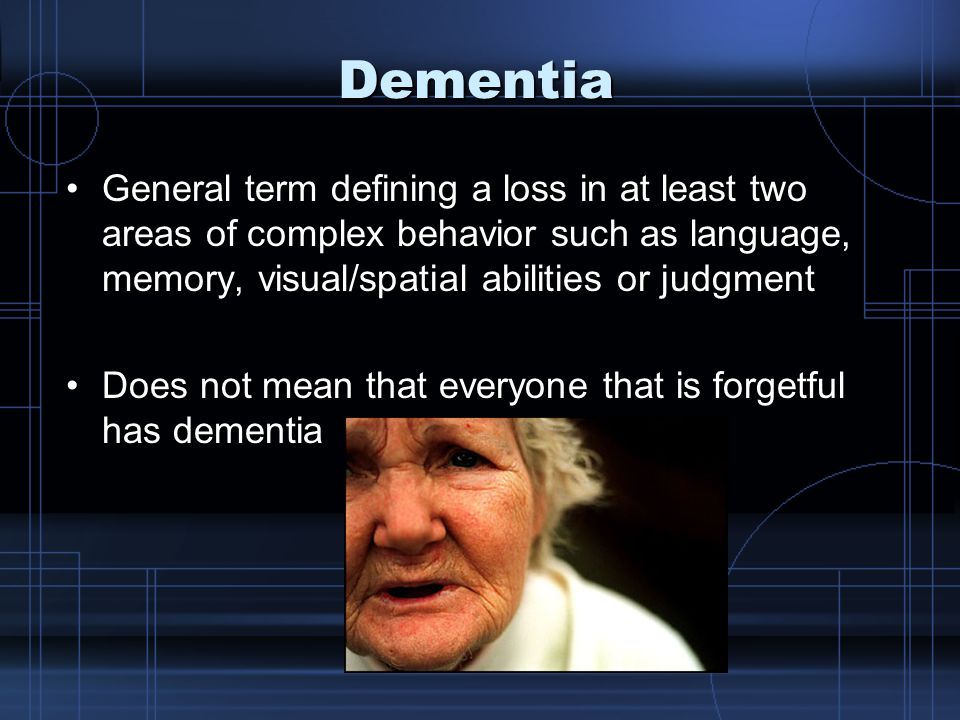

44. Dementia General term defining a loss in at least two areas of complex behavior such as language, memory, visual/spatial abilities or judgmentGeneral term defining a loss in at least two areas of complex behavior such as language, memory, visual/spatial abilities or judgment Does not mean that everyone that is forgetful has dementiaDoes not mean that everyone that is forgetful has dementia

45. Shingles Herpes zoster Inflammation of nerve cells caused by herpes virus Same virus that causes chicken pox Occurs in thoracic area on one side of the body and follow path of affected nerves Itching, fever, increased skin sensitivity Treatment is to relieve pain and itching until inflammation subsides, antiviral (acyclovir)

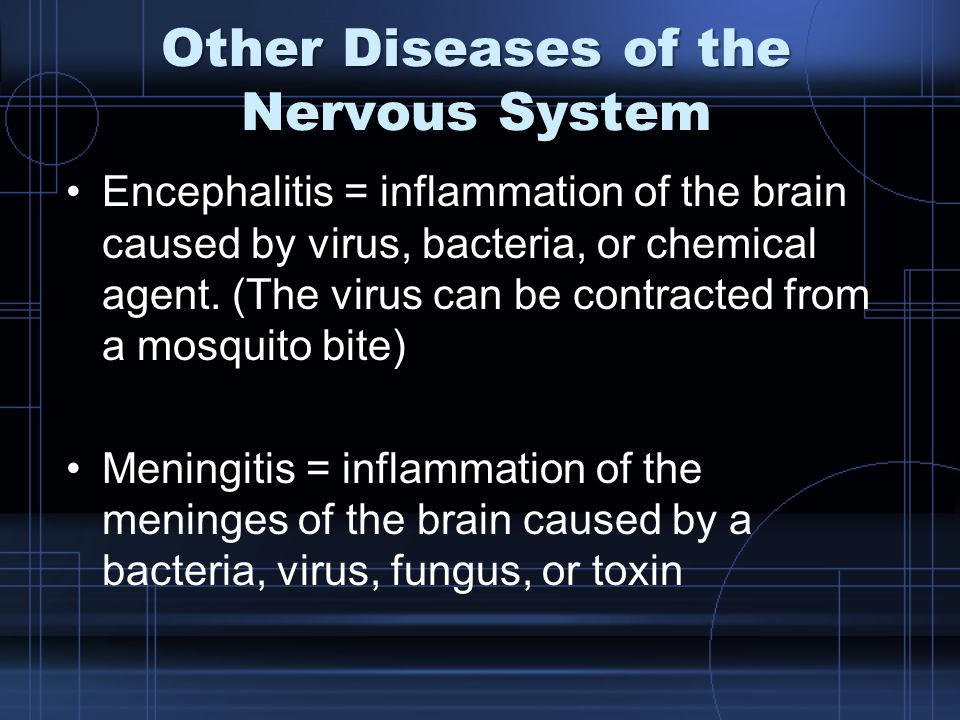

46. Other Diseases of the Nervous System Encephalitis = inflammation of the brain caused by virus, bacteria, or chemical agent. (The virus can be contracted from a mosquito bite) Meningitis = inflammation of the meninges of the brain caused by a bacteria, virus, fungus, or toxin

47. Other Diseases of the Nervous System Hydrocephalus = excessive accumulation of cerebrospinal fluid in the ventricles

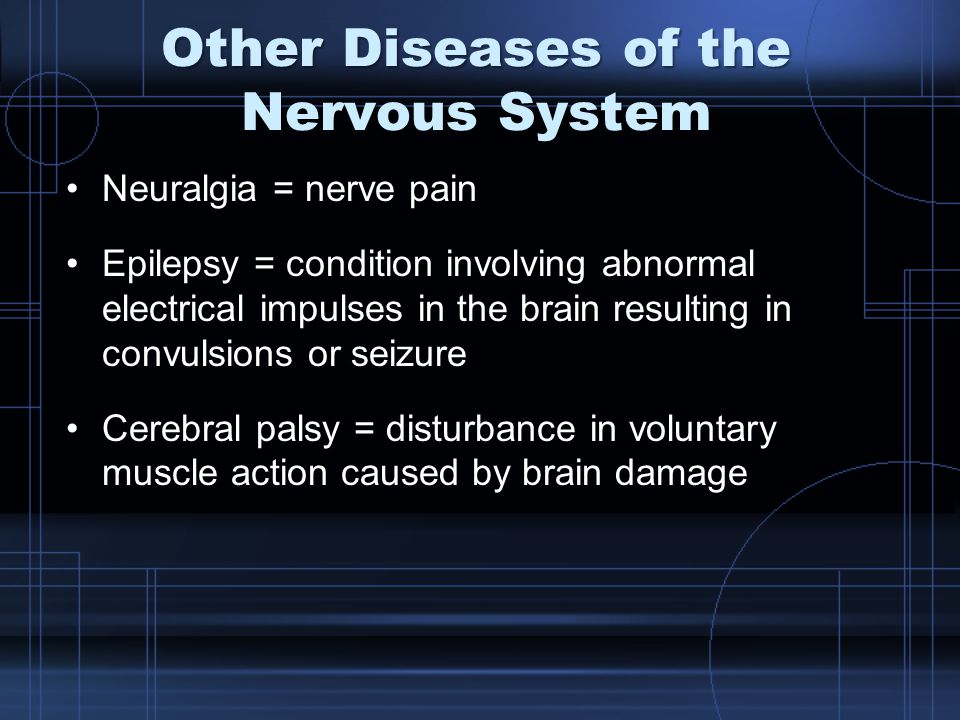

48. Other Diseases of the Nervous System Neuralgia = nerve pain Epilepsy = condition involving abnormal electrical impulses in the brain resulting in convulsions or seizure Cerebral palsy = disturbance in voluntary muscle action caused by brain damage

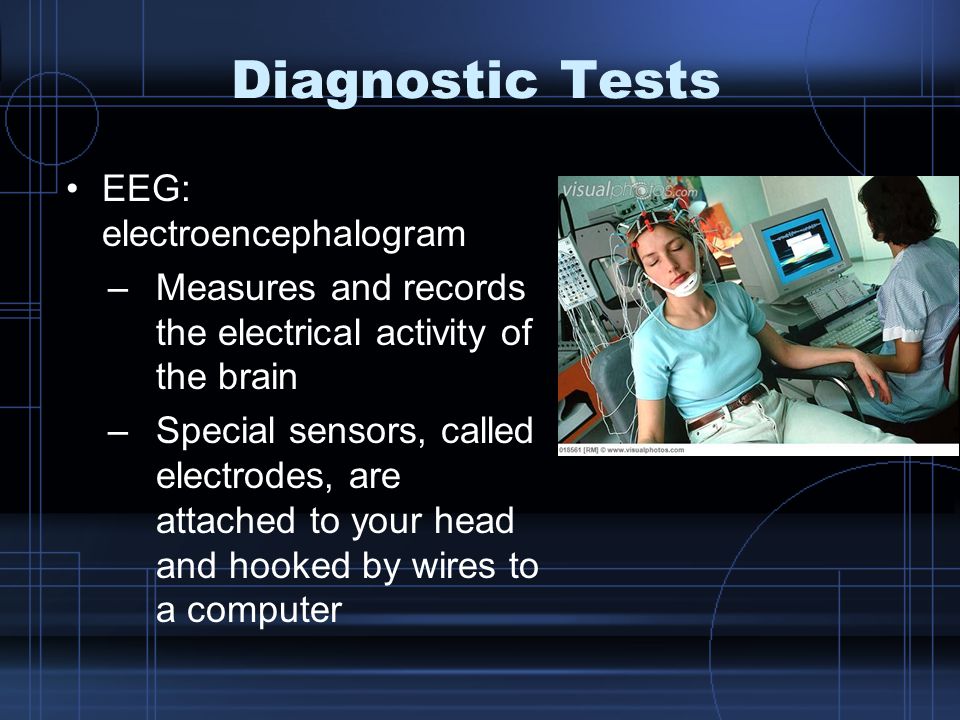

49. Diagnostic Tests EEG: electroencephalogram –Measures and records the electrical activity of the brain –Special sensors, called electrodes, are attached to your head and hooked by wires to a computer

50. Diagnostic Tests Lumbar Puncture: (Spinal Tap) –Procedure to collect CSF
