1. Winds “Always blow from High to Low”

2. “Ferrel’s Law” and the “Coriolis Force / Effect” Is a deflective force caused by the rotation of the earth on its axis All particles in motion are deflected toward the right in the Northern Hemisphere All particles in motion are deflected toward the left in the Southern Hemisphere

3. That explains it In Canada, water flushes clockwise! In Australia, water flushes counter - clockwise!

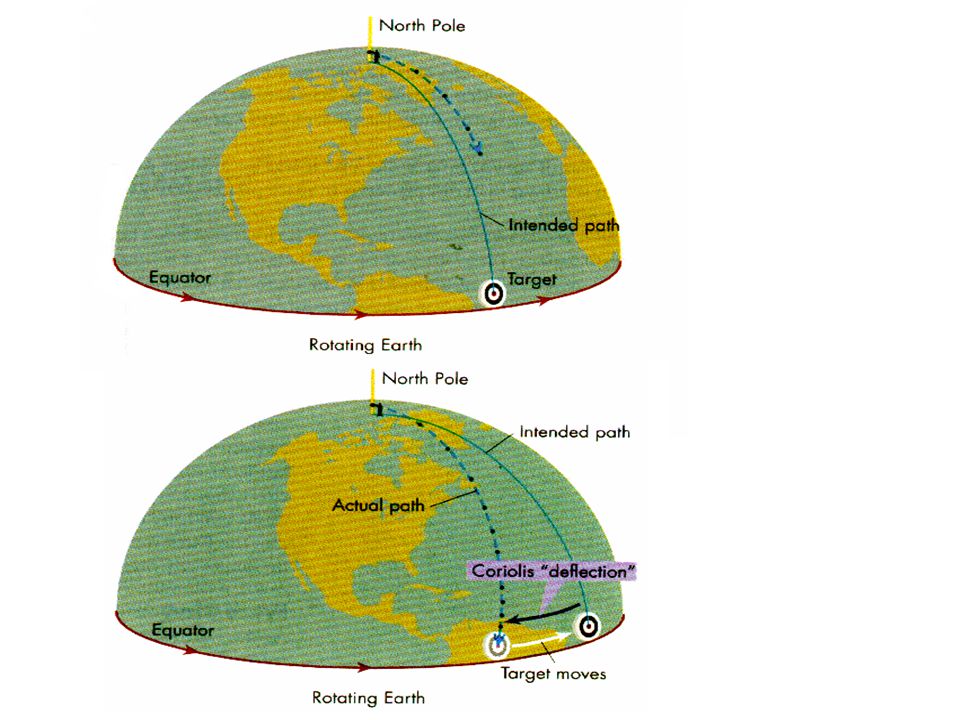

4. Coriollis Effect: Tendency for winds to deflect to the RIGHT in the NORTH and to the LEFT in the SOUTH you are R eally N ice but you are L azy S tudents

7. Winds Are named for the direction from which they blow, not the direction they are going North West Wind

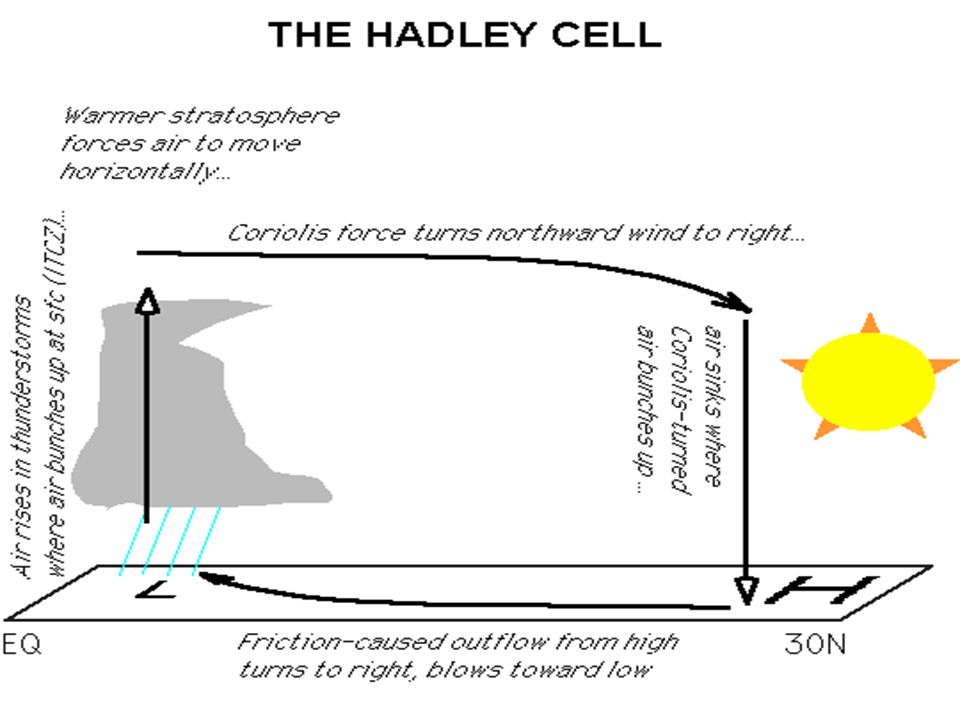

8. “Hadley Cell” On or near the equator, where solar radiation is greatest, air is warmed at the surface and rises This creates a band of low air pressure, called the intertropical convergence zone (ITCZ) On or near the equator, where solar radiation is greatest (between 12 o N and 8 o S), air is warmed at the surface and rises The ITCZ draws in surface air from the subtropics

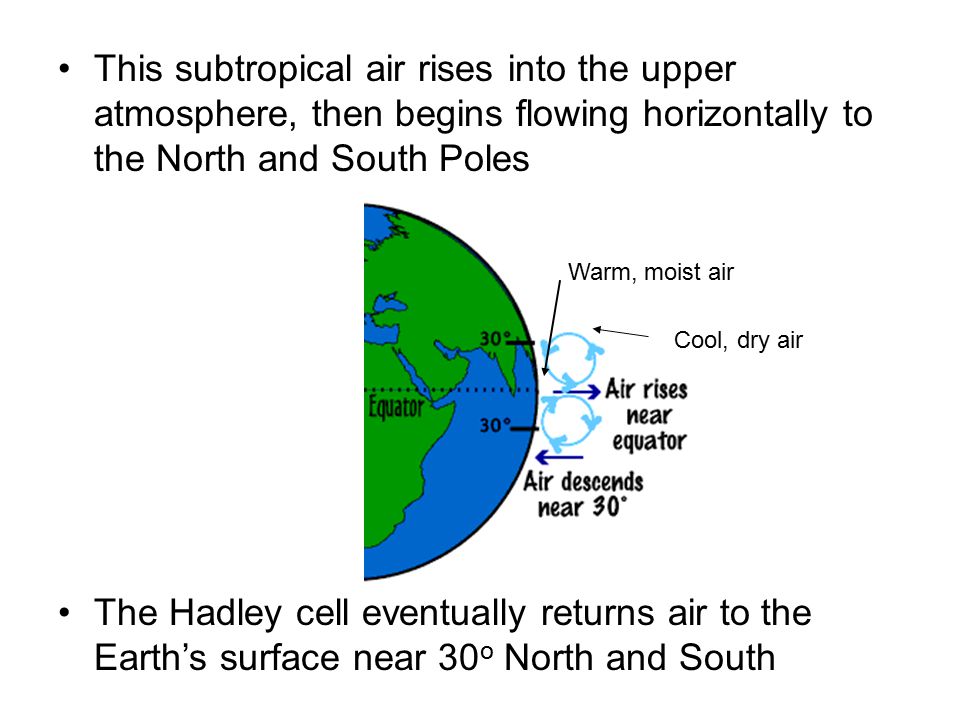

11. This subtropical air rises into the upper atmosphere, then begins flowing horizontally to the North and South Poles The Hadley cell eventually returns air to the Earth’s surface near 30 o North and South Warm, moist air Cool, dry air

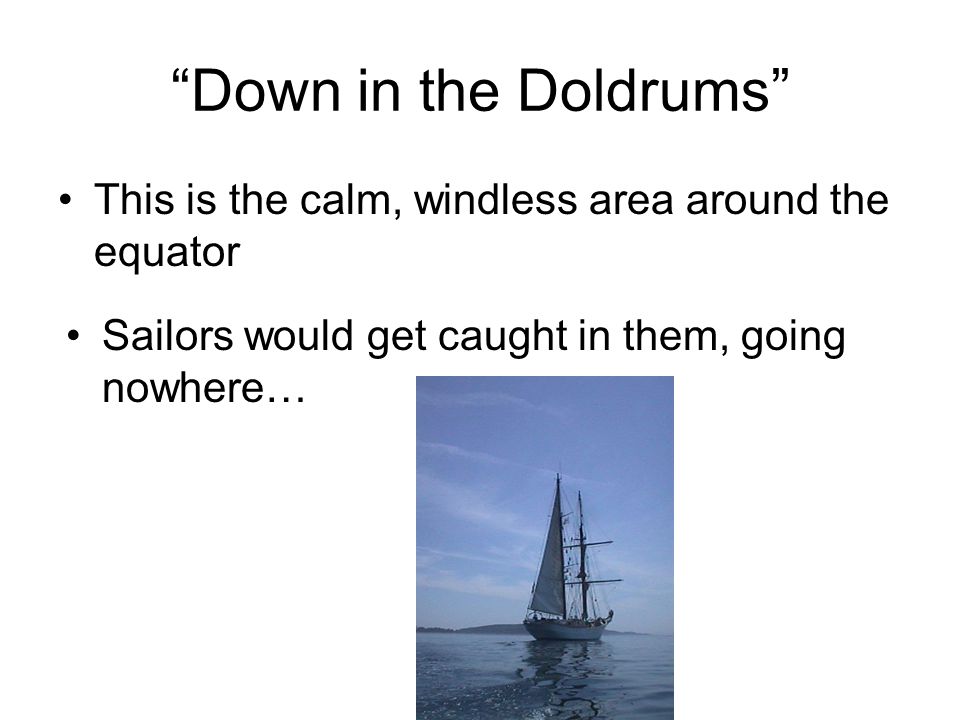

12. “Down in the Doldrums” This is the calm, windless area around the equator Sailors would get caught in them, going nowhere…

13. These winds are deflected from east to west as they travel toward the equator by the coriolis force Trade Winds or Tropical Easterlies Northeast trades southeast trades

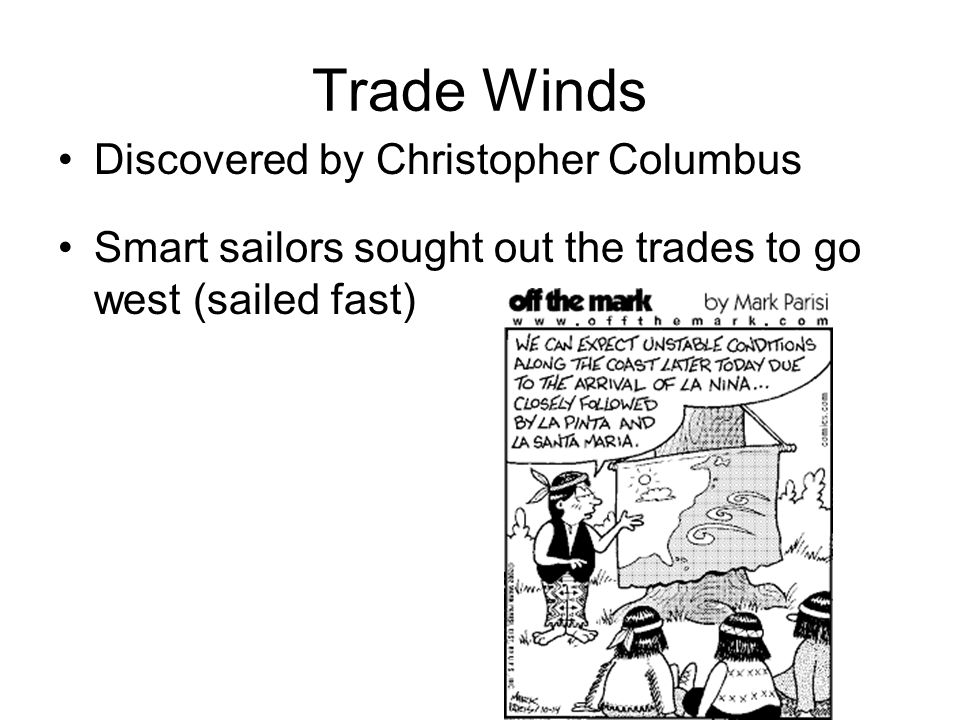

14. Trade Winds Discovered by Christopher Columbus Smart sailors sought out the trades to go west (sailed fast)

15. The other portion of that surface air moves towards the poles from the subtropical high zone This air, also deflected by the Coriolis Force, are called the Westerlies Prevailing southwesterlies Prevailing northwesterlies

16. The Westerlies These powered Columbus’ return trip to Europe They are also responsible for the better surfing found on the Pacific side of North America (blow in the same direction as the waves heading toward shore, building up their height)

17. Horse Latitudes This is another calm area found between the trade winds and the westerlies Caught in this calm for weeks, sailors could starve Horses, common cargo back then, would be thrown overboard to lighten the load 

18. Polar Easterlies The high pressure of the “Polar High” forces air away towards the “Polar Low” Polar northeasterlies Polar southeasterlies

19. Remember, air flows from highs to lows LOW HIGH

20. WHAT IT REALLY LOOKS LIKE:

21. DRAW IT!

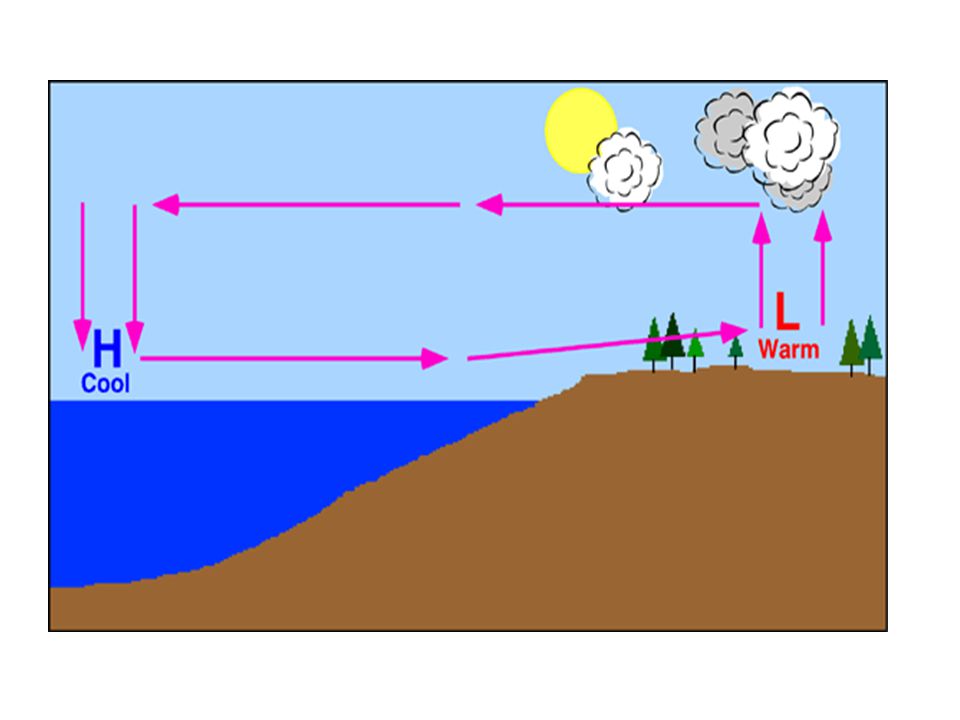

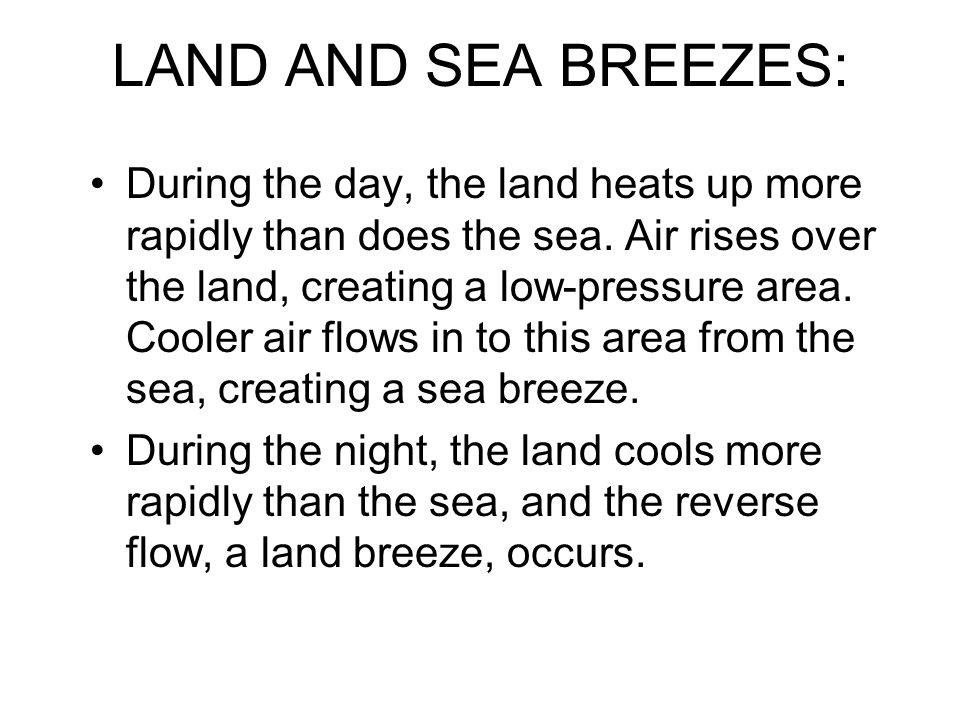

23. LAND AND SEA BREEZES: During the day, the land heats up more rapidly than does the sea. Air rises over the land, creating a low-pressure area. Cooler air flows in to this area from the sea, creating a sea breeze. During the night, the land cools more rapidly than the sea, and the reverse flow, a land breeze, occurs.

24. Sea Breeze

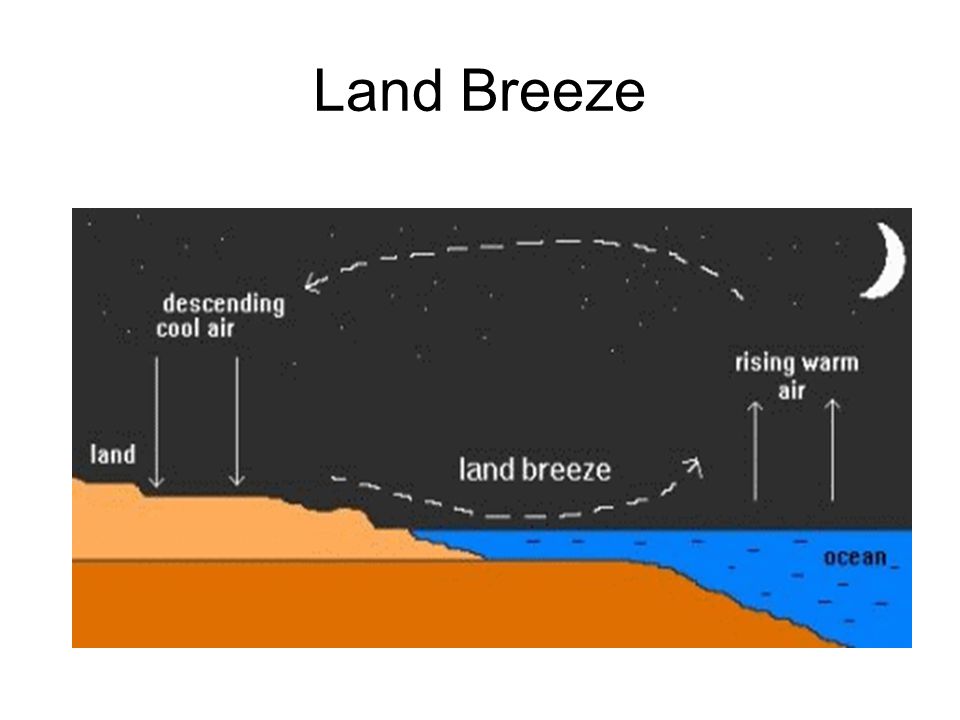

26. Land Breeze

28. Valley and Mountain Breezes: Mountain Breeze: Katabatic Wind Cool Air shoots down the sides of mountain down into the valley. In the summertime, this occurs at night.

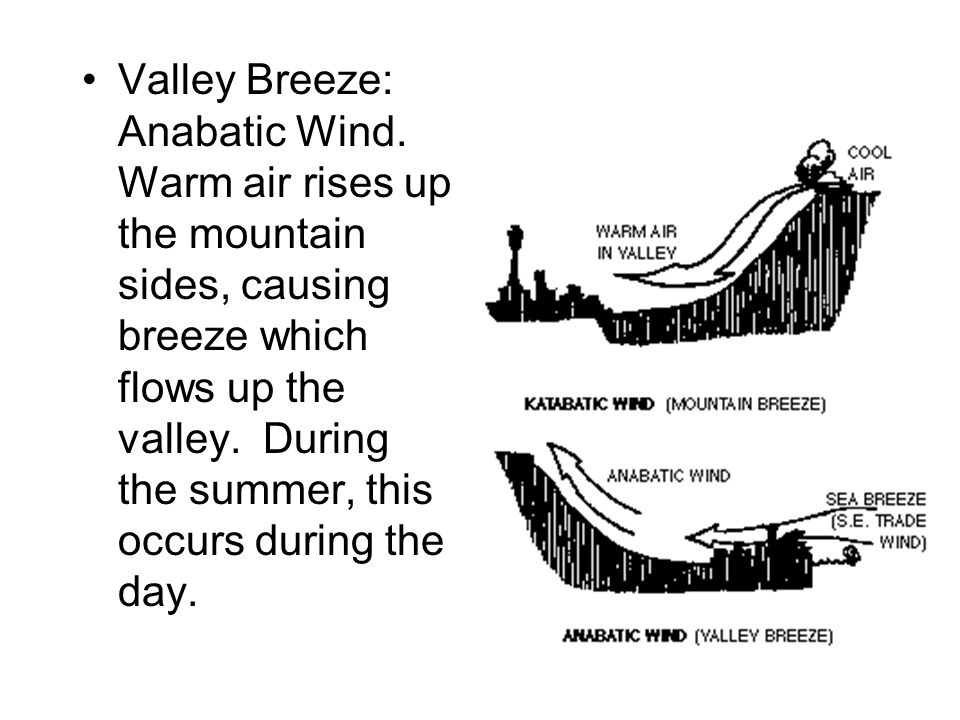

29. Valley Breeze: Anabatic Wind. Warm air rises up the mountain sides, causing breeze which flows up the valley. During the summer, this occurs during the day.
