1. Lecture 15 Private Information Retrieval Stefan Dziembowski www.dziembowski.net MIM UW 25.01.13ver 1.0

2. Plan 1.Motivation and definition 2.Information-theoretic impossibility 3.A construction of Kushilevitz and Ostrovsky 4.Overview of some other related results

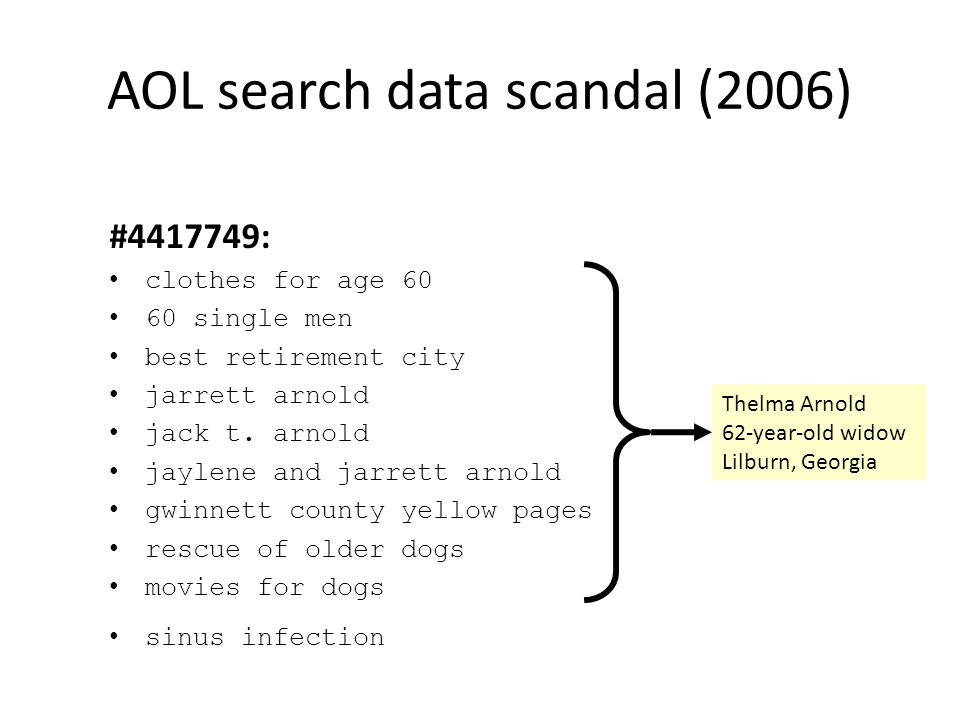

3. AOL search data scandal (2006) #4417749: clothes for age 60 60 single men best retirement city jarrett arnold jack t. arnold jaylene and jarrett arnold gwinnett county yellow pages rescue of older dogs movies for dogs sinus infection Thelma Arnold 62-year-old widow Lilburn, Georgia

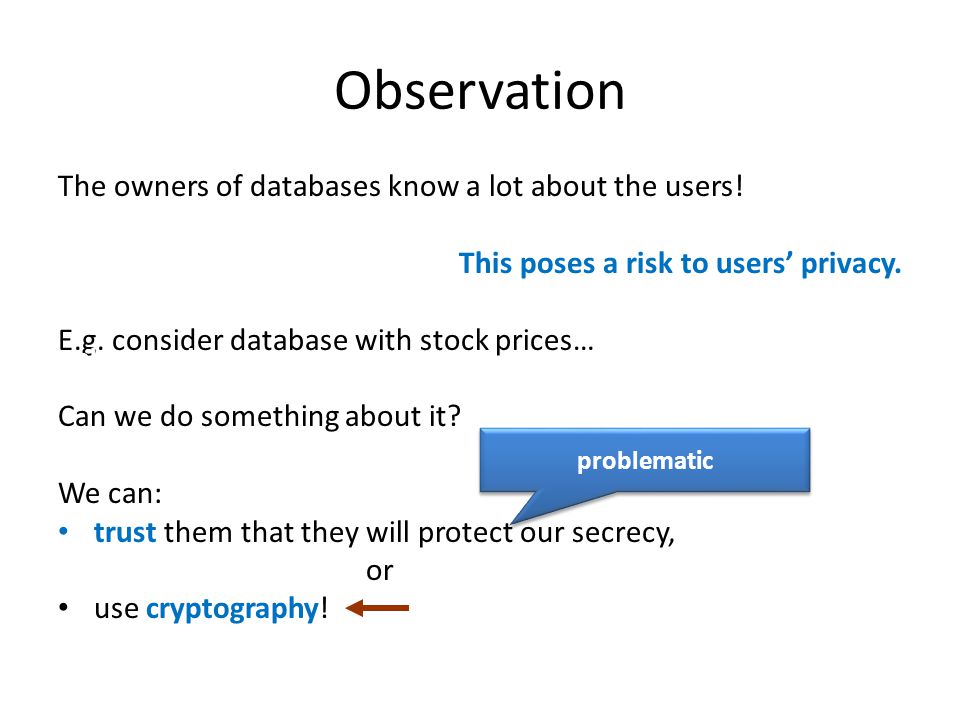

4. Observation The owners of databases know a lot about the users! This poses a risk to users’ privacy. E.g. consider database with stock prices… Can we do something about it? We can: trust them that they will protect our secrecy, or use cryptography! problematic problematic!

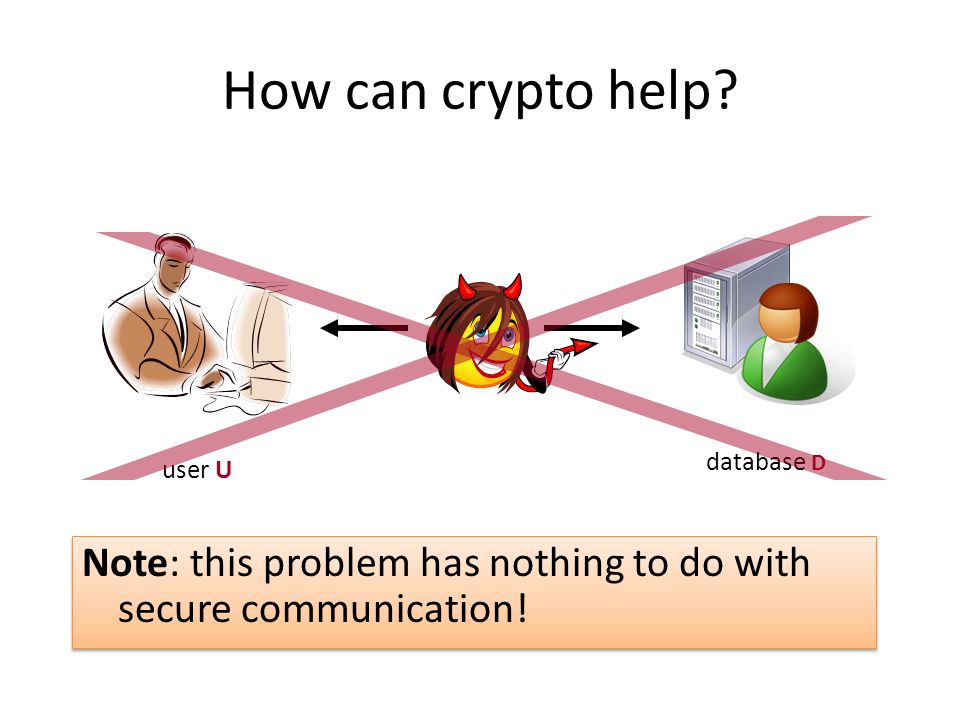

5. How can crypto help? Note: this problem has nothing to do with secure communication! user U database D

6. Our settings user U database D A new primitive: Private Information Retrieval (PIR)

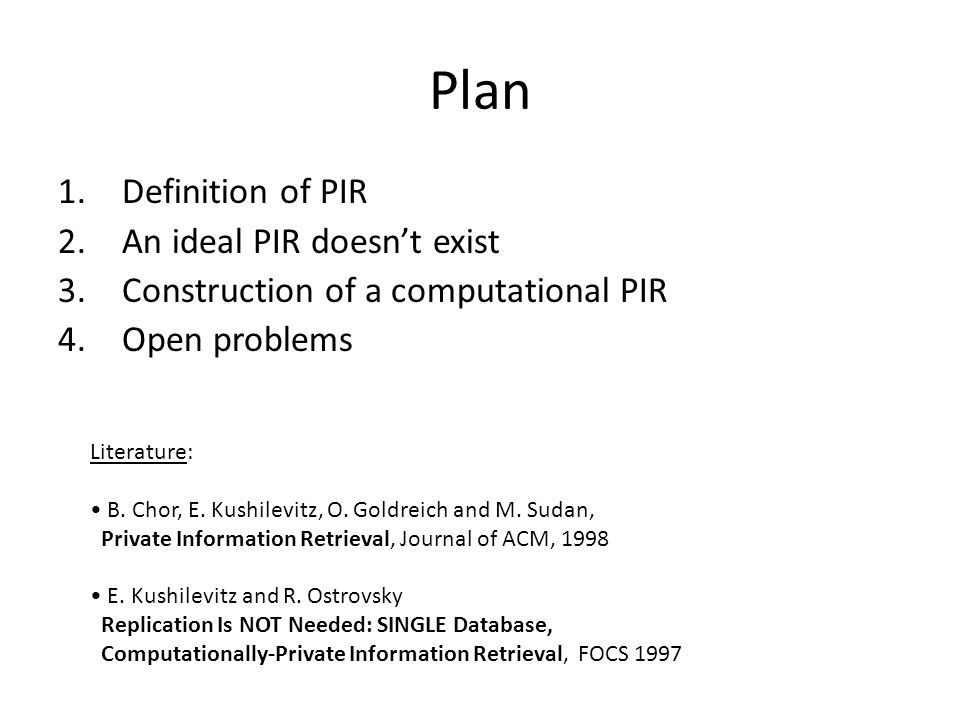

7. Plan 1.Definition of PIR 2.An ideal PIR doesn’t exist 3.Construction of a computational PIR 4.Open problems Literature: B. Chor, E. Kushilevitz, O. Goldreich and M. Sudan, Private Information Retrieval, Journal of ACM, 1998 E. Kushilevitz and R. Ostrovsky Replication Is NOT Needed: SINGLE Database, Computationally-Private Information Retrieval, FOCS 1997

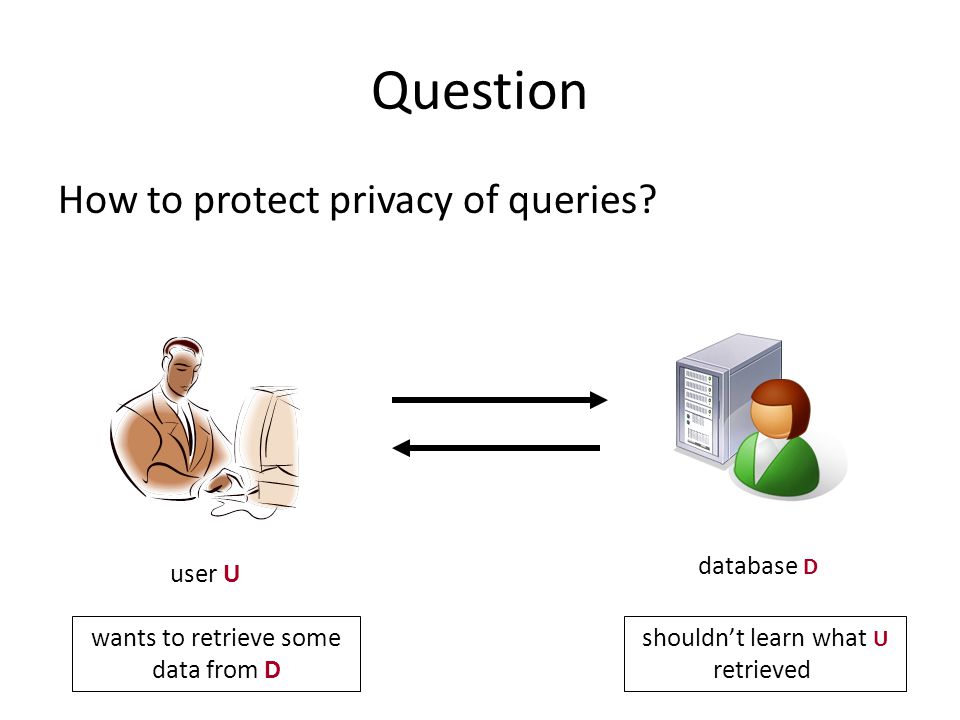

8. Question How to protect privacy of queries? user U database D wants to retrieve some data from D shouldn’t learn what U retrieved

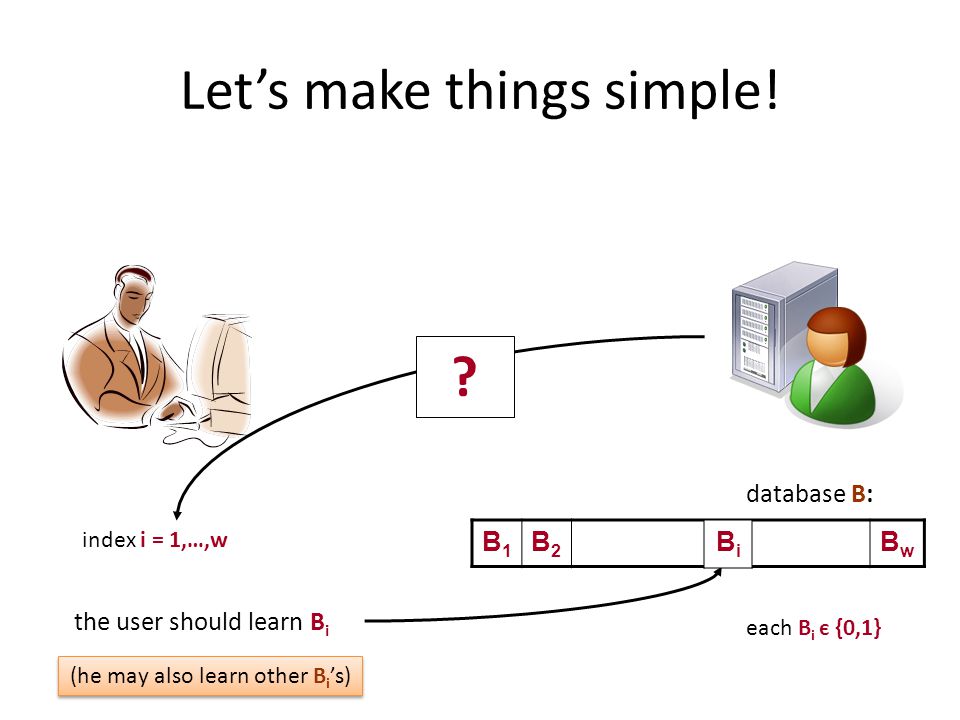

9. Let’s make things simple! B1B1 B2B2 …BwBw index i = 1,…,w the user should learn B i BiBi ? each B i є {0,1} database B: (he may also learn other B i ’s)

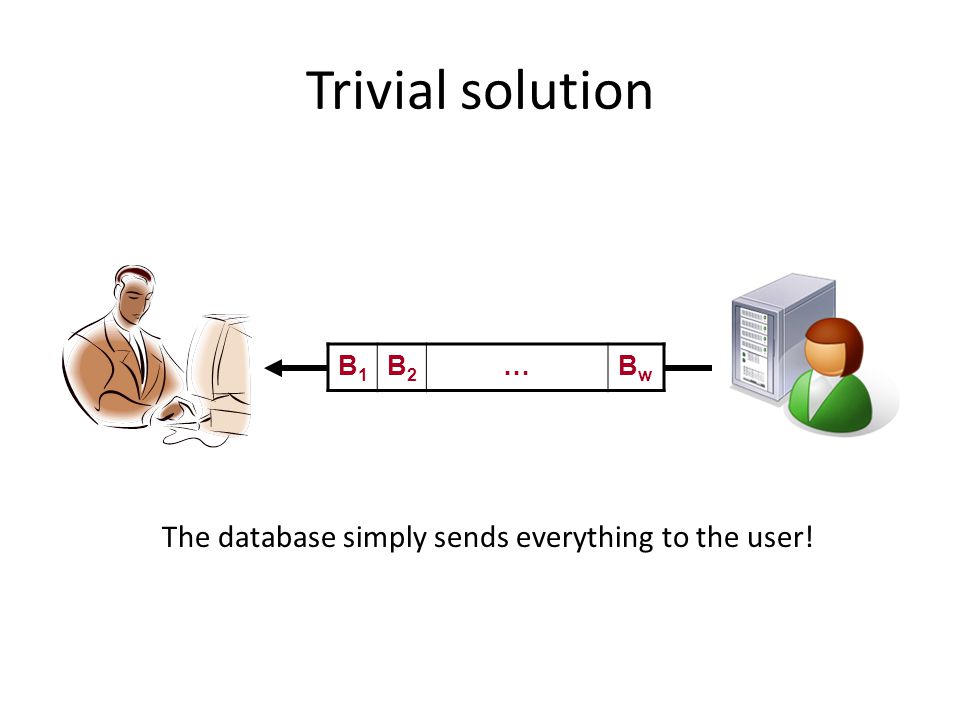

10. Trivial solution B1B1 B2B2 …BwBw The database simply sends everything to the user!

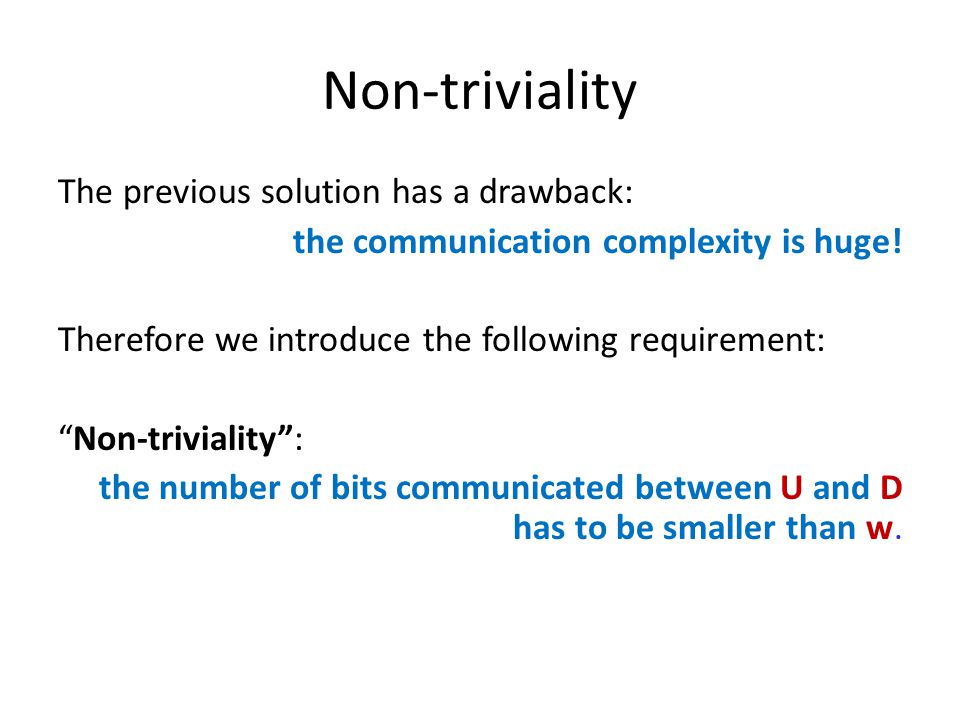

11. Non-triviality The previous solution has a drawback: the communication complexity is huge! Therefore we introduce the following requirement: “Non-triviality”: the number of bits communicated between U and D has to be smaller than w.

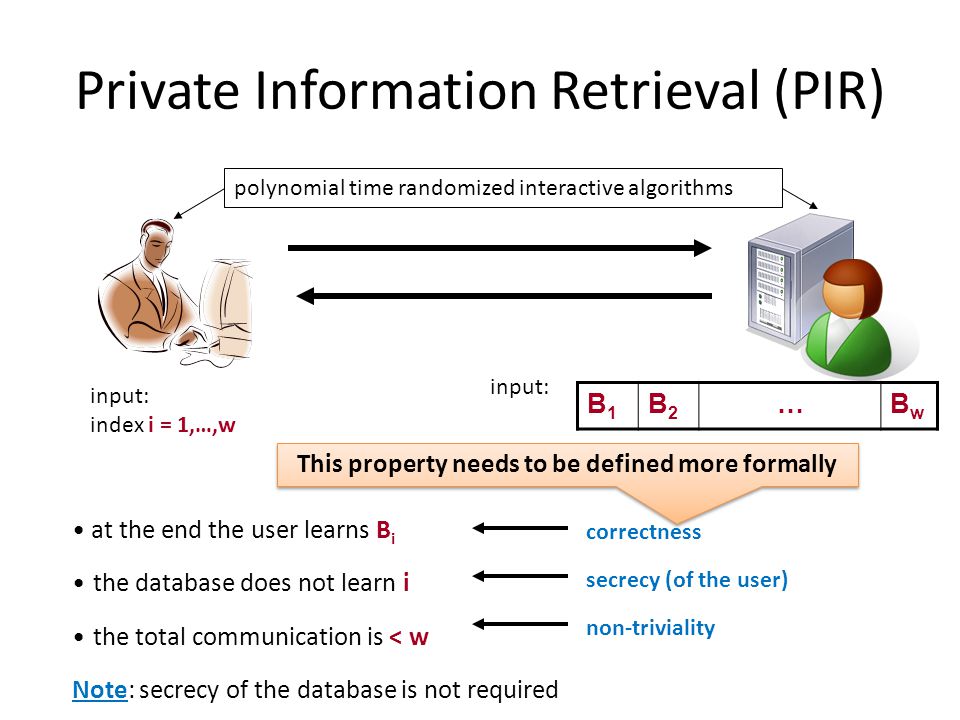

12. input: Private Information Retrieval (PIR) B1B1 B2B2 …BwBw input: index i = 1,…,w at the end the user learns B i the database does not learn i the total communication is < w Note: secrecy of the database is not required correctness secrecy (of the user) non-triviality This property needs to be defined more formally polynomial time randomized interactive algorithms

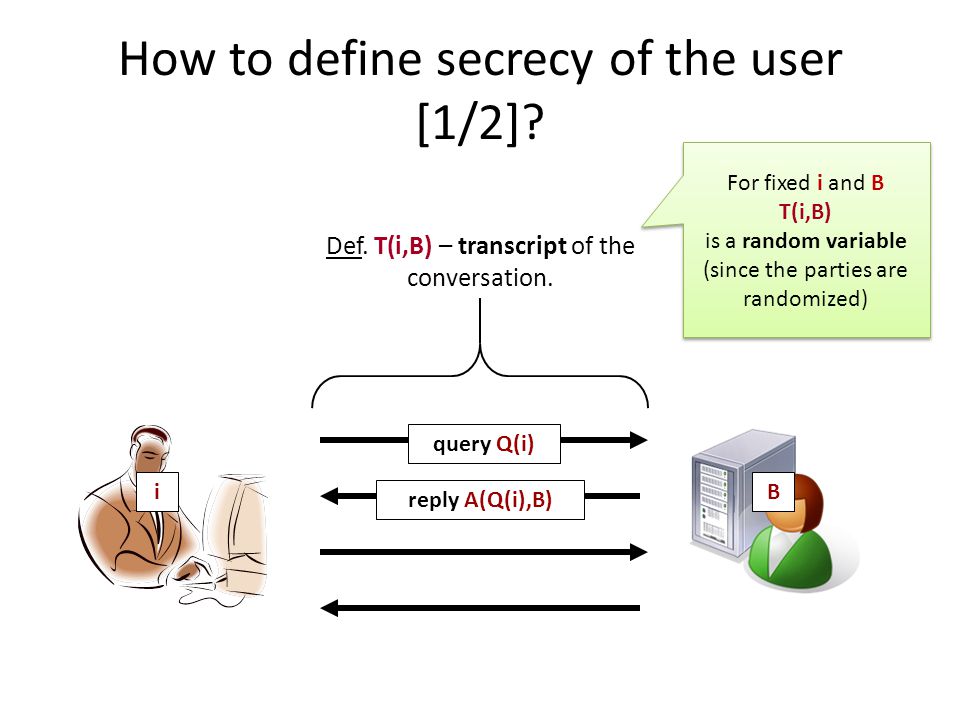

13. How to define secrecy of the user [1/2]? iB Def. T(i,B) – transcript of the conversation. query Q(i)reply A(Q(i),B) For fixed i and B T(i,B) is a random variable (since the parties are randomized) For fixed i and B T(i,B) is a random variable (since the parties are randomized)

14. multi-round case: it is impossible to distinguish between T(i,B) and T(j,B) even if the adversary is malicious multi-round case: it is impossible to distinguish between T(i,B) and T(j,B) even if the adversary is malicious How to define secrecy of the user [2/2]? Secrecy of the user: for every i,j є {0,1} single-round case: it is impossible to distinguish between Q(i) and Q(j) single-round case: it is impossible to distinguish between Q(i) and Q(j) ? For simplicity say that for any i and j the distributions of T(i,B) and T(j,B) have to be identical For simplicity say that for any i and j the distributions of T(i,B) and T(j,B) have to be identical

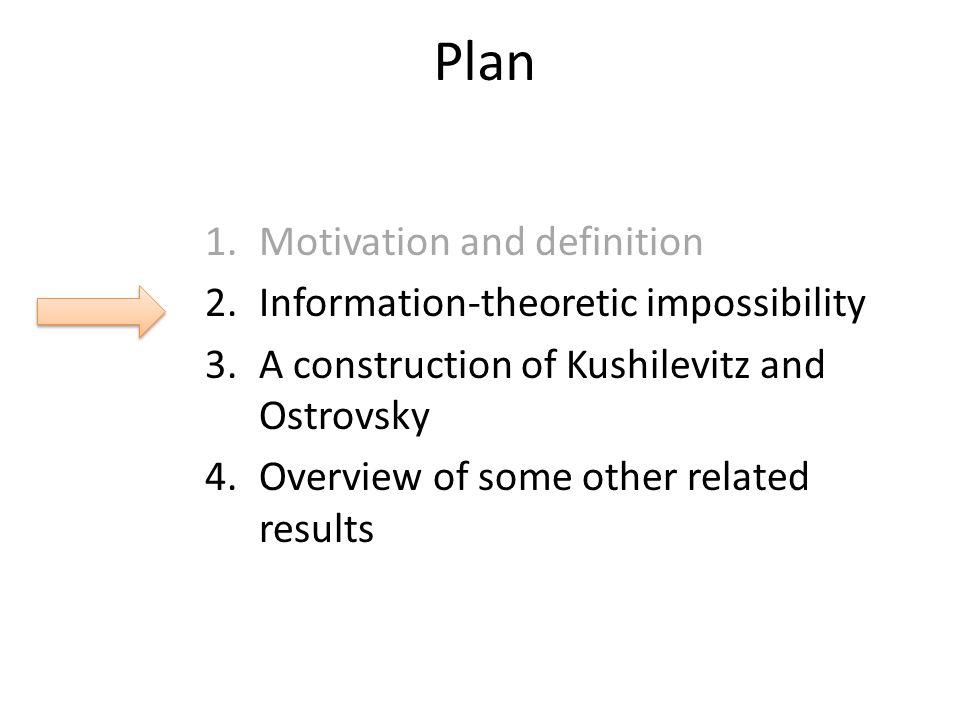

15. Plan 1.Motivation and definition 2.Information-theoretic impossibility 3.A construction of Kushilevitz and Ostrovsky 4.Overview of some other related results

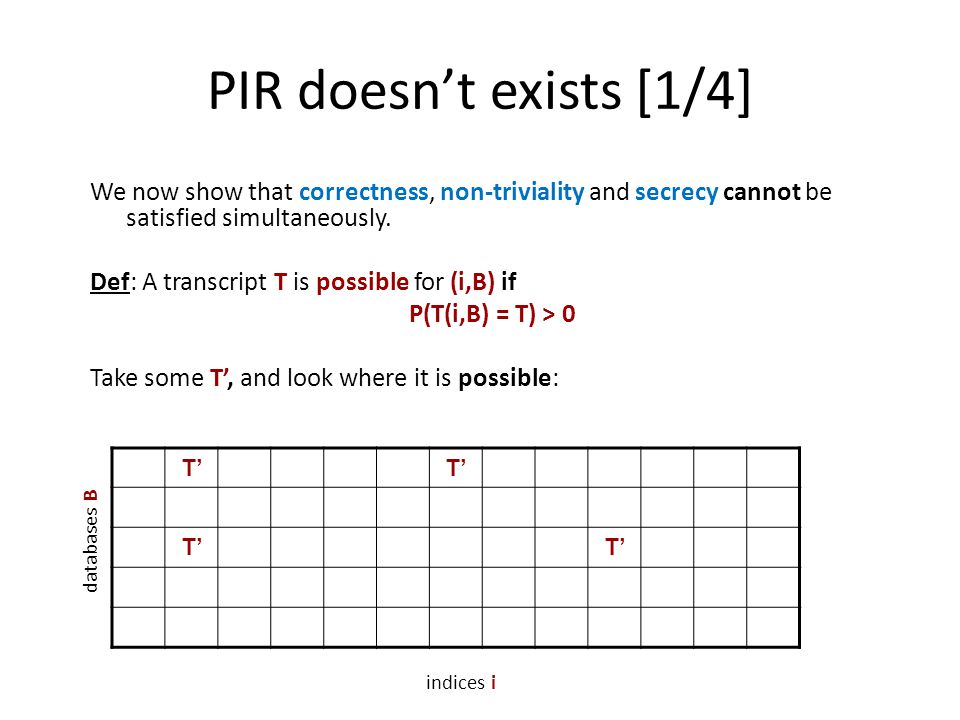

16. PIR doesn’t exists [1/4] We now show that correctness, non-triviality and secrecy cannot be satisfied simultaneously. Def: A transcript T is possible for (i,B) if P(T(i,B) = T) > 0 Take some T’, and look where it is possible: T’ indices i databases B

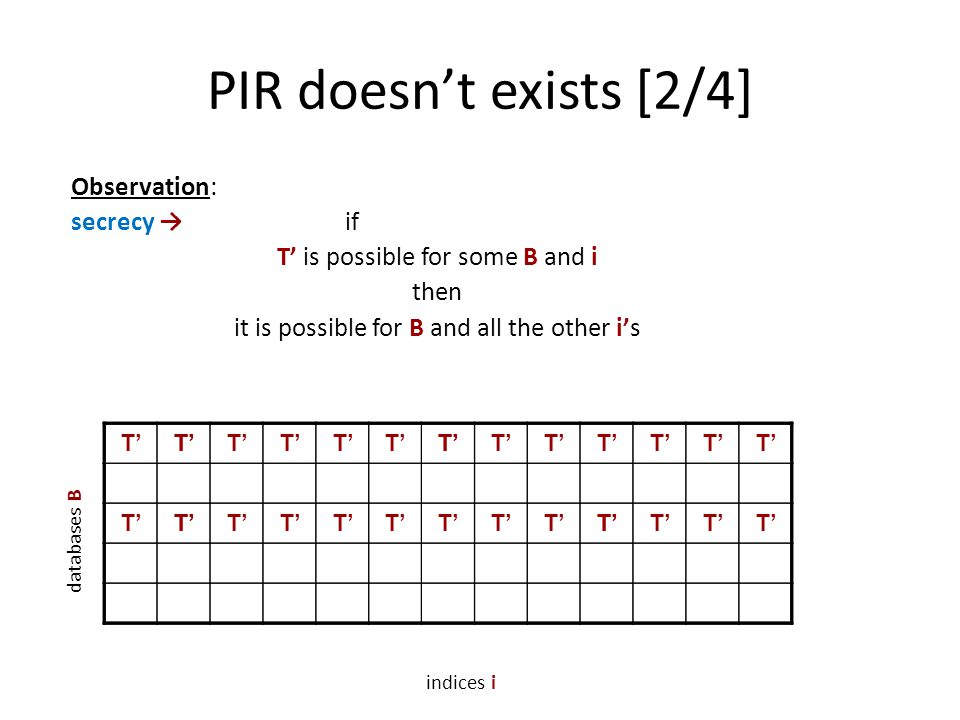

17. PIR doesn’t exists [2/4] Observation: secrecy → if T’ is possible for some B and i then it is possible for B and all the other i’s T’ indices i databases B T’

18. PIR doesn’t exists [3/4] non-triviality → length(transcript) < length(database) ↓ # transcripts < #databases ↓ there has to exist T’ that is possible for two databases B 0 and B 1 T’ databases B ← B 0 ← B1 ← B1 indices i

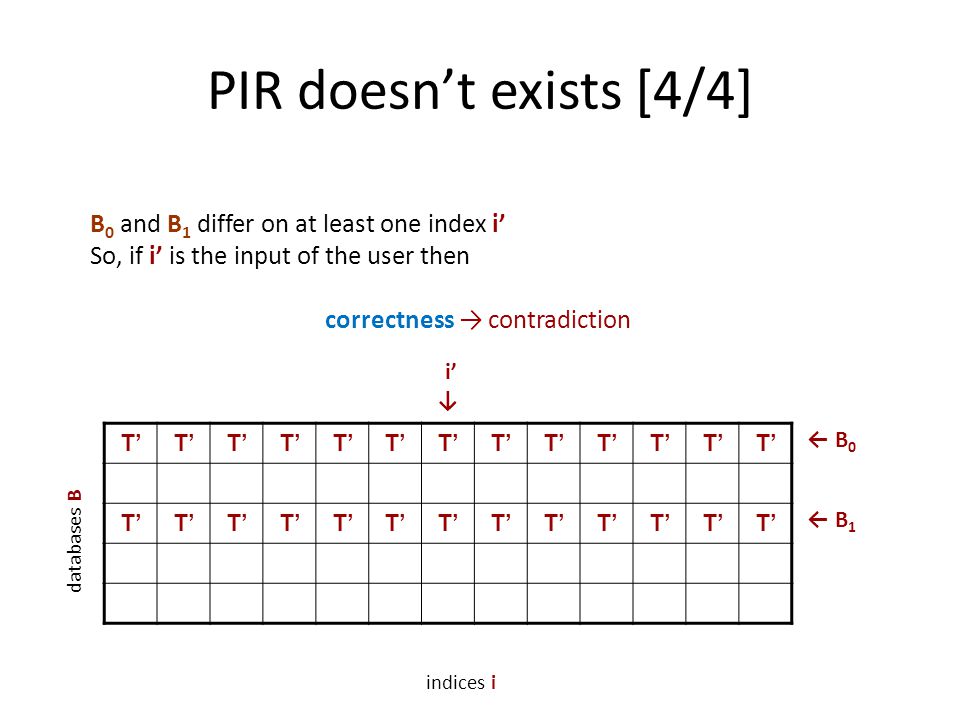

19. PIR doesn’t exists [4/4] B 0 and B 1 differ on at least one index i’ So, if i’ is the input of the user then correctness → contradiction T’ databases B ← B 0 ← B1 ← B1 i’ ↓ indices i

20. So PIR doesn’t exist! How to bypass the impossibility result? Two ideas: – limit the computing power of a cheating database – use a larger number of “independent” databases we show this

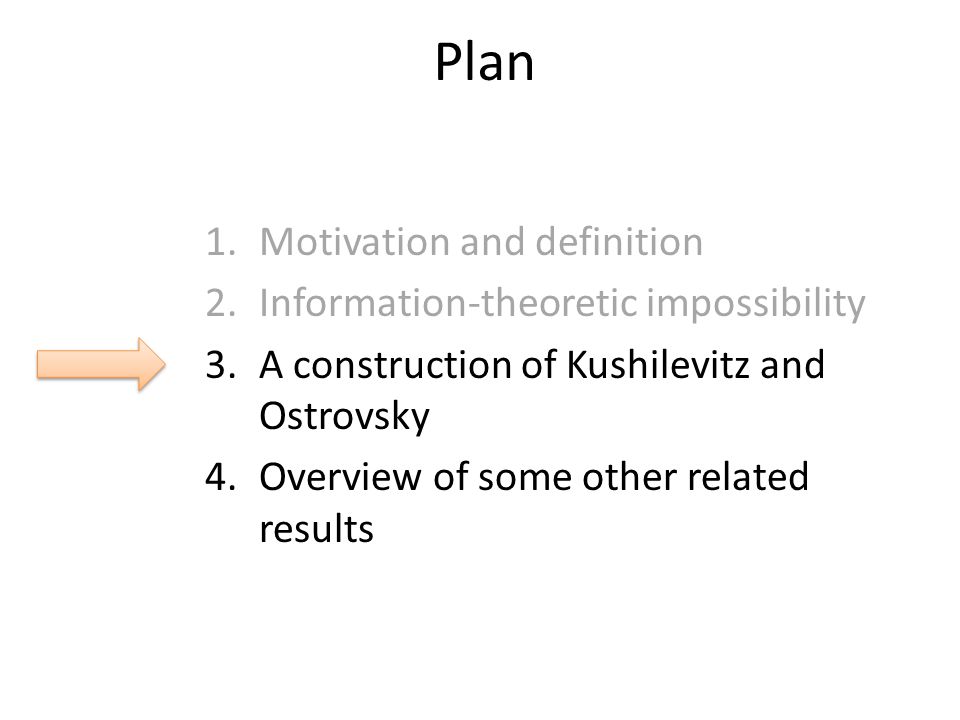

21. Plan 1.Motivation and definition 2.Information-theoretic impossibility 3.A construction of Kushilevitz and Ostrovsky 4.Overview of some other related results

22. Computationally-secure PIR secrecy: For every i,j є {0,1} it is impossible to distinguish efficiently between T(i,B) and T(j,B) ? computational-secrecy: Formally: for every polynomial-time probabilistic algorithm A the value: | P(A(T(i,B)) = 0) – P(A(T(j,B))=0) | should be negligible.

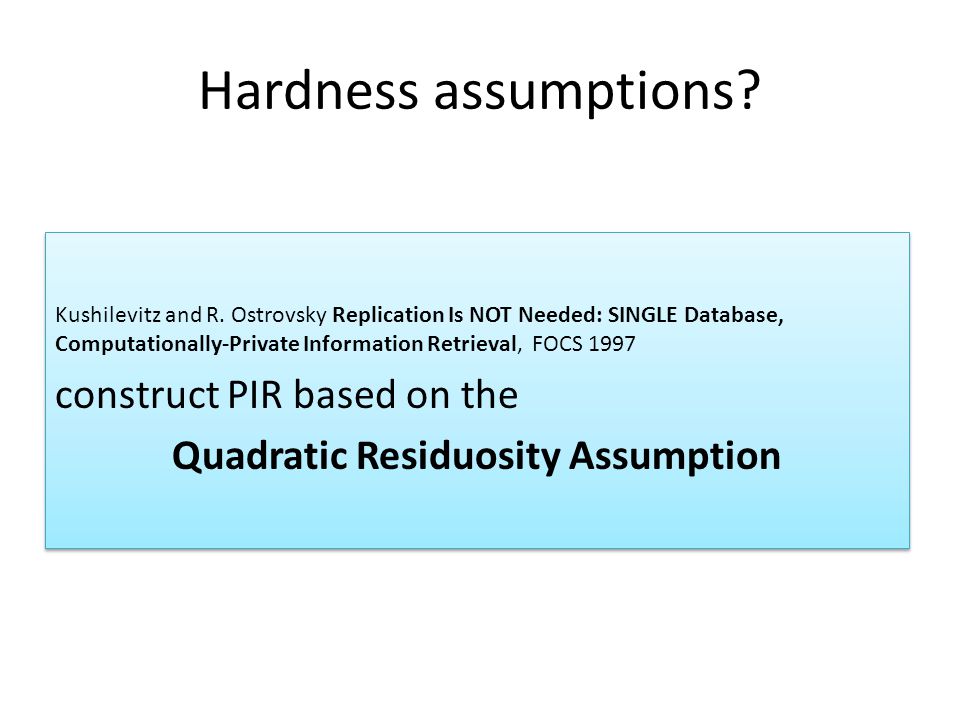

23. Hardness assumptions? Kushilevitz and R. Ostrovsky Replication Is NOT Needed: SINGLE Database, Computationally-Private Information Retrieval, FOCS 1997 construct PIR based on the Quadratic Residuosity Assumption Kushilevitz and R. Ostrovsky Replication Is NOT Needed: SINGLE Database, Computationally-Private Information Retrieval, FOCS 1997 construct PIR based on the Quadratic Residuosity Assumption

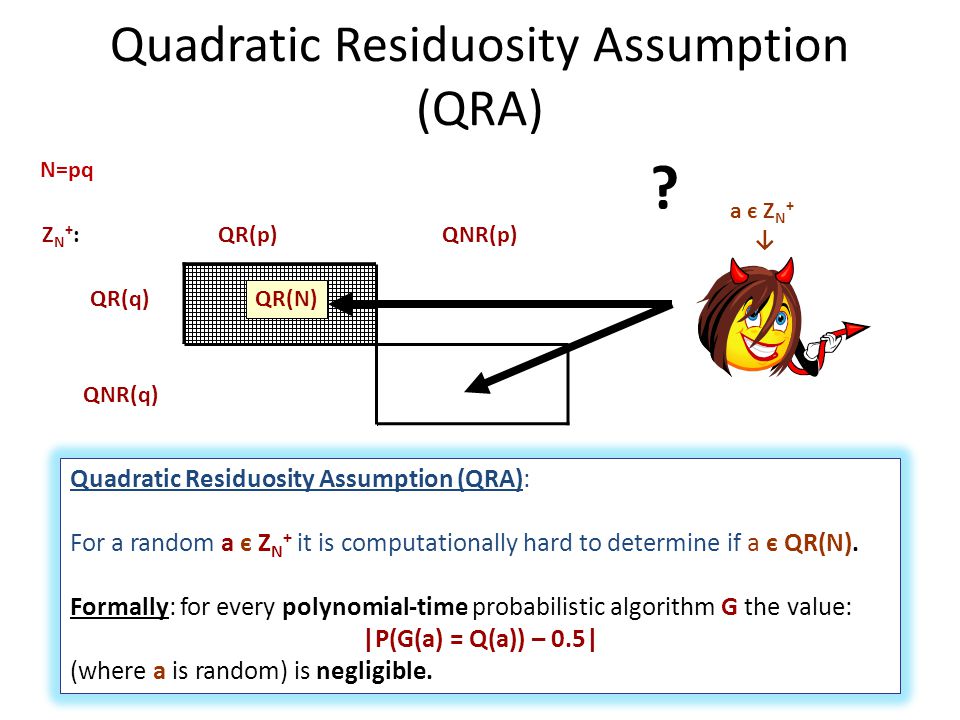

24. Quadratic Residuosity Assumption (QRA) QR(p) QR(q) ZN+:ZN+: Quadratic Residuosity Assumption (QRA): For a random a є Z N + it is computationally hard to determine if a є QR(N). Formally: for every polynomial-time probabilistic algorithm G the value: |P(G(a) = Q(a)) – 0.5| (where a is random) is negligible. QNR(q) QNR(p) ? a є Z N + ↓ QR(N) N=pq

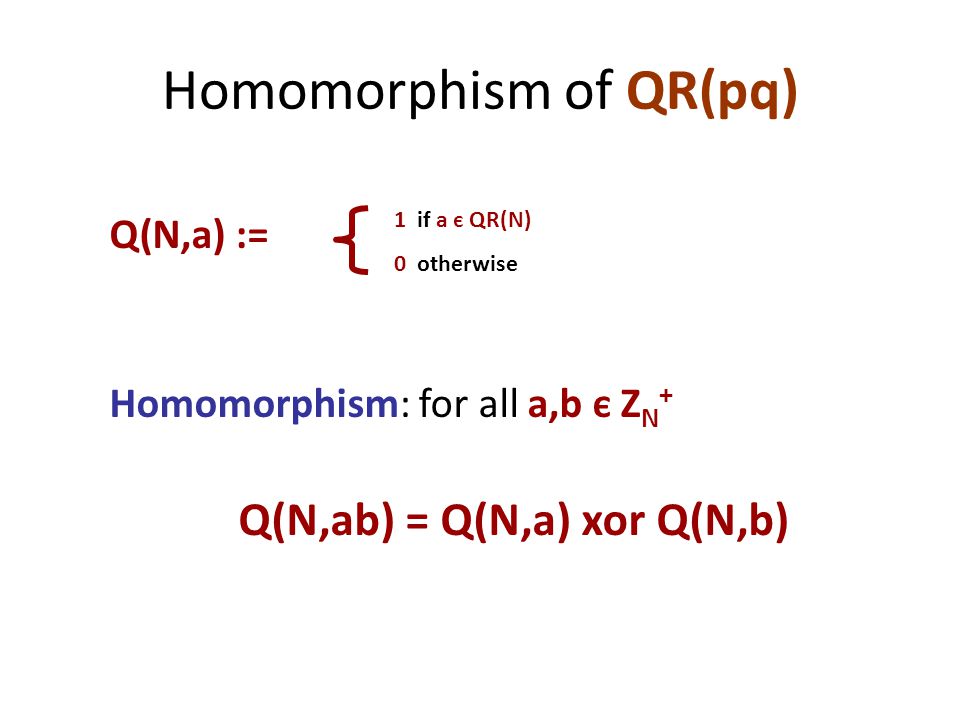

25. Homomorphism of QR(pq) Q(N,a) := Homomorphism: for all a,b є Z N + Q(N,ab) = Q(N,a) xor Q(N,b) 1 if a є QR(N) 0 otherwise

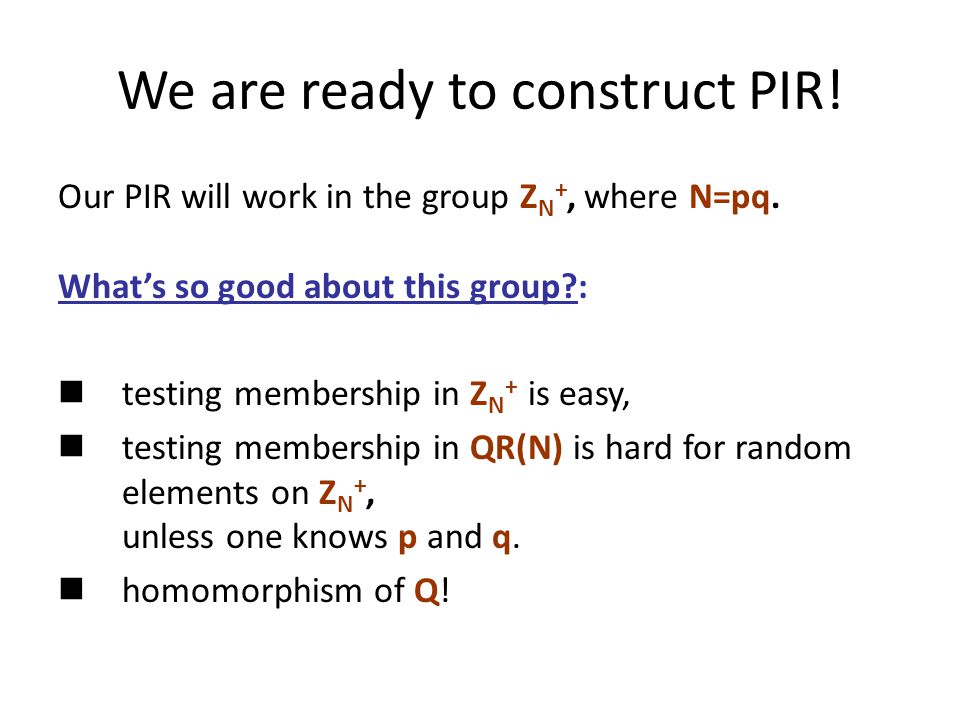

26. We are ready to construct PIR! Our PIR will work in the group Z N +, where N=pq. What’s so good about this group?: testing membership in Z N + is easy, testing membership in QR(N) is hard for random elements on Z N +, unless one knows p and q. homomorphism of Q!

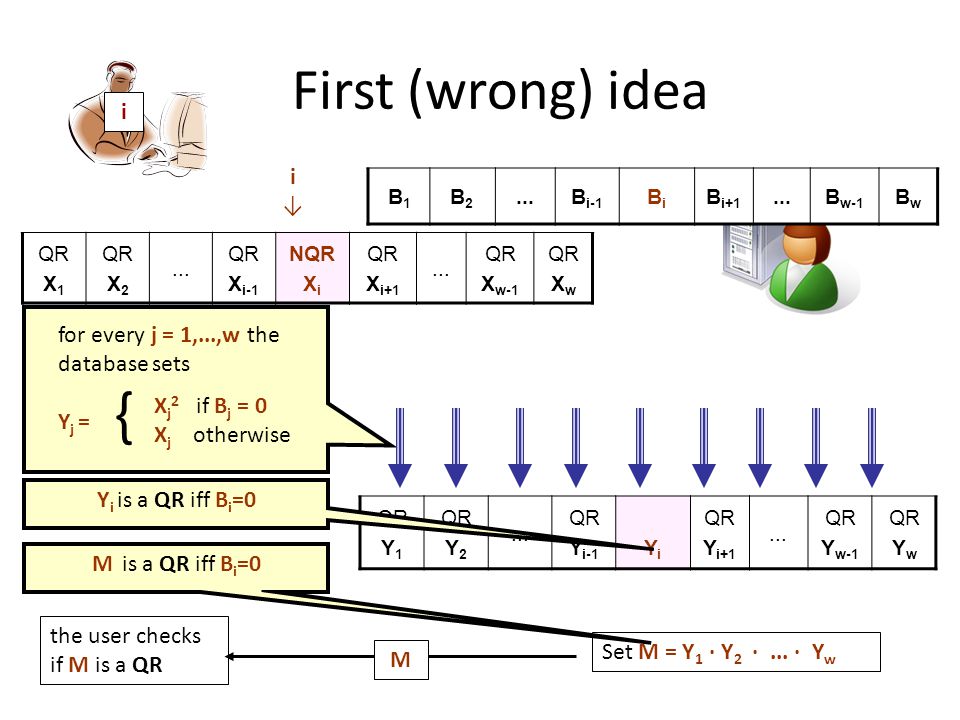

27. First (wrong) idea i QR X 1 QR X 2... QR X i-1 NQR X i QR X i+1... QR X w-1 QR X w B1B1 B2B2...B i-1 BiBi B i+1...B w-1 BwBw for every j = 1,...,w the database sets Y j = X j 2 if B j = 0 X j otherwise { QR Y 1 QR Y 2... QR Y i-1 YiYi QR Y i+1... QR Y w-1 QR Y w i↓i↓ Y i is a QR iff B i =0 Set M = Y 1 · Y 2 ·... · Y w M M is a QR iff B i =0 the user checks if M is a QR

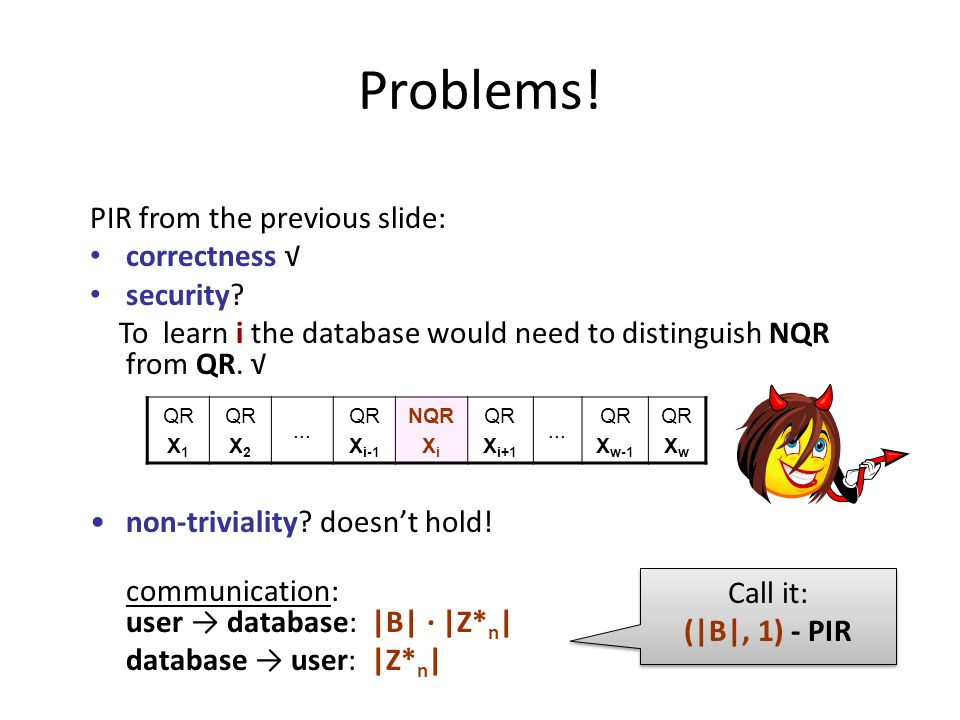

28. Problems! PIR from the previous slide: correctness √ security? To learn i the database would need to distinguish NQR from QR. √ QR X 1 QR X 2... QR X i-1 NQR X i QR X i+1... QR X w-1 QR X w non-triviality? doesn’t hold! communication: user → database: |B| · |Z* n | database → user: |Z* n | Call it: (|B|, 1) - PIR Call it: (|B|, 1) - PIR

29. How to fix it? Idea: Given: construct Suppose that |B| = v 2 and present B as a v×v-matrix: B13B14B15B16 B9B10B11B12B5B6B7B8 B1B2B3B4 consider each row as a separate database consider each row as a separate database

30. An improved idea B13B14B15B16 B9B10B11B12 B5B6B7B8 B1B2B3B4 v v Let j be the column where B i is. In every “row” the user asks for the jth element So, instead of sending v queries the user can send one! Observe: in this way the user learns all the elements in the jth column! BiBi j↓j↓ execute v (v,1) - PIRs in parallel execute v (v,1) - PIRs in parallel Looks even worse: communication: user → database: v 2 · |Z* n | database → user: v · |Z* n | The method

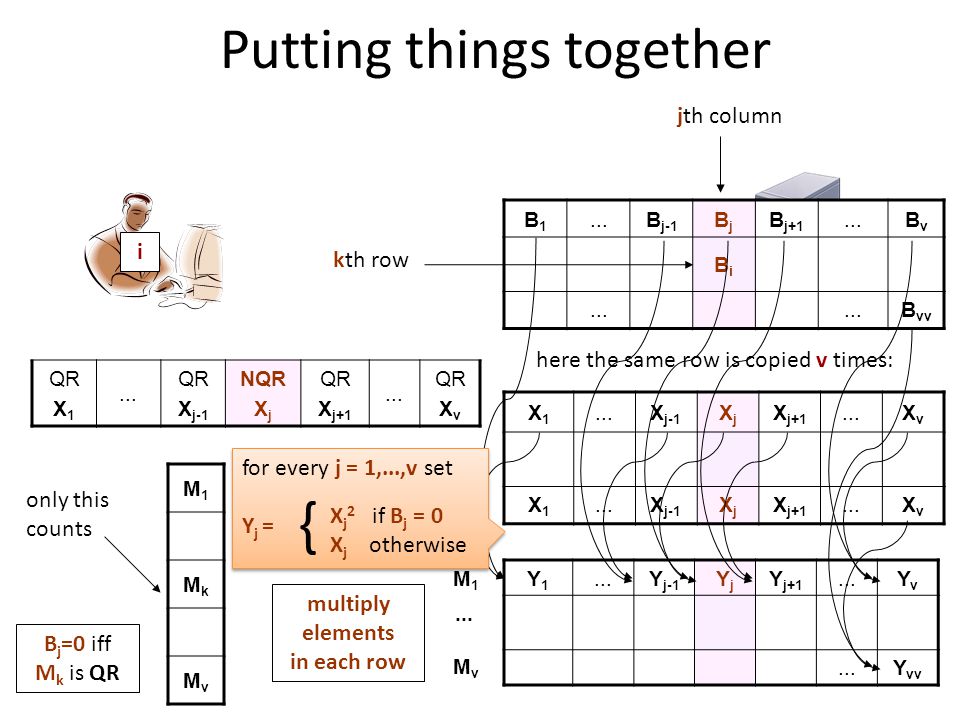

31. Putting things together B1B1...B j-1 BjBj B j+1...BvBv BiBi B vv i QR X 1... QR X j-1 NQR X j QR X j+1... QR X v X1X1...X j-1 XjXj X j+1...XvXv X1X1 X j-1 XjXj X j+1...XvXv Y1Y1 Y j-1 YjYj Y j+1...YvYv Y vv M1M1... MvMv multiply elements in each row kth row M1M1 MkMk MvMv B j =0 iff M k is QR for every j = 1,...,v set Y j = for every j = 1,...,v set Y j = X j 2 if B j = 0 X j otherwise { jth column here the same row is copied v times: only this counts

32. So we are done! PIR from the previous slide: correctness √ non-triviality: communication complexity = 2√|B| · |Z n | √ security? The to learn i the database would need to distinguish NQR from QR. Formally: from any adversary that breaks our scheme we can construct an algorithm that breaks QRA

33. Improvements user U database D (X 1,…,X v ) (M 1,…,M v ) the user is interested just in one M i. the user is interested just in one M i. Idea: apply PIR recursively!

34. Plan 1.Motivation and definition 2.Information-theoretic impossibility 3.A construction of Kushilevitz and Ostrovsky 4.Overview of some other related results

35. Complexity of PIRs – overview of the results Communication: “recursive” PIR of [KO97]: for every c: O(|B| c ) [Cachin, Micali, Stadler, 1999]: poly-logarithmic in |B| [Lipmaa, 2005]: O(log 2 |B|) For practical analysis see: [Sion, Carbunar] On the Computational Practicality of Private Information Retrieval. their conclusion: It is the time-complexity that matters. In real-life: it is still more practical to transmit the entire database.

36. Extensions Symmetric PIR (also protect privacy of the database). [Gertner, Ishai, Kushilevitz, Malkin. 1998] Searching by key-words [Chor, Gilboa, Naor, 1997] Public-key encryption with key-word search [Boneh, Di Crescenzo, Ostrovsky, Persiano]
