1. 1 Credit card operation and the recent CardSystems incident HONG KONG MONETARY AUTHORITY 4 July 2005

2. 2 CONTENT Credit card system overview The CardSystems incident Impact on credit cardholders in Hong Kong Liability for financial loss Follow-up actions by the HKMA –Impact assessment –Risk evaluation

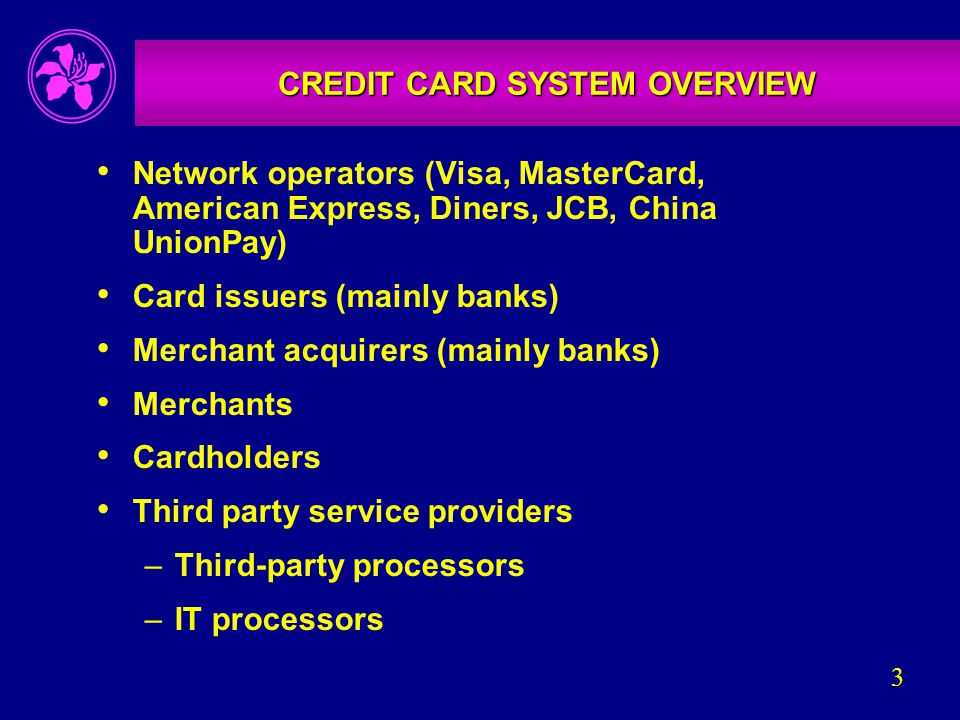

3. 3 CREDIT CARD SYSTEM OVERVIEW Network operators (Visa, MasterCard, American Express, Diners, JCB, China UnionPay) Card issuers (mainly banks) Merchant acquirers (mainly banks) Merchants Cardholders Third party service providers –Third-party processors –IT processors

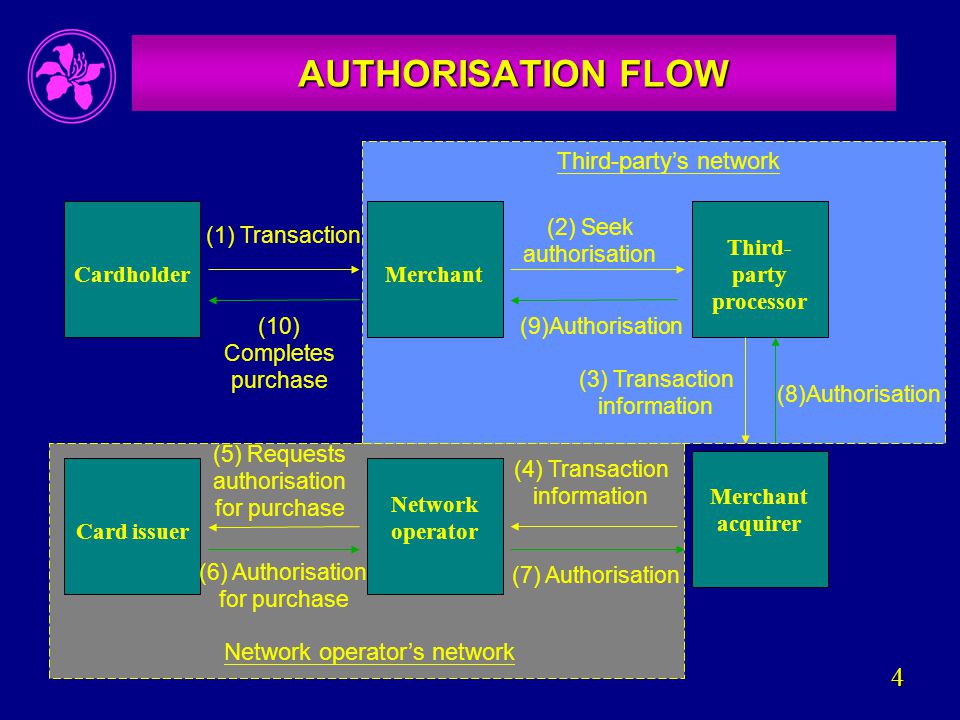

4. 4 AUTHORISATION FLOW Merchant Third- party processor Merchant acquirer Network operatorCard issuer Cardholder (1) Transaction (2) Seek authorisation (3) Transaction information (4) Transaction information (5) Requests authorisation for purchase (6) Authorisation for purchase (7) Authorisation (8)Authorisation (9)Authorisation(10) Completes purchase Third-party’s network Network operator’s network

5. 5 Network operator Settlement bank of network operator Merchant acquirer (1)Transaction details(2) Net Obligation Settlement report Network operator’s network Card issuer (3) Settlement notification Clearing (usually within 1 day) Settlement (usually within 3 days) Settlement bank of network operator Merchant acquirer Card issuer (1) Payment via local RTGS Merchant (3) Credit to merchant account (2) Payment via local RTGS Bill cardholder CLEARING AND SETTLEMENT FLOW

6. 6 THE CARDSYSTEMS INCIDENT CardSystems is a third-party processor providing authorisation and validation processes on behalf of the merchant/merchant acquirer Cardholder information stored after completion of authorisation and system hacked Compromised data could be used for fraudulent transactions

7. 7 THE CARDSYSTEMS INCIDENT CardSystems reportedly breached the security standards set by the network operators: –NOT to retain sensitive cardholder information after completion of authorisation process –to encrypt the information should such information be retained for special business, legal or regulatory purposes

8. 8 IMPACT ON CARDHOLERS IN HK Cardholders in HK may be affected if –purchase retail outlets in the US (at the point-of-sale or through Internet); and –retail outlets in the US submit transaction information to merchant acquirer through CardSystems About 12,000 credit cards issued by AIs in Hong Kong potentially affected No financial loss to cardholders in this case

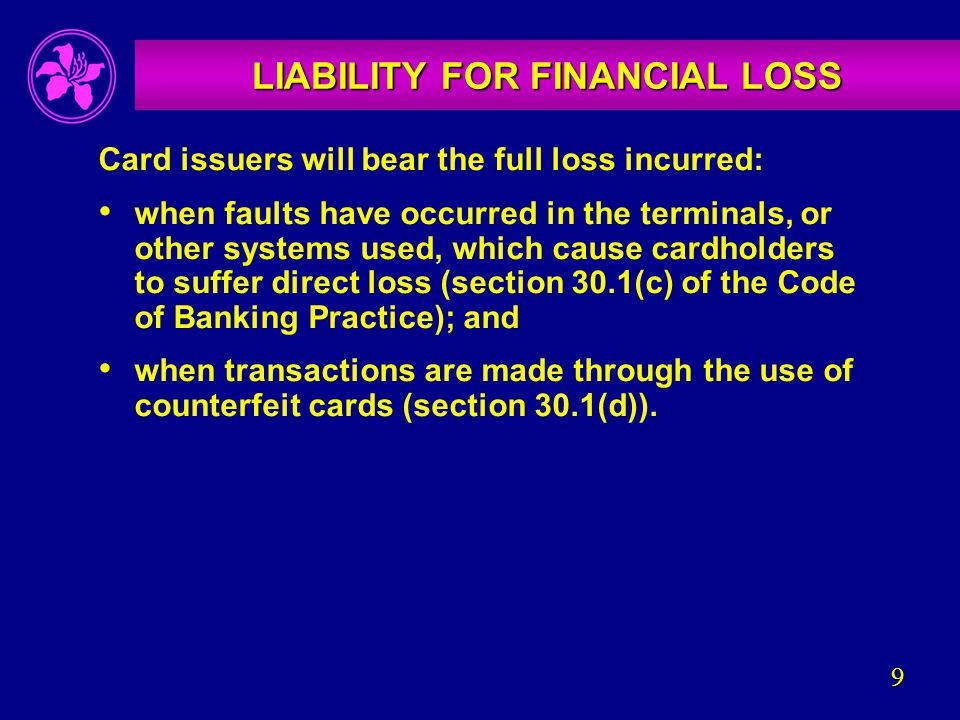

9. 9 LIABILITY FOR FINANCIAL LOSS Card issuers will bear the full loss incurred: when faults have occurred in the terminals, or other systems used, which cause cardholders to suffer direct loss (section 30.1(c) of the Code of Banking Practice); and when transactions are made through the use of counterfeit cards (section 30.1(d)).

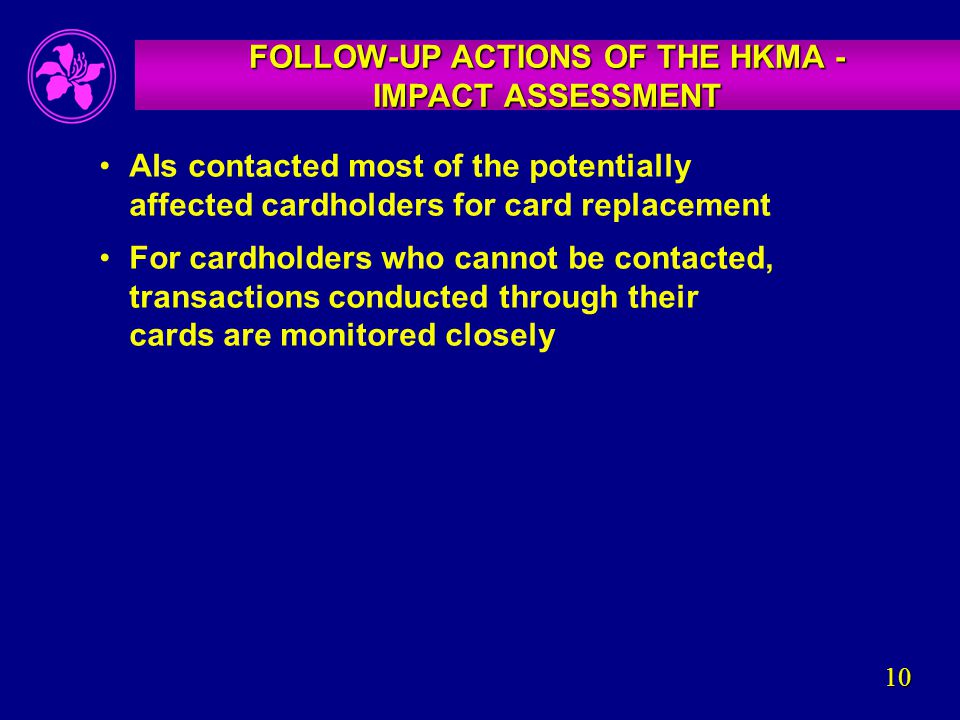

10. 10 FOLLOW-UP ACTIONS OF THE HKMA - IMPACT ASSESSMENT AIs contacted most of the potentially affected cardholders for card replacement For cardholders who cannot be contacted, transactions conducted through their cards are monitored closely

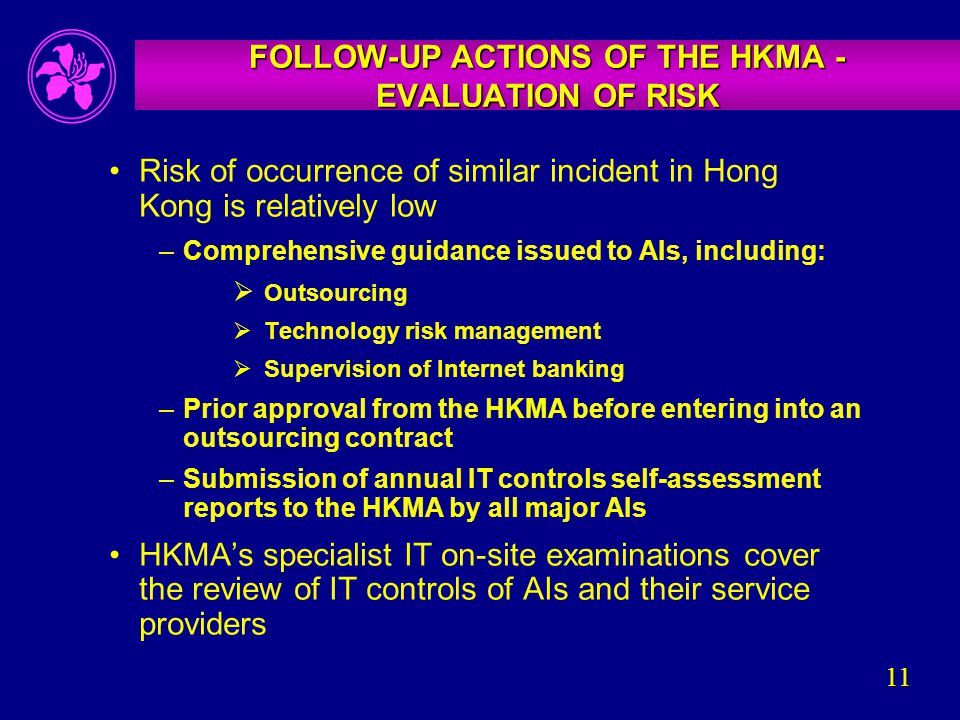

11. 11 FOLLOW-UP ACTIONS OF THE HKMA - EVALUATION OF RISK Risk of occurrence of similar incident in Hong Kong is relatively low –Comprehensive guidance issued to AIs, including:  Outsourcing  Technology risk management  Supervision of Internet banking –Prior approval from the HKMA before entering into an outsourcing contract –Submission of annual IT controls self-assessment reports to the HKMA by all major AIs HKMA’s specialist IT on-site examinations cover the review of IT controls of AIs and their service providers

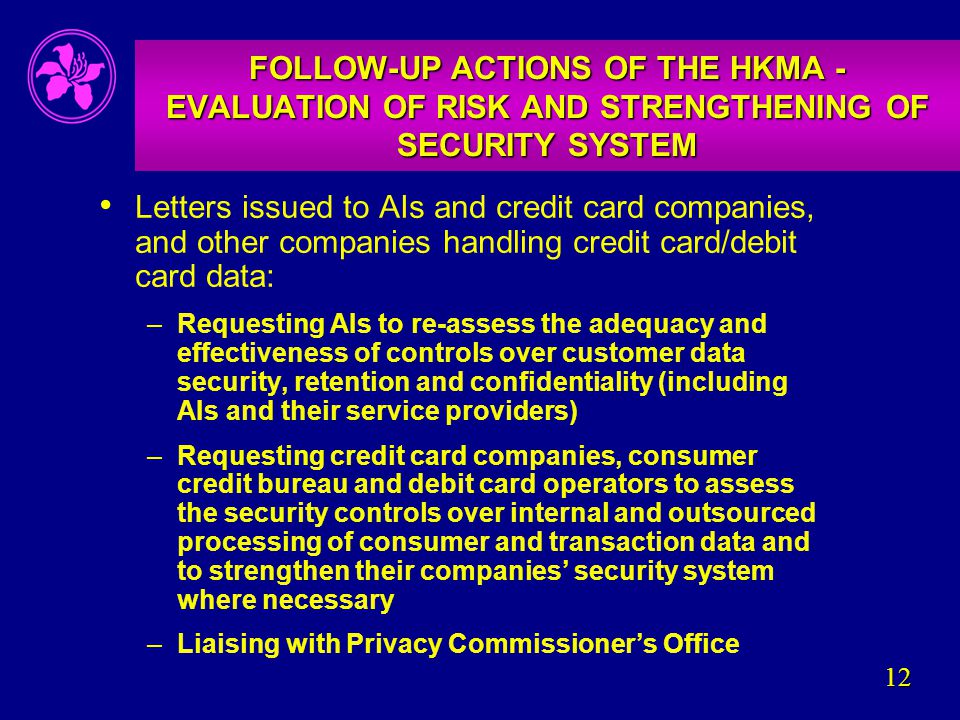

12. 12 FOLLOW-UP ACTIONS OF THE HKMA - EVALUATION OF RISK AND STRENGTHENING OF SECURITY SYSTEM Letters issued to AIs and credit card companies, and other companies handling credit card/debit card data: –Requesting AIs to re-assess the adequacy and effectiveness of controls over customer data security, retention and confidentiality (including AIs and their service providers) –Requesting credit card companies, consumer credit bureau and debit card operators to assess the security controls over internal and outsourced processing of consumer and transaction data and to strengthen their companies’ security system where necessary –Liaising with Privacy Commissioner’s Office

13. 13 End of Presentation
