1. Panasonic Electric Works Corporation of America Tough Contact” Panasonic “Tough Contact” Connectors

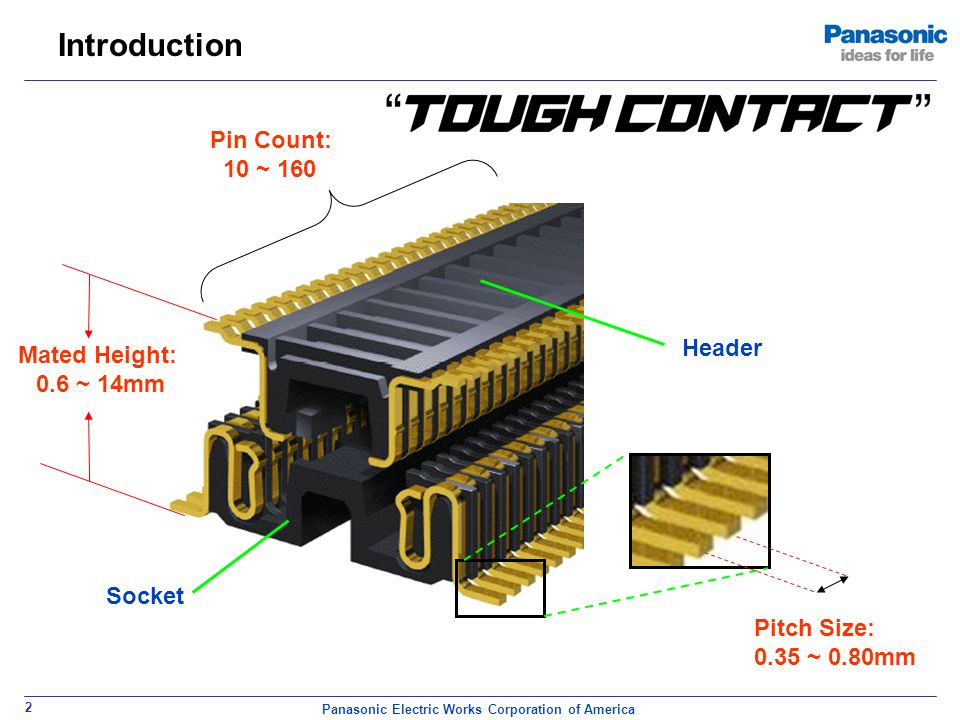

2. Panasonic Electric Works Corporation of America 2 Pitch Size: 0.35 ~ 0.80mm Mated Height: 0.6 ~ 14mm Pin Count: 10 ~ 160 Header Socket Introduction

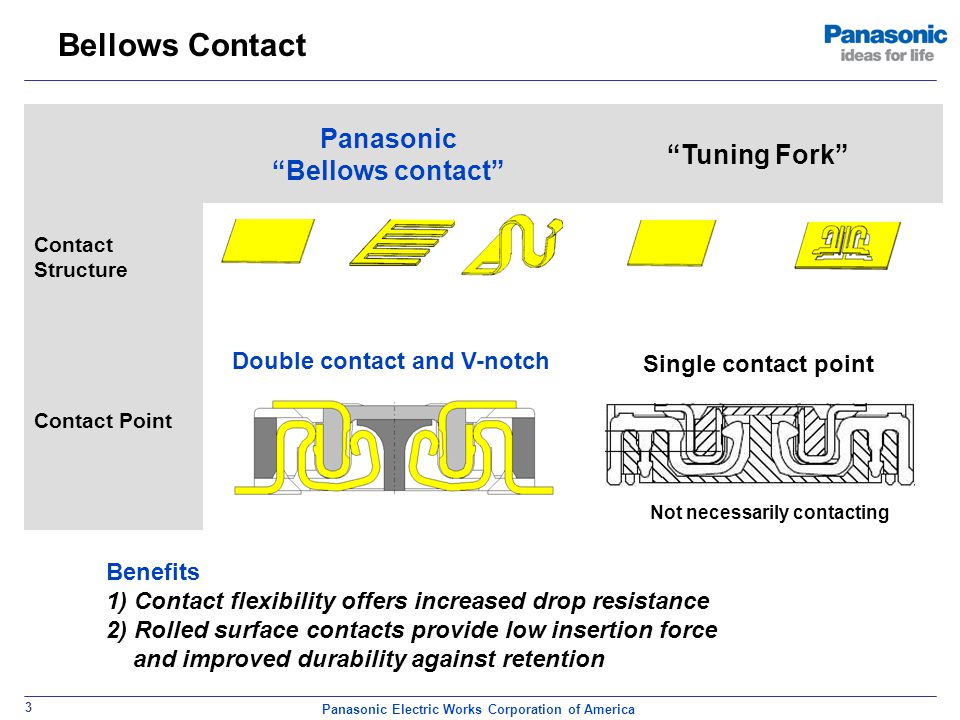

3. Panasonic Electric Works Corporation of America 3 Bellows Contact Contact Point Contact Structure “Tuning Fork” Panasonic “Bellows contact” Double contact and V-notch Single contact point Not necessarily contacting Benefits 1) Contact flexibility offers increased drop resistance 2) Rolled surface contacts provide low insertion force and improved durability against retention

4. Panasonic Electric Works Corporation of America 4 V-Notch Structure V-Notch Contact Benefits 1) Improved contact reliability 2) Increased resistance against dust and foreign particles Standard ContactV-Notch Contact Contamination resistance testing

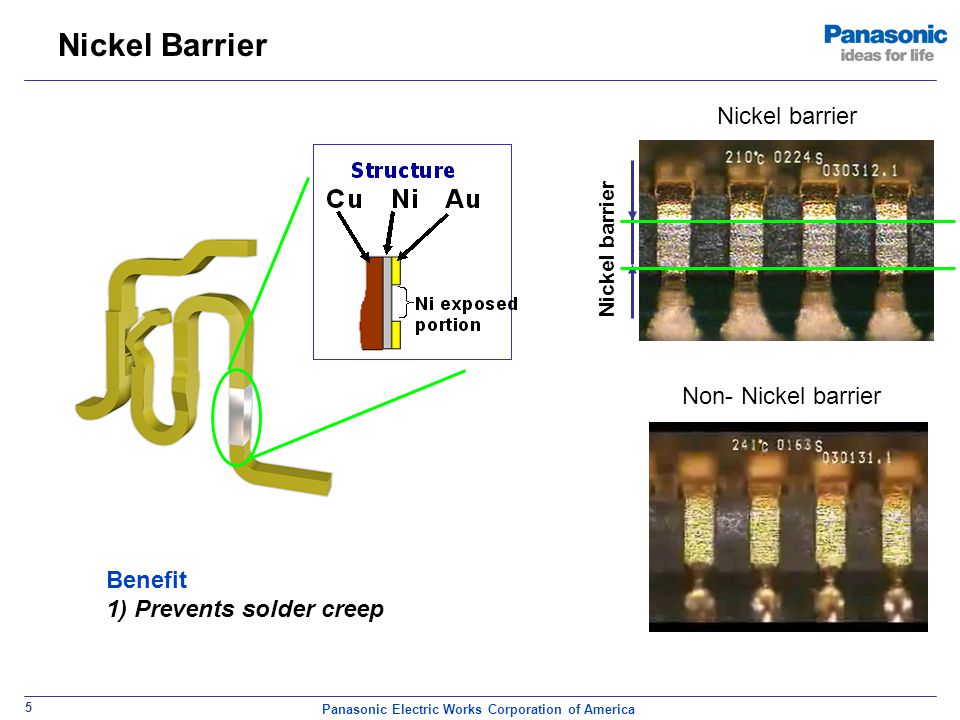

5. Panasonic Electric Works Corporation of America 5 Nickel Barrier Nickel barrier Non- Nickel barrier Nickel barrier Benefit 1) Prevents solder creep

6. Panasonic Electric Works Corporation of America 6 Porosity Treatment Base material Porosity treatment membrane Au plating Pin hole Nickel plating Standard Panasonic SO ２ resistance H２SH２S Benefits 1) Improved contact reliability 2) Improved endurance against mating / unmating

7. Panasonic Electric Works Corporation of America 7 Maximum value of 4 samples (mm) Stable Coplanarity Spec <0.08 F4S 90-pin Header Benefit 1) Easy assembly

8. Panasonic Electric Works Corporation of America 8 Positioning bosses Board Positioning Bosses / Soldering Terminals Benefits 1) Easy positioning during manual soldering 2) Reduces stress on soldered parts Soldering terminals Benefit 1) Increased soldering strength

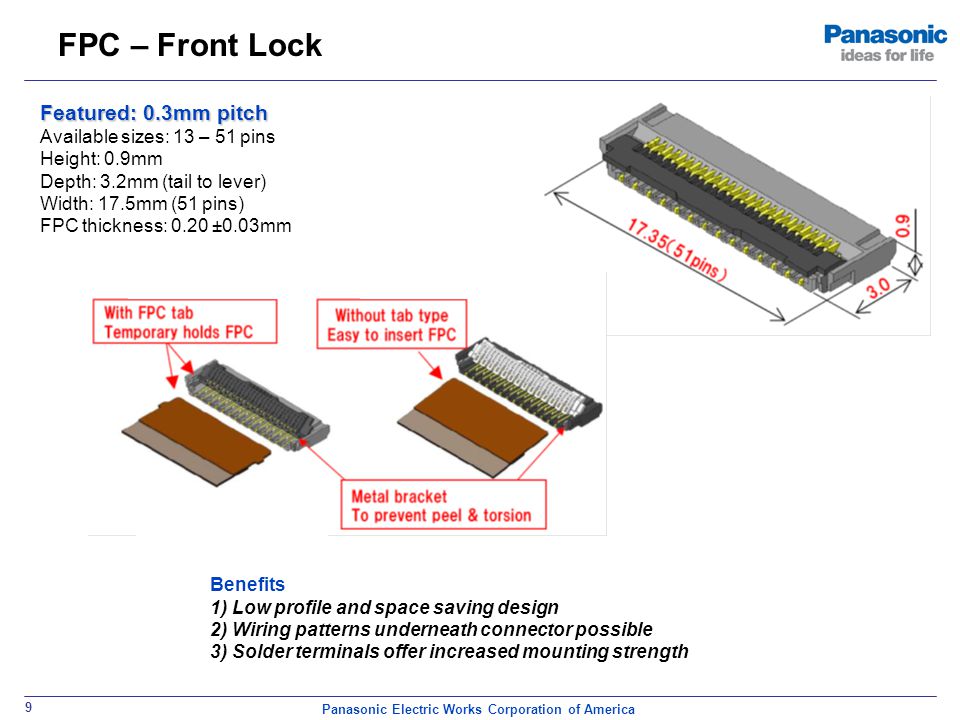

9. Panasonic Electric Works Corporation of America 9 FPC – Front Lock Featured: 0.3mm pitch Available sizes: 13 – 51 pins Height: 0.9mm Depth: 3.2mm (tail to lever) Width: 17.5mm (51 pins) FPC thickness: 0.20 ±0.03mm Benefits 1) Low profile and space saving design 2) Wiring patterns underneath connector possible 3) Solder terminals offer increased mounting strength

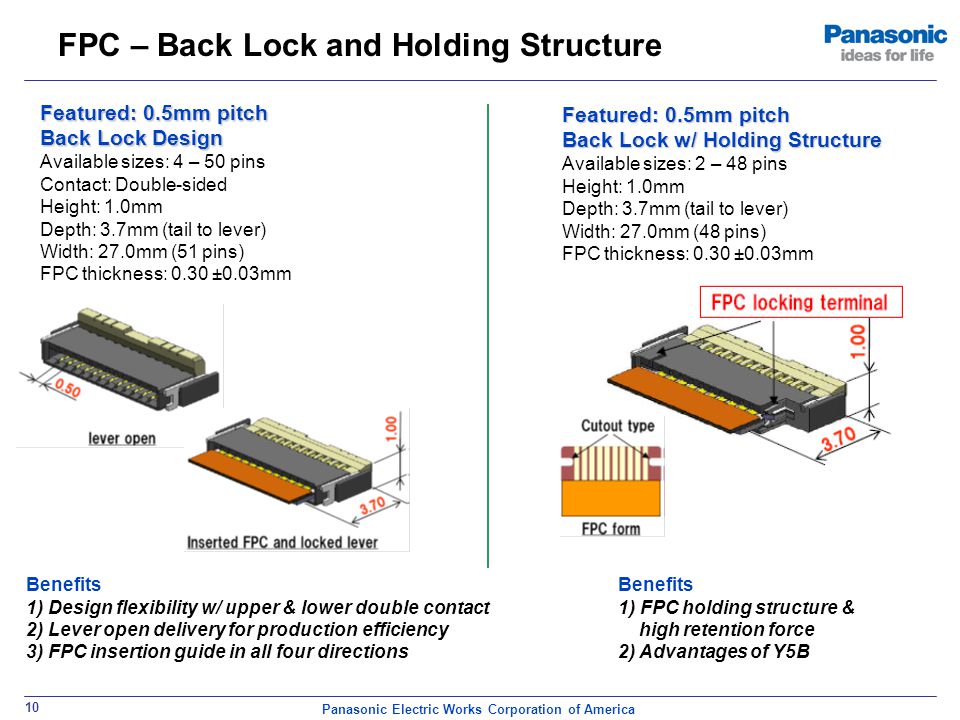

10. Panasonic Electric Works Corporation of America 10 FPC – Back Lock and Holding Structure Featured: 0.5mm pitch Back Lock Design Available sizes: 4 – 50 pins Contact: Double-sided Height: 1.0mm Depth: 3.7mm (tail to lever) Width: 27.0mm (51 pins) FPC thickness: 0.30 ±0.03mm Featured: 0.5mm pitch Back Lock w/ Holding Structure Available sizes: 2 – 48 pins Height: 1.0mm Depth: 3.7mm (tail to lever) Width: 27.0mm (48 pins) FPC thickness: 0.30 ±0.03mm Benefits 1) Design flexibility w/ upper & lower double contact 2) Lever open delivery for production efficiency 3) FPC insertion guide in all four directions Benefits 1) FPC holding structure & high retention force 2) Advantages of Y5B

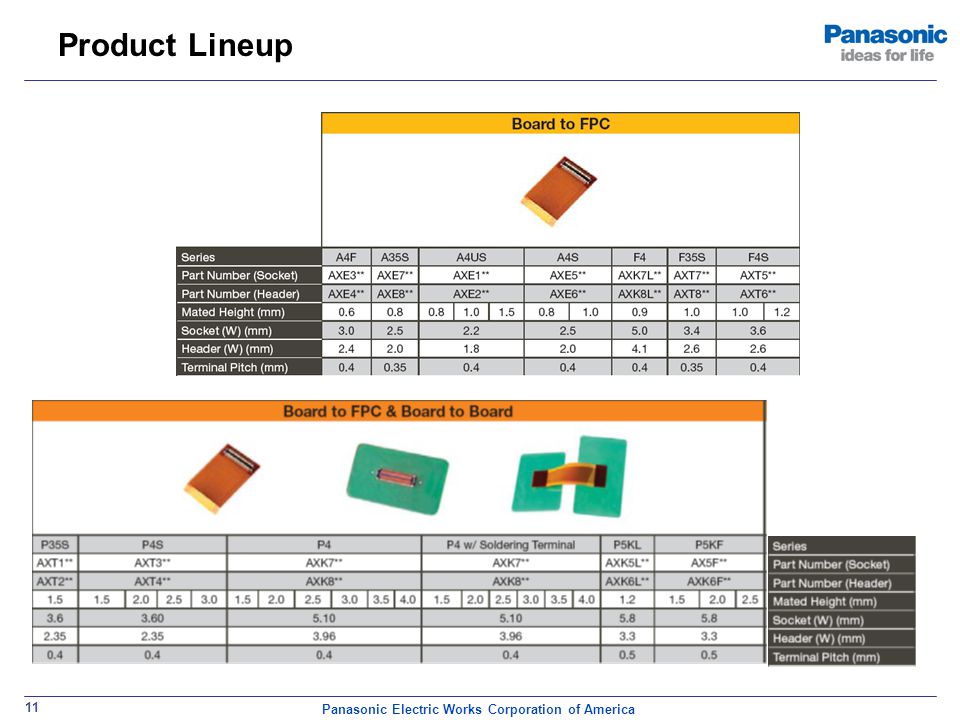

11. Panasonic Electric Works Corporation of America 11 Product Lineup

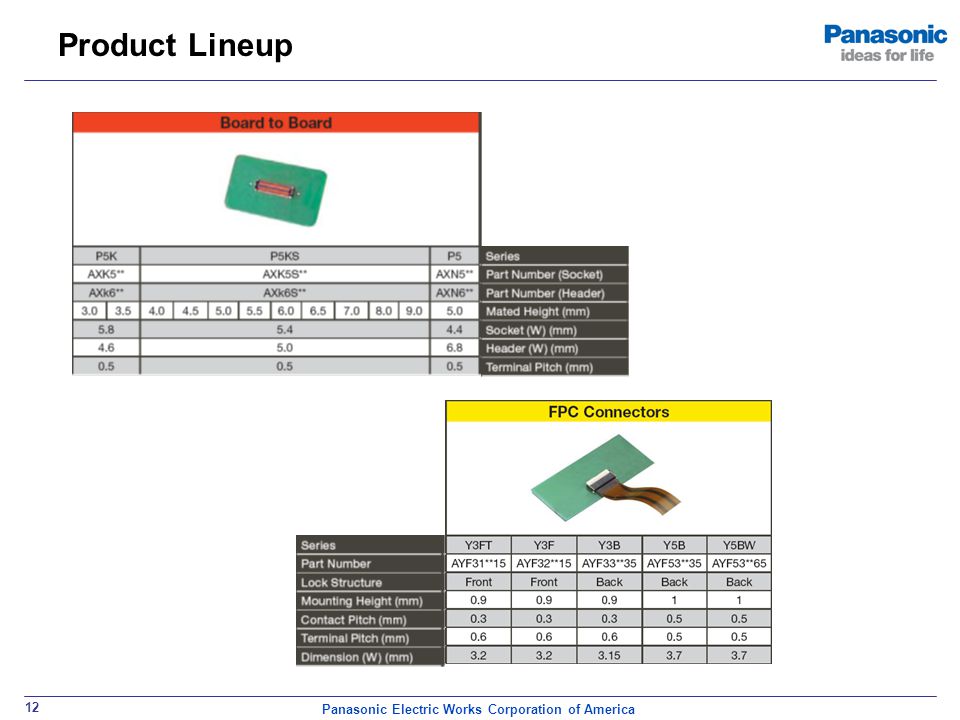

12. Panasonic Electric Works Corporation of America 12 Product Lineup

13. Panasonic Electric Works Corporation of America 13 Applications

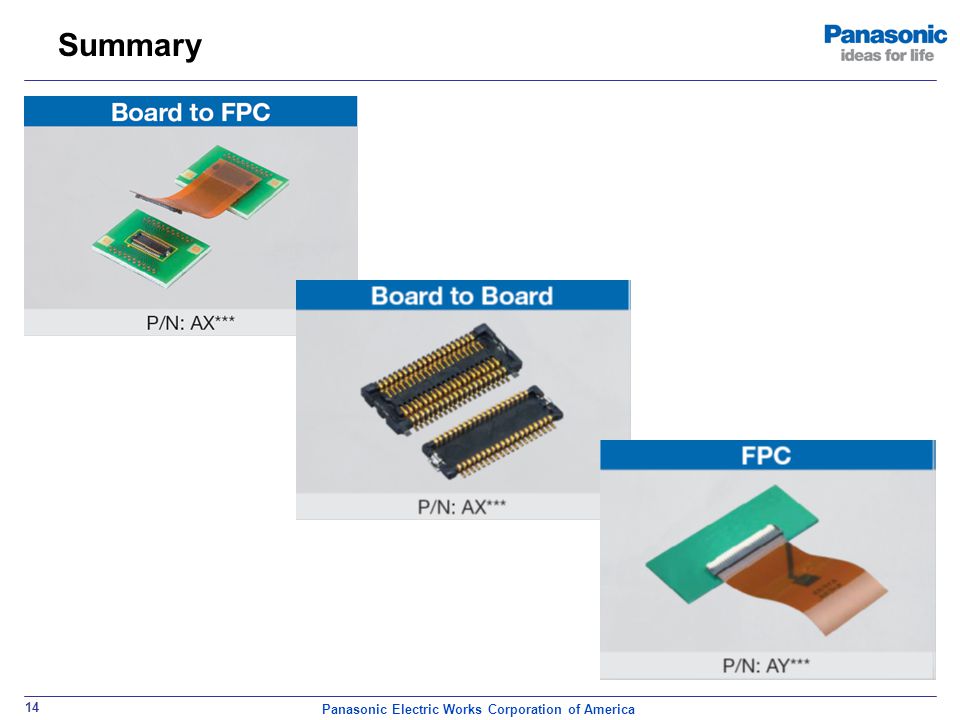

14. Panasonic Electric Works Corporation of America 14 Summary

15. Panasonic Electric Works Corporation of America Tough Contact” Panasonic “Tough Contact” Connectors
