Presentation on theme: "Complex Ions A complex ion is when cations combine with either molecules or ions of opposite charge (anions) to form a new charged particle. They tend."— Presentation transcript:

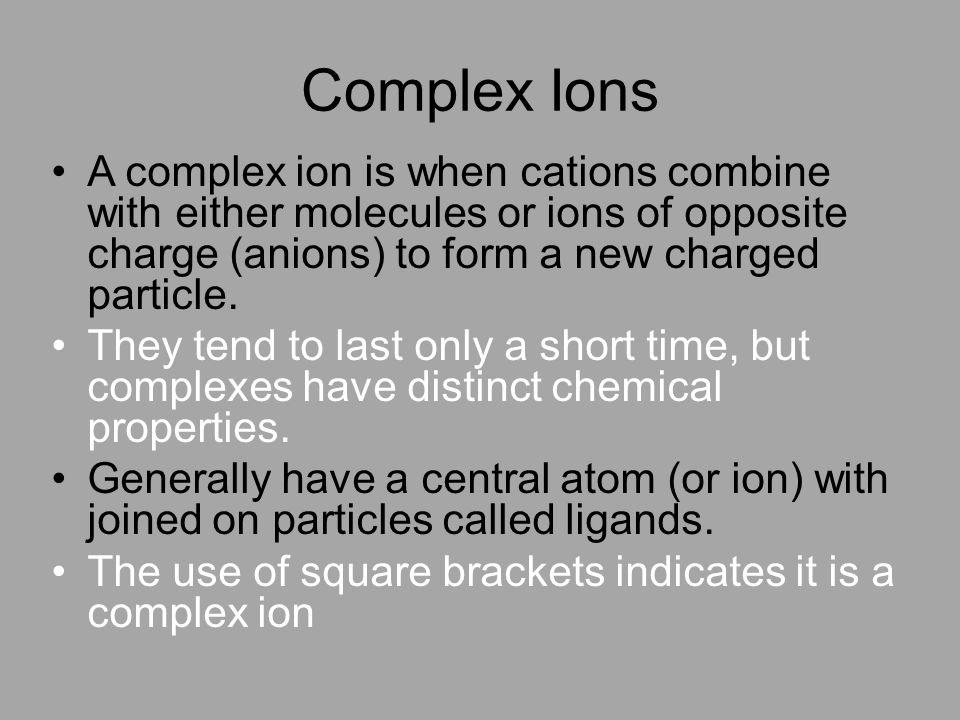

1 Complex Ions A complex ion is when cations combine with either molecules or ions of opposite charge (anions) to form a new charged particle. They tend to last only a short time, but complexes have distinct chemical properties. Generally have a central atom (or ion) with joined on particles called ligands. The use of square brackets indicates it is a complex ion

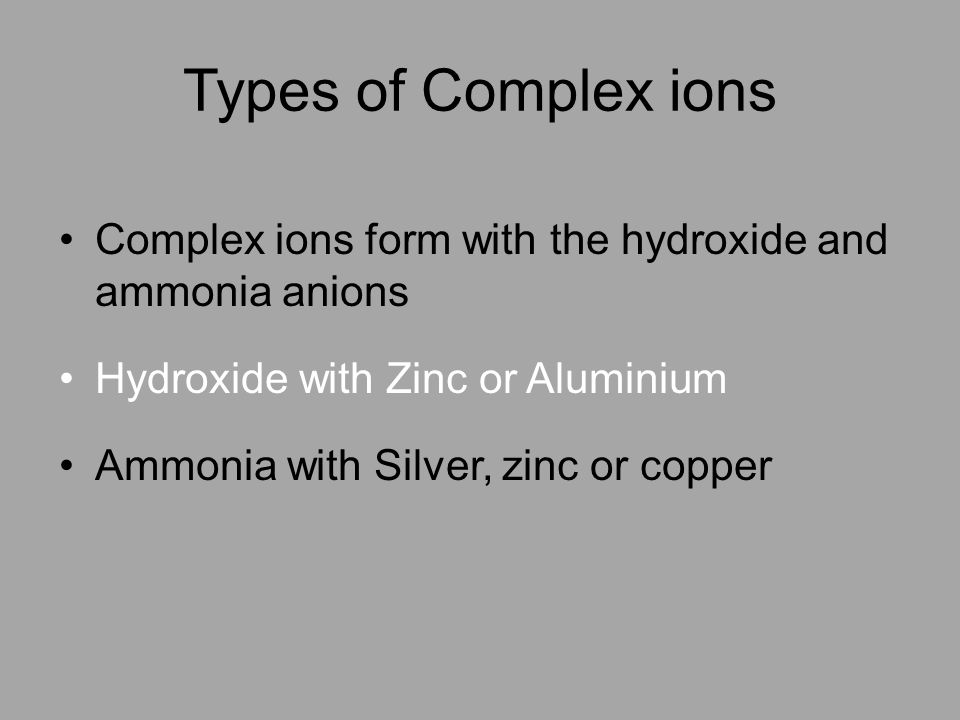

2 Types of Complex ions Complex ions form with the hydroxide and ammonia anions Hydroxide with Zinc or Aluminium Ammonia with Silver, zinc or copper

3 Complex Ion Colours [Cu(NH 3 ) 4 ] 2+ [FeSCN] 2+ [Zn(NH 3 ) 4 ] 2+ [Zn(OH) 4 ] 2- [Al(OH) 4 ] - [Ag(NH 3 ) 2 ] +

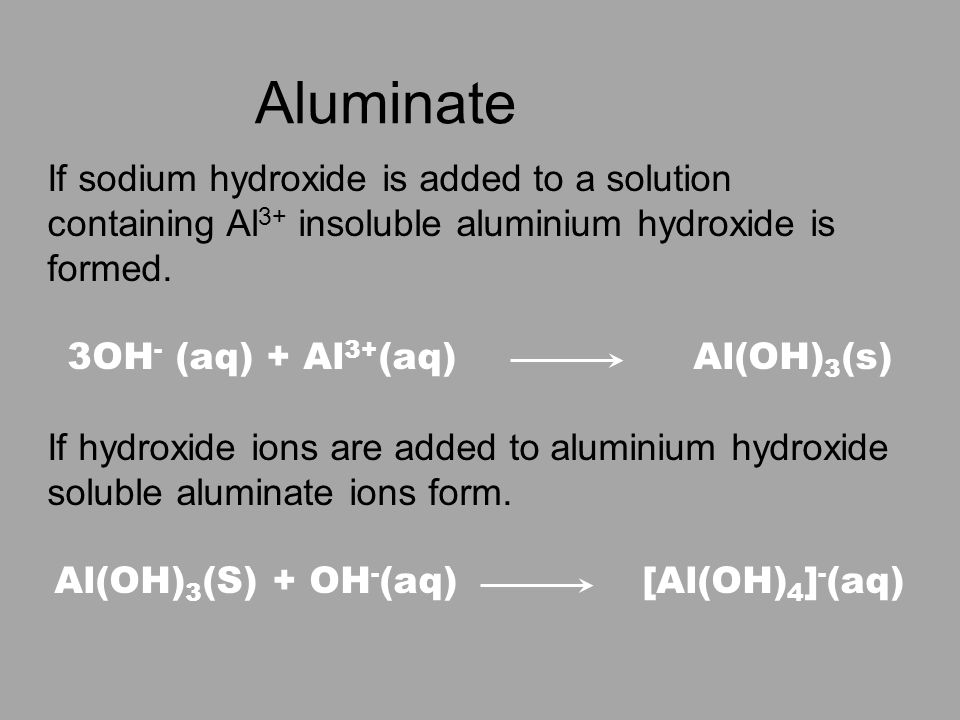

4 Aluminate If sodium hydroxide is added to a solution containing Al 3+ insoluble aluminium hydroxide is formed. 3OH - (aq) + Al 3+ (aq) Al(OH) 3 (s) If hydroxide ions are added to aluminium hydroxide soluble aluminate ions form. Al(OH) 3 (S) + OH - (aq) [Al(OH) 4 ] - (aq)

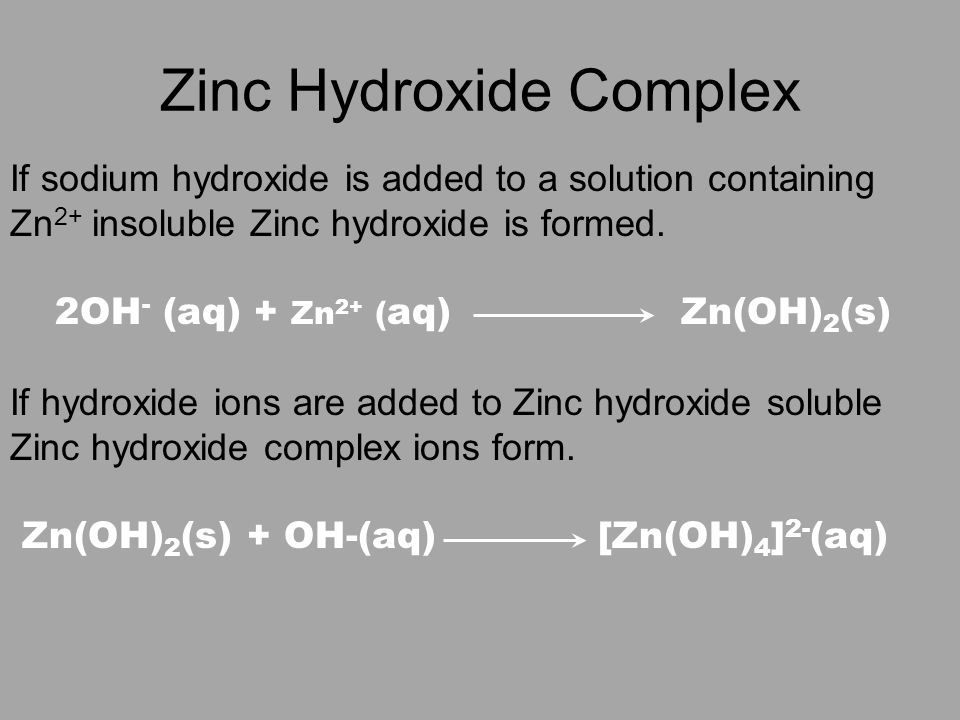

5 Zinc Hydroxide Complex If sodium hydroxide is added to a solution containing Zn 2+ insoluble Zinc hydroxide is formed. 2OH - (aq) + Zn 2+ ( aq) Zn(OH) 2 (s) If hydroxide ions are added to Zinc hydroxide soluble Zinc hydroxide complex ions form. Zn(OH) 2 (s) + OH-(aq) [Zn(OH) 4 ] 2- (aq)

6 Ammonia Solutions Solutions of ammonia contain Ammonia molecules (NH 3 ) Water molecules (H 2 O) A few hydroxide ions (OH - ) Ammonium ions (NH 4 + ) This is because ammonia is a weak base Small volumes of ammonia solution behave the same way as hydroxide solutions. Large volumes can lead to the formation of complex ions

7 Silver diammine ion In ammonia solutions silver ions form a precipitate of brown silver oxide. 2Ag + (aq) + 2OH - Ag 2 O(s) + H 2 O(l) Additional ammonia forms soluble silver diammine. Ag 2 O (s) + H 2 O (l) + 4NH 3 (aq) 2[Ag(NH 3 ) 2 ] + (aq) + 2OH - (aq) Silver chloride also does this AgCl(s) + 2NH 3 (aq) 2[Ag(NH 3 ) 2 ] + (aq) + Cl - (aq)

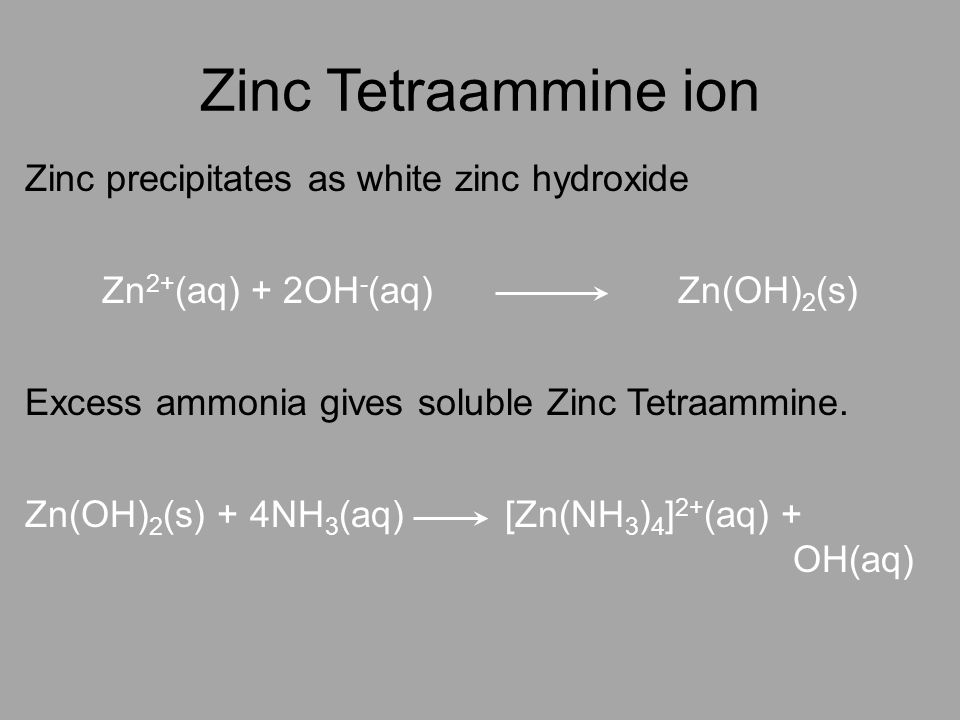

8 Zinc Tetraammine ion Zinc precipitates as white zinc hydroxide Zn 2+ (aq) + 2OH - (aq)Zn(OH) 2 (s) Excess ammonia gives soluble Zinc Tetraammine. Zn(OH) 2 (s) + 4NH 3 (aq)[Zn(NH 3 ) 4 ] 2+ (aq) + OH(aq)

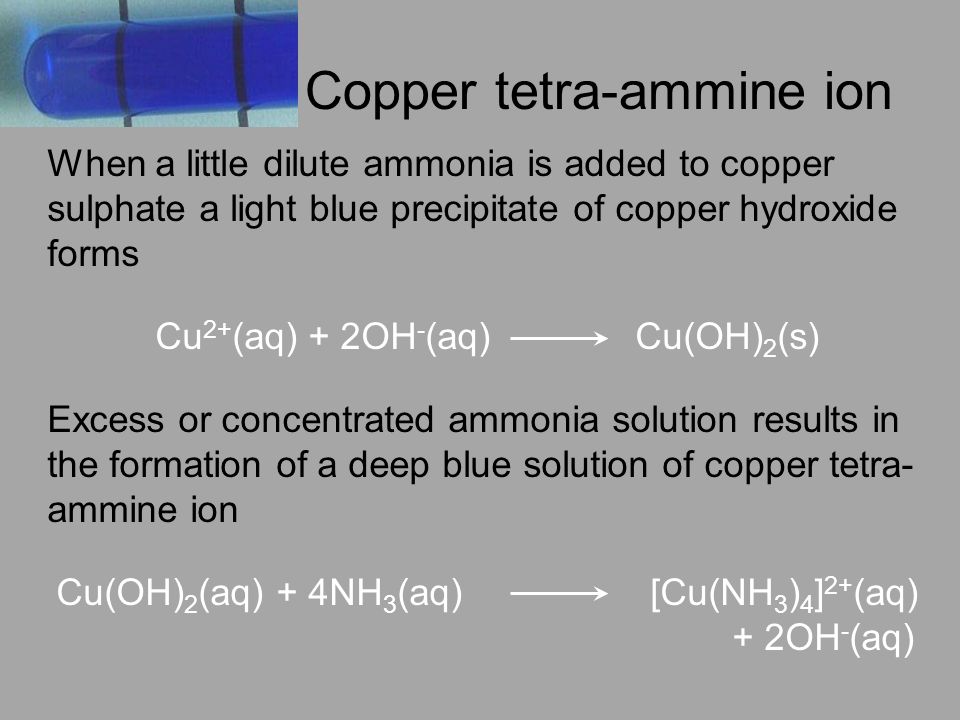

9 Copper tetra-ammine ion When a little dilute ammonia is added to copper sulphate a light blue precipitate of copper hydroxide forms Cu 2+ (aq) + 2OH - (aq)Cu(OH) 2 (s) Excess or concentrated ammonia solution results in the formation of a deep blue solution of copper tetra- ammine ion Cu(OH) 2 (aq) + 4NH 3 (aq) [Cu(NH 3 ) 4 ] 2+ (aq) + 2OH - (aq)

10 Review Solubility 1.Which cations have insoluble sulfates? 2.Which cations have insoluble chlorides? 3.Which ions have soluble carbonates? 4.Which ions form white hydroxides? 5.Which ions form a complex with hydroxide? 6.Write the formulae for three ammonia complexes.

11 Answers to: Solubility facts 1.Pb2+, Ca2+, Ba2+ (Ag+) 2.Pb2+, Ag+ 3.Na+, K+, NH4+ 4.Mg2+, Pb2+, Zn2+, Al3+ 5.Pb2+, Zn2+, Al3+ 6.[Ag(NH3)2]+, [Cu(NH3)4]2+, [Zn(NH3)4]2+

12 Homework Make flash cards to learn your complex ions

13 Complete work sheet 18: Soluble or Insoluble 1 insoluble 10 insoluble 2 11 soluble 3 insoluble 12 insoluble 4 13 soluble 5 slightly soluble 14 insoluble 6 soluble 15 soluble 7 16 slightly soluble 8 soluble 17 insoluble 9 18 soluble
