1. Cellular Respiration How our body makes ATP, ENERGY!!

2. May 3, 2015 Engage ATP Gun Adenosine Tri-Phosphate (ATP) Adenosine Ribose Sugar 3 Phosphates

3. May 3, 2015

4. Explore: Cellular Respiration Simulation To review the "big picture" of metabolism, aiding students in understanding the relationship among glycolysis, the Kreb's cycle, and the ETC. See the diagram for the simulation layout.

5. May 3, 2015 Explore: Muscle Fatigue You will be using a procedure to experience and explore lactic acid buildup in muscles.

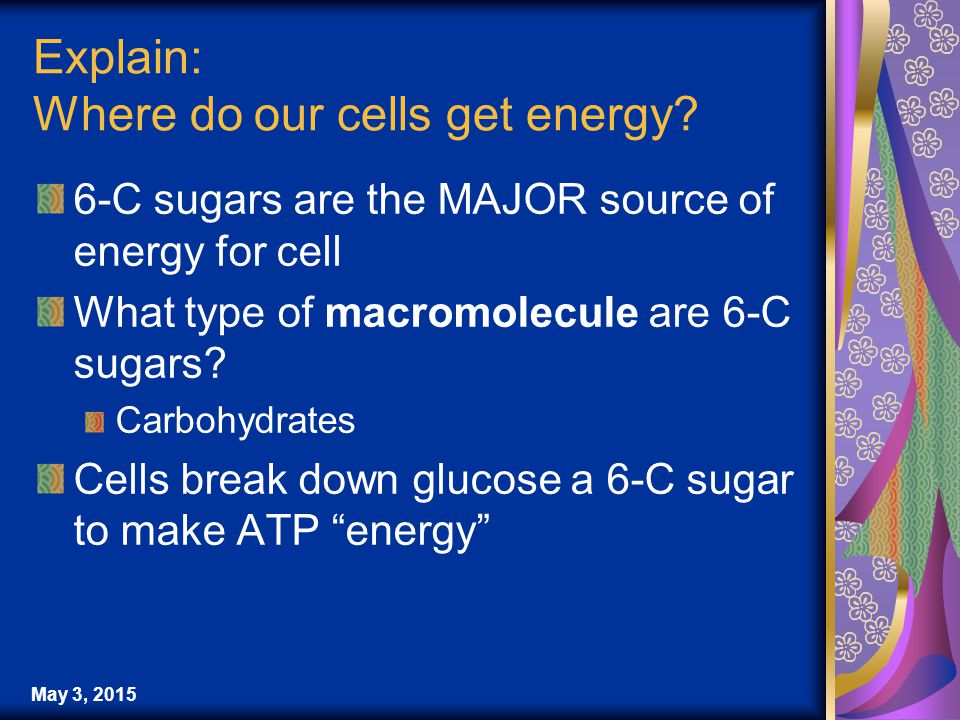

6. May 3, 2015 Explain: Where do our cells get energy? 6-C sugars are the MAJOR source of energy for cell What type of macromolecule are 6-C sugars? Carbohydrates Cells break down glucose a 6-C sugar to make ATP “energy”

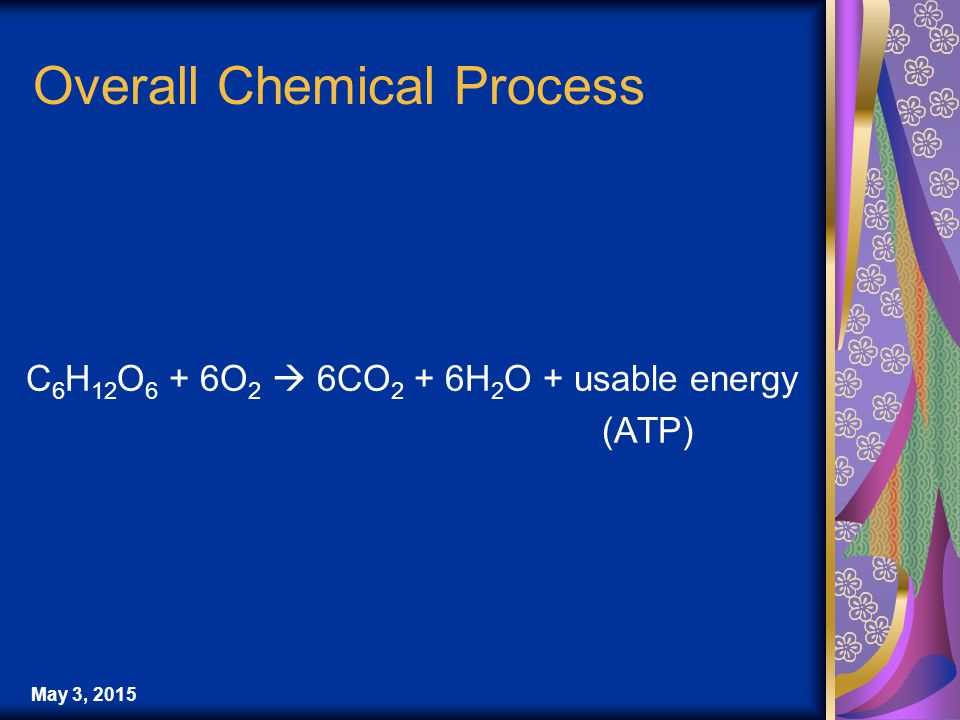

7. May 3, 2015 Overall Chemical Process C 6 H 12 O 6 + 6O 2  6CO 2 + 6H 2 O + usable energy (ATP)

8. May 3, 2015 Cellular Respiration (3-stages) Glycolysis Krebs Cycle (Citric Acid Cycle) Electron Transport Chain (ETC) Glucose Glycolysis Krebs cycle Electron transport Fermentation (without oxygen) Alcohol or lactic acid

9. May 3, 2015

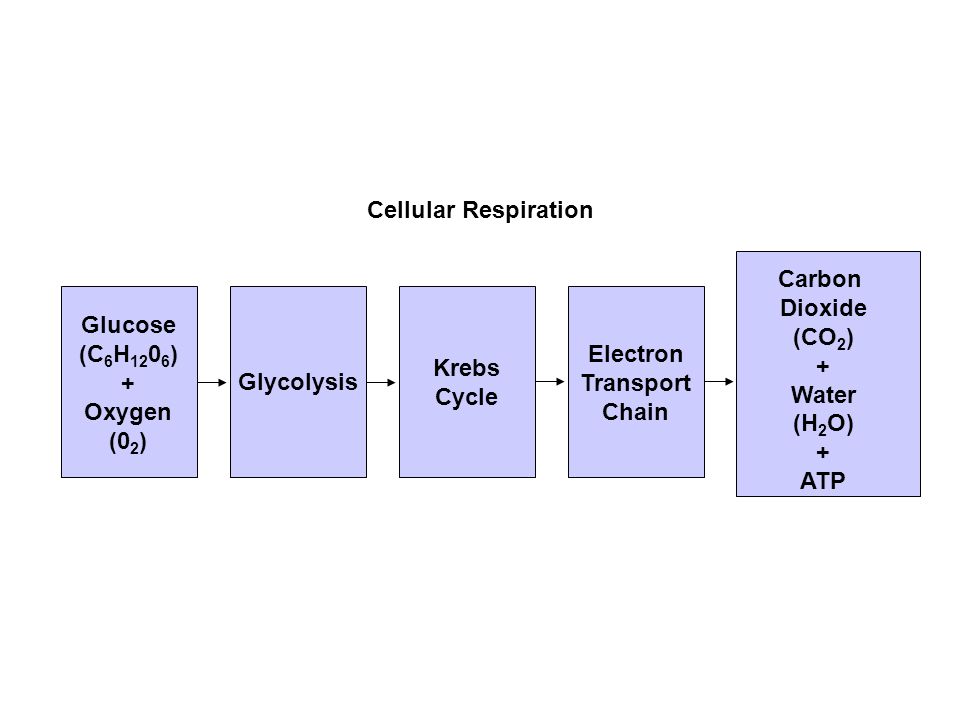

10. Flowchart Section 9-2 Glucose (C 6 H 12 0 6 ) + Oxygen (0 2 ) Glycolysis Krebs Cycle Electron Transport Chain Carbon Dioxide (CO 2 ) + Water (H 2 O) + ATP Cellular Respiration

11. May 3, 2015

12. Glucose To the electron transport chain Figure 9–3 Glycolysis Glycolysis: Step 1 2 Pyruvic acid

13. Glucose To the electron transport chain Figure 9–3 Glycolysis Section 9-1 2 Pyruvic acid

14. Glucose To the electron transport chain Figure 9–3 Glycolysis Section 9-1 2 Pyruvic acid

15. May 3, 2015 Where  Cytoplasm NO O 2 required Energy Yield  net gain of 2 ATP at the expense of 2 ATP 6-C glucose  TWO 3-C pyruvates Free e - and H + combine with organic ion carriers called NAD +  NADH + H + (nicotinamide dinucleotide)

16. May 3, 2015 Summary In Glucose (6-C) 2 ATP Out 2 pyruvate; 2(3-C) 2NADH a net of 2 ATP

17. May 3, 2015 Questions Where does glycolysis take place? Glycolysis energy yield? Breaks glucose into TWO ________.

18. May 3, 2015

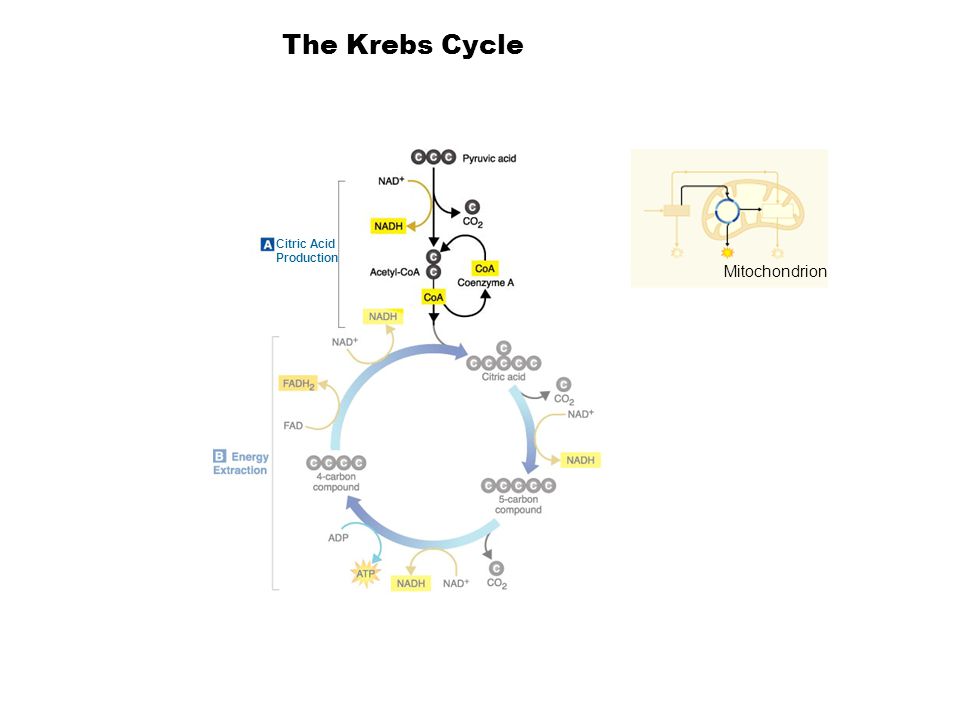

19. Citric Acid Production The Krebs Cycle Section 9-2 Mitochondrion

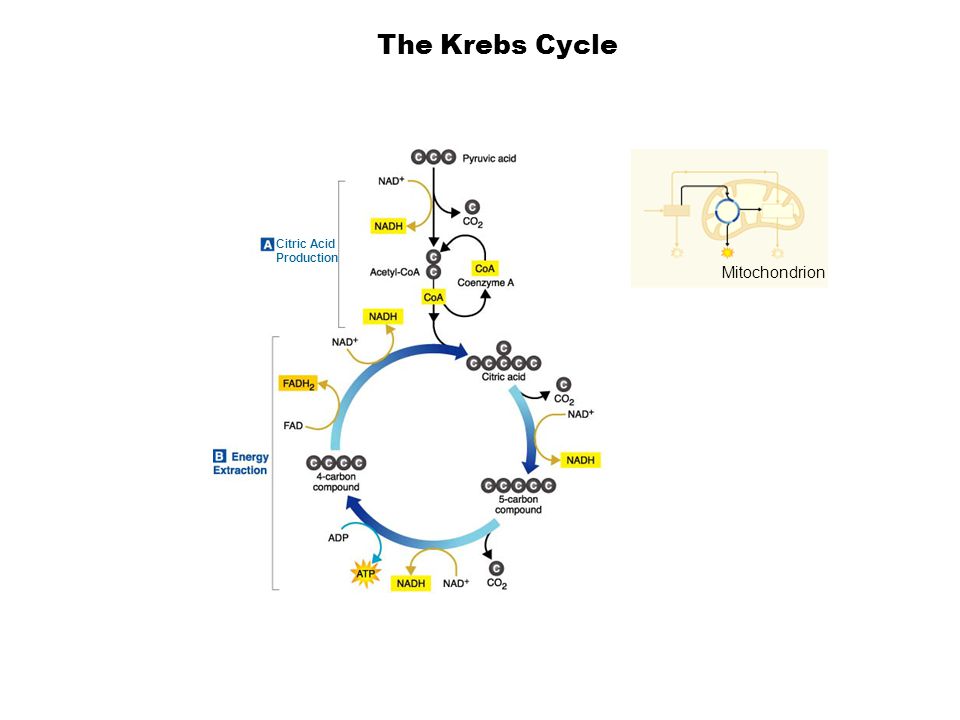

20. Citric Acid Production Figure 9–6 The Krebs Cycle Section 9-2 Mitochondrion

21. May 3, 2015 Breakdown of Pyruvic Acid Where  mitochondria Pyruvate (3-C)  Acetic acid (2-C) 3rd C forms CO 2 Acetic acid combines with Coenzyme A to form ACETYL-CoA

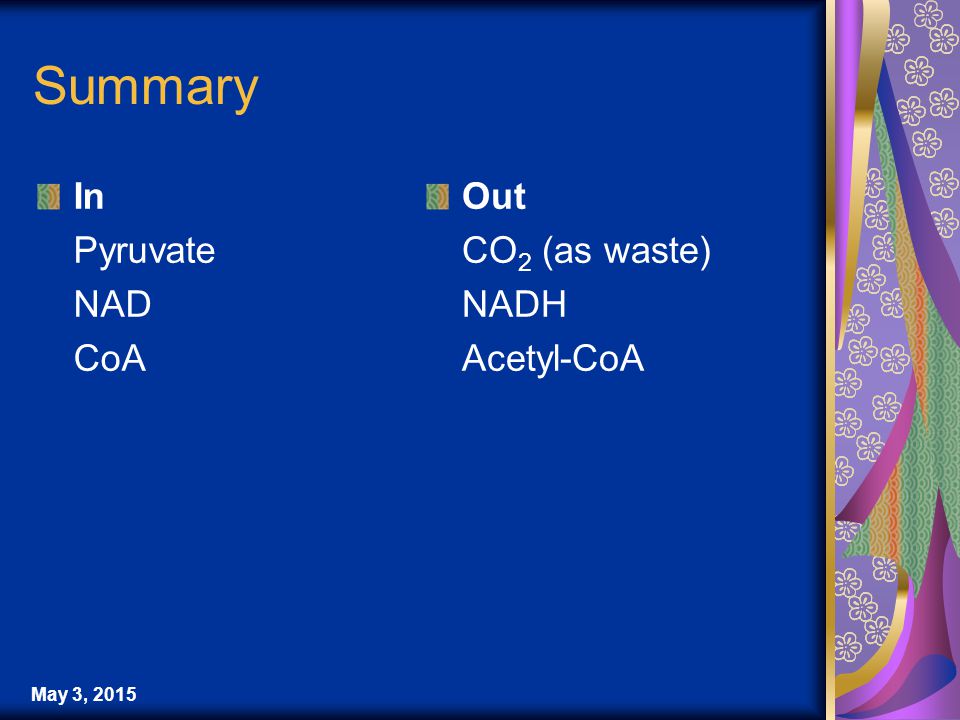

22. May 3, 2015 Summary In Pyruvate NAD CoA Out CO 2 (as waste) NADH Acetyl-CoA

23. May 3, 2015 What is releasing Energy with O 2 ? Aerobic respiration Where  In mitochondria

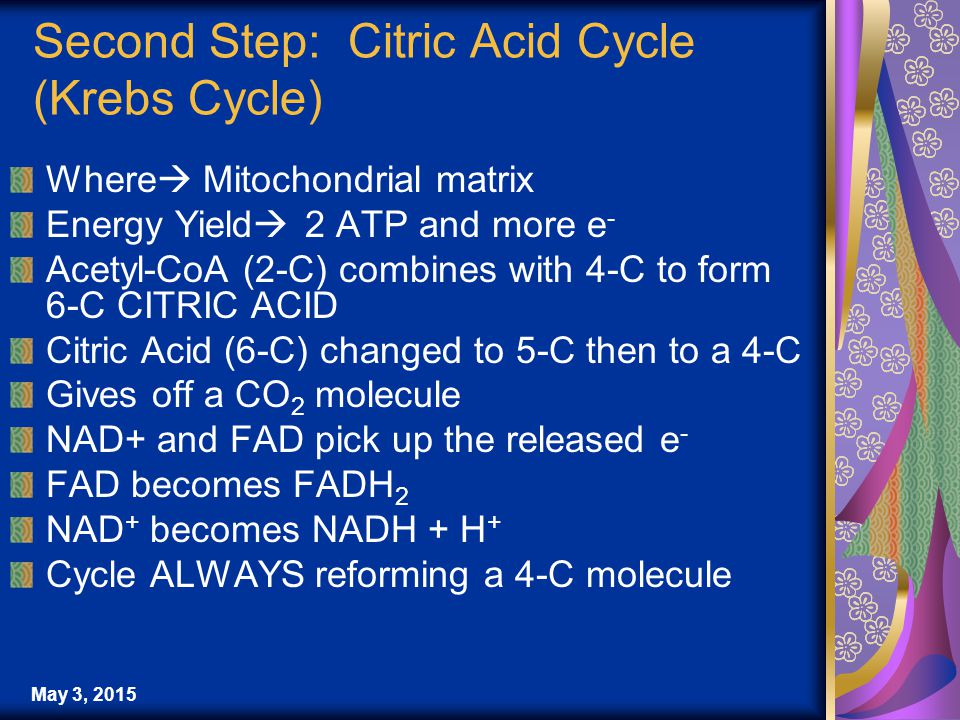

24. May 3, 2015 Second Step: Citric Acid Cycle (Krebs Cycle) Where  Mitochondrial matrix Energy Yield  2 ATP and more e - Acetyl-CoA (2-C) combines with 4-C to form 6-C CITRIC ACID Citric Acid (6-C) changed to 5-C then to a 4-C Gives off a CO 2 molecule NAD+ and FAD pick up the released e - FAD becomes FADH 2 NAD + becomes NADH + H + Cycle ALWAYS reforming a 4-C molecule

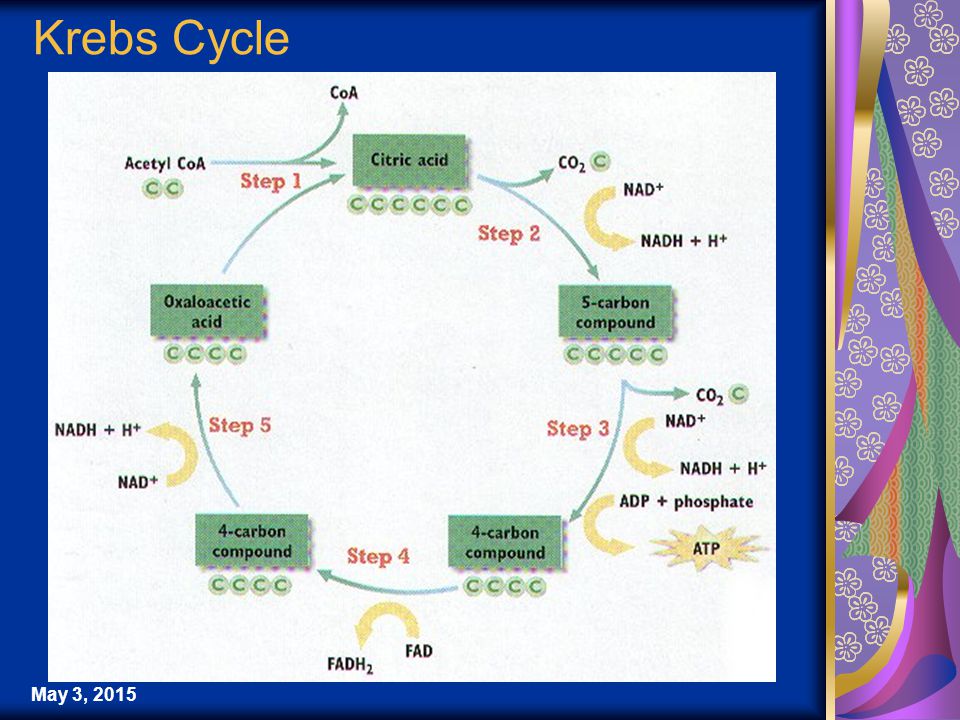

25. May 3, 2015 Krebs Cycle

26. Citric Acid Production The Krebs Cycle Section 9-2 Mitochondrion

27. Citric Acid Production Figure 9–6 The Krebs Cycle Section 9-2 Mitochondrion

28. May 3, 2015 ETC Where  inner membrane of mitochondria Energy Yield  Total of 32 ATP O 2 combines with TWO H + to form H 2 O Exhale - CO 2, H 2 O comes from cellular respiration

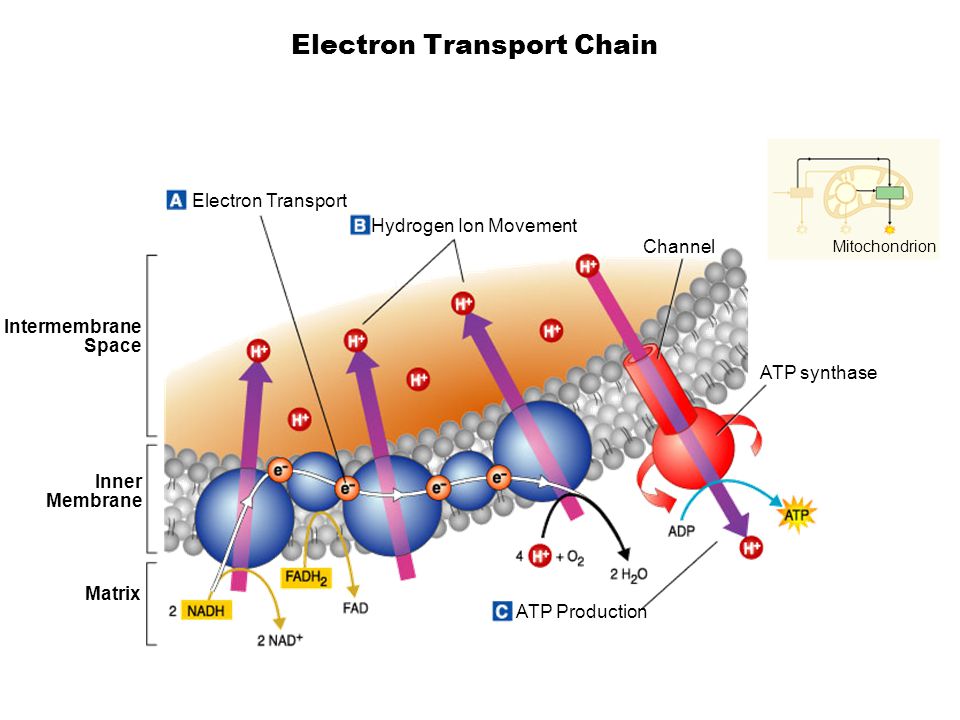

29. Electron Transport Chain Section 9-2 Electron Transport Hydrogen Ion Movement ATP Production ATP synthase Channel Inner Membrane Matrix Intermembrane Space Mitochondrion

30. Summary Glucose Glycolysis Cytoplasm Pyruvic acid Electrons carried in NADH Krebs Cycle Electrons carried in NADH and FADH 2 Electron Transport Chain Mitochondrion

31. May 3, 2015 Total ENERGY Yield Glycolysis  2 ATP Krebs Cycle  2 ATP ETC  32 ATP Total  36 ATP

32. May 3, 2015 Elaboration Respiration Lab Three experiments that review and further explain the process of cellular respiration

33. May 3, 2015 What happens if NO O 2 ? Cellular respiration process STOPS

34. May 3, 2015 Aerobic vs. Anaerobic Anaerobic DOES NOT require oxygen Simple fast produces smaller amounts of energy (ATP) Aerobic requires oxygen Yields large amounts of energy What is this energy molecule? ATP, ATP, ATP

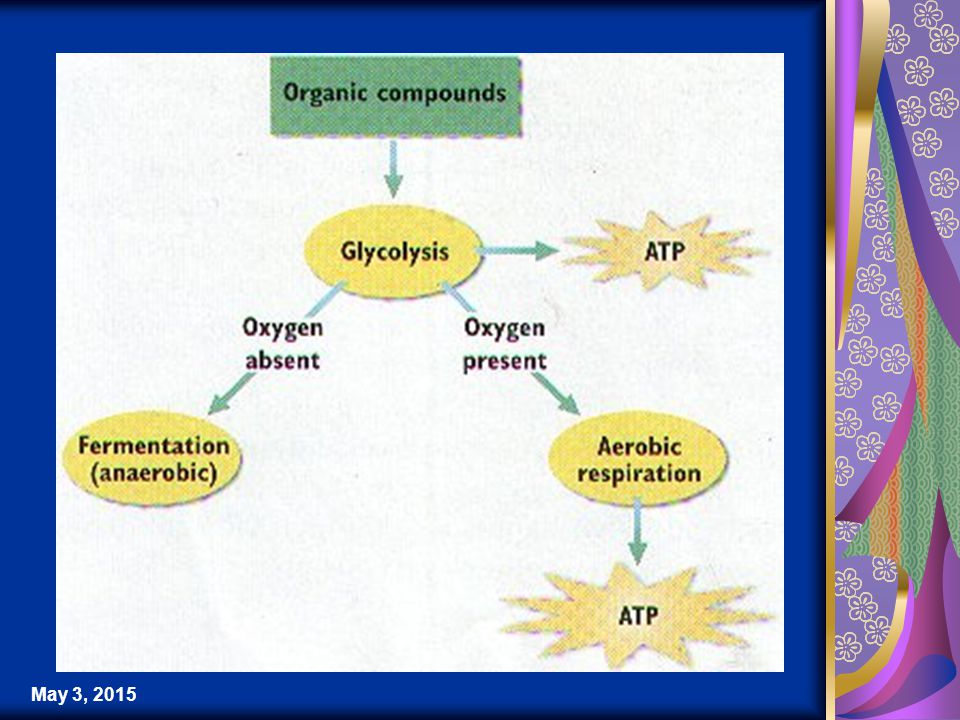

35. May 3, 2015

36. Releasing Energy w/out Oxygen Anaerobic Respiration NO Additional ATP is Formed NO O 2 leads to Fermentation Two Types Lactic Acid Fermentation Alcoholic Fermentation

37. May 3, 2015 Lactic Acid Fermentation bacteria, plants and most animals After glycolysis  2 pyruvic acid changed to lactic acid Sometimes happens in your muscles, cramps-----Exercise

38. May 3, 2015

39. Alcoholic Fermentation Bacteria and fungi (yeast) Ethyl alcohol and carbon dioxide are the end products Process used to form beer, wine, and other alcoholic beverages Also used to raise dough, bread

40. May 3, 2015

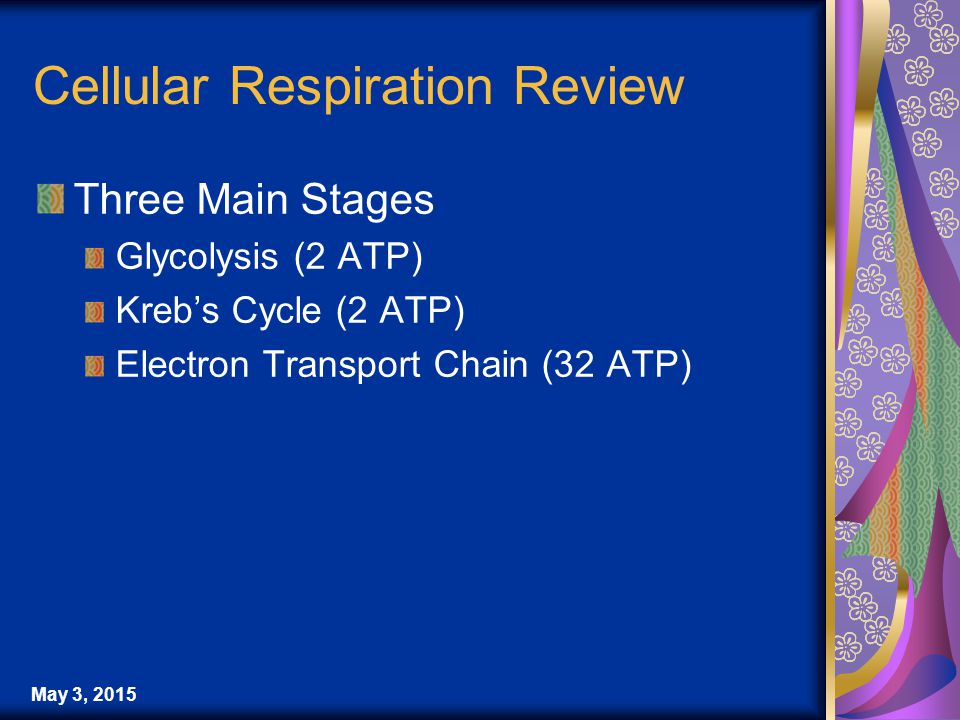

41. Cellular Respiration Review Three Main Stages Glycolysis (2 ATP) Kreb’s Cycle (2 ATP) Electron Transport Chain (32 ATP)

42. Glucose To the electron transport chain Figure 9–3 Glycolysis Glycolysis: Step 1 2 Pyruvic acid

43. Glucose To the electron transport chain Figure 9–3 Glycolysis Section 9-1 2 Pyruvic acid

44. Glucose To the electron transport chain Figure 9–3 Glycolysis Section 9-1 2 Pyruvic acid

45. Citric Acid Production The Krebs Cycle: Step 2 Section 9-2 Mitochondrion

46. Citric Acid Production Figure 9–6 The Krebs Cycle Section 9-2 Mitochondrion

47. Electron Transport Chain: Step 3 Section 9-2 Electron Transport Hydrogen Ion Movement ATP Production ATP synthase Channel Inner Membrane Matrix Intermembrane Space Mitochondrion

48. May 3, 2015 Evaluation Cellular Respiration Concept Map
