QLT M10 WUXI VARIANTS & OPTIONS Portable Energy Division March, 2014
2
COMMITTED TO SUSTAINABLE PRODUCTIVITY We stand by our responsibilities towards our customers, towards the environment and the people around us. We make performance stand the test of time. This is what we call – Sustainable Productivity.
3

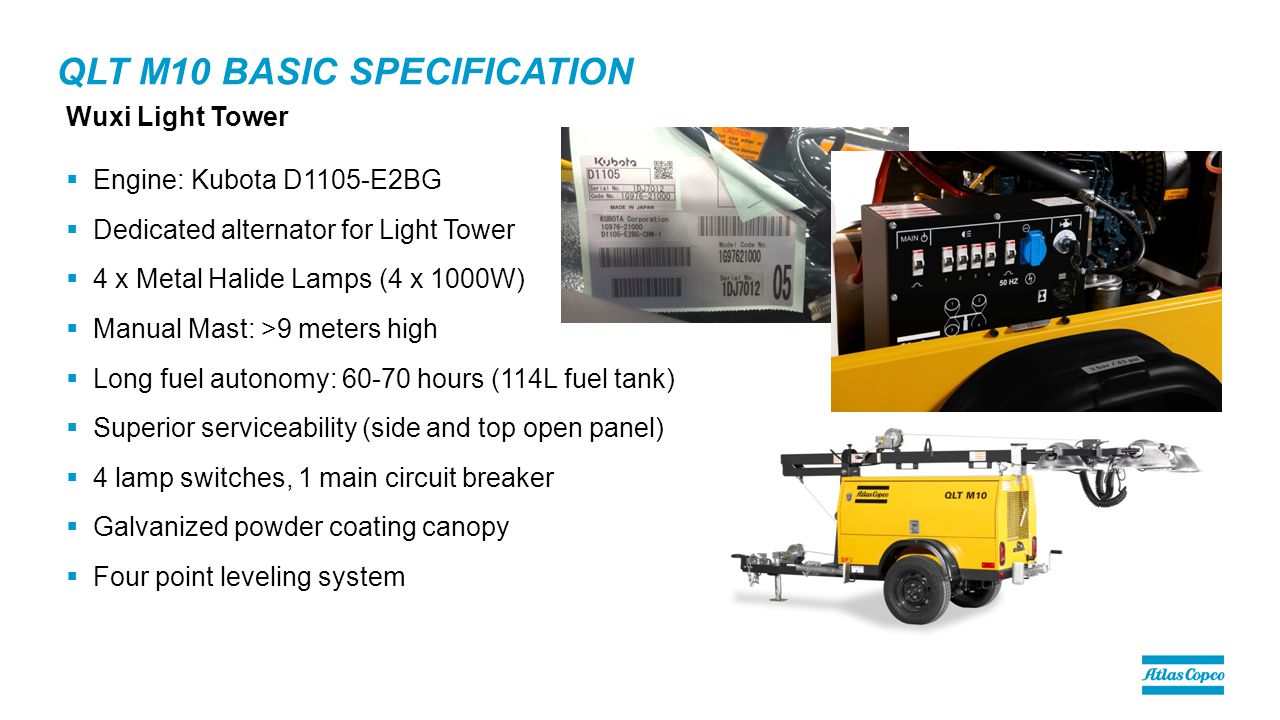

QLT M10 BASIC SPECIFICATION Engine: Kubota D1105-E2BG Dedicated alternator for Light Tower 4 x Metal Halide Lamps (4 x 1000W) Manual Mast: >9 meters high Long fuel autonomy: 60-70 hours (114L fuel tank) Superior serviceability (side and top open panel) 4 lamp switches, 1 main circuit breaker Galvanized powder coating canopy Four point leveling system Wuxi Light Tower
4

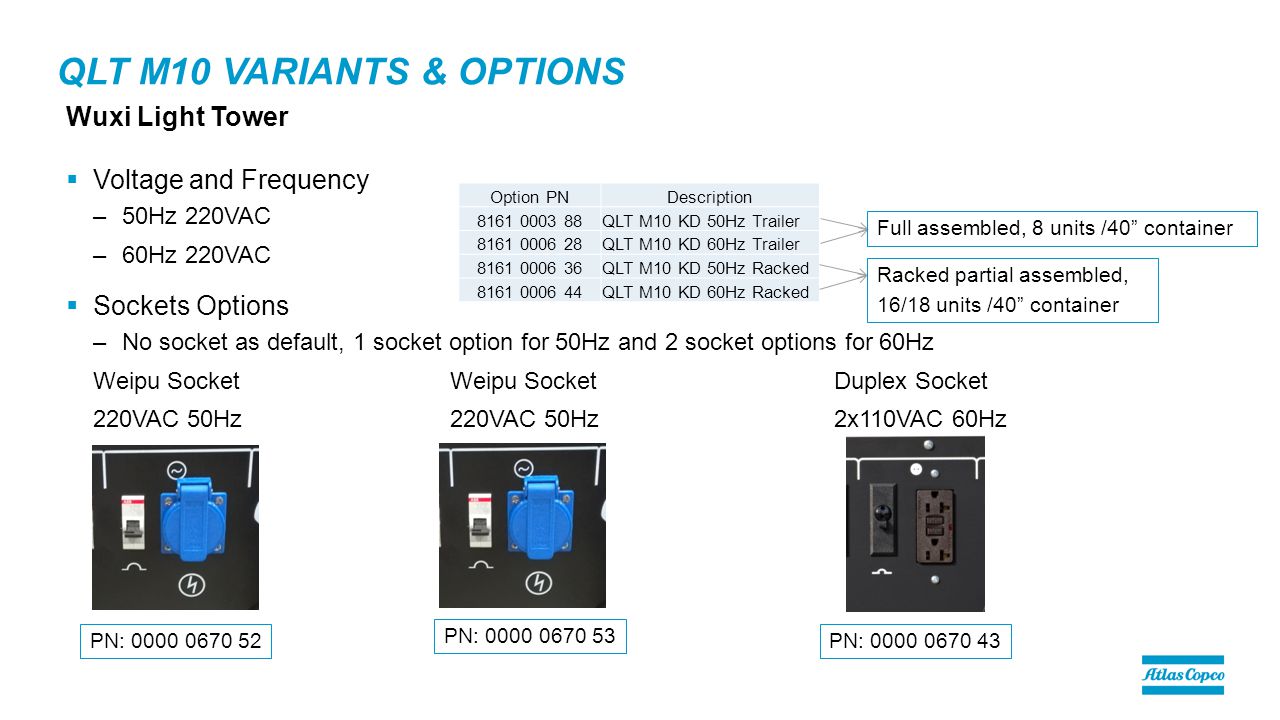

QLT M10 VARIANTS & OPTIONS Voltage and Frequency –50Hz 220VAC –60Hz 220VAC Sockets Options –No socket as default, 1 socket option for 50Hz and 2 socket options for 60Hz Weipu SocketWeipu SocketDuplex Socket 220VAC 50Hz220VAC 50Hz2x110VAC 60Hz Wuxi Light Tower Option PNDescription 8161 0003 88QLT M10 KD 50Hz Trailer 8161 0006 28QLT M10 KD 60Hz Trailer 8161 0006 36QLT M10 KD 50Hz Racked 8161 0006 44QLT M10 KD 60Hz Racked PN: 0000 0670 43PN: 0000 0670 52 PN: 0000 0670 53 Full assembled, 8 units /40” container Racked partial assembled, 16/18 units /40” container
5
QLT M10 VARIANTS & OPTIONS Trailer light system –Become optional because some markets do NOT required Towing Eye Options: COMBO EYEBall Coupling 2”Ring EYE (Ball Coupling + Ring Eye) Wuxi Light Tower PN: 0000 0670 14 PN: 0000 0670 33 PN: 0000 0670 38
6

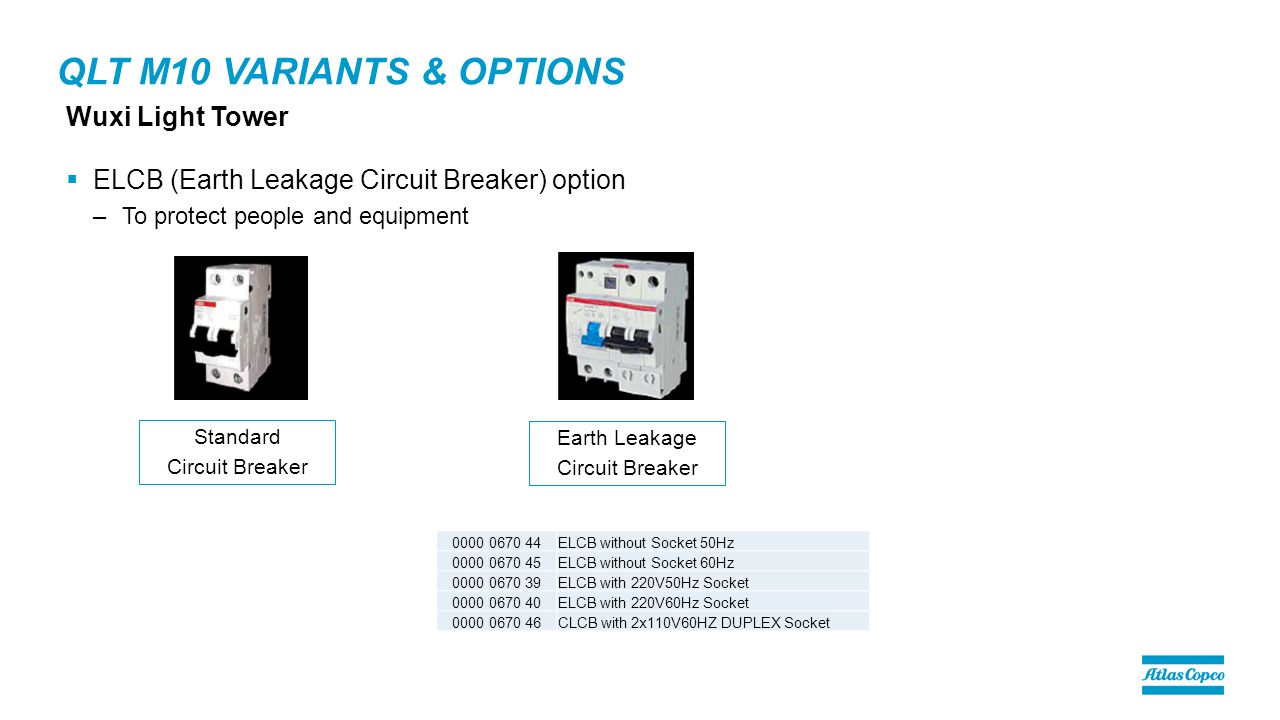

QLT M10 VARIANTS & OPTIONS ELCB (Earth Leakage Circuit Breaker) option –To protect people and equipment Wuxi Light Tower Standard Circuit Breaker Earth Leakage Circuit Breaker 0000 0670 44ELCB without Socket 50Hz 0000 0670 45ELCB without Socket 60Hz 0000 0670 39ELCB with 220V50Hz Socket 0000 0670 40ELCB with 220V60Hz Socket 0000 0670 46CLCB with 2x110V60HZ DUPLEX Socket
7
QLT M10 VARIANTS & OPTIONS Additional Fuel/Water separator –Recommended for low fuel quality regions Cold Start -25 ℃ –Initial filling with 5W40 engine oil and -35 ℃ fuel –Engine glue plugs as standard Wuxi Light Tower PN: 0000 0670 41 PN: 0000 0670 42
8

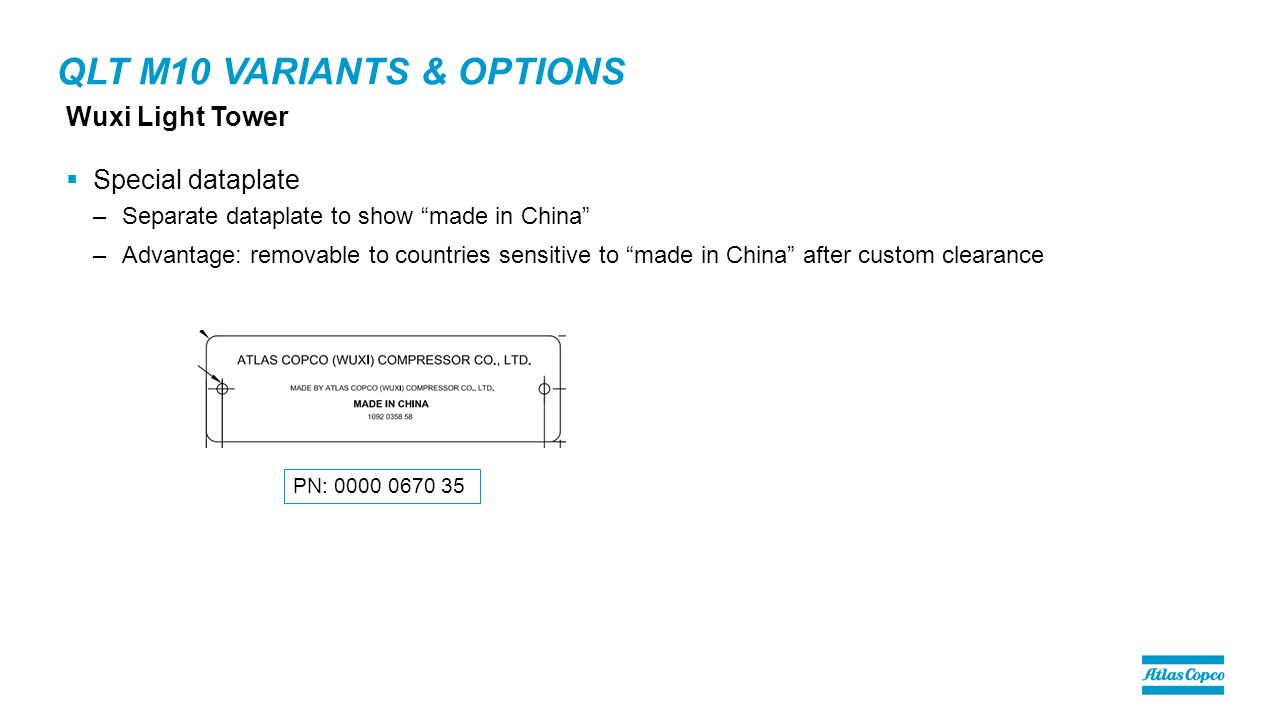

QLT M10 VARIANTS & OPTIONS Special dataplate –Separate dataplate to show “made in China” –Advantage: removable to countries sensitive to “made in China” after custom clearance Wuxi Light Tower PN: 0000 0670 35
9

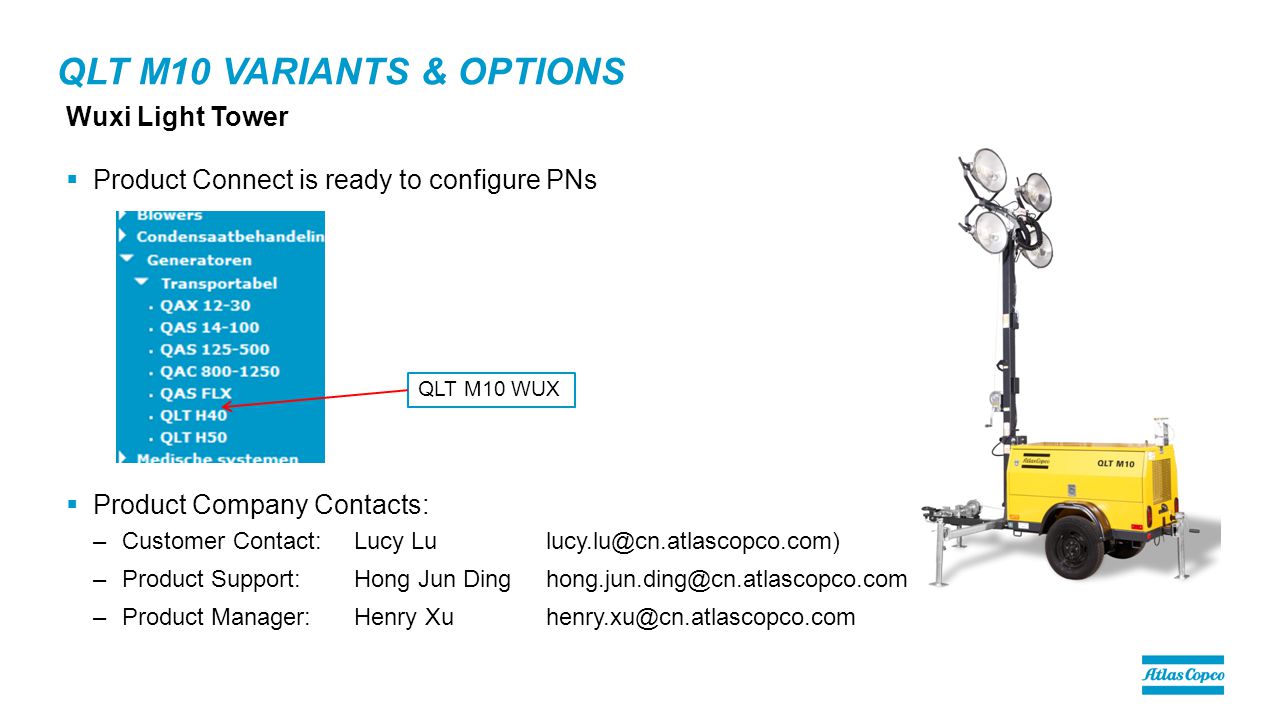

QLT M10 VARIANTS & OPTIONS Product Connect is ready to configure PNs Product Company Contacts: –Customer Contact:Lucy Lulucy.lu@cn.atlascopco.com) –Product Support:Hong Jun Dinghong.jun.ding@cn.atlascopco.com –Product Manager:Henry Xuhenry.xu@cn.atlascopco.com Wuxi Light Tower QLT M10 WUX
10
COMMITTED TO SUSTAINABLE PRODUCTIVITY.
