1 The Metropolitan District Clean Water Project Update Connecticut Watershed Network Conference May 11, 2012

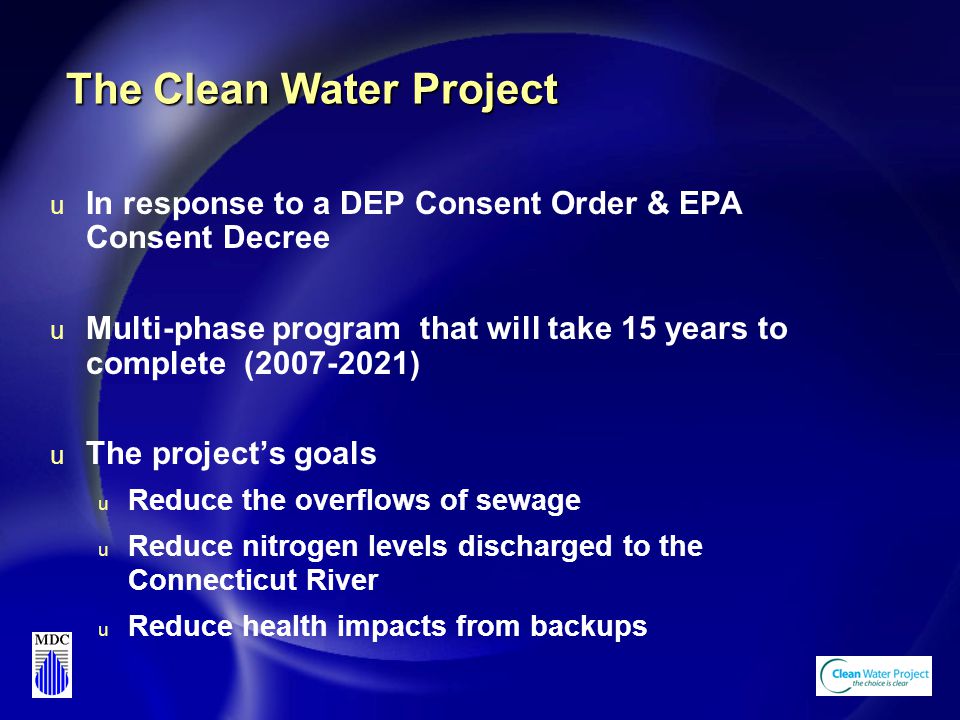

2 The Clean Water Project u In response to a DEP Consent Order & EPA Consent Decree u Multi-phase program that will take 15 years to complete (2007-2021) u The project’s goals u Reduce the overflows of sewage u Reduce nitrogen levels discharged to the Connecticut River u Reduce health impacts from backups

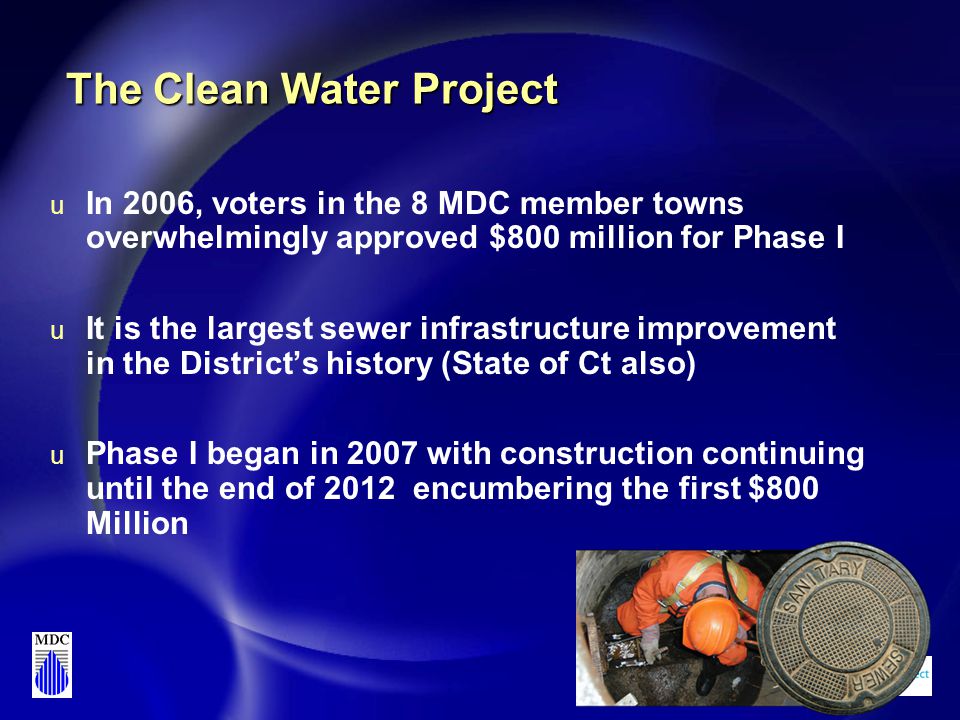

3 The Clean Water Project u In 2006, voters in the 8 MDC member towns overwhelmingly approved $800 million for Phase I u It is the largest sewer infrastructure improvement in the District’s history (State of Ct also) u Phase I began in 2007 with construction continuing until the end of 2012 encumbering the first $800 Million

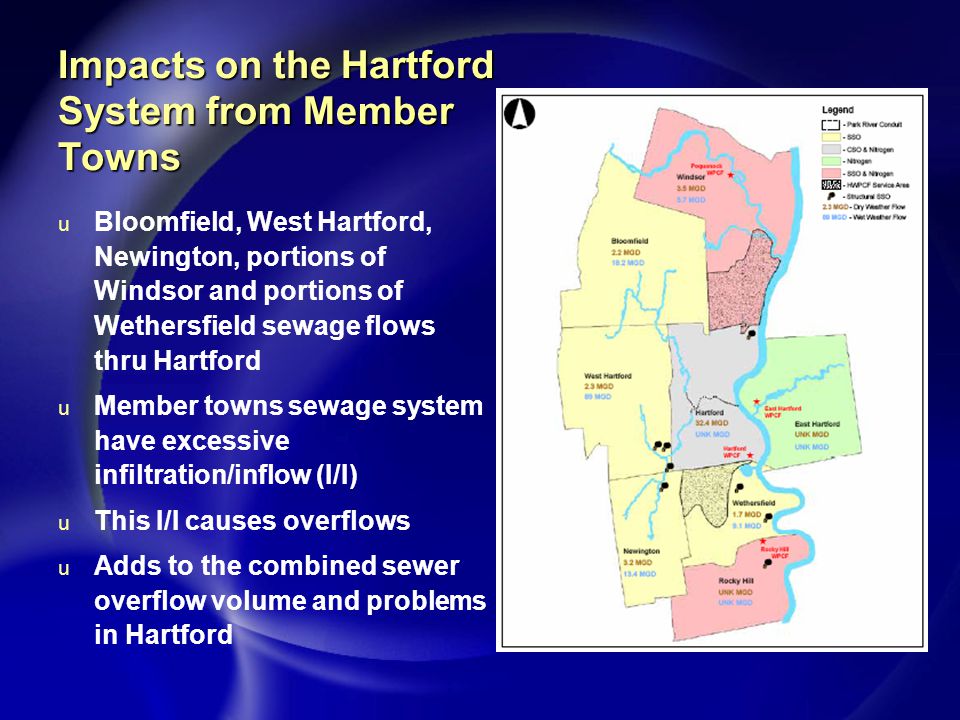

4 Impacts on the Hartford System from Member Towns u Bloomfield, West Hartford, Newington, portions of Windsor and portions of Wethersfield sewage flows thru Hartford u Member towns sewage system have excessive infiltration/inflow (I/I) u This I/I causes overflows u Adds to the combined sewer overflow volume and problems in Hartford

5 CSO Problem – Consent Order Based on model results, approximately: u 1 billion gallons of annual CSO u 38 CSO outfalls u 50 rainfall events per year result in CSOs u Bacteria levels > water quality standards 15 - 30 miles downstream of CSOs u Target control level: u 1 overflow event per typical year u Elimination of overflows to Wethersfield Cove and the North Branch of Park River

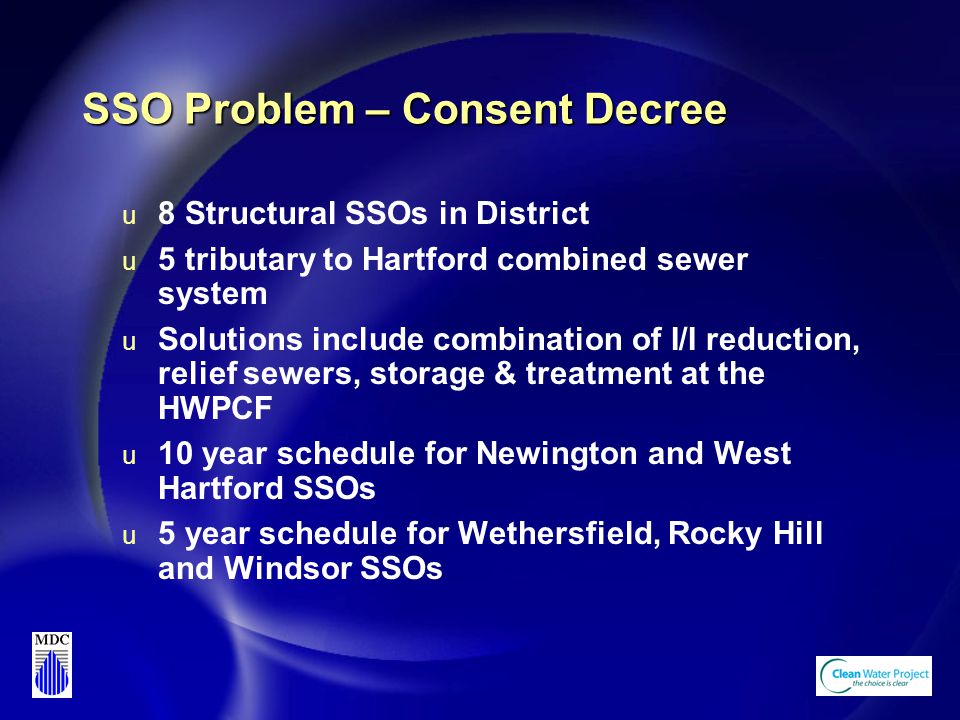

6 SSO Problem – Consent Decree u 8 Structural SSOs in District u 5 tributary to Hartford combined sewer system u Solutions include combination of I/I reduction, relief sewers, storage & treatment at the HWPCF u 10 year schedule for Newington and West Hartford SSOs u 5 year schedule for Wethersfield, Rocky Hill and Windsor SSOs

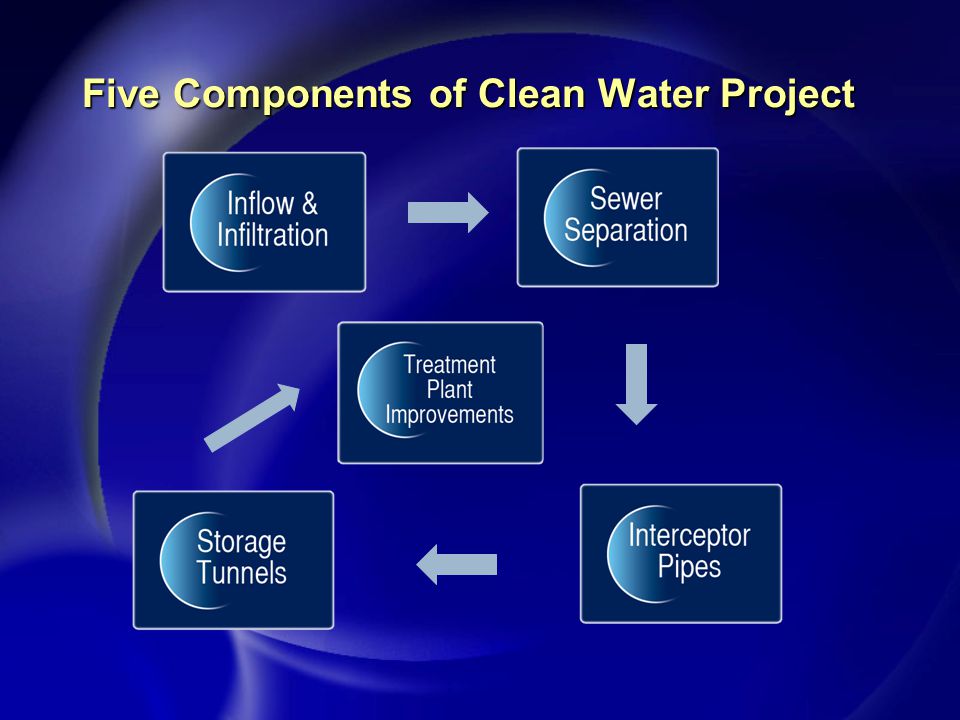

7 Five Components of Clean Water Project

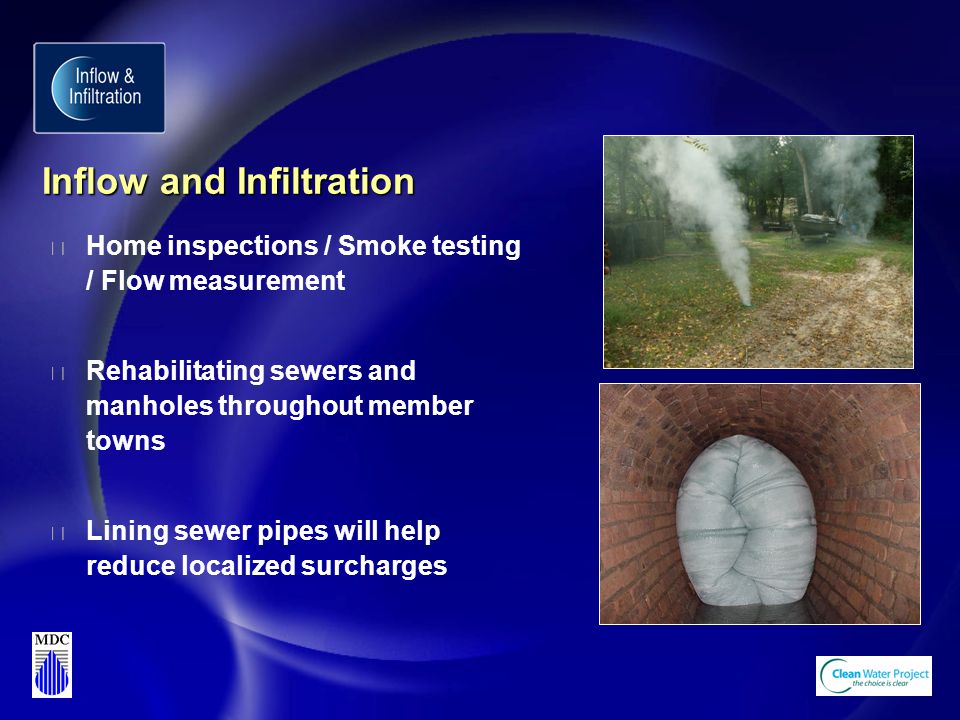

8 Inflow and Infiltration u Home inspections / Smoke testing / Flow measurement u Rehabilitating sewers and manholes throughout member towns u Lining sewer pipes will help reduce localized surcharges

9 Sewer Separation Areas Sewer Separation Areas u 6 Areas Project Wide u Separates Combined Sewers

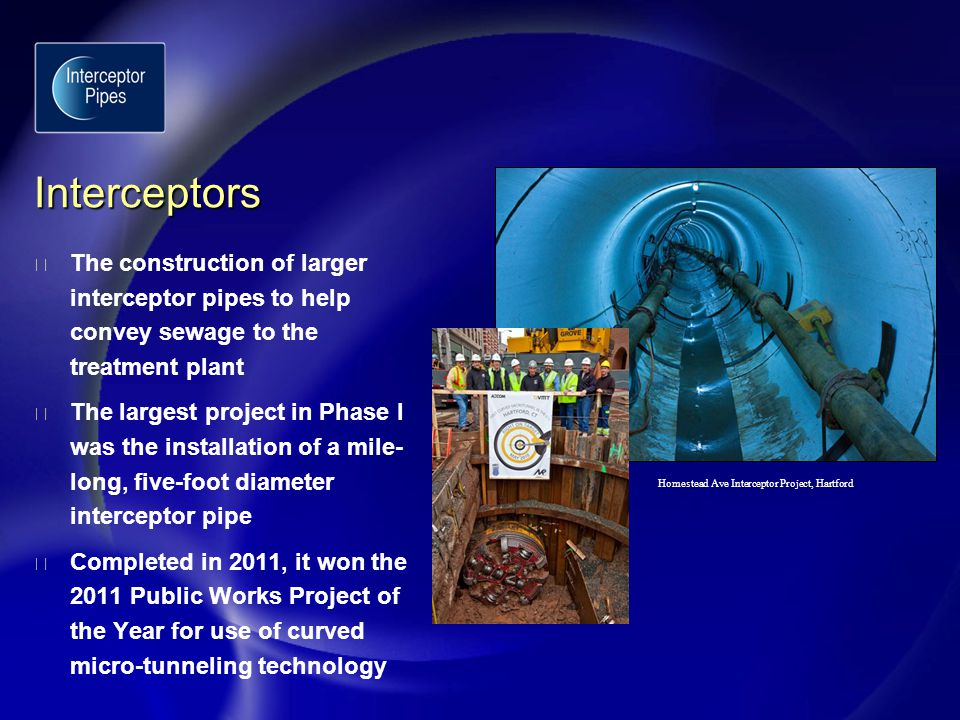

10 Interceptors u The construction of larger interceptor pipes to help convey sewage to the treatment plant u The largest project in Phase I was the installation of a mile- long, five-foot diameter interceptor pipe u Completed in 2011, it won the 2011 Public Works Project of the Year for use of curved micro-tunneling technology Homestead Ave Interceptor Project, Hartford

11 Tunnels & Conduits u South & North Tunnel u South Tunnel is under design u Construction will begin 2014 u Deep rock tunnel with 19 foot diameter and 2.5 miles long

12 Hartford & Rocky Hill Water Pollution Control Facilities Hartford & Rocky Hill Water Pollution Control Facilities Hartford Water Pollution Control Rocky Hill Water Pollution Control u Hartford WPC u $120 million of construction contracted to date u Wet Weather Expansion Next Major Phase- increases peak flow from 135 MGD to 200 MGD u Rocky Hill will be expanded in Phase II of CWP-increases peak flow from 18 MGD to 27 MGD

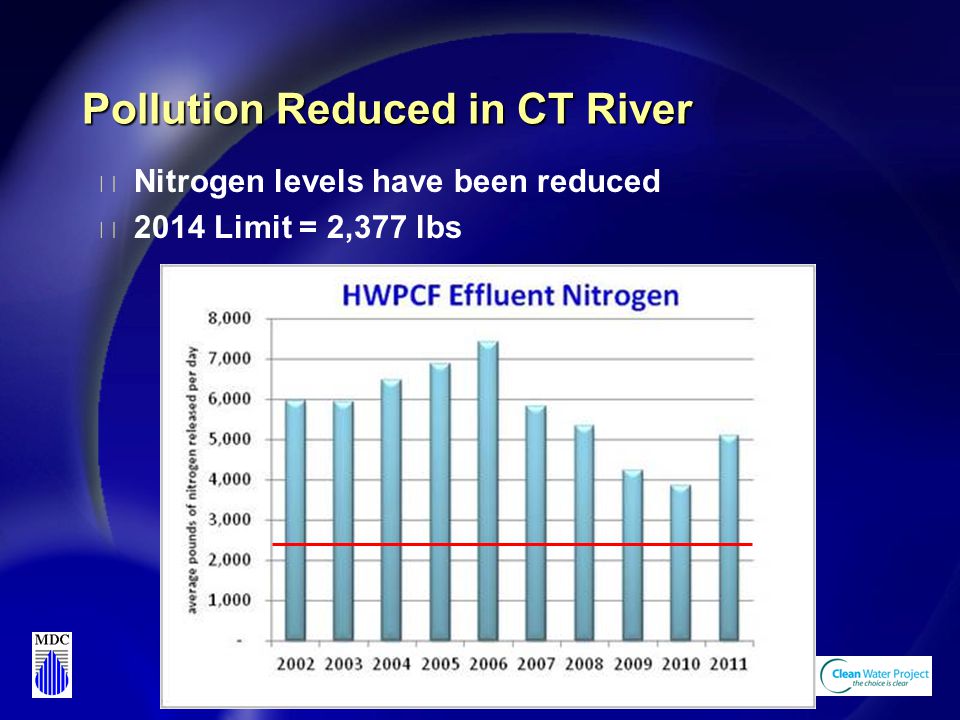

13 Pollution Reduced in CT River u Nitrogen levels have been reduced u 2014 Limit = 2,377 lbs

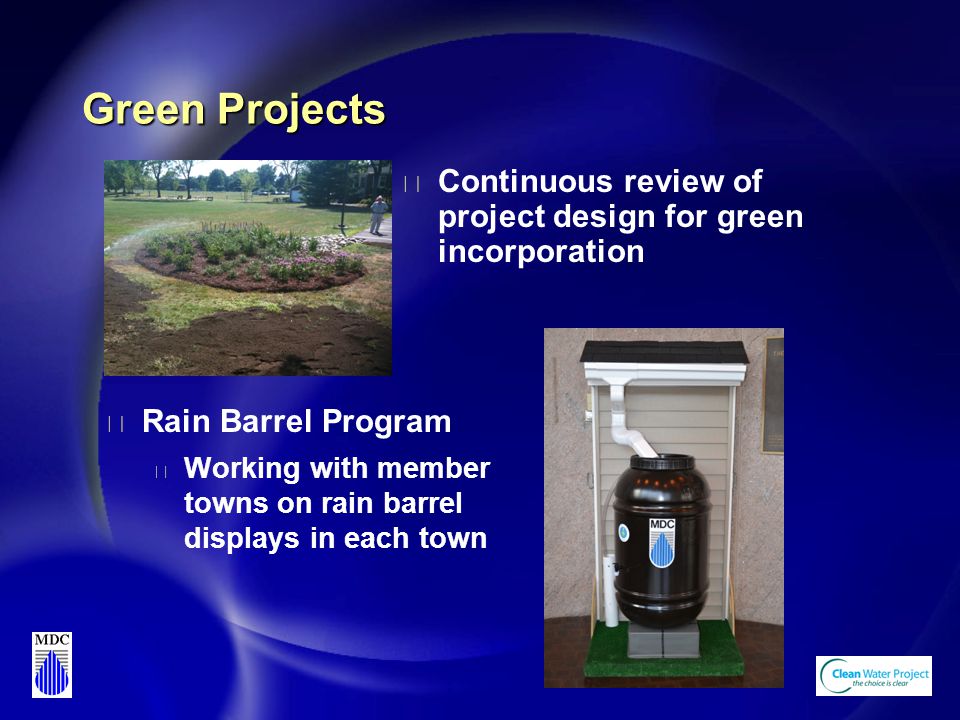

14 Green Projects u Continuous review of project design for green incorporation u Rain Barrel Program u Working with member towns on rain barrel displays in each town

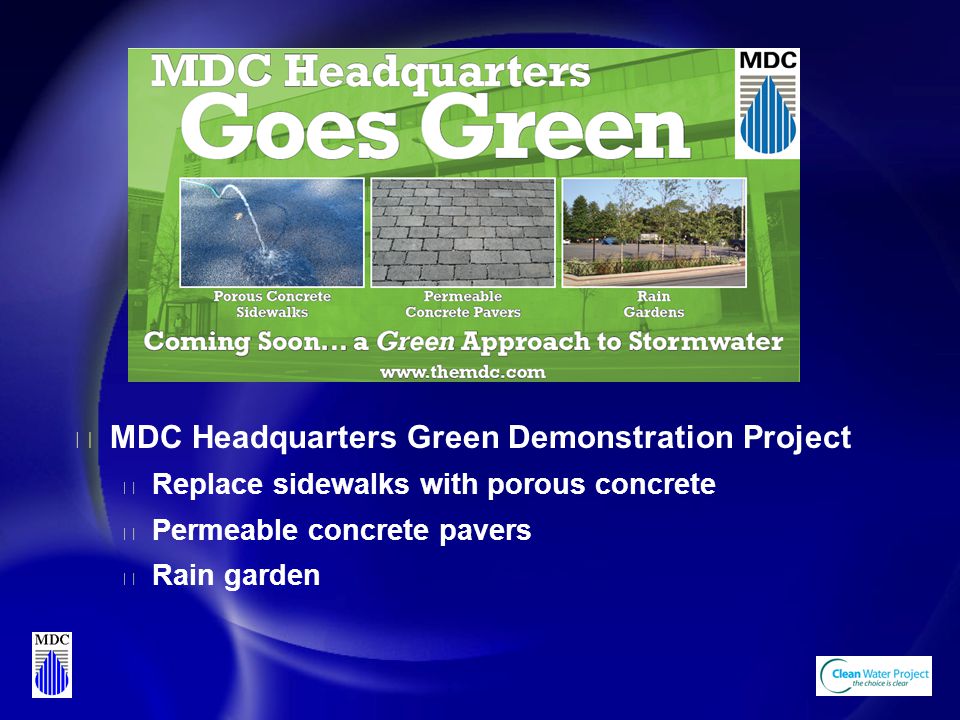

15 u MDC Headquarters Green Demonstration Project u Replace sidewalks with porous concrete u Permeable concrete pavers u Rain garden

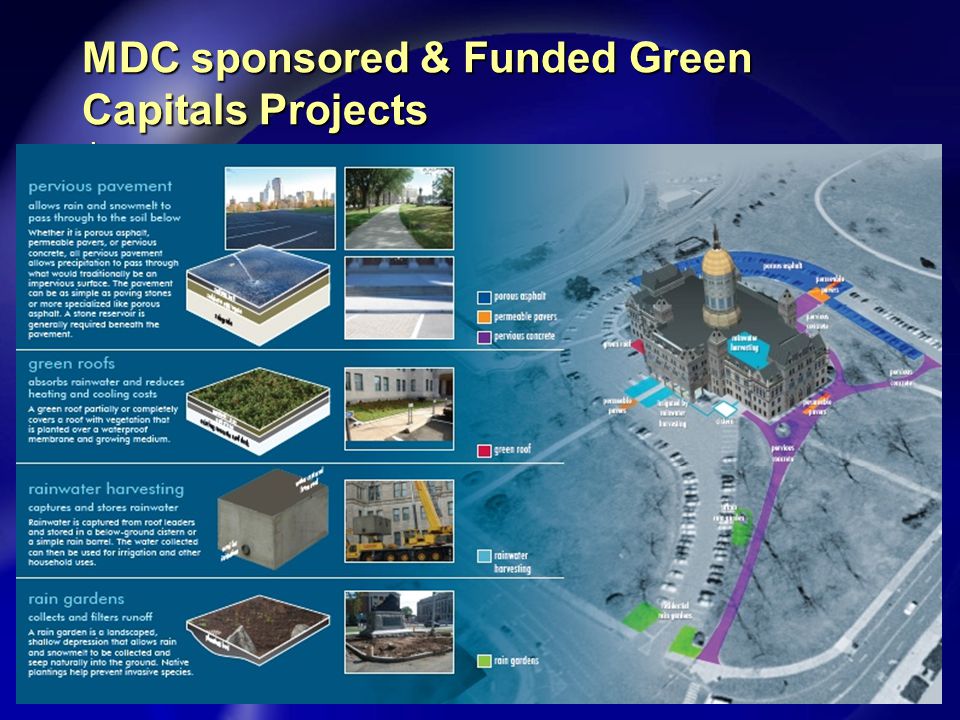

16 MDC sponsored & Funded Green Capitals Projects $1.5 mil project reen Capitals Project

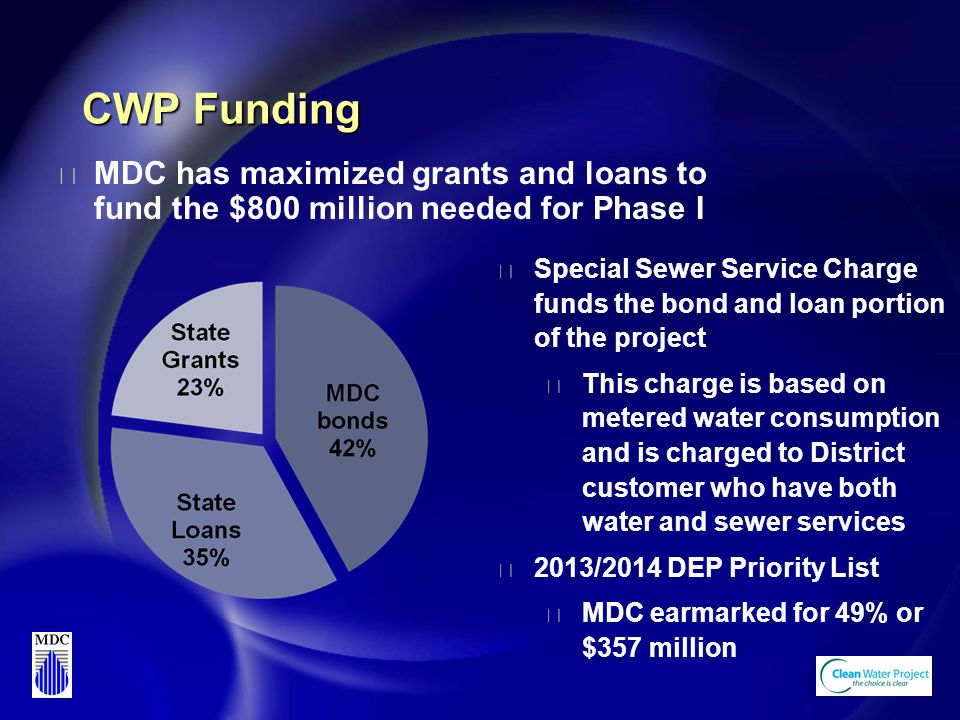

17 CWP Funding u MDC has maximized grants and loans to fund the $800 million needed for Phase I Special Sewer Service Charge The Special Sewer Service Charge (SSSC), established by the District Board in 2007, is a dedicated fund created for the repayment of debt associated with the Clean Water Project. The SSSC is based on metered water consumption and is charged to District customers who have both water and sewer services. Special Sewer Service Charge The Special Sewer Service Charge (SSSC), established by the District Board in 2007, is a dedicated fund created for the repayment of debt associated with the Clean Water Project. The SSSC is based on metered water consumption and is charged to District customers who have both water and sewer services. Special Sewer Service Charge The Special Sewer Service Charge (SSSC), established by the District Board in 2007, is a dedicated fund created for the repayment of debt associated with the Clean Water Project. The SSSC is based on metered water consumption and is charged to District customers who have both water and sewer services. u Special Sewer Service Charge funds the bond and loan portion of the project u This charge is based on metered water consumption and is charged to District customer who have both water and sewer services u 2013/2014 DEP Priority List u MDC earmarked for 49% or $357 million

18 Special Sewer Service Charge (SSSC) Billed Quarterly

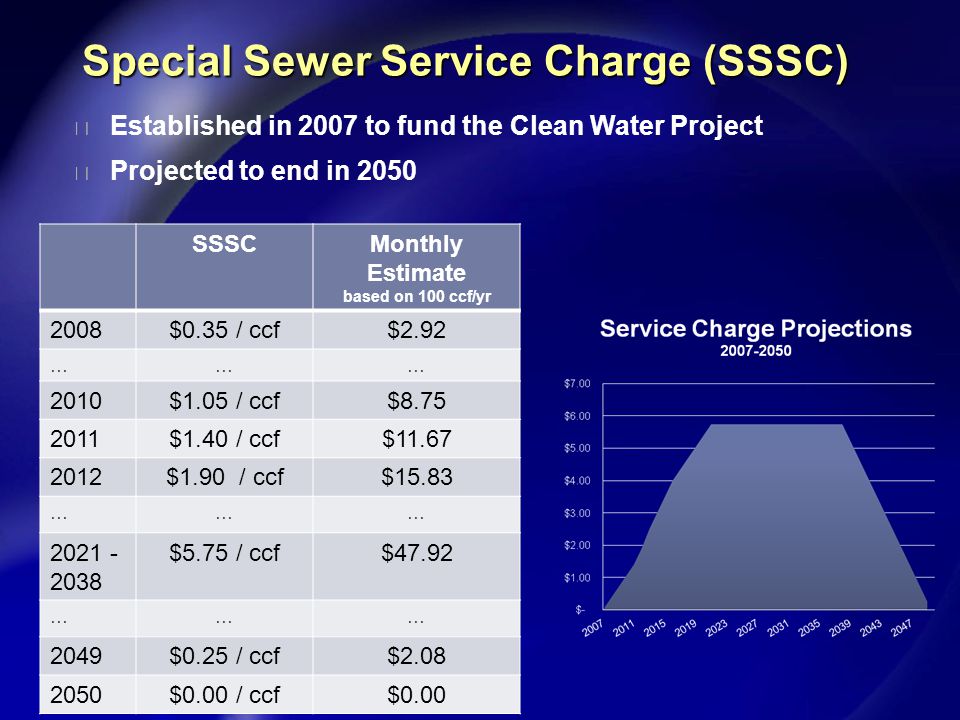

19 Special Sewer Service Charge (SSSC) SSSCMonthly Estimate based on 100 ccf/yr 2008$0.35 / ccf$2.92 ……… 2010$1.05 / ccf$8.75 2011$1.40 / ccf$11.67 2012$1.90 / ccf$15.83 ……… 2021 - 2038 $5.75 / ccf$47.92 ……… 2049$0.25 / ccf$2.08 2050$0.00 / ccf$0.00 u Established in 2007 to fund the Clean Water Project u Projected to end in 2050

20 Summary u Project on time and within budget u We are fixing serious environmental and public health problems u Significantly reduce pollution in local waterways and Long Island Sound u Prevent sewage backups in homes and neighborhood streets u Maintain quality of life in the District by improving infrastructure

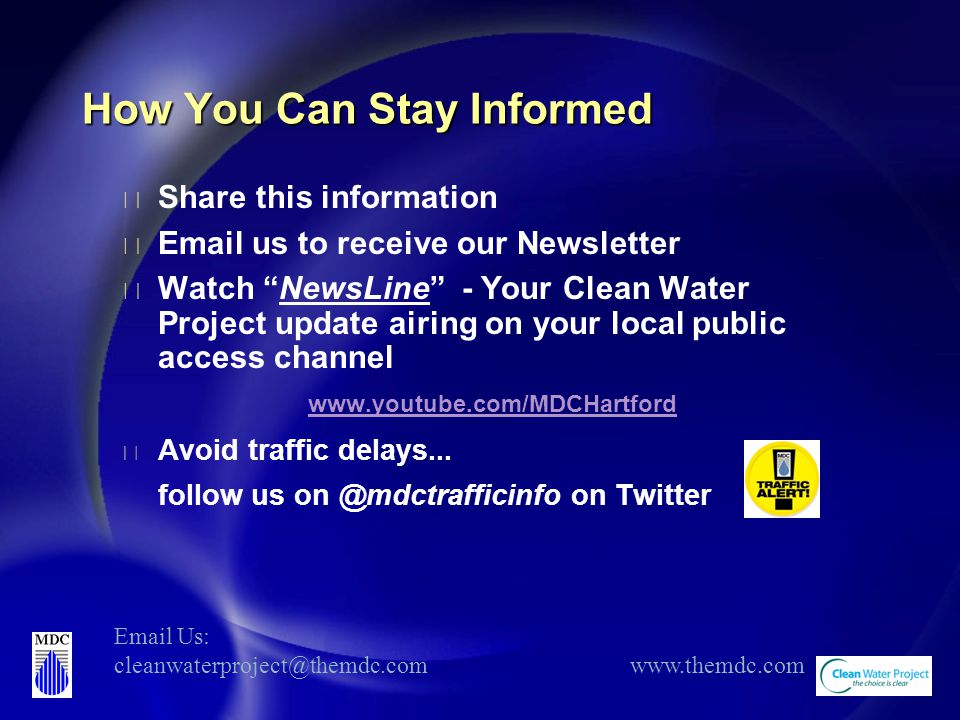

21 How You Can Stay Informed u Share this information u Email us to receive our Newsletter u Watch “NewsLine” - Your Clean Water Project update airing on your local public access channel www.youtube.com/MDCHartford u Avoid traffic delays... follow us on @mdctrafficinfo on Twitter Email Us: cleanwaterproject@themdc.com www.themdc.com
